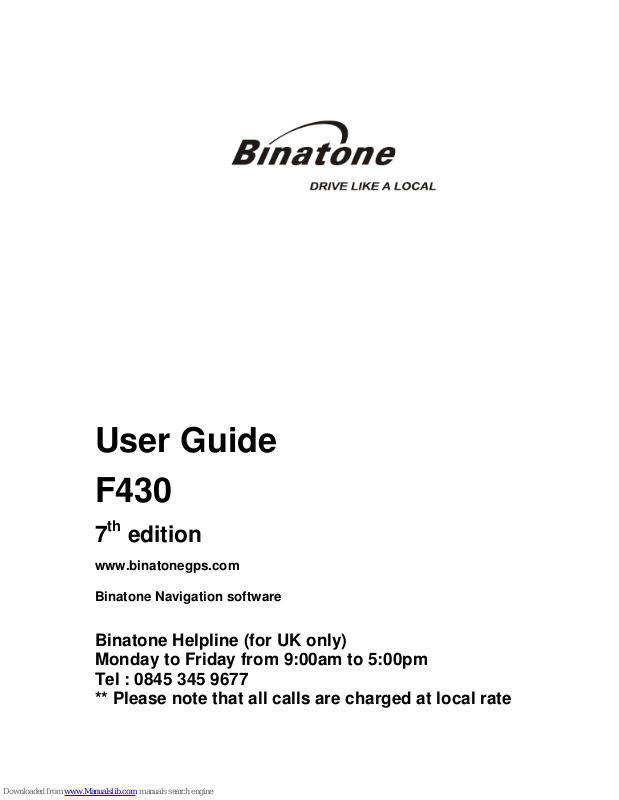

User Guide
F430
7th edition
www.binatonegps.com
Binatone Navigation software
Binatone Helpline (for UK only)
Monday to Friday from 9:00am to 5:00pm
Tel : 0845 345 9677
** Please note that all calls are charged at local rate
Page 2
SAFETY
IMPORTANT
Satellite signals are required for this product to function in Navigation Mode.
There may be occasions within your home or surrounding area when the signal
strength is limited and Navigation may not be possible.
This is quite normal for products of this type.
You can check the number of satellite signals that the unit is receiving and the
strength of those signals by viewing the GPS Receiver.
Unpacking your Binatone Navigation System
In the box you will find
·
GPS navigation device
·
Car mounting kit
·
In-car charger
·
USB cable
·
User guide
·
Stylus
Keep the packaging materials in a safe place in
case you later need to transport the unit. Keep your
sales (till) receipt, which is your guarantee. Before
you can use the unit, you’ll need to fully charge the
battery as described on page 6, please also read
the notes on the page 2.
WARNING:
Your GPS device operates under open sky
conditions in order to receive a satellite signal.
Please ensure that you are not using the device
indoors or in areas where the satellite signal is
weak.
For the first time of use or after a few days of no
use, it may take up to 10 minutes to acquire a
satellite signal. It is recommended to be stationary
during the start up process.
*USB cable can be either used to charge your device with your computer or
update your system. Charging via the USB cable will take much longer than by
mains/car charger and is not advised.
2
Page 3
SAFETY
Safety
The Global Positioning System
The Global Positioning System (GPS) is a satellite based system that provides
location and timing information around the globe. The GPS is operated and
controlled under the sole responsibility of the Government of the United States of
America, who are responsible for its availability and accuracy. Any changes in
GPS availability and accuracy, or in environmental conditions, may impact the
operation of you Binatone Personal Navigation Device (PND).
Using Your PND in the Car
When using your PND while driving it is essential that you drive with due care
and attention. Never modify the settings or program you PND while driving. Only
look at the PND map when it is safe to do so. When mounting the PND in your
car make sure that it does not obscure your view or impede the operation of any
driving controls.
Prohibited Areas
Do not operate your PND in hospitals or near any electrical medical equipment.
Do not operate your PND in aircraft.
Do not operate while on a petrol station forecourt.
Battery
Your PND uses a Li-polymer battery. Do not use it in humid, wet or corrosive
environments. Do not operate or store your PND in high temperatures (>60℃) or
in direct sun light. Do not pierce or break the battery casing.
Failure to follow these cautions will invalidate the warranty and may
cause the battery to leak acid, become hot, explode or ignite and
cause injury or damage.
If you come into contact with leaked battery acid wash the contact
area thoroughly and seek medical attention.
The Li-polymer battery contained in this unit must be recycled or
disposed of properly.
Do not dispose of in household waste or burn.
3
Page 4
CONTENTS
CONTENTS
Important………………………………………………………………………. 02
In the Box ……….………………………………………………………... 02
Safety …………………………………………………………………………… 03
The Global Positioning System …………………………………………… 03
Using Your PND in the Car .…………………………………………….. 03
Prohibited Areas .…………………………………………………….…… 03
Battery..…………………………………………………………………….. 03
Contents .………………………………………………………………………. 04
Quick Start Guide …………………………………………………………… 07
Position of the Controls ………………………………………………… 07
Charging the Battery ……………………………………………………. 08
SD Memory Card ………………………………………………………... 08
Car Adaptor ……………………………………………………………… 08
Turning the Sat Nav Unit On/Off ……………………………………….. 09
Turning the Sat Nav Unit Off (Sleep Mode) .………………………….. 09
System Reset ……………………………………………………………. 09
Windscreen Holder Installation ………………………………………… 10
Getting Started
Starting Up ... ……………………………………………………………… 11
Settings ……………………………………………………………………. 12
Multi-Media ………………………………………………………………… 13
Picture Viewer..……………………………………………………... 13
Document Viewer …………………………………………………... 14
GPS Receiver ……………………………………………………………… 15
Additional maps and upgrades …………………………………………… 15
…….…………………………………………………………. 11
4
Page 5
CONTENTS
NAVIGATION
1. Introduction…………………………………………………………………………16
1.1 GPS connection…………………………………………………………….16
2. Getting Started ..............................................................................................17
3. Navigational Map Screens………………………………………………………..17
3.1 Free Navigation……………………………………………………………..18
3.2 Route Navigation……………………………………………………………19
4. Browsing the Map…………………………………………………………………..20
5. Navigation…………………………………………………………………………...20
5.1 Free navigation………………………………………………………………20
5.2 Route Navigation…………………………………………………………….20
6. Go to………………………………………………………………………………….20
6.1 Entering an Address/Postcode……………………………………………..21
6.2 Searching for a POI (Point of Interest)…………………………………….23
6.2.1 POI near Current Position………………………………………….23
6.2.2 POI in City……………………………………………………………24
6.3 Selecting an Entry from the Address Book………………………………..25
6.4 Selecting a Recent Destination…………………………………………….25
6.5 Selecting a Point on the Map……………………………………………….26
6.6 Entering a set of Co-ordinates……………………………………………...26
6.7 To Navigate Directly Home………………………………………………….27
7. Map Options…………………………………………………………………………27
7.1 North Up/Heading Up……………………………………………………….27
7.2 3D/2D…………………………………………………………………………28
7.3 Motorway Sign Post…………………………………………………………28
7.4 Voice Guidance………………………………………………………………28
7.5 Auto Zoom…………………………………………………………………….29
7.6 Simulation Speed…………………………………………………………….29
8. Settings……………………………………………………………………………… 29
8.1 Language……………………………………………………………………. 29
8.2 Safety Alert……………………………………………………………………30
8.3 Trace Record………………………………………………………………….30
8.4 Address Book…………………………………………………………………31
8.4.1 Add an Entry…………………………………………………………31
8.4.2 Edit an Entry…………………………………………………………32
8.4.3 Delete an Entry………………………………………………………32
8.5 Day/Night Mode……………………………………………………………… 33
8.6 Set Home Address……………………………………………………………33
8.7 GPS Status…………………………………………………………………….33
8.8 Miles/Kilometre………………………………………………………………. .34
8.9 About…………………………………………………………………………. .34
8.10 Time Zone…………………………………………………………………….34
5
Page 6
CONTENTS
8.11 Brightness……………………………………………………………………34
8.12 Calibration……………………………………………………………………35
9. Route Plan……………………………………………………………………………35
9.1 Navigating……………………………………………………………………. 35
9.2 Waypoints……………………………………………………………………. 36
9.3 Simulate……………………………………………………………………….37
9.4 Route Options………………………………………………………………...37
10. Route Navigation Menu……………………………………………………………37
10.1 Route Plan…………………………………………………………………...38
10.2 Detour ………………………………………………………………………..38
10.3 Cancel Route ………………………………………………………………..38
10.4 Go to …………………………………………………………………………38
10.5 Route Information …………………………………………………………..39
10.6 Map Options ………………………………………………………………...39
10.7 Settings ………………………………………………………………………39
Frequently asked questions
The map contains an error / POI’s are missing………………………………..40
I am experiencing problems getting a GPS fix…………………………………40
Where can I get technical support?……………………………………………..40
Where can I get additional maps and guides…………………………………..40
Guarantee and service
…………………………………………………………. 41
Technical Specifications
EC Declaration of Conformity
………………………………………………….40
……………………………………………………… 42
……………………………………………….. 43
6
Page 7
QUICK START GUIDE
1
5
2
7
8
9
Quick Start Guide
Please make sure that your read all of the information contained within this user
guide before operating this unit.
If you experience any problems, please go through the user guide before contacting
the customer helpline.
Position of the controls
Touch Screen
1.
Charge Indicator
2.
Red; charging, Green; fully charged.
3. On/Off Switch – Turn On the unit when it is Off or in Sleep mode.
4. Reset – System reset switch.
Speaker
5.
Memory Card Slot
6.
memory card while in use.
Power Connection USB Port
7.
Headphone Jack
8.
Stylus Pen
9.
– Displays the battery charging status.
Turn the unit to Off or put into Sleep mode during operation.
– For voice guidance instructions.
– For use with MicroSD type cards. Do not remove
– For charging and data transfer.
– Allows connection to external headphones.
7
Page 8
QUICK START GUIDE
Charging the Battery
Before using your GPS device for the first time, we recommend that you charge the
unit for 5 hours via the mains/car charger, or until the charge light turns green.
Plug the mains/car charger into the USB socket.
NOTE: Charging via USB cable. It is possible to charge the unit via the USB cable
but the charge time will be significantly increased. Also if the battery is very low the
unit will not fully charge.
The charging indicator on the unit will light up red. When fully charged the red light
will turn green.
When using the GPS device in your car, we recommend that you always use the car
charger in order to maintain the battery level.
If you have a MicroSD memory Card,
(below)
Switch the unit off first before installing or removing the MicroSD card.
When installing it can only be fitted one way – the contacts should be facing away
from you and the cut-off corner at the bottom (as shown above). Slide the card in
and push it in so that it clicks into place.
Once the card is installed it does not need to be removed.
If you need to remove the card, push the card in and it will eject from the slot.
you may install it refer to the picture
Car Adapter
When using your PND in the car we recommend that you always use the in-car
charger to power the unit, especially on long journeys.
Plug the in-car charger into the USB socket of the unit. Plug the other end of the
adapter into the car’s cigarette-lighter / 12V DC socket.
The adaptor is also compatible with 24V DC sources, as found in many heavy goods
vehicles.
8
Page 9
QUICK START GUIDE
Turning the Sat Nav Unit On/Off
Press and hold the On/Off button on the top of the unit for around 3 seconds, the unit
will power up and display the Menu screen.
Press and hold the On/Off button for
around 3 seconds during operation,
the unit will show up the following
display,
Turning the Sat Nav Unit Off or
Sleep Mode
Press the sleep icon to put
the unit into sleep mode. Press and
hold the On/Off button again, to bring
the unit out of sleep mode. When
brought out of sleep mode the unit will
show the same screen as when the unit entered sleep mode.
Press the Off icon to turn the unit Off.
There is a 10 second timer which starts to count down, if there is no selection made
within 10 seconds, the unit will turn off automatically.
Note: If the unit is not to be used for a long period of time it is advised that you switch
the unit Off.
System Reset
Under extreme circumstances it may be necessary to reboot the system. Reset the
system if the following situation occurs:
•
Long delay experienced with screen refresh rate or operation, resulting in an
inoperable unit.
•
The system will not turn Off with the power button.
• No response with selection made on the screen.
The reset button can be found on the rear of the unit. Insert the tip of the stylus pen
or small blunt implement into the reset switch in order to press. The system will be
immediately reset.
9
Page 10
QUICK START GUIDE
Windscreen Holder Installation
The car mount has a suction pad that fits to the windscreen or a flat area on the
dashboard.
A. Fitting to windscreen
Pull the lever away from the suction pad. Place the pad on the widescreen and push
the lever towards the pad until it clicks into place.
B. Fitting the holding bracket
It is best to fit this to the unit before it is attached to the windscreen.
Slide the bracket onto the securing lug on the end of the ball mount at the end of the
car mount and then push down firmly, until it clicks in to place. The bracket can only
be fitted one way.
C. Fitting the Unit
Slide the unit into the bottom of the bracket and carefully push the unit up and back
until it clicks into place at the top.
To remove the unit from the car mount; Press and lift the tab at the top of the bracket
then pull the unit forward and out of the bottom of the bracket.
To remove the Car mount from the windscreen; Lift the lever away from the
windscreen, then gentle pull the tab on the suction cup to release the suction as you
pull the mount away from the windscreen.
10
Page 11
MAIN MENU
Starting Up
Press the On/Off button on the top until the following screens are displayed,
When you press MENU, the following screens will be displayed:
11
Page 12
MAIN MENU
Settings
NOTE: You do not need to enter the SETTINGS menu before you start to navigate.
If you press on the SETTINGS icon the following screen is displayed.
To exit this page or exit any subsequent page, press the at the bottom of the
screen. Any changes in settings will not be saved if you exit by using this key.
Volume
Press ’volume’ you can modify the volume level of the voice prompts. You can
increase or decrease the level by clicking “ ” or “ ”. This can also be done via
the navigation software later. Pressing the speaker button will mute/un-mute the
speaker.
is shown when un-muted, is shown when muted. Clicking “ ” or “
” can release the mute status.
Press to confirm and exit
Backlight
Press ‘Backlight’ to change the brightness of the screen. You can make it darker or
brighter by clicking “ ” or “ ”. This can also be done via the navigation software
later.
Press to confirm and exit

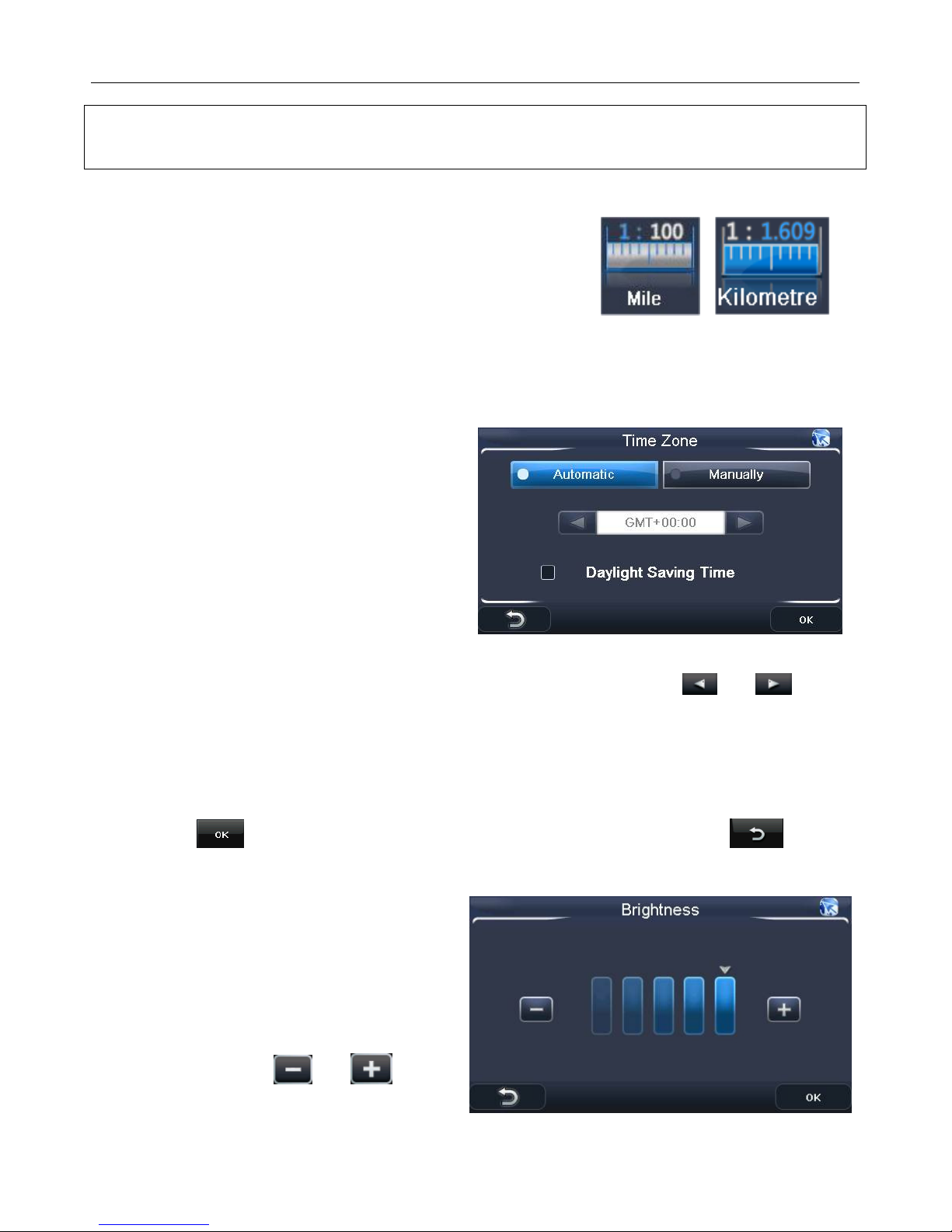

Date & Time
This device can auto-set the current date and time by receiving 3 GPS signals.
Time Zone this is defaulted to the area of sale.
To change the date & time, select the item to be changed e.g. for the date select Day,
Month or Year, so that it is highlighted blue. Then use the and keys, to
increase or decreased the value.
Press to confirm and exit.
Power
The power page contains the information on your battery level.
12
Page 13
MAIN MENU
Language
Press ”Language” to change the language. Use the and keys to
scroll between further language options. Select the language you desire from the
available options so that it is highlighted white. Then press to confirm and exit.
About
The About page contains information about your operating system software version.
It also allows you to default the unit or to calibrate the screen to your touches.
Default
The unit will be returned to how it was when it left the factory. After selecting this
option you will be asked to confirm the reset.
Note : If you encounter any problems when connecting your unit to a PC using
ActiveSync. Carry out a reset of the unit before trying again.
Calibration
This function calibrates the unit to respond to your screen taps. You will need to use
this function only if the unit begins to respond inconsistently to your screen taps.
After selecting follow the on screen directions. Once the calibration has been
completed, press anywhere on the screen to return to the previous menu.
Multi Media
NOTE: if you press on the MULTI MEDIA icon the following screen is displayed.
Picture Viewer
This device supports, .bmp, .jpg and .gif file formats only (recommended picture size
for optimum usage: 500kb – it is not recommended to view pictures over 2mb). Press
the “Picture viewer” to show a list of names for all the picture files then click on the
file you want to view.
To view pictures (bmp and jpeg formats only):
1) Copy all the pictures you want to view onto a MicroSD card.
2) Insert your MicroSD card into the PND.
3) Select Multi Media and then the Picture viewer option.
13
Page 14
MAIN MENU
4) Click on SDMMC folder to open it and then click on a picture or a further folder.
To continue searching or to load a photo it into the viewer. To go back through
the menu structure press the option “...”

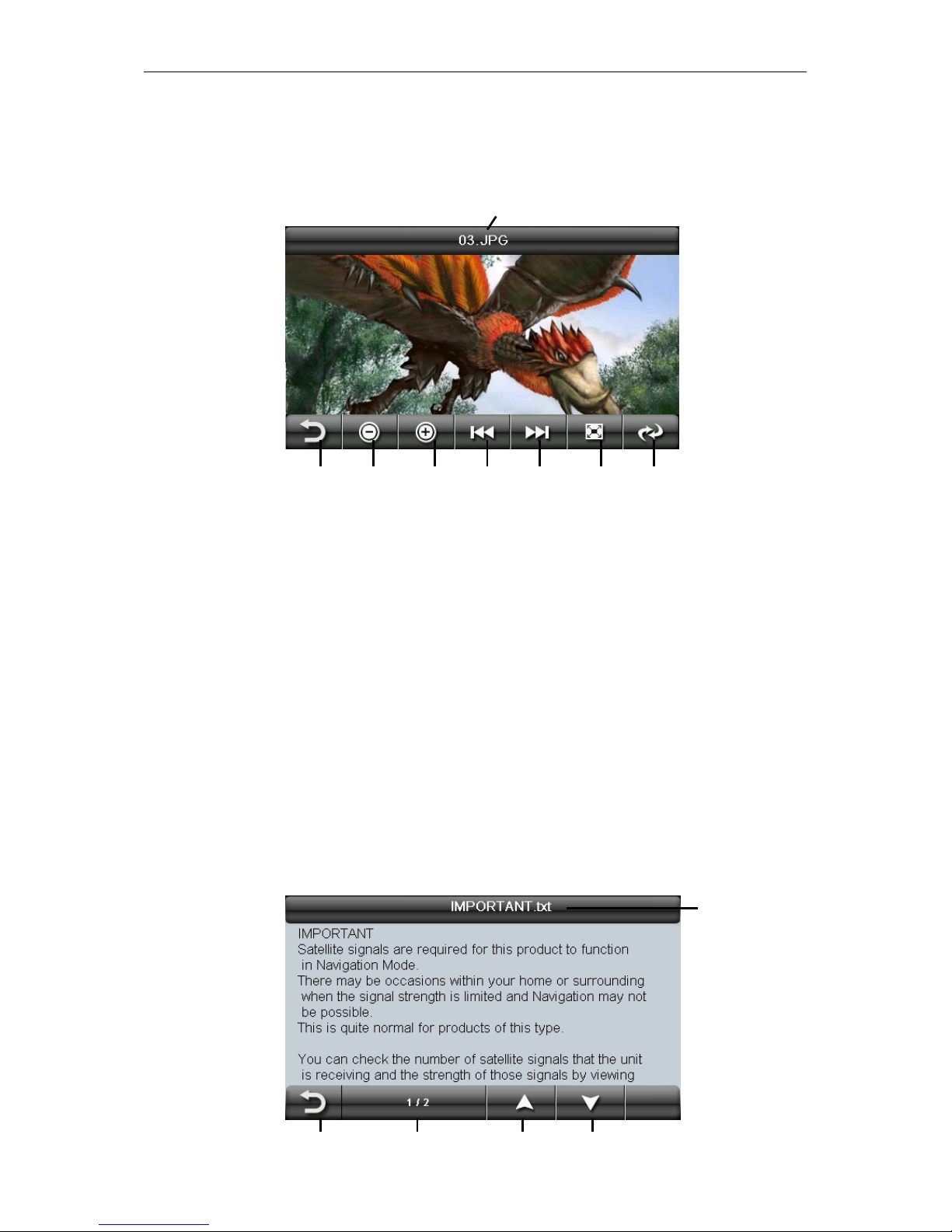

The following screen will be shown:
4
8
5
6
7
1
Button function list of Picture Files:
1. Return : Press this to return back to the list of pictures on the unit.
2. Zoom out : Press to zoom out of the picture.
3. Zoom in : Press to zoom into the picture.
4. Previous : Press to view the previous picture in the list.
5. Forward : Press to view the next picture in the list.
6. Full screen : Press to enlarge the picture so that it fills the whole screen. You can
now use the stylus to scroll around the picture. To return back to the above
screen, double tap the screen. You can also double tap to switch to full screen
mode.
7. Rotate : Press to rotate the image 90 degree right.
8. Document name : This shows the file name of the current document.
2
3
Document Viewer
This device supports, txt file format viewing only, as with the picture viewer copy the
files you want to read to a SD card. Press the “Doc Viewer” you can then access the
SDMMC folder. The procedure for viewing documents is the same for viewing
pictures. But once loaded the following screen will be shown.
5
1
2
14
3
4
Page 15
MAIN MENU
Button function list of Document Files:
1. Return : Press this to return back to the list of documents on the unit.
2. Page number : This shows the number of the current page and the total number
of pages in the document.
3. Page up : Press to scroll to the previous page.
4. Page down : Press to scroll to the next page.
5. Document name : This shows the file name of the current document.

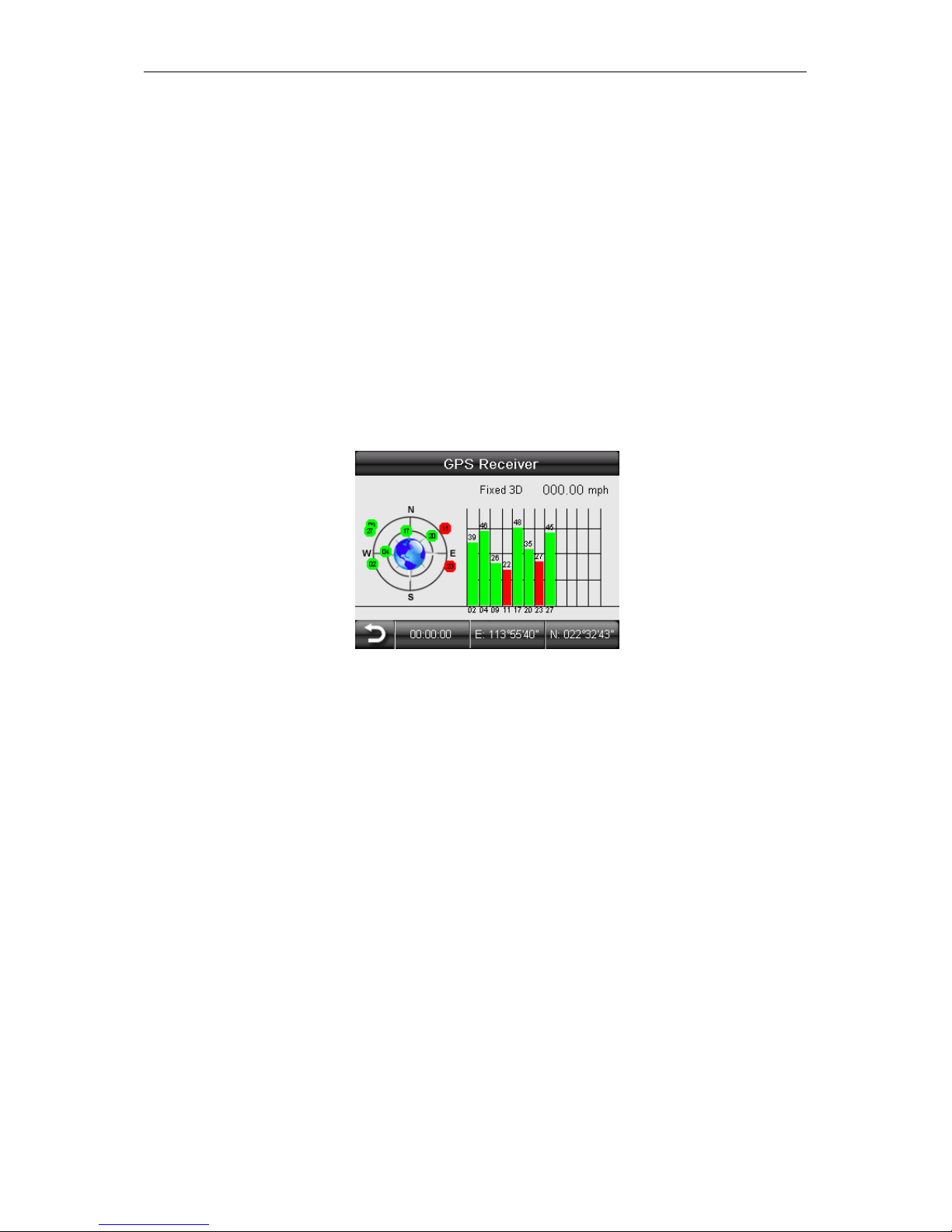

GPS Receiver
NOTE: This page is for information only. You can view the number of satellite signals
the unit is receiving also the strength of these signals.
This page gives your current position in degrees longitude and latitude, your current
speed and the status of your position, i.e. Fixed 3D or Fixed Invalid etc.
The compass circle shows the satellites that the unit is receiving and the bar chart
shows the signal strength for these satellites
NOTE:
At least four GPS signals are required for the PND to function.
There may be occasions within your home or surrounding area when the
signal strength is limited and GPS navigation Mode may not be possible.
This is quite normal of products of this type.
Additional maps and upgrades:
Please visit www.binatonegps.com or contact the helpline on 0845 3459677 for
more information.
15
Page 16
NAVIGATION
1 Introduction
You have chosen a cutting-edge navigation system. Congratulations! Please enjoy using it. This
navigation system leads you straight to your destination, whether you are travelling by car or on
foot. You can navigate and plan your route with an easy-to-use and intuitive interface, just by
using your finger. You can also use this application to plan your trip to suit your personal
preferences and interests and to save interesting destinations before you set off on your journey.
This manual leads you through the main features of the system.
1.1 GPS connection
Your navigation device uses GPS technology for navigation. The device receives signals from a
number of GPS satellites in order to determine your current position.
•
Place your navigation device in a location with an unobstructed view to the sky to set up your first
satellite connection. In the car this will usually mean mounting the unit on the lower part of the
windscreen.
Note; It may take up to 10 minutes to establish the first connection. Subsequent connections will
be faster (30 seconds to 1 minute), but if you have not used the unit for several days or are far
away from the last location where you used the unit, it may take up to 10 minutes again to find a
strong signal.
16
Page 17
NAVIGATION
2 Getting Started
Please make sure that the battery in your device is charged (see page 7).
Switch on the unit and from the menu select Navigation. The navigational software will start to
load.

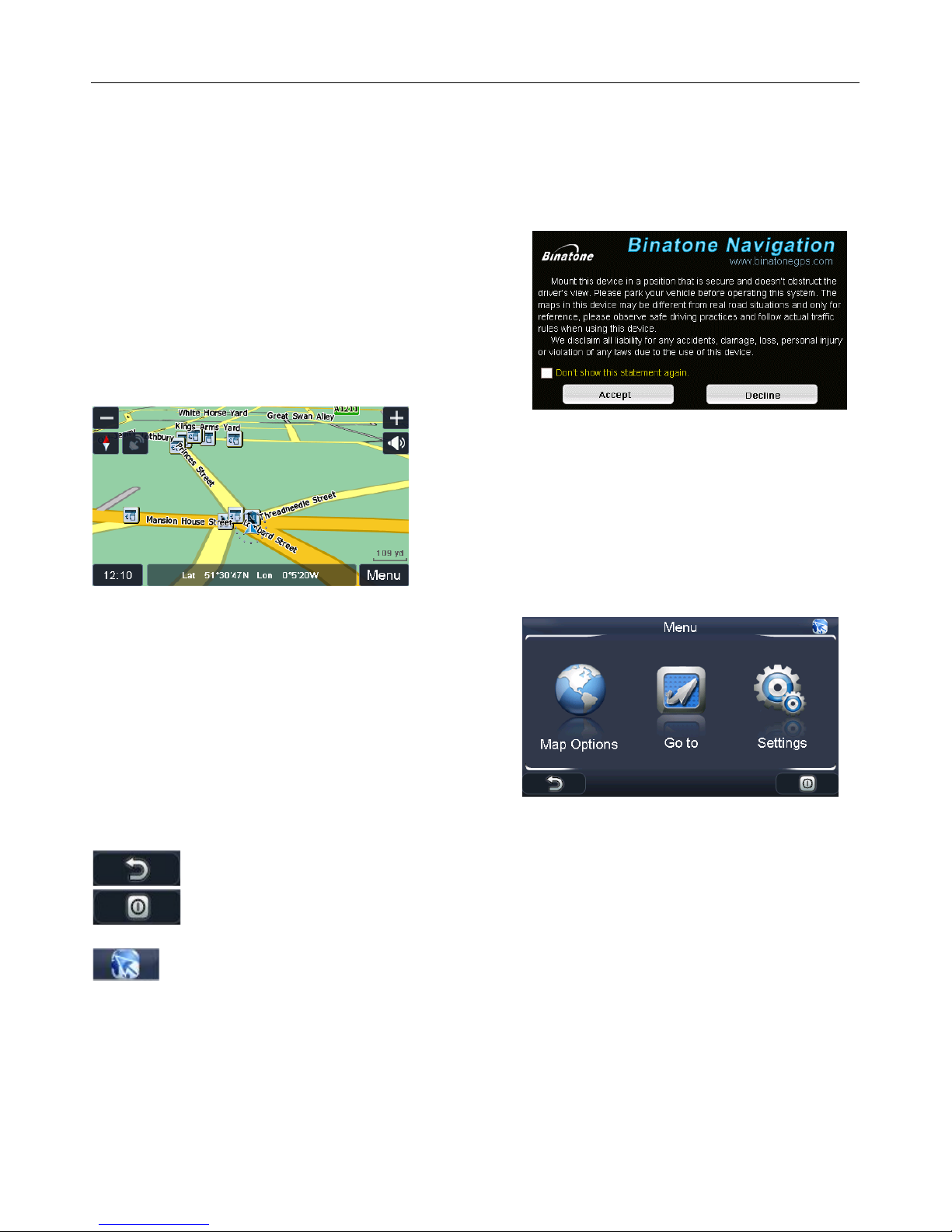

First you will see the warning statement screen. Tap
on “Accept” to confirm that you have read the
statement and to continue. If you do not wish to be
shown this screen in the future check the box next to
“Don’t show this statement again”. You will now be
shown the Binatone screen, which shows the progress
of the loading software on the yellow bar at the bottom.
Once the
software has loaded you will be shown the Free
Navigation Menu screen, this is the starting point for all
your navigating needs.
For more information on free navigation mode (see
page 17).
In order to enter destinations and access the many
settings of the navigational software, tap Menu. This
will then take you to the Free Navi Menu screen.
You can choose from the 3 following options;
Go to
– Opens the Search Menu screen. From here
you can select a point to navigate to.
Map Options
looks and behaves during navigation.
Settings – Allows access to the main settings menu
of the unit, which you can set to your personal
preference.
– Allows you change the way the map
- Tap to return to the Free Navigation mode
- Tap to exit Navigation. You will be asked to confirm if you wish to exit, tap Yes to
exit, tap No to cancel and return to the Free Navi Menu.
- Returns you to either the Free Navigation screen or Route Navigation screen if a
route has been planned. This option is always available when not on any Navigation
screen.
3 Navigational Map Screens
The navigational map screens will be the most frequently used screens. The two navigation
screens are free navigation and route navigation and are shown below. Though the screens look
very similar there are some differences.
17
Page 18
NAVIGATION

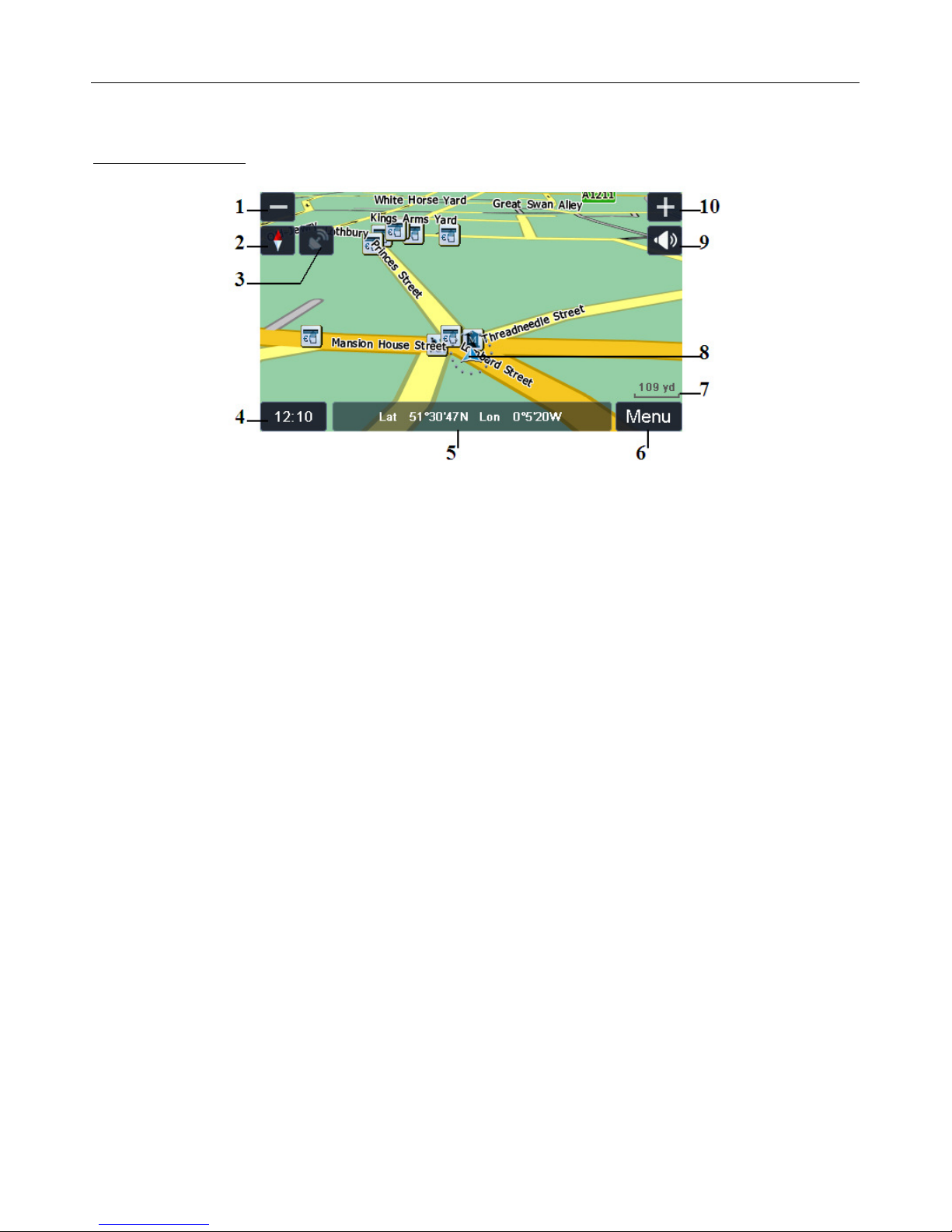

3.1 Free Navigation
1 Zoom out – Tap to zoom out on the maps.
2 Compass – Shows your current heading by means of a letter, while the red part of the
compass needle always points North. (Tapping will change between 2D & 3D
view).
3 GPS reception – Shows the current status of the GPS signal, Shown greyed out if you do not
have a valid signal and green if you do. Tap to enter the GPS status screen
(see page 32).
4 Time – Shows the current time.
5 Current position – Shows you current position in Longitude and Latitude co-ordinates.
6 Menu button – Tap to access the Free Navi Menu screen. (Only when in Free Navigation)
7 Map scale – Show a scale bar which changes as the map zoom level is altered
8 Position icon – Shows your current position on the map as well as showing your current
direction of travel.
9 Volume – Tap to access the volume control menu.
10 Zoom in – Tap to zoom in on the map.
18
Page 19
NAVIGATION

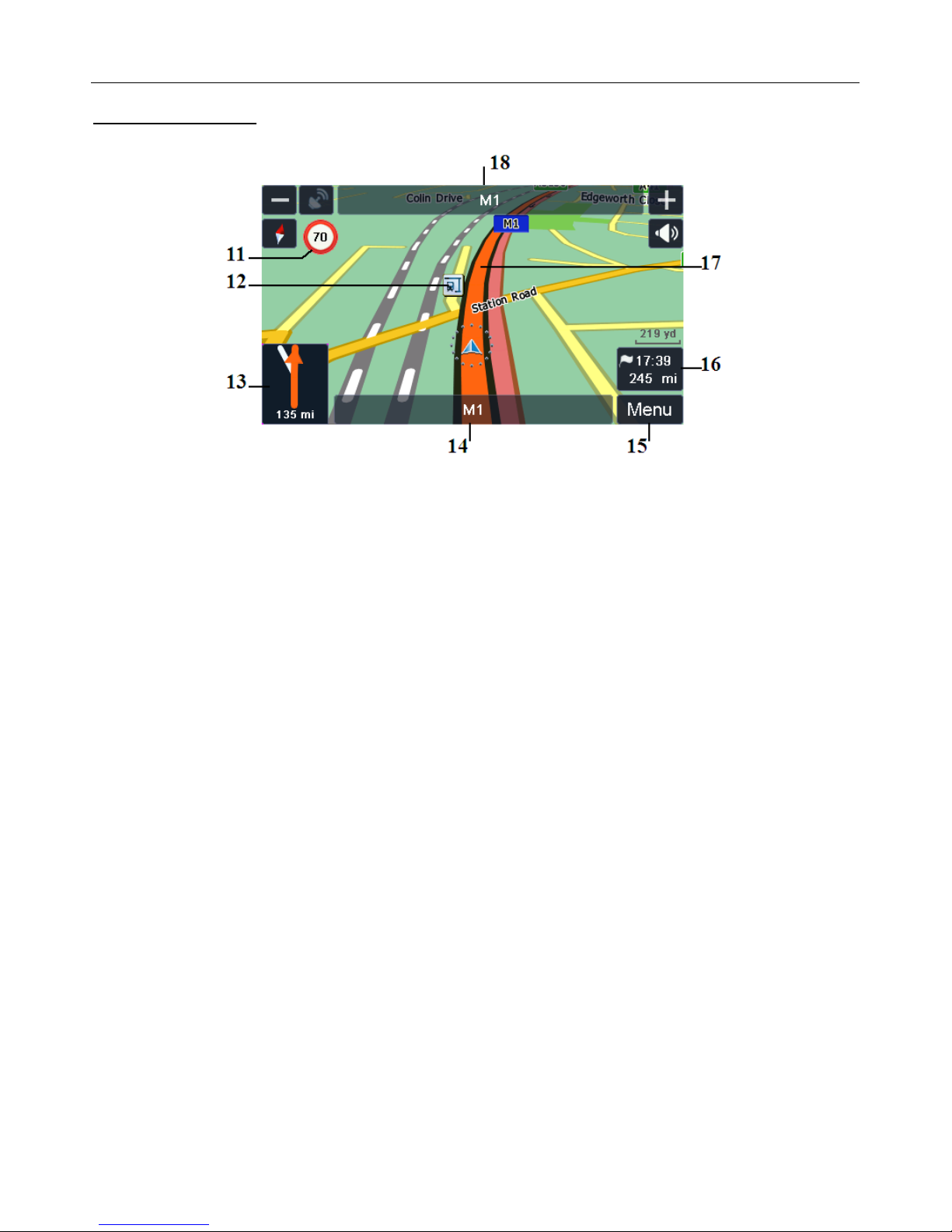

3.2 Route Navigation
11 Speed limit– Shown when you exceed the speed limit of the current road, if switched on via
the settings (see page 29).
12 POI icon – Show the position of a point of interest.
13 Turn indicator – Shows a graphical representation of the next manoeuvre and the distance to
the manoeuvre. Tap to replay the voice instruction.
14 Current road – Shows the name of the road you are currently on.
15 Menu button – Tap to access the navigation options. (Only when in Route Navigation)
16 Arrival time – Shows the estimated time you will arrive at your destination.
Distance – Shows the remaining distance to your destination.
17 Route – Indicates the planned route to be followed.
18 Next road – Shows the name of the road you will be using next.
19
Page 20
NAVIGATION
4 Browsing the Map
When in Free Navigation or Route Navigation it is possible to browse the map so that you can look
at parts of the map which are currently not shown.
To move the map around use the stylus (if provided) or your finger to press and hold on a point on
the map, then drag the map in the opposite direction you want to look at. E.g. to view the map
above the currently shown section, press on the screen and move the stylus (if provided) or your
finger down, the map will then re-draw to show the new section of map.
You can also change the zoom level of the map to be shown more detail or a larger section of the
map. In order to zoom simply tap on the and . Each tap will zoom the map one level.
You can tap on roads or Point of Interest icons shown on the map to be given more information
relating to that point.
After moving the map from the starting location you will see the following icon appear ,
Tapping on this icon will return you to your current or last known GPS position.
5 Navigation
There are two modes of navigation; Free navigation and Route Navigation.
5.1 Free navigation
In free navigation the unit does not have a planned route for you to follow, so simply plots your
GPS position on the map and then follows your movement as you drive. The unit shows you the
current time and date, as well as your current position in latitude and longitude co-ordinates.
5.2 Route Navigation
In route navigation the unit directs you via the map and with spoken directions to your chosen
destination. In order to plan a route you need to have a valid GPS signal, this can be easily
checked by looking at the GPS reception screen on the free navigation screen. If the icon is
greyed out then there is no valid signal, if the icon is white with green signal waves then you have
a valid GPS signal and navigation is possible.
From the Free Navi Menu screen select
Go to
, this allows you to enter your destination.

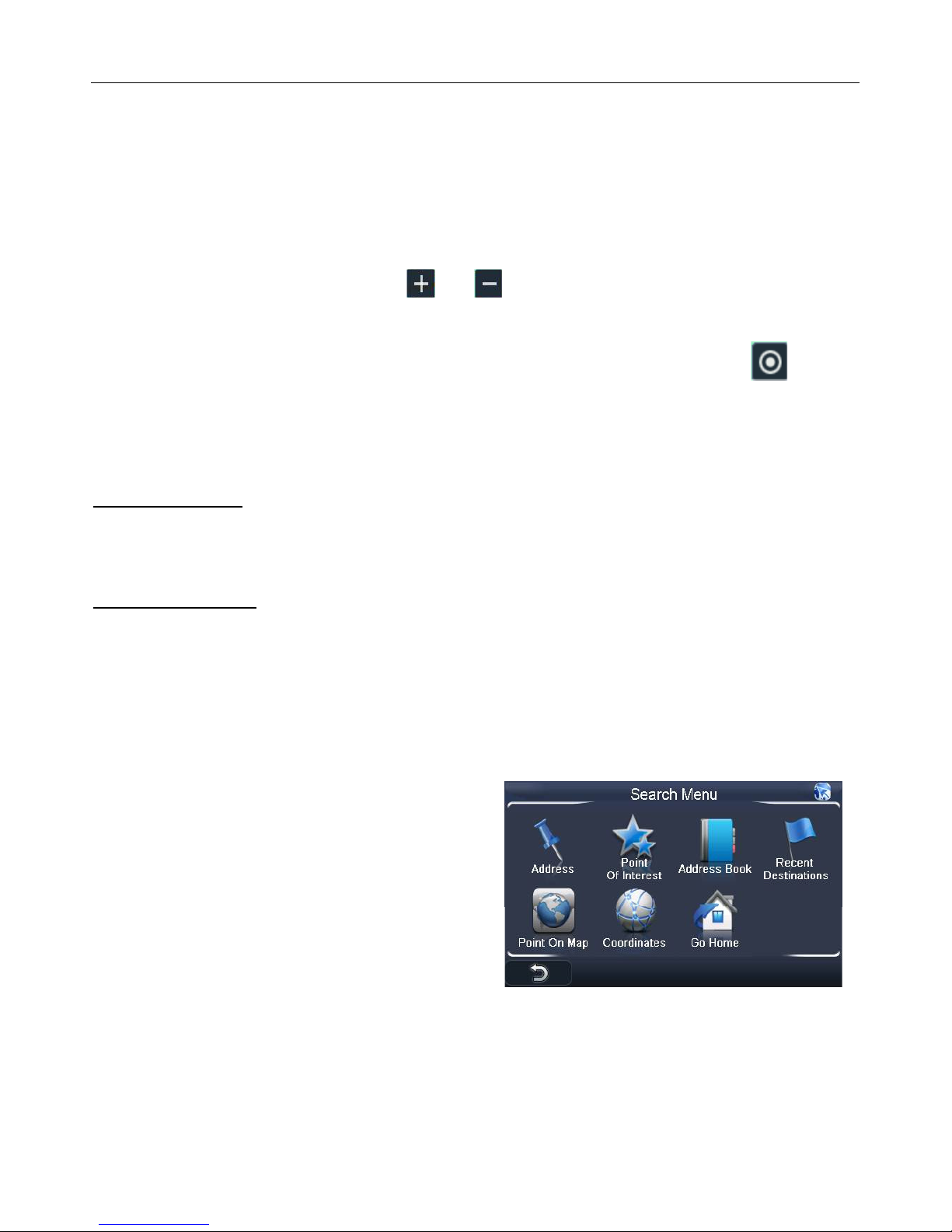

6 Go to
Tapping this opens up the Search menu screen,
from here you can enter a destination to navigate
too in several different ways. Each will be
described in turn in the pages that follow.
20
Page 21
NAVIGATION
6.1 Entering an Address/Postcode
One of the most commonly used methods for inputting a destination into the unit, tap
Address
the
screen will change to show the following.
This screen shows a list of any previously used
cities/towns. You will also be able to enter a new
city name as well as changing the country you
wish to search within. Every time you enter a new
city it will be added to the list of recent cities so
that it can be quickly used in the future.
To select a previously used city, select the city
from the list so that it is highlighted blue and then
tap to accept or double tap on the city
name, the screen will change to the Address Search window with the selected city now shown on
the city field.
To change the country tap on the currently selected country name, this will be defaulted to United
Kingdom. A new screen will open with a list of all available countries (note: the list of countries will
depend on the model of unit you have purchased, e.g. UK & ROI or Western Europe). Use the
or keys to move through the list until you see your desired country. Then select the country
from the list so that it is highlighted blue and then tap to accept or double tap the country
name. Alternatively tap in the white text box which shows the name of the currently selected
country, you will be shown a keyboard screen. Enter the name of the country you are looking for
and tap . Tap to accept or double tap the country name. Now the screen will change
to show either a keyboard if no previous city has been entered which allows you to enter the name
of the city or postcode you are looking for or you will be shown a list of previously entered cities as
covered above.
If the country is correct and the required city does not appear on the previously used list or you
wish to enter a postcode. Tap on the white box at the top of the screen which says “Click Here”,
this will open a keyboard which allows you to enter the name of the city or the postcode you are
looking for.

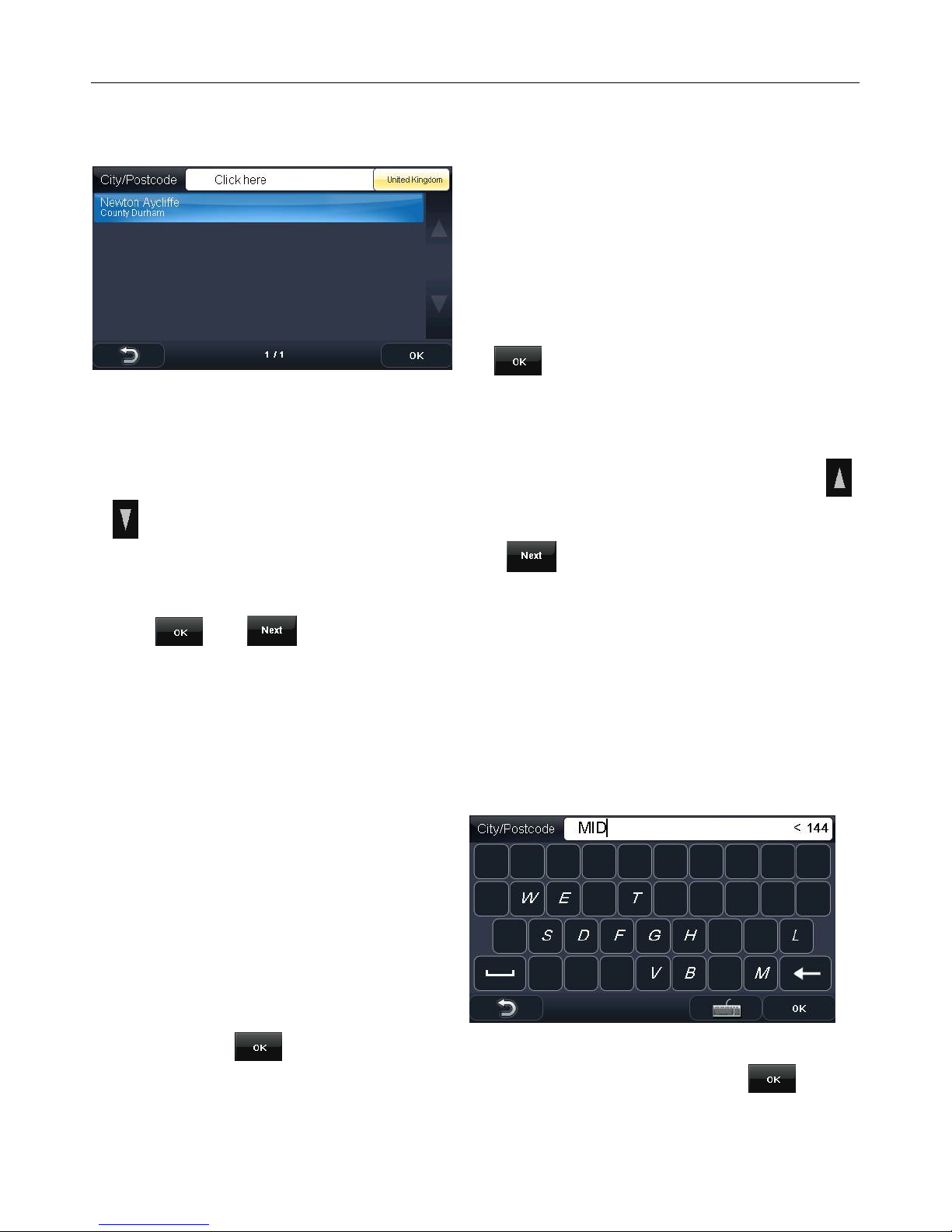

Tap on the keyboard characters to enter the
name of the city or Postcode you are looking
for. As you enter characters the keyboard will
start to blank out letters, this is because the
unit is narrowing down the search and only
showing characters which can be entered.
The number in the top right of the white box
shows the number of possible matches.
Continue entering characters until the unit
narrows the search down to a point where the
remaining possible matches will be shown on
a list, or when the is shown in white, tap it to be shown all remaining matches. Scroll
through the remaining matches, select the correct city/postcode from the list and tap to
confirm or double tap the list item. The screen will change to the Address Search window with the
selected city now shown on the city field.
21
Page 22
NAVIGATION
Note: That there is no need to enter any special characters in the city name as the unit will search
for and match whether these are entered or not. E.g. for CÁDIZ simply enter CADIZ.
Tap or to enter a space.
Tap to delete an incorrect letter.
Tap or to change between numbers/letters/special letters (number keyboard only).
Tap to change the keyboard language if available, you can now access the language’s
special characters by tapping as above. (see page 28 for how to select keyboard language).
Tap to cancel entering address information and to return to the Address Search screen.
Once the city/postcode has been entered, you will be taken to the Address Search screen.
If you entered a postcode the road will be automatically entered in to the Address Search screen.
You can continue entering address information in order to narrow down your destination even
further.

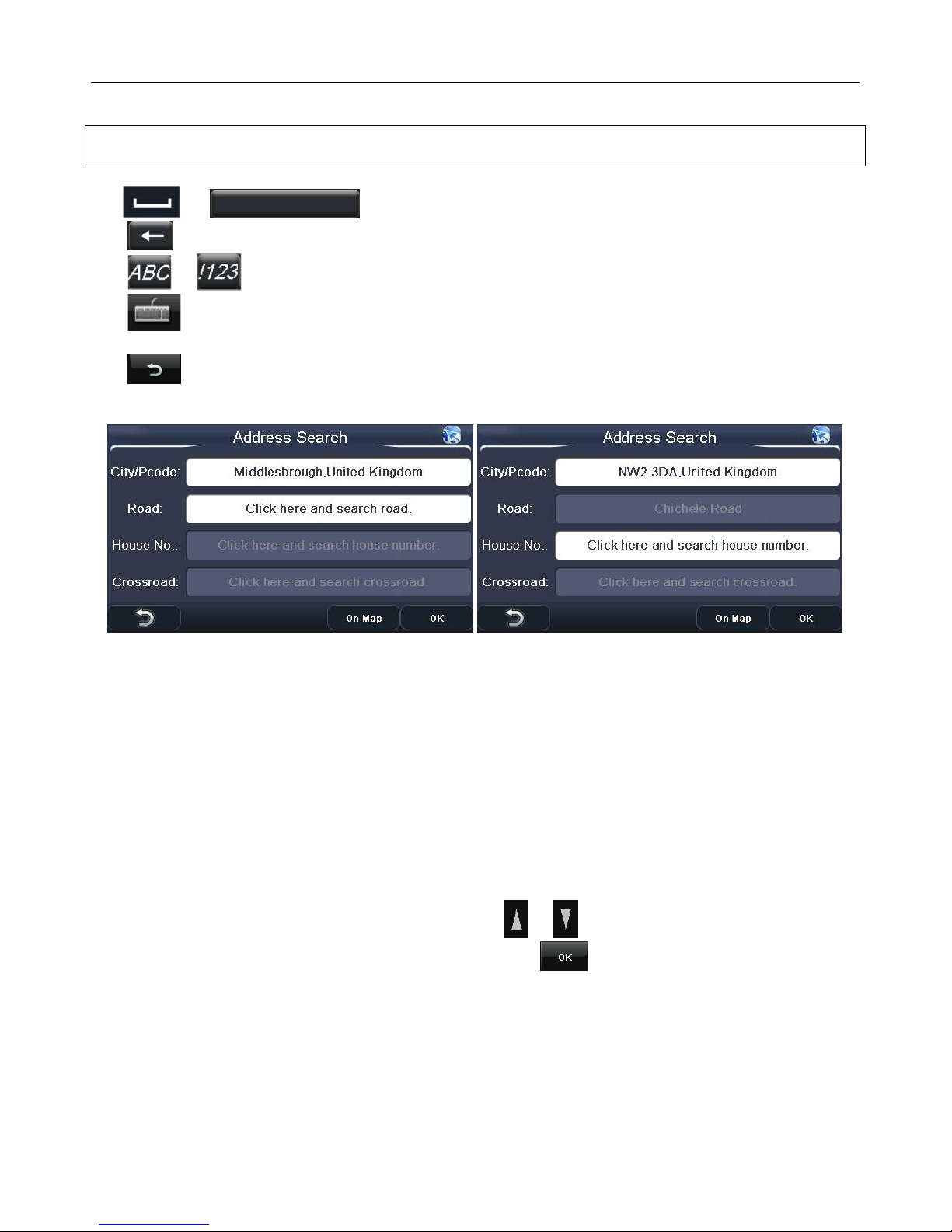

Tap on the Road field to enter a road name, you will be taken to the keyboard screen again. As for
when entering a city name the unit will begin matching the name and narrowing down the possible
matches.
Tap on the House No. field to enter the house number, you will be taken to the keyboard screen
again. If the house number cannot be found you will be taken to the default position.
Tap on the Crossroad field to select a point where another road joins the entered road. The screen
will change to show a list of all joining roads, use the or keys to move through the list until
you see the correct road. Select the desired road and tap or double tap to confirm. You can
also enter the name of the road by tapping on the white box at the top.
22
Page 23
NAVIGATION
When entering an address you have the following options;
Tap . Once you have fully entered the destination you want to navigate to and are happy,
you will now be taken to the Route Plan screen (see page 34).

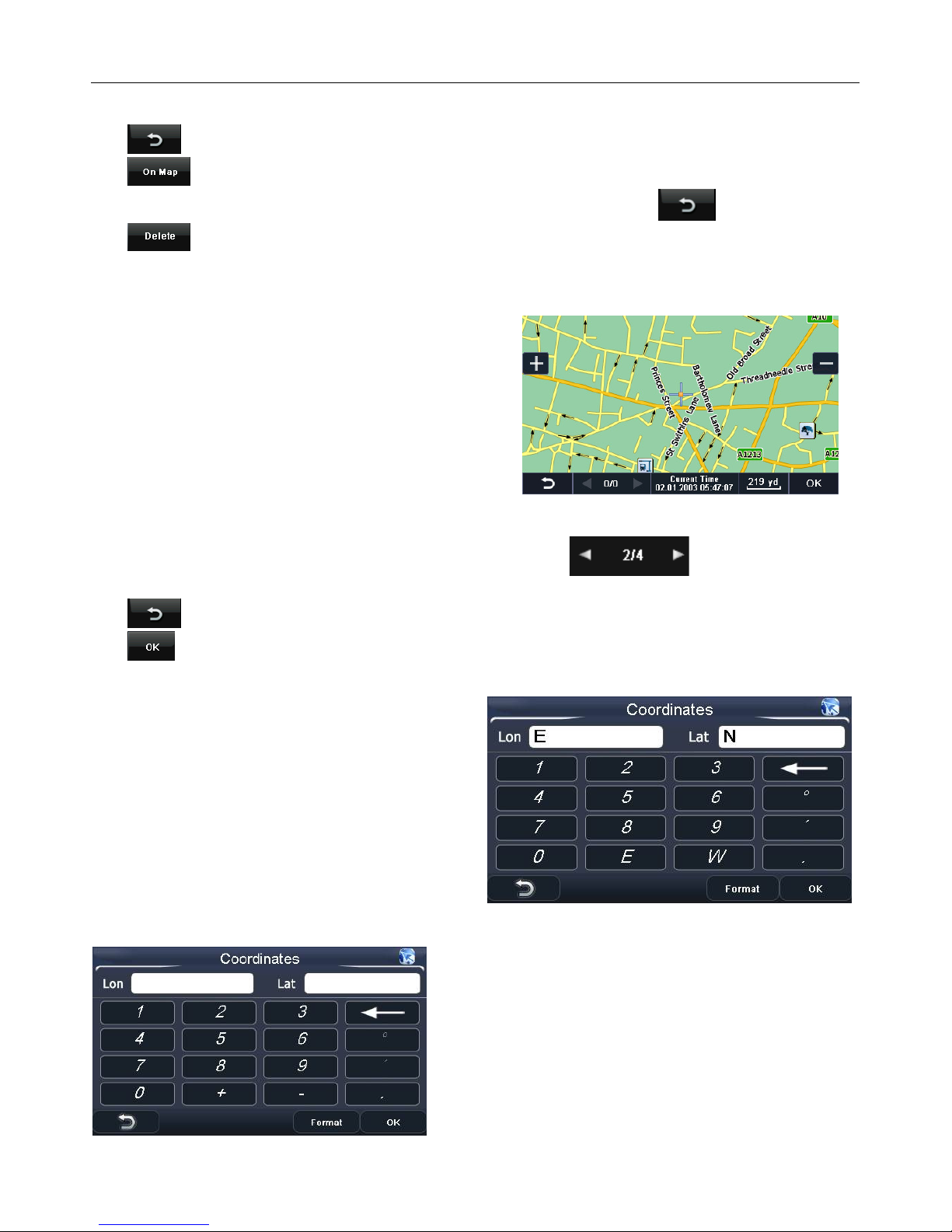

Tap to view the location on the map and once in the map view you can browse the map
(see page 24), to exit from the map view back to the previous screen tap . You also have
the option of selecting a point from this map to navigate to. This can be used to exactly pin point
your destination, or allow you to quickly select a point on the map to navigate to without having to
scroll the map to the area you wish to select around. Place the cursor on the point you would like
to navigate to and tap . You will be taken directly to the Route Plan screen and your selected
point will be entered as the destination.
Tap to cancel entering an address and to return to the Search Menu screen.
6.2 Searching for a POI (Point of Interest)
The POI search allows you to quickly find points of
interest like petrol stations and places to eat in a
database of millions of POI. These places can be
either close by or at a distant location.
Tap POI to begin searching through the POI
database.

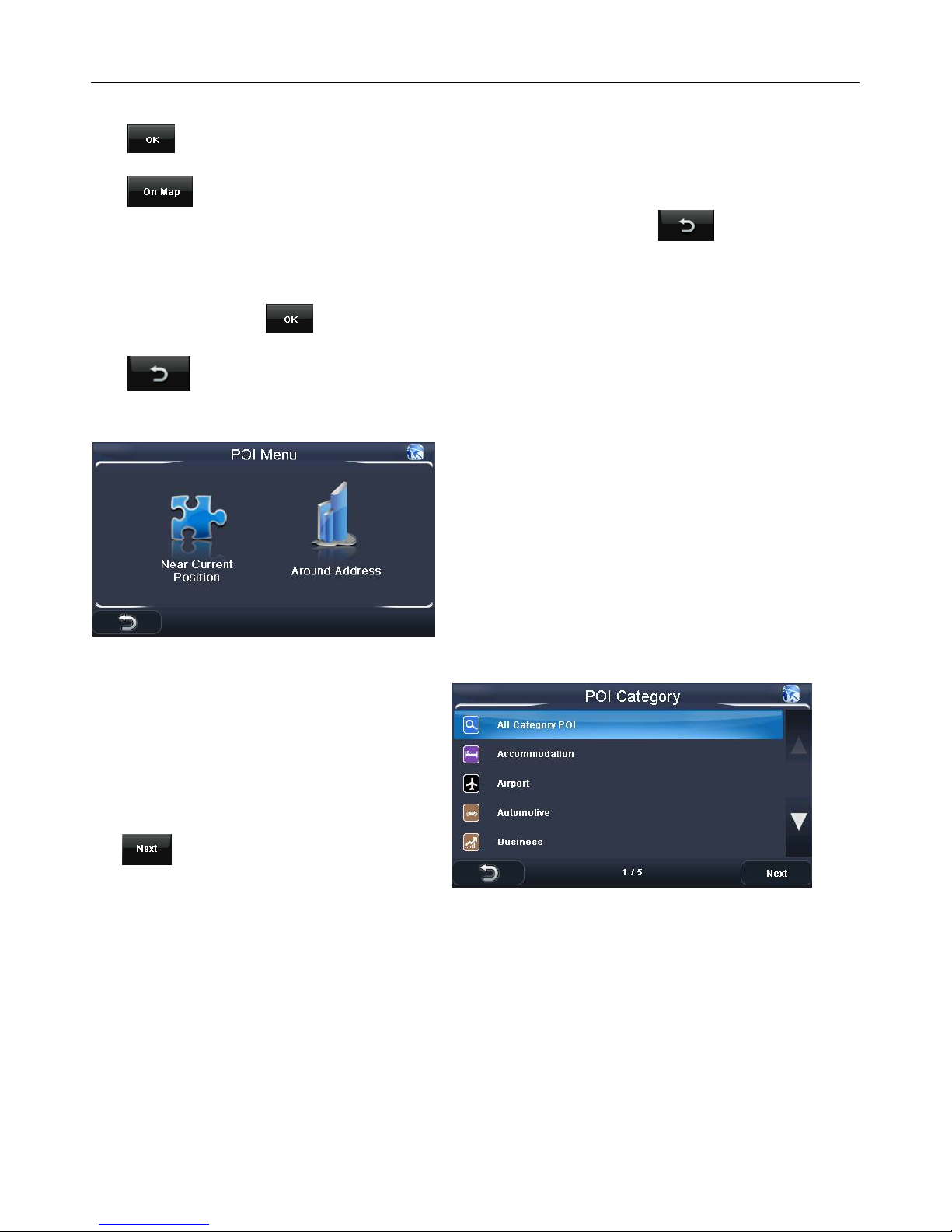

When tapped the screen will change to the POI
Menu, with two options available for searching for a
POI near Current Position and POI in City.
6.2.1 POI near Current Position
Use this option to search for a POI from a
particular category or for all categories
around your current location as shown on the
map (this will either be your current GPS
position or the position where you last had a
GPS lock).

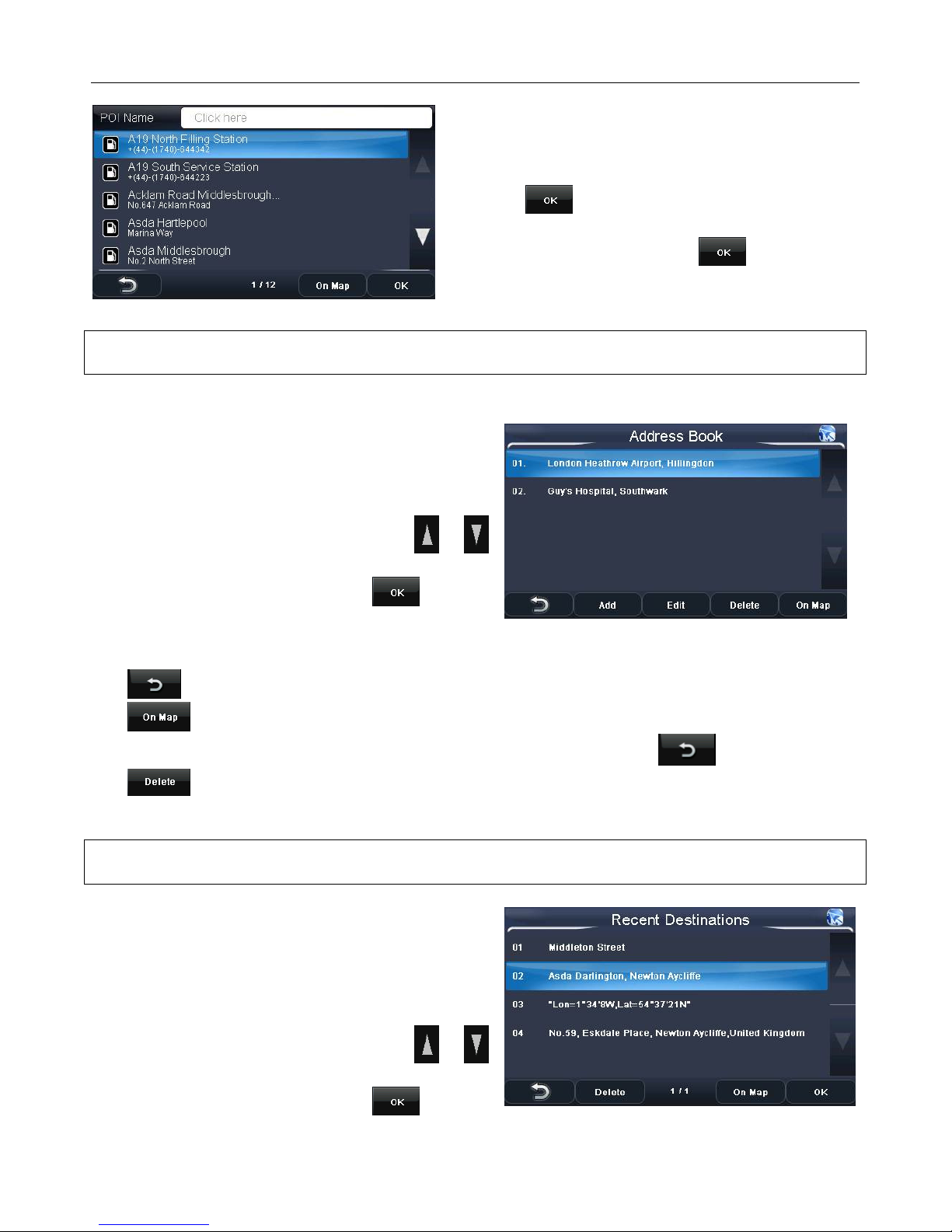

From the POI category screen select the
category for which you want to search in and
tap . The screen will change to show
all the POI for that category which are near
your position starting with the closest.
you
23
Page 24
entering the whole name or part name tap .
The screen will change to show a list of all
possible matching POI, scroll through the list
of POI until you find the one you are looking
for and then tap or double tap to
confirm. You will be taken to the Route Plan
screen (see page 34).
NAVIGATION

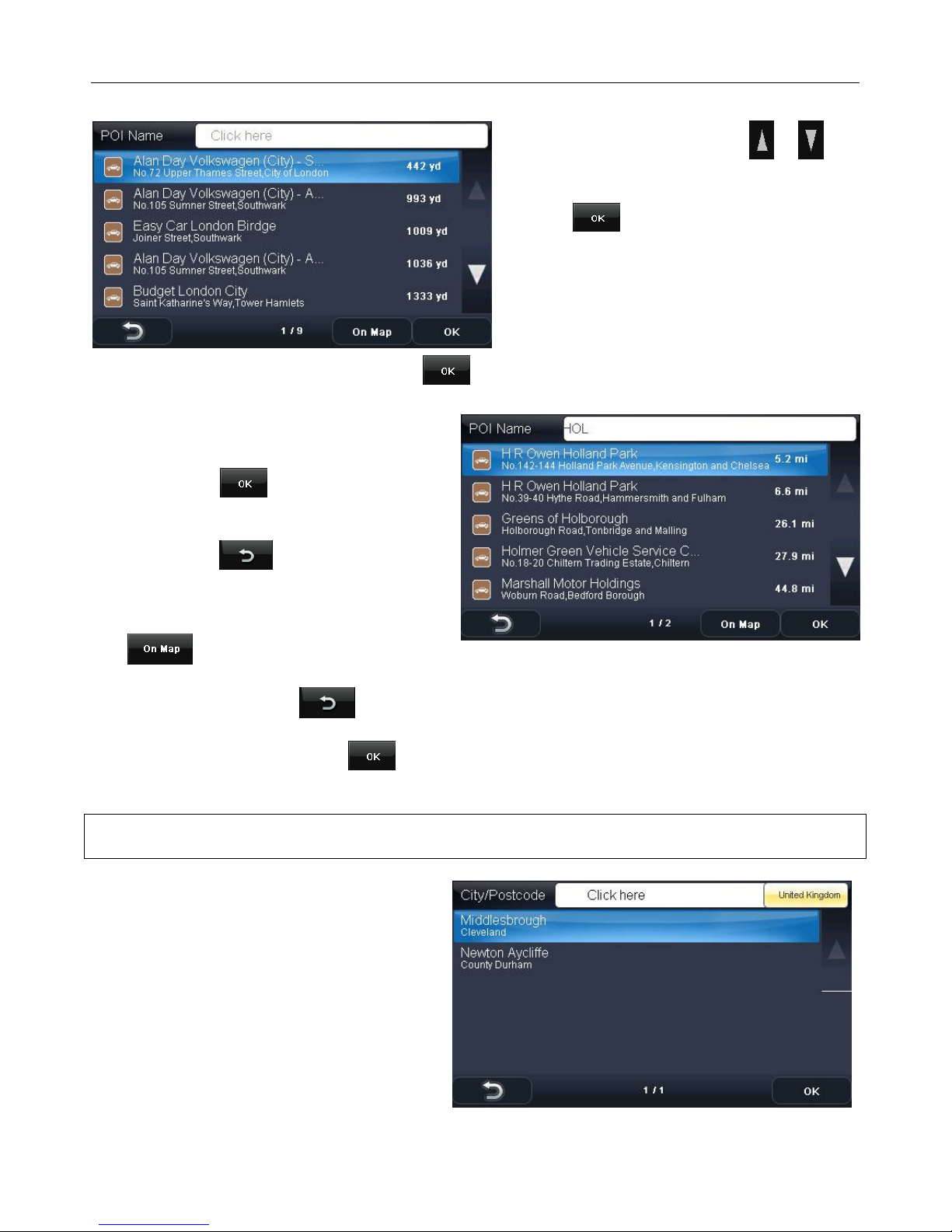

Scroll through the list using the or
keys till you find the POI you are looking for.
Select the item so that it is highlighted blue
then tap or double tap the item to
confirm. You will be taken to the Route Plan
screen (see page 34).
Alternatively you can tap in the white box at
the top of the screen. This will bring up a
keyboard screen, which allows you to search
for the name of a particular POI. After
At any point tap to return to the POI
Category screen, if you are on the POI
Category screen tapping will return you to the
POI menu etc.
Tap to view the location on the map
and once in the map view you can browse the map (see page 24), to exit from the map view back
to the previous screen tap . You also have the option of selecting a point from this map to
navigate to, this can be used to exactly pin point your location. Place the cursor on the point you
would like to navigate to and tap . You will be taken directly to the Route Plan screen and
you selected point will be entered as the destination.
Note; When you carry out a search for a particular name of a POI. The unit will search from a
larger distance around your current position, than it did from the original search.
6.2.2 POI in City
Use this option to search for a POI in and
around a particular city. Before you can
search for a POI you will need to enter the
name of the city you wish to search around.
For information on how to enter the city
name, see the section about entering a city
under the Address section (see page 20).
As with POI near Current Position you will
then need to select a category for your POI.
You will then be shown a list of POI in and
around your entered city.
24
Page 25
NAVIGATION
Alternatively you can tap in the white box at the top
of the screen. This will bring up a keyboard screen,
which allows you to search for the name of a
particular POI. After entering the whole name or part
name tap .
Scroll through the list of POI until you find the one
you are looking for and then tap or double tap
to confirm. You will be taken to the Route Plan
screen (see page 34).
Note; When you carry out a search for a particular name of a POI. The unit will search from a
larger distance around your current position, than it did from the original search.
6.3 Selecting an Entry from the Address Book
This option allows you to quickly select one of your
address book entries to use as your destination.
Tap Address Book the screen will change to show
the address book screen and a list of any stored
entries.
Scroll through the list of entries using the or
keys until you find the entry you require. Select it
so that it is highlighted blue and tap or
double tap to confirm. The screen will then change
to show the Route Plan screen (see page 34).
Tap to go back to the Search Menu screen.
Tap to view the location on the map and once in the map view you can browse the map
(see page 24), to exit from the map view back to the previous screen tap .

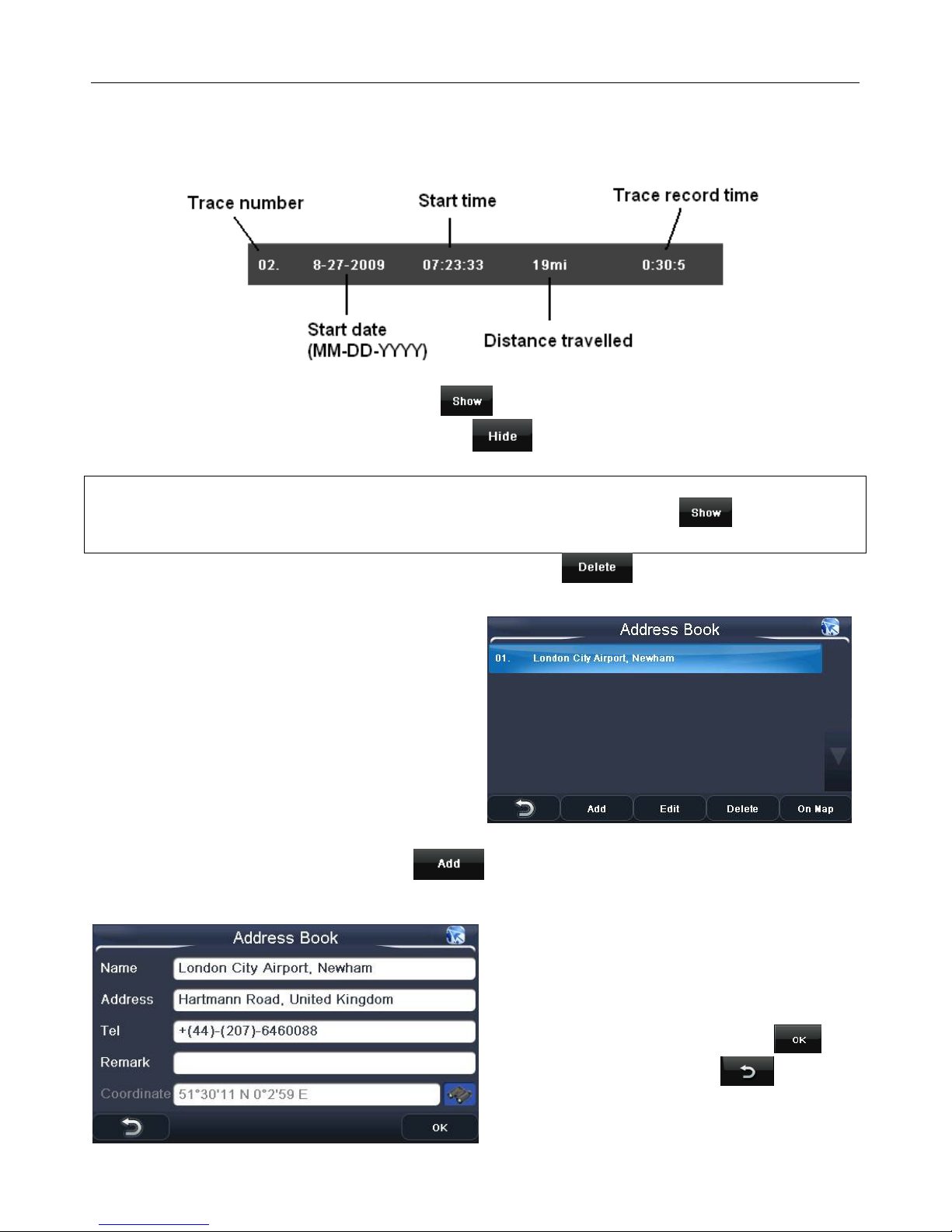

Tap to delete the currently selected address book entry. Warning you will not be asked to
confirm the deletion, so make sure that you wish to carry out this operation before tapping.
Note: In order to use the Address Book option, you will first need to store entries to the address
book. This can be done via the Address Book option in the
Settings
menu (see page 28).
6.4 Selecting a Recent Destination
This option allows you to select one of your
recently used destinations and to use it again
quickly. Tap Recent Destinations the screen will
change to show the recent destinations screen and
a list of any previously entered destinations.
Scroll through the list of entries using the or
keys until you find the entry you require. Select it
so that it is highlighted blue and tap or
25
Page 26
NAVIGATION
double tap to confirm. The screen will then change to show the Route Plan screen (see page 34).
Tap to go back to the Search Menu screen.
Tap to view the location on the map and once in the map view you can browse the map
(see page 24), to exit from the map view back to the previous screen tap .
Tap to delete the currently selected address book entry. Warning: you will not be asked to
confirm the deletion, so make sure that you wish to carry out this operation before tapping.
6.5 Selecting a Point on the Map
This option allows you to move around the map and
to select a location which you want to use as your
destination.
Tap Point On Map the screen will change to show the
map. The location of the map will either be your
current/last known GPS position or the last position
you viewed on the map.
You can then browse the map (see page 24) and
select a point you want to navigate to by placing the
cursor.
After placing the cursor at a point on the map, it may contain further information, i.e. if there is
more than one POI at that point. In this case you can use the arrows to scroll
between the multiple points.
Tap to go back to the Search Menu screen.
Tap to confirm the point. The screen will then change to show the Route Plan screen (see
page 34).
6.6 Entering a set of Co-ordinates
This option allows you to enter the longitude and
latitude co-ordinates of the location you are
looking for. Tap Coordinates the screen will
change to the co-ordinates entry screen.
You can enter the co-ordinates in two different
ways, Degrees:minutes:seconds or as a
Decimal, the unit automatically defaults to the
Degrees:minutes:seconds format (Note: when
the unit displays the co-ordinates of a location it
always shows then in the Degress:minutes:seconds format).
Tap in the white boxes next to either Lon or Lat, then
use the keyboard to enter the co-ordinates you wish
to navigate to.
When entering in Degrees:minutes:seconds format.
For Longitude the letters E and W are used to
describe the hemisphere, for Latitude the letters N
and S are used to indicate the hemisphere. ° is used
to indicate the degrees and ‘ is used to indicate the
minutes.
26
Page 27
NAVIGATION
When entering in Decimal format. The N, S, W and E keys are replaced with + and -, where North
and East are + and South and West are -. Use the . key to enter a decimal point.
Tap to change between Degrees:minutes:seconds and Decimal formats.
Tap to delete any incorrect characters.
Tap to go back to the Search Menu screen.
Tap to confirm the entered co-ordinates. The screen will then change to show the Route
Plan screen (see page 34).
6.7 To Navigate Directly Home
Tapping Go Home will directly navigate you to
your set home address without having to tap
any other keys or enter an address. This is very
useful as your home address will be the
destination which is navigated to the most. The
screen will change to show the Route Plan
screen (see page 34).
In order to use this option you will need to set your home address first. If you select this option
without setting your home address first, the unit will ask you if you wish to set it now. Alternatively
this can be done using the Set Home Address found in the Settings menu (see page 28).
7 Map Options

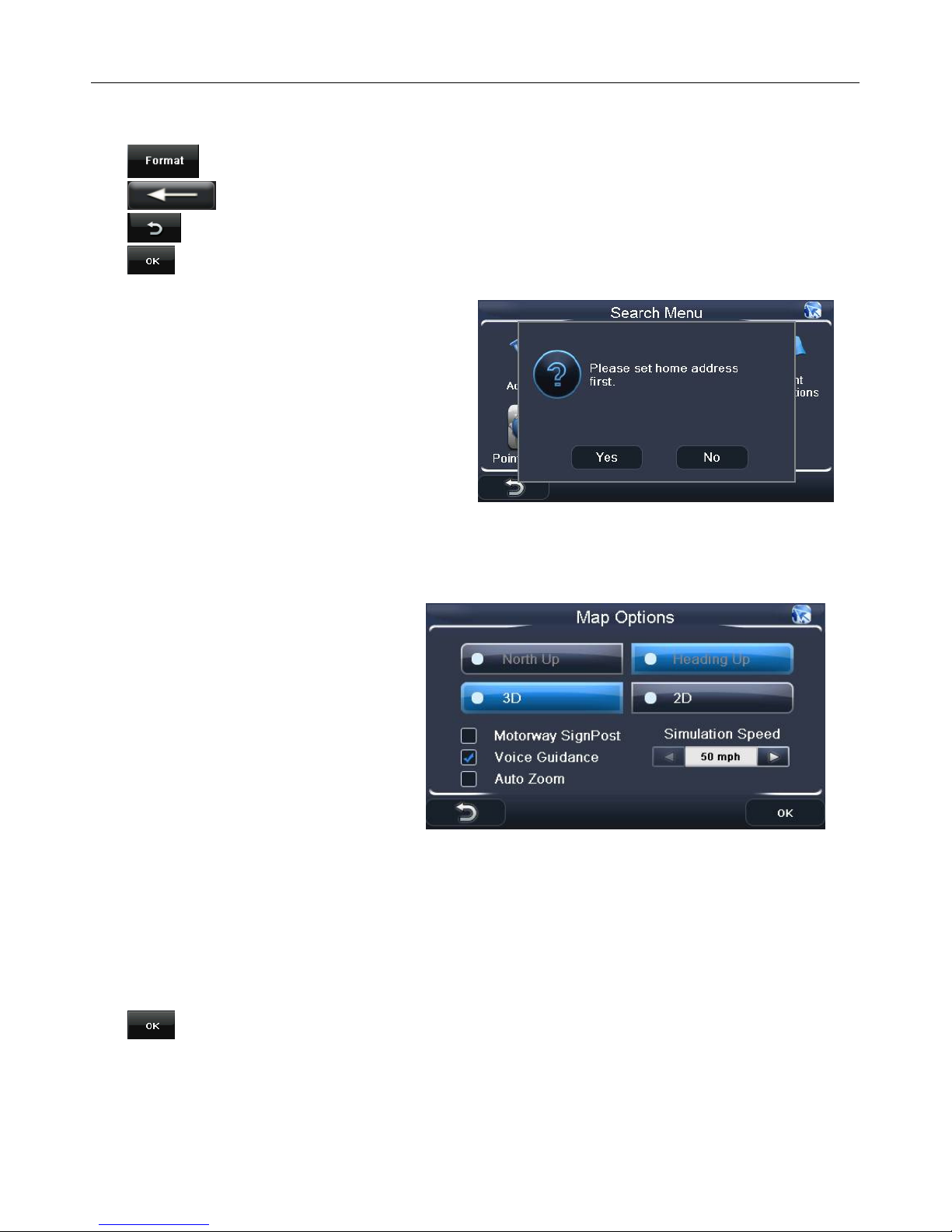

Allows you to set the map preferences to
your liking, it allows you to set the way
the map looks and behaves during
navigation. When tapped the screen will
change to the Map Options screen, from
where you can easily select several
options.
7.1 North Up/Heading Up
Changing this option changes the way the map is orientated when you are navigating.
North Up – Means that the map will be fixed so that North is upwards. The position icon will be
shown in the centre of the screen and will rotate to show your current direction of travel.
Heading Up – Means that the map will be rotated to always face the direction you are travelling,
while the position icon will be fixed at the lower centre of the screen.
The option with the blue indicator is the currently selected option.
Tap to confirm the change.
7.2 3D/2D
Changing this options changes the way the map looks when you a driving.
27
Page 28
NAVIGATION
3D – The map will be shown as if you were looking down at it from behind and above your current
position. (When in 3D mode, the option for selecting North Up/Heading Up will be disabled and set
to Heading Up only.)
2D – The map will be shown as if you were looking directly down onto your current position.
The option with the blue indicator is the currently selected option.
Tap to confirm the change.
Note: You can toggle the map between 2D and 3D modes quickly, by tapping on the compass in
the top right of the navigation screen.
7.3 Motorway Sign Post
When switched on this option does two things. Firstly when driving down major roads and
motorways, it will show information about the approaching junctions. Secondly when you approach
your junction the screen will change to clearly show that this is your junction.

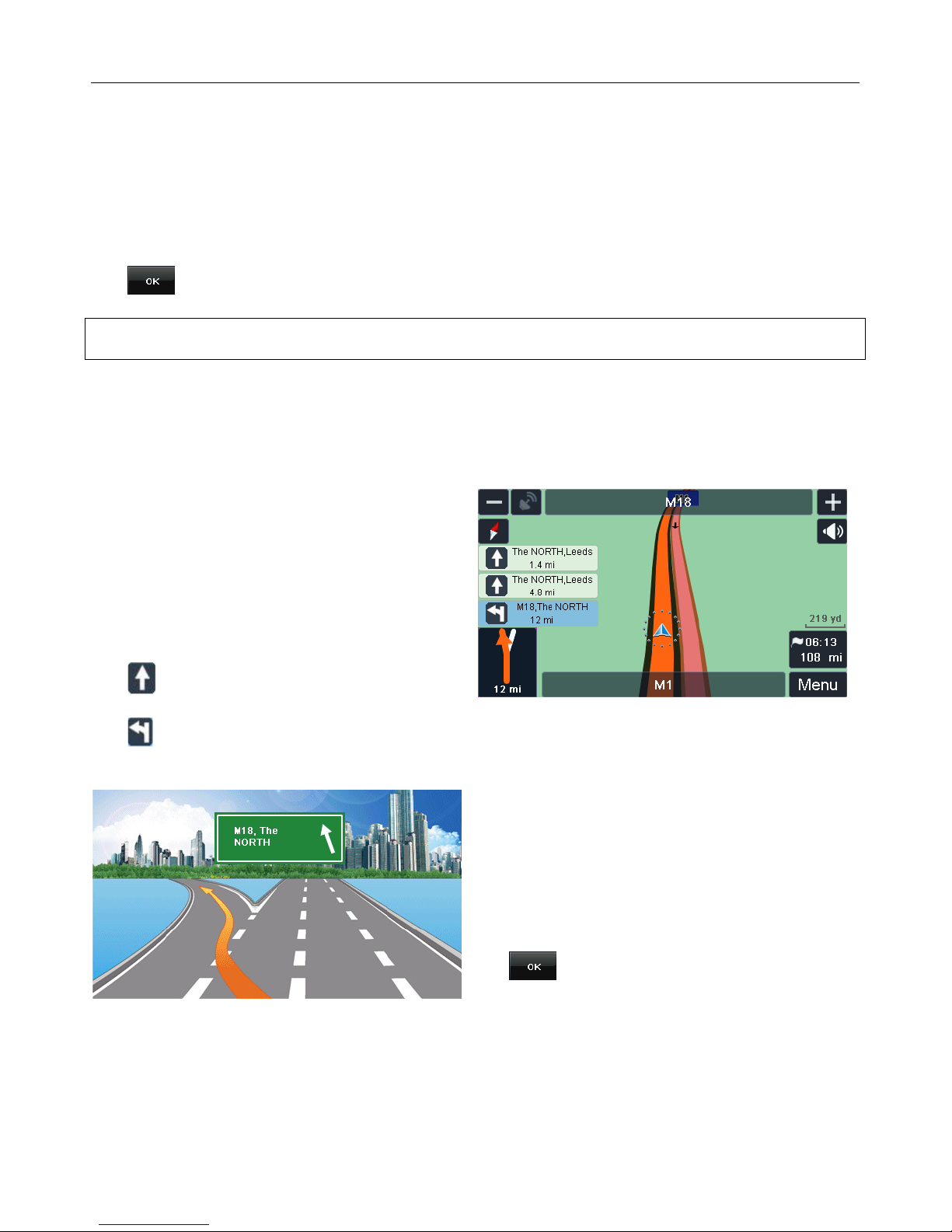

Approaching junctions – While you are currently
navigating a planned route and are on a major
road or motorway, the unit will show you
information about the approaching junctions
along the planned route. You will be shown the
distance to the junctions as well as what the
junction sign post will have written on it.
The unit will also show the action you need to
take at each junction;
The icon means continue along the current
road.
The icon means to take the junction and exit the current road, In addition to this the sign post
sign will also be shown in blue on the screen.
Required junction – when you reach the junction
you need to take the screen will change to clearly
show that you need to take this junction. You will
be shown what is written on the junction sign.
When switched on the box will be shown with a
tick.
Tap to confirm the change.
7.4 Voice Guidance
This option allows you to activate or deactivate the voice guidance. When deactivated the unit will
no longer give spoken voice directions during navigation.
When activated the box will be shown with a tick.
28
Page 29
NAVIGATION
Tap to confirm the change.
7.5 Auto Zoom
Allows you to activate or deactivate the auto zoom feature. When auto zoom is activated the unit
will automatically zoom the map during navigation according to your speed, the faster you are
travelling the more the map will zoom out to give you a better view of the road ahead.
When activated the box will be shown with a tick.
7.6 Simulation Speed
This option allows you to change the speed at which a simulation of a route is carried out. You can
set the speed between 50-300 Mph/Kph. For more information on carrying out a simulation of a
route see page 29.
Tap to confirm the change.
8 Settings
These are the main settings of the unit and allow you to set the unit up to suit your individual
preferences, as well as entering address book entries, setting your home address or activating the
trace record function.
When tapped the screen will change to the settings screen. Note that there is a second page of
options which can be viewed by tapping , to return to the previous page of options tap .
Tap at any point to return to the previous screen.

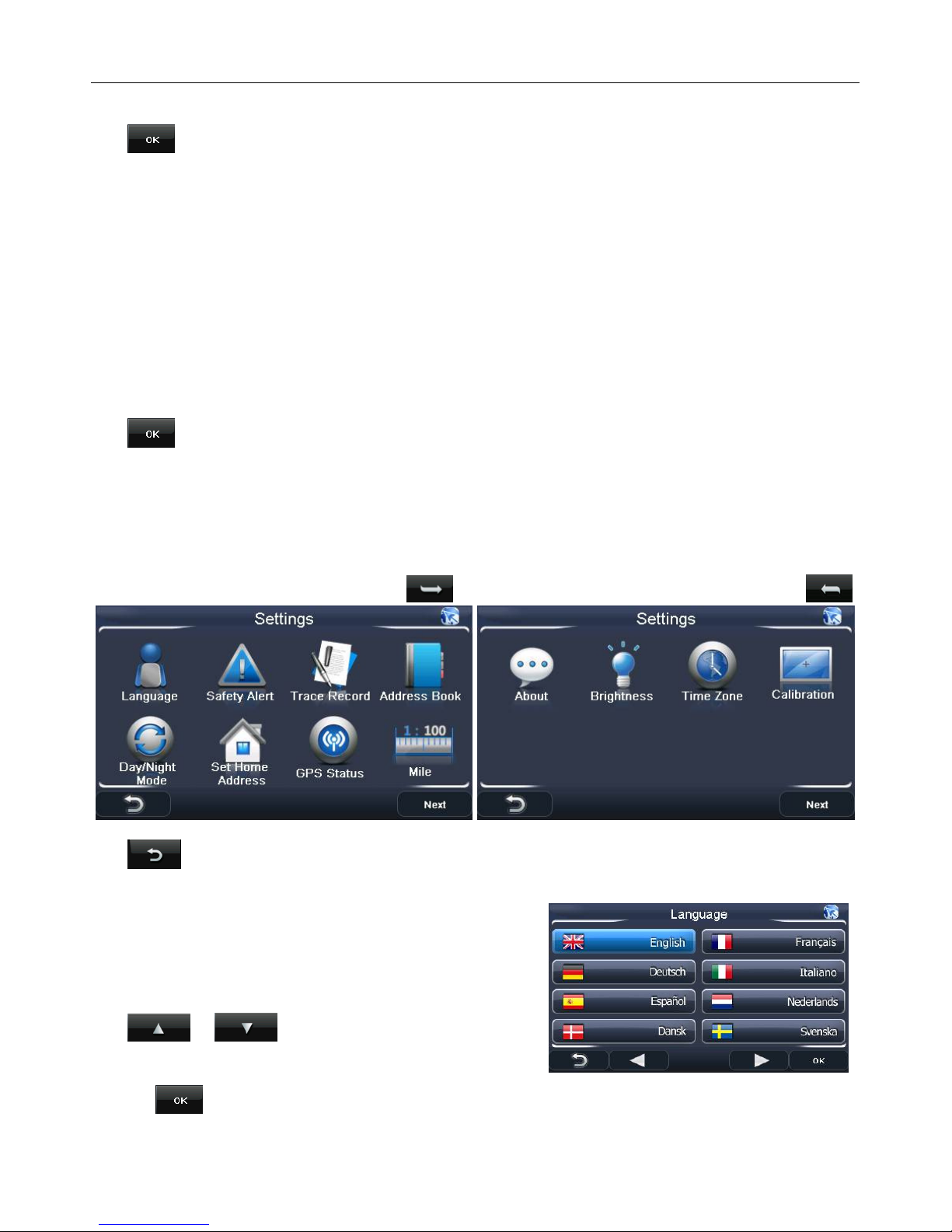

8.1 Language
Tap to open the language selection screen. You can
choose from 10 different languages. When a language is
selected not only will it affect the text on the screen, but
will also change the language of the spoken voice
directions.
Tap or to scroll back and forth between
each page.
Select the required language so that it is highlighted blue
and tap to confirm. The unit will return to the settings screen.
29
Page 30
NAVIGATION
8.2 Safety Alert

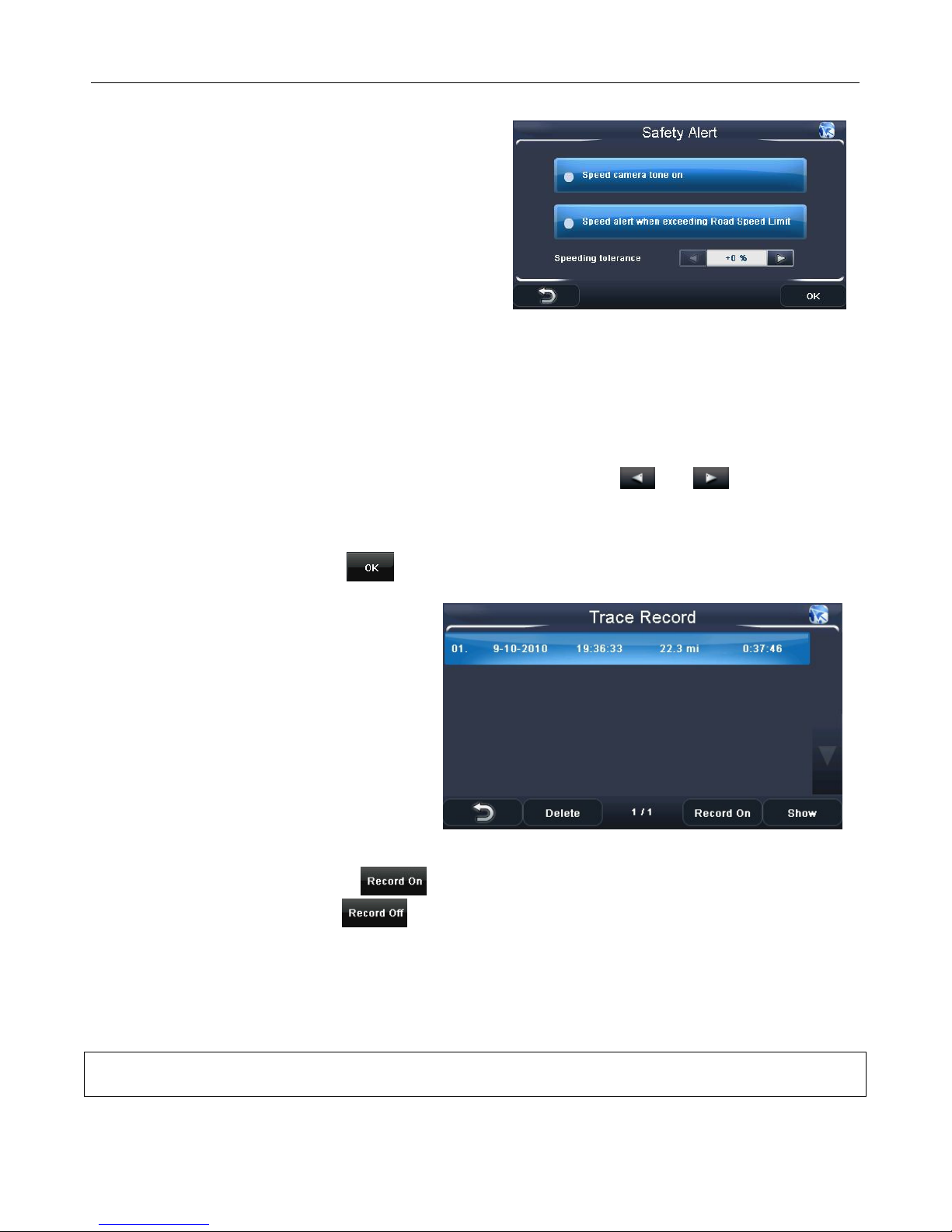

Tap to open the safety alert options screen. From
this screen you can set two separate safety alerts.
Speed camera on – This lets you activate or
deactivate the speed camera warning, when
activated the unit will warn you of an approaching
speed camera visually and shows you the distance
to the camera.
When the option is shown highlighted blue it is
activated.
Speed alert when exceeding the road speed limit – This lets you activate or deactivate the road
speed limit warning. As well as speed camera locations, the unit contains information about the
speed limit of many roads. When activated the unit will show you the speed limit for the road you
are on with a fixed speed limit icon, if you exceed the speed limit (including any tolerance you
have set) for the road you are on the speed limit icon will flash and the unit will beep.
When the option is shown with an blue indicator it is activated.
When active you can then change the speeding tolerance using the and keys to select
the tolerance you would like from 0%, 5%, 10%, 15% and 20%. The unit will then only warn you
when you exceed the speed limit by more than this percentage.
Set the required options and tap to confirm the unit will then return to the settings screen.
8.3 Trace Record
The unit is capable of logging all
positioning information received from the
GPS satellites during navigation. It then
uses this information to draw a track of the
route on the map. This enables you to
review the route at a later time.
If you have previously recorded any trace
records these will be shown in the list. If
there are no trace records you will have to
record one first.
Recording a trace record: Use the button to start the recording process. When active this
button will then change to show . In this way the key will always show the option which is
currently not selected. It is recommended that you start recording after your route has been
planned or when you are in Free Navigation and you have a valid GPS signal, and you should
stop recording once you have reached your destination. This will prevent the unit from continually
recording while you are not driving and it will also divide each journey into a separate trace record.
Once you have started a trace recording you will need to return back to the map screen.
Note: if you switch the unit off without stopping the trace record function then your trace record for
that journey will be lost.
30
Page 31
NAVIGATION
Each recording will be logged with the following information.
Viewing a trace record: Select the trace record you want to view. The currently selected trace
record will be highlighted blue. Then use the button to view the trace record on the map.
When active the button will then change to show . The trace record will be shown as a
slightly opaque line with green arrows indicating the direction of travel.
Note: it is only possible to show one trace at a time. A trace record which is been shown will be
shown with a blue highlight on the list. If you select a second Trace and tap , this will cancel
the first trace and begin to show this trace instead.
To delete a trace record, highlight it so that it is blue and tap .
8.4 Address Book
Opens the address book screen, from here you
can add, edit, delete and view your address
book locations on the map. You can add address
book entries to the address book so that they
can quickly be used for navigation purposes.
Any previously entered address book entries will
be shown as a list.
8.4.1 Add an Entry
To add an entry to the address book, tap . You will now be able to add a location using all
of the options available when entering a destination under the Go to section (see page 19).
Once you have added a location to the
address book you can enter further information
about that location. To enter further information
tap on the white box next to the field name, the
screen will change to show a keyboard which
allows you to enter information. Tap to
confirm the entered text. Tap at any
point to return to the previous screen.
31
Page 32
NAVIGATION
Name
–You can then enter a name for your address book entry; which will be shown in the
address book list. If no name is entered then the address will be automatically entered in this field
and shown as the name.
Address
–You can then change the way the address is shown or add further information.
Note: Changing the address does not change the location of the address book entry, just the way
the name is shown.
Tel –You can then enter a telephone number for your address book entry.
Remark
– You can then enter a short remark for the location.
Coordinate
– This is fixed and shows the co-ordinates for the entered location.
Icon
– Tap the icon, you are then able to select from 10 different icons which are used to
indicate this address book location on the map. Highlight the icon you wish to use and tap .
Once you have entered the information and are happy. Tap to confirm the entered text and
to return to the address book list.
Tapping will return you to the address book screen, but the entry will not be saved.
8.4.2 Edit an Entry
To edit an entry, select the entry so that it is highlighted blue and tap . You will
then be able to change the text and icon for this entry as under the add section.
Tapping will return you to the address book screen, but any changes will not be saved.
Note: Changing the address does not change the location of the address book entry, just the way
the name is shown.
8.4.3 Delete an Entry
To delete an entry from the address book, select the entry so that it is highlighted blue and tap
, the entry will be deleted from the address book. Warning: you will not be asked to confirm
the deletion, so make sure that you wish to carry out this operation before tapping.
Tap to return to the settings screen.
32
Page 33
NAVIGATION

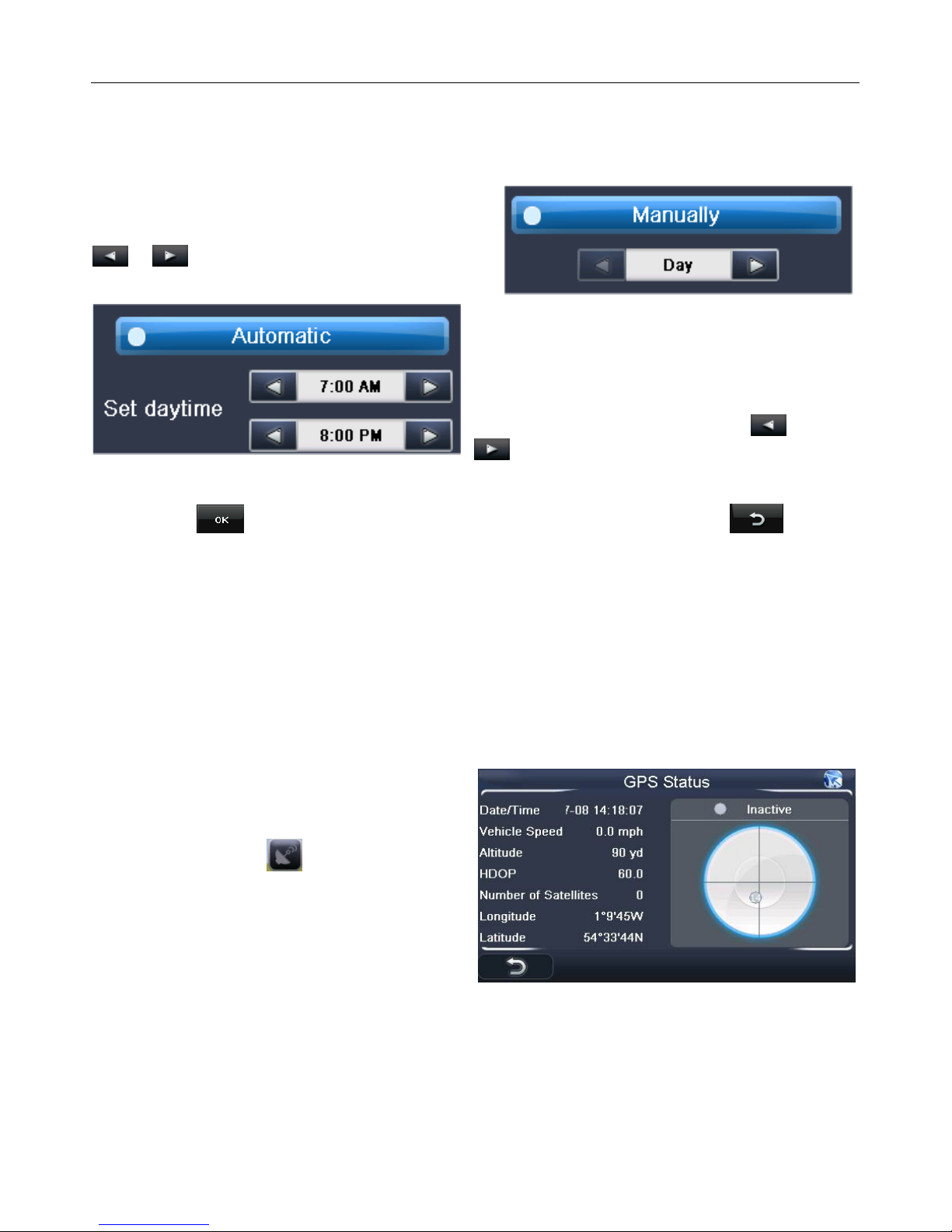

8.5 Day/Night Mode
Allows you to change the map so that the colour and brightness are optimal for driving in either
day time or night time conditions.
There are two options to choose from; manually and automatic.
Manually – when selected allows you to either
simply select day or night mode, by tapping either
or to make your selection.
Automatic – When selected allows you to set a
start and end time, when the time is between
these two times the unit will be set to Day mode.
At all other times the unit will automatically switch
to Night mode. You can set a start time of
between 1:00 till 12:00 AM and an end time of
between 1:00 till 12:00PM. Use the and
buttons to select the start and end time.
This way you can customise the Day/Night Mode for any time of year.
Once set tap to confirm the selection and return to the settings screen. Tap to return
to the settings screen without saving.
8.6 Set Home Address
Allows you to set your home address so that it can be easily used when navigating. When tapped
you will be able to add a location from the options available when entering a destination under the
Go to
section (see page 19). Note: the Go Home option will not be available.
If you need to change your home address at a later date, simply tap
Set Home Address
again to
re-enter your address.
8.7 GPS Status
When tapped the screen will change to the
GPS status screen, Note; this can also be
brought up by tapping from any of the
navigation screens.
This screen shows you information about your
current GPS position. Including the date & time,
your current speed, your current altitude above
sea level and your current position in Longitude
and latitude.
Included with this information is the number of satellites which you are currently locked on to. The
right half of the screen shows the position of these satellites in the sky. Each satellite will be
shown by a coloured circle; Blue means that the unit has locked on to the signal, while grey means
that the satellite has be found but the unit is not currently locked on to its signal. Each satellite will
be identified by a specific number shown inside the circle.
33
Page 34
NAVIGATION
Note: In order to navigate you require that the unit is locked to 4 or more satellites and is referred
to as a 3D fix. The fix status will be shown above the circle on the right- Inactive means not fixed,
active means that a 3D fix has been obtained.
8.8 Miles/Kilometre
Tapping this option will change the units of distance; this
change will be reflected both on the map and in the voice
directions. Tap this option to change between Miles and
Kilometres. The currently selected option will be shown on the
screen.
8.9 About
Tapping this option will show you information relating to the version of navigation software you are
running.
8.10 Time Zone
Allows you to change the time zone so that the
time is always correct for the country you are in
There are two options to choose from; manually
and automatic.
The selected option will be shown highlighted
blue.
Automatic – When selected the unit will always
set the time zone according to your current
GPS position.
Manually – When selected you can manually set the time zone by using the and keys to
select the desired time zone from the list.
In addition to setting either automatic or manually, you can select to have the unit automatically
adjust its self for daylight saving. To activate daylight saving tap in the box so that an blue tick is
shown.
Once set tap to confirm the selection and return to the settings screen. Tap to return
to the settings screen without saving.
8.11 Brightness
Allows you to change the brightness of the
screen so as to optimise it for differently lit
environments. Tapping will change the screen
to the brightness setting screen.
There are 5 settings available and are shown
as bars, with an arrow indicating the currently
selected level. Use the and keys to
set the required level, the brightness will be
reflected in the screen as the change is made.
34
Page 35
NAVIGATION
Once set tap to confirm the selection and return to the settings screen. Tap to return
to the settings screen without saving.
8.12 Calibration
This option allows you to calibrate the screen so that it responds accurately to your screen taps.
You will need this function only if the unit begins to respond inconsistently to your screen taps.
When tapped your will be shown a warning screen, tap to confirm you would like to
calibrate the screen. The screen will change to the calibration screen; follow the onscreen
instructions in order to complete the calibration process.

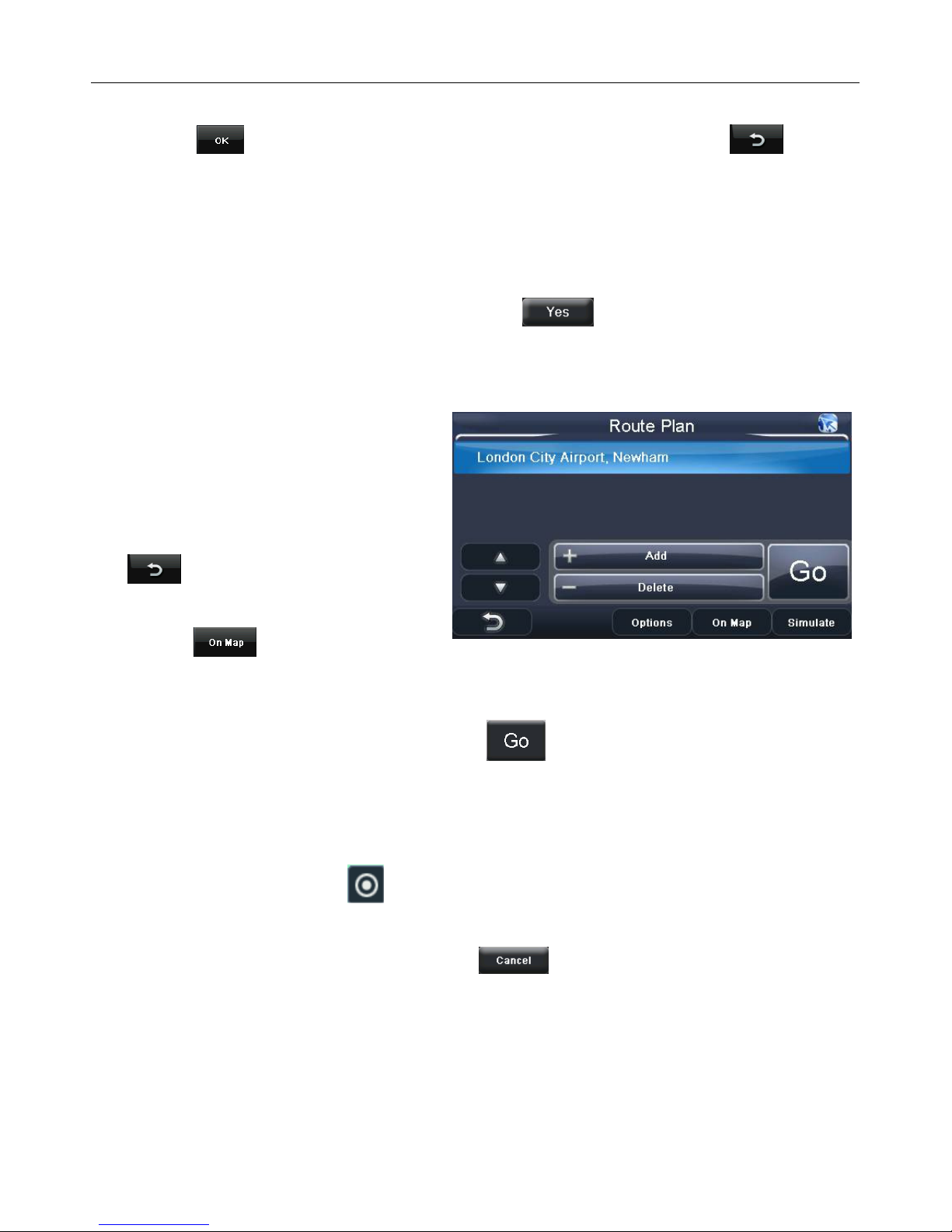

9 Route Plan
Once you have entered your destination and
confirmed it is correct, you will be taken to
the Route Plan screen; from here you can
begin navigating, carry out a simulation of
the route or add additional waypoints to the
journey.
Tap to return to the Free Navigation
Menu screen.
Select a destination so that it is highlighted
blue and tap to view the location on
the map.
9.1 Navigating
To begin navigating to you entered destination tap . The unit will begin to calculate a route
from your current location to your destination. Once calculated the screen will change to the route
navigation screen and you are ready to drive.
While you are navigating it is still possible to browse the map (see page 19). Note that the unit will
continue to navigate if you are moving, but your position on the map will not be updated and no
voice prompts will be given. Tap to return or wait for 10 seconds after which the unit will
automatically resume normal navigation.
While the unit is calculating the route you can tap at any time to cancel the route and
return back to the Route Plan screen.
35
Page 36
NAVIGATION

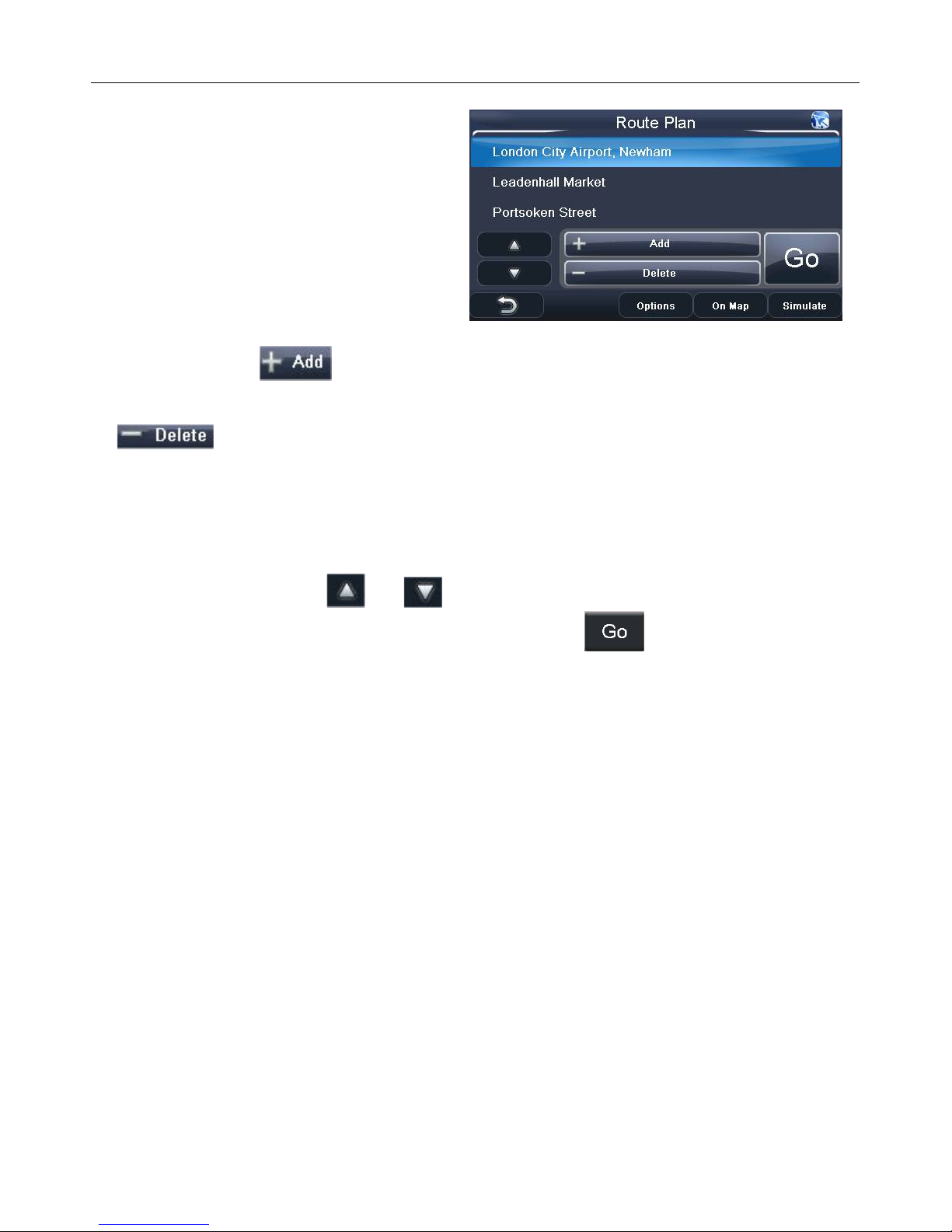

9.2 Waypoints
You can add up to two additional destinations
before you begin navigating, these additional
destinations are know as waypoints. When the
unit calculates the route it will navigate you to
each waypoint first before continuing on to
your final destination. This is handy if you are
planning a trip were you would like to stop off
on the way to take in sights or simple just for a
break/fuel.
To add waypoints tap , you will be taken to the Search Menu screen. You can then enter
your waypoint in the same way that you did for your destination (see page 34).
To remove a waypoint/destination, select the desired location so that it is highlighted blue and then
tap . The waypoint/destination will be removed from the list.
Navigating using waypoints
When the unit calculates the route it will calculate the route from your current position to the
location at the top of the list first, it will then calculate the route from the location at the top of the
list to the location second from top and so on for the next location. The last location on the list will
always be your final destination. You can change the order of a location by selecting it so that it is
highlighted blue, then use the and keys to move it up or down in the list. Once you have
entered all your waypoints and they are in the correct order tap , the unit will calculate the
route and change to the route navigation screen.
36
Page 37
NAVIGATION

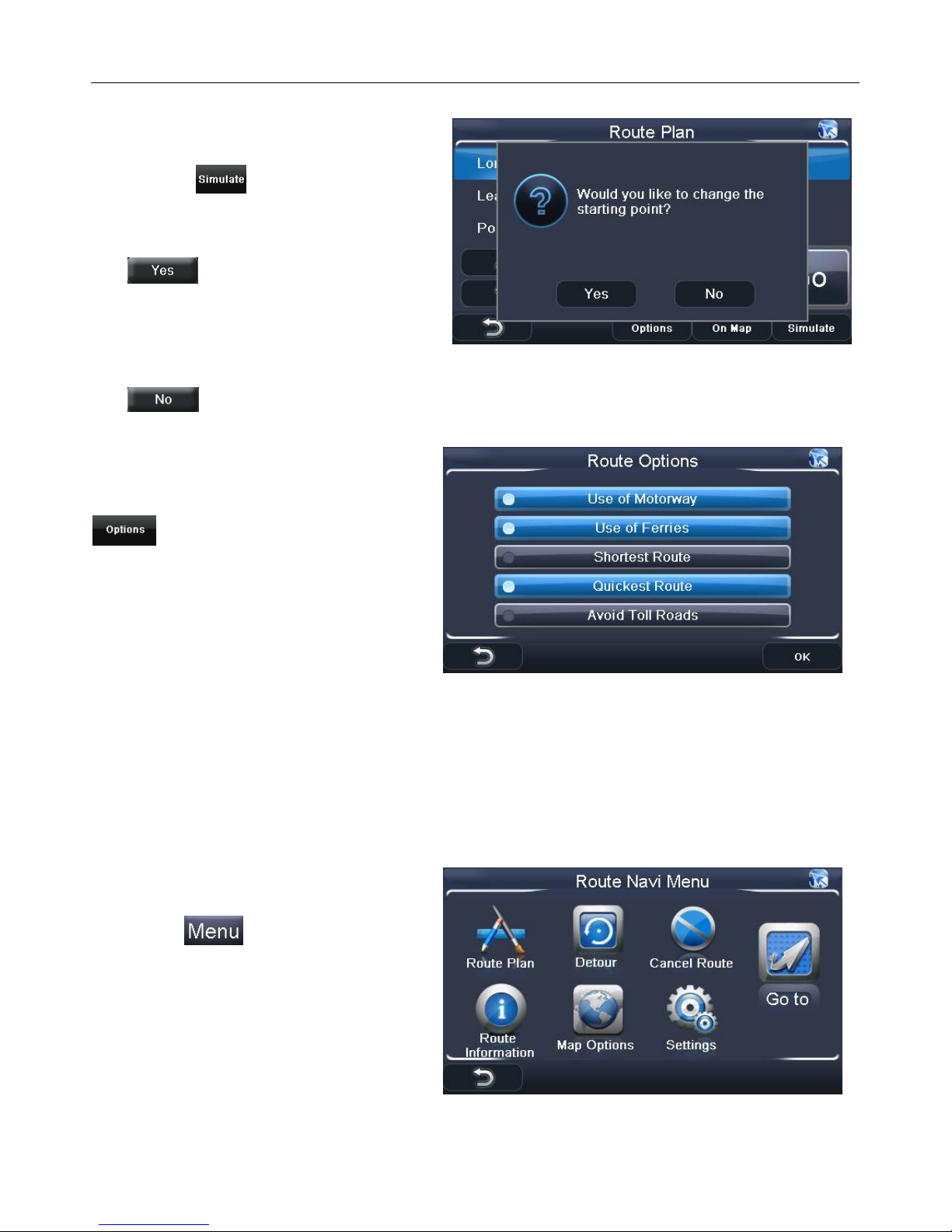

9.3 Simulate
Before you navigate a route for real you can
simulate the route on the unit. To simulate
the route tap , you will be asked if you
would like to change your starting point.
Your current starting point will be your
current position on the map.
Tap to change your starting point,
you will be taken to the Search Menu
screen. You can then enter the start point
just as if you had entered a destination (see
page 20). Once the start point has been entered the unit will begin calculating the route and then
drive the route automatically.
Tap to keep your current location as the start point, the unit will begin calculating the
route and then drive the route automatically.
9.4 Route Options
The route options menu allows you to
configure the route to your preference. Tap
the screen will change to the route
options screen.
From here you can enable or disable a
number of options relating to how the route
is calculated.
The currently selected options are shown
higlighted blue.
Use of Motorway - When selected the unit will use motorways in the route calculation.
Use of Ferries - When selected the unit will use ferries in the route calculation.
Shortest Route - When selected the unit will calculate a route which covers the shortest
distance.
Quickest Route - When selected the unit will calculate a route which has the shortest travel
time.
Avoid Toll Roads - When selected the unit will calculate a route which does not use toll roads.
10 Route Navigation Menu
While navigating or simulating a route
tapping the button will take you to
the Route Navigation Menu. From here you
can obtain detailed information about the
route you have calculated or make
changes to the settings without having to
exit navigation.
37
Page 38
NAVIGATION
10.1 Route Plan
This takes you back to the Route Plan Menu (see page 34). From here you can add/remove
waypoints, change the Route Options or even simulate the route. Tapping will result in the
route being recalculated from your current position. Any changes will be taken in to consideration
when calculating the route.

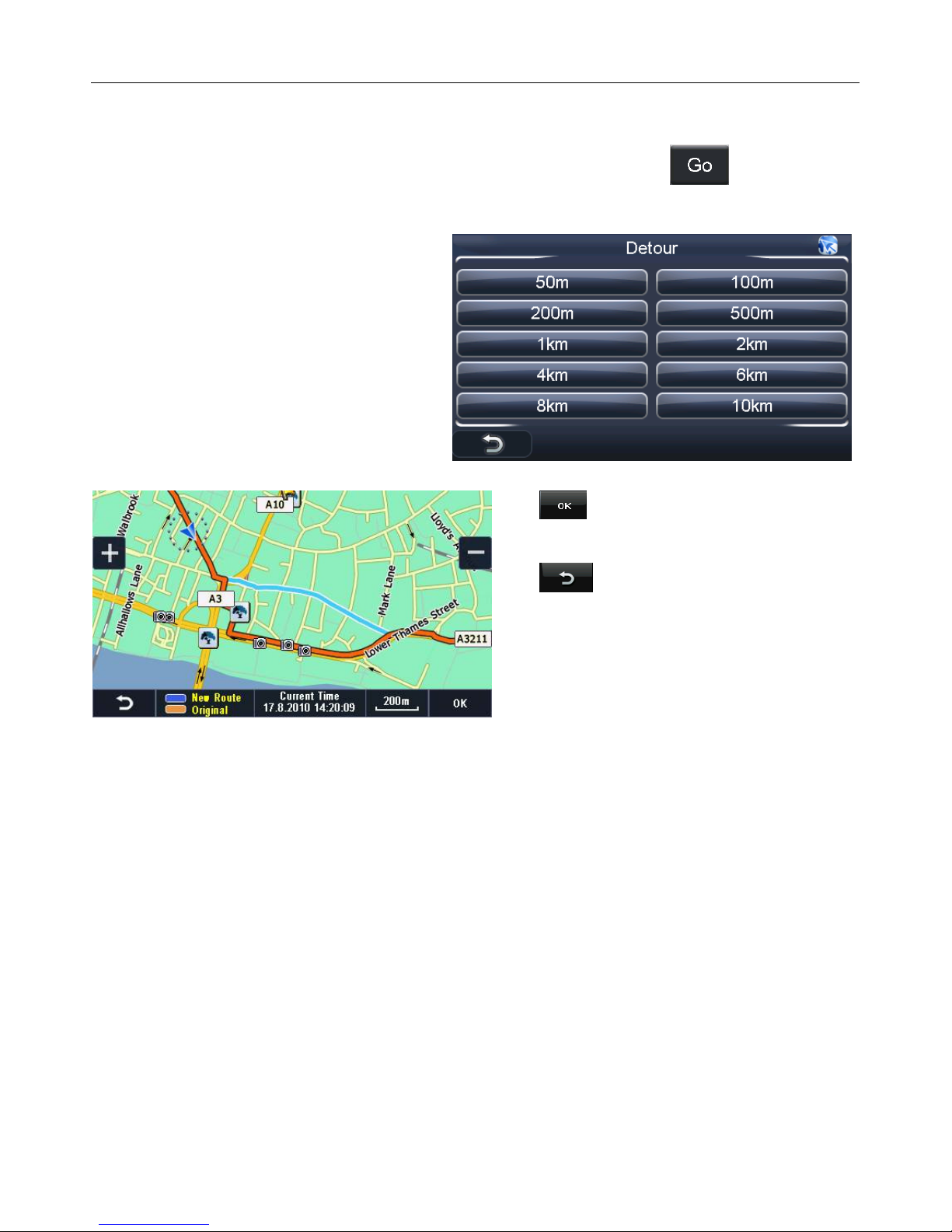

10.2 Detour
This option allows you to navigate around
any traffic jams or blocked roads which are
along your planned journey. When tapped
the screen will change to show the available
distance options. You will need to estimate
the distance to the blocked road/traffic jam
then choose the option which is the next
lowest distance.
The unit will than calculate a detour route,
this new route can be viewed on the map as
a blue line.
Tap to confirm the new route the unit
will return to the navigation screen but will
now direct you via the detour route.
Tap to return to the detour screen, if
you were not happy with the new route and
would like to select a different option or if you
no longer want to add a detour. Tap again
from the Detour screen to go back to the
Route Navi Menu screen (see page 36).
10.3 Cancel Route
Tap this option to cancel the route you have planned and stop navigating, you will be returned to
the Free Navi Menu screen.
10.4 Go To
Tapping this option will automatically cancel the route and take you to the Search menu (see page
19). Were you will be able to enter a new destination to navigate too.
38
Page 39
NAVIGATION

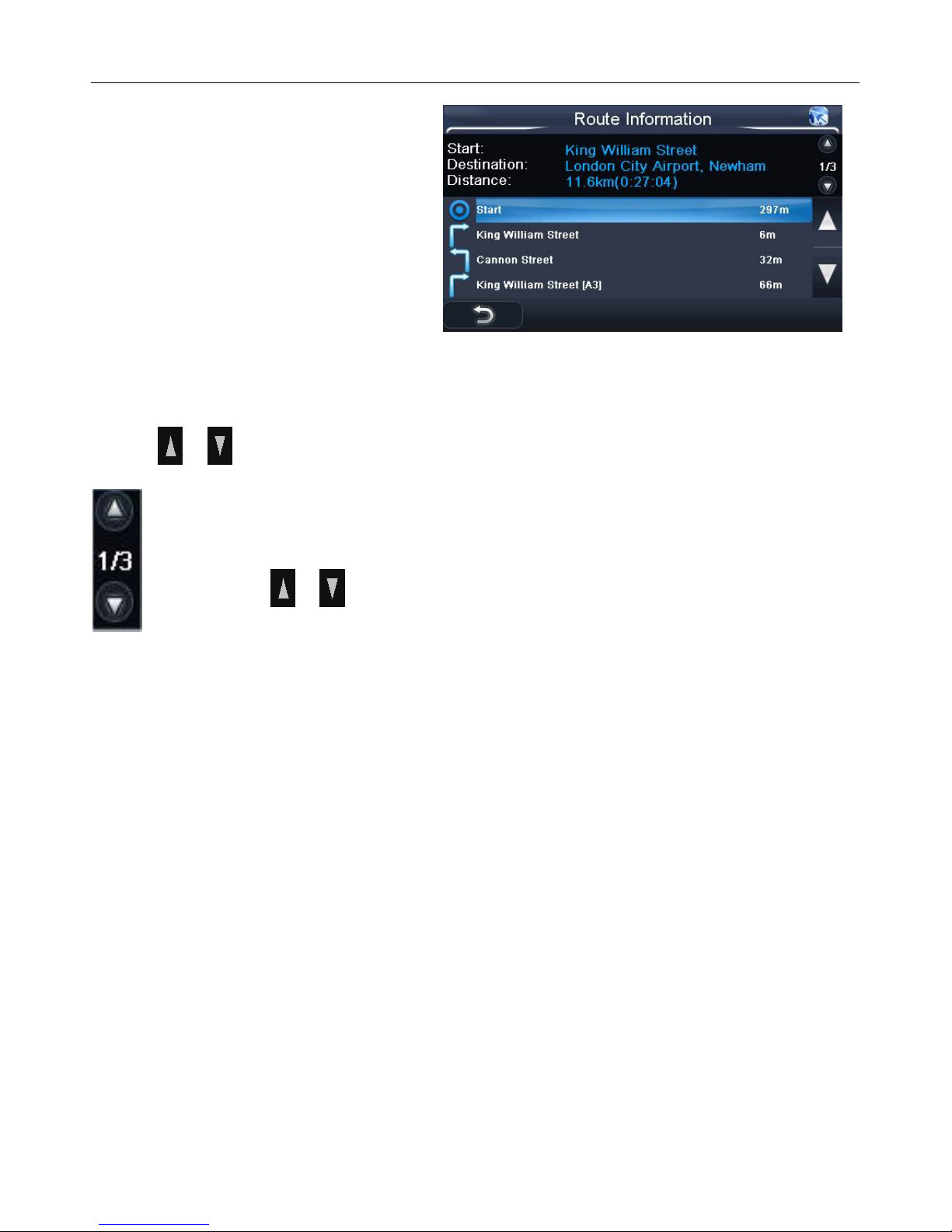

10.5 Route Information
Tapping this option will detail the route in
text format and contains useful information
about the route you have planned on a
new screen.
As well as showing you your start and
destination locations it will show you the
distance between these two locations as
planned by the unit and the estimated time
it will take to drive the planned route.
Included is a detailed turn by turn
explanation of the route, which includes – the next street name, distance between turns and the
turn type.
For example: Turn right onto King William Street [A3] then drive for 66 metres.
Use the or keys to scroll through the list of directions.
If you have added waypoints then the route directions will be split between the different
destination/waypoints points. Each single route is viewed separately and is indicated by
the 2 arrows and 2 numbers separated by a /.
For example: 1/2 shows there are 2 separate routes and you are currently viewing the first
route. Use the or keys to change between the different routes, the information
shown will only be for that particular route.
10.6 Map Options
This allows access to the Map options (see page 26).
10.7 Settings
This allows access to the Map options (see page 28).
39
Page 40
Frequently asked questions
I can’t find an address.
Please make sure you have correctly spelt your entry. If you do not know how an address is
spelt correctly, simply enter the parts of the address, you know of sure (e.g., “ond”, “Leic” for
Leicester Square in London). Then browse the results list and look for the address. Also make
sure that the city in which you are looking for an address is correct. Sometimes the official
postal address differs from the address you are looking for. In that case, search for a known
address nearby and browse the map.
If you find the address on the map but you cannot find it while searching for it, please let us
know via our help line 0845 345 9677.
The map contains an error / POl’s are missing.
If you detect an error in the map data (e.g., a street is missing completely), we would like to
inform our map data provider. Please let us know via our help line 0845 345 9677.
I am experiencing problems getting a GPS fix.
If you have problems getting a satellite fix with GPS(you can see how many satellites are
being received by going to the main menu and selecting GPS receiver), please make sure you
are outside and the GPS antenna has good ‘visibility’ to the open sky. Some models also
support an additional external active antenna. Please consult the hardware manual of your
device to get further information on how to obtain a GPS fix.
Where can I get technical support?
Please contact our help line 0845 345 9677.
Where can I get software updates?
Please contact our helpline or your retail store for information about software updates.
Where can I get additional maps and guides?
Please refer to www.binatonegps.com.
40
Page 41
PRODUCT GUARANTEE
This product is guaranteed against manufacturing defects for a period of 1 year.
This does not cover the product where the fault is due to misuse, abuse, user in contravention
of the instructions, or where the product has been the subject of unauthorized modifications or
alterations, or has been the subject of commercial use.
In the event of a problem with the product within the guarantee period please return it to your
nearest Argos store. If the item is shown to have had an inherent defect present at the time of
sale, the store will provide you with a replacement.
Your statutory rights remain unaffected.
Guarantor; Argos Ltd
489 – 499 Avebury Boulevard
Central Milton Keynes
MK9 2NW
41
Page 42
Technical Specifications
CPU
Atlas IV or V 500 MHz
Operating System
Antenna
Memory 64MB SDRAM Built-in
Display
Weight
Input Method
Expansion Slot
Speaker Built-in
I/O
Headphone 3.5mm Mini jack
Microsoft WinCE.NET 6.0 Core Version
Built-in GPS high sensitivity receiver (64
channels)
4.3″colour TFT touch screen
0.142 kg
Touch
MicroSD card
1.0W loud speaker
USB USB Client for Active Sync
Battery
Dimension
Re-chargeable Lithium Polymer battery
122mmx78mmx12mm
42
Page 43
BINATONE TELECOM PLC
1 Apsley Way London NW2 7HF,United Kingdom.
Tel: +44(0) 20 8955 2700 Fax: +44(0) 20 8344 8877
e-mail: binatoneuk@binatonetelecom.co.u
________________________________________ .
We the manufacturer / Importer : Binatone Telecom Plc
1 Apsley Way London
Declare under our sole responsibility that the following product
Type of equipment: GPS
Model Name: F430 series
Country of Origin: China
Brand: Binatone
complies with the essential protection requirements of Article 3.1 (b) of R&TTE Directive 1999/5/EC and
the following standards:
Radio Spectrum: ETS 300487/A1:1997
EMC: EN 301489-19 V1.2.1 (2002-11)
EN 301489-1:2008 V1.8.1
Electrical Safety: EN 60950-1:2001+A11:2004
The product is labelled with the European Approval Marking CE as show. Any Unauthorized modification
of the product voids this Declaration.
k
EC Declaration of Conformity
NW2 7HF, United Kingdom.
Manufacturer / Importer
(signature of authorized person)
Paul Tsui, Product Operation Director London,
Signature: Place & Date: 6 Nov, 2009
43
Loading...
