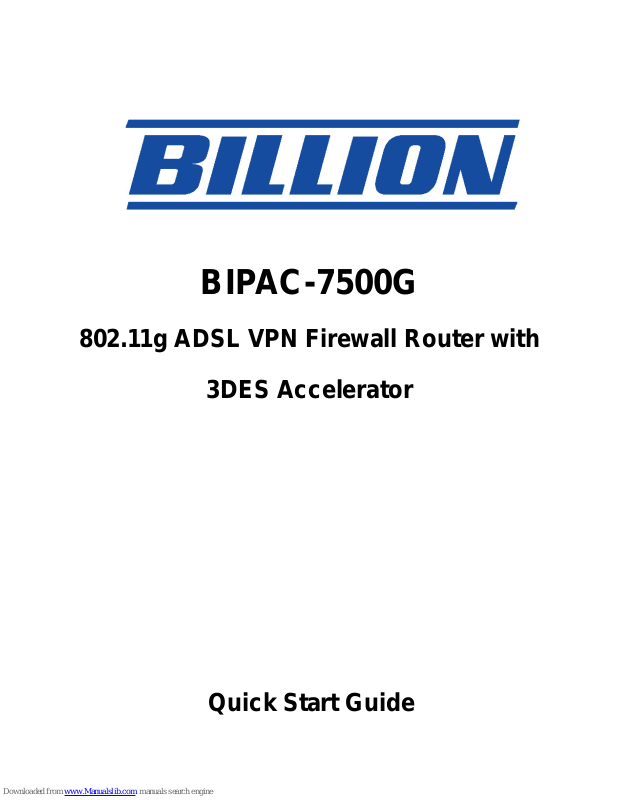

Billion BIPAC 7500, BiPAC 7500G Quick Start Manual

BIPAC-7500G

802.11g ADSL VPN Firewall Router with
3DES Accelerator

Quick Start Guide

Billion BIPAC-7500G - 802.11g ADSL VPN Firewall Router with 3DES Accelerator

1

Package Contents

BIPAC-7500G ADSL VPN Firewall Router
CD-ROM containing the online manual
RJ-11 ADSL/telephone Cable
Ethernet (CAT-5 LAN) Cable
Console (PS2-RS232) Cable
AC-DC power adapter (12V DC, 1A)
ADSL Line Filter (Optional)

(Note: Included for Australia)

Two 5dbi Antennae
This Quick Start Guide

For more detailed instructions on configuring and using
the 802.11g ADSL VPN Firewall Router, please refer to
the on-line manual.

 Do not use the BIPAC-7500G ADSL VPN Firewall Router in high

humidity or high temperatures.

 Do not use the same power source for the BIPAC-7500G ADS

L

VPN Firewall Router as other equipment.

 Do not open or repair the case yourself. If the BIPAC-7500G ADSL

VPN Firewall Router is too hot, turn off the power immediately and
have it repaired at a qualified service center.

Warning

 Place the BIPAC-7500G ADSL VPN Firewall Router on a stable

surface.

 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

A

ttention

Quick Start Guide

2

The Front LEDs

LED Meaning

1 PWR Lit when power is ON.
2 SYS Lit when the system is ready.
3 LAN port 1 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps
Blinking when data is transmitted/received.

4 LAN port 2 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps
Blinking when data is transmitted/received.

5 LAN port 3 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps
Blinking when data is transmitted/received.

6 LAN port 4 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps
Blinking when data is transmitted/received.

7 WLAN

Lit green when the wireless connection is established. Flashes
when sending/receiving data.

10 MAIL Flash when there is Email in your configured Email account.
11

PPP Lit when there is a PPPoA / PPPoE connection.

13 ADSL Lit when successfully connected to an ADSL DSLAM (“linesync”).
