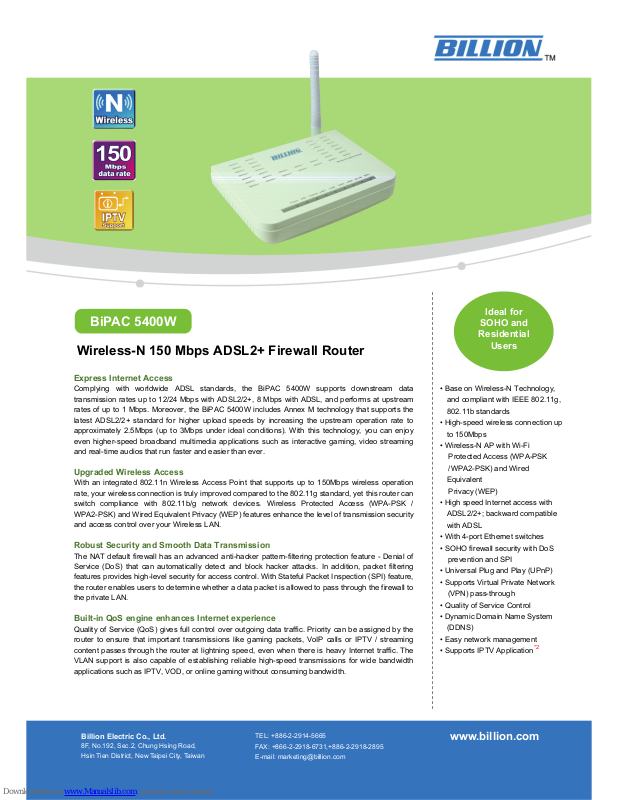

Billion BiPAC 5400W Features & Specifications

Billion Electric Co., Ltd.

8F, No.192, Sec.2, Chung Hsing Road,
Hsin Tien District, New Taipei City, Taiwan

TEL: [phone]

FAX: [phone]

E-mail: [e-mail]

www.billion.com

• Base on Wireless-N Technology,

and compliant with IEEE 802.11g,

802.11b standards

• High-speed wireless connection up

to 150Mbps

• Wireless-N AP with Wi-Fi

Protected Access (WPA-PSK

/WPA2-PSK) and Wired

Equivalent

Privacy (WEP)

• High speed Internet access with

ADSL2/2+; backward compatible

with ADSL

• With 4-port Ethernet switches

• SOHO firewall security with DoS

prevention and SPI

• Universal Plug and Play (UPnP)

• Supports Virtual Private Network

(VPN) pass-through

• Quality of Service Control

• Dynamic Domain Name System

(DDNS)

• Easy network management

• Supports IPTV Application

*2

Express Internet Access

Complying with worldwide ADSL standards, the BiPAC 5400W supports downstream data
transmission rates up to 12/24 Mbps with ADSL2/2+, 8 Mbps with ADSL, and performs at upstream
rates of up to 1 Mbps. Moreover, the BiPAC 5400W includes Annex M technology that supports the
latest ADSL2/2+ standard for higher upload speeds by increasing the upstream operation rate to
approximately 2.5Mbps (up to 3Mbps under ideal conditions). With this technology, you can enjoy
even higher-speed broadband multimedia applications such as interactive gaming, video streaming
and real-time audios that run faster and easier than ever.

Upgraded Wireless Access

With an integrated 802.11n Wireless Access Point that supports up to 150Mbps wireless operation
rate, your wireless connection is truly improved compared to the 802.11g standard, yet this router can
switch compliance with 802.11b/g network devices. Wireless Protected Access (WPA-PSK /
WPA2-PSK) and Wired Equivalent Privacy (WEP) features enhance the level of transmission security
and access control over your Wireless LAN.

Robust Security and Smooth Data Transmission

The NAT default firewall has an advanced anti-hacker pattern-filtering protection feature - Denial of
Service (DoS) that can automatically detect and block hacker attacks. In addition, packet filtering
features provides high-level security for access control. With Stateful Packet Inspection (SPI) feature,
the router enables users to determine whether a data packet is allowed to pass through the firewall to
the private LAN.

Built-in QoS engine enhances Internet experience

Quality of Service (QoS) gives full control over outgoing data traffic. Priority can be assigned by the
router to ensure that important transmissions like gaming packets, VoIP calls or IPTV / streaming
content passes through the router at lightning speed, even when there is heavy Internet traffic. The
VLAN support is also capable of establishing reliable high-speed transmissions for wide bandwidth
applications such as IPTV, VOD, or online gaming without consuming bandwidth.

BiPAC 5400W

Wireless-N 150 Mbps ADSL2+ Firewall Router

Ideal for

SOHO and

Residential

Users

Billion Electric Co., Ltd.

8F, No.192, Sec.2, Chung Hsing Road,
Hsin Tien District, New Taipei City, Taiwan

TEL: [phone]

FAX: [phone]

E-mail: [e-mail]

www.billion.com

ADSL Compliance*1

• Compliant with ADSL Standards

- Full-rate ANSI T1.413 Issue 2

- G.dmt (ITU G.992.1)

- G.lite (ITU G.992.2)

- G.hs (ITU G.994.1)

- ADSL over ISDN/U-R2

• Compliant with ADSL2 Standards

- G.dmt.bis (ITU G.992.3)

- ADSL2 Annex M (ITU G.992.3 Annex M)
(available for BiPAC 5400WA model only)

• Compliant with ADSL2+ Standards

- G.dmt.bis plus (ITU G.992.5)

- ADSL2+ Annex M (ITU G.992.5 Annex M)
(available for BiPAC 5400WA model only)

Network Protocols and Features

• NAT, static routing and RIP-1/2

• Multi-to-multi NAT

• Transparent Bridging

• Dynamic Domain Name System (DDNS)

• Virtual Server and DMZ

• SNTP, DNS relay

Firewall & Virtual Private Network (VPN)

• Built-in NAT Firewall

• Stateful Packet Inspection (SPI)

• Prevents DoS attacks including Land Attack, Ping
of Death, etc.

• Anti probe function

• Packet filtering, MAC filtering, URL filtering

• Password protection for system management

• VPN pass-through

Quality of Service Control

• Supports the DiffServ approach

• Traffic prioritization based-on IP protocol, port
number and address

IPTV Application

*2

• Virtual LAN (VLAN)

• Quality of Service (QoS)

• IGMP snooping & IGMP Proxy

Wireless LAN

*3

• Based on Wireless-N Technology, and

compliant with 802.11g, 802.11b standards

• Up to 150Mbps wireless operation rate

• 2.4 GHz–2.484 GHz frequency range

• 64/128 bits WEP supported for encryption

• Wireless Security with WPA-PSK/ WPA2-PSK

ATM and PPP Protocols

• ATM Adaptation Layer Type 5 (AAL5)

•Multiple Protocol over AAL5
(RFC 2684, formerly RFC 1483)

• Bridged or routed Ethernet encapsulation

• VC and LLC based multiplexing

• PPP over Ethernet (PPPoE)

• PPP over ATM (RFC 2364)

• OAM F4/F5

• ATM QoS: UBR, CBR, VBR-rt, VBR-nrt

Operating Environment

• Operating temperature: 0 ℃ - 40℃

• Storage temperature: -20 ℃ - 70℃

• Humidity: 20% - 95% non-condensing

Management

• Web-based configuration

• Firmware upgrades and configuration data
transfers via web-based interface

• SNMP v1/v2, MIB supported

• Supports DHCP server/client/relay

• TR-069

*4

supports remote management

Hardware Specifications

Physical Interface

• DSL: ADSL port

• Ethernet: 4-port 10/100M auto-crossover

(MDI/MDI-X) switch

• Factory default reset button

• Power jack

• Power switch

• WLAN: 1 antenna

Physical Specifications

• Dimensions: 5.87" x 4.25" x 1.12"

(149mm x 108mm x 28.5mm)

Power Requirements

• Input: 12V DC, 0.5A

Models & Supported Standards

• BiPAC 5400WA: Supports Annex A and

Annex M

• BiPAC 5400WU: Supports Annex B and

U-R2

• Annex A and Annex M: ADSL over POTS

• Annex B and U-R2: ADSL over ISDN

Notes:

1. This router may require firmware modification for certain ADSL2/2+/Annex M DSLAMs.

2. IPTV application may require subscribing to IPTV services from a Telco / ISP.

3. Actual throughput and performance depends on the environment. Normally, the wireless speed is faster if you are closer to the
router.

The farther from the router you are, the more wireless range, and the speed will be slower.

4. Only upon request for Telco / ISP Project.

5. Specifications on this datasheet are subject to change without prior notice.

V.01172012
