Billion BiPAC 5210S User Manual

BiPAC 5210S

Dual-Port

ADSL2+ Modem/Router

User’s Manual

Chapter 1 ................................................................................................1

1.1 Introducing the BiPAC 5210S ................................................ 1

1.2 Features of the BiPAC 5210S................................................ 3

Chapter 2 ................................................................................................6

2.1 Important note for using the BiPAC 5210S............................6

2.2 Package Contents ................................................................. 6

2.3 The Front LEDs ..................................................................... 7

2.4 The Rear Ports ...................................................................... 8

2.5 Cabling ..................................................................................9

Chapter 3 ..............................................................................................10

3.1 Before Configuration............................................................10

3.2 Factory Default Settings ...................................................... 23

3.3 LAN and WAN Port Addresses............................................24

3.4 Information from your ISP....................................................24

3.5 Configuring with your Web Browser ....................................25

Chapter 4 ..............................................................................................26

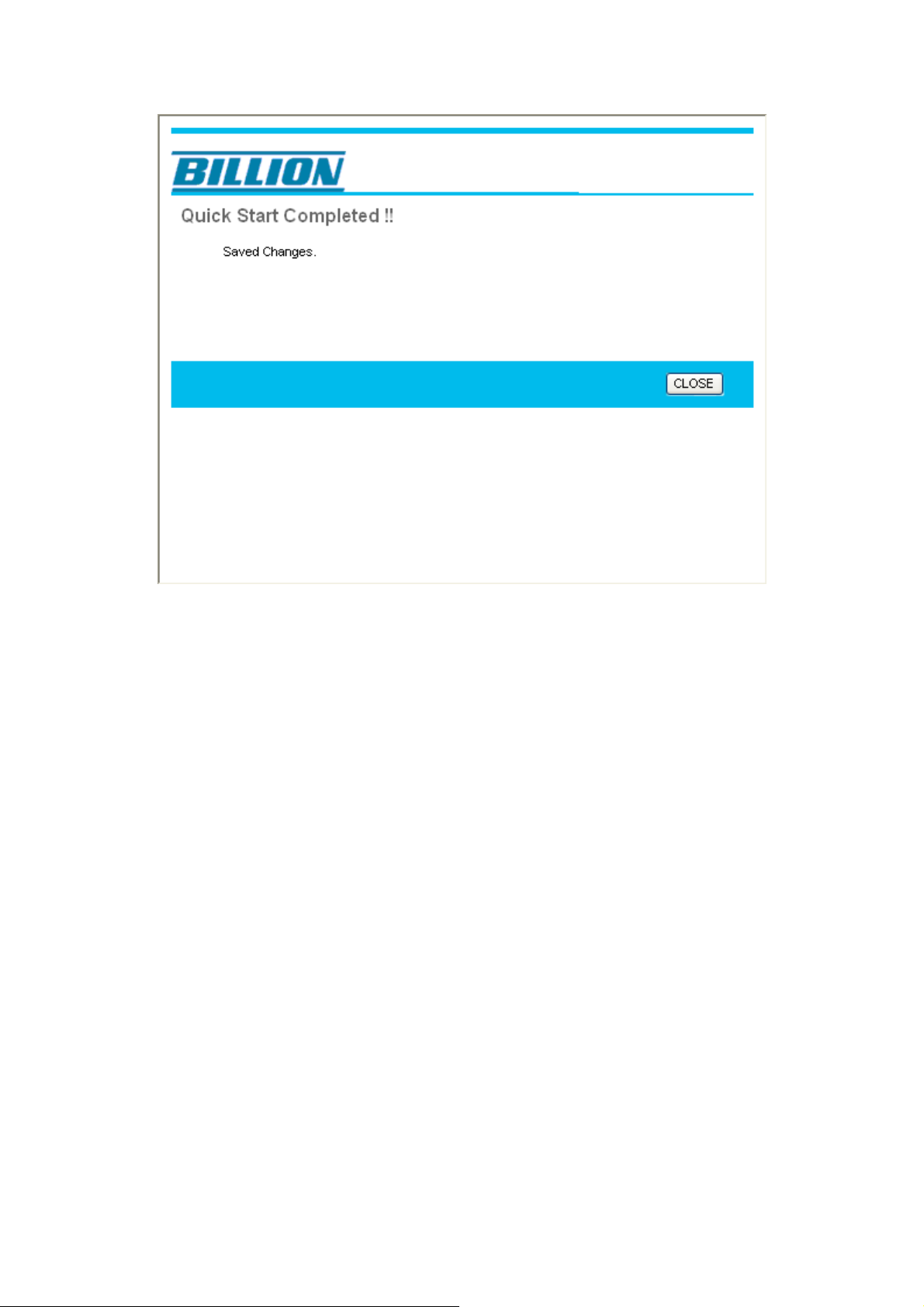

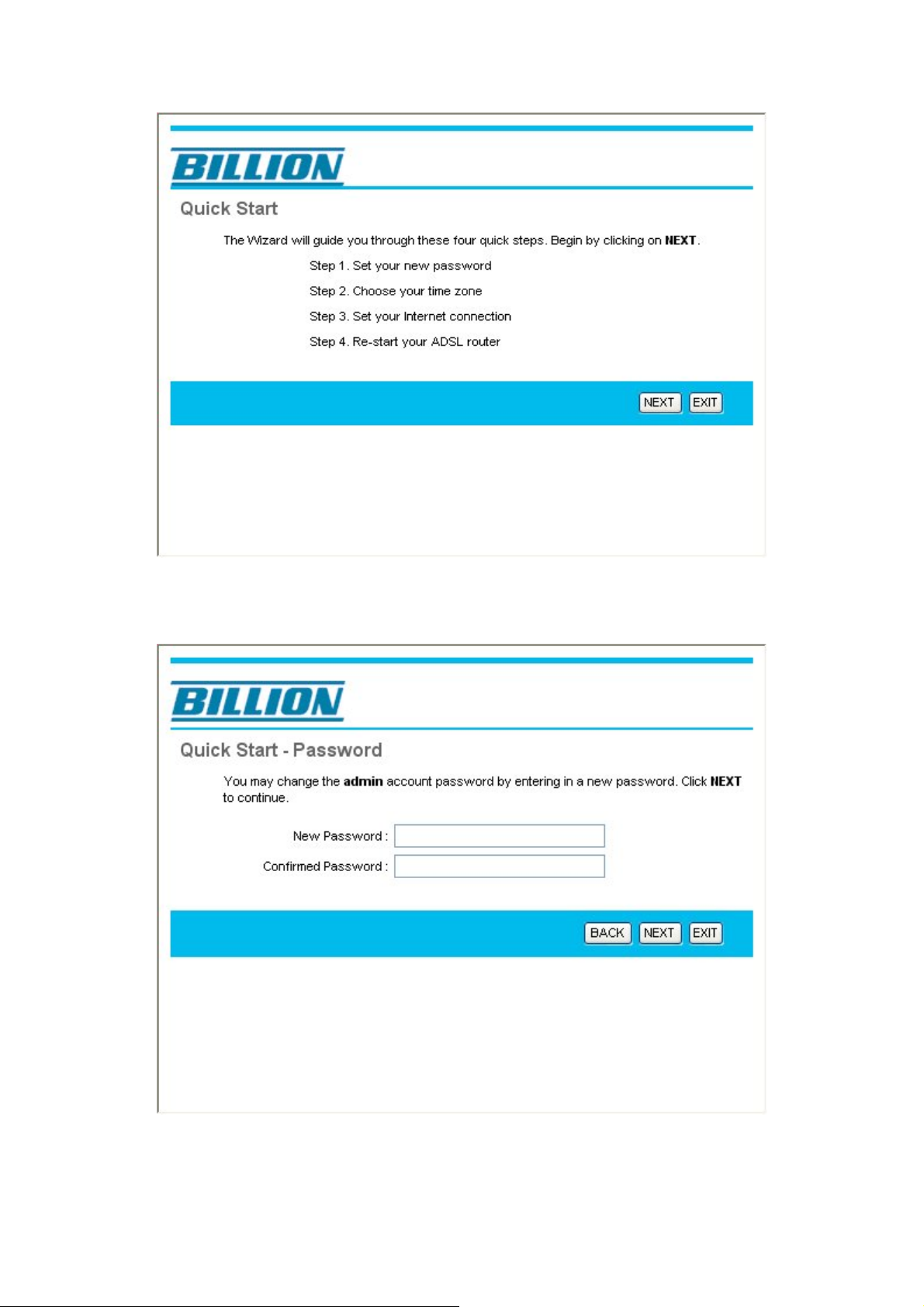

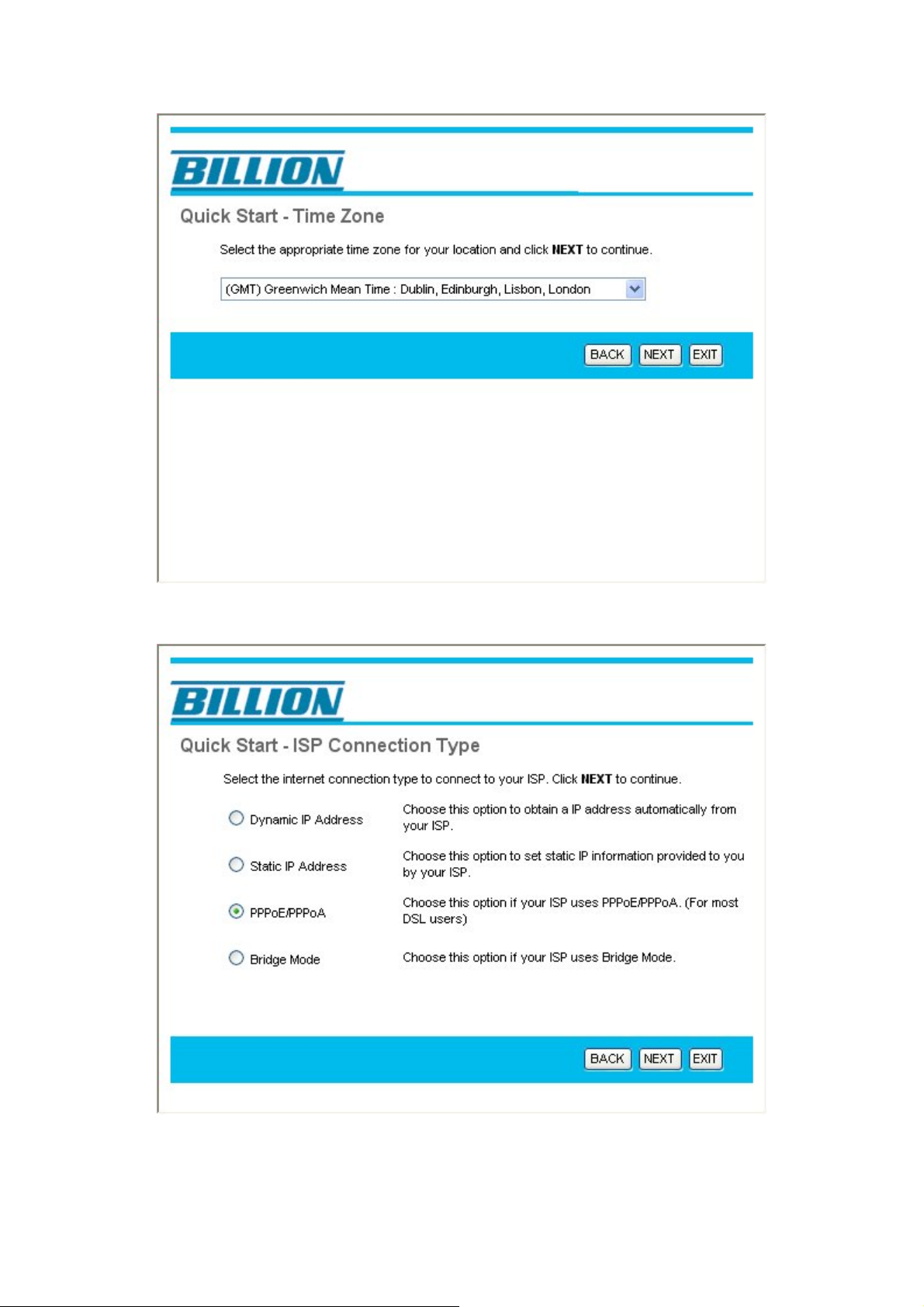

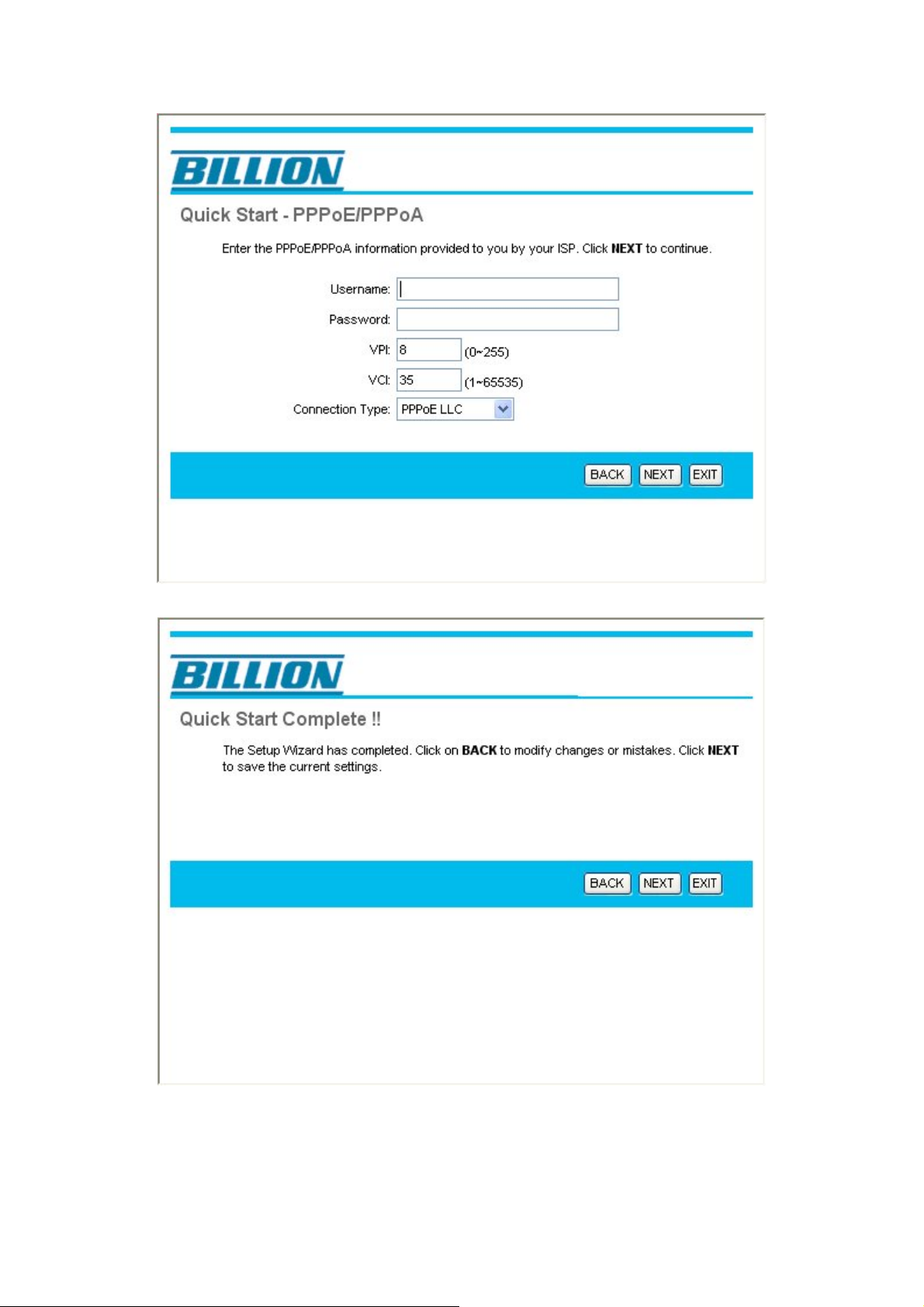

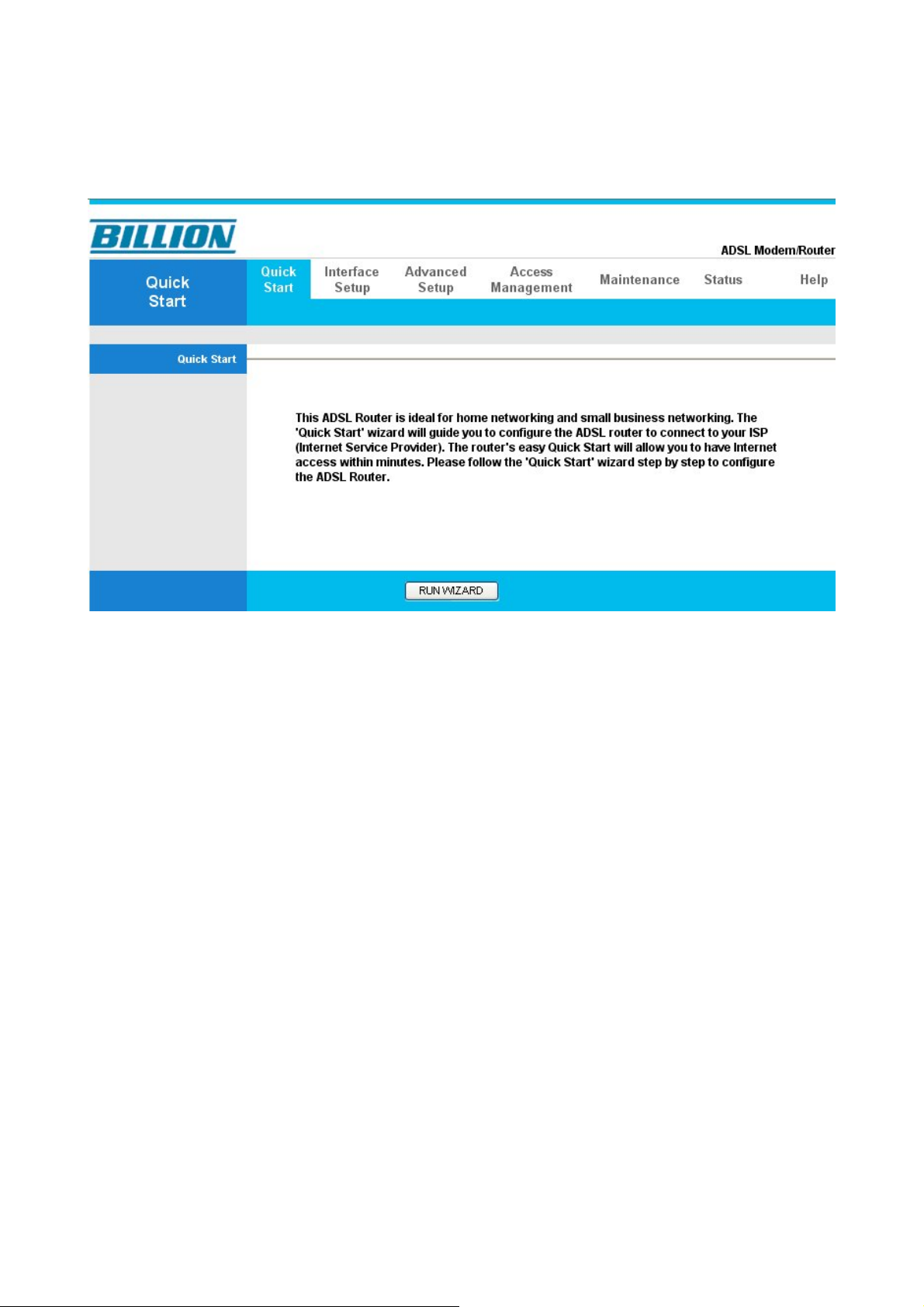

4.1 Quick Start........................................................................... 27

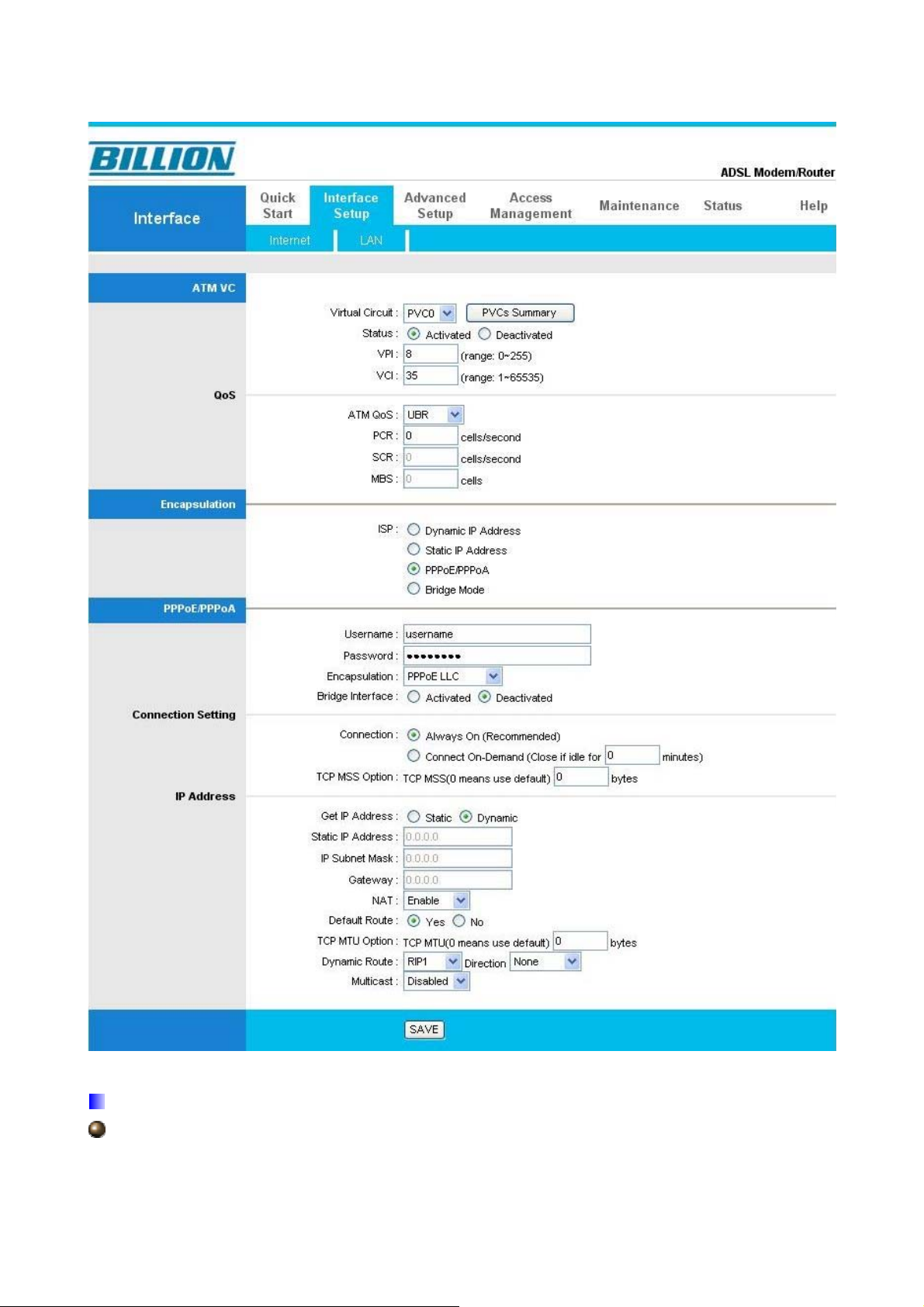

4.2 Interface Setup .................................................................... 32

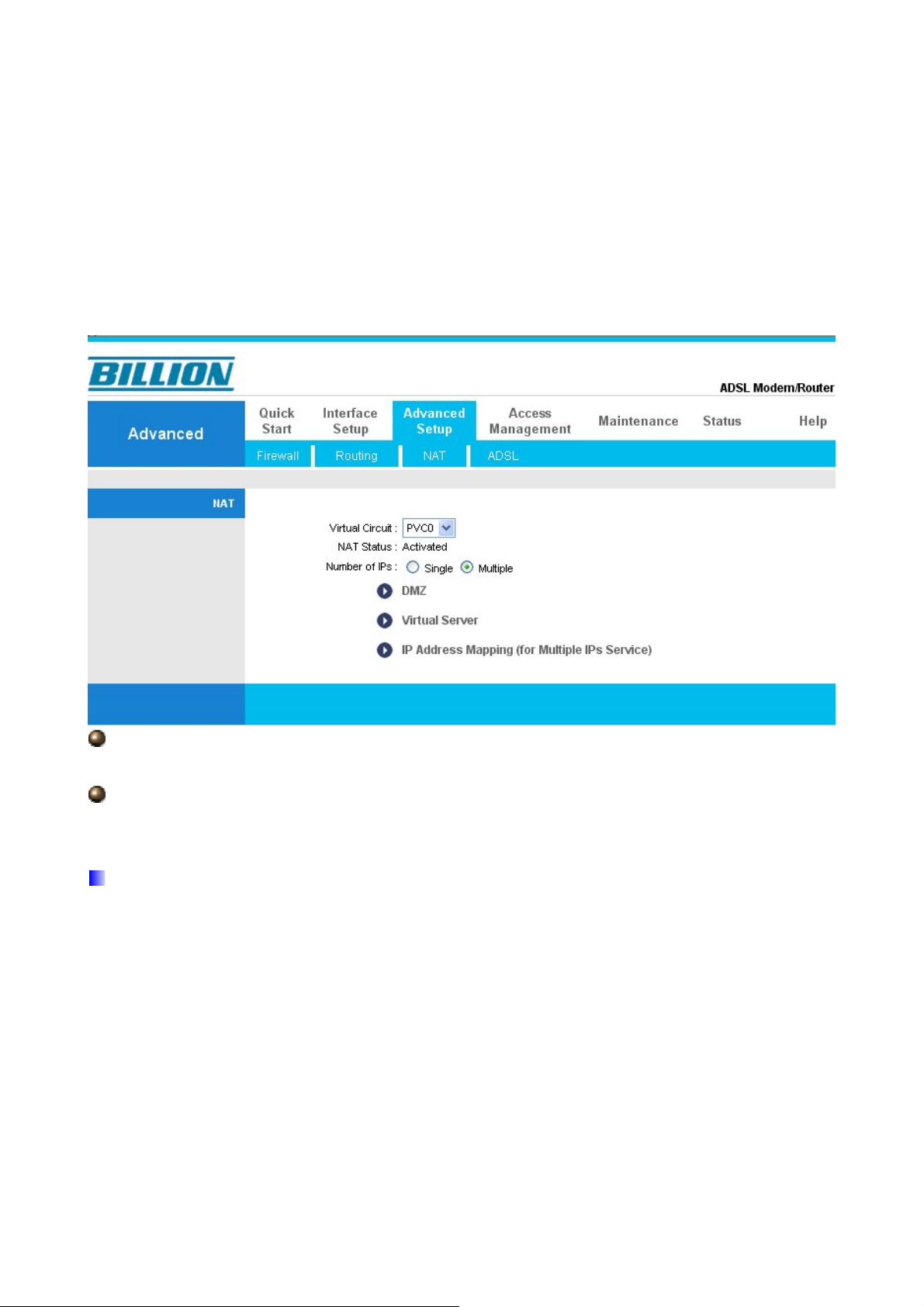

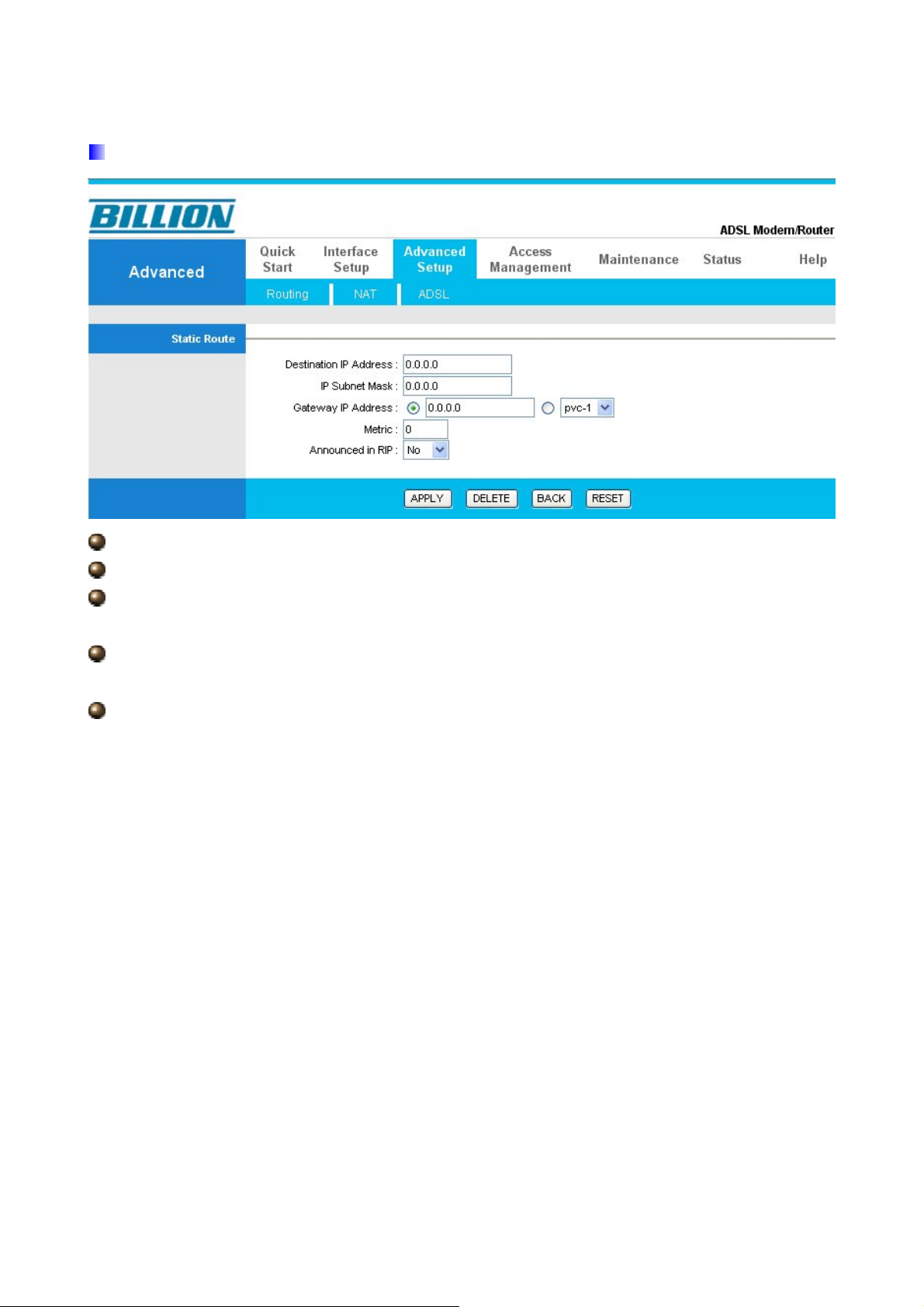

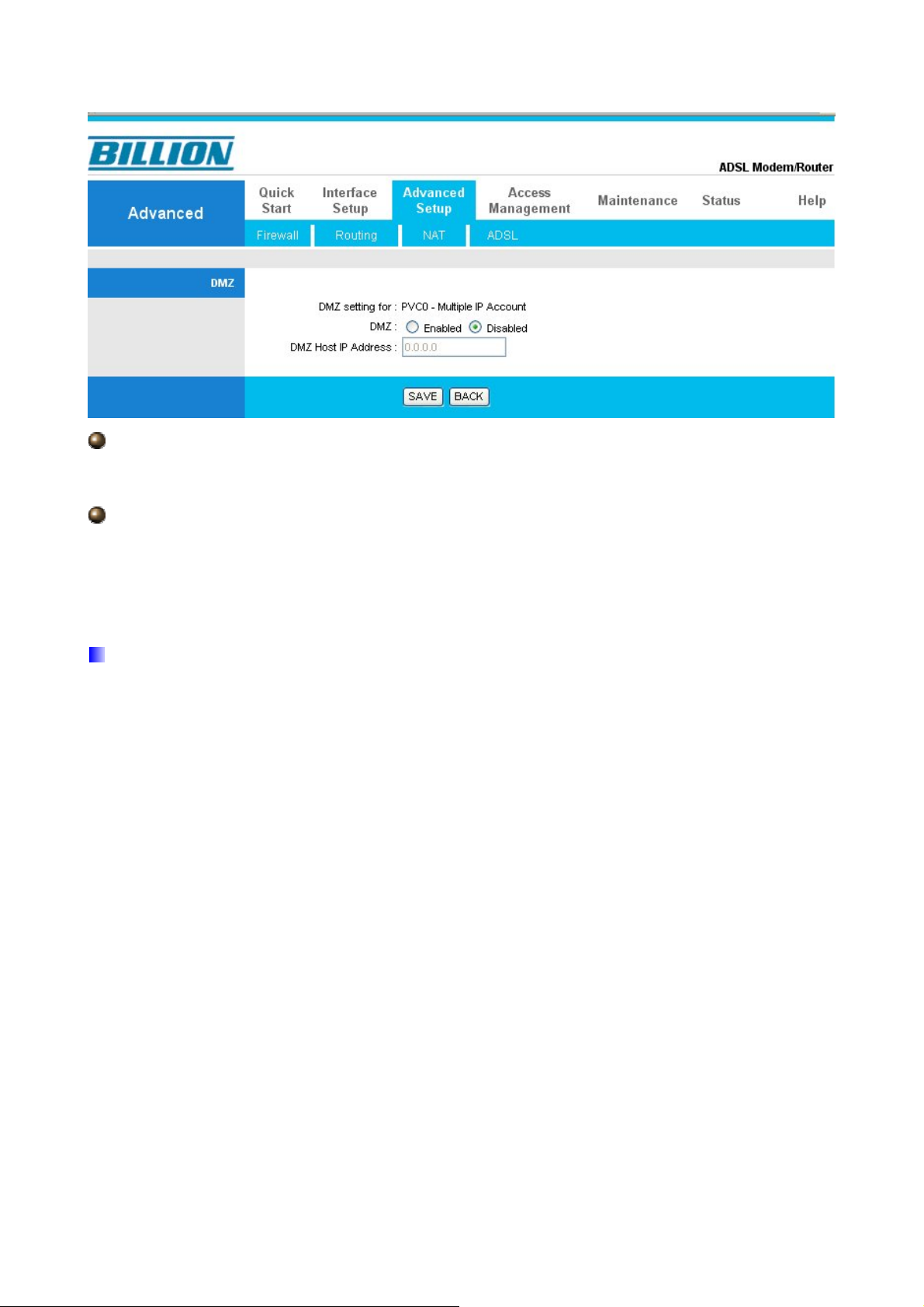

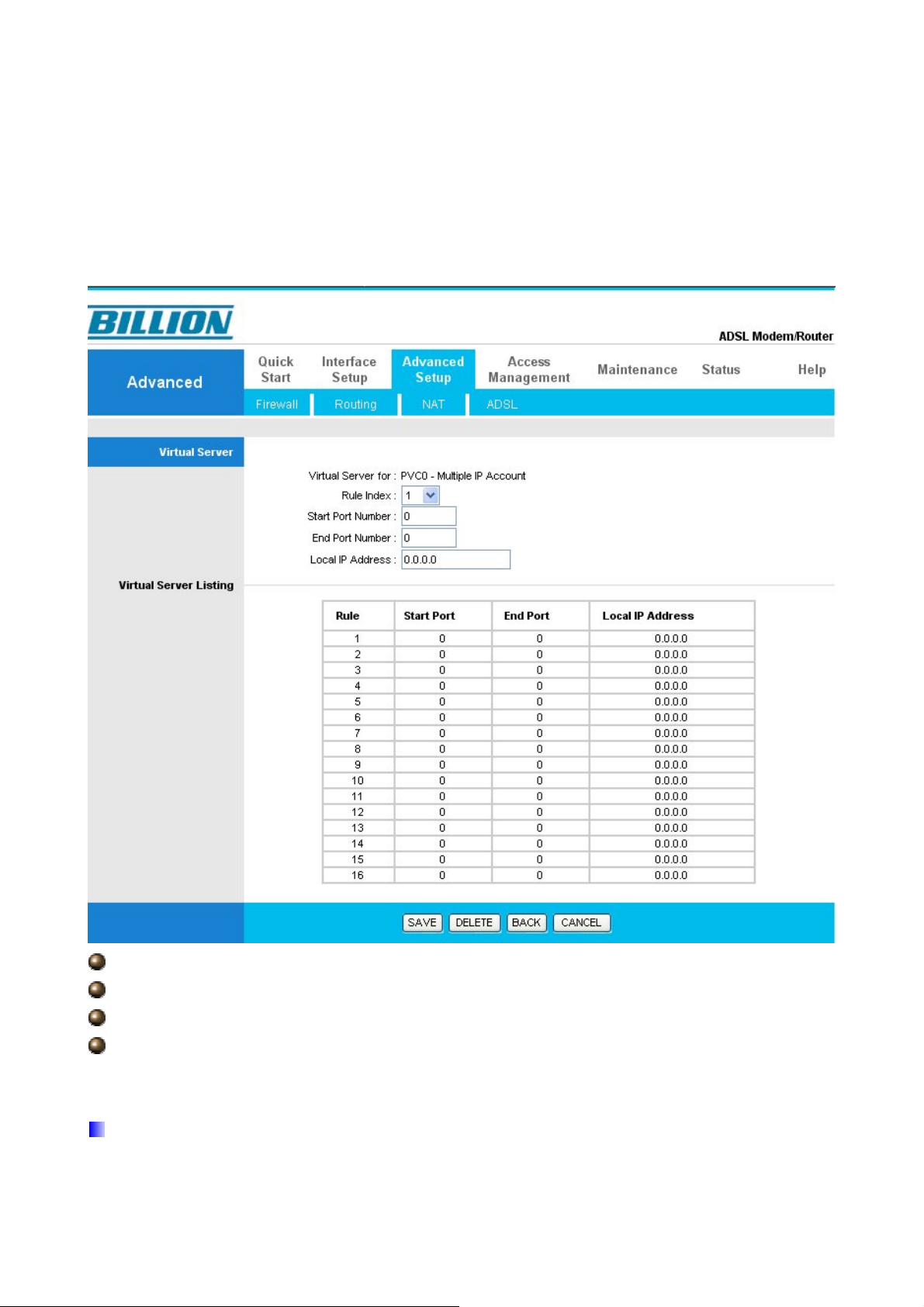

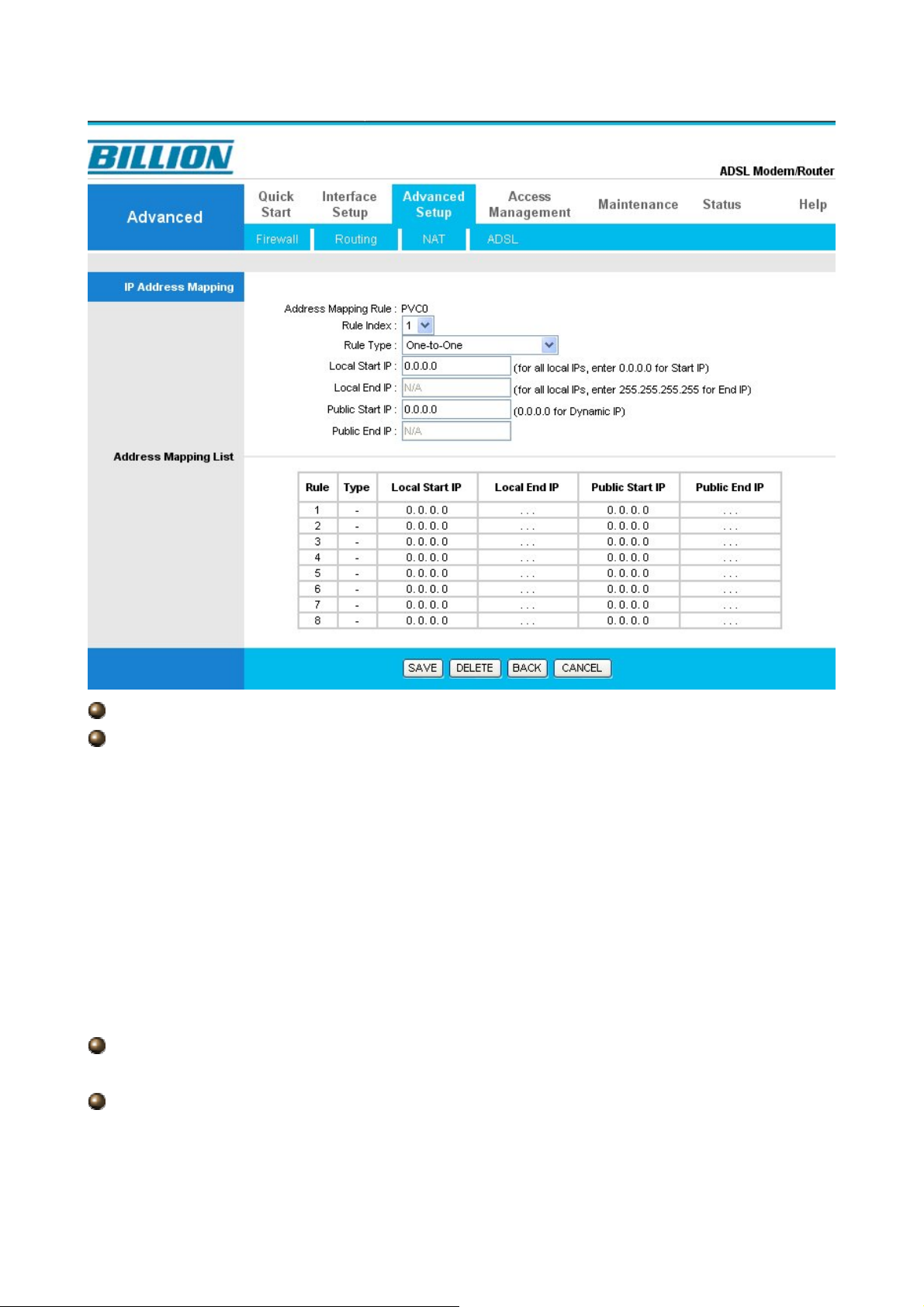

4.3 Advanced Setup...................................................................38

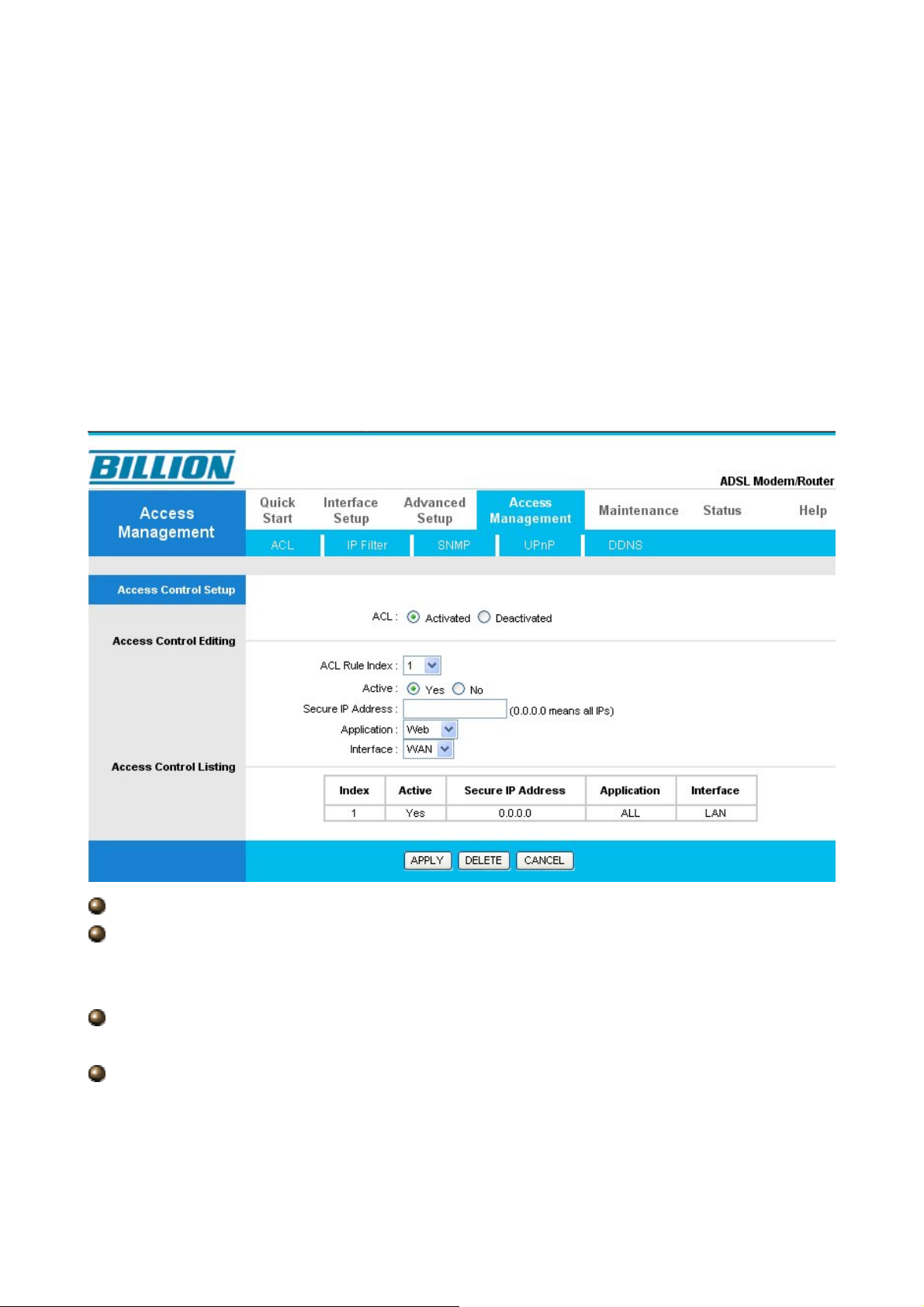

4.4 Access Management ........................................................... 47

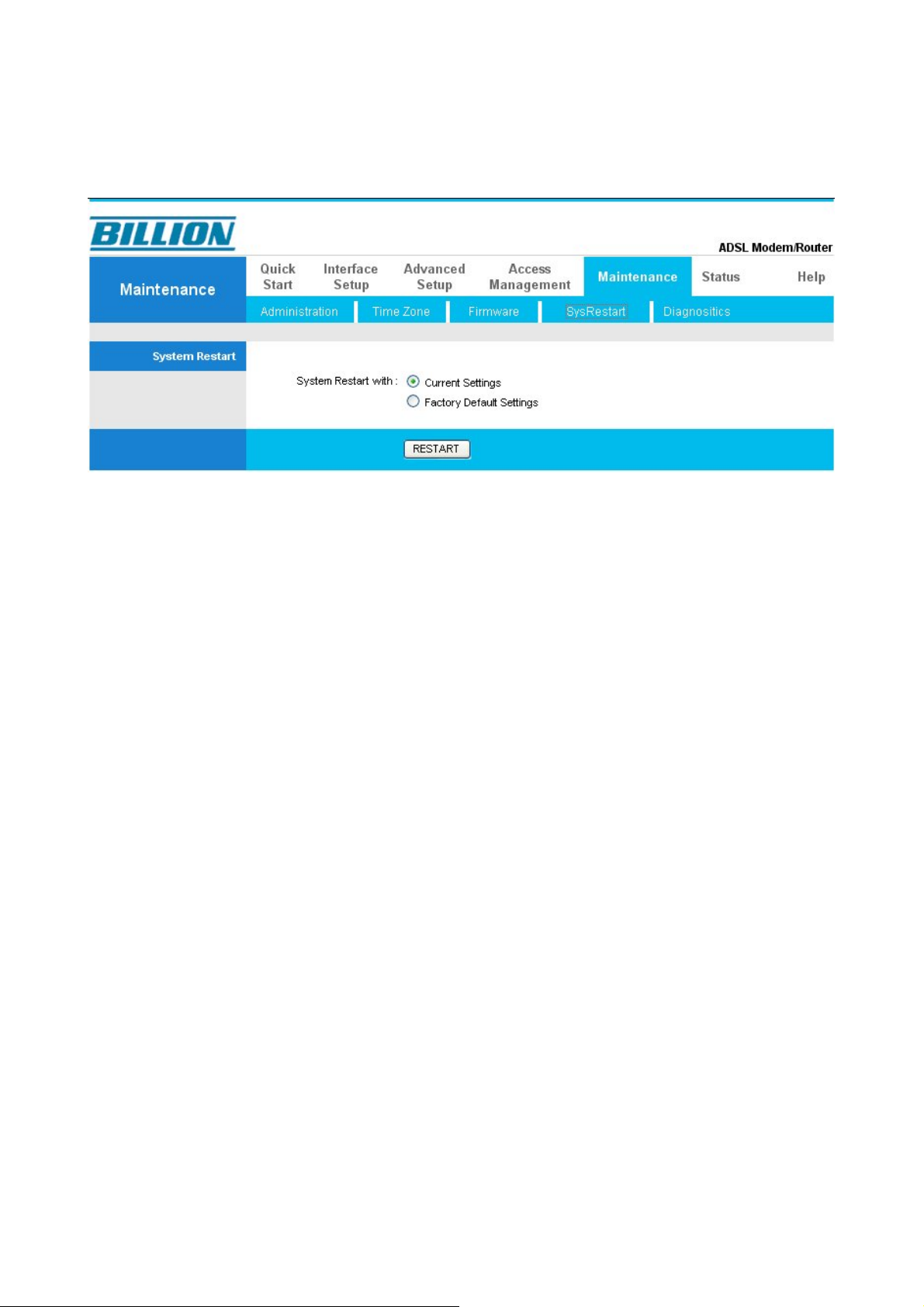

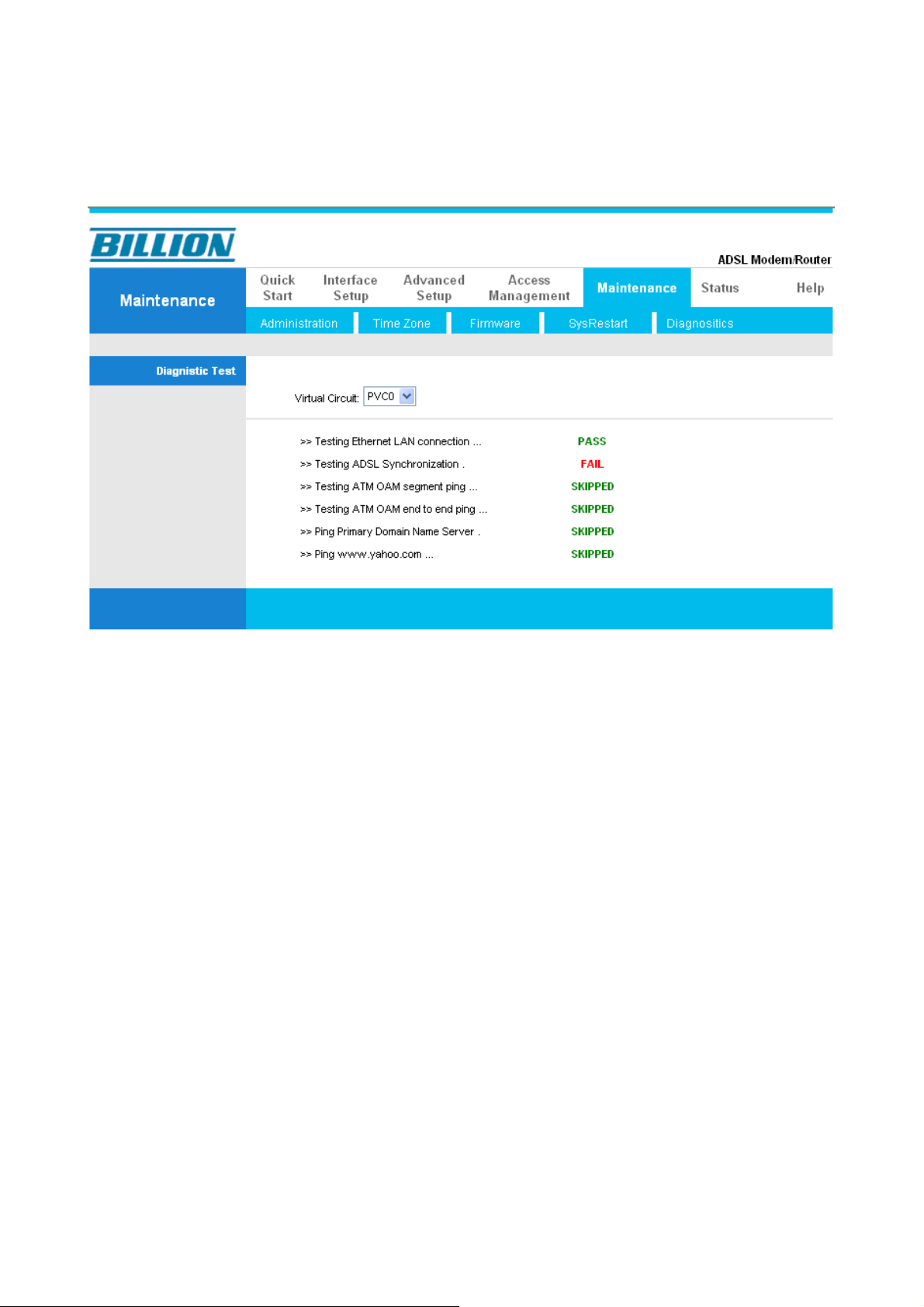

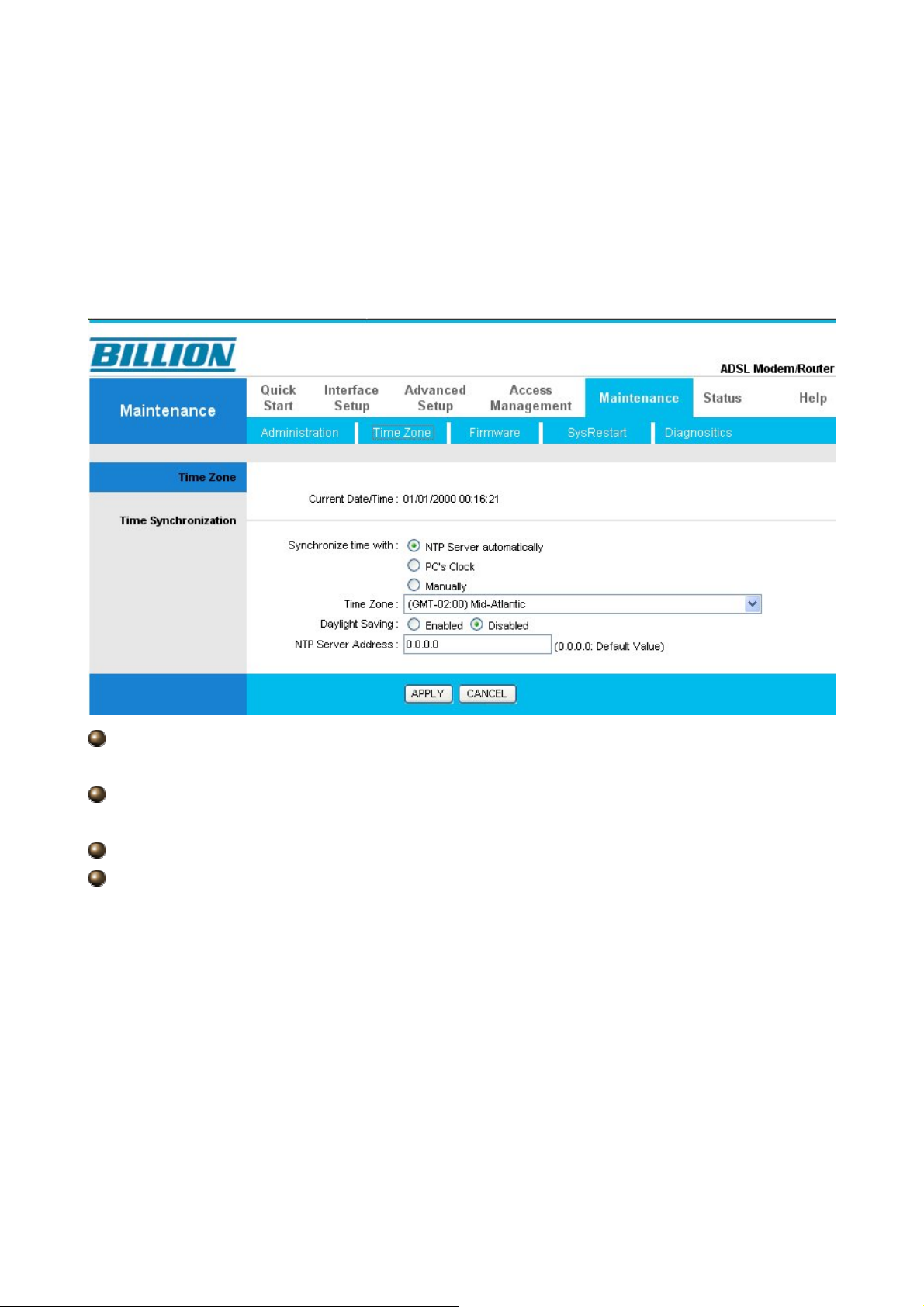

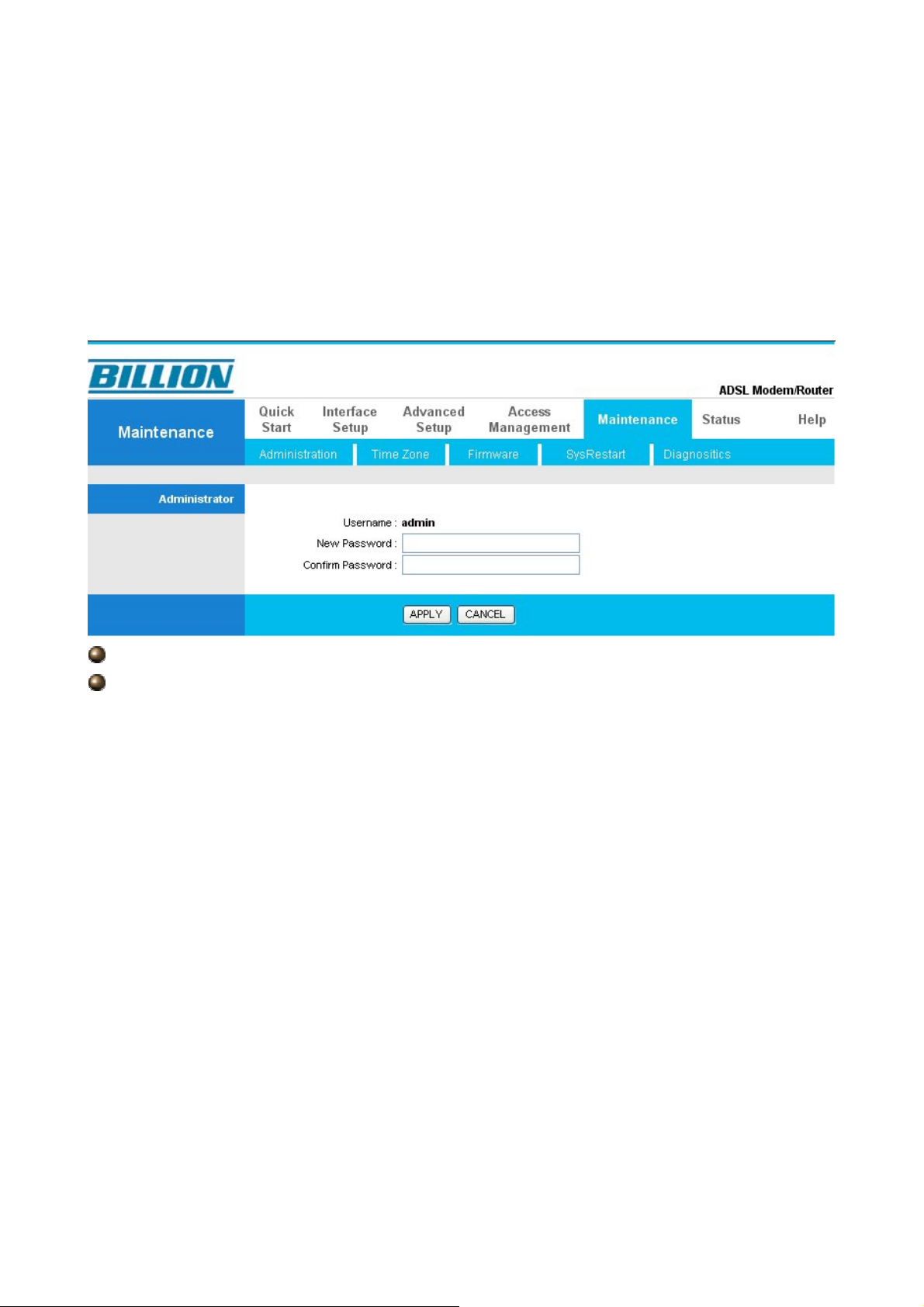

4.5 Maintenance........................................................................ 53

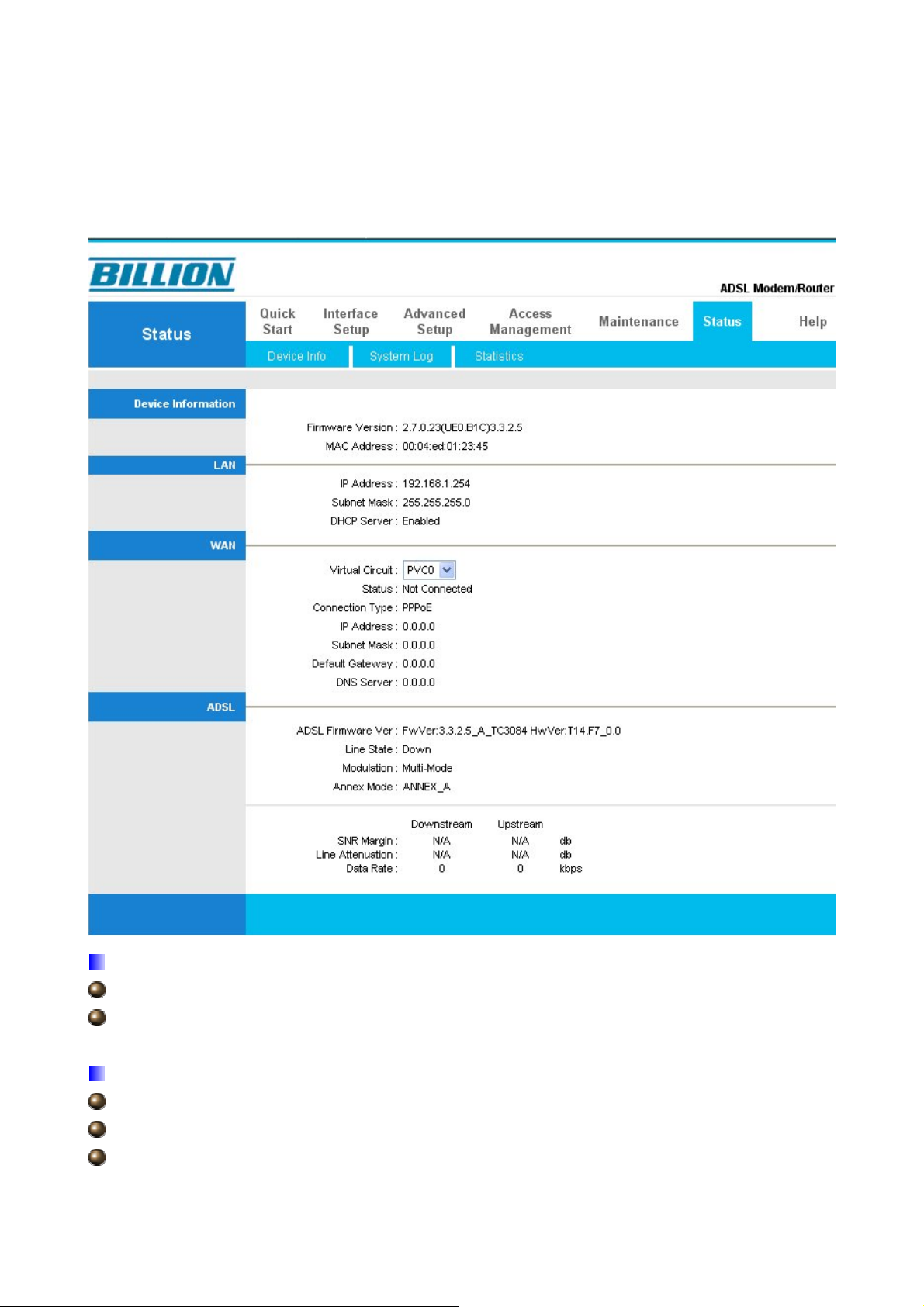

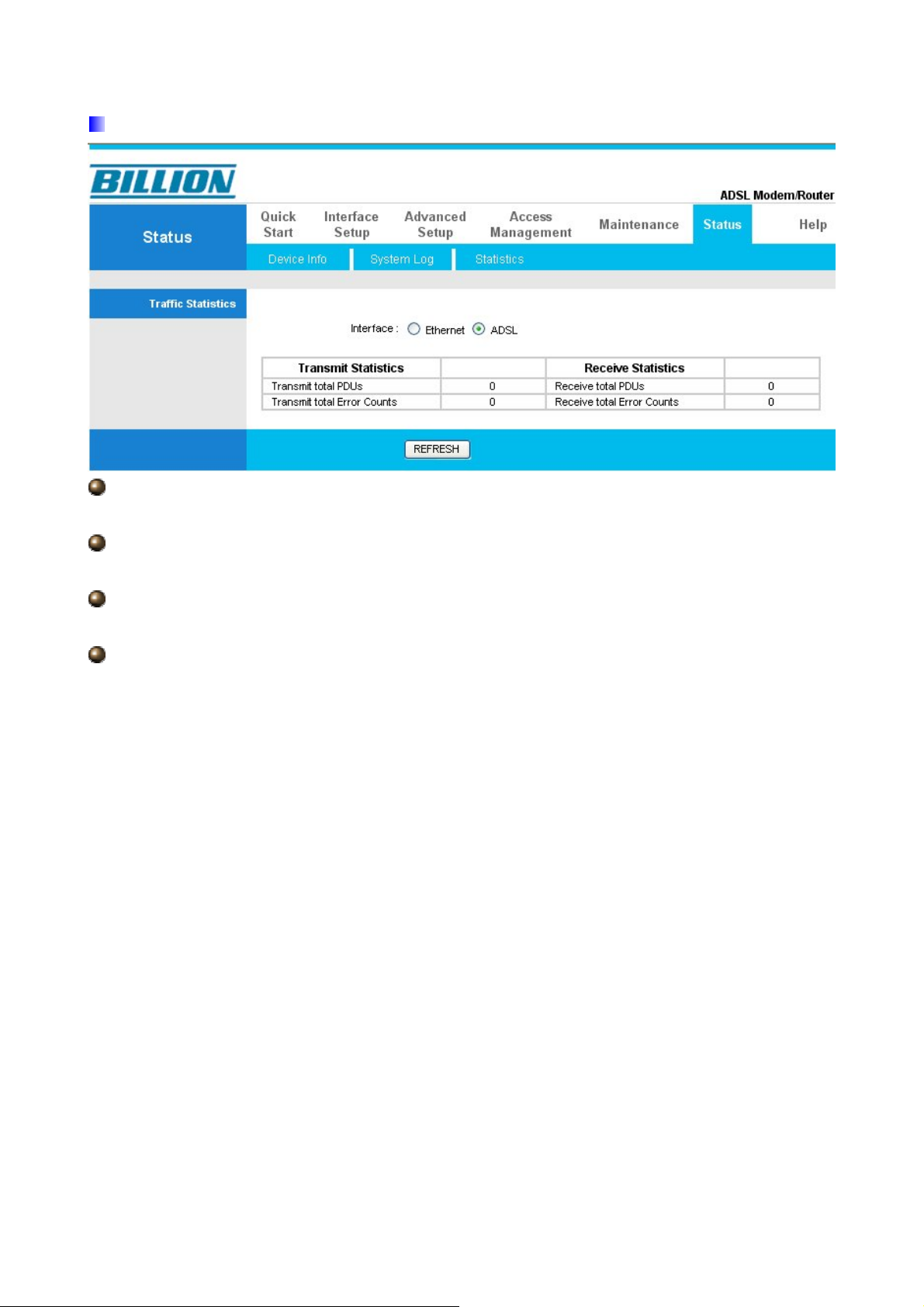

4.6 Status...................................................................................58

Chapter 5 ..............................................................................................63

APPENDIX............................................................................................. 65

Chapter 1

Introduction the BiPAC 5210S

1.1 Introducing the BiPAC 5210S

Welcome to the BiPAC 5210S. Your router is an “all-in-one” unit, combining an ADSL modem, ADSL router and Ethernet network switch, providing everything you need to get the machines on your network connected to the Internet over your ADSL broadband connection.

The BiP AC 5210S complies with ADSL2+ standards for worldwide deployment and supports downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. It is designed for small office, home office and residential users, enabling even faster speed Internet connections. User can enjoy ADSL services and broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier and faster than ever before.

The product supports PPPoA (RFC 2364 – PPP (Point-to-Point Protocol) over ATM Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516), and IPoA (RFC1577) to establish a connection with ISP. The product also supports VC-based and LLC-based multiplexing.

It is the perfect solution to connect a small group of PCs to a high-speed broadband Internet connection. Multi-users can have high-speed Internet access simultaneously.

This product also serves as an Internet firewall, protecting your network from being accessed by outside users. Not only provide the natural firewall function (Network Address Translation, NAT), it also provides rich firewall features to secure user’s network. All incoming data packets are monitored and filtered. Besides, it can also be configured to block internal users from accessing to the Internet.

The product provides two levels of security support. First, it masks LAN users’ IP addresses which are invisible to outside users on the Internet, making it much more difficult for a hacker to target a machine on your network. Secondly , it can block and redirect cert ain ports to limit

the services that outside users can access. For example, to ensure that games and other Internet applications will run properly , user can open some specific ports for outside users to access internal services in network.

Integrated DHCP (Dynamic Host Control Protocol) services, client and server , allow multiple users to get their IP addresses automatically on boot up from the product. Simply set local machines as a DHCP client to accept a dynamically assigned IP address from DHCP server and reboot. Each time local machine is powered up; the router will recognize it and assign an IP address to instantly connect it to the

LAN.

For advanced users, Virtual Service function allows the product to provide limited visibility to local machines with specific services for outside users. An ISP (Internet Service Providers) provided IP address can be set to the product and then specific services can be rerouted to specific computers on the local network. For instance, a dedicated web server can be connected to the Internet via the product and then incoming requests for HTML that are received by the product can be rerouted to the dedicated local web server, even though the server now has a different IP address. In this example, the product is on the Internet and vulnerable to attacks, but the server is protected.

Virtual Server can also be used to re-task services to multiple servers. For instance, the product can be set to allow separated FTP, Web, and Multiplayer game servers to share the same Internet-visible IP address while still protecting the servers and LAN users from hackers.

1.2 Features of the BiPAC 5210S

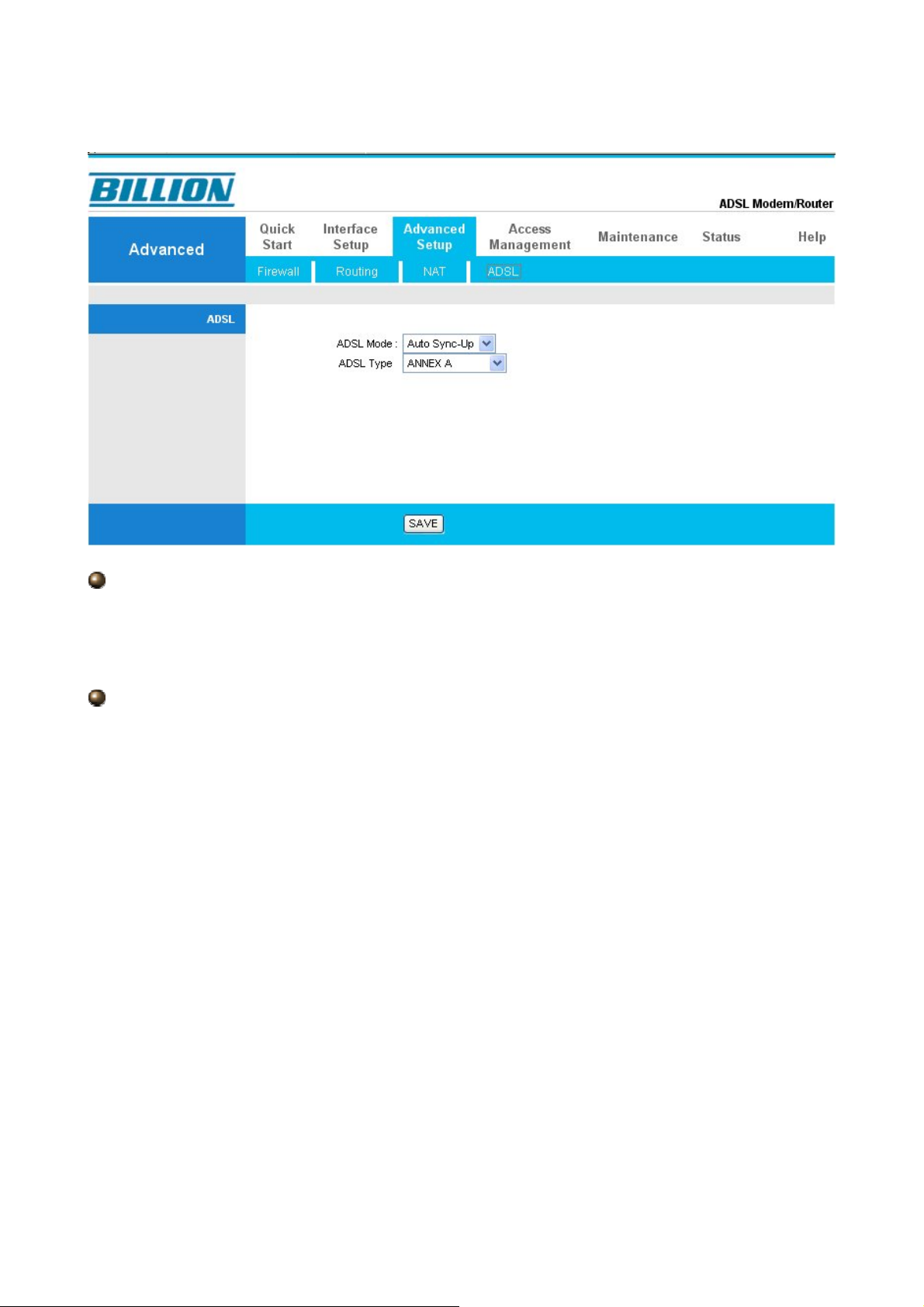

ADSL Multi-Mode Standard

supports downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. It also supports rate management that allows ADSL subscribers to select an Internet access speed suiting their needs and budgets. It is compliant with Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt(G.992.1); G.lite(G992.2)), G.hs (G994.1), G.dmt.bis (G.992.3), G .dmt.bisplus (G.992.5)). The Annex A and B are supported in different H/W platforms.

Fast Ethernet Switch

A 10/100Mbps fast Ethernet switch is built in with automatic switching between MDI and MDI-X for 10Base-T and 100Base-TX ports. An Ethernet straight or cross-over cable can be used directly for auto detection.

Multi-Protocol to Establish A Connection

Supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516) and IPoA (RFC1577) to establish a connection with the ISP. The product also supports VC-based and LLC-based multiplexing.

Quick Installation Wizard

Supports a WEB GUI page to install this device quickly . With this wizard, end users can enter the information easily which they get from their ISP, then surf the Internet immediately.

Universal Plug and Play (UPnP) and UPnP NAT Traversal

This protocol is used to enable simple and robust connectivity among stand-alone devices and PCs from many different vendors. It makes network simple and affordable for users. UPnP architecture leverages TCP/IP and the Web to enable seamless proximity networking in addition to control and data transfer among networked devices. With this feature enabled, users can now connect to Net meeting or MSN Messenger seamlessly.

Network Address Translation (NAT)

Allows multi-users to access outside resources such as the Internet simultaneously with one IP address/one Internet access account. Many application layer gateway (ALG) are supported such as web browser, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting, IP phone and others.

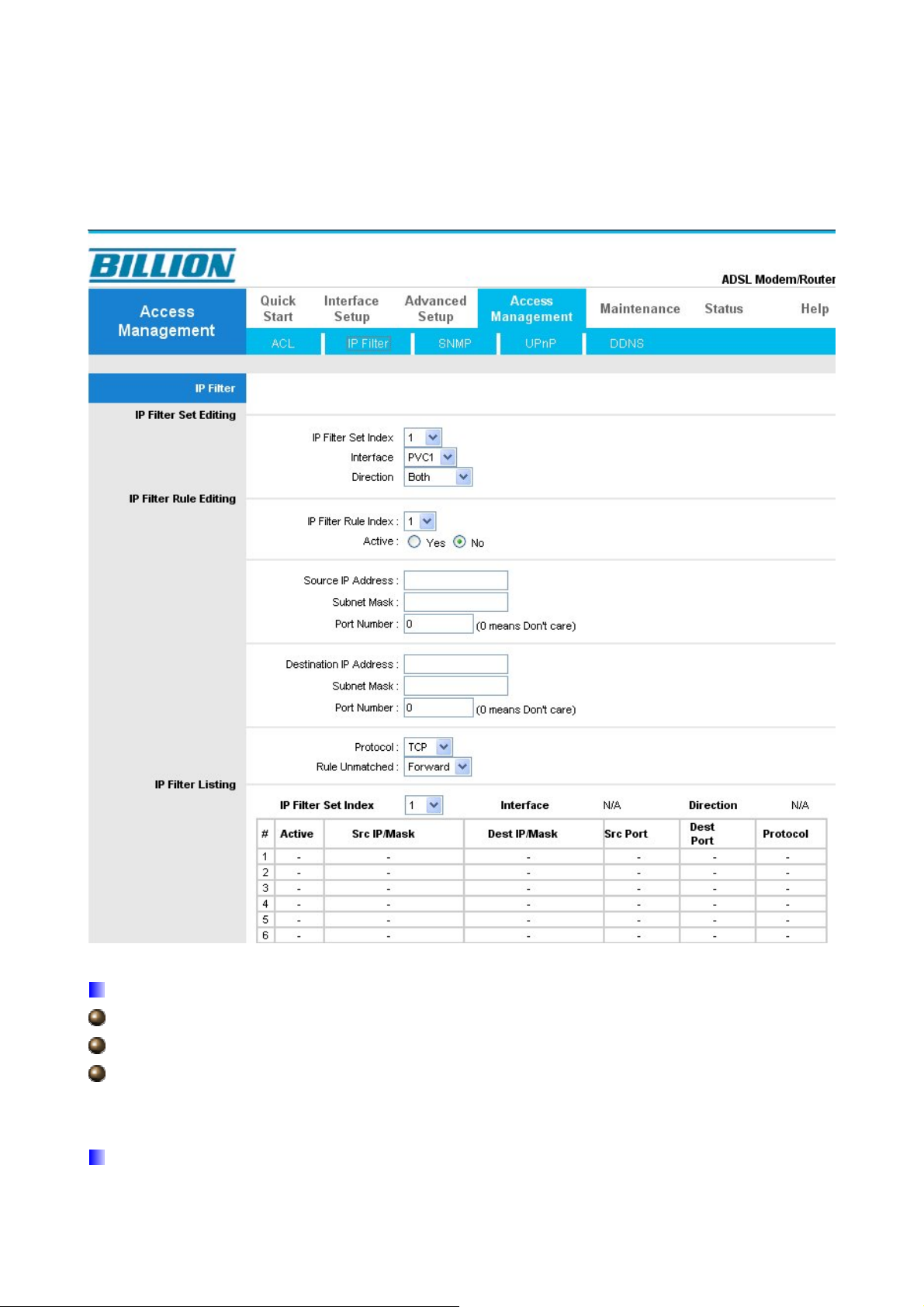

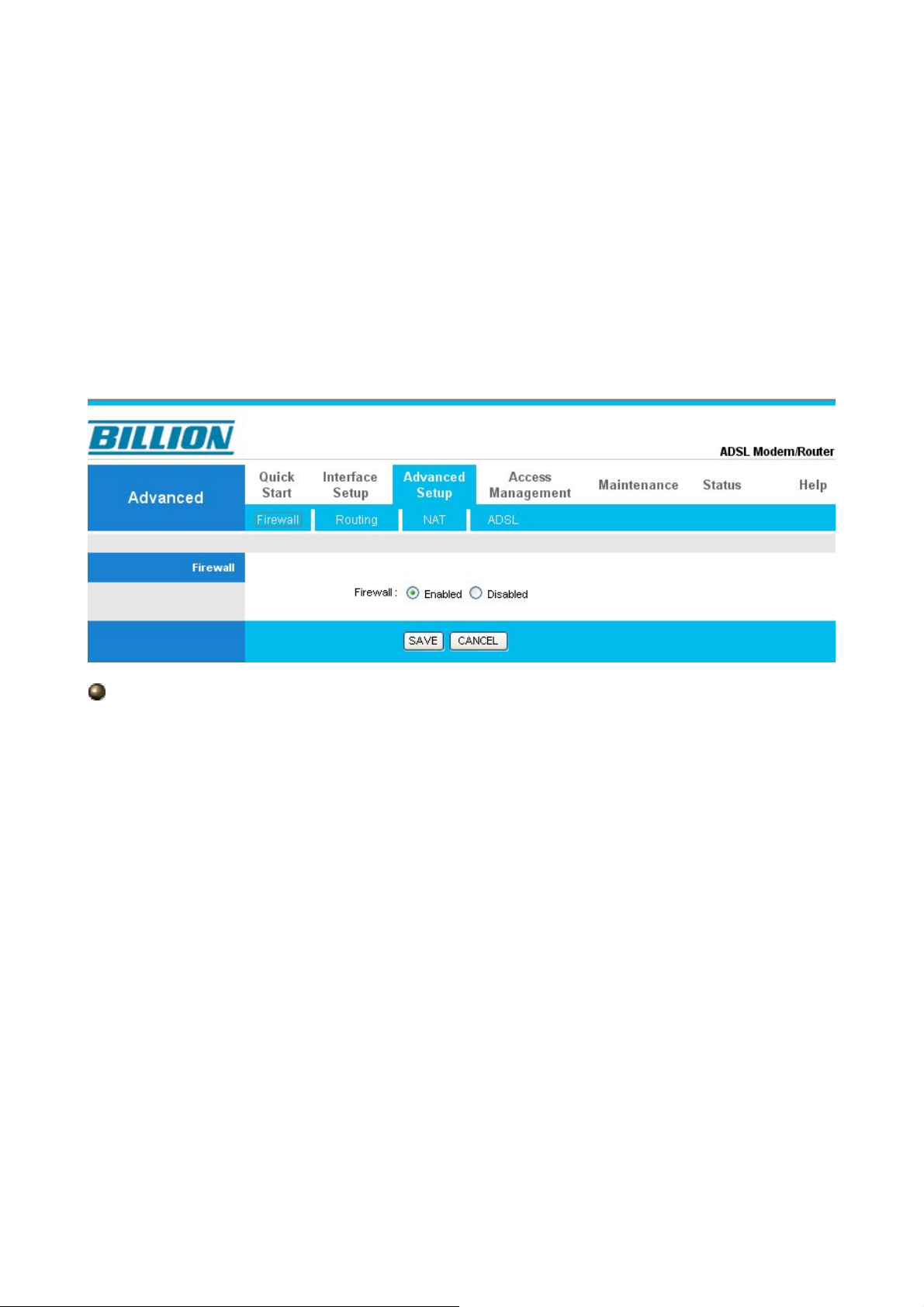

Firewall

Supports simple firewall with NAT technology and provides option for blocking access from Internet, like Telnet, FTP, TFTP, WEB, SNMP and IGMP.

Domain Name System (DNS) relay

Provides an easy way to map the domain name (a friendly name for users such as www.yahoo.com) and IP address. When a local machine sets its DNS server with this router’s IP address, every DNS conversion request packet from the PC to this router will be forwarded to the real DNS in the outside network.

Dynamic Domain Name System (DDNS)

The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname. This dynamic IP address is the WAN IP address. For example, to use the service, you must first apply for an account from a DDNS service like http://www.dyndns.org/.

PPP over Ethernet (PPPoE): Provides embedded PPPoE client function to establish a

connection. Users can get greater access speed without changing the operation concept, sharing the same ISP account and paying for one access account. No PPPoE client software is required for local computer . The Automatic Reconnect and Disconnect Timeout (Idle Timer) functions are provided, too.

Virtual Server: User can specify some services to be visible from outside users. The

router can detect incoming service request and forward it to the specific local computer to handle it. For example, user can assign a PC in LAN acting as WEB server inside and expose it to the outside network. Outside user can browse inside web server directly while it is protected by NAT. A DMZ host setting is also provided to a local computer exposed to the outside network, Internet.

Users can specify some services to be visible from outside users. The router can detect incoming service requests and forward either a single port or a range of ports to the specific local computer to handle it. For example, a user can assign a PC in the LAN acting as a WEB server inside and expose it to the outside network. Outside users can browse inside web servers directly while it is protected by NA T. A DMZ host setting is also provided to a local computer exposed to the outside network, Internet.

Dynamic Host Configuration Protocol (DHCP) client and server

In the WAN site, the DHCP client can get an IP address from the Internet Service Provider (ISP) automatically. In the LAN site, the DHCP server can allocate a range of client IP addresses and distribute them including IP address, subnet mask as well as DNS IP address to local computers. It provides an easy way to manage the local IP network.

RIP1/2 Routing

Supports RIP1/2 routing protocol for routing capability.

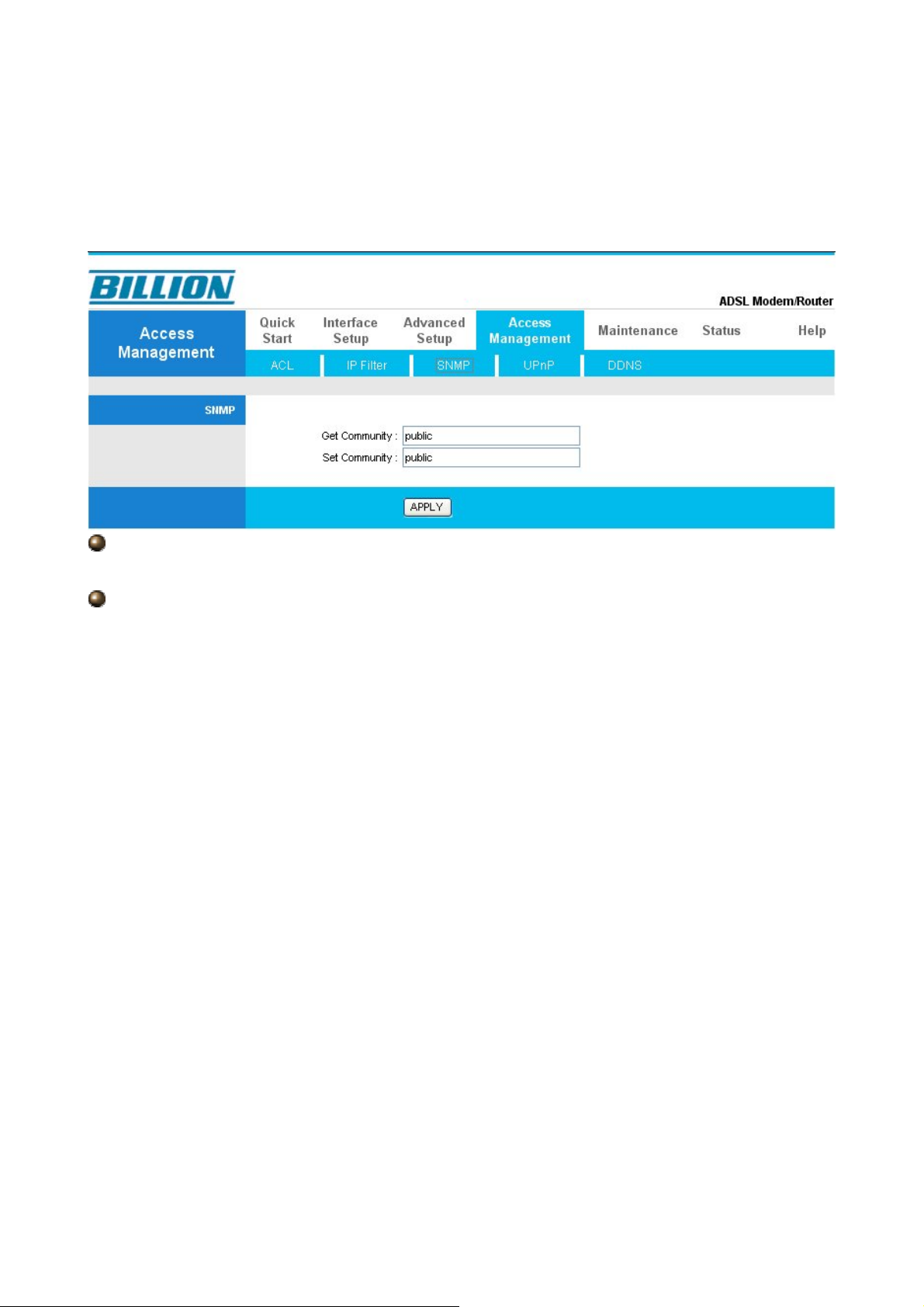

Simple Network Management Protocol (SNMP)

It is an easy way to remotely manage the router via SNMP.

Web based GUI

Supports web based GUI for configuration and management. It is user-friendly and comes with on-line help. It also supports remote management capability for remote users to configure and manage this product.

Firmware Upgradeable

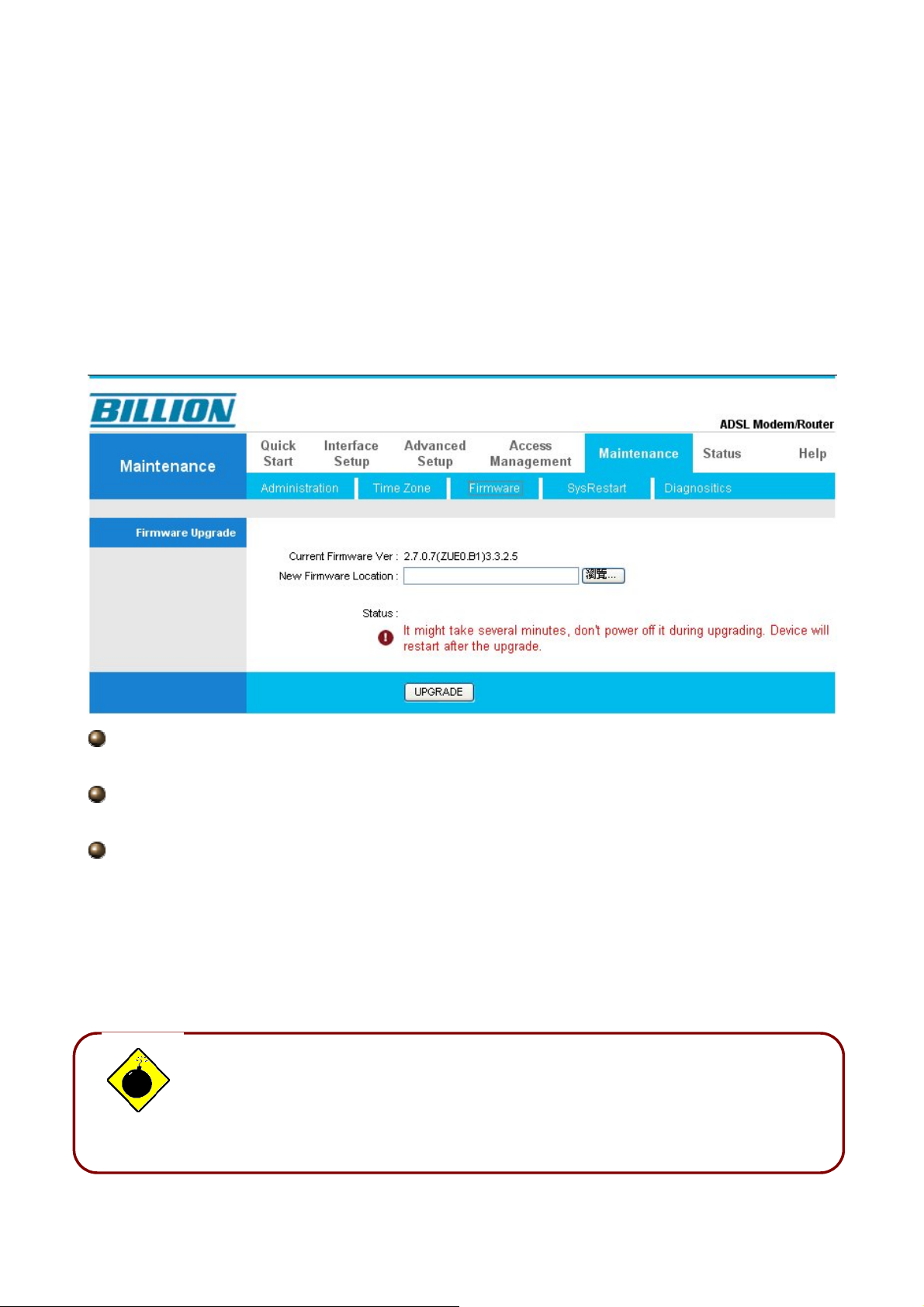

Device can be upgraded to the latest firmware through the WEB based GUI.

Installing the BiPAC 5210S

2.1 Important note for using the BiPAC 5210S

Chapter 2

Warning

 Do not use the BiPAC 5210S in high humidity or high

temperatures.

 Do not use the same power source for the BiPAC 5210S as

other equipment.

 Do not open or repair the case yourself. If the BiPAC 5210S is

too hot, turn off the power immediately and have it repaired a a qualified service center.



 Place the BiPAC 5210S on a stable surface.  Only use the power adapter that comes with the package. Using

void using this product and all accessories outdoors.

a different voltage rating power adaptor may damage the router.

2.2 Package Contents

BiPAC 5210S ADSL2+ Modem/Router CD-ROM containing the online manual

RJ-11 ADSL/telephone Cable (1.8M) Ethernet (CAT-5 LAN) Cable (2M Straight) USB Cable (1.5M) AC-AC power adapter (12V AC, 1A) Quick Start Guide (105*150*mm)

2.3 The Front LEDs

LED Meaning

1 PPP :

Lit steady when there is a PPPoA / PPPoE connection.

2 ADSL: Lit when successfully connected to an ADSL DSLAM (“linesync”)

3 USB: Lit when the USB port is connected to the PC and working properly

Lit when connected to an Ethernet device.

4 LAN Port :

Green for 100Mbps; Orange for 10Mbps. Blinking when data is Transmitted / Received.

5 SYS : Lit when the system is ready.

6 PWR : Lit when power is ON.

2.4 The Rear Ports

Port Meaning

Power Switch

POWER

3 RESET

LAN

USB

Power ON/OFF switch

Connect the supplied power adapter to this jack.

After the device is powered on, press it to reset the device or restore to factory default settings.

0-3 seconds: reset the device 6 seconds above: restore to factory default settings (this is used

when you can not login to the router, e.g. forgot the password)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to the LAN ports when connecting to a PC or an office/home network of 10Mbps or 100Mbps.

Connect the supplied USB cable to this port when connecting to the PC

ADSL

Connect the supplied RJ-11 (“telephone”) cable to this port when connecting to the ADSL/telephone network.

2.5 Cabling

Through USB Port

The product can be used as a Network Adapter on your PC. That means you do not have to install a network adapter first on your PC before connecting the ADSL Modem/Router. Just connect the supplied USB cable to the USB port of the ADSL2+ Modem/Router and connect the other end to the PC. Make sure that your ADSL Modem/Router and PC are turned on. On the front of the product is a bank of LEDs. As a first check, please verify that the PWR, SYS, USB and ADSL LEDs are lit. So long as the cables are connected and the LEDs are lit normally , follow section “Installing the USB Driver” below to setup this device.

Through Ethernet Port

The product’s LAN port is wired just like a Network Adapter’s port. From the product directly to a PC, the cable should be an Ethernet crossover cable. From the product to a hub or switch, the cable should be an Ethernet straight through cable to a normal hub/switch port, or an Ethernet crossover cable to an uplink port. The most common problem associated with Ethernet is bad cabling or ADSL line. Make sure that all connected devices are turned on. On the front of the product is a bank of LEDs. As a first check, please verify that the PWR, LAN LNK and ADSL SYN LEDs are lit. If they are not, verify that you are using the proper cables. So long as the cables are connected and the LEDs are lit normally, follow section “Configuring the Network Properties” below to modify the network settings.

 Since the product cannot auto-detect whether your cable is

correct or not, please make sure you are using the right cable to a PC or a Hub..

Chapter 3

Basic Installation

The router can be configured with your web browser. A web browser is included as a standard application in the following operating systems: Windows 98/NT/2000/XP/Me, etc. The product provides a very easy and user-friendly interface for configuration.

3.1 Before Configuration

PCs must have an Ethernet interface installed properly and be connected to the router either directly or through an external repeater hub, and have TCP/IP installed and configured to obtain an IP address through a DHCP server or a fi xed IP address that must be in the same subnet as the router. The default IP address of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any attached PC must be in the same subnet, and have an IP address in the range of 192.168.1.1 to 192.168.1.253). The best and easiest way is to configure the PC to get an IP address automatically from the router using DHCP. If you encounter any problems accessing the router’s web interface it may also be advisable to uninstall any kind of software firewall on your PCs, as they can cause problems accessing the 192.168.1.254 IP address of the router. Users should make their own decisions on how to best protect their network.

Please follow the steps below for your PC’s network environment installation. First of all, please check your PC’s network components. The TCP/IP protocol stack and Ethernet network adapter must be installed. If not, please refer to your Windows-related or other operating system manuals.

ny TCP/IP capable workstation can be used to communicate with o through the ADSL2+ Modem/Router. To configure other types of workstations, please consult the manufacturer’s documentation.

Installing the USB Driver

If you connect the device through USB port instead of Ethernet port, for the first time the USB cable is connected to the PC, Windows will automatically detect the device. Follow the steps to install the USB driver.

For Windows XP & 2000：

1. St art Windows. Then insert the installation CD into the CD-ROM drive. In next window , to specify the driver directory such as “G:\USB Driver\setupXP2K_En_De_Fi” and to continue.

2. To choose the setup language. ”and click “Next >”. (There are three languages that user can choose: English. German and French)

3. Then follow screen.

4. To click the type of setup you prefer, then click Next >.

5. To setup enough information of coping the program files then click Next >.

6. Please plug USB cable into ADSL USB Modem.

7. Then, click “Finish”.

For Windows 98 & Me：

1. St art Windows. Then insert the installation CD into the CD-ROM drive. In next window,

to specify the driver directory such as “G:\USB Driver\setup98 Me_En_De_Fi” and to continue.

2. To choose the setup language. ”and click “Next >”. (There are three languages that

user can choose: English. German and French)

3. Then follow screen.

4. To click the type of setup you prefer, then click Next >.

5. To setup enough information of coping the program files.

6. Select “Want to restart my computer now” and click OK>

7. Then, click “Finish”.

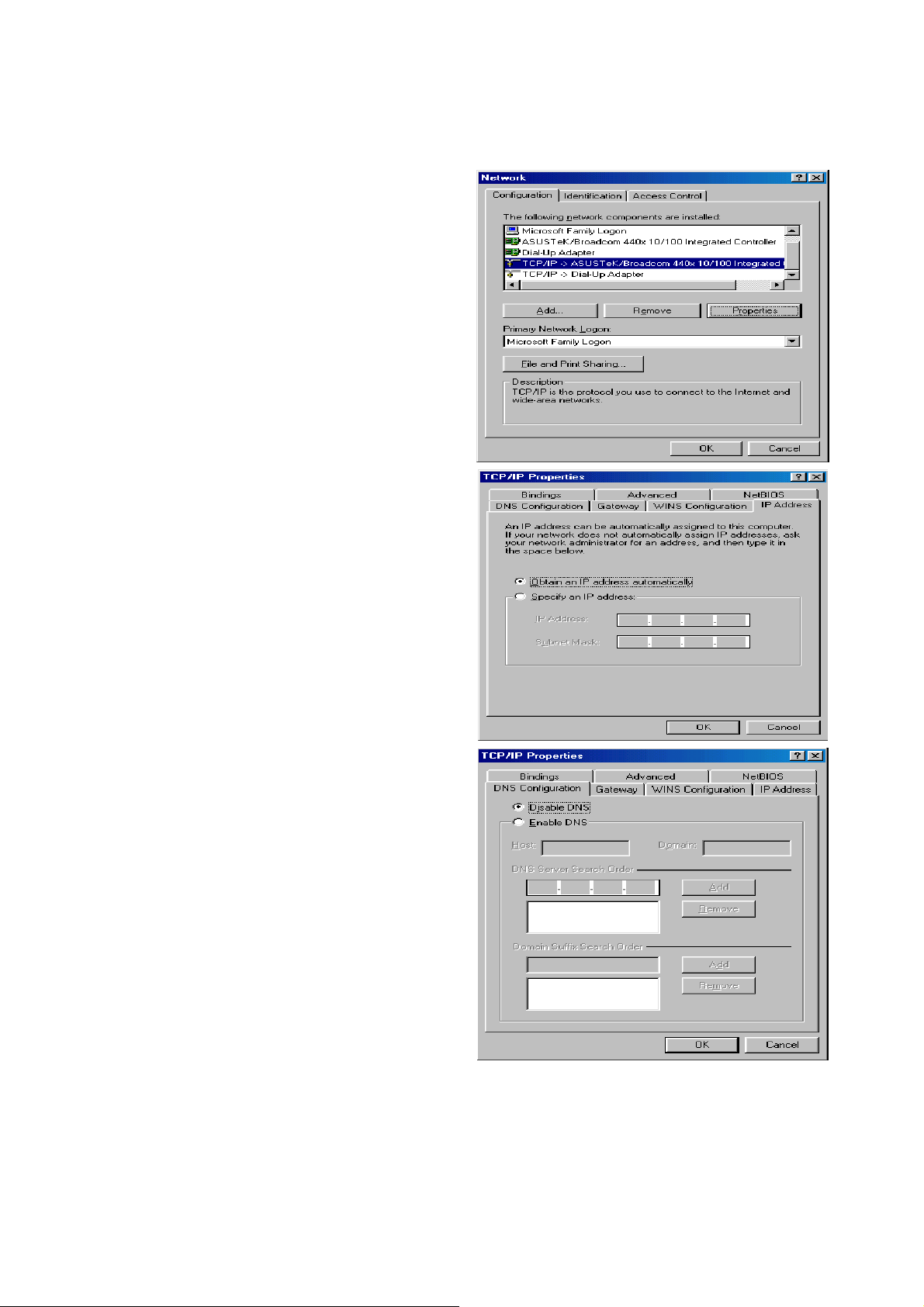

Configuring the Network Properties

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status window, click Properties.

4. Select Internet Protocol (TCP/IP) and click Properties.

5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio

buttons.

6. Click OK to finish the configuration.
