Page 1

Manual

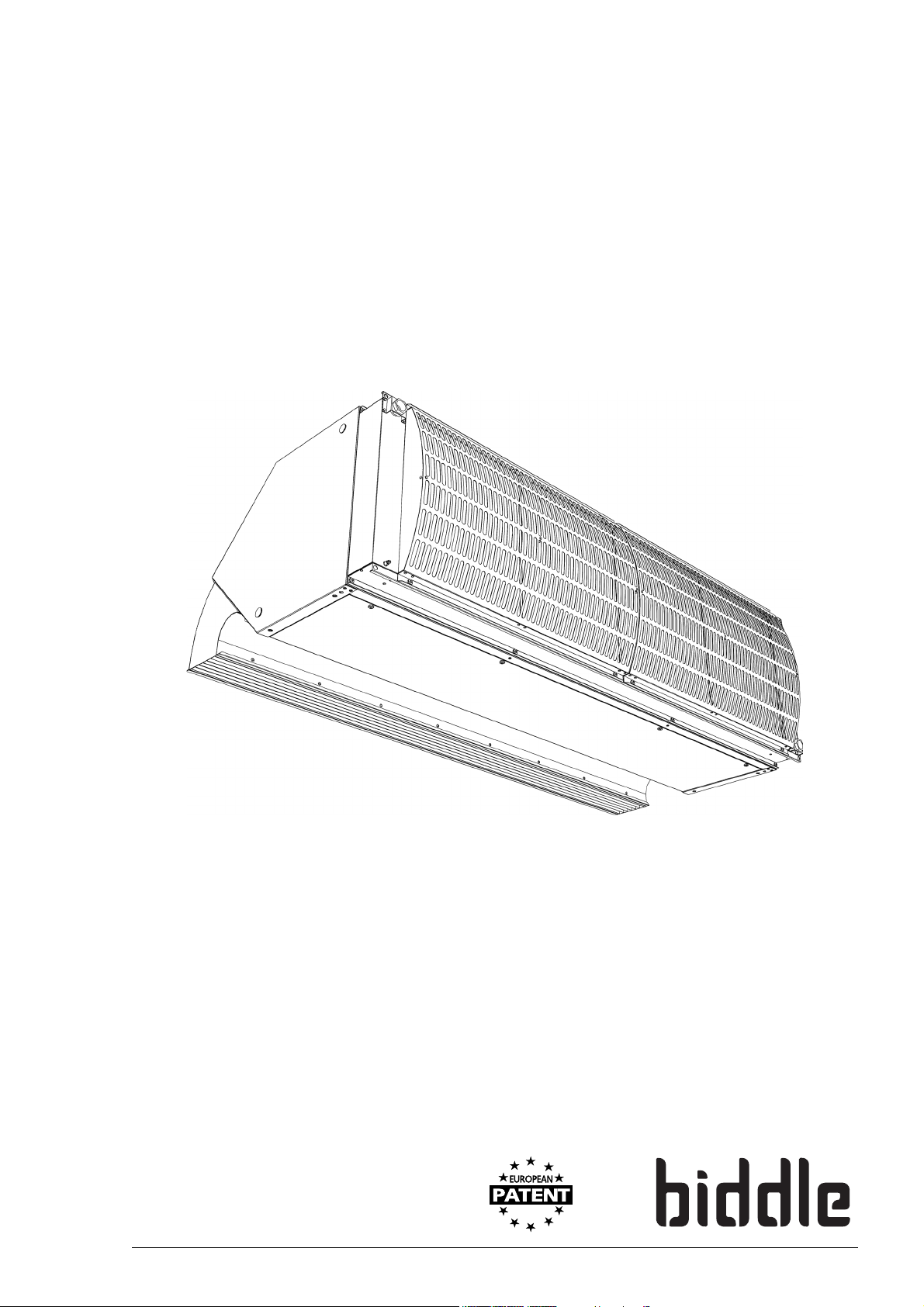

Industrial air curtain

Model IndAC2

Version 7.0 - North America Original Manual

English

Page 2

INDUSTRIAL AIR CURTAIN

. . . Contents

1 Introduction 4

1.1 About this manual 4

1.2 How to read this manual 4

1.3 About the unit 5

1.4 Components and accessories 14

1.5 Safety instructions 15

2 Installation 17

2.1 Inspection on delivery 17

2.2 General working method 17

2.3 Suspending the unit horizontally 19

2.4 Installing the unit vertically 22

2.5 Connecting the unit to the central heating system 25

2.6 Connecting the unit to the mains supply 29

2.7 Installing the b-control continuously variable controller 35

2.8 Installing the b-touch control panel 39

2.9 Installing external controls 43

2.10 Finishing the unit 51

2.11 Switching ON and checking operation 52

3 Operation with b-control 56

3.1 Introduction 56

3.2 Switching ON and OFF 56

3.3 Regulating the strength 56

4 Operation with b-touch 57

4.1 Introduction 57

4.2 The Home screen 58

4.3 Main menu 61

4.4 Preferences 63

4.5 Settings 64

4.6 Configuration 65

4.7 Maintenance 73

4.8 USB 75

5Errors 77

5.1 Resolving simple problems 77

5.2 Error messages on the control panel 80

5.3 Remedying errors that are accompanied by an error message 81

5.4 Remedying errors that are not accompanied by an error message 84

en-2 B

Page 3

INDAC2 MANUAL

6 Maintenance 86

6.1 Introduction 86

6.2 Cleaning the unit 86

6.3 Scheduled maintenance 86

7 Servicing 88

7.1 Removing the fans 89

7.2 Accessing the heating element 91

7.3 Electronics module 91

7.4 Removing the control circuit board 92

7.5 Connecting the control circuit board 92

7.6 Fuses 93

7.7 LEDs 94

7.8 Setting the unit code 94

7.9 Resetting the PIN code 95

7.10 Copying the settings 95

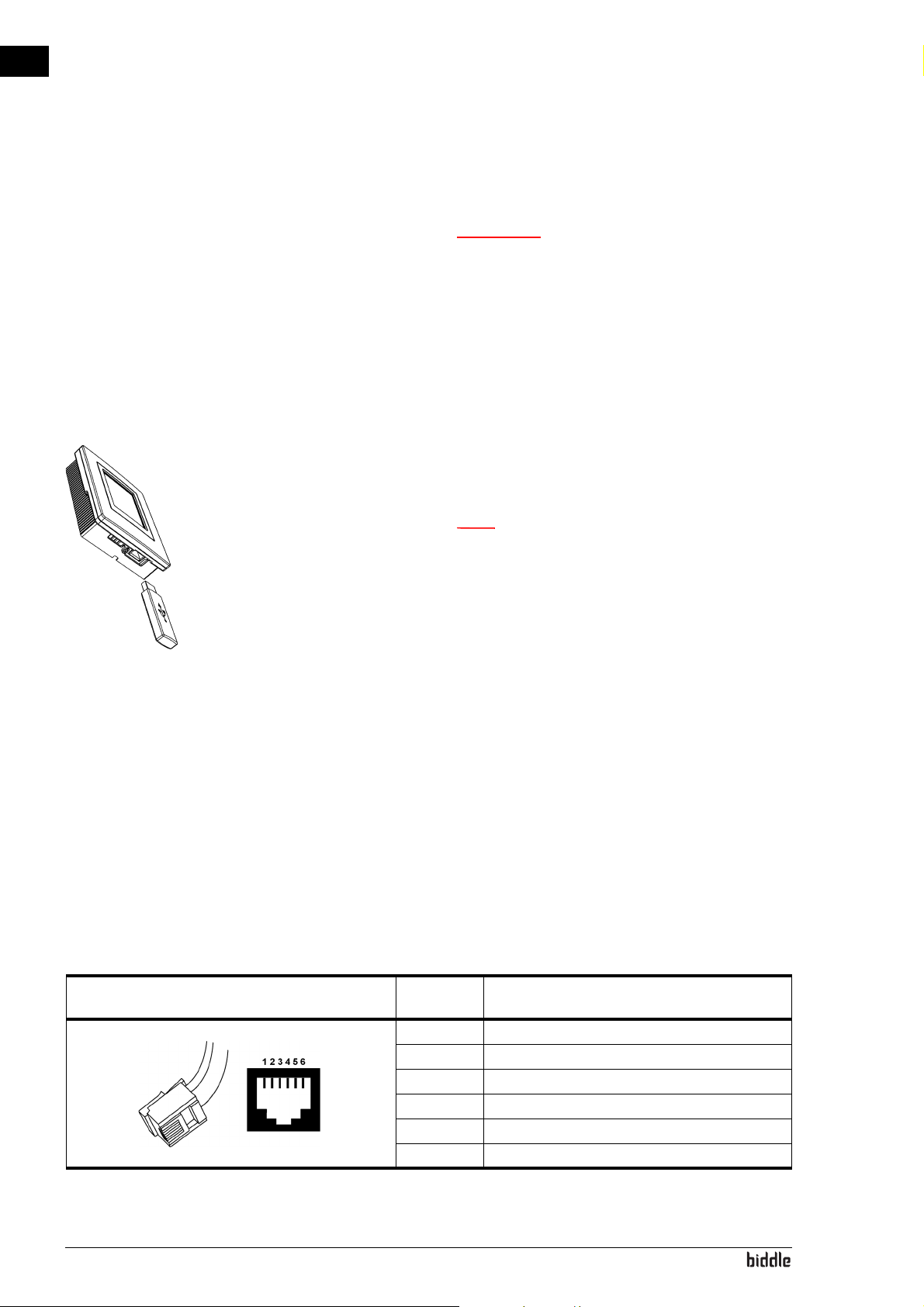

7.11 Updating the software 97

7.12 Composition of the Biddle control cable 98

8 Dismantling 99

9 Addresses 101

Keywords 102

Manual version 7.0 - North America (21-03-2017) en-3

Page 4

Note:

Caution:

Warning:

1. . Introduction

1.1 About this manual

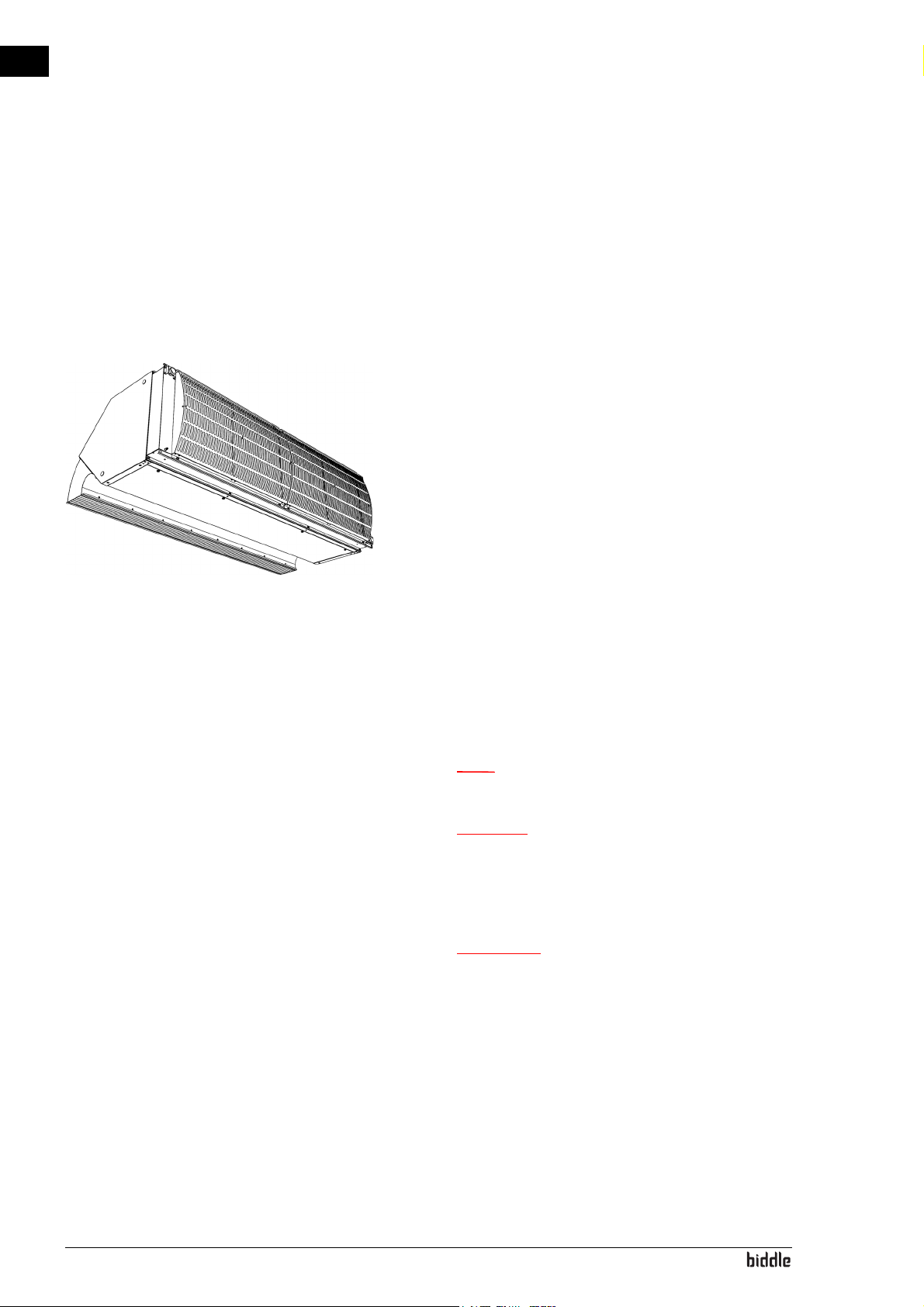

This manual describes the installation, operation and maintenance of , the industrial air curtain model IndAC also provides instructions and information for servicing activities.

. The manual

1.2 How to read this manual

1.2.1 Designations used in the manual

The following symbols are used in the manual:

n Refers to an important section in the text.

c If you do not carry out the procedure or action

correctly, you may cause damage to the unit.

Follow the instructions precisely.

w If you do not carry out the procedure or

action correctly, you may cause physical injury and/or damage.

Follow the instructions precisely.

en-4

Page 5

INDAC2 MANUAL INTRODUCTION

Danger:

d Is used to designate actions that are not

permitted.

Ignoring this prohibition may lead to serious damage or to accidents resulting in physical injury.

1.2.2 Symbols used on the unit and in the manual

The following symbols indicate possible risks or hazards. The same symbols will also be found on the unit.

YMBOL DESCRIPTION

w You have accessed a section of the unit containing components which carry

a voltage.

Access restricted to qualified maintenance staff only.

Caution is required.

w This surface or component may be hot. Risk of burns on contact.

1.3 About the unit

1.2.3 Related documentation

In addition to this manual, the following documentation is also supplied with the unit:

• wiring diagram for installation and servicing.

1.3.1 Applications

The air curtain model IndAC climates between indoors and outdoors, or between two rooms. It is installed above or next to the door, across the full width or length of the doorway. The IndAC ily suitable for larger doors in industrial buildings.

is intended for the separation of

model is primar-

Models having a maximum range (type MX) are intended for professional use.

Manual version 7.0 - North America (21-03-2017) en-5

Page 6

Warning:

INTRODUCTION INDUSTRIAL AIR CURTAIN

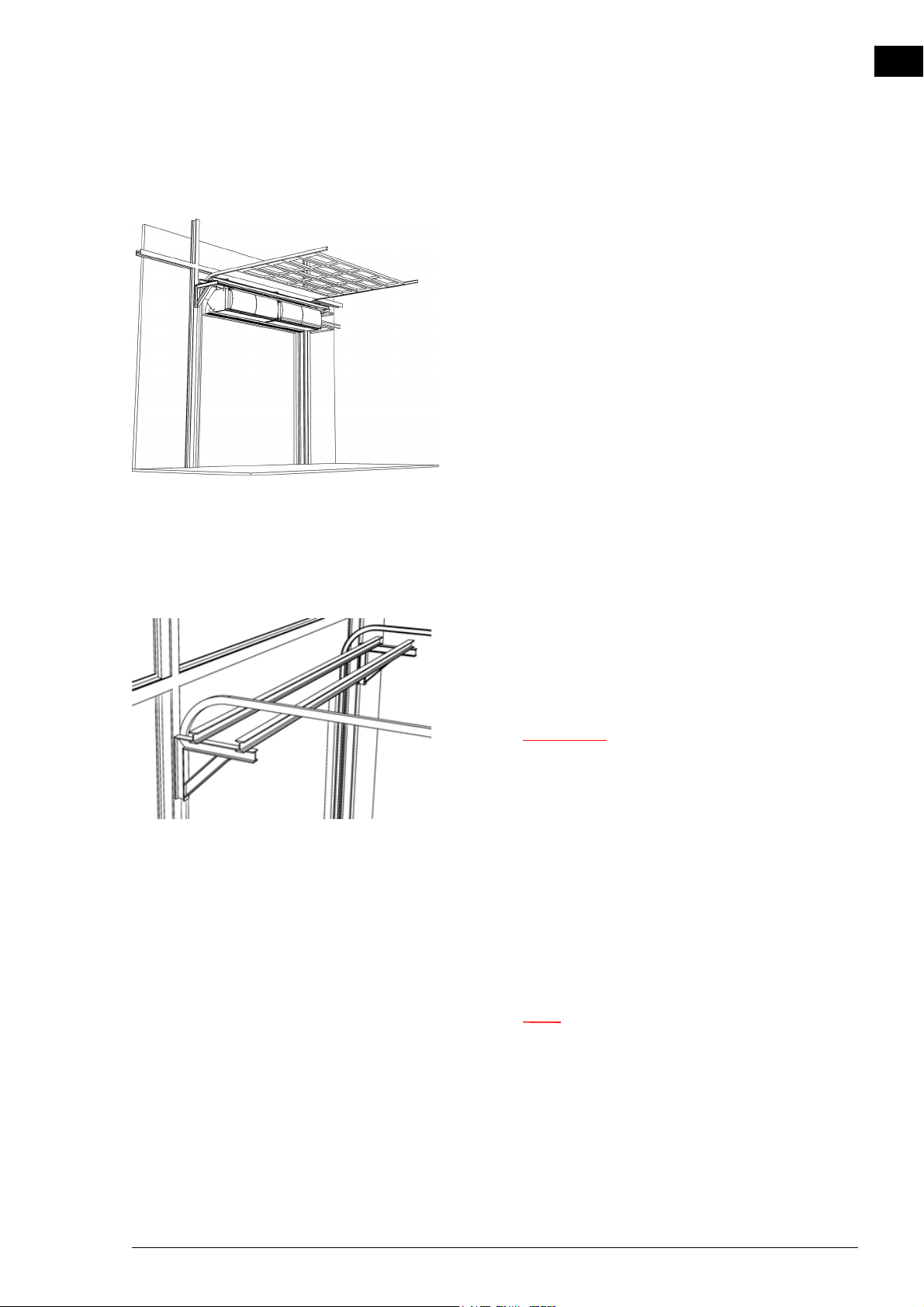

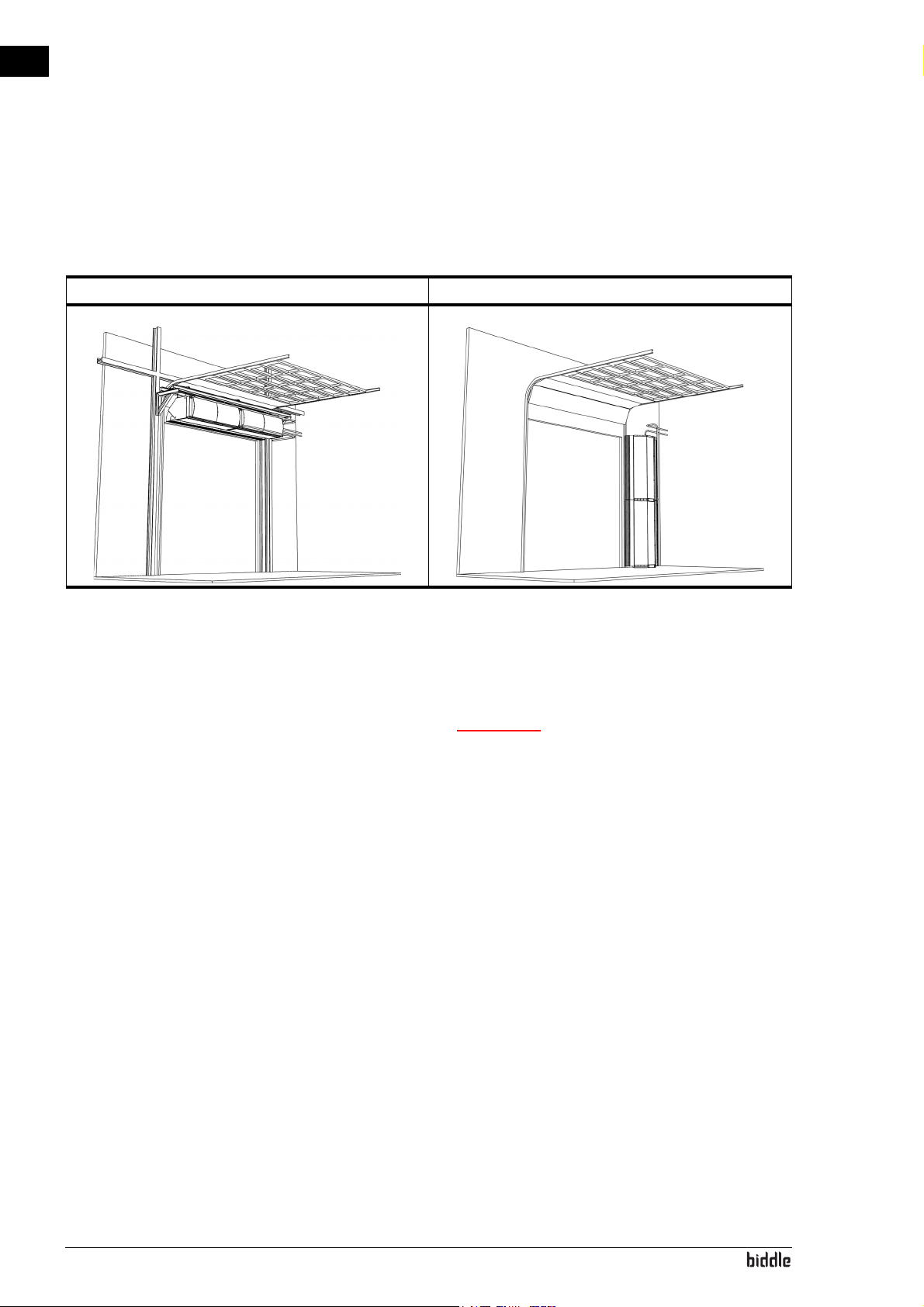

Depending on the type, the air curtain is hung horizontally above the doorway, or erected vertically next to the doorway (on left or right, or on both sides).

XAMPLE OF A HORIZONTAL ASSEMBLY EXAMPLE OF A VERTICAL ASSEMBLY

Other versions and intended use

Upon request, we can supply versions for non-standard applications.

w Applications other than those described

above are deemed to be usage other than for the intended purpose. Biddle is not liable for damage or loss resulting from usage other than for the intended purpose. Usage for the intended purpose also entails observance of the instructions in this manual.

1.3.2 Operation

General

An air curtain above the door opening counteracts losses of energy and comfort. Located at the opening, it blows out a stream of air and thereby brings about the following:

en-6

• The exchange of air between two rooms due to a temperature difference (convection) is counteracted.

• The air that enters at floor level due to draught is possibly heated.

Page 7

INDAC2 MANUAL INTRODUCTION

The automatic CHIPS control

Depending on the implementation, the unit may be equipped with an automatic CHIPS control.

The CHIPS control automatically adjusts the strength and heat of the unit to changing weather conditions. Thus, in all situations the energy loss is minimal and the comfort maximal.

CHIPS stands for “Corrective Heat and Impulse Prediction System”.

Control when unit ‘on’

The unit andthe automatic controlwere developed for situations in which the door stands open.

For the most efficient climate separation and preservation of comfort it is important that the airflow just touches the floor and is heated sufficiently. The unit continuously measures the values that are needed in order to achieve this:

1. The installation height (entered in the control panel)

2. The temperature difference between the two rooms:

- outdoor temperature

- room temperature

3. The temperature of the discharged air

As soon as the situation changes, the control adjusts the outlet flow rate and the temperature of the airflow to that.

Control with unit ‘off’

If the unit is off – at night, for example – it is not active as climate separation.

If it is off, the unit can indeed still perform other functions:

• The unit can be set to keep the room at a minimal ‘night’ temperature.

• Water-heated models are equipped with integrated frost protection.

Manual version 7.0 - North America (21-03-2017) en-7

Page 8

Note:

INTRODUCTION INDUSTRIAL AIR CURTAIN

Door response

The unit and the automatic control have been developed for situations in which the door stands open.

If the door is not continuously open, the operation can be adjusted to this:

• Normal operation: the unit is always discharging air.

• Direct door response: the unit responds directly to the opening and closing of the door.

• Gradual door response: the unit responds to the opening and closing of the door. The speed of response is based on the open/closed ratio.

n If the door is closed, the unit works as a room

temperature controller.

n In some situations the unit does not discharge any

air, even though it is on.

1.3.3 Type designation

The table below provides an overview of the available models of the industrialair curtain and the corresponding type designations. In combination, the type designations constitute the type code, for instance: IndAC

If some part of the manual applies to certain models only, these will be indicated with the corresponding type designation, for example:

• 150: models with discharge width 150

• H: water-heated models

• 0: horizontal models

• Auto: models with automatic control

MX-150-H2-0-Auto-480/52.

n In the illustrations in this manual, one type of unit is

used as a general example. The outer appearance of your unit may be different but its function is the same, unless stated otherwise.

en-8

Page 9

INDAC2 MANUAL INTRODUCTION

Caution:

Explanation of the type code

YPE CODE ELEMENT DESIGNATION MEANING

product series IndAC

capacity ST default range (door height 3-6 m)

length 150, 200, 225 or 250 discharge length in cm

battery type H1

installation position 0, 1L, 1R, 2L, 2R In section 1.3.4 - Installation positions, pagina 9, the various

control Basic basic control

mains supply 230/22 230V, split phase, 60 Hz

MX maximum range (door height 5-8 m)

A without heating

Auto automatic CHIPS control

208/32 208V, three-phase (without neutral wire), 60 Hz

480/32 480V, three-phase (without neutral wire), 60 Hz

480/52 480V, combination three phase/split phase, 60 Hz

600/32 600V, three-phase (without neutral wire), 60 Hz

general designation for the series

water heating

installation positions are explained.

See also:

1.3.4 "Installation positions" on page 9

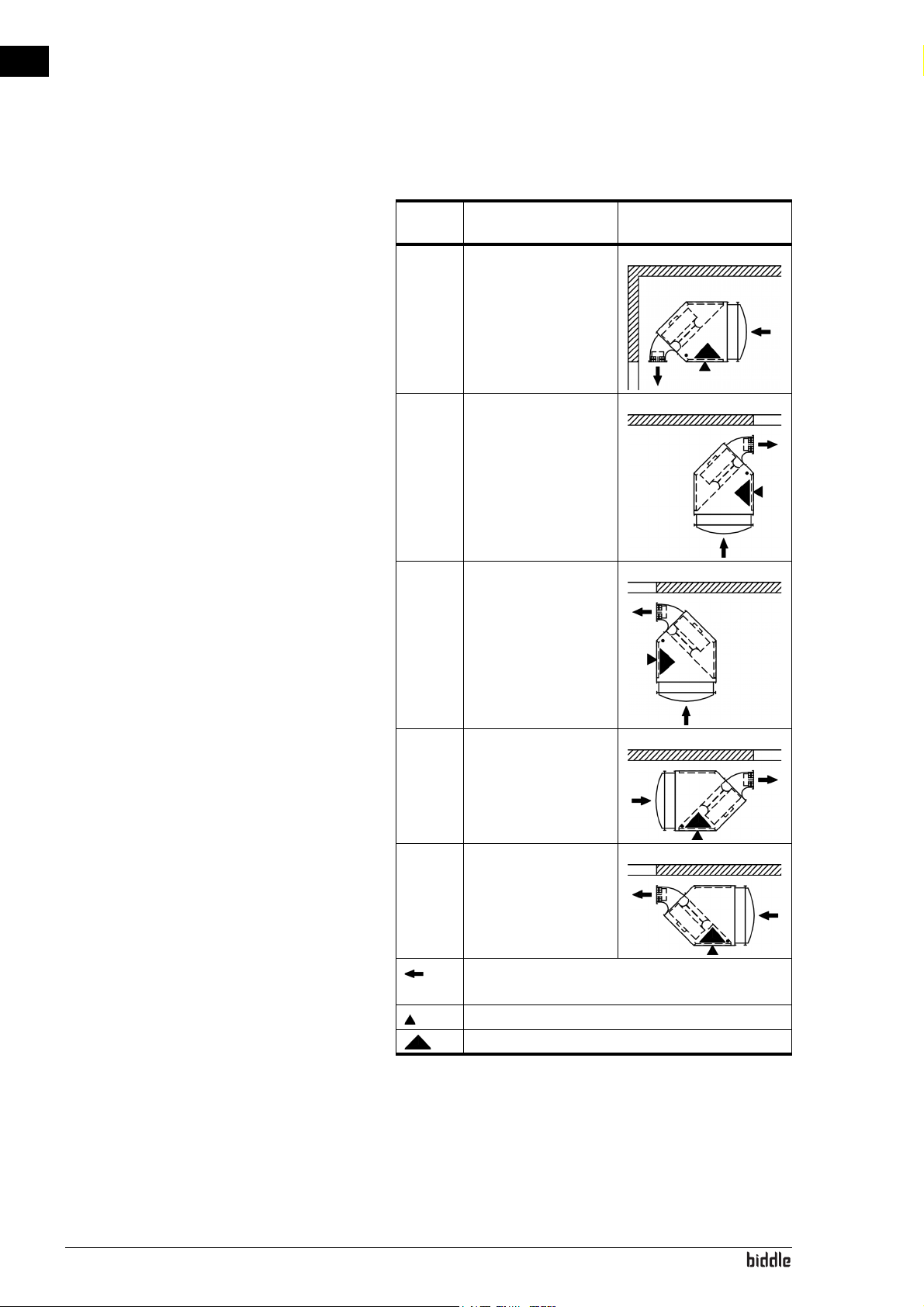

1.3.4 Installation positions

The IndAC installation positions. Depending on the situation, the unit can be placed above or next to the door. In total, there are five installation positions: 0, 1L, 1R, 2L, 2R.

air curtain is suitable for mounting in various

c The unit has been manufactured specifically for the

installation position indicated in the type code. The unit cannot be located in another position.

Manual version 7.0 - North America (21-03-2017) en-9

Page 10

INTRODUCTION INDUSTRIAL AIR CURTAIN

CODE

INSTALLATION POSI-

0 horizontal,

above door

1L vertical,

next to door, on left, at right angle to wall

1R vertical,

next to door, on right, at right angle to wall

TION

EXAMPLE

2L vertical,

next to door, on left, along the wall

2R vertical,

next to door, on right, along the wall

= direction of air inlet and discharge (must remain unobstructed)

= inspection side (must be accessible)

= electronic housing

en-10

Page 11

INDAC2 MANUAL INTRODUCTION

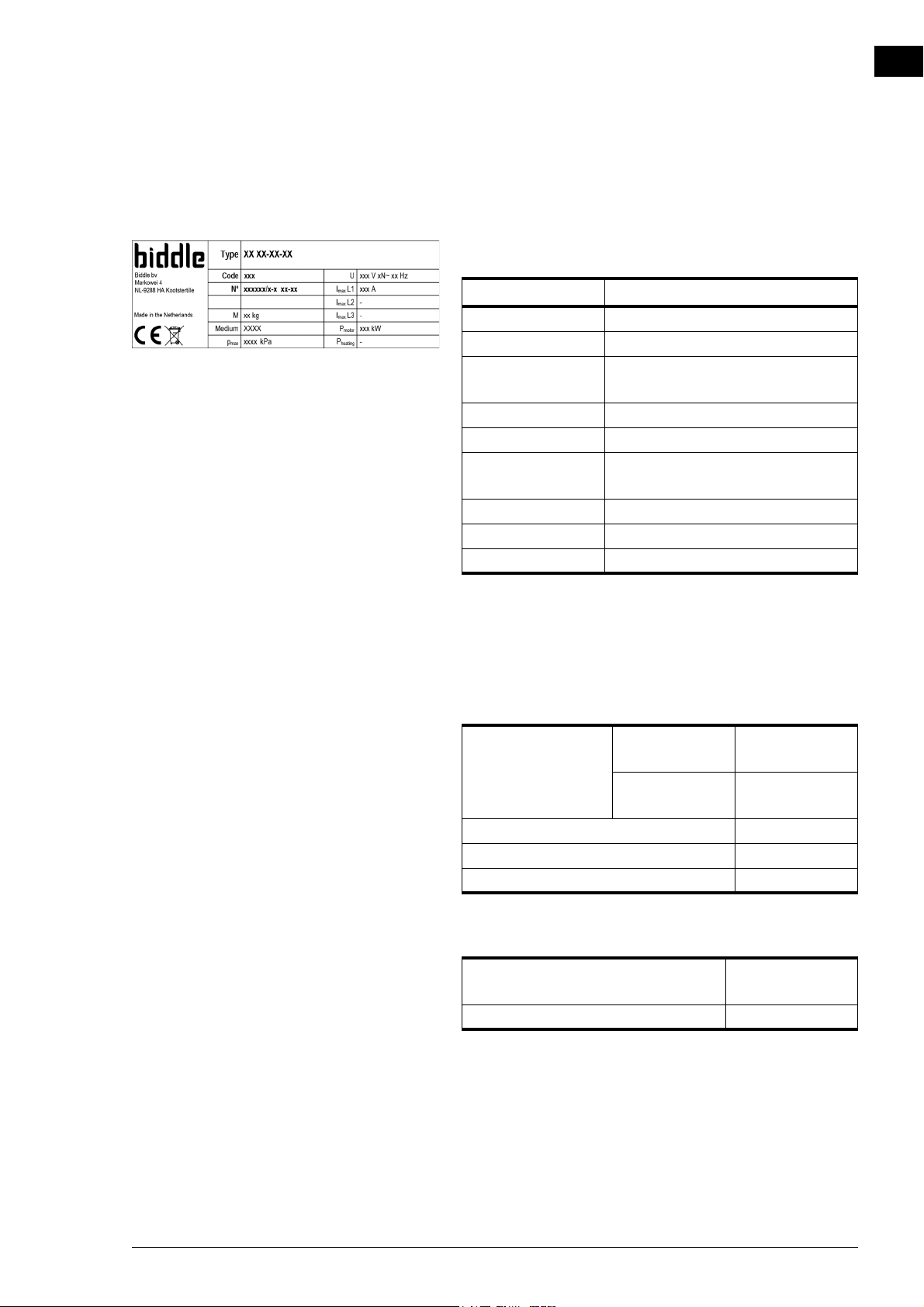

1.3.5 Type plate

The type plate is located next to the discharge grille.

Designations on the type plate

DESIGNATION MEANING

Type complete type code of the unit

Code configuration code

serial number, production week and year

M weight of unit

Medium medium

max

maximum permissible operating pressure

U power supply voltage

max

motor

max. current

max. power consumption by fans

1.3.6 Field of application

Observe the following limits for the unit:

Application limits for all models

Ambient conditions Temperature 5 °C to 40°C

(41 °F – 104 °F)

Relative air humidity

20% – 95%, noncondensing

Power supply voltage see type plate

Power see type plate

Maximum discharge temperature 60 °C(140 °F)

Parameters of use for water-heated models

Heating medium water with max.

50% glycol

Maximum operating pressure see type plate

Manual version 7.0 - North America (21-03-2017) en-11

Page 12

Caution:

Note:

Warning:

INTRODUCTION INDUSTRIAL AIR CURTAIN

Maximum water flow-paths (unregulated)

MAXIMUM

TYPE OF UNIT

H1 60 °C(140 °F) 100/80 °C (212/

H2 60 °C(140 °F) 70/50 °C

Maximum water flow-paths (regulated)

TYPE OF UNIT

H1 60 °C(140 °F) 125 °C/16

H2 60 °C(140 °F) 125 °C/16

PERMITTED CHARGE TEMPERATURE

MAXIMUM PERMITTED CHARGE TEMPERATURE

DIS-

MAXIMUM WA-

TER FLOW-PATH

(UNREGULATED)

176 °F)

(158/122 °F)

MAXIMUM WA-

TER FLOW-PATH

(

REGULATED)

bar(257 °F/16 bar)*

c * A water flow-path up to 125 °C/16 bar (257 °F/16

bar) is only permitted if all units connected have been set in such a way that the maximum discharge temperature is not exceeded at the lowest fan speed.

n Consult Biddle if you want to connect a unit to a

water flow-path with higher temperatures and higher pressure.

w The air curtain may not be used in potentially

explosive environments.

Biddle shall not be held liable for damage caused by use in such situations.

en-12

Page 13

INDAC2 MANUAL INTRODUCTION

Warning:

Caution:

Note:

Sound levels

IndAC

ST-150 61 77.8

IndAC

ST-200 62 79.1

IndAC

ST-250 63 80.1

IndAC

MX-150 69 85.6

IndAC

MX-225 71 87.4

V = 2500 m

MAXIMUM SOUND PRESSURE LEVEL

[DB(A)]

; T60 = 0.8s; R = 5m; Q = 4

MAXIMUM SOUND POWER LEVEL L

[

DB(A)]

w Prolonged exposure can cause damage to the

hearing. If necessary, wear hearing protection.

Maximum number of units that can be daisy chained

Take into account the maximum number of units that can be daisy chained as shown in the table below:

c With Auto type unit: The total cable length

between the first and the last unit may be 100m at maximum.

NDAC

Basic 5 m total length

(10 fans)

Auto 10 units 10 units

Basics per Auto 2 units 2 units

ST INDAC2MX

7.5 m total length (10 fans)

n Consult your Biddle advisor if you wish to connect

more units.

1.3.7 Modifications and changes

Without the approval of Biddle, no changes or modifications may be made to the unit that could adversely affect safety.

Manual version 7.0 - North America (21-03-2017) en-13

Page 14

Note:

INTRODUCTION INDUSTRIAL AIR CURTAIN

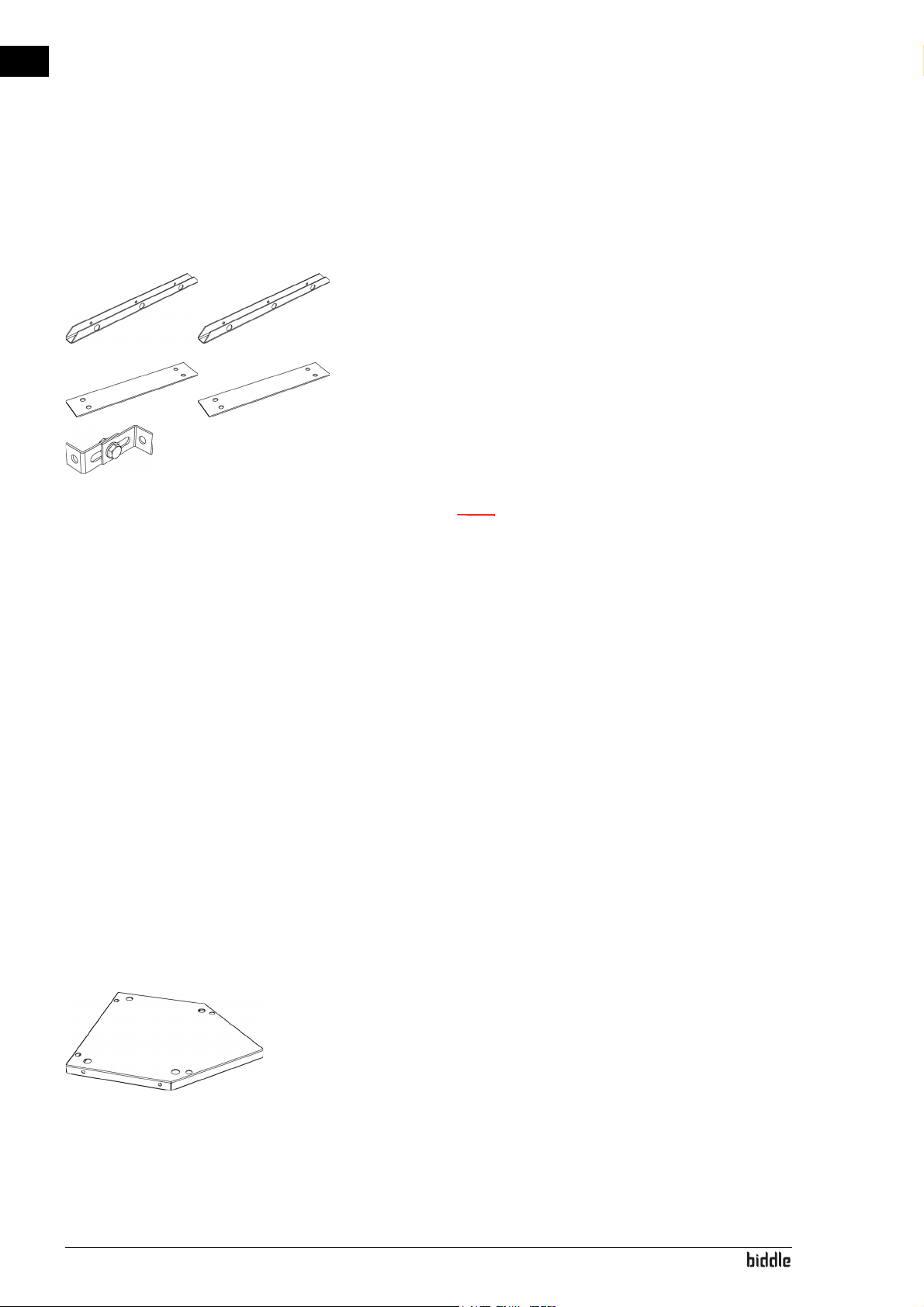

1.4 Components and accessories

1.4.1 Components supplied

For horizontal installation:

• suspension rails (2 per unit), also used for fixing the unit to the pallet;

For vertical installation:

• coupling plates (2 per unit)

• safety hanger

n For delivery purposes, some components may be

packed within the unit (behind the inspection panel).

1.4.2 Operating package

The unit can be supplied with a basic control or an automatic CHIPS control. A corresponding operating package is supplied.

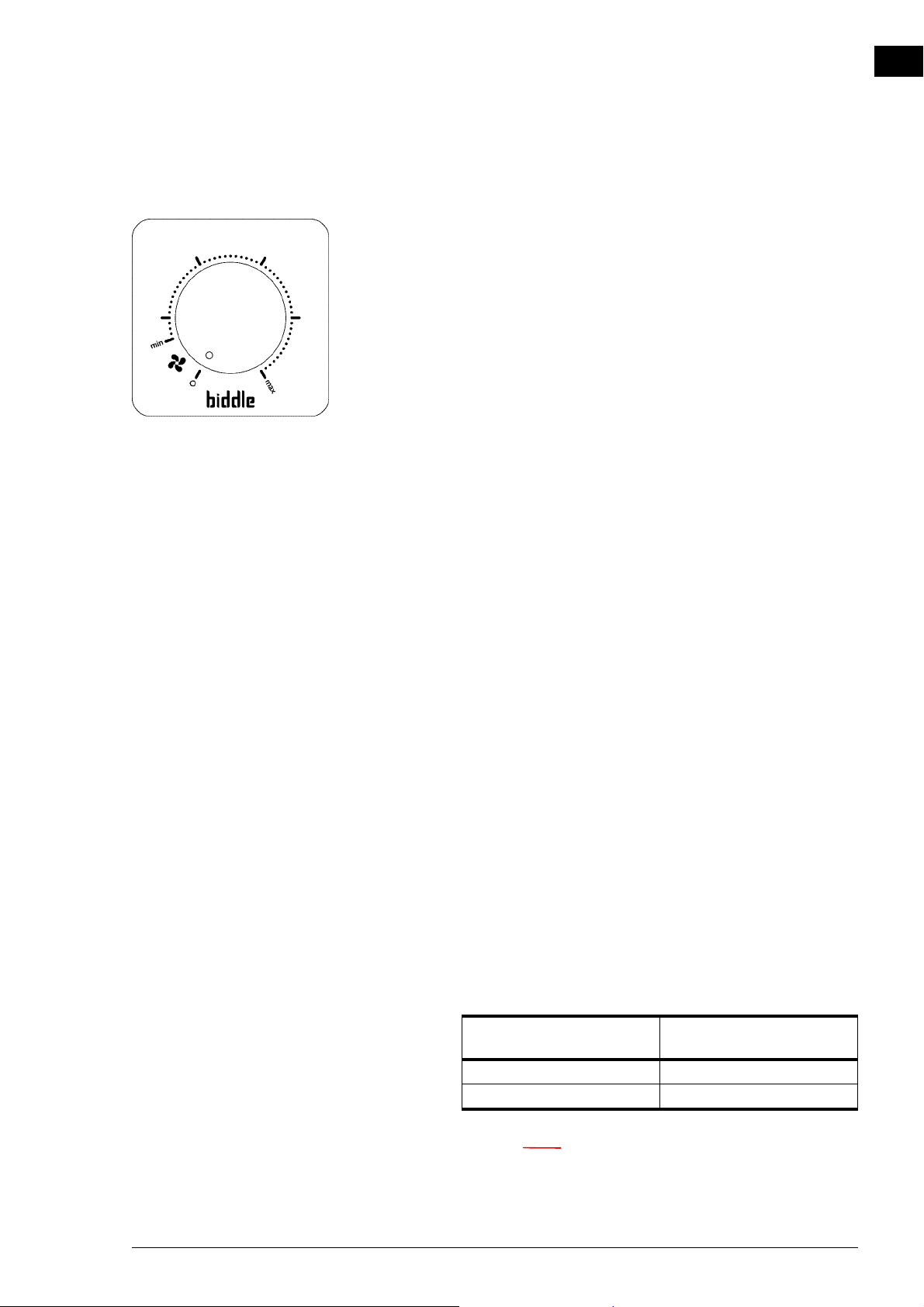

Operating package for basic control

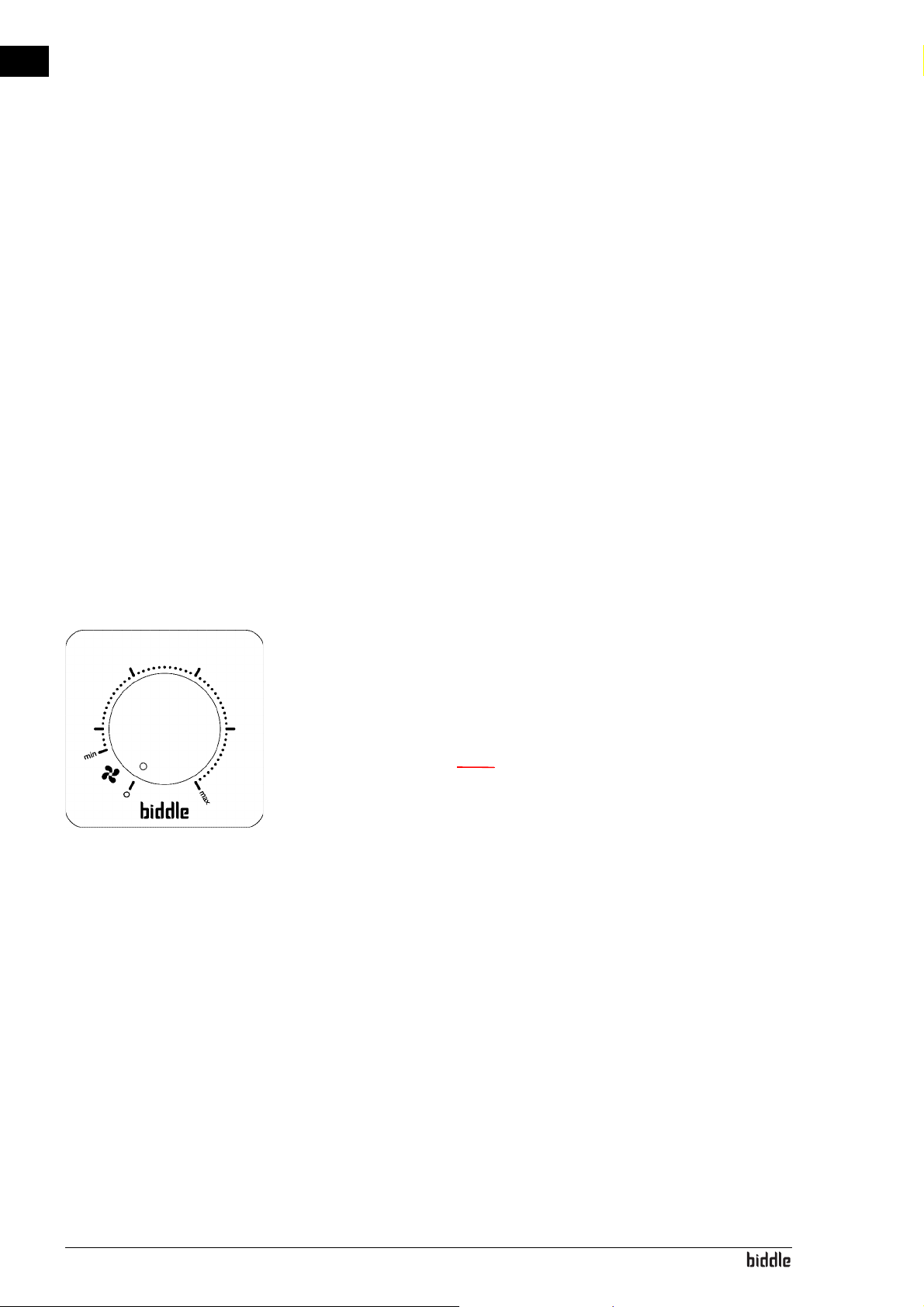

• b-control continuously variable controller.

Operating package for automatic CHIPS control

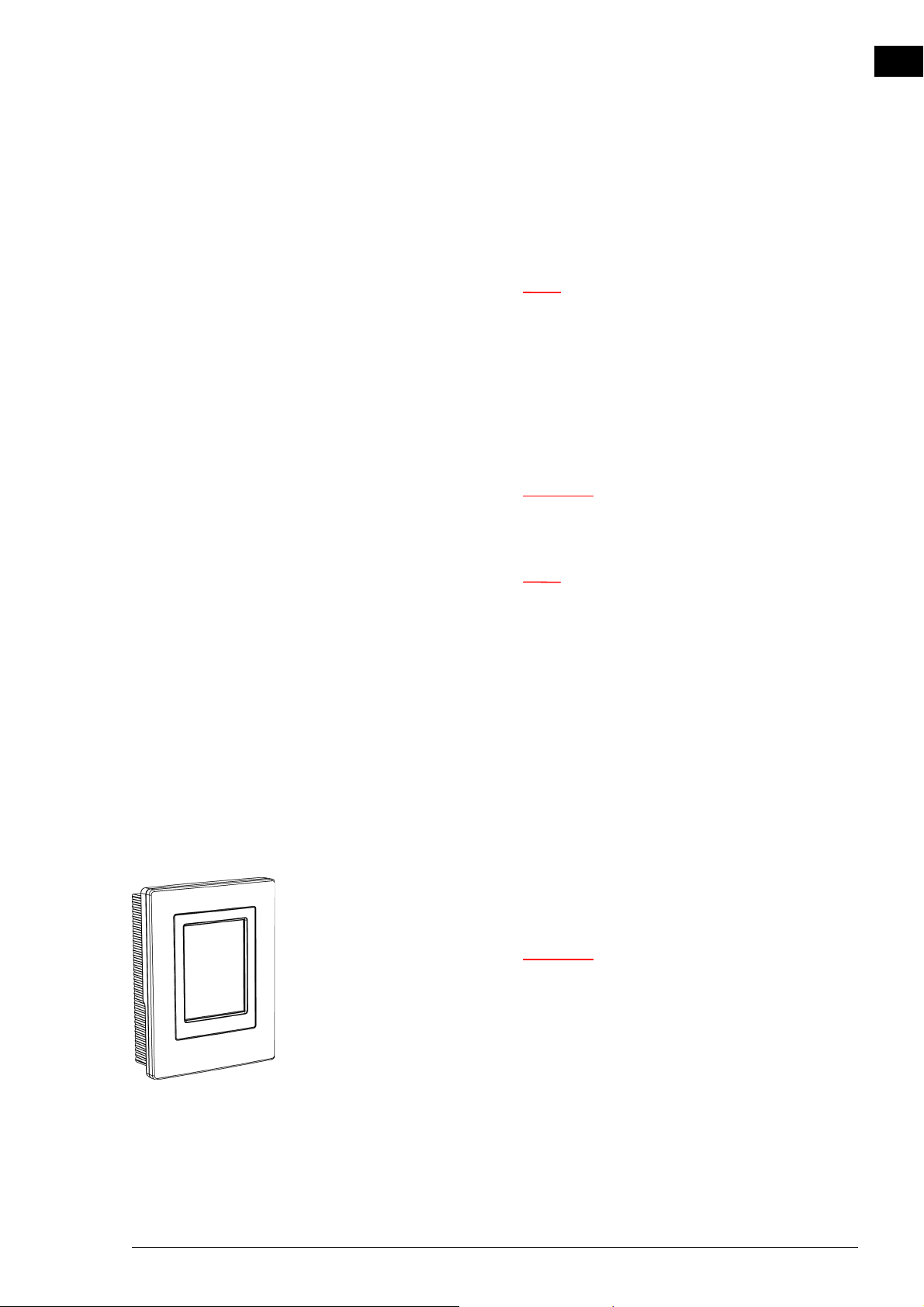

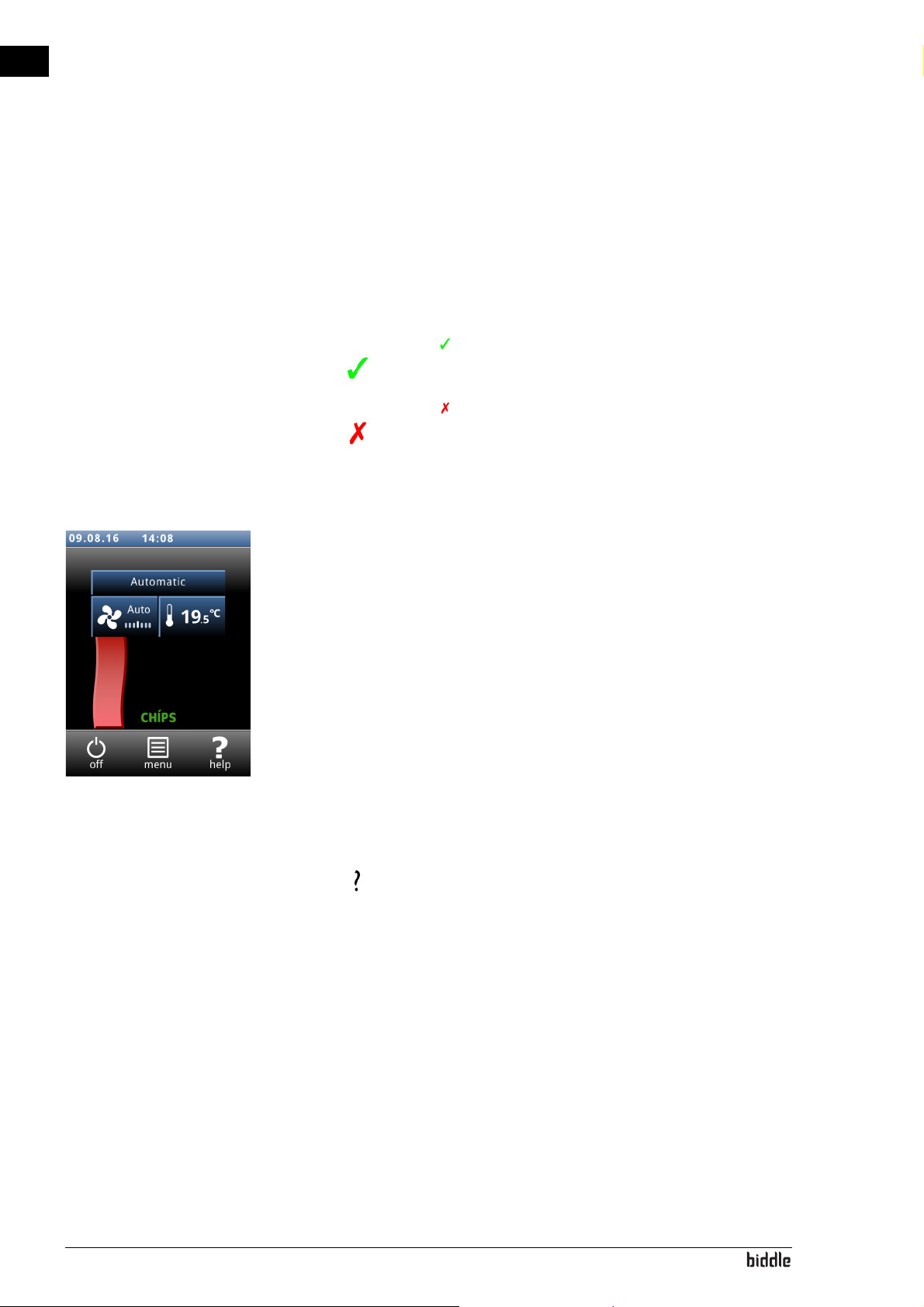

• b-touch control panel;

• Biddle control cable;

• outdoor temperature sensor;

• door contact switch;

• water-side control (valve and drive).

1.4.3 Accessories

en-14

• plastic side shields;

• base plate (recommended in the event of vertical installation);

•flanges;

• filter module;

• room sensor for automatic CHIPS control;

• door contact switch.

Page 15

INDAC2 MANUAL INTRODUCTION

Note:

Warning:

Caution:

n For models with automatic CHIPS control, the door

contact switch is part of the control package as standard.

1.4.4 Components not supplied

The following components required for installation must be obtained from third parties:

• threaded rods(M12)

• other cabling

1.5 Safety instructions

1.5.1 Safety in use

w Do not put any objects into the inlets and

outlets.

w Do not obstruct the unit’s inlets or outlets. w The upper surface of the unit becomes hot

during operation.

c In exceptional situations, water may run out of the

unit. Therefore, do not place anything under the unit that could be damaged by this.

Manual version 7.0 - North America (21-03-2017) en-15

Page 16

Danger:

Warning:

Danger:

Caution:

Warning:

INTRODUCTION INDUSTRIAL AIR CURTAIN

1.5.2 Safety issues relating to installation, mainte-

nance and servicing

d The unit may only be opened by qualified

technical staff.

w Perform the following actions before opening

the unit:

1. Switch the unit off,using the control panel.

2. Wait until the fans have stopped.

d The fans may continue rotating for a while.

3. Allow the unit to cool down.

c The heat exchanger or, as the case may be, the

heating elements, may get very hot.

4. Disconnect the mains supply ( set the isolation switch to OFF).

c For models IndAC

control:

the units are equipped with 2 mains power cables. Disconnect the mains supply to both mains power cables.

5. For water-heated models: shut off the central heating feed (if possible).

MX with automatic CHIPS

w The fins of the heat exchanger are sharp.

en-16

Page 17

2. . Installation

Warning:

w Installation activities may only be performed w Before starting installation: read the safety

See also:

1.5 "Safety instructions" on page 15

by technical staff qualified for this purpose.

instructions.

2.1 Inspection on delivery

2.2 General working method

• Check the unit and the packaging to ensure that they have been delivered in good order. Notify the driver and the supplier immediately if any shipping damage is detected.

• Ensure that all components are present. Notify supplier of any missing parts immediately.

See also:

1.4 "Components and accessories" on page 14

2.2.1 Sequence of operations

Biddle recommends working as follows when installing the unit:

1. Hang the unit up. (horizontal models)

2. Position the unit. (vertical models)

3. For water-heated models (type H): connect the unit to the central heating system.

Manual version 7.0 - North America (21-03-2017) en-17

Page 18

Caution:

Note:

INSTALLATION INDUSTRIAL AIR CURTAIN

4. Connect the unit to the mains supply.

c Make sure that the unit’s power supply voltage

matches the local mains voltage.

The unit’s power supply voltage is displayed on the type plate.

5. Install the control panel and (any optional) connections to external controls.

6. Complete the installation of the unit.

7. Switch the mains supply on and check that the unit is working properly.

General instructions

Some parts of this section only apply to certain models. Where this is the case, it will be indicated. If no specific model is referred to, then the description applies to all models.

n Make sure that you perform all installation

operations that are applicable to your unit.

Check the type plate and consult the manual if in doubt about the model or type of your unit.

n During the installation period, protect the unit

against damage and penetration of dust, cement, etc. You can, for instance, use the packaging for protection.

en-18

Page 19

INDAC2 MANUAL INSTALLATION

Warning:

Note:

2.3 Suspending the unit horizontally

Only with installation position type 0

See also:

1.3.3 "Type designation" on page 8

1.3.5 "Type plate" on page 11

1.3.4 "Installation positions" on page 9

2.3.1 Suspension method

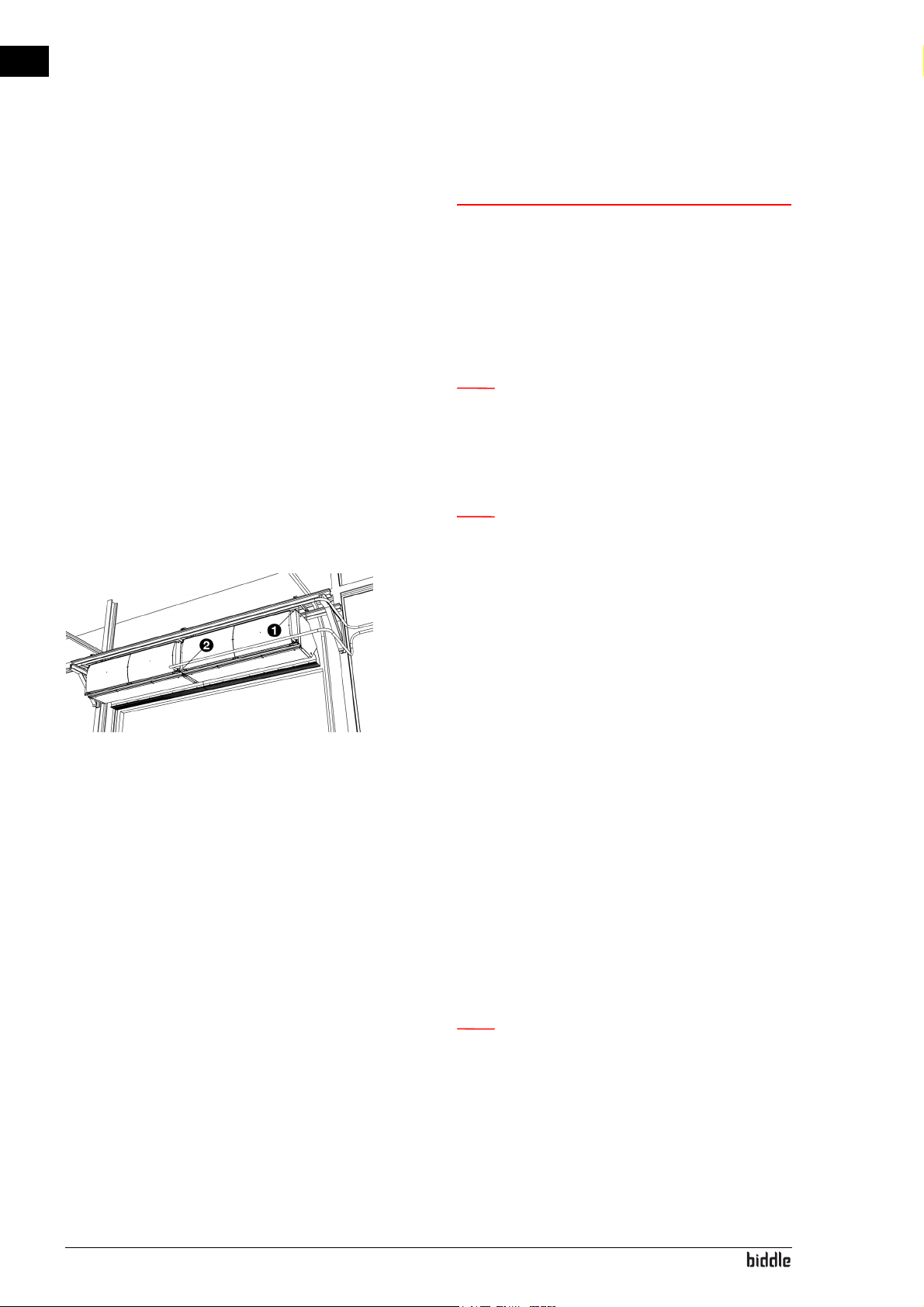

Example of an auxiliary structure This manual assumes that the unit will be suspended from an

auxiliary structure, consisting of two horizontal beams positioned above the door.

You may also fix the units directly to the ceiling, or to another horizontal structure, using the screw holes in the upper side of the unit.

w Make sure that the structure from which the

unit is about to be suspended can bear at least 4 times the weight of the unit.

2.3.2 Determining the location of the unit

• Position the underside of the unit at the same height as the top of the doorway.

• Position the discharge side of the unit as close to the doorway as possible, to ensure optimum operation.

n If the distance is greater than 5 cm.(2”), Biddle

recommends that you seal off the openings at the side. For this purpose, you can order a side shield of plastic strips from Biddle.

• Position the row of units centrally in relation to the doorway.

Manual version 7.0 - North America (21-03-2017) en-19

Page 20

Warning:

Note:

INSTALLATION INDUSTRIAL AIR CURTAIN

• In the case of an assembly with automatic CHIPS control and several units, only one of which is equipped with a control circuit board, position the unit with the control circuit board in the middle of the row.

• Units of different widths can be positioned in random order.

• Make sure that the inspection and intake sides of the units remain accessible for maintenance.

w Make sure that all units can freely take in and

blow out air across their entire width

2.3.3 Suspending the unit

Perform the following actions for each unit:

1. Lay the unit in a horizontal position.

2. Fit threaded rods 1(M12) in all screw holes on the top of the unit.

3. Provide all threaded rods with lock nuts 2, and tighten them.

n The threaded rods must be secured, otherwise the

unit may fall down.

4. Fit lock nuts 3 to each threaded rod.

5. Bring the unit into position using lifting equipment.

6. Put the suspension rails 4 on the auxiliary structure, and fasten them with nuts 5 to the threaded rods of the unit.

7. Allow the unit to hang freely.

en-20

Page 21

INDAC2 MANUAL INSTALLATION

Warning:

Caution:

Warning:

Caution:

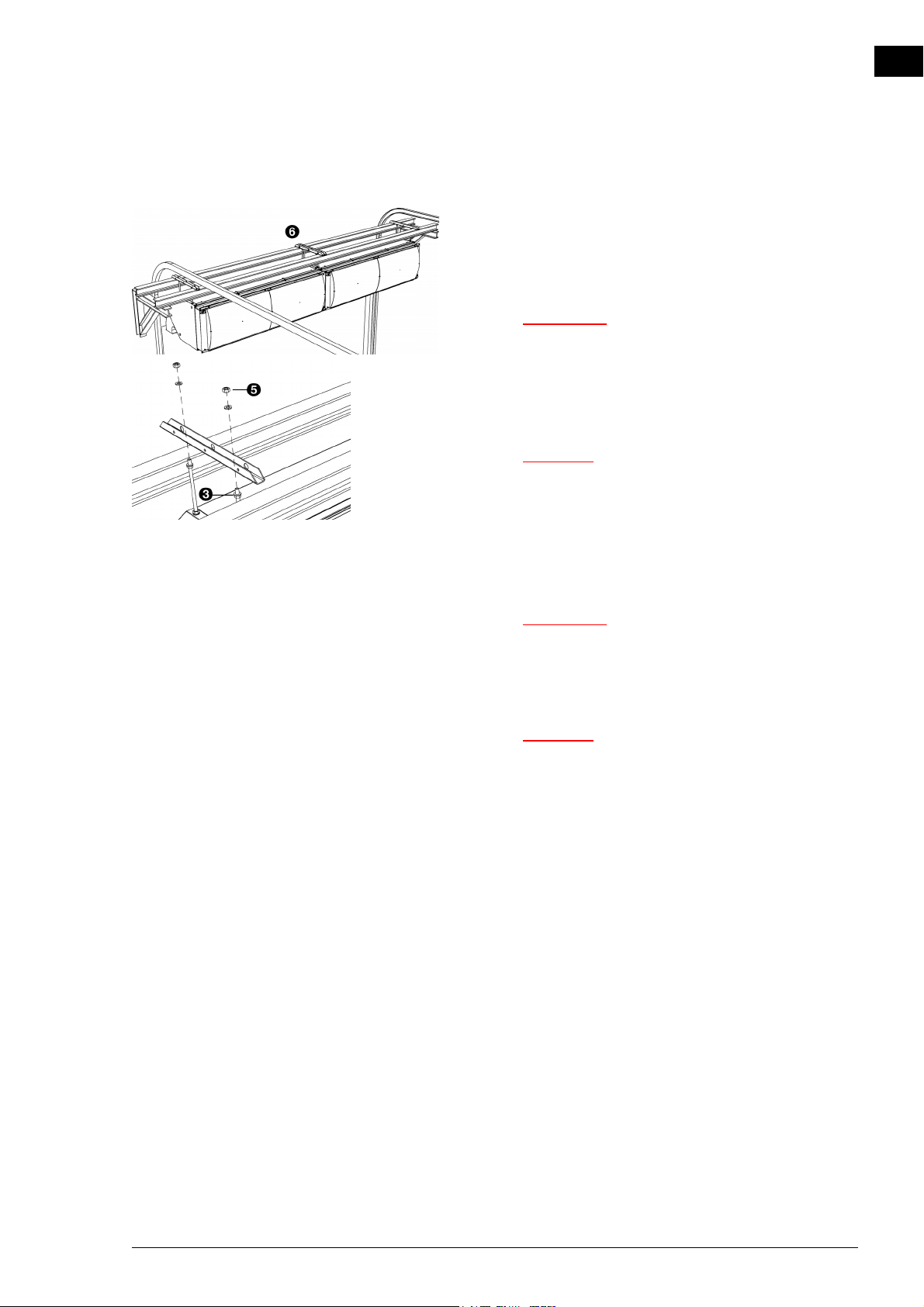

2.3.4 Adjusting and securing

1. Position the units against one another, in one line, by plac-

ing the suspension rails 6 against one another.

2. Attach the suspension rails to the auxiliary structure.

w Make sure that the suspension rails can never

come loose from the auxiliary structure.

3. Adjust the units to the same height, and level them by

tightening the nuts 5.

c Ensure that the units are hanging level and horizontal

in both directions. Otherwise the fans may run out of true.

4. Secure the suspension to the threaded rods by tightening

the lock nuts 3.

w The threaded rods must be secured,

otherwise the unit may fall down.

5. You can possibly fasten the units to each other.

c First position the units independently of each other,

so that no force is exerted on the coupling elements.

Manual version 7.0 - North America (21-03-2017) en-21

Page 22

INSTALLATION INDUSTRIAL AIR CURTAIN

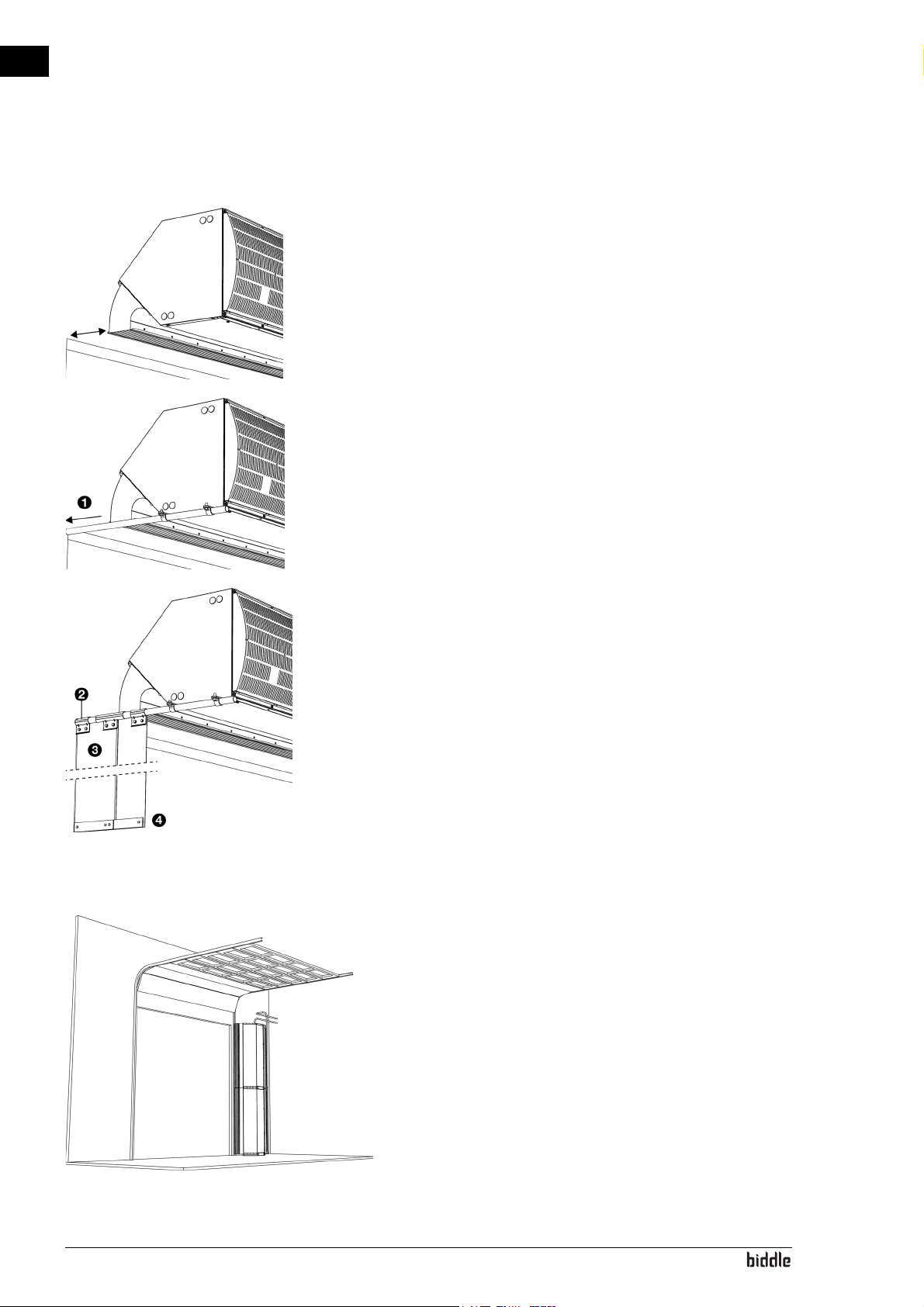

2.3.5 Installing side shield

For optimum operation, the unit’s discharge opening must be placed as close as possible to the door opening. If the distance is greater than 5 cm., you are advised to seal off the openings at the side.

For this purpose, you can order a side shield of plastic strips from Biddle.

1. On both sides of the unit, mount a tubing profile, reaching to the wall 1.

2. Cut the plastic strips to size.

2.4 Installing the unit vertically

3. Fasten the suspension plates above the strips 2.

4. Fasten the strips to the suspension system 3.

5. Fasten the steel plates at the bottom of the strips 4.

Only with installation positions type 1 and 2

See also:

1.3.3 "Type designation" on page 8

1.3.5 "Type plate" on page 11

1.3.4 "Installation positions" on page 9

en-22

Page 23

INDAC2 MANUAL INSTALLATION

Caution:

2.4.1 Method of erection

This manual makes the assumption that the unit is to be placed on a base plate (accessory). The units are stacked on top of one another.

c If you do not use a base plate, you must ensure that

the surface underneath is horizontal and completely level. Otherwise the fans may run out of true.

c Although the units can stand up by themselves, it is

always necessary to secure them to the wall.

2.4.2 Determining the location of the unit

• Place the units, depending on the type, on the left or right hand side of the door. For this, consult the type code.

c Do not install the unit in a position other than that

for which it was made.

• Position the discharge side of the unit so that its breadth coincides with that of the doorway.

• Position the discharge side of the unit as close to the doorway as possible, to ensure optimum operation.

• Units of different sizes can be placed on each other in random order.

• Make sure that the intake side and the inspection side of the units remain accessible for maintenance.

c Make sure that all units can freely take in and

discharge air across their entire height.

See also:

1.3.3 "Type designation" on page 8

1.3.4 "Installation positions" on page 9

Manual version 7.0 - North America (21-03-2017) en-23

Page 24

Caution:

INSTALLATION INDUSTRIAL AIR CURTAIN

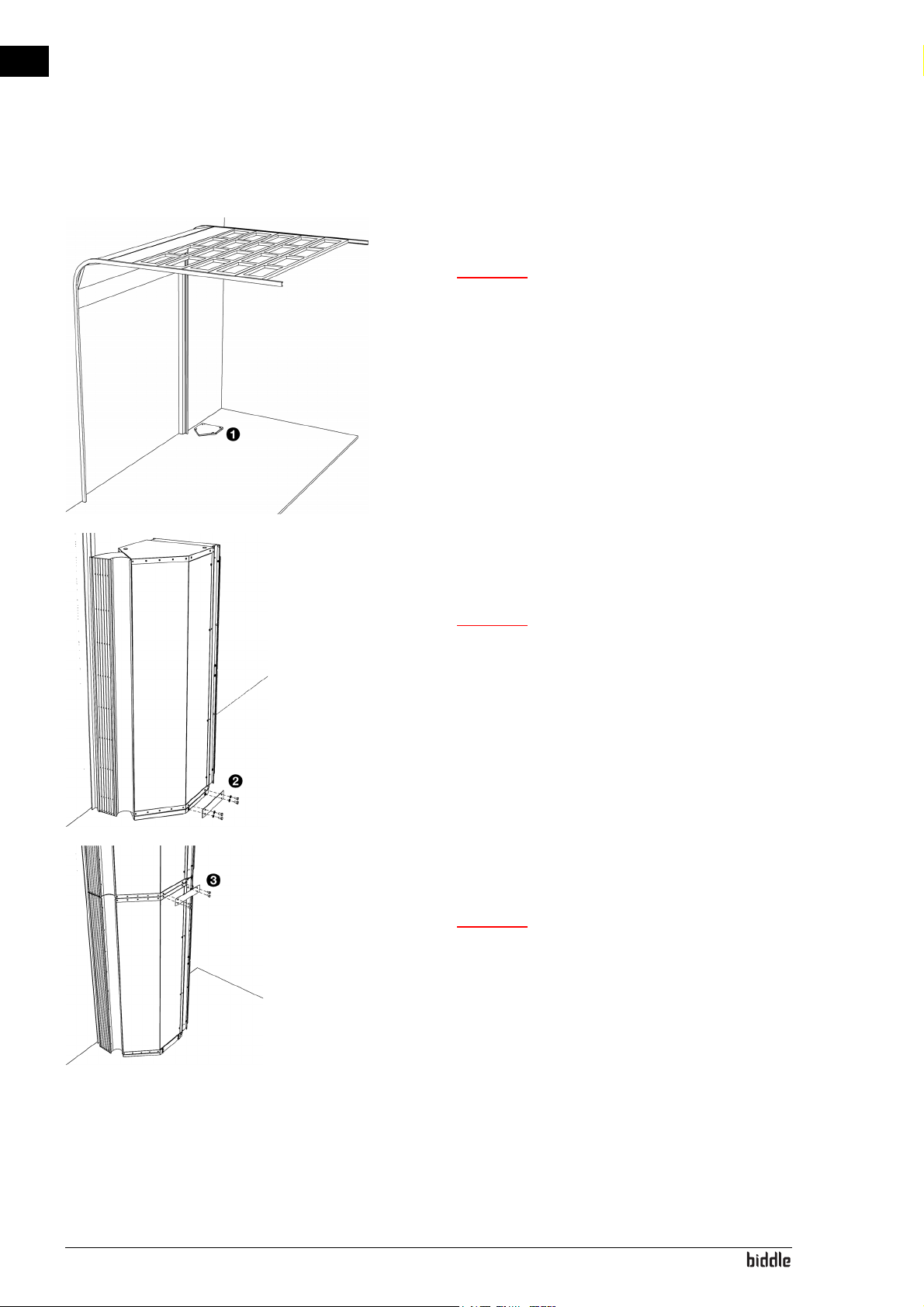

2.4.3 Positioning the units

1. Position the base plate 1 and fix it to the floor.

c Ensure that the base plate is level.

2. Position the first unit on the base plate.

3. Fix the unit to the base plate with coupling plates 2.

c Mount the coupling plates on both sides of the unit.

4. Place the second unit on the first unit, and attach them

together with coupling plates 3.

c Mount the coupling plates on both sides of the unit.

5. Place the third unit (if applicable) in the same way.

en-24

Page 25

INDAC2 MANUAL INSTALLATION

Caution:

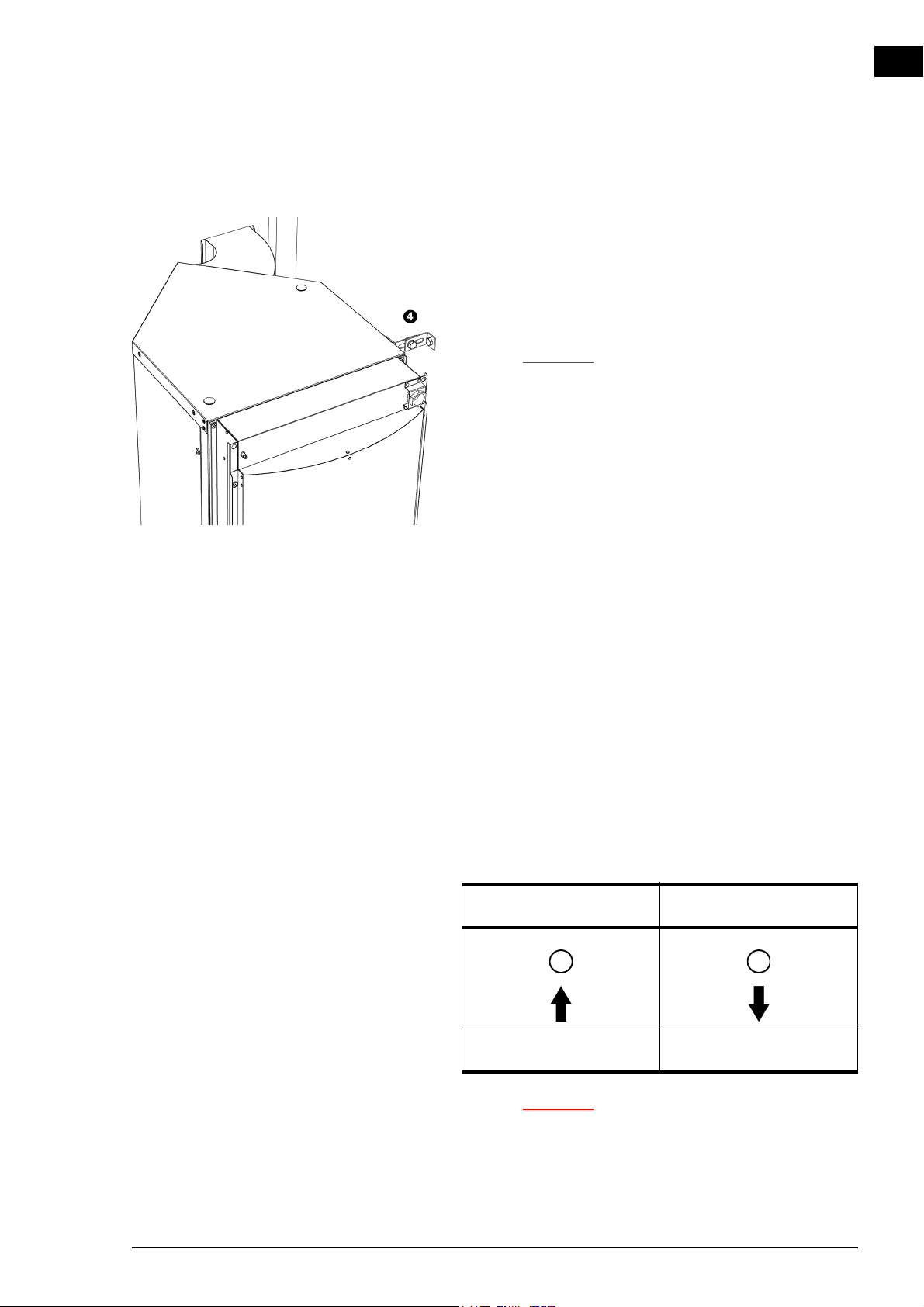

2.4.4 Securing

1. Attach the topmost unit safety hanger 4: use one of the screw holes in the unit.

2. Attach the safety hanger to a wall or other fixed construction.

c If you attach more than 3 units together:

attach a safety hanger every 2 or 3 units.

2.5 Connecting the unit to the central heating system

Only for water-heated models (type H)

See also:

1.3.5 "Type plate" on page 11

1.3.3 "Type designation" on page 8

2.5.1 Special points regarding the water connection

The central heating system’s supply and return pipes must be attached to the correct corresponding connectors. On the unit, the directions are indicated with arrows.

SYMBOL FEED PIPE

SYMBOL RETURN PIPE

arrow points towards the connection

arrow points away from the connection

c Biddle recommends the inclusion of a valve in both

pipes.

Manual version 7.0 - North America (21-03-2017) en-25

Page 26

Danger:

Note:

INSTALLATION INDUSTRIAL AIR CURTAIN

d Take measures to limit the discharge

temperature.

Take account of the critical discharge temperatures and water flow-paths. The application limits for this are shown in section

1.3.6 Field of application.

n The central heating system must be fitted with an

overpressure cut-out with an initial pressure not exceeding the permitted pressure of the unit. This is shown on the type plate at P

max

n Make sure that the central heating system has

sufficient capacity.

Valves for venting1 and for draining 2 of the heat exchanger are located on the intake side.

See also:

1.3.6 "Field of application" on page 11

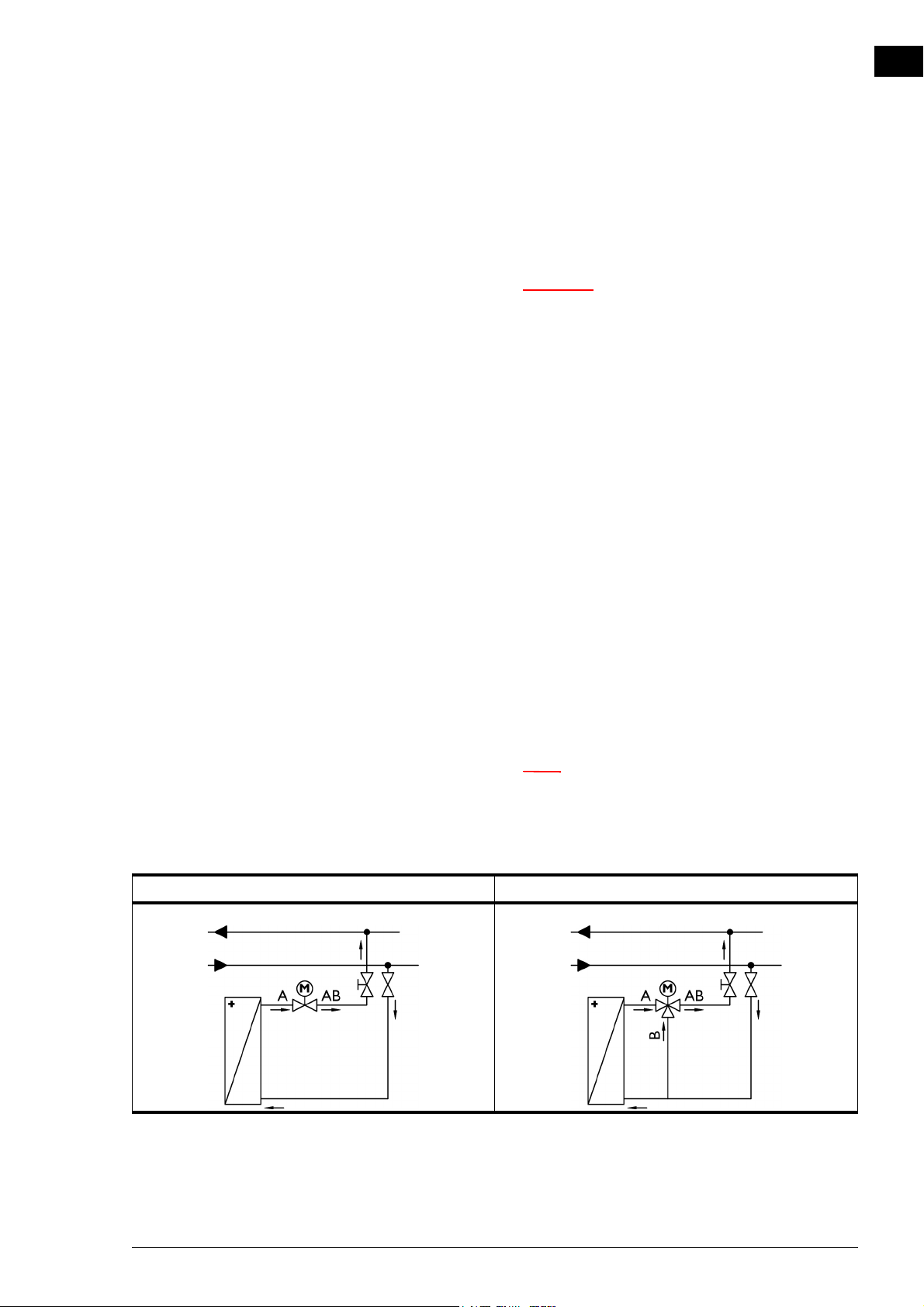

2.5.2 The water-side control (accessory)

Only for models with automatic CHIPS control

The unit is equipped with a water-side control. This regulates the water supply to the heat exchanger, so that a constant discharge temperature is achieved. The control can also be used to limit the discharge temperature. The maximum permitted discharge temperature is indicated in 1.3.6 Field of application. For models with automatic CHIPS control, this limitation is automatically set.

en-26

n In an assembly with automatic CHIPS control, the

water-side control valve is automatically closed by default if the unit and/or the heating is switched off. This can be adjusted on the control panel via

menu > Configuration > 45. Extra frost protection.

Page 27

INDAC2 MANUAL INSTALLATION

Caution:

Note:

Special points regarding the water-side control

Biddle supplies water-side controls for models with automatic CHIPS control.

c A maximum of 3 units having a control valve can be

connected in series per control circuit board. Consult Biddle if you want to connect more control valves in an assembly with a single control circuit board.

Control valves that are not supplied by Biddle must, in any case, comply with the following:

• 24V power supply.

• 0-10V control.

• The total power consumption of the water-side controls that are connected to 1 control circuit board may be a maximum of 7.6 VA.

Connecting the water-side control

Only for models with automatic CHIPS control:

1. Connect the control valve and the drive to the heat exchanger, in accordance with the diagram. In doing so, follow the instructions given in the control valve manual.

n Ensure that the axis of the valve is in the correct

position when connecting the drive. See the control valve manual.

WIRING DIAGRAM, 2-WAY VALVE WIRING DIAGRAM, 3-WAY VALVE

Manual version 7.0 - North America (21-03-2017) en-27

Page 28

Note:

INSTALLATION INDUSTRIAL AIR CURTAIN

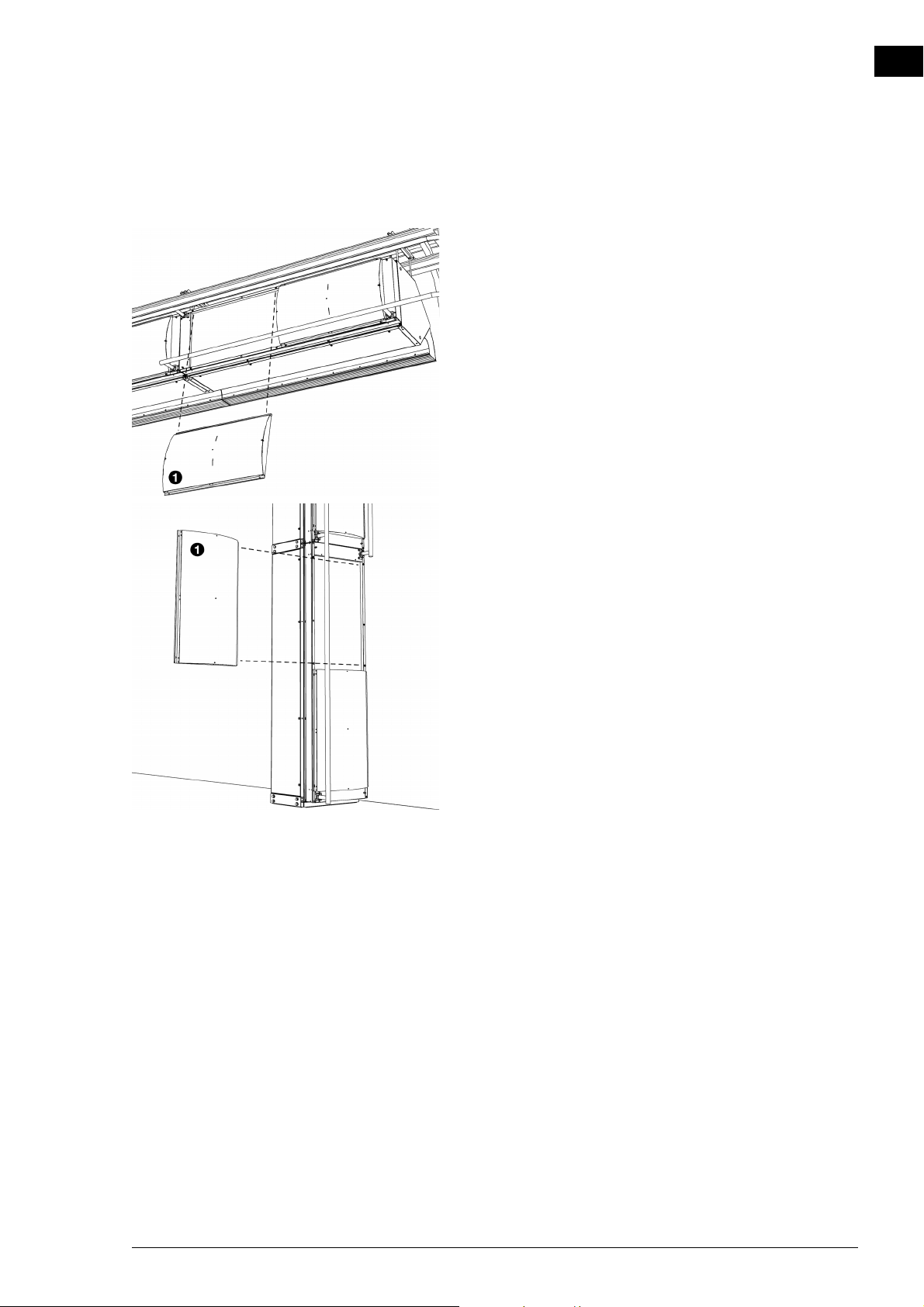

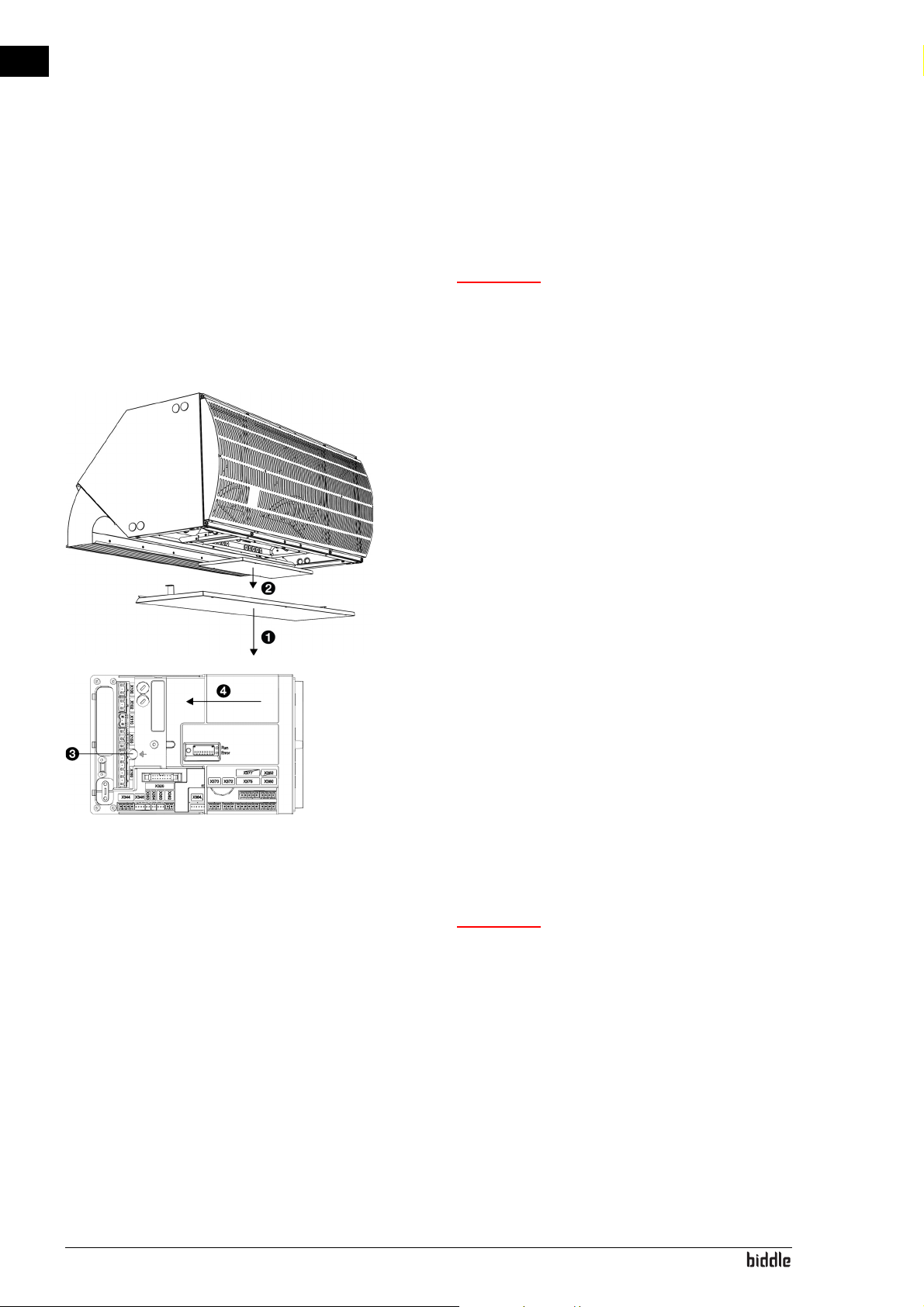

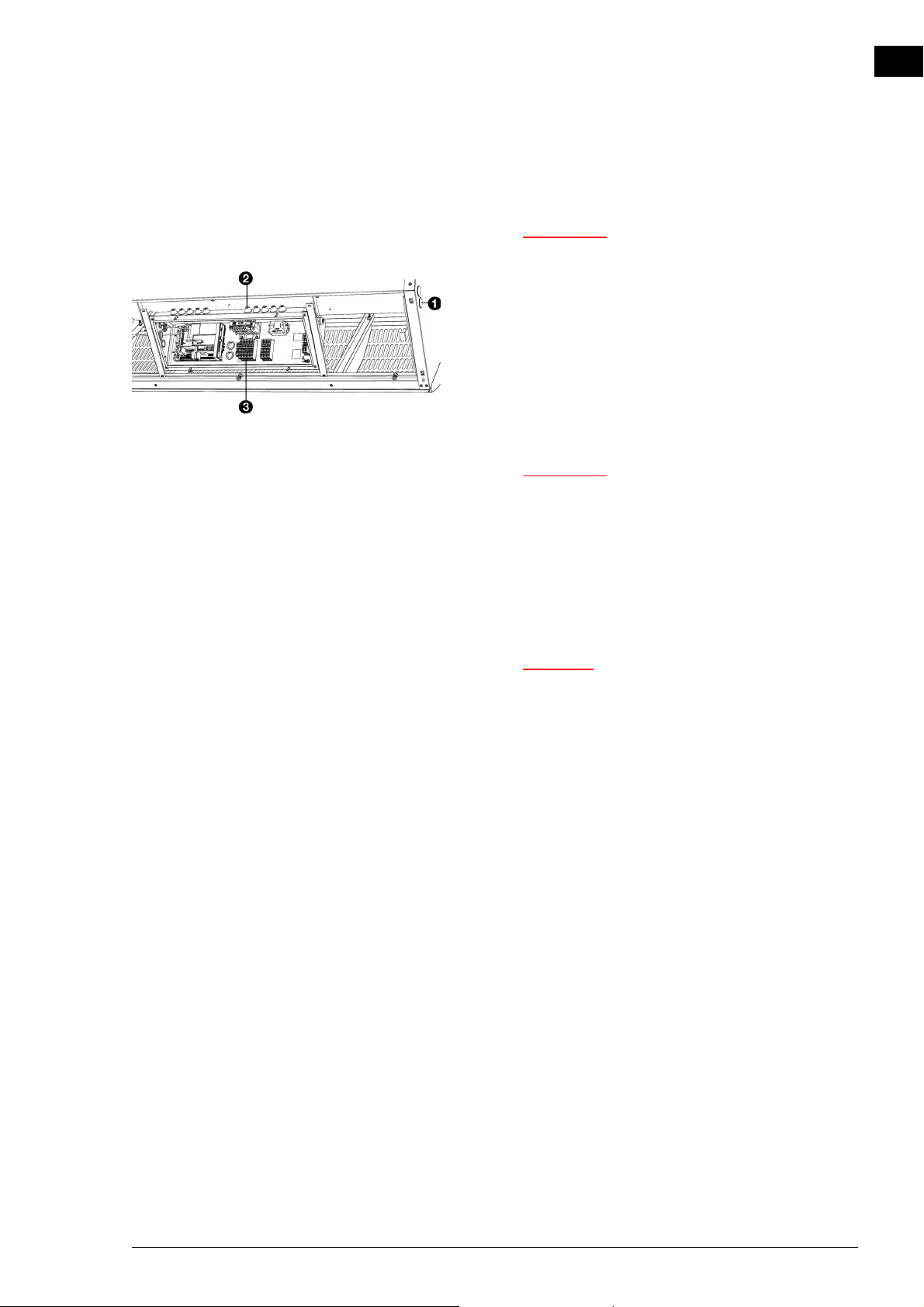

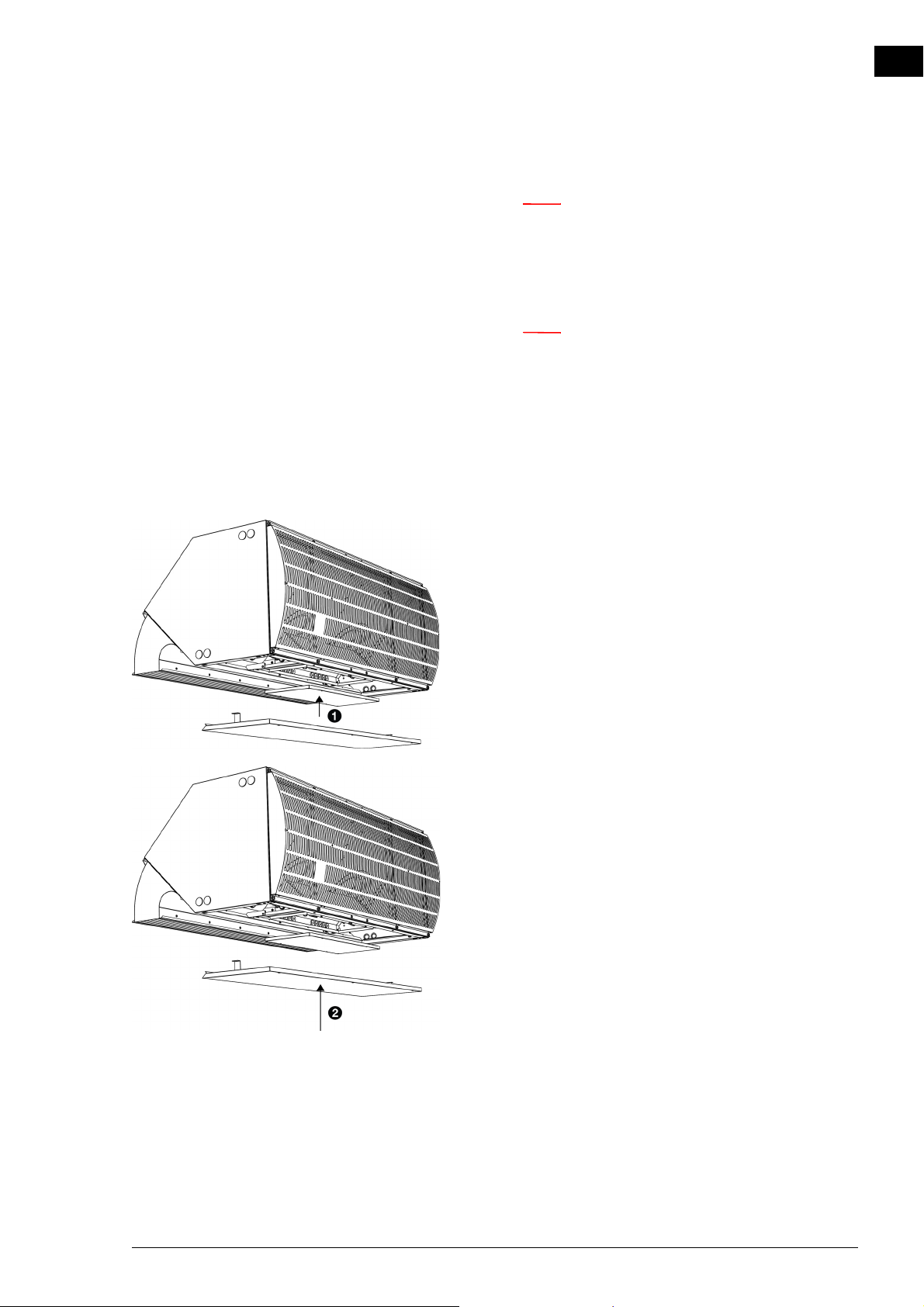

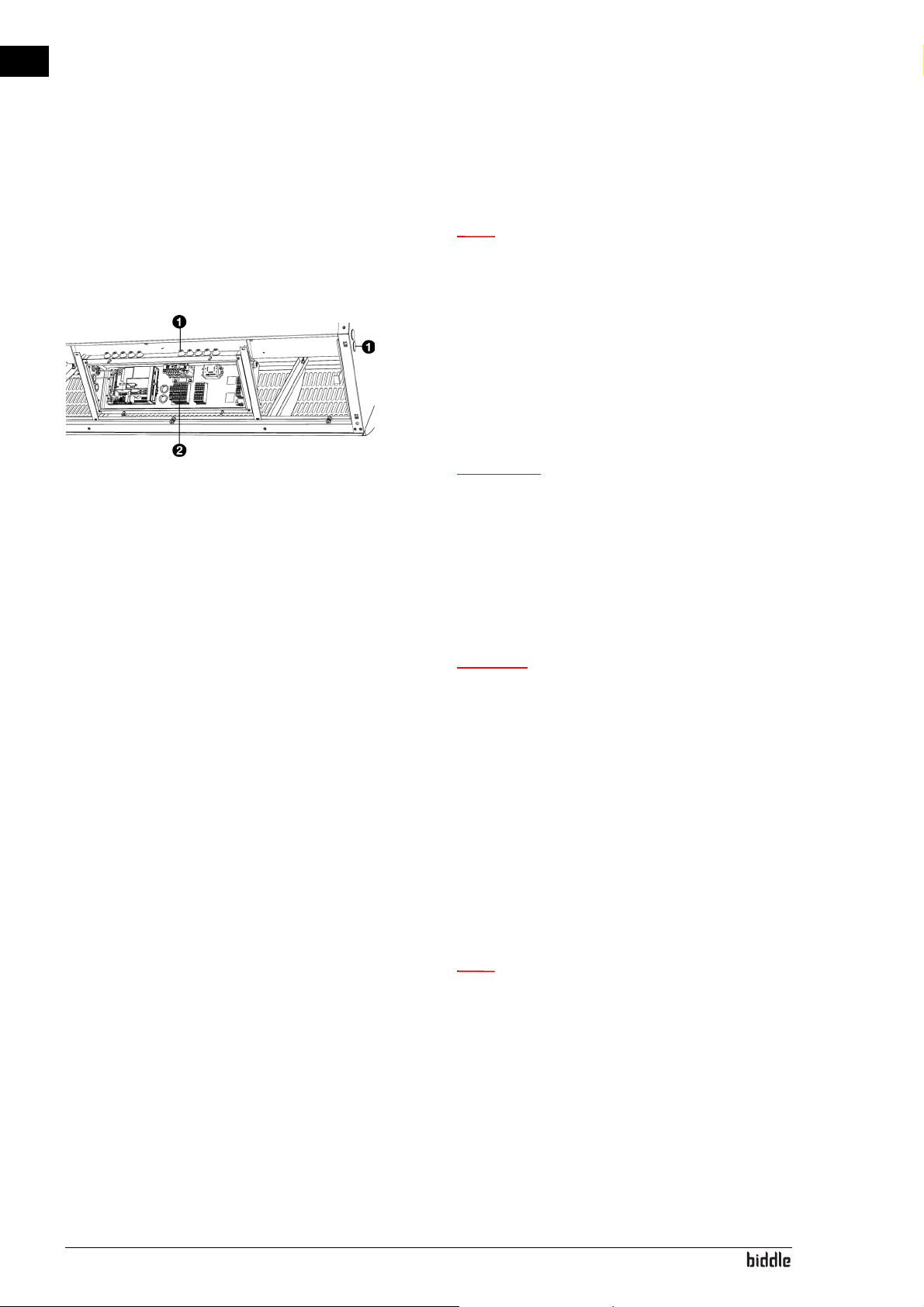

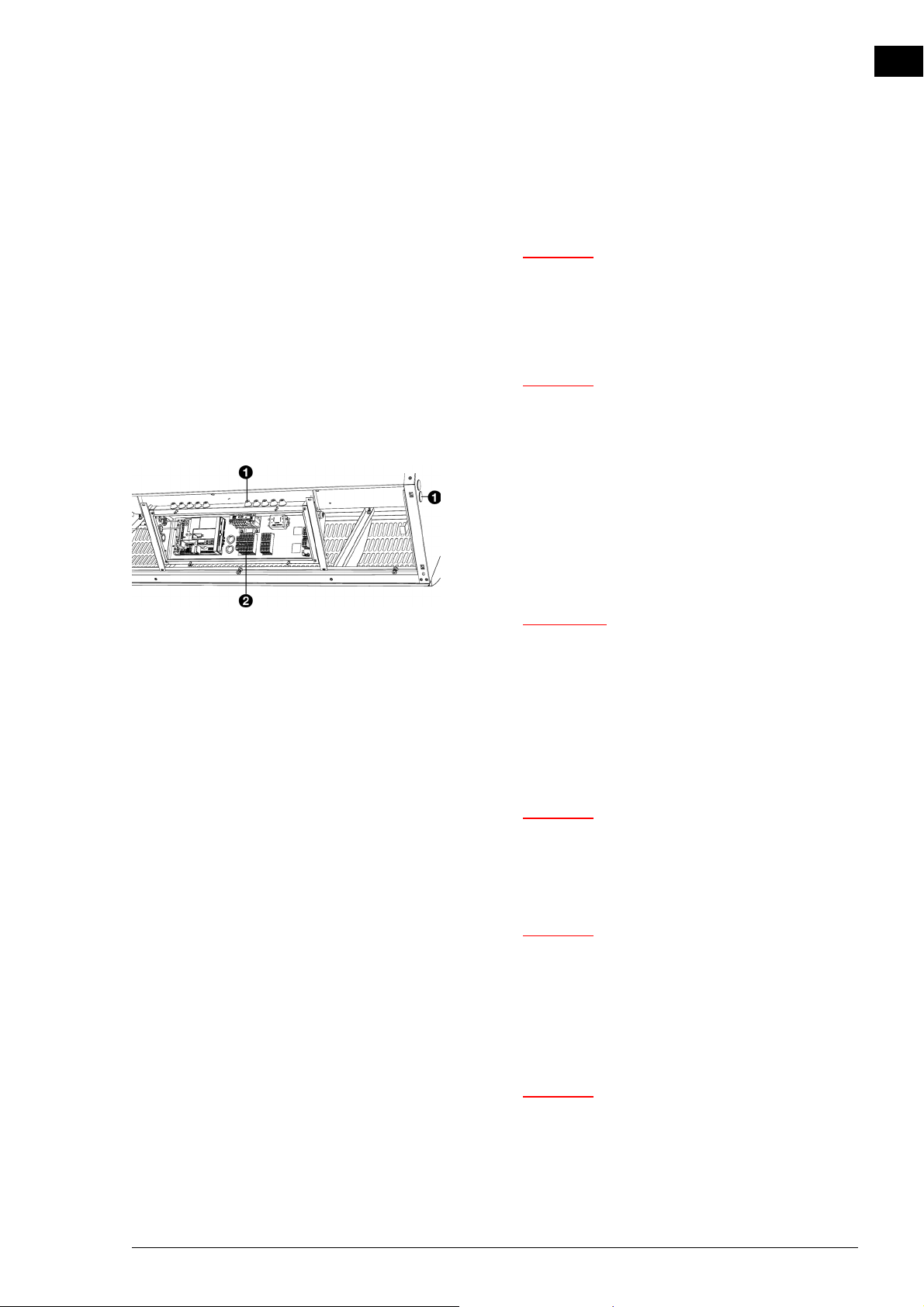

2. Remove the inspection panel 1.

3. Remove the cover of the electronic housing 2.

4. Connect the cord to the drive, in accordance with the wiring diagram.

n Use a cable of at least 0.5 mm

5. Feed the cord from the drive through openings 3 and 4 in the electronic housing.

6. Connect the cord to terminal X377 5 of the control circuit board, in accordance with the wiring diagram.

7. Connect (if applicable) the drive among multiple units. In doing so, follow the instructions in the drive manual.

n Only close the electronic housing after connecting

the mains supply and the control unit and possible external controls.

See also:

1.3.6 "Field of application" on page 11

2.5.1 "Special points regarding the water connection" on page 25

2.5.3 Frost protection

For models with automatic CHIPS control (Auto type)

en-28

The electronic control features integrated frost protection. This works in two stages:

1. If the temperature of the discharged air falls to below 5 ºC(41 ºF) and the temperature of the intake air falls below 8ºC(46ºF):

- the valve of the integral water-side control will open

fully;

- the output on the unit gives a signal for the central

heating installation provided that function 61. Function

of outputs on the control panel is set to Risk of freezing.

Page 29

INDAC2 MANUAL INSTALLATION

Caution:

Warning:

2. If the temperature of the discharged air falls to below 2 ºC(36 ºF) and the temperature of the intake falls below 8ºC(46ºF):

- the control panel will temporarily display error mes-

sage E6;

- the fans will be switched off, but the valve of the water-

side control will stay open.

c The frost protection reduces the risk of freezing but

does not guarantee complete protection.

Take the following precautions if you install the unit in a room where frost may occur:

- Ensure constant circulation of the water at the right temperature;

- Add up to 50% glycol to the water when the unit is not in operation during the wintertime;

- Or bleed the system and the unit.

2.5.4 Connecting the unit

1. Connect the unit to the central heating system.

2. Vent the heat exchangers.

3. Check the connections for leakage.

2.6 Connecting the unit to the mains supply

2.6.1 Special points regarding the mains supply

For all models

w The unit must be earthed. w The unit must be connected in accordance

with the applicable local requirements.

Maximum ratings are specified on the type plate.

Manual version 7.0 - North America (21-03-2017) en-29

Page 30

Warning:

Note:

Danger:

Caution:

INSTALLATION INDUSTRIAL AIR CURTAIN

w Each unit must be fused in accordance with

the table below.

Fuse ratings

OTAL MAXIMUM AMPER- AGE OF ALL UNITS ON A SINGLE MAINS POWER CA- BLE. (PER UNIT, INDICAT- ED ON TYPE PLATE L1, L2 OR L3)

≤ 10A 16A

AXIMUM FUSE VALUE A

n A single fuse may only be used for multiple units if

they draw a total current of less than 10A.

n The earth leakage circuit breaker (if applied) must be

type B, preferably 300 mA.

• It must be possible to disconnect the unit from the mains supply. The installer must provide a facility for doing this.

For all models

d Only carry out the connection if you are

qualified to work on three-phase power systems.

• The unit is connected to the mains supply with a cable (5core, not supplied).

c For emergency situations and maintenance, it must

be possible to render the entire system electrically dead.

en-30

• For models without heating (type A) and waterheated models (type H)

An isolation switch (not supplied) must be fitted between the unit and the mains supply. This switch must:

- be all-pole,

- have a contact separation of at least 3 mm (1/8"),

- be positioned near the unit.

Page 31

INDAC2 MANUAL INSTALLATION

Note:

Warning:

2.6.2 Connecting the unit

General

n For IndAC

control2 mains power cables must be connected.

MX models with automatic CHIPS

w Before you begin: read the special points

regarding the mains supply.

See also:

2.6.1 "Special points regarding the mains supply" on page 29

Connecting the unit

Connecting the unit is carried out in the same way for each installation position. With vertical installation position 2, the inspection panel is located in a different position.

w Make sure that the mains supply is switched

off.

w The mains power cables must be resistant to

the high temperatures in the unit. See

1.3.6 Field of application for the maximum

temperatures.

Manual version 7.0 - North America (21-03-2017) en-31

Page 32

Warning:

Caution:

Warning:

INSTALLATION INDUSTRIAL AIR CURTAIN

cabling in the case of horizontal installation position (type 0)

1. Fit an isolation switch between the mains supply and the assembly. For the specifications of the isolation switch, see

2.6.1 Special points regarding the mains supply.

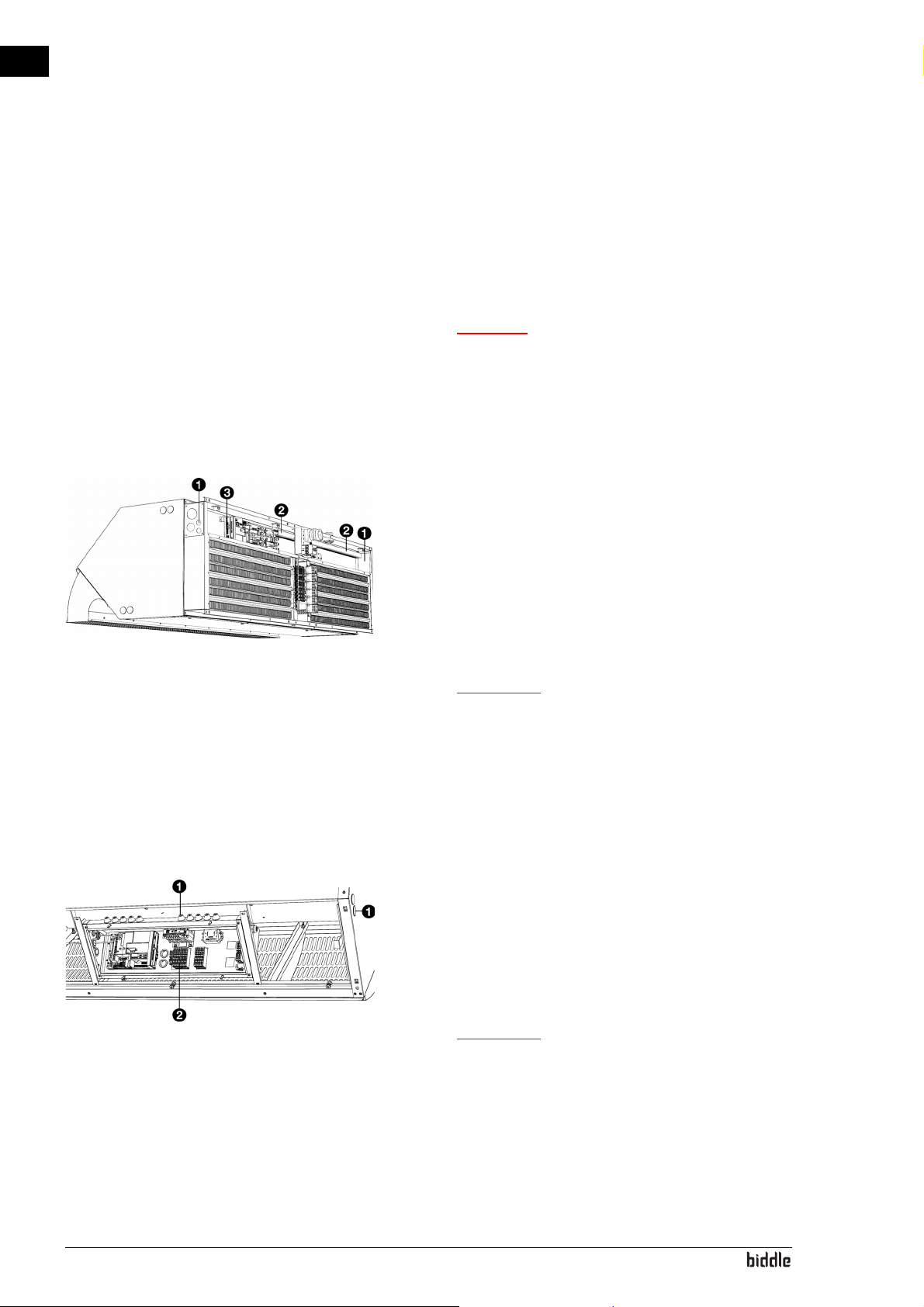

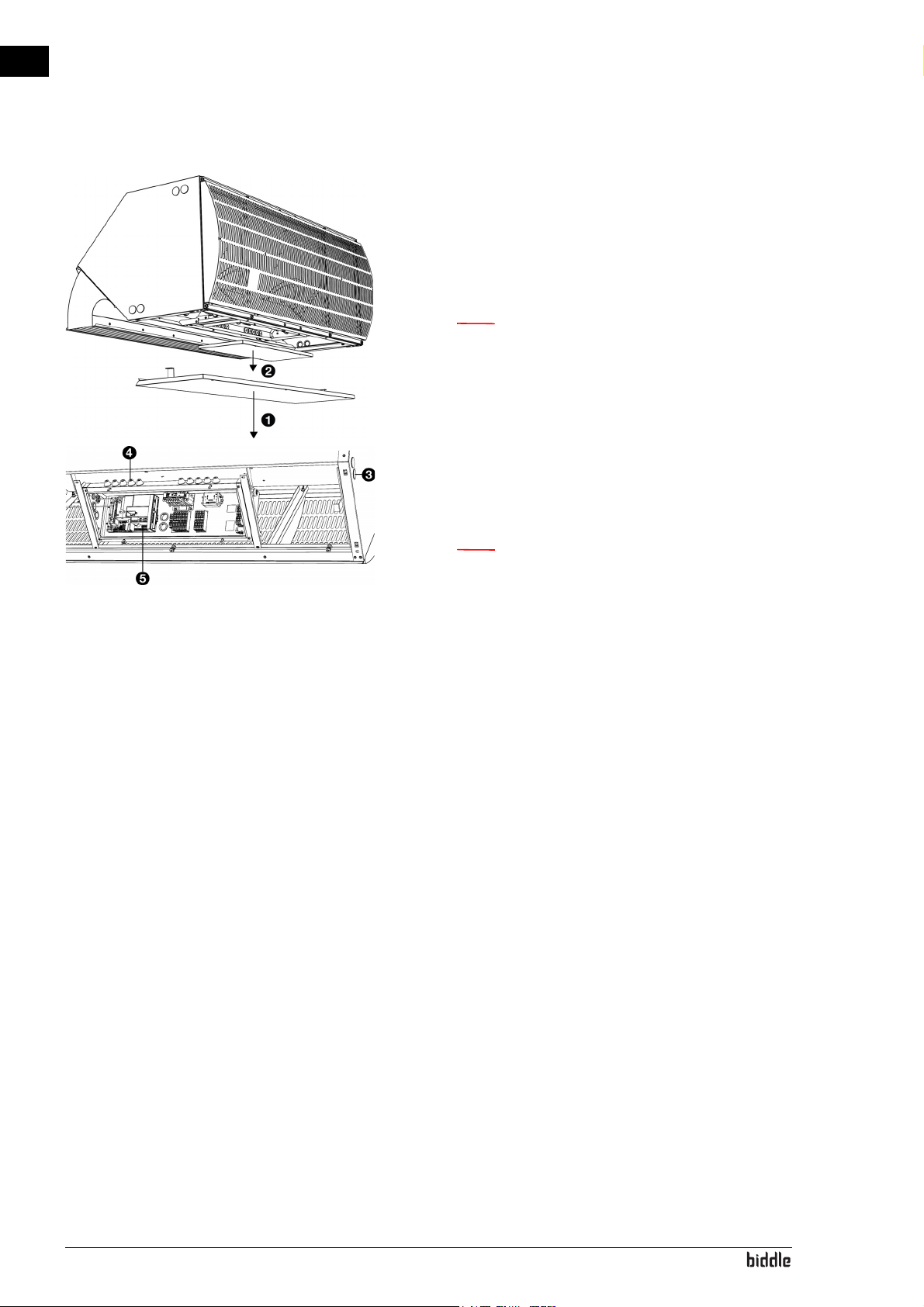

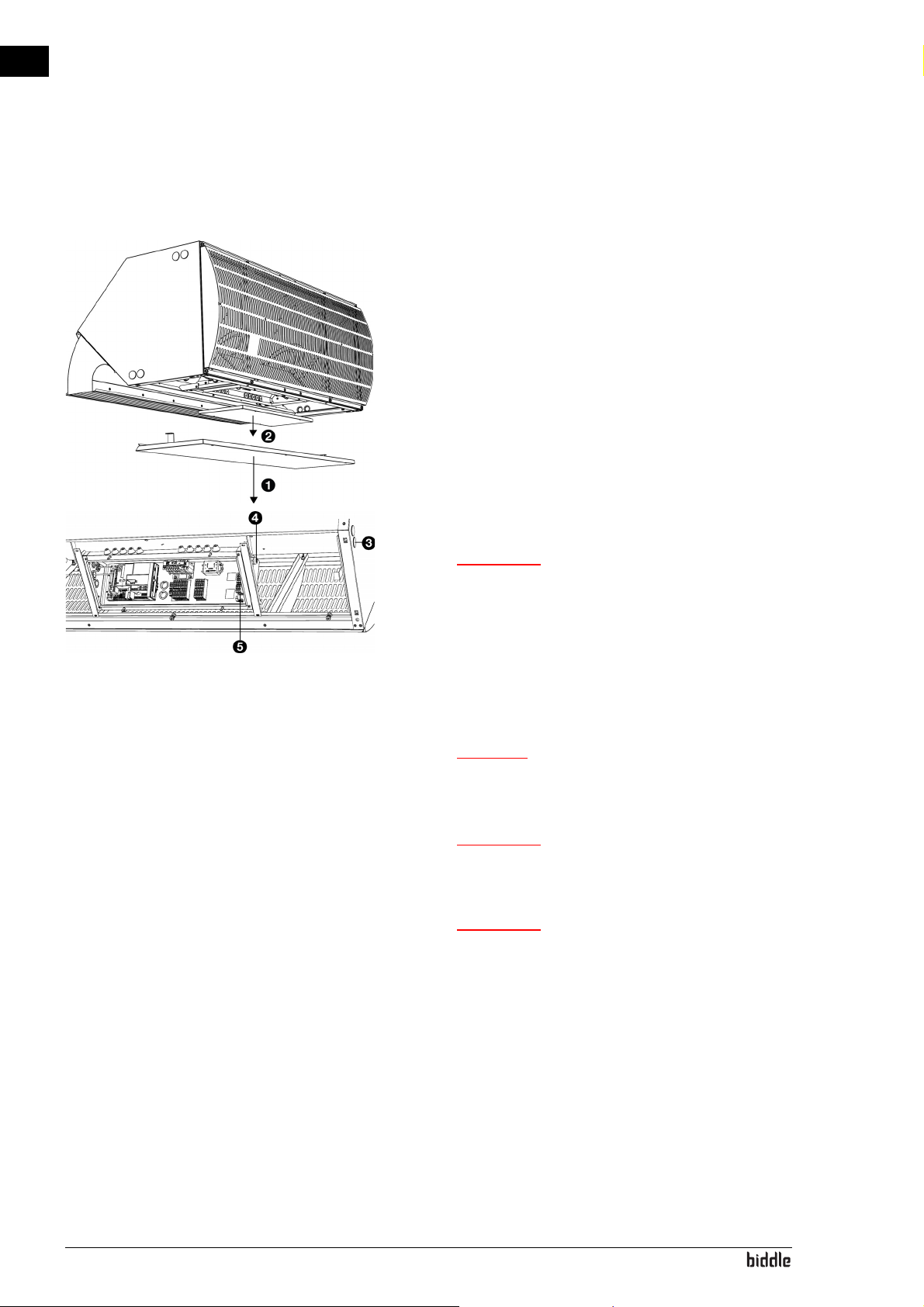

2. Remove the inspection panel 1from the free side of the unit.

3. Remove the cover of the electronic housing 2.

4. Feed the mains power cable between the isolation switch and the electronic housing in the unit

- In the feed-through hole to be used 3, fit a cable gland

for pull relief.

- You may feed the cable inward through either end of

the row of units, as you choose.

- Fasten the cable to the edge inside the unit, using the

cable clips.

w Do not allow the cable to lie or hang loosely.

5. Feed the cable into the electronic housing.

- Make the grommets 4 in the electronic housing to

measure.

- Feed the cable through the wall of the electronic hous-

ing.

c Ensure that the grommets fit so tightly around the

cable that they remain watertight.

w Make sure that the earth wire is longer than

the power supply wires.

w Only for IndAC

High leakage current! Connect the earth wire first, before connecting the power supply. Minimum diameter of the earth wire: 10 mm

/6AWG.

MX:

en-32

Page 33

INDAC2 MANUAL INSTALLATION

Caution:

Warning:

Caution:

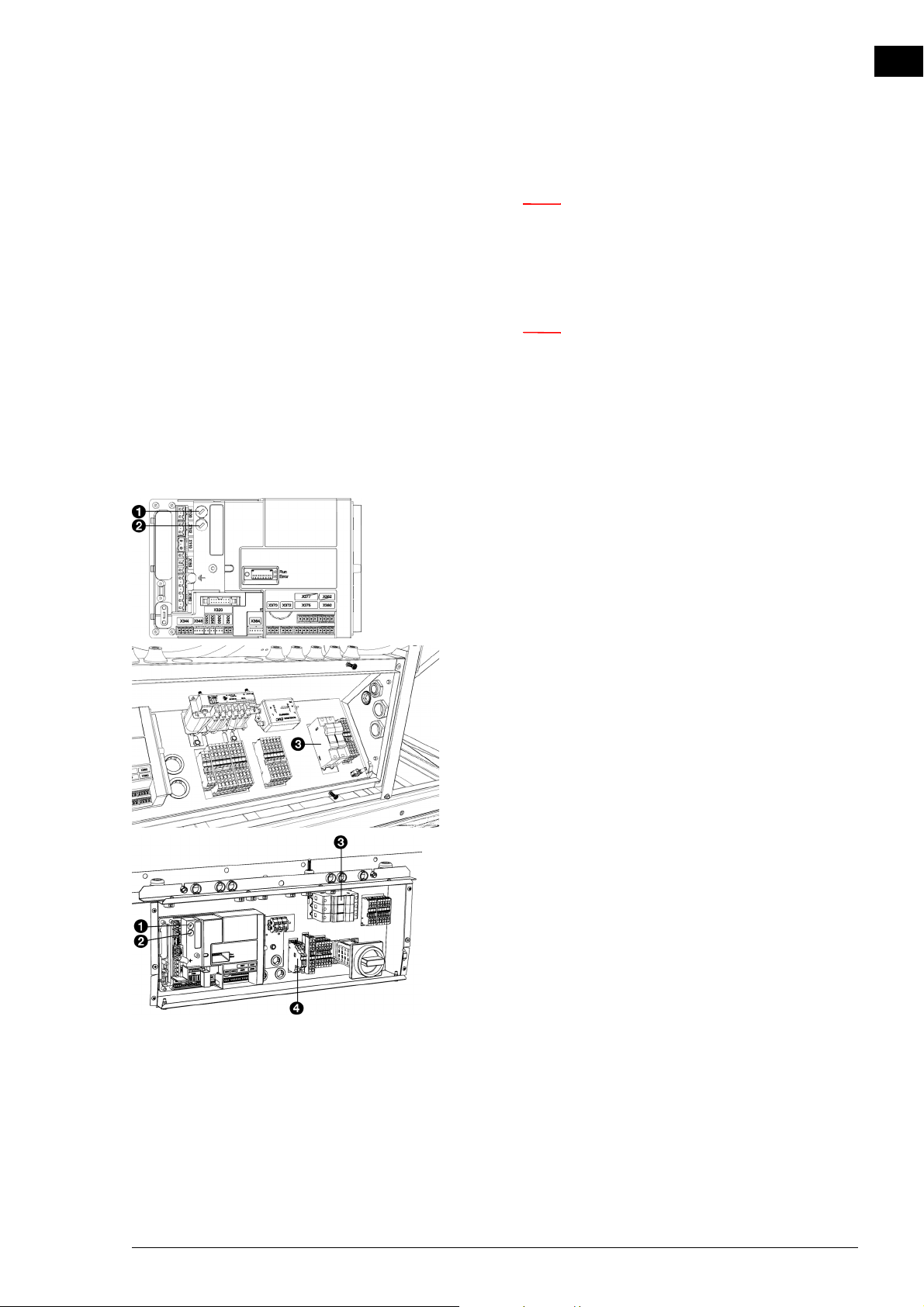

6. Connect the mains power cable to terminal block X01 5,

in accordance with the wiring diagram.

c Keep the length of the cable within the electronic

housing as short as possible. Ensure that the cable does not come into the vicinity of the other cables in the electronic housing.

c Do not switch on the mains supply yet.

Connecting multiple units

1. Lay the connecting cable between the electronic housings of the units to be connected

- Feed the cable through the feed-through holes 1.

- Fasten the cable to the edge inside the units, using the

cable clips.

w Do not allow the cable to lie or hang loosely.

2. Feed the cable into the electronic housings of both units.

- Make the grommets in the electronic housing to meas-

ure.

- Feed the cable through the wall of the electronic hous-

ing.

c Ensure that the grommets fit so tightly around the

cable that they remain watertight.

3. Connect the cable in both units to terminal block X60 2.

c Keep the length of the cable within the electronic

housing as short as possible. Ensure that the cable does not come into the vicinity of the other cables in the electronic housing.

4. Repeat steps 1 to 3 for each unit to be connected.

c Do not switch on the mains supply yet.

Manual version 7.0 - North America (21-03-2017) en-33

Page 34

Warning:

Caution:

INSTALLATION INDUSTRIAL AIR CURTAIN

Connecting the control circuit board

Only for IndAC control

The control circuit board for the automatic CHIPS control must be separately connected to a power supply of 230V.

1. Fit an isolation switch between the mains supply and the assembly. For the specifications of the isolation switch, see

2.6.1 Special points regarding the mains supply.

2. Lead the mains power cable between the isolation switch and the electronic housing in the unit.

- In the feed-through hole which is to be used, fit a cable

gland for pull relief.

- You may feed the cable inward through either end of

the row of units, as you choose.

- Fasten the cable to the edge inside the unit, using the

cable clips.

MX models with automatic CHIPS

w Do not allow the cable to lie or hang loosely.

3. Feed the cable into the electronic housing.

- Make the grommets in the electronic housing to meas-

ure.

- Feed the cable through the wall of the electronic hous-

ing.

c Ensure that the grommets fit so tightly around the

cable that they remain watertight.

4. Connect the mains power cable to terminal block X06, in accordance with the wiring diagram.

c Keep the length of the cable within the electronic

housing as short as possible. Ensure that the cable does not come into the vicinity of the other cables in the electronic housing.

c Do not switch on the mains supply yet.

See also:

1.2.3 "Related documentation" on page 5

en-34

Page 35

INDAC2 MANUAL INSTALLATION

Note:

2.7 Installing the b-control continuously variable controller

Various control units are available for the IndAC2 industrial air curtain. This chapter describes the installation of the b-control continuously variable controller that is used on units having a basic control (Basic type).

2.7.1 Special points regarding the controller

Positio ning

You can fasten the controller either to the wall or to a standard junction box.

Cabling

The controller is connected to the unit via a cable (not supplied), and can be connected in series among several units.

Take the following into account, otherwise errors may occur:

• Keep the length of the cables as short as possible.

• Keep the cables away from electromagnetic fields and interference sources, such as high-voltage cables and fluorescent light starters.

Multiple units with a single controller

A maximum of 10 fans may be connected to a single controller.

The number of fans in the unit is dependent on the capacity and the length. Indicated in the table is the maximum permissible total length of an assembly with 1 controller.

CAPACITY

IndAC2ST 5 m

IndAC

MX 7.5 m

MAXIMUM TOTAL LENGTH

PER CONTROLLER

n Consult your Biddle advisor if you wish to connect

more units.

Manual version 7.0 - North America (21-03-2017) en-35

Page 36

Warning:

Caution:

INSTALLATION INDUSTRIAL AIR CURTAIN

Setting output voltage

The controller can adjust the strength of the unit in a continuously variable manner. The output voltage can be set between Vmin and Vmax. This is done after the complete installation of the unit and all connections.

2.7.2 Mounting and connecting the controller

w Make sure that the mains supply on which you

are working has been turned off.

c When installing the unit, use the wiring diagram

supplied.

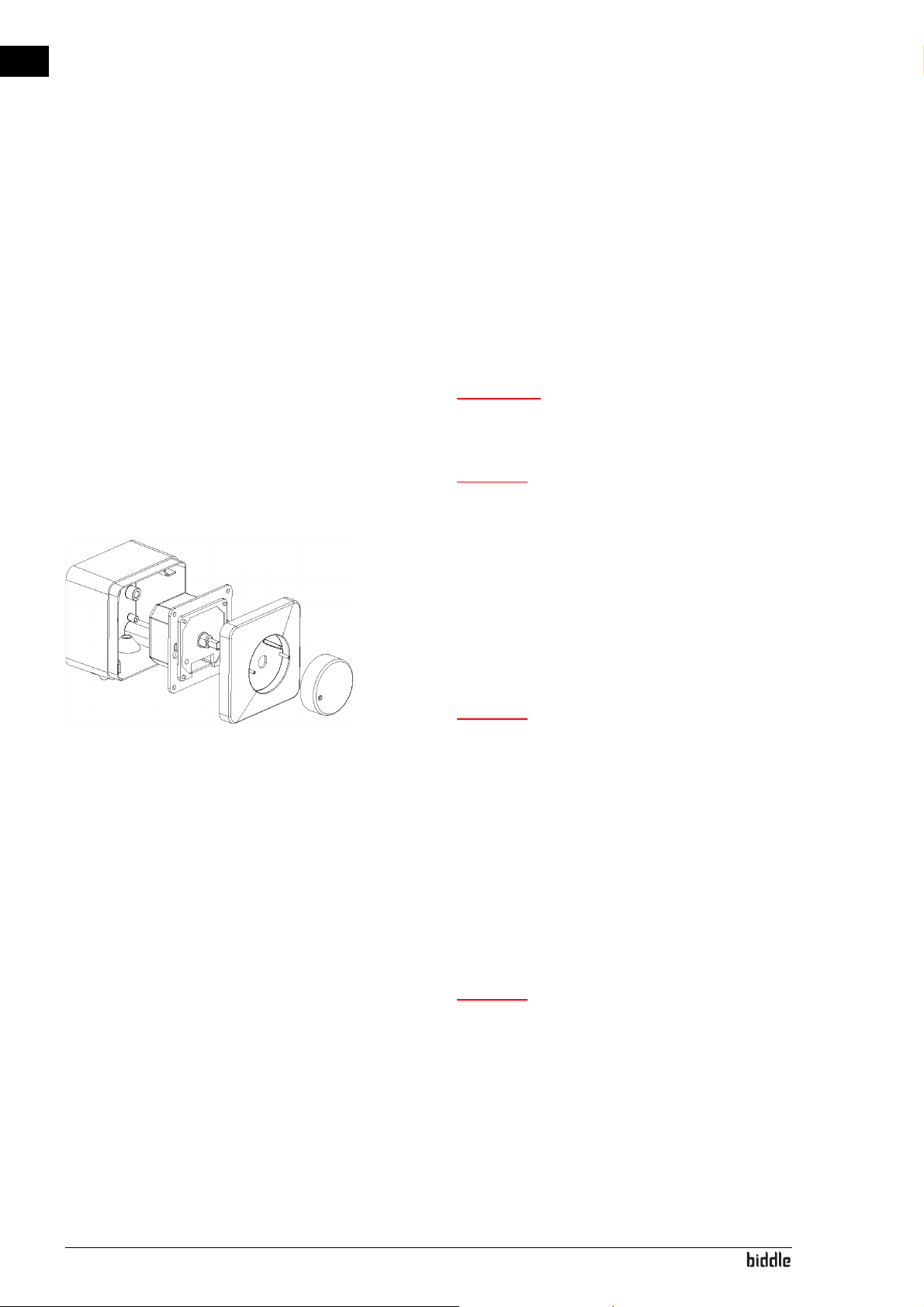

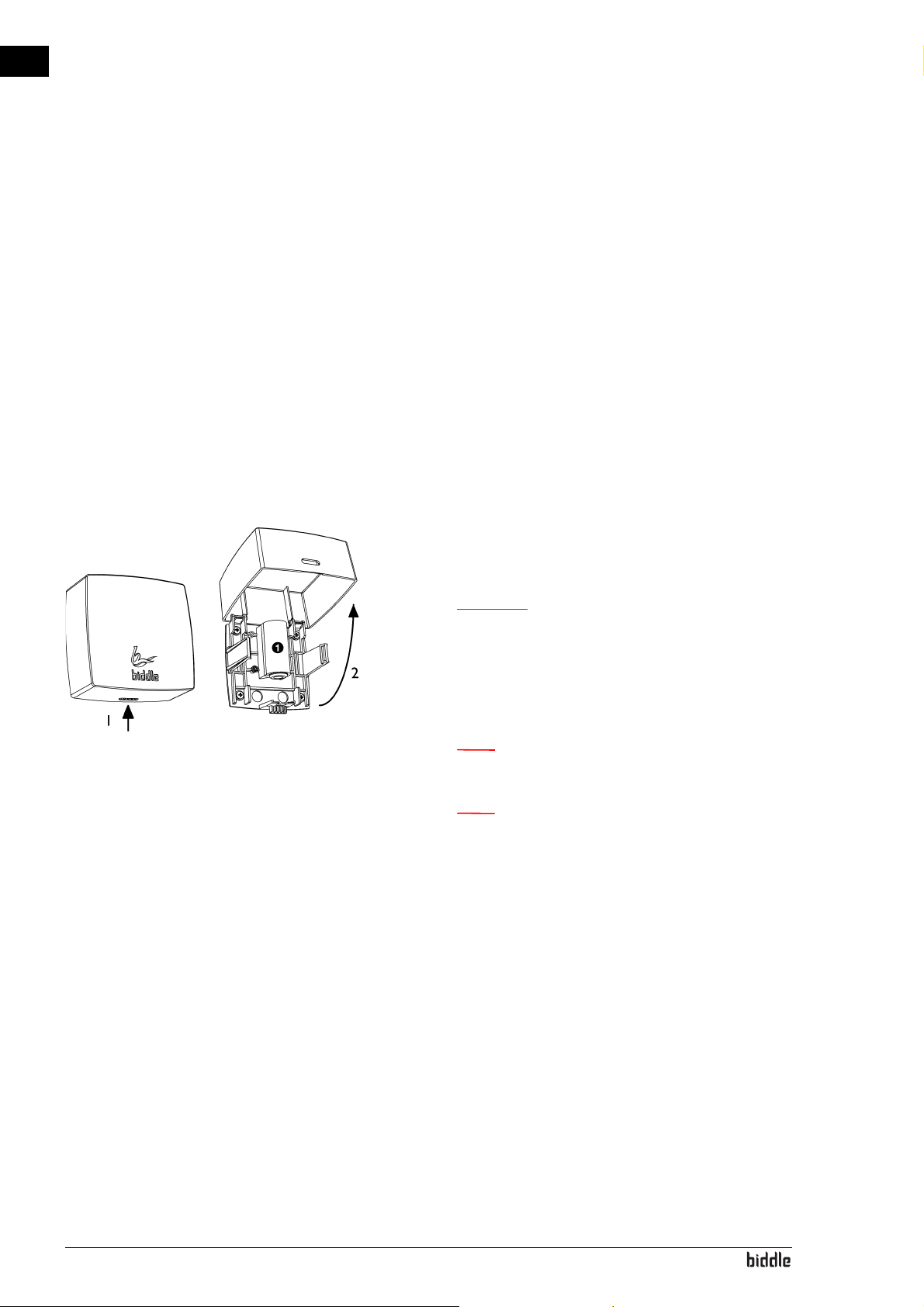

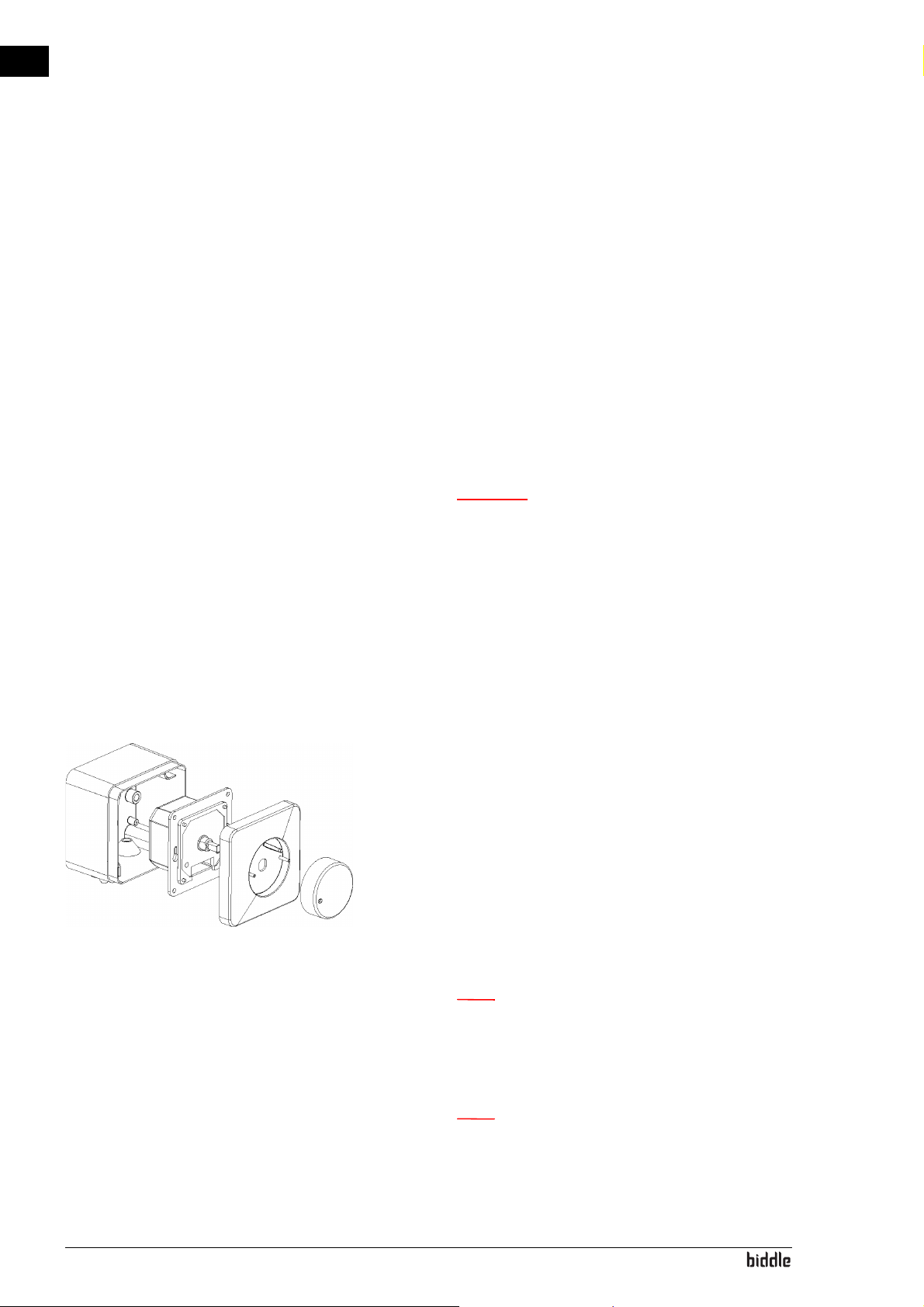

1. Remove the adjustment button.

2. Remove the hexagonal nut.

3. Remove the shut-off cap.

4. Fasten the surface-mounted box to the wall if you are not making use of a standard junction box.

c If IP54 is required and extremely damp conditions

are to be expected, a condensation water opening must be drilled on the underside of the surfacemounted box (max. 5 mm (1/5”)).

5. Lead the control cable (not supplied) between the controller and a unit of your choice. For the specifications of the cable, see section 2.7.1 Special points regarding the con-

troller.

6. Connect the control cable to the controller. See the wiring diagram supplied.

en-36

c Do not turn the controller off yet if you still want to

adjust the output voltage after complete installation of the unit.

7. Using the 2 small screws and rings, screw the switch to the surface-mounted box or standard junction box.

8. Fit the shut-off cap.

9. Fasten the hexagonal nut.

10. Fit the adjustment button: Press this on firmly and set to position ‘0’.

Page 37

INDAC2 MANUAL INSTALLATION

Warning:

Caution:

2.7.3 Connecting the controller to the unit

w The unit must be earthed.

1. Lead the cable to the electronic housing in the unit.

- In the feed-through hole to be used 1, fit a cable gland

for pull relief.

- You may feed the cable inward through either end of the row of units, as you choose.

- Fasten the cable to the edge inside the unit, using the cable clips.

w Do not allow the cable to lie or hang loosely.

2. Feed the cable into the electronic housing.

- Make the grommets 2 in the electronic housing to measure.

- Feed the cable through the wall of the electronic housing.

c Ensure that the grommets fit so tightly around the

cable that they remain watertight.

3. Connect the cable to terminal block X60 3, in accord-

ance with the wiring diagram.

Manual version 7.0 - North America (21-03-2017) en-37

Page 38

Note:

Warning:

Caution:

Note:

INSTALLATION INDUSTRIAL AIR CURTAIN

Daisy chaining multiple units with a single controller

n Check in 2.7.1 Special points regarding the

controller to see how many units can be connected

to the controller.

1. Lay the cable between the electronic housings of the units to be connected

- Feed the cable through the feed-through holes 1.

- Fasten the cable to the edge inside the units, using the

cable clips.

w Do not allow the cable to lie or hang loosely.

2. Feed the cable into the electronic housings of both units.

- Make the grommets in the electronic housing to meas-

ure.

- Feed the cable through the wall of the electronic hous-

ing.

c Ensure that the grommets fit so tightly around the

cable that they remain watertight.

3. Connect the cable in both units to terminal block X60 2.

4. Repeat steps 1 to 3 for each unit to be connected.

2.7.4 Connecting an extra controller to the unit

(optional)

The fans have a start-up time of approx. 3 seconds. This can be remedied with an extra controller which causes the fans to rotate very slowly if the door is closed.

en-38

n The fans also continue rotating slowly at night. If this

is not desired, switch the unit off at night with the controller that is used for operating it.

Page 39

INDAC2 MANUAL INSTALLATION

Note:

Caution:

Note:

Caution:

You can attach the extra controller to the wall, to a standard junction box or at a spot near the unit.

1. Position the controller in a logical place.

n Ensure that there is a clear difference between the

extra controller and the controller that is used for the operation of the unit.

2. Connect the controller in accordance with the wiring diagram. In doing so, follow the actions as described in

2.7.2 Mounting and connecting the controller

and2.7.3 Connecting the controller to the unit.

c Remove the bridge from between position 5 and

position 6 of terminal block X60.

n Do not close the controller yet.

2.8 Installing the b-touch control panel

for the industrial air curtain IndAC2,various control units are available. This chapter describes the installation of the b-touch control panel, which is used on units having an automatic control (type Auto).

2.8.1 Special points regarding the control panel

Positio ning

• You can fasten the control panel either to the wall or to a

standard junction box.

c If class IP54 is required, the control panel is supplied

in a housing.

Manual version 7.0 - North America (21-03-2017) en-39

Page 40

Note:

INSTALLATION INDUSTRIAL AIR CURTAIN

Cabling

n Take the following into account, otherwise errors

may occur:

- The control cable between the control panel and the (first) connected unit may not be longer than 50 m(165 ft.).

- Keep control cables away from electromagnetic fields and interference sources such as high-voltage cables and fluorescent light starters, for example.

- Lay the control cables out straight or roll them in a bifilar coil by folding cables in half before rolling them. As a result, the magnetic fields will cancel each other out to an important extent.

n Use Biddle control cables only. Standard modular

telephone cable is NOT suitable.

Multiple units operated from a single control panel

• A maximum of 10 ‘Auto’ units can be connected to a single control panel. And with ‘Auto’ unit, 2 ‘Basic’ units.The units are thereby daisy chained.

• The total length of the control cables between the first and the last unit must not exceed 100m (330ft). If the distance becomes too great, an additional control panel must be connected.

• Only units from the same product series, with the same battery type and of the same capacity can be applied in combination with a single control panel.

• Configure any single unit as the master. The sequence of the connected units is not important.

• Connect the control panel and the external control components to the master unit.

en-40

n The master unit can be recognised by the addition

‘Auto’ on the type designation on the type plate.

n Do NOT remove the external control input bridges

on the other units.

Page 41

INDAC2 MANUAL INSTALLATION

Caution:

Warning:

Operation without control panel

The unit can be operated without control panel. In that event, only remove the control panel after complete installation.

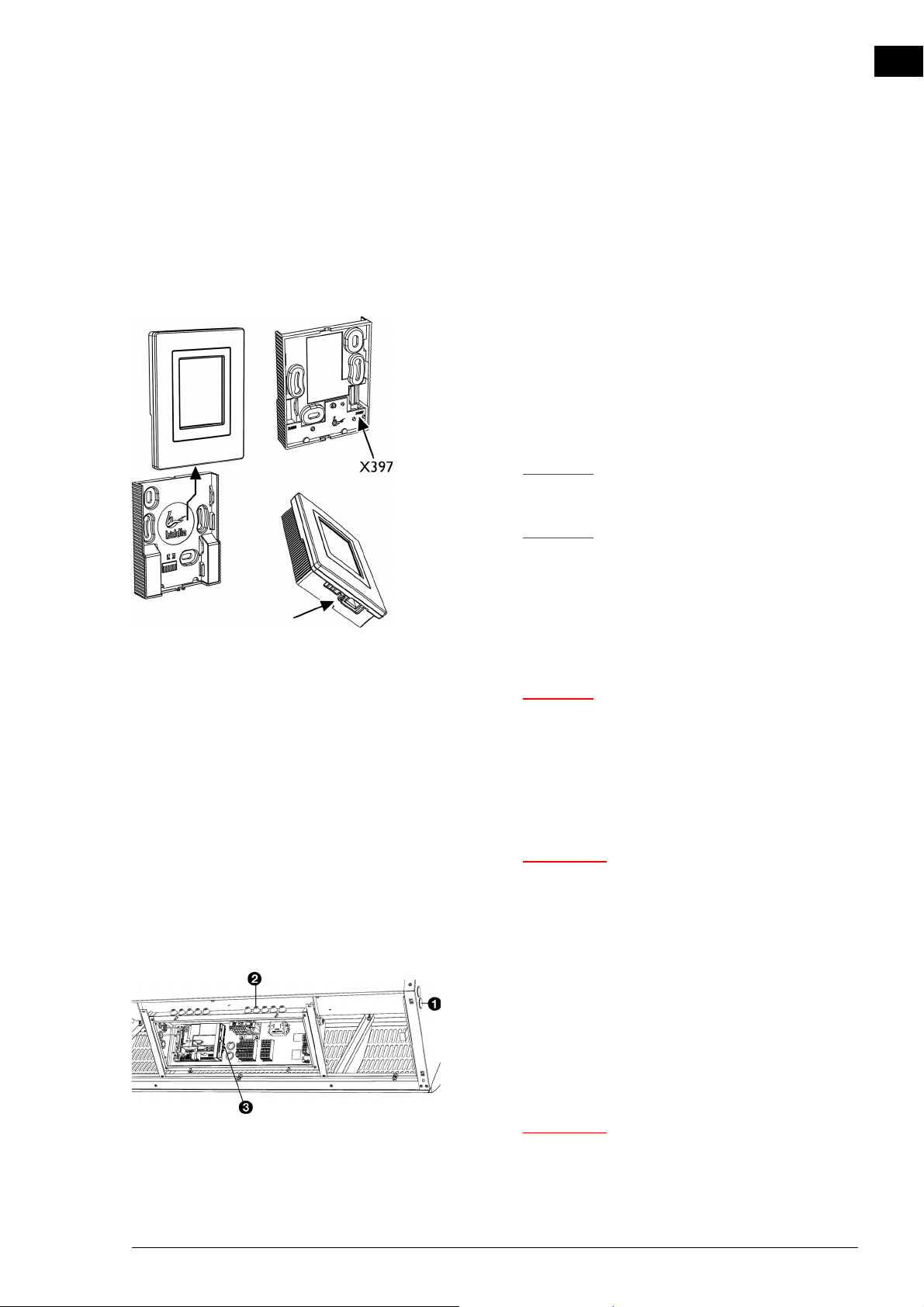

2.8.2 Mounting and connecting the control panel

1. Lay the control cable.

2. (20 AWG)

3. Slide the control panel out of the wall holder.

4. Connect the control cable to terminal X397.

c Ensure that the wall behind the wall holder is even.

c Place the control panel in the housing supplied if

class IP54 is required. The openings for the cable guide must be on the bottom.

5. Screw the wall holder onto the junction box or against the wall.

c The control panel should only be put back into the

wall holder when the power supply of all the connected units has been switched on.

2.8.3 Connecting the control panel to the unit

w Make sure that the mains supply on which you

are working has been turned off.

For water-heated models (type H) and models without heating (type A)

1. Lead the control cable into unit 1.

- You may feed the cable inward through either end of

the row of units, as you choose.

- Fasten the cable to the edge inside the unit, using the

cable clips.

w Do not allow the cable to lie or hang loosely.

Manual version 7.0 - North America (21-03-2017) en-41

Page 42

Caution:

Warning:

INSTALLATION INDUSTRIAL AIR CURTAIN

2. Feed the cable into the electronic housing 2.

- Make the grommets in the electronic housing to measure.

- Feed the cable through the wall of the electronic housing.

c Ensure that the grommets fit so tightly around the

cable that they remain watertight.

3. Connect the cable to terminal block X530 3, in accord-

ance with the wiring diagram.

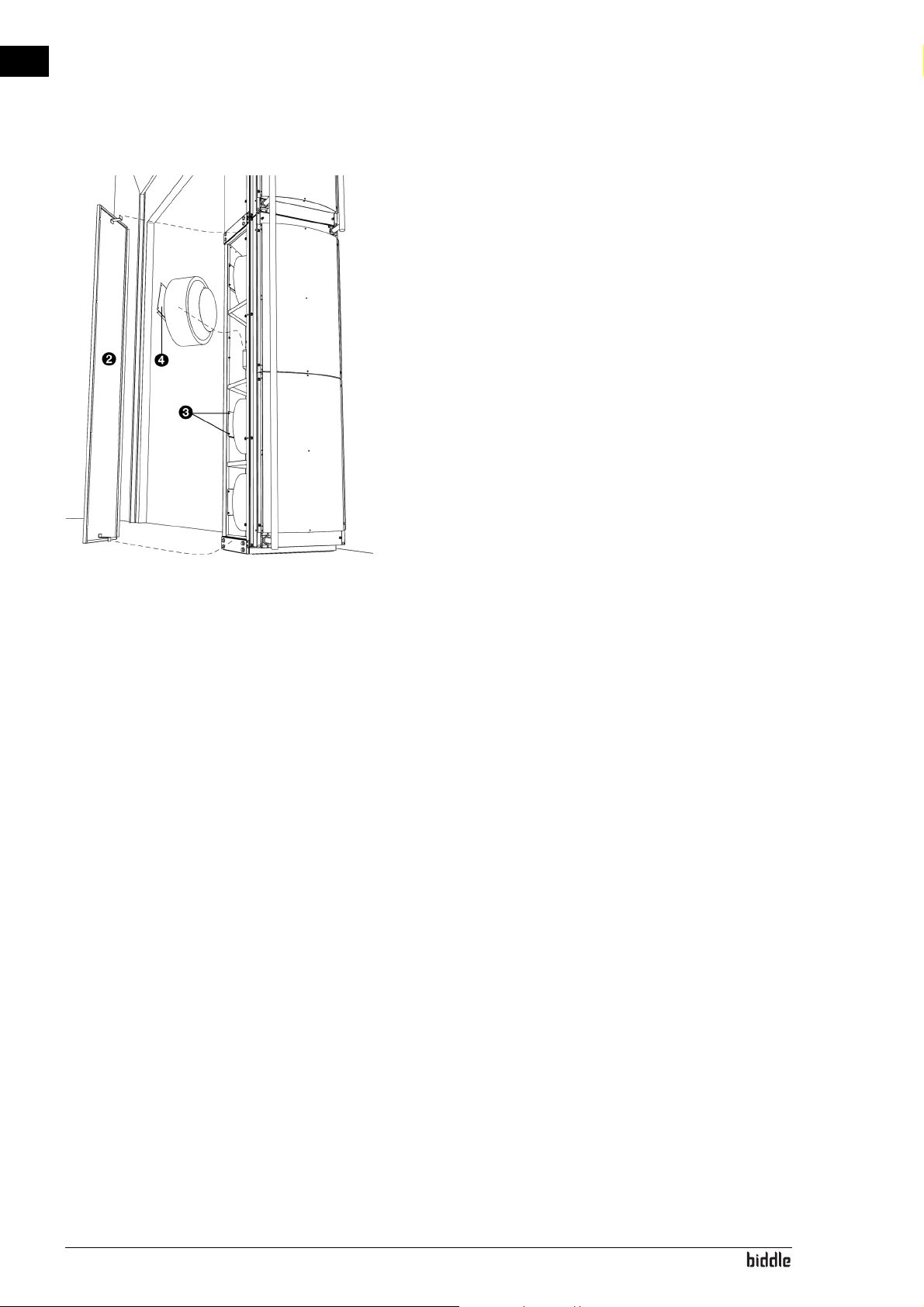

For electrically heated models (type E)

1. Lead the control cable into unit 1.

- You may feed the cable inward through either end of the row of units, as you choose.

- If necessary, you can interchange or remove the cable guide plates 1 from the sides of the unit.

2. Lead the cable through the cable tray2 if the cable comes

in through the right-hand side of the unit.

w Do not allow the cable to lie or hang loosely.

3. Connect the cable to terminal block X530 3, in accord-

ance with the wiring diagram.

Daisy chaining multiple units with a single control panel

for all models:

1. Lay the connecting cable between the electronic housings of the units to be connected

- Feed the cable through the feed-through holes 1.

- Fasten the cable to the edge inside the units, using the

cable clips.

en-42

w Do not allow the cable to lie or hang loosely.

Page 43

INDAC2 MANUAL INSTALLATION

Caution:

Note:

2. Feed the cable into the electronic housings of both units.

- Make the grommets in the electronic housing to measure.

- Feed the cable through the wall of the electronic housing.

c Ensure that the grommets fit so tightly around the

cable that they remain watertight.

1. Connect the cable in both units to terminal block X60 2.

2. Repeat all steps for each unit to be connected.

2.9 Installing external controls

2.9.1 Special points regarding external controls

Inputs on the unit i1, i2, i3 (11, 22, 33)

Only for models with automatic CHIPS control

On terminal block X520, the unit has three input signal interfaces. The door contact switch (supplied as standard) can be connected to this. Other possibilities include a timer switch, a room thermostat or a signal from a building management system.

c The inputs are designed for controls with potential-

free contacts, and are not to be loaded.

c The inputs of multiple units must NOT be connected

to each other.

n With the setting All units off and with the NC

(Normally Closed) settings of function 60. Function

of inputs, a jumper must be laid on the input for all

the subsequent connected units.

Manual version 7.0 - North America (21-03-2017) en-43

Page 44

Caution:

Note:

Caution:

Note:

INSTALLATION INDUSTRIAL AIR CURTAIN

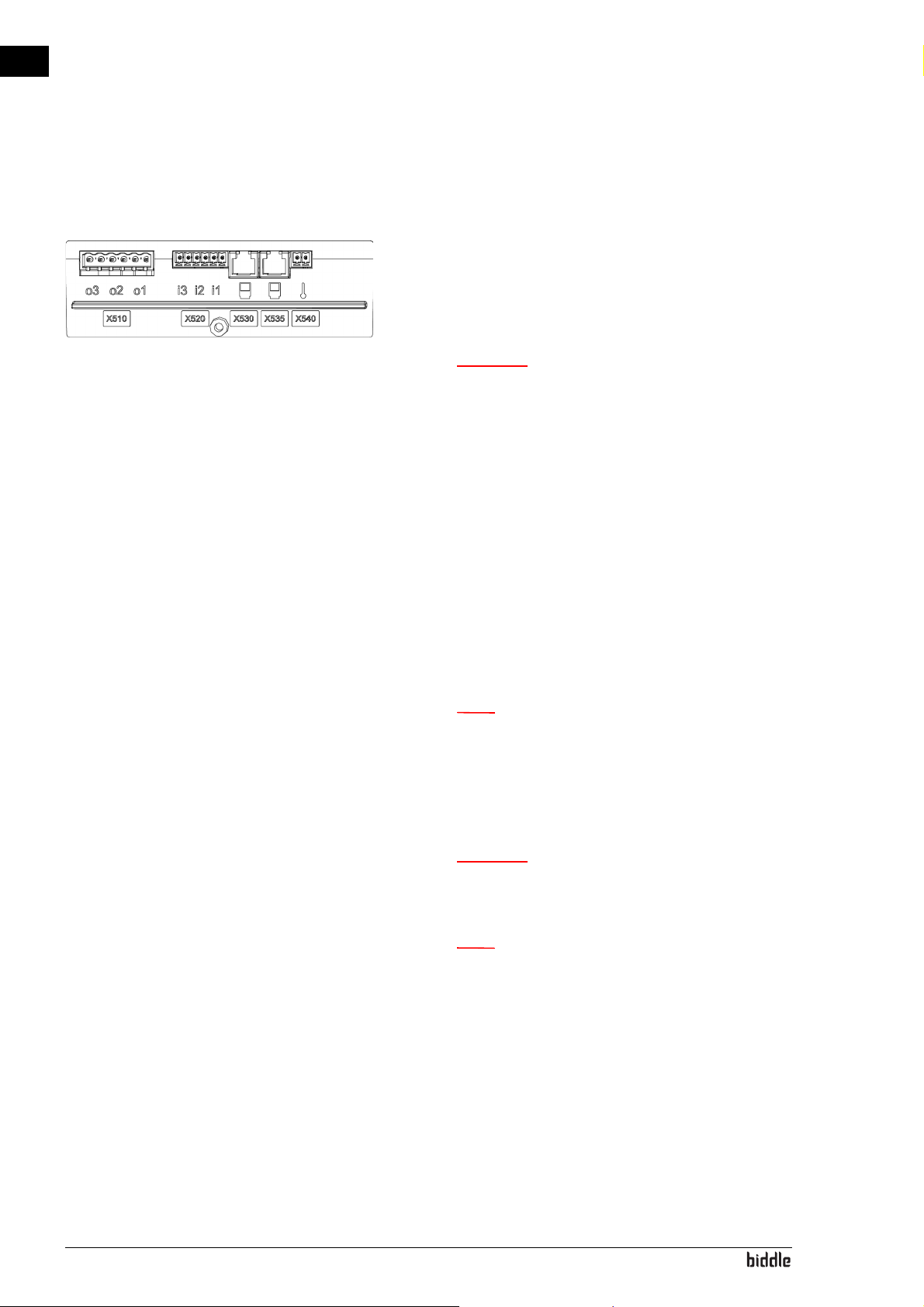

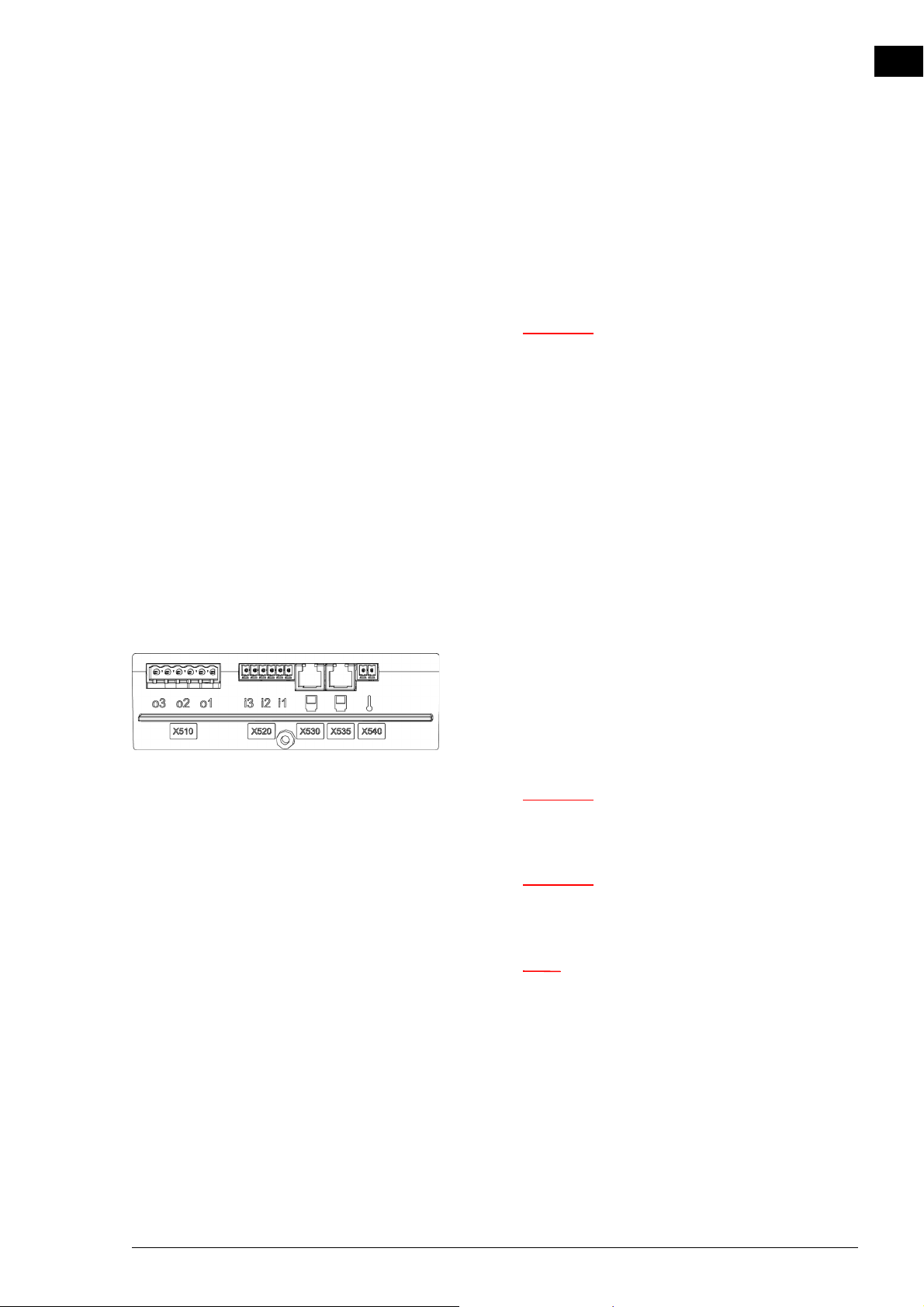

Outputs on the unit o1, o2, o3

Only for models with automatic CHIPS control

On terminal block X510, the unit has three signal interfaces for an output signal. These can be used, for example, for controlling the central heatingor for transmitting status reports to a BMS.

c The outputs are potential-free contacts (relays).

Their maximum load is 24 V / 1 A.

Options and operation

Options and operation depend on the input or output and on the control panel settings.

2.9.2 Installing the outdoor temperature sensor

Only for models with automatic CHIPS control

The CHIPS control requires an outdoor temperature in order to operate correctly. To this end, there are various possibilities.

n The desired possibility is selected in the installation

guide.

1. A wired outdoor temperature sensor

2. A table giving average temperatures per month

c The automatic control works less efficiently without

an outdoor temperature sensor.

n If use is made of the table, there is a symbol for the

absence of an outdoor temperature sensor on the control panel.

en-44

Page 45

INDAC2 MANUAL INSTALLATION

Note:

Position of the outdoor temperature sensor

Mount the outdoor temperature sensor on the outside wall:

•at least 3 at least 6

• away from direct sunlight and preferably shielded against rainfall.

Installing the outdoor temperature sensor

1. Mount the outdoor temperature sensor on the outside wall

2. Lay a cable (not supplied) between outdoor temperature sensor 1 and unit.

n Use a cable of at least 0.5 mm

Take the following into account, otherwise errors may occur:

• Keep the length of the cable as short as possible.

• Keep the cable away from electromagnetic fields and interference sources, such as high-voltage cables and fluorescent light starters, for example.

FT. (1 metre) to the side of the door opening or FT. (2 metres) above the door opening;

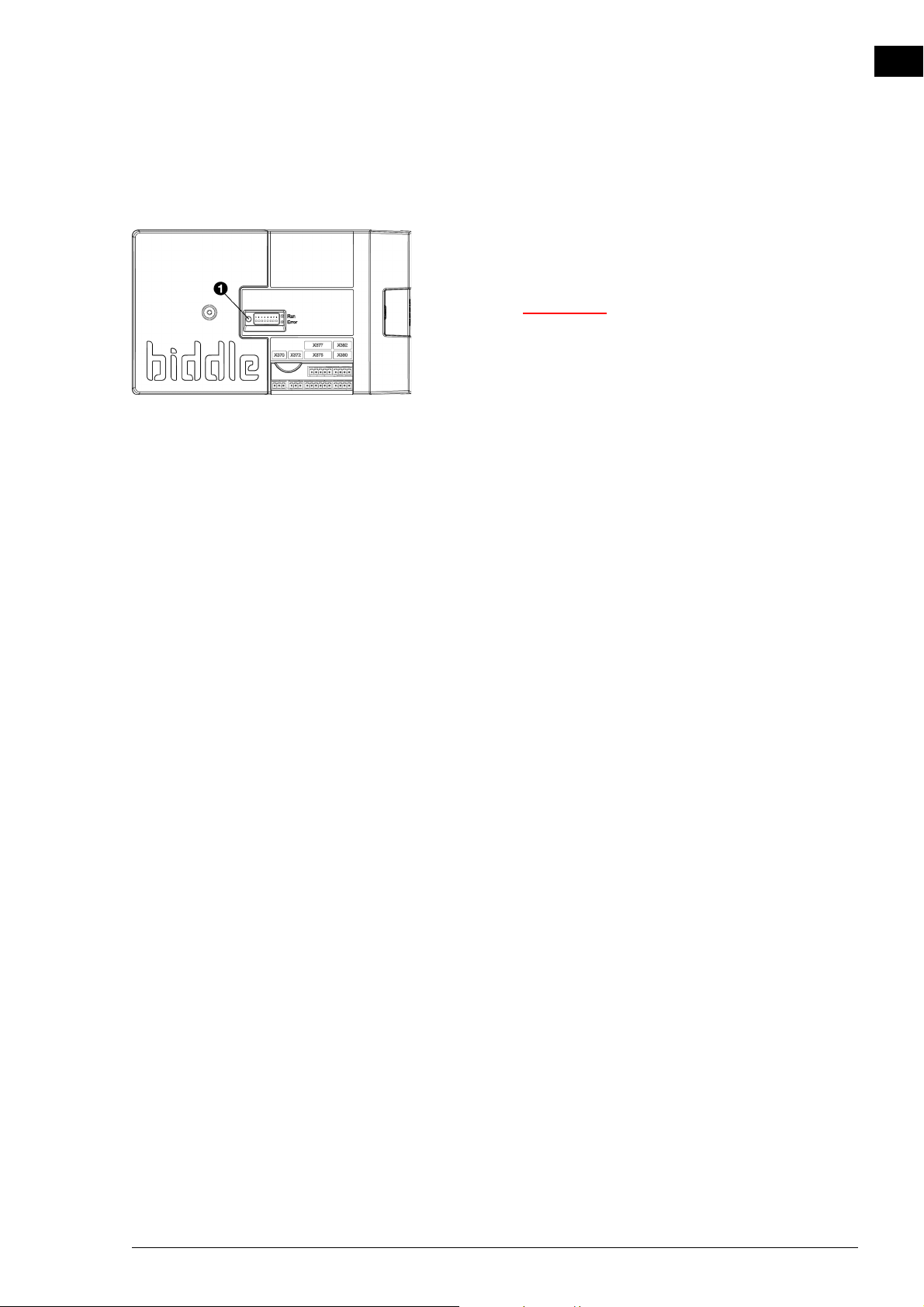

3. Connect the sensor to terminal X540 of the control circuit board in the electronic housing.

4. When the unit is switched on for the first time, the Installation Guide will start up. This will guide you through the most important settings. During this process, the outdoor temperature sensor will also be installed.

If the Installation Guide does not start up:

- Go to the installation guide via

menu > Maintenance > Installation.

Manual version 7.0 - North America (21-03-2017) en-45

Page 46

Caution:

Note:

INSTALLATION INDUSTRIAL AIR CURTAIN

2.9.3 Installing the room sensor (accessory)

For models with automatic CHIPS control

The automatic CHIPS control works on the basis of the room temperature near the unit. By default, this temperature is measured at the inlet grille of the unit.

In some cases, the temperature in the room differs strongly from the temperature near the inlet grille. This applies in the following situations, for example:

• Draught across the ground;

• If function 45. Extra frost protection of the control panel is active, heated water is always flowing through the unit.

Biddle recommends installing a room sensor in these situations.

1. Mount the room sensor in the room where unwanted cold or draughts are felt first.

c Do not place the sensor in the direct airflow path of

the unit.

2. Lay the cable (not supplied) between the room sensor 1 and the unit.

n Use a cable of at least 0.5 mm

n In an assembly involving several units, connect the

cable to the master unit, which can be recognised by the addition ‘Auto’ on the type designation on the type plate.

Take the following into account, otherwise errors may occur:

• Keep the length of the cable as short as possible.

• Keep the cable away from electromagnetic fields and interference sources, such as high-voltage cables and fluorescent light starters, for example.

en-46

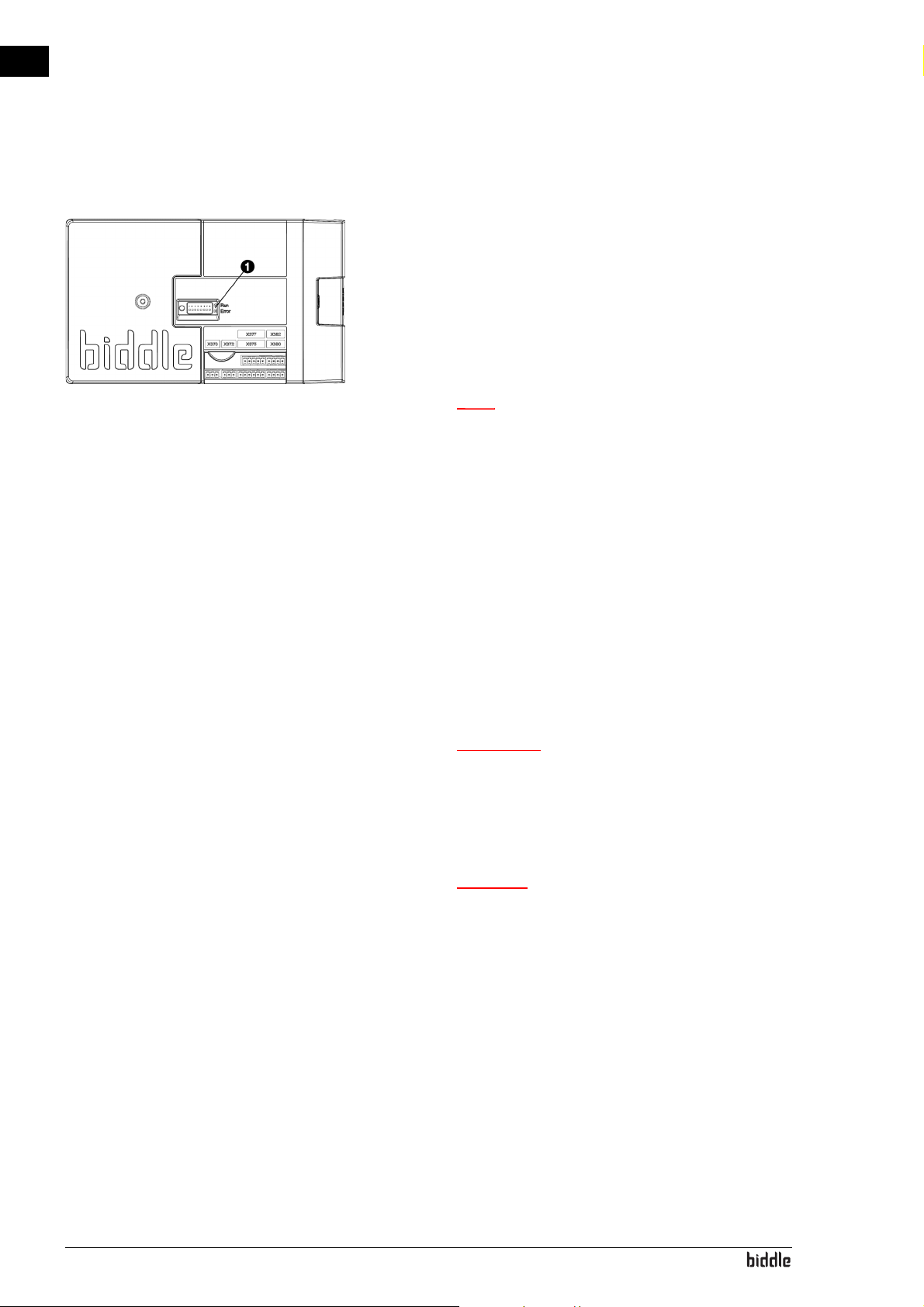

3. Feed the cable into the unit.

4. Connect the cable to terminal block X64, in accordance with the wiring diagram.

Page 47

INDAC2 MANUAL INSTALLATION

Caution:

Note:

2.9.4 Connecting the door contact switch

For models with basic control

1. Mount the door contact switch.

2. Connect the door contact switch to terminal block X60, in accordance with the wiring diagram supplied.

For models with automatic CHIPS control

1. Mount the door contact switch.

2. Connect the door contact switch to input i3 (33) (X520) on the unit’s control circuit board.

3. When the unit is switched on for the first time, the Installation Guide will start up. This will guide you through the most important settings. During this process, the door contact switch will also be installed.

If the Installation Guide does not start up:

- Go to the installation guide via

menu > Maintenance > Installation.

2.9.5 Connecting the alarm signal

Only for IndAC

Units with automatic CHIPS control are always equipped with an alarm signal that gives a message in the event of an error in one of the fans.

Units with a basic control can optionally be equipped with this alarm signal.

MX models.

c The contact of a unit which has basic control (Basic

type) may be loaded with a maximum of 250 VAC and 2 A.

n Contact is made only if the unit is connected to a

power source and there are no errors.

n Models IndAC

options.

Manual version 7.0 - North America (21-03-2017) en-47

ST do not have any alarm signal

Page 48

Note:

INSTALLATION INDUSTRIAL AIR CURTAIN

Connecting the alarm signal to the unit

For models with automatic control (Auto type)

The alarm signal can be received via an output, ModBus or another building management system. Establish the required connection.

For models with basic control (Basic type)

1. Lay the alarm cable (not supplied) between the unit and the appliance on which the alarm signal is received.

n If the alarm signal is to be connected in series with

several other units: Lay the cable to the unit which is going to serve as the master.

2. Connect the alarm cable to the appliance on which the alarm signal must be received.

3. Connect the alarm cable in the unit to the TK clamps on terminal X15 .

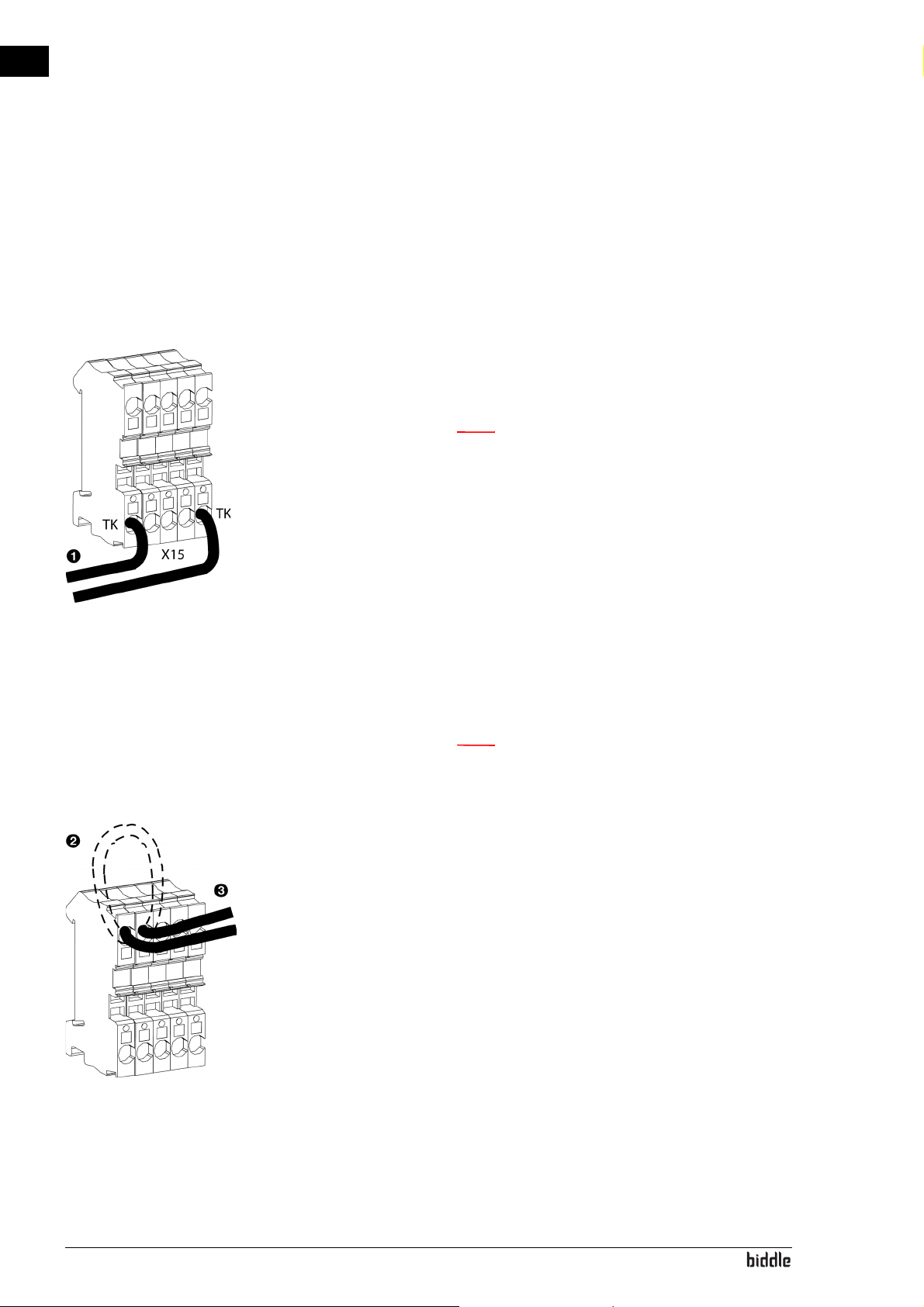

Multiple units with a single alarm signal

In a multiple-unit setup, the alarm signal is connected in series between the units.

n In a setup consisting only of units having a basic

control (Basic type), each unit can also be connected independently to an alarm signal.

1. Lay the alarm cable between the units.

2. Connect the alarm cable to terminal X15 on the first unit to which the alarm signal is already connected (Auto or Basic master):

- Remove the bridge 2.

- Connect the cable 3.

en-48

Page 49

INDAC2 MANUAL INSTALLATION

Note:

Opmerking:

3. Connect the alarm cable in the unit which is to be to be

connected in series to the TK clamps on terminal X15 1.

4. Repeat steps 1 to 3 for each unit to be connected in series.

n Leave the bridge in place on the final unit 2.

2.9.6 Connecting the unit to Modbus

n A detailed manual for the connection and usageof

ModBus (and possibly BACnet) is available at:

www.biddle.info.

Communication parameters

The Modbus system must comply with the following communication parameters:

COMMUNICATION PARAMETER VALUE

Baud rate 9600

DATA 8

Parity none

Stop bits 1

The turnaround time between the unit and Modbus is 4.2 msec.

Manual version 7.0 - North America (21-03-2017) en-49

Page 50

Note:

INSTALLATION INDUSTRIAL AIR CURTAIN

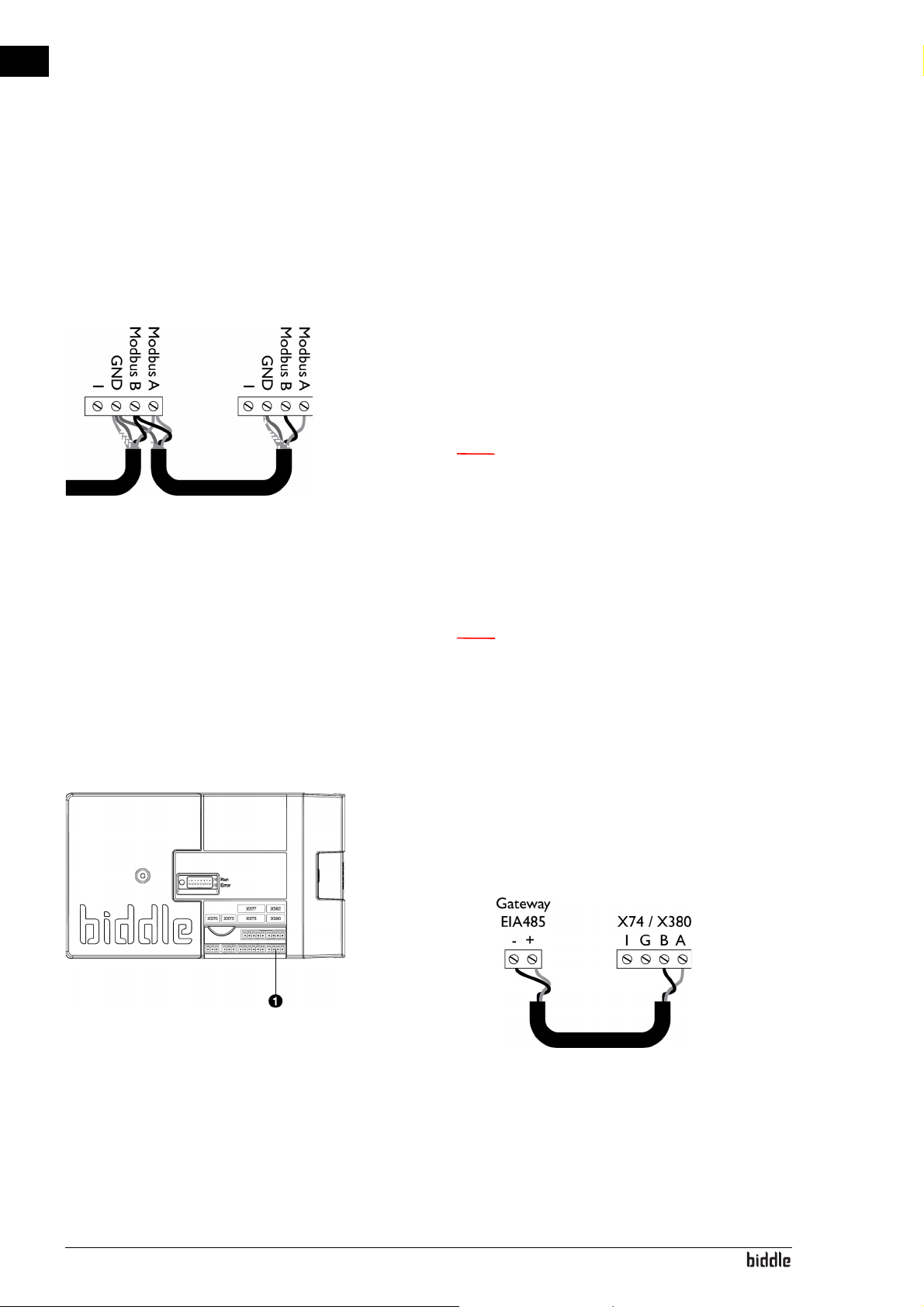

Wiring

A twisted-pair cable must be used for connection to the Modbus system. The cable must also have a third core for the GND (grounding). Normally, a four-pole, twisted-pair cable is used; one pair is used for communication and one core from the other pair is used as the GND.

Modbus A = -

Modbus B = +

GND = ground

n If there is no communication, this may be caused by

incorrectly connected wiring. Swap the A- and B+ wires.

Connecting the unit to Modbus

1. Lay a cable between the Modbus system and the unit.

n In an assembly involving several units, connect the

cable to the master unit, which can be recognised by the addition ‘Auto’ on the type designation on the type plate.

In the case of BACnet: Lay the cable between the gateway and the unit.

2. Attach the cable to the unit, in accordance with the wiring diagram supplied:

In the case of BACnet: Use the circuit diagram below.

en-50

- Feed the cable into the electronic housing.

- Connect the cable to terminal X380 1 of the unit’s

control circuit board.

Page 51

INDAC2 MANUAL INSTALLATION

Note:

n For a more reliable signal, it is possible to connect a

120 Ohm resistor. For this purpose, place a bridge between positions 1 and B of terminal X382 on the control circuit board in the unit.

n The b-touch control panel is no longer necessary for

purposes of operation. After you have gone through the installation guide, it can be removed. However, do keep it, so as to be able to adjust settings at a later stage.

2.10 Finishing the unit

For units with a control circuit board:

1. Place the cover back on the electronic housing and fasten

the screws 1 .

2. Replace the inspection panels 2.

Manual version 7.0 - North America (21-03-2017) en-51

Page 52

Caution:

Note:

INSTALLATION INDUSTRIAL AIR CURTAIN

2.11 Switching ON and checking operation

For all models:

1. Check the following connections:

- power supply;

- control cable(s) between control panel and unit(s);

- If applicable:

external control components.

For all models:

1. Switch the mains supply on.

c Make sure that the unit’s power supply voltage

matches the local mains voltage.

The unit’s power supply voltage is displayed on the type plate.

2. Set the isolation switch to 1. (if applicable: on all units)

For models with b-control continuously variable con- troller

1. If so desired, adjust the output voltage of the controller:

1. Remove the adjustment button.

2. Remove the hexagonal nut.

3. Remove the shut-off cap.

4. Attach a multimeter to ‘Vout’.

5. Set the switch to the minimum voltage:

- Turn the switch all the way to the left;

- Turn it to the right until the switch clicks;

- Carefully turn it to the left until you feel resistance, but

the switch does not quite click.

- Set the desired minimum voltage, using a screwdriver.

n Set the minimum voltage to at least 2V.

en-52

6. Turn the switch all the way to the right.

7. Set the desired maximum voltage, using a screwdriver.

n The set max. voltage must be greater than the set

min. voltage.

Page 53

INDAC2 MANUAL INSTALLATION

Caution:

8. Fit the shut-off cap.

9. Fasten the hexagonal nut.

10. Fit the adjustment button: Press this on firmly and set to position ‘0’.

2. Turn the unit on, using the controller.

For models with an extra controller

1. Adjust the minimal voltage of the extra controller:

1. Open the extra controller as described above.

2. Attach a multimeter to ‘Vout’.

3. Set the switch to the minimum voltage:

- Turn the switch all the way to the left;

- Turn it to the right until the switch clicks;

- Carefully turn it to the left until you feel resistance, but the switch does not quite click.

4. Set the minimum voltage to 1.05V.

5. Connect the extra controller as described above.

2. Turn the unit on, using the controller that is used for operating the unit.

3. Check the operation of the extra controller:

1. Open the door. On the first occasion, the unit has a

start-up time of approx. 3 seconds.

2. Close the door.

3. Check that the fans continue rotating very slowly.

4. Open the door. The unit should now start up immedi-

ately.

For models with b-touch control panel

1. Place the control panel back into the wall holder.

When you connect the control panel, the control panel searches for connected units and then briefly displays the number of connected units.

c If the number of units displayed does not match the

number connected, check the wiring and power supply of the units and reconfigure the system via

menu > Maintenance > Reset system.

Optional:

Lock the control panel with the screw on the underside.

Manual version 7.0 - North America (21-03-2017) en-53

Page 54

Note:

Caution:

INSTALLATION INDUSTRIAL AIR CURTAIN

During the first start-up, the installation guide is initiated. Go through this in order to make the most necessary settings.

If the installation guide is not displayed, it can be started via

menu > Maintenance > Installation.

If the control panel does not work, or if the display shows an error message, there is an error: consult the relevant section.

n The settings of the b-touch control panel can be

copied to another b-touch control panel. See

7.10 Copying the settings.

n After installation, the control panel may possibly be

removed. See 2.8.1 Special points regarding the

control panel for the conditions.

For all models:

1. Check whether the fans are rotating.

c If the fans run out of true, it is possible that the unit

is not standing or hanging completely level. Correct this, if necessary.

For water-heated models (type H):

1. Check whether the heat exchanger is connected correctly.

2. Make sure that the central heating system has been turned on.

3. If the b-touch control panel is implemented: Make sure that the heating is enabled on the control panel.

4. Feel whether the discharged air stream becomes warm. This may take some time and is dependent on the need for heating.

en-54

5. Vent the heat exchanger.

6. Adjust the unit on the water side:

Page 55

INDAC2 MANUAL INSTALLATION

Caution:

c For models with basic control (type Basic): Ensure that

at the lowest fan speed the maximum discharge temperature is not exceeded. For the maximum discharge temperature, see section 1.3.6 Field of

application.

c In the case of a combination of models with a control

circuit board (type Auto) and models without control circuit board (Basic): Adjust all units on the water side.

Ensure that all units have the same discharge temperature.

Manual version 7.0 - North America (21-03-2017) en-55

Page 56

Note:

3. . Operation with b-control

Various control units are available for the industrial air curtain IndAC

. This chapter describes operation with the b-control

continuously variable controller that is used on units having a basic control (Basic type).

3.1 Introduction

This section describes the functions of the b-control continuously variable controller which are necessary for the operation of the unit. The isolation switch on the unit is only needed during maintenance and servicing.

3.2 Switching ON and OFF

3.3 Regulating the strength

When the controller is set to strength 0, the unit is switched OFF.

Turn the knob of the controller clockwise in order to switch the unit ON.

n The unit switches on commencing at the minimum

strength 'min'.

The fan speed can be regulated in a continuously variable manner with the controller.

The most optimal speed is the minimum strength at which the airflow touches the ground and there is no draught across the ground. This may vary per day and during the course of the day.

en-56

Page 57

4. . Operation with b-touch

Note:

Various control units are available for the industrial air curtain IndAC control panel, that is used on units having an automatic control (Auto type).

4.1 Introduction

This section describes the functions of the b-touch control panel, which are required for setting up the unit.

. This chapter describes operation with the b-touch

n After installation, the control panel may possibly be

removed. See 2.8.1 Special points regarding the

control panel for the conditions.

For the purpose of altering setting easily, the control panel can remain present.

4.1.1 Control panel

The b-touch control panel is equipped with a touch screen (touch screen) with which all the functions can be set:

• Turning the unit ON and OFF;

• Adjusting the strength of the unit;

• Switching the heating ON and OFF;

• Entering settings to adjust the operation of the unit to your situation.

Manual version 7.0 - North America (21-03-2017) en-57

Page 58

OPERATION WITH B-TOUCH INDUSTRIAL AIR CURTAIN

4.1.2 Multiple units operated from a single control

panel

If multiple units are connected to the b-touch control panel, the settings on the panel are the same for all units.

4.1.3 Settings

Select to save the settings and return to the previous screen.

Select to return to the previous screen without saving the changes.

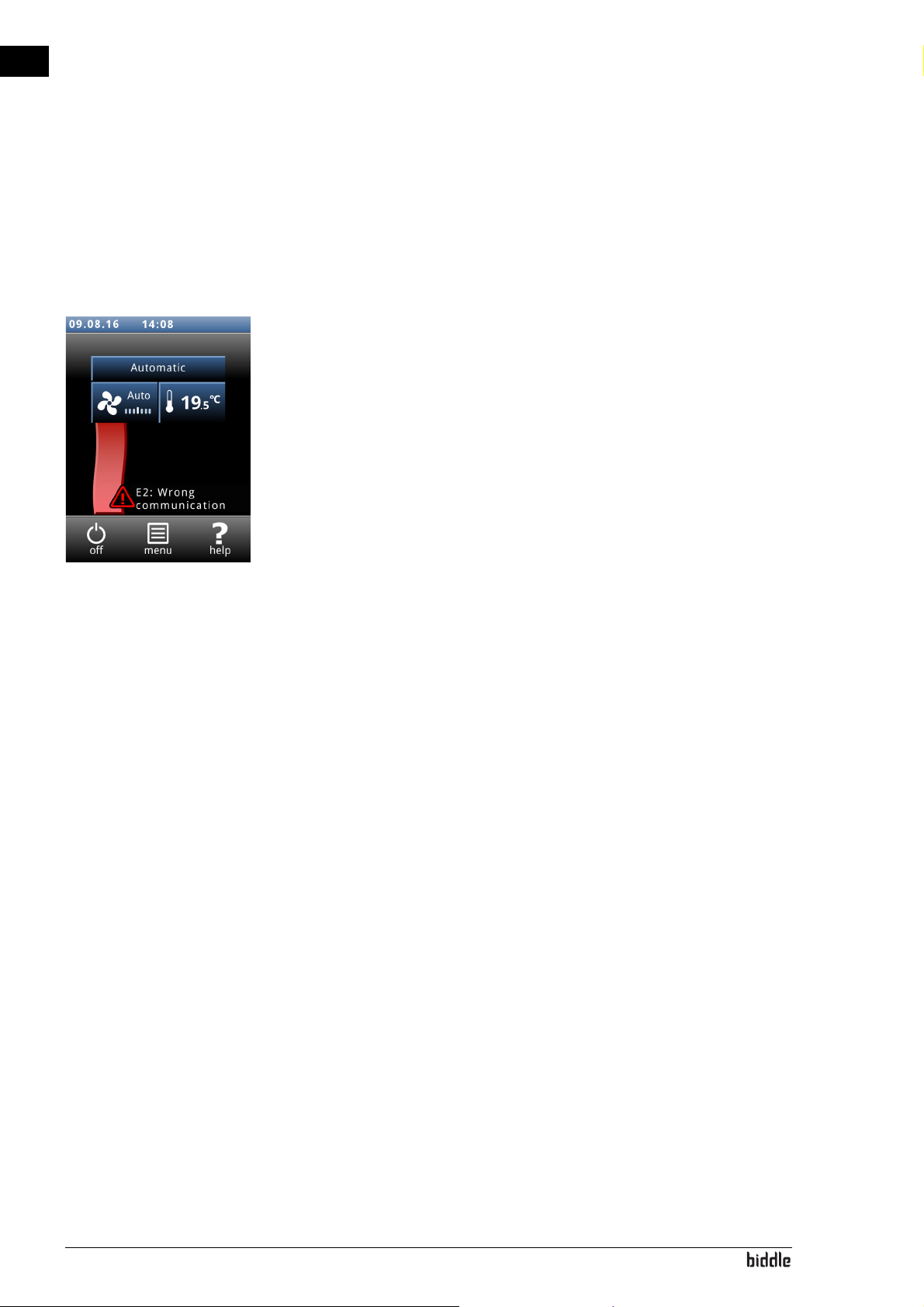

4.2 The Home screen

The settings of the unit and the room temperature can be adjusted on the Home screen.

• Touch the parts of the symbol to select manual or auto-

matic and to adjust the strength of the unit or the room temperature.

• Touch the airflow symbol to obtain concise information

about the operation of the unit.

•Touch menu to open the main menu.

4.2.1 Help function

At any time, you can call up additional information concerning the point in the operation where you are, by touching Help.

4.2.2 Turning the unit ON and OFF

You can switch the unit ON and OFF manually, using the control panel.

en-58

•Touch on/off in order to turn the unit ON or OFF.

If the unit is on, the screen will become darker after some time, in order to save energy. When the screen is touched, it lights up again. This function cannot be deactivated.

If the unit is switched off, the screen will go black after some time. Touch the screen to activate it again.

Page 59

INDAC2 MANUAL OPERATION WITH B-TOUCH

The unit can also be switched ON and OFF in other ways:

• Using external controls (see function 65. Control panel

input and 60. Function of inputs).

• Via the internal timer or via an external release signal on the unit.

In these cases, the ON/OFF button can be hidden via Con-

figuration > 21. User interface options > Display on/off button.

4.2.3 The CHIPS control

By default, the unit operates with fully automatic control. Depending on the selected settings, the unit can also be controlled manually. In automatic mode, the unit operates under CHIPS control. This control matches the strength and heat of the unit to changing weather conditions. This reduces energy consumption and improves comfort through selection of the optimum setting under all circumstances. CHIPS stands for “Corrective Heat and Impulse Prediction System”.The unit works on the basis of the outdoor temperature and the room temperature near the air curtain.

4.2.4 Automatic or manual control

The unit has an automatic mode and a manual mode. You can select these by touching the uppermost part of the symbol. When the unit is switched on, it is always in automatic mode. If you wish to use the unit in manual mode only, switch off the automatic mode via menu > Settings > 1. Select modes.

In the manual mode, the unit operates with a fixed set fan speed, possibly influenced by the settings of function 26. Man-

ual: Door response.

Recommended setting of the unit

To obtain the maximum possible separation effect andthe greatest possible comfort with the least possible energy consumption, Biddle recommends use of the fully automatic CHIPS control.

Manual version 7.0 - North America (21-03-2017) en-59

Page 60

Note:

Warning:

Note:

OPERATION WITH B-TOUCH INDUSTRIAL AIR CURTAIN

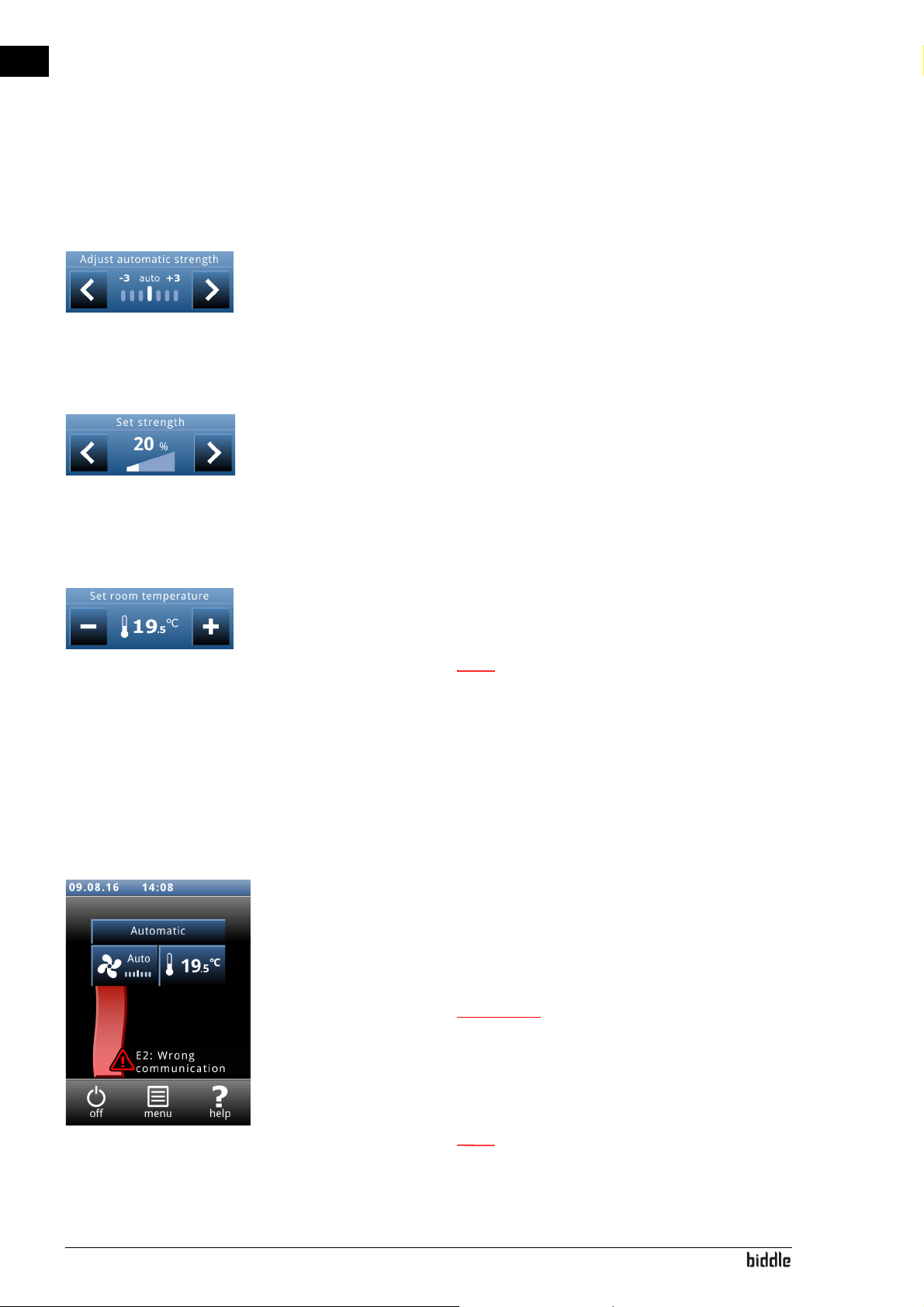

4.2.5 Regulating the strength

Adjusting the automatic strength control

In automatic mode, the strength and temperature of the airflow are regulated automatically. Due to weather conditions you might want to adjust the automatic setting. If you feel a cold draught along the floor, you can increase the automatic strength.

Manual setting of the strength

With the manual setting, you can select the strength. To achieve maximum climate separation with minimum energy consumption, Biddle recommends selecting the lowest strength at which no draught occurs. This setting may possibly need to be changed during the course of the day.

4.2.6 Required room temperature

You can set the temperature to a comfortable level. This is the temperature at the air curtain.

n If a room sensor has been implemented, that is the

place where the temperature is measured.

Temperature adjustments made via the home screen of the b- touch control panel only apply until the starting time of the following period. The default value can be set via

menu > Settings > 5. Room temperature.

4.2.7 Errors

The symbol ä indicates that there is an error. The error message is also displayed alongside.

• Touch this message for further information on the error and for instructions as to how to react.

en-60

w Some errors may cause damage or danger to

persons if they are disregarded. If ä is displayed, follow the instructions on the control panel concerning how to act.

n The symbol ä and the error message remain

displayed as long as the error has not been remedied.

Page 61

INDAC2 MANUAL OPERATION WITH B-TOUCH

If an error has remedied itself, a corresponding message will be displayed. Touch this message to display the Error history and to read out the errors and the times of their occurrence. This list can also be read out via Maintenance > Error history.

See also:

5.2 "Error messages on the control panel" on page 80

4.2.8 Symbols

The outdoor temperature sensor absent symbol indicates that the outdoor temperature is based on a monthly average. Only treat this as a error if this is not a deliberate setting.

4.3 Main menu

The symbol

The symbol ‘i’ indicates that there is currently a tip to be read. Touch the symbol in order to read the tip.

To u c h menu in order to open the Main menu. Here you can enter settings for a number of frequently used functions; in submenus you can enter settings in order to adapt the operation of the unit to your specific situation.

•Touch home in order to return to the Home screen.

•Using v and x you can browse through the list.

If the control panel is not operated for some time, it returns automatically to the Home screen without saving the changes.

@ indicates that the timer is switched on.

Lock screen Select Lock screen in order to prevent unauthorised access.

The

# symbol appears on the screen.

Unlocking

Touch the screen for 5 seconds to unlock it.

Manual version 7.0 - North America (21-03-2017) en-61

Page 62

OPERATION WITH B-TOUCH INDUSTRIAL AIR CURTAIN

Turning the heating on and off The unit’s heating can be switched on and off manually.

Switching the heating off disables the room temperature control and any Heating on.

This function can be deactivated via setting 21 in the configuration menu.

•Select Heating.

When the heating is switched off, the airflow is displayed in blue.

The heating can also be switched off by the control itself:

• by an external signal on the unit’s input, see

menu > Configuration > 60. Function of inputs, setting Heating off;

• when the outdoor temperature is higher than the setting of function 41. Heating OFF temperature.

Cleaning display Using the touch screen can leave marks or fingerprints on the

screen. The screen can be cleaned using a damp, soft cloth.

Use this function to disable the touch screen for 20 seconds in order to be able to clean it.

Timer The b-touch control panel has a week timer. You can set two

start and stop times for each day of the week. The unit is on between the start time and the stop time. The second start and stop times are optional. When the ON/OFF button is displayed on the screen, the unit can also be switched ON or OFF manually. From the next switching moment, the unit follows the timer again. When the timer is switched on, the symbol

@ is displayed on the Home screen.

en-62

Page 63

INDAC2 MANUAL OPERATION WITH B-TOUCH

Caution:

4.4 Preferences

Preferences The menu Preferences allows you to make settings for the use

of the control panel.

Set language The control panel offers a choice of languages. Choose your

preferred language from the list.

Set date and time The date and time are necessary for the timer function and for

tracking usage statistics of the unit.

c The date is also required if there is no outdoor

temperature sensor or contact sensor connected to the unit.In that case, the CHIPS control estimates the outdoor temperature based on the month of the year and the climate data for your country. An incorrect date causes the unit to work less optimally.

The automatic summer time function switches the clock to summer or winter time in accordance with the applicable European rules. If you do not use this function, you can switch to summer time manually. The clock is then set one hour forward.

Celsius / Fahrenheit Choose between a temperature display in degrees Celsius or

degrees Fahrenheit.

Display brightness Set the brightness of the screen to your personal preferences

or to the specific situation.

Show tips The control panel can show tips about the usage of the unit.

The display of these tips can be enabled or disabled.

Manual version 7.0 - North America (21-03-2017) en-63

Page 64

Note:

Warning:

OPERATION WITH B-TOUCH INDUSTRIAL AIR CURTAIN

4.5 Settings

The Settings menu allows you to enter settings which influence the day-to-day use of the unit.

1. Select modes The control panel has an automatic mode and a manual mode.

With the function Select modes, you can set which of these modes can be selected in the HOME screen.

5. Room temperature Here, set the temperature which is to be used by default as

the room temperature when starting up the unit.

The desired room temperature can temporarily be adjusted on the home screen until the next start-up moment.

6. Minimum air temperature Set the minimum difference between the room temperature

and the discharge temperature.

This difference can be increased for more comfort. A smaller difference saves energy.

8. Night temperature The night temperature is used when the unit is switched off.

When the room temperature drops below this set value, the unit will start working in order to keep the room at the night temperature.

n This function only operates when the heating is

switched on.

w Be aware that the airflow of the unit can set

objects in motion. This might set off an alarm system in the building at night time.

9. Calibration An unfavourable positioning of the room sensor or use of the

temperature sensor in the unit may be the reason why the displayed temperature deviates from the actual temperature.

en-64

Use this function to adjust the temperature reading.

Page 65

INDAC2 MANUAL OPERATION WITH B-TOUCH

4.6 Configuration

The menu Configuration allows you to enter settings in order to adjust the operation of the unit to the room and the system. Usually, this menu is used only for installation, maintenance and service purposes.

20. Access control Pin code

Access to the entire control panel or to the menu only can be protected with a four-digit PIN code.

The default PIN code is 0000.

Access level

The control panel can be safeguarded at different access levels.

21. User interface options Display on/off button

The unit can be switched ON and OFF manually. This can also be done via the internal timer or via an external release signal on the unit. In this case you can disable the manual on/off option. The on/off button is then not displayed on the Home screen.

Temperature display

By default, the room temperature is displayed. With this function, you can select another temperature to display or switch off the temperature display.

If the temperature display is switched off, there is no temperature control.

Heating OFF option

Use this function to enable or disable the option which allows the user to switch the heating ON/OFF manually.

Error display

Some error messages may be caused by external factors such as the central heating system and do not necessarily have an influence on the functioning of the unit.

Use this function to suppress these messages. Safety-related warnings will always be displayed.

Manual version 7.0 - North America (21-03-2017) en-65

Page 66

OPERATION WITH B-TOUCH INDUSTRIAL AIR CURTAIN

25. Auto: Door response Door response

The unit can respond in various ways to the opening and closing of the door. Configure whether the response should be immediate or gradual.

Immediate change: The unit responds immediately to the

opening and closing of the door by quickly switching between the fan speeds for the door open situation and the door closed situation. Use this setting if the door is not often opened repeatedly in quick succession.

Gradual change: The speed at which the unit responds to the

opening and closing of the door is based on the open/closed ratio. If the door opens repeatedly in quick succession, the unit adjusts gradually, so that it does not need to start up completely over and over again and high fan strengths (with attendant noise) are not so necessary. Use this setting if the door is regularly opens repeatedly in quick succession and the changes between low and high fan strengths are undesired.

Fan speed

Set what the fan speed must be if door is closed. This is also the minimum setting with door open.

If this function is set to 0 (fans off) or 5, then, because of the room temperature control, the fans can nevertheless start working while the doors are closed.

Room temperature control

If the door is closed, the unit helps to keep the room at the correct temperature controller. If the set fan setting for closed door has been set to 0 or 5, this function does not work.

If room temperature control is indeed desired, the function can still be activated here.

Fan speed for room temperature control

Set the percentage of the fan speed that must be used for room temperature control if this has been set via menu 25.

Auto: Door response.

en-66

As soon as the room temperature has been reached, the fans switch off.

Page 67

INDAC2 MANUAL OPERATION WITH B-TOUCH

Note:

Stand-by heating

The control can be set in such a way that heat is immediately available when the door is opened. This is a percentage of the maximum heat available for this function. The maximum heat depends on the outdoor temperature, among other things.

Set the amount of heating that must be available when the door is opened:

• If immediate heat is important, set a high percentage.

• If saving energy is important, set a low percentage.

n The room temperature control can affect this

amount of available heat.

26. Manual: Door response Set the way in which the unit in manual mode should respond

to the opening and closing of the door:

•Direct response.

• No response. (The unit always works on the set fan setting)

31. Maximum strength In order to restrict the sound level, the maximum fan speed

can be limited. This function only has effect on the automatic mode.

Use of this function can reduce comfort.

32. Deceleration time You can set a post-rotation time for the fan. Here, set the

period of time it should take for the fan to decelerate from maximum speed to standstill.

33. Boost function If there is a great difference between the desired room tem-

perature and the actual room temperature, the fan speed can be increased in order to reach the desired temperature more quickly.

Set the temperature difference at which the boost function should be activated and what the fan’s increase in speed should be.

Use this function if the unit is also used for heating the room.

If 61. Function of outputs is set to value Risk of freezing, a contact on that output is also made when the actual temperature is higher than this setting.

Manual version 7.0 - North America (21-03-2017) en-67

Page 68

OPERATION WITH B-TOUCH INDUSTRIAL AIR CURTAIN

41/42/43 Operation at higher outdoor temperatures

As the outdoor temperature rises, the need for climate separation and heating changes. In functions 41, 42 and 43 you specify at what outdoor temperatures the heating and the fans must react to this.

SITUATION NEED FUNCTION OPERATION

It is colder outdoors than indoors.

It is approximately as warm outdoors as indoors.

Heated climate separation Normal operation Heating: on

Fans: on

Ambient climate separation 41. Heating OFF temperature Heating: off

Fans: on

No climate separation 42. Fan OFF temperature Heating: off

Fans: off

It has become much warmer outdoors than indoors.

Ambient climate separation 43. Temperature unheated usage Heating: off

Fans: on

41. Heating OFF temperature

If the outdoor temperature rises above this point, the unit’s heating is switched off.

A higher value gives more comfort, a lower value saves energy.

42. Fan OFF temperature

When the outdoor temperature rises, there is less need for climate separation. In order to save energy, the fans can be switched off at a pre-set outdoor temperature.

Set this value at 50°C in order to leave the fans on all the time.

43. Temperature unheated usage

When the outdoor temperature becomes higher than the desired room temperature, there is a need for climate separation without heating. Set the outdoor temperature at which the unit should function in an unheated mode in order to keep the heat out.

Set this value at 50°C in order to leave the temperature control on all the time.

en-68

Page 69

INDAC2 MANUAL OPERATION WITH B-TOUCH

Note:

44. Outdoor temperature The automatic CHIPS control needs an outdoor temperature

in order to calculate the optimal setting. Without temperature data from a sensor, the outdoor temperature is estimated on the basis of the month of the year and your country. Climate data are used for this.

You can only use the function if the date and time have been correctly set. After selecting your country, you can modify the monthly temperatures in accordance with your wishes. Since this is only an estimation, it may be that your unit does not function optimally.

n The automatic control works less efficiently without

an outdoor temperature sensor.

45. Extra frost protection For water-heated models only

When the unit is switched off, the water valve closes by default.

By default, the unit is equipped with frost protection. You can additionally protect the unit against frost damage by leaving the water valve partially open at certain temperatures.

Select Valve position and set the opening percentage of the valve so as to always keep a flow running over the heat exchanger in the unit.

Set the maximum outdoor temperature at which the additional frost protection must be activated. When the temperature exceeds this value, the additional frost protection switches off again.

46. Maximum discharge temperature The controller limits the discharge temperature to a maxi-

mum of 50°C. Possibly set a lower value in order to save energy.

47. Overheat protection If the actual room temperature becomes higher than the pre-

set room temperature, the heating can be switched off in order to prevent the room from becoming too warm.

Set the temperature above which the heating must be disabled.

n This function can only be used if the unit is set to

automatic.

n If this function is activated, then function 6. Minimum

air temperature is ignored.

Manual version 7.0 - North America (21-03-2017) en-69

Page 70

Note:

OPERATION WITH B-TOUCH INDUSTRIAL AIR CURTAIN

50. Installation height In order to use the automatic control as efficiently as possible

and with minimum energy consumption, it is necessary to set the installation height of the unit correctly.

n Use values in metres.

The installation height is the distance from the floor to the underside of the unit.

60. Function of inputs The unit has three inputs (terminal block X520) which can be

used to enable a function to be controlled by an external accessory such as a door contact switch, a thermostat or a signal from a building management system.

By default, input 3 is used for the door contact switch.

Values for inputs 1 and 2

ALUE OPTION DESCRIPTION

0 No function The input has no function.

1 Unit off locally – NO The unit is switched OFF when the contact is closed. (This

only works with the units to which the input signal is directly connected (locally).)

6 Heating off The heating is switched OFF when the contact is closed.

9 Release – NO The user is allowed to switch the unit on and off when the

contact is closed.

10 Dirty filter – NO Displays a “dirty filter” warning if the contact is closed.

21 Switch all units on All units are switched ON when the contact is closed.

51 Unit off locally – NC The unit is switched OFF when the contact is open. (This

only works with the units to which the input signal is directly connected (locally).)

56 Heating on

(dependent on software version)

59 Release – NC The user is allowed to switch the unit on and off when the

60 Dirty filter – NC Displays a “dirty filter” warning if the contact is open.

71 All units off All units are switched OFF when the contact is closed.

The heating is switched ON when the contact is closed.

contact is open.

en-70

Page 71

INDAC2 MANUAL OPERATION WITH B-TOUCH

The function of input 3 is set via other functions in the b-touch control panel. In addition, the function of this parameter (60.3) is controlled via the settings file or via Modbus.

Values for input 3

ALUE OPTION DESCRIPTION

13 Door contact switch – NO If the door opens, the contact is closed.

21 Switch all units on All units are switched ON when the contact is closed.

63 Door contact switch – NC If the door opens, the contact is opened.

71 All units off All units are switched OFF when the contact is closed.

Release delay input 1

When you use input 1, you can make the effect of an input signal persist for some time after the signal has been given (‘release delay’). You can use this setting in combination with a door contact switch, for example, in order to keep the unit running for a while after the door has been closed.

61. Function of outputs The unit has a connection (terminal block X510) for three

output signals: these can be used for controlling the central heating system, for example, or for transmitting status reports to a Building Management System (BMS).

By default, output 3 is used for error messages.

The outputs work independently of each other.

Multiple units operated from a single control panel.

The outputs always have a global effect: the signals are always the same in all units connected to the control panel.

Value s

VALUE OPTION DESCRIPTION

1 Error – NO The contact is closed as soon as an error occurs.

2 Dirty filter – NO The contact is closed as soon as the maximum filter lifespan

has expired.

3 Heating deficit The contact is closed when the unit cannot reach the

desired air temperature.

4 Error or dirty filter – NO

(if filter present)

The contact is closed as soon as an error occurs or when the maximum filter lifespan has expired.

8 Unit on The contact is closed as soon as the unit is switched on.

Manual version 7.0 - North America (21-03-2017) en-71

Page 72

OPERATION WITH B-TOUCH INDUSTRIAL AIR CURTAIN

ALUE OPTION DESCRIPTION

10 Error local – NO The contact is closed as soon as an error occurs in the unit

in question.

11 Fan active – NO The contact is closed when the fans are running.

13 Heating on The contact is closed when the unit requires heating. Use

this to switch the heating system ON or OFF via the unit.

15 Risk of freezing The contact is closed when the temperature inside the unit

drops below 7 °C.

17 Use boost function The contact is closed when the difference between the

desired temperature and the room temperature is greater than the value set for 33. Boost function.

31 Copy input 1 The output follows the contact on input 1

32 Copy input 2 The output follows the contact on input 2

33 Copy input 3 The output follows the contact on input 3

40 Overheating protection The contact is opened as soon as the high-limit thermostat

has been activated (only for output 3, only for models with electrical heating)

41 Fan malfunction – NC The contact is opened when there is a malfunction in the

fan. (only for output 3, only for types L and XL)

51 Error – NC The contact is opened as soon as an error occurs.

52 Dirty filter – NC The contact is opened as soon as the maximum filter lifespan

has expired.

60 Error local – NC The contact is opened as soon as an error occurs in the unit

in question.

61 Fan active – NC The contact is opened when the fans are running.

71. Indoor temperature sensor Select the sensor which the system must use for the indoor

temperature:

• Select the sensor on the unit if no room sensor has been implemented.

• Select the room sensor if this has been implemented.

• Select the average between the unit sensor and the room sensor.

It is possible to limit the room temperature that can be set by the user. Set a minimum and a maximum room temperature.

en-72

Page 73

INDAC2 MANUAL OPERATION WITH B-TOUCH

Note:

4.7 Maintenance

The menu Maintenance contains information on the use of the unit and offers a number of functions which are necessary for remedying errors.

Status The status screen displays general information about the

installation and specific information per group and per unit connected.

Current errors Gives an overview of current errors. The error messages can

also be deleted here.

Error history Gives an overview of the errors which have occurred.

Capacity test Use this function to test the capacity of the unit and your

heating installation.

The unit will run for 120 minutes at the highest fan speed and with the highest heating capacity. You can check the discharge temperature and the heating capacity per metre of unit length. The discharge temperature is limited to 50°C.

For units with water heating:

if the heating capacity is too low, check the supply and return water temperatures and the water flow.

Valve check Use this function to check the operation of the water valve:

1. Set the opening percentage of the valve to 0%;

2. Press start. The fans will start rotating at the highest speed;

3. Check whether the discharged air is cold;

n It may take some time before the valve reaches the

adjusted opening percentage.

4. Repeat steps 1 and 2 for the percentages 50% and 100% as well. In doing so, check whether the discharged air gets warmer per step.

Manual version 7.0 - North America (21-03-2017) en-73

Page 74

Note:

OPERATION WITH B-TOUCH INDUSTRIAL AIR CURTAIN

Check door contact switch With this function, you check the operation of a door contact

switch connected to the unit. For this purpose, you have to open and close the door, so that the control panel can detect the switch.

Installation This installation guide leads you through the most frequently

required settings.

The installation guide is started up automatically during the first start-up of the unit or after the resetting of the factory configuration.

Unit code For entering the unit code after replacement of the control

circuit board in a unit.

Default settings Restores the default factory settings of the setup menu. The

settings entered in the configuration menu are retained.

Factory configuration Restores the standard factory configuration. All settings are

then lost.

n The installation guide will be restarted.

Reset system The control panel searches for connection with the attached

units again. Use this function when remedying errors and during connection or disconnection of units.

en-74

Page 75

INDAC2 MANUAL OPERATION WITH B-TOUCH

Caution:

Warning:

Note:

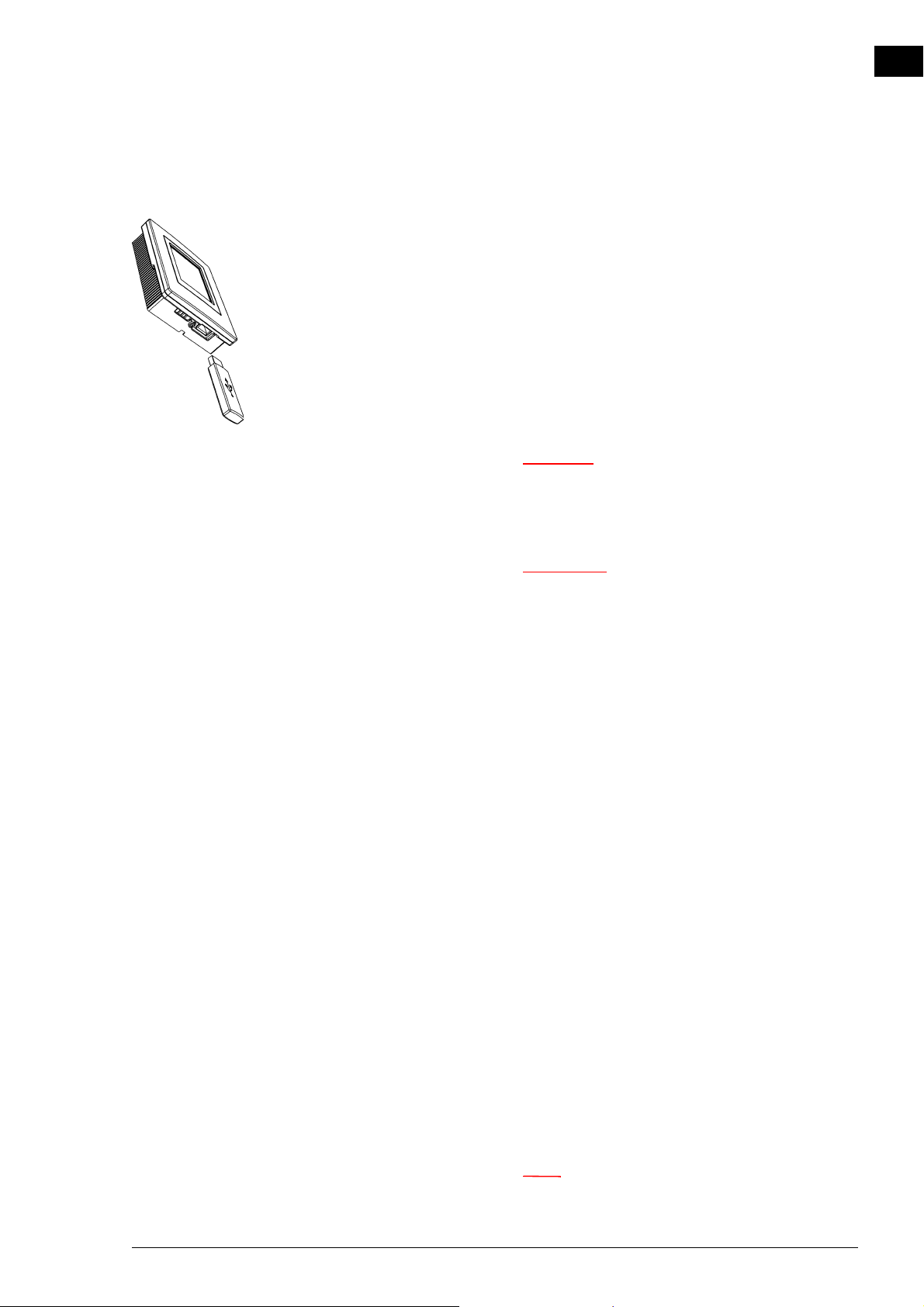

4.8 USB

The control panel is equipped with a USB port to which only a USB flash drive can be connected. This is used for:

• updating the software

• importing and exporting settings

• exporting usage data

This menu is automatically activated when a USB flash drive is connected. The menu is closed again when the USB flash drive is removed.

c Do not remove the USB flash drive during the

updating or during the importing or exporting of data. This can take several minutes.

w Connection of other electronic devices to the

USB port can cause serious damage to the control panel or to other electronic components.

Software update Biddle is working continuously on improving its products and

recommends that you update the software of the control panel when updates become available. Consult www.biddle.info/software to see if updates are available.

• The installed version of the software can be read out from

Maintenance > Status.

• Download the latest version of the software via Biddle’s website.

5.1 Resolving simple problems

d All work on the inside of the unit may only be

carried out by personnel who are technically qualified to do so.

w Before you begin: read the safety instructions.

If you suspect an error, first try to resolve the problem, using the table below. You do not have to be an expert in order to do this.

If this fails to resolve the problem, there may be a fault; in that case, alert the installer.

Some problems can be resolved simply by resetting the system once. (see 5.2.3 Error messages on the control panel- Reset system)

ROBLEM PROBABLE CAUSE WHAT TO DO

The unit does not work. The unit has not been switched on Switch the unit on

The unit has no power supply. Check the mains supply:

• isolation switch,

The unit has been switched off by external control components

The unit has been switched off by the thermal cut-out.

Check external control components, if present:

• door contact switch: is the door open?

1. Switch the unit off using the control panel.

2. Allow the unit to cool down.

3. Turn the unit on and check whether it is now working again.

Contact Biddle if this error occurs repeatedly.

Manual version 7.0 - North America (21-03-2017) en-77

Page 78

ERRORS INDUSTRIAL AIR CURTAIN

ROBLEM PROBABLE CAUSE WHAT TO DO

The unit is switched off but the fans continue rotating slowly.

The unit is switched on but is not discharging any air.

The unit is not discharging much air. (There is a draught)

The unit is not heating or not heating sufficiently.

For units which have automatic regulation and b-touch control panel:

The control panel display is black. The control unit has no power sup-

The display is on, but does not react to touch.

The display flickers The power supply is too low or not

The unit blows out cold air (without error message).

An extra connected controller is providing power to the fans, so that these start up immediately when the door opens.

The fans may be switched off if there is only a small difference in temperature between indoors and outdoors.

The inlet and/or discharge section is blocked.

The unit is set at too low a strength.

Only for models with a filter: The filter is dirty.

Only for models with heating: The heat exchanger has become dirty.

The unit is set at too low a strength.

Only for water-heated models: The central heating system is not working properly.

ply.

If the

# symbol is shown on the dis-

play: The display is locked.

constant

The discharge temperature is dependent on the outdoor and indoor temperature

This is not an error.

For units with b-touch:

If this is considered a problem, the value of function 42. Fan OFF tem-

perature can be set to zero.

Remove obstacles to the inlet and discharge section.

Switch the unit to a higher strength.

Clean or replace the filter.

Clean the heat exchanger.

Switch the unit to a higher strength.

Check the central heating system.

• Check the connections.

• Check the operation.

• Check the capacity.

Check the mains supply:

• plug in the power socket,

•isolation switch,

Touch the screen for 5 seconds to unlock it.

Reduce the brightness of the display to a level at which flickering no longer occurs, via

menu > Preferences > Display brightness.

This is not an error. If this is considered a problem, the value of function 6. Minimum air

temperature can be increased.

en-78

Page 79

INDAC2 MANUAL ERRORS

ROBLEM PROBABLE CAUSE WHAT TO DO

The unit discharges cold air and the airflow on the display is blue.

The heating has been switched off manually.

The heating has been switched off because the outdoor temperature is too high.

Turn the heating on via

menu > Heating.

This is not an error. If this is considered a problem, the value of function 41. Heating OFF temperature can be increased.

The (set) room temperature has

This is not an error. been reached. The unit is ventilating unheated.

The heating has been switched off by a signal to the unit’s input.

This is not an error. If this is consid-

ered a problem, the function of the

input can be changed via 60. Func-

tion of inputs.

The heating is disabled (the airflow on the display is blue) and the unit is nevertheless blowing out warm air.

The unit is discharging air harder than expected

The door is closed but the fans are still running.

The heating has been switched on by the additional frost protection.

If there is a big difference between the set temperature and the actual temperature, a unit may temporarily operate at a higher setting in order to attain the pre-set temperature faster.

This may be caused by the settings for a closed door situation.

This is not an error. If this is consid-

ered a problem, the function 45.

Extra frost protection can be disa-

bled.

This is not an error. If this is consid-

ered a problem, you can switch off

function 33. Boost function or set it

to a different temperature differ-

ence or a different increase in the

fan setting.

Check the settings of function 25.

Auto: Door response.

Manual version 7.0 - North America (21-03-2017) en-79

Page 80

ERRORS INDUSTRIAL AIR CURTAIN

5.2 Error messages on the control panel

5.2.1 Reading out errors

Current errors

Current errors are displayed on the Home screen. If an error has remedied itself, a corresponding message will be displayed.

When the error message is touched, the screen displays an explanation, together with a list of the actions to be taken. The message will disappear from the Home screen only when the error has been remedied.

More than one error may occur at the same time. You can read out a list of current error codes via

menu > Maintenance > Current errors.

No-longer-current errors

If an error has remedied itself, a corresponding message will be displayed. Touch this message to display the error history and to read out the last five errors and the times of their occurrence. This list can also be read out via

menu > Maintenance > Error history.

This message will disappear when touched or when the unit is switched on again.

5.2.2 Deleting errors

Most error messages will disappear automatically when the problem is resolved. Certain errors have to be remedied, however, by deleting the error message via

menu > Maintenance > Current errors.

5.2.3 Reset system

Some errors can be remedied by resetting the control panel via menu > Maintenance > Reset system: the panel will then search for connected units again.

en-80

In this process, all settings are retained.

Page 81

INDAC2 MANUAL ERRORS

5.3 Remedying errors that are accompanied by an error message

For models with b-touch control panel: Try t o r e me dy er ro r s that are accompanied by an error message, making use of the error codes table. Technical expertise is required for this.

ODE PROBABLE CAUSE WHAT TO DO

E1 The control panel does not communicate with

one or more connected units. This error may occur:

• when a connected unit is removed or replaced,

• due to a brief error in the power supply of a connected unit,

• due to incorrect cabling,

• due to a fault.

E2 There are units connected that have an invalid or

unknown unit code, or an invalid combination of unit types.

The control panel software is outdated. Check the version number of the software via

The control panel does have power but is not communicating with any unit.

E6 For water-heated models:

Risk of freezing because discharge temperature is too low. Frost protection has been activated.

Freezing may cause damage to the heat exchanger.

1. Check whether all connected units are provided with mains supply.

2. Check whether the dummy plug on terminal X535 of the last connected unit is present.

3. Check the control cables:

• are they correctly connected and free of breaks?

• are they stretched out or rolled up in a bifilar coil?

• are they shielded from magnetic fields?

4. Check the fuses.

5. Check the wiring between the control panel and connections X530 and X535 and X60 in the unit.

6. Reset the system if the error message does not automatically disappear.

Check and compare the unit types on the type plate. The units must have the same battery type and preferably the same capacity.

menu > Maintenance > Status.

1. Check the control cables:

• are they properly connected and fully intact?

• are they stretched out or rolled up in a bifilar coil?

• are they shielded from magnetic fields?

1. Clear the error message.

2. Ensure that the temperature in the room rises above 8 ºC(47 ºF).

3. Follow the instructions for error code F3

You can prevent this error by setting the unit to switch on the central heating system when there is a risk of freezing (Function 61. Function of out-

puts on Heating on).

Manual version 7.0 - North America (21-03-2017) en-81

Page 82

ERRORS INDUSTRIAL AIR CURTAIN

ODE PROBABLE CAUSE WHAT TO DO

E7 Fan error. 1. Clear the error message

2. Check the fans. If one or more fans do not work, then check:

• the fan wiring;

• the connections on the control circuit board (X344);

• the transformer fuse;

• the transformer itself.

If these are in order, then replace the fan.

F2 For water-heated models:

There is too much heating. This error may occur if the control valve does not work correctly.

F3 For water-heated models:

The central heating system switches on later than the unit.

For water-heated models:

There is too little heating. This error may occur:

• if not enough hot water is supplied;

• if the control valve does not work correctly.

For all models:

If the fans do not rotate:

1. Switch the unit OFF using the control panel, wait for one minute, and switch it ON again.

2. Check that the connections of the supply and return pipes have not been interchanged.

3. Check the wiring and connectors of the valve drive (X377) and the discharge temperature sensor (X350).

4. Remove the drive from the valve and check the interior for mechanical operation and defects.

Yo u c an :

• switch on the central heating system earlier;

• set the unit to turn on the central heating: Set function 61. Function of outputs to Heating

on and connect the relevant output to the

central heating system.

• turn off this error message: Set function 21.

User interface options > Error display to Disable.

1. Check the central heating system:

•is it turned on?

• is it able to supply enough hot water?

2. Check whether the battery only becomes partially warm: if so, it needs venting.

3. Check the wiring and connectors of the valve drive (X370) and the inlet temperature sensor (X360).

4. Remove the drive from the valve and check the interior for mechanical operation and defects.

1. Check whether the fans are rotating. If one or more fans do not work, check:

• the wiring of the fans;

• the connections on the printed circuit board (connectors X60);

• the transformer fuse;

• the transformer itself.

en-82

Page 83

INDAC2 MANUAL ERRORS

ODE PROBABLE CAUSE WHAT TO DO

F5 The temperature sensor in the unit’s discharge

section does not work.

1. Check the sensor’s wiring and connection (connector X350).

2. Replace the sensor.

F6 The temperature sensor in the unit’s inlet section

does not work.

1. Check the sensor’s wiring and connection (connector X360).

2. Replace the sensor.

F7 The outdoor temperature sensor is not working.

On the home screen there is also a symbol indicating outdoor temperature sensor absent.

If the wired outdoor temperature sensor comprises part of the system: The outdoor temperature is now based on a monthly average for your country.

1. Check the wiring and connection of the outdoor temperature sensor (connector X540).

2. Possibly, replace the sensor.

3. Via the installation guide, you can possibly opt not to use the outdoor temperature sensor.

If the wired outdoor temperature sensor does not comprise part of the system:

1. Clear the error message.

2. The symbol indicating outdoor temperature sensor absent remains on the home screen if the outdoor temperature is not measured by the IR sensor either, but is based on a temperature table.

F12 If function 71. Indoor temperature sensor is set

to Room sensor The room sensor does not work.

1. Check the wiring and connection of the sensor (connector X354).

2. Replace the sensor.

The indoor temperature is now based on the temperature sensor in the inlet section of the unit.

F16 For models with Daikin direct expansion system and

electrical heating (type DKE):

Heating medium sensor does not work. The electrical heating is not switched on in the defrost mode.

1. Check the wiring and the connection of the medium sensor (connector X354)

2. Possibly, replace the sensor.

3. Possibly, activate the electrical heating via function > Hybrid heating

Manual version 7.0 - North America (21-03-2017) en-83

Page 84

ERRORS INDUSTRIAL AIR CURTAIN

5.4 Remedying errors that are not accompanied by an error mes-

sage

If you suspect an error but no error message is displayed:

1. Referring to the preceding sections, check whether you can easily resolve the problem.

2. Try to resolve the problem using the table below. Technical expertise is required for this.

ROBLEM PROBABLE CAUSE WHAT TO DO

The control panel works normally but the unit does not respond.

The display flickers

The unit is not functioning, the display is black and does not react to touch.

One fan does not work.

The unit is being operated by a signal from an external control.

The fans may be switched off if there is only a small difference in temperature between indoors and outdoors.

The power supply to the fans is cut.

The length of the control cable between the control panel and the first unit is too great

The unit is not receiving power.

The connection between the control panel and the control circuit board is not good.

The control circuit board is not working; the LEDs on the control circuit board are not lit.

The control panel is faulty. Check the control panel by connecting it to another unit with

The fan is not receiving a power supply or is faulty.

1. Check functions 60. Function of inputs and Release delay

input 1 in the menu Configuration.

This is not an error. If this is considered a problem, the value of the function can become 42. Fan OFF temperature.

1. Check the transformer fuse.

2. Check the wiring between the transformer and the fans.

3. Replace the transformer.

Remove excessive length of cable

Check the mains supply:

• isolation switch,

• unit has power.

• connections and wiring of the power supply.

1. Check the control cable.

2. Check the wiring between the connector plate and the control circuit board (connectors X530 and X60).

1. Check fuse F141.

2. Check the mains power cable (connector X01).

3. Replace the control circuit board.

another cable. Replace the control panel if it is not working.

1. Check the wiring of the fan.

2. Check the transformer fuse.

3. Replace the fan.

en-84

Page 85

INDAC2 MANUAL ERRORS

ROBLEM PROBABLE CAUSE WHAT TO DO

The fans do not work at a particular speed level.

The earth leakage circuit breaker switches

The connection to the relevant branch is not good.

The extra controller is not connected properly

The earth leakage circuit breaker present is not compliant.

1. Check the transformer connections.

2. Check connector X60.

Check that the bridge has been removed from between positions 5 and 6 of the connector X60.

Ensure that an earth leakage circuit breaker type B is present, preferably 300 mA.

the unit off.

Manual version 7.0 - North America (21-03-2017) en-85

Page 86

Warning:

6. . Maintenance

6.1 Introduction

6.2 Cleaning the unit

This chapter comprises those maintenance activities that the user himself can perform. Maintenance activities and repairs that must be performed by an installer are described in chapter 7Servicing.

6.3 Scheduled maintenance

You can clean the inside and the outside of the unit with water and household cleaning products. Do not use any solvents.

The fans too can be cleaned with water.There are holes in the unit for the drainage of any water present.

w No water under high pressure may be sprayed

onto the fans or the terminal boxes.

Carefully remove dust in the heating element with a vacuum cleaner.

6.3.1 Monthly maintenance

With all units:

• Check the heating elements and the fans for dust and other dirt; if necessary, clean.

• Check that all fans work.

en-86

• Check that the air curtain works in all of the control unit’s operating modes.

• Check the discharge section for pollution/dirt and/or blockage; if necessary, clean.

Page 87

INDAC2 MANUAL MAINTENANCE

For units with water heating:

• Check for water leakage; if this should be the case, then switch off the unit so that it is electrically dead and repair the leakage.

• Check whether the water piping system contains air; if necessary, vent the air out of the system.

See also:

6.2 "Cleaning the unit" on page 86

1 "Switching ON and checking operation" on page 1

6.3.2 Annual maintenance

• Carry out all monthly checks.

• Check the cabling between the terminal boxes in the units and the control unit.

• Inspect the casing, the suspension or mounting structure, and the securing of each unit.

• Check whether the fans are firmly attached and are not running out of true; if necessary, fasten them again.

Manual version 7.0 - North America (21-03-2017) en-87

Page 88

Warning:

7. . Servicing

w Servicing activities may only be carried out by

personnel who are technically qualified to do so.

w Before you begin: read the safety instructions.

See also:

1.5 "Safety instructions" on page 15

en-88

Page 89

INDAC2 MANUAL SERVICING

7.1 Removing the fans

With horizontal installation position type 0 and with vertical installation position type 1:

1. Remove the discharge section:

- Loosen the bolts 2.

- Unhook the discharge section 1.

2. Disconnect the wiring:

- Remove the inspection panel 3.

- Open the terminal box.

- Disconnect the wiring of the relevant fan.

3. Remove the fan:

- Loosen the bolts 4.

- Take out the fan along with bracket 5.

Manual version 7.0 - North America (21-03-2017) en-89

Page 90

SERVICING INDUSTRIAL AIR CURTAIN

With vertical installation position type 2:

1. Disconnect the wiring:

- Remove inspection panel 2.

- Open the terminal box.

- Disconnect the wiring of the relevant fan.

2. Remove the fan:

- Loosen the bolts 3.

- Take out the fan along with bracket 4.

See also:

2.6.2 "Connecting the unit" on page 31

en-90

Page 91

INDAC2 MANUAL SERVICING

7.2 Accessing the heating element

For units with water heating:

1. Remove inlet grille 1.

7.3 Electronics module

Only for units which have automatic CHIPS control

The unit contains one electronics module. Depending on the version, one can find on this such things as:

•the transformers;

• the control circuit board;

• the connector plate;

• the fuses.

•the filters

•the reactor

Manual version 7.0 - North America (21-03-2017) en-91

Page 92

Warning:

SERVICING INDUSTRIAL AIR CURTAIN

7.4 Removing the control circuit board

1. Switch the unit off using the control panel.

w Shut off the mains supply.

The unit is fitted with 2 mains power cables. Ensure that the power supply to the control circuit board is also shut off.

2. Remove the inspection panel 1.

3. Open the electronic housing 2.

4. Disconnect all connectors attached to the unit and earth connections from the control circuit board.

5. Remove the screw 3.

6. Slide the control circuit board 4 loose and lift it out of the unit.

7.5 Connecting the control circuit board

w Make sure that the mains supply is switched

off

1. Slide the control circuit board into its place and screw it in firmly.

2. Connect all connectors and earth connections to the control circuit board again.

3. Switch the unit on and check the operation.

en-92

Page 93

INDAC2 MANUAL SERVICING

Note:

n With a new control circuit board, an E1 error may

occur because the old control circuit board can no longer be found. Resolve this by reconfiguring the system via menu > Maintenance > Reset system

n If you are asked to designate a new master unit, then

preferably select a unit whose control circuit board has not been replaced. In that event, the settings will be preserved.

7.6 Fuses

The control circuit board of the unit is fitted with the following fuses:

• fuse F140 1 of the transformer.

• fuse F141 2 of the control circuit board.

• fuses for the fans 3.

-for the NOZ

-for the IndAC

The values are indicated on the fuses.

25, there are 2 fuses.

50, there are 3 fuses.

ST, there are 2 fuses.

MX, there are 3 fuses.

Manual version 7.0 - North America (21-03-2017) en-93

Page 94

Note:

Warning:

Caution:

SERVICING INDUSTRIAL AIR CURTAIN

7.7 LEDs

The LED lights 1 on the control circuit board indicate the following:

• continuous green: The control circuit board is receiving a power supply.

• flashing green: The unit code can be entered.

• continuous red: There is a local error.

n This does not necessarily always result in an error

message on the control panel.

7.8 Setting the unit code

The unit code must be set after replacement of the control circuit board in the unit. The unit code depends on the unit type and is indicated on the type plate.

To set the unit code, there are two methods:

• directly via the control panel if a single unit is connected;

• via the control circuit board and the control panel if more than one unit is connected.

w Entering an incorrect code will result in poor

performance of the unit.

7.8.1 Setting the unit code via the control panel

c Setting the unit code using this method will only

work if just a single unit is connected to the control panel. If necessary, connect the control panel separately to the unit in question.

en-94

1. Select menu > Maintenance > Unit code.

2. Enter the unit code via the control panel and press ok.

The control panel will now search for the unit again.

Page 95

INDAC2 MANUAL SERVICING

Warning:

7.8.2 Setting the unit code via the control circuit board and the control panel

1. Connect the mains supply (insert the plug into the socket

or move the isolation switch to ON).

w Do NOT touch any live parts.

2. Press down the microswitch 1 on the control circuit

board .

The LED next to the microswitch will start flashing.

The control panel displays eight numbers: these comprise the unit code.

3. Enter the unit code via the control panel and press ok.

7.9 Resetting the PIN code

4. Press down microswitch .

The LED next to the microswitch will stop flashing.

The unit code is now set.

5. Reset the control panel.

The PIN code of the control panel can be reset using a USB flash drive:

1. Connect a USB flash drive to the control panel.

The USB menu is activated

2. Press x for 10 seconds.

The PIN code is reset and a new PIN code has to be entered.

3. Exit the USB menu by removing the USB flash drive.

7.10 Copying the settings

The settings of the unit can be copied to another unit.

7.10.1 What you need

Before copying the setting, check that you have the following:

• An empty USB flash drive. The USB flash drive must be for-

matted for FAT or DOS. Do not use a USB hard disk for the software update.

Manual version 7.0 - North America (21-03-2017) en-95

Page 96

Note:

SERVICING INDUSTRIAL AIR CURTAIN

7.10.2 Step 1: Copying the settings of the correctly-set unit

1. Check whether the settings to be copied on the original b-

touch control panel are all correctly set.

2. Connect the USB flash drive to the USB port of the b-

touch control panel.

n If the USB flash drive is not detected, disconnect it

and then connect it again.

The control panel detects the USB flash drive and displays the USB menu

3. Select Export Settings

The progress percentage is displayed.

4. When this has been completed, disconnect the USB flash

drive from the control panel.

7.10.3 Step 2: Copying the settings to another unit

1. Connect the USB flash drive (with the settings that are to

be copied) to the USB port on the other control panel.

2. Keep the function Import settings pressed down until the

progress of the process is displayed.

The settings are now being imported.

n Below the progress percentage, the name of the file

to be imported is visible:‘settings_export.txt’

3. When this has been completed, disconnect the USB flash

drive from the control panel.

4. Repeat steps 1 to 3 for each control panel to which you

wish to apply the same settings.

7.11 Updating the software

en-96

Biddle is working continuously on improving its products and recommends that you update the software of the control panel and of the control circuit board when updates become available. Consult Biddle’s website for availability.

Page 97

INDAC2 MANUAL SERVICING

7.11.1 What you need.

Before updating the software of the control panel, check that you have the following:

• An empty USB flash drive. The USB flash drive must be formatted for FAT or DOS. Do not use a USB hard disk for the software update.

• A PC with Internet access.

7.11.2 Step 1: Check the current software version

Before you update the software of the control panel or of the control circuit board, you must check the existing software version. If the software version is the same as that of the most recent update file on Biddle’s website, you do not need to update the software.

1. Press menu in the Home screen.

2. Select Maintenance. The version of the current software is displayed in the status overview.

7.11.3 Step 2: Download the most recent software

1. Connect the USB flash drive to a USB port on your PC.

2. On your PC, go to Biddle’s website and look under Downloads.

3. Look for your product and the available software for your unit.

4. If the software version is more recent than the version on your control panel, click on the software update.

5. Accept the licence agreement and save the file to the main directory of the USB flash drive.

6. Disconnect the USB flash drive from the PC.

Manual version 7.0 - North America (21-03-2017) en-97

Page 98

Warning:

Note:

SERVICING INDUSTRIAL AIR CURTAIN

7.11.4 Step 3: Updating the software

w Do not switch off the unit or disconnect the

USB flash drive during the software update. Do not disconnect the USB flash drive from the control panel even if there is a power failure during the update. The update will resume as soon as the power returns. If an error occurs during the update, start the procedure again. If the error continues to occur, contact Biddle.

1. Connect the USB flash drive (with the software update) to the USB port on the control panel.

n If the USB flash drive is not detected, disconnect it

and then connect it again.

The control panel detects the USB flash drive and displays the USB menu

2. Select Software update to update the software.

3. When this has been completed, disconnect the USB flash drive from the control panel.

7.12 Composition of the Biddle control cable

The control cable for the control system is constructed as follows:

• The plugs are modular connectors of the type 6P4C.

• Connectors are untwisted, i.e. at both ends of the cable, cores are connected to the same electrode.

Colour coding of Biddle cables

en-98

ELEC-

TRODE

1 (not used)

2black

3red

4 green

5yellow

6 (not used)

COLOUR

Page 99

8. . Dismantling

The dismantling of the installation and the handling of the coolant, oil and other components must be done by a qualified fitter in conformity with the relevant local and national legislation and regulations.

By ensuring that this product is disposed of in the correct manner, you are helping to prevent potential negative consequences for the environment and public health. For more information about this, please contact your supplier or the relevant government authority.

Manual version 7.0 - North America (21-03-2017) en-99

Page 100

DISMANTLING INDUSTRIAL AIR CURTAIN

en-100
