Bico, Inc.
3116 Valhalla Drive, Burbank, CA 91505
Tel. (818) 842-7179 – Fax (818) 842-7976

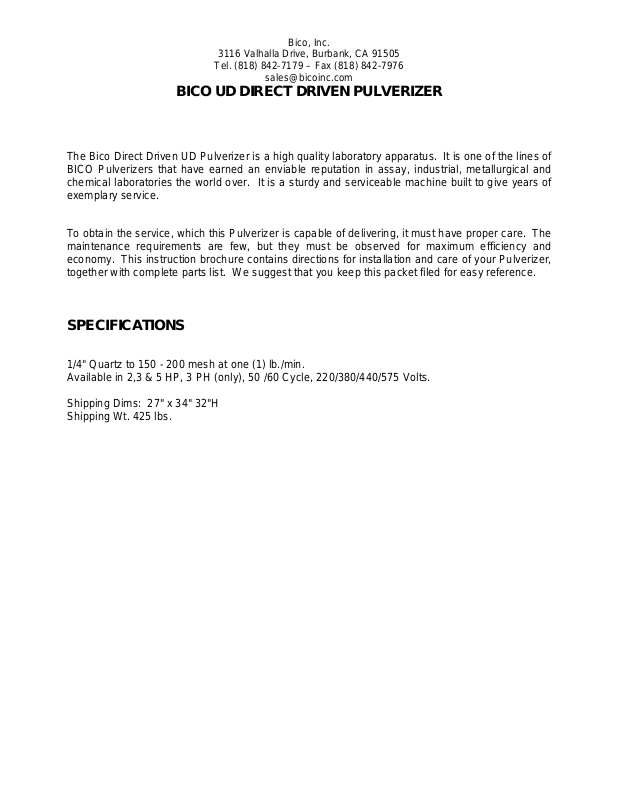

BICO UD DIRECT DRIVEN PULVERIZER
The Bico Direct Driven UD Pulverizer is a high quality laboratory apparatus. It is one of the lines of
BICO Pulverizers that have earned an enviable reputation in assay, industrial, metallurgical and
chemical laboratories the world over. It is a sturdy and serviceable machine built to give years of
exemplary service.
To obtain the service, which this Pulverizer is capable of delivering, it must have proper care. The
maintenance requirements are few, but they must be observed for maximum efficiency and
economy. This instruction brochure contains directions for installation and care of your Pulverizer,
together with complete parts list. We suggest that you keep this packet filed for easy reference.
SPECIFICATIONS
1/4" Quartz to 150 - 200 mesh at one (1) lb./min.
Available in 2,3 & 5 HP, 3 PH (only), 50 /60 Cycle, 220/380/440/575 Volts.
Shipping Dims: 27" x 34" 32"H
Shipping Wt. 425 lbs.
Page 2
Bico, Inc.
3116 Valhalla Drive, Burbank, CA 91505
Tel. (818) 842-7179 – Fax (818) 842-7976
OWNERS AND OPERATORS MANUAL FOR THE UD PULVERIZER
The operation principle is quite simple: A grooved revolving plate is rotated against a grooved
stationary plate to produce the grinding action. The space, which separates the plates when they
are adjusted for operation, determines the fineness to which the friable material is reduced.
INSTALLATION
Unpack the Pulverizer and set it on a level platform in the desired location. Tightly secure the
machine in position with the lag bolts that are shipped with the machine. They can be found in a
package in the ore pan. Also found in the ore pan is the cover bracket. This bracket prevents the
cover from opening to a point of strain on the hinges. Attach this stop to the side of the Pulverizer
using the three cap screws supplied for this purpose.
Connect the included starting switch to your power source in accordance with the
directions enclosed with the switch. Just above the junction box on the Pulverizer is a direction
plate indicating the proper wiring for your current. Connect the Pulverizer to the relay switch in
accordance with these directions.
NOTE: THE PLATES SHOULD ROTATE CLOCKWISE, AS OBERSERVED FROM THE FRONT
(FEED CHUTE) END OF THE MACHINE.
The optional magnetic switch has internal overload protection. This shuts off the current
automatically should the Pulverizer jam due to improper adjustment of the plates or jamming of the
grinding plates.
Should an overload occur, wait a few minutes, to permit relay to cool, and press the RESET
button.
ADJUSTMENT
Before operation, clean the Pulverizer thoroughly, being careful to wipe all oil from the grinding
plates and interior. The plates are shipped oiled to prevent rusting.
The Bico Pulverizer can be adjusted during operation by means of the adjusting screw at the end
of the shaft. The setting can be permanently maintained by tightening the lock lever. This setting
retained when the Pulverizer is opened for cleaning.
The Ball Bearings are totally sealed and need no lubrication.
Page 3
Bico, Inc.
3116 Valhalla Drive, Burbank, CA 91505
Tel. (818) 842-7179 – Fax (818) 842-7976
CLEANING
Your Model UD Pulverizer is easy to clean. It opens up so all of the interior parts are easily
accessible for cleaning with a brush or with compressed air. Be sure all machine surfaces, the
door, and the grinding plates are cleaned of material before beginning each operation.
GRINDING PLATES MUST BE PARALLEL AT ALL TIMES
ALWAYS CLEAN ALL MATING SURFACES TO INSURE REPEATABILITY OF PLATE
SETTINGS.
Important:
When the Pulverizer is operated regularly the DUST COLLECTOR (UD-35)
MUST be cleaned weekly.
To Clean: Remove screw, cover, screen and filter. Clean the filter with solvent and then oil lightly
with a light machine oil. Then replace the filter, screen, cover and screw back together
GRINDING PLATES
Bico grinding plates are available in a variety of materials and hardness to provide you with the
best performance for your type of sample.
All plates (disc) are 8" in diameter and bear the Bico part number on the backside. A set of two (2)
plates is required when running the machine: One stationary plate (w/hole) located on the door
and one revolving plate located on the flange. New machines are factory installed with the
standard Iron Alloy Plates (UA-51/52).
Proper installation and maintenance is very important to assure long wear and fine grind. Perfect
plate alignment is essential for optimum machine production. The UA-1000 plate aligner is
available to assist you with this procedure.
Page 4
Bico, Inc.
3116 Valhalla Drive, Burbank, CA 91505
Tel. (818) 842-7179 – Fax (818) 842-7976
BICO INC. GRINDING PLATES
IRON PLATES
UA-51 Standard Iron Alloy Plate - Stationary 11/5
UA-52 Standard Iron Alloy Plate - Revolving 11/5
UA-94 Wear Resistant Iron Alloy - Stationary 11/5
UA-95 Wear Resistant Iron Alloy - Revolving 11/5
UA-85 Hardened Iron Alloy - Stationary 11/5
UA-86 Hardened Iron Alloy - Revolving 11/5
UA-97 Ductile Iron - Stationary 11/5
UA-98 Ductile Iron - Revolving 11/5
STEEL PLATES
LD-03/04 Semi-Steel Grinding Plates (sold in sets only) 24/11
UA-81 Low Phosphorus Carbon Steel - Stationary 11/5
UA-82 Low Phosphorus Carbon Steel - Revolving 11/5
UA-2000S Chrome Alloy Steel - Stationary 11/5
UA-2000R Chrome Alloy Steel - Revolving 11/5
MANGANESE PLATES
UA-83 Manganese Steel - Stationary 11/5
UA-84 Manganese Steel - Revolving 11/5
CONTAMINATION CONTROL PLATES
UA-92XX Alumina Ceramic - Stationary 12/5
UA-93XX Alumina Ceramic - Revolving 12/5
PLATES FOR USE WITH COAL
UA-87 Iron Alloy with special grinding pattern - Stationary 11/5
UA-88 Iron Alloy with special grinding pattern - Revolving 11/5
TOOLS TO INSTALL PLATES
UA-1000(C) Plate Aligner (C=for use with Ceramic plates) 2/2
Page 5
Bico, Inc.
3116 Valhalla Drive, Burbank, CA 91505
Tel. (818) 842-7179 – Fax (818) 842-7976
RECOMMENDED SPARE PARTS FOR
ONE (1) YEAR OPERATION OF UD PULVERIZER
10 Sets UA-51/52 Iron Alloy Grinding Plates
1 Ea. UA-6 Drop Clutch
1 Ea. UA-7 Hand Screw for Drop Clutch
1 Ea. UA-9 Eye Bolt
1 Ea. UA-9A Hand Nut for Eye Bolt
1 Ea. UA-18A Ore Pan
1 Ea. UA-67 Shock Absorbing Spring for Door
1 Ea. UD-35A Filter for Dust Collector
FOR TWO (2) YEAR OPERATION ADD:
1 Ea. UD-9 End Cover
1 Ea. UD-10/11 Adjusting Screw with Hand Wheel
1 Ea. UD-18 Front Ball Bearing
1 Ea. UD-19 Rear Ball Bearing
1 Ea. UD-21 Front Seal (Small)
1 Ea. UD-22 Rear Seal (Large)
10 Sets UA-51/52 Iron Alloy Grinding Plates
NOTE: PLEASE GIVE SERIAL NUMBER OF UNIT WHEN ORDERING PARTS.
Page 6
Bico, Inc.
3116 Valhalla Drive, Burbank, CA 91505
Tel. (818) 842-7179 – Fax (818) 842-7976
BICO UD PULVERIZER SPARE PARTS
*** PLEASE ADVICE SERIAL NUMBER WHEN ORDERING SPARE PARTS ***
PART # DESCRIPTION WEIGHT LBS./KG
UD-1 FRAME WITH DOOR AND COVER 158/72
UD-2 END BELL 33/15
UD-4 FAN 2/1
UD-6 MOVABLE FLANGE DISC (FOR MOVABLE PLATES) 7/3
UD-7 LOCK WASHER 1/4
UD-8 BALL BEARING CAGE 5/2
UD-9 END COVER 5/2
UD-10/11 ADJUSTING SCREW WITH HAND WHEEL 2/1
(NOT SOLD INDIVIDUALLY)
UD-12 BRASS WASHER 1/4
UD-13A DOWEL PIN (FOR S/N LATER THAN 58620) 1/4
UD-14 BEARING SLEEVE FOR UD-18, FRONT BALL 1/4
BEARING
UD-15 SNAP RING FOR UD-1 1/4
UD-16 SNAP RING FOR UD-8 1/4
UD-17 SNAP RING FOR UD-14 1/4
UD-18 FRONT BALL BEARING 2/1
UD-19 REAR BALL BEARING 2/1
UD-20 LOCK NUT 1/4
UD-21A FELT WASHER 1/4
UD-21 FRONT SEAL (SMALL) 1/4
Page 7
Bico, Inc.
3116 Valhalla Drive, Burbank, CA 91505
Tel. (818) 842-7179 – Fax (818) 842-7976
BICO UD PULVERIZER SPARE PARTS
(CONTINUED)
PART # DESCRIPTION WEIGHT LBS./KG
UD-22 REAR SEAL (LARGE) 1/4
UD-23 WOODRUFF KEY 1/4
UD-24 CAP SCREW FOR END BELL (4 REQ.) 1/4
UD-25 CAP SCREW FOR FRAME (4 REQ.) 1/4
UD-26 CAP SCREW FOR LOCK WASHER (1 REQ.) 1/4
UD-27 CAP SCREW FOR UD-6 & UD-9 (6 REQ.) 1/4
UD-29 LOCK LEVER 2/1
UD-30 SHOULDER RING (FOR S/N PRIOR TO 58409) 1/4
UD-32 BASE PLATE 38/17
UD-33 CAP SCREW FOR FRAME AND BASE PLATE 1/4
UD-34 CAP SCREW FOR END BELL 1/4
UD-35 DUST COLLECTOR 2/1
UD-35A FILTER FOR DUST COLLECTOR 2/1
UD-36 BAND 1/4
UD-37 CLEANING BRUSH 1/4
UD-39 LAG SCREW FOR BASE 1/4
***NET - NO DEALER DISCOUNT APPLY***
UD-3 2HP ROTOR WITH SHAFT AND FAN FOR 39/18
MODEL #242-67
UD-3S 3HP ROTOR WITH SHAFT AND FAN FOR 42/19
MODEL #242-67S
UD-3S5 5 HP ROTOR WITH SHAFT AND FAN FOR 42/19
MODEL #242-67XS5
Page 8
Bico, Inc.
3116 Valhalla Drive, Burbank, CA 91505
Tel. (818) 842-7179 – Fax (818) 842-7976
BICO UD PULVERIZER SPARE PARTS
PART # DESCRIPTION WEIGHT LBS./KG
UD-5 2HP STATOR 220/440 VOLT WITH HOUSING 50/23
FOR MODEL #242-67
UD-5S 3HP STATOR 220/440 VOLT WITH HOUSING 72/33
FOR MODEL #242-67S
UD-5S5 5HP STATOR 220/440 VOLT WITH HOUSING 72/33
FOR MODEL #242-67XS5
THE FOLLOWING PARTS ARE "UA" PARTS THAT ARE USED
IN THE UD PULVERIZER
UA-3 HINGE PIN FOR DOOR 1/4
UA-4 COVER - S/N PRIOR TO 55234 MUST BE DRILLED 18/8
ON SITE
UA-5 HINGE PIN FOR COVER 1/4
UA-6 DROP CLUTCH 1/4
UA-7 HAND SCREW FOR DROP CLUTCH 1/4
UA-8 SCREW FOR CLUTCH 1/4
UA-9 EYE BOLT 1/4
UA-9A HAND NUT FOR EYE BOLT 1/4
UA-10 PIN FOR EYE BOLT 1/4
UA-12 CAP SCREW FOR STATIONARY PLATE 1/4
UA-18A ORE PAN 1/4
UA-53 DOOR - S/N PRIOR TO 55234 MUST BE DRILLED 24/11
ON SITE
Page 9
Bico, Inc.
3116 Valhalla Drive, Burbank, CA 91505
Tel. (818) 842-7179 – Fax (818) 842-7976
BICO UD PULVERIZER SPARE PARTS
(CONTINUED)
PART # DESCRIPTION WEIGHT LBS./KG
UA-54 CAP SCREW FOR REVOLVING PLATE 1/4
UA-57 MALLEABLE BRACKET FOR COVER 2/1
UA-62 CAP SCREW FOR COVER BRACKET 2/1
UA-63 WASHER FOR UA-12 CAP SCREW 1/4
UA-67 SHOCK ABSORBING SPRING FOR DOOR 1/4
UA-1000(C) PLATE ALIGNER (C= FOR CERAMIC PLATES) 2/1
MD-1A MANUAL DOOR OPENER
