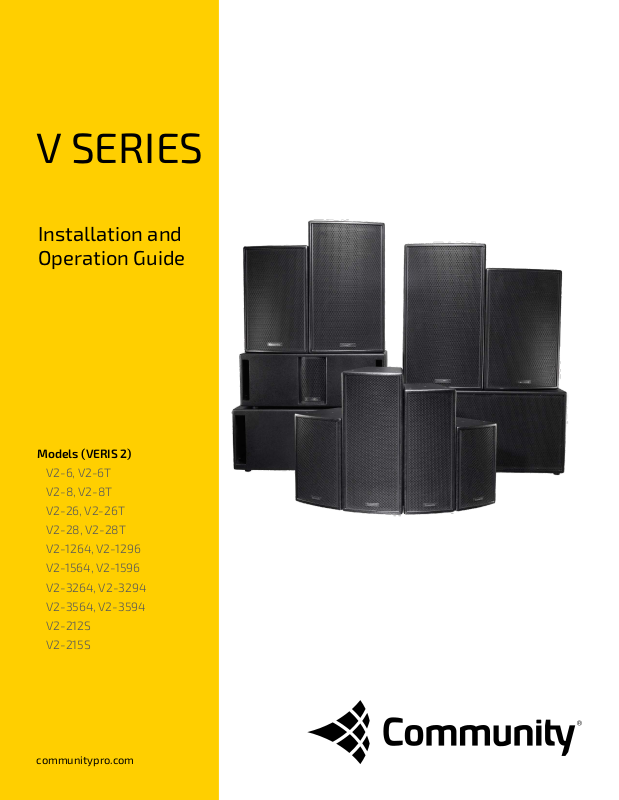

V SERIES
Installation and
Operation Guide
Models (VERIS 2)
V2-6, V2-6T
V2-8, V2-8T
V2-26, V2-26T
V2-28, V2-28T
V2-1264, V2-1296
V2-1564, V2-1596
V2-3264, V2-3294
V2-3564, V2-3594
V2-212S
V2-215S
communitypro.com
IMPORTANT SAFETY INSTRUCTIONS
Always follow these basic safety precautions when using or installing V SERIES loudspeakers and
accessories:
• Read these instructions prior to assembly.
• Keep these instructions for reference.
• Heed all warnings.
• Follow all instructions, particularly those pertaining to rigging, mounting, hanging and electrical
connections.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instruction.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
• Only use attachments and accessories that are specified and approved by the manufacturer.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
The terms CAUTION, WARNING, and DANGER may be used in this manual to alert the reader to
important safety considerations. If you have any questions or do not understand the meaning of
these terms, do not proceed with installation. Contact your local dealer, distributor, or call Community
directly for assistance. These terms are defined as:
CAUTION: describes an operating condition or user action that may expose the equipment
or user to potential damage or danger.
WARNING: describes an operating condition or user action that will likely cause damage
to the equipment or injury to the user or to others in the vicinity.
DANGER: describes an operating condition or user action that will immediately damage
the equipment and/or be extremely dangerous or life threatening to the user or to others
in the vicinity.
These installation instructions are for use by qualified personnel only. To reduce the risk of fire or
electric shock do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.
UNPACKING / INSPECTION
Community V SERIES V2 loudspeakers are
engineered and manufactured to be rugged
and they are carefully packed in sturdy cartons.
However, it is recommended to thoroughly
inspect each unit after it has been removed from
the packaging, as damage could occur during
shipping.
Please note that once the shipment has left
your dealer or the Community factory, the
responsibility for damage is always borne by
the freight company. If damage has occurred
during shipping, you must file a claim directly
with the freight company. It’s very important to
contact the freight company as soon as possible
after receiving your shipment, as most freight
companies have a short time limit within which
they will investigate claims. Make sure to save
the carton and the packing material, as most
claims will be denied if these materials are not
retained. Your Community dealer and the factory
will try to help in any way they can, but it is the
responsibility of the party receiving the shipment
to file the damage claim.
It is always a good idea to retain the carton and
packing materials, if possible, in the event that
the unit may need to be returned to your dealer
or distributor for repair in the future.
IN THE CARTON
Each shipping carton contains the following:
• V2 Loudspeaker (fully assembled)
• Information packet
• Models V2-6, V2-8, V2-26, and V2-28
include a yoke-style mounting bracket
RIGGING AND ELECTRICAL SAFETY
IMPORTANT: The loudspeakers described in this manual are designed and intended to be
mounted to diering building surfaces using a variety of rigging hardware, means and
methods. Installation of loudspeakers should only be performed by trained and qualified
personnel. All electrical connections must conform to applicable city, county, state, and
national (NEC) electrical codes.
DANGER: All rigging fittings must be fully tightened and secured. Any missing fasteners or
parts will compromise the structural integrity of the enclosure and constitute a safety
hazard. Do not suspend this loudspeaker unless all fasteners are securely in place!
. DANGER: It is possible to experience severe electrical shock from a power amplifier.
Always make sure that all power amplifiers are in the “OFF” position and unplugged from
an AC Mains supply before performing electrical work.
IMPORTANT: Refer to the sections on installation and connections later in this manual for
additional information on rigging and electrical safety.
IMPORTANT: The flat-head hex-drive rigging screws that come installed in each enclosure
must either be replaced with rigging brackets and threaded fasteners, or they must be
kept in place to seal the enclosure from air leaks. If the rigging fittings do not remain
sealed, air leaks will occur in the enclosure that will compromise the low-frequency
performance with distortion, reduced output, and premature driver failure.
DANGER: V SERIES V2 model rigging
fittings are rated at a Working Load
Limit (WLL) of 100 lbs (45.4 kg) with a
10:1 safety margin. No single rigging fitting
should ever be subjected to a load that is greater
than this stated limit. Failure to heed this warning
could result in injury or death!
CAUTION: Installation of
V SERIES loudspeakers
should only be performed by
trained and qualified personnel. It is
strongly recommended that a
licensed and certified professional
structural engineer (P.E.) approve
the mounting. Severe injury and/or
loss of life may occur if this product
is improperly installed.
Page 2 VLF Owner's Guide V SERIES models
OVERVIEW
The ability of V SERIES V2 loudspeakers to meet the needs of a broad range of
installation requirements, at aordable price points, is truly unmatched. Venues
such as nightclubs, cafés, discotheques, houses of worship, auditoriums,
lecture halls, restaurants, theatres, and almost anywhere else that people
gather to enjoy music or hear the spoken word, are within the ability of the V2
line to respond with acoustical perfection.
The V2 models excel in applications that require controlled coverage
patterns, high-impact power response, and intelligible sonic output. V SERIES
loudspeakers are flexible, easy to install, and most importantly, they provide
excellent sound quality.
This manual is intended to help you install V SERIES V2 loudspeakers eectively
and safely. Additional information can be found on the individual model
specification sheets (available from the downloads section of the Community
website).
We recommend that you take the time to read the entire manual to insure that
your V SERIES installations meet the highest possible standards of performance
and safety standards.
The V SERIES V2 line consists of the models briefly described below:
• V2-6 - a 6.5" two-way in a trapezoidal enclosure with rotatable HF horn.
• V2-8 - an 8" two-way in a trapezoidal enclosure with rotatable HF horn.
• V2-26 - a dual 6" two-way in a trapezoidal enclosure with rotatable HF horn.
• V2-28 – a dual 8" two-way in a trapezoidal enclosure with rotatable HF horn.
• V2-12 – a 12" two-way in a trapezoidal enclosure with a choice of 60° x 40°
or 90° x 60° horn patterns.
• V2-15 – a 15" two-way in a trapezoidal enclosure with a choice of 60° x 40° or
90° x 60° horn patterns.
• V2-32 – a 12" three-way in a trapezoidal enclosure with a choice of 60° x 40°
or 90° x 40° horn patterns. Horn is rotatable.
• V2-35 - a 15" three-way in a trapezoidal enclosure with a choice of 60° x 40°
or 90° x 40° horn patterns. Horn is rotatable.
• V2-212S - a dual 12" subwoofer in a rectangular enclosure.
• V2-215S - a dual 15" subwoofer in a rectangular enclosure.
V2 loudspeakers may be used in multiples, forming clusters and arrays.
Systems may be designed around horizontal splayed arrays, vertical splayed
arrays, as well as exploded clusters and distributed configurations. Rigging kits
are available from the factory as standard items.
Page 3 VLF Owner's Guide V SERIES models
PRODUCT REPRESENTATION
V2 FULL-RANGE (typical)
Top/ Bottom M6 or M10
mounting points
(depends upon model)
Grille Retention
Screws
V2 SUBWOOFER (typical)
Front
3rd Party
mounting points
(5) on rear panel
Fits 30 or 60lb
speaker mounts
Input Panel
M10 mounting points
Grille Retention
Screws
Rear Pull-back
Points
Rear
Input Panel
Rear
Front
Grille
Rubber Feet (4)
- protect surfaces
M10 mounting points
V SERIES models VLF Owner's Guide Page 4
CONNECTIONS AND INSTALLATION
USE THE CORRECT WIRE OR CABLE
The V2 loudspeakers are intended to be connected directly to the amplifier.
Most of the V2 models come with two methods of connecting the amplifier to
the loudspeaker; a terminal strip and an industry standard NL4-type locking
connector. These two connectors are wired in parallel with each other, on all
models.
The compact T (transformer) models have a terminal strip connector to select
the appropriate tap setting (no NL4-type connector). Refer to Figure 2 for label
examples.
If connecting to the terminal strip, terminating the wires with a spade or ring
connector (Figure 1a) is recommended for secure connections. The maximum
width of the ring or spade lug should be 0.375" (9.5mm), or less. The terminal
screws are #8 (M4). The maximum wire size that can be accommodated for
bare wire connections is 10 AWG (5.26 mm2).
Note: Wire insulation colors may vary depending upon region or manufacturer. Be consistent with
conductor color use throughout the system.
NL4-TYPE CONNECTORS
Terminations may be soldered, or made by means of their built-in screw and
pressure clamp (Figure 1b). If using the pressure clamp, it’s important to tighten
it fully, then to wait about ten minutes (longer is better), then to tighten it again.
This is because copper wire flows under pressure. After initially tightening the
screw clamp, some minutes later the screw will no longer be as tight due to the
eect of the compression on the copper. Typically, only one cycle of “tighten –
wait – re-tighten” is required for a secure connection.
Ring
terminal
Spade
terminal
Figure 1a. Wire Connectors
+
from
Amplifier
–
Figure 1b. NL4-Type Connector
1+
1–
2–
2+
DANGER: When wiring the amplifier(s) to the loudspeaker(s), always power-down
the amplifier(s) and disconnect their AC Mains plug(s). Many high power amplifiers
can deliver enough voltage and current to cause a harmful or lethal electric shock.
Shocks from very low frequencies, such as kick drums, can cause the human heart to stop
beating at relatively low power levels.
WARNING: After wiring the amplifier(s) to the loudspeaker(s), first power up all
devices that are upstream of the amplifier, such as mixers, equalizers, compressor/
limiters, etc., before powering-up the amplifier. This is to avoid passing any clicks
or pops that may originate in the upstream devices to the loudspeakers. The amplifier
should initially be powered-up with its gain controls turned all the way down. After
making sure that a continuous signal is present, such as music source playing, slowly
raise the level of the gain controls to establish that the wiring has been installed correctly.
Only then should the loudspeaker be operated at normal output levels.
IMPO R TA N T: All electrical installation connections for loudspeaker lines are subject to all applicable
governmental building and fire codes. The selection of appropriate electrical hardware to interface with
the V SERIES loudspeaker lies solely with the installation professional. Community recommends that an
appropriately licensed engineer, electrician, or other qualified professional identify and select the appropriate
conduit, fittings, wire, etc. for the installation.
Page 5 VLF Owner's Guide V SERIES models
CONNECTIONS AND INSTALLATION
CONNECTION: INPUT PANELS
Example of a typical input panel V2 Input Label examples
Figure 2. Input panel and label examples
CAUTION: Be sure to carefully observe polarity when wiring your loudspeakers. If
one loudspeaker is wired with the opposite polarity from another loudspeaker,
acoustic cancellation will occur. The result will be less acoustic power output
than if only one loudspeaker were used by itself.
IMPORTANT: All technical drawings with dimensions, mounting points,
etc. are available as a pdf, dwg or dxf file from the downloads section
of the website. The technical drawing is also represented on the spec
sheet (download from website). V SERIES models can be installed using
the accessories available from Community. Installation instructions will
accompany each of those accessories.
(V2-26, V2-26T shown)
V SERIES models VLF Owner's Guide Page 6
COMMISSIONING THE SYSTEM
Commissioning is the process of optimizing the performance of the system
after it has been installed. There are several steps in commissioning. First is
verifying the proper operation of every system component, and then adjusting
system gains and levels.
The last step in system commissioning is known as system equalization or
“voicing.” Equalization is the process of adjusting the frequency response of
the system to optimize voice intelligibility or musical sound quality (or both).
Note that V SERIES loudspeakers are factory voiced to optimize their speech
intelligibility and musical sound quality. For this reason, many designers find
they can minimize overall system equalization and still achieve excellent voice
intelligibility and musical sound quality without extensive EQ. However, in the
end this is a function of the room acoustics. A large, highly reverberant room
will require more attention than a small, dry acoustic space.
When equalizing a V2 loudspeaker system the following points should be kept
in mind to achieve the best results and to avoid damaging the drivers.
1. Use only small amounts of equalization. In particular, do not boost
frequencies by more than about 3 dB. Cutting frequencies by more
than 3 dB of attenuation is acceptable, but bear in mind that extreme
frequency cuts will usually result in less than optimum performance,
unless carefully derived by use of a precision measurement system in a
room that has excessive resonance. Rule of Thumb: less is usually more.
2. Do not attempt to boost any frequencies below 100 Hz with a graphic
equalizer. Note that with the recommended high-pass filter, moderate
amounts of boost from a simple bass control are acceptable.
HIGH-PASS FILTERS
We strongly encourage the use of an external, active high-pass filter to protect
the cone drivers from excessive low-frequency excursion. A high-pass filter
will eliminate the potential of low-frequency modulation from wind noise,
turntable rumble, stage vibration, and other causes that result in a poorly
defined and ‘muddy’ bass response. Additionally, a high-pass filter will avoid
wasting amplifier power by keeping the amplifier from attempting to reproduce
frequencies below the loudspeaker’s intended operating range.
The recommended high pass filter settings are available on each model's "spec
sheet" available on Community's website. The DSP settings for all V SERIES
models are also available in the "downloads" section of the Community website.
V SERIES models VLF Owner's Guide Page 7
RIGGING / SUSPENSION AND SAFETY
The terms “rigging”, “flying” and “suspension” are often used interchangeably
in describing methods of installing loudspeaker systems at elevated positions.
IMPORTANT NOTES ON RIGGING LOUDSPEAKERS
There are three areas of responsibility for rigging loudspeakers. The first is
the building structure. Always consult with the building architect or structural
engineer to assure the ability of the structure to support the loudspeaker
system. The second area of responsibility is the loudspeaker itself. Community
certifies its loudspeaker systems and rigging accessories for suspension when
they are properly installed according to our published guidelines. The third
area of responsibility is everything between the loudspeaker and the building
structure and the actual process of installation. The installing contractor
assumes this responsibility. Loudspeaker rigging should be performed only by
certified rigging professionals using certified rigging hardware chosen for the
specific application. Prior to installation, the contractor should present a rigging
plan, with drawing and detailed parts list, to a licensed structural engineer (P.E.)
or architect for written approval.
DANGER: Some of the loudspeakers described in this manual are may be
suspended using a variety of rigging hardware, means, and methods. It is
essential that all installation work involving the suspension of these
loudspeaker products be performed by competent, knowledgeable persons
who understand safe rigging practices. Severe injury and/or loss of life may
occur if these products are improperly suspended.
DANGER: All rigging fittings must remain sealed with the included flat-
head Allen screws or they must be fitted with properly rated optional
mounting hardware. Any missing fasteners will compromise the
structural integrity of the enclosure and constitute a safety hazard. Do not
suspend this loudspeaker unless all fasteners are securely in place!
WARNING - NON-COMMUNITY RIGGING HARDWARE: Non-Community
hardware used for rigging the V SERIES subwoofers must be certified by
the supplier for this use and must be properly rated for safety.
IMPO R TAN T: All rigging
fittings should remain sealed,
or air leaks will occur in the
enclosure that can compromise the
low-frequency performance with
distortion and reduced output.
WARNING: V2 rigging fittings
are rated at a Working Load
Limit of 100 lbs (45.4kg) with
a 10:1 safety margin. No single
rigging fitting should ever be
subjected to a load that is greater
than 100 lbs. Failure to heed this
warning could result in injury or
death!
ACCESSORIES
VERTICAL FLYING KIT
Model VFKIT
The VFKIT for V2-12/15/32/35 full-range loudspeakers allows two same-size
enclosures to be flown at 45 and 60 degree splay angles. To vertically array 3
same-size enclosures, use 2 VFKIT's. To vertically array 4 same-size enclosures,
use 3 VFKIT's. Four eyebolts are included with each VFKIT.
Page 8 VLF Owner's Guide V SERIES models
CEILING MOUNT KIT
Model CMKIT
The Ceiling Mount Kit creates a hang point from a ceiling surface. The CMKIT
consists of a ceiling mount bracket and a bolt that fastens to a U-yoke bracket
or to one of several optional loudspeaker brackets. It can be used with all fullrange V2 loudspeakers.
Note: The yoke is sold separately for V2 models 12/15/32/35. The yoke is included with V2 models
6/26/8/28.
ACCESSORIES (continued)
YOKE BRACKETS
Models VB-Y12, VB-Y15, VB-Y32, VB-Y35
Optional yoke brackets for the larger full-range models V2 12/15/32/35 allow
for direct horizontal mounting of the loudspeaker to a wall or ceiling. This
unique yoke bracket also permits vertical mounting with a selection of 0º, 10º,
or 20º, of either upward or downward inclination.
Note: Yoke brackets are included with compact V2 models V2-6/8/26/28. Refer to the
supplementary instruction sheet included with these models for more information and installation
instructions.
VERSATILT BRACKET
Model VB-VST
The VB-VST allows for precise installation of a single full-range V2 loudspeaker
from the ceiling. It includes a rotational device, a hang bracket that fastens to
the top or bottom of the enclosure, and a ceiling mount bracket. It is designed
to be used with any 12” or 15” two-way or three-way full-range V2 loudspeaker.
An M10 eyebolt is included for use as a safety point.
TILTING BRACKET
Model VB-TILT
The TILT bracket allows for precise angling of a V2 loudspeaker. The VB-TILT
is a two-part rotational device that can be used to fasten one enclosure to
another; to fasten an enclosure to the CMKIT Ceiling Mount Kit; to fasten to a
yoke bracket permitting one loudspeaker to be angled in relation to another in
two axes. The VB-TILT can be used with all full-range V2 enclosures.
Note: Yokes are sold separately for models V2-12/15/32/35. A yoke is included with all V SERIES
models V2-6/26/8/28.
EYEBOLT KIT
Model Nos. M10EYBLTKIT, M6EYBLTKIT
Suspend your V2 loudspeakers safely and easily. Use the 10mm M10EYBLTKIT
with V 2-12/15/32/35; use t he 6mm M6EYBLTKIT wit h the smaller V2-6/8/26/28.
Four eyebolts are included in each kit.
VERTICAL YOKE KITS
Model Nos. VB-VY6/VY8/VY26/VY28/VY12/VY15/VY32/VY35
The Vertical Yoke Kit allows for precise installation of a single full-range V2
loudspeaker from an over-head yoke.
V SERIES models VLF Owner's Guide Page 9
TROUBLESHOOTING / SERVICE
Should you have a problem with your VERIS 2 loudspeaker(s), find the symptom and follow the associated WHAT TO DO
instructions below. Please note that a particular symptom may have several possible causes.
SYMPTOM PROBABLE CAUSE WHAT TO DO
High distortion, low output, or
no output from any or all
drivers.
Distortion from the
loudspeaker at higher volume
levels.
Distortion from the
loudspeaker at moderate to
high volume levels.
Low or no output from the
low-frequency driver.
Low or no output from the
low-frequency driver.
Low or no output from the
mid-frequency driver (applies
to three-way systems only).
Low or no output from the
high-frequency driver.
Low volume level. System gain is too low. Check to make sure that the audio signal to the amplifier is high enough to
Low volume level. Signal or speaker wire connection is
No sound. Amplifier is not on or loudspeaker is
Faulty connection to the
loudspeaker.
Possible solder joint failure on
crossover card.
Too little amplifier power. If the power rating of the amplifier is too low, it will clip at higher volume
Driver is malfunctioning. Using a sine wave oscillator or wide range program at moderate levels,
Low-frequency driver, crossover, or
amplifier is malfunctioning.
Mis-wired NL4-compatible locking
connector.
Mid-frequency driver, crossover, or
amplifier is malfunctioning.
High-frequency driver, crossover, or
amplifier is malfunctioning.
shorted.
disconnected.
Using an ohmmeter, check the continuity of the wiring to the loudspeaker.
If the wiring is OK, remove the input panel and check all solder joints on the
crossover and the wiring to the drivers. Visually inspect solder joints as
cold joints may only malfunction under high current. Repair as needed.
levels. Reduce the volume level or use a more powerful amplifier.
listen to each driver to isolate the problem. Replace as needed.
Test and replace as needed.
Check wiring and correct as needed.
Test and replace as needed.
Test and replace as needed.
drive it properly. Check all volume/level controls and gain switches in the
system including the amplifier input attenuator.
Make sure the signal and input wire connections inside all system
connectors are not shorted or open. Even one small wire strand shorting
the +/– signal terminals together anywhere in the system can cause this
problem.
Check that amplifier is turned on and that loudspeaker is properly
connected to the amplifier.
No sound or very low volume. No audio signal. Check that all the audio equipment in the signal chain is powered on and
Noises from the loudspeaker
(buzzes or rattles).
Noises from the loudspeaker
(buzzes or rattles).
Sound cuts in and out at high
levels.
Sound cuts in and out. Bad connection. Check all connections and cabling for shorts or loose connections. Even
Sudden 6 dB loss in sound
level.
Grille or hardware is loose. Make sure the front grille screws are securely seated and that any external
Driver is malfunctioning. Using a sine wave oscillator or wide range program at moderate levels,
The crossover protection circuits
have been activated.
The crossover protection circuits
have been activated.
that all gain controls are in the proper position.
mounting hardware is tightened or secured from vibrating.
listen to each driver to isolate the problem. Replace as needed.
This usually means that the loudspeaker is being constantly overdriven
and the crossover protection circuits are reducing the power to the
loudspeaker as a protective measure. Reduce the volume level to the
loudspeaker.
one small wire strand shorting the +/– signal terminals anywhere in the
system can cause this problem.
This usually means that the loudspeaker is being constantly overdriven
and the crossover protection circuits are reducing the power to the
loudspeaker as a protective measure. Reduce the volume level to the
loudspeaker, to restore full dynamic range.
SERVICING V2 LOUDSPEAKERS
Any driver service required can be accomplished from the front of the
enclosure by removing the screws around the edge of the grille. Crossovers
and connections may be accessed by removing the rear connector plate. For
warranty repair, contact Community directly or ask us for the location of your
nearest Authorized Service Center.
Page 10 VLF Owner's Guide V SERIES models
PERFORMANCE AND SPECIFICATIONS
USE A DIGITAL SIGNAL PROCESSOR
For best performance, loudspeaker protection and system longevity, a
digital signal processor (DSP ) must be used with all V SERIES loudspeakers.
Community's dSPEC226 processor(s) and Resyn® software contain all of the
information (high pass filters, limiters, factory tunings) and DSP settings
to fully optimize your system. For more information on installing and
operating your V SERIES loudspeakers, please refer to Community’s website
at communitypro.com, or contact our Technical Applications Group (TAG) at
tagteam@communitypro.com, or by phone at 610-876-3400 or toll-free (within
the US and Canada) at 800-523-4934.
SPECIFICATIONS AND INFORMATION
Full product specifications and current documentation (manuals, sales
literature) is available at communitypro.com. Additional technical information
to assist you in operating and optimizing your system or understanding more
about loudspeaker operation is also available on the website or by contacting
the Technical Applications Group (TAG).
WARRANTY INFORMATION
TRANSFERABLE WARRANTY “(LIMITED)” VALID IN THE USA ONLY
The V SERIES loudspeakers are designed and backed by Community Professional
Loudspeakers. For complete warranty information within the USA please refer
to www.communitypro.com/warranty-statement. Please call 610-876-3400
or visit the website to locate your nearest Authorized Field Service Station. For
Factory Service call 610-876-3400. You must obtain a Return Authorization
(R/A) number prior to the return of your product for factory service.
WARRANTY INFORMATION AND SERVICE FOR COUNTRIES OUTSIDE THE USA
To obtain specific warranty information and available service locations for
countries other than the United States of America, contact the authorized
Community Distributor for your specific country or region.
V SERIES models VLF Owner's Guide Page 11
Note: Every eort has been made to insure that the information contained in this manual was complete and
accurate at the time of printing. However, due to ongoing technical advances, changes or modifications may have
occurred that are not covered in this manual. The latest version is available at communitypro.com.
©2018 Community Professional Loudspeakers V2_Manual v: 25JUN2018
Community Professional Loudspeakers
333 East Fifth Street, Chester, PA 19013-4511 USA
Phone (610) 876-3400 • Fax (610) 874-0190
www.communitypro.com
Loading...
