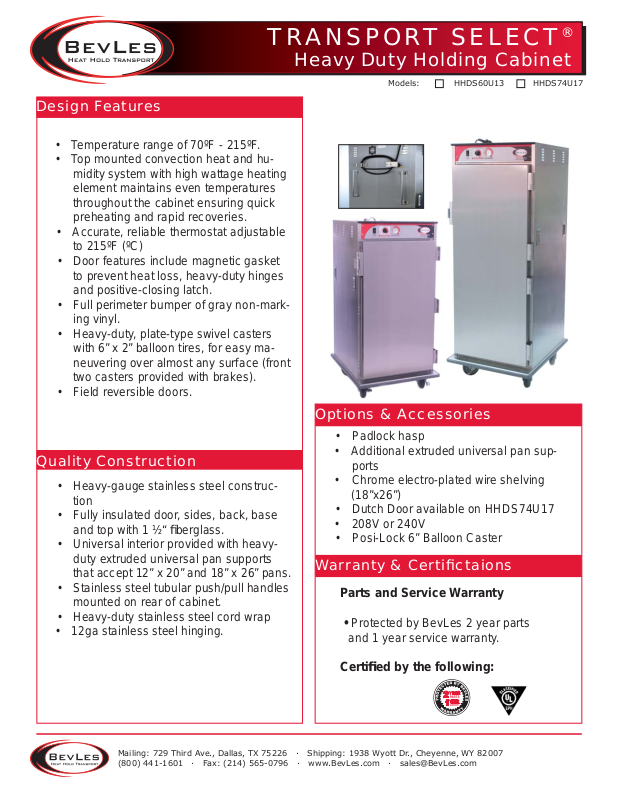

Bevles HHDS60U13 User Manual

Design Features

Temperature range of 70ºF - 215ºF.

•
Top mounted convection heat and hu-

•

midity system with high wattage heating
element maintains even temperatures
throughout the cabinet ensuring quick
preheating and rapid recoveries.
Accurate, reliable thermostat adjustable

•
to 215ºF (ºC)
Door features include magnetic gasket

•
to prevent heat loss, heavy-duty hinges
and positive-closing latch.
Full perimeter bumper of gray non-mark-

•
ing vinyl.
Heavy-duty, plate-type swivel casters

•
with 6” x 2” balloon tires, for easy ma­neuvering over almost any surface (front
two casters provided with brakes).
Field reversible doors.

•

TRANSPORT SELECT

®

Heavy Duty Holding Cabinet

Models: HHDS60U13 HHDS74U17

Quality Construction

Heavy-gauge stainless steel construc-

•
tion
Fully insulated door, sides, back, base

•
and top with 1 ½“ fi berglass.
Universal interior provided with heavy-

•
duty extruded universal pan supports
that accept 12” x 20” and 18” x 26” pans.
Stainless steel tubular push/pull handles

•
mounted on rear of cabinet.
Heavy-duty stainless steel cord wrap

•

12ga stainless steel hinging.

•

Options & Accessories

Padlock hasp

•
Additional extruded universal pan sup-

•
ports
Chrome electro-plated wire shelving

•
(18”x26”)
Dutch Door available on HHDS74U17

•
208V or 240V

•
Posi-Lock 6” Balloon Caster

•

Warranty & Certifi ctaions

Parts and Service Warranty

• Protected by BevLes 2 year parts

and 1 year service warranty.

Certifi ed by the following:

Mailing: 729 Third Ave., Dallas, TX 75226 ∙ Shipping: 1938 Wyott Dr., Cheyenne, WY 82007
[phone] ∙ Fax: [phone] ∙ www.BevLes.com ∙ [e-mail]

TRANSPORT SELECT

Heavy Duty Holding Cabinet

Models: HHDS60U13 HHDS74U17

®

Model Number

HHDS60U13 13 26 3” 59.5” 29.3” 35.2” 370 lbs (167.8 kg) 340 lbs (154.2 kg)

HHDS74U17 17 34 3” 75.5” 29.3” 35.2” 440 lbs (186 kg) 410 lbs (170.1 kg)

Electrical Voltage Watts Amps Electric Service Phase Hertz Clearances

Standarad 120V 1800 15.2 20A Dedicated Circuit 1 50/60 Sides & Back = 0”; Top = 3”

Optional 120V 1500 10.6 15A Dedicated Circuit 1 50/60 Sides & Back = 0”; Top = 3”

*Adjustable on 1 ½“ centers

Capacity

18x26 12x20 SPC’G*

H W D

Construction:

•

Exterior Body: 20 ga. 304 3# stainless steel

•

Interior Body: 20 ga. 304-2B stainless steel

•

Exterior Door: 20 ga. 304 #3 stainless steel

•

Interior Door: 22 ga. auto-brite stainless steel

•

Base: 14 ga. 304-2B stainless steel w/ perimeter bum­per.

•

Door Latch and Hinges: Positive action door latch with
270º stainless steel 12 ga. heavy-duty hinges

•

Door Configuration: Full door on all models; Dutch
doors available on HHDS74U17.

•

Door Gasket: Magnetic, NSF approved Santoprene.

•

Insulation: Fully insulated back, sides, base, top and
door(s) with 1.5” fiberglass insulation (5.7 R-Factor and
minimum rating of .26K per inch).

•

Two stainless steel tubular push/pull handles mounted
vertically on rear of cabinet.

•

Pull Grips: recessed stainless steel, pull grips mounted
with hardware.

•

Full Perimeter Bumper

Pan Support Assembly:

Side (Air Duct) Panels: 22 ga. 304-2B stainless steel.

•
Pan Supports: Heavy-duty extruded universal angles

•

Dimensions

Ship Wt. Act. Wt.

adjustable on 1 ½” spacing (bottom supported).

Castors:

•

Heavy-duty plate type swivel casters, with 6” balloon tire
wheels; front two casters with brakes.

Heating Module and Controls:

•

Temperature Control: Temperature range 70ºF - 215ºF

•

Temperature Display: Glass lens dial thermometer.

•

Humidity System: 2.25 quart stainless steel water res­ervoir.

•

Fan Blower: 1-piece modular drop-in design blower as­sembly.

•

Cord Wrap: 14 ga. stainless steel mounted on rear
panel.

Electrical:

•

120V-20A, 1 PH electrical service. (option 120V-15A,
1PH electrical service)

•

Switch: Sealed custom heavy-duty 20 Amp

•

Cord and Plug: 8’ cord with 20A molded plug (NEMA
5-20P)

Shipping:

Freight Class: 85

•
FOB: Cheyenne, WY 82007

•

*Specifi cations subject to change without notice.

Mailing: 729 Third Ave., Dallas, TX 75226 ∙ Shipping: 1938 Wyott Dr., Cheyenne, WY 82007
[phone] ∙ Fax: [phone] ∙ www.BevLes.com ∙ [e-mail]

2/14/07
#B101a
