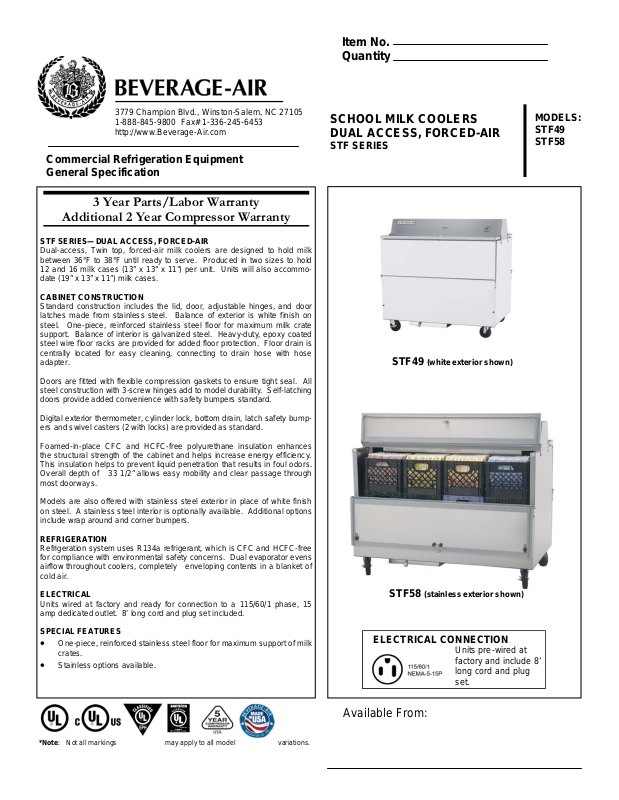

Beverage Air STF49 User Manual

Item No.
Quantity

3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# [phone]
http://www.Beverage-Air.com

Commercial Refrigeration Equipment
General Specification

3 Year Parts/Labor Warranty

Additional 2 Year Compressor Warranty

STF SERIES—DUAL ACCESS, FORCED-AIR

Dual-access, Twin top, forced-air milk coolers are designed to hold milk
between 36°F to 38°F until ready to serve. Produced in two sizes to hold
12 and 16 milk cases (13” x 13” x 11”) per unit. Units will also accommo­date (19” x 13” x 11”) milk cases.

CABINET CONSTRUCTION

Standard construction includes the lid, door, adjustable hinges, and door
latches made from stainless steel. Balance of exterior is white finish on
steel. One-piece, reinforced stainless steel floor for maximum milk crate
support. Balance of interior is galvanized steel. Heavy-duty, epoxy coated
steel wire floor racks are provided for added floor protection. Floor drain is
centrally located for easy cleaning, connecting to drain hose with hose
adapter.

Doors are fitted with flexible compression gaskets to ensure tight seal. All
steel construction with 3-screw hinges add to model durability. Self-latching
doors provide added convenience with safety bumpers standard.

Digital exterior thermometer, cylinder lock, bottom drain, latch safety bump­ers and swivel casters (2 with locks) are provided as standard.

Foamed-in-place CFC and HCFC-free polyurethane insulation enhances
the structural strength of the cabinet and helps increase energy efficiency.
This insulation helps to prevent liquid penetration that results in foul odors.
Overall depth of 33 1/2” allows easy mobility and clear passage through
most doorways.

Models are also offered with stainless steel exterior in place of white finish
on steel. A stainless steel interior is optionally available. Additional options
include wrap around and corner bumpers.

REFRIGERATION

Refrigeration system uses R134a refrigerant, which is CFC and HCFC-free
for compliance with environmental safety concerns. Dual evaporator evens
airflow throughout coolers, completely enveloping contents in a blanket of
cold air.

ELECTRICAL

Units wired at factory and ready for connection to a 115/60/1 phase, 15
amp dedicated outlet. 8’ long cord and plug set included.

SPECIAL FEATURES

 One-piece, reinforced stainless steel floor for maximum support of milk

crates.

 Stainless options available.

SCHOOL MILK COOLERS
DUAL ACCESS, FORCED-AIR

STF SERIES

STF49 (white exterior shown)

STF58 (stainless exterior shown)

ELECTRICAL CONNECTION

Units pre-wired at
factory and include 8’
long cord and plug
set.

MODELS:
STF49
STF58

*Note: Not all markings

may apply to all model variations.

Available From:

Model Specified
Location

Store#
Quantity

STF SERIES School Milk Coolers

Models: STF49, STF58

MODEL STF49 STF58

EXTERNAL DIMENSIONAL DATA

Length Overall (inches)
Length Overall (mm)

Depth Overall (inches)
Depth Overall (mm)

Height Overall— (inches)
Height Overall—(mm)

Number of doors/lids 4 4
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.)

NET Capacity (Liters)
CASE CAPACITIES
13” x 13” x 11” 12 16
19” x 13” x 11” 8 10
ELECTRICAL DATA
Full Load Amperes 115/60/ 1 10.1 10.1

ENERGY CONSUMPTION (KWH) 8.35 5.65
REFRIGERATION DATA

Horsepower 1/2 1/2
WEIGHT DATA
Gross Weight (Crated lbs) 315 463
Gross Weight (Crated kg) 143 210

49”

1245

34 3/16”

868
48”

1219

20.5
581

58”

1473

34 3/16”

868
48”

1219

24.5
694

PLAN VIEWS

STF49

*Note: Not all markings may apply to all model variations.

ELECTRICAL CONNECTION

Units pre-wired at factory and
include 8’ long cord and plug set.

3779 Champion Blvd. • Winston-Salem, NC 27105 USA • [phone] • Fax [phone] • [phone] • www.beverage-air.com

STF58

BEVERAGE-AIR® CORPORATION

Specifications are subject to change without prior notice. 06/13
