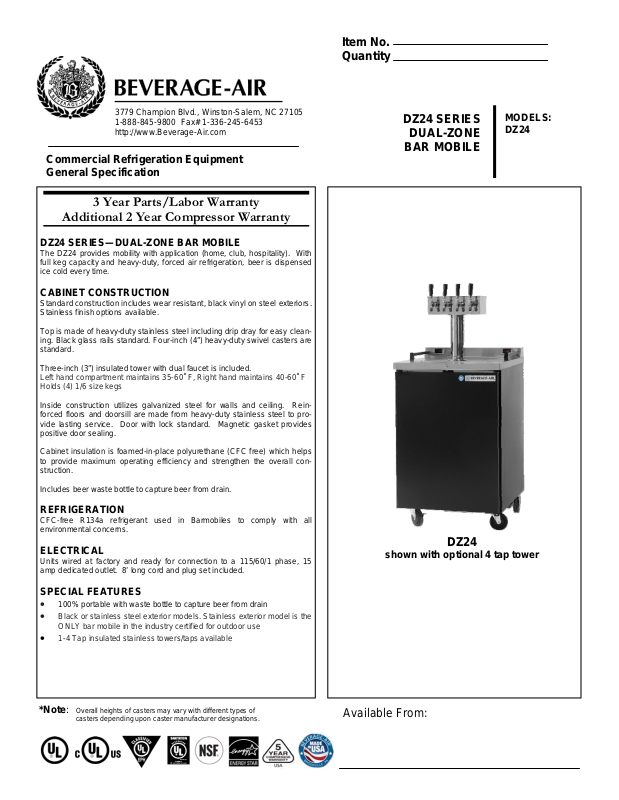

Beverage-Air DZ241B, DZ241S Specifications

Item No.
Quantity

3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# [phone]
http://www.Beverage-Air.com

Commercial Refrigeration Equipment
General Specification

3 Year Parts/Labor Warranty

Additional 2 Year Compressor Warranty

DZ24 SERIES—DUAL-ZONE BAR MOBILE

The DZ24 provides mobility with application (home, club, hospitality). With
full keg capacity and heavy-duty, forced air refrigeration, beer is dispensed
ice cold every time.

CABINET CONSTRUCTION

Standard construction includes wear resistant, black vinyl on steel exteriors.
Stainless finish options available.

Top is made of heavy-duty stainless steel including drip dray for easy clean­ing. Black glass rails standard. Four-inch (4”) heavy-duty swivel casters are
standard.

Three-inch (3”) insulated tower with dual faucet is included.

Left hand compartment maintains 35-60˚ F, Right hand maintains 40-60˚ F
Holds (4) 1/6 size kegs

Inside construction utilizes galvanized steel for walls and ceiling. Rein­forced floors and doorsill are made from heavy-duty stainless steel to pro­vide lasting service. Door with lock standard. Magnetic gasket provides
positive door sealing.

Cabinet insulation is foamed-in-place polyurethane (CFC free) which helps
to provide maximum operating efficiency and strengthen the overall con­struction.

Includes beer waste bottle to capture beer from drain.

REFRIGERATION

CFC-free R134a refrigerant used in Barmobiles to comply with all
environmental concerns.

ELECTRICAL

Units wired at factory and ready for connection to a 115/60/1 phase, 15
amp dedicated outlet. 8’ long cord and plug set included.

SPECIAL FEATURES

100% portable with waste bottle to capture beer from drain


 Black or stainless steel exterior models. Stainless exterior model is the

ONLY bar mobile in the industry certified for outdoor use

 1-4 Tap insulated stainless towers/taps available

DZ24 SERIES

DUAL-ZONE

BAR MOBILE

DZ24

shown with optional 4 tap tower

MODELS:
DZ24

*Note: Overall heights of casters may vary with different types of

casters depending upon caster manufacturer designations.

Available From:

Model Specified
Location

Store#
Quantity

DZ24 SERIES DUAL-ZONE BAR MOBILE

Models: DZ24

MODEL DZ24

EXTERNAL DIMENSIONAL DATA

Length Overall (inches)
Length Overall (mm)

Depth Overall (inches)
Depth Overall (mm)

Height Overall— on casters (inches)*
Height Overall—on casters (mm)*

Clear Door Opening (inches) 48”
Depth With Door Open 90o 48”
Number of doors 1
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.)

NET Capacity (Liters)
Internal Length Overall (inches)

Internal Length Overall (mm)
Internal Depth Overall (inches)

Internal Depth Overall (mm)
Internal Height Overall (inches)

Internal Height Overall (mm)
Number of Kegs (straight wall) 1
ELECTRICAL DATA
Full Load Amperes 115/60/ 1 4.0
REFRIGERATION DATA
Horsepower 1/5
WEIGHT DATA
Gross Weight (Crated lbs) 180
Gross Weight (Crated kg) 82

24”
610

29 1/2”

749

37 3/4”

959

7.8
221

19”
483

23 3/4”

603

29 1/2”

749

PLAN VIEWS

*Note: Overall heights of casters may vary with different types of

casters depending upon caster manufacturer designations.

ELECTRICAL CONNECTION

Units pre-wired at factory and include 8’
long cord and plug set.

BEVERAGE-AIR® CORPORATION

3779 Champion Blvd. • Winston-Salem, NC 27105 USA • [phone] • Fax [phone] • [phone] • www.beverage-air.com

Specifications are subject to change without prior notice. 08/14
