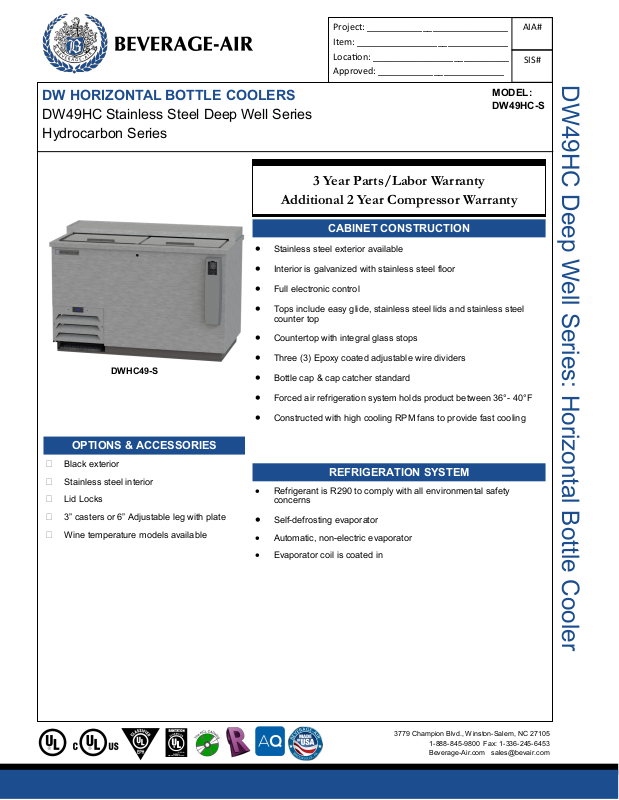

Beverage-Air DW49HCS Specifications
DW HORIZONTAL BOTTLE COOLERS
DW49HC Stainless Steel Deep Well Series
Hydrocarbon Series
Additional 2 Year Compressor Warranty
Stainless steel exterior available
Interior is galvanized with stainless steel floor
Full electronic control
Tops include easy glide, stainless steel lids and stainless steel
counter top
Project: ____________________________
Item: ______________________________
Locaon: ___________________________
Approved: _________________________
3 Year Parts/Labor Warranty
CABINET CONSTRUCTION
AIA#
SIS#
DW49HC Deep Well Series: Horizontal Bottle Cooler
MODEL:
DW49HC-S
DWHC49-S
OPTIONS & ACCESSORIES
Black exterior
Stainless steel interior
Lid Locks
3” casters or 6” Adjustable leg with plate
Wine temperature models available
Countertop with integral glass stops
Three (3) Epoxy coated adjustable wire dividers
Bottle cap & cap catcher standard
Forced air refrigeration system holds product between 36°- 40°F
Constructed with high cooling RPM fans to provide fast cooling
REFRIGERATION SYSTEM
Refrigerant is R290 to comply with all environmental safety
concerns
Self-defrosting evaporator
Automatic, non-electric evaporator
Evaporator coil is coated in
3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax: 1-336-245-6453
Beverage-Air.com sales@bevair.com
MODEL DW49HC-S
EXTERNAL DIMENSIONAL DATA
Width Overall 50”
Depth Overall 26 1/2”
Depth Overall with Cap Catcher 27 3/4”
Height Overall 33 3/4”
Number of Lids 2
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.) 13.7
Internal Width Overall (in) 46”
Internal Depth Overall (in) 22 3/4”
Internal Height Overall at Step (in) 15 1/2”
Internal Height Overall (in) 26 3/4”
Number of Dividers 3
12 oz. Bottle Capacity 17 1/2 Cases
12 oz. Can Capacity 23 3/4 Cases
ELECTRICAL DATA
Full Load Amperes 115/60/1 2.5
REFRIGERATION DATA
Horsepower 1/4
Capacity (BTU/Hr)* 1702
WEIGHT DATA
Gross Weight (Crated lbs) 286 lbs
Height - Crated 40”
Width - Crated 53”
Depth - Crated 29 1/2”
Horizontal Bottle Coolers
Deep Well Models
Models: DW49HC-S
Model Views
Plan View
Elevation View
Side View
ELECTRICAL CONNECTION
Units pre-wired at
factory and include 8’
long cord and plug set.
3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax: 1-336-245-6453
Beverage-Air.com sales@bevair.com
