Best PF6 Installation

Model PF6

For use with these Downdraft Ventilators:

FLEX BLOWER

BEST

Models D49M30SB, D49M36SB,

D49M48SB

(Purchase Downdraft Ventilator separately.)

READ AND SAVE THESE INSTRUCTIONS

Page 1

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. To reduce the risk of fire, use only metal ductwork.

8. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings.

Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

b) Always turn hood ON when cooking at high heat or when

cooking flaming foods.

c) Clean ventilating fans frequently. Grease should not be

allowed to accumulate on fan or filter.

d) Use proper pan size. Always use cookware appropriate

for the size of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immedi- ately, EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN - You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

4. Use an extinguisher ONLY if: A. You know you have a Class ABC extinguisher, and you

B. The fire is small and contained in the area where it

C. The fire department is being called. D. You can fight the fire with your back to an exit.

Based on “Kitchen Firesafety Tips” published by NFPA.

already know how to operate it.

started.

CAUTION

1. For indoor use only.

2. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

4. Clean filters and grease-laden surfaces frequently.

5. Do not repair or replace any part of this appliance unless specifically recommended in this manual. All other servicing should be done by a qualified technician.

6. Please read specification label on product for further information and requirements.

7. To reduce the risk of fire and electric shock, install this blower only with downdraft ventilator models shown below. Other downdraft ventilator models cannot be substituted. (Downdraft ventilators sold separately).

BEST® Models

D49M30SB, D49M36SB, D49M48SB

INSTALLER: Save this manual for Electrical Inspector and Homeowner to use.

CONTENTS

These parts are included with your Flex Blower: 2 - blower mounting legs* 1 - Parts Bag containing:

(4) wood screws #10 x .50* (4) blower mount brackets (1) strain relief bushing (8) screws #10 x .38 (8) nuts #10

* For use when mounting Flex Blower directly to Downdraft

housing. (See Downdraft instruction manual.)

PLAN THE INSTALLATION

Model PF6

Page 2

(4) MOUNTING BRACKETS attached with 1/4-20 X .50 HEX HEAD SCREWS

(6) MOUNTING

BRACKET

LOCATIONS

If you choose to mount the Flex Blower directly to the Downdraft housing: Remove the inlet cover (taped in place for shipping) and discard inlet cover. Refer to installation instructions in the Downdraft manual.

If you choose to mount the Flex Blower in a remote location, (such as the cabinet back, cabinet side, or floor joists) - follow the instructions below.

INSTALL FLEX BLOWER IN REMOTE LOCATION

NOTE: THE FLEX BLOWER MUST BE INSTALLED WITHIN 4-FEET OF THE DOWNDRAFT’S ELECTRICAL PANEL.

The Electrical Panel can be mounted directly to the Downdraft housing - or mounted in a remote location (always within 4-feet of the Flex Blower).

BLOWER

INLET

COVER

INLET

(from downdraft)

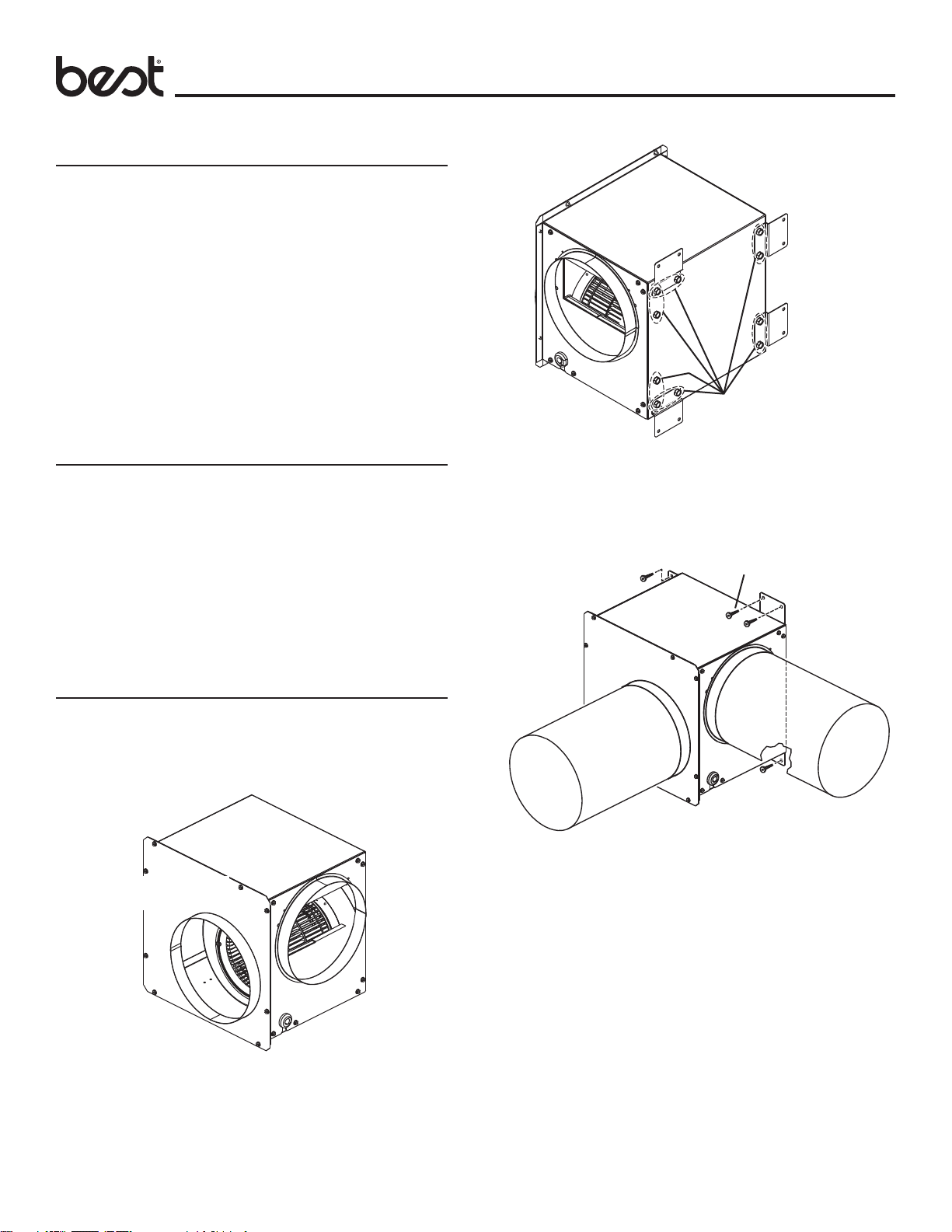

1. Position inlet cover over blower wheel. Securely attach the inlet cover to the blower with 8 screws and 8 nuts from parts bag. Note that inlet cover is taped to blower for shipping. This tape may be removed.

2. Determine how the 8” round INLET and OUTLET ductwork will connect to the Flex Blower.

OUTLET (to roof cap or wall cap)

3. Remove the necessary 1/4-20 x .50 hex head screws and attach

4 MOUNTING BRACKETS to the Flex Blower - using 4 of the 6 POSSIBLE BRACKET MOUNTING LOCATIONS.

MOUNTING SCREWS

(not included)

8-IN.

ROUND

8-IN.

ROUND

DUCT

(from

downdraft)

4. Mount Flex Blower to back of cabinet, floor joist, or adequate framework (constructed by installer) with appropriate MOUNTING SCREWS (not included).

5. Connect 8” ROUND DUCT from Downdraft housing to Flex Blower inlet and from Flex Blower outlet to roof or wall cap.

For best performance: Choose the ducting option which allows the shortest length of ductwork and a minimum number of elbows and transitions. Check location of floor joists, wall studs, electrical wiring or plumbing for possible interference.

6. Use strain relief bushing (provided) to attach Flex Blower wiring to wiring box on Downdraft’s electrical panel and make wiring connections. (See Downdraft manual for instructions.)

DUCT (to roof cap or wall cap)

SERVICE PARTS

Model PF6

Page 3

KEY PART DESCRIPTION QTY NO. NUMBER

1 97020267 Inlet Cover - including: 1 8 screws, #10 x 3/8 8 nuts, #10 2 97017924 Blower (complete) 1 (includes key nos. 7-11 & Hardware Bag) + 97018828 Hardware Bag - containing: 1 1 retaining ring 4 grommets 4 screws, M4 x 16.8mm 3 screws, M4 x 0.7 x 16mm 1 screw, M4 x 0.7 x 12mm 3 97020266 Blowerbox End - Blower Mount 1 (includes strain relief) 4 99271511 Wire Harness 1 (includes strain relief) 5 98011179 Blower Mounting Legs 2 6 97020268 Parts Bag - containing: 1 4 blower mounting brackets 4 wood screws, #10 x .50 1 strain relief bushing 8 screws, #10 x .38 8 nuts, #10 10 screws, 1/4 x .50 7 99111448 Blower Housing, Motor 1 8 99111447 Blower Housing, Inlet 1 9 99271379 Capacitor 1 10 99020298 Blower Wheel 1 11 99080629 Motor 1

+ Not Shown

WARRANTY

Model PF6

Page 4

ONE YEAR LIMITED WARRANTY

FOR BEST

Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of BEST

PRODUCTS

products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service.

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions.

The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties.

To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.

In USA: BEST In Canada: BEST

, 926 West State Street, Hartford, Wisconsin 53027 800-558-1711

, 550 Bd Lemire, Drummondville, QC J2C 7W9 866-737-7770

www.BestRangeHoods.com
