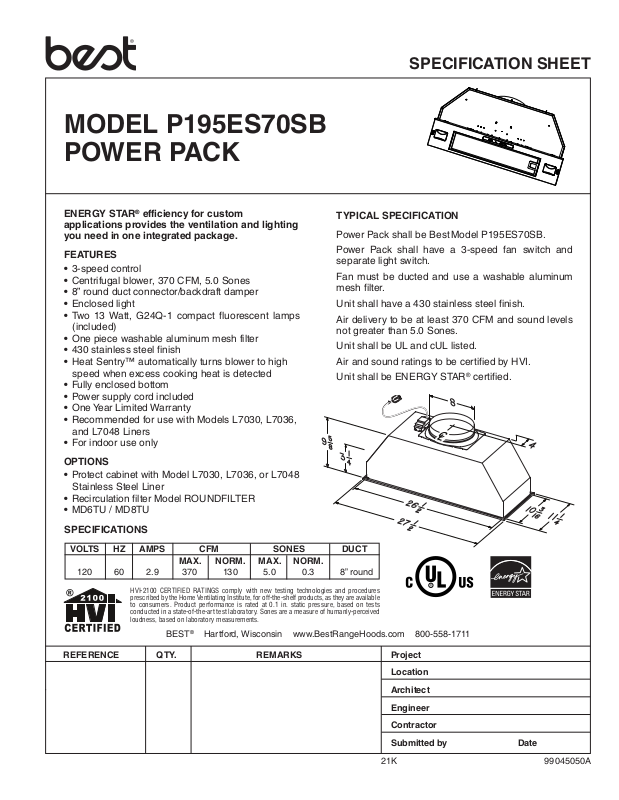

Best P195ES70SB Specifications

MODEL P195ES70SB

POWER PACK

SPECIFICATION SHEET

ENERGY STAR® efficiency for custom applications provides the ventilation and lighting you need in one integrated package.

FEATURES

• 3-speed control

• Centrifugal blower, 370 CFM, 5.0 Sones

• 8” round duct connector/backdraft damper

• Enclosed light

• Two 13 Watt, G24Q-1 compact fluorescent lamps

(included)

• One piece washable aluminum mesh filter

• 430 stainless steel finish

• Heat Sentry™ automatically turns blower to high

speed when excess cooking heat is detected

• Fully enclosed bottom

• Power supply cord included

• One Year Limited Warranty

• Recommended for use with Models L7030, L7036,

and L7048 Liners

• For indoor use only

OPTIONS

• Protect cabinet with Model L7030, L7036, or L7048 Stainless Steel Liner

• Recirculation filter Model ROUNDFILTER

• MD6TU / MD8TU

TYPICAL SPECIFICATION

Power Pack shall be Best Model P195ES70SB.

Power Pack shall have a 3-speed fan switch and separate light switch.

Fan must be ducted and use a washable aluminum mesh filter.

Unit shall have a 430 stainless steel finish.

Air delivery to be at least 370 CFM and sound levels not greater than 5.0 Sones.

Unit shall be UL and cUL listed.

Air and sound ratings to be certified by HVI.

Unit shall be ENERGY STAR® certified.

SPECIFICATIONS

VOLTS HZ AMPS CFM SONES DUCT MAX. NORM. MAX. NORM.

120 60 2.9 370 130 5.0 0.3 8” round

HVI-2100 CERTIFIED RATINGS comply with new testing technologies and procedures prescribed by the Home Ventilating Institute, for off-the-shelf products, as they are available to consumers. Product performance is rated at 0.1 in. static pressure, based on tests conducted in a state-of-the-art test laboratory. Sones are a measure of humanly-perceived loudness, based on laboratory measurements.

BEST® Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

21K 99045050A
