K260A SERIES
RANGE HOOD
Provides high ventilation and durable construction
to meet the needs of professional-style cooking
appliances. A complete installation requires several
optional components.
FEATURES
430 Stainless Steel construction - 22 gauge
•
Hood width: 30” to 60” in 6” increments
•
Halogen lighting (2 x 50 watt GU10 for 30”, 36” and 42”
•
hood, 4 x 50 watt GU10 for 48”, 54” and 60” hood)
Lamps included
Switch controls: lighting, on-off, blower infinite speed
•
Easily accessible, dishwasher-safe filters
•
Heat Sentry turns blower ON to HIGH speed when
•
excess heat is detected
SPECIFICATION SHEET
OPTION
Backsplash (RMP Series): Widths - 30” to 60” in 6”
•
increments. Stainless Steel construction - protects back
wall and wipes clean easily
Decorative flue (FK260SS Series): Widths - 30” to 60”
•
in 6” increments
Stainless Steel construction - hides ducting and wipes
clean easily
Designed for use with interior blower models P6 or P12,
•
exterior blower models EB6, EB9, EB12, or EB15, and
I
in-line blower models
(Purchase blowers separately)
Baffle filters available (BFK Series)
•
SPECIFICATIONS
120 VAC, 60 Hz
Amps for 36” hood (without blower): 0.8 A
Amps for 48” hood (without blower): 1.7 A
REFERENCE QTY. REMARKS Project
LB3, ILB6, ILB9 or ILB11
BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027
Location
Decorative Flue
FK260SS Series
Backsplash
RMP Series
Architect
Engineer
Contractor
Submitted by Date
70B 99044049A
- 3 -
-

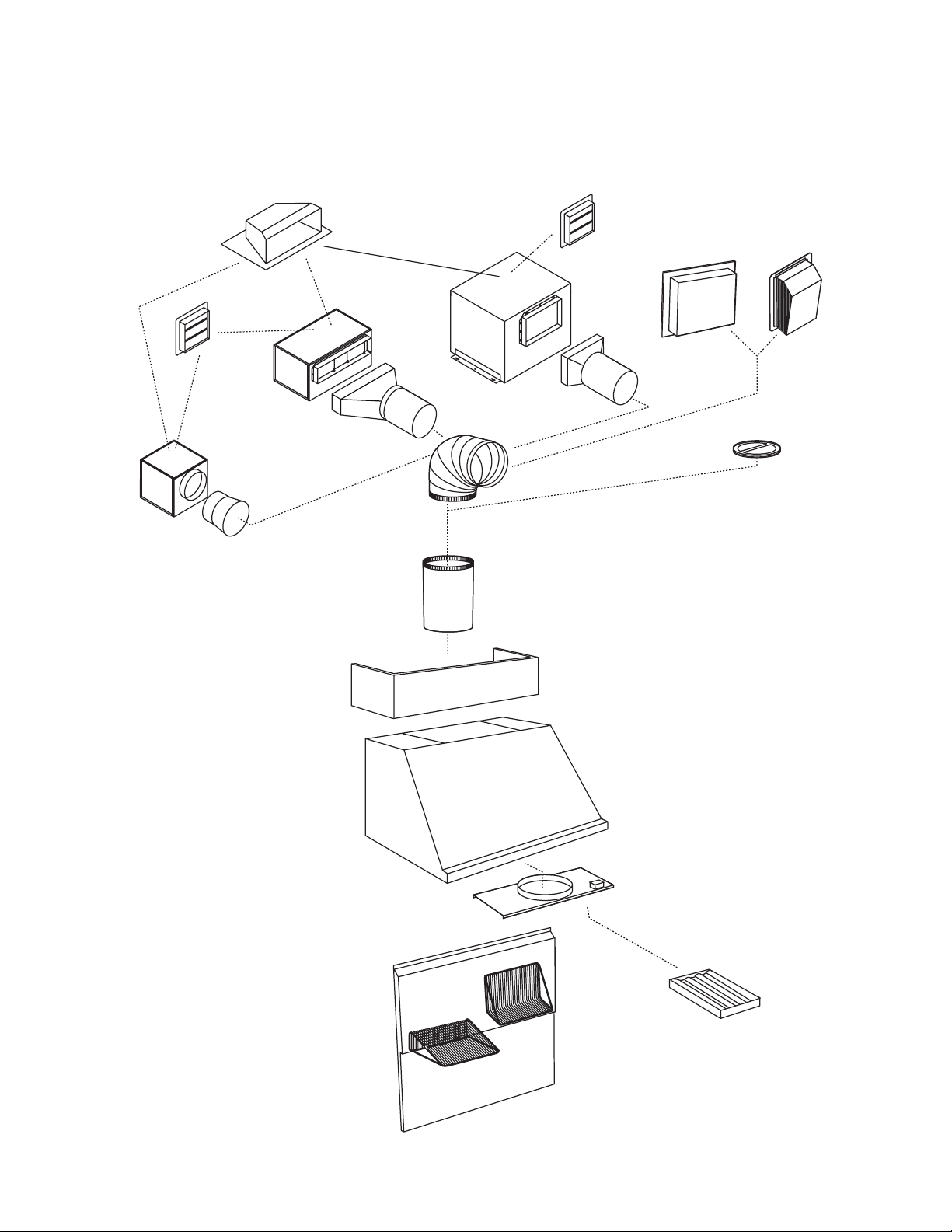

K260A SERIES
RANGE HOOD SYSTEM -
INTERIOR BLOWERS
Model 415
(7” round adjustable
elbow, optional)
Model 647
(7” round wall cap)
Model 634 or 644
(roof cap)
Model 407 (7”
round duct—
2 ft. sections)
Model P6
Blower/Rough-in kit
(600 cfm Interior
Blower & Rough-in
Plate)
Baffle Filters
BFK Series
(optional)
Backsplash (RMP Series)
(Stainless steel wall covering with
warming shelves. Optional)
Model P12 Blower/Rough-in kit
(1200 cfm Interior Blower &
Rough-in Plate)
K260A Series Hood
(Canopy with blower
controls & lighting.
Required for
all installations.)
FK260 Series
Soffit Chimney
(optional)
Model 427
(4½” x 18½”
to 10” round,
6” high - lateral
Model 423
(4½” x 18½” to
10” round - vertical
Model 424
(4½” x 18½” to
10” round -
horiz. front/rear
Model 454
(4½” x 18½”
to 10” round -
horiz. /right
Model 453
(4½” x 18½”
to 10” round -
horiz. /left
Model 437
(High capacity roof cap)
Model 441
(10’’ round wall cap)
Model 410
(10” round duct—
2 ft. sections)
Model 418
(10” round
adjustable elbow,
optional)
HL0077
- 4 -
-
K260A SERIES
RANGE HOOD SYSTEM -
IN-LINE AND EXTERIOR BLOWERS
Baffle Filters
BFK Series
(optional)
Backsplash (RMP Series)
(Stainless steel wall covering with
warming shelves. Optional)
K260A Series Hood
(Canopy with blower
controls & lighting.
Required for
all installations.)
FK260 Series
Soffit Chimney
(optional)
In-line and exterior blower rough-in kit
(included with EB6, EB9, EB12, EB15,
ILB3, ILB6, ILB9 and ILB11 blowers).
Model 418
10” Rd
adjustable elbow
(optional)
Model ILB3 (280 cfm)
in-line blower
(includes one 8” to 10”
round transition)
Model EB6 (600 cfm)
or EB9 (900 cfm)
exterior blower
Model EB12 (1200 cfm)
or EB15 (1500 cfm)
exterior blower
Model 437
(High capacity roof cap)
Model 441
(10” round wall cap)
Model 441
(10” round
wall cap)
Model 421
(10” round vert.
in-line damper)
Recommended
for use with
exterior blowers
Model 410
(10” round duct —
2 ft. sections)
Model ILB6 (600 cfm)
in-line blower (includes
two 4½” x 18½” to 10’’
round transitions)
Model ILB9 (800 cfm)
or ILB11 (1100 cfm)
in-line blower
(includes two 8” x 12” to
10’’ round transitions)
HL0078
