Bertazzoni X304PIRNE, X304PIRCR, X304PIRBI, X304PIRX, X304PIRRO User Manual

...

INSTALLATION, USE & CARE MANUAL

30” FREESTANDING DUAL FUEL RANGES

Models X304PIRX [M7S0PTU(4,6)X(2,5)D] Models X304PIRBI [M7S0PTU(4,6)W(2,5)D] Models X304PIRCR [M7S0PTU(4,6)D(2,5)D] Models X304PIRGI [M7S0PTU(4,6)I(2,5)D] Models X304PIRRO [M7S0PTU(4,6)R(2,5)D] Models X304PIRVI [M7S0PTU(4,6)L(2,5)D] Models X304PIRVE [M7S0PTU(4,6)V(2,5)D] Models X304PIRBL [M7S0PTU(4,6)U(2,5)D] Models X304PIRNE [M7S0PTU(4,6)N(2,5)D]

310412

From the desk of the President

Dear new owner of a Bertazzoni product,

I want to thank you for choosing one of our beautiful PRO ranges. We know that you have many brands and products to choose from and we are thrilled that you have decided to take one of your

BERTAZZONI SpA

Via Palazzina 8

42016 Guastalla RE

ITALY

products into your home.

We take as much pride in making our ranges as we hope you will in owning them. My family started manufacturing cooking appliances in 1882. Each of our products is a blend of Italian design finesse and superior appliance technology. While we can not replace your unique talent at cooking delicious recipes for yourself, your family and your friends, we try our best to make cooking easier, more effective and more fun.

WWW.BERTAZZONI‐ITALIA.COM

Our appliances are designed according to the strictest safety and performance standard for the European and the North American market. We follow the most advanced manufacturing philosophy. Each appliance leaves the factory after thorough quality inspection and testing. Our distributors and our service partners are ready to answer any questions you may have regarding how to install, use and care for your Bertazzoni product.

This manual will help you learn to use the product in the safest and most effective manner and care for it so that it may give you the highest satisfaction for years to come.

The manual also includes directions for the professional installer that will install the product in your home. We recommend using factory‐trained professionals for the delicate task of installing and testing appliances in your home. Please call Customer Service if you need help locating a factory‐trained professional installer in your area.

Please keep this manual for future use.

Grazie!

TABLE OF CONTENTS

WARRANTY AND SERVICE........................................................................................................................................ 5

CUSTOMER SERVICE....................................................................................................................................................... 5

REPLACEMENT PARTS .................................................................................................................................................... 5

IMPORTANT SAFETY INFORMATION ........................................................................................................................ 6

BEFORE INSTALLATION ............................................................................................................................................ 9

INSTALLING THE LEGS............................................................................................................................................ 10

INSTALLING THE WORKTOP FRONTGUARD ............................................................................................................ 10

INSTALLING THE BACKGUARD................................................................................................................................ 11

INSTALLATION REQUIREMENTS .............................................................................................................................12

ELECTRICAL .................................................................................................................................................................. 12

GAS............................................................................................................................................................................... 12

INSTALLATION ADJACENT TO KITCHEN CABINETS................................................................................................... 13

EXHAUST HOOD INSTALLATION ............................................................................................................................. 13

ELECTRICAL CONNECTION...................................................................................................................................... 14

WIRING DIAGRAM................................................................................................................................................. 17

GAS CONNECTION ................................................................................................................................................. 18

PRESSURE REGULATOR ................................................................................................................................................ 19

GAS CONVERSION ................................................................................................................................................. 19

STEP 1: PRESSURE REGULATOR ................................................................................................................................... 19

STEP 2: SURFACE BURNERS..........................................................................................................................................20

STEP 3: MINIMUM FLAME ADJUSTMENT ....................................................................................................................20

GAS BURNERS DATA TABLES.................................................................................................................................. 21

INSTALLATION CHECKLIST...................................................................................................................................... 22

FINAL PREPARATION ............................................................................................................................................. 22

USER MANUAL ......................................................................................................................................................23

ROOM VENTILATION ............................................................................................................................................. 23

SURFACE BURNER LAYOUT ....................................................................................................................................24

SURFACE COOKING................................................................................................................................................ 24

SYMBOLS...................................................................................................................................................................... 24

SURFACE BURNER OPERATION....................................................................................................................................25

TIPS FOR USING BURNERS CORRECTLY........................................................................................................................ 25

TIPS FOR USING PANS CORRECTLY .............................................................................................................................. 26

OVEN COOKING..................................................................................................................................................... 26

SYMBOLS...................................................................................................................................................................... 27

OVEN RACKS ................................................................................................................................................................ 27

OVEN FUNCTION SELECTOR.........................................................................................................................................27

USING THE OVEN................................................................................................................................................... 28

OVEN LIGHT .................................................................................................................................................................28

COOLING FANS............................................................................................................................................................. 28

FRONT INDICATOR LIGHTS........................................................................................................................................... 28

SOUND BUZZER............................................................................................................................................................ 28

OVEN CONVECTION FAN.............................................................................................................................................. 28

BAKE .....................................................................................................................................................................29

PREHEATING THE OVEN .....................................................................................................................................29

GETTING THE BEST RESULTS ..............................................................................................................................29

BAKEWARE TYPE................................................................................................................................................. 29

BAKE RACK POSITIONS ....................................................................................................................................... 29

CONVECTION......................................................................................................................................................... 29

CONVECTION....................................................................................................................................................... 29

CONVECTION BAKE............................................................................................................................................. 29

TURBO ................................................................................................................................................................. 29

RACK POSITIONS................................................................................................................................................. 30

BAKING RECOMMENDATIONS........................................................................................................................... 31

WARMING............................................................................................................................................................. 31

PROOFING............................................................................................................................................................. 31

DEHYDRATE........................................................................................................................................................... 32

BROIL / CONVECTION BROIL .................................................................................................................................. 33

BROILING AND ROASTING RECOMMENDATIONS ................................................................................................... 34

CARE AND MAINTENANCE ..................................................................................................................................... 35

SELF‐CLEANING THE OVEN..................................................................................................................................... 35

MAINTAINING YOUR RANGE.................................................................................................................................. 36

CLEANING YOUR RANGE........................................................................................................................................ 36

TROUBLESHOOTING GUIDE.................................................................................................................................... 37

LOCATION OF APPLIANCE TAGS ............................................................................................................................. 38

IMPORTANT APPLIANCE INFORMATION ................................................................................................................39

WARRANTY AND SERVICE

All Bertazzoni products carry a 2 year parts and labour warranty.

Service on all Bertazzoni products shall be carried out by factory‐trained professionals only.

For warranty service please contact Customer Service at the numbers indicated below.

CUSTOMER SERVICE

English/Spanish hotline (866) 905‐0010 French (800) 561‐7625

Fax (714) 428‐0040

BERTAZZONIHELP@SERVICEPOWER.COM

Mailing address

SERVICEPOWER

1503 South Coast drive

Suite 320

Costa Mesa CA 92626

REPLACEMENT PARTS

Only Bertazzoni replacement parts may be used in performing service on the appliance.

Replacement parts are available from factory authorized parts distributors.

AP Wagner PHONE

Reliable Parts PHONE 206 5758818 FAX 206 5750910

Coast PHONE 800 821 0244 FAX 604 321 6646

1 888 279 2463 FAX 716 856 4779

IMPORTANT SAFETY INFORMATION

PLEASE READ AND FOLLOW THESE IMPORTANT INSTRUCTIONS FOR THE SAFETY OF YOUR HOME AND OF

THE PEOPLE LIVING IN IT.

Save this Manual for local electrical inspector’s use.

Read and save these instructions for future reference.

Observe all governing codes, ordinances and regulations.

WARNING!

If the information in this manual is not followed exactly, a fire or explosion may result causing property

damage, personal injury or death.

Do not store or use gasoline or other flammable substances in the vicinity of this or any other appliance.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

In Massachusetts: All gas products must be installed by a "Massachusetts" licensed plumber or gasfitter. A "T" handle type manual gas valve must be installed in the gas line connected to this appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Immediately call your gas supplier from a neighbour’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas suppliers, call the fire department.

Warning!

This range can tip. Injury to persons could result. Install anti-tip device shipped with range. See Installation Instructions.

WARNING!

Read this instruction booklet before installing and using the appliance.

The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance.

The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics.

This appliance has been designed for non‐professional, domestic use only.

Do not use this appliance to heat a room.

Do not place any pot or pan on the open oven door. The door is made of glass and it can break if loaded with a weight.

Before beginning installation, please read these instructions completely and carefully.

Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty. ‐Please observe all local and national codes and ordinances.

Please ensure the range is properly grounded.

The installer should leave these instructions with the consumer who should retain for local inspector's use and for future reference.

The plug should always be accessible.

Installation must conform with local codes or in the absence of codes, the National Fuel Gas Code NSIZ223.1‐latest edition. Electrical installation must be in accordance with the National Electrical Code, ANIS/NFPA70 ‐ latest edition and/or local codes. IN CANADA: Installation must be in accordance with the current CAN/CGA‐B149.1 National Gas Installation Code or CAN/CGA‐B 149.2, Propane Installation Code and/or local codes. Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical Codes Part 1 and/or local codes.

Installation of any gas‐fired equipment should be made by a licensed plumber. A manual gas shut‐off valve must be installed in the gas supply line ahead of the oven in the gas flow for safety and ease of service.

PRODUCT SPECIFICATIONS

Dimensions (insert drawings front, side and back)

Weight

Burner power

Auxiliary 3400 BTU/h

Semi‐rapid 6100 BTU/h

Rapid 10400 BTU/h

Dual burner (inner) 2800 BTU/h

Dual burner ( outer) 12000 BTU/h

BEFORE INSTALLATION

This appliance shall only be installed by an authorized professional.

This appliance shall be installed in accordance with the manufacturer’s installation instructions.

This appliance must be installed in accordance with the norms & standards of the country where it will be installed. The installation of this appliance must conform to local codes and ordinances. In the absence of local codes, Installations must conforms to American National Standards, National Fuel Gas Code ANSI Z223.1 – latest edition** or B149.1.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70.

If local codes permit, a flexible metal appliance connection with the new AGA or CGA certified design, max. 5 feet (1,5 m) long, ½” I.D. is recommended for connecting this appliance to the gas supply line. Do not bend or damage the flexible connector when moving the appliance.

This appliance must be used with the pressure regulator provided. The regulator shall be properly installed in order to be accessible when the appliance is installed in its final location. The pressure regulator must be set for the type of gas to be used. The pressure regulator has ½” female pipe thread. The appropriate fitting must be determined based on the size of your gas supply line, the flexible metal connector and the shutoff valve.

The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than ½ psi (3.5 kPa).

WARNING!

Do not use aerosol sprays in the vicinity of this

appliance while it is in operation

ROOM VENTILATION: An exhaust fan may be used with the appliance; in each case it shall be installed in conformity with the appropriate national and local standards. Exhaust hood operation may affect other vented appliances; in each case it shall be installed in conformity with the appropriate national and local standards.

TYPE OF GAS

This appliance is shipped from the factory for use with natural gas. For use with propane LP gas please follow the conversion procedure described on pg. 17. A step by step conversion procedure is also included with each set of LP gas nozzles.

GAS PRESSURE

The maximum inlet gas supply pressure incoming to the gas appliance pressure regulator is 20’’ water column (5 kPa) .

The minimum gas supply pressure for checking the regulator setting shall be at least 1“ w.c. (249 Pa) above the inlet specified manifold pressure to the appliance (this operating pressure is 4” w.c. (1.00 kPa) for Natural Gas and 11” w.c. (2.75 kPa for LP Gas).

All opening and holes in the wall and floor, back and under the appliance shall be sealed before installation of the appliance.

A manual valve shall be installed in an accessible location in the gas line external to the appliance for the purpose of turning on or shutting off gas to the appliance

INSTALLING THE LEGS

INSTALLING THE WORKTOP

Bertazzoni ranges must be used only with the legs properly installed.

Four height‐adjustable legs are shipped with the range in the polystyrene container situated over the appliance.

Before installing the legs, position the appliance near its final location as the legs are not suitable for moving the appliance over long distances.

After unpacking the range, raise it enough to insert the legs in the appropriate receptacles situated on the lower part of the appliance. Lower the range gently to keep any undue strain from legs and mounting hardware. If possible use a pallet or lift jack instead of tilting the unit.

Adjust leg height to the desired level by twisting the inside portion of the leg assembly until the proper height is reached. Check with a level that the cooktop is perfectly level.

FRONTGUARD

To increase the clearance between the front edge of the worktop and the burners it is possible to install the worktop front guard shipped with the appliance.

To install the front guard, hold it with the pointed edges looking up. Align the edges of the front guard with the appropriate receptacles in the bottom of the worktop and press firmly until the front guard is securely attached to the worktop.

ATTENTION: once installed the front guard may only be removed by disassembling the worktop. Attempting to remove the front guard without disassembling the worktop will result in permanent damage to the worktop.

INSTALLING THE BACKGUARD

The back guard must be installed prior to operation of the appliance for appropriate ventilation of the oven compartment.

The supplied back guard is a 2‐part assembly. The box also contains a set of metal screws for securing the back guard to the worktop.

2 lateral screws from the bottom.

Disassemble the back guard and position the front part on the worktop. Align the screw holes with the corresponding holes at the back of the worktop.

If the holes are not aligned, partially loosen the brackets at the back of the worktop as shown below.

Install the front part of the back guard by tightening the 2 central screws from the top and

INSTALLING THE ANTI‐TIP Stability DEVICE

The anti‐tip bracket shipped with the range must be properly secured to the rear wall as shown in the picture below.

INSTALLATION REQUIREMENTS

The height of the bracket from the floor must be determined after the range legs have been adjusted to the desired height and after the range has been levelled.

Measure the distance from the floor to the bottom of the anti‐tip bracket receptacle on the back of the appliance.

Position the two anti‐tip brackets on the wall at the desired height plus 1/8" (0.32 cm). The brackets must be placed at 2”5/16 (6,0 cm) from the side of the range. The distance between the two bracket is 25”1/4 (64,1 cm).

Secure the brackets to the wall with appropriate hardware.

Slide the range against the wall until the brackets are fully inserted into their receptacles on the back of the range.

ELECTRICAL

A properly grounded and horizontally‐mounted electrical receptacle Type NEMA 14‐50R should be installed no higher than 3" (7.6 cm) above the floor, no less than 2” (5 cm) and no more than 8” (20,3 cm) from the right side (facing product); refer to ELECTRICAL CONNECTION section pag.

13.

Check all local code requirements.

GAS

An agency‐approved, properly‐sized manual shut‐ off valve should be installed no higher than 3" (7.6 cm) above the floor and no less than 2” (5 cm) and no more than 8” (20.3 cm) from the left side (facing product).

To connect gas between shut‐off valve and regulator, use agency‐approved, properly sized flexible or rigid pipe. Check all local code requirements.

INSTALLATION ADJACENT TO KITCHEN

CABINETS

This range may be installed directly adjacent to existing countertop high cabinets (36" or 91.5 cm from the floor).

For the best look, the worktop should be level with the cabinet countertop. This can be accomplished by raising the unit using the adjustment spindles on the legs.

ATTENTION: the range CANNOT be installed directly adjacent to kitchen walls, tall cabinets, tall appliances, or other vertical surfaces above 36" (91.4 cm) high. The minimum side clearance in such cases is 6" (15.2 cm).

Wall cabinets with minimum side clearance must be installed 18" (45.7 cm) above the countertop with countertop height between 35 ½” (90.2 cm) and 37 ¼” (94.6 cm). The maximum depth of wall cabinets above the range shall be 13" (33.0 cm)

A 30” (76,2 cm) B 36” (91,5 cm) C 13” (33,0 cm) D 18” (45,7 cm) E 35”1/2(90,2 cm) / 37” ¼ (94,6 cm) F 6” (15,2 cm)

EXHAUST HOOD INSTALLATION

This range will best perform when used with PRO line Bertazzoni exhaust hoods. These hoods have been designed to work in conjunction with the Bertazzoni range and have the same finish for a perfect look.

For maximum performance, the height of the bottom of the hood from the worktop should be between 25 1/2" (65 cm) and 31 1/2" (80 cm). This would typically result in the bottom of the hood being 61 1/2" (156.2 cm) to 67 1/2" (171.5 cm) above the floor. These measurements provide for safe and efficient operation of the hood.

Before installation of the exhaust hood, consult local or regional building and installation codes for additional specific clearance requirements.

Refer to the range hood installation instructions provided by the manufacturer for additional information.

ELECTRICAL CONNECTION

The appliance shall be connected to a single phase electric line rated at 120/208Vac or 120/240Vac and 60Hz frequency.

Electric power rating:

‐ 120/208Vac: 4400 Watt or 21 A max. ‐ 120/240Vac: 5500 Watt or 24 A max.

Heating elements power rating:

‐ Oven bake element = 2100 Watt ‐ Oven circular element = 3300 Watt ‐ Oven broil element = 3400 Watt

Install a suitable electric power supply receptacle connection type NEMA 14‐50R able to support a load of at least 30 A (per line) according to local code requirements. For four or three wires power supply connection system see diagram below.

FOUR-WIRE CONN.RECEPTACLE NEMA 14-50R

THREE-WIRE CONN.RECEPTACLE NEMA 14-50R

‐ Connect the NEUTRAL receptacle terminal to

the incoming NEUTRAL (WHITE) electrical supply wire

‐ Connect the GROUND receptacle terminal to

the incoming GROUND (GREEN) electrical supply wire

OPTION 2 - THREE-Wires connection:

‐ Connect the L1 receptacle terminal to the

incoming BLACK electrical supply wire (L1‐hot wire)

‐ Connect the L2 receptacle terminal to the

incoming RED electrical supply wire (L2‐hot wire)

‐ Connect the NEUTRAL with the GROUND

receptacle terminal to the incoming NEUTRAL (WHITE) electrical supply wire

DO NOT USE EXTENSION CORDS WITH THIS APPLIANCE AS IT MAY RESULT IN FIRE, ELECTRIC SHOCK OR OTHER type of PERSONAL INJURY.

The appliance is equipped at the factory with an electric supply cord set 4 wires type with ring terminals (L1, L2, N, Ground) suitable for range use UL/CSA listed type SRDT/DRT 2x6AWG (L1, L2)+2x8AWG (N, G) rated 300V, 40 or 50A with fused plug type NEMA 14‐50P; cable length 1,5 m.; in case the supply cord set must be replaced, it shall be replaced with an identical set having the same technical specs and following carefully the instructions and diagrams below:

1) Disconnect appliance from electrical power supply receptacle

2) Slide out the appliance from installation place to access to back enclosure panel

3) Remove back enclosure panel by removing the 6 screws as shown below

Check your local code for which of the options below should be used in grounding the receptacle power supply connections.

OPTION 1 – FOUR Wires connection:

‐ Connect the L1 receptacle terminal to the

incoming BLACK electrical supply wire (L1‐hot wire)

‐ Connect the L2 receptacle terminal to the

incoming RED electrical supply wire (L2‐hot wire)

4) Loose strain relief by unscrewing the two strain relief's screws as in diagram.

5) Remove damaged supply cord set by taking off the 4 electrical connection screws (block L1, N, L2 and Ground screw, see diagram)

6) Insert the new supply cord set in the strain relief and lock it with two strain relief's screws in suitable position.

7) Fix well the ring terminals G, L1, N, L2 of the new supply cord set as shown in diagram with its 4 screws

8) Re‐install the back enclosure panel with 6 screws

9) Slide the appliance back into its proper location

10) Re‐connect the appliance to the electrical power.

ELECTRICAL GROUNDING

This appliance is equipped with a four‐prong plug for your protection against shock hazard and should be plugged directly into a properly grounded receptacle. Do not cut or remove the grounding prong from this plug.

WARNING!

ELECTRICAL SHOCK HAZARD

Disconnect electrical power at the circuit

breaker box or fuse box before installing the

appliance.

Provide appropriate ground for the appliance.

Use copper conductors only.

Failure to follow these instructions could result

in serious injury or death

CAUTION

Label all wires prior to disconnecting when

servicing controls. Wiring errors can cause

improper and dangerous operation.

Verify proper operation after servicing

LOCATION OF APPLIANCE PLATES

The data rating plate shows the model and serial number of your range. It is located under the front edge of the range cooktop, and is visible when the oven door is open (see illustration)

A= Rating plate(s) located under front edge of cooktop

B= Wiring / schematic diagram placed on backside panel and on installation booklet

WIRING DIAGRAM

GAS CONNECTION

All gas connections must comply with national and local codes. The gas supply line (service) must be the same size or greater than the inlet line of the appliance. This range uses a 1/2" NPT inlet (see drawing below for details of gas connection). On all pipe joints use appropriate sealant resistant to gas.

This range can be used with Natural or LP/Propane gas. The range is shipped from the factory for use with natural gas.

For LP/propane household installation, the appliance must be converted by the dealer, by a factory‐trained professional or by a qualified licensed plumber or gas service company.

Gas conversion is important for safe and effective use of the appliance. It is the responsibility of the dealer and the owner of the range to perform the appropriate gas conversion following the directions of the manufacturer.

THE GAS CONVERSION PROCEDURE IS

DESCRIBED IN THIS MANUAL AND IN THE

PACKAGE CONTAINING THE CONVERSION

NOZZLES SHIPPED WITH EVERY RANGE.

Please provide the service person with this manual before work is started on the range.

MANUAL SHUT‐OFF VALVE

THIS VALVE IS NOT SHIPPED WITH THE

APPLIANCE AND MUST BE SUPPLIED BY THE

INSTALLER.

The manual shut‐off valve must be installed in the gas service line between the gas hook‐up on the wall and the appliance inlet, in a position where it can be reached quickly in the event of an emergency.

In Massachusetts: A 'T' handle type manual gas valve must be installed in the gas supply line to this appliance.

FLEXIBLE CONNECTIONS

In case of installation with flexible couplings and/or quick‐disconnect fittings, the installer must use a heavy‐duty, AGA design‐certified commercial flexible connector of at least 1/2" (1.3 cm) ID NPT (with suitable strain reliefs) in compliance with ANSI Z21.41 and Z21.69 standards.

In Massachusetts: The unit must be installed with a 36" (3‐foot) long flexible gas connector.

In Canada: use CAN 1‐6.10‐88 metal connectors for gas appliances and CAN 1‐6.9 M79 quick disconnect device for use with gas fuel.

WARNING!

DO NOT USE AN OPEN FLAME WHEN CHECKING

FOR LEAKS!

Leak testing of the appliance shall be conducted according to the manufacturer's instructions. Before placing the oven into operation, always check for leaks with soapy water solution or other acceptable method.

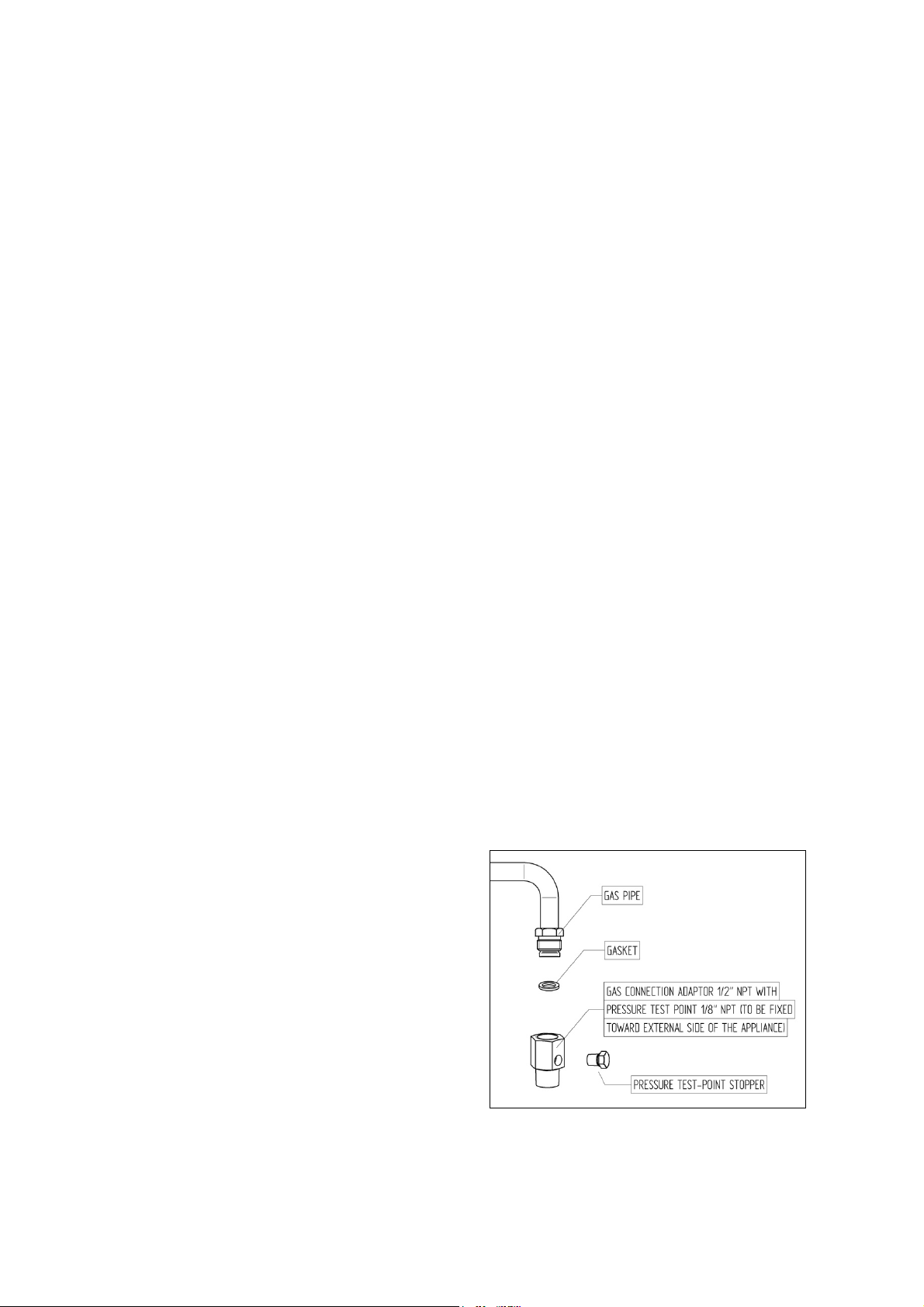

PRESSURE TEST‐POINT STOPPER VALVE

To avoid gas leaks, the pressure test‐point stopper valve and gasket supplied with the range must be installed on the gas fitting at the back of the range according to the diagram below.

PRESSURE REGULATOR

Since service pressure may fluctuate with local demand, every gas cooking appliance must be equipped with a pressure regulator on the incoming service line for safe and efficient operation.

The pressure regulator shipped with the appliance has two female threads ½” NPT. The regulator shall be installed properly in order to be accessible when the appliance is installed in its final position.

Manifold pressure should be checked with a manometer and comply with the values indicated below:

GAS CONVERSION

WARNING!

Before carrying out this operation, disconnect

the appliance from gas and electricity.

Gas conversion shall be conducted by a factory‐

trained professional.

Call the customer service hotline to identify a factory‐trained professional near your home.

The gas conversion procedure for this range includes 6 steps:

1. Pressure regulator

2. Surface burners

3. Adjustment of minimum setting

The conversion is not completed if all 6 steps have not been concluded properly.

Before performing the gas conversion, locate the package containing the replacement nozzle shipped with every range. IMPORTANT: Each nozzle has a number indicating its flow diameter printed on the body. Consult the table on page 20 for matching nozzles to burners.

Save the nozzles removed from the range for future use.

Natural gas Æ 4.0" W.c.P.

LP/Propane Æ 11.0" W.C.P.

Incoming line pressure upstream from the regulator must be 1" W.c.P. higher than the manifold pressure in order to check the regulator.

The regulator used on this range can withstand a maximum input pressure of 1/2 PSI (14.0" W.c.P.) If the line pressure exceeds that amount, a step‐ down regulator is required.

The appliance, its individual shut‐off valve, and the pressure regulator must be disconnected from the gas line during any pressure testing of that system at pressures in excess of 1/2 psig (3.45 kPa).

The individual manual shut‐off valve must be in the OFF position during any pressure testing of the gas supply piping system at test pressures equal to or less than ½ psig (3.45 kPa).

STEP 1: PRESSURE REGULATOR

The pressure regulator supplied with the appliance is a convertible type pressure regulator for use with Natural Gas at a nominal outlet pressure of 4” w.c. or LP gas at a nominal outlet pressure of 11” w.c. and it is pre‐arranged from the factory to operate with one of these gas/pressure as indicated in the labels affixed on the appliance, package and Instruction booklet.

To convert the regulator for use with other liquid propane LP gas:

1. Unscrew by hand the upper cap of the regulator, remove the white plastic attachment from the cap, reverse its direction and screw it again firmly against the cap. The white plastic attachment has arrows indicating the position for natural gas (NAT) and LP gas (LP).

2. Screw by hand the metal cap in the original position on the regulator.

Consult the table on page 20 for matching nozzles to burners.

STEP 2: SURFACE BURNERS

To replace the nozzles of the surface burners, lift up the burners and unscrew the nozzles shipped with the range using a 7 mm {socket wrench).

Replace nozzles using the conversion set supplied with the range or by a Bertazzoni authorized parts warehouse. Each nozzle has a number indicating its flow diameter printed on the body.

STEP 3: MINIMUM FLAME ADJUSTMENT

WARNING!

These adjustments should be made only for use

of the appliance with natural gas. For use with

liquid propane gas, the choke screw must be

fully turned in a clockwise direction.

SURFACE BURNERS

1. Light one burner at a time and set the knob to the MINIMUM position (small flame).

2. Remove the knob.

3. The range is equipped with a safety valve. Using a small‐size slotted screwdriver, locate the choke valve on the valve body and turn the choke screw to the right or left until the burner flame is adjusted to desired minimum.

4. Make sure that the flame does not go out when switching quickly from the MAXIMUM to the MINIMUM position.

GAS BURNERS DATA TABLES

Burner Position Injector Gas Pressure Max Rate Min Rate By‐pass

diam. [mm.] Type [i.w.c.] [BTU/h] [W] [BTU/h] [W] diam. [mm]

Auxiliary Rear L 0,90 NG 4” 3400 996 900 264 Regulated

0,54 LP (Propane) 11” 3400 996 900 264 0,29

Semi‐Rapid Front R 1,18 NG 4” 6100 1787 1500 439 Regulated

0,70 LP (Propane) 11” 6100 1787 1500 439 0,36

Rapid Rear R 1,55 NG 4” 10400 3047 2500 732 Regulated

0,92 LP (Propane) 11” 10400 3047 2500 732 0,47 Front L Inner 0,80 NG 4” 2800 820 900 264 Regulated

Dual Burner 0,49 LP (Propane) 11” 2800 820 900 264 0,29

Front L Outer N°2 x 1,15 NG 4” 12000 3516 4500 1318 Regulated N°2 x 0,70 LP (Propane) 11” 12000 3516 4500 1318 0,65

INSTALLATION Checklist

FINAL PREPARATION

1. Is the range mounted on its legs?

2. Is the back guard securely connected?

3. Has the anti‐tip device been properly

installed?

4. Does the clearance from the side cabinets

comply with the manufacturers directions?

5. Is the electricity properly grounded?

6. Is the gas service line connected following

the directions of the manufacturer?

7. Have all the proper valves, stoppers and

gasket been installed between the range and

the service line?

8. Has the gas connection been checked for

All stainless steel body parts should be wiped with hot, soapy water and with a liquid stainless steel cleanser.

If build‐up occurs, do not use steel wool, abrasive cloths, cleaners, or powders! If it is necessary to scrape stainless steel to remove encrusted materials, soak with hot, wet cloths to loosen the material, then use a wood or nylon scraper. Do not use a metal knife, spatula, or any other metal tool to scrape stainless steel! Scratches are almost impossible to remove.

Before using the oven for food preparation, wash the cavity thoroughly with a warm soap and water solution to remove film residues and any dust or debris from installation, then rinse and wiped dry.

leaks?

9. Has the range been set for the type of gas

available in the household?

10. Does the flame appear sharp blue, with no

yellow tipping, shooting or flame lifting?

11. Has the minimum setting for all burners been

adjusted?

USER MANUAL

WARNING!

Proper Installation. Be sure your appliance is

properly installed and grounded by a qualified

technician.

Do not leave children alone. Children should not

be left alone or unattended in area where

appliance is in use. They should never be allowed to sit or stand on any part of the

appliance.

Wear proper apparel. Loose‐fitting or hanging

garments should never be worn while using the

appliance.

User servicing. Do not repair or replace any part

of the appliance unless specifically

recommended in the manual. All other servicing

should be referred to a qualified technician.

Use only dry potholders. Moist or damp

potholders on hot surfaces may result in burns

from steam. Do not let potholder touch hot

heating elements. Do not use a towel or other

bulky cloth.

Do not to cover the holes inside the oven with

aluminium foil.

Do not to cover the worktop with aluminium

foil.

Do not store any flammable object or objects

under pressure in the storage compartment.

Do not clean oven door gasket. The door gasket

is essential for a good seal. Care should be taken

not to rub, damage, or move the gasket.

Do not use oven cleaning products. No commercial oven cleaner or oven liner

protective coating of any kind should be used in

or around any part of the oven.

Clean only parts listed in manual.

Before starting the self‐cleaning cycle of the

oven, remove broiler pan and other utensils.

Do not use water on greasefires.

Smother fire or flames or use dry chemical or

foam‐type extinguisher.

ROOM VENTILATION

The use of a gas cooking appliance generates heat and humidity in the room where it is installed. Proper ventilation in the room is needed. Make sure the kitchen is equipped with a range hood of appropriate power (400 CFM minimum). Activate the exhaust fan/range hood when possible. Intensive and continuous use of the appliance may require additional ventilation, for example by opening a window.

Keep the area of operation of the range free

from combustible materials, gasoline and other

flammable vapours and liquid.

Do not store dangerous or flammable materials

in the cabinets above the appliance.

Do not use the appliance for space heating.

Do not use aerosol sprays in the vicinity of the

appliance while cooking.

Do not sit or step on the oven door.

Do not use oven compartment for storage.

Use Care When Opening Door. Let hot air or

steam escape before removing or replacing food

Do not heat unopened food containers. Build‐up

of pressure may cause container to burst and

result in injury.

Keep oven vent ducts unobstructed.

Always place oven racks in desired location

when oven is cool. If rack must be moved while

oven is hot, do not let potholder contact hot

heating element in oven.

SURFACE BURNER LAYOUT

SURFACE COOKING

1. Small Burner

2. Medium burner

3. Rapid burner

4. Dual burner (Power burner)

Model

X304PIR(X,BI,CR,GI,RO,VI,VE,BL,NE)

[M7S0PTU(4,6) (X,W,D,I,R,L,V,U,N)(2,5)D]

(*)

Burner position (in this case front

Maximum temperature setting

SYMBOLS

right burner).

/Recommended control knob position for burner ignition

Minimum temperature setting

(*) Appliance with worktop gas valves alternative type

SURFACE BURNER OPERATION

TIPS FOR USING BURNERS CORRECTLY

THERMOCOUPLE SAFETY VALVE

Each surface burner of a Bertazzoni range is equipped with a thermocouple safety device.

The thermocouple opens the flow of gas to the burner only when hot. Should the flame go off, the thermocouple will immediately close the gas flow to the burner eliminating any risk to your home.

For faster activation of the thermocouple, always light the burners on maximum power. This will allow the thermocouple to reach the optimum temperature in the fastest time.

ELECTRIC IGNITION

To activate the electric ignition, simply turn the control knob counter‐clockwise to maximum

power (

position). Press the knob to start the flow of gas and the ignition spark. The spark will released at the metal tip of the white ceramic pin located on the side of the burner. Once the flame is on, release the control knob gently.

If the flame turns off, repeat the above procedure.

WARNING!

KEEP CHILDREN AT A SAFE DISTANCE FROM THE

APPLIANCE DURING OPERATION.

DO NOT ALLOW CHILDREN TO OPERATE THE

APPLIANCE.

1. Always check that the burner caps are properly installed before operation.

2. Verify that the flame of the worktop burners is completely blue and with regular aspect as shown below.

The dual power‐burner is composed by two burners (inside and outside). Each burner is activated by a separate control knob. The two burners can be operated separately or together for maximum power. To activate the power‐ burner, turn on the central burner first, then turn on the external ring.

ATTENTION: do not ignite burners if the black burner cap is not installed or not centred. The flame will be irregular.

MANUAL IGNITION

Manual ignition is always possible even when the power is cut off or in the event of power failure.

Turn the control knob counter‐clockwise to the MAXIMUM position. Light the flame with a kitchen lighter or with a match.

3. Always adjust the burner flame so it does not extend beyond the edge of the pan.

TIPS FOR USING PANS CORRECTLY

OVEN COOKING

ATTENTION!

Always ensure that bottom and handles of pans

do not protrude from the worktop.

When cooking with flammable fat such as oil, do

not leave the range unattended.

Use pots of the appropriate size on each burner following the indication of the diagram below.

Burner Recommended pan size

inches (mm)

Small 3½”‐51/2”(90 – 140)

Medium 51/2”‐ 101/4”(140 – 260)

Large 71/8”‐ 101/4” (180 – 260)

Dual burner 82/3”‐101/4” (220 – 260)

WARNING!

Use Care When Opening Door. Let hot air or

steam escape before removing or replacing

food.

Do Not Heat Unopened Food Containers. Build‐

up of pressure may cause container to burst and

result in injury.

Keep Oven Vent Ducts unobstructed.

Placement of Oven Racks. Always place oven

racks in desired location while oven is cool. If

rack must be moved while oven is hot, do not let

potholder contact hot heating element in oven.

Do Not Clean Door Gasket. The door gasket is

essential for a good seal. Care should be taken

not to rub, damage, or move the gasket

Do Not Use Oven Cleaners. No commercial oven

cleaner or oven liner protective coating of any

kind should be used in or around any part of the

oven.

Clean Only Parts Listed in manual.

When boiling liquids, turn the knob to the MINIMUM position once boiling is reached to avoid overflow. .

Always use pots with matching lid.

Dry the bottom of pans before operation.

Use pots with a flat, thick bottom (except for wok cooking).

WOK COOKING: always use the wok adapter supplied with the range. Wok pan external diameter shall not be smaller than 10” (25cm) and larger than 16” (40cm).

SIMMERING: use the simmer ring supplied with the range.

Before Self‐Cleaning the Oven. Remove broiler

pan and other utensils.

CAUTION

Do not store items of interest to children in cabinets above a range or on the back guard of a range – children climbing on the range to reach items could be seriously injured.

DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACE OF OVEN

Heating elements may be hot even though are dark in colour. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials come into contact with the heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns, for example, oven vent openings and surfaces near these openings, oven doors, oven glass window.

WARNING

TO REDUCE THE RISK OF TIPPING OF THE APPLIANCE, THE APPLIANCE MUST BE SECURED WITH A PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, REMOVE THE APPLIANCE FROM THE WALL AND VERIFY THAT THE ANTI-TIP DEVICES ARE ENGAGED.

SYMBOLS

OVEN FUNCTIONS SELECTOR

To keep the oven as clean as possible, cook meat on the tray .

When available, always follow recipe book directions. Personal experience will help to determine any variations in the values reported in the table. In any case, it is recommended to follow the instructions of the specific recipe being used.

TEMPERATURE/CLEAN SELECTOR

OVEN RACKS

Bertazzoni ranges are equipped with commercial grade shelves and an enamel cooking tray.

Shelves are mounted on the appropriate guides situated on the sides of the oven compartment. Insert the shelf between top and bottom guide in any of the 5 positions available.

ATTENTION!

When using the oven for the first time it should be operated for 15‐30 minutes at a temperature of about 500°F/260°C without cooking anything

inside in order to eliminate any moisture and

odours from the internal insulation.

OVEN FUNCTION SELECTOR

The oven has 8 functions defined for the following operations (from OFF position in clockwise direction):

BAKE (Broiler + Bottom heating

elements) to be used with oven temperature from 0 to 500°F/260°C

CONVECTION BAKE (Broiler + Bottom

heating elements + fan) to be used with oven temperature from 0 to 500°F/260°C

TURBO (Circular + Bottom heating

elements + fan) to be used with oven temperature from 0 to 500°F/260°C

BROILER (Broiler heating element) to

be used with temperature selector at 500°F for broiling

CONVECTION BROILER (Broiler

heating element + fan) to be used with temperature selector at 500°F for convection broiling

- CONVECTION (Circular heating

element + fan) to be used with oven temperature from 0 to 500°F/260°C

DEHYDRATE (Bottom heating element

+ fan) to be used with temperature selector at 100°F (corresponding to an internal oven setup fixed temperature of 100°F/38°C)

USING THE OVEN

OVEN LIGHT

The appliance is equipped with two oven lamps that light up when the oven door is opened or each time the oven is in operation. They are turned off during the cleaning cycle.

COOLING FANS

PROOFING (Bottom heating element)

to be used with temperature selector set at 150°F (corresponding to an internal oven setup fixed temperature of 100°F/38°C)

WARMING‐Level 1 (Bottom heating

element) to be used with temperature selector set at 200°F (corresponding to an internal oven setup fixed temperature of 140°F/60°C)

WARMING‐Level 2 (Bottom heating

element) to be used with temperature selector set at 250°F (corresponding to an internal oven setup fixed temperature of 170°F/77°C)

WARMING‐Level 3 (Bottom heating

element) to be used with temperature selector set at 300°F (corresponding to an internal oven setup fixed temperature of 220°F/105°C)

CLEAN (Broiler + Bottom heating

elements) to be used with temperature selector set at CLEAN for automatic self‐ cleaning cycle at a temperature of about 840°F/450°C (see proper chapter “SELF CLEANING THE OVEN” pag.35 for details) .

The appliance is equipped with two cooling fan motors that activate when the oven is in operation for cooking or cleaning, except in case of DEHYDRATE and PROOFING functions. In stand‐by condition (both selector in OFF position) the cooling fan motors operate if oven temperature exceeds approximately 430°F/220°C and stop automatically when oven temperature drops below approximately 285‐360°F/140‐ 180°C.

FRONT INDICATOR LIGHTS

This appliance is equipped with 3 indicator lights on the front panel:

‐ CLEAN/RED colour: on with door locked during

cleaning cycle

‐ HEATING/BLUE colour: on when cooking or

cleaning temperature is reached, always on during functions Dehydrate‐Proofing‐Warming levels 1‐2‐3

‐ PRE‐HEATING/BLUE colour: on during pre‐

heating period; not active for functions Dehydrate‐Proofing‐Warming levels 1‐2‐3.

The indicator lights flash intermittently (in some case together with the sound buzzer) when an error is detected. For explanation of errors, please refer to the chapter TROUBLESHOOTING GUIDE.

SOUND BUZZER

The appliance is equipped with a sound buzzer that emits a triple “beep” each time the pre‐ heating time is finished (not used for functions CLEAN and Dehydrate‐Proofing‐Warming levels 1‐2‐3”) and a single intermittent “beep” in some case jointly with the indicator light when an error is detected (refer to chapter TROUBLESHOOTING GUIDE) .

The appliance is equipped with an oven fan mounted inside a circular heating element, protected by a fan shield on the back of the oven cavity; it operates each time that the oven operates in the functions ROASTING, TURBO, CONVECTION BROILER, CONVECTION BAKE and DEHYDRATE.

OVEN CONVECTION FAN

BAKE

PREHEATING THE OVEN

Preheat the oven before baking. The oven does not need to be preheated for large pieces of meat or poultry. See your recipe for preheating recommendation. Preheating time depends on the temperature setting and the number of racks in the oven

GETTING THE BEST RESULTS

Minimize opening the door.

Choose the right size bake ware.

Use the bake ware recommended in the recipe.

Store the broiler pans outside the oven: extra pans without food affect the browning and cooking.

Browning can depend from the type of pan used:

- For tender, golden brown crusts, use light non‐stick anodized or shiny metal pans.

- For brown crisp crusts, use dark non‐ stick/anodized or dark, dull metal utensils or glass bake ware. These may require lowering the bake temperature 25°F.

BAKEWARE TYPE

Metal bake ware (with or without a non‐stick finish), heat‐proof glass, glass ceramic, pottery, or other utensils are suitable for the oven. Suitable cookie sheets have a small lip on one side only. Heavy sheets or those with lips on more than one side may affect the baking time.

BAKE RACK POSITIONS

Rack level positions in the oven are numbered as in the diagram on page 25.

ONE RACK BAKING ‐ The Bake mode is best for baking on one rack with rack level 3 and 4 used for most baked items. When baking tall items, rack level 4 may be used. Pies are best baked on rack level 4 or 5 to ensure the bottom of the crust is done without over‐browning the top. When large pieces of meat or poultry are roasted such as a prime rib of beef or a turkey, rack level 4 is the preferred rack.

TWO RACK BAKING ‐ Rack levels 3 and 5 may be used when baking on two levels. Cookies and biscuits can be cooked properly using these two racks. Casserole dishes may al so be baked using these two levels.

CONVECTION

COOKING WITH CONVECTION

There are many advantages to cooking with convection. In the convection system, a fan in the back of the oven moves heated air evenly around the oven. The moving air provides even heat so foods can be placed on any rack level with consistent results and without having to rotate the pans. Convection also enables cooking simultaneously on multiple racks.

Low, shallow bake ware should be used with convection cooking. This allows the heated air to properly move around the food. Pans with high sides or pans that are covered are not suitable for convection cooking because high sides or lids prohibit the warm air from circulating around the food.

Any food cooked uncovered will brown evenly and form a nice crust. Foods in covered dishes (casseroles, pot roast) or delicate custards are not suitable for convection cooking.

CONVECTION

CONVECTION BAKE

TURBO

Time can be saved by baking an entire batch of cookies at the same time. The cookies will bake evenly and be done all at once. The baking time may be shorter due to the warm circulating air. For small items such as cookies, check to see if they are done one to two minutes before the recipe time. For larger baked items such as cakes, check five to six minutes before the time indicated on the recipe

Convection cooking of meat and poultry will result in foods that are brown and crispy on the outside and moist and juicy on the inside. Large meat or poultry items may cook up to 30 minutes less than the suggested time so check them so they will not be over baked. A meat thermometer or an instant read thermometer will provide more accurate results than the "minute per pound" method. The larger the piece of meat or poultry, the more time you will save.

Converting Conventional Baking to Convection Cooking -

To convert most recipes for baked items (cookies, cakes, pies, etc.), reduce the oven temperature by 25°F. For meats and poultry, use the temperature recommended in recipes and cooking charts.

CONVECTION BAKE

Full power heat is radiated from the bake element in the bottom of the oven cavity and partial power is radiated from the broil element. Air is circulated by the fan in the rear of the oven. It provides more even heat distribution

throughout the oven cavity for all uses. Multiple rack use is possible for baking large amounts of food. When roasting, cool air is quickly replaced ‐ searing meats on the outside and retaining more juices and natural flavour on the inside with less shrinkage

CONVECTION

The rear element operates at full power. Air is circulated by the fan for even heating. Use this setting for food which requires gentle cooking such as pastries, soufflés or cakes.

TURBO

The rear and bottom elements operate at full power. Air is circulated by the fan for even heating. Use this setting to reduce pre‐heating time of the oven or for recipes which require uniform cooking with strong heat from bottom such as pizza, focaccia, bread

TIPS FOR CONVECTION and BAKE/CONVECTION/TURBO

Preheating the Oven

Temperature Setting

When using Convection Bake, reduce the temperature recommended in the recipe by 25°F. When roasting meats, check internal temperature prior to time recommended by recipe to prevent over cooking. When roasting meats in convection mode, do not reduce temperature setting.

Condensation

It is normal for a certain amount of moisture to evaporate from the food during any cooking process The amount depends on the moisture content of the food. The moisture will condense on any surface cooler than. the inside of the oven, such as the control panel.

RACK POSITIONS

Large Main Oven One Rack Baking

When baking on one rack, best results are obtained in the bake mode (see Bake). When roasting a turkey or a large piece of meat, convection bake may be used. Rack 4 is the most appropriate rack.

Two Rack Baking

Racks 4 and 2 are most appropriate when using the convection bake mode. Round cake pans should be staggered on racks 4 and 2. Rectangular (9 x 13) cake pans and cookie sheets should be placed on rack 4 directly under the one on rack 2.

This may be used for cakes, cookies, biscuits and other foods for which two rack baking is desirable. When several casseroles, frozen pies or cakes are to be baked, use racks 4 and 2. These two racks can also be used for a large oven meal.

Bake ware Type

Aluminium bake ware gives the best browning results. Cookie sheets with only two sides give the best results. Aluminium commercial half‐sheets or professional cooking utensils may be used but baking times may be increased.

Placement

For better browning, utensils such as cookie sheets. Rectangular baking pans should be placed crosswise on the rack with the shorter side facing right and left to allow better air flow. When baking on more than one rack, cookie sheets and rectangular (9 x 13) cake pans should not be staggered; round cake pans should be staggered.

Settings for BAKE/CONVECTION and BAKE/CONVECTION/TURBO cooking modes

These cooking modes are for baking, roasting or warming using one or two racks.

1. Select BAKE/CONVECTION or BAKE/

CONVECTION/TURBO using the Selector switch.

2. Set the oven temperature using the oven

temperature control knob (not over Tmax=500°F setting position). If using CONVECTION, set the oven control knob 25°F below temperature suggested in the recipe. Do no change recipe temperature if roasting meats or poultry.

BAKING RECOMMENDATIONS

FOOD PAN

Cookies 12”x15”

Layer Cakes Sheet Cakes Bunt Cakes Brownies or Bar Cookies Biscuits 12"x15"

Quick Bread Muffins 12 cup

Fruit Pies 9"

Fruit Cobblers Yeast Bread, Loaves Dinner Rolls Cinnamon Rolls Yeast Cotter and Cake

SIZE

Cookie Sheet 8”or 9”Round 9”x13” Pan 12 Cup 325° 60 to 75

9"x9" Pan

Cookie Sheet 8"x4" Loaf Pan

Muffin Pan

Diamete r 9"x9" Pan 8"x4" Loaf Pan

9"x13" Pan 9"x13" Pan 12"x15" Cookie Sheet

CONTROL TEMPERATURE SETTING

375° 8 to 12

350° 25 to 35

350° 30 to 40

325° 20 to 25

425° or Package Directions

350° 55 to 70

425° 14 to 19

425° 35 to 45

400° 25 to 30

375° 25 to 30

400° 12 to 18

375 25 to 30

400° 20 to 30

TOTAL SUGGESTED COOKING TIME

minutes

10 to 15 minutes

minutes

WARMING

SLOW COOKING AND LOW TEMPERATURE USES OF THE OVEN

In this oven function the pre‐heating light/sound indicators are deactivated; only the heating indicator light is active.

In addition to providing perfect temperature for baking and roasting, the oven can be used at low temperatures to keep food at the proper serving temperature and to warm plates.

Set the oven to bake and use the temperature suggested on the chart below.

There are three possible setting for WARMING mode; select in function selector (symbol) and then:

- Level 1 with temperature selector set at 200°F (internal oven setup fixed temperature of 140°F=60°C)

- Level 2 with temperature selector set at 250°F (internal oven setup fixed temperature of 170°F=77°C)

- Level 3 with temperature selector set at 300°F (internal oven setup fixed temperature of 220°F=105°C)

FOOD SAFETY

The United States Department of Agriculture recommends to NOT keep food at temperatures between 40°F to 140°F for longer than 2 hours. Cooking raw foods below 275°F is not recommended.

FOOD OVEN TEMPERATURE

Beef 150°F (70°C) Bacon 200° -225°F (90 - 110°C) Biscuits and Muffins (Covered) Casserole (covered) 175°-200°F (80 – 90°C) Fish and Seafood 175°-200°F (80 – 90°C) Deep Fried Foods 200° -225°F (90 - 110°C) Gravy or Cream Sauces (covered) Lamb and Veal Roasts 175°-200°F (80 – 90°C) Pancakes and Waffles (covered) Potatoes Baked 200°F (110°C) Mashed (covered) 175°F (80°C) Pies and Pastries 175°F (80°C) Pizza (covered) 225°F (110°C) Pork 175°-200°F (80 – 90°C) Poultry (covered) 175°-200°F (80 – 90°C) Vegetables (covered) 175°F (80°C)

175°-200°F (80 – 90°C)

175°F (80°C)

200° -225°F (90 - 110°C)

PROOFING

In this oven function the pre‐heating light/sound indicators are deactivated; only the heating indicator light is active.

In PROOFING mode only the lower heating element is active to maintain a low temperature to proof bread; proofing is the rising of a yeast dough.

To activate PROOFING mode: set function selector on and set temperature selector at 150°F (corresponding to an internal oven setup fixed temperature of 100°F=38°C).

Loosely cover the bowl or pan and use any rack.

Keep the door closed and check the rising of the dough until the desired result is obtained.

Cooling fans does not operate during PROOFING.

DEHYDRATE

In this oven function the pre‐heating light/sound indicators are deactivated; only the heating indicator light is active.

DEHYDRATE mode dries food inside the oven by using lower heating element jointly with the oven fan.

DEHYDRATE is used to dry and/or preserve foods such as fruits, vegetables and herbs through circulation of heated air that slowly remove the moisture from items.

FOOD PREPARATION APPROXIMATE

DRYING TIME (hrs)

selector on and set temperature selector at 100°F (corresponding to an internal oven setup fixed temperature of 100°F=38°C).

Cooling fans does not operate during DEHYDRATE.

TEST FOR DONENESS

Fruit

To activate DEHYDRATE mode: set function

Apples Dipped in 1/4 cup lemon juice

Bananas Dipped in 1/4 cup lemon juice

Cherries Wash and towel dry. For fresh

Orange peels and slices 1/4" slices of orange; orange

Pineapple rings Towel dried Canned: 9-13

Strawberries Wash and towel dry. Sliced

Vegetable

Peppers Wash and towel dry. Remove

Mushrooms Wash and towel dry. Cut off

Tomatoes Wash and towel dry. Cut thin

Herbs

Oregano Sage parsley And thyme And fennel

Basil Use basil leaves 3 to 4 inches

and 2 cups water;1/4" slices

cherries, remove pits

part of skin thinly peeled from oranges

1/2" thick, skin (outside) down on rack

membrane of peppers, coarsely chopped about 1" pieces

stem end. Cut into 1/8" slices

slices, 1/8" thick, drain well.

Rinse and dry with paper towel 3-5 Crisp and brittle

from top. Spray with water, shake off moisture and pat dry

11-15 Slightly pliable

10-15 Soft, pliable

10-15 Pliable, leathery, chewy

Peels:2-4

Slices: 12-16

Fresh: 8-12

12-17 Dry, brittle

16-20 Leathery with no moisture inside

7-12 Tough and leathery, dry

16-23 Dry, brick red colour

3-5

Orange peel: dry and brittle.

Orange slices: skins are dry and brittle, fruit is slightly

Sott and pliable

Crisp and brittle

BROIL / CONVECTION BROIL

Broiling requires constant exposure to high, intense heat. Only the upper element heats in the BROILER mode.

It is recommended that you preheat the broil element before starting to cook. Preheat until the "PRE‐HEATING" light turns off (about 5‐6 minutes).

Defrost food before broiling.

Keep oven door closed during broiling.

Steaks should be more than 1" thick if rare meat is desired. Use convection broil if steaks are over 1‐1/2 inches thick. Turn food over once after half cooking time. It is not necessary to turn very thin food (ham slices, fillets of fish, etc.). Liver slices must be turned over regardless of thickness.

Use a timer. Set it for the minimum time and check the food.

Center food directly under the broiling element for best browning.

Before turning on the oven, place the rack in the desired position. After preheating the broiler, center the broil pan under the broil element. 2 ‐ Use this rack position when broiling beef steaks, ground meat patties, ham steak and lamb chops 1 inch or less thick. Also use when browning food. 3 ‐ Use this rack position when broiling meat 1 1/8 inches or more thick, fish, poultry, pork chops, ham steaks 1 inch or more thick. 3 or 4 ‐ Use this rack when broiling chicken quarters or halves.

A porcelain enamel broil pan is included with the range. Use metal or glass‐ceramic bake ware when browning casseroles, main dishes, or bread. DO NOT use heat‐proof glass or pottery. This type of glassware cannot withstand the intense heat of the broil element.

To more accurately define the preparation of thick steaks or chops (at least 1 1/2 inches thick), use a meat thermometer. Insert the point of the thermometer into the side of the meat reaching the center of the steak or chop.

For rare steaks, cook the first side to 90°F. For medium or well done steaks, cook the first side to

Tips for Broiling

Getting the Best Results

Rack Positions

Utensils

Broiling Using Meat Thermometer

100°F. Turn and cook the second side to desired internal temperature.

SETTING BROILER OR CONVECTION BROILER

Select BROILER to brown food on the top side only. This mode requires turning food if browning is required on both sides.

Select CONVECTION BROILER to brown food slightly also on the bottom side. This mode is preferred for browning food on both side that is too delicate for turning such as fish. The degree of browning of each side might be different.

TO SET THE OVEN TO BROILER OR

CONVECTION BROILER

1. Place oven rack in desired position.

2. Set Selector Switch to BROILER or

CONVECTION BROILER.

3. Set oven temperature control knob to

BROILER or CONVECTION BROILER setting corresponding to 500°F fixed BROILER setting (not over Tmax=500°F or under 450°F setting position).

4. Wait until PRE‐HEATING light turns off, after

approximately 5‐6 minutes

5. Place food in oven at desired rack position as

referenced on Page 26.

6. Close oven door. The door should be closed

throughout the broil cycle.

BROILING AND ROASTING RECOMMENDATIONS

FOOD ITEM RACK

NUMBER

BEEF

Ground Beef Patties, ½” thick

T-Bone Steak 2 Broiler or

Flank Steak 2 Broiler or

Eye of Round Roast

PORK

Loin Roast

POULTRY

Boneless Skinless

Chicken Breasts

Chicken Thighs 3 Broiler or

Half Chickens 3 Broiler or

Roast Chicken 4 Bake or Convection

Turkey 4 Bake or Convection

2 Broiler or

3 Bake or Convection

2 Broiler or

OVEN MODE FUNCTION SELECTOR

convection Broiler

Bake or Convection bake

bake

convection Broiler

bake

CONTROL TEMPERATURE SETTING SELECTOR

500°F fixed temperature setting

325° 20 to 25 min/lb Small roasts take

325° 20 to 25 min/lb Cook until juices are

500°F fixed temperature setting

350° 75 to 90 minutes Do not stuff; reduce

325° 20 to 25 min/lb Do not stuff; reduce

APPROXIMATE COOKING TIME

15 to 20 minutes Broil until no pink in

12 to 20 minutes Time depends on

12 to 20 minutes Rare to Medium Rare

20 to 25 minutes Cook until juices are

25 to 30 minutes Remove skin; Cook

30 to 45 minutes Turn with tongs;

SPECIAL INSTRUCTIONS AND TIPS

center

rareness of steak

more minutes per pound; reduce time by using Convection Bake

clear

until juices are clear

Cook until juices are clear

time by using Convection Bake

CARE AND MAINTENANCE

SELF‐CLEANING THE OVEN

Electric Oven

The self‐cleaning mode of your new range features a pyrolytic self‐cleaning cycle. When set to the CLEAN mode, the oven reaches a high temperature of approximately 840°F/450°C that burns off all food residues from the inside of the oven.

When the oven is set for CLEAN, the cooktop burners may be used.

It is common to see smoke and/or flames during the clean cycle, depending on the content and amount of greasy residues in the oven. If the flame persists, turn off the oven and allow it to cool before opening the door and wipe off the excessive residues.

At the end of the CLEAN cycle, some grey ash or burned residue may remain inside the oven. This is a mineral deposit that does not burn or melt. The amount of ash depends on how heavily soiled the oven was before it was cleaned. It is easily removed, when the oven is cold, using a damp paper towel, sponge, or cloth.

Wipe off any smoke residue that remains on the front frame with a cleaning product suitable for oven cavity cleaning. If stains remain, use a mild liquid cleaner. The amount of smoke stain is directly related to the amount of food residues in the oven cavity before the start of the self‐clean‐ ing cycle.

Before Self Cleaning the Oven

Wipe out large spillages, grease and any loose soil that can be easily removed. Remove any soil that is outside the door seal area. This appliance is designed to clean the oven interior and the portion of the door that faces the oven cavity. The outer edges of the door and the oven cavity are not in the cleaning zone. Wipe this area clean before starting the self‐cleaning cycle.

Remove all utensils and racks.

Make sure the light bulbs and glass covers are in place.

Turn on the ventilator hood above the range and leave it on until the self‐clean cycle is completed (red indicator light turning off).

NOTE: FOR THE FIRST SELF‐CLEANING CYCLE, REMOVE SMALL ANIMALS AND BIRDS FROM THE KITCHEN AND SURROUNDING AREAS. OPEN A NEARBY WINDOW FOR ADDITIONAL VENTILATION.

Door Lock

When the CLEAN cycle starts, the automatic door lock cycle begins. Check the door to confirm that it is locked. You can stop the self‐cleaning cycle

by turning the function selector to the OFF posi‐ tion. The CLEANING light will turn off only after the oven has cooled below 500°260°C and the automatic door lock has completed its cycle to the open position.

NOTE: MAKE SURE THAT THE OVEN DOOR IS LOCKED AT THE BEGINNING OF THE SELF‐ CLEANING CYCLE.

To Set/Start Self‐Clean cycle

1. Check that the oven cavity is completely empty and the oven door correctly closed.

2. Select CLEAN fu on oven function selector.

3. Set temperature selector to CLEAN.

After these 3 steps the cooling fans will activate, the oven door will lock automatically after 60 seconds and both the pre‐heating and clean light indicators will turn on.

As soon as clean light turns on check to ensure that the oven door is correctly locked.

At the End of the Self‐Clean cycle

The self‐cleaning cycle lasts approximately 2‐2 ¼ hours; 30‐40 minutes for pre‐heating the oven (pre‐heating and clean light both on), 60 minutes for actual cleaning (heating and clean light both on), 30‐35 minutes for cool‐down (only clean light on).

When the CLEAN light is turned off the oven door is unlocked. This will happen when the oven temperature drops below 460‐500°F/240‐260°C about.

At the end of the cycle turn both the oven mode selectors and the temperature to the OFF position.

Cleaning Hints

1 . The porcelain enamel finish is acid resistant,

but not acid proof. Acidic food, such as citrus juices, tomatoes, rhubarb, vinegar, alcohol or milk, should be wiped off and not allowed to bake onto the porcelain during the next use.

2 . Remove the oven racks.

3 . The heating elements in the oven do not

require cleaning; the elements burn themselves clean when the oven is in use. Elements are permanently connected. It is not necessary to clean the broiler shield above the broil element.

CAUTION

The interior of the oven will still be at baking temperatures when the automatic lock cycles to its open position and the oven door can be opened.

MAINTAINING YOUR RANGE

food residue prevent the smooth operation of the control knobs, call the customer service hotline to schedule service by a factory‐trained professional.

REPLACING THE OVEN LIGHT BULBS

WARNING!

Disconnect power before servicing unit.

To replace the oven light bulb, unscrew the protection cap that projects out inside the oven.

NOTE: Touching the bulb with fingers may cause the bulb to burn out. Always use protective glove or use a cloth to remove the bulb.

CLEANING YOUR RANGE

ATTENTION! Never use abrasive cleaners! Scratches on the stainless steel surfaces are permanent.

Do not clean the range when hot!

Cleaning after installation: use a stainless steel cleaning product or wipe to eliminate the glue residues of the blue protection film after removal.

Cleaning stainless steel: for best results use a stainless steel cleaner product with a soft sponge or wipe. Alternatively use a soft sponge or cloth with a warm soap and water solution. Never use abrasive powders or liquids!

Cleaning the burner caps: lift the burner caps from the burner heads and wash them in a warm soap and water solution. Dry thoroughly before using them again. Before reinstalling them on the burner head, check that the gas flow holes are not clogged with food residues or cleaning product residues.

Cleaning Enamel: enamelled parts should be cleaned frequently with warm soap and water solution applied with a soft sponge or wipe. Never use abrasive powders or liquids! Do not leave acid or alkaline substances on the enamelled parts (such as vinegar, lemon juice, salt, tomato sauce, etc.). Use a rubber spatula to remove fat residues.

Cleaning glass door: clean the glass using a non‐ abrasive sponge or wipe with a warm soap and warm water solution. Use a rubber spatula to remove fat residues.

ATTENTION: while cleaning the door, avoid spillage of food residues and cleaning products in the venting holes situated on the top side of the door. To clean the inside of the oven door, call a factory‐trained professional.

ATTENTION: for further details about cleaning of the appliance, please contact your appliance retailer.

Cleaning the worktop: periodically clean the burner heads, the cast iron pan supports and the burner caps using warm water. Remove burned

food and fat residues with a rubber spatula . If

TROUBLESHOOTING GUIDE

OVEN PROBLEM POSSIBLE CAUSES AND/OR REMEDY

Range does not function Range is not connected to electrical power. Ask a professional to check

power circuit breaker, wiring and fuses.

Self‐clean cycle does not activate Door is not shut tight enough for automatic door latch to lock

Broil does not work Temperature control knob is rotated too far past broil position (500°F);

PRE‐HEATING indicator will light intermittently

Door does not open Oven is still in self‐clean mode. Door latch will release when safe

temperature is reached.

Oven light does not work Light bulb is burned out. Range is not connected to power/ clean is cycle

Igniters does not work Circuit is tripped. Fuse is blown. Range is not connected to power.

Igniters sparking but no flame ignition

Igniters spark continuously after flame ignition

Burner ignites but flame is large, distorted, or yellow

Oven door is locked and will not release, even after cooling

Oven is not heating

Oven light is not working properly

Oven light stays on Check for obstruction in oven door. Check to see if hinge is bent.

Cannot remove lens cover on light

PRE‐HEATING indicator lights up intermittently and sound alarm on

Gas supply valve is in “OFF” position. Gas supply is interrupted.

Ignition micro‐switches remain incorrectly engaged; call a qualified technician for repair.

Burner ports are clogged. Unit is not set to the appropriate gas type. Call a qualified technician for gas conversion procedure.

Turn the oven off at the circuit breaker and wait 5 minutes. Turn breaker back on. The oven should reset itself and will be operable.

Check the circuit breaker or fuse box to your house. Make sure there is proper electrical power to the oven. Make sure the oven temperature has been selected.

Replace or reinsert the light bulb if loose or defective.

There may be soil build‐up around the lens cover. Wipe lens cover area with a clean dry towel prior to attempting to remove the lens cover.

This is a FAULT alarm indicating the failure of the cooling fan/s. Try resetting by turning both selectors to the OFF position. If the error is not repaired, call a qualified technician for diagnosis and repair. If not repaired, this error indicator will appear again within 10 seconds once the oven is activated in any functions for which cooling fans are required to operate, preventing the use of the oven. Set both selectors to OFF position and call a qualified technician for repair.

HEATING indicator light turned on intermittently and with sound alarm on

CLEAN indicator light on intermittently and sound alarm on

This is a FAULT indicating failure of the oven sensor temperature probe; in this case cooling fans will start automatically. To reset, switch both selector to the OFF position. To stop buzzer and light indicator, disconnect the appliance from the main electrical supply and call a qualified technician for repair.

Electrical power failure happening during cleaning cycle operation; cleaning cycle interrupted; cooling fans remains both activated; the error will be reset by putting two selectors in OFF position; repeat cleaning cycle if needed after 3‐4 hours.

CLEAN indicator light turned on intermittently, sound alarm off

Interruption/Stop of an incomplete cleaning cycle due to a intentional or accidental displacement of one of the two oven selectors from CLEAN position during cleaning cycle operation; put both selectors in OFF position, wait that door latch unlocks the door when oven temperature is dropped below 500°F(260°C) and then re‐select a desired oven function.

PRE‐HEATING indicator light on intermittently, sound alarm on

Wrong temperature knob selection in oven functions BROILER or CONVECTION BROILER (temperature knob positioned not at 500°F position, over Tmax or under 450°F position); select OFF position and then 500°F on temperature selector;

Wrong temperature knob selection for oven functions BAKE, CONVECTION BAKE; TURBO, CONVECTION (temperature knob positioned over Tmax=500°F position); select OFF position and then the desired temperature under Tmax position on temperature selector.

LOCATION OF APPLIANCE TAGS

The rating tag shows the model and serial number of your range. It is located under the front edge of the range cooktop, and is visible when the oven door is open (see illustration)

A= Rating tag(s) located under front edge of cooktop

B= Wiring / schematic diagram placed behind backside panel and on installation booklet

IMPORTANT APPLIANCE INFORMATION

MODEL ______________________________________________________________

DATE INSTALLED _______________________________________________________________

DEALER _______________________________________________________________

_______________________________________________________________

INSTALLER _______________________________________________________________

________________________________________________________________

SERVICER _______________________________________________________________

________________________________________________________________

BERTAZZONI SpA

Via Palazzina 8

42016 Guastalla RE

ITALY

WWW.BERTAZZONI‐ITALIA.COM

SPARE PARTS LIST

NUMBER COMPONENT DESCRIPTION

1 601661 WIRING 11111 1 601662 WIRING 11111 1 601663 WIRING 11111 1 601665 WIRING 22222 1 910588 PAN SUPPORT BUMPER KIT 11111

2 310412 USER MANUAL 11111 11 202631 BURNERS FLASK 11111 18 202432 PART FOR DUAL WOK AND SEMI RAPID BURNERS 11111 38 306003 THERMOSTAT CLIP 22222 55 404213 WORKTOP FRONTGUARD 11111 80 504160 COVER FOR SMALL FLAME SPREADER 11111 81 504161 COVER FOR MEDIUM BURNER 11111 82 504162 COVER FOR RAPID BURNER 11111 85 504187 COVER IN FOR DUAL BURNER FLAME SPREADER 11111 86 504186 COVER OUT FOR DUAL BURNER FLAME SPREADER 11111

105 202650 UP SUPPORT FOR AXIAL COOLIN FAN 11111 106 202649 DOWN SUPPORT FOR AXIAL COOLIN FAN 11111 117 150002 PROTECTION FOR VENTILATED OVEN 11111 120 101048 BLACK OVEN DRIP TRAY 11111 138 201200 DISHWARMER BOTTOM 11111 160 202526 BRIDLE FOR FIXING GAS VALVES 11111 166 50003 INSIDE OVEN DOOR 11111 176 202655 CARTER COOLING FAN 11111 274 202444 CROSS MEMBER 11111 312 200335 OVEN GLASS SUPPORT 66666 313 301073 SCREW 5MAX10 TCT 22222 329 309149 INSIDE DOOR PAN COMPARTMENT SPACER 22222 385 306024 SPRING FOR SPARK PLUG 55555 388 301133 SCREW 4,2X13 55555 388 301133 SCREW 4,2X13 22222 388 301133 SCREW 4,2X13 12 12 12 12 12 388 301133 SCREW 4,2X13 33333 388 301133 SCREW 4,2X13 13 13 13 13 13 388 301133 SCREW 4,2X13 44444 389 301004 SCREW 5MA X 8 T 1/2 T 22222 393 309154 PAWL 22222 424 415071 SPARK PLUG FOR DUAL BURNER 22222 425 415054 SPARK PLUG 350MM 33333 430 415065 ACCUMULATOR 6U 11111 440 402167 CATALYST 11111 441 404501 SIDE GRID FOR OVEN 22222 442 404503 GRID FOR OVEN 22222 443 404497 GRID FOR TRAY 11111 444 202579 FLASK HINGE 22222 446 405074 OVEN DOOR HINGE 22222 473 408077 SIMMER PLATE 11111 478 410723 FLAP DOOR 1 478 125165 FLAP DOOR BORDEAUX 1 478 125169 FLAP DOOR BACK 1 478 125161 FLAP DOOR RED 1 478 125157 FLAP DOOR WHITE 1 561 508025 THERMOCOUPLE MM300 11111 562 508021 THERMOCOUPLE MM600 22222 566 508034 THERMOCOUPLE ULTRA-RAPID BURNER 22222 568 508039 PROBE 11111 609 309151 CORE HITCH 22222

X304PIRX

X304PIRVI

X304PIRNE

X304PIRRO

X304PIRBI

610 603023 LOOK DOOR MOTOR 11111 611 603020 OVEN CONVECTION FAN 11111 612 603019 COOLING FAN 22222 613 606079 OVEN RESISTANCE 2100W 230V 11111 614 606080 RESISTENCE 3400W 240V 11111 615 606076 CIRCULAR HEATER 3300W 11111 623 608048 OVEN BULB WITH HOLDER 22222 624 309150 CORD FASTENER 11111 641 602046 COMMUTATOR 8+0 11111 642 602047 TEMPERATURE SELECTOR 11111 648 607027 TERMINAL SEPARATOR 11111 649 608050 RED LED 11111 649 608051 BLU LED 22222 652 6010006 CABLE DRT/SRDT 2XAWG6(L1,L2)+2XAWG8(N,G) 11111 659 409050 LOGIC CARD 11111 662 602049 THERMOSTAT 11111 670 504128 SMALL FLAME SPREADER 11111 671 504129 MEDIUM FLAME SPREADER 11111 672 504130 RAPID FLAME SPREADER 11111 675 504204 ULTRA RAPID FLAME SPREADER 11111 702 408084 ADAPTER FOR WOK BURNER PAN SUPPORT 11111 715 604070 DASYCHAIN SWITCH 11111 760 510507 SMALL BURNER 11111 761 510508 SEMI RAPID BURNER 11111 762 510509 RAPID BURNER 11111 764 510512 DUAL BURNER 11111 881 502148 GAS VALVE BY PASS 036 11111 883 502150 GAS VALVE BY PASS 065 11111 884 502179 GAS VALVE BY PASS 029 22222 886 502180 GAS VALVE BY PASS 047 11111 917 200327 STAINLESS STEEL SIDE 2 917 125003 SIDE BORDEAUX 2 917 125027 SIDE BLACK 2 917 125033 SIDE RED 2 917 125045 SIDE WHITE 2 929 202586 RIGHT VERTICAL VENT 11111 930 202214 FEET SUPPORT 22222 940 201197 FIXING FOR WORK TABLE 22222 943 308031 BUMPER FOR C.I. GRIDS AND DISHWARMER 44444 947 403343 HANDLE TERMINAL 22222 964 408076 CAST IRON PAN SUPPORT 11111 965 408075 CAST IRON PAN SUPPORT 2 BURNERS 22222

973 200422 PLATE FRONT PANEL 22222 1041 401904 GAS VALVE KNOB 33333 1044 401906 ELECTRIC KNOB 22222 1046 401961 DUAL IN KNOB 11111 1047 401962 DUAL OUT KNOB 11111 1143 910711 UPSTAND KIT 11111 1406 403435 OVEN DOOR HANDLE 11111 1407 406449 OVEN DOOR GLASS 11111 1409 411112 GLASS OVEN GASKET 11111 1411 411111 GASKET FOR OVEN FRONT 11111 1414 602050 THERMOSWITCH 11111 1415 602048 THERMOREGULATOR 22222 1421 406448 INTERNAL OVEN GLASS 33333 1508 410722 STAINLESS STEEL OVEN DOOR 1 1508 125166 OVEN DOOR BORDEAUX 1 1508 125170 OVEN DOOR BACK 1 1508 125162 OVEN DOOR RED 1 1508 125158 OVEN DOOR WHITE 1 1602 210726 CONTROL PANEL 11111 1614 201202 BACK PANEL 11111 1615 202435 CONTROL SUPPORT 11111

1622 608049 SMALL BUD 33333 1624 200348 WORK TABLE 11111 1627 501981 GAS COLLECTOR 11111 1628 501759 TUBE FOR RIGHT FRONT BURNER 11111 1631 501760 TUBE FOR RIGHT BACK BURNER 11111 1639 202587 LEFT VERTICAL VENT 11111 1644 414048 S.STEEL LEG 44444 1645 414031 BASE FOR LEGS 44444 1645 414031 BASE FOR LEGS 44444 1677 150005 FRONT PANEL BLACK 11111 1687 202653 UNDER OVEN CARTER 11111 1712 202643 INNER GLASSES FRAME RIGHT 11111 1801 501758 TUBE FOR LEFT BACK BURNER 11111 1803 501756 TUBE FOR EXTERNAL DUAL BURNER 11111 1804 501757 TUBE FOR INTERNAL DUAL BURNER 11111 2014 202654 CARTER THIRD GLASS 11111 2019 202645 RIGHT SIDE CHASSIS 11111 2020 202644 LEFT SIDE CHASSIS 11111 2023 202646 REAR SIDE CHASSIS 11111 2098 202647 ELECTRIC RESISTANCE COMPARTMENT 11111 2130 202651 GRILL PROTECTION 11111 2131 150004 FRONTAL SCREEN GRILL 11111 2236 202648 CROSS MEMBER 11111 2300 202573 SUPPORT LOGIC CARD 11111 2305 201192 EQUERRE SUPPORT FERME CABLE 11111 2309 201145 PLATE 11111 2400 202571 LOOK DOOR CARTER 11111 2401 202568 CARTER CATALYST 11111 2402 202569 HOOD CATALYST 11111 2405 201194 PANEL INSPECTION LOGIC CARD 11111 2406 202572 DOOR FOR INSPECTION LOOK DOOR 11111 2501 108887 LATERAL SCREEN FIBER GLASS 22222 2504 108915 OVEN DOOR BAFFLE 11111 2506 202652 PROTECTION GLASS FIBER INSIDE OVEN DOOR 11111 3201 402176 GLASS FIBER FOR MUFFLE 11111 3215 402175 UP/DOWN GLASS FIBER FOR MUFFLE 44444 3220 402177 BACK FIBER GLASS FOR MUFFLE 11111 3230 402168 GLASS FIBER FOR CHASSIS 22222 3240 402165 GLASS FIBER FOR OVEN DOOR 22222 3245 402174 GLASS FIBER FOR OVEN DOOR 11111 3250 402179 FIBER GLASS FOR OVEN DOOR 11111 3260 402164 VERTICAL GLASS FIBERE FOR OVEN DOOR 22222 3265 402178 GLASS FIBER FOR OVEN DOOR 22222 3500 604075 SWITCH 22222 3551 604076 SWITCH BLADE 22222 3552 604077 SWITCH SUPPORT 22222 4301 200421 RIGHT SIDE PROFILE 1 4301 125164 RIGHT SIDE PROFILE BORDEAUX 1 4301 125168 RIGHT SIDE PROFILE BLACK 1 4301 125160 RIGHT SIDE PROFILE RED 1 4301 125156 RIGHT SIDE PROFILE WHITE 1 4302 200420 LEFT SIDE PROFILE 1 4302 125163 LEFT SIDE PROFILE 1 4302 125167 LEFT SIDE PROFILE 1 4302 125159 LEFT SIDE PROFILE 1 4302 125155 LEFT SIDE PROFILE 1

Bertazzoni X304PIRNE, X304PIRCR, X304PIRBI, X304PIRX, X304PIRRO User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
