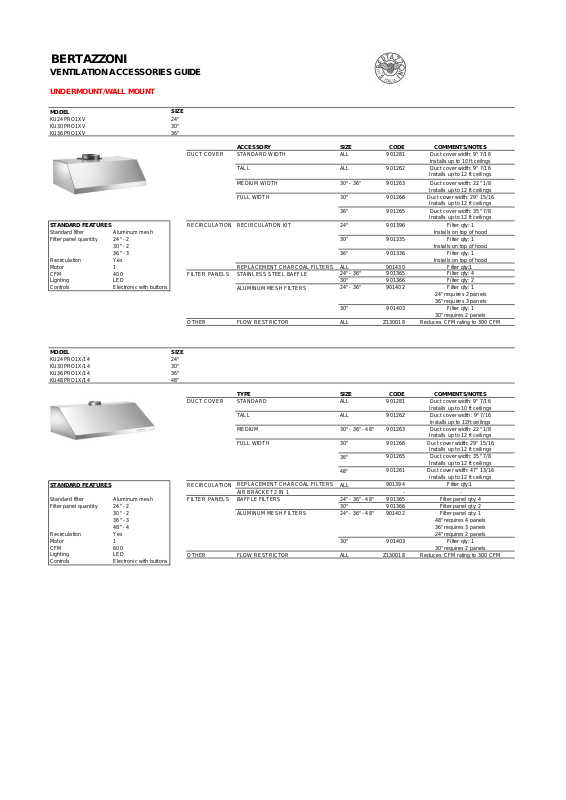

Bertazzoni W007960012 Specifications

BERTAZZONI

VENTILATION ACCESSORIES GUIDE

UNDERMOUNT/WALL MOUNT

MODEL

SIZE

KU24PRO1XV 24"

KU30PRO1XV 30"

KU36PRO1XV 36"

ACCESSORY

SIZE CODE COMMENTS/NOTES

DUCT COVER STANDARD WIDTH ALL

901281

Duct cover width: 9" 7/16
Installs up to 10 ft ceilngs

TALL

ALL

901262

Duct cover width: 9" 7/16

Installs up to 12 ft ceilings

MEDIUM WIDTH 30" - 36"

901263

Duct cover width: 22" 1/8

Installs up to 12 ft ceilings

FULL WIDTH 30"

901266

Duct cover width: 29" 15/16

Installs up to 12 ft ceilings

36"

901265

Duct cover width: 35" 7/8

Installs up to 12 ft ceilings

STANDARD FEATURES RECIRCULATION RECIRCULATION KIT

24"

901396 Filter qty: 1

Standard filter

Aluminum mesh Installs on top of hood

Filter panel quantity

24" - 2 30" 901335 Filter qty: 1

30" - 2 Installs on top of hood

36" - 3 36" 901336 Filter qty: 1

Recirculation Yes

Installs on top of hood

Motor

1 REPLACEMENT CHARCOAL FILTERS

ALL

901430 Filter qty:1

CFM 400 FILTER PANELS STAINLESS STEEL BAFFLE

24" - 36" 901365 Filter qty: 4

Lighting LED

30" 901366 Filter qty: 2

Controls Electronic with buttons

ALUMINUM MESH FILTERS

24" - 36" 901402 Filter qty: 1

24" requires 2 panels

36" requires 3 panels

30" 901403 Filter qty: 1

30" requires 2 panels

OTHER

FLOW RESTRICTOR ALL Z130018

Reduces CFM rating to 300 CFM

MODEL

SIZE

KU24PRO1X/14 24"

KU30PRO1X/14 30"

KU36PRO1X/14 36"

KU48PRO1X/14 48"

TYPE

SIZE CODE COMMENTS/NOTES

DUCT COVER STANDARD ALL

901281

Duct cover width: 9" 7/16

Installs up to 10 ft ceilings

TALL

ALL

901262

Duct cover width: 9" 7/16
Installs up to 12ft ceilings

MEDIUM 30" - 36" - 48"

901263

Duct cover width: 22" 1/8

Installs up to 12 ft ceilings

FULL WIDTH 30"

901266

Duct cover width: 29" 15/16

Installs up to 12 ft ceilings

36"

901265

Duct cover width: 35" 7/8

Installs up to 12 ft ceilings

48"

901261

Duct cover width: 47" 13/16

Installs up to 12 ft ceilings

STANDARD FEATURES RECIRCULATION

REPLACEMENT CHARCOAL FILTERS

ALL

901394 Filter qty:1

AIR BRACKET 2 IN 1

- -

Standard filter

Aluminum mesh

FILTER PANELS BAFFLE FILTERS

24" - 36" - 48" 901365 Filter panel qty: 4

Filter panel quantity

24" - 2 30" 901366 Filter panel qty: 2

30" - 2

ALUMINUM MESH FILTERS

24" - 36" - 48" 901402 Filter panel qty: 1

36" - 3 48" requires 4 panels

48" - 4 36" requires 3 panels

Recirculation Yes

24" requires 2 panels

Motor

1 30" 901403 Filter qty: 1

CFM 600

30" requires 2 panels

Lighting LED

OTHER FLOW RESTRICTOR ALL

Z130018 Reduces CFM rating to 300 CFM

Controls Electronic with buttons

BERTAZZONI

VENTILATION ACCESSORIES GUIDE

MODEL

SIZE

KU36PRO2X/14 36"

KU48PRO2X/14 48"

TYPE

SIZE CODE COMMENTS/NOTES

DUCT COVER MEDIUM ALL

901263

Duct cover width: 22" 1/8

Installs up to 12 ft ceilings

FULL WIDTH

36"

901265

Duct cover width: 35" 7/8

Installs up to 12 ft ceilings

48"

901261

Duct cover width: 47" 13/16

Installs up to 12 ft ceilings

RECIRCULATION

REPLACEMENT CHARCOAL FILTERS

ALL

901394 Filter qty: 1

Filter lifetime: 6 months

36"/48" requires 2 pcs

STANDARD FEATURES FILTER PANELS BAFFLE FILTERS

ALL

Included

-

Standard filter Stainless steel baffles ALUMINUM MESH FILTERS

ALL 901402 Filter panel qty: 1

Filter panel quantity

36" - 3 48" requires 4 panels

48" - 4

36" requires 3 panels

Motor2CFM 1200

Lighting LED

Controls Electronic with buttons

WALL MOUNT

MODEL

SIZE

KT36XT 36"

KT48XT 48"

TYPE

SIZE CODE COMMENTS/NOTES

DUCT COVER DUCT COVER

ALL Included

Duct cover width: 11'' 13/16

Installs up to 9 ft ceilings

DUCT COVER EXTENSION

ALL 901583

Duct cover width: 11'' 13/16

Installs up to 10 ft ceilings

RECIRCULATION

REPLACEMENT CHARCOAL FILTERS

ALL 901531

Filter qty: 2

Filter lifetime: 6 months

DURABLE REPLACEMENT CHARCOAL
FILTERS

ALL 901532

Filter qty: 2

Filter lifetime: 3 years

Can be washed and resued

FILTER PANELS BAFFLE FILTERS

ALL 901582

Filter panel qty: 1
36" requires 3 panels
48" requires 4 panels

REMOTE CONTROL

ALL Included -

STANDARD FEATURES

Standard filter

Stainless steel mesh

Filter panel quantity

36" - 3

48" - 4

Recirculation Yes

Duct cover height 30''5/16 - 40''3/8

Digital throttle to 295 or 395 CFM

Motor1CFM 600

Lighting LED

Controls Electronic with buttons

BERTAZZONI

VENTILATION ACCESSORIES GUIDE

MODEL

SIZE

KG30X 30"
KG36X 36"
KG48X 48"

TYPE

SIZE CODE

COMMENTS/NOTES

DUCT COVER DUCT COVER

ALL Included

Duct cover width: 15" 3/4

Installs up to 9 ft ceilings

DUCT COVER EXTENSION

ALL 901562

Duct cover width: 11" 7/16

Installs up to 10 ft ceilings

RECIRCULATION

REPLACEMENT CHARCOAL FILTERS

ALL 901578

Filter qty: 1

Filter lifetime: 6 months

RECIRCULATION KIT

ALL 901577

1 kit include:

filter fitting, screws, charcoal filter

FILTER PANELS STAINLESS STEEL MESH FILTERS

ALL Included

-

STANDARD FEATURES

Standard filter

Stainless steel mesh

Filter panel quantity

30" - 2

36" - 3

48" - 4

Recirculation Yes

Duct cover height 23" 13/16 - 41" 23/32

Digital throttle to 395 CFM

Motor1CFM 600

Lighting LED

Controls Touch control

MODEL

SIZE

KCH24XV 24''
KCH30XV 30''
KCH36XV 36''

TYPE

SIZE CODE

COMMENTS/NOTES

DUCT COVER DUCT COVER

ALL Included

Duct cover width: 10" 29/32

Installs up to 9 ft ceilings

RECIRCULATION

REPLACEMENT CHARCOAL FILTERS

ALL 901488

Filter qty: 1

Filter lifetime: 6 months

FILTER PANELS ALUMINUM MESH FILTERS

ALL 901404

Filter panel qty: 1
24" requires 2 panels
30" requires 2 panels
36" requires 3 panels

OTHER FLOW RESTRICTOR ALL

Z130018

Reduces CFM rating to 300 CFM

STANDARD FEATURES

Standard filter

Aluminum mesh

Filter panel quantity

24" - 2

30" - 2

36" - 3

Recirculation Yes

Duct cover height 17" 23/64 - 36" 19/64

Motor1CFM 600

Lighting LED

Controls Push buttons
