Bertazzoni REF30RCPIXL, REF30RCPRR, REF30RCPRL, REF24RCPIXR, REF24RCPIXL Use & Care Manual

Built-in Columns Refrigerator

Use & Care Manual

Réfrigérateur

Mode d’emploi

Refrigerador

Manual del usuario

REF24RCPIXL
REF24RCPIXR
REF24RCPRL
REF24RCPRR
REF30RCPIXL
REF30RCPIXR
REF30RCPRL
REF30RCPRR
REF36RCPIXL
REF36RCPIXR
REF36RCPRL
REF36RCPRR

INDEX

1

IMPORTANT DIRECTIONS OF SAFETY AND THE ENVIRONMENT

1.1

For your safety.................................................................................................................................................................

1.2

Important information when using the appliance................................................................................................

1.3

Caring for the environment..........................................................................................................................................

2

INSTALLATION

2.1

Installation.........................................................................................................................................................................

2.2

Connection to electrical power supply......................................................................................................................

3

BEFORE STARTING

3.1

Know your appliance......................................................................................................................................................

3.2

Main components............................................................................................................................................................

3.3

Electric Control.................................................................................................................................................................

3.4

Main control panel..........................................................................................................................................................

4

APPLIANCE SWITCHING ON AND OFF

4.1

Turning the appliance on and o................................................................................................................................

4.2

How to adjust the temperature for dierent requirements................................................................................

4.3

Information signals of anomaly on the display......................................................................................................

EN

4

4
4
5

5

5
5

6

6
7
8

8

9

9
10
11

5

CUSTOMIZE FUNCTIONS AND SETTINGS

5.1

Functions...........................................................................................................................................................................

5.2

Settings..............................................................................................................................................................................

6

INTERNAL LAYOUT

6.1

Internal layout (positioning, adjustment, removal)...............................................................................................1818

7

LIGHTING

7.1

Lighting...............................................................................................................................................................................1919

8

FOOD STORAGE

8.1

General directions..........................................................................................................................................................

8.2

How to maintain good food quality............................................................................................................................

9

CARE AND CLEANING

9.1

Care and Cleaning...........................................................................................................................................................

9.2

Internal cleaning..............................................................................................................................................................

9.3

Cleaning of the toe kick cover and condenser.........................................................................................................

10

TROUBLESHOOTING GUIDE

10.1

Troubleshooting Guide...................................................................................................................................................

10.2

Error messages appearing on the display..............................................................................................................

11

WARRANTY

11.1

Warranty.............................................................................................................................................................................2525

11

11
12

19

19
20

21

21
21
22

23

23
24

3

1. IMPORTANT DIRECTIONS FOR SAFETY AND THE ENVIRONMENT

1.1 For your safety

> If this appliance is replacing an existing appliance
which must be removed or disposed of, make sure
that it does not become a dangerous trap for chil­dren by cutting its power supply cable and render­ing it impossible to close the door. Use the same
caution at the end of the lifespan of the new appli­ance.
> This appliance is designed to refrigerate bever­ages and foods and is intended for domestic use.
> The appliance must be installed by following
the instructions in the Installation Guide, particu-

lar care should be taken not to obstruct the vent
openings of the appliance and of the built-in units.
> The appliance features a concentrated lighting

system with LED lamps. Do not stare into these
lamps when they are on to avoid possible eyesight
damage.
This warning is also contained on the label attached
to the inside of the refrigerator door.
> Do not use any type of electrical equipment inside
of the food conservation compartments.
> When positioning the shelves, do not place fingers
in the shelf slide guides.
> Do not position containers of flammable liquids
near the appliance.
> Completely switch o the appliance and unplug
the power supply cable during cleaning operations.
If the plug is not easily reached, it is a good idea to
turn o the breaker or remove the fuse that con­trols the socket that the appliance is connected to.
> The packaging material can be dangerous for
children: do not allow children to play with the plas­tic bags, plastic film or Styrofoam.
> Any repairs must be performed by a qualified
Bertazzoni Service technician.
> This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or lack of experience and knowledge unless they
have been given supervision or instruction con­cerning use of the appliance by a person responsi­ble for their safety. Children should be supervised
to ensure that they do not play with the appliance.
> Do not damage the appliance refrigerant circuit
pipes.
> Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
> If the power cord of this appliance is damaged,
it must be replaced by the manufacturer, service
company or a similarly qualified person. Improper
installations and repairs may put the user at con­siderable risk.
> Repairs may be performed by the manufacturer,
service company or a similarly qualified person
only.

> Plug into a grounded 3 prong outlet.
> Do not remove ground prong.
> Do not use an adapter.
> Do not use an extension cord.
> Disconnect power to all units before servicing.
> If the SUPPLY CORD is damaged, it must be repla-

ced by the manufacturer, its service agent or simi­lar qualified person in order to avoid a hazard.
> Children should be supervised to ensure that they
do not play with the appliance.

1.2 Important information when using
the appliance

> Never use electrical appliances inside the appli­ance (e.g. heater, electric ice maker, etc.). Explosion
hazard!
> Never defrost or clean the appliance with a
steam cleaner! The steam may penetrate electri­cal parts and cause a short-circuit. Risk of electric
shock!
> Do not use pointed and sharp-edged implements
to remove frost or layers of ice. You could dam­age the refrigerant tubes. Leaking refrigerant may
cause eye injuries or ignite.
> Do not store products which contain flammable
propellants (e.g. spray cans) or explosive sub­stances in the appliance.
Explosion hazard!
> Do not stand on or lean heavily against base of
appliance, drawers or doors, etc.
> Before cleaning the appliance, pull out the power
cord plug or switch o the fuse. Do not pull out the
power cord plug by tugging on the power cord.
> Store high-percentage alcohol tightly closed and
standing up.
> Keep plastic parts and the door seal free of oil
and grease. Otherwise, parts and door seal will
become porous.
> Never cover or block the ventilation openings for
the appliance.

Symbols used in the Guide:

Note

Recommendations for correct use of the
appliance

Important

Directions for avoiding appliance damage

4

2. INSTALLATION

EN

EN

Warning

Indications for avoiding injury to people

1.3 Caring for the environment

> Pay special attention to correct disposal proce­dure for all the packaging materials.
> The appliance must not be disposed of with urban
waste. Contact local waste disposal centers for on
how to dispose of recyclable waste.
> Prior to disposal, cut the power supply cord and
make it impossible to close the door.
> During disposal, avoid damage to the refrigera­tion circuit.
> The appliance does not contain hazardous sub­stances for the atmospheric ozone layer, neither in
the refrigeration circuit nor in the insulation.

2.1 Installation

Make sure that installation is performed correctly,
adhering to all directions in the specific installation
manual provided with the appliance.

2.2 Connection to the electrical power
supply

The appliance operates at 115 V AC, 60 Hz and is
equipped with a power supply cord with a 3-prong
grounded plug, which must be connected to a cor­responding 3-prong (15 Amp) grounding-type wall
receptacle.

Important

Do not use extension cords and/or mul­tiple adapters for the power supply con­nection.

5

3. BEFORE STARTING

3.1 Know your appliance

Congratulations for having purchased your new re­frigerator column: from now on you can use our in­novative conservation system, which will allow you
to keep all of your food in the best way possible.
This manual will answer most of your questions
about the product’s features. Should you require fur­ther information, please check our website

> our website

in the US http://us.bertazzoni.com/care-service
in Canada https://ca.bertazzoni.com/more/support

> or write us an e-mail at
[e-mail]

BERTAZZONI SPA
VIA PALAZZINA, 8 - 42016 GUSTALLA (RE) - ITALY

Fridge Gas Fill Charge

Quantité de Gaz Réfrigerateur

Freezer Gas Fill Charge

Quantité de Gaz Congélateur

Total Absorbed Current

Courant Absorbée Totale

Voltage

Tension

Frequency

Frequence

Refrigerant Gas Type

Type de Gaz Rèfrigerant

Defrost Heater

Chemical name of blowing gas

IP number

Adresse IP

Made in Italy

6.3
oz

MODEL

oz

REF24RCPIXL

3.0

CODE

A

KS5990FZ3IU

115

V

60

TECHNICAL CODE

Hz

HKDAGCS1X..UA

R134a

SER.NO./N° SERIE

344

F20200101000006

W

HFO

3186660

ETL LISTED
Conforms to
UL 60335-1 and
UL 60335-2-24
Certified to
CSA C22.2#60335-1
CSA C22.2#60335-2-24

Important

Before calling, write down the model type
and serial number which are available on
the warranty certificate and on the rating
plate, and any messages which may have
appeared on the display. Built In refrigera­tors come with 2 years parts & labor war­ranty, and 5 year parts & labor for sealed
system only.

The rating plate is located into the appliance, on side
cabinet, close to the shelves.
Before calling, please make sure to have the fol­lowing information ready:

- Date of Purchase;

- Name of dealer where product was purchased.

Position of the serial number inside the

compartment.

BERTAZZONI SPA
VIA PALAZZINA, 8 - 42016 GUSTALLA (RE) - ITALY

Fridge Gas Fill Charge

Quantité de Gaz Réfrigerateur

Freezer Gas Fill Charge

Quantité de Gaz Congélateur

Total Absorbed Current

Courant Absorbée Totale

Voltage

Tension

Frequency

Frequence

Refrigerant Gas Type

Type de Gaz Rèfrigerant

Defrost Heater

Chemical name of blowing gas

IP number

Adresse IP

Made in Italy

6

115

R134a

344

HFO

MODEL

oz

6.3

REF24RCPIXL

oz

CODE

A

3.0

KS5990FZ3IU

V

TECHNICAL CODE

Hz

60

HKDAGCS1X..UA

SER.NO./N° SERIE

F20200101000006

W

3186660

ETL LISTED
Conforms to
UL 60335-1 and
UL 60335-2-24
Certified to
CSA C22.2#60335-1
CSA C22.2#60335-2-24

Model .

Code .

Technical Code .

Serial Number .

Features .

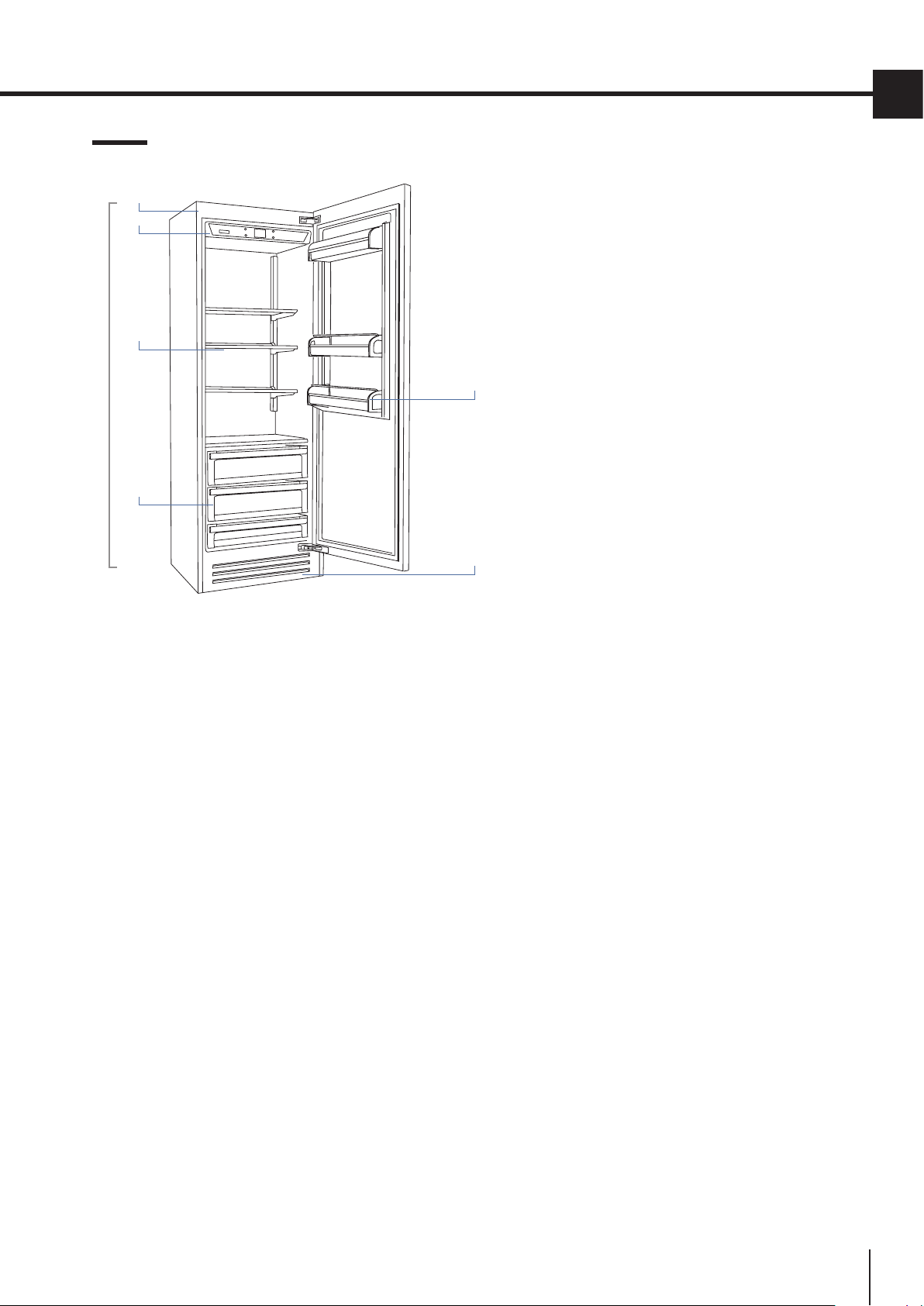

3.2 Main components

1

2

3

Fridge

4

EN

1) Stainless steel body.

2) Interactive control panel.

3) Ajustable height shelf.

4) AISI 304 drawers fridge

compartment.

5) Door bins.

5

6) Removable toe kick.

Fridge

6

7

3. BEFORE STARTING

3.3 Eletronic Control

The innovative electronic control system designed by Bertazzoni maintains constant temperature on
the entire compartment and visualizes it on the control panel display. It also allows user interaction
making it possible to personalize settings of the various functions and to receive sound and/or visual
messages should any malfunction occur in the appliance.

3.4 Main control panel

On/Off:

Touch the icon to turn the unit on or off.

Home

Touch the home icon for going back to the main display screen.

Alarm

Touch the icon to view the alarm tone functions and to deactivate them.

Back

Touch the arrow icon for going back to the previous display screen.

8

Functions

Settings

Initial test…

Are you sure you
want to power off

this unit?

Yes No

4. APPLIANCE SWITCHING ON AND OFF

4.1 Turning the appliance on and o

EN

First time starting the unit

Touch the button . The display shows the
following launch screens:

1) Bertazzoni Logo.

2) Initial test

(lasts 3 minuts).

3) The display shows the main screen with the
envirorment temperature measured from the
fridge inside the compartments. Automatically
the unit starts to cool down until reaching the set
temperatures.

Functions

4) Home screen.

- fridge compartment
+4°C (39°F)

+

4

°C

Settings

2) Touch the icon
Yes to swich off.

Are you sure?

3) Confirm
shutdown by

Yes No

touching the
Yes icon.

When the fridge is o there are no warning
signs that prove that the fridge is plugged to

a socket.

Switching off for long periods

During long absence periods it is recommended
to switch off the refrigerator by pressing the
Unit button for three seconds and disconnect­ing the electrical plug or the breaker controlling
the socket.
Completely empty the refrigerator, clean and
dry it and leave the doors and drawers partially
open to prevent unpleasant odors.

When the appliance is first switched on is recco­mended to wait at least 12 hours without open­ing the doors and before placing any food inside
the unit.During such period deactivate any error
message by pressing the Alarm button.

Shutdown.

1) touch the button off.

If at the first startup the Standby message
does not appear, but another message ap­pears, it means that the appliance has al­ready started the cooling process.
During the first startup, it will not be possi­ble to use the Menu to modify the factory set­tings until the preset temperature has been
reached. During the first startup, it will not be
possible to use the Menu to modify the fac­tory settings until the preset temperature has
been reached.

9

+ 2 °C

+ 4

+ 3

0

+ 1

OK

OFF

+ 2 °C

+ 4

+ 3

0

+ 1

OK

OFF

+ 2 °C

+ 4

+ 3

0

+ 1

OK

OFF

4. APPLIANCE SWITCHING ON

Each time the appliance is switched on it goes
through a self-diagnosis procedure lasting
three minutes before completely starting up.

3) Touch the icon ok
to confirm the desi­der temperature.

4.2 How to adjust the temperature for
dierent requirements.

Each model has been carefully tested before leaving
the factory and is adjusted in such a way to ensure
high performance and low power consumption.
Usually, it is not necessary on modify the settings.

How it looks on the home screen:

Fridge
Compartment

+

4

°C

Modify the temperatures compartment

How to modify the Fridge compartment
temperature.

Preset

temperature

The temperature shown can vary slightly in
respect to the set temperature following
frequent openings of the doors or insertion
of room temperature foods or large
quantities of foods.
6 to 12 hours are necessary to reach the
selected temperature.

Padlock icon.

The padlock icon shows up when the temperatu­res are set up.

The padlock open/close shows that the com­partment's temperatures can or can not be
modified by the user.

+

10

4

°C

Functions

Settings

1) Home screen.
Touch the icon of
fridge compartement.

2) Scoll up/down to
select the desired
temperature

fridge from +1°C
to +8°C (from 34°F
to 46°F)

Usually a yellow padlock will show open, in that
case you can scroll up or down with a finger on
the display, select the desired temperature and
press OK to confirm.

Whereas a closed padlock will be seen if the
user has activated a function that modifies the
settings of the refrigerator and prevents the
user from changing the temperature of the
compartment.

+ 2 °C

+ 4

+ 3

0

+ 1

OK

OFF

Vacation Mode

Functions

Settings

4

+

°C

9

Hour

11

10

7

8

OK

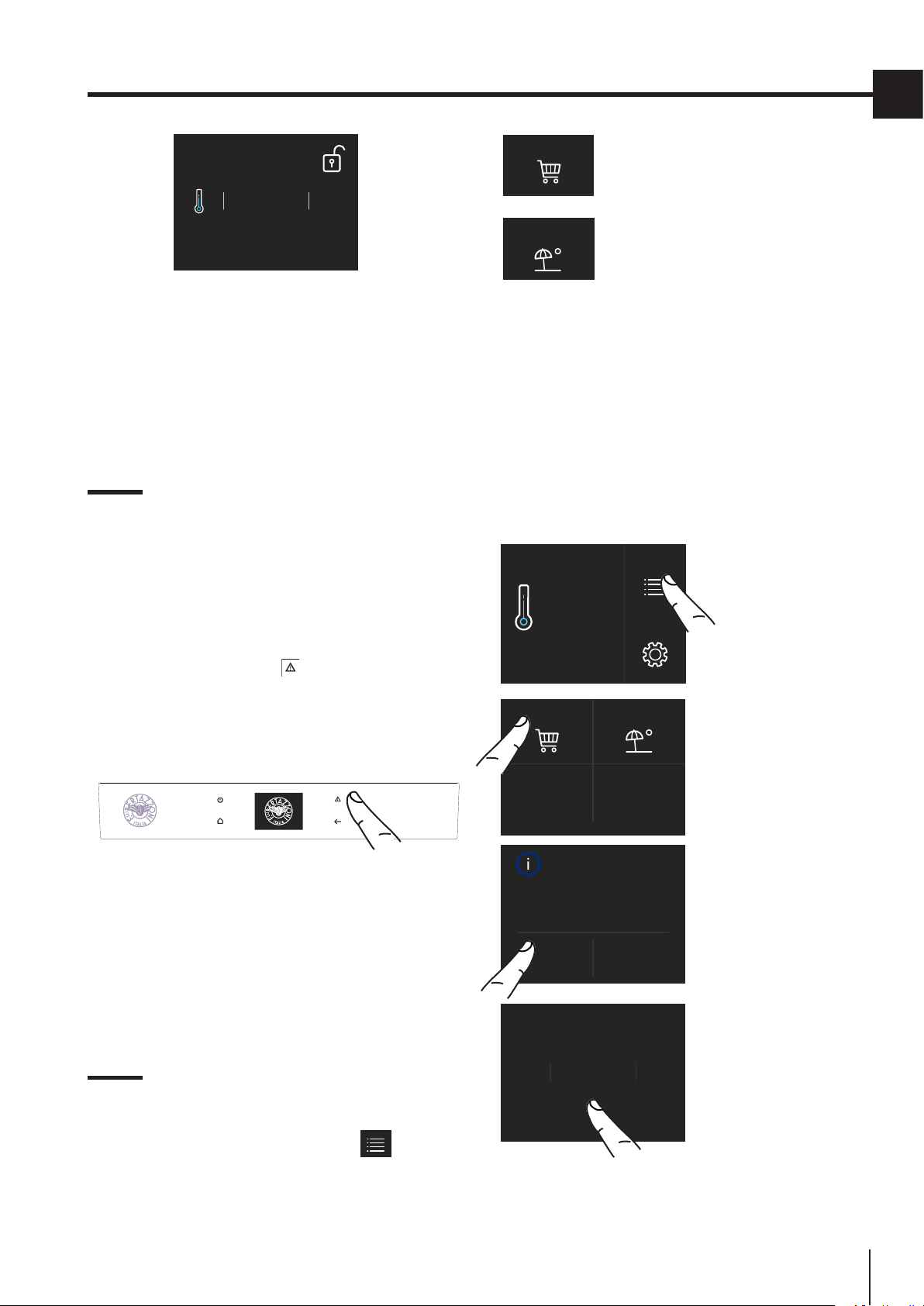

5. CUSTOMIZE FUNCTIONS AND SETTINGS

Functions

EN

If the icon function is touched and a specific
function is set (for example holiday, shopping
trimode, ect...), the yellow padlock will be seen
closed and it won't be possible to change the
temperature of the compartments as long as the
function won't be completed or if it is manually
deactivated as long as the function is active.

4.3 Information signals of anomaly on
the display.

An integrated control system will give infor­mation through messages you will see on the
display.
There is an alarm tone that occurs with some
error messages which can be turned off by tou­ching the alarm button on the main
control panel.
You can find the list of the error messages at the
end of this manual.

Shopping Mode Fridge

Vacation Mode

1) Shopping Mode Fridge.

2) Vacation Mode.

1) Shopping Fridge

The function lowers the refrigerator temperature
to +2°C (36°F) a factory default of 12 hours,
permitting more rapid cooling of food that has just
been placed in. Once the 12 hours have expired,
the function deactivates automatically, returning
to the previously set temperature. It is possible to
program a timed activation of the function.
After a prolonged interruption of power supply, it is
necessary to reactivate the function.

A) Home screen.
Touch the icon
functions.

Shopping Mode Fridge

Vacation Mode

INFORMATION FOR THE USE OF THE DISPLAY.

It is possible to personalize the operation of your
Bertazzoni unit in order to adapt it to the different
ways you might want to use it.

5.1 Functions.

After touching the icon Function on the
home screen, the user will be shown the icons of
the following available functions.

B) Touch the icon
Shopping Mode
Fridge.

Activate Shopping Mode:
Fridge? (up to 24 hours)

C) Touch the icon
Yes to activate the
function.

Yes No

D) Scroll up /
down to setting
the desired time
and then pres ok.

It is possible to program in advance between 1
and 24 hours.

11

7

Sabbath

Sabbath

Reset Demo

Sabbath

Maintenance Service

Info System

Date Time

°c / °f Language

Date Time

Service

5. CUSTOMIZE FUNCTIONS AND SETTINGS

2) Vacation

This function (recommended in case of prolonged
absences since it allows considerable energy
savings) brings the refrigerator compartment
temperature to +14°C (57°F)

It is possible to program the duration, or it can be
manually deactivated upon re-entry after a period
of absence. This function remains active even if
during the period of absence there is a prolonged
interruption of electrical power.

It is possible to program a period from 1 to 90 days.

Functions

A) Home screen.

+

4

°C

Settings

Touch the icon
functions.

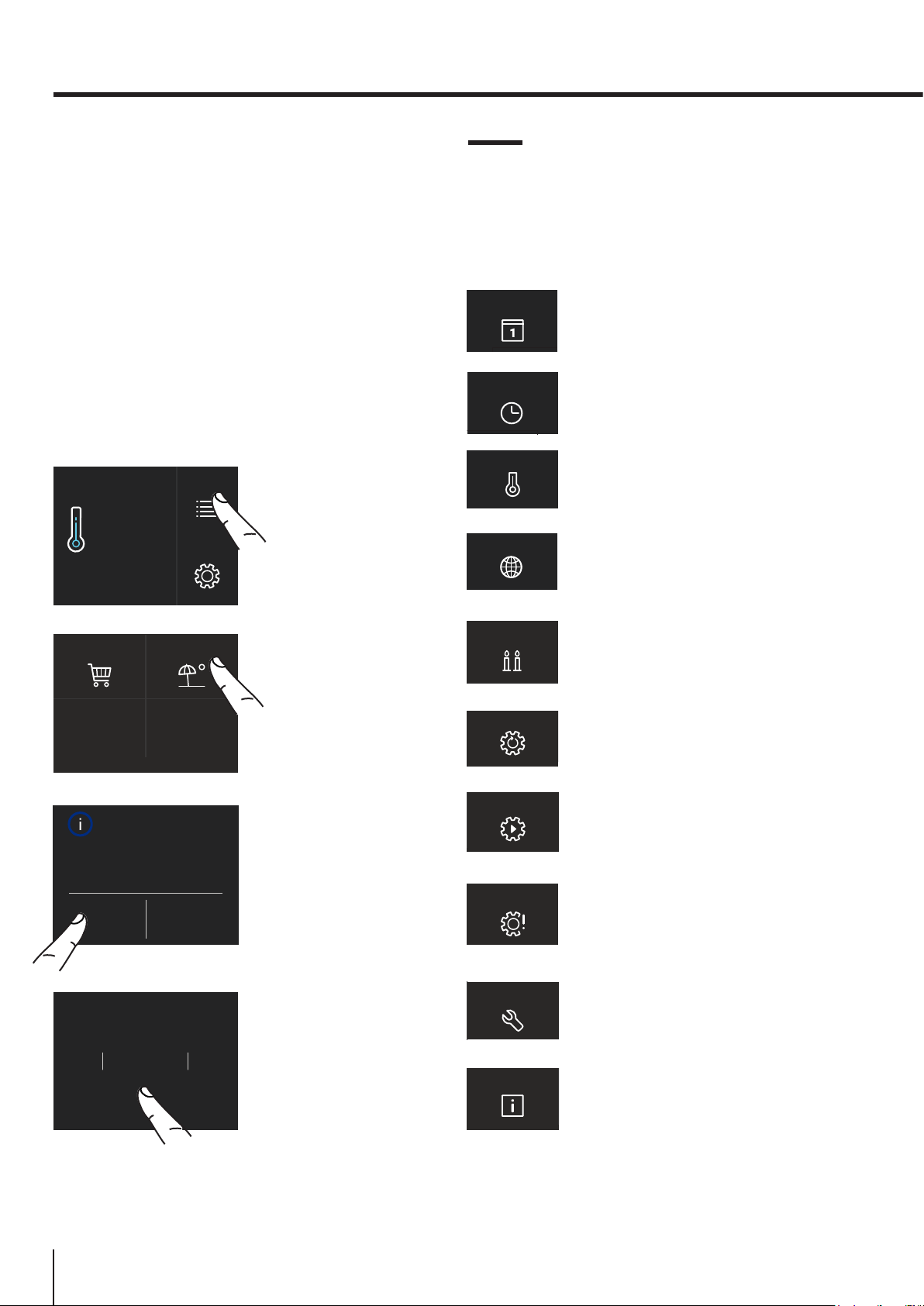

5.2 Settings.

It is possible to personalize the settings of your
Bertazzoni fridge for adapting it to the different
ways you might want to use it.

1) Date.

2) Time.

3) Celsius or Fahrenheit.

4) Language.

Shopping Mode Fridge

Activate
Vacation Mode

Yes No

8

9Day

10

11

Vacation Mode

OK

B) Touch the icon
Vacation Mode.

C) Touch the button
Yes to activate the
function.

D) Scroll up /
down to set the
desired time (in
days) and then
pres ok.

It is possible to pro­gram a period from
1 to 90 days.

5) Sabbath.

6) Reset.

7) Demo Mode.

Maintenance

8) Maintenance.

9) Service.

10) Info System.

12

Date Time

°c / °f Language

2017

Year

2019

2018

2015

2016

OK

Functions

Settings

4

+

°C

7

Functions

Settings

4

+

°C

37Min

39

38

35

36

OK

Date Time

°c / °f Language

9

Hour

11

10

7

8

OK

EN

1) Date

The display will show the date in the format
(day:month:year).
By touching the display you can modify the settings.

A) Home screen.
Touch the Set­tings icon.

B) Touch the Date
icon.

2) Time

The display shows the hours and minutes in the
format hh:mm.
This function selects the display at 12 or 24 h.

A) Home screen.
Touch the Set­tings icon.

B) Touch the Time
icon.

Month

7

8

9

10

11

8

9Day

10

11

OK

OK

C) Scroll up or
down until the de­sired year appears
and press Ok.

D) Scroll up or
down until the
desired month
appears and
press Ok.

E) Scroll up or
down until the de­sires date appears
and press Ok.

Hour?

12 24

C) Touch the desi­red method which
you want the time
to display: 12 hour
or 24 hours.

D) Scroll up /
down to set the
hour and then
press Ok.

E) Scroll up / down
to set the minutes
and then press Ok.

13

OK

°C

°F

Functions

Settings

4

+

°C

Date Time

°c / °f Language

Français

Español

Deutsch

Italiano

English

OK

Date Time

°c / °f Language

5. CUSTOMIZE FUNCTIONS AND SETTINGS

3) SET °C/°F

This function allows the temperature to be dis­played in Centigrade or Fahrenheit. The factory
setting in Centigrade.

A) Home screen.
Touch the Set­tings icon.

B) Touch the icon
°C/°F.

4) Language

To set the language of the fridge, simply touch
the settings button on the display.

Functions

A) Home screen.

+

4

°C

Settings

Touch the Set­tings icon.

B) Touch the Lan­guage icon.

C) Scroll up / down
to select either
centigrade or
fahrenheit
degrees and
press Ok.

C) Scroll up /
down to select the
desired language
and press Ok.

14

Sabbath

Reset Demo

Sabbath Mode

Sabbath

Reset Demo

Reset

Yes No

Reset complete

Reset

EN

5) Sabbath Mode

The function makes it possible to comply to certain
religious observances requiring the operation of
the appliance to not be aected by the opening or
closing of the doors. The thermostatic control, in­ner lighting and ice maker are deactivated.

Functions

A) Home screen.

+

4

°C

Settings

Touch the Settings
icon.

B) Scroll right
once and touch
the Sabbath icon.

6) Reset

This option allows you to restore the appliance
to the original factory settings, cancelling all the
changes that have been made previuosly.

Functions

A) Home screen.

+

4

°C

Settings

Touch the Settings
icon.

B) Scroll right
once and touch
Reset icon.

Confirm
Sabbath Mode

Yes No

Sabbath Mode

Yes No

C) Touch the Yes
button to confirm
the Sabbath Mode.

D) Touch the Yes
button to activate
the function.

E) The fridge will
work accordingly to
this configuration.

Confirm resetting
to factory
default settings?

Yes No

C) Touch the yes
button to confirm
the selection of the
resetting of factory
default settings.

D) Touch the Yes
button.

E) The reset has
been performed.
The fridge's factory
settings have been
restored.

15

Sabbath

Reset Demo

Demo Mode

1

3

2

4

Enable reminder

countdown timer?

Yes No

Clean Condenser

Are you sure?

On

Clean Condenser

Demo Mode

Yes No

5. CUSTOMIZE FUNCTIONS AND SETTINGS

Turn Demo Mode
On? (no cooling)

Passcode required

Yes No

7) Demo Mode

It is possbile to simulate the functioning of the
fridge, for showroom display or for trade shows.

Functions

A) Home screen.

+

4

°C

Settings

Touch the Settings
icon.

B) Scroll right
once and touch
Demo icon.

C) Touch Yes.

8) Maintenance (through alarm sign).

For proper operation, the unit requires cleaning of
the toe kick cover, of the filter and the condenser.

The default setting of the unit is"Warning disa­bled".
The required cleaning every 6 months is denoted
by an audible and visual message on the display.
It is possible to disable the warning signal and see
the time left before the next cleaning that has to be
done. For details see following pages.

Functions

A) Home screen.

+

4

°C

Maintenance Service

Settings

Touch the Settings
icon.

B) Scroll to the
right twice and

Info System

touch the Mainte­nance icon.

16

D) Insert the

password for the
activation.

Default password
1-2-3-4

E) Push Yes or No
button.

C) To enable it,
touch the On icon.

D) To enable it,
touch the Yes icon.

Next reminder…

Left 180 days

Clean Condenser

Off Reset

EN

E)If you want to
enable the warning,
touch the Reset
icon.

If you want to disable the reminder, at step C touch
O, then touch Yes as below.

Clean Condenser

Disable reminder?

Yes No

10) Info System

The Info System function shows the product data,
for example the software code, serial number and
the factory code of the refrigerator.

Functions

+

4

°C

Maintenance Service

Settings

A) Home screen.
Touch the Settings
icon.

B) Touch the Info

Info System

System icon.

9) Service

The service function is reserved for the
Bertazzoni service technicians.

Sk Power

Sk User

HW: 0504
SW: 0518

HW: 1002
SW: 1069 - G1011

C) The display will
show the data
specific to the
appliance.

17

1

2

6. INTERNAL LAYOUT

6.1 Internal Layout (positioning, adjust­ment, removal).

Crisper

Fixed to the slide guides with two thumbscrews.
> to remove the drawer, unscrew the thumbscrews
and remove the drawer.

Warning

Do not place hands or fingers near the Ice­maker when in function.

Door Bins

The door bins can be easily removed for cleaning

> Hold the door shelf at the sides and push it upwards
to release it from its seat, then pull it outwards.

> Reverse the procedure to reinstall.

Shelves

The shelves are moveable and can be easily re-posi­tioned by the user as follows:
> release the locking knob by turning counter-clock­wise

> lift or lower the shelf to the desired position

> re-tighten the locking knob. To remove a shelf it is

necessary to slide it up to the top

18

7. LIGHTING 8. FOOD STORAGE

EN

7.1 Lighting

To provide optimum interior lighting, LED strips il­luminate the refrigerator compartment from the top
and sets of LED lights directly illuminate dierent ar­eas of the refrigerator compartment.

In case of malfunction and/or wearing out of the
lighting system, the repair should be carried out by a
qualified Bertazzoni Service technician.

8.1 General directions

Your appliance is designed to ensure precise, con­stant temperatures and appropriate humidity levels
in all compartments.

Nevertheless, to properly preserve all of your foods,
it is not enough to have an excellent refrigerator. It
is also necessary to know the rules for correct food
preservation.

Do bear in mind that all foods will inevitably change
their characteristics over the passage of time. This
change begins long before the food is consumed,
since foods contain micro organisms which multi­ply and can cause deterioration. This process occurs
more rapidly due to improper handling, preservation
temperatures and humidity levels.

It is therefore recommended to follow the directions
presented below which will permit using your refrig­erator in the most eective and safe manner to keep
your foods in the best way for as long as possible.

Periodically check that all foods are in a perfect
state of preservation. It is usually quite clear when
a food item is deteriorated, due to mold, unpleasant
odor and unpleasant aspect. Nevertheless, there are
cases in which these conditions are not so evident. If
you believe that a food item was kept for an exces­sive period of time and may be deteriorated, do not
consume this item or even taste it, even if it seems to
still be healthy, since the bacteria that cause deterio­ration of food can also cause poisoning and illness.
When in doubt, throw the food away.

Refrigerator

from +1° to +8 °C

(from 34°F to 46°F)

19

8. FOOD STORAGE

8.2 How to maintain good food quality

When buying groceries

Always take the following precautions:
> Place any packages of raw meat, fish or poultry in
plastic bags so that they do not drip on other foods.
> Purchase meat, poultry and fish last. Do not leave
your groceries in a warm car after shopping. Keep a
freezer bag in your car and use it in case of very high
temperatures or long trips.
> Check the production dates and “best before” times
on foods to be sure that they are fresh.
> Be very careful when buying fresh foods, and only
buy a quantity that can be consumed during your
planned preservation period.
> When possible, let warm foods adjust to room tem­perature for at least two hours before placing them
in the refrigerator, unless you have activated the
Shopping function before.

When placing foods in

Check the refrigeration temperature of the various
compartments on the control panel:
> The refrigerator temperature must be 8°C (45°F)
or lower and the freezer temperature must be -18°C
(0°F)
> Follow the recommendations regarding the pres­ervation times and temperatures indicated in the ta­bles to follow.
> Keep raw meat, fish and poultry separate from oth­er foods and avoid any possible drippings.

above normal levels. In addition to this
the display will show for one minute the
highest temperature detected inside the
compartments, to allow the user to de­cide how to better use the food items.
After one minute the display will resume
normal operation, while the Alarm button

will continue to blink.
Press the Alarm button to display the
highest recorded temperatures.

When placing foods in
> When placing your meat, fish or poultry in the

refrigerator, leave them in the original packaging,
unless the packaging is ripped or punctured. Re­peated handling could introduce bacteria into these
foods.
> To keep food in the freezer is a good idea to use
freezer containers.

> Label and date the packages
> Be careful to correctly position the food items on

the shelves in a way that does not obstruct the air
circulation vents inside the compartment.

Warning

After a prolonged interruption of electri­cal power, once the electrical power is
reactivated, an audible signal will indi­cate if the temperature has been raised

20

9. CARE AND CLEANING

EN

9.1 Care and Cleaning

To clean the parts made of steel use a microfiber
cloth and the sponge provided in the kit with the
appliance. Always use the cloth and sponge in the
direction of the steel’s satin finish.

Every now and then, to polish the steel, wipe with a
slightly damp microfiber cloth.

Do not use the sponge on aluminium parts, such as
the handles and the profiles of the glass shelves.
You should use special care to keep the ventila­tion openings in the appliance or in the cabinet that
houses it free of obstructions.

Scrupulously follow the detailed directions
that can be found in the provided kit and
never use abrasive or metallic products
which could scratch and damage the satin
finishing on the appliance permanently.
Before performing any sort of cleaning,
disconnect the appliance from the electrical
power supply.
Make sure you do not damage the refrigerant
circuit in any way.

9.2 Internal cleaning

Clean the internal and removable parts by washing
them with a solution of lukewarm water, a small
amount of dishwashing detergent.

Rinse and dry right away.

Do not use mechanical devices or other methods to
speed up defrosting.

Warning

Do not use water on the electrical parts,
lights and control panel.

Warning

Do not use chlorine-based detergents or
cleaning agents.

Do not bring cold glass parts into contact with
boiling water.
Do not wash any parts of the refrigerator in a
dishwashing machine since this could dam­age or irreparably deform the parts.

Warning

The use of chlorine-based detergents or
similar that contains it should be avoided
(bleach, hypochlorite, etc).

21

Maintenance Service

9. CARE AND CLEANING

9.3 Cleaning of the toe kick cover, filter
and condenser.

The unit requires, for a correct operation, the
cleaning of the toe kick cover, filter and
condenser.

It is recommended to perform the following cleaning
steps very 6 months. An audio and visual message
on the display will serve as a reminder.

Behind the frontal toe kick cover is the condenser.
To clean it use a vacuum cleaner with a soft brush
attachment at maximum power, sweeping it along
the vent slits. In case of a significant dust build up,
the toe kick cover can be removed to allow a more
accurate cleaning of the filter.

On the mantenience settings, after the in­stallation of the unit and after it has been turned
on, you can set the condenser cleaning warning.

In the case the warning sign is enabled, there will
be an audible signal every 6 months, alerting that it
is time to clean the condenser.

After cleaning it, touch the reset icon in order to
reactivate the warning signal in 6 months.

If you do not want the cleaning signal alert for the
condenser, touch the O icon.

Lower condenser.

For cleaning the condenser follow the instruc­tions:

> Switch o the appliance by pressing the Unit

button on the main control panel for approx 3
seconds.

> Wait approx 30 minutes, until the finned condens­er cools down to room temperature.

> Remove the removable grille under the door.

> Clean it thoroughly of any dust build up as shown

in the picture, taking care not to damage the con­denser.

> Restart the unit again, pressing on the unit button

for three second.

Warning

The edges of the condenser are sharp,
therefore use adequate protection for
hands and arms when cleaning the
condenser.

22

10. TROUBLESHOOTING GUIDE

10.1 Troubleshooting Guide

If you notice malfunctions in your appliance, use this
guide before calling for service: this guide can help
you personally resolve the problem or could provide
important information to be conveyed to the service
technician to ensure rapid and eective repair.

Display message and audible alarms.

A malfunction is usually indicated by the display.
Problems that cannot be solved by the user are
reported through a fault code. Keep in mind,
however, that in messages or alarms they may
appear for particular conditions of use or during
start-up. In these cases, deactivate the audible
alarm by pressing the Alarm button and leave
the
appliance running and limit the opening of the
doors to the maximum for about 10-12 hours.

EN

Condensation inside and outside of the refrigerator.

If the climate is very humid, the formation of
condensation is normal. Opening the door or draw­ers for prolonged periods of time can contribute to
the formation of condensation.
In any case, make sure that the doors are always
completely closed.

Ice or frost build up inside the refrigerator.

Did you leave the doors open for a long period of
time?
Do the doors close completely?
If the doors do not close completely, contact your
installer.

Unpleasant odors inside the refrigerator.

Clean the appliance completely according to the
instructions.
Hermetically cover all the food. Do not conserve food
for prolonged periods of time.

The refrigerator does not work.

Is the appliance connected to the electrical power
supply?
Is electrical power available at the electricity socket?
Is the Unit button activated?
Is the unit in ‘Demo’ Mode?

The refrigerator is warmer than
usual.

Does the display show a malfunction code?
Is the temperature adjusted correctly?
Were the doors or drawers open for a long period of
time?
Were large quantities of food recently inserted?
Is the unit in ‘Demo’ Mode?

The appliance remains in function for a long time
period.

Bear in mind that during very hot weather and with
very high temperatures in the room it is normal that
the compressor remains on for prolonged periods of
time.
Were the doors or drawers open for a long period of
time?
Were large quantities of food recently inserted?
Check that the doors are closed and that the food or
containers do not obstruct the perfect closure of the
door.
Is one or more compartments in Shopping Mode?

The doors are dicult to open.

The appliance is designed to ensure a fully hermetic
closure. When the door is closed, a vacuum condition
can occur: in this case it is necessary to wait a few
seconds until the pressure balances before opening
the door.

Appliance is cooling but lights and display are not
working.

Check to see if the appliance was accidently placed
into Sabbath Mode.

If the unit you purchased was used as a
showroom model it may be in a special en­ergy-saving mode called Demo Mode where
the appliance appears to be operating (lights
work and false temperatures are displayed)
but no cooling actually takes place. If you
suspect your appliance is in Demo Mode
please contact your dealer or distributor for
assistance with disabling this feature.

If you hear unusual noises.

It is normal to hear noises from the ventilators or
compressors during operation or during the defrost
phase.

Noise could be more marked depending on the
position of the appliance and the surrounding
environment.

23
