Bertazzoni REF18WCPIXR Installation Drawing

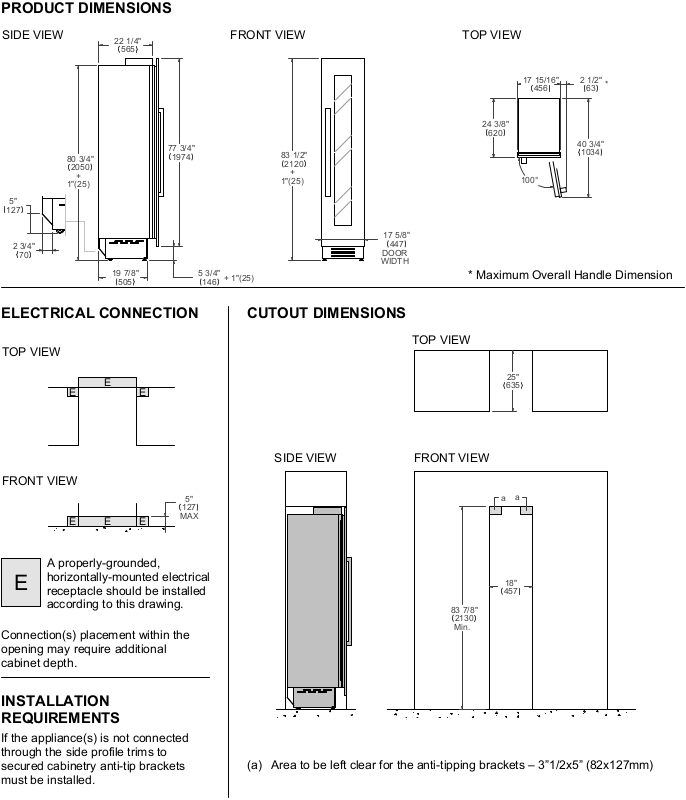

PRODUCT DIMENSIONS
A
SIDE VIEW
5"
127
2 3/4"
70
80 3/4"
2050
1"(25)
22 1/4"
565
77 3/4"
1974
+
19 7/8"
505
ELECTRICAL CONNECTION
TOP VIEW
E
E E
FRONT VIEW TOP VIEW
83 1/2"
2120
+
1"(25)
17 5/8"
447
DOOR
5 3/4"
146
+ 1"(25)
CUTOUT DIMENSIONS
WIDTH
TOP VIEW
24 3/8"
620
17 15/16"
456
100°
2 1/2"
63
40 3/4"
1034
*
* Maximum Overall Handle Dimension
25"
635
FRONT VIEW
EE E
MAX
properly-grounded,
horizontally-mounted electrical
E
receptacle should be installed
according to this drawing.
Connection(s) placement within the
opening may require additional
cabinet depth.
INSTALLATION
REQUIREMENTS
If the appliance(s) is not connected
through the side profile trims to
secured cabinetry anti-tip brackets
must be installed.
5"
127
SIDE VIEW FRONT VIEW
a
a
18"
457
83 7/8"
2130
Min.
(a) Area to be left clear for the anti-tipping brackets – 3”1/2x5” (82x127mm)
