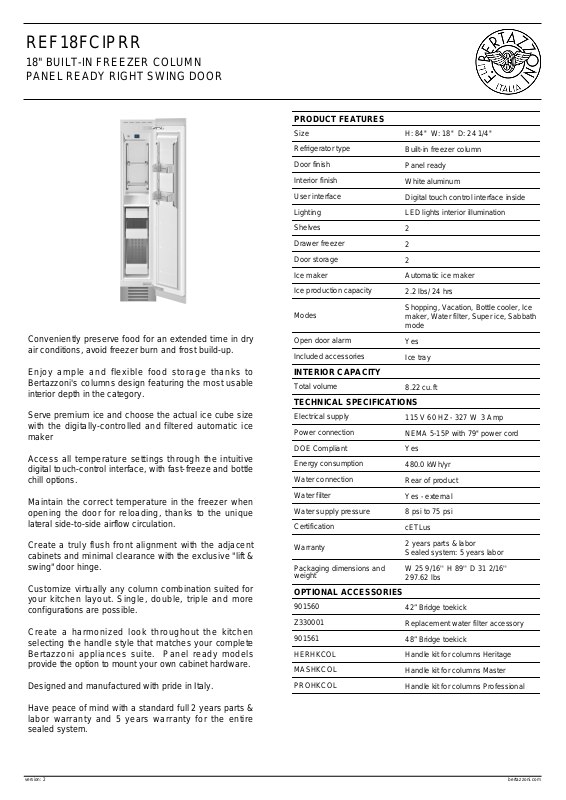

REF18FCIPRR
18" BUILT-IN FREEZER COLUMN
PANEL READY RIGHT SWING DOOR
Conveniently preserve food for an extended time in dry
air conditions, avoid freezer burn and frost build-up.
Enjoy ample and flexible food storage thanks to
Bertazzoni's columns design featuring the most usable
interior depth in the category.
Serve premium ice and choose the actual ice cube size
with the digitally-controlled and filtered automatic ice
maker
Access all temperature settings through the intuitive
digital touch-control interface, with fast-freeze and bottle
chill options.
Maintain the correct temperature in the freezer when
opening the door for reloading, thanks to the unique
lateral side-to-side airflow circulation.
Create a truly flush front alignment with the adjacent
cabinets and minimal clearance with the exclusive "lift &
swing" door hinge.
Customize virtually any column combination suited for
your kitchen layout. Single, double, triple and more
configurations are possible.
Create a harmonized look throughout the kitchen
selecting the handle style that matches your complete
Bertazzoni appliances suite. Panel ready models
provide the option to mount your own cabinet hardware.
Designed and manufactured with pride in Italy.
PRODUCT FEATURES
Size
Refrigerator type
Door finish
Interior finish
User interface
Lighting
Shelves
Drawer freezer
Door storage
Ice maker
Ice production capacity
Modes
Open door alarm
Included accessories
H: 84'' W: 18'' D: 24 1/4''
Built-in freezer column
Panel ready
White aluminum
Digital touch control interface inside
LED lights interior illumination
2
2
2
Automatic ice maker
2.2 lbs/ 24 hrs
Shopping, Vacation, Bottle cooler, Ice
maker, Water filter, Super ice, Sabbath
mode
Yes
Ice tray
INTERIOR CAPACITY
Total volume
8.22 cu.ft
TECHNICAL SPECIFICATIONS
Electrical supply
Power connection
DOE Compliant
Energy consumption
Water connection
Water filter
Water supply pressure
Certification
Warranty
Packaging dimensions and
weight
115 V 60 HZ - 327 W 3 Amp
NEMA 5-15P with 79'' power cord
Yes
480.0 kWh/yr
Rear of product
Yes - external
8 psi to 75 psi
cETLus
2 years parts & labor
Sealed system: 5 years labor
W 25 9/16'' H 89'' D 31 2/16''
297.62 lbs
OPTIONAL ACCESSORIES
901560
Z330001
901561
HERHKCOL
MASHKCOL
PROHKCOL
42” Bridge toekick
Replacement water filter accessory
48” Bridge toekick
Handle kit for columns Heritage
Handle kit for columns Master
Handle kit for columns Professional
Have peace of mind with a standard full 2 years parts &
labor warranty and 5 years warranty for the entire
sealed system.
bertazzoni.comversion: 2
REF18FCIPRR
PRODUCT DIMENSIONS
SIDE VIEW
FRONT VIEW TOP VIEW
CUTOUT DIMENSIONS
INSTALLATION
REQUIREMENTS
SIDE VIEW FRONT VIEW
TOP VIEW
ELECTRICAL & WATER
CONNECTION
Connection(s) placement within the
opening may require additional
cabinet depth.
TOP VIEW
E
W
FRONT VIEW
A
properly-grounded,
horizontally-mounted electrical
receptacle should be installed
according to this drawing.
EWEW
WE
EWEW WE
5"
127
* Maximum Overall Handle Dimension
** Width of 3/4” (19mm) Door Panel
(a) Area to be left clear for the anti-tipping brackets – 3”1/2x5” (82x127mm)
(b) Panel dimensions available on Built-in Food Preservation Design Guide
or Installation Manual
If the appliance(s) is not connected
through the side profile trims to
secured cabinetry anti-tip brackets
must be installed.
To connect to the water supply
system, a 3/4” NPT waterline
with accessible shut-off valve
must be supplied.
17 15/16"
456
83 1/2"
2120
+
1"(25)
22 1/4"
565
19 7/8"
505
18"
457
83 7/8"
2130
Min.
25"
635
a
a
80 3/4"
2050
+
1"(25)
2 3/4"
70
24 1/4"
615
71 1/8"
1808
b
5"
127
100°
3 1/4"
82
*
40 3/4"
1036
**
18" BUILT-IN FREEZER COLUMN
PANEL READY RIGHT SWING DOOR
A separate circuit breaker servicing only this appliance is recommended.
For installation of multiple products in combination, refer to the Built-in Food Preservation Design Guide at us.bertazzoni.com or ca.bertazzoni.com
Disclaimer: while every effort has been made to ensure the accuracy of the information contained in this document, Fratelli Bertazzoni reserves the right to change it at any time without notice.
For detailed installation instructions, consult the installation manual. Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of Bertazzoni Spa.
bertazzoni.comversion: 2
