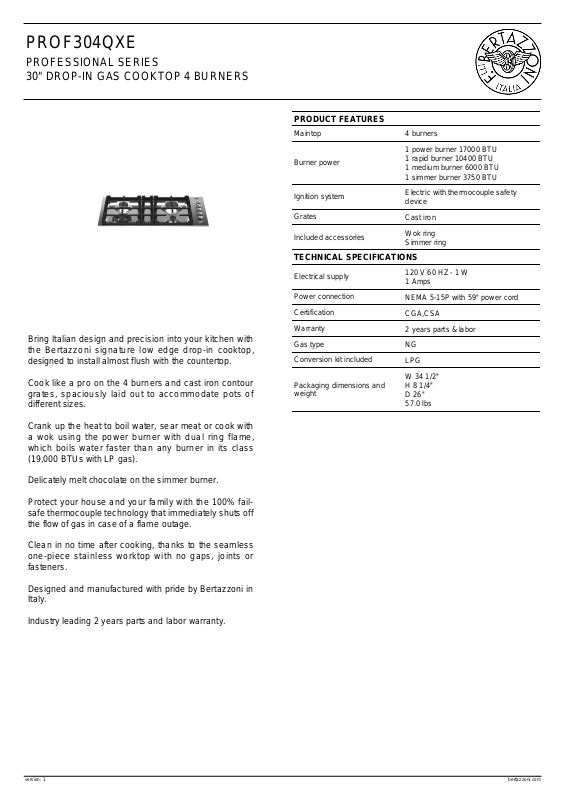

Bertazzoni PROF304QXE Specifications
PROF304QXE
PROFESSIONAL SERIES
30" DROP-IN GAS COOKTOP 4 BURNERS
Bring Italian design and precision into your kitchen with
the Bertazzoni signature low edge drop-in cooktop,
designed to install almost flush with the countertop.
Cook like a pro on the 4 burners and cast iron contour
grates, spaciously laid out to accommodate pots of
different sizes.
PRODUCT FEATURES
Maintop
Burner power
Ignition system
Grates
Included accessories
4 burners
1 power burner 17000 BTU
1 rapid burner 10400 BTU
1 medium burner 6000 BTU
1 simmer burner 3750 BTU
Electric with thermocouple safety
device
Cast iron
Wok ring
Simmer ring
TECHNICAL SPECIFICATIONS
Electrical supply
Power connection
Certification
Warranty
Gas type
Conversion kit included
Packaging dimensions and
weight
120 V 60 HZ - 1 W
1 Amps
NEMA 5-15P with 59'' power cord
CGA,CSA
2 years parts & labor
NG
LPG
W 34 1/2''
H 8 1/4''
D 26''
57.0 lbs
Crank up the heat to boil water, sear meat or cook with
a wok using the power burner with dual ring flame,
which boils water faster than any burner in its class
(19,000 BTUs with LP gas).
Delicately melt chocolate on the simmer burner.
Protect your house and your family with the 100% fail-
safe thermocouple technology that immediately shuts off
the flow of gas in case of a flame outage.
Clean in no time after cooking, thanks to the seamless
one-piece stainless worktop with no gaps, joints or
fasteners.
Designed and manufactured with pride by Bertazzoni in
Italy.
Industry leading 2 years parts and labor warranty.
bertazzoni.comversion: 1
PROF304QXE
TOP VIEW
FRONT VIEW
SIDE VIEW
PRODUCT DIMENSIONS
CUTOUT DIMENSIONS
ELECTRICAL & GAS
CONNECTION
SIDE VIEW FRONT VIEW
TOP VIEW
INSTALLATION
REQUIREMENTS
A
n agency-approved,
properly-sized manual
shut-off valve should be
installed according to this
drawing.
A
properly-grounded,
horizontally-mounted electrical
receptacle should be installed
according to this drawing.
E
G
Combustible material cannot be
installed within shaded area.
For installation with an updraft or
downdraft hood as well as any OTR,
refer to the hood/OTR manufacturer’s
installation requirements.
21 1/4"
540
29 1/2"
748
2 5/8"
68
3/8"
11
1/2"
12
3/4"
18
3/4"
18
28 7/8"
735
CUT-OUT
WIDTH
20 1/2"
520
CUT-OUT
DEPTH
1 3/4"
45
18"
457
36"
915
30"
762
6"
152
1/8"
4
3 1/8"
80
BELOW
COUNTERTOP
36"
914
13"
330
EG
4"
102
COUNTERTOP
10"
254
10"
254
PROFESSIONAL SERIES
30" DROP-IN GAS COOKTOP 4 BURNERS
For installation of multiple products in combination, refer to the Design Guide at us.bertazzoni.com or ca.bertazzoni.com
Disclaimer: while every effort has been made to ensure the accuracy of the information contained in this document, Fratelli Bertazzoni reserves the right to change it at any time without notice.
For detailed installation instructions, consult the installation manual. Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of Bertazzoni Spa.
