Bertazzoni PROF304GASXT Specifications

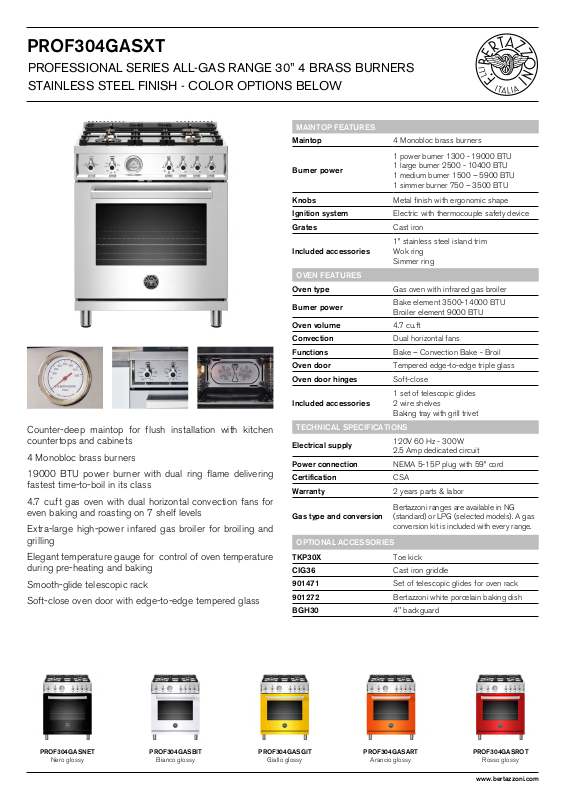

PROF304GASXT

PROFESSIONAL SERIES ALL-GAS RANGE 30” 4 BRASS BURNERS STAINLESS STEEL FINISH - COLOR OPTIONS BELOW

Counter-deep maintop for flush installation with kitchen countertops and cabinets

4 Monobloc brass burners

19000 BTU power burner with dual ring flame delivering fastest time-to-boil in its class

4.7 cu.ft gas oven with dual horizontal convection fans for even baking and roasting on 7 shelf levels

Extra-large high-power infared gas broiler for broiling and grilling

Elegant temperature gauge for control of oven temperature during pre-heating and baking

Smooth-glide telescopic rack

Soft-close oven door with edge-to-edge tempered glass

MAINTOP FEATURES

Maintop

4 Monobloc brass burners



1 power burner 1300 - 19000 BTU

Burner power

1 large burner 2500 - 10400 BTU

1 medium burner 1500 – 5900 BTU





1 simmer burner 750 – 3500 BTU





Knobs

Metal finish with ergonomic shape





Ignition system

Electric with thermocouple safety device





Grates

Cast iron





Included accessories

1” stainless steel island trim

Wok ring



Simmer ring

OVEN FEATURES



Oven type

Gas oven with infrared gas broiler





Burner power

Bake element 3500-14000 BTU

Broiler element 9000 BTU



Oven volume

4.7 cu.ft





Convection

Dual horizontal fans





Functions

Bake – Convection Bake - Broil





Oven door

Tempered edge-to-edge triple glass





Oven door hinges

Soft-close





Included accessories

1 set of telescopic glides

2 wire shelves



Baking tray with grill trivet

TECHNICAL SPECIFICATIONS

Electrical supply

120V 60 Hz - 300W

2.5 Amp dedicated circuit







Power connection

NEMA 5-15P plug with 59” cord





Certification

CSA





Warranty

2 years parts & labor





Gas type and conversion

Bertazzoni ranges are available in NG

(standard) or LPG (selected models). A gas



conversion kit is included with every range.

OPTIONAL ACCESSORIES

TKP30X

Toe kick





CIG36

Cast iron griddle





901471

Set of telescopic glides for oven rack





901272

Bertazzoni white porcelain baking dish





BGH30

4" backguard





PROF304GASNET

PROF304GASBIT

PROF304GASGIT

PROF304GASART

PROF304GASROT

Nero glossy

Bianco glossy

Giallo glossy

Arancio glossy

Rosso glossy



















www.bertazzoni.com
