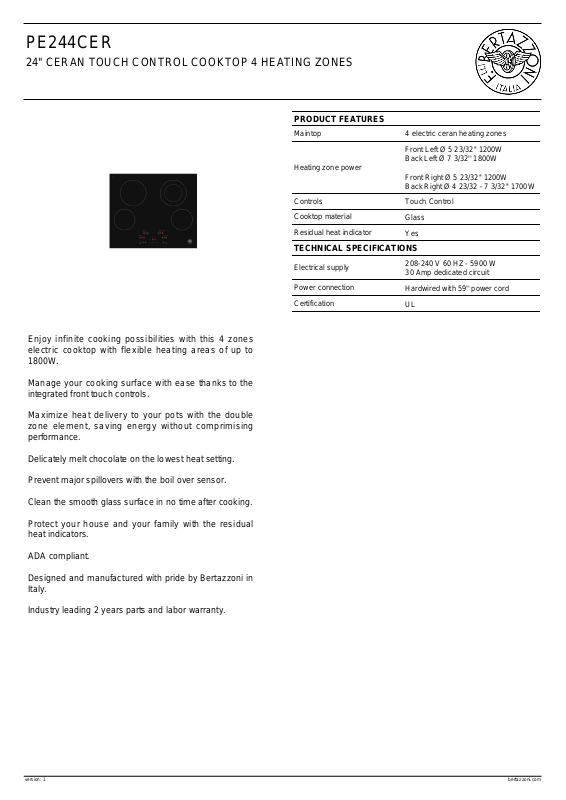

Bertazzoni PE244CER Specifications
PE244CER
24" CERAN TOUCH CONTROL COOKTOP 4 HEATING ZONES
PRODUCT FEATURES
Maintop
Heating zone power
Controls
Cooktop material
Residual heat indicator
TECHNICAL SPECIFICATIONS
Electrical supply
Power connection
Certification
4 electric ceran heating zones
Front Left Ø 5 23/32'' 1200W
Back Left Ø 7 3/32'' 1800W
Front Right Ø 5 23/32'' 1200W
Back Right Ø 4 23/32 - 7 3/32'' 1700W
Touch Control
Glass
Yes
208-240 V 60 HZ - 5900 W
30 Amp dedicated circuit
Hardwired with 59'' power cord
UL
Enjoy infinite cooking possibilities with this 4 zones
electric cooktop with flexible heating areas of up to
1800W.
Manage your cooking surface with ease thanks to the
integrated front touch controls.
Maximize heat delivery to your pots with the double
zone element, saving energy without comprimising
performance.
Delicately melt chocolate on the lowest heat setting.
Prevent major spillovers with the boil over sensor.
Clean the smooth glass surface in no time after cooking.
Protect your house and your family with the residual
heat indicators.
ADA compliant.
Designed and manufactured with pride by Bertazzoni in
Italy.
Industry leading 2 years parts and labor warranty.
bertazzoni.comversion: 1
PE244CER
TOP VIEW
FRONT VIEW
SIDE VIEW
PRODUCT DIMENSIONS
CUTOUT DIMENSIONS
ELECTRICAL & GAS
CONNECTION
INSTALLATION
REQUIREMENTS
Combustible material cannot be
located within shaded area above
countertop.
A
properly-grounded,
horizontally-mounted electrical
receptacle should be installed
according this drawing.
E
SIDE VIEW FRONT VIEW
TOP VIEW
E
COUNTERTOP
15"
381
5"
128
FRONT VIEW FRONT VIEW
23 1/4"
590
CUT-OUT
WIDTH
19 5/8"
500
CUT-OUT
DEPTH
18"
457
30"
763
2"
50
36"
914
13"
330
30"
762
8 7/8"
227
3 1/2"
90
20 1/2"
520
24"
610
1/8"
4
1/2"
12
1 5/8"
41
1/2"
12
3/4"
20
3/4"
20
3"
76
11"
280
24" CERAN TOUCH CONTROL COOKTOP 4 HEATING ZONES
For installation of multiple products in combination, refer to the Design Guide at us.bertazzoni.com or ca.bertazzoni.com
Disclaimer: while every effort has been made to ensure the accuracy of the information contained in this document, Fratelli Bertazzoni reserves the right to change it at any time without notice.
For detailed installation instructions, consult the installation manual. Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of Bertazzoni Spa.
bertazzoni.comversion: 1
