Berner BPP-E301PT Installation Manual
gas supplier.
Please retain these instructions for future reference.
perform service on these heaters.
A PATIO HEATER
LIKE NO OTHER
PARASOL
Radiant Patio Heater

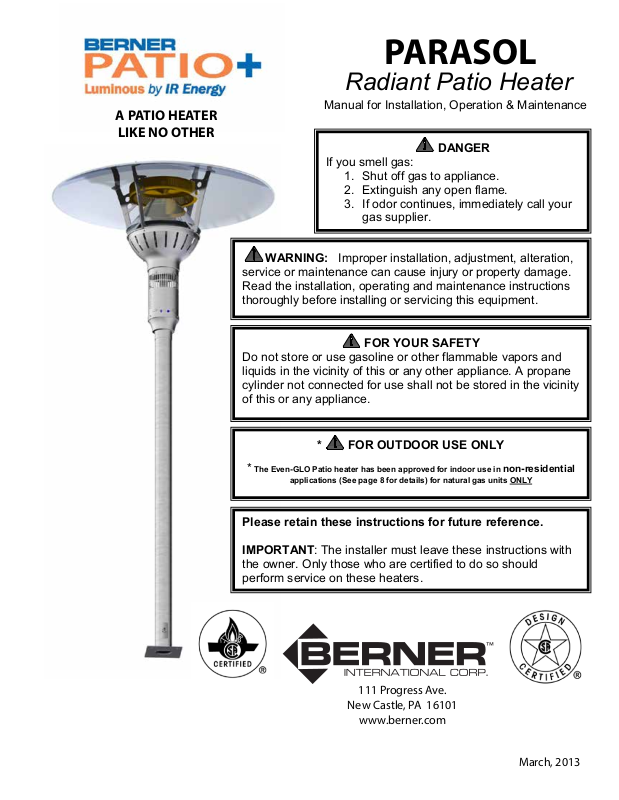

Manual for Installation, Operation & Maintenance
DANGER
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, immediately call your
WARNING: Improper installation, adjustment, alteration,
service or maintenance can cause injury or property damage.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance. A propane
cylinder not connected for use shall not be stored in the vicinity
of this or any appliance.
The Even-GLO Patio heater has been approved for indoor use in non-residential
*
applications (See page 8 for details) for natural gas units ONLY
IMPORTANT: The installer must leave these instructions with
the owner. Only those who are certified to do so should
* FOR OUTDOOR USE ONLY
™
111 Progress Ave.
New Castle, PA 16101
www.berner.com
March, 2013
BERNER PATIO+ Parasol
Page 2
March, 2013
Table of Contents
1 - CAUTION AND GENERAL SAFETY ...................................................................... 4
2 - PRE-INSTALLATION OVERVIEW ........................................................................ 5
WHAT YOU WILL RECEIVE ............................................................................................................ 5
MOUNTING PLATE HOLE PATTERN .................................................................................................. 6
WHAT YOU NEED TO SUPPLY ......................................................................................................... 7
3 - LOCATION PLANNING ...................................................................................... 8
GENERAL LOCATION LAYOUTS ........................................................................................................ 8
LOCATION REQUIREMENTS ............................................................................................................ 8
4 - CLEARANCE TO COMBUSTIBLE MATERIALS ...................................................... 9
CLEARANCE TO COMBUSTIBLES ...................................................................................................... 9
INSTALLATION / CODE REQUIREMENTS ............................................................................................ 9
5 - INSTALLATION INSTRUCTIONS ....................................................................... 10
EQUIPMENT DIMENSIONS ........................................................................................................... 10
5 - INSTALLATION INSTRUCTIONS ....................................................................... 11
POWER / GAS SPECIFICATION ...................................................................................................... 12
6 - ASSEMBLY ...................................................................................................... 13
FLOOR MOUNT ......................................................................................................................... 13

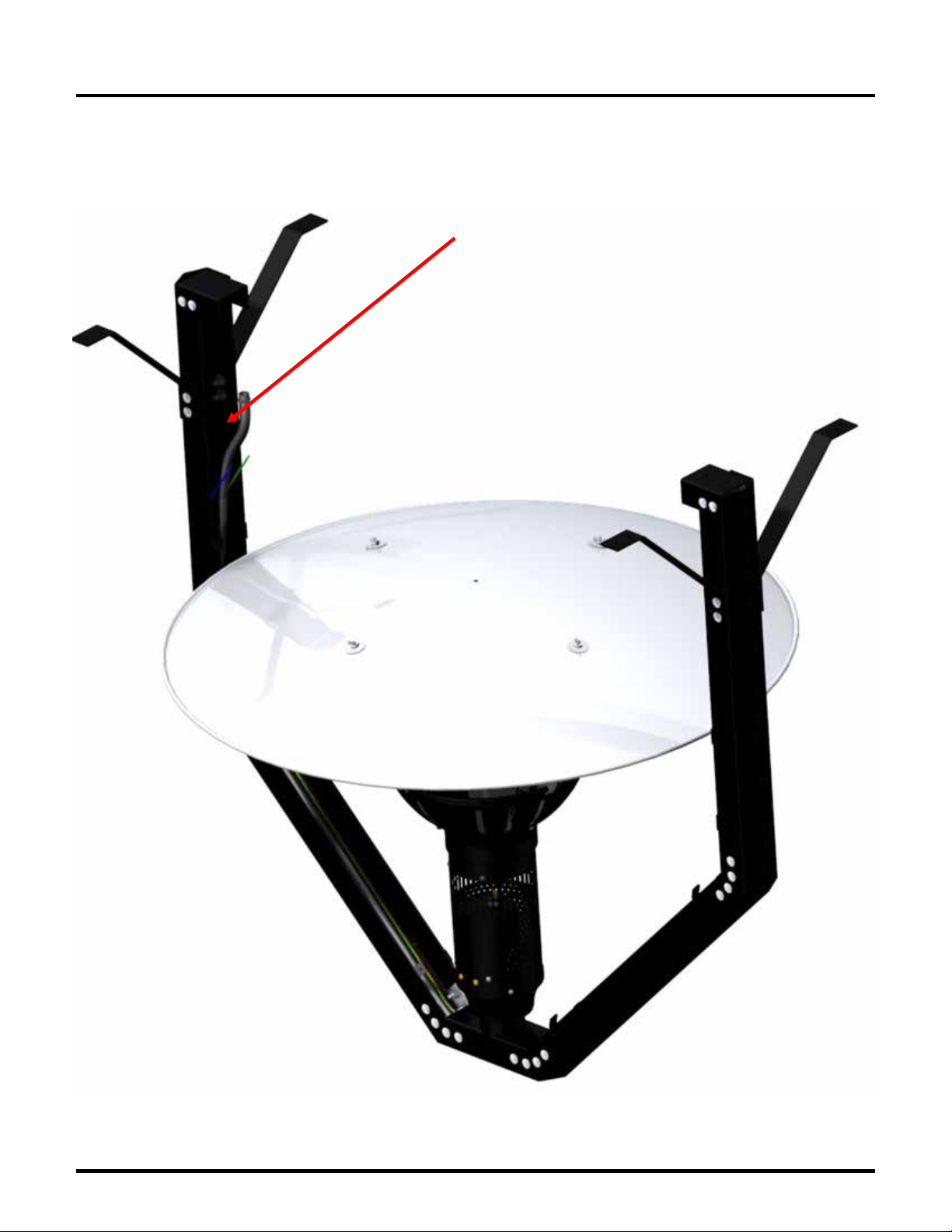

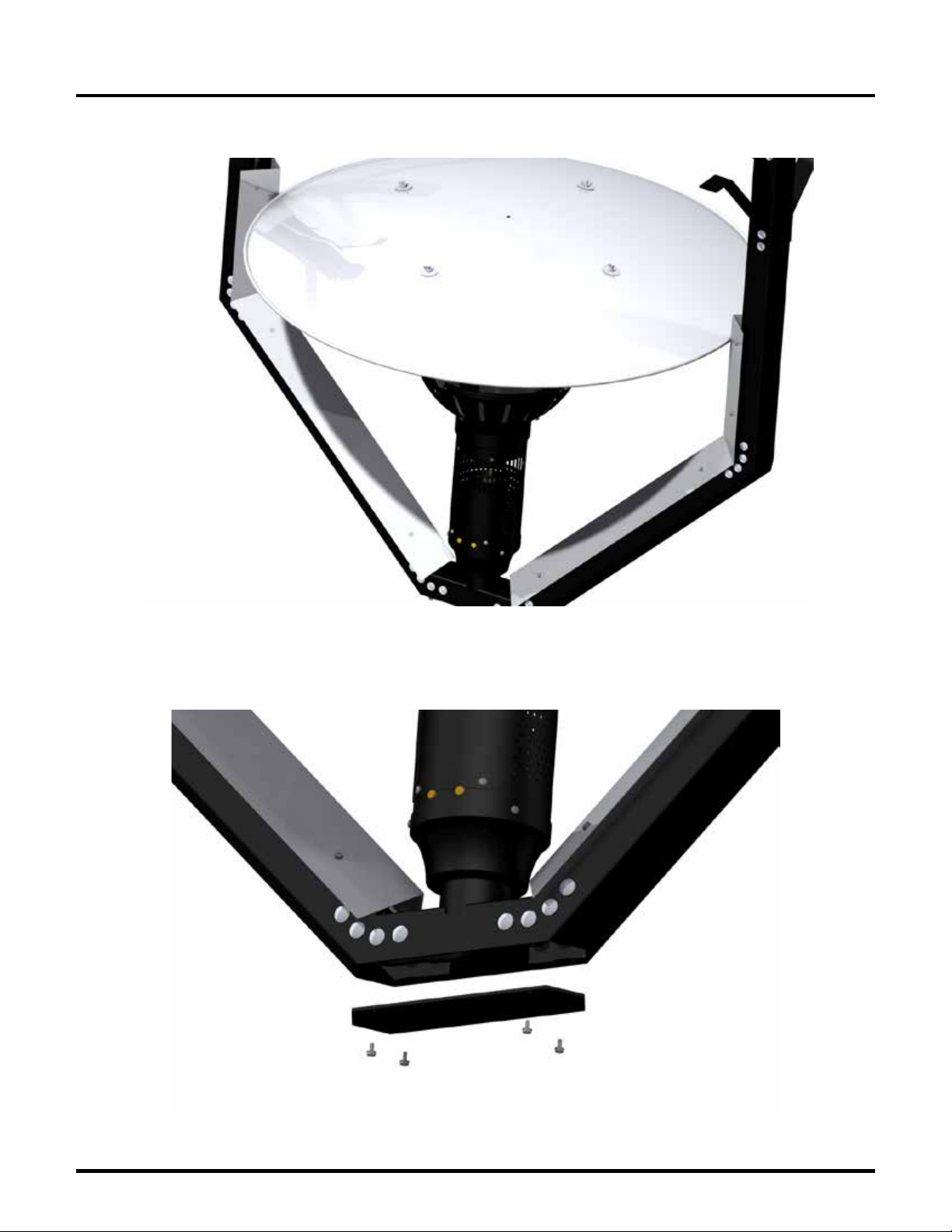

CEILING MOUNT ....................................................................................................................... 19
7 - WIRING .......................................................................................................... 26
WIRING DIAGRAMS ................................................................................................................... 27

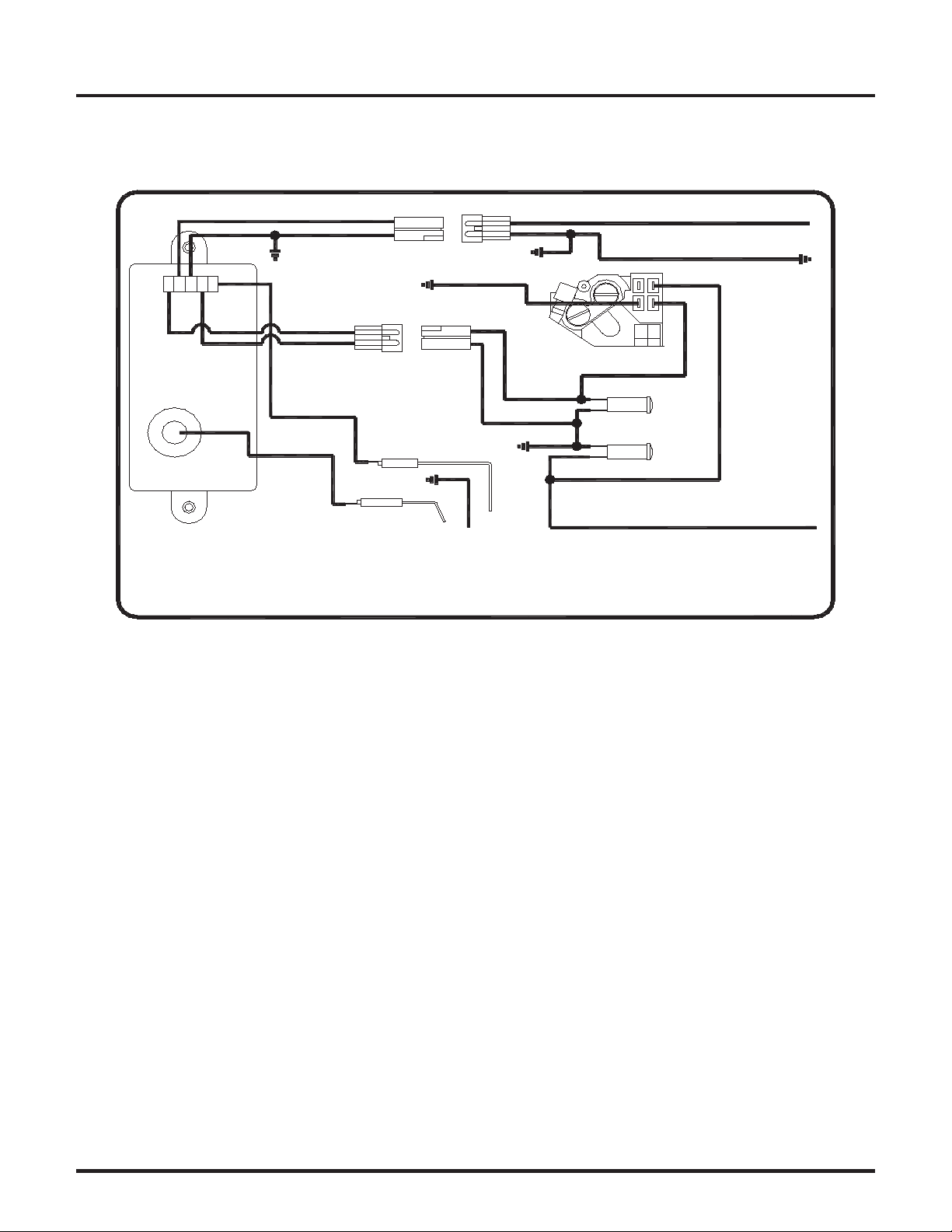

INTERNAL WIRING ..................................................................................................................... 27
EXTERNAL WIRING OPTIONS........................................................................................................ 28
8 - LIGHTING & SHUTDOWN INSTRUCTIONS ....................................................... 29
LIGHTING ................................................................................................................................. 29
SHUT DOWN ............................................................................................................................ 29
9 - MAINTENANCE AND TROUBLE SHOOTING ..................................................... 30
MAINTENANCE ......................................................................................................................... 30
TROUBLE SHOOTING .................................................................................................................. 30
10 - PARTS LIST ................................................................................................... 31
12 - WARRANTY .................................................................................................. 33
BERNER PATIO+ Parasol
Page 3
March, 2013
1 - Caution and General Safety
CAUTION: FIRE OR BURN INJURY HAZARD
• At all times maintain clearance to combustible materials as further specified in this
manual. Failure to do so can result in serious fire hazard.
• Never operate heaters in atmosphere containing flammable vapours or combustible
dusts.
• This heater is equipped with an electronic and automatic ignition device. Do not attempt
to light the burner by hand. Failure to comply can result in a serious fire and personal
injury hazard.
• Certain materials, when stored under this heater are subjected to radiant heat can soften,
distort or otherwise be damaged, special care should be taken of plastic materials
• Appliance surfaces, other than the obvious flame and emitter surfaces, attain elevated
temperatures during operation. Do not touch the heater head during operation. Everyone
should be alerted to this hazard to avoid burning.
• Children should be strictly supervised when in the area of this heating appliance. Playing
or running around the structure should be strictly forbidden.
• Clothing or other flammable materials should not be hung on or near this heater.
BERNER PATIO+ Parasol
Page 4
March, 2013
What You Will Receive
Top Reflector

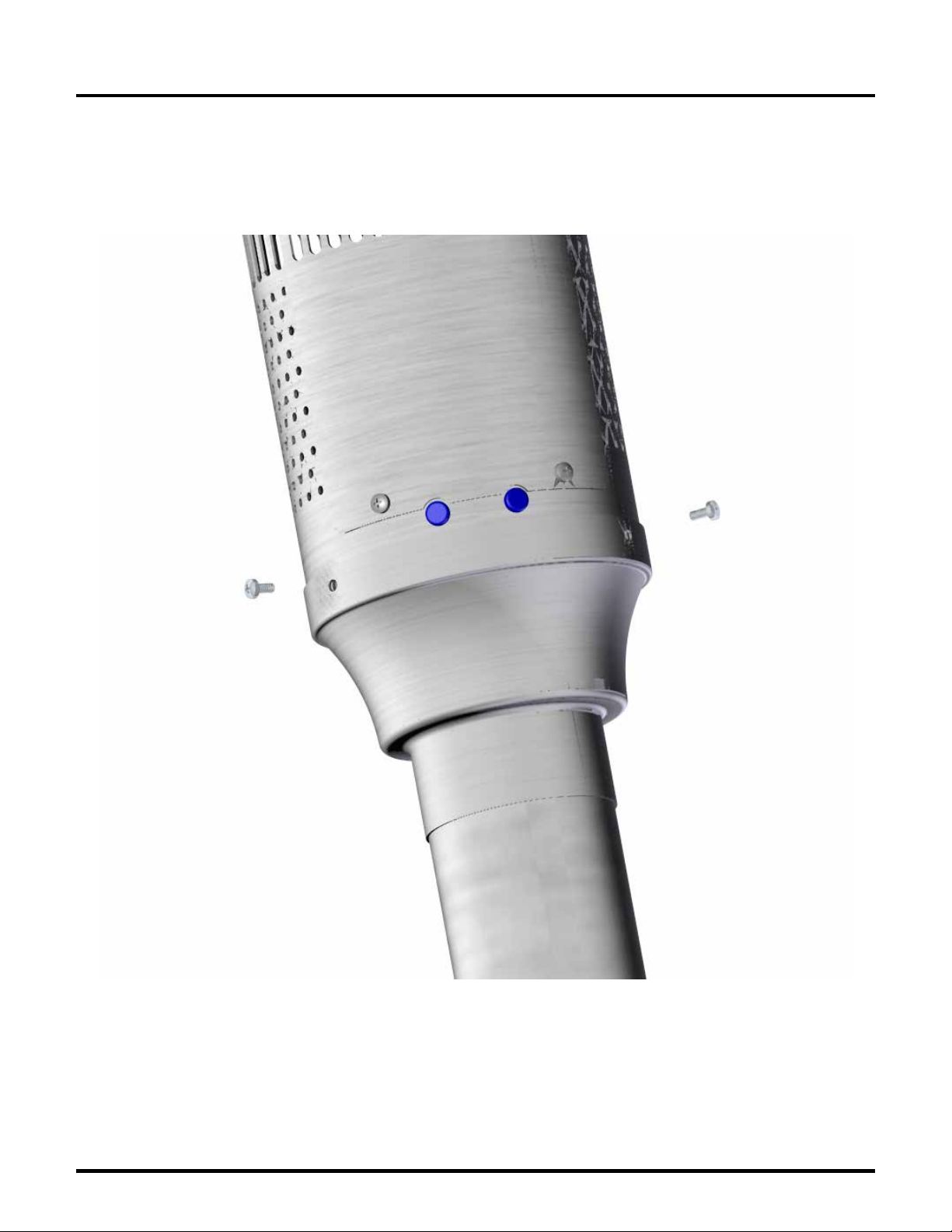

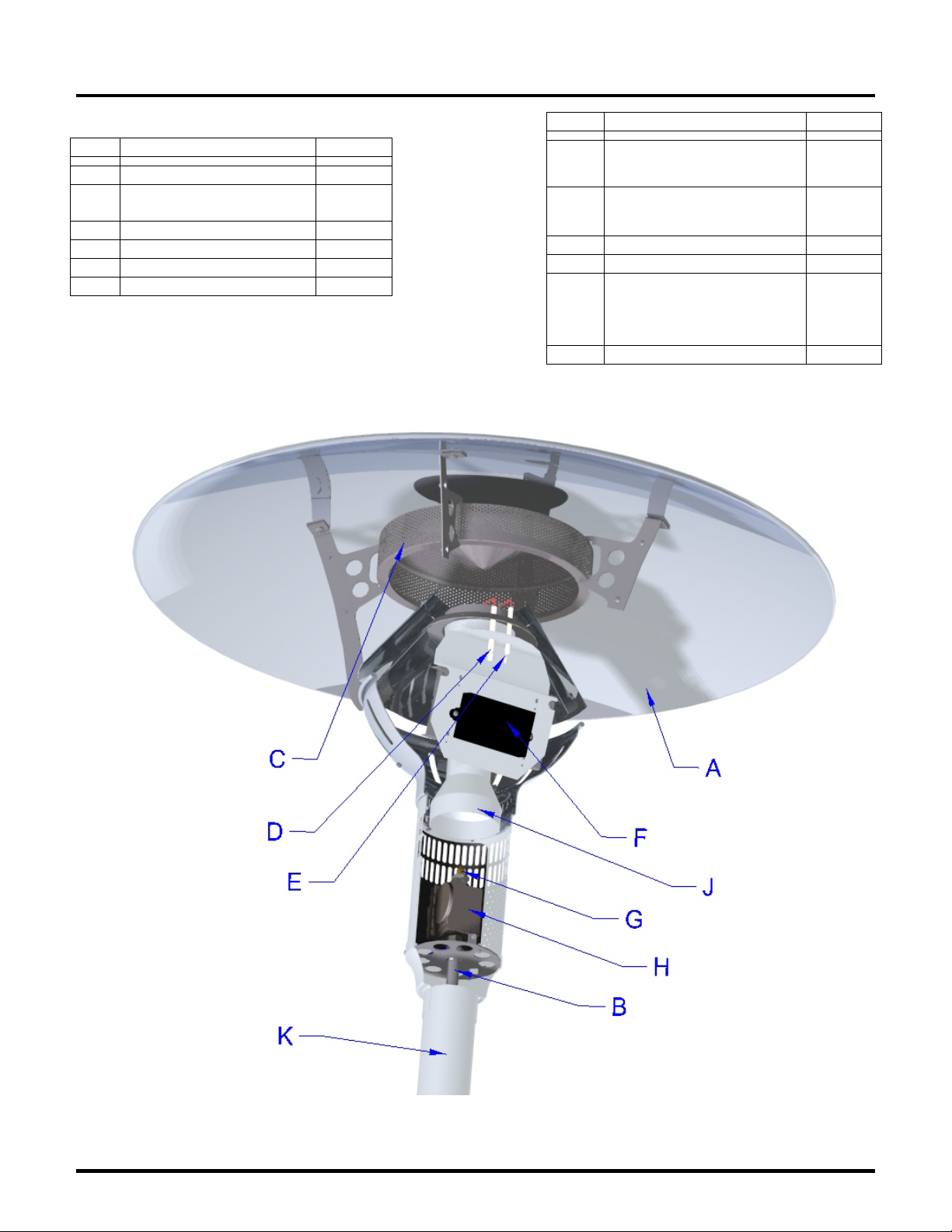

Heater head Assembly
Pole Assembly
Hardware
2 - Pre-installation Overview
BERNER PATIO+ Parasol
Page 5
March, 2013
2 - Pre-installation Overview
Mounting Plate hole Pattern
(Full size)
6.30"
BERNER PATIO+ Parasol
Ø0.42"
Page 6
March, 2013
What You Need to Supply
1. Heater post anchoring hardware.

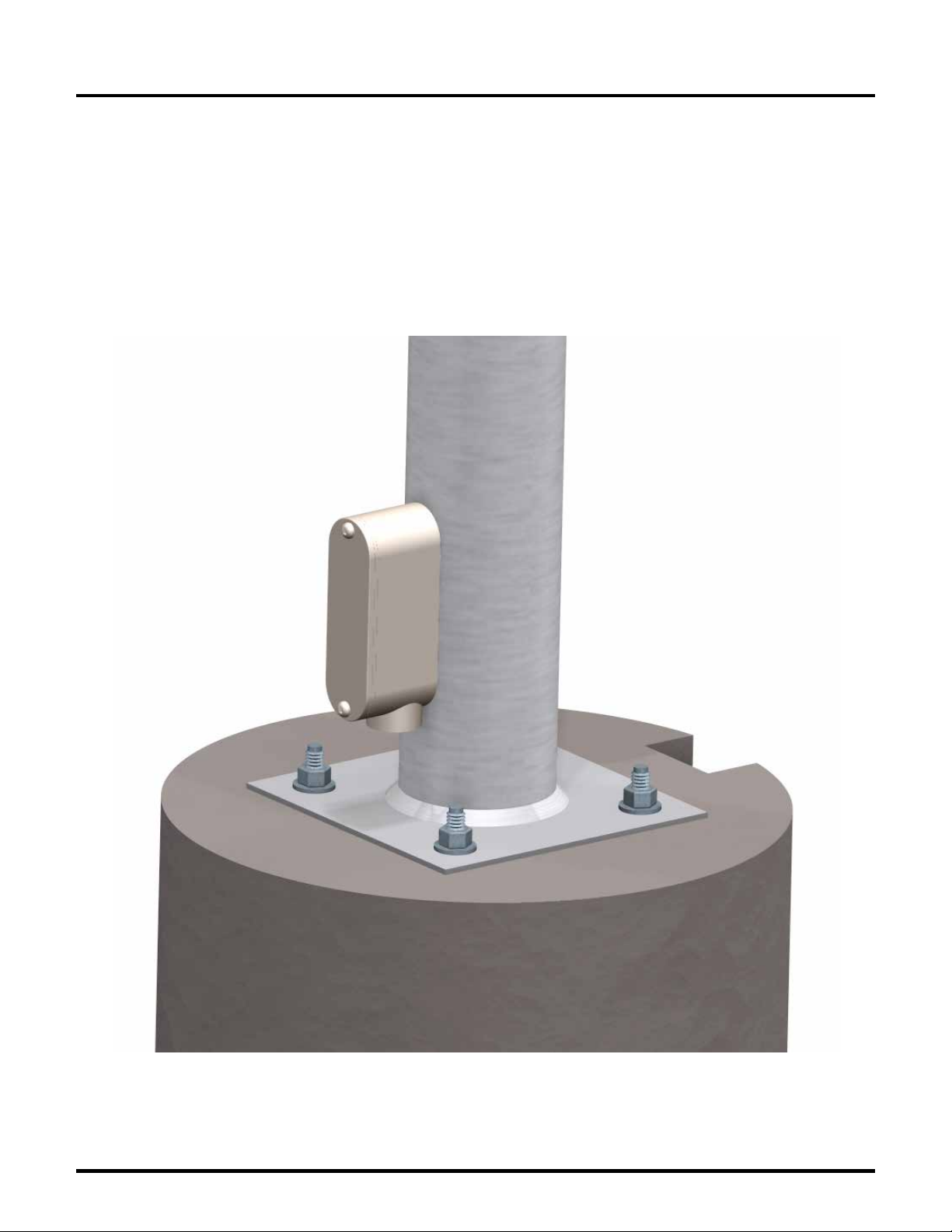

2. Materials necessary to construct a concrete base for floor mounting.
3. Gas supply line that is installed to the Gas and Electric Supply according to the:
National Fuel Gas Code, ANSI Z.223.1 (NFPA 54) in the US and Natural Gas and
Propane Installation Code, CSA B149.1 or Propane Storage and Handling Code,
B149.2 in Canada.

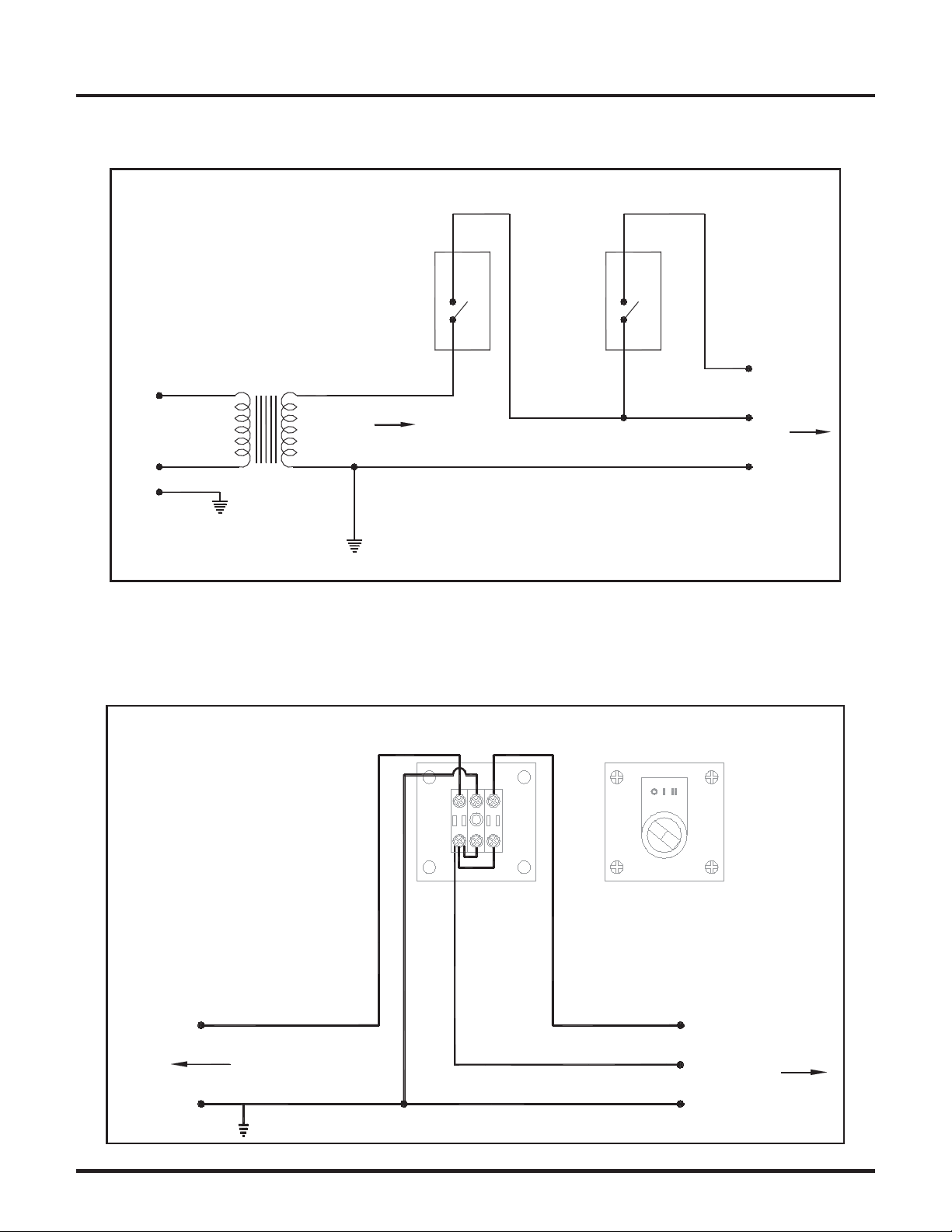

4. Electrical supply rated at 24 Vac with two stage control.
2 - Pre-installation Overview
BERNER PATIO+ Parasol
Page 7
March, 2013
3 - Location Planning
NOTE: Sprinkler head heat fuse link performance may alter with age.
WARNING!
General Location Layouts
One Parasol heater, at high fire and in windless conditions, has a comfort radius of
about twelve feet (24 ft. circle).
A series of heaters providing area heat should be placed about 14-20 feet apart.
Wind protection has an important influence on the body’s ability to retain radiant heat. Use
natural or newly built wind barriers where possible, such as existing buildings, shrubbery or tree
lines and
fences
This heater is NOT approved for any indoor Residential
application. If in doubt of your application consult with your
local fire marshal or gas authority having jurisdiction. Indoor
spaces include but are not limited to attached garages,
solariums, living quarters etc.
A patio that has been almost entirely closed in with a roof and windbreak walls or a tent
may be considered an indoor location by some code authorities. The Lynx Patio heater
has been approved for indoor use in non residential applications (Natural Gas Models
ONLY). Venting of the flue gases is accomplished by means of an interlocked fan. Refer
to the National Fuel Gas Code, ANSI Z.223.1 (NFPA 54) in the US and CAN/CGA B149.1
and B149.2 Installation Codes in Canada.
Location Requirements
a. Never locate the heater directly below electrical lines, gas lines or sprinkler systems.
b. Do not locate heater too close to vinyl or plastic wall coverings. These materials may
discolour or soften well before they reach combustible limits.
c. Always allow room for re
purposes.
d. The heater aspirates air for combustion. Do not locate heater where there are severe
draft conditions or airflow restrictions to the heater head base.
moval of the top reflector and heater head for maintenance
BERNER PATIO+ Parasol
Page 8
March, 2013
4 - Clearance to Combustible Materials
CLEARANCE TO COMBUSTIBLES
Clearance to Combustibles
The following clearance data is based on a maximum limit of 90°F (50 °C) plus ambient
temperature.
Note with an ambient temperature of 70°F the surface temperatures at the clearance
distances listed below could reach 160°F Care should be taken with placement of plastic
or vinyl in the proximity of the heater as they tend to distort and soften at these
temperatures.
The
INSTALLER is responsible to ensure that building materials with a low heat tolerance
which may degrade at higher temperatures are protected to prevent degradation.
TOP
SIDE
MODEL NO. TOP SIDES BELOW
BELOW
BPP-E301NU
BPP-E301PU
22"
33"18"
BPP-E301NT
BPP-E301PT
BPT-E301NH
BPT-E301PH
22"
22"
33"18"
33"18"
Installation / Code Requirements
Installation must comply with local building codes and/or, for the USA/National Fuel Gas Code,
ANZI Z 223.1 (NFPA 54) and for Canada, CAN/CGA B149.1 and B149.2, National Gas and
Propane Installation Code (latest editions).
Appliance must be electricall
National Electrical Code, ANSI/NFPA 70 in the USA, CSA C22.1 Canadian Electrical Code in
Canada.
NOTE: Some materials deteriorate or soften at sustained temperatures below 160°F.
Consult material manufacturer for recommendations
y grounded in accordance with local codes or, in their absence; the
BERNER PATIO+ Parasol
Page 9
March, 2013
5 - Installation Instructions
8"
8"
Installation must comply with local building codes and/or, for the USA/National Fuel Gas Code,
ANZI Z 223.1 (NFPA 54) and for Canada, CAN/CGA B149.1 and B149.2, National Gas and
Propane Installation Code (latest editions).
Appliance must be electrically grounded in accordance with local codes or, in their absence; the
National Electrical Code, ANSI/NFPA 70 in the USA, CSA C22.1 Canadian Electrical Code in
da.
Cana

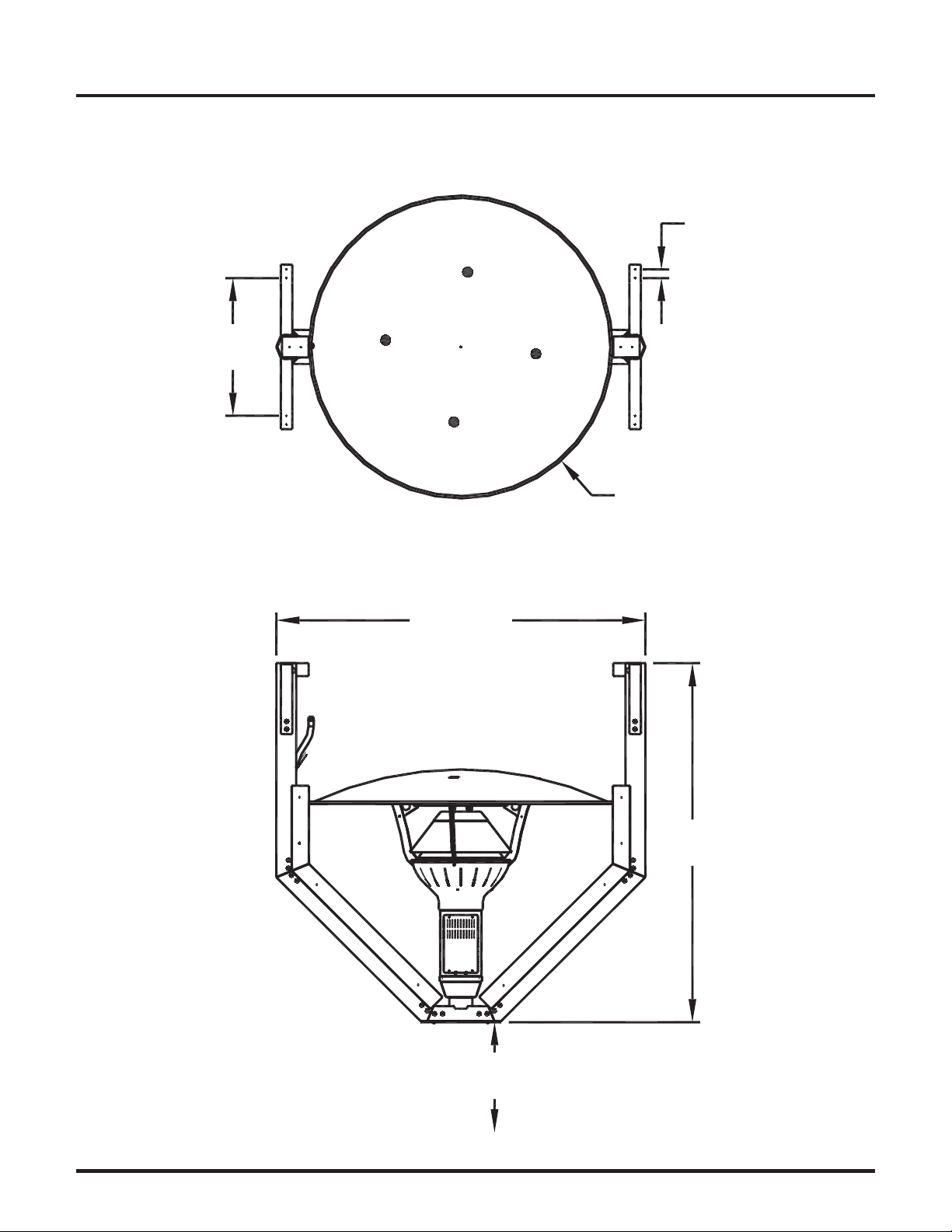

Equipment Dimensions

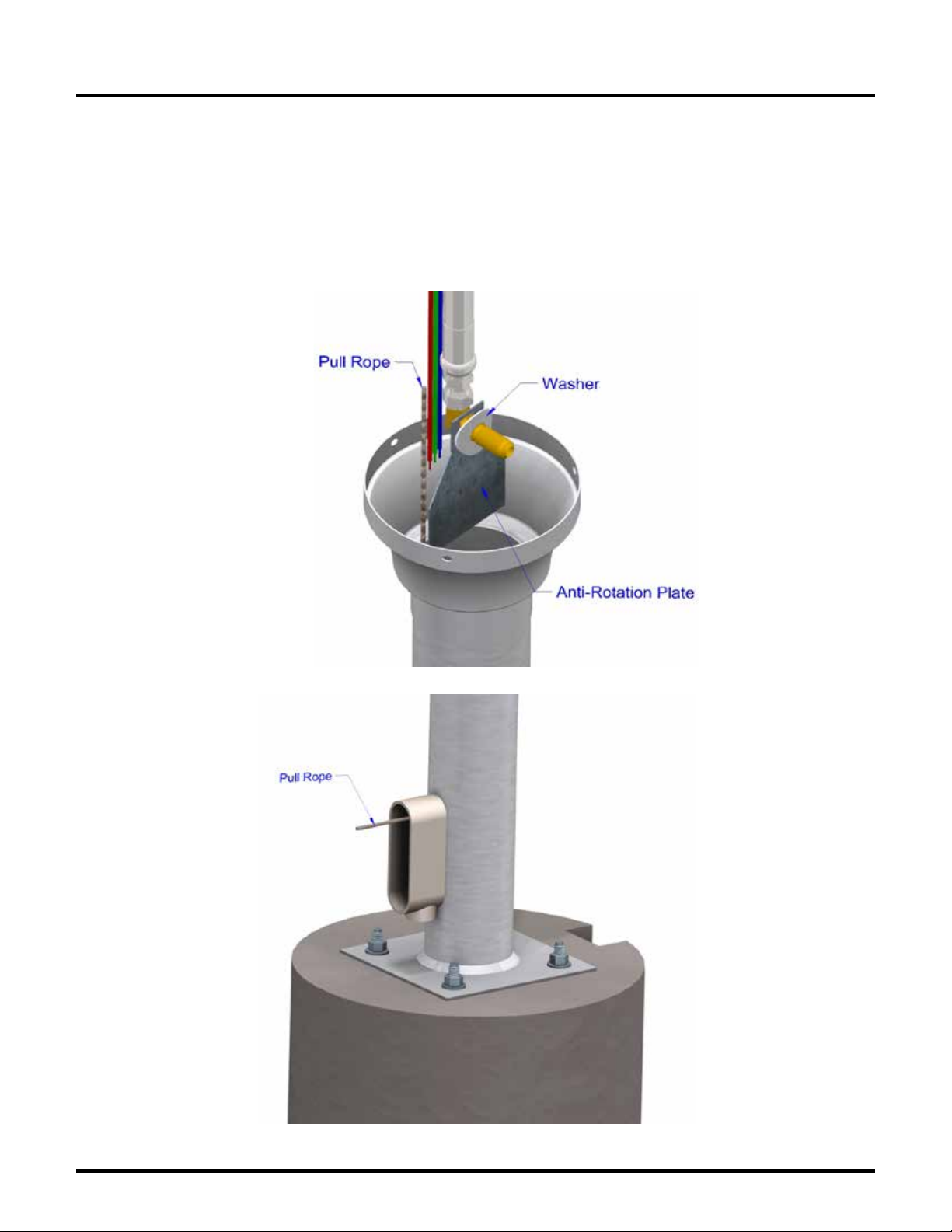

Floor mount models
89.7"
Model BPP-E301NUB
Model BPP-E301PUB
39.5"
63.0"
Model BPP-E301NTB
Model BPP-E301PTB
39.5"
101.7"
75.0"
BERNER PATIO+ Parasol
5.1"
Page 10
5.1"
March, 2013
