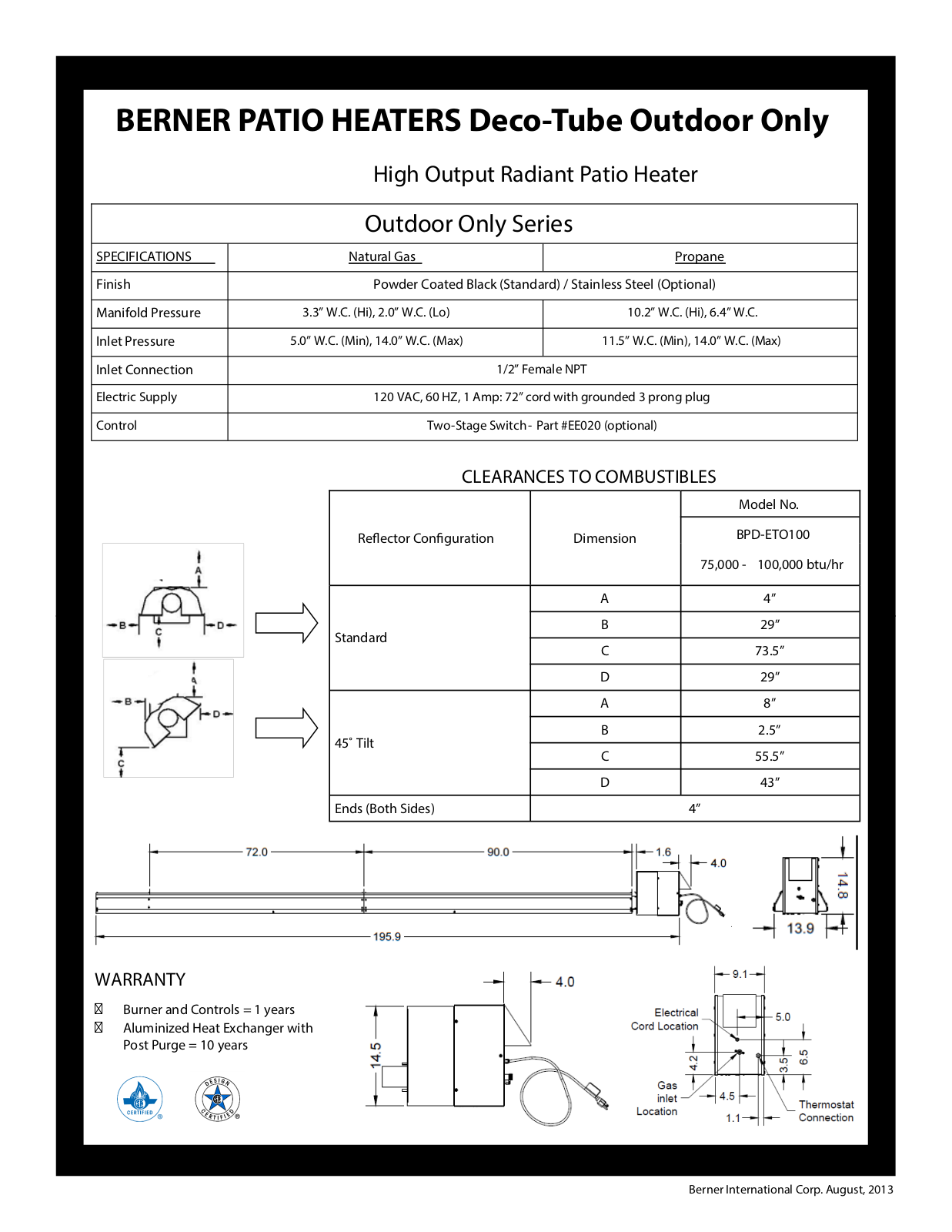

Berner BPD-ETO100 User Manual

BERNER PATIO HEATERS Deco-Tube Outdoor Only

High Output Radiant Patio Heater

Outdoor Only Series

SPECIFICATIONS Natural Gas Propane

Finish Powder Coated Black (Standard) / Stainless Steel (Optional)

Manifold Pressure

Inlet Pressure

Inlet Connection

Electric Supply 120 VAC, 60 HZ, 1 Amp: 72” cord with grounded 3 prong plug

Control Two-Stage Switch - Part #EE020 (optional)

3.3” W.C. (Hi), 2.0” W.C. (Lo) 10.2” W.C. (Hi), 6.4” W.C.

5.0” W.C. (Min), 14.0” W.C. (Max) 11.5” W.C. (Min), 14.0” W.C. (Max)

1/2” Female NPT

CLEARANCES TO COMBUSTIBLES

Reector Conguration Dimension

75,000 - 100,000 btu/hr

A 4”

B 29”

Standard

C 73.5”

D 29”

A 8”

B 2.5”

45˚ Tilt

C 55.5”

D 43”

Ends (Both Sides) 4”

Model No.

BPD-ETO100

WARRANTY

 Burner and Controls = 1 years
 Aluminized Heat Exchanger with

Post Purge = 10 years

Berner International Corp. August, 2013
