Fan Modules BLB 60 and BLB 90

Operating Instructions

03/2009

English version of original German instructions

Page 2

These instructions help you to use our product properly, safely and economically. In the following text, our berbel fan modules BLB 60 and BLB 90 product is briefly referred to as device.

These instructions are intended for the following persons:

• Persons who use the device

• Persons who clean the device

• Persons who dispose of the device.

Each of these persons must have read and understood the contents of these instructions.

Compliance with these instructions helps to avoid dangers and to increase the reliability and service life of the device.

Structural features in the text

Defined structural features are assigned to the elements contained in these instructions. A distinction can therefore be easily made between the following elements:

Normal text

Cross references

• Lists or

¾ Action steps.

Tips contain special information on the economical use of the device.

Structural features in illustrations

The illustrations contain portrayals in various grey scales. Movements which are to be carried out are made clear using movement or direction arrows. If several action steps are portrayed in one illustration, the sequence is made clear using numbers (1., 2., ...):

If reference is made to elements in a legend or in the body text, these are provided with an item number (2):

Page 3

Table of contents

Safety ..............................................................................................................................................................5

Proper use ..........................................................................................................................................................5

Ban on independent conversions and modifications ..........................................................................................5

Basic safety instructions .....................................................................................................................................5

Structural features of the information on dangers ..............................................................................................7

Structural features of notices regarding material or environmental damage......................................................8

Description.......................................................................................................................................................9

Recirculated air mode.........................................................................................................................................9

Air extraction mode.............................................................................................................................................9

Hybrid mode .....................................................................................................................................................10

View of the device with flap closed...................................................................................................................11

View of the device with flap open .....................................................................................................................12

Operation.......................................................................................................................................................13

Switching on the ventilation function ................................................................................................................13

Changing the output level.................................................................................................................................14

Switching off the ventilation function ................................................................................................................14

Switching on the run-on function ......................................................................................................................14

Switching the lighting on and off.......................................................................................................................15

Cleaning and care..........................................................................................................................................16

Cleaning intervals .............................................................................................................................................16

Cleaning in the case of normal soiling..............................................................................................................16

Cleaning in the case of severe soiling ..............................................................................................................17

Cleaning surfaces .............................................................................................................................................20

Cleaning the rotary knob ..................................................................................................................................21

Maintenance ..................................................................................................................................................22

Maintaining the device......................................................................................................................................22

Lighting: Replacing bulbs .................................................................................................................................22

Replacing the filter filling (hybrid and recirculating air filters)...........................................................................25

Rectifying malfunctions..................................................................................................................................29

Disposal.........................................................................................................................................................31

Disposing of packaging.....................................................................................................................................31

deviceDisposal..................................................................................................................................................31

Technical data ...............................................................................................................................................32

Model plate .......................................................................................................................................................32

Fan module BLB 60..........................................................................................................................................32

Page 4

Fan module BLB 90..........................................................................................................................................32

Fan modules BLB 60 and BLB 90 ....................................................................................................................32

Contacting the manufacturer..........................................................................................................................33

Page 5

Safety

Read through this chapter carefully before installing, using or cleaning the device.

¾ Observe all information on dangers during all

activities on the device.

¾ Enclose these instructions if you pass the device

on.

Proper use

The device can be used to extract cooking vapours during cooking.

The device is exclusively intended for this purpose and must only be put to this use. The device must only be used in the manner described in these instructions.

Any other use or modification of the device is regarded as improper and may lead to damage.

The manufacturer accepts no liability for damage caused as a result of improper use, incorrect installation or incorrect operation. The device is not intended for commercial use. Use the device in private kitchens only.

Ban on independent conversions and modifications

• Do not undertake any independent conversions or modifications on the device. Conversions or modifications without the approval of berbel Ablufttechnik GmbH are impermissible.

• Never bridge or bypass the protective facilities available on the device.

Basic safety instructions

This section contains basic safety instructions for handling the device. Additional safety instructions which affect certain actions and procedures can be found in the relevant chapters.

• Heed all of the safety instructions and information

on dangers in these instructions.

• Check the device and all parts for visible damage. In the event of damage, contact your specialist dealer or the berbel customer service. The device must only be used in flawless condition.

• Always have repair and maintenance work carried out by qualified, specialist personnel. Otherwise, you endanger yourself and others.

• Install the device with the enclosed brackets exclusively on load-bearing parts of buildings (solid construction).

• In the case of other mountings, use correspondingly suitable mounting techniques. If in doubt, ask your specialist dealer. Otherwise, you endanger yourself and others.

• Use the device in private kitchens only.

Page 6

Safety

Avoiding dangers due to electric shock

• Have work on the voltage supply carried out by a qualified, trained specialist electrician only. At the very least, the specialist electrician must have the following knowledge and skills:

− Basics of electrical engineering

− Knowledge of the country-specific regulations

and standards (in Germany e.g. DIN 57100/VDE 0100, Part 701)

− Knowledge of the relevant safety regulations

− Knowledge of the relevant legal regulations for

gas installations (in Germany e.g. the technical regulations for gas installations TRGI).

• Only use the device if it is connected and fused according to the technical data.

• Do not kink or crush the mains cable.

• Do not operate the device with a damaged

electrical connection cable.

• Disconnect the device from the current supply in the event of malfunctions.

• The mains plug must be freely accessible so that the device can be easily and quickly disconnected from the mains power supply in an emergency. If the mains plug is inaccessible following installation, an all-pole isolating device with a contact opening of at least 3 mm must be provided in the installation.

• If the device is brought into a warm environment from a cold environment, moisture may form inside the device. In this case, wait for approximately two to three hours before starting up the device.

• Avoid exposing the device to dripping or splashing water. Never place objects filled with fluids, such as e.g. vases, on the device.

• Keep the device dry.

• If fluid nevertheless enters the device:

− Immediately shut off the current supply by

removing the fuse.

− Make sure that the device's current supply

cannot be unintentionally reactivated. E.g.

designate a person to prevent the fuse from being switched on.

− Allow the device to dry.

− Have the device checked and repaired by

trained, specialist personnel before using the device again.

Avoiding risk of explosion

• Do not operate the device in an explosive environment.

Avoiding fire hazard

• Make sure that the cooker top has cooled down before covering it.

A soiled device may cause fire hazards.

• Keep the device in flawless condition and check it regularly.

• Regularly remove any grease residues which are present. Grease residues pose a fire hazard.

• Do not flambé beneath the device. Naked flames may e.g. damage neighbouring cupboards.

• Only have repair work on the device carried out by personnel trained for this purpose.

In recirculated air mode:

• A covered or sealed ventilation outlet may cause fire hazards. Do not place any objects such as e.g. cloths or plates on or in front of the device's ventilation slits. In the case of recirculated air devices, outflowing air must be able to escape back into the kitchen through the ventilation slits without impediments.

• No objects which may impede the air flow may be installed above the device. Make sure that the outflowing air is able to flow into the kitchen without impediments.

Page 7

Safety

The device may only be installed above a fireplace for solid fuels (e.g. coal-fired stove) if:

• the fireplace has a sealed cover which cannot be

removed. Otherwise, e.g. there is an increased fire hazard due to flying sparks.

• the legal and country-specific regulations are adhered to.

Avoiding risks of injury

• In order to prevent the risk of falling, use a stable stepladder for all work on the device, such as e.g. replacing the filter, installing and cleaning the device.

• In order to prevent risks of injury due to falling parts, use suitable mounting material.

• In order to prevent cuts due to broken glass, use suitable protective gloves.

Avoiding the risk of suffocation

If the device and an open fireplace which is dependent on the room air are operated simultaneously, gases or waste gases may be drawn into the room.

• Make sure that all of the permits required for operation in your country are available (e.g. those of the master chimney sweep).

• Make sure that all standards and guidelines for operating the device in your country are observed.

• Ensure an adequate fresh air supply in the dwelling.

• Do not allow children to play with film or other parts of the packaging.

• Store film or other parts of the packaging in a location which is inaccessible to children.

Preventing the risk of collapse

• The necessary wall passage must be created by a specialist company. Wall passages influence the building's statics. Improperly created wall passages may lead to the collapse of the building.

Avoiding environmental damage

• Dispose of the device and its accessories according to the legal regulations.

Preventing risks of poisoning

• Batteries may contain poisonous substances. Keep batteries out of the reach of children. Children may place batteries in their mouths and swallow them.

Structural features of the information on dangers

The following categories of information on dangers are contained in these instructions:

DANGER

Notices containing the word DANGER warn of a hazardous situation which leads to death or severe injuries.

WARNING

Notices containing the word WARNING warn of a hazardous situation which may lead to death or severe injuries.

CAUTION

Notices containing the word CAUTION warn of a situation which may lead to slight or moderate injuries.

Page 8

Safety

Structural features of notices regarding material or environmental damage

ATTENTION

These notices warn of a situation which leads to material or environmental damage.

Page 9

Description

The device can be used to extract and clean cooking vapours.

The device is able to operate in various operating modes:

• Recirculated air mode

• Air extraction mode

• Hybrid mode

The individual operating modes are described in the following sections.

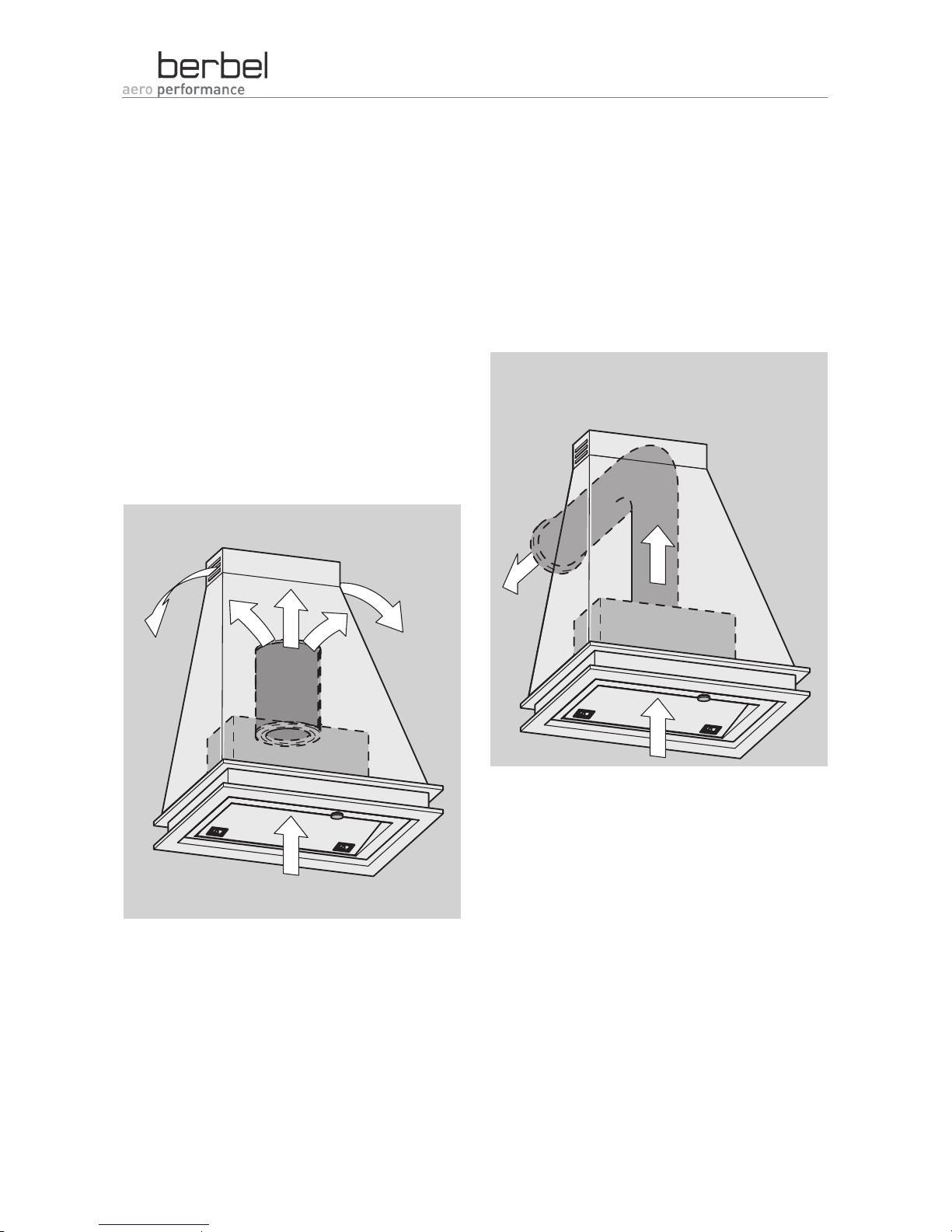

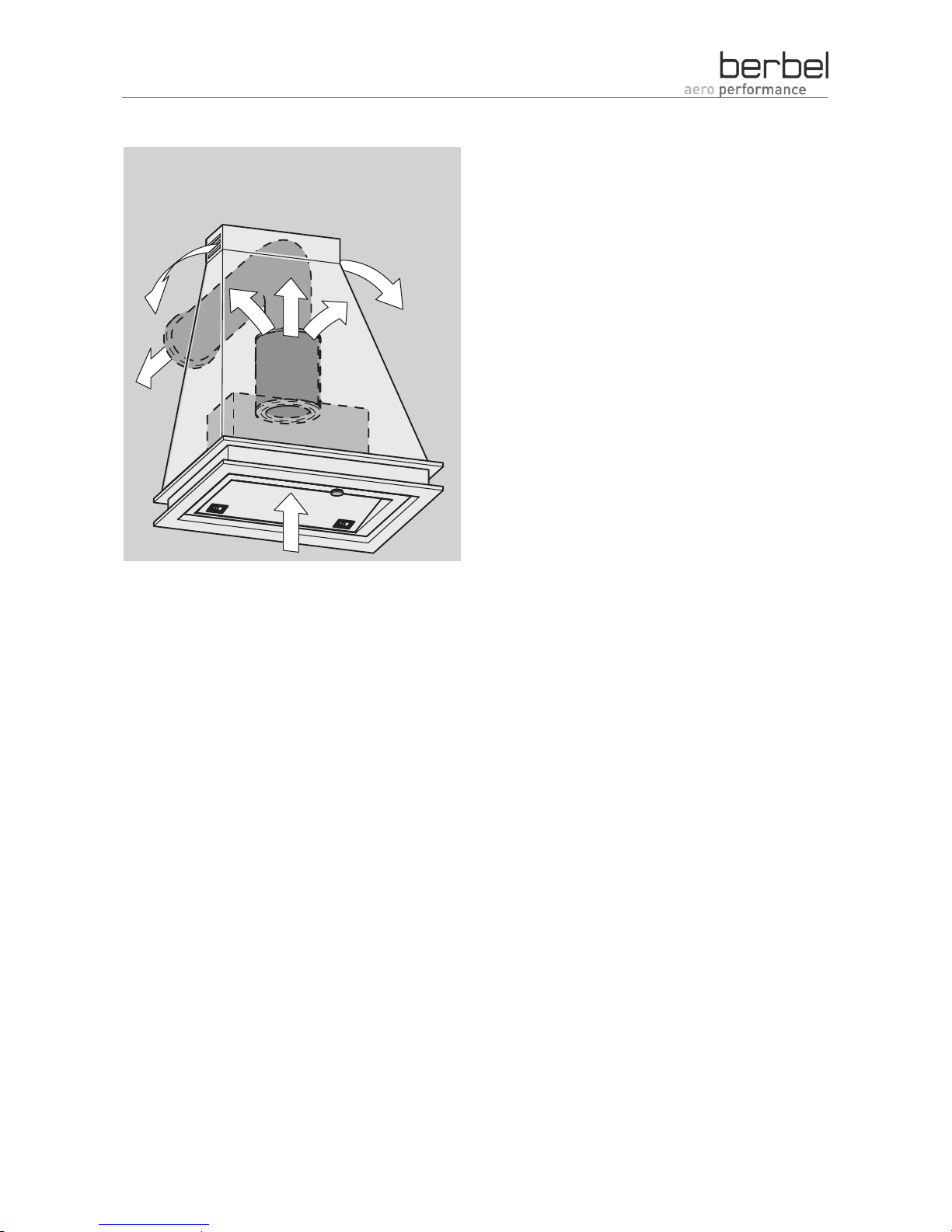

Recirculated air mode

The device intakes room air, filters the room air and returns the cleaned room air into the room. Cleaning is carried out in several cleaning stages. The first cleaning stage removes e.g. grease and air particles from the intaken room air. The next cleaning stage filters light, flying particles (e.g. fluff) from the intaken room air. The filter filling in the recirculating air filter neutralises existing odour contents. The odour-free, cleaned room air is returned into the room.

The filter filling must be replaced at regular intervals.

Air extraction mode

The device intakes room air, filters the room air and conducts the cleaned room air outside. Cleaning is carried out in several cleaning stages. The first cleaning stage removes e.g. grease and air particles from the intaken room air. The next cleaning stage filters light, flying particles (e.g. fluff) from the intaken room air. The cleaned room air is conducted into the open air.

Page 10

Description

Hybrid mode

The device intakes room air, filters the room air and conducts part of the cleaned room air outside. The remaining part of the intaken air is conducted back into the room via the hybrid filter. Cleaning is carried out in several cleaning stages. The first cleaning stage removes e.g. grease and air particles from all

of the intaken room air. The next cleaning stage filters light, flying particles (e.g. fluff) from all of the intaken room air. Whilst part of the cleaned room air is conducted outside, the filter filling in the hybrid filter neutralises odour contents which are present in the remainder of the intaken room air. This odourfree, cleaned room air is returned into the room.

The filter filling must be replaced at regular intervals.

Page 11

Description

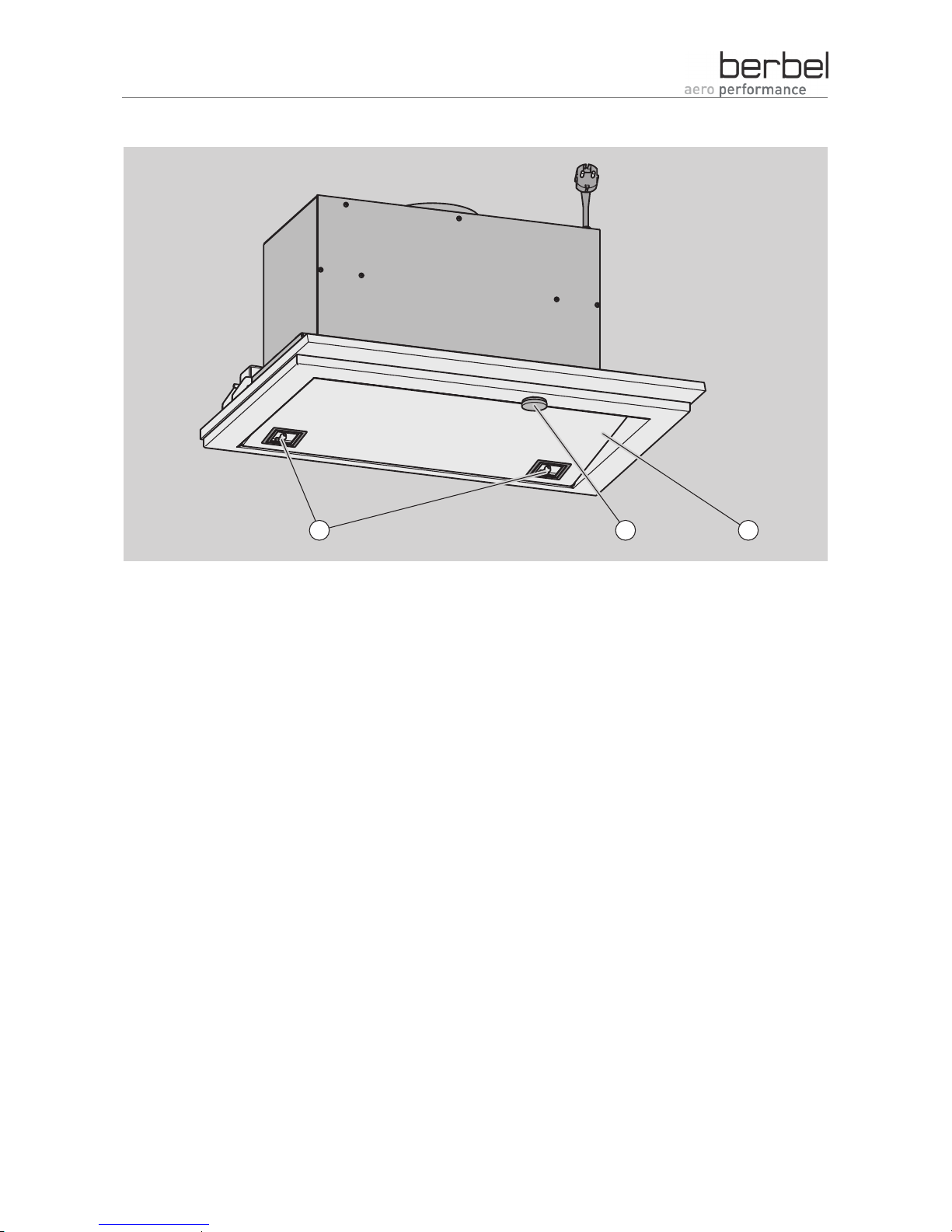

View of the device with flap closed

1 2 3

 Lighting  Flap

 Rotary knob (switching on and off)

Page 12

Description

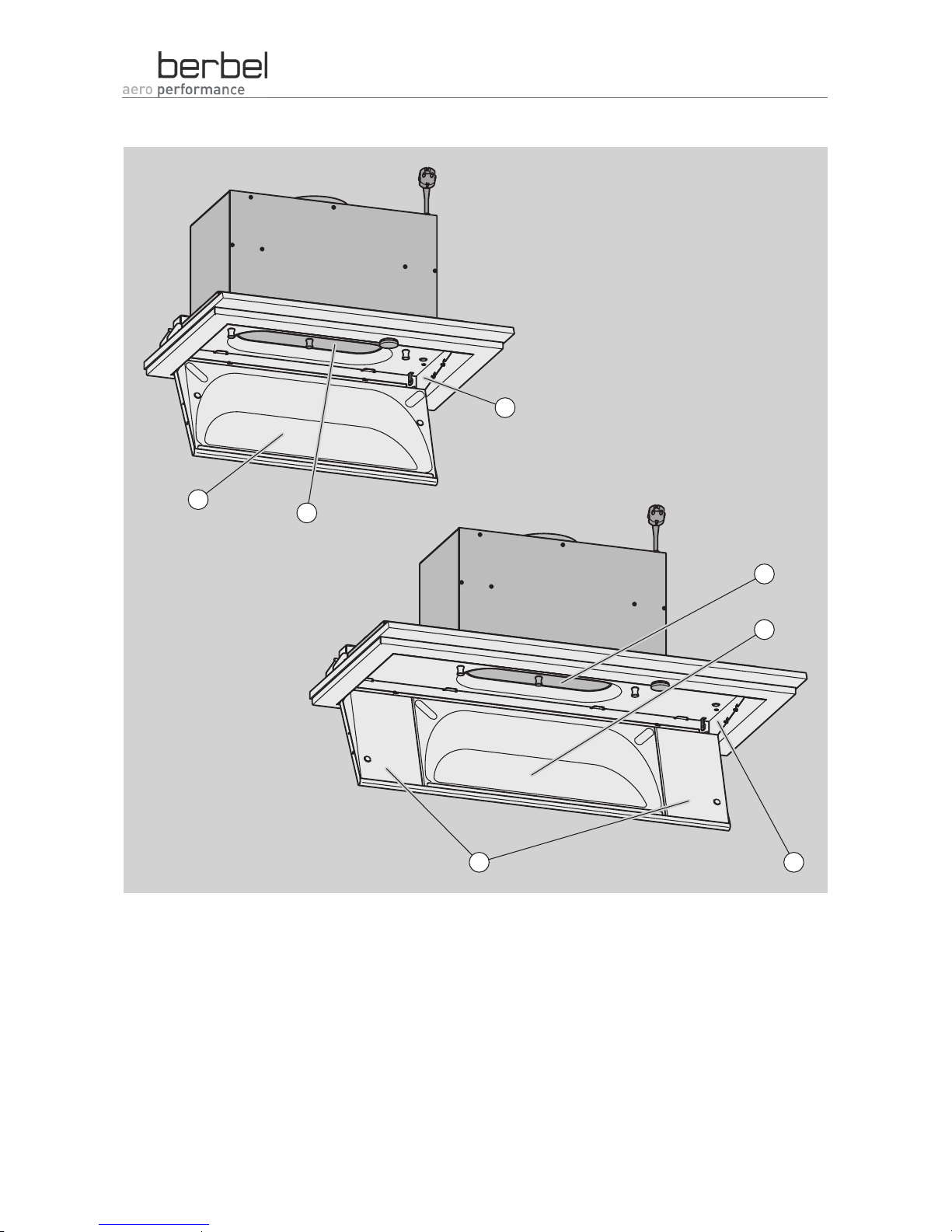

View of the device with flap open

 Lower tray (lower grease tray)  Upper tray (upper grease tray)

 Fluff screen  BLB 90 only: Lateral adapter

Page 13

Operation

WARNING

Danger of suffocation due to a lack of oxygen on operation of the device.

¾ Ensure an adequate fresh air supply

in the dwelling.

¾ Make sure that the device is

connected to a window contact switch to ensure hazard-free operation.

¾ Make sure that the country-specific,

legally prescribed regulations (in Germany e.g. the requirements of your Federal state's regulations pertaining to fireplaces (FeuV)) are adhered to.

The device is equipped with a rotary knob (ThinCoder) for operation.

The rotary knob is located on the lower side of the device.

The following sections provide information on how to control the functions of the device using the rotary knob.

Switching on the ventilation function

WARNING

Danger of burning due to flambéing beneath the device.

Naked flames may e.g. cause burns on the skin.

¾ Do not flambé beneath the device.

ATTENTION

Fire hazard due to flambéing beneath the device.

Naked flames may e.g. damage neighbouring cupboards.

¾ Do not flambé beneath the device.

¾ Replace the filter's filling if you switch the

device on and determine an unpleasant odour.

See Cleaning and care from page 16.

Clean the device if you switch the device on and determine increased fan noise.

See Cleaning and care from page 16.

After six hours of continuous operation without the actuation of any controls, the device automatically shuts ventilation mode off. ¾ If necessary, switch the device on again.

Cooking vapours are best eradicated if you

• switch the device on at the start of cooking

• switch the device's run-on function on at the end

of cooking.

The device can be operated at four different output levels.

Page 14

Operation

Proceed as follows to switch on the device:

¾ Turn the rotary knob clockwise from level "0" to

the desired output level.

The rotary knob engages at each output level.

The device immediately operates at the selected output level.

Changing the output level

During operation, the device can be switched to another output level at any time.

¾ Turn the rotary knob from the current position to

the position of the desired output level.

The rotary knob engages at each output level.

The device operates at the selected output level.

After six hours of continuous operation without the actuation of any controls, the device automatically shuts ventilation mode off. ¾ If necessary, switch the device on again.

Switching off the ventilation function

Proceed as follows to switch off the ventilation function:

¾ Turn the rotary knob counter-clockwise to the "0"

position.

The rotary knob engages at each output level.

The device switches the ventilation function off.

Switching on the run-on function

The device is equipped with a run-on function. When this function is used, the device continues to operate at the current output level for ten minutes after being switched off and then switches the ventilation function off automatically.

The run-on function can only be switched on if the device has previously been switched on for at least one minute in ventilation mode.

Proceed as follows to switch on the run-on function:

¾ Turn the rotary knob from the current output level

to the "0" level.

The rotary knob engages at each output level.

¾ Turn the rotary knob clockwise back to output

level "1".

¾ Turn the rotary knob to level "0".

The run-on function is switched on.

Example:

You have prepared your dish and would like to have the air in the kitchen cleaned for a further ten minutes. You have used the device at the desired

Page 15

Operation

output level for at least one minute. Carry out the following activities in direct succession:

¾ Turn the rotary knob from the current position to

the "0" level.

The rotary knob engages at each output level.

¾ Turn the rotary knob to level "1".

¾ Turn the rotary knob to level "0".

The device operates at the output level last selected and switches off after ten minutes.

Switching the lighting on and off

To illuminate the cooker top, the device is equipped with two 20 W anti-dazzle halogen spotlights.

The lighting can be used independently from the fan.

Switching on the lighting

Proceed as follows to switch on the lighting:

¾ Press gently on the rotary knob with one finger.

The lighting is switched on.

Switching off the lighting

Proceed as follows to switch off the lighting:

¾ Press gently on the rotary knob with one finger.

The lighting is switched off.

Page 16

Cleaning and care

DANGER

Fatal electric shock due to fluids which enter the device.

¾ Never pour fluids into the device.

WARNING

Fire hazard due to grease residues in and on the device.

¾ Clean the device regularly.

ATTENTION

Damage to surfaces due to sharpedged objects or aggressive cleaning agents.

¾ Never use sharp-edged objects,

scouring agents or aggressive cleaning agents.

¾ Use a soft, moist cloth.

Cleaning intervals

Usage behaviour

Time period

Little or occasional use.

Each time after cooking.

See Cleaning in the case of normal soiling on page 16.

Daily or extensive use.

After 3 weeks at the latest.

See Cleaning in the case of severe soiling on page 17.

Cleaning in the case of normal soiling

The device is designed in such a way that the foreign particles contained in the intaken room air are collected on the grease trays.

Proceed as follows to clean the device in the case of normal soiling:

¾ Open the flap by pulling it downwards at the

rounded edge.

The flap is open.

¾ Use a soft, moist cloth or kitchen roll for cleaning.

¾ Wipe the grease trays off.

Page 17

Cleaning and care

Closing the lower flap

¾ Close the flap by pressing it up until both retaining

magnets audibly make contact.

Cleaning in the case of severe soiling

If the device is severely soiled, the grease trays (including adapter parts if fitted) and the fluff screen must be removed. These stainless steel parts are held magnetically. The parts can be easily removed and installed and can be reused after cleaning.

Proceed as follows to clean the device in the case of severe soiling:

Removing the lower grease tray

¾ Switch the device off.

¾ Open the flap by pulling it downwards at the

rounded edge.

The flap is open.

Use a soft, moist cloth or paper for cleaning.

¾ Wipe the parts off.

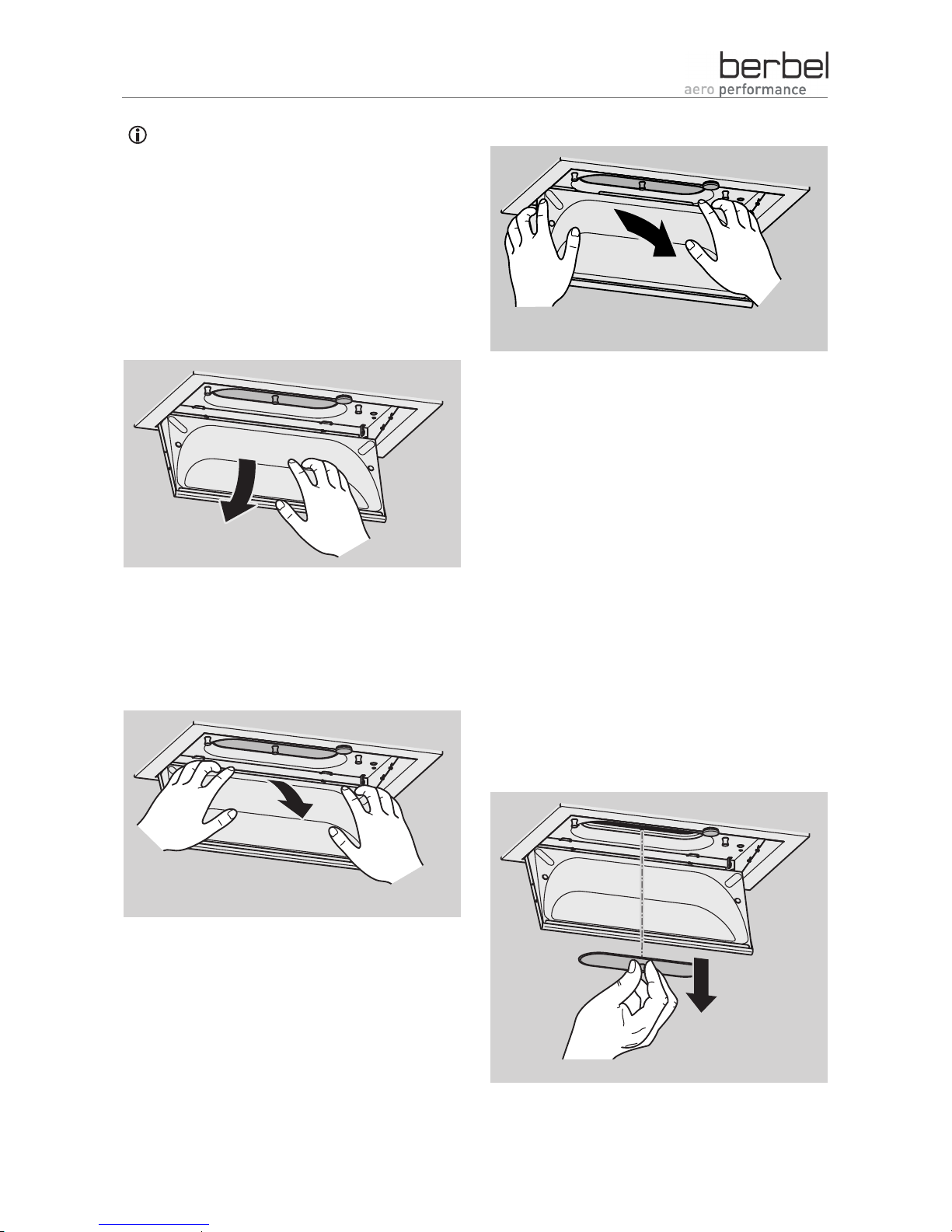

¾ Grip behind the rear edge of the grease tray using

both hands.

¾ Release the grease tray by pulling it upwards.

¾ Remove the lower grease tray.

BLB 90 only: Removing lateral adapter parts for the lower grease tray

Fan module BLB 90 is additionally equipped with two lateral attaching parts on the lower grease tray. The two lateral adapter parts and removed and installed in the same manner as the lower grease tray. The procedure is described in the previous section.

¾ Remove the two adapter parts.

Removing the fluff screen

¾ Grip the fluff screen by the knob in the centre of

the screen.

Page 18

Cleaning and care

¾ Pull the fluff screen off downwards.

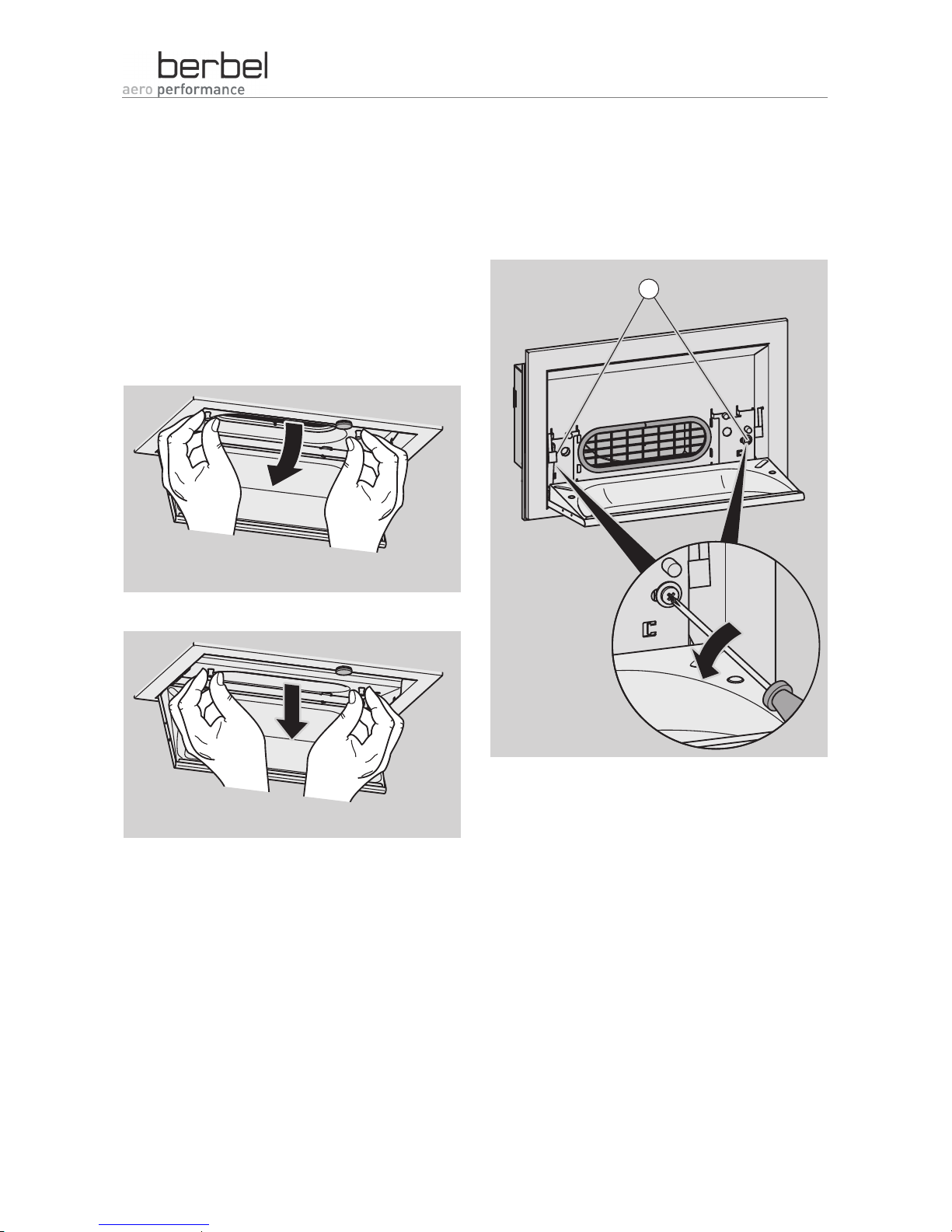

Removing the upper grease tray

¾ Grip both of the grease tray knobs using both

hands.

¾ Release the grease tray by pulling it downwards.

In the rear area of the device, the grease tray is seated on the flap guide pins.

¾ Lower the front side of the grease tray at an

incline (1.).

¾ Pull the grease tray downwards out of the device

(2.).

¾ Remove the lower grease tray.

Cleaning parts

¾ Clean all parts, e.g. in the dishwasher.

After cleaning, insert the cleaned parts as follows:

Page 19

Cleaning and care

Installing the upper grease tray

¾ Grip both of the grease tray knobs using both

hands.

¾ Guide the rear edge of the grease tray, inclined

upwards, into the device.

¾ Insert the rear edge of the grease tray above the

two retainer tabs.

¾ Make sure that the grease tray is positioned

correctly. The grease tray is positioned correctly when the retainer tabs are visible below the grease tray.

¾ Secure the grease tray by pressing it upwards into

the device until both retaining magnets audibly make contact.

¾ Make sure that the grease tray is inserted

correctly. The grease tray is inserted correctly when the lower grease tray's magnetic brackets are seated centrally in the holes and are flush with these.

Installing the fluff screen

Make sure that the fluff screen is completely dry prior to use.

Page 20

Cleaning and care

¾ Insert the fluff screen into the device.

Installing the lower grease tray

¾ Grip the grease tray using both hands.

¾ Insert the lower edge of the grease tray into the

lower rounding of the flap.

¾ Make sure that the lower edge of the grease tray

is inserted completely into the flap's rounding.

¾ Secure the grease tray by pressing the grease

tray backwards into the flap.

¾ Make sure that the grease tray is inserted

correctly. The grease tray is inserted correctly when the grease tray's magnetic brackets are seated centrally in the holes and are flush with these.

Closing the lower flap

¾ Close the flap by pressing it up until both retaining

magnets audibly make contact.

Cleaning surfaces

ATTENTION

Damage to surfaces due to sharpedged objects or aggressive cleaning agents.

¾ Never use sharp-edged objects,

scouring agents or aggressive cleaning agents.

¾ Use a soft, moist cloth.

Page 21

Cleaning and care

¾ Clean surfaces with a soft, moist cloth and a mild

household cleaning agent.

Cleaning the rotary knob

Removing the rotary knob

¾ Pull the rotary knob off.

Cleaning the rotary knob

¾ Clean the rotary knob in the dishwasher or using

a moist cloth.

Installing the rotary knob

ATTENTION

Damage to the rotary knob in the case of incorrect alignment.

¾ Turn the rotary knob to the correct

installation position.

The rotary knob must be placed onto an axle. This round axle is milled at one edge. The rotary knob can therefore only be placed onto the axle in one position.

¾ Make sure that the installation position is correct.

¾ Position the rotary knob in the correct installation

position on the axle.

¾ Install the rotary knob by pressing it into the

correct position on the axle.

Page 22

Maintenance

Maintaining the device

The device is maintenance-free.

Lighting: Replacing bulbs

CAUTION

Risk of burning due to hot bulbs and housing

¾ Wait until the housing and bulbs

have cooled down.

¾ Wear protective gloves.

¾ Never grip the bulbs without

protective gloves or other protective materials.

Your device is equipped with halogen lighting. These bulbs have a limited service life. Immediately replace defective bulbs. The replacement of bulbs is described in this section.

For this operation, you require:

• no tools

• a new 12 V halogen bulb for a G4 socket and a

max. output of 20 W

• grease-free gloves or a grease-free cloth

¾ Switch off the lighting.

¾ Make sure that the device is de-energised.

Remove the mains plug or switch off the corresponding fuse.

¾ Wait until the housing and bulbs have cooled

down.

PUSH

CAUTION

Risk of burning due to hot bulbs and housing

¾ Wait until the housing and bulbs

have cooled down.

¾ Wear protective gloves.

¾ Never grip the bulbs without

protective gloves or other protective materials.

Page 23

Maintenance

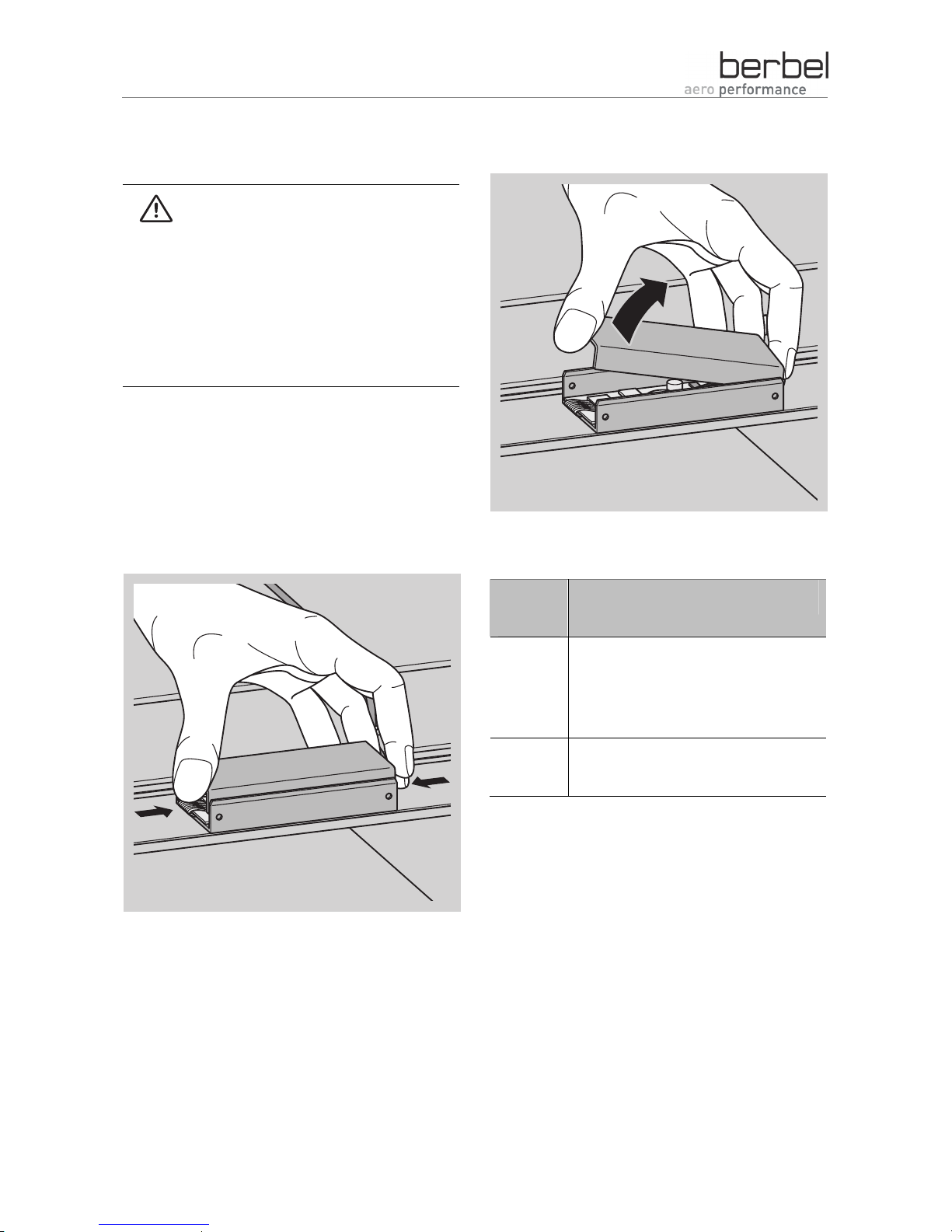

¾ Press on the "PUSH" lettering with one finger until

the bulb cover disengages. (1.).

¾ Remove your finger from the bulb cover (2.).

PUSH

The bulb cover is disengaged and is positioned at an incline.

¾ Fold the bulb cover open completely.

CAUTION

Risk of burning due to hot bulbs and housing

¾ Wait until the housing and bulbs

have cooled down.

¾ Wear protective gloves.

¾ Never grip the bulbs without

protective gloves or other protective materials.

Page 24

Maintenance

The bulb is inserted in the socket.

¾ Grip the bulb with a grease-free cloth or glove

(1.).

¾ Pull the bulb out from the socket (2.).

¾ Dispose of the old bulb.

ATTENTION

Risk of material damage due to grease from the skin on the glass body.

¾ The new bulb's glass body must not

come into contact with grease. Grease from the skin on the glass body destroys the bulb.

¾ Only grip new bulbs using grease-

free gloves or a grease-free cloth.

¾ Remove the new bulb from the packaging.

¾ Insert the bulb into the socket.

Page 25

Maintenance

¾ Fold the bulb cover closed.

¾ Press on the "PUSH" lettering with one finger until

the bulb cover engages.

If the cover does not engage, fold the cover open again completely.

¾ Remove your finger from the bulb cover.

PUSH

The bulb has been replaced.

¾ Insert the mains plug again.

¾ Switch on the lighting to check it.

Contact your specialist berbel dealer or the berbel customer service in the event of malfunctions.

Replacing the filter filling (hybrid and recirculating air filters)

Replace the filter filling in accordance with the specifications in the following table:

Usage behaviour

Time period

Little or occasional use

In the case of odours in the outgoing air, after 24 months at the latest

Daily or extensive use

In the case of odours in the outgoing air, after 12 months at the latest

WARNING

Risk of falling when replacing filter.

¾ Use a stable stepladder.

WARNING

Risk of injury due to falling parts.

¾ Make sure that nobody is standing

beneath the working area during work.

Page 26

Maintenance

ATTENTION

Damage due to falling parts.

¾ Protect surfaces and devices

(e.g. cooled cooker top) beneath your working area from damage, e.g. with thick cardboard.

Nothing may be installed above the device, as replacement of the filter filling is otherwise impossible.

¾ Remove all coverings and other surroundings.

The filter must be freely accessible.

The filter is freely accessible.

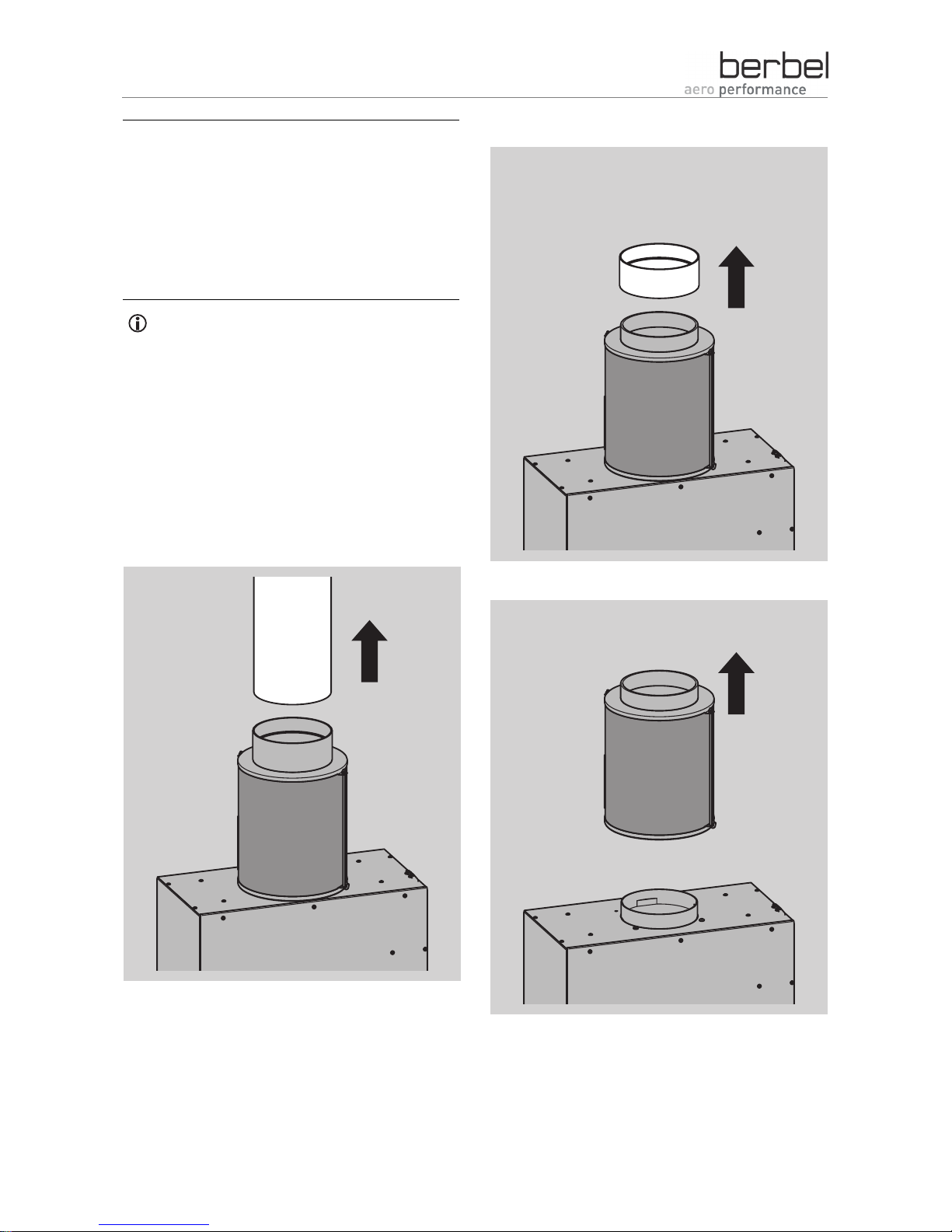

Removing the hybrid filter

Proceed as follows to replace the filter filling:

¾ Remove the outgoing air line from the sleeve.

¾ Remove the sleeve from the filter.

¾ Pull the filter out upwards.

Page 27

Maintenance

Removing the recirculating air filter

Proceed as follows to replace the filter filling:

¾ Pull the filter out upwards using the folding

handle.

Replacing the filter filling

¾ Replace the filter filling.

Replacement of the filter filling is described separately in the operating instructions for the filter filling.

Installing the filter

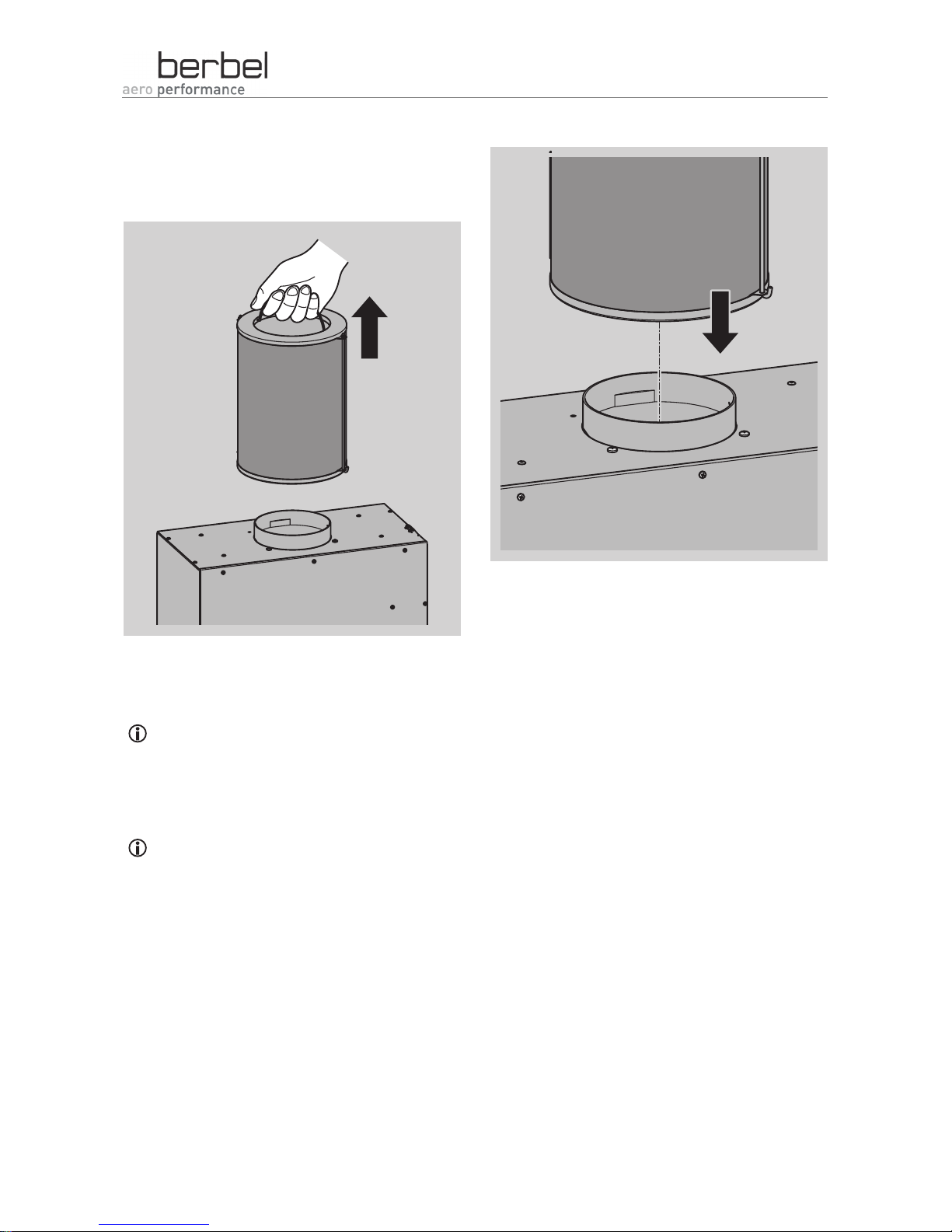

To ensure that the filter is installed correctly, an approx. two centimetre-high guide aid is installed on the seat of the filter.

¾ Position the filter on the device from above.

The filter is correctly inserted when the lower edge lies fully on the device.

¾ Make sure that the filter is inserted correctly.

The filter is installed correctly. If the filter is not installed correctly, proceed as follows:

¾ Remove the filter.

¾ Position the filter again.

Page 28

Maintenance

¾ Hybrid mode only:

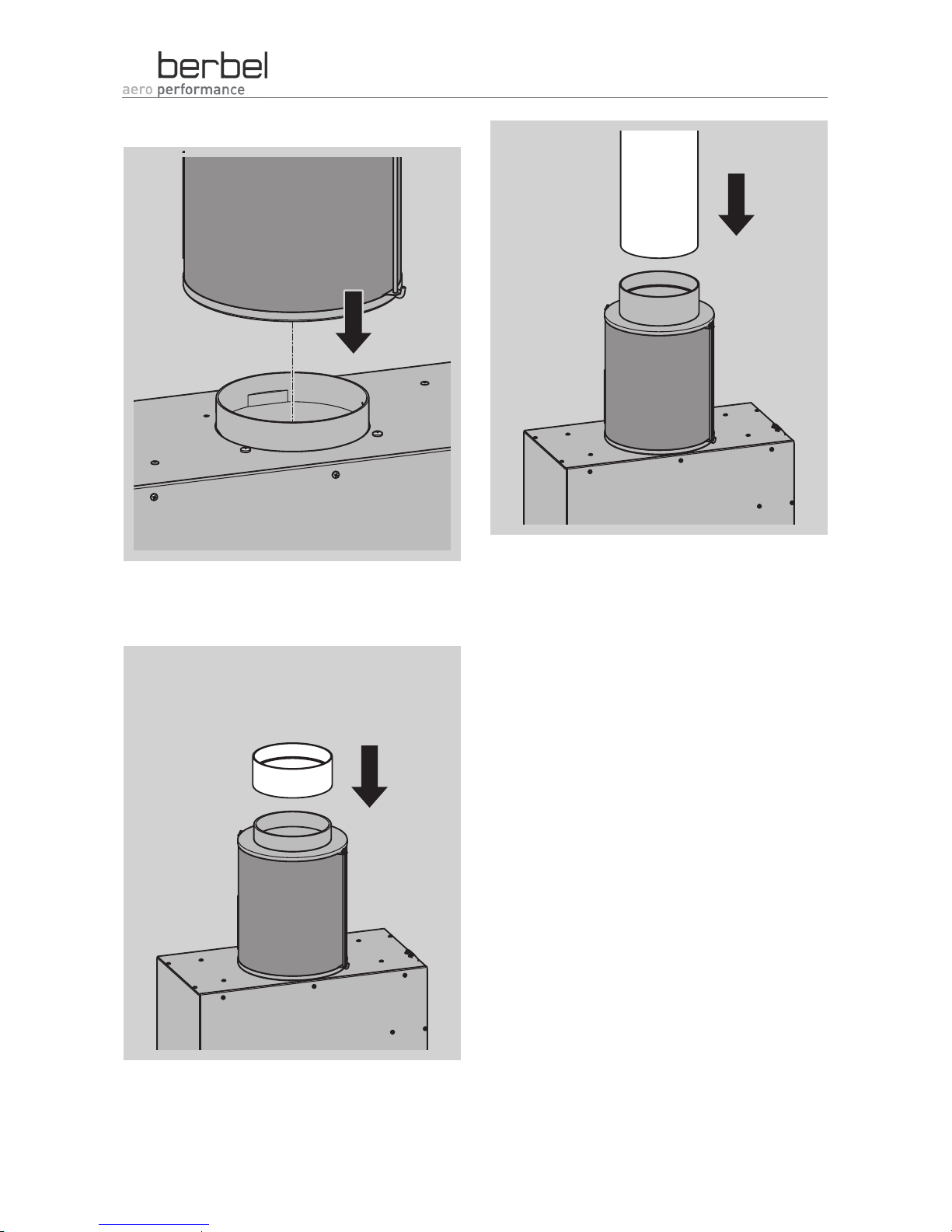

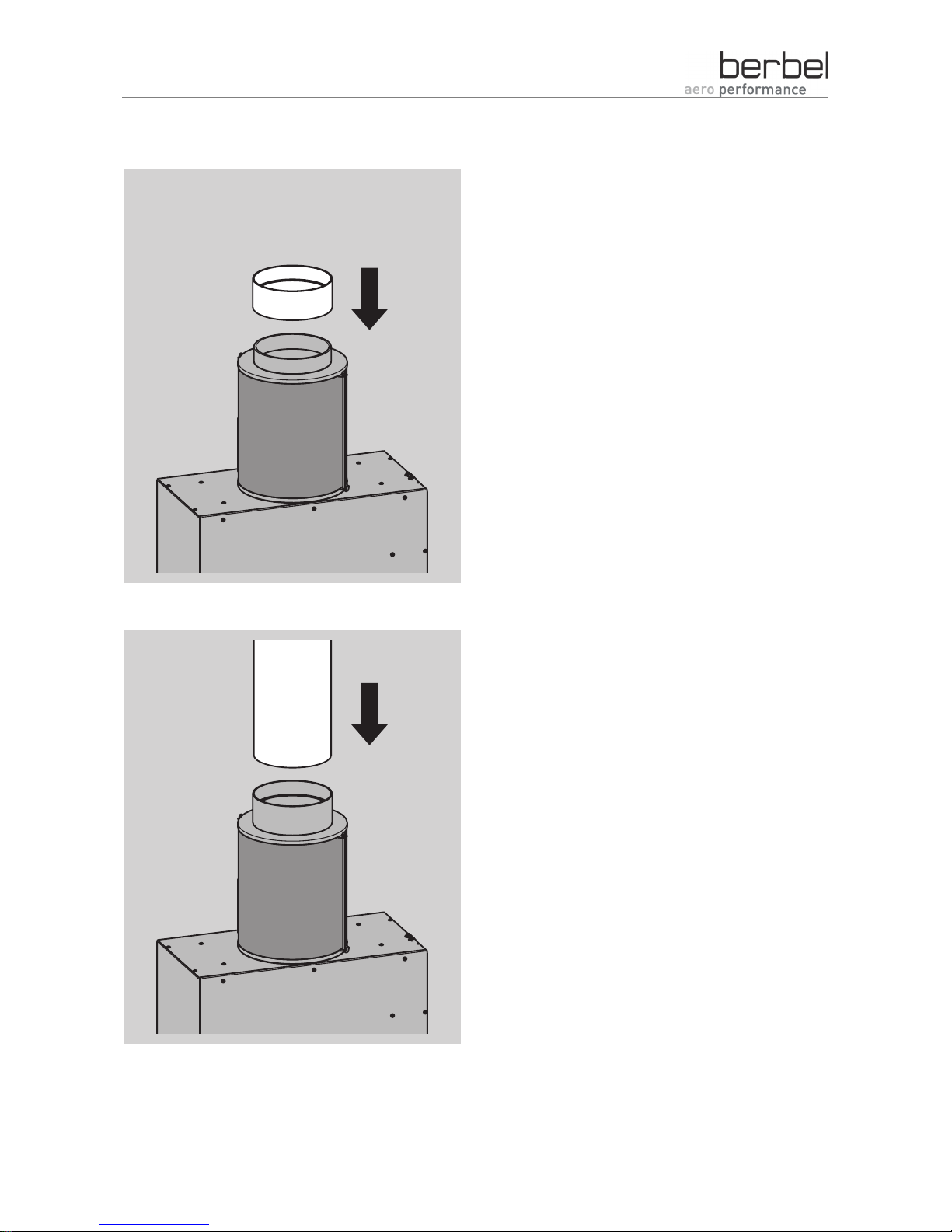

Position the sleeve on the filter.

¾ Slide the outgoing air line into the sleeve.

¾ Mask the transition between the outgoing air line

and the guide aid with sealing tape.

¾ Make sure that the outgoing air line is correctly

connected.

¾ Install the coverings or other surroundings.

The filter filling has been replaced.

Page 29

Rectifying malfunctions

Malfunction Possible cause Remedy

No current supply. Check whether the fuse has triggered.

If you have a power circuit breaker, switch the power circuit breaker on.

Contact a specialist electrician in the case of other fuse types.

Blower and lighting do not function.

The fuse has triggered or is defective. Check whether the fuse has triggered.

If you have a power circuit breaker, switch the power circuit breaker on.

Contact a specialist electrician in the case of other fuse types.

The extractor hood is not switched on. Check all four possible output levels.

See Switching on the ventilation function on page 13.

Blower does not function.

The extractor hood is connected to a window switch and the window is closed.

Open the window.

Lighting does not function.

The bulb is defective. Replace the defective bulb.

If the lighting still does not function, contact your specialist berbel dealer.

The fluff screen is soiled. Clean the fluff screen.

See Cleaning in the case of severe soiling on page 17.

Increased noise development during operation.

The recirculating air filter filling has become clogged.

Replace the recirculating air filter filling.

See Replacing the filter filling (hybrid and recirculating air filters) on page 25.

Odour formation during operation.

The hybrid filter filling is spent. Replace the hybrid filter filling.

Page 30

Rectifying malfunctions

Malfunction Possible cause Remedy

The fluff screen is soiled. Clean the fluff screen.

See Cleaning in the case of severe soiling on page 17.

The recirculating air filter has become clogged.

Replace the filter filling in the recirculating air filter.

The hybrid filter has become clogged. Replace the filter filling in the hybrid

filter.

Poor extractor hood output.

The outgoing air line has not been connected or routed properly.

Contact your specialist berbel dealer or the berbel customer service.

¾ If a malfunction cannot be rectified, contact your

specialist berbel dealer or the berbel customer service.

DANGER

Fatal electric shock due to improperly carried out repairs.

¾ Make sure that repairs are carried

out exclusively by the manufacturer or authorised specialists.

Page 31

Disposal

Disposing of packaging

DANGER

Danger of suffocation due to parts of the packaging (e.g. films and polystyrene).

¾ Store film or other parts of the

packaging in a location which is inaccessible to children.

ATTENTION

Environmental damage due to improper disposal of the packaging.

¾ Never dispose of the packaging in

the normal domestic refuse.

¾ Have the packaging properly

recycled in an environmentallyfriendly manner.

The packaging offers protection against transportation damage.

Only the original packaging guarantees adequate protection during transportation.

¾ Retain the packaging during the warranty period.

The packaging materials have been selected according to environmental compatibility aspects and are manufactured from recyclable materials. After use, the packaging materials can be recycled. Valuable raw materials can therefore be saved.

• The exterior packaging consists of cardboard.

• The filler material and the inserts consist of

cardboard or polystyrene.

• The protective films and bags consist of polyethylene (PE).

¾ Dispose of the packaging according to material

segregation and in an environmentally-friendly manner.

deviceDisposal

ATTENTION

Environmental damage due to improper disposal of electronic components.

¾ Never dispose of the device in the

normal domestic refuse at the end of its useful life.

¾ Ask your municipal or local

administration about options for recycling or disposing of the device in a proper and environmentallyfriendly manner.

¾ Dispose of the device according to the legal

regulations via a specialist disposal company.

Page 32

Technical data

Model plate

The model plate can be found inside the device behind the device flap beneath the fluff screen.

The model plate contains the following information:

• Manufacturer

• Manufacturer's address

• Device type

• Voltage

• Total output

• Serial number

• Year of construction

• Symbols of the legal regulations to which the

device adheres and test symbols.

Fan module BLB 60

Width 661 mm

Depth 425 mm

Height (without filter)

370 mm

Max. fan output, free-blowing

625 m³/h

Weight (air extraction mode)

Approx. 20 kg

Weight (recirculated air mode)

Approx. 25 kg

Current supply 230 V/50 Hz

Power consumption

180 W at output level "4"

Current consumption

0.88 A

Halogen bulbs 2 x max. 20 W, 12 V, G4

socket

Fan module BLB 90

Width 961 mm

Depth 425 mm

Height (without filter)

370 mm

Max. fan output, free-blowing

750 m³/h

Weight (air extraction mode)

Approx. 22 kg

Weight (recirculated air mode)

Approx. 27 kg

Current supply 230 V/50 Hz

Power consumption

250 W at output level "4"

Current consumption

0.92 A

Halogen bulbs 2 x max. 20 W, 12 V, G4

socket

Fan modules BLB 60 and BLB 90

The device has been manufactured under adherence to the regulations of VDE 60335-2-31 and complies with the following directives and laws:

• EMC Directive (EU Directive 2004/108/EEC)

• Low-voltage Directive (2006/95/EU).

We reserve the right to implement technical changes.

Page 33

Contacting the manufacture

Contacting the manufacturer

If you have any questions which are not answered by these instructions, contact:

berbel Ablufttechnik GmbH

Sandkampstraße 100

D-48432 Rheine

Telephone +49 (0)800/56 06 06-0*

Fax +49 (0)800/56 06 06-1*

Internet www.berbel.de

*) Free from the German land line

Page 34

D-45145 Essen

www.technische-dokumentation.de

Printed in Germany

Page 35

berbel

Fan Modules BLB 60 and BLB 90

Installation Instructions

03/2009

English version of original German instructions

Page 36

These installation instructions help you to install our product properly, safely and permanently. In the following text, our berbel fan modules BLB 60 and BLB 90 product is briefly referred to as device.

These instructions are intended for the following persons:

• Persons who install the device

• Persons who clean the device

• Persons who dispose of the device.

Each of these persons must have read and understood the contents of these instructions.

Compliance with these instructions helps to avoid dangers and to increase the reliability and service life of the device.

Structural features in the text

Defined structural features are assigned to the elements contained in these instructions. A distinction can therefore be easily made between the following elements:

Normal text

Cross references

• Lists or

¾ Action steps.

Tips contain special information on the economical use of the device.

Structural features in illustrations

If reference is made to elements in a legend or in the body text, these are provided with an item number (2):

Page 37

Table of contents

Safety ..............................................................................................................................................................5

Proper use ..........................................................................................................................................................5

Ban on independent conversions and modifications ..........................................................................................5

Basic safety instructions .....................................................................................................................................5

Structural features of the information on dangers ..............................................................................................7

Structural features of notices regarding material or environmental damage......................................................7

Preparing for installation ..................................................................................................................................8

Preparing the electrical voltage supply...............................................................................................................8

Personnel qualifications......................................................................................................................................8

Required tools and material................................................................................................................................9

Unpacking.........................................................................................................................................................10

Checking the scope of delivery.........................................................................................................................10

Switching the sound signal on and off..............................................................................................................11

Removing parts for installation .........................................................................................................................13

Opening the lower flap......................................................................................................................................14

Removing the lower grease tray.......................................................................................................................14

BLB 90 only: Removing lateral adapter parts for the lower grease tray...........................................................14

Removing the fluff screen.................................................................................................................................14

Removing the upper grease tray ......................................................................................................................15

Removing the mountings..................................................................................................................................15

Description.....................................................................................................................................................17

Possible operating modes ................................................................................................................................17

View of the device from above .........................................................................................................................19

View of the device from below with flap closed ................................................................................................20

View of the device from below with flap open ..................................................................................................21

Air extraction mode........................................................................................................................................22

Outgoing air in the separate outgoing air duct .................................................................................................23

Optimising the outgoing air line ........................................................................................................................23

Installing the device .......................................................................................................................................27

Maintaining safety distances ............................................................................................................................27

Marking dimensions..........................................................................................................................................27

Creating the installation cut-out ........................................................................................................................28

Drilling the necessary holes..............................................................................................................................28

Securing the mountings....................................................................................................................................29

Adjusting the mountings ...................................................................................................................................29

Attaching the device .........................................................................................................................................30

Connection contact for wall box and window switch (multi-function contact)...................................................32

Creating the outgoing air connection................................................................................................................35

Page 38

Installing the removed parts .............................................................................................................................37

Installing the rotary knob ..................................................................................................................................39

Creating the electrical voltage supply...............................................................................................................40

Cleaning surfaces..........................................................................................................................................41

Dismantling the extractor hood ......................................................................................................................42

Disposal.........................................................................................................................................................44

Disposing of packaging.....................................................................................................................................44

deviceDisposal..................................................................................................................................................44

Technical data ...............................................................................................................................................45

Model plate .......................................................................................................................................................45

Fan module BLB 60..........................................................................................................................................45

Fan module BLB 90..........................................................................................................................................45

Fan modules BLB 60 and BLB 90 ....................................................................................................................45

Contacting the manufacturer..........................................................................................................................46

Page 39

Safety

Read through this chapter carefully before installing, using or cleaning the device.

¾ Observe all information on dangers during all

activities on the device.

¾ Enclose these instructions if you pass the device

on.

Proper use

The device can be used to extract cooking vapours during cooking.

The device is exclusively intended for this purpose and must only be put to this use. The device must only be used in the manner described in these instructions.

Any other use or modification of the device is regarded as improper and may lead to damage.

Ban on independent conversions and modifications

• Do not undertake any independent conversions or modifications on the device. Conversions or modifications without the approval of berbel Ablufttechnik GmbH are impermissible.

• Never bridge or bypass the protective facilities available on the device.

Basic safety instructions

This section contains basic safety instructions for handling the device. Additional safety instructions which affect certain actions and procedures can be found in the relevant chapters.

• Heed all of the safety instructions and information

on dangers in these instructions.

• Check the device and all parts for visible damage. In the event of damage, contact your specialist dealer or the berbel customer service. The device must only be used in flawless condition.

• Always have repair and maintenance work carried out by qualified, specialist personnel. Otherwise, you endanger yourself and others.

• Install the device with the enclosed brackets exclusively on load-bearing parts of buildings (solid construction).

• In the case of other mountings, use correspondingly suitable mounting techniques. If in doubt, ask your specialist dealer. Otherwise, you endanger yourself and others.

• Use the device in private kitchens only.

Page 40

Safety

Avoiding dangers due to electric shock

• Have work on the voltage supply carried out by a qualified, trained specialist electrician only. At the very least, the specialist electrician must have the following knowledge and skills:

− Basics of electrical engineering

− Knowledge of the country-specific regulations

and standards (in Germany e.g. DIN 57100/VDE 0100, Part 701)

− Knowledge of the relevant safety regulations

− Knowledge of the relevant legal regulations for

gas installations (in Germany e.g. the technical regulations for gas installations TRGI).

• Only use the device if it is connected and fused according to the technical data.

• Do not kink or crush the mains cable.

• Do not operate the device with a damaged

electrical connection cable.

• Disconnect the device from the current supply in the event of malfunctions.

• Avoid exposing the device to dripping or splashing water. Never place objects filled with fluids, such as e.g. vases, on the device.

• Keep the device dry.

• If fluid nevertheless enters the device:

− Immediately shut off the current supply by

removing the fuse.

− Make sure that the device's current supply

cannot be unintentionally reactivated. E.g.

designate a person to prevent the fuse from being switched on.

− Allow the device to dry.

− Have the device checked and repaired by

trained, specialist personnel before using the device again.

Avoiding risk of explosion

• Do not operate the device in an explosive environment.

Avoiding fire hazard

• Make sure that the cooker top has cooled down before covering it.

A soiled device may cause fire hazards.

• Keep the device in flawless condition and check it regularly.

• Regularly remove any grease residues which are present. Grease residues pose a fire hazard.

• Do not flambé beneath the device. Naked flames may e.g. damage neighbouring cupboards.

• Only have repair work on the device carried out by personnel trained for this purpose.

In recirculated air mode:

• No objects which may impede the air flow may be installed above the device. Make sure that the outflowing air is able to flow into the kitchen without impediments.

Page 41

Safety

The device may only be installed above a fireplace for solid fuels (e.g. coal-fired stove) if:

• the fireplace has a sealed cover which cannot be

removed. Otherwise, e.g. there is an increased fire hazard due to flying sparks.

• the legal and country-specific regulations are adhered to.

Avoiding risks of injury

• In order to prevent the risk of falling, use a stable stepladder for all work on the device, such as e.g. replacing the filter, installing and cleaning the device.

• In order to prevent risks of injury due to falling parts, use suitable mounting material.

• In order to prevent cuts due to broken glass, use suitable protective gloves.

Avoiding the risk of suffocation

If the device and an open fireplace which is dependent on the room air are operated simultaneously, gases or waste gases may be drawn into the room.

• Make sure that all of the permits required for operation in your country are available (e.g. those of the master chimney sweep).

• Make sure that all standards and guidelines for operating the device in your country are observed.

• Ensure an adequate fresh air supply in the dwelling.

• Do not allow children to play with film or other parts of the packaging.

• Store film or other parts of the packaging in a location which is inaccessible to children.

Preventing the risk of collapse

• The necessary wall passage must be created by a specialist company. Wall passages influence the building's statics. Improperly created wall passages may lead to the collapse of the building.

Avoiding environmental damage

• Dispose of the device and its accessories according to the legal regulations.

Structural features of the information on dangers

The following categories of information on dangers are contained in these instructions:

DANGER

Notices containing the word DANGER warn of a hazardous situation which leads to death or severe injuries.

WARNING

Notices containing the word WARNING warn of a hazardous situation which may lead to death or severe injuries.

CAUTION

Notices containing the word CAUTION warn of a situation which may lead to slight or moderate injuries.

Structural features of notices regarding material or environmental damage

ATTENTION

These notices warn of a situation which leads to material or environmental damage.

Page 42

Preparing for installation

This chapter explains which prerequisites have to be met for installation. Carry out all of the steps contained in these instructions in succession.

WARNING

Danger due to falling parts in the event of improper mounting.

¾ The enclosed mounting material is

exclusively suitable for mounting on a solid wall construction.

¾ Make sure that the wall has sufficient

carrying capacity and use suitable mounting material.

¾ Make sure that the device is

mounted correctly.

¾ Make sure that the mains voltage corresponds to

the voltage specified on the model plate.

¾ Make sure that connection to the voltage supply is

only carried out following installation.

¾ Set the behaviour of the sound signal prior to

installation.

See section Switching the sound signal on and off on page 11.

Preparing the electrical voltage supply

DANGER

Fatal electric shock due to improper connection.

¾ Only have work on the voltage

supply carried out by a qualified, trained specialist electrician under consideration of the country-specific regulations and standards (in Germany e.g. DIN 57100/VDE 0100, Part 701).

DANGER

Risk e.g. of fatal electric shock due to malfunctions in the event of a socket which is not freely accessible.

¾ Make sure that the mains plug is

freely accessible following installation, so that the device can be easily and quickly disconnected from the mains in an emergency.

¾ If the socket is not freely accessible,

an all-pole isolating device (contact opening greater than 3 mm) must be provided in the installation.

¾ Make sure that connection to the voltage supply is

only carried out following installation.

Connection to the domestic voltage supply is carried out using a mains plug. The device's mains cable is 1.3 metres long.

¾ Make sure that the mains voltage corresponds to

the voltage specified on the device's model plate.

¾ Make sure that a socket is available a maximum

of 1.2 metres away.

Personnel qualifications

Two persons are required to mechanically install the device.

These installation engineers must have adequate specialist trade knowledge.

Page 43

Preparing for installation

Necessary specialist trade knowledge includes:

• Knowledge of the industrial safety regulations

• Knowledge of reading technical drawings

• Experience of using electrical and mechanical

tools

• Knowledge of mounting technology

• Basic knowledge of ventilation technology

• Ideally, several years' experience of installing

extractor hoods and other additional qualifications, such as e.g. joinery training, are also available.

Persons without this specialist knowledge must be familiarised with installation by an experienced installation engineer.

Required tools and material

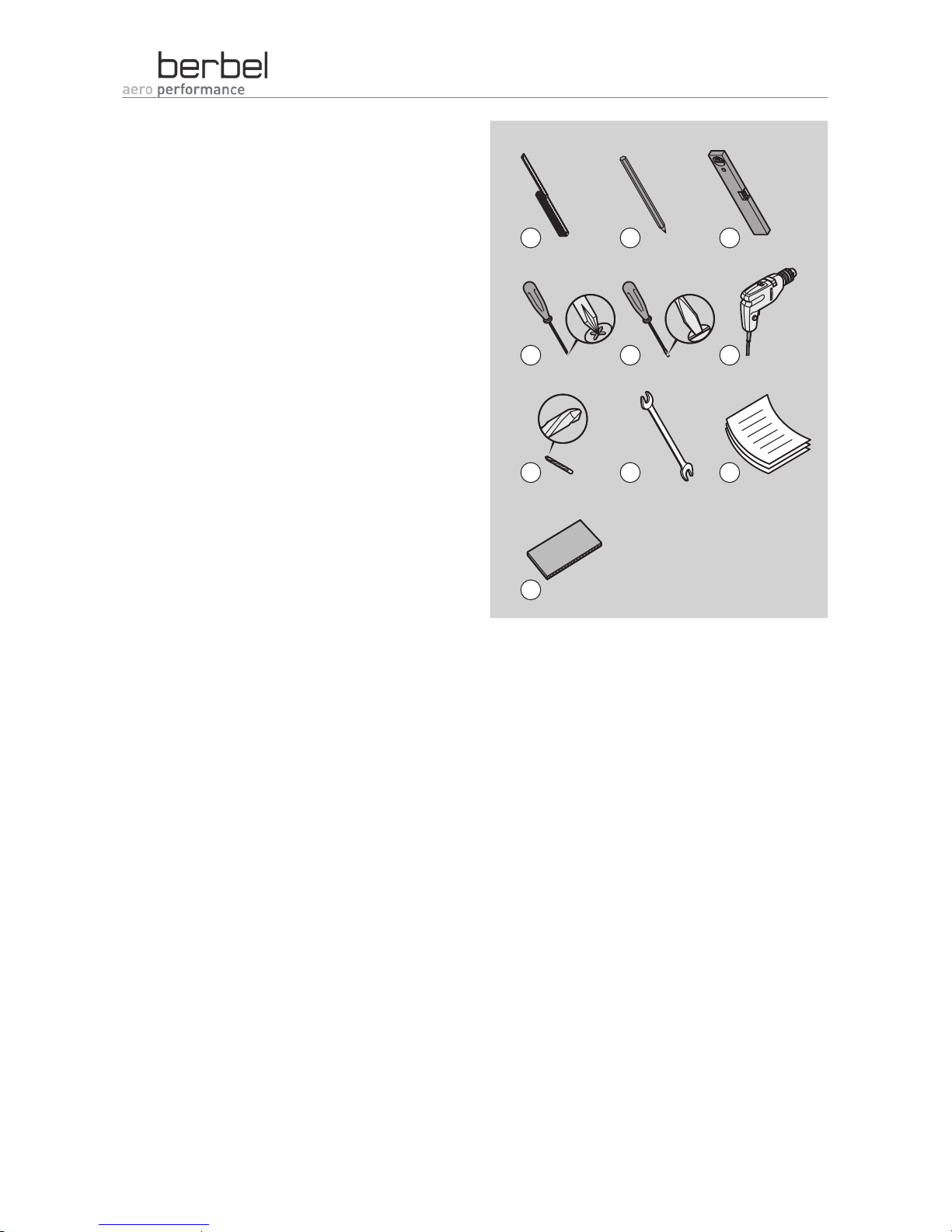

The following tools are required for installation:

8 7

5 6

2 3

 Folding ruler

 Pencil

 Spirit level

 Phillips screwdriver

 Standard screwdriver

 Drill

 HSS drill bit

 Spanner, WAF 10

 Installation instructions

 Thick cardboard to protect e.g. the cooker top

and the work surface

Page 44

Preparing for installation

Unpacking

CAUTION

Risk of cuts due to broken glass.

¾ Wear protective gloves.

¾ Unpack the device carefully.

¾ Do not reach into broken glass.

ATTENTION

Damage to surfaces due to improper unpacking.

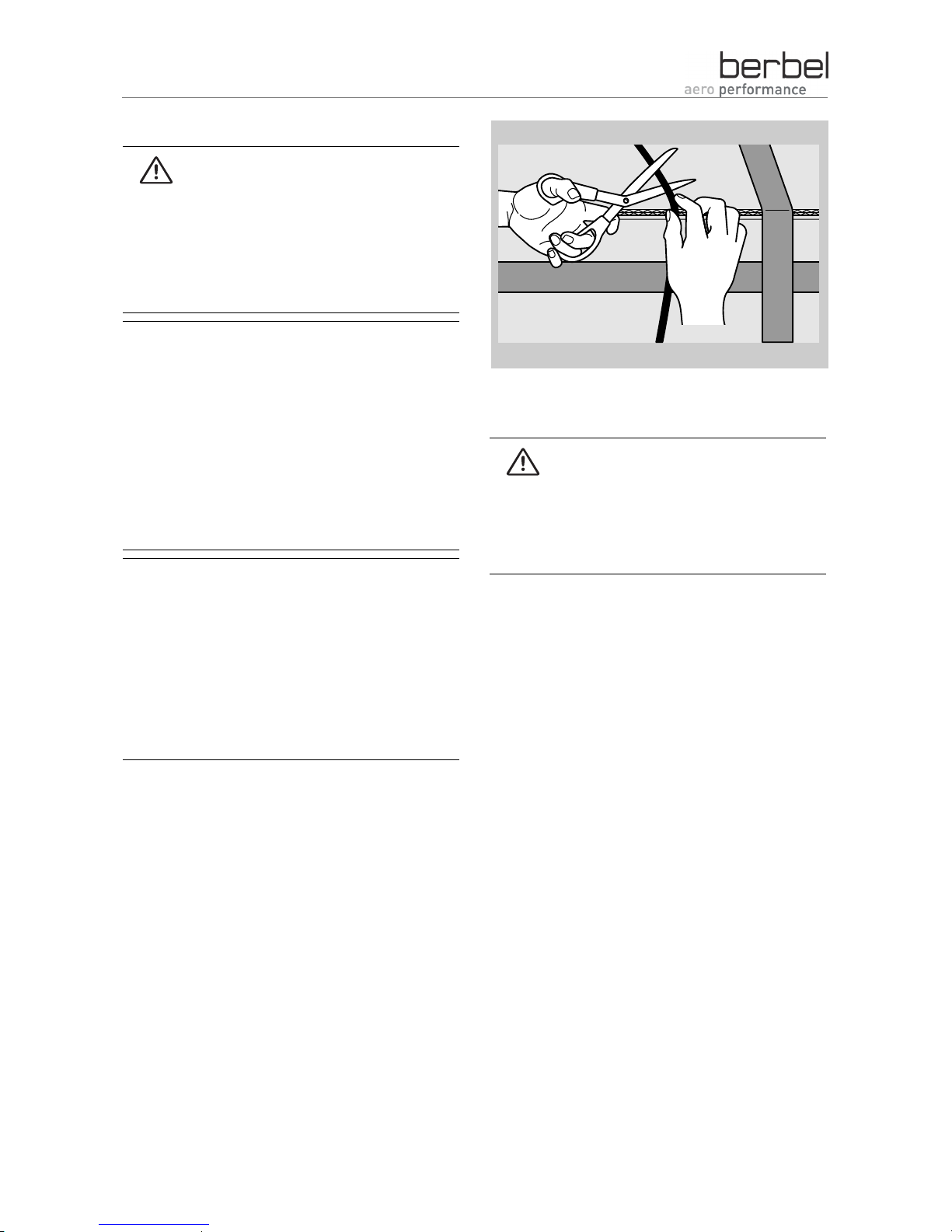

¾ Cut through the packing tape and

retaining straps with a pair of scissors.

¾ Do not cut into the protective

cardboard box.

ATTENTION

Scratched surfaces possible due to sharp-edged metal objects, e.g. belt buckles or tools during transportation.

¾ Transport the device without coming

into contact with objects which may scratch the device.

¾ Remove the packaging film and the cardboard

box.

¾ If available, cut through the retaining strap with a

pair of scissors.

¾ Cut through the packing tape with a pair of

scissors.

¾ Remove the loosely enclosed parts from the

packaging.

CAUTION

Risk of injury due to the heavy extractor hood falling down.

¾ Only lift the device with two persons.

¾ Protect the surfaces of the working area e.g. with

thick cardboard.

¾ Remove the device from the packaging.

¾ Lay the device, with the rear side facing down, on

a flat, protective surface.

Checking the scope of delivery

¾ Check that the supplied parts are complete, as

described in the following section.

¾ Check the supplied parts for damage.

¾ If parts are damaged or missing, contact your

specialist berbel dealer or the customer service.

Page 45

Preparing for installation

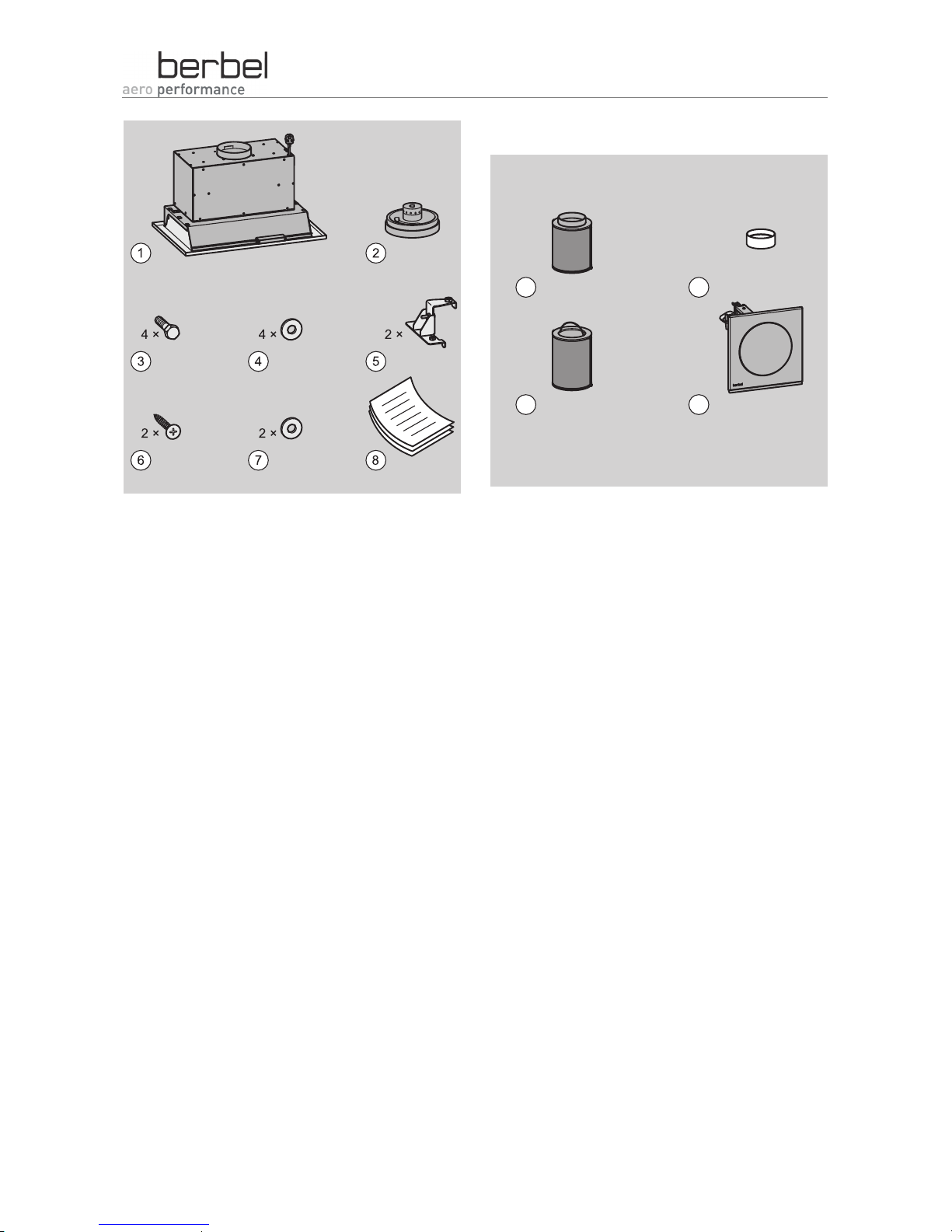

 Extractor hood

 Rotary knob (ThinCoder)

 Hexagon bolts M 6 x 40 mm

 Washers

 Cupboard mountings *

 Screws (Phillips) M 8 x 30 mm *

 Washers *

 Installation instructions

*) The two cupboard mountings are assembled in the device with two bolts M 8 x 30 mm and washers for transportation.

Optional accessories:

1 2

 For hybrid mode only:

Hybrid filter BHF 150

 For hybrid mode only:

Sleeve (Art. number: 6000 313)

 For recirculated air mode only:

Recirculating air filter BUF 150

 Wall box BMK-F/L

Switching the sound signal on and off

Each of the rotary knob's (ThinCoder) operations can be acknowledged by a sound signal.

This chapter describes how to switch the sound signal on and off.

The sound signal is switched off in the factory settings.

¾ If you do not wish to change this setting, continue

reading the next chapter.

A DIP switch has to be set on the device. The DIP switch is on the control electronics in the rotary knob housing. The housing has to be opened, the switch set and the housing closed.

The housing is located on the upper front side of the device.

Page 46

Preparing for installation

A small standard screwdriver is required for this step.

DANGER

Fatal electric shock due to freely accessible electrical contacts when the housing is open.

¾ Make sure that the device is

disconnected from the voltage supply.

The cover is clamped in and must be removed without tools.

¾ Make sure that the lower side of the device is

lying on a protective surface.

¾ Position yourself in front of the device.

¾ Grip the cover to open it.

¾ Carefully fold the cover up on one side.

¾ Remove the cover.

¾ Set DIP switch 1 using a pointed object (e.g.

small screwdriver).

DIP switch 1

Function

"OFF" position (standard setting)

Sound is switched off.

"ON" position

Sound is switched on.

Page 47

Preparing for installation

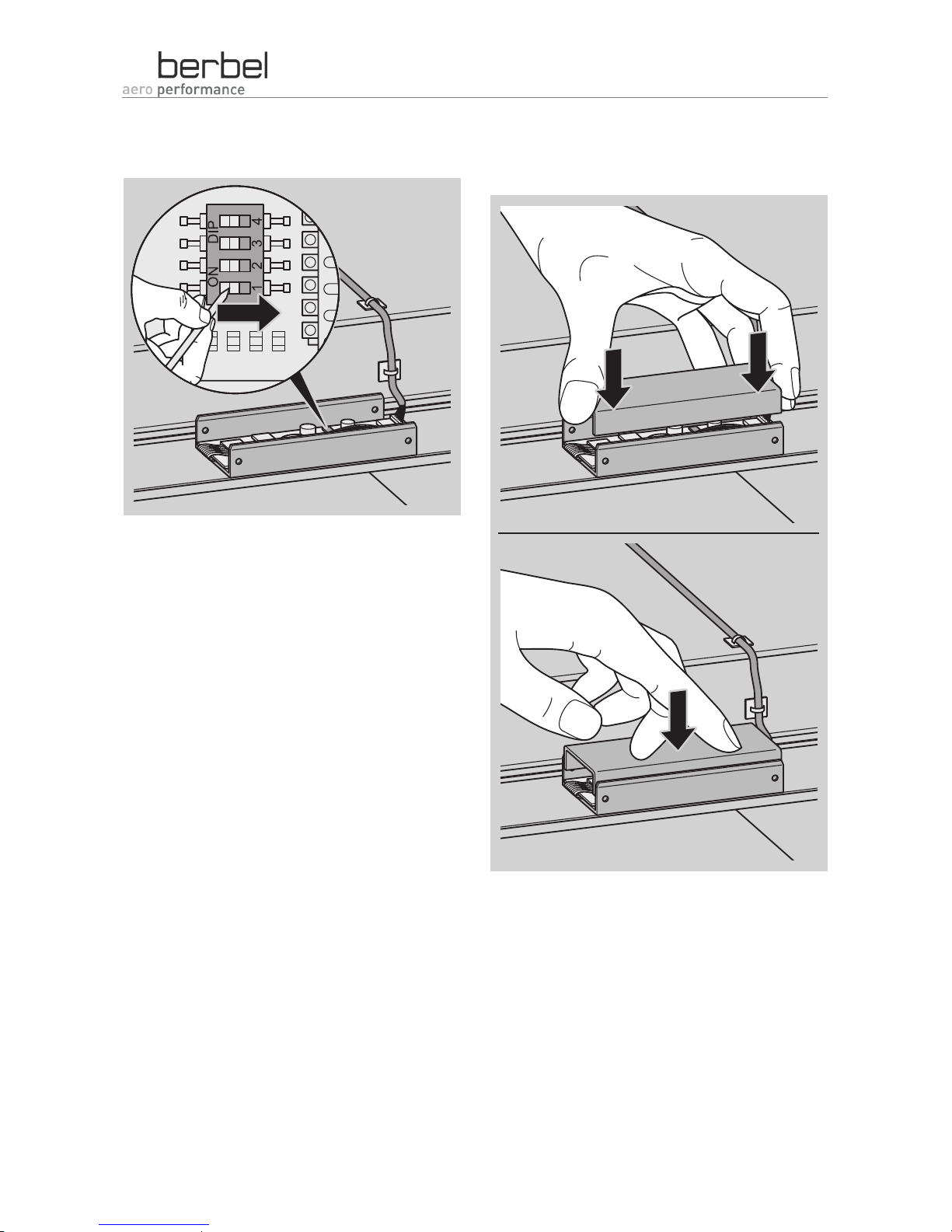

The following illustration shows how the sound is switched off.

¾ Place the cover into the housing (1.).

¾ Carefully press the cover firmly onto the housing

(2.).

Removing parts for installation

Prior to installation, certain installed parts have to be removed or dismantled to ensure that installation of the device is as safe and hazard-free as possible.

¾ Carry out all of the following steps in succession.

¾ Lay the device, with the rear side facing down, on

a flat, clean and protective surface.

Page 48

Preparing for installation

The following illustrations show the installed device with the rotary knob. They are merely intended to provide assistance to the installation engineer. During these steps, the device has to lie on its rear wall. The rotary knob must not be installed during these steps.

Opening the lower flap

¾ Open the flap by pulling it forwards at the rounded

edge.

The flap is open.

Removing the lower grease tray

¾ Grip behind the rear edge of the grease tray using

both hands.

¾ Release the grease tray by pulling it upwards.

¾ Remove the lower grease tray.

BLB 90 only: Removing lateral adapter parts for the lower grease tray

¾ Remove the two adapter parts.

Removing the fluff screen

¾ Grip the fluff screen by the knob in the centre of

the screen.

¾ Pull the fluff screen off forwards.

Page 49

Preparing for installation

Removing the upper grease tray

The upper grease tray must be removed prior to installation so that the mountings are accessible.

The upper grease tray is secured magnetically. The upper grease tray can be removed without tools.

Proceed as follows to remove the upper grease tray:

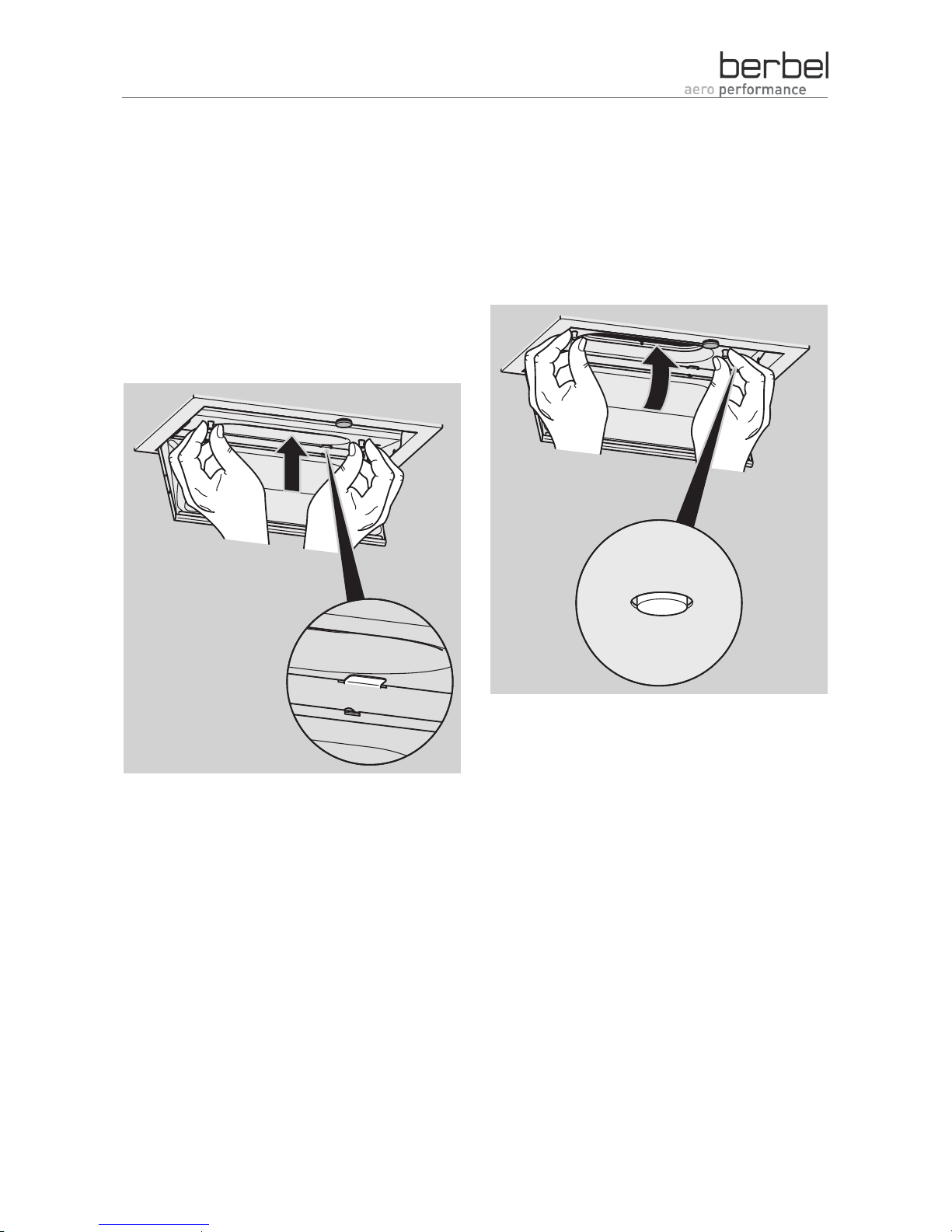

¾ Grip both of the grease tray knobs using both

hands.

¾ Release the grease tray by pulling it forwards.

¾ Remove the lower grease tray.

Removing the mountings

The mountings are installed in the device during transportation. The mountings must be removed prior to installation.

A large Phillips screwdriver is required for this step.

Proceed as follows to remove the mountings:

¾ Make sure that the rear side of the device is lying

on a protective surface.

¾ Position yourself in front of the device.

¾ Grip one mounting firmly.

¾ Unscrew the corresponding Phillips screw M8 (1.).

Page 50

Preparing for installation

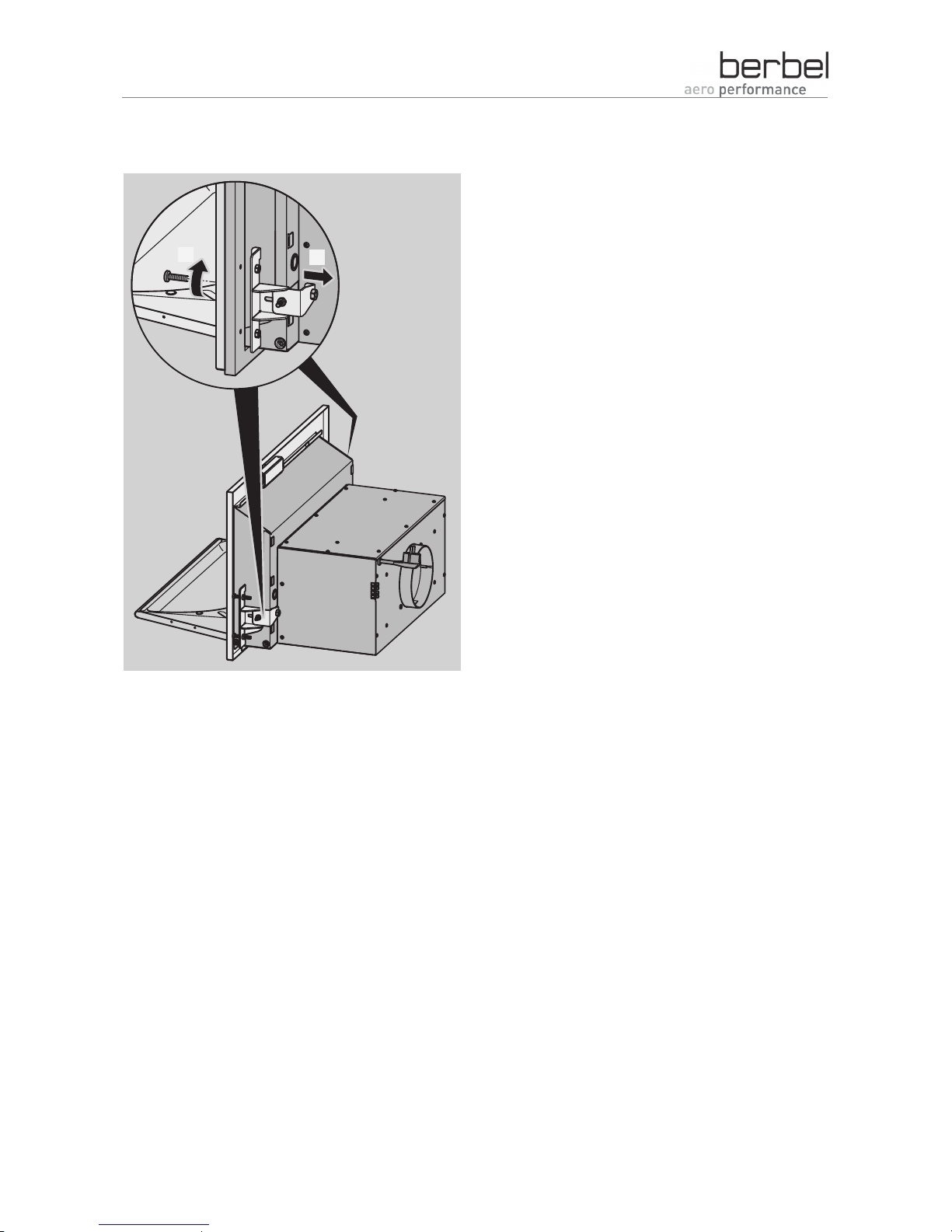

¾ Remove the screw (1.).

¾ Remove the mounting (2.).

¾ Repeat this step on the second mounting.

The device is prepared for installation.

Page 51

Description

The device can be used in various operating modes:

• Recirculated air mode

• Air extraction mode

• Hybrid mode

Installation of the device differs depending on the operating mode which is desired. The different installation of the individual operating modes is described in the following sections.

Possible operating modes

Installation for recirculated air mode

The device intakes room air, filters the room air and returns the odour-free, cleaned room air into the room.

During installation, a recirculating air filter BUF is placed onto the device's fan outlet.

¾ Make sure that the cross-section of the ventilation

slits in the upper elements is greater than 200 cm

¾ Make sure that the filter filling can be replaced at

a later point in time.

The filter filling must be replaced at regular intervals.

Installation for air extraction mode

The device intakes room air, filters the room air and conducts the room air outside.

Page 52

Description

Installation for hybrid mode

The device intakes room air, filters the room air, and conducts part of the room air outside and returns

part of the room air, cleaned and odour-free, into the room.

During installation, a hybrid filter BHF is placed onto the device's fan outlet. The outgoing air line is connected to the hybrid filter.

An optionally available sleeve is additionally required for installation (article number: 6000 313).

¾ Make sure that the cross-section of the ventilation

slits in the upper elements is greater than 200 cm

¾ Make sure that the filter filling can be replaced at

a later point in time.

The filter filling must be replaced at regular intervals.

Page 53

Description

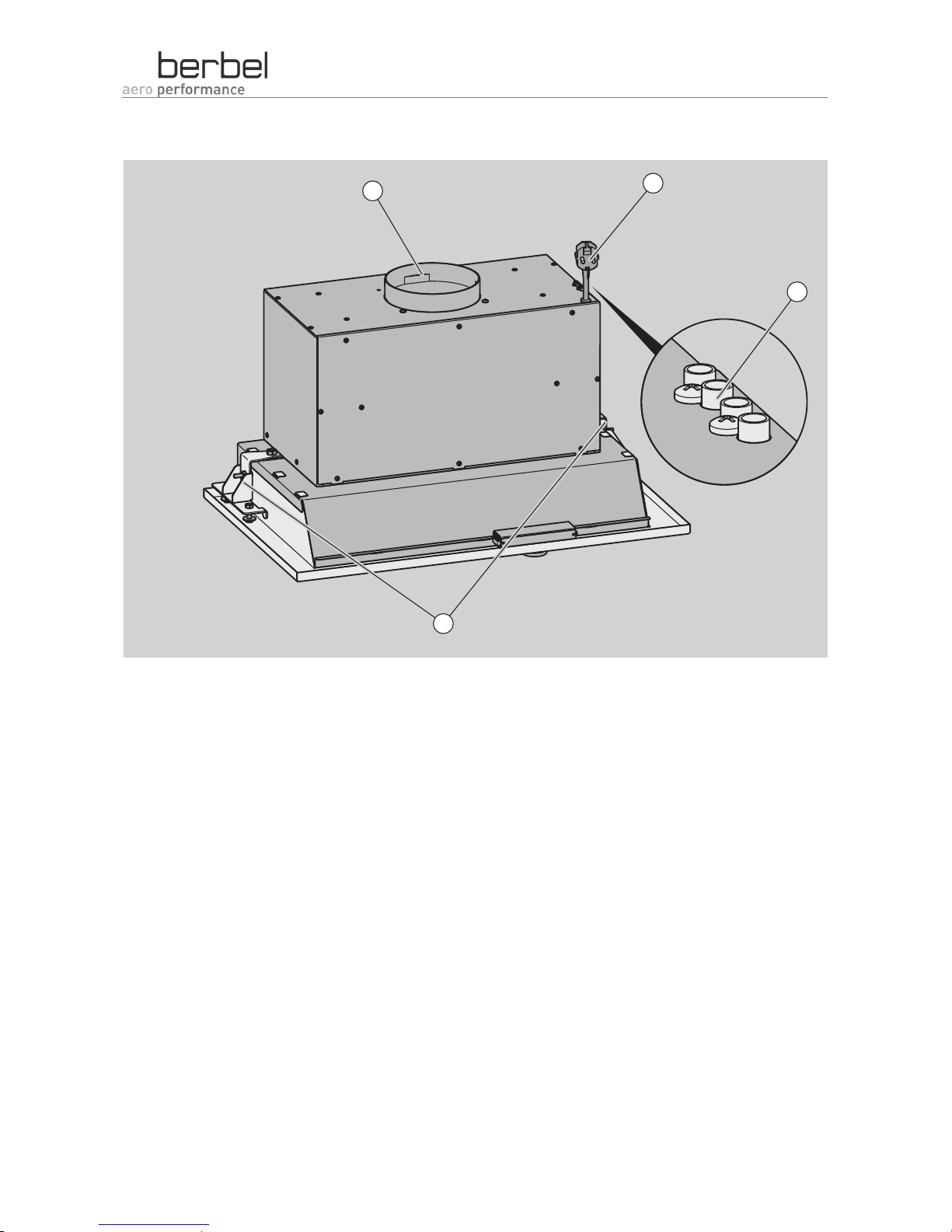

View of the device from above

 Fan outlet with guide aid for filter and outgoing

air line

 Contacts for window switches (multi-function

contact) and wall box BMK

 Mains plug  Mountings

Page 54

Description

View of the device from below with flap closed

1 2 3

 Lighting  Flap

 Rotary knob (switching on and off)

Page 55

Description

View of the device from below with flap open

 Lower tray (lower grease tray)  Upper tray (upper grease tray)

 Fluff screen  BLB 90 only: Lateral adapter

Page 56

Air extraction mode

DANGER

Danger of suffocation due to a lack of oxygen on simultaneous operation of the device and an open fireplace.

¾ On simultaneous operation with

devices which are dependent on the room air, such as e.g. a gas cooker, chimney or gas heater, make sure that no gases or exhaust gases are drawn into the room.

¾ Ensure an adequate fresh air supply

in the dwelling.

¾ Make sure that the legally prescribed

requirements of your Federal state's regulations pertaining to fireplaces (FeuV)) are adhered to.

¾ Make sure that the permit required

from the master chimney sweep to operate the extractor hood is available.

Measures for an adequate fresh air supply:

• Operate the device only with a window contact

switch connected.

• Open the windows.

• Open the doors.

• Install a berbel wall box BMK.

• Make sure that the open fireplace's prescribed

forced ventilation functions.

WARNING

Danger of suffocation due to a lack of oxygen on operation of the device.

¾ Ensure an adequate fresh air supply

in the dwelling.

¾ Make sure that the device is

connected to a window contact switch to ensure hazard-free operation.

¾ Make sure that the country-specific,

legally prescribed regulations (in Germany e.g. the requirements of your Federal state's regulations pertaining to fireplaces (FeuV)) are adhered to.

If an extractor hood and a fireplace which is dependent on the room air (e.g. gas-, oil- or coalfired heaters, chimneys, hot water boilers, gas hobs or gas ovens) are operated at the same time, the following prerequisites must be met:

¾ Your master chimney sweep has approved the

installation of the extractor hood beforehand.

¾ Installation must be carried out under adherence

to the country-specific regulations (e.g. the regulations pertaining to fireplaces (FeuV)).

¾ Installation must be carried out under adherence

to the official and legal regulations (e.g. state building ordinances).

In air extraction mode, the device intakes room air and conducts it outside via the outgoing air line.

The device is only able to conduct the volume of air away which flows into the kitchen as supply air.

The cross-section, length, type and routing of the outgoing air line extensively influence the extraction efficiency of an extractor hood.

Power losses and noises arise e.g. due to air which is diverted abruptly in the outgoing air line.

Page 57

Air extraction mode

The device's optimal output is obtained if, when installing the outgoing air line, you ensure that:

• the outgoing air line is as short and direct as possible

• the transported room air is able to flow through the outgoing air line without vortices and back pressure

• the prescribed outgoing air line cross-section is adhered to

• the recommended characteristics of the outgoing air line are adhered to throughout.

The following section explains which requirements and characteristics the outgoing air line has to meet.

Outgoing air in the separate outgoing air duct

DANGER

Danger of suffocation due to smoke or exhaust gases.

¾ Make sure that the outgoing air duct

which is used is exclusively intended for operating an extractor hood.

¾ Make sure that the outgoing air duct

is only used by this device. On connection of the device to an active outgoing air duct, such as e.g. a ventilation shaft or chimney, gases or exhaust gases may be drawn into the room.

DANGER

Fire hazard due to combustible outgoing air line.

If combustible outgoing air lines are routed through a second room or attic, fire may spread to other rooms.

¾ Make sure that the outgoing air line

consists of non-combustible material in accordance with DIN 4102 Class A1.

The extracted room air must only be conducted outside via a separate outgoing air duct intended for this purpose.

¾ Make sure that the outgoing air duct which is used

is only used as an outgoing air line by the device.

Optimising the outgoing air line

Conducting the room air away directly

Conduct the extracted room air outside directly and over the shortest route. Long routes generate additional, undesired air resistance.

¾ Make sure that the outgoing air line which leads

outside is as direct and short as possible.

Using pipes with low air resistance

Exclusively use pipes with a smooth inner surface. These pipes offer low air resistance.

Avoid the installation of:

• Spiral hoses

• Flexible pipes

• Flat diverters.

These types of pipe have high air resistance and reduce the extractor hood's output.

Page 58

Air extraction mode

¾ Make sure that the outgoing air line has a smooth

inner surface.

Exclusively use bends with optimised air ducting and a smooth inner surface. These bends offer low air resistance.

Avoid the installation of bends with sharp-edged air ducting.

These bends have high air resistance and generate noises. These bends reduce the extractor hood's output.

¾ Make sure that bends in the outgoing air line have

a smooth inner surface and that air ducting is optimised.

Using the most favourable cross-section

The minimum outgoing air line cross-section is 125 mm in the case of 125 mm systems (BEH 60 N and BEH 60 O) and 150 mm in the case of 150 mm systems (all other berbel extractor hoods).

Each reduction of the outgoing air line generates undesired air resistance, reduces output and causes noises.

Avoid:

• Outgoing air lines with small diameters

• Sharp-edged flat outgoing air ducts

• Conventional wall boxes

These have high air resistance and generate noises. They reduce the extractor hood's output.

¾ Make sure that the outgoing air line's minimum

cross-section is not less than the cross-section of the fan outlet.

Outgoing air line through the old chimney

DANGER

Danger of suffocation due to smoke or exhaust gases.

¾ A master chimney sweep must

approve the chimney as an outgoing air line prior to the installation of the extractor hood.

DANGER

Fire hazard due to combustible outgoing air line.

If combustible outgoing air lines are routed through a second room or attic, fire may spread to other rooms.

¾ Make sure that the outgoing air line

consists of non-combustible material in accordance with DIN 4102 Class A1.

If you use a chimney as an outgoing air line, increased air resistance must be anticipated depending on the length of the chimney.

The extracted air must be introduced into the chimney using a bend which is bent upwards at an angle of 90°. This avoids any possible back pressure.

Page 59

Air extraction mode

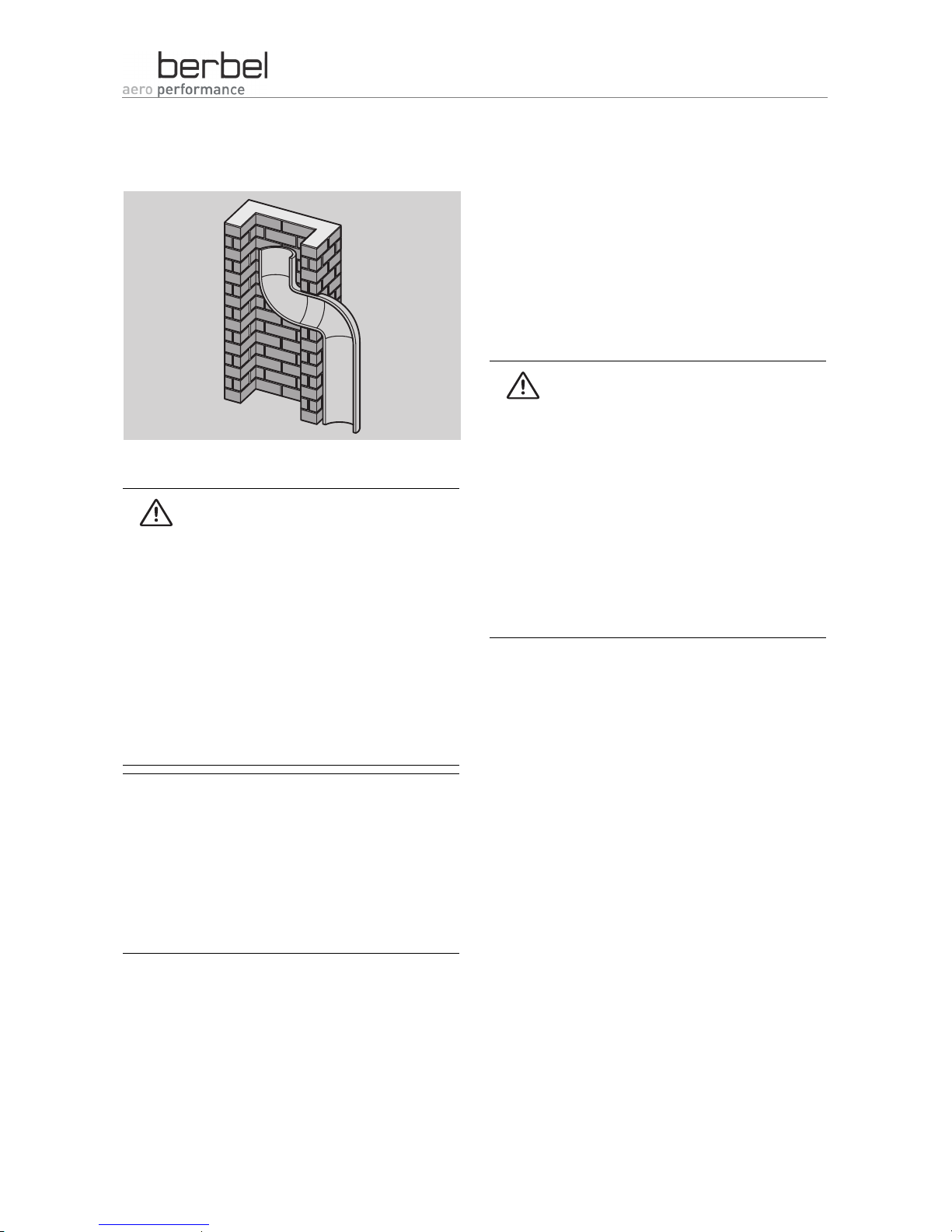

¾ Make sure that the connection in the chimney is

carried out using a bend which is bent upwards at an angle of 90°.

Outgoing air line through the roof

DANGER

Fire hazard due to combustible outgoing air line.

If combustible outgoing air lines are routed through a second room or attic, fire may spread to other rooms.

¾ Make sure that the outgoing air line

consists of non-combustible material in accordance with DIN 4102 Class A1.

ATTENTION

Water damage to the device due to the absence of a moisture condensate collector.

¾ Install a moisture condensate

collector in the outgoing air line.

If the outgoing air line is routed through the roof, you must ensure that:

• the cross-section of the roof passage is no less

than that of the fan outlet

• the roof passage does not reduce the cross- section of the outgoing air line

• a moisture condensate collector is integrated into the outgoing air line.

Outgoing air line through an exterior wall

DANGER

Fire hazard due to combustible outgoing air line.

If combustible outgoing air lines are routed through a second room or attic, fire may spread to other rooms.

¾ Make sure that the outgoing air line

consists of non-combustible material in accordance with DIN 4102 Class A1.

If the outgoing air line is routed through the exterior wall, you must ensure that:

• the cross-section of the outgoing air line is no less than that of the fan outlet

• the wall passage does not reduce the cross- section of the outgoing air line.

The wall box must meet the following requirements:

• The cross-section of the fan outlet must not be reduced in the wall box.

• The louvered cover of the wall box must ventilate over a wide area.

Page 60

Air extraction mode

Make sure that

• the slats of the louvered cover of the wall box are

not narrow and thick

• the slats of the louvered cover of the wall box are not positioned sharply downwards.

• no insect screen is installed in the wall box. Insect screens impair the cross-section of the outgoing air line completely.

¾ Use only flow-optimised wall boxes (e.g. BMK-

F/L).

Page 61

Installing the device

WARNING

Risk of injury due to falling parts.

¾ Make sure that nobody is standing

beneath the working area during work.

DANGER

Danger due to falling parts in the event of improper mounting.

¾ The enclosed mounting material is

exclusively suitable for mounting in the installation cut-out of a loadbearing and stable body (e.g. cupboard body).

¾ Make sure that the carrying capacity

is sufficient and use suitable mounting material.

The device is suspended at two points.

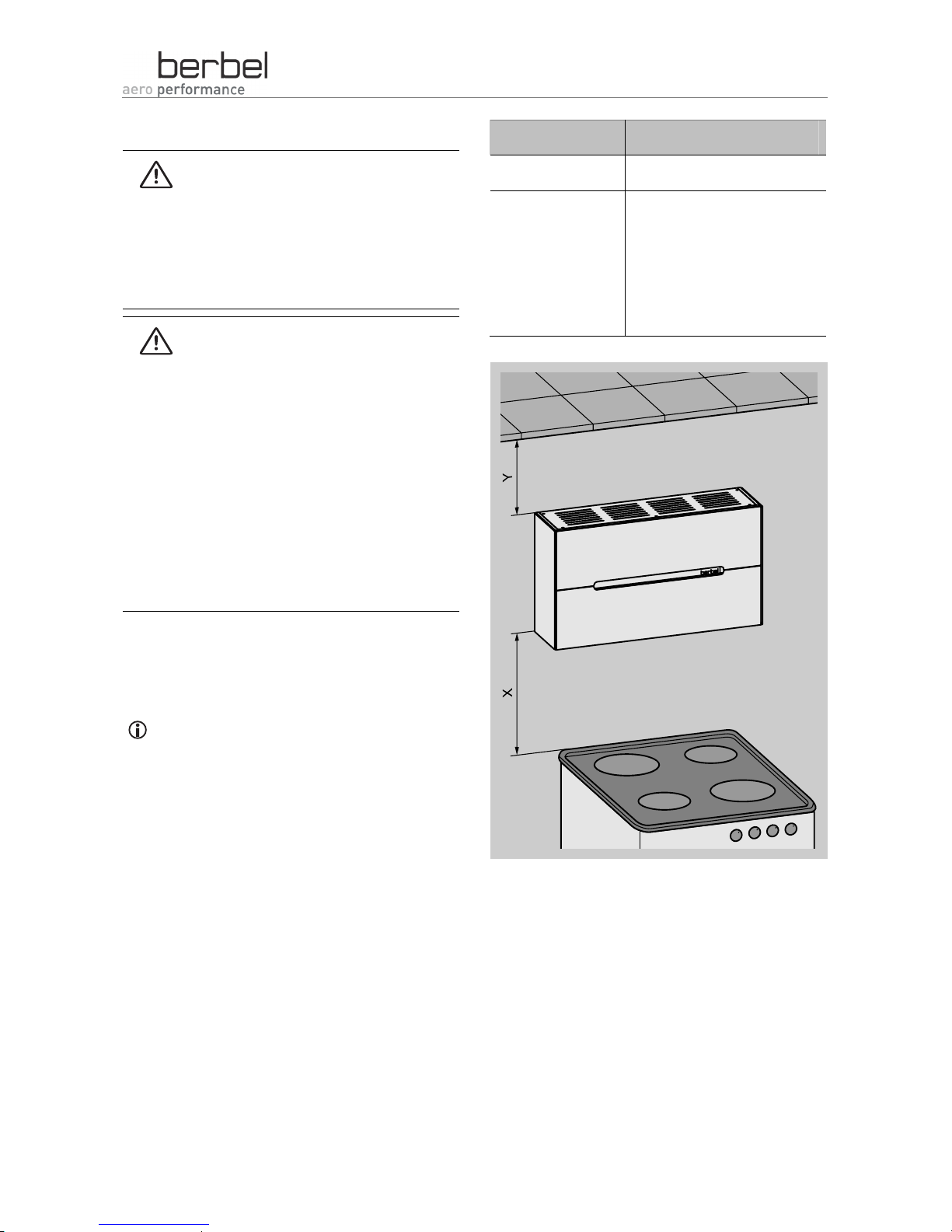

Maintaining safety distances

The following illustrations show functions or dimensions. The devices which are used are shown as symbols. The illustrations are intended to provide assistance to the installation engineer. The device forms which are shown may deviate from the actual appearance of your devices.

The following legally prescribed minimum distances must be adhered to:

Designation Dimension

Y 0 mm

X With gas cooker tops:

At least 650 mm With electric cooker tops: At least 350 mm Recommended distance: 550 mm

Marking dimensions

¾ Protect all surfaces within your working area from

damage, e.g. with thick cardboard or foamed material.

For this step, you require tools for marking the dimensions, e.g. a pencil, folding ruler, plumb line, spirit level.

Page 62

Installing the device

¾ Use the following dimension overview for

orientation.

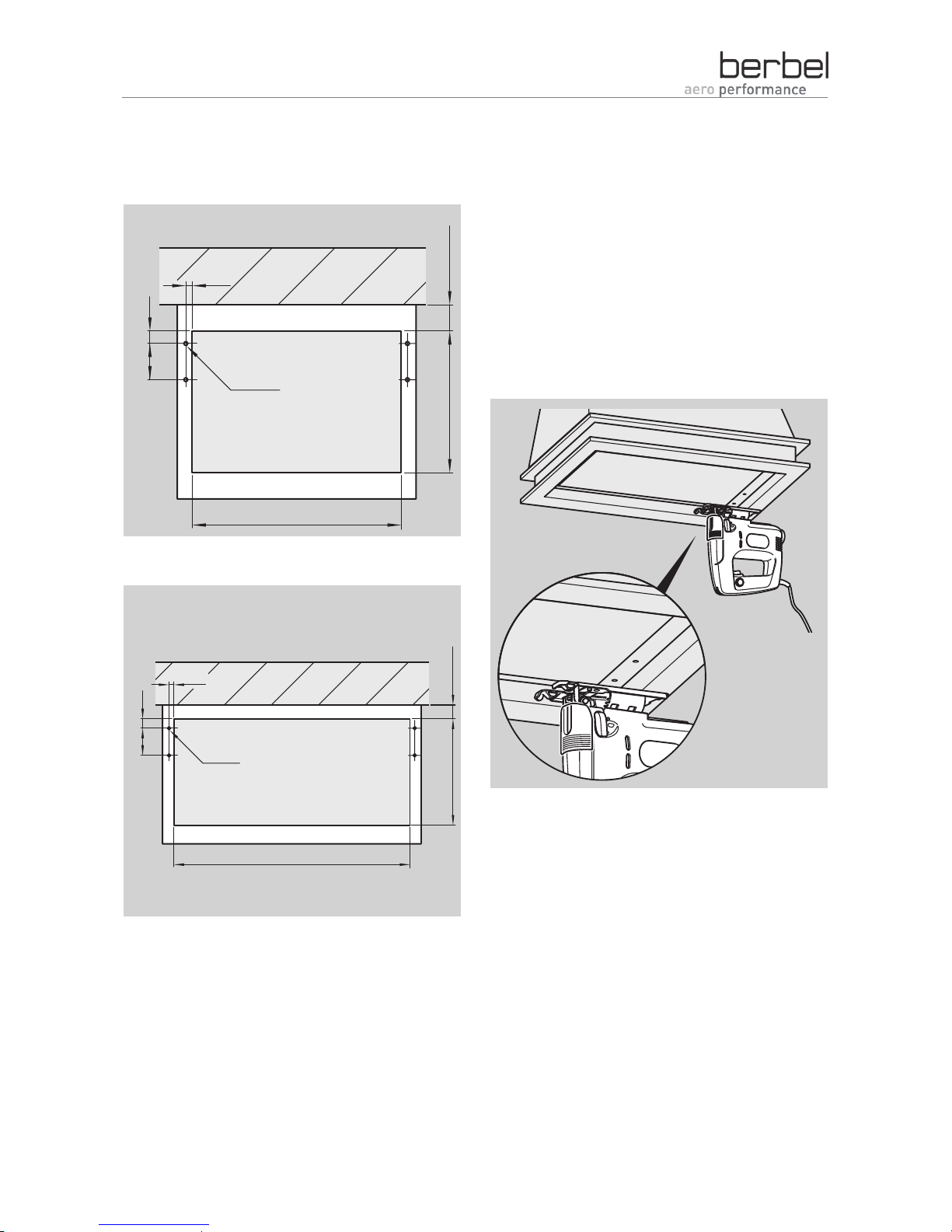

Connection dimensions, BLB 60

585

min. 26

395

100

Ø8,5

BLB 60

Connection dimensions, BLB 90

885

min. 26

BLB 90

395

100

Ø8,5

¾ Mark the position of the installation cut-out.

¾ Adhere to the minimum distance of 26 mm from

the installation cut-out to the wall.

¾ Mark the position of the holes for the mountings.

Creating the installation cut-out

A saw (e.g. jigsaw) is required for this step.

¾ Saw out the installation cut-out according to the

dimensions specified for your device.

Drilling the necessary holes

A drill with a HSS drill bit d = 9 mm is required for this step.

Page 63

Installing the device

¾ Use a drill with a HSS drill bit d = 9 mm to drill the

holes marked for the mountings (1.).

Securing the mountings

A spanner, WAF 10 mm, is required for this step.

¾ Insert the mountings (1.).

¾ Insert two hexagon bolts M6 x 40 with an

appropriate washer (2.) per mounting.

¾ Tighten the hexagon bolts (3.).

Adjusting the mountings

A spanner, WAF 10 mm, is required for this step.

Page 64

Installing the device

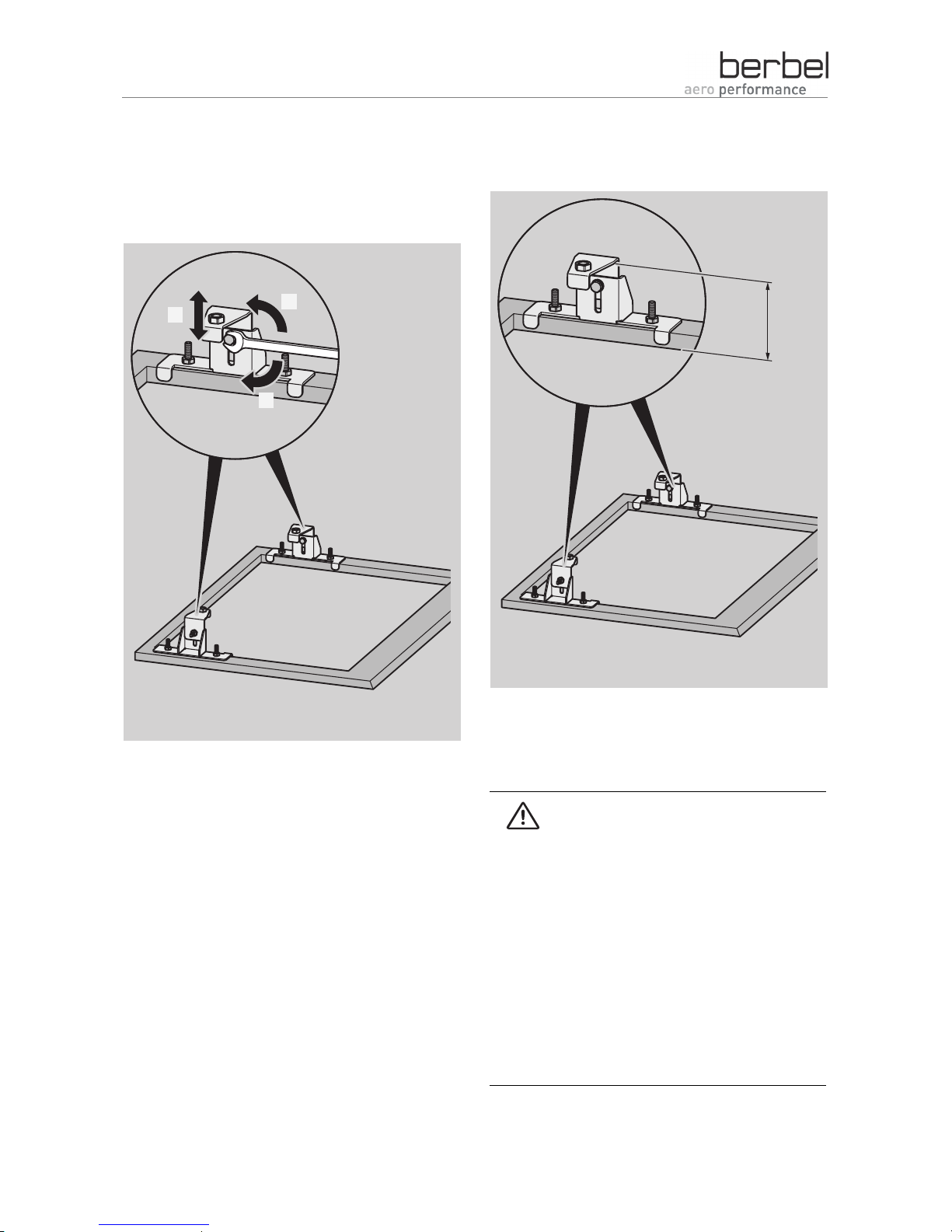

¾ Release the mountings' adjuster screw (1.).

¾ Set the distance between the lower edge of the

installation cut-out and the lower edge of the mountings' bar to 82 mm (2.).

¾ Tighten the mountings' adjuster screw (3.).

¾ Make sure that the distance between the lower

edge of the installation cut-out and the lower edge of the mountings' bar is 82 mm.

82 mm

The mountings are adjusted.

Attaching the device

DANGER

Danger due to falling parts in the event of improper mounting.

¾ The enclosed mounting material is

exclusively suitable for mounting in the installation cut-out of a loadbearing and stable body (e.g. cupboard body).

¾ Make sure that the carrying capacity

is sufficient and use suitable mounting material.

A large Phillips screwdriver is required for this step.

Page 65

Installing the device

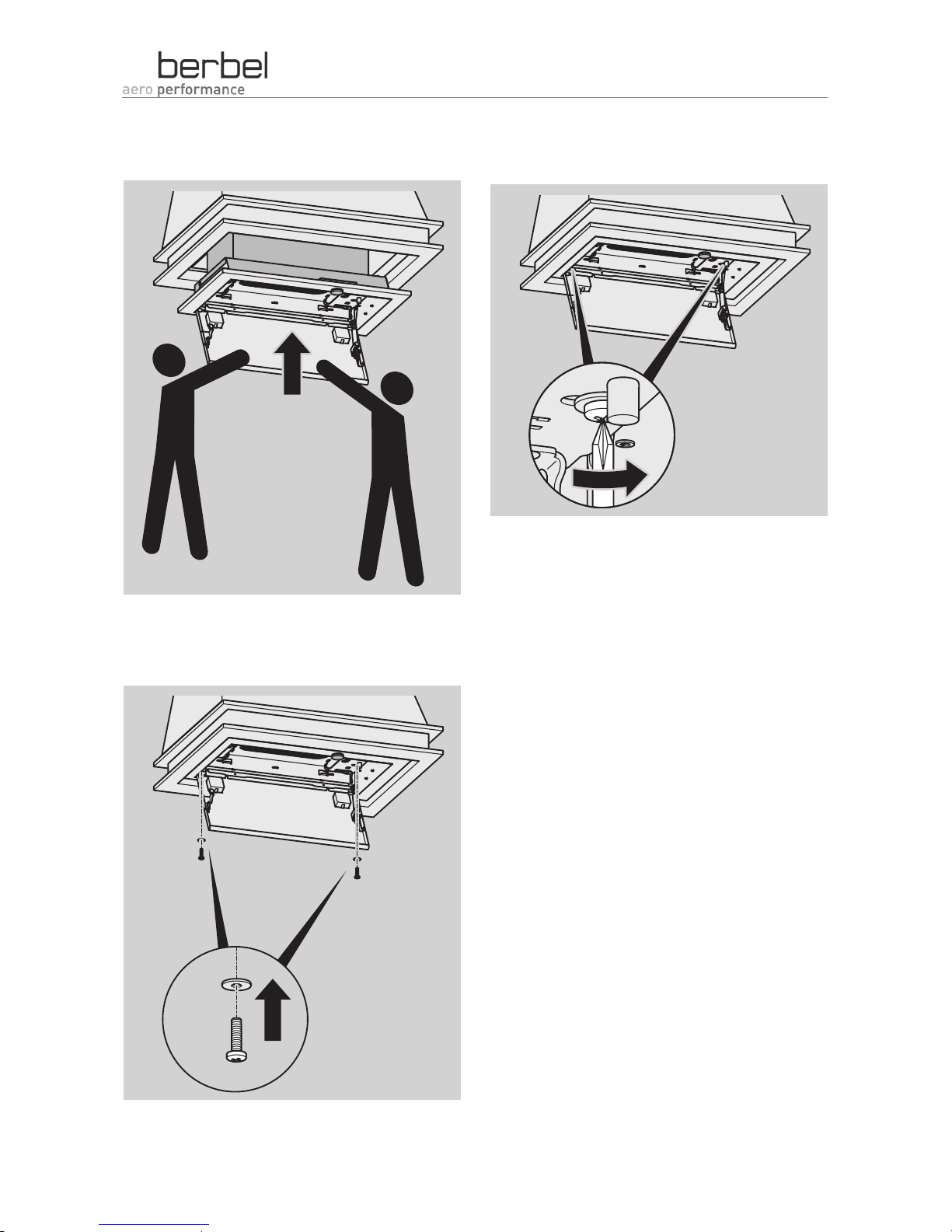

¾ Lift the device from below into the base plate with

the installation cut-out using two persons.

¾ Insert one Phillips screw M8 x 30 mm with a

corresponding washer per mounting into the mounting hole from below.

¾ Screw the Phillips screws in approx. five turns.

The device hangs loosely on the two screws.

The device is pulled upwards into its final installation position using the two screws.

¾ Screw the Phillips screws in in turn until the upper

edge of the device contacts the lower edge of the installation cut-out.

¾ Make sure that the device is positioned to the

correct dimensions. The final installation position can still be corrected minimally by applying pressure with the hands.

¾ Make sure that the device is securely screwed to

the two mountings.

¾ Tighten the Phillips screws.

Page 66

Installing the device

Connection contact for wall box and window switch (multi-function contact)

DANGER

Fatal electric shock due to improper connection.

¾ Only have work on the voltage

supply carried out by a qualified, trained specialist electrician under consideration of the country-specific regulations and standards (in Germany e.g. DIN 57100/VDE 0100, Part 701).

The following steps must only be carried out by a specialist electrician.

A window switch and a berbel wall box (e.g. BMK-F) can be connected to the device. The cable terminals are located on the device's fan housing.

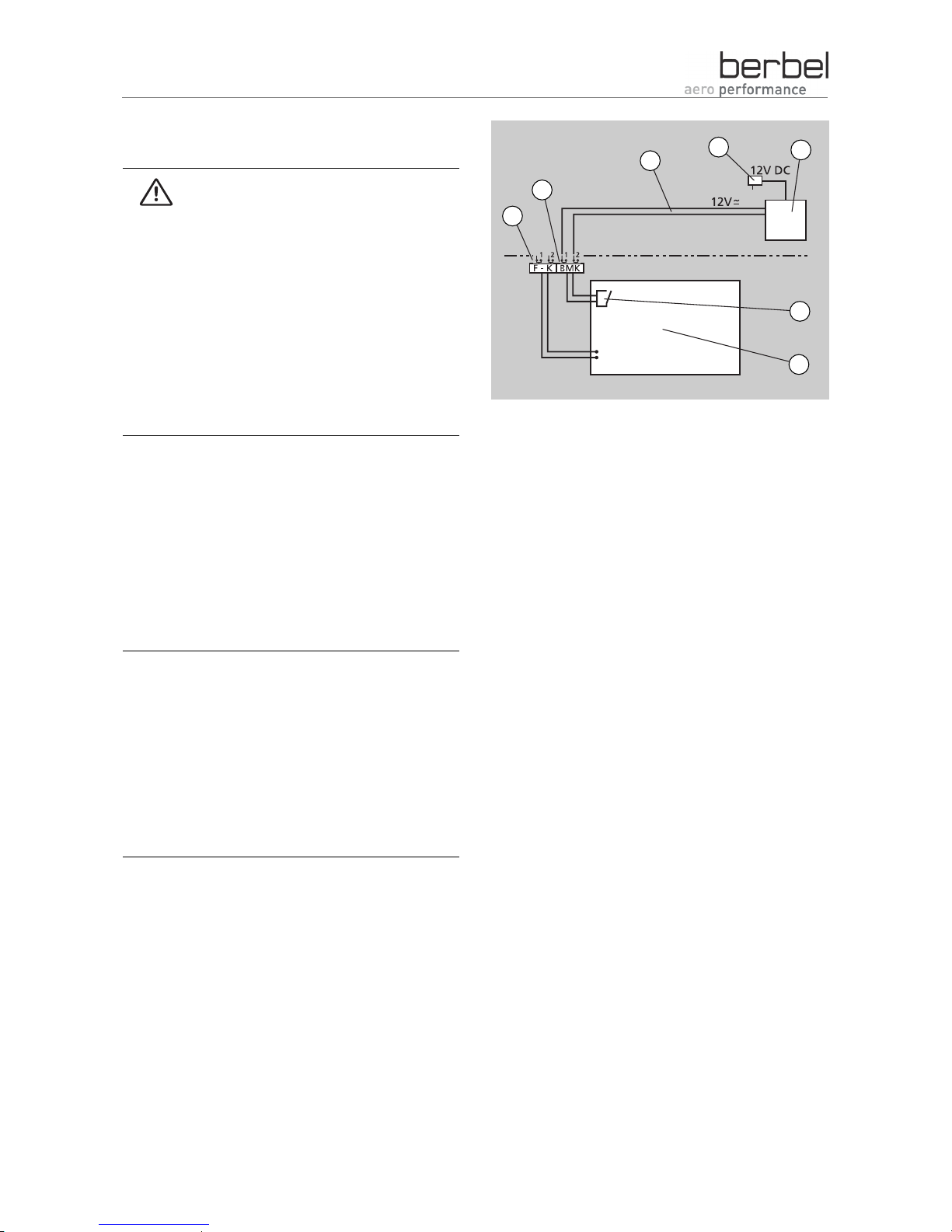

Connection schematic for the multi-function contact and the wall box contact

ATTENTION

Damage to the electronics if the polarity of the control cable is incorrect.

¾ Make sure that the polarity of the

control cable is correct.

¾ Only connect wire 1 to terminal 1

and wire 2 to terminal 2.

 Terminal for the multi-function contact (F-K)

 Terminal for the wall box (BMK)

 Control cable

 Power supply unit

 Wall box BMK-F

 Actuation contact, potential-free

 Control box for the berbel extractor hood

Connection terminal for the wall box

The connection terminal for the wall box automatically controls the remotely controlled wall box BMK.

The control cable must be routed from the wall box to the connection terminals for the wall box in the extractor hood.

The connection terminals for the wall box are marked "BMK" and "Wall box" in the extractor hood.

In order to connect the control cable, the control cable's two wires must be connected to terminals 1 and 2 for the wall box in the extractor hood. The wires are numbered. The actuation contact is potential-free.

Page 67

Installing the device

• The wall box is closed when the actuation contact in the extractor hood is open (see connection schematic).

• The wall box is open when the actuation contact in the extractor hood is closed.

Connection of the BMK-F series wall box is described in the following section.

For this step, a small standard screwdriver is required for the connection terminals in the berbel extractor hood.

¾ Route the wall box control cable to the extractor

hood.

¾ Make sure that the terminals for the wall box

contact in the extractor hood are accessible.

The connection terminals for the multi-function contact and the wall box contact are located in the upper corner of the control box. The connection terminals are marked "Window switch" and "BMK" or "Wall box". The terminal pairs are labelled "1" and "2".

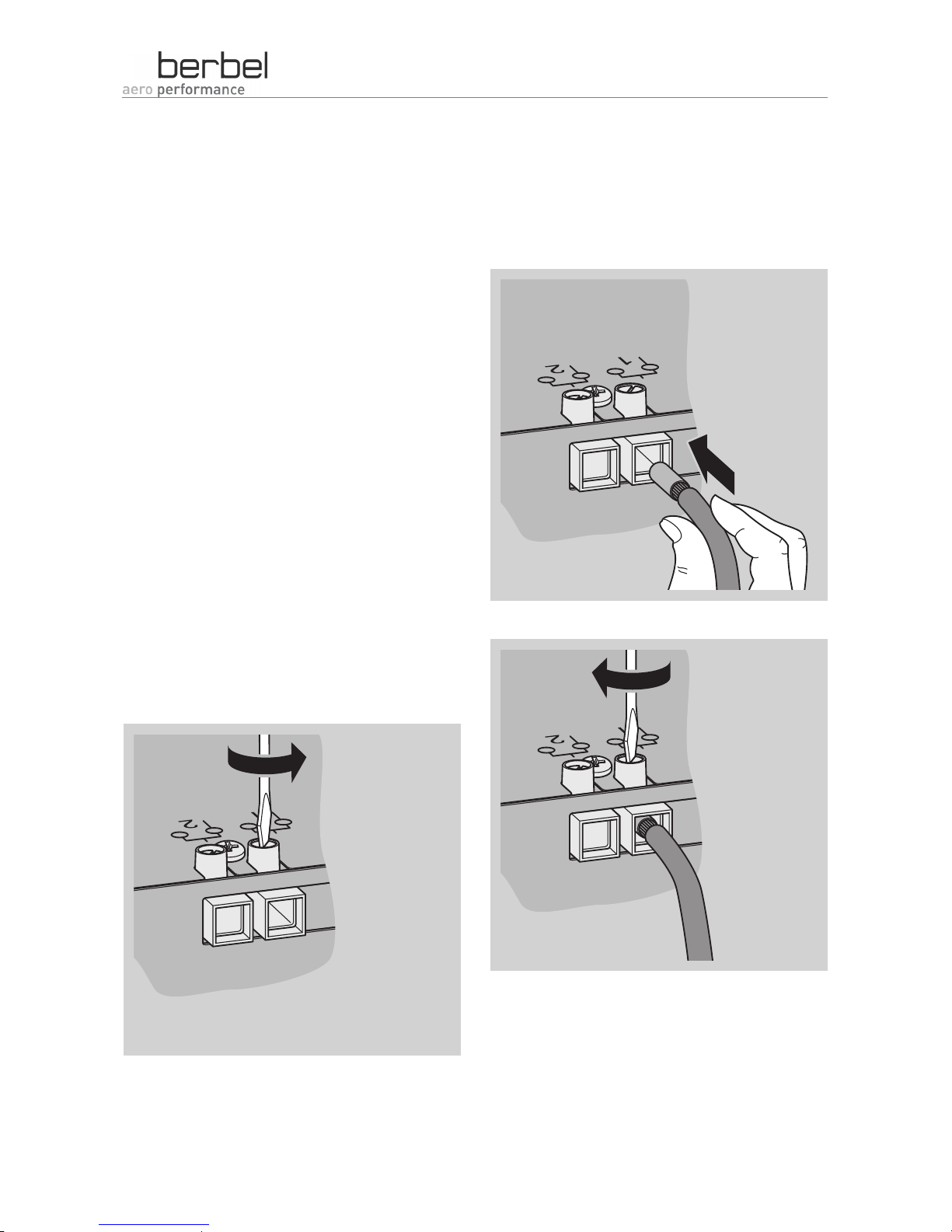

Proceed as follows to connect the control cable:

¾ Unscrew the screw for "BMK" terminal 1.

¾ Take up offset wire 1 of the control cable.

¾ Guide wire 1 into terminal 1.

¾ Make sure that the control cable's wire connector

sleeve is completely in the terminal.

¾ Make sure that the control cable's insulation is not

in the terminal.

¾ Tighten the screw for terminal 1.

¾ Connect wire 2 to "BMK" terminal 2 in the same

manner.

The control cable for the wall box is connected.

Page 68

Installing the device

Connection terminal for the multi-function connection

A window switch can be connected to the multifunction connection. The extractor hood fan is then only operational when the window is open.

The control cable must be routed from the window switch to the connection terminals for the multifunction connection in the extractor hood.

The connection terminals for the multi-function connection are marked "Window switch" in the extractor hood.

In order to connect the control cable, the control cable's two wires must be connected to terminals 1 and 2 for the multi-function connection in the extractor hood.

Connection of the multi-function connection is described in the following section.

For this step, a small standard screwdriver is required for the connection terminals in the berbel extractor hood.

¾ Route the window switch control cable to the

extractor hood.

¾ Make sure that the terminals for the multi-function

connection in the extractor hood are accessible.

¾ Pull the control cable through the cable passage

hole to the extractor hood's control box.

Proceed as follows to connect the control cable:

¾ Unscrew the screw for "Window switch"

terminal 1.

¾ Take up offset wire 1 of the control cable.

¾ Guide wire 1 into terminal 1.

¾ Make sure that the control cable's wire connector

sleeve is completely in the terminal.

¾ Make sure that the control cable's insulation is not

in the terminal.

Page 69

Installing the device

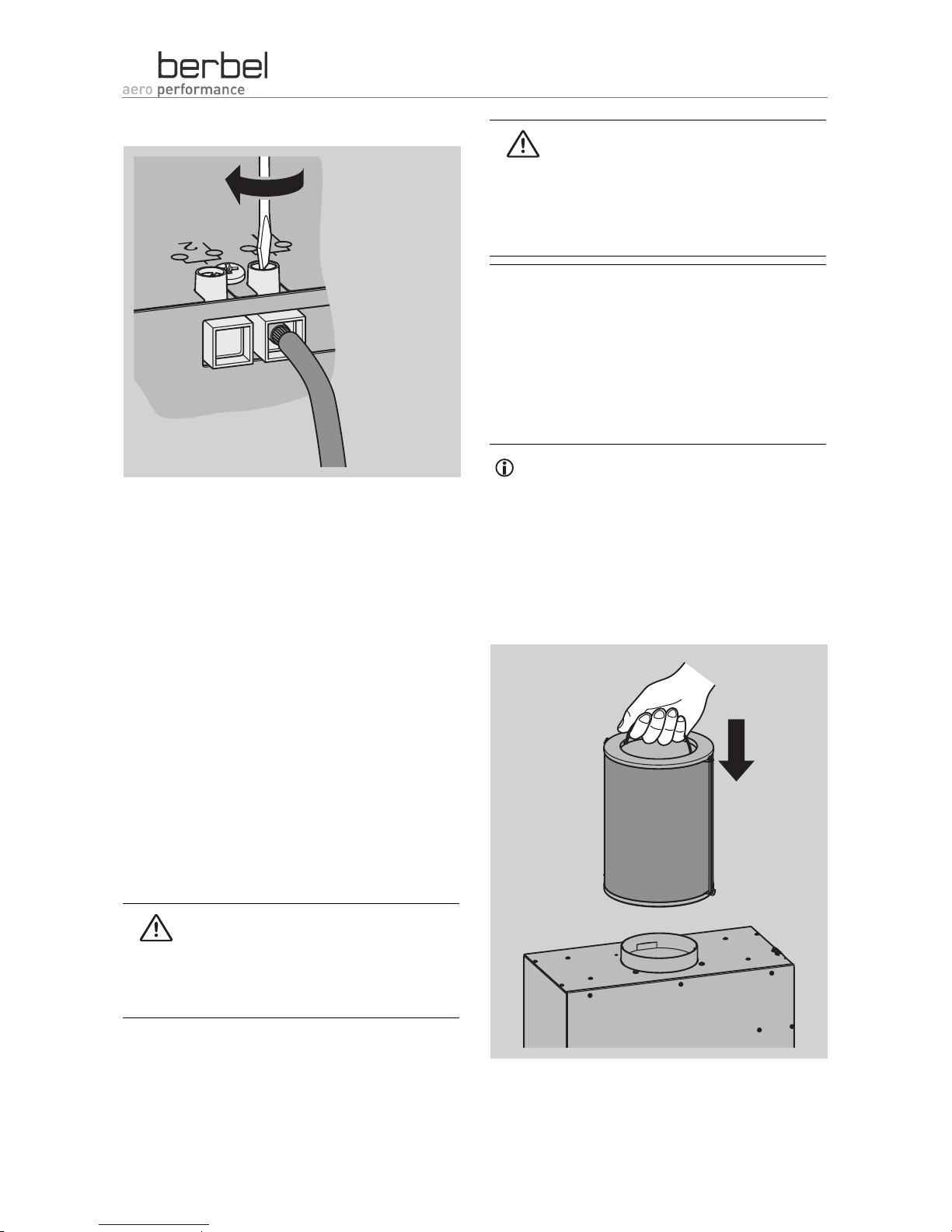

¾ Tighten the screw for terminal 1.

¾ Connect wire 2 to "Window switch" terminal 2 in

the same manner.

The control cable for the wall switch is connected.

Creating the outgoing air connection

The device can be installed for various operating modes:

• Recirculated air mode

• Air extraction mode

• Hybrid mode

Installation of the individual operating modes is described in the following sections.

Installing the device for recirculated air mode

WARNING

Risk of falling when replacing filter.

¾ Use a stable stepladder.

CAUTION

Risk of injury due to falling parts.

¾ Make sure that nobody is standing

beneath the device during work.

ATTENTION

Damage due to falling parts.

¾ Protect surfaces and devices

(e.g. cooled cooker top) beneath your working area from damage, e.g. with thick cardboard.

To ensure that the filter is installed correctly, the device's filter seat is equipped with an approx. two cm-high guide aid.

The filter is inserted correctly when the lower edge of the filter lies fully on the fan housing.

¾ Position the recirculating air filter on the device

from above using the folding handle.

¾ Make sure that the filter is positioned correctly.

Page 70

Installing the device

Installing the device for air extraction mode

WARNING

Risk of falling during work carried out in elevated positions.

¾ Use a stable stepladder.

CAUTION

Risk of injury due to falling parts.

¾ Make sure that nobody is standing

beneath the device during work.

ATTENTION

Damage due to falling parts.

¾ Protect surfaces and devices

(e.g. cooled cooker top) beneath your working area from damage, e.g. with thick cardboard.

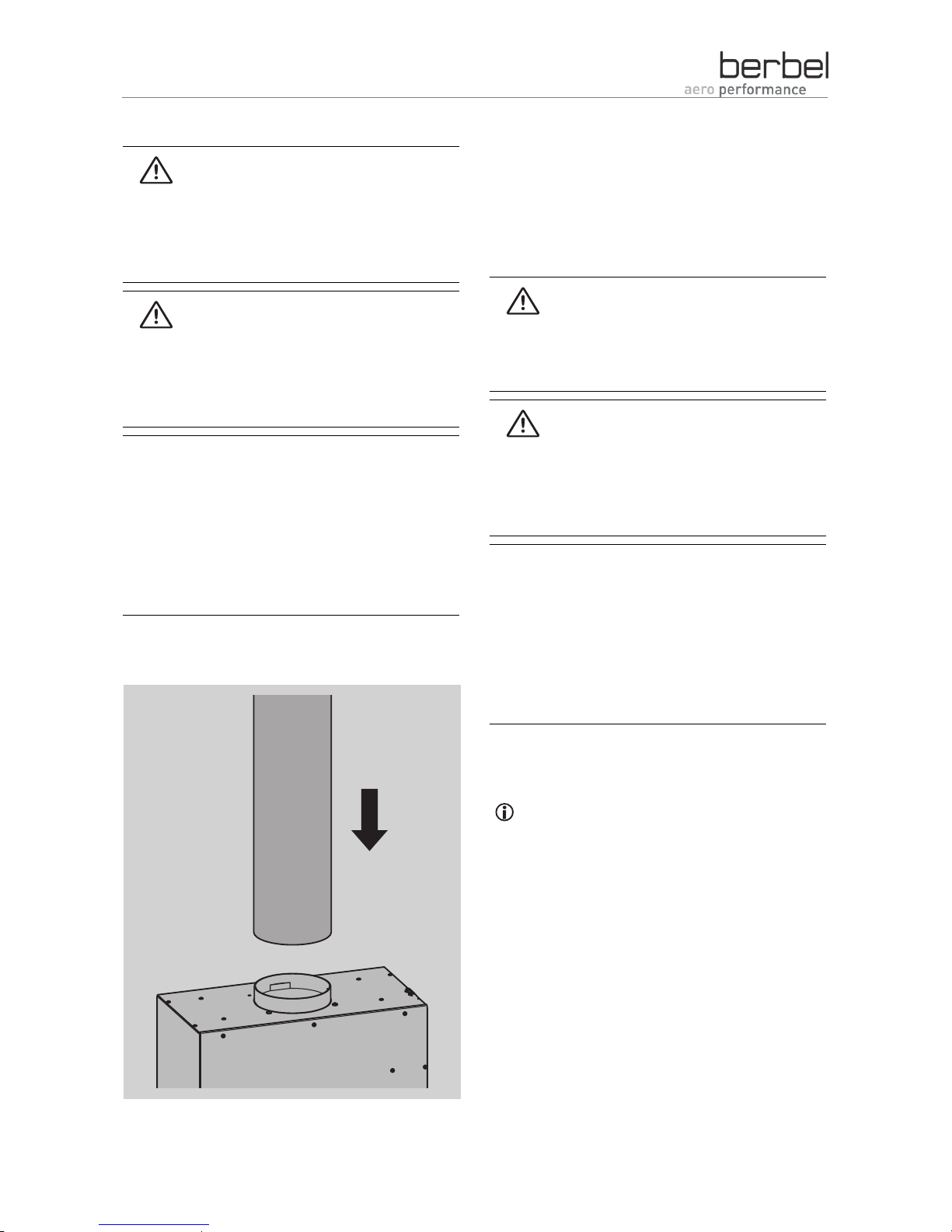

¾ Push the outgoing air line firmly onto the fan's

guide aid.

¾ Mask the transition between the outgoing air line

and the sleeve with sealing tape.

¾ Make sure that the outgoing air line is correctly

connected.

Installing the device for hybrid mode

WARNING

Risk of falling when replacing filter.

¾ Use a stable stepladder.

CAUTION

Risk of injury due to falling parts.

¾ Make sure that nobody is standing

beneath the device during work.

ATTENTION

Damage due to falling parts.

¾ Protect surfaces and devices

(e.g. cooled cooker top) beneath your working area from damage, e.g. with thick cardboard.

An optionally available sleeve is additionally required for installation (article number: 6000 313).

To ensure that the filter is installed correctly, the device's filter seat is equipped with an approx. two cm-high guide aid.

The filter is inserted correctly when the lower edge of the filter lies fully on the fan housing.

Page 71

Installing the device

¾ Position the hybrid filter on the device from above.

¾ Make sure that the filter is positioned correctly.

¾ Position the sleeve on the hybrid filter.

¾ Slide the outgoing air line into the sleeve.

¾ Mask the transition between the outgoing air line

and the guide aid with sealing tape.

¾ Make sure that the outgoing air line is correctly

connected.

Installing the removed parts

Following installation, install the removed parts as follows:

Page 72

Installing the device

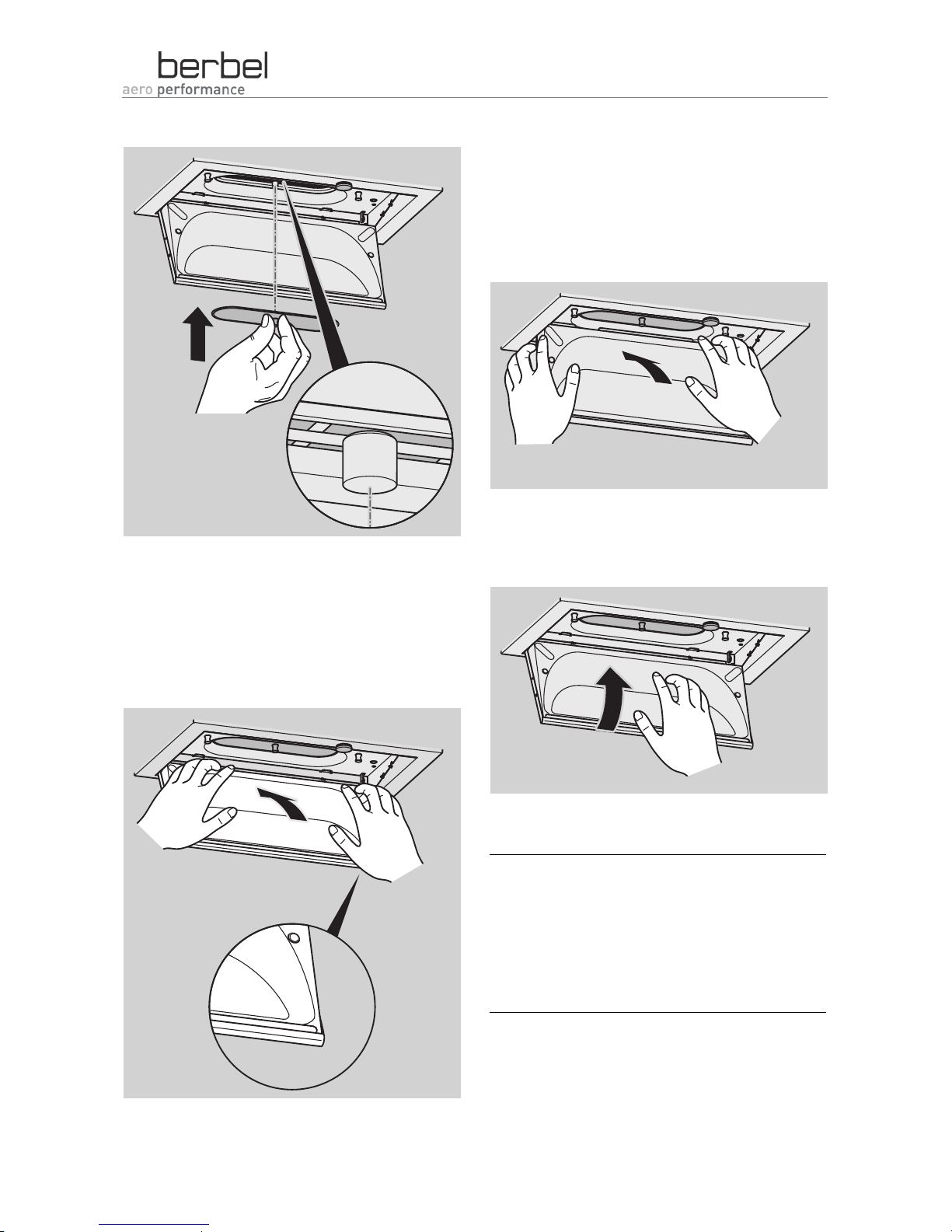

Installing the upper grease tray

¾ Grip both of the grease tray knobs using both

hands.

¾ Guide the rear edge of the grease tray, inclined

upwards, into the device.

¾ Insert the rear edge of the grease tray above the

two retainer tabs.

¾ Make sure that the grease tray is positioned

correctly. The grease tray is positioned correctly when the retainer tabs are visible below the grease tray.

¾ Secure the grease tray by pressing it upwards into

the device until both retaining magnets audibly make contact.

¾ Make sure that the grease tray is inserted

correctly. The grease tray is inserted correctly when the lower grease tray's magnetic brackets are seated centrally in the holes and are flush with these.

Installing the fluff screen

Make sure that the fluff screen is completely dry prior to use.

Page 73

Installing the device

¾ Insert the fluff screen into the device.

Installing the lower grease tray

¾ Grip the grease tray using both hands.

¾ Insert the lower edge of the grease tray into the

lower rounding of the flap.

¾ Make sure that the lower edge of the grease tray

is inserted completely into the flap's rounding.

¾ Secure the grease tray by pressing the grease

tray backwards into the flap.

¾ Make sure that the grease tray is inserted

correctly. The grease tray is inserted correctly when the grease tray's magnetic brackets are seated centrally in the holes and are flush with these.

Closing the lower flap

¾ Close the flap by pressing it up until both retaining

magnets audibly make contact.

Installing the rotary knob

ATTENTION

Damage to the rotary knob in the case of incorrect alignment.

¾ Turn the rotary knob to the correct

installation position.

The rotary knob must be placed onto an axle. This round axle is milled at one edge. The rotary knob can therefore only be placed onto the axle in one position.

Page 74

Installing the device

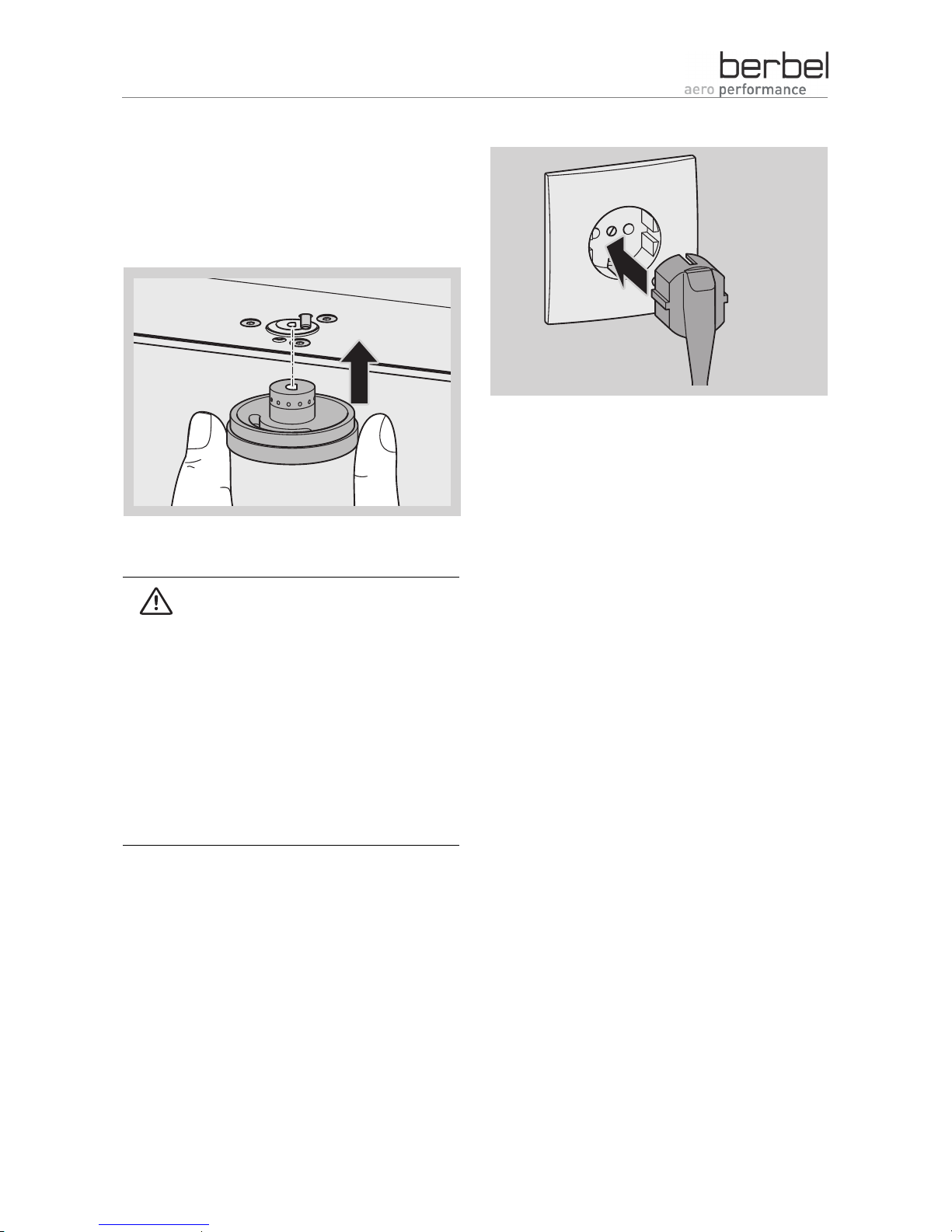

¾ Make sure that the installation position is correct.

¾ Position the rotary knob in the correct installation

position on the axle.

¾ Install the rotary knob by pressing it into the

correct position on the axle.

Creating the electrical voltage supply

DANGER

Fatal electric shock due to improper connection.

¾ Only have work on the voltage

supply carried out by a qualified, trained specialist electrician under consideration of the country-specific regulations and standards (in Germany e.g. DIN 57100/VDE 0100, Part 701).

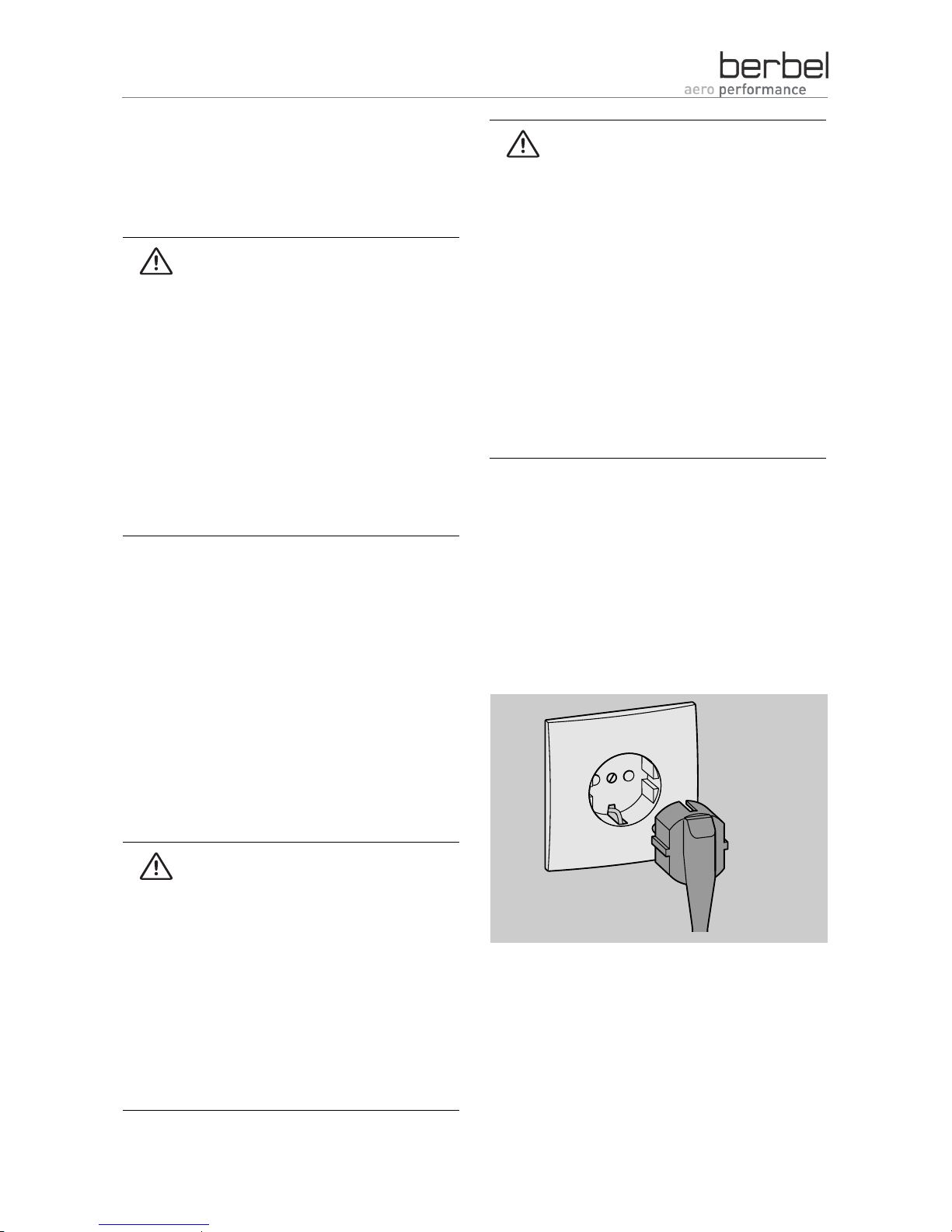

¾ Insert the mains plug into the socket.

The berbel extractor hood is installed and ready to operate.

Page 75

Cleaning surfaces

ATTENTION

Damage to surfaces due to sharpedged objects or aggressive cleaning agents.

¾ Never use sharp-edged objects,

scouring agents or aggressive cleaning agents.

¾ Use a soft, moist cloth.

¾ Clean surfaces with a soft, moist cloth and a mild

household cleaning agent.

Page 76

Dismantling the extractor hood

DANGER

Fatal electric shock due to improperly carried out electrical work.

¾ Only have work on the voltage

supply carried out by a qualified specialist electrician under consideration of the country-specific regulations and standards (in Germany e.g. DIN 57100/VDE 0100, Part 701).

WARNING

Risk of falling when replacing filter.

¾ Use a stable stepladder.

CAUTION

Risk of injury due to falling parts.

¾ Make sure that nobody is standing

beneath the device during work.

ATTENTION

Damage due to falling parts.

¾ Protect surfaces and devices

(e.g. cooled cooker top) beneath your working area from damage, e.g. with thick cardboard.

Two persons are required to dismantle the device.

A Phillips screwdriver and a spanner, WAF 10, are required.

Proceed as follows to dismantle the device:

¾ Interrupt the device's voltage supply at all poles or

disconnect the device's mains plug.

¾ Pull the rotary knob off.

¾ Remove all coverings and other surroundings.

¾ Remove any existing connection cables for the

wall box and multi-function contact.

See section Connection contact for wall box and window switch (multi-function contact) on page 32.

¾ Open the flap.

See section Opening the lower flap on page 14.

¾ BLB 90 only: Remove the lateral adapter parts for

the grease tray.

See section BLB 90 only: Removing lateral adapter parts for the lower grease tray on page 14.

¾ Remove the lower grease tray.

See section Removing the lower grease tray on page 14.

¾ Remove the fluff screen.

See section Removing the fluff screen on page 14.

¾ Remove the upper grease tray.

See section Removing the upper grease tray on page 15.

¾ Remove all coverings and surroundings above the

device.

¾ Hybrid and air extraction mode only:

Remove the outgoing air line.

See section Creating the outgoing air connection on page 35.

¾ Hybrid and recirculated air mode only:

Remove the filter.

¾ Slacken the mountings' two screws.

Page 77

Dismantling the extractor hood

See section Removing the mountings on page 15.

ATTENTION

Damage due to falling parts.

¾ Protect surfaces and devices

(e.g. cooled cooker top) beneath your working area from damage, e.g. with thick cardboard.

¾ Hold the device with two persons.

¾ Remove the screws.

¾ Lower the device with two persons.

¾ Slacken and remove the mountings' screws.

¾ Remove the mountings.

The device has been dismantled.

Page 78

Disposal

Disposing of packaging

DANGER

Danger of suffocation due to parts of the packaging (e.g. films and polystyrene).

¾ Store film or other parts of the

packaging in a location which is inaccessible to children.

ATTENTION

Environmental damage due to improper disposal of the packaging.

¾ Never dispose of the packaging in

the normal domestic refuse.

¾ Have the packaging properly

recycled in an environmentallyfriendly manner.

The packaging offers protection against transportation damage.

Only the original packaging guarantees adequate protection during transportation.

¾ Retain the packaging during the warranty period.

• The exterior packaging consists of cardboard.

• The filler material and the inserts consist of

cardboard or polystyrene.

• The protective films and bags consist of polyethylene (PE).

¾ Dispose of the packaging according to material

segregation and in an environmentally-friendly manner.

deviceDisposal

ATTENTION

Environmental damage due to improper disposal of electronic components.

¾ Never dispose of the device in the

normal domestic refuse at the end of its useful life.

¾ Ask your municipal or local

administration about options for recycling or disposing of the device in a proper and environmentallyfriendly manner.

¾ Dispose of the device according to the legal

regulations via a specialist disposal company.

Page 79

Technical data

Model plate

The model plate can be found inside the device behind the device flap beneath the fluff screen.

The model plate contains the following information:

• Manufacturer

• Manufacturer's address

• Device type

• Voltage

• Total output

• Serial number

• Year of construction

• Symbols of the legal regulations to which the

device adheres and test symbols.

Fan module BLB 60

Width 661 mm

Depth 425 mm

Height (without filter)

370 mm

Max. fan output, free-blowing

625 m³/h

Weight (air extraction mode)

Approx. 20 kg

Weight (recirculated air mode)

Approx. 25 kg

Current supply 230 V/50 Hz

Power consumption

180 W at output level "4"

Current consumption

0.88 A

Halogen bulbs 2 x max. 20 W, 12 V, G4

socket

Fan module BLB 90

Width 961 mm

Depth 425 mm

Height (without filter)

370 mm

Max. fan output, free-blowing

750 m³/h

Weight (air extraction mode)

Approx. 22 kg

Weight (recirculated air mode)

Approx. 27 kg

Current supply 230 V/50 Hz

Power consumption

250 W at output level "4"

Current consumption

0.92 A

Halogen bulbs 2 x max. 20 W, 12 V, G4

socket

Fan modules BLB 60 and BLB 90

The device has been manufactured under adherence to the regulations of VDE 60335-2-31 and complies with the following directives and laws:

• EMC Directive (EU Directive 2004/108/EEC)

• Low-voltage Directive (2006/95/EU).

We reserve the right to implement technical changes.

Page 80

Contacting the manufacturer

If you have any questions which are not answered by these instructions, contact:

berbel Ablufttechnik GmbH

Sandkampstraße 100

D-48432 Rheine

Telephone +49 (0)800/56 06 06-0*

Fax +49 (0)800/56 06 06-1*

Internet www.berbel.de

*) Free from the German land line

Page 81

D-45145 Essen

www.technische-dokumentation.de

Printed in Germany
