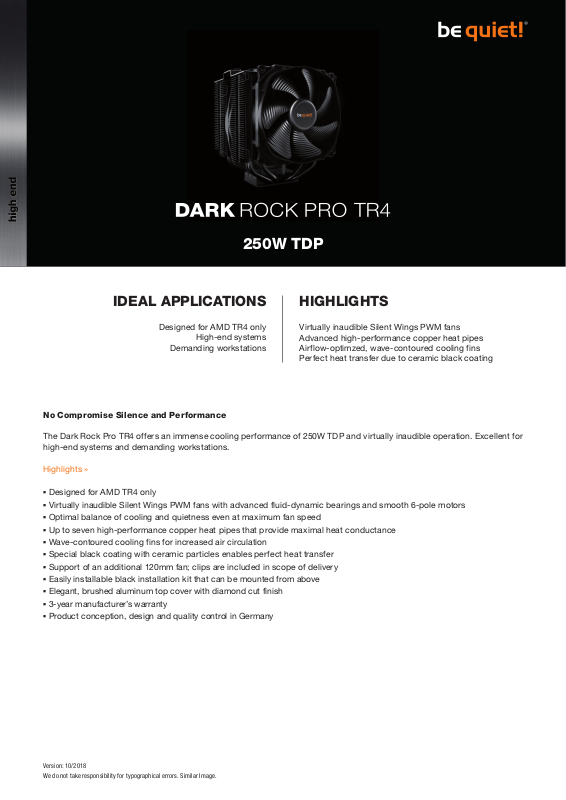

be quietl Dark Rock Pro 4 TR4 User Manual
250W TDP
HIGHLIGHTSIDEAL APPLICATIONS
Designed for AMD TR4 only
High-end systems
Demanding workstations
No Compromise Silence and Performance
The Dark Rock Pro TR4 offers an immense cooling performance of 250W TDP and virtually inaudible operation. Excellent for
high-end systems and demanding workstations.
Highlights »
▪ Designed for AMD TR4 only
▪ Virtually inaudible Silent Wings PWM fans with advanced fluid-dynamic bearings and smooth 6-pole motors
▪ Optimal balance of cooling and quietness even at maximum fan speed
▪ Up to seven high-performance copper heat pipes that provide maximal heat conductance
▪ Wave-contoured cooling fins for increased air circulation
▪ Special black coating with ceramic particles enables perfect heat transfer
▪ Support of an additional 120mm fan; clips are included in scope of delivery
▪ Easily installable black installation kit that can be mounted from above
▪ Elegant, brushed aluminum top cover with diamond cut finish
▪ 3-year manufacturer’s warranty
▪ Product conception, design and quality control in Germany
Virtually inaudible Silent Wings PWM fans
Advanced high-performance copper heat pipes
Airflow-optimzed, wave-contoured cooling fins
Perfect heat transfer due to ceramic black coating
Version: 10/2018
We do not take responsibility for typographical errors. Similar Image.
Technical data for complete cooler unit » Dark Rock Pro TR4
Type Double-tower
Dimensions, incl. fan (L x W x H in mm) 163 x 136 x 146
Weight, incl. fan (g) 1,180
Heat sink material Aluminum
Socket compatibility AMD™: TR4
Maximum power capacit y (W TDP) 250
Number of heat pipes / diameter (mm) 7/6
Noise level (dB(A)) @ 50 / 75 / 100% 12.8 / 17.9 / 24.3
Fan speci fications » Dark Rock Pro TR4
Typ e
Dimension (mm) Front: 120 x 120 x 25 / Inner: 135 x 135 x 22
Motor technology 6-pole
Bearing type FDB
Fan speed (rpm) @ 100% PWM Front: 1,500 / Inner: 1,200
Input current (A) 0.08 / 0.08
Connector 4-pin PWM
Lifespan (h) 300,000
Accessories Thermal grease, mounting set for AMD™ TR4, Y cable, User manual (EN, DE, FR, PL, ES, RU)
Front: Silent Wings 3 PWM / Inner: Silent Wings PWM
Contact »
be quiet! Headquarters
Listan GmbH
Biedenkamp 3A
21509 Glinde
Germany
Certifications »
Service hotline: +49 40 7367 686 44
(mon. - fri., 9am to 5.30pm CET)
e-mail: service@bequiet.com
Visit the contact section on bequiet.com
for the right regional service information.
Version: 10/2018
We do not take responsibility for typographical errors. Similar Image.
