Benq SH753P Operating instructions

Download

Page 1

SH753P

V 1.00

Page 2

2 Table of contents

Important safety

instructions ................... 3

Introduction .................. 7

Projector features ..................................... 7

Shipping contents ...................................... 8

Projector exterior view ........................... 9

Controls and functions ......................... 11

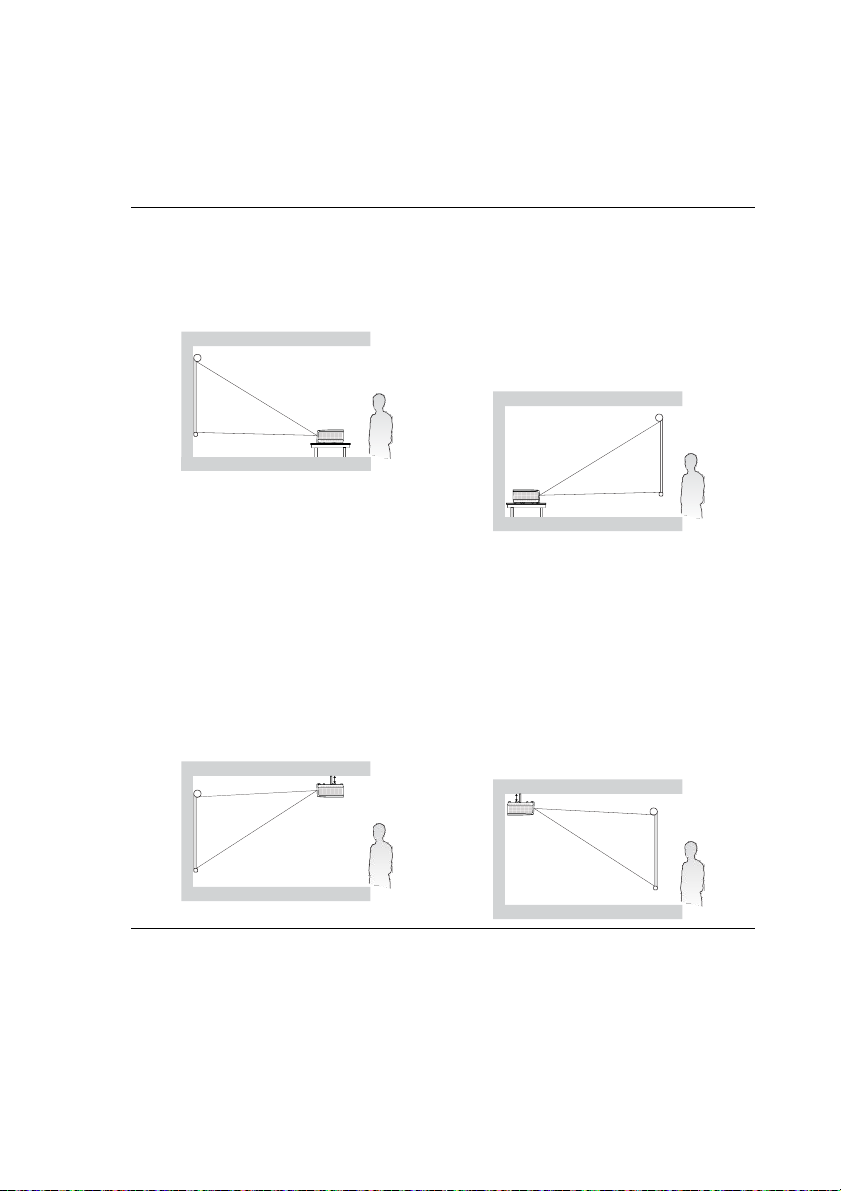

Positioning your

projector ..................... 18

Choosing a location ............................... 18

Obtaining a preferred projected image

size ............................................................ 19

Connection ................. 22

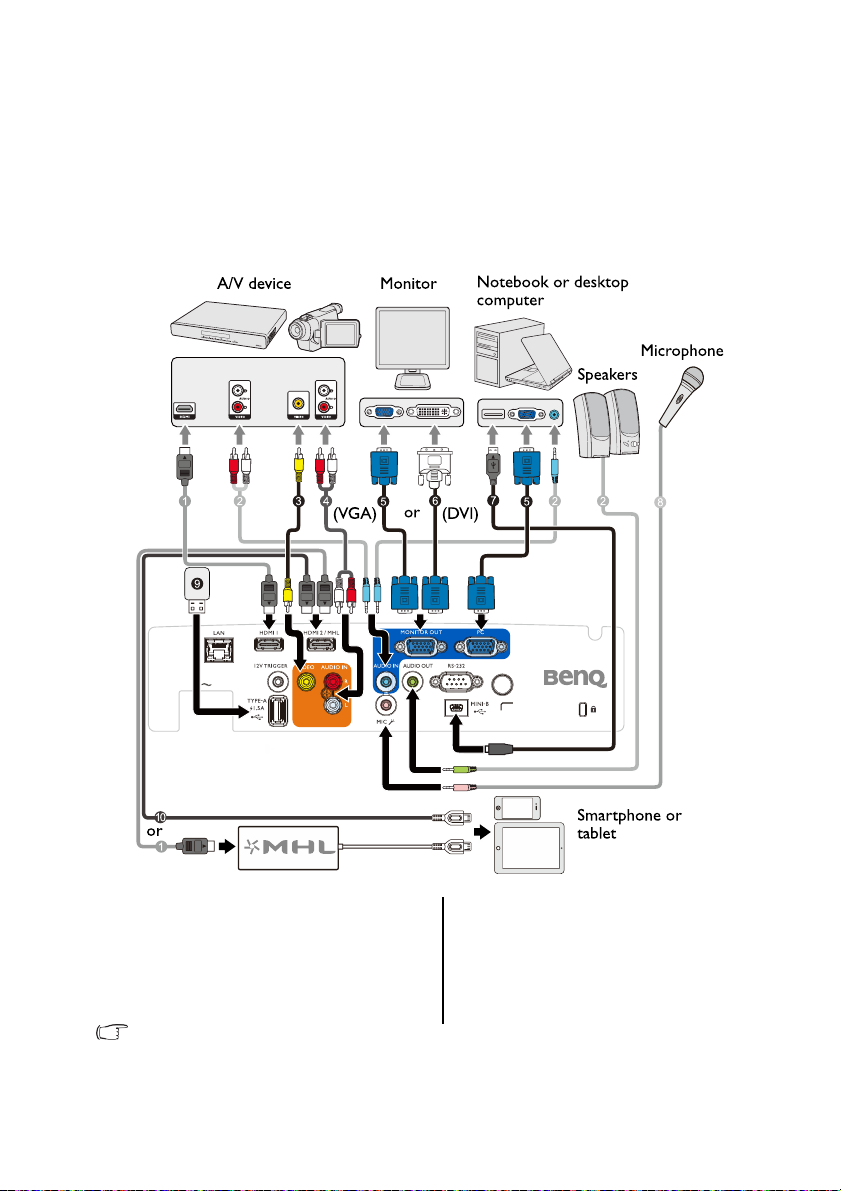

Connecting video source devices. ...... 23

Playing sound through the projector 24

Connecting smart devices .................... 24

Operation ................... 25

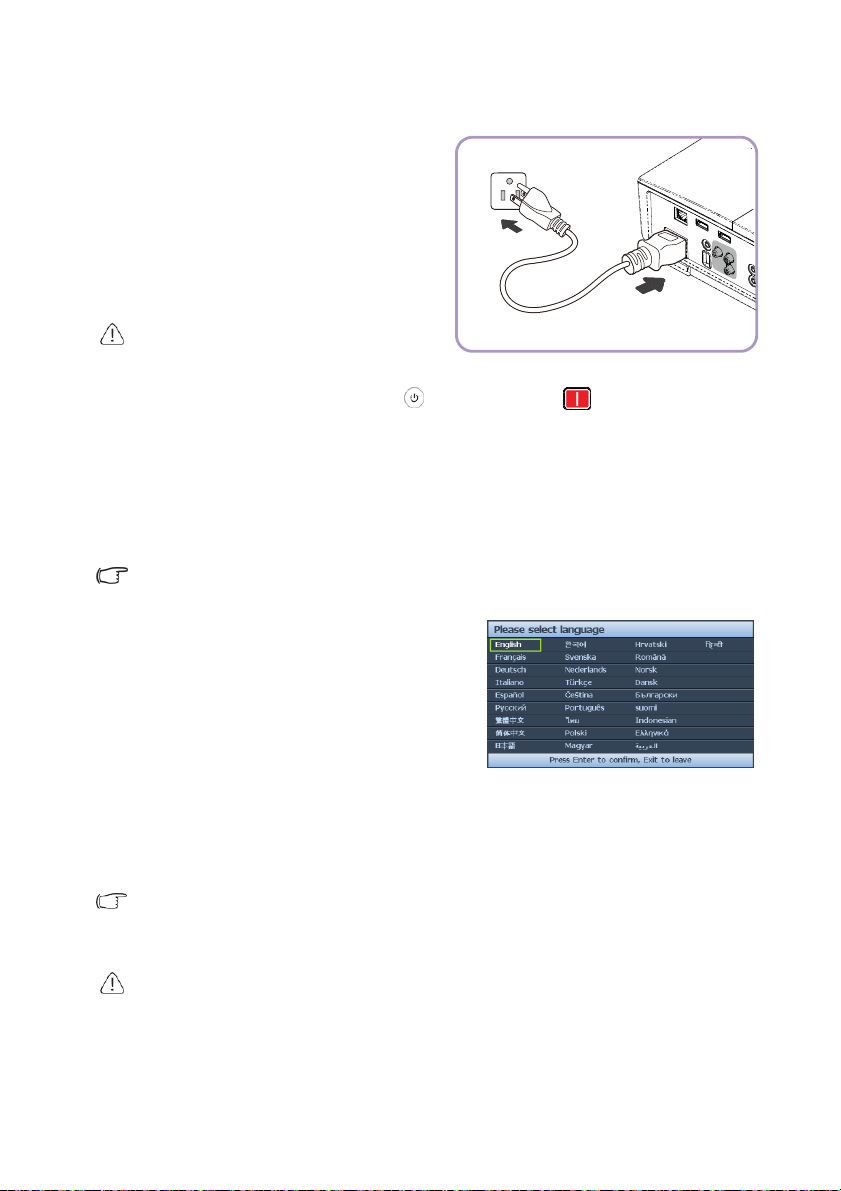

Starting up the projector ..................... 25

Adjusting the projected image ............ 26

Using the menus ..................................... 29

Securing the projector .......................... 30

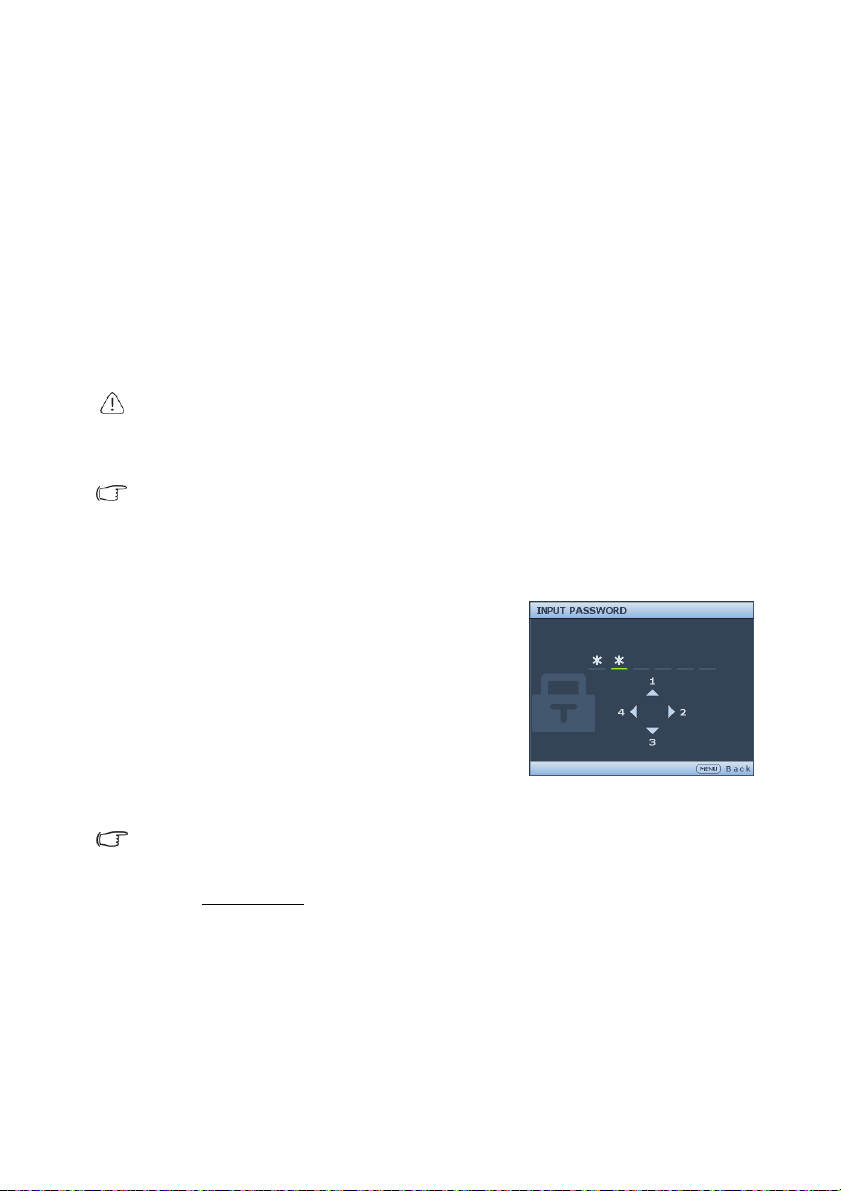

Utilizing the password function .......... 30

Switching input signal ............................ 33

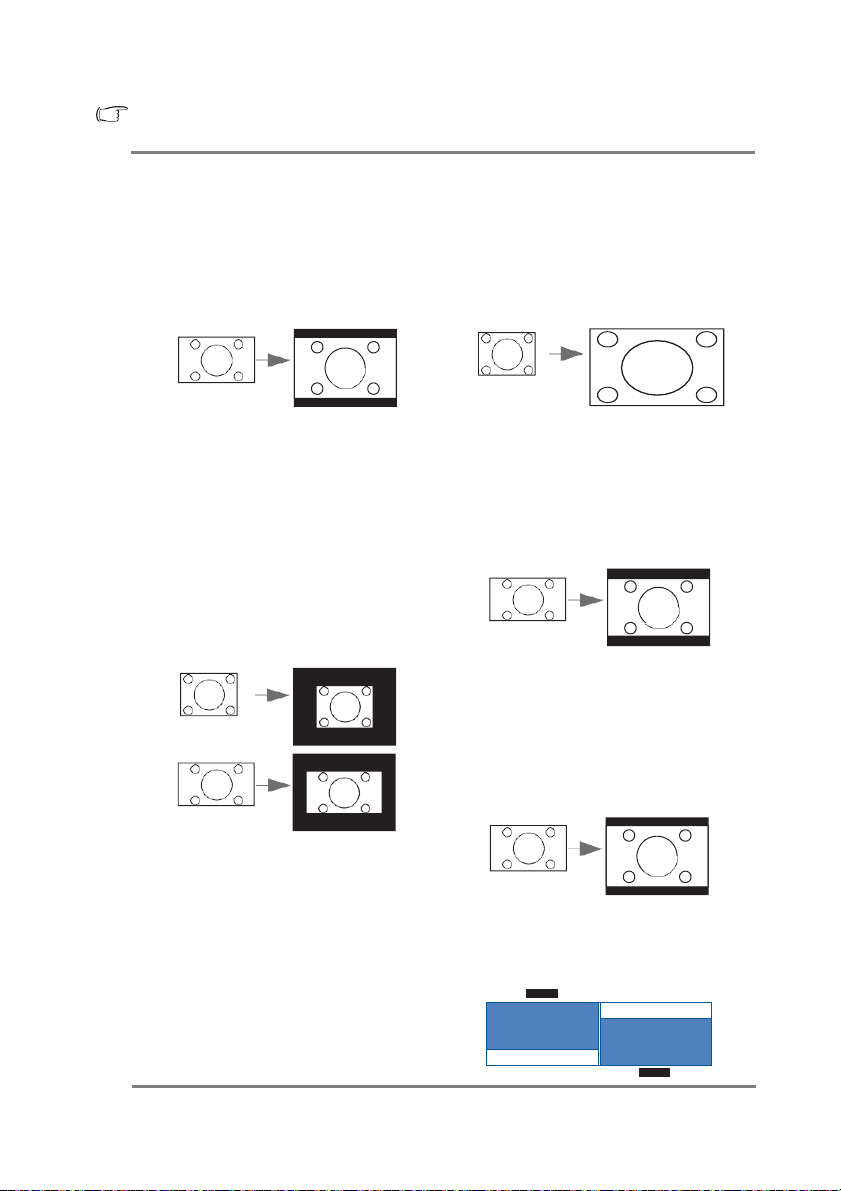

Selecting the aspect ratio ..................... 34

Optimizing the image ............................ 36

Setting the presentation timer ............ 40

Remote paging operations ................... 41

Freezing the image ................................. 41

Hiding the image .................................... 41

Locking control keys ............................. 42

Operating in a high altitude

environment. ........................................... 42

Adjusting the sound ............................... 42

Using the test pattern ............................ 43

Using the quick install ............................ 44

Controlling the projector through a

Wired LAN environment ..................... 44

Shutting down the projector ................ 48

Menu operation ...................................... 49

Maintenance ................ 62

Care of the projector ............................ 62

Lamp information ................................... 63

Troubleshooting ......... 70

Specifications .............. 71

Projector specifications ......................... 71

Dimensions .............................................. 72

Timing chart ............................................ 73

Warranty and Copyright

information .................. 79

PJLink ........................... 80

Page 3

Important safety instructions

Safety Instructions

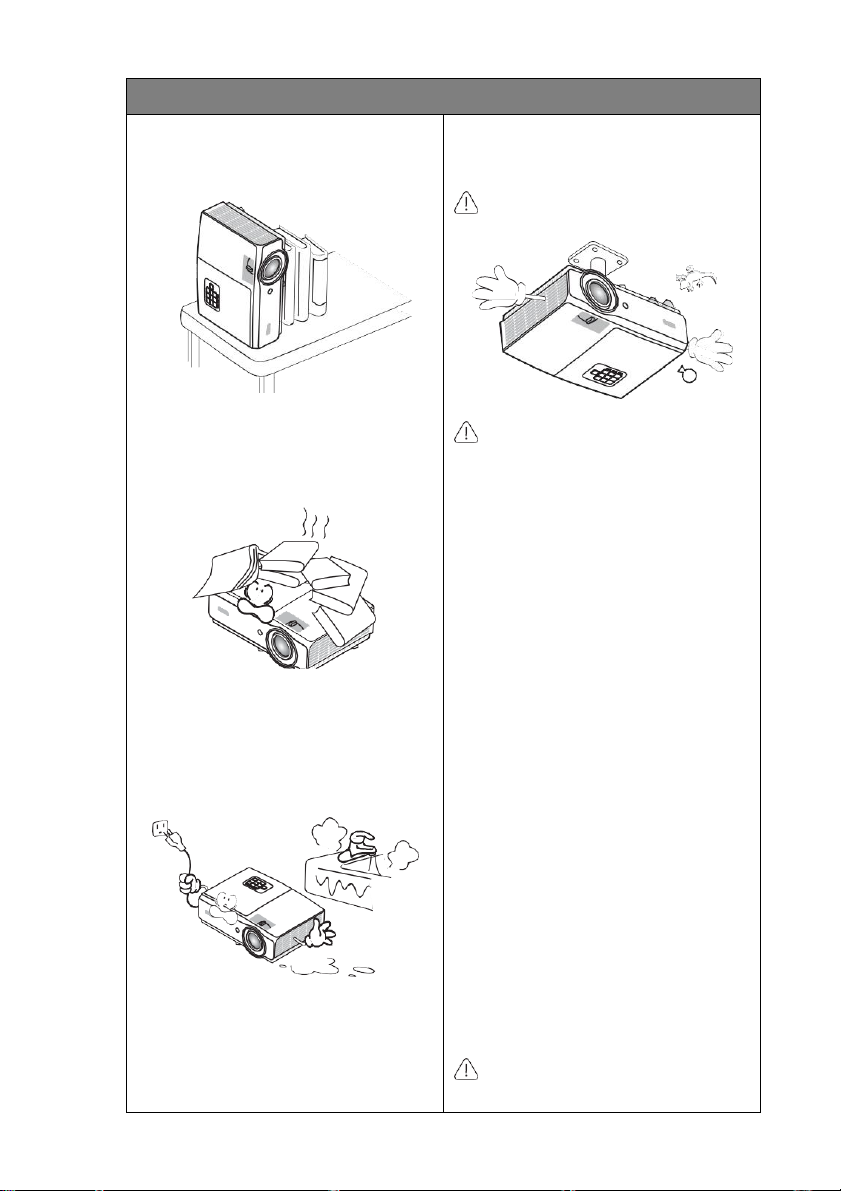

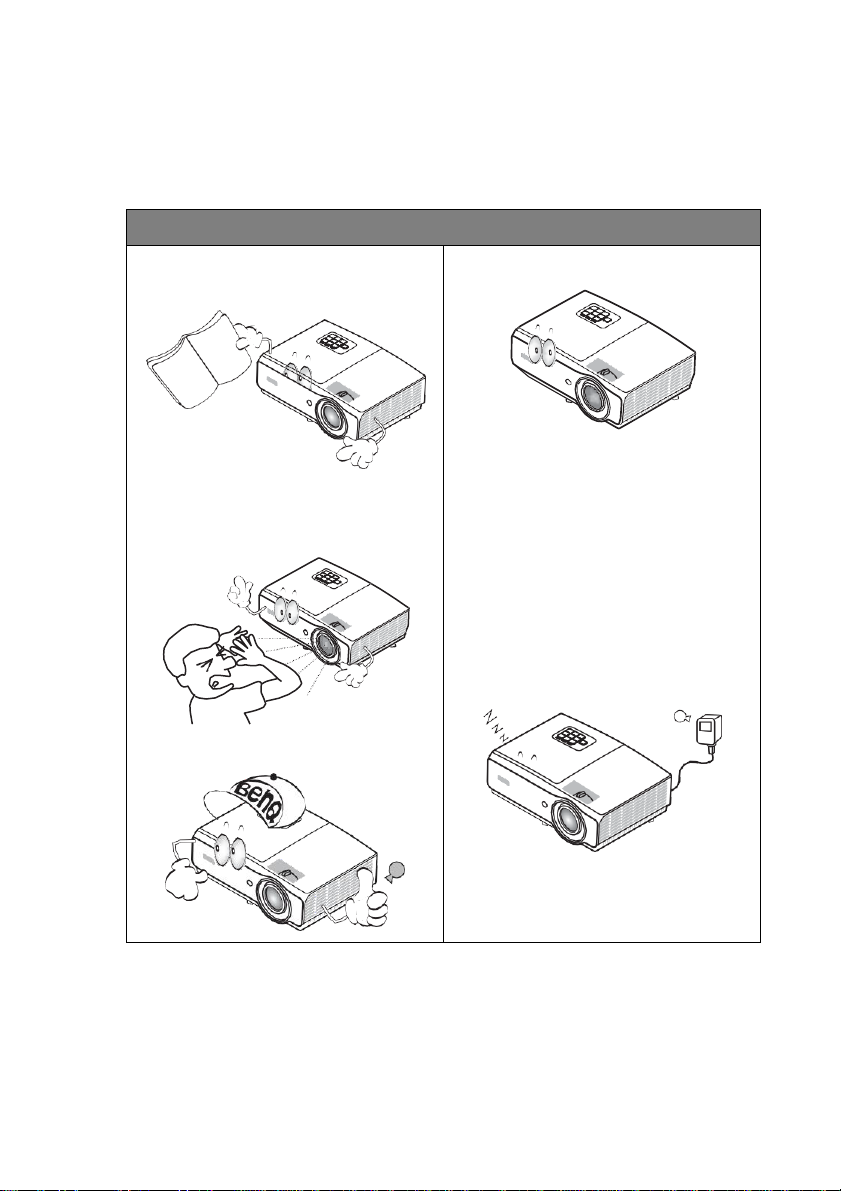

1. Please read this manual before you operate your projector. Save it for future reference.

2. Do not look straight at the

projector lens during operation.

The intense light beam may damage your eyes.

3. Refer servicing to qualified

service personnel.

4. Always open the lens shutter

when the projector lamp is on.

5. In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of 10 volts occur. In areas

where the mains voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS).

Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

Page 4

Safety Instructions (Continued)

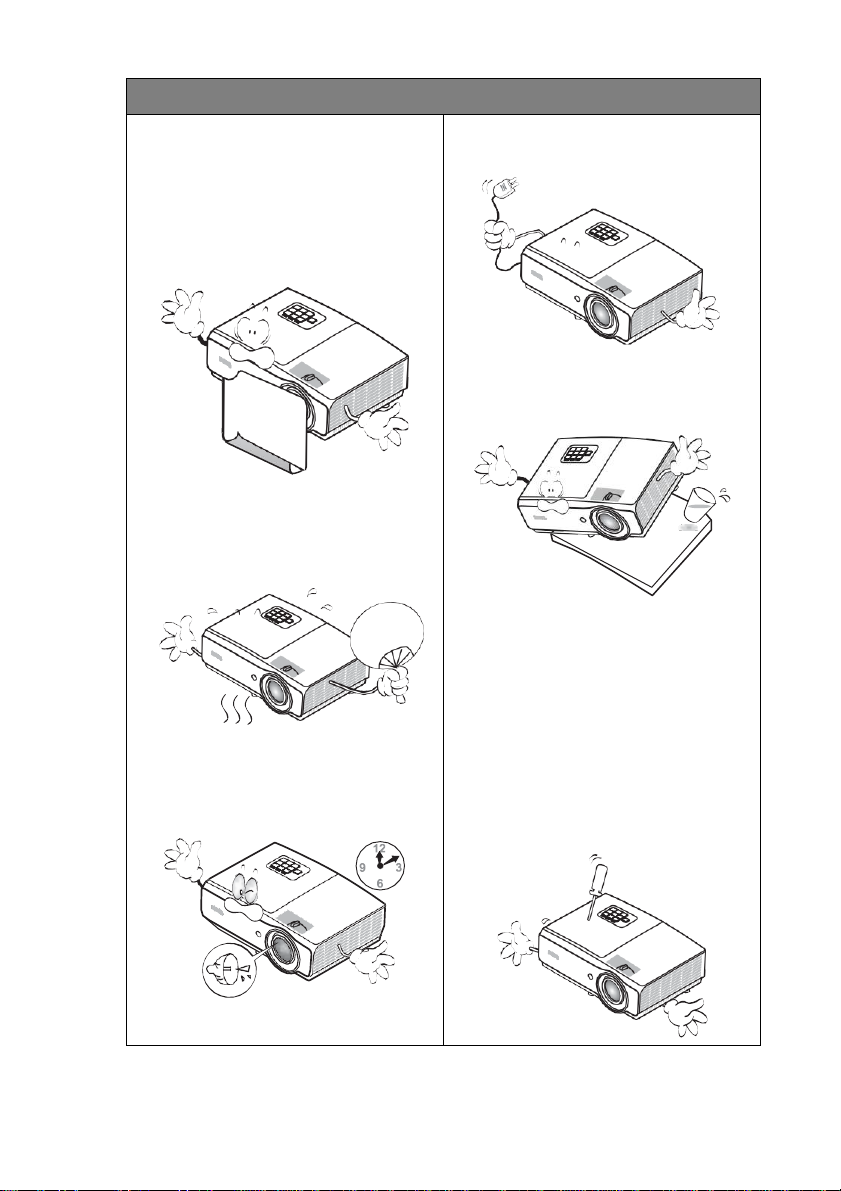

6. Do not block the projection lens with any objects when the projector is under operation as this could cause the objects to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press ECO BLANK on the projector or remote control.

7. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

8. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause them to break on rare occasions.

9. Never replace the lamp assembly or any electronic components unless the projector is unplugged.

10. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining serious damage.

11. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts. The only user serviceable part is the lamp which has its own removable cover. Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

4 Important safety instructions

Page 5

Safety Instructions (Continued)

12.

When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal phenomenon and not a product defect.

13.

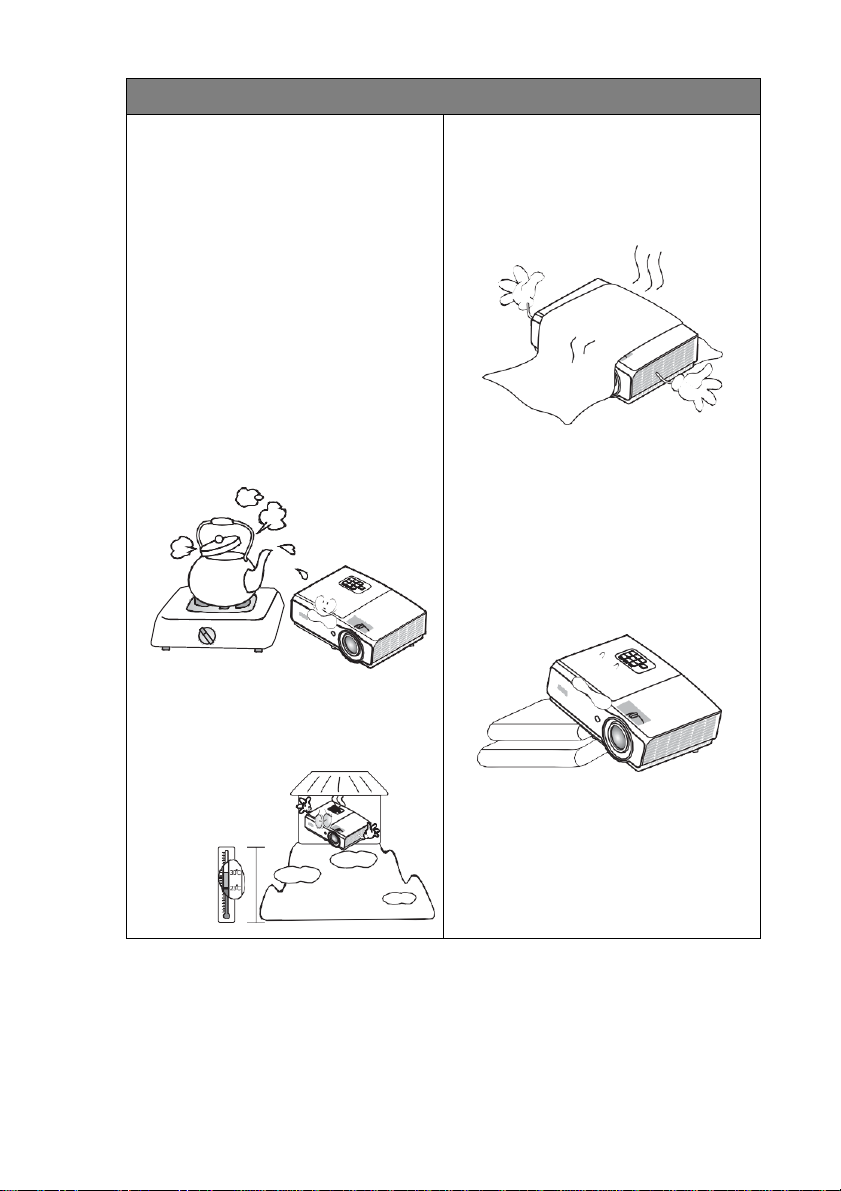

Do not place this projector in any of the following environments.

Space that is poorly ventilated or

confined. Allow at least 50 cm clearance from walls and free flow of air around the projector.

Locations where temperatures may

become excessively high, such as the inside of a car with all windows rolled up.

Locations where excessive humidity,

dust, or cigarette smoke may contaminate optical components, shortening the projector's life span and darkening the image.

Locations near fire alarms

Locations with an ambient temperature

above 40°C / 104°F

Locations where the altitudes are higher

than 3000 m (10000 feet).

3000 m (10000 feet)

0 m (0 feet)

14.

Do not block the ventilation holes.

Do not place this projector on a blanket,

bedding or any other soft surface.

Do not cover this projector with a cloth

or any other item.

Do not place inflammables near the

projector.

If the ventilation holes are seriously obstructed, overheating inside the projector may result in a fire.

15.

Always place the projector on a level, horizontal surface during operation.

Do not use if tilted at an angle of more

than 10 degrees left to right, nor at angle of more than 15 degrees front to back. Using the projector when it is not fully horizontal may cause a malfunction of, or damage to, the lamp.

Important safety instructions 5

Page 6

Safety Instructions (Continued)

16.

Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing injury or resulting in damage to the projector.

17.

Do not step on the projector or place any objects upon it. Besides probable physical damage to the projector, doing so may result in accidents and possible injury.

18.

Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's wall socket and call BenQ to have the projector serviced.

19. This product is capable of displaying inverted images for ceiling mount installation.

Use only BenQ's Ceiling Mount Kit for mounting the projector and ensure it is securely installed.

Ceiling mounting the projector

We want you to have a pleasant experience using your BenQ projector, so we need to bring this safety matter to your attention to prevent possible damage to person and property.

If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting BenQ projector ceiling mount kit and that you ensure it is securely and safely installed. If you use a non-BenQ brand projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws. You can purchase a BenQ projector ceiling mount kit from the place you purchased your BenQ projector. BenQ recommends that you also purchase a separate Kensington lock compatible security cable and attach it securely to both the Kensington lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

Hg - Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.

6 Important safety instructions

Page 7

Introduction

Projector features

The projector offers the following features

• SmartEco™ starts your dynamic power saving The SmartEco™ technology offers a new way of operating the projector lamp system and saves lamp power up to 70% depending on the content brightness level.

• Longer lamp life with SmartEco™ technology The SmartEco™ technology lowers the power consumption and increases the lamp life when SmartEco mode is selected.

• HDMI/MHL compatible You can project the content from your smart devices via HDMI 2/MHL connection.

• ECO BLANK saves 70% of lamp power By pressing the ECO BLANK button to hide the image and immediately lower 70% of the lamp power at the same time.

• USB MINI-B jack to use the page up/down commands (like Microsoft PowerPoint) using the remote control when connected a PC.

• USB TYPE A jack to support 5V/1.5A output.

• Less than 0.5W in standby condition Less than 0.5W power consumption under standby mode.

• Filter Free Filter free design to lower maintenance and operating costs.

• One-key auto-adjustment Pressing AUTO on the keypad or remote control to show the best picture quality immediately.

• Built-in 10W speaker(s) Built-in 10W speaker(s) providing mixed mono audio when an audio input is connected.

• Auto Power Off, Signal Power On, Direct Power On Auto Power Off function allows the projector to turn off automatically if no input signal is detected after a set period of time. Signal Power On function turns on your projector automatically once detecting the signal input and Direct Power On boots up the projector automatically when the power is connected.

• Instant Restart Selectable Instant Restart function enables you to restart the projector immediately within 90 seconds after turning it off.

• 3D Function supported Various 3D formats make the 3D function more flexible. By presenting the depth of the images, you can wear BenQ 3D glasses to enjoy the 3D movies, videos and sporting events in a more realistic way.

• Auto keystone function to correct image keystoning automatically.

• The apparent brightness of the projected image will vary depending on the ambient lighting

conditions, selected input signal contrast/brightness settings, and is directly proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

Page 8

8 Introduction

Shipping contents

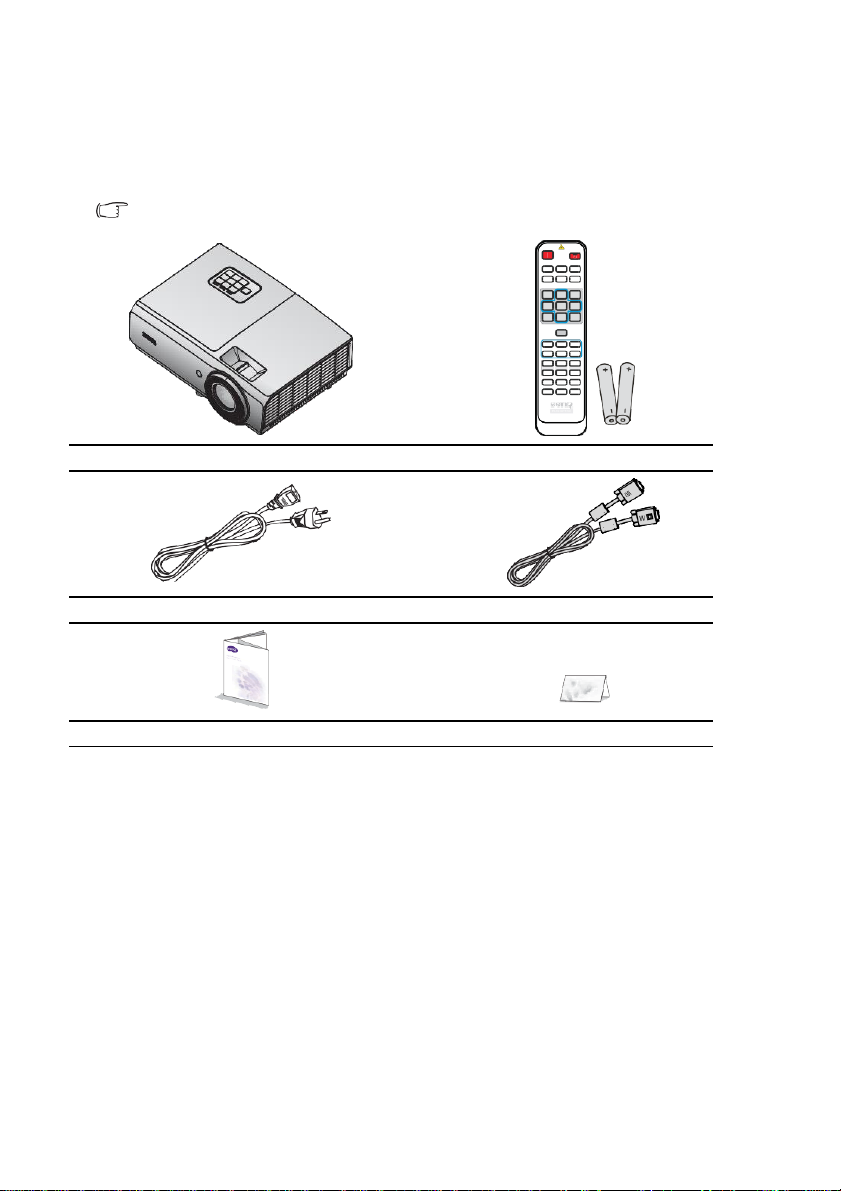

Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

Projector Remote control with battery

Power cord VGA cable

Quick start guide Warranty card*

Optional accessories

Spare lamp kit

Ceiling mount kit

Soft carry case

*The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

3D glasses

Wireless dongle: QCast (QP01), InstaShow™ (WDC10)

Page 9

Introduction

10. VIDEO input jack

1 3

4 6

Front/upper side

Rear/lower side

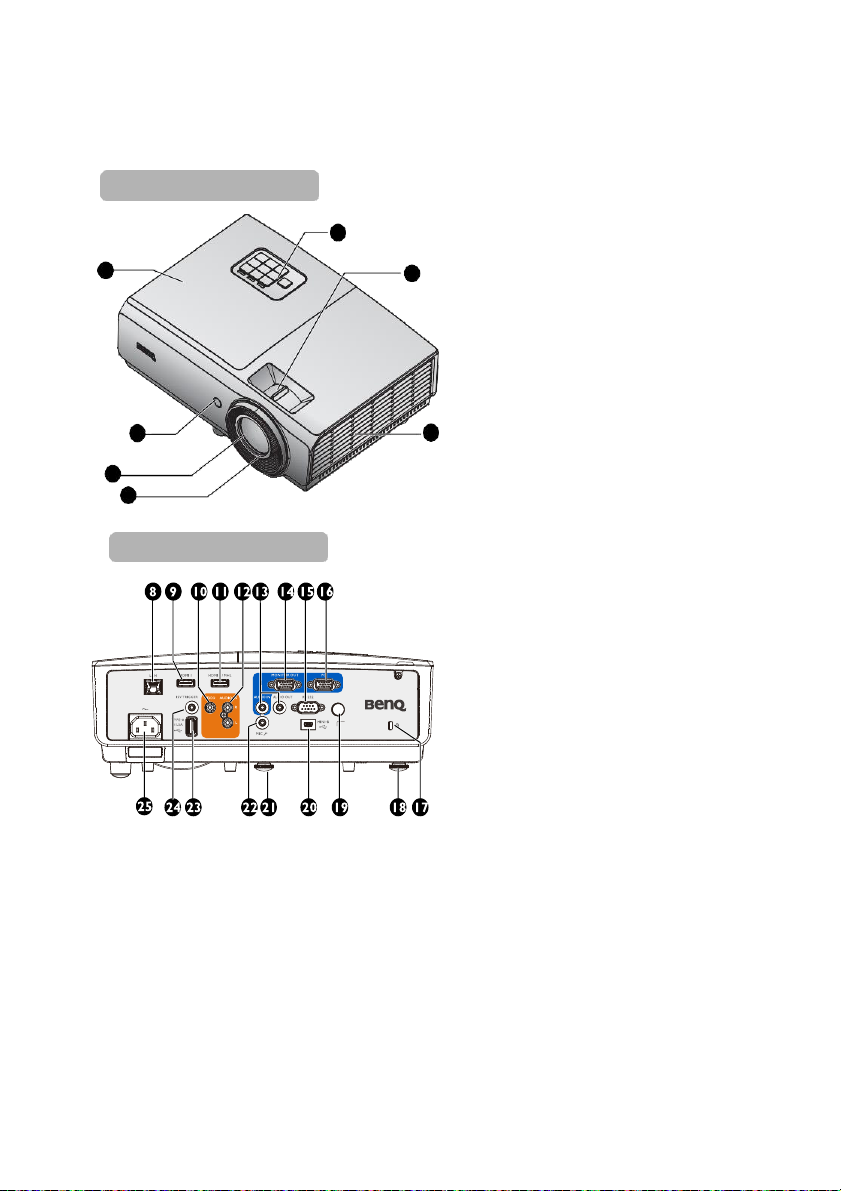

Projector exterior view

Lamp compartment cover

External control panel (See "Projector" on page 11 for details.)

Zoom ring

Vent (cool air intake)

Focus ring

Projection lens

Front IR remote sensor

RJ45 LAN input jack

HDMI-1 input jack

11.

HDMI-2/MHL input jack

12.

Audio (L/R) input jack

13.

Audio input/output jack

14.

MONITOR-OUT output jack

15.

RS232 control port

16.

PC input jack

17.

Kensington anti-theft lock slot

18.

Rear adjuster foot

19.

Rear IR remote sensor

20.

USB Mini-B port

21.

Front adjuster foot

22.

Microphone jack

23.

USB Type-A port

24.

12V TRIGGER out jack Used to trigger external device such as an electric screen or light control, etc. Consult your dealer for how to connect these devices.

25.

AC power cord inlet

Page 10

Introduction

26.

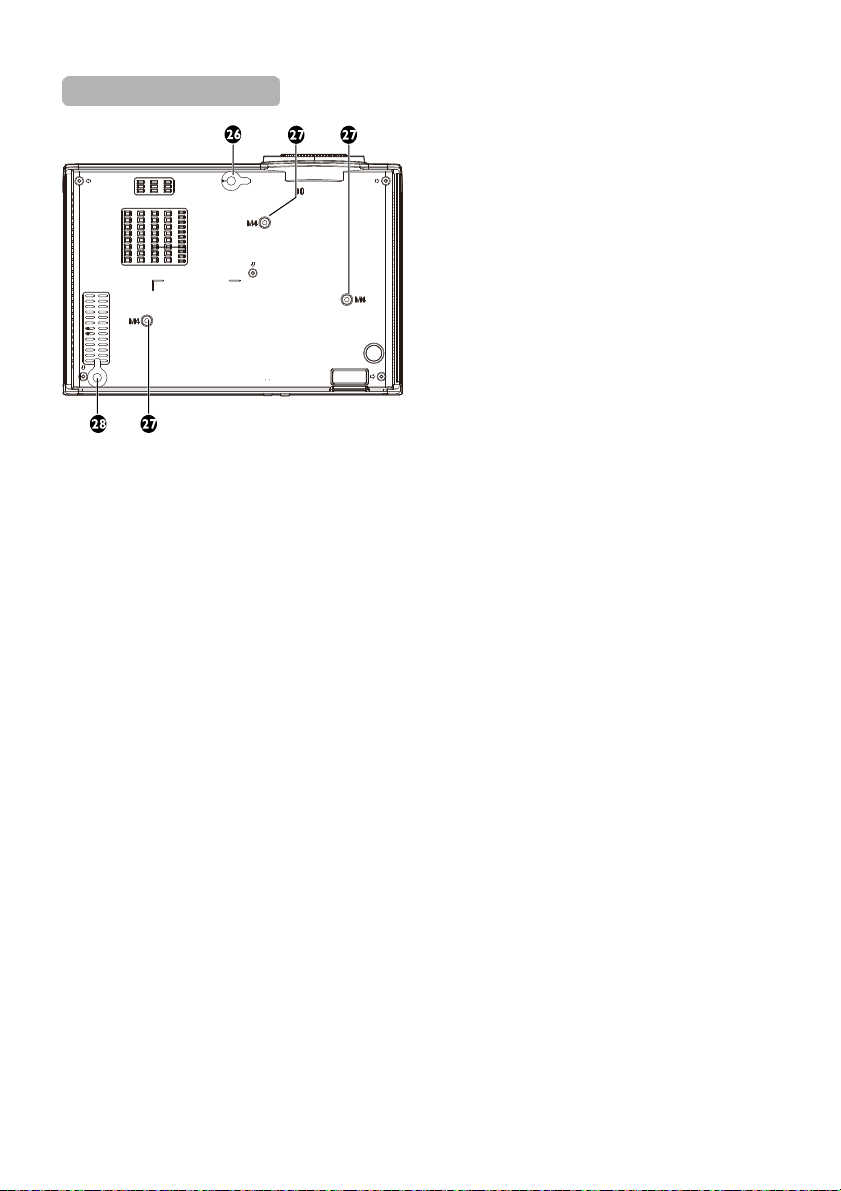

Bottom side

Front adjuster foot

27.

Ceiling mount holes

28.

Rear adjuster foot

Page 11

8 9

3 4 5

12 13 14 15

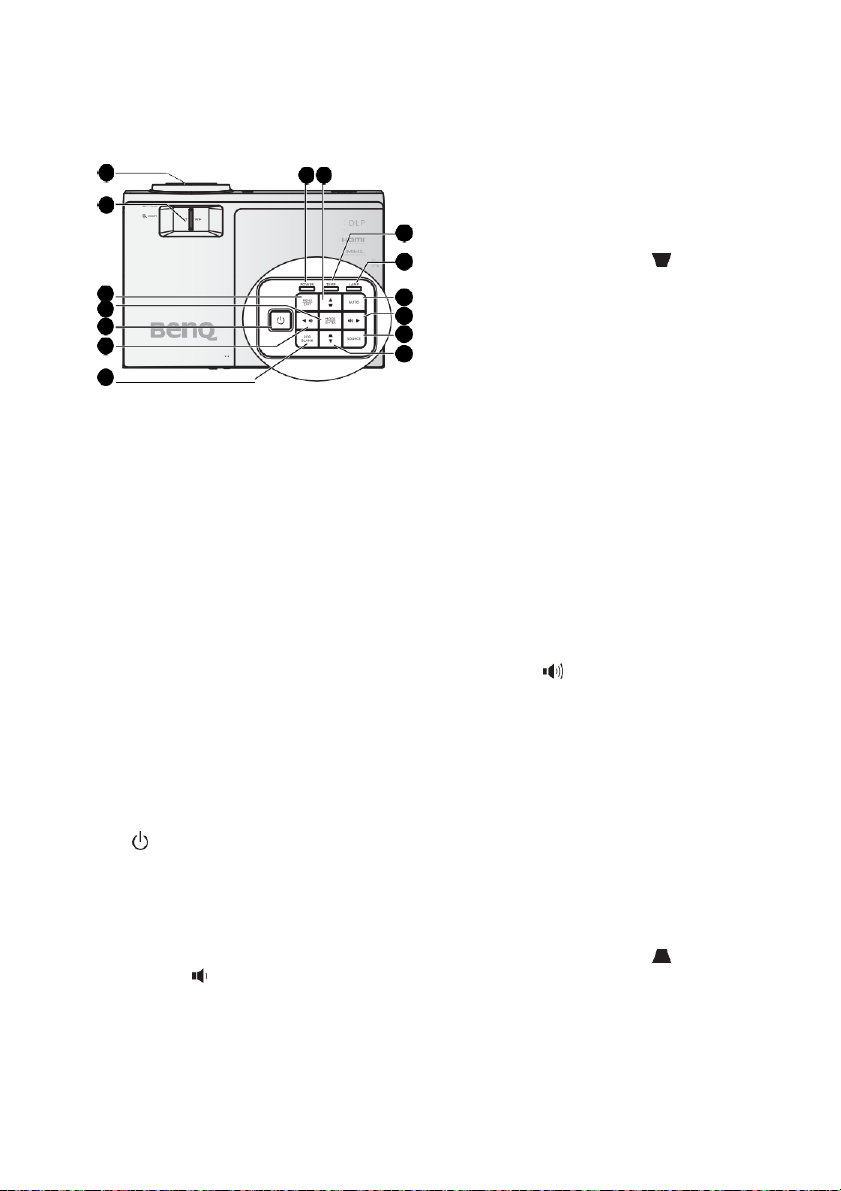

Controls and functions

Projector

Focus ring

Used to adjust the projected image appearance. See "Fine-tuning the image

size and clarity" on page 26 for details.

ZOOM ring

Used to adjust the projected image appearance. See "Fine-tuning the image

size and clarity" on page 26 for details.

MENU/EXIT

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings. See "Using

the menus" on page 29 for details.

MODE/ENTER

Selects an available picture setup mode. See "Selecting a picture mode" on page 36 for details. Enacts the selected On-Screen Display (OSD) menu item. See "Using the menus"

on page 29 for details.

POWER

Toggles the projector between standby mode and on. See "Starting up the projector" on page 25 and "Shutting down the projector" on page

48 for details.

◄ Left/ Decrease volume level

Decreases volume. See "Adjusting the

sound level" on page 43 for details.

ECO BLANK

Used to hide the screen picture. See "Hiding

the image" on page 41 for details.

POWER indicator light

Lights up or flashes when the projector is under operation. See "Indicators" on

page 69 for details.

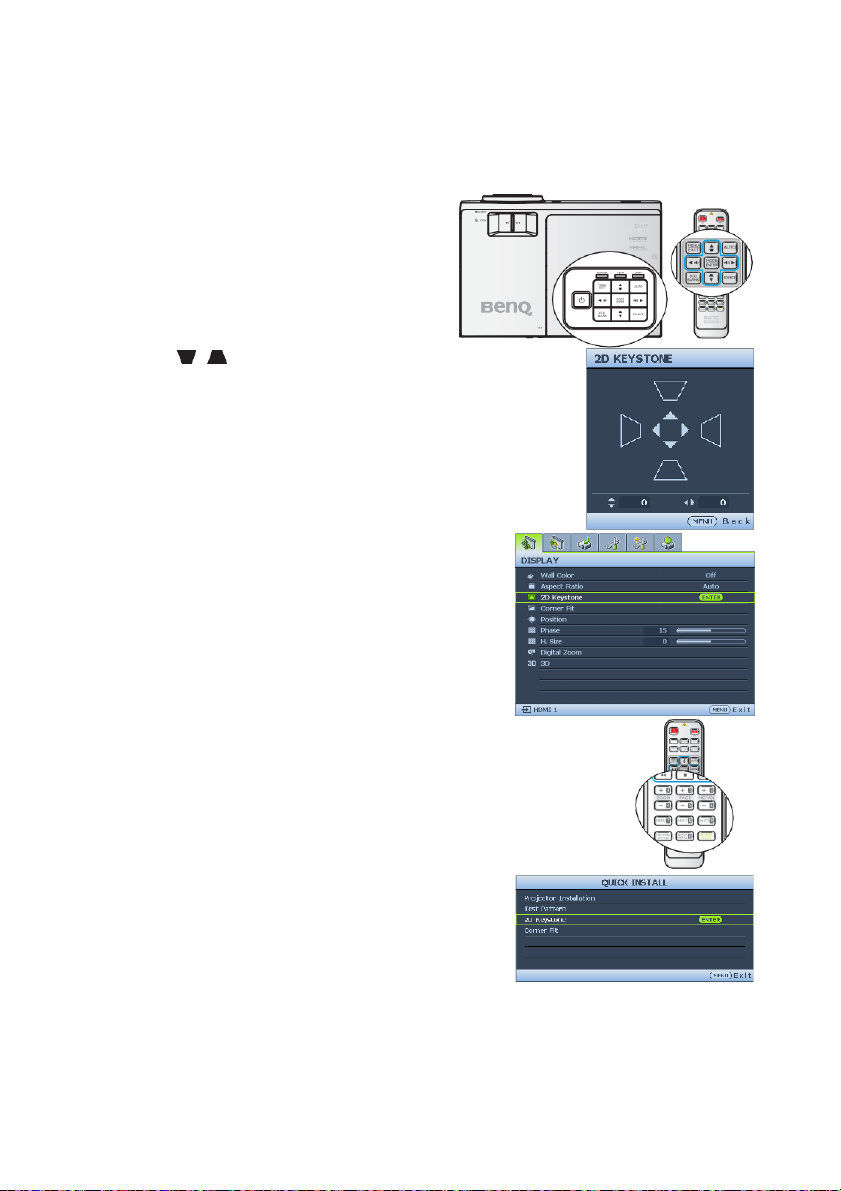

Keystone/Arrow keys ( /▲ Up)

Manually corrects distorted images resulting from an angled projection. See

"Correcting 2D Keystone" on page 27 for

details.

10.

TEMPerature indicator light

Lights up red if the projector's temperature becomes too high. See

"Indicators" on page 69 for details.

11.

LAMP indicator light

Indicates the status of the lamp. Lights up or flashes when the lamp has developed a problem. See "Indicators" on page 69 for details.

12.

AUTO

Automatically determines the best picture timings for the displayed image. See "Auto-adjusting the image" on page

26 for details.

► Right/ Increase volume level

13.

Increases volume. See "Adjusting the

sound level" on page 43 for details.

When the On-Screen Display (OSD) menu is activated, the #6, #9, #13, and #15 keys are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menus"

on page 29 for details.

14.

SOURCE

Displays the source selection bar. See

"Switching input signal" on page 33 for

details.

15.

Keystone/Arrow keys ( /▼ Down)

Manually corrects distorted images resulting from an angled projection. See

"Correcting 2D Keystone" on page 27 for

details.

Introduction 11

Page 12

Introduction

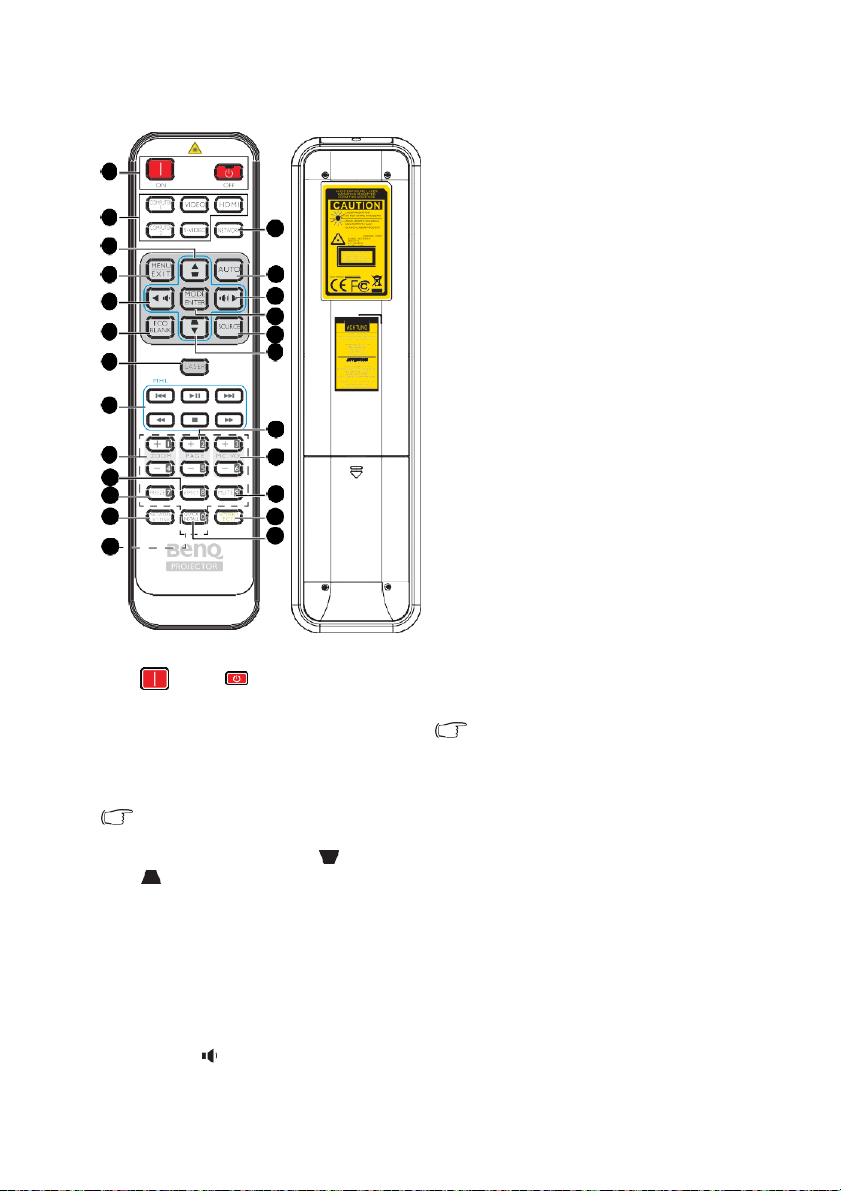

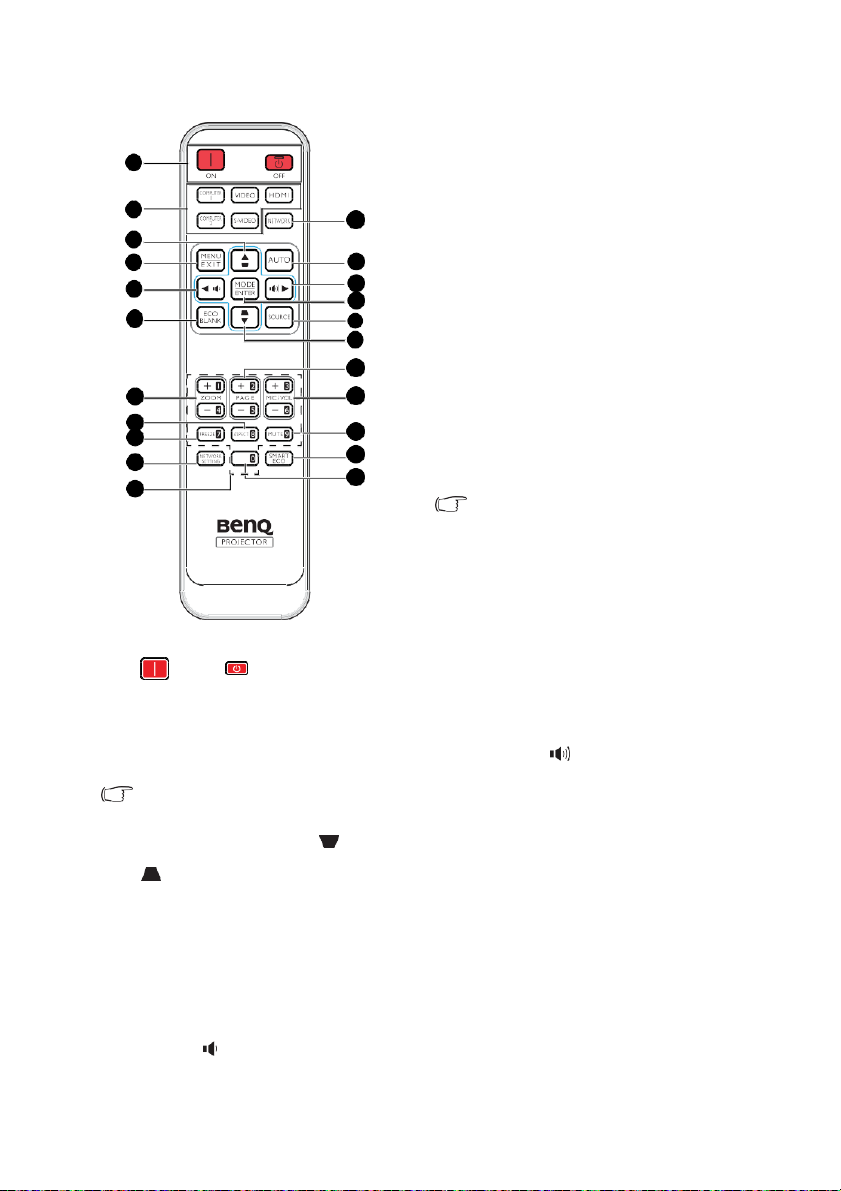

Remote Control

Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24,2007

ADVANCETECH CO., LTD(FACTORY) Model No.: SN1407029 11/F-1, No.120, Qiaohe Rd., Zhonghe Dist., New Taipei City 23584, Taiwan, R.O.C.

ECO BLANK

Used to hide the screen picture.

LASER

Emits visible laser pointer light for presentation purposes.

MHL control buttons

Goes to the previous file/Plays/Pauses/ Goes to the next file/Rewinds/Stops/ Fastforwards during media playback. Only available when controlling your smart device in MHL mode.

ZOOM+/ZOOM-

Magnifies or reduces the projected picture size.

10.

ASPECT

Selects the display aspect ratio.

11.

FREEZE

Freezes the projected image.

12.

NETWORK SETTING

Displays the Network Settings OSD menu.

1. ON / OFF

Toggles the projector between standby mode and on.

Source selection buttons

Selects an input source for display.

“S-Video” not available for this projector.

Keystone/Arrow keys ( /▲ Up,

/▼ Down)

Manually corrects distorted images resulting from an angled projection.

MENU/EXIT

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings.

◄ Left/

Decreases the projector volume.

13.

Numeric buttons

Enters numbers in network settings.

Numeric buttons 1, 2, 3, 4 cannot be pressed when asked to enter password.

14.

NETWORK

Not available for this projector.

15.

AUTO

Automatically determines the best picture timings for the displayed image. When there is no OSD menu and at MHL source, long press for 3 seconds to switch between MHL mode and DLP mode on remote control for MHL keys.

Page 13

Introduction

► Right/

16.

Increases the projector volume. When the On-Screen Display (OSD) menu is activated, the #3, #5, and #16 keys are used as directional arrows to select the desired menu items and to make adjustments. When MHL function, the #3, #5 and #16 are used as directional arrows. #4 for

MENU/EXIT and #17 for MODE/ ENTER.

17. MODE/ENTER

Selects an available picture setup mode. Activates the selected On-Screen Display (OSD) menu item.

18. SOURCE

Displays the source selection bar.

19. PAGE +/PAGE -

Operate your display software program (on a connected PC) which responds to page up/down commands (like Microsoft PowerPoint).

20. MIC/VOL +/MIC/VOL -

Microphone input level adjustment.

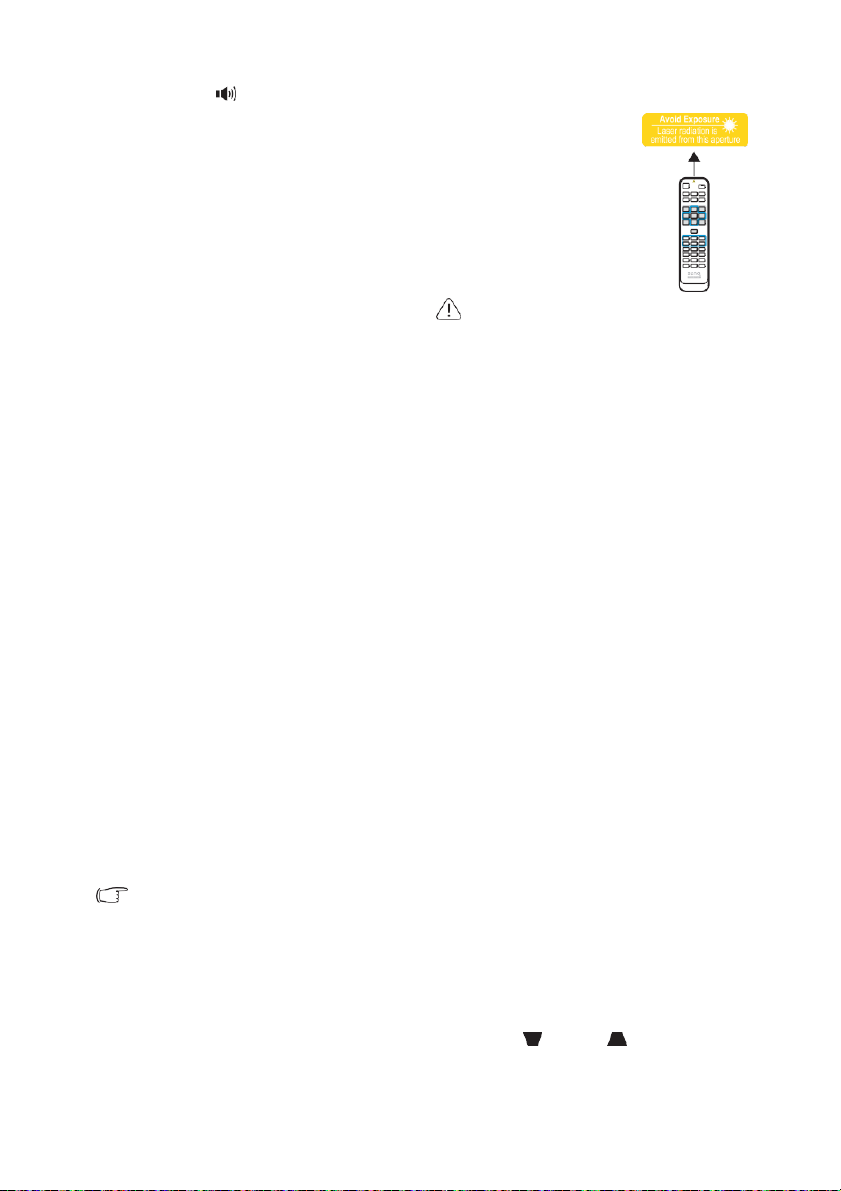

Operating the LASER pointer

The Laser Pointer is a presentation aid for professionals. It emits a beam of red light when you press it.

The laser beam is visible. It is necessary to press and hold LASER for continuous output.

Do not look into the laser light window or shine the laser light beam on yourself or others. See the warning messages on the back of the remote control prior to using it.

The laser pointer is not a toy. Parents should be mindful of the dangers of laser energy and keep this remote control out of the reach of children.

21. MUTE

Toggles projector audio between on and off.

22. SMART ECO

Switch the lamp mode between Eco/ Normal and SmartEco.

23. QUICK INSTALL Displays the Quick Install OSD menu.

When the projector is under MHL mode, The keypad on projector should be with the same

definition of the key on remote control.

Controlling your smart device with the remote control

When the projector projects the contents from your MHL compatible smart device, you can use the remote control to control your smart device.

To enter the MHL mode, press and hold AUTO for 3 seconds. The following buttons are

available for controlling your smart device, Arrow keys ( /▲ Up, /▼ Down, ◄ Left, ► Right), MENU/EXIT, MHL control buttons.

To leave the MHL mode, press and hold

AUTO

for 3 seconds.

Page 14

Introduction

9 18

TEST

(Available in Japan region)

1. ON / OFF

Toggles the projector between standby mode and on.

2. Source selection buttons

Selects an input source for display.

“S-Video” not available for this projector.

Keystone/Arrow keys ( /▲ Up,

/▼ Down)

Manually corrects distorted images resulting from an angled projection.

4. MENU/EXIT

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings.

◄ Left/

Decreases the projector volume.

6. ECO BLANK

Used to hide the screen picture.

7. ZOOM+/ZOOM-

Magnifies or reduces the projected picture size.

8. ASPECT

Selects the display aspect ratio.

9. FREEZE

Freezes the projected image.

10. NETWORK SETTING

Displays the Network Settings OSD menu.

11. Numeric buttons

Enters numbers in network settings.

Numeric buttons 1, 2, 3, 4 cannot be pressed when asked to enter password.

12. NETWORK

Not available for this projector.

13. AUTO

► Right/

14.

Increases the projector volume. When the On-Screen Display (OSD) menu is activated, the #3, #5, and #14 keys are used as directional arrows to select the desired menu items and to make adjustments. When MHL function, the #3, #5 and #14 are used as directional arrows. #4 for MENU/EXIT and #15 for MODE/

ENTER.

15. MODE/ENTER

Selects an available picture setup mode. Activates the selected On-Screen Display (OSD) menu item.

Page 15

Introduction

16. SOURCE

Displays the source selection bar.

17. PAGE +/PAGE -

Operate your display software program (on a connected PC) which responds to page up/down commands (like Microsoft PowerPoint).

18. MIC/VOL +/MIC/VOL –

Microphone input level adjustment.

19. MUTE

Toggles projector audio between on and off.

20. SMART ECO

Switch the lamp mode between Eco/ Normal and SmartEco.

21. TEST

Displays the test pattern.

Page 16

Introduction

Remote control effective range

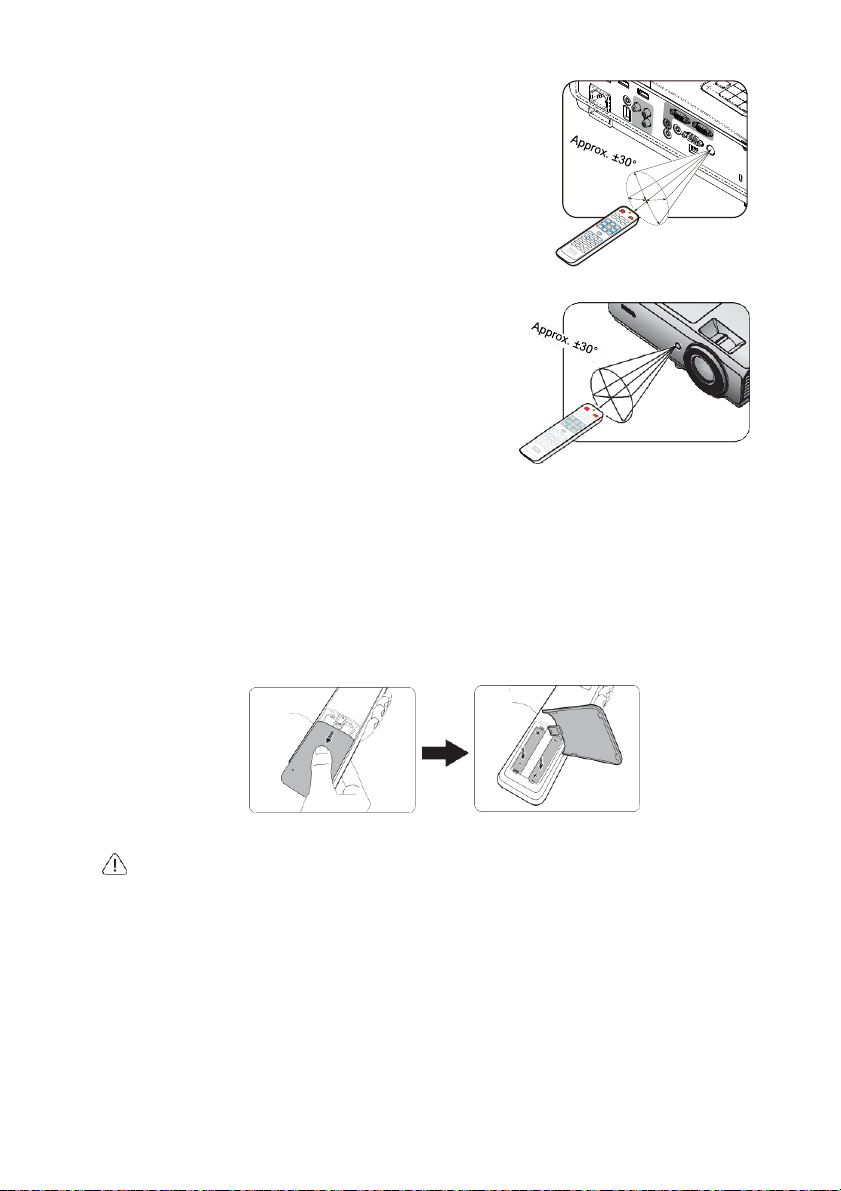

Infra-Red (IR) remote control sensor is located on the front and the rear of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 8 meters (~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.

Replacing the remote control battery

To open the battery cover, turn the remote control over to view its back, push on the finger grip on the cover and slide it up in the direction of the arrow as illustrated. The cover will slide off.

Remove any existing batteries (if necessary) and install two AAA batteries observing the battery polarities as indicated in the base of the battery compartment. Positive (+) goes to positive and negative (-) goes to negative.

Refit the cover by aligning it with the base and sliding it back down into position. Stop when it clicks into place.

• Avoid excessive heat and humidity.

•

There may be battery damage if the battery is incorrectly replaced.

•

Replace only with the same or equivalent type recommended by the battery manufacturer.

•

Dispose of the used battery according to the battery manufacturer’s instructions.

•

Never throw a battery into a fire. There may be danger of an explosion.

•

If the battery is dead or if you will not be using the remote control for a long time, remove the battery to prevent damage to the remote control from possible battery leakage.

•

RISK OF THE EXPLOSION IF BATTERY IS REPLACED BY ANY INCORRECT TYPE.

•

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Page 17

Positioning your projector

Choosing a location

Your projector is designed to be installed in one of four possible installation locations:

1. Front Table

Select this location with the projector placed on a table in front of the screen. This is the most common way to position the projector for quick setup and portability.

3. Front Ceiling

Select this location with the projector suspended upside-down from the ceiling in front of the screen.

Purchase the BenQ Projector Ceiling Mounting Kit from your dealer to mount your projector on the ceiling.

*Set Front Ceiling in the SYSTEM SETUP: Basic > Projector Installation menu after you turn the projector on.

2. Rear Table

Select this location with the projector placed on a table behind the screen.

Note that a special rear projection screen is required.

*Set Rear Table in the SYSTEM SETUP: Basic > Projector Installation menu after you turn the projector on.

4. Rear Ceiling

Select this location with the projector suspended upside-down from the ceiling behind the screen.

Note that a special rear projection screen and the BenQ Projector Ceiling Mounting Kit are required for this installation location.

*Set Rear Ceiling in the SYSTEM SETUP: Basic > Projector Installation menu after you turn the projector on.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

Page 18

Positioning your projector

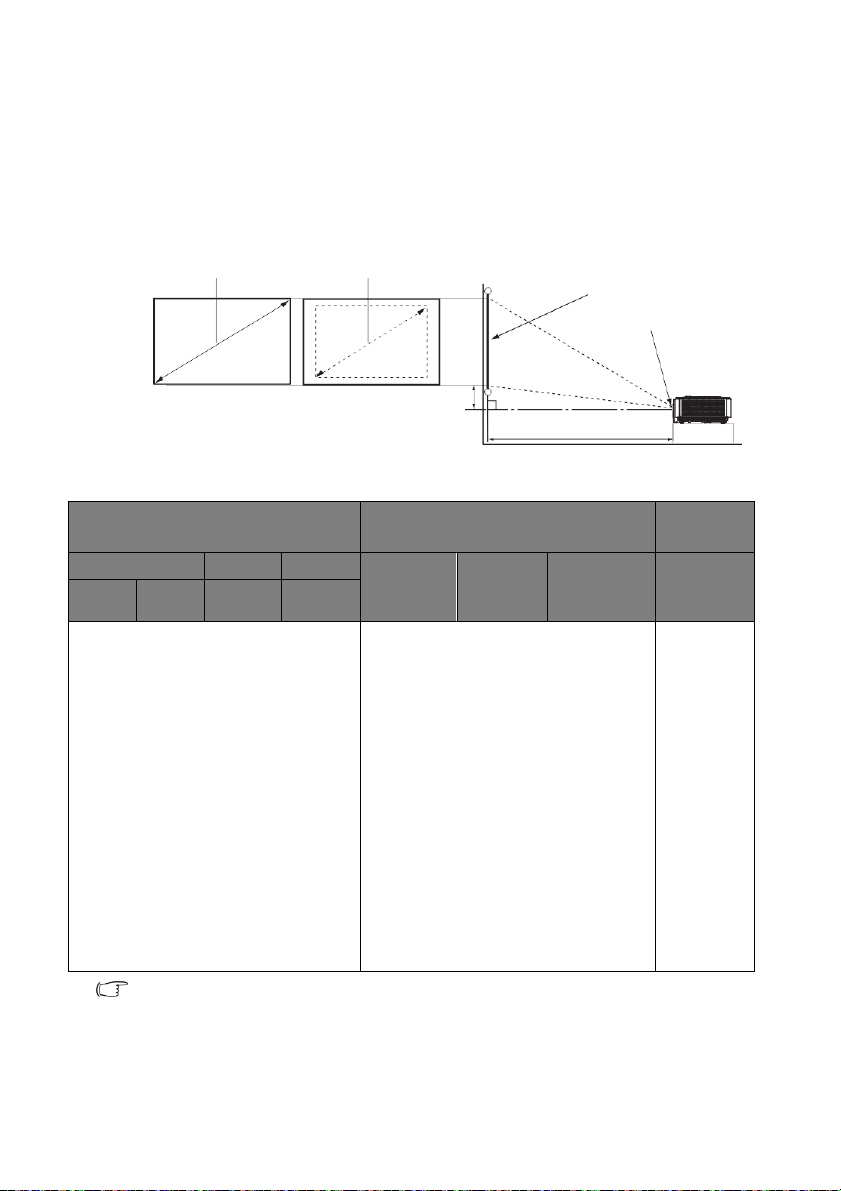

Obtaining a preferred projected image size

Screen size

Distance from screen [mm]

Offset [mm]

Diagonal

Width

Height

Min Dis-

tance

Average

Max Dis-

tance

A [mm] @

Wide mode

inch

1524

1328

747

1846

2311

2776

111

1778

1550

872

2154

2696

3239

130

2032

1771

996

2462

3082

3701

149

2286

1992

1121

2769

3467

4164

167

100

2540

2214

1245

3077

3852

4627

186

120

3048

2657

1494

3693

4622

5552

223

150

3810

3321

1868

4616

5778

6940

279

170

4318

3763

2117

5231

6548

7866

316

180

4572

3985

2241

5539

6934

8328

334

190

4826

4206

2366

5847

7319

8791

353

200

5080

4428

2491

6154

7704

9254

371

250

6350

5535

3113

7693

9630

11567

464

300

7620

6641

3736

9232

11556

13881

557

Maximum zoom

Minimum zoom

Screen

Center of lens

Vertical offset A

Projection distance

The distance from the projector lens to the screen, the zoom setting (if available), and the video format each factors in the projected image size.

Projection dimensions

Refer to "Dimensions" on page 72 for the center of lens dimensions of this projector before calculating the appropriate position.

1080P SH753P

There is 5% tolerance among these numbers due to optical component variations. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

Page 19

Connection

Connection 19

When connecting a signal source to the projector, be sure to:

Turn all equipment off before making any connections.

Use the correct signal cables for each source.

Ensure the cables are firmly inserted.

In the connections shown below, some cables may not be included with the projector (see

"Shipping contents" on page 8). They are commercially available from electronics stores.

HDMI cable

Audio cable

Video cable

Audio L/R cable

VGA cable

Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press

VGA to DVI-A cable

USB cable

Microphone

Type-A port power 1.5A

10.

HDMI-Micro USB cable

Page 20

Connection

FN and the labeled function key simultaneously. Refer to your notebook's documentation to find

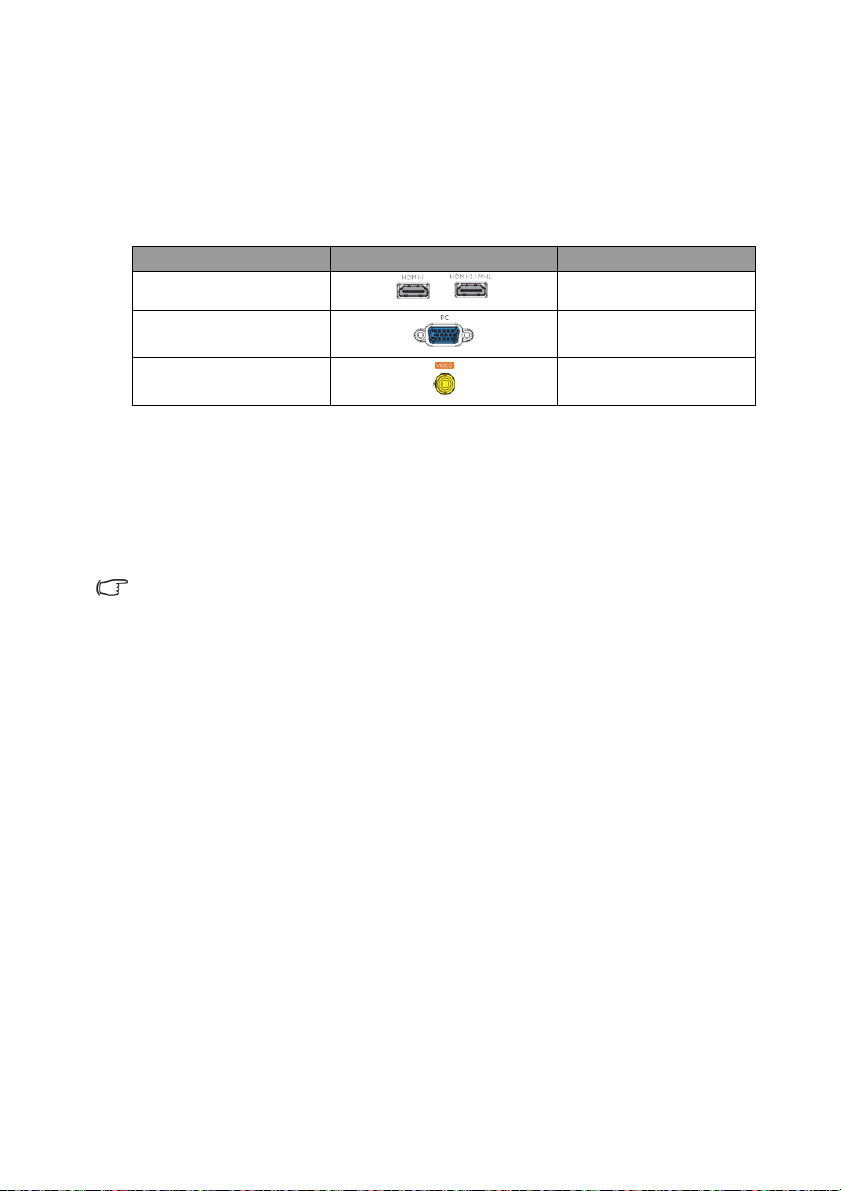

Terminal name

Terminal appearance

Picture quality

HDMI

Best

Component Video

Better

Video

Normal

your notebook's key combination.

Connecting video source devices

You need only connect the projector to a video source device using just one of the connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the video source device as described below:

Connecting audio

The projector has one built-in mono speaker which are designed to provide basic audio functionality accompanying data presentations for business purposes only. They are not designed for, nor intended for stereo audio reproduction use as might be expected in home theater or home cinema applications. Any stereo audio input (if provided), is mixed into a common mono audio output through the projector speaker.

The built-in speaker will be muted when the AUDIO OUT jack is connected.

• The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected. See "Connecting audio" on page 23 for details.

•

If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

Page 21

Connection

Playing sound through the projector

Device

Component/ Video

HDMI-1/

HDMI-2/MHL

Audio input port

AUDIO IN

(mini jack)

AUDIO (L/R)

HDMI

The projector can play the

sound from...

AUDIO IN

(mini jack)

AUDIO (L/R)

HDMI

Audio output port

AUDIO OUT

The selected input signal determines which sound will be played by the projector speaker, and

which sound will be output from the projector when AUDIO OUT is connected. If you select the

PC signal, the projector can play the sound received from AUDIO IN mini jack. If you select the

VIDEO signal, the projector can play the sound received from AUDIO (L/R).

You can make use of the projector (mixed mono) speaker in your presentations, and also connect separate amplified speakers to the AUDIO OUT socket of the projector.

If you have a separate sound system, you will most likely want to connect the audio output of your Video source device to that sound system, instead of to the mono audio projector.

Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus.

The table below describes the connection methods for different devices, and where the sound is from.

Connecting smart devices

The projector can also project the content directly from your personal device(phone, tablet, NB) through optional BenQ wireless solution such as QCast dongle or InstaShow™.

Please consult to your local agent if you're interested in it.

Page 22

Operation

Starting up the projector

Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the POWER indicator light on the projector lights orange after power has been applied.

Please use the original accessories (e.g. power cable) only with the device to avoid possible dangers such as electric shock and fire.

Press POWER on the projector or remote control to start the projector and a start up tone sounds. The POWER indicator light flashes green and stays green when the projector is on.

The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is projected. (If necessary) Rotate the focus ring to adjust the image clearness.

To turn off the ring tone, see "Turning off the Power on/off ring tone" on page 43 for details.

If the projector is still hot from previous activity, it will run the cooling fan for approximately 90 seconds before energizing the lamp.

To use the OSD menus, please set them to your familiar language first.

If you are prompted for a password, press the arrow keys to enter a six digit password. See "Utilizing the password

function" on page 30 for details.

Switch all of the connected equipment on.

The projector will start to search for input signals. The current input signal being scanned displays in the upper left corner of the screen. If the projector doesn't detect a valid signal, the message 'No Signal' will continue displaying until an input signal is found. You can also press SOURCE on the projector or remote control to select your desired input signal. See "Switching input signal" on page 33 for details.

If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message 'Out of Range' displayed on a blank screen. Please change to an input signal which is compatible with the projector's resolution or set the input signal to a lower setting. See

"Timing chart" on page 73 for details.

To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before turning if off.

Page 23

Operation

1 2

Adjusting the projected image

Adjusting the projection angle

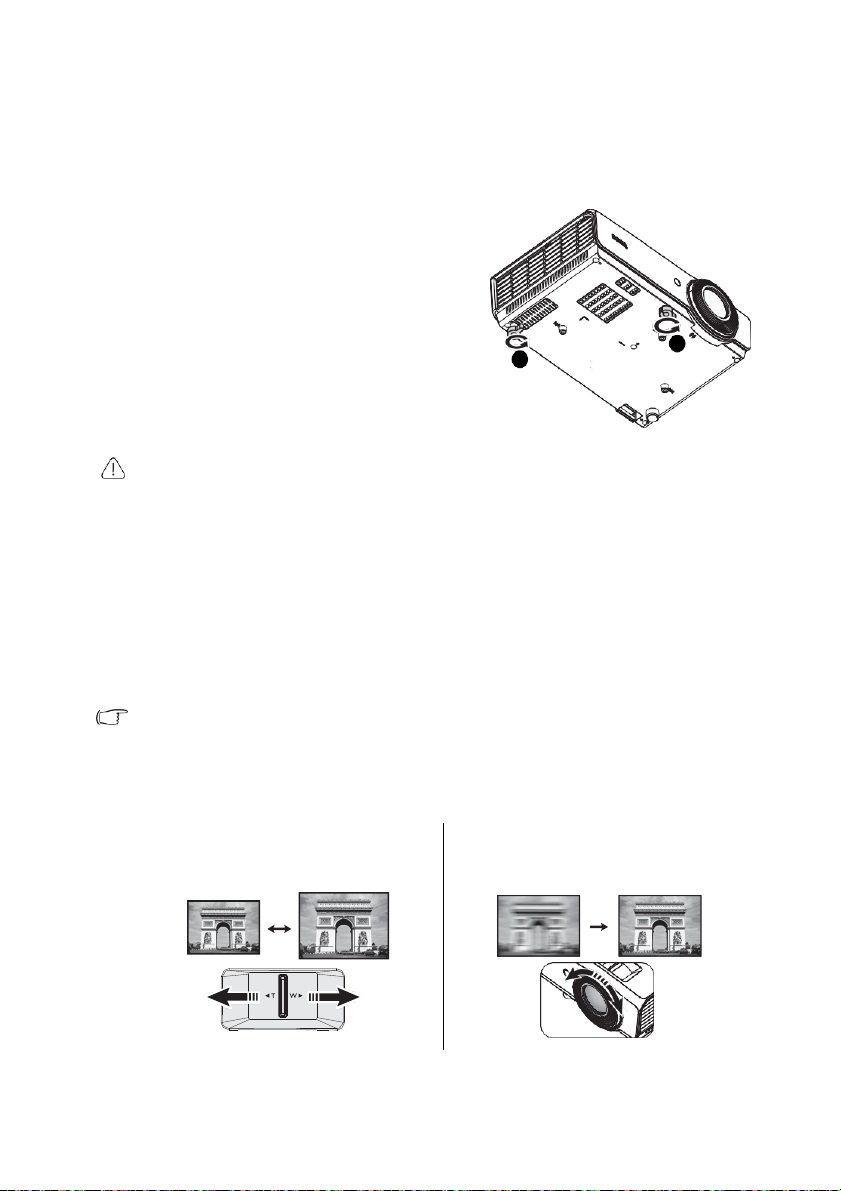

The projector is equipped with 1 front adjuster foot and 1 rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector:

1. Screw the front adjuster foot. Once the

image is positioned where you want it.

2. Screw the rear adjuster foot to fine tune

the horizontal angle.

To retract the foot. Screw the front and rear adjuster foot in a reverse direction.

If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. To correct this situation, see "Correcting 2D Keystone" on page 27 for details.

• Do not look into the lens while the lamp is on. The strong light from the lamp may cause

damage to your eyes.

• Be careful when you press the adjuster button as it is close to the exhaust vent where hot air

comes from.

Auto-adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press the projector or remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the upper left corner of the screen for 3 seconds.

• The screen will be blank while AUTO is functioning.

• This function is only available when PC signal (analog RGB) is selected.

AUTO

Fine-tuning the image size and clarity

1. Adjust the projected image to the size that you need using the ZOOM ring.

2. Sharpen the image by rotating the FOCUS ring.

Page 24

Operation

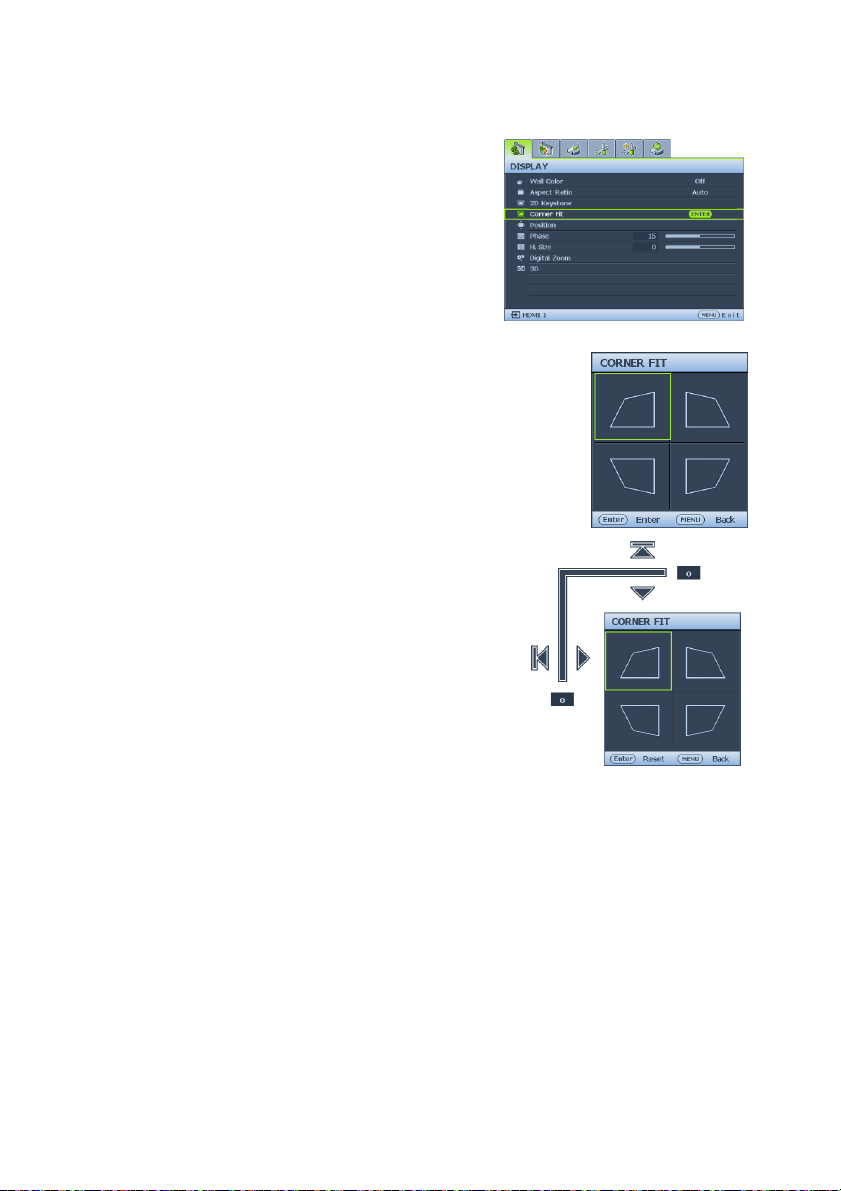

Correcting 2D Keystone

2D Keystone function enables a wider projector installation area compared to conventional projectors with limited positioning in front of the screen.

To correct this, you will need to manually correct it following one of these steps.

• Using the projector or remote control

Press / on the projector or remote control to display the 2D Keystone page. Press ▲/▼ to adjust vertical values from -30 to 30. Press ◄/► to adjust horizontal values from -30 to 30.

• Using the OSD menu

Press MENU/EXIT and then press ◄/► until the Display menu is highlighted.

Press ▼ to highlight 2D Keystone and press MODE/ENTER. The 2D Keystone page displays.

Press ▲, ▼, ◄, ► to adjust the keystone values.

• Using the QUICK INSTALL key

1. Press QUICK INSTALL on the remote control.

Press ▼ to highlight 2D Keystone and press MODE/ENTER. The 2D Keystone page displays.

Press ▲, ▼, ◄, ► to adjust the keystone values.

Page 25

Operation

Correcting Corner Fit

Manually adjust four corners of the image by setting the horizontal and vertical values.

• Using the OSD menu

Press MENU/EXIT and then press ◄/► until the Display menu is highlighted.

Press ▼ to highlight Corner Fit and press MODE/ENTER. The Corner Fit page displays.

Press ▲, ▼, ◄, ► to select one of the four corners and press MODE/ENTER.

Press ▲/▼ to adjust vertical values from 0 to

60.

Press ◄/► to adjust horizontal values from 0 to 60.

Page 26

Operation

Using the menus

The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings.

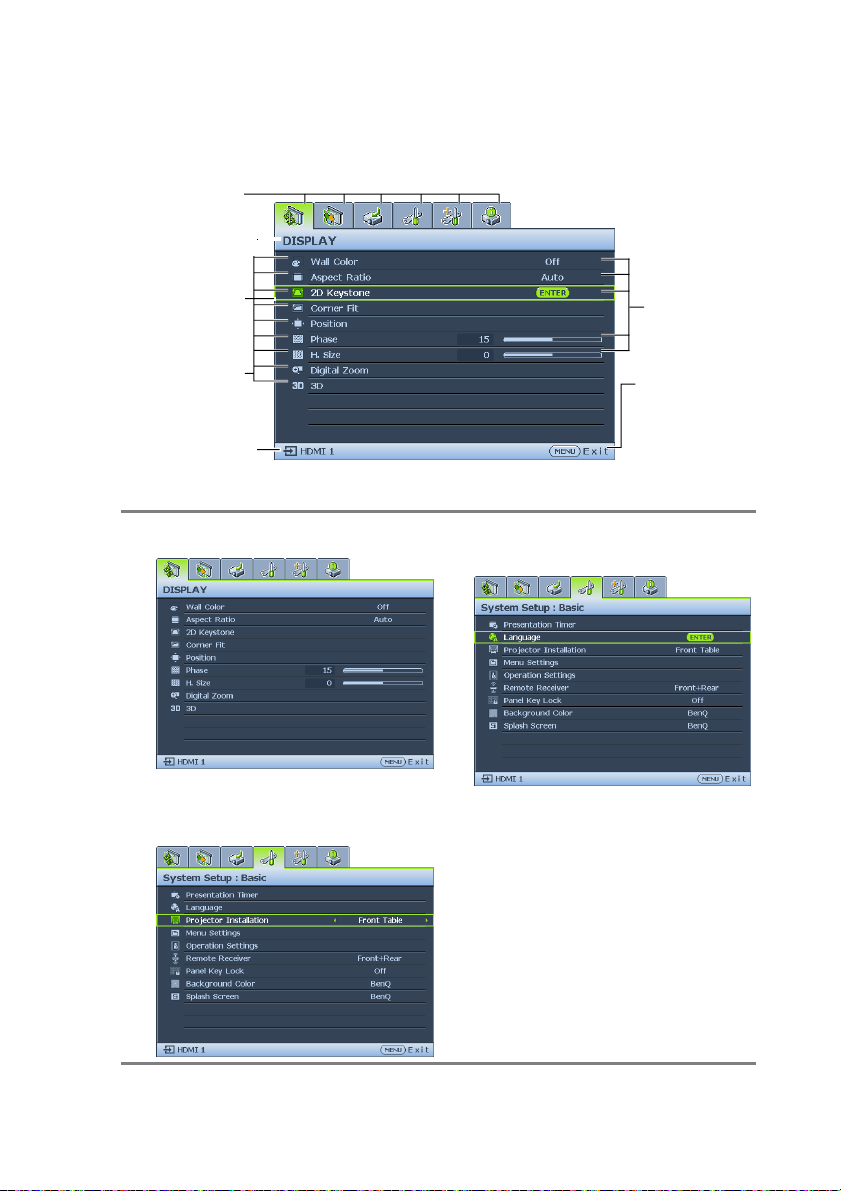

Below is the overview of the OSD menu.

Main menu icon

Main menu

Highlight

Sub-menu

Current input signal

To use the OSD menus, please set them to your familiar language first.

Press MODE/ENTER on the projector or 3. Press ▼ to highlight Language remote control to turn the OSD menu on.

Status

Press MENU/ EXIT to the previous page or to exit.

and press ◄/► to select a preferred language.

Use ◄/► to highlight the System Setup: Basic menu.

4. Press MODE/ENTER twice* on the projector or remote control to leave and save the settings.

*The first press leads you back to the main menu and the second press closes the OSD menu.

Page 27

Operation

Securing the projector

Using a security cable lock

The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as a Kensington lock, to secure the projector. You can locate a Kensington lock slot on the left side of the projector. See "Kensington anti-theft lock slot" on page 9 for details.

A Kensington security cable lock is usually a combination of key(s) and a lock. Refer to the lock’s documentation for finding out how to use it.

Utilizing the password function

For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu.

WARNING: You will be inconvenienced if you activate the power-on lock functionality and subsequently forget the password. Print out this manual (if necessary) and write the password you used in this manual, and keep the manual in a safe place for later recall.

Setting a password

Once a password has been set, the projector cannot be used unless the correct password is

entered every time the projector is started.

1. Open the OSD menu and go to the System Setup: Advanced > Security Settings menu. Press MODE/ENTER. The Security Settings page displays.

2. Highlight Change Security Settings and press MODE/ENTER.

3. As pictured to the right, the four arrow keys (▲, ▼, ◄, ►) respectively represent 4 digits (1, 2, 3,

4). According to the password you desire to set, press the arrow keys to enter six digits for the password.

4. Confirm the new password by re-entering the new password. Once the password is set, the OSD menu returns to the Security Settings page.

5. To activate the ▲/▼ to highlight Power on Lock and press ◄/► to select On.

The digits being input will display as asterisks on-screen. Write your selected password down

here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password:

Keep this manual in a safe place.

6. To leave the OSD menu, press

Power on Lock

function, press

MENU/EXIT.

Page 28

Operation

Password Error

Please Try again.

RECALL PASSWORD

Please write down the recall code, and contact BenQ Customer Center.

Recall code:

12345678

MENU Back

If you forget the password

If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message as pictured to the right displays lasting for three seconds, and the message 'INPUT PASSWORD' follows. You can retry by entering another six-digit password, or if you did not record the password in this manual, and you absolutely do not remember it, you can use the password recall procedure. See "Entering the password recall procedure" on page 31 for details.

If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

Entering the password recall procedure

1. Press and hold AUTO on the projector or remote control for 3 seconds. The projector will display a coded number on the screen.

2. Write down the number and turn off your projector.

3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Page 29

Operation

Password Changed

Changing the password

1. Open the OSD menu and go to the System Setup: Advanced > Security Settings > Change Password menu.

2. Press MODE/ENTER. The message 'INPUT CURRENT PASSWORD' displays.

3. Enter the old password.

• If the password is correct, another message 'INPUT NEW PASSWORD'

displays.

• If the password is incorrect, the password error message displays lasting for three

seconds, and the message 'INPUT CURRENT PASSWORD' displays for your retry. You can press MENU/EXIT to cancel the change or try another password.

4. Enter a new password.

The digits being input will display as asterisks on-screen. Write your selected password down

here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password:

Keep this manual in a safe place.

5. Confirm the new password by re-entering the new password.

6. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started.

7. To leave the OSD menu, press

MENU/EXIT.

Disabling the password function

To disable password protection, go back to the System Setup: Advanced > Security Settings > Change Security Settings menu after opening the OSD menu system. Press MODE/ENTER. The message "INPUT PASSWORD" appears. Enter the current

password.

i. If the password is correct, the OSD menu returns to the Security Settings.

Press ▼ highlight Power On Lock and press ◄/► to select Off. You will not have to enter the password next time you turn on the projector.

ii. If the password is incorrect, the password error message displays lasting for

three seconds, and the message 'INPUT PASSWORD' displays for your retry. You can press MENU/EXIT to cancel the change or try another password.

Though the password function is disabled, you need to keep the old password in hand should you

ever need to re-activate the password function by entering the old password.

Page 30

Operation

Switching input signal

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

Be sure the Quick Auto Search function in the Source menu is On (which is the default of this projector) if you want the projector to automatically search for the signals.

You can also manually cycle through the available input signals.

1. Press SOURCE on the projector or press input source directly from the remote control. A source selection bar displays.

Press ▲/▼ until your desired signal is selected and press MODE/ENTER. Once detected, the selected source information will display on the screen for seconds. If there is multiple equipment connected to the projector, repeat steps 1-2 to search for another signal.

• The brightness level of the projected image will change accordingly when you switch

between different input signals. Data (graphic) "PC" presentations using mostly static images are generally brighter than "Video" using mostly moving images (movies).

• For best display picture results, you should select and use an input signal which outputs at

this resolution. Any other resolutions will be scaled by the projector depending upon the 'aspect ratio' setting, which may cause some image distortion or loss of picture clarity. See

"Selecting the aspect ratio" on page 34 for details.

Changing Color Space

In the unlikely event that you connect the projector to a DVD player via the projector’s HDMI input and the projected picture displays wrong colors, please change the color space.

To do this:

Press MENU/EXIT and then press ◄/► until the SOURCE menu is highlighted.

Press ▼ to highlight Color Space Conversion and press ◄/► to select the setting.

This function is only available when the HDMI input socket is in use.

Page 31

Operation

Selecting the aspect ratio

The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and computers are in 4:3 ratio, and digital TV and DVDs are usually in 16:9 ratio. 16:6 aspect ratio and is aligned with the upper edge of the display region (available in SU754+).

With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input signal.

To change the projected image ratio (no matter what aspect the source is):

• Using the remote control

1. Press Aspect to show the current setting.

2. Press Aspect repeatedly to select an aspect ratio to suit the format of the video signal and your display requirements.

• Using the OSD menu

Press MENU/EXIT and then press ◄/► until the Display menu is highlighted.

Press ▼ to highlight Aspect Ratio.

Press ◄/► to select an aspect ratio to suit the format of the video signal and your display requirements.

Page 32

Operation

15:9 picture

16:9 picture

16:10 picture

Projector Ceiling

16:6

Projector Table To p

16:6

About the aspect ratio

In the pictures below, the black portions are inactive areas and the white portions are active

areas. OSD menus can be displayed on those unused black areas.

1. Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio.

2. Real: The image is projected as its original resolution, and resized to fit within the display area. For input signals with lower resolutions, the projected image will display smaller than if resized to full screen. You could adjust the zoom setting or move the projector away from the

3. 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 images aspect DVD movies, as it displays them without aspect alteration.

4:3 picture

4. 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

screen to increase the image size if necessary. You may also need to refocus the projector after making these adjustments.

5. 16:10: Scales an image so that it is displayed in the center of the screen

4:3 picture

with a 16:10 aspect ratio. This is most suitable for images which are already in a 16:10 aspect, as it displays them without aspect alteration.

6. 16:6: Scales an image so that it is displayed on the top of the screen when mounted, and at the bottom of the screen when placed on table.

Projector

Page 33

Operation

Optimizing the image

Using Wall Color

In the situation where you are projecting onto a colored surface such as a painted wall which may not be white, the Wall Color feature can help correct the projected picture’s color to prevent possible color difference between the source and projected pictures.

To use this function, go to the color which is the closest to the color of the projection surface. There are several precalibrated colors to choose from: Light Yellow, Pink, Light Green, Blue, and

Blackboard.

Selecting a picture mode

The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type.

To select an operation mode that suits your need, you can follow one of the following steps.

• Press MODE/ENTER on the projector repeatedly until your desired mode is selected.

•

Go to the Picture > Picture Mode menu and press ◄/► to select a desired mode.

1. Bright mode: Maximizes the brightness of the projected image. This mode is

suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.

2. Presentation mode: Is designed for presentation. The brightness is emphasized in

this mode to match PC and notebook coloring..

3. sRGB mode: Maximizes the purity of RGB colors to provide true-to-life images

regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.

4. Vivid mode: This is suitable for displaying colorful video and pictures with well-

balanced color saturation and high color brightness.

5. 3D mode: Is appropriate for playing 3D images and 3D video clips.

6. Infographic: Is perfect for presentations with the mixture of text and graphics due

to its high color brightness and better color gradation to see the details clearly.

7. User mode: Recalls the settings customized based on the current available picture

modes. See "Setting the User mode" on page 37 for details.

Display > Wall Color

menu and press ◄/► to select a

Page 34

Operation

Setting the User mode

There is user-definable mode if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the customize the settings.

1. Press MENU/EXIT to open the On-Screen Display (OSD) menu.

2. Go to the Picture > Picture Mode menu.

Press ◄/► to select User.

Press ▼ to highlight Reference Mode.

This function is only available when User mode is selected up in the Picture Mode sub-menu

item.

Press ◄/► to select a picture mode that is closest to your need.

Press ▼ to select a sub-menu item to be changed and adjust the value with ◄/►. See "Fine-tuning the image quality in user modes" below for details.

User

) as a starting point and

Fine-tuning the image quality in user modes

According to the detected signal type, and selected picture mode, some of the functions listed below may not be available. Base on your need, you can make adjustments to these functions by highlighting them and press ◄/► on the projector or remote control.

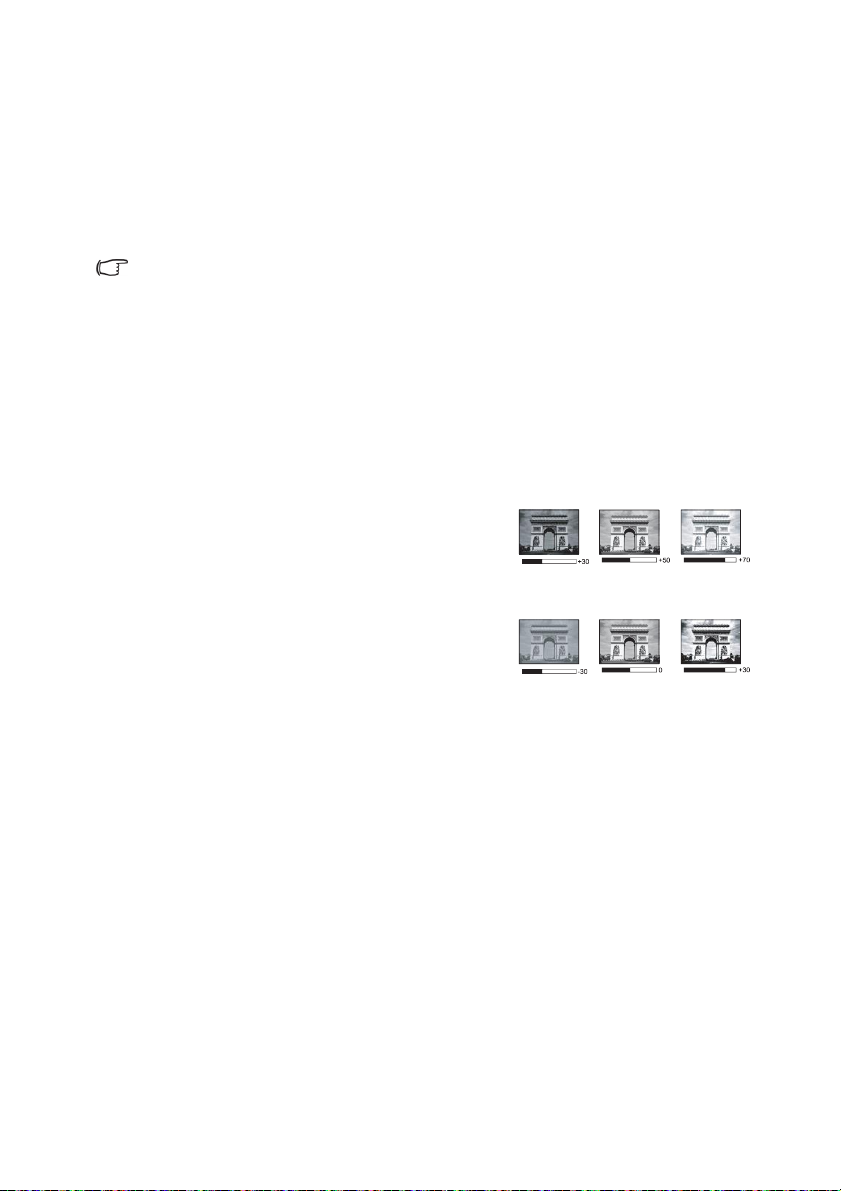

Adjusting Brightness

The higher the value, the brighter the image. And lower the setting, darker the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.

Adjusting Contrast

The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

Adjusting Color

Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

Adjusting Tint

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

Adjusting Sharpness

The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

Adjusting Brilliant Color

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select On. If you don’t need it, select Off.

When Off is selected, the Color Temperature function is not available.

Page 35

Operation

Selecting a Color Temperature

The options available for color temperature* settings vary according to the signal type selected.

1. Cooler: makes the image appear bluish white.

2. Normal: Maintains normal colorings for white.

3. Warm: Makes images appear reddish white.

*About color temperatures:

There are many different shades that are considered to be "white" for various purposes. One of the common methods of representing white color is known as the “color temperature”. A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it.

Setting a preferred color temperature

To set a preferred color temperature:

1. Highlight Color Temperature and select Warm, Normal or Cool by pressing

◄/► on the projector or remote control.

Press ▼ to highlight Color Temperature Fine Tuning and press MODE/ ENTER. The Color Temperature Fine Tuning page appears.

Press ▲/▼ to highlight the item you want to change and adjust the values by pressing ◄/►.

• R Gain/G Gain/B Gain: Adjusts the contrast levels of Red, Green, and Blue.

• R Offset/G Offset/B Offset: Adjusts the brightness levels of Red, Green, and Blue.

4. Press MENU/EXIT to exit and save the settings.

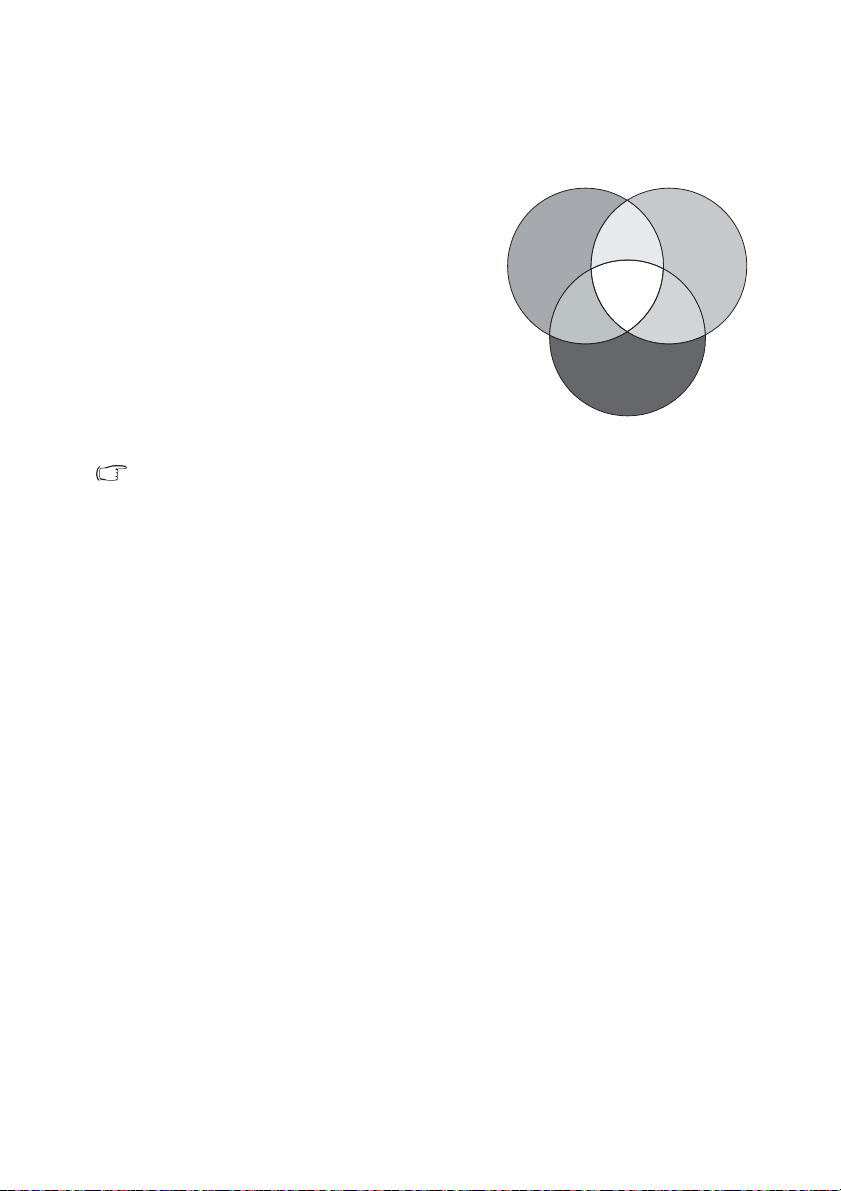

3D Color Management

In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room.

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

Proper color management can only be achieved under controlled and reproducible viewing conditions. You will need to use a colorimeter (color light meter), and provide a set of suitable source images to measure color reproduction. These tools are not provided with the projector, however, your projector supplier should be able to provide you with suitable guidance, or even an experienced professional installer.

The Color Management provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its range and saturation according to your preference.

If you have purchased a test disc which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc. You can project any image from the disc on the screen and enter the 3D Color Management menu to make adjustments.

To adjust the settings:

1. Go to the Picture menu and highlight 3D Color Management.

Page 36

Operation

RED

Yellow

GREEN

Magenta

Cyan

BLUE

2. Press MODE/ENTER and the 3D Color Management page displays.

Highlight Primary color and press ◄/► to select a color from among Red, Green, Blue, Cyan, Magenta and Yellow.

Press ▼ to highlight Hue and press ◄/► to select its range. Increase in the range will include colors consisted of more proportions of its two adjacent colors.

Please refer to the illustration to the right for how the colors relate to each other. For example, if you select Red and set its range at 0, only pure red in the projected picture will be selected. Increasing its range will include red close to yellow and red close to magenta.

5. Press ▼ to highlight Saturation and adjust

its values to your preference by pressing ◄/

►

. Every adjustment made will reflect to the image immediately. For example, if you select Red and set its value at 0, only the saturation of pure red will be affected.

Saturation is the amount of that color in a video picture. Lower settings produce less saturated

colors; a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.

Press ▼ to highlight Gain and adjust its values to your preference by pressing ◄/►. The contrast level of the primary color you select will be affected. Every adjustment made will reflect to the image immediately.

7. Repeat steps 3 to 6 for other color adjustments.

8. Make sure you have made all of the desired adjustments.

9. Press MENU/EXIT to exit and save the settings.

Resetting current or all picture modes

1. Go to the Picture menu and highlight Reset Picture Settings.

Press MODE/ENTER and press ▲/▼ to select Current or All.

• Current: returns current picture mode to the factory preset settings.

• All: returns all settings, except User in the Picture menu to the factory preset

settings.

Page 37

Operation

Selection

Description

Always

Displays the timer on screen throughout the presentation time.

3 min/2 min/1 min

Displays the timer on screen in the last 3/2/1 minute(s).

Never

Hides the timer throughout the presentation time.

Selection

Description

Count Up

Increases from 0 to the preset time.

Count Down

Decreases from the preset time to 0.

Setting the presentation timer

Presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations. Follow these steps to utilize this function:

1. Go to the System Setup: Basic > Presentation Timer menu and press MODE/ ENTER to display the Presentation Timer page.

2. Highlight Timer Period and decide the time period by pressing ◄/►. The length of time can be set from 1 to 5 minutes in 1-minute increments and 5 to 240 minutes in 5-minute increments.

If the timer is already on, the timer will restart whenever the Timer Period is reset.

Press ▼ to highlight Timer Display and choose if you want the timer to show up on the screen by pressing ◄/►.

Press ▼ to highlight Timer Position and set the timer position by pressing ◄/►.

Press ▼ to highlight Timer Counting Direction and select your desired counting direction by pressing ◄/►.

6. Press ▼ to highlight Sound Reminder and decide if you want to activate sound reminder by pressing ◄/►. If you select On, a double beep sound will be heard at the last 30 seconds of counting down/up, and a triple beep sound will be produced when the timer is up.

7. To activate the presentation timer, press ▼ and press ◄/► to highlight press MODE/ENTER.

8. A confirmation message appears. Highlight Yes and press MODE/ENTER on the projector or remote control to confirm. You will see the message “Timer is On” appearing on the screen. The timer starts counting when the timer is on.

To cancel the timer, perform the following steps:

1. Go to the System Setup: Basic > Presentation Timer menu and highlight Off. Press MODE/ENTER. A confirmation message appears.

2. Highlight Yes and press MODE/ENTER to confirm. You will see the message “Timer is Off ” appearing on the screen.

and

Page 38

Operation

Remote paging operations

Connect the projector to your PC or notebook with a USB cable prior to using the paging function. See "Connection" on page 22 for details.

You can operate your display software program (on a connected PC) which responds to page up/down commands (like Microsoft PowerPoint) by pressing remote control.

If remote paging function doesn't work, check if the USB connection is correctly made and the mouse driver on your computer is updated to the latest version.

The remote paging function cannot work with Microsoft

Windows

XP or higher operating systems are recommended.

Freezing the image

Press FREEZE on the remote control to freeze the image. The word 'FREEZE' will appear on the screen. To release the function, press any key on the projector or remote control.

If your remote control has the following keys, please note that they cannot be pressed to

release the function: LASER, #2, #5, PAGE +/PAGE -.

Even if an image is frozen on the screen, the pictures are running on the video or other device. If the connected devices have active audio output, you will still hear the audio even though the image is frozen on screen.

Hiding the image

In order to draw the audience's full attention to the presenter, you can use ECO BLANK on the projector or ECO BLANK on the remote control to hide the screen image. When the function is activated with an audio input connected, the audio can still heard.

You can set the blank time in the System Setup: Basic > Operating Settings >

Blank Timer menu to let the projector return the image automatically after a period of

time when there is no action taken on the blank screen. The length of time can be set from 5 to 30 minutes in 5-minute increments.

If the preset time spans are not suitable for your presentation, select Disable.

No matter Blank Timer is activated or disabled, you can press most of the keys on the projector or remote control to restore the picture.

• Do not block the projection lens from projecting as this could cause the blocking object to

become heated and deformed or even cause a fire.

Windows

PAGE +/PAGE -

98 operating system.

on the

Page 39

Operation

INPUT SOURCE

AUDIO IN

AUDIO OUT

mini jack

HDMI-1, HDMI-2/MHL

HDMI

mini jack

VIDEO

RCA

mini jack

Locking control keys

With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the Panel Key Lock is

on, no control keys on the projector will operate except POWER.

1. Go to the System Setup: Basic > Panel Key Lock menu, and select On by pressing ◄/► on the projector or remote control. A confirmation message appears.

2. Highlight Yes and press MODE/ENTER to confirm.

To release panel key lock, use the remote control to enter the Panel Key Lock menu and press ◄/► to select Off.

• Keys on the remote control are still active when panel key lock is enabled.

• If you press POWER to turn off the projector without disabling panel key lock, the

projector will still be in locked status the next time it is turned on.

Operating in a high altitude environment

We recommend you use the High Altitude Mode when your environment is between 1500 m –3000 m above sea level, and temperature is between 0°C–30°C.

Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and temperature is between 0°C and 35°C. The projector will be over cooled, if you turn the mode on under such a condition.

To activate the High Altitude Mode:

Press MENU/EXIT and then press ◄/► until the System Setup: Advanced menu is highlighted.

Press ▼ to highlight High Altitude Mode and press ◄/► to select On. A confirmation message displays.

3. Highlight Yes and press MODE/ENTER.

Operation under "High Altitude Mode" may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.

If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from overheating. In cases like this, you should switch to High Altitude mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.

System Setup: Basic >

Adjusting the sound

The sound adjustments made as below will have an effect on the projector speakers. Be sure you have made a correct connection to the projector audio input. See "Connection"

on page 22 for how the audio input is connected.

Page 40

Operation

Muting the sound

To temporarily turn off the sound,

• Using the remote control

Press MUTE to temporarily turn off the sound. While the sound is off, the screen will

display

in the upper right corner of the screen.

To restore the sound, press MUTE again.

• Using the OSD menu

Press MENU/EXIT and then press ◄/► until the System Setup: Advanced menu is highlighted.

Press ▼ to highlight Audio Settings and press MODE/ENTER. The Audio Settings page displays.

Highlight Mute and press ◄/► to select On.

4. To restore the sound, repeat steps 1-3 and press ◄/► to select

Off.

Adjusting the sound level

To adjust the sound level,

• Using the remote control

Press

or to select a desired sound level.

• Using the OSD menu

1. Repeat steps 1-2 above.

Press ▼ to highlight Volume and press ◄/► to select a desired sound level.

Microphone Volume

To adjust the microphone sound level, press MIC/VOL keys (+/-) on the remote control, or:

1. Repeat steps 1-2 above.

Press ▼ to highlight Microphone Volume and press ◄/► to select a desired sound level.

Turning off the Power on/off ring tone

1. Repeat steps 1-2 above.

Press ▼ to highlight Power on/off ring tone and press ◄/► to select Off.

The only way to change Power on/off ring tone is setting On or Off here. Setting the sound mute or changing the sound level will not affect the Power on/off ring tone.

Using the test pattern

The projector is capable of displaying the grid test pattern. It can be used to assist you with the adjustment of image size and focus, ensuring that the projected image is free from distortion.

To display the test pattern, open the OSD menu and go to the System Setup: Advanced > Test Pattern and press ◄/► to select On.

Page 41

Operation

Using the quick install

The projector provides a hot key to set Projector Installation, Test Pattern, and Keystone quickly.

Press Quick Install on the remote control and press ▲/▼ to select:

•

Projector Installation: See "Positioning your projector" on page 18.

•

Test Pattern: See "Using the test pattern" on page 43.

•

Keystone: See "Correcting 2D Keystone" on page 27.

Controlling the projector through a Wired LAN environment

Wired LAN allows you to manage the projector from a computer using a web browser when the computer and the projector are properly connected to the same local area network.

Configuring the Wired LAN

If you are in a DHCP environment:

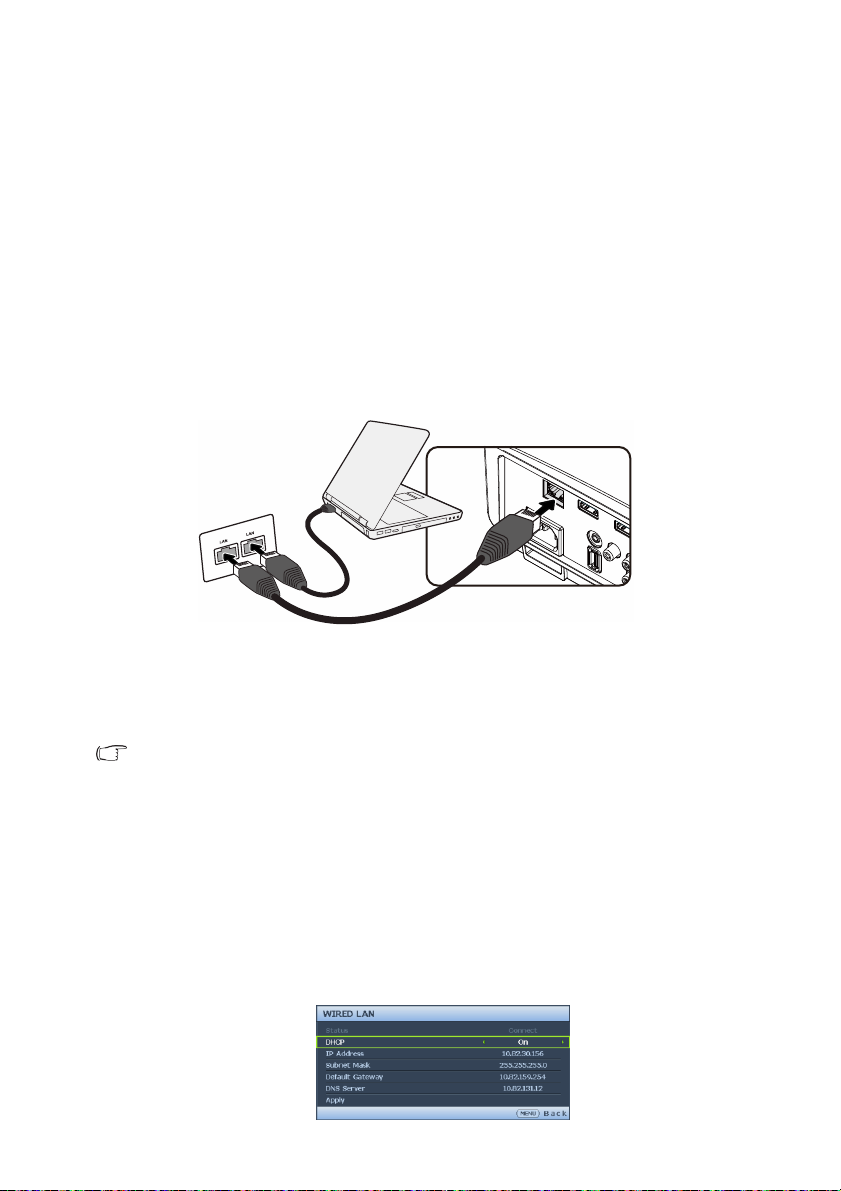

Take a RJ45 cable and connect one end to the RJ45 LAN input jack of the projector and the other end to the RJ45 port.

When connecting the RJ45 cable, avoid coiling and intertwining the cable as it may cause signal noise or interruption.

Press MENU/EXIT and then press ◄/► until the System Setup: Advanced

menu is highlighted.

Press ▼ to highlight Network Settings and press MODE/ENTER. The

Network Settings page is displayed.

Press ▼ to highlight Wired LAN and press MODE/ENTER. The Wired LAN page is displayed.

Press ▼ to highlight DHCP and press ◄/► to select On.

Please wait for around 15 - 20 seconds, and then re-enter the Wired LAN page.

The IP Address, Subnet Mask, Default Gateway, and DNS Server settings will be displayed. Note down the IP address displayed in the IP Address row.

Page 42

Operation

If the IP Address still does not display, contact your ITS administrator.

Go back to System Setup: Advanced > Network Settings page.

Press ▼ to highlight AMX Device Discovery and press ◄/► to select On or Off. When AMX Device Discovery is On, the projector can be detected by AMX controller.

If you are in a non-DHCP environment:

Repeat steps 1-4 above.

Press ▼ to highlight DHCP and press ◄/► to select Off.

Contact your ITS administrator for information on the IP Address, Subnet Mask, Default Gateway, and DNS Server settings.

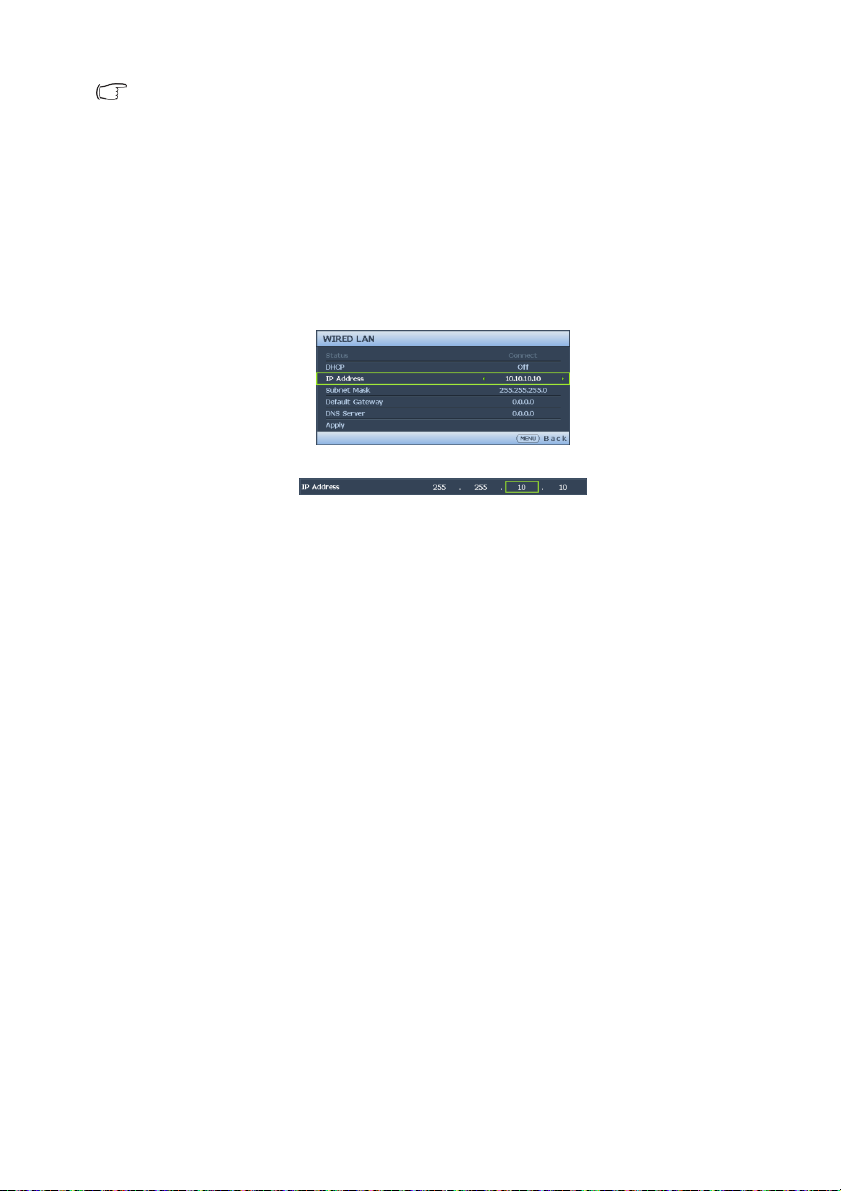

Press ▼ to select the item you want to modify and press MODE/ENTER.

Press ◄/► to move the cursor and then press ▲/▼ to enter the value.

To save the setting, press

MODE/ENTER

. If you do not want to save the setting,

press MENU/EXIT.

Press ▼ to highlight Apply and press MODE/ENTER.

Press MENU/EXIT to return to Network Settings page, press ▼ to highlight AMX Device Discovery and press ◄/► to select On or Off.

Press MENU/EXIT to exit the menu.

Page 43

Operation

Controlling the projector remotely through a web

To switch input source, click on your desired signal.

The source list varies according to the connectors available on the projector. ''Video'' stands for the Video signal.

Menu Auto PC Blank Input

▲ ( ) ▼ ( )

◄ ( ) ►

( )

See

"Remote Control" on page 12

for details.

Activates the selected On-Screen Display (OSD) menu item.

browser

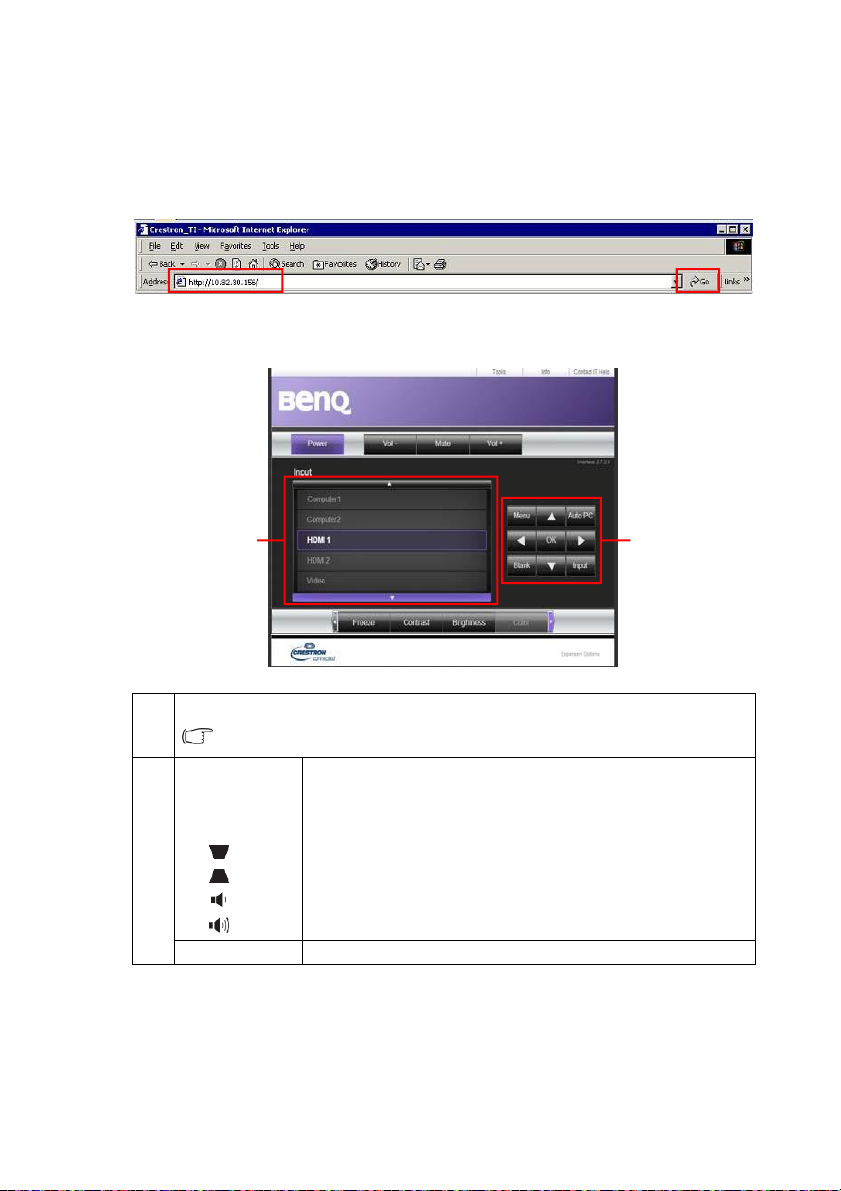

Once you have the correct IP address for the projector and the projector is on or in standby mode, you can use any computer that is on the same local area network to control the projector.

Enter the address of the projector in the address bar of your browser and click Go.

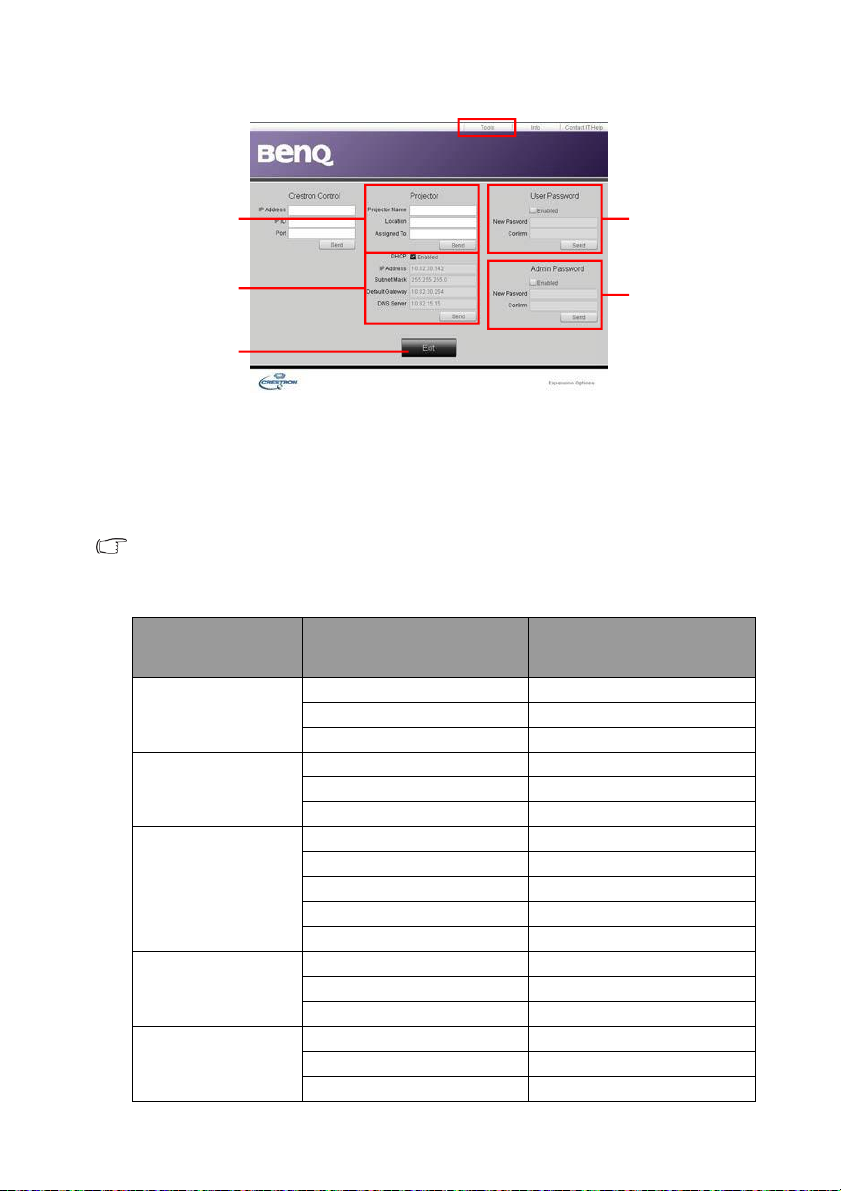

The remote network operation page opens. This page (Crestron eControl) allows you to operate the projector as if you were using the remote control or control panel on the projector.

Page 44

Operation

The tools page allows you to manage the projector, configure the LAN control settings and

Category item

Input length

Maximum number of

characters

Crestron Control

IP Address

IP ID 4

Port 5

Projector

Projector Name

Location

Assigned To

(N/A)

Network

Configuration

DHCP (Enabled)

IP Address

Subnet Mask

Default Gateway

DNS Server

(N/A)

User Password

Enabled

(N/A)

New Password

Confirm

Admin Password

Enabled

(N/A)

New Password

Confirm

secure access of remote network operation on this projector.

You can name the projector, keep track of its location and the person in charge of it.

You can adjust the LAN Control Settings.

Once set, access to the remote network operation on this projector has been

password protected.

Once set, access to the tools page has been password-protected.

Press Exit to go back to the remote network operation page.

After making the adjustments, press the Send button and the data will be saved in the projector.

Please pay attention to the limitation of input length (including space and other punctuation keys) in the list blow:

Page 45

Operation

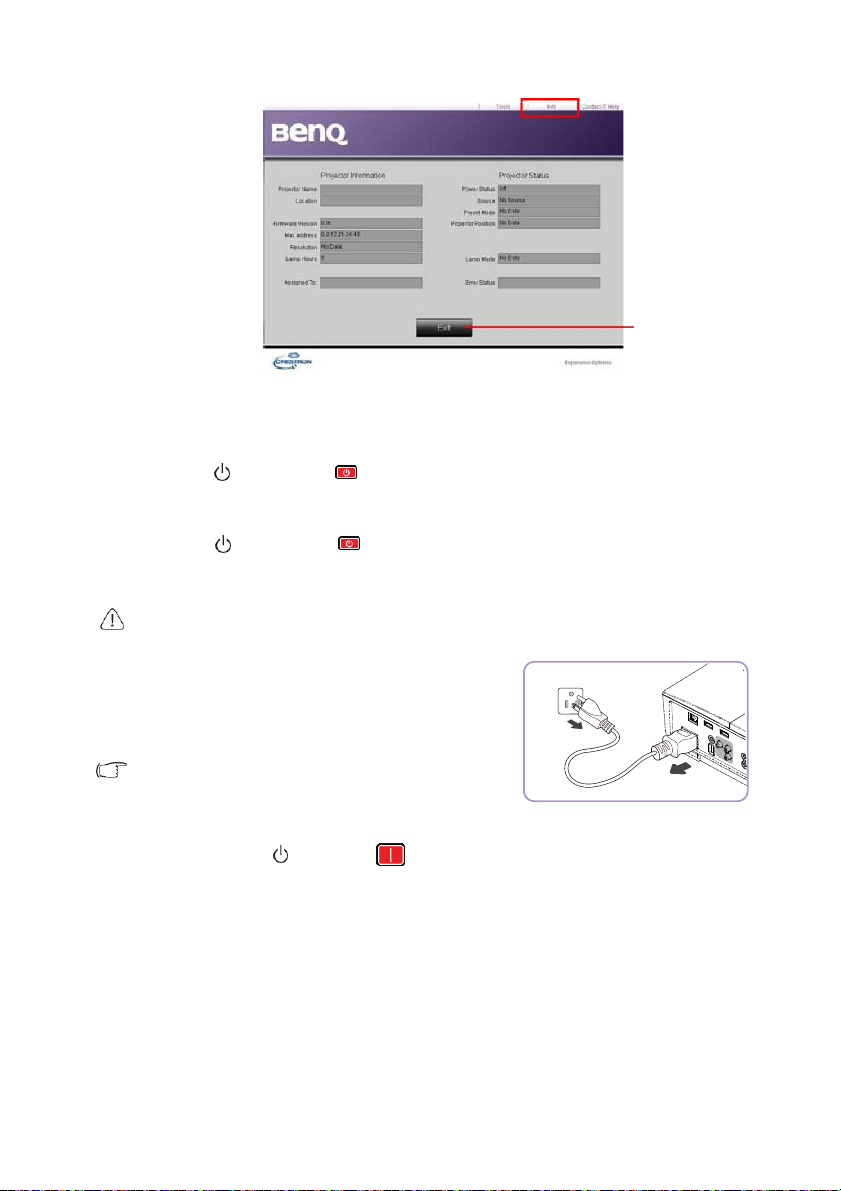

The info page displays the information and status of this projector.

Press Exit to go back to the remote network operation page.

For more information, visit http://www.crestron.com & www.crestron.com/getroomview.

Shutting down the projector

Press you. If you don't respond in a few seconds, the message will disappear.

Press flashes orange, the projection lamp shuts down, and the fans will continue to run for approximately 90 seconds to cool down the projector.

To protect the lamp, the projector will not respond to any commands during the cooling process.

Once the cooling process finishes, a "Power Off

Ring Tone" will be heard. The POWER indicator light is a steady orange and fans stop.

Disconnect the power cord from the power outlet.

•

To turn off the power ring tone, see "Turning off the

Power on/off ring tone" on page 43 for details.

•

If the projector is not properly shut down, to protect the lamp, when you attempt to re-start the projector, the fans will run for a few minutes to

cool down. Press POWER or ON again to start the projector after the fans stop and the POWER indicator light turns orange.

•

Lamp life results will vary depending on environmental conditions and usage.

POWER or OFF and a confirmation message will appear prompting

POWER or OFF a second time. The POWER indicator light

Page 46

Menu operation

Main menu

Sub-menu

Options

1. Display

Wall clolr

Off/Light Yellow/Pink/Light Green/ Blue/Blackboard

Aspect Ratio

Auto/Real/4:3/16:9/16:10

2D Keystone

Corner Fit

Top Left/Top Right/Bottom Left/ Bottom Right

Position

Phase

H.Size

Digital Zoom

PC: 1.0X~2.0X Video: 1.0X~1.8X

3D mode

Auto/Off/Frame Sequential/Frame Packing/Top Bottom/Side by Side

3D Sync Invert

Disable/Invert

Save 3D Setting

3D Settings 1/3D Settings 2/3D Settings 3

Apply 3D Setting

3D Settings 1/3D Settings 2/3D Settings 3/Off

2. Picture

Picture Mode

Bright/Presentation/sRGB/Vivid/ 3D/Infographic/User

Reference Mode

Bright/Presentation/sRGB/Vivid/ 3D/Infographic

Brightness

Contrast

Color

Tint

Sharpness

Brilliant Color

On/Off

Color Temperature

Cool/Normal/Warm

Color Temperature Fine Tuning

R Gain/G Gain/B Gain/ R Offset/G Offset/B Offset

3D Color Management Primary Color

R/G/B/C/M/Y

Hue

Saturation

Gain

Reset picture settings

Current/All/Cancel

Operation

Menu system

Please note that the on-screen display (OSD) menus vary according to the signal type selected.

Page 47

3. Source

Quick Auto Search

On/Off

HDMI Range

Auto/Full/Limited

Color Space Conversion

Auto/RGB/YUV

4. System

Setup: Basic

Presentation Timer

Timer Period

1~240 min

Timer Display

Always/1 min/2 mins/3 mins/Never

Timer Position

Top Left/Bottom Left/Top Right/ Bottom Right

Timer Counting Direction

Count Down/Count up

Sound Reminder

On/Off

Yes/No

Off

Yes/No

Language

Projector Installation

Front Table/Rear Table/Rear Celling/Front Ceiling

Menu Setting

Menu Display Time

5 sec/10 sec/20 sec/30 sec/Always

Menu Position

Center/Top Left/Top Right/Bottom Right/Bottom Left

Reminder Message

On/Off

Operation Setting

Direct Power On

On/Off

Signal Power On

Computer: On/Off

Auto Power Off

Disable/3 mins/10 mins/15 mins/ 20 mins/25 mins/30 mins

Instant Restart

On/Off

Blank Timer

Disable/5 mins/10 mins/15 mins/ 20 mins/25 mins/30 mins

Sleep Timer

Disable/30 mins/1 hr/2 hrs/3hrs/ 4hrs/8 hrs/12hrs

Remote Receiver

Front+Rear/Front/Rear

Panel Key Lock

On/Off

Yes/No

Background Color

BenQ/Black/Blue/Purple

Splash Screen

BenQ/Black/Blue

Operation

Page 48

5. System

Setup: Advanced

High Altitude Mode

On/Off

Yes/No

Audio Settings

Mute

On/Off

Volume

Microphone Volume

Power On/Off Ring Tone

On/Off

Lamp Settings

Lamp Mode

Normal/Economic/SmartEco

Reset Lamp Timer

Reset/Cancel

Lamp Timer

Lamp Usage Time/ Equivalent Lamp Hour

Security Setting

Change Password

Change Security Settings

Power On Lock

On/Off

Baud Rate

2400/4800/9600/14400/19200/ 38400/57600/1152000

HDMI Equalizer

HDMI-1: Auto/lower/low/middle/ high/higher HDMI-2/MHL or HDMI-2: Auto/ lower/low/middle/high/higher

Test Pattern

On/Off

Closed Caption

Closed Caption Enable

On/Off

Caption Version

CC1/CC2/CC3/CC4

12V Trigger

On/Off

Standby Settings

Network

Enable network standby mode/ Switch to normal standby mode

Microphone

On/Off

Monitor Out

On/Off

Audio Pass Through

Off/Audio In/Audio L/R/HDMI/ HDMI/MHL

Network settings

Wired LAN

Status/DHCP/IP Address/Subnet Mask/Default Gateway/DNS Server/Apply

AMX Device Discovery

On/Off

MAC Address

Reset All Settings

Reset / Cancel

6. Information

Current System Status

Source Picture Mode Lamp Mode Resolution 3D Format Color System Lamp Usage Time Firmware Version

Operation

Note that the menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.

Page 49

Operation

FUNCTION

DESCRIPTION

1. Display menu

Wall color

Corrects the projected picture’s color when the projection surface is not white. See "Using Wall Color" on page 36 for details.

Aspect Ratio

There are several options to set the image's aspect ratio depending on your input signal source. See "Selecting the aspect ratio" on page

34 for details.

2D Keystone

Adjusts the shape of the projected image to ensure straight lines on all four corners. See "Correcting 2D Keystone" on page 27 for details.

Corner Fit

Adjusts the shape of the projected image to ensure a specific corner is straight. See "Correcting Corner Fit" on page 28 for details.

Position

Displays the position adjustment page. To move the projected image, use the directional arrow keys. The values shown on the lower position of the page change with every key press you made until they reach their maximum or minimum.

This function is only available when a PC signal (analog RGB) is selected.

Phase

Adjusts the clock phase to reduce image distortion. This function is only available when a PC signal (analog RGB) is selected.

H.Size

Adjusts the horizontal width of the image. This function is only available when a PC signal (analog RGB) is selected.

Digital Zoom

Digital Zoom adjust function with zoom bar displays

• PC: 1.0X~2.0X,

• Video: 1.0X~1.8X

Description of each menu

Page 50

1. Display menu

FUNCTION

DESCRIPTION

This projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view the 3D images.

3D Mode

The default setting is Auto and the projector automatically chooses an appropriate 3D format when detecting 3D contents. If the projector cannot recognize the 3D format, press ◄/► to choose a 3D mode.

When the 3D function is on:

• The brightness level of the projected image will decrease.

• The following settings cannot be adjusted: Picture Mode,

Reference Mode.

• The Keystone can only be adjusted within limited degrees.

3D Sync Invert

When you discover the inversion of the image depth, enable this function to correct the problem.

Save 3D Settings

When you have successfully displayed the 3D contents after making the appropriate adjustments, you can enable this function and choose a set of 3D settings to memorize current 3D settings.

Apply 3D Settings

After the 3D settings are saved, you can decide if you would like to apply them by choosing a set of 3D settings that you have saved. Once applied, the projector will automatically play the incoming 3D contents if it matches the 3D settings saved.

Only the set(s) of 3D settings with memorized data is available.

Operation

Page 51

FUNCTION

DESCRIPTION

2. Picture menu

Picture Mode

Pre-defined picture modes are provided so you can optimize your projector image set-up to suit your program type. See "Selecting a

picture mode" on page 36 for details.

Reference Mode

Selects a picture mode that most suits your need for the image quality and further fine-tune the image based on the selections listed on the same page below. See "Setting the User mode" on page 37 for details.

Brightness

Adjusts the brightness of the image. See "Adjusting Brightness" on

page 37 for details.

Contrast

Adjusts the degree of difference between dark and light in the image. See "Adjusting Contrast" on page 37 for details.

Color

Adjusts the color saturation level -- the amount of each color in a video image. See "Adjusting Color" on page 37 for details.

The function is only available when Video with NTSC system is selected.

Tint

Adjusts the red and green color tones of the image. See "Adjusting

Tint" on page 37 for details.

The function is only available when Video with NTSC system is selected.

Sharpness

Adjusts the image to make it look sharper or softer. See "Adjusting

Sharpness" on page 37 for details.

The function is only available when Video with NTSC system is selected.

Brilliant Color

Adjusts white peaking while maintaining correct color presentation. See "Adjusting Brilliant Color" on page 37 for details.

Color Temperature

See "Selecting a Color Temperature" on page 38 for details.

Color Temperature Fine Tuning

See "Setting a preferred color temperature" on page 38 for details.

3D Color Management

See "3D Color Management" on page 38 for details.

Reset picture settings

See "Resetting current or all picture modes" on page 39 for details.

Operation

Page 52

FUNCTION

DESCRIPTION

3. Source menu

Quick Auto Search

See "Switching input signal" on page 33 for details.

HDMI Range

Selects an input source type for the HDMI signal. Auto is the default and recommended setting. You can also manually select the source type. The different source types carry different standards for the brightness level.

This function is only available when the HDMI signal is selected.

Color Space Conversion

See "Changing Color Space" on page 33 for details.

4. System Setup: Basic menu

Presentation Timer

Reminds the presenter to finish the presentation within a certain time frame. See "Setting the presentation timer" on page 40 for details.

Language

Sets the language for the On-Screen Display (OSD) menus. See "Using the menus" on page 29 for details.

Projector Installation

The projector can be installed on a ceiling or behind a screen, or with one or more mirrors. See "Choosing a location" on page 18 for details.

Menu Setting

Menu Display Time

Sets the length of time the OSD will remain active after your last key press. The range is from 5 to 30 seconds in 5-second increments.

Menu Position

Sets the On-Screen Display (OSD) menu position.

Reminder Message

Selecting On allows the projector to remind you to clean the filter.

Operation

Page 53

FUNCTION

DESCRIPTION

4. System Setup: Basic menu

Operation Setting

Direct Power On

Powers projector on automatically when the power cable is connected.

Signal Power On

Sets whether to turn the projector directly on without pressing POWER or ON when the projector is in standby mode and the signal is feed through the VGA cable.

Auto Power Off

Allows the projector to turn off automatically if no input signal is detected after a set period of time. See "Setting Auto Power Off" on

page 64 for details.

Instant Restart

Selecting On enables you to restart the projector immediately within 90 seconds after turning it off.

Blank Timer

Sets the image blank time when the Blank feature is activated, once elapsed the image will return to the screen. See "Hiding the image"

on page 41 for details.

Sleep Timer

Sets the auto-shutdown timer. The timer can be set to a value between 30 minutes and 12 hours.

Remote Receiver

Sets the preferred remote receiver (Front and Rear) allowing the projector to accept signals from the remote control.

Panel Key Lock

Disables or enables all panel key functions except POWER on the projector and keys on the remote control. See "Locking control

keys" on page 42 for details.

Background Color

Selects background appearance when there is no signal.

Splash Screen

Allows you to select which logo screen will appear during projector start-up

Operation

Page 54

FUNCTION

DESCRIPTION

5. System Setup: Advanced menu

High Altitude Mode

A mode for operation in high altitude areas. See "Operating in a high

altitude environment" on page 42 for details.

Audio Settings

See "Adjusting the sound" on page 42 for details.

Mute

Sets the mute function.

Volume

Adjusts the audio volume level.

Microphone volume

Adjusts the microphone sound level.

Power on/off Ring Tone

Sets the power on/off ring tone.

Lamp Settings

Lamp Mode

See "Setting Lamp mode as Economic or SmartEco" on page 63 for details.

Reset lamp timer

See "Resetting the lamp timer" on page 68 for details.

Lamp Timer

See "Getting to know the lamp hour" on page 63 for details on how

the total lamp hour is calculated.

Security Setting

Change Password

You will be asked to enter the current password before changing to a new one. See "Utilizing the password function" on page 30 for details.

Change Security Settings Power On Lock

When Power On Lock is activated, you will be asked to enter the current password before powering on the projector.

If you enter incorrect password 5 times in succession, the projector will automatically shut down in a short time.

Baud Rate

Selects a baud rate that is identical with your computer’s so that you can connect the projector using a suitable RS-232 cable and update or download the projector’s firmware. This function is intended for qualified service personnel.

HDMI Equalizer

Select HDMI equalizer value.

Test Pattern

Selecting On enables the function and the projector displays the grid test pattern. It helps you adjust the image size and focus and check that the projected image is free from distortion.

Operation

Page 55

FUNCTION

DESCRIPTION

5. System Setup: Advanced menu

Closed Caption

Closed Caption Enable

Activates the function by selecting On when the selected input signal carries closed captions.

• Captions: An on-screen display of the dialogue, narration, and sound effects of TV programs and videos that are closed captioned (usually marked as "CC" in TV listings).

Caption Version

Selects a preferred closed captioning mode. To view captions, select CC1, CC2, CC3, or CC4 (CC1 displays captions in the primary language in your area).

12V Trigger

Enable or disable 12V trigger output. Used to trigger external device such as an electric screen or light control, etc. Consult your dealer for how to connect these devices.

Standby Settings

Network

• Enable Network Standby Mode Selecting On enables the function. The projector is able to provide the network function in standby mode. Selecting Off disables the function. The projector does not provide the network function in standby mode.

• Switch to normal standby mode Allows the projector to disable the network function after a set period of time after it enters standby mode. For instance, if 20 min is selected, the projector is able to provide the network function for 20 minutes after it enters standby mode. When 20 minutes is up, the projector enters normal standby mode.

This function is only available when Enable Network Standby Mode is On.

Microphone

Selecting On enables the function, and the microphone can be used even in standby mode.

Monitor Out

Selecting On enables the function. The projector can output a VGA signal when it is in standby mode and the PC jack is correctly connected to devices. See "Connection" on page 22 for how to make the connection.

Audio Pass Through

Press ◄/► to choose the source that you wish to use in operation mode. See "Connection" on page 22 for how to make the connection.

When the corresponding jacks are correctly connected to the device, the projector can output an audio signal to the external speaker when it is in standby mode. The built-in speaker(s) will be muted in standby mode.

Enabling this function slightly increases the standby power consumption.

Operation

Page 56

Operation

6. Information menu

FUNCTION

DESCRIPTION

5. System Setup: Advanced menu

Network settings

Wired LAN

See "Controlling the projector through a Wired LAN environment" on

page 44 for details.

AMX Device Discovery

When AMX Device Discovery is On, the projector can be detected by AMX controller.

MAC Address

Displays the MAC address for this projector.

Reset All Settings

Returns all settings to the factory preset values.

The following settings will still remain: Position, Phase, H. Size, Projector Installation, Language, High Altitude Mode, Security Settings, Baud Rate.

Current System Status

Source

Shows the current signal source.

Picture Mode

Shows the selected mode in the Picture menu.

Lamp Mode

Shows the current lamp mode.

Resolution

Shows the native resolution of the input signal.

3D Format

Shows the current 3D mode.

Color System

Shows input system format, NTSC, PAL, SECAM or RGB.

Lamp Usage Time

Displays the number of hours the lamp has been used.

Firmware Version

Displays the firmware version of the projector.

The Information menu shows you the current operating status of the projector.

Page 57

Maintenance

Care of the projector

Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean.

Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.

• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the projector surface and cabinet material.

Cleaning the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in "Shutting down the projector" on page 48 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.

• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please follow the instructions below:

• Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to "Specifications" on page 71 or consult your dealer about the range.

• Retract the adjuster feet.

• Remove the battery from the remote control.

• Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent. When you carry the projector yourself, please use the original box or a suitable soft carry case.

Page 58

Maintenance

Lamp mode Description

Lamp information

Getting to know the lamp hour

When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows:

Lamp Usage Time = (hours used in Normal mode) + (hours used in Economic mode) + (hours used in SmartEco mode)

Equivalent lamp hour = 1.8*(hours used in Normal mode) + 1.3*(hours used in Economic mode) + 1.00*(hours used in SmartEco mode)

See "Setting Lamp mode as Economic or SmartEco" below for more information on Economic

mode.

To obtain the lamp hour information:

Press MENU/EXIT and then press ◄/► until the SYSTEM SETUP: Advanced menu is highlighted.

Press ▼ to highlight Lamp Settings and press MODE/ENTER. The Lamp Settings page displays.

3. You will see the Lamp Timer information displaying on the menu.

4. To leave the menu, press

You can also get the lamp hour information on the INFORMATION menu.

Extending lamp life

The projection lamp is a consumable item. To keep the lamp life as long as possible, you can do the following settings via the OSD menu.

Setting Lamp mode as Economic or SmartEco

Using Economic mode reduces system noise and power consumption by 20%. Using SmartEco mode reduces system noise and lamp power consumption by up to 70%. If the Economic or SmartEco mode is selected, the light output will be reduced and result in

darker projected pictures.

Setting the projector in Economic or SmartEco mode also extends the lamp operation life. To set Lamp Settings > Lamp mode menu and press ◄/► until your desired mode is selected.

Economic

SmartEco

MENU/EXIT.

mode, go into the

SYSTEM SETUP: Advanced >

Normal 100% lamp brightness Economic Saves 20% lamp power consumption. SmartEco Save up to 30% lamp power consumption depending on the content

brightness level.

Page 59

Maintenance

Setting Auto Power Off

This function allows the projector to turn off automatically if no input source is detected after a set period of time to prevent unnecessary waste of lamp life.

To set

Auto Power Off

menu and press ◄/►. The time period can be set from 5 to 30 minutes in 5-minute increments. If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period.

, go into the

SYSTEM SETUP: Basic > Auto Power Off

Page 60

Maintenance

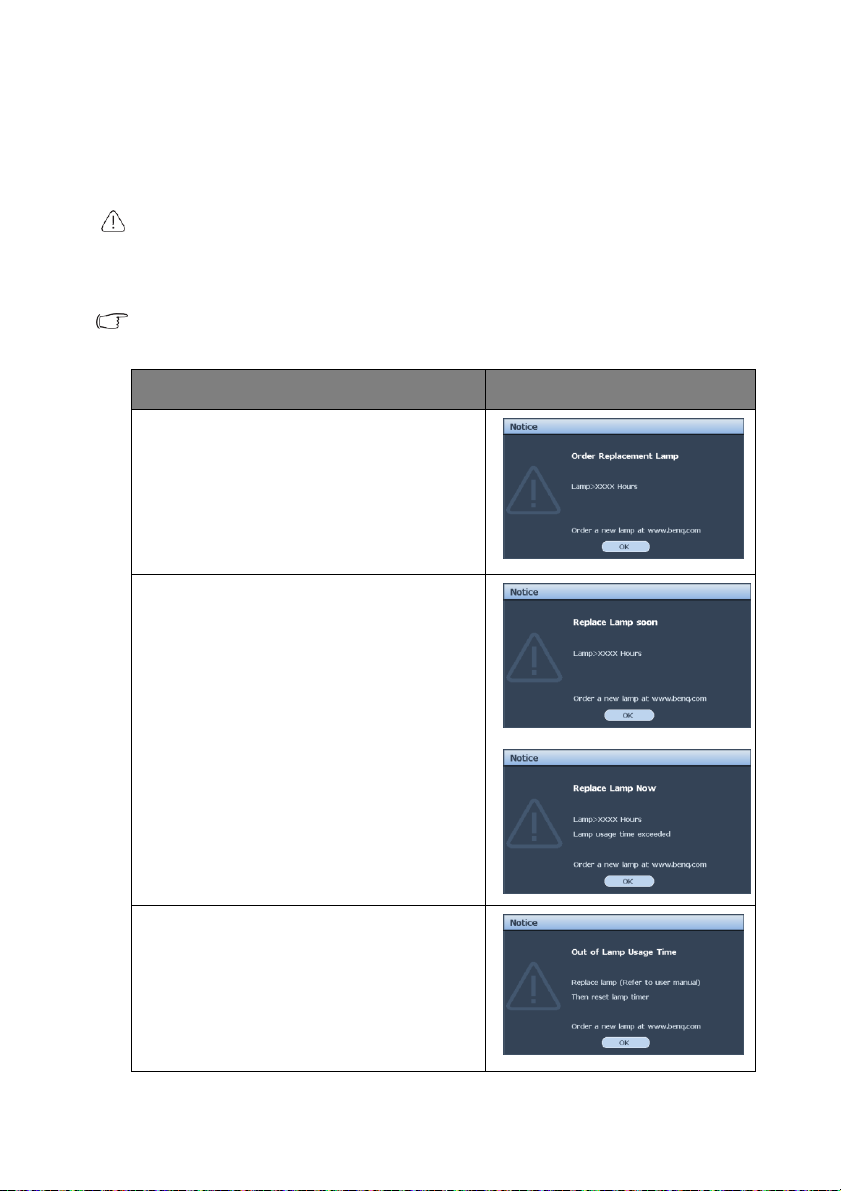

Status

Message

Install a new lamp for optimal performance. If the projector is normally run with Economic selected (See "Setting Lamp mode as Economic

or SmartEco" on page 63), you may continue to

operate the projector until the next lamp warning appears.

Press MODE/ENTER to dismiss the message.

It is strongly recommended that you replace the lamp at this age. The lamp is a consumable item. The lamp brightness diminishes with use. This is normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished.

Press MODE/ENTER to dismiss the message.

The lamp MUST be replaced before the projector will operate normally.

Press MODE/ENTER to dismiss the message.

Timing of replacing the lamp

When the Lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.

Go to http://www.benq.com for a replacement lamp.

The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. Turn the projector off and let the projector cool for 45 minutes. If the lamp or Temp indicator still lights up after turning the power back on, please contact your dealer. See

"Indicators" on page 69 for details.

The following lamp warning displays will remind you to change the lamp.

The warning messages below are for reference only. Please follow the actual on-screen

instructions to prepare and replace the lamp.

Page 61

Maintenance

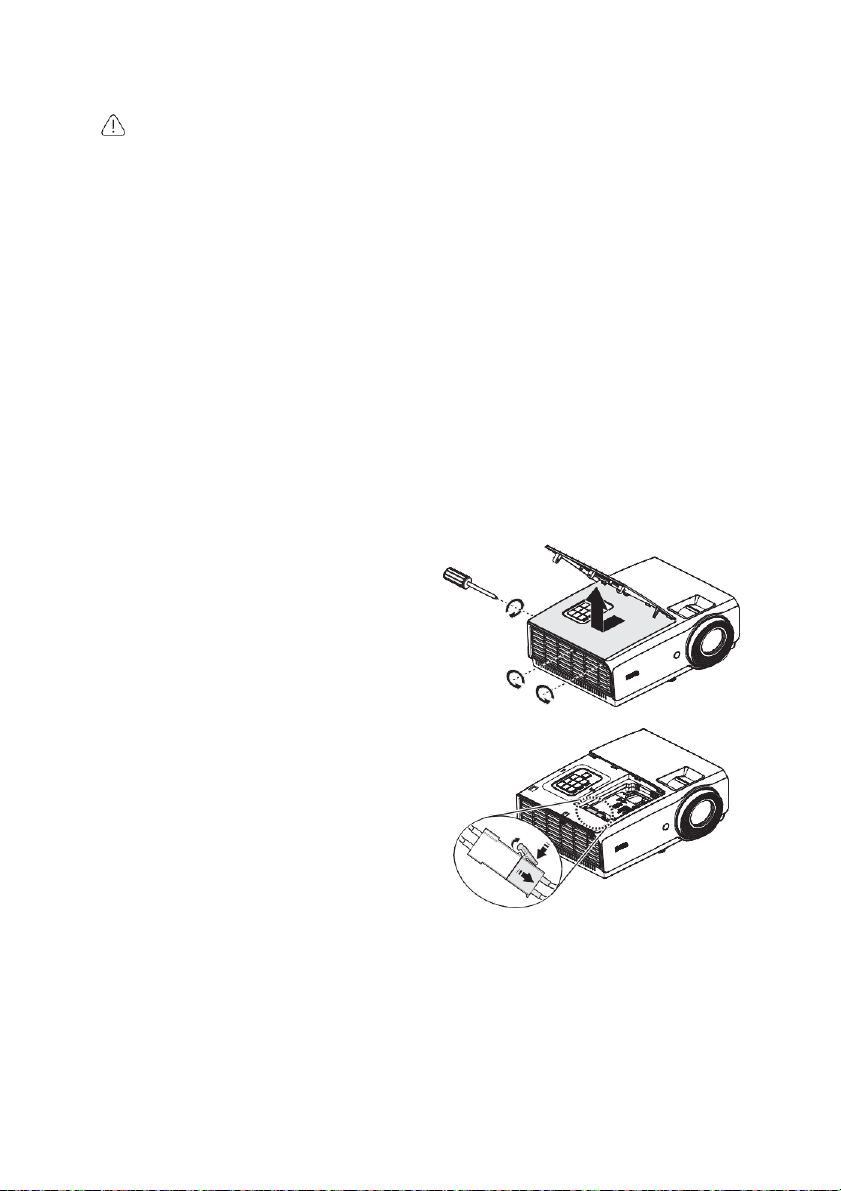

Replacing the lamp

• If lamp replacement is performed while the projector is suspended upside-down from the

ceiling, make sure that no one is underneath the lamp socket to avoid any possible injury or damage to the human eyes caused by fractured lamp.

• To reduce the risk of electrical shock, always turn the projector off and disconnect the power

cord before changing the lamp.

• To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before

replacing the lamp.

• To reduce the risk of injuries to fingers and damage to internal components, use caution

when removing lamp glass that has shattered into sharp pieces.

• To reduce the risk of injuries to fingers and/or compromising image quality by touching the

lens, do not touch the empty lamp compartment when the lamp is removed.

• This lamp contains mercury. Consult your local hazardous waste regulations to dispose of

this lamp in a proper manner.

• To assure optimal performance from the projector, it is recommended that you purchase a

BenQ projector lamp for lamp replacement.

• Ensure good ventilation when handling broken lamps. We recommend that you use

respirators, safety glasses, goggles or face shield and wear protective clothing such as gloves.

1. Turn the power off and disconnect the projector from the wall socket. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.

2. Loosen the captive screws from the left and rear side.

3. Remove the lamp compartment cover as shown.

4. Disconnect the lamp connector from the projector as illustrated.

Page 62

Maintenance

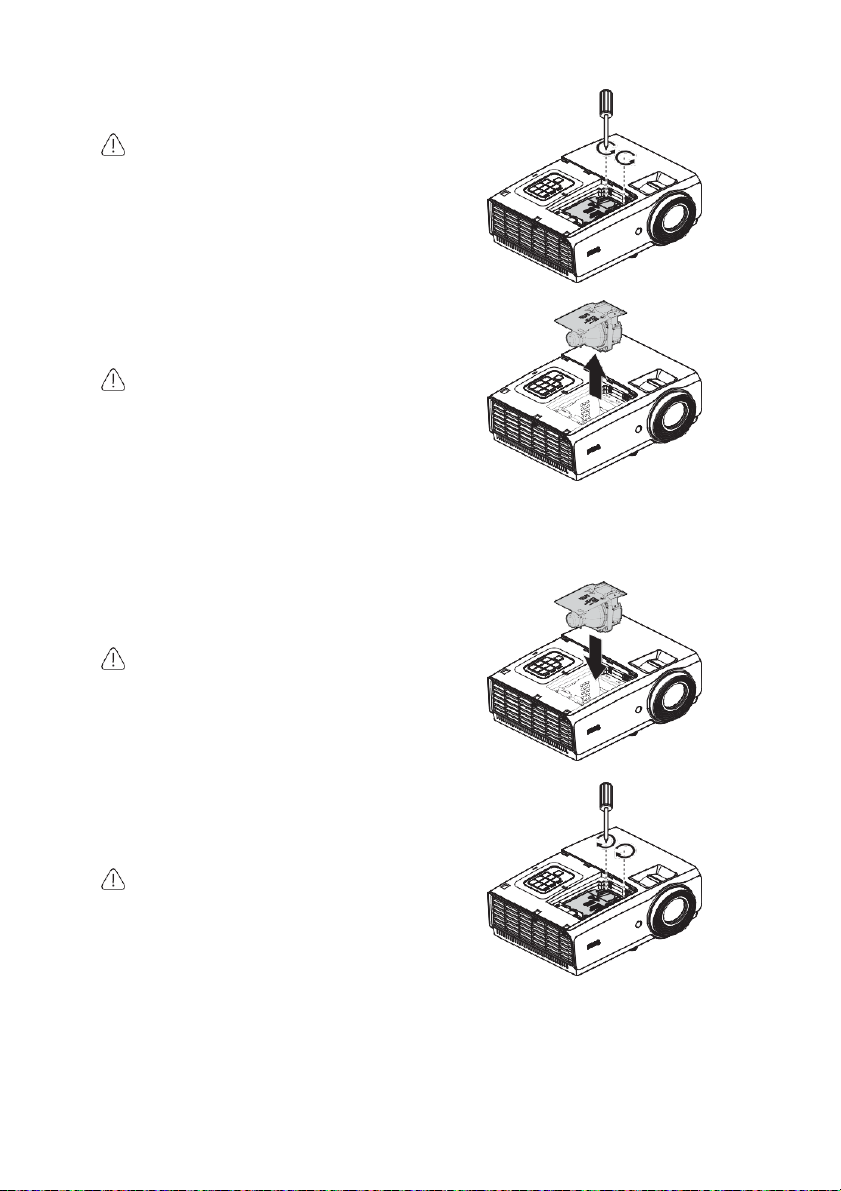

5. Loosen the two captive screws that secure the lamp.

• Do not turn the power on with the lamp

cover removed.

• Do not insert your fingers between the

lamp and the projector. The sharp edges inside the projector may cause injuries.

6. Lift the handle so that it stands up. Use the handle to slowly pull the lamp out of the projector.

• Pulling it too quickly may cause the lamp to

break and scatter broken glass in the projector.

• Do not place the lamp in locations where

water might splash on it, children can reach it, or near flammable materials.

• Do not insert your hands into the projector

after the lamp is removed. If you touch the optical components inside, it could cause color unevenness and distortion of the projected images.

7. Insert the new lamp into the lamp compartment and make sure it fits in the projector.

• Ensure the connectors are aligned.

• If you experience resistance, lift the lamp

and start again.

8. Tighten the screws that secure the lamp.

9. Ensure the handle is fully laid flat and locked in place.

• Loose screw may cause a bad connection,

which could result in malfunction.

• Do not over tighten the screw.

Page 63

Maintenance

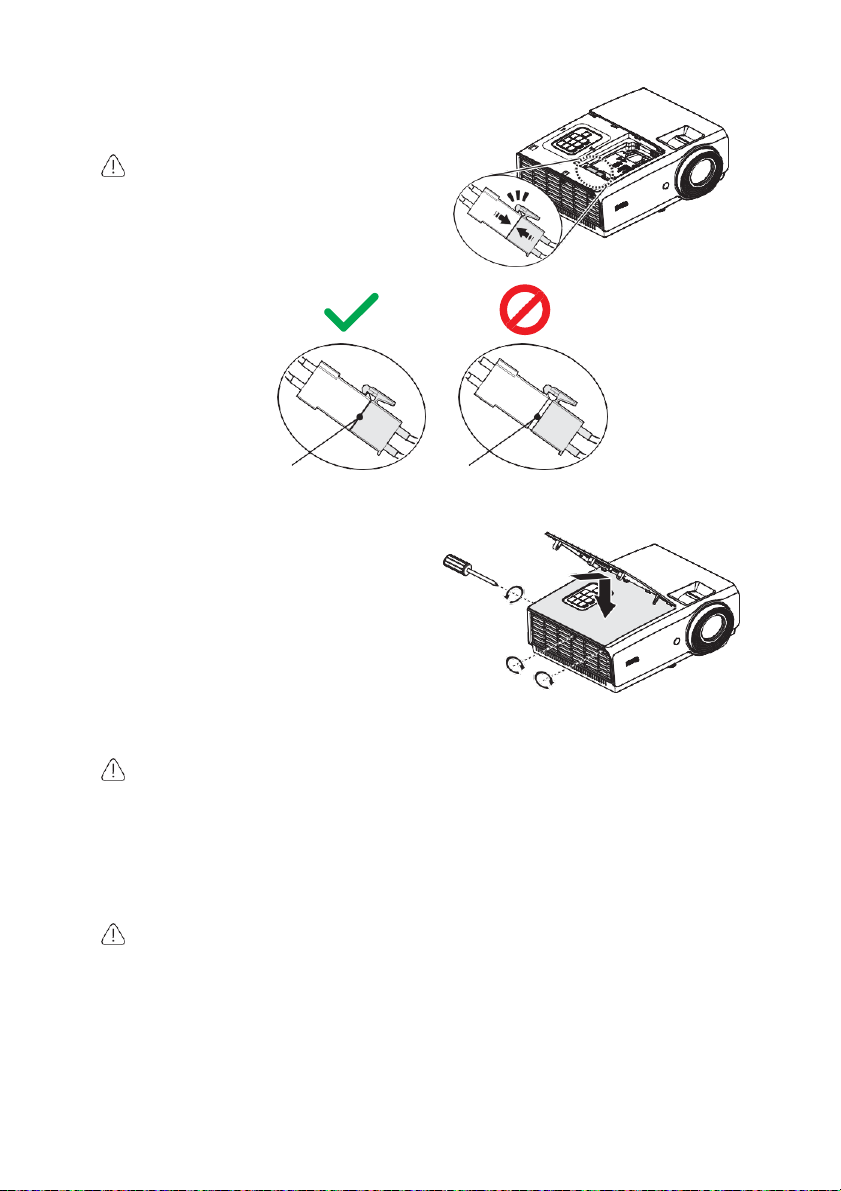

10. Connect the lamp connector properly and place as drawing before lamp compartment cover installation back.

• Lamp connector must be installed flush

with the connector base as shown in the image below. A gap between the lamp connector and the connector base will cause damage to the projector. The following images illustrate correct and incorrect lamp connector installations.

No gap Gap

Correct Incorrect

11. Replace the lamp compartment cover on the projector and tighten the captive screw.

12. Restart the projector.

Do not turn the power on with the lamp cover removed.

Resetting the lamp timer

13. After the startup logo, open the On-Screen Display (OSD) menu. Go to the SYSTEM SETUP: Advanced > Lamp Settings menu. Press MODE/ENTER. The Lamp Settings page displays. Highlight Reset lamp timer. A warning message displays asking if you want to reset the lamp timer. Highlight Reset and press MODE/ENTER. The lamp time will be reset to '0'.

Do not reset if the lamp is not new or replaced as this could cause damage.

Page 64

Maintenance

Light

Status & Description Power

Temp

Lamp

Power events

Orange

Off

Stand-by mode

Green

Flashing

Off

Powering up

Green

Off

Normal operation

Orange

Flashing

Off

Projector is cooling.

Lamp events

Off

Orange Flashing

The lamp ignition is not lit up.

Off

Red

1. The projector needs 90 seconds to cool down. Or

2. Please contact your dealer for assistance.

Thermal events

Red

Off

The fans are not working.

The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.

Red

Flashing

Off

Red

Green

Off

Red

Green

Flashing

Off

Green

Red

Off

Temperature 1 error (over limited temperature).

Green

Red

Flashing

Off

Thermal sensor 1 open error.

Green

Off

Thermal sensor 1 short error.

Green

Flashing

Off

Thermal IC #1 I2C connection error.

Green

Red

Thermal break error.

System events

Green

Off

Red

The projector has shutdown automatically. If you try to restart the projector, it will shutdown again. Please contact your dealer for assistance.

Red

Flashing

Off

Red

Off

Red

Off

Green

Red

Lamp door is open. Please check if the lamp door is open or not closed properly.

Green

Off

Orange

Lamp life exhausted.

Red

Download.

Off

Red

Off

LAN download fail.

Off

Green

Off

LAN download processing.

Indicators

Page 65

Troubleshooting

Cause

Remedy

There is no power from the power cable.

Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.

Attempting to turn the projector on again during the cooling process.

Wait until the cooling down process has completed.

Cause

Remedy

The video source is not turned on or connected correctly.

Turn the video source on and check that the signal cable is connected correctly.

The projector is not correctly connected to the input signal device.

Check the connection.

The input signal has not been correctly selected.

Select the correct input signal with the SOURCE key on the projector or remote control.

Cause

Remedy

The projection lens is not correctly focused.

Adjust the focus of the lens using the focus ring.

The projector and the screen are not aligned properly.

Adjust the projection angle and direction as well as the height of the unit if necessary.

The lens cover is still closed.

Open the lens cover.

Cause

Remedy

The battery is out of power.

Replace the battery with new one.

There is an obstacle between the remote control and the projector.

Remove the obstacle. You are too far away from the projector.

Stand within 7 meters (23 feet) of the projector.

Cause

Remedy

You do not remember the password.

Please see "Entering the password recall

procedure" on page 31 for details.

Troubleshooting

The projector does not turn on.

No picture.

Blurred image.

Remote control does not work.

The password is incorrect.

Page 66

Specifications

Projector specifications

All specifications are subject to change without notice.

Optical

Resolution

SH753P

1920 X 1080 1080P

Display system

Single-chip DLP™ system

Lens

F=2.42 to 2.97, f=20.70 to 31.05mm

Lamp

310W lamp

Electrical

Power supply

AC100-240V 50/60 Hz (Automatic)

4.2A

Power consumption

420W (Max); < 0.5W (Standby)

Mechanical

Weight

7.28 lbs (3.3 Kg)

Output terminals

Speaker

(Mono) 10 watt x 1

Audio signal output

PC audio jack x 1

Monitor Out

D-Sub 15-pin (female) x1

USB

TYPE-A (5V/1.5A)

Control

USB

MINI-B

RS-232 serial control

9 pin x 1 IR receiver x 2 12V TRIGGER

12VDC (0.2 A) x 1 LAN control

RJ45 x 1

Input terminals

PC input

RGB input

D-Sub 15-pin (female) x 1

Video signal input

VIDEO

RCA jack x 1

SD/HDTV signal input

Digital - HDMI-1 x 1 Digital - HDMI-2/MHL x 1

Audio signal input

Audio in

PC audio jack x 1 RCA audio jack (L/R) x 1

MIC

PC audio jack x 1

Environmental Requirements

Operating temperature

0°C–40°C at sea level

Operating relative humidity 10%–

90% (without condensation)

Operating altitude

0–1499 m at 0°C–35°C 1500–3000 m at 0°C–30°C (with High Altitude Mode on)

Storage temperature

-20°C–60°C

Storage humidity

10%–90% RH (without condensation)

Storage altitude

30°C@ 0~12,200m above sea level

Transporting

Original packing or equivalent is recommended

Repairing

Please visit below website and choose your country to find your service contact window. http://www.benq.com/welcome

66 Specifications

Page 67

Dimensions

233.0

314.0

51.2

65.2

314 mm (W) x 117 mm (H) x 233 mm (D)

314.0

233.0

314.0

Ceiling Mount Installation *Ceiling Mount Screws:

M4 (Max. L=25, Min. L=20)

71.0

45.6

76.0

109.0

90.5

Unit: mm

117.0

Specifications 67

Page 68

Specifications

Resolution

Mode

Refresh

Rate (Hz)

Frequency

(kHz)

Clock

(MHz)

3D Frame Sequential

3D Top Bottom

Side-

by-Side

720 x 400

720 x 400_70

70.087

31.469

28.3221

640 x 480

VGA_60

59.940

31.469

25.175

◎ ◎ ◎

VGA_72

72.809

37.861

31.500

VGA_75

75.000

37.500

31.500

VGA_85

85.008

43.269

36.000

800 x 600

SVGA_60

60.317

37.879

40.000

◎ ◎ ◎

SVGA_72

72.188

48.077

50.000

SVGA_75

75.000

46.875

49.500

SVGA_85

85.061

53.674

56.250

SVGA_120

(Reduce Blanking)

119.854

77.425

83.000

◎

1024 x 768

XGA_60

60.004

48.363

65.000

◎ ◎ ◎

XGA_70

70.069

56.476

75.000

XGA_75

75.029

60.023

78.750

XGA_85

84.997

68.667

94.500

XGA_120

(Reduce Blanking)

119.989

97.551

115.500

◎

1152 x 864

1152 x 864_75

75.000

67.500

108.000

1024 x 576

BenQ NB Timing

60.000

35.820

46.996

1024 x 600

BenQ NB Timing

64.995

41.467

51.419

1280 x 720

1280 x 720_60

60.000

45.000

74.250

◎ ◎ ◎

1280 x 768

1280 x 768_60

59.870

47.776

79.500

◎ ◎ ◎

1280 x 800

WXGA_60

59.810

49.702

83.500

◎ ◎ ◎

WXGA_75

74.934

62.795

106.500

WXGA_85

84.880

71.554

122.500

WXGA_120

(Reduce Blanking)

119.909

101.563

146.250

◎

1280 x 1024

SXGA_60

60.020

63.981

108.000

◎ ◎

SXGA_75

75.025

79.976

135.000

SXGA_85

85.024

91.146

157.500

Timing chart

Supported timing for PC input

Page 69

Specifications

Resolution

Mode

Refresh

Rate (Hz)

Frequency

(kHz)

Clock

(MHz)

3D Frame Sequential

3D Top Bottom

Side-

by-Side

1280 x 960

1280 x 960_60

60.000

108.000

◎ ◎

1280 x 960_85

85.002

85.938

148.500

1360 x 768

1360 x 768_60

60.015

47.712

85.500

◎ ◎

1440 x 900

WXGA+_60

59.887

55.935

106.500

◎ ◎

1400 x 1050

SXGA+_60

59.978

65.317

121.750

◎ ◎

1600 x 1200

UXGA

60.000

75.000

162.000

◎ ◎

1680 x 1050

1680 x 1050_60

59.954

65.290

146.250

◎ ◎

640 x 480

@67Hz

MAC13

66.667

35.000

30.240

832 x 624

@75Hz

MAC16

74.546

49.722

57.280

1024 x 768

@75Hz

MAC19

74.930

60.241

80.000

1152 x 870

@75Hz

MAC21

75.060

68.680

100.000

There 3D timing showing depend the EDID file and VGA display card. It is possible that user cannot choose the above 3D timings on VGA display card.

Page 70

Specifications

Support timing for Component - YPbPr input

Timing

Resolution

Horizontal

Frequency (KHz)

Vertical

Frequency (Hz)

Dot Clock

Frequency (MHz)

3D Frame Sequential

480i

720 x 480

15.73

59.94

13.50

◎

480p

720 x 480

31.47

59.94

27.00

◎

576i

720 x 576

15.63

50.00

13.50

576p

720 x 576

31.25

50.00

27.00

720/50p

1280 x 720

37.50

50.00

74.25

720/60p

1280 x 720

45.00

60.00

74.25

◎

1080/50i

1920 x 1080

28.13

50.00

74.25

1080/60i

1920 x 1080

33.75

60.00

74.25

1080/24p

1920 x 1080

27.00

24.00

74.25

1080/25p

1920 x 1080

28.13

25.00

74.25

1080/30p

1920 x 1080

33.75

30.00

74.25

1080/50p

1920 x 1080

56.25

50.00

148.50

1080/60p

1920 x 1080

67.50

60.00

148.50

Video Mode

Horizontal

Frequency (KHz)

Vertical

Frequency (Hz)

Sub-carrier

Frequency (MHz)

3D Frame Sequential

NTSC

15.73

3.58

◎

PAL

15.63

4.43

SECAM

15.63

4.25 or 4.41

PAL-M

15.73

3.58

PAL-N

15.63

3.58

PAL-60

15.73

4.43

NTSC4.43

15.73

4.43

Support timing for Video input

Page 71

Specifications

Resolution

Mode

Refresh

Rate (Hz)

Frequency

(kHz)

Clock

(MHz)

3D Frame Sequential

3D Top Bottom

Side-

by-Side

640 x 480

VGA_60

59.940

31.469

25.175

◎ ◎ ◎

VGA_72

72.809

37.861

31.500

VGA_75

75.000

37.500

31.500

VGA_85

85.008

43.269

36.000

720 x 400

720 x 400_70

70.087

31.469

28.3221

800 x 600

SVGA_60

60.317

37.879

40.000

◎ ◎ ◎

SVGA_72

72.188

48.077

50.000

SVGA_75

75.000

46.875

49.500

SVGA_85

85.061

53.674

56.250

SVGA_120

(Reduce Blanking)

119.854

77.425

83.000

◎

1024 x 768

XGA_60

60.004

48.363

65.000

◎ ◎ ◎

XGA_70

70.069

56.476

75.000

XGA_75

75.029

60.023

78.750

XGA_85

84.997

68.667

94.500

XGA_120

(Reduce Blanking)

119.989

97.551

115.500

◎

1152 x 864

1152 x 864_75

75.000

67.500

108.000

1024 x 576

BenQ

Notebook Timing

60.000

35.820

46.996

1024 x 600

BenQ

Notebook Timing

64.995

41.467

51.419

1280 x 720

1280 x 720_60

60.000

45.000

74.250

◎ ◎ ◎

1280 x 768

1280 x 768_60

59.870

47.776

79.500

◎ ◎ ◎

1280 x 800

WXGA_60

59.810

49.702

83.500

◎ ◎ ◎

WXGA_75

74.934

62.795

106.500

WXGA_85

84.880

71.554

122.500

WXGA_120

(Reduce Blanking)

119.909

101.563

146.250

◎

1280 x 1024

SXGA_60

60.020

63.981

108.000

◎ ◎

SXGA_75

75.025

79.976

135.000

SXGA_85

85.024

91.146

157.500

1280 x 960

1280 x 960_60

60.000

108.000

◎ ◎

1280 x 960_85

85.002

85.938

148.500

Support timing for HDMI (HDCP) input

Page 72

Specifications

Resolution

Mode

Refresh

Rate (Hz)

Frequency

(kHz)

Clock

(MHz)

3D Frame Sequential

3D Top Bottom

Side-

by-Side

1360 x 768

1360 x 768_60

60.015

47.712

85.500

◎ ◎

1440 x 900

WXGA+_60

59.887

55.935

106.500

◎ ◎

1400 x 1050

SXGA+_60

59.978

65.317

121.750

◎ ◎

1600 x 1200

UXGA

60.000

75.000

162.000

◎

1680 x 1050

1680 x 1050_60

59.954

65.290

146.250

◎ ◎

640 x 480

@67Hz

MAC13

66.667

35.000

30.240

832 x 624

@75Hz

MAC16

74.546

49.722

57.280

1024 x 768

@75Hz

MAC19

75.020

60.241

80.000

1152 x 870

@75Hz

MAC21

75.060

68.680

100.000

1920 x 1080

@60Hz

1920 x 1080_60

60.000

67.500

148.500

1920 x 1200

@60Hz

1920 x 1200_60

(Reduce Blanking)

59.950

74.038

154.000

There timing showing depend the EDID file and VGA graphic card limitation. It is possible that

user cannot choose the above timings on VGA display card.

Page 73

Specifications

Timing Resolution

Horizontal

Frequency

(KHz)

Vertical

Frequency

(Hz)

Dot

Clock

Frequency

(MHz)

3D Frame Sequential

Frame

Packing

3D Top Bottom

Side-

by-

Side

480i

720 (1440) x 480

15.73

59.94

27.00

◎

480p

720 x 480

31.47

59.94

27.00

◎

576i

720 (1440) x 576

15.63

50.00

27.00

576p

720 x 576

31.25

50.00

27.00

720/50p

1280 x 720

37.50

50.00

74.25

◎ ◎ ◎

720/60p

1280 x 720

45.00

60.00

74.25

◎ ◎ ◎ ◎

1080/24p

1920 x 1080

27.00

24.00

74.25

◎ ◎ ◎

1080/25p

1920 x 1080

28.13

25.00

74.25

1080/30p

1920 x 1080

33.75

30.00

74.25

1080/50i

1920 x 1080

28.13

50.00

74.25

◎

1080/60i

1920 x 1080

33.75

60.00

74.25

◎

1080/50p

1920 x 1080

56.25

50.00

148.50

◎ ◎

1080/60p

1920 x 1080

67.50

60.00

148.50

◎ ◎

Timing

Resolution

Horizontal

Frequency (KHz)

Vertical Frequency

(Hz)

Dot Clock

Frequency (MHz)

480i

720 (1440) x 480

15.73

59.94

27.00

480p

720 x 480

31.47

59.94

27.00

576i

720 (1440) x 576

15.63

50.00

27.00

576p

720 x 576

31.25

50.00

27.00

720/50p

1280 x 720

37.50

50.00

74.25

720/60p

1280 x 720

45.00

60.00

74.25

1080/24p

1920 x 1080

27.00

24.00

74.25

1080/25p

1920 x 1080

28.13

25.00

74.25

1080/30p

1920 x 1080

33.75

30.00

74.25

1080/50i

1920 x 1080

28.13

50.00

74.25

1080/60i

1920 x 1080

33.75

60.00

74.25

Supporting timing for HDMI Video input

Supporting timing for MHL input

Page 74

Warranty and Copyright information

Limited warranty

BenQ warrants this product against any defects in material and workmanship, under normal usage and storage.

Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in accordance with BenQ's written instructions, especially the ambient humidity must be inbetween 10% and 90%, temperature in-between 0°C and 35°C, altitude lower than 4920 feet, and avoiding to operate the projector in a dusty environment. This warranty gives you specific legal rights, and you may have other rights which vary from country to country.

For other information, please visit www.BenQ.com.

Copyright

Copyright 2011 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are copyrights of their respective companies or organizations.

Patents

Please go to http://patmarking.benq.com/ for the details of the BenQ projector patent.

Page 75

PJLink

Command

Control details

Parameter /Return string

Remark

POWR

Power supply control

0 1

Standby Power on

POWR?

Power supply status query

0 1

Standby Power on

INPT

Input selection

11 21 31 32

PC1 / YPbPr VIDEO HDMI1 HDMI2/MHL

INPT?

Input status query

AVMT

Mute

11 10 21

20 31 30

Video mute On Video mute Off Audio mute On Audio mute Off Video & Audio mute On Video & Audio mute Off

AVMT?

Mute query

ERST?

Error status query

xxxxxx

1st byte

Indicates fan errors, and returns 0-2

• 0=No error is detected

• 1=Warning

• 2=Error

2nd byte

Indicates light source errors, and returns 0-2

3rd byte

Indicates temperature errors, and returns 0-2

4th byte

Return 0

5th byte

Return 0

6th byte

Indicates other errors, and returns 0-2

LAMP?

Light source status query

xxxxxxxxxxxx

1st number (1-5 digitals): Light source 1 runtime

PJLink

PJLink protocal

The network function of this projector support the PJLink class 1, and the PJLink protocal can be used to perform projector setting and projector status query operations from a computer.

Control commands

The following table lists the PJLink protocal commands that can be used to control the projector.

Page 76

Command

Control details

Parameter /Return string

Remark

INST?

Input selection list query

11 21 31 32

SH753P NAME?

Projector name query

xxxxx

Returns the name set in [PROJECTOR NAME] of [NETWORK SETUP]

INF1?

Manufacturer name query

BenQ

Returns manufacturer name

INF2?

Model name query

SH753P

Returns moder name

INF0?

Other information queries

xxxxx

Returns information such as version number

CLASS?

Class information query

Returns class for PJLink

76 PJLink
