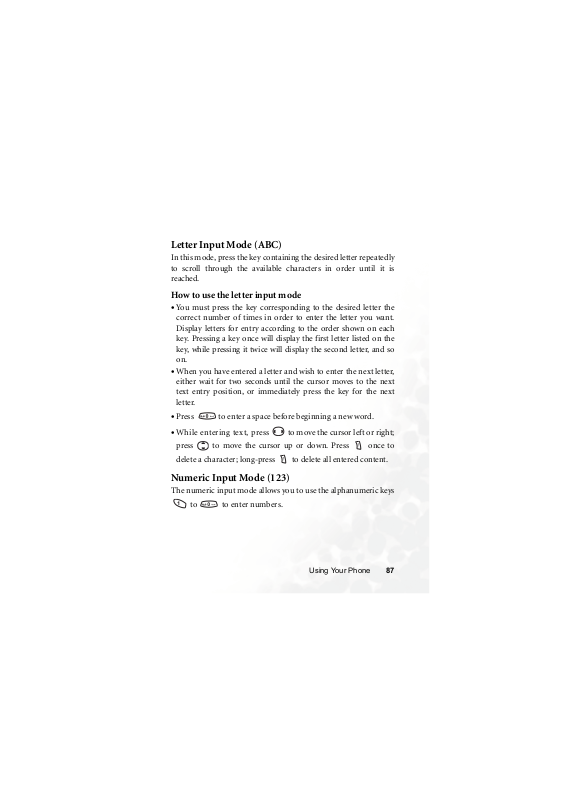

Letter Input Mode (ABC)
In this mode, press the key containing the desired letter repeatedly
to scroll through the available characters in order until it is
reached.
How to use the letter input mode
• You must press the key corresponding to the desired letter the
correct number of times in order to enter the letter you want.
Display letters for entry according to the order shown on each
key. Pressing a key once will display the first letter listed on the
key, while pressing it twice will display the second letter, and so
on.
• When you have entered a letter and wish to enter the next letter,
either wait for two seconds until the cursor moves to the next
text entry position, or immediately press the key for the next
letter.
• Press to enter a space before beginning a new word.
• While entering text, press to move the cursor left or right;
press to move the cursor up or down. Press once to
delete a character; long-press
to delete all entered content.
Numeric Input Mode (123)
The numeric input mode allows you to use the alphanumeric keys
to to enter numbers.
Using Your Phone 87
Predictive Input Mode (iTap)
iTap analyzes letters as they being inputted, making intelligent
predictions about the words you are attempting to enter, and
speeding up text entry.
How to use iTap
• Press once the alphanumeric key corresponding to the first letter
of the word you wish to enter without considering where that
letter falls in the sequence of characters available through that
key. Then press the key corresponding to the second letter, and
so forth. The phone will predict which word you wish to enter
based on the set of keys you have pressed. The predicted word
will be shown in the lower left portion of the screen. This word
may change as you continue to press other keys; therefore,
before you have entered a complete word, you do not need to
worry if the displayed word does not yet match the word you
intend to enter.
• After pressing keys for a complete word, if the displayed word
does not match the one you intended to enter, press to view
other candidate words and locate the desired word.
• Once the correct word is displayed on the screen, press to
enter this word. A space will automatically be inserted after the
word.
• While entering text, press to move the cursor left or right;
press to move the cursor up or down. Press
delete a character; long-press to delete all entered text.
once to
88 Using Your Phone
Example of iTap in use
To enter "COME HOME" in the message editing screen using
iTap, use the following steps:
1. Press to switch to iTap for uppercase letters (ITAP).
2. Press
3. Press to enter "COME" as text. A space will automatically
be inserted after "COME".
4. Press
5. Since "GOOD" is not the word that you wish to enter, press
to display the next candidate word, "HOME".
6. Press to place "HOME" into the message.
to select C, O, M, E.
to enter "HOME".
Symbol Input Mode
When editing messages, press to open the symbols field
along the bottom of the screen. Use to move the selection
box to the symbol you wish to enter, and then press to place it
in the message text.
Using Your Phone 89
Direct Connection to URLs
Your phone provides handy preset URL text hotkeys, enabling
you to enter a complete URL more quickly and conveniently, and
making Internet access more efficient and enjoyable.
From the standby screen, you can rapidly key in numerical URLs.
If, for example, you wish to enter "http://123.com" you need only
key in "123" and then press . The full URL will appear on the
screen. automatically adds the necessary "http://" prefix and
the ".com" domain suffix. To actually connect to this website,
simply press to confirm and the phone's browser will be
started up so that you can get online.
When entering a URL, you can also use to access the following
functions:
• After pressing once, further presses of will switch to the
URL suffixes shown in the chart:
Number of
times
• You can convert (*) into the (.) that appears in URL
addresses. For example, if you enter 123*456 in the standby
screen, and then press , the URL "http://123.456.com" will
appear on the screen.
Output result
0 . com
1.com.tw
2.net
3 .net.tw
4.com.cn
5 .net.cn
90 Using Your Phone
After you press to enter "http://" press to enter "/" and
•
"-". For example, if after you enter "123" and then press
once-causing "http://123.com" to appear on the screen-you
press again, the URL will change to "http://123.com/".
Pressing again will switch between "/" and "-".
• When the screen shows the desired URL, press to connect
to the Internet and access this URL address.
Using Your Phone 91
Menus
The phone's menus provide various features. The main menu
consists of 9 icons. Each icon represents a particular menu item,
which is used to access related sub-menus.
For information about navigating menus, see page 22, "Menu
Navigation".
Phone Book
This menu provides various functions for managing the Phone
Book, including the ability to add, locate, and copy contact data;
add contacts to a caller group; and so forth.
Find
Used to locate a contact in the Phone Book. You can enter the full
name of the desired contact, or if you are not sure about the
spelling of the contact's name, simply enter the first letter, and
then press . The phone will locate all contacts whose names
begin with this letter, and you can scroll to the field containing the
contact you want. For details on what to do after locating the
desired contact, see page 43, "Finding Contacts in the Phone
Book".
Add
Used to add a new contact to the Phone Book. You can follow the
procedure described on page 38, "Adding Contacts to the Phone
Book".
92 Menus
Edit
After selecting a particular contact, you can follow the procedure
described on page 38 for editing the data for this contact.
Copy
If you are using the phone book stored in the phone's memory,
you can copy contact data to the SIM card's phone book, and vice
versa. You can select a contact to copy from one phone book to
the other, and copy all contacts in one phone book to the other by
choosing the option Copy All Phone Book to SIM (Copy All SIM
Phone Book to Phone).
Delete
Deletes a contact from the Phone Book. You can delete one
contact at a time, or delete all contacts at once. If you select the
option to delete all contacts, you will be asked for your phone
password (the default password is "1234").
Caller Groups
Caller groups are combinations of phone settings used to identify
a particular group of contacts, such as work colleagues, family
members, or friends. For example, you can associate a ring tone
and animation with one group, and when a member of that group
calls, the phone will use the group's ring tone and display its
animation.
The phone provides 5 caller groups: Colleagues, Family, Friends,
VIP, Others.
After you scroll the caller group that you wish to configure, you
can perform the following tasks:
Menus 93
Press (Option): Used to select the ring tone or
•
animation/image that will help you identify the caller group
to which a particular caller belongs, or to rename the caller
group.
• Press : Allows you to view a list of all contacts that
belong to the caller group. Press to highlight the desired
contact, and then press (Option) to access the following
options:
Add: Add a contact to the caller group. Press to
select a contact to add, and when finished press .
Delete: Deletes the selected contact from the contact
group.
Privacy Manager
This option allows you to set your phone to reject certain calls, or
alternatively, specify which calls to accept, rejecting all others.
1. First, create a list of calls that you wish to accept (Accept List)
or a list of calls that you wish to reject (Reject List), by scrolling
to the corresponding item. Then press (Edit) and the names
of the contacts who are already on the selected list will be
displayed. If the list is empty, press (Option) and then select
94 Menus
Add to choose contacts to include in the list.
2. You can select all the members of a caller group
to be added to a list, or you can select contacts
from the Phone Book individually (the screen
will first display the caller group option). Press
to scroll to the caller group or contacts that
you wish to add to the list, and then press
(Select) to make your selections; press
(Cancel) to clear the caller group or contacts
that you have selected.
3. When you are finished, press . The screen will display the
names of the contacts you have added to the list. If needed, you
can press (Option) to add or remove contacts. When you
have confirmed the list, press (Back) to return to the
Privacy Manager menu.
4. Lastly, select whether to activate the Accept List
or the Reject List. Press to scroll to the list
that you wish to activate, and then press
to confirm your choice.
Menus 95
If you choose to activate the Accept List, from now on your
phone will only be able to receive calls from contacts in the
Accept List. If, on the other hand, you choose to activate the
Reject List, your phone will not be able to receive calls from
contacts in the Reject List.
8 The same contact cannot be included in both the Accept List and
the Reject List.
8 If you are currently using the phone book on your SIM card, you
will not have access to the Privacy Manager feature.
Business Card
You can use this option to enter your own business card
information. The data fields are as follows:
Your name.
Your mobile phone number.
Your e-mail address.
Your company's address.
Your job title.
Press to scroll to the data field you wish to edit, and then
press (Edit), press , or begin entering text to edit the data
in this field. After you are finished entering the data you wish to,
press to save all the business card data.
96 Menus
Activate
Used to activate the phone book stored in the
phone's memory or on your SIM card. Press
to highlight the desired phone book and then
press .
My Number
This option allows you to save your SIM card number and name
to your SIM card's memory.
Press (Option) and select Add. Now select whether you want
to enter your name or number and then press (Edit) or
to begin entering the information. When you are finished, pres
, and the screen will display the name you have stored in your
SIM card's memory. You can press (Option) to add more data,
edit the currently selected data, or delete the currently selected
data.
SIM Status
Used to view how many additional entries can be stored in the
SIM card's phone book and the maximum number of entries that
it can store.
Menus 97
Call Records
8 Your network operator must support this feature in order for you to be
able to use it.
This menu includes a list of your missed calls, dialed calls, and
received calls. Call costs and time are also recorded.
Missed Calls
Shows your most recent missed calls.
Press to scroll to the missed call that you wish to select. You
can now choose to view, edit, or delete the number for the missed
call. The procedure is the same as that described on page 46, "Last
Missed, Dialed, and Received Calls".
Received Calls
Shows your most recent received calls.
The procedure for using this feature is the same as that described
on page 46, "Last Missed, Dialed, and Received Calls".
Dialed Calls
Shows your most recent dialed calls.
The procedure for using this feature is the same as that described
on page 46, "Last Missed, Dialed, and Received Calls".
Delete All
Deletes all call records.
98 Menus
Call Duration
8 This feature is only accessible if supported by your network operator.
Last Call Time
Shows the duration of the last call.
All Calls Time
Shows the total time for all calls.
Received Calls Time
Shows the total time for all received calls.
Dialed Calls Time
Shows the total time for all dialed calls.
Clear
Clears all call time records.
8 You must enter your PIN2 code in order to zero call times.
What is a PIN2 code?
/
• The PIN2 is the second PIN code. Its main use is in controlling
restricted services-for example, call time limits and restricted phone
numbers.
• If the PIN2 code is incorrectly entered three times consecutively, the
PIN2 code will be locked. To unlock the PIN2 code, you will need to
enter the PUK2 code, which you obtain from your network operator.
Menus 99
Call Cost
Last Call Cost
Shows the cost of your last call.
8 Requires the support of the network operator.
All Calls Cost
Shows the total cost of all calls.
8 Requires the support of the network operator.
Clear
Clears all call cost records.
8 Requires entry of the PIN2 code.
Call Cost Limit
Shows the current limit set for total call costs.
Set Cost Limit
Allows you to set a limit for total call costs. If call costs exceed
this limit, the phone will no longer be able to dial pay calls.
When this feature is activated, the remaining cost will be
displayed in the information box on the screen each time you
end a call.
8 Requires entry of the PIN2 code.
Set Units
Allows you to first enter the unit price and a currency for
calculating call costs.
8 Requires entry of the PIN2 code.
100 Menus
Messages
For a description of the features available in the messages menu,
see page 59, "Messages Menu".
Menus 101
Organizer
r
e
d
Calendar
You can use the Calendar to set up memos for forthcoming events
such as a meeting, an appointment, or a friend's birthday. The
Calendar will also remind you about events you have previously
scheduled.
1. When you open the Calendar, the phone
will show the calendar for the current date.
8 If you have not set the current date on your
phone, go the menu Settings → Date & Time.
See page 142.
In the Calendar screen, press to
move the red box to the date where you
wish create a memo. You can also press
(Option) and select the Go to Date
option, then enter the desired date,
pressing to confirm your selection
of that date.
2. When the red box is highlighting the desired
date, press (Option) and select the Add
option to open the memo editor.
3. In the memo editor screen, scroll to the data field you wish to
edit, and then press (Edit) or , or press alphanumeric
When the Calenda
is opened, the
current date will b
highlighted by a re
box.
102 Menus
keys to begin entering data. You can enter data in these fields:
Change the memo's assigned date. In the Calendar screen, press
to scroll to the date where you wish to create the memo, and
then press .
Enter a time for the event associated with the memo by using the
appropriate number keys.
Enter a name for the event associated with the memo.
Enter the scheduled location for the event associated with the
memo.
Enter the names of the participants in the event associated with the
memo.
Record any notes about the event associated with the memo.
Scroll to this option to set up your phone to
remind you about an event. On the appointed
date, when the scheduled time arrives, the memo
will appear on the screen and the Alarm Clock
will ring.
First press to activate this feature. The time
field will appear beneath, and you can enter the time when you wish
to be reminded about the event.
4. After completing entry of data in each of the fields, you must
press to save the memo to that date. The phone will display
this date's memo list, including the event name and time for the
memo you just saved. If the Alarm Clock has been set to remind
you about the event associated with the memo, the icon will
appear beside the event name.
Menus 103
5. You can now perform the following tasks:
a. Press (Option) to select whether to edit or delete the
memo, or send this memo to others through SMS
(shown as "Send vCal").
b. Press to view the information in the memo. Then
press (Option) to edit or delete the memo.
c. Press (Back) to return to the Calendar screen. You
can move the red box to other dates to create additional
memos (dates that already contain memos will be
marked by a yellow box); you can also create a second
memo for the same date. The procedure is identical to
that described previously.
6. After creating all the event memos you wish, return to the
Calendar screen. You can now press (Option) and select:
• Delete All: Deletes all currently saved memos.
• Auto Delete: If this feature is activated, all event memos for
dates prior to the current date will be automatically deleted.
To D o Li st
You can use this feature to create a list of work tasks or personal
projects.
1. Press (Option) and then select Add to bring up the editor
window. After entering the name of the task, press to create
this to do item.
2. In the list screen, scroll to the desired to do item, and then press
(Option) to add a new to do item, or to edit or delete the
selected to do item. If there are two or more items in the list,
104 Menus
you can select Delete All to delete all of them.
3. In the list screen, if there are any to do items that have already
been completed, you can scroll to the item and then press to
mark it to remind yourself that the task has been done. If you
press (Option), you can activate the Auto De lete , which will
automatically clear any to do items that you have marked as
completed.
Note
You can use this feature to create a list of notes.
1. Press (Option) and select Add to bring up the editor screen.
Enter the desired text and press .
2. A message on the screen will ask whether you wish to add a
password for this note. If you press (Ye s ), you will from
then on need to enter the phone password in order to view the
contents of the note. Press (No) to save the note without
adding a password.
8 The default phone password is 1234. To change the password, go to
the menu Settings → Security → Phone Lock. See page 160.
Menus 105
To o l s
Alarm Clock
If you activate the Alarm Clock feature, when the specified date and
/
time arrive, the phone will sound the alarm, even if your phone is
turned off.
Use the following steps to set an alarm:
1. Select an alarm you wish to set and activate.
2. Press to select the feature for activation.
The configuration fields for the alarm will
appear in the lower part of the screen.
Day
Used to set the alarm to go off
on a particular day from
Monday to Sunday. Press
(Edit) to display the days of
the week. Press (Select) to
make your selection. When
done, press to return to the
Alarm Ring screen. The Day
field will now indicate the days
on which the alarm will go off.
The days on which
the alarm will go off.
106 Menus
Time
Allows you enter the time when an alarm will go off.
Time Duration
Allows you to set the length of the alarm. Press (Edit) to select
the desired alarm duration and then press .
3. Lastly, you must press to save all your current Alarm Clock
settings. After completing Alarm Clock settings, will appear
in the external display's status bar; will appear in the main
display's status bar.
When the alarm rings, there are two ways to turn it off:
/
• Press (Snooze) to stop the alarm. The alarm will ring again
five minutes later.
• Press to turn off the alarm. The alarm will not ring until the next
scheduled time.
Shortcuts
For a description of the features accessible through the Shortcuts
menu, see page 54, "Shortcuts Menu".
Voi ce Me mo
For a description of the features accessible through the Voice
Memo menu, see page 85, "Voice Memo".
Menus 107
Calculator
Allows you to use the phone as
a calculator. Use to
perform the mathematical
operations shown on the
screen.
8 You can enter numbers up
to a maximum of 8 digits in
length.
Entered numbers
and calculation
results will appear
in this field.
Press to
enter a decimal
point.
Currency Converter
Below is a description of the Currency Converter screen:
Once you enter the Currency Converter screen, the default
currencies will be displayed, as shown in this example:
Currency 1:
EUR (euros)
For entering the amount
for conversion
1. To set the currencies for conversion, press
(Option) and select either Currency 1 (to
set the currency at the top of the screen) or
Currency 2 (to set the currency at the bottom
of the screen), then press to confirm. After
selecting a currency from the list, press .
Currency 2: USD
(US dollars)
The current exchange
rate setting
108 Menus
2. Used to set the exchange rate.
Press (Option) and select Rate Setting,
then enter the rate for converting from
Currency 1 to Currency 2. The conversion
calculation result will be displayed in the same
line as the bottom currency on the screen. Use
the to view the calculation result. The
calculation can provide precision up to two
decimal places.
8 The exchange rate field can accommodate a
maximum of five digits (including decimal digits).
8 Press to enter a decimal point.
3. After returning to the Currency Converter
screen, you can select one of the currencies
and then enter an amount that you wish to
convert into the other currency.
8 You can enter amounts up to six digits long.
4. After pressing the converted amount will
appear in the field for the other currency.
Menus 109
Stopwatch
1. Press to start the stopwatch.
2. While the stopwatch is running, you can press
(Split) to save up four elapsed times (such as
in a race). The display will show the saved times
in the lower part of the screen.
8 Pressing (Back) while the stopwatch is running
will bring up the "Quit?" warning message (the
stopwatch will continue to run). Press (Yes) to
stop the stopwatch or (No) to return to the timer
screen.
3. Press to halt the stopwatch.
4. Once the stopwatch is halted, press (Reset) to zero the
stopwatch.
Countdown Timer
1. Enter the amount of time to count down. You can set any time
up to 23 hours, 59 minutes and 59 seconds.
2. When you press , the countdown timer will begin counting
down to zero. When the countdown is finished, the screen will
display the "Time's Up" message and an alert sound will be
played. Press (Exit) to leave the screen.
3. Press to stop the countdown timer.
4. After the countdown timer is stopped, you can press
(Reset) and enter a new time to count down.
5. When the countdown timer is running, press (Back). The
110 Menus
"Stop Timer?" message will appear. If you press (Ye s ), the
countdown timer will stop and return to the timer screen. If
you press (No), you will exit the countdown timer screen,
but the countdown timer will continue the countdown. You
can then perform other tasks, and when the countdown is
finished, the "Time's Up" message will appear and an alert
sound will be played. Press (Exit) to exit the screen.
Memory Status
Shows the amount of memory, including space for storing
pictures, animations, and ring tones on the phone. The amount
will be displayed as "Remaining Usable Memory / Total Usable
Memor y".
Service Number
This option can be used to display the service number that the
network operator has stored on the SIM card.
8 Requires network operator support.
SIM Toolkit Menu
Your network operator provided you with the mobile services in
this SIM Toolkit (STK, for short) menu. Depending on the
particular services provided by the network operator, this menu
may contain a number of extra options. However, if the network
operator has not provided any STK services, this menu will not
appear on the screen. For detailed information, contact your
network operator.
8 Requires network operator support.
Menus 111
Games
Your phone provides a number of exciting games that you can use
to entertain yourself when you have a spare moment.
Champion Soccer
This game lets you manage one of the world's top
eight soccer teams in its quest to win the greatest
prize in world soccer.
1. After choosing this option, select Start to
enter the game's opening screen. Press and
select START to begin a new round of play.
2. Select World Cup Mode or Arcade Mode.
112 Menus
3. In the World Cup Mode, you can select your
own team with the opposing team selected at
random by the phone. If your team wins, you
face the next team as you make a challenge for
the World Cup title. In the Arcade Mode, you
can select your own team and the opposing
team to play a single game. Press to select
a flag representing a national team, and then
press to confirm.
4. After the message announcing the first half
appears, press to begin the game.
Menus 11 3
Game Controls
t
•Controls the
direction of the
player's movemen
•When attacking,
use these three keys
to select which
player to pass the
ball to.
•When attacking,
press
take a shot on goal.
to
During the game, you need to control your three players on
the pitch, while your goalkeeper is controlled by the phone.
• When attacking, use to , and (the
alphanumeric keys, excepting ) to move the
players. Use to to pass the ball (you will see
the player's number on the screen), and when near the
goal, press to take a shot on goal.
• When on defense, use to , and
(the alphanumeric keys, excepting ) to move a
player. Use to to select a player to move (you
will be able to see the player's number on the screen).
When a player on the opposing team is near the goal,
use to tackle.
•When on defense,
use these three keys
to select players to
move.
•Controls the
direction of the
player's movement.
•When on defense,
press
tackle.
to
114 Menus
If you want to stop a game during play, press and
•
.
Game screen
Yo u r t ea m
Yo u r s co re
The number of
the player you
are controlling.
Full pitch view
White point: The position of the player
you are controlling
Black point: The ball's location
Blue points: Your teammates
Red points: Players on the opposing team.
The opposing
team
The opposing
team's score
Timer
Game options
• START: Begins a new game.
• Continue: Resumes an interrupted game. Usable only in the
World Cup Mode.
• Controls: Brings up an explanation of how to use keys
during a game.
• Ranking: Records the rankings of the teams after a
tournament in the World Cup Mode is completed.
Menus 11 5
•
Option:
Sound: Press to adjust the volume, or to turn off
background music.
Mini Map: Shows/hides the full pitch view.
Time: Sets the duration of a half.
• Exit: Quits this game.
116 Menus
Dragon Fight
The flying dragon that you control must make
incursions into hostile territory and destroy
enemies. Select Start to enter the game's opening
screen, and then press to begin play. The more
enemies you destroy, the higher your score. If you
collide into an enemy, you lose one flying dragon.
Score
Enemy
Super Bombs
Shield
Number of remaining dragons
Press
control the direction
of the dragon's flight
Pick up objects
like this to
increase the
power of your
weapon
to
Press to launch
a firestorm or bring up
a protective shield
Press to shoot the
laser gun or fireballs
Press to
increase the
power of your
weapon.
Menus 11 7
Internet
Your phone includes a built-in WAP browser, allowing you to use
the phone for mobile Internet connectivity. You can browse the
online services offered by the network operator or ISP, such as
information on financial news, sports, travel, and entertainment.
To use the phone to get online, necessary WAP and GPRS settings
must be made in this menu.
8 You must apply to a network operator for WAP services and complete
WAP and GPRS settings in this menu before you will be able to take
advantage of mobile Internet connectivity. In general, once the
service you have applied for has been activated, the network operator
will automatically transmit the needed settings to your phone. If this is
not the case, you must perform this configuration yourself. For
information about WAP and GPRS services and configuration details,
contact a network operator providing these services.
WAP Se r v ic e
Your phone provides the following methods for activating the browser
/
and getting online.
1. From the standby screen, activate the browser and get online by
using the feature that allows you to connect directly to URLs. For
details, see page 90, "Direct Connection to URLs".
2. Activate the browser from the three options in the menu Internet
→ WAP Service:
• Start Browser: Starts up the browser and connects to the
homepage.
• WAP Message: Starts up the browser and accesses the WAP
inbox for reading text messages.
• Enter Address: Starts up the browser and connects to the
URL that you enter.
118 Menus
Start Browser
Starts up the browser and connects to the homepage.
Browsing a webpage
Referring to the soft key commands at the bottom of the
screen, press and
browsing a webpage. Press
to perform needed tasks while
to scroll up or down a
webpage. For details on browsing a webpage, inquire with the
network operator providing WAP services. Your Internet
connectivity service will determine the layout and content of
the webpages you view. Depending on the specifics of your
service, they way you browse the Internet on your phone will
differ.
How to close the browser and end the online session
• While online, press or long-press .
• If you are already viewing a WAP webpage, long-press
or from the browser's menu select Exit.
Menus 11 9
How to display the browser's menu
While viewing a WAP webpage, press to display the
browser's menu. Referring to the soft key commands at the
bottom of the screen, press and to access the various
options. Press the corresponding alphanumeric keys to
directly select an option. The browser menu contains the
following items:
Back
Selecting this option will take you to the page you viewed
previously.
Home
Returns to the home page. To designate a particular page
to be your home page, go to 9 Settings
→ 1 Homepage.
Exit
Closes the browser and returns you to the main menu
screen.
Inbox
When your phone receives a message that can only be
viewed using a WAP browser, you enter this WAP inbox to
read the message.
120 Menus
Bookmarks
You can open the Bookmarks menu and select webpage
bookmarks.
View
Allows you to see the current bookmarks and
bookmarks folders. Scroll to the desired bookmark or
bookmarks folder, and you can:
• Press (Go) to link to the webpage that the
bookmark represents. If you have selected a
bookmarks folder, select the desired bookmark from
within the folder, and then press (Go).
• Press (Menu) to display the following options:
Details: Displays the bookmark's title and the
URL it represents.
Delete: Deletes the bookmark or bookmarks
folder.
New Bookmark: Creates a new bookmark.
New Folder: Creates a new bookmarks folder.
Move to Folder: Moves a bookmark to the
designated folder.
Delete All: Deletes all bookmarks and book-
marks folders.
Menus 121
Hotkeys: Allows you set a numerical key as a
hotkey for a bookmark. After completing the
setting, you can press this numerical key to
directly link to the webpage represented by the
bookmark.
Mark Site
Adds the current webpage to your bookmarks list.
GoTo URL
Press (Edit) and enter the URL of the webpage that
you wish to browse, and then scroll to the Go option and
press (Go) to link to that URL.
Save Items
When viewing a webpage, if you discover that it contains
an image that can be downloaded, you can access this
option to save the image to your phone. Subsequently,
this image will be available for use when you are
composing messages or choosing a standby screen
wallpaper.
Reload
Reloads the current webpage.
Settings
You can enter this item to making the following settings:
8 For detailed information about the following settings, contact
your ISP.
122 Menus
Homepage
Designates a homepage. When you start up the WAP
browser or if you select Home from the browser's
menu, the screen will display the homepage you
designate.
a. Press (Edit) and then enter the URL of the
webpage that you wish to use as your homepage.
(Some WAP service providers do not allow users to
set a homepage.)
b. Select the Save option to designate the URL you
entered as your homepage. Select Use Default to
use the homepage designated by your WAP service
provider.
Scroll Mode
You can select two scrolling modes: Block or Smooth.
In the Block mode, as many words as will fit in a line
are shown for a few seconds, then the next line is
shown, and so on. In the Smooth mode, the content
scrolls smoothly on the screen. You can also adjust the
scrolling speed: Fast, Medium, Slow.
Send Referrer
This option allows you to determine whether the
browser will send an HTTP referrer header.
Menus 123
Key Press Timeout
This option sets the amount of time that the phone
waits during text entry before automatically
advancing the cursor to the next entry position. As
long as the same key is re-pressed within the interval
of time set here, it will continue to cycle through the
characters available through that key.
Set Proxy
Your phone can save the settings for six WAP proxy
servers. You can select one of these proxy settings for
use as a default so that your phone will connect to
that proxy server when you begin an Internet session.
You can also go to the menu Internet
→ Wap Settings to select the server that you wish to
→ Wa p Service
activate. See page 127.
Circuit Prompt
The Circuit Prompt is a message displayed before
each circuit data call is made. It reads, "Circuit is
down. Start a data call?" You can choose to enable or
disable this feature.
Security
Secure Prompt
The Secure Prompt message is displayed before
you leave a secure area. It reads, "Entering a nonsecure area. OK?" You can choose to enable or
disable this feature.
124 Menus
Current Certificate
Displays information on the certificate currently
in use.
CA Certificates
Displays information on the built-in certificate. A
certificate is a digital ID issued by a trusted third
party known as a certificate authority (CA). The
phone uses CA certificates to authenticate
websites that send information to the phone.
Authentication
You can decide whether your phone should store
your user name and passwords for websites that
require them. If you allow your phone to
authenticate you automatically, you will not need
to re-enter your user name and password each
time you visit the same website.
Advanced
Restart Browser
Restarts the browser, and automatically returns to
the designated homepage. This feature is
provided for your convenience if network errors
occur, allowing you to restart the browser and reestablish your Internet connection.
Downloads
If this option is enabled, you will not be able to
download images, background audio, and
objects.
Menus 125
View Title Region
You can choose whether or not to have the
browser display webpage titles. You can also set
this option so that titles exceeding a certain length
will be split into separate lines. (The first line of
the browser displays a "G" and a globe image,
while the second is the "title region". The actual
webpage content begins on the third line.)
…
About
From here, you can view information about the
version of the browser that you are using.
126 Menus
WAP Message
Starts up the browser and displays the WAP inbox so you can
read WAP messages.
Enter Address
Starts up the browser and connects to the URL you enter.
Resume
Returns to the last webpage you viewed.
Clear Cache
Clears webpage content that the browser temporarily stores in
memory.
WAP Se tt in gs
In this menu, you can make settings for the WAP servers of six
different network operators, and select the server that you
would like to use when connecting to the Internet.
The first time that you start your phone after inserting a SIM
card, the ISP name of the network operator issuing the SIM
card will appear in this menu's first group of settings. This
indicates that your network operator's WAP server settings
will be saved under the name shown. The phone will activate
this group of settings for use in connecting to the Internet.
To activate another set of WAP server settings, scroll to the
group of settings you wish to use and then press . The
phone will activate these settings for use in connecting to the
Internet.
Menus 127
By scrolling to a particular group of WAP server settings that
you wish to modify, and then pressing (Option), you can
create a new group of settings, edit the settings, or delete the
settings.
WAP server settings include the fields listed below. Press
(Edit) to edit the setting in each field. When you are finished
with the settings for all fields, you must press in order for
this group of WAP server settings to be saved.
• Profile Name: Gives the WAP server settings a name.
• Homepage: Sets the webpage that the browser will link to
when it is started up. After you enter this item, key in the
URL for the webpage that you would like to use as the
homepage
• IP Address: Enter the IP address used for accessing the
— for example, http://wap.yahoo.com.
mobile Internet.
• Port: Enter the connection port specified by the network
operator
• Bearer Mode: Before connecting to the Internet, you must
— for example, 9201.
set this item according to whether your Internet connection
bearer mode is a GPRS network system or a GSM dialup
network. Doing so will allow you to properly link to the data
network to browse WAP pages, download Java programs,
and so forth. If you are using a GPRS network, you can use
both the GPRS and dialup network to connect to the
Internet. If, however, you are using a dialup network, you
are restricted to using only the dialup network to connect to
the Internet.
128 Menus
GPRS/CSD: Use the GPRS network preferentially. Only
if there is no GPRS network present will the dialup
network be used.
GPRS: Use only the GPRS network.
CSD/GPRS: Use the dialup network preferentially. Only
if there is no dialup network will the GPRS network be
used.
CSD: Use only the dialup network.
A dialup network is a GSM Circuit Switch Data Service (CSD
/
for short). Using a dialup network can be likened to using a
home computer's modem, in that before connecting to the
Internet a number must be dialed. As for GPRS, it like the
LANs used at company, where users do not need to dial a
number to access the network. Regular GSM users who are
not using a GPRS network system can only have a dialup
connection to the Internet.
• GPRS: To modify settings for a GPRS account, press
(Edit) to edit the settings in each field. GPRS settings
include the following fields:
APN: Enter the APN (Access Point Name) assigned by
your network operator.
User Name: If needed, enter the user name provided by
your network operator.
Password: If needed, enter the account password
provided by your network operator.
• CSD: If you are using a GSM network, you must configure
and activate a CSD account. Press (Edit) to edit the
settings in the following fields:
Menus 129
Dial Number: When you start up the browser to connect
to the Internet, you phone will dial this number. Your
telecoms network operator or ISP will provide this
number to you.
User Name: This is your user account name, and is
provided by your network operator.
Password: The account password provided by the
network provider.
Line Type: This is the type of dialup connection. Press
to select.
Baud Rate: The default value is 9600, which is the
standard speed for data connections with a GSM mobile
phone.
Auth Type: This is information needed for
telecommunications protocol authentication.
130 Menus
JAVA
Your phone provides Java support, allowing you to download and
install Java applications that you like, such as various Java games,
from sites provided by your network operator. You can then run
these Java applications directly on your phone. If you do not need
an application, you can remove it from your phone at any time,
replacing it with another downloaded application.
The JAVA menu contains the following items:
All Java applications will be listed in this menu.
Application
Browser
Environment
Settings
JAVA Settings
You can go to the menu Internet → JAVA → Environment Settings
→ Internet Setting, and then press (Edit) to complete the Java
settings below. When you are finished making all settings, you
must press to save them.
• Profile Name: Provides a name for this Internet setting.
The Application Browser menu serves as a file manager,
and includes the option to place Java applications into
groups, similar to folders, for convenient organization of
and access to the Java applications you download.
This sets a file size limit for downloads, allows you to
complete necessary Java online settings, and displays
memory usage within Java (space in use/space available).
Menus 131
•
Network Access: Some types of Java games are only playable
online (for example, mahjong), and using the phone to go
online entails an extra cost. However, it may not be possible to
determine from a game's name alone whether or not it is an
online game. Therefore, this setting allows you to be presented a
prompt asking if you wish to go online to play a game before
actually running the program.
Always Ask: Each time you attempt to launch an online
game, you will be asked if you want to connect to the
Internet.
Ask Once per AP: You will only be asked if you want to go
online the first time you attempt to launch an online game.
The next time you attempt to launch the game, the same
choice that you made the first time will be applied.
Never Ask: Each time you launch an online game, the phone
will automatically connect to the Internet, and you will not
be asked to confirm.
• DNS: Here you can enter the IP address of the Domain Name
Server that you wish to use.
• Bearer Mode: Before you download a Java application from the
Internet, you must set the network system that you are using to
either GPRS or CSD (dialup).
• Based on the bearer mode that you have set, you will need to
make further settings for either the GPRS or dialup network.
For details on configuring GPRS and dialup network access, see
page 129.
132 Menus
Downloading JAVA applications
Please use the WAP browser to download Java applications. The
browser screen will first display information about the
applications. After you have read this information, you can run
the download command shown on the screen to begin
downloading the desired application to the MyApps group on the
phone.
Managing and running JAVA applications
To manage and run Java applications installed on the phone, go to
the menu JAVA
be listed in this menu. The Applications Browser menu serves as a
file manager, and the groups listed within it can be thought of as
folders used to organize different types of Java applications.
When you enter the Applications Browser menu, you will see the
default group MyApps, where all downloaded Java applications
will initially be installed. The name of this group cannot be
changed, and the group itself cannot be deleted. Press to enter
MyApps, and then select the name of the desired Java application.
You can now:
• Press (Option) to access the following options:
Content: Displays information about the Java application.
Delete: Deletes the Java application.
→ Applications Browser. All Java applications will
Menus 133
Move: Removes the Java application from the MyApps
group and places it in another group in the Applications
Browser. Scroll to the group where you wish to move the
application and then press .
8 To move a Java application to a group other than MyApps when
it is currently the only group, you must press (Option) in the
JAVA → Applications Browser menu and select New to create
a new group.
• Press to show the names of the executable files of the
applications. Scroll to the desired executable file and press
to run the corresponding Java application.
8 After starting up a Java application, use the keys corresponding to
the commands shown in the soft key bar in the lower part of the
screen to control that application.
Use only BenQ-certified Java applications in order to ensure that they
will run properly on your phone.
The default Java applications contained in MyApps may differ
/
according to localized configurations. Once you begin running an
application, simply follow the on-screen instructions. You can delete it
in order to install other application software.
134 Menus
Multimedia
This image library stores the phone's default pictures, as well as
images received in EMS/MMS messages, or downloaded through
WAP services or using multimedia communications tools.
The file formats supported by the phone are BMP, PNG, GIF, JPEG
(progressive or marithmetic-encoded saves not supported), and EMS
picture.
Scroll to the desired picture to access the following options:
• Press to display this picture. Pressing will display the
next or previous picture; pressing will show the full-screen
picture.
• Press (Option) to perform the following tasks with the
picture:
Rename: Allows you to provide the picture with a new
name.
8 The phone's default picture cannot be renamed, so this option is
not present for it.
Delete: Deletes the picture.
8 The phone's default picture cannot be deleted, so this option is
not present for it.
Send: Sends the picture in an EMS/MMS message.
8 For information about messaging features, see page 59,
"Messages Menu".
Menus 135
Information: Displays the picture's name, file size, and
whether the file is a default picture, a picture you have saved
or one you downloaded yourself (noted as User Defined).
Set Wallpaper: Use the picture as the wallpaper for the
standby screen.
Animation
This animation library stores the phone's default animations, as
well as animations received in EMS/MMS messages, or
downloaded through WAP services or using multimedia
communications tools. The procedure for using this menu is the
same as that described above for the Picture menu.
The phone supports the following animation file formats: GIF, EMS
animation.
Melody
My Melodies
This ring tone library includes the phone's default ring tones,
as well as ring tones received in EMS/MMS messages, or
downloaded through WAP services or using multimedia
communications tools, or that you have created yourself with
the Composer function.
The phone supports the following music file formats: MIDI,
SMAF.
Scroll to the desired ring tone, and press (Option) to
perform the following tasks with the ring tone:
136 Menus
•
Set Ringtone: Makes the ring tone the alert sound for
incoming calls.
8 Ring tones that support the EMS format (such as Chimes High)
cannot be set as the phone's alert sound for incoming calls, so
they do not offer this menu option.
• Rename: Allows you to give a new name to the ring tone.
8 The phone's default ring tones cannot be renamed, so they do
not present this option.
• Edit: Allows you to edit the ring tone.
8 The phone's default ring tone cannot be edited, and only
Composer offers this option. For information on how to edit ring
tones, see page 138, "Composer".
• Delete: Deletes user-edited ring tones.
8 The phone's default ring tones cannot be deleted. Only user-
created or downloaded ring tones provide this option.
• Send: Sends the ring tone in an EMS/MMS message.
8 For information about messaging features, see page 59,
"Messages Menu".
• Information: Displays the name of the ring tone, its file size,
and whether it is a default ring tone, or a file that you have
saved or downloaded yourself (noted as User Defined).
Menus 137
Composer
You can edit your own polyphonic ring tone melodies, and
use them as alert sounds for incoming calls.
A polyphonic ring tone consists of musical tones in multiple
channels. The Composer function allows you to create a
maximum of 8 channels, mixing them to create the final
polyphonic ring tone.
Note format
Length
Octave
Pitch
Sharp
Entering default notes
Press to to enter the eight pitches in an octave
as quarter notes: Do Re Mi Fa So La Ti. The screen will
display: 4C5, 4D5, 4E5, 4F5, 4G5, 4A5 and 4B5.
The "4" on the left shows that the represented note is a
/
quarter note; the "5" indicates that it is in the fifth octave.
Entering a default rest
Press to enter a quarter rest: 40.
138 Menus
Adjusting the length of a note
The default note length is a quarter note (the screen uses
the number 4 to represent a quarter note). Press to
increase the note's length (the number on the screen will
increase); press to reduce the note's length (the
number on the screen will decrease). Various note lengths
are represented by the numbers shown in the chart:
On-screen
number
Note length 1/16 1/8 3/16 1/4 3/8 1/2 3/4 1
12345678
Adjusting a note's octave
The default notes just entered are in the middle octave
(represented on the screen by the number 5). Press
to adjust a note's octave. The octave of a note is
represented by the numbers shown in the chart:
On-screen number Represented octave
4 Lower octave
5 Middle octave
6 Higher one octave
7 Higher two octaves
Adding a sharp to a note
Press to add a sharp '#', which raises the note a
semitone. To remove a sharp from a note, press .
8 A sharp cannot be added to an E or B note.
Menus 139
Steps for creating a polyphonic ring tone
1. The first time you enter the Composer menu, you will
see 8 channels that you can select for editing. Each
channel can be used to save one passage of music that
you have created. Scroll to the channel that you wish to
edit, and then press to enter the ring tone editing
window to begin composing the music for this channel.
2. Edit notes according to the procedures described above.
• To modify a note after you have entered several
notes, press to move the cursor to the right of
the note that you wish to change. You can then
proceed with adjusting the length, octave, sharp/
unsharp, and so on.
• Press to delete a highlighted note.
3. When editing the music in a channel, press (Option)
to access the following options:
• Play: Plays the notes in the channel.
• Instrument: Allows you select the instrument that
will play the notes in the channel.
• Time Beat: Sets the tempo (tempo range: 40 to 200).
4. After you are finished editing the notes in the channel,
press to return to the channel list. You can now
repeat the above steps to create another channel of
music.
140 Menus
5. When you are finished with all the channels that you
wish to fill with notes, press (Option) in the channel
list screen to access the following options:
• Play All: Plays the polyphonic ring tone that results
from mixing all channels.
• Play Channel: Plays the channel you have currently
scrolled to (if this channel does not contain any
music that you created, this option will not appear).
• Save: Select this option and your phone will
automatically mix the music you have created in the
channels into a polyphonic ring tone, and save this
ring tone to the menu Multimedia
→ Melody → My
Melodies. Press and enter a name for the ring
tone and it will be saved.
Help
Displays information on how to use the phone's keys in
composing ring tones.
Menus 141
Settings
Date & Time
Used to set the time and date, as well as the format in which the
time and date will be displayed on the startup screen.
Time
1. Press to select either the Auto or Set
mode for this item:
Auto: Automatic time zone adjustment. If
during travel, you move between time
zones, the phone will automatically adjust
the time displayed on the screen based on
the time zone prompts provided by the local
network operator so that you always have
access to accurate local time.
Set: You phone will display the time you
have set, and when you travel to other time
zones, the phone will ignore time zone
prompts issued by the local network
operator.
2. After selecting the Set mode, you can complete the date and
time fields.
Format
This option is used to decide the format in which the time
and date will appear in the standby screen.
142 Menus
Secondary Time
Allows you to display the time in
another designated time zone. If
you choose to activate this option,
the standby screen will display the
time in that time zone along with
your local time.
Time in
secondary
time zone
Power On/Off
Allows you turn the phone on and off at specified times to
conserve power.
When riding in an airplane or in any other situation where you cannot
use a mobile phone, remember to deactivate the Power On/Off
,
option.
Power On
Designates a time for the phone to be automatically turned
on. If this option is activated, the phone will be automatically
turned on at the designated time each day.
Power Off
Designates a time for the phone to be automatically turned
off. If this option is activated, the phone will be automatically
turned off at the designated time each day.
Menus 143
Profiles
A profile is a group of settings that determine whether the phone
will alert you to incoming calls through a ring tone or a vibrating
alert, and how ring tones in general are used on the phone. These
settings allow the phone's operation to best suit the environment
you are in.
1. Press to scroll to the desired profile and then press to
activate this profile. You can choose from among the following
profiles:
Normal
This is the default profile. Once this profile is activated,
the main display's status bar will show the icon; the
external display will show the .
Meeting
The options in this profile have been preset to suit a
meeting environment (for example, only a vibrating alert
is used, with no audible ring tone and no keypad tones).
Once this profile is activated, the main display's status bar
will show the icon; the external display will show the
icon.
144 Menus
Outdoors
The options in this profile have been preset to suit an
outdoor activity (for example, use of the highest ring tone
volume, activation of both ring tone and vibrating alerts,
and use of keypad tones). Once this profile is activated,
the main display's status bar will show the ; the
external display will show the icon.
Handsfree
This profile is only active when a hands-free kit is
attached to the phone. Once this profile is activated, the
main display's status bar will show the icon; the
external display will show the icon.
Airplane
When you are on a plane, you can select this profile to
turn off the phone. Once this profile is activated, the
phone will automatically be powered off, and all alarms
will be suspended. If the phone is turned off by long-
pressing , the alarms will still turn the phone at the
appointed times.
Persona l
You can use this profile as a group of custom settings, and
rename the profile if desired. After activating this profile,
besides the appearance of the icon in the main
display's status bar and the icon on the external
display, "Personal" will appear as well. If however you
have renamed this profile, the name you chose will appear
Menus 145
on the standby screens.
8 The default profile name "Personal" or the name you give to
this profile will only appear on the external display when the
phone's flip is opened.
2. Press to scroll to the desired profile, and then press
(Edit) to modify the settings listed below and adjust the profile
to suit a particular environment.
8 After entering the Edit menu, the setting for each option will be
displayed, providing a overview of the profile.
Vibr ate
Includes the following setting options:
• Ring Only: When there is an incoming call, the phone
will use a ring tone but no vibrating alert.
• Vibrate Only: When there is an incoming call, the phone
will use a vibrating alert but no ring tone.
• Ring & Vibrate: When there is an incoming call, the
phone will use both a vibrating alert and a ring tone.
• Vibrate then Ring: When there is an incoming call, the
phone will first use a vibrating alert and then a ring
tone.
Call Ring
Your phone includes various types of ring tone melodies.
Scroll to the desired ring tone, and after one second or so
you will be able to hear that ring tone. Press to
confirm your selection.
146 Menus
Message Ring
The ring tone that your phone uses when a message is
received.
Alarm Ring
The ring tone used by the Alarm Clock.
Calendar Ring
The ring tone used for Calendar events for which you
have set an alarm.
Key pad Tone
Determines whether keypad tones are played when keys
are pressed.
Ring Volume
Press to adjust the ring tone volume
or mute the ring tone.
Answer Mode
• Send Key: Allows incoming calls to be answered only by
pressing .
• Any Key: Allows any key except to be used to answer
an incoming call. In this mode, is used to reject an
incoming call, and not to answer.
• Automatic: If the Automatic answer mode is activated,
the phone will ring for five seconds, and then the
incoming call will be automatically answered (only the
Handsfree profile allows this setting).
Menus 147
Rename
Allows you to provide a new name for the profile (only
available for the Personal profile).
Restore
Returns the above settings for the profile to their factory
default values.
8 Requires entry of the phone password, whose default value
is 1234.
148 Menus
Display
Theme
A display theme consists of a combination of display color
and the standby screen wallpaper. Different display colors are
paired with different preset wallpapers, so when you change
the display color, the standby screen wallpaper will also
change. Scroll to the color that you wish to use and then
press (View) to preview the color matched with the
standby screen wallpaper. Press to confirm the setting.
After you press (View) to enter the preview mode, pressing
/
will allow you to browse the wallpapers matched to the
colors.
Wa l l p a p e r
Designates the wallpaper used for the main display's standby
screen. Scroll to the name of the wallpaper that you wish to
use, and then press (View) to view this wallpaper. After
you press (View) to enter the preview mode, pressing
will display the next or previous wallpaper; pressing will
display the wallpaper in full screen. Press to confirm your
selection of the standby screen wallpaper.
You can also use this feature to change the wallpaper matched
/
with a color in the Theme option.
Menus 149
Wel co me Me ss ag e
Used to select and configure the animation/picture/text that is
displayed when the phone is turned on, as well as the music
that is played.
• Animation: Only the animation selected in this option will
be displayed when the phone is turned on.
• Picture: Only the picture selected in this option will be
displayed when the phone is turned on. Images that have
been saved from messages can also be set for use in the
welcome screen.
• Tex t : Only the welcome message entered in this option will
be displayed when the phone is turned on.
8 Limit on length of entered text: 15 letters or numbers.
• Picture and Text: The picture and welcome message set in
this option will be displayed when the phone is turned on.
Regardless of the settings you have made for the animation/
/
picture/text to be displayed when the phone is turned on, the
phone will play the music set in this option. Therefore, after
making settings for the animation/picture/text used for the
startup screen, the startup music must also be set.
• Off: Returns the settings for startup music and animation to
their factory default values.
150 Menus
Contrast
Press to adjust the contrast of the screen's
display. Press to confirm the setting.
Brightness
Press to adjust the brightness of the phone's display
backlighting. Press to confirm the setting.
Backlight Setting
You can turn the phone's keypad backlighting and display
backlighting on or off, as well as set the length of time that
backlighting will remain activated after the flip is opened or a
key is pressed. After turning backlighting on, you can scroll to
the Time Duration option and then press (Edit) to set this
length of time. When done, press .
OLED Duration
• Default: After the external display cycles through displays of
the time and animations, it will power off, and will only
power on again when you press the upper or lower part of
the volume key on the left side of the phone, or open and
then close the flip (if a new message is received or there is an
incoming call, the external display will also power on and
then, after cycling through the programmed items, power
off once more).
Menus 151
•
Cycle: After the external display cycles through displays of
the time and animations, it will power off. After 15 seconds,
the external display will automatically power on and again
cycle through the programmed items.
• Always On: The external display will remain on, cycling
continuously through displays of the time and animations.
Because the phone's external display drains power from the
battery when it is on, selecting Cycle or Always On will reduce
battery life.
OLED Animation Setting
You can set the animations to show on the external display.
Press (Select) to make your selections; press (Cancel)
to clear the animations that you have selected. When you are
finished, press to confirm your selections.
Audio
This menu allows you to set various sounds that the phone uses.
8 Some of the options provided in this menu and the Profiles menu are
identical (for example, Call Ring). Therefore the particular setting that
the phone uses will depend on which menu you last used to make the
setting.
Power Saving Mode
After you activate the power saving mode, keypad and display
backlighting will be turned off, as will the status indicator lights
on the flip, in order to conserve power.
152 Menus
Call Settings
Call Divert
8 Requires the support of the network operator.
Forward All
Forwards all incoming calls to a designated phone
number or voicemail inbox. When you use this feature,
you must enter a phone number to which to forward
incoming calls.
8 After the Forward All mode is activated, the standby screen
will display the icon.
When Busy
The phone will divert incoming calls to another number
when you are in the middle of another call.
No Reply
Forwards incoming calls to another number when you do
not answer.
Not Reachable
Diverts incoming calls when your phone is turned off or
outside network coverage.
Cancel All
Cancels all call divert options.
Menus 153
Call Barring
You can request that your network operator block the dialing
or receiving of certain calls. The call barring services below
require the support of your network operator. To activate or
cancel any of the options below, you must enter the network
password provided by the network operator.
All Outgoing
Blocks dialing of any calls from the phone.
Intl. Out
If this option is activated, no international calls can be
made with your phone.
Intl. Except Home
If this option is activated, your phone can only be used to
dial local calls and calls to your home country from
abroad. Other international calls will be barred.
All Incoming
Rejects all incoming calls.
Incoming When Roaming
If you are in another country (using roaming), activating
this option will cause the phone to reject all incoming
calls.
Cancel All
Cancels all call barring settings. You must enter the
network password in order to cancel these settings.
154 Menus
Change Password
You can change the network password, which can be
obtained from the network operator.
Call Waiting
If there is an incoming call when you are in the middle of
another call, the screen will display the number of the
incoming call and call waiting message to alert you. You can
activate, cancel, or view the status of this feature from this
menu.
8 You must apply to the network operator for the call waiting
service in order to use this feature.
Auto Redial
If there is no answer at a number you have dialed, the phone
will automatically redial.
Show Number
You can decide whether or not to display your phone number
on the recipient's phone when you make a call.
On: When you call someone, the recipient's phone will
display your phone number.
Off: Your phone number will not be shown on the recipient's
phone.
8 If this feature is turned off, you may not be able to make phone
calls in certain countries, such as Singapore and China.
Preset: Whether your phone number will be displayed on a
recipient's phone will be determined by the default set by the
network operator.
Menus 155
Fixed Dial Number
After this feature is activated, the phone will only be able to
dial numbers on the Fixed Dial Number list. If a number is
not on the list, calls cannot be made to this number.
8 When you activate or cancel this feature, you must enter the
PIN2 code.
If the PIN2 code is entered incorrectly three consecutive times,
the PIN2 code will be locked down. You will need the PUK2 code
,
to unlock the PIN2 code. Contact your network operator to obtain
the PUK2 code.
Before activating the Fixed Dial Number feature, you must
press (View), then press (Option) and select Add to
create a Fixed Dial Number list. You must enter the PIN2
code, and then add a new number to your Fixed Dial Number
list.
After creating the list, you can view, edit and delete numbers
in the list.
Active Line
This feature allows you to use two different phone numbers
on one phone. You can designate one number for dialing
calls, while accepting incoming calls dialed to both numbers
without needing to use two phones. Select either Line 1 or
Line 2. The number you select ( or ) will appear on the
standby screen.
8 This feature requires the support of the network operator.
156 Menus
Connect Alert
This feature allows the phone to provide a ring tone or
vibrating alert, or flash the backlighting when the recipient of
a call has answered.
Minute Beep
Once this option is activated, the phone will emit a beep once
every minute during a call.
Network
Generally speaking, the choice of the network that your phone
uses is configured automatically. When turned on, the phone will
automatically connect to the network provided by your network
operator, or will automatically connect to the roaming network
when you are outside the coverage of your regular network.
If you wish to change the connection network, this menu will
allow you to select the network you want to use. When outside the
coverage of your regular network in your home country or when
abroad, you can manually select the local network system.
8 Your network operator must be able to support network selection in
order for you to use this feature.
Mode Selection
You can choose whether the network selection mode that the
phone will use when it is turned on is automatic or manual.
Automatic: If this option is selected, when outside the
coverage of your regular network, the phone will
automatically search for usable networks.
Menus 157
Manual: If this option is selected, when outside the coverage
of your regular network, the phone will list all the networks of
telecom vendors and allow you to choose.
Available List
Allows you to manually select a network. Your phone will list
all the networks of telecoms vendors so you can choose.
8 Not all networks listed will necessarily be available for use. If you
require further information, contact your network operator.
Band Setting
According to your requirements, you can set an appropriate
band in the GSM network system.
Connection Mode
Used to set whether the phone will also search for a GPRS
network when it is turned on.
• GPRS & GSM: When it is turned on, the phone will search
for available GPRS and GSM networks.
• GSM Only: When it is turned on, the phone will search only
for a GSM network.
158 Menus
Security
You can use a PIN code, phone password, and SIM card lock
authentication to prevent unauthorized use of the phone.
PIN Code
A PIN (Personal Identification Number) code is a password
provided by a network operator. When PIN code
authentication is activated, it will prevent unauthorized use of
the SIM card. Unless the correct PIN code is entered when the
phone is turned on, the SIM card cannot be used, even if it is
inserted in another phone.
If the PIN code is entered incorrectly three consecutive times,
this will cause the SIM card to lock down, and a PUK1 code
provided by the network operator will be required to unlock it.
,
After unlocking, the PIN code will be automatically set to activate
once the phone is turned on.
PIN1 Code
Used to activate/deactivate or change the PIN1 code.
Before changing settings for the PIN1 code feature, the
previously set PIN1 code must be entered.
If you wish to change the PIN1 code, you must press
in the Enable item to select On, so that you will be able to
enter and confirm the new password.
PIN2 Code
Used to change the PIN2 code. The procedure is the same
as for the PIN1 code.
Menus 159
Phone Lock
Activates/deactivates or changes the phone's startup
password. The startup password prevents unauthorized
persons from using your phone. Once the phone's password is
activated, the phone will be locked down when it is turned on
unless this password is correctly entered. If an incorrect
password is entered, your phone will remain locked down,
and cannot be unlocked even if the SIM card is replaced by
another one. When the phone is locked, you will only be able
to make emergency calls.
Once the phone password is activated, you must enter the
password each time the phone is turned on in order to unlock
the phone (there is no limit on the number of attempts to
enter the phone password).
The procedure for setting the phone password is the same as
for the PIN1 code (the default phone password is 1234).
SIM Lock
Using this feature, you can prevent unauthorized persons
from using your phone with other SIM cards. After you
activate the SIM Lock feature, only the SIM card present
when the feature was activated will be accepted by the phone.
If a new SIM card is inserted in the phone, when the phone is
turned on and a PIN code is entered, the phone will request
entry of a SIM Lock password (there is no limit on the
number of attempts to enter the SIM Lock password.
If the password is entered correctly, the phone will be able to
recognize the new SIM card and use it normally. The next
time the phone is turned on with this SIM card inserted, the
phone will not ask again for you to enter the SIM Lock
160 Menus
password.
8 Your phone can recognize a maximum of three different SIM
cards.
Before setting the SIM Lock feature, you must enter the
previously set SIM Lock password (the default SIM Lock
password is 1234). The password must be between 4 and 8
digits in length.
Screen Lock
Used to create a security screensaver. When
you have not performed any tasks with the
phone for a set period of time, the phone will
automatically activate the screensaver shown
on the left, the purpose being to prevent
personal information on the phone from
being viewed by others. To return to the original screen, after
pressing any key, you must enter the password you set for this
feature.
The steps for setting the Screen Lock feature are as follows:
1. You must first enter the Screen Lock password that was
previously set (the default password is 1234).
2. Press in the Enable option to select On, and then press
to scroll to the Timeout item.
3. In the Timeout item, press (Edit) or press to set the
period of inactivity before the phone will enter the Screen
Lock mode.
Menus 161
4. After completing settings, press . The phone will
prompt you to enter and confirm the Screen Lock
password. You have two choices:
a. If you do not wish to change the password, press to
activate the Screen Lock feature using the previously set
password.
b. If you wish to change the password, enter the new
password in the New Password and Confirm fields,
then press to use the new password and activate the
Screen Lock feature.
Language
You can select the language that the phone will use to display
information.
Input Mode
You can set the default input mode that will be automatically
activated whenever you open the editing window for entering
information into a message, the Phone Book, and so forth.
Flip Activate
Activates/deactivates the active flip feature.
162 Menus
User Group
User Group
Used to create a closed group of callers based on a service
provided by the network operator. The members of a User
Group can call each other, but cannot conduct calls with
anyone outside the group unless special provisions are made.
This option can be used to select whether or not to activate
this service.
Outside Access
When the User Group service is activated, enabling Outside
Access will allow users in the group to make calls to numbers
outside the group. However, incoming calls will still be
restricted to calls from within the group.
Restore
Restores all of the phone's settings to their factory defaults.
Menus 163
Care and Maintenance
Take note of the points noted below to ensure that you are using
the phone properly and to extend the lifespan of the phone.
• Store the phone and its accessories out of the reach of children.
• Keep the phone and accessories dry, and use the phone in
environments where the temperature is between
°C. High or low temperatures outside this range may damage
the phone.
• If possible, do not use or store the phone in excessively dusty or
dirty environments.
• Do not remove the warranty seal on the phone yourself, nor
allow an unauthorized dealer to do so.
• Do not use strong detergents or organic solvents to wipe or
clean the phone.
• If your phone or its accessories are not operating normally,
contact an authorized dealer immediately.
• Use only genuine BenQ accessories such as batteries, battery
charger and hands-free kit to ensure the phone's normal
operation and preserve battery life, as well as protect the safety
of your person and belongings. Use of non-BenQ accessories
will not allow your phone to achieve optimal performance, and
may cause the phone to malfunction. Any malfunctions or
damage caused by the use of third-party accessories are not be
covered by the terms of the product warranty, and will void the
product warranty.
–20°C and 55
164 Care and Maintenance
•
Avoid allowing objects that may discharge electricity to contact
the charging socket on the bottom of the phone or the metal
contacts on the battery, as this may cause short circuits and put
you in danger.
Care and Maintenance 165
Troubleshooting
If you encounter problems while using the phone, or if it
performs erratically, you can consult the information in the chart
below. If your particular problem cannot be resolved using the
information in the chart, contact the dealer where you purchased
the phone.
Problem Possible cause Solution
Move to a location where the
network signal can be
properly received.
Avoid using the phone at
such times, or try again after
waiting a short time.
You can request a service
area map from your network
operator.
Hang up the phone and dial
again. You may be switched
to a better-quality network
trunk or phone line.
Poor
reception
Echo or noise
• The network signal is too
weak at your current
location — for example, in
a basement or near a tall
building-because wireless
transmissions can not
effectively reach it.
• The network is busy at
the current time (for
example, during peak
times, there may be too
much network traffic to
handle additional calls).
• You are too far away from
a base station for your
network operator.
• Poor network trunk quality
on the part of your
network operator.
• Poor local telephone line
quality.
166 Troubleshooting
Problem Possible cause Solution
If you are located in an area
where signaling is weak,
temporarily shut off the
phone.
Use a new battery.
Change your location to one
where the network is
accessible, or temporarily
turn off your phone.
Recharge the phone's
battery.
Take the SIM card to your
network operator for testing.
Insert the SIM card properly.
Use a soft, dry cloth to clean
the SIM card contacts.
Shortened
standby time
You cannot
switch your
phone on.
SIM card
error
• The standby time is
related to your network
operator's system
configuration. The same
phone used with different
network operators'
systems will not provide
exactly the same length
of standby time.
• The battery is depleted. In
high-temperature
environments, battery life
will be shortened.
• If you are not able to
connect to the network,
the phone will continue to
send out signals as it
attempts to locate a base
station. Doing so
consumes battery power
and will consequently
shorten standby time.
• Battery power has been
depleted.
• SIM card malfunction or
damage.
• SIM card inserted
improperly.
• Debris on the SIM card
contacts.
Troubleshooting 167
Problem Possible cause Solution
Contact your network
operator.
Check the service area with
your network operator.
Move to an open space, or if
you are inside a building,
move closer to a window.
Go to the menu Phone
Book → Privacy Manager
and then select Off in order
to deactivate this option.
Go to the menu Settings →
Call Settings → Call
Barring, and then select
Cancel All.
Go to the menu Settings →
Call Settings → Call
Barring, and then select
Cancel All.
Go to the menu Settings →
Call Settings → Fixed Dial
Number, and then select
Off to turn off this feature.
Contact your network
operator. If the network
operator provides the SIM
card's PUK code, use the
PUK code to unlock the SIM
card.
Unable to
connect to the
network.
You cannot
answer
incoming
calls.
You cannot
make
outgoing
calls.
PIN Code is
blocked.
• SIM card invalid.
• You are not within the
network's service area.
• Poor signal.
• You have activated
Accept List or Reject
List in the Privacy
Manager option.
• You have activated the
Call Barring feature.
• You have activated the
Call Barring feature.
• You have activated the
Fixed Dial Number
feature.
• You have entered an
incorrect PIN code three
consecutive times.
168 Troubleshooting
Problem Possible cause Solution
Contact the dealer.
Adjust the battery charging
environment to avoid
extremes of temperature.
Check all connectors to
make sure all connections
have been properly made.
Delete unnecessary data
from the Phone Book.
Contact your network
operator.
Battery will
not charge.
Unable to
enter
information
into the
Phone Book.
Unable to
select certain
features.
• The battery or battery
charger is damaged.
• The phone's temperature
is below 0°C or higher
than 45°C.
• Poor contact between the
battery and charger.
• The Phone Book's
memory is already full.
• Your network operator
does not support these
features, or you have not
applied for services that
provide these features.
Troubleshooting 169
170 Troubleshooting
Loading...
