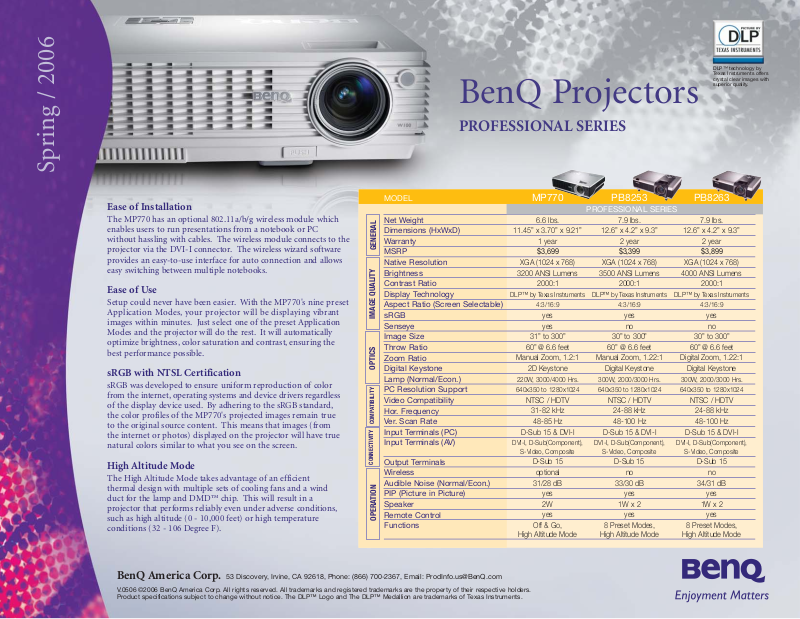

BenQ MP770 Product Sheet

BenQ America Corp. 53 Discovery, Irvine, CA 92618, Phone: [phone], Email: [e-mail]

V.0506 ©2006 BenQ America Corp. All rights reserved. All trademarks and registered trademarks are the property of their respective holders.
Product specifications subject to change without notice. The DLP™ Logo and The DLP™ Medallion are trademarks of Texas Instruments.

Spring / 2006

BenQ Projectors

PROFESSIONAL SERIES

COMPATIBILITY

IMAGE QUALITY

GENERALOPERATION

Net Weight
Dimensions (HxWxD)
Warranty
MSRP
Native Resolution
Brightness
Contrast Ratio
Display Technology
Aspect Ratio (Screen Selectable)
sRGB
Senseye
Image Size
Throw Ratio
Zoom Ratio
Digital Keystone
Lamp (Normal/Econ.)
PC Resolution Support
Video Compatibility
Hor. Frequency
Ver. Scan Rate
Input Terminals (PC)
Input Terminals (AV)

Output Terminals
Wireless
Audible Noise (Normal/Econ.)
PIP (Picture in Picture)
Speaker
Remote Control
Functions

CONNECTIVITY

OPTICS

MP770 PB8253 PB8263

6.6 lbs. 7.9 lbs. 7.9 lbs.

11.45” x 3.70” x 9.21” 12.6” x 4.2” x 9.3” 12.6” x 4.2” x 9.3”
1 year 2 year 2 year

$3,699 $3,399 $3,899

XGA (1024 x 768) XGA (1024 x 768) XGA (1024 x 768)

3200 ANSI Lumens 3500 ANSI Lumens 4000 ANSI Lumens

2000:1 2000:1 2000:1

DLP™ by Texas Instruments DLP™ by Texas Instruments DLP™ by Texas Instruments

4:3/16:9 4:3/16:9 4:3/16:9

yes yes yes
yes no no

31” to 300” 30” to 300” 30” to 300”

60” @ 6.6 feet 60” @ 6.6 feet 60” @ 6.6 feet

Manual Zoom, 1.2:1 Manual Zoom, 1.22:1 Digital Zoom, 1.22:1

2D Keystone Digital Keystone Digital Keystone

220W, 3000/4000 Hrs. 300W, 2000/3000 Hrs. 300W, 2000/3000 Hrs.

640x350 to 1280x1024 640x350 to 1280x1024 640x350 to 1280x1024

NTSC / HDTV NTSC / HDTV NTSC / HDTV

31-82 kHz 24-88 kHz 24-88 kHz

48-85 Hz 48-100 Hz 48-100 Hz

D-Sub 15 & DVI-I D-Sub 15 & DVI-I D-Sub 15 & DVI-I

DVI-I, D-Sub(Component), DVI-I, D-Sub(Component), DVI-I, D-Sub(Component),

S-Video, Composite S-Video, Composite S-Video, Composite

D-Sub 15 D-Sub 15 D-Sub 15

optional no no

31/28 dB 33/30 dB 34/31 dB

yes yes yes
2W 1W x 2 1W x 2
yes yes yes

Off & Go, 8 Preset Modes, 8 Preset Modes,

High Altitude Mode High Altitude Mode High Altitude Mode

MODEL

PROFESSIONAL SERIES

Ease of Installation

The MP770 has an optional 802.11a/b/g wireless module which
enables users to run presentations from a notebook or PC
without hassling with cables. The wireless module connects to the
projector via the DVI-I connector. The wireless wizard software
provides an easy-to-use interface for auto connection and allows
easy switching between multiple notebooks.

Ease of Use

Setup could never have been easier. With the MP770's nine preset
Application Modes, your projector will be displaying vibrant
images within minutes. Just select one of the preset Application
Modes and the projector will do the rest. It will automatically
optimize brightness, color saturation and contrast, ensuring the
best performance possible.

sRGB with NTSL Certification

sRGB was developed to ensure uniform reproduction of color
from the internet, operating systems and device drivers regardless
of the display device used. By adhering to the sRGB standard,
the color profiles of the MP770's projected images remain true
to the original source content. This means that images (from
the internet or photos) displayed on the projector will have true
natural colors similar to what you see on the screen.

High Altitude Mode

The High Altitude Mode takes advantage of an efficient
thermal design with multiple sets of cooling fans and a wind
duct for the lamp and DMD™ chip. This will result in a
projector that performs reliably even under adverse conditions,
such as high altitude (0 - 10,000 feet) or high temperature
conditions (32 - 106 Degree F).

DLP™ technology by
Texas Instruments offers
crystal clear images with
superior quality.
