MP610 / MP720 / MP770
Ceiling Mounting Guide
Welcome
Copyright
Copyright 2005 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.
Disclaimer
BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and
specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the
right to revise this publication and to make changes from time to time in the contents hereof without obligation of this company
to notify any person of such revision or changes.
Safety Instructions
1. Follow the instructions in this guide when installing the projector with this bracket. Improper or inadequate installation
could cause the projector to fall and cause injures.
2. Make sure the installation is secure enough to bear the weight of all and withstand vibrations.
3. Use only the parts provided with the bracket, and any parts (commercially available) that are specified in this guide.
4. Do not modify the bracket or the parts provided with the bracket.
5. Do not use damaged parts. If any parts become damaged, contact your dealer.
6. All bolts and screws must be tightened securely.
7. Make sure not to block any ventilation openings when installing the projector.
8. Do not install the projector in a location that is subject to high levels of dust or humidity.
9. Do not install the projector in a location that is exposed to direct sunlight or in a location that is subject to extreme
fluctuations in temperature (such as near an air conditioner).
10. Clean only with a dry cloth.
11. Special techniques and experience are required when installing the projector with this bracket. It is recommended that you
contact your dealer to install the projector for you.
12. Once the projector is installed, safety checks should be conducted on a regular basis.
Table of Contents
Packing Parts List ................................................................................................................................................................................. 3
Projector Installation and Throw Distance Chart.............................................................................................................................. 4
Installing a Projector with The Ceiling Bracket.................................................................................................................................. 5
Adjusting the Ceiling Bracket.............................................................................................................................................................. 8
Specifications and Diagrams ............................................................................................................................................................. 10
2 Copyright
Packing Parts List
CEILING ADAPTER U-PLATE TUBE
PIPE PIPE-BASE H – ADJUST ADAPTER
PROJECTOR ADAPTER V – ADJUST BOLT NUT x 7
WASH E R x 1
Names of Parts
M4 SCREW x 10
Nut
BOLT x 6 (TUBE BOLT x 2, L – ADJUST
BOLT x 2, PIPE BOLT x 2)
U - PLATE
CEILING ADAPTER
M4 SCREW x 2
TUBE
TUBE BOLT x 2
M4 SCREW x 4
M4 SCREW x 3
L-ADJUST BOLT x 2
PIPE
PIPE BOLT x 2
H - ADJUST ADAPTER
V – ADJUST BOLT
PIPE BASE
PROJECTOR ADAPTER
Packing Parts List 3
Projector Installation and Throw Distance Chart
Floor Installation for a 4:3 screen
Maximum zoom
Feet Inches mm Min length
4 48 1219 1745 1876 2007 18
1500 2148 2199 2250 23
5 60 1524 2182 2345 2509 23
6 72 1829 2618 2815 3011 27
2000 2863 3078 3293 30
7 84 2134 3055 3284 3513 32
8 96 2438 3491 3753 4015 36
2500 3579 3848 4116 38
9 108 2743 3927 4222 4516 41
3000 4295 4617 4939 45
10 120 3048 4364 4691 5018 46
3500 5011 5387 5763 53
12 144 3658 5236 5629 6022 55
4000 5727 6157 6586 60
15 180 4572 6545 7036 7527 69
5000 7158 7695 8232 75
18 216 5436 7855 8444 9033 82
6000 8590 9234 9878 90
25 300 7620 10909 11727 12545 114
Minimum zoom
Vertical Offset
Projection distance
Distance from Screen in mm Vertical Offset in mm
Average Max length
(with max.
zoom)
(with min.
zoom)
Screen
Center of lens
The recommended focus range is from 1500-8000 millimeters (1.5-8 meters).
There is 3%-5% tolerance among these numbers due to optical component variations.
4 Projector Installation and Throw Distance Chart
Installing a Projector with The Ceiling Bracket
Overview
Q Diagram of completed installation
Q Ceiling Mount Device
Installation Procedure
STEP A
Insert the U-PLATE into the CEILING ADAPTER, and tighten two M4 screws (from the bottom) into the
screw holes. Then attach the top part to the ceiling.
U-PLATE
M4 screws
CEILING ADAPTER
Ceiling mount screws
(not included)
Installing a Projector with the Ceiling Bracket 5
STEP B
Install the TUBE and the U-PLATE with 2 sets of bolts & nuts (TUBE BOLT).
NUTS x 2
TUBE BOLTS x 2
TUBE
STEP C
STEP D
Install the PIPE and the TUBE with 2 sets of bolts & nuts (L-ADJUST BOLT).
Install the base-assembly.
STEP D1 Attach the PIPE-BASE to the H-ADJUST
ADAPTER with 2 M4 screws.
M4 screw
NUTS x 2
L-ADJUST BOLTS x2
PIPE
STEP D2 Assemble the PROJECTOR ADAPTER and the
projector with 3 M4 screws.
M4 screw
PROJECTOR ADAPTER
H-ADJUST ADAPTER
PIPE-BASE
6 Installing a Projector with the Ceiling Bracket
STEP E
STEP F
Combine the H-ADJUST ADAPTER (including the PIPE-BASE) and the PROJECTOR ADAPTER with
one V-ADJUST BOLT set (bolt, washer and nut). Then tighten the M4 screws on both sides.
NUT
WA SH E R
H-ADJUST ADAPTER
M4 screw
V-A DJUST BOLT
Assemble BASE-ASSEMBLY and the ceiling mount device with 2 sets of bolts and nuts (PIPE BOLT
sets).
*Two people are required for the completion of this step.
Ceiling mount bracket
BASE-ASSEMBLY
NUT
PIPE BOLT
Installation finished.
Installing a Projector with the Ceiling Bracket 7
Adjusting the Ceiling Bracket
Height Adjustment
1. Make sure to remove the projector first.
2. Loosen the nuts securing to the two L-ADJUST BOLTS.
3. Remove the L-ADJUST BOLTS from the PIPE.
4. Adjust to the correct position for the height of the screen. The height can be
adjusted to 218mm or any value in a range between 548mm and 758mm in
increments of 30 mm.
5. Insert the L-ADJUST BOLT back into the PIPE, and then re-attach the nuts
previously removed.
Maximum Height
Minimum Height
218
8 Adjusting the Ceiling Bracket
A
Horizontal Angle Adjustment
1. Loosen the two sets of screws connecting the PIPE-BASE and the
H-ADJUST ADAPTER.
2. Adjust the horizontal angle so that it is correct for the orientation of the
screen.
3. Re-tighten the two sets of screws connecting the PIPE-BASE and the
H-ADJUST ADAPTER.
4. The swivel angle can be set within a range of negative to positive 30
degrees.
Ver t i ca l A n gl e A d j u s tm e nt
1. Loosen the two sets of screws connecting the H-ADJUST ADAPTER
and the PROJECTOR ADAPTER.
2. Adjust the vertical angle to the correct one for the orientation of the
screen.
3. Re-tighten the 2 sets of screws connecting the H-ADJUST ADAPTER
and the PROJECTOR ADAPTER.
4. The tilt angle can be adjusted in a range between +5 and -15 degrees.
5
djusting the Ceiling Bracket 9
Specifications and Diagrams
Specifications
Adjustment Range
Height
Horizontal angle
Vertical angle
We ig h t 3.2 kg
Loading 3.5 kg
218mm, 548mm, 578mm, 608mm, 638mm, 668mm, 698mm, 728mm and 758mm.
–30 to +30 degrees
+5 to -15 degrees
Diagrams

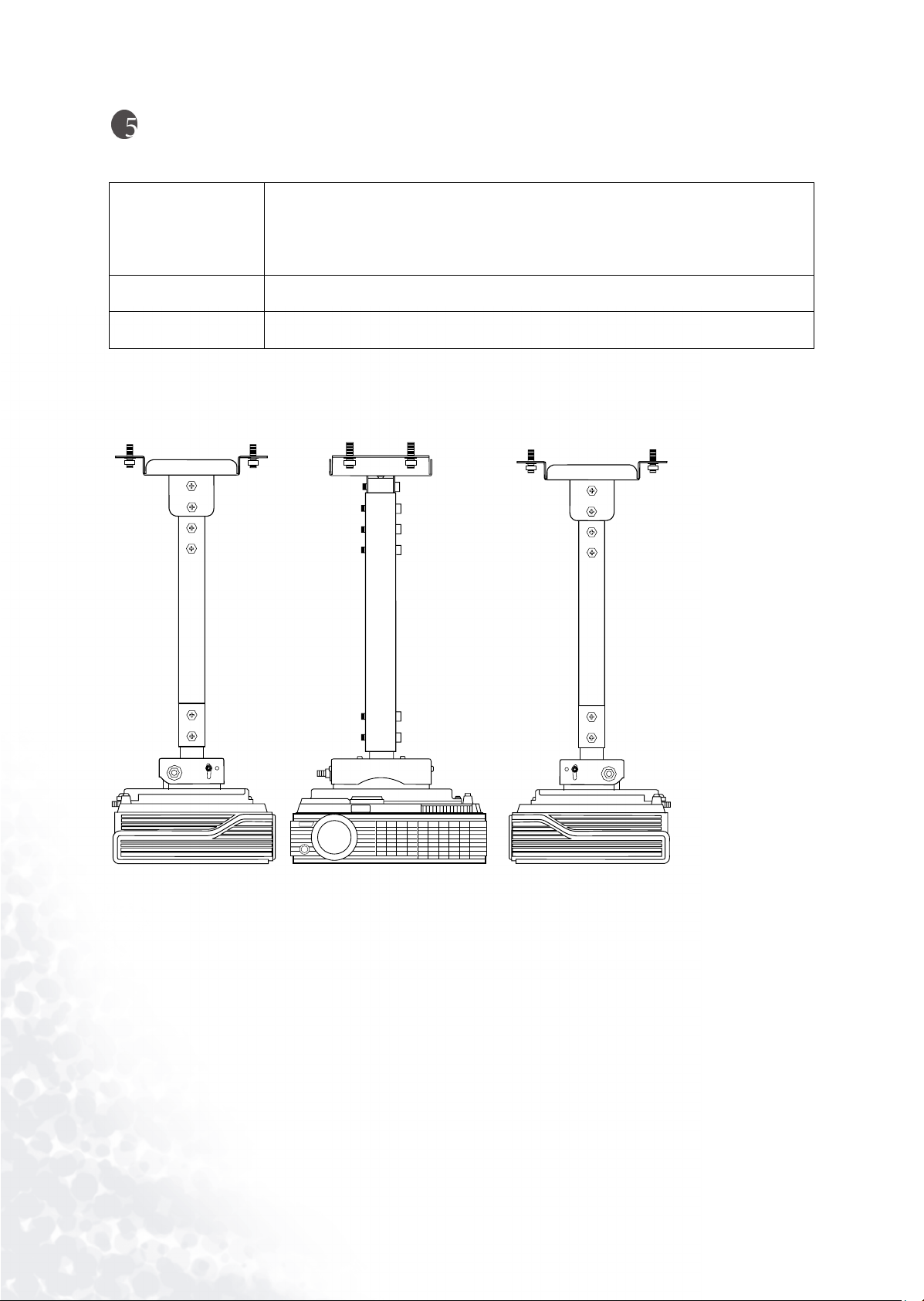

Q Left View Q Front view Q Right view
10 Specifications and Diagrams
