AE220 Series Digital Camera User Manual

Copyright 2012 BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation. All other logos, products, or company names mentioned in this manual may be the registered trademarks or copyrights of their respective companies, and are used for informational purposes only.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BenQ Corporation to notify any person of such revision or changes.

This user manual aims to provide the most updated and accurate information to customers, and thus all contents may be modified from time to time without prior notice. Please visit http://www.benq.com for the latest version of this manual.

Do not hold the camera by excessive force. Plus, be sure to protect the camera from strong impacts.

To avoid accidental falling, please attach the hand strap to the camera and always hold the camera by keeping the hand strap around your wrist.

If the battery suddenly depleted and caused the lens fail to retract, please carefully protect the lens to avoid collision and insert a battery with full power ASAP.

When the camera is not in use, always turn the power off and make sure the

lens has retracted successfully before storing the camera in its case. If you do not intend to use the camera for a long time, please remove the battery from the camera and store the battery carefully.

Keep your camera away from sharp objects and avoid collision.

When the camera is not in use, please place it in a steady place. Plus, always keep your camera away from pressure or any other similar environment (for example, in a pant pocket) to avoid possible damage.

Table of Contents

Touring the camera ...................................................................... 9

Checking the package contents .................................................................9

Camera ......................................................................................................... 10

Front and bottom views ...................................................................................10

Rear view .............................................................................................................11

LED Indicator ......................................................................................................12

Battery status ......................................................................................................12

Preparing the camera for use ...................................................13

Charging the battery .................................................................................. 13

Using multifunctional buttons .................................................................. 15

Using an SD card ........................................................................................ 15

Initial setting ................................................................................. 16

Setting language .......................................................................................... 16

Setting date and time ................................................................................. 16

Operating the camera ................................................................ 17

Capture mode .............................................................................19

Selecting the focus mode .......................................................................... 20

English

Using the AE/AF lock ................................................................................ 20

Using the continuous shooting mode .................................................... 21

Using the flash mode ................................................................................. 22

Recording Videos ....................................................................................... 23

Using PIV function .............................................................................................23

More on the capture mode ......................................................24

English

Using the Function menu ......................................................................... 24

Aspect Ratio ....................................................................................................... 25

Resolution ........................................................................................................... 25

EV Compensation .............................................................................................26

White Balance ....................................................................................................26

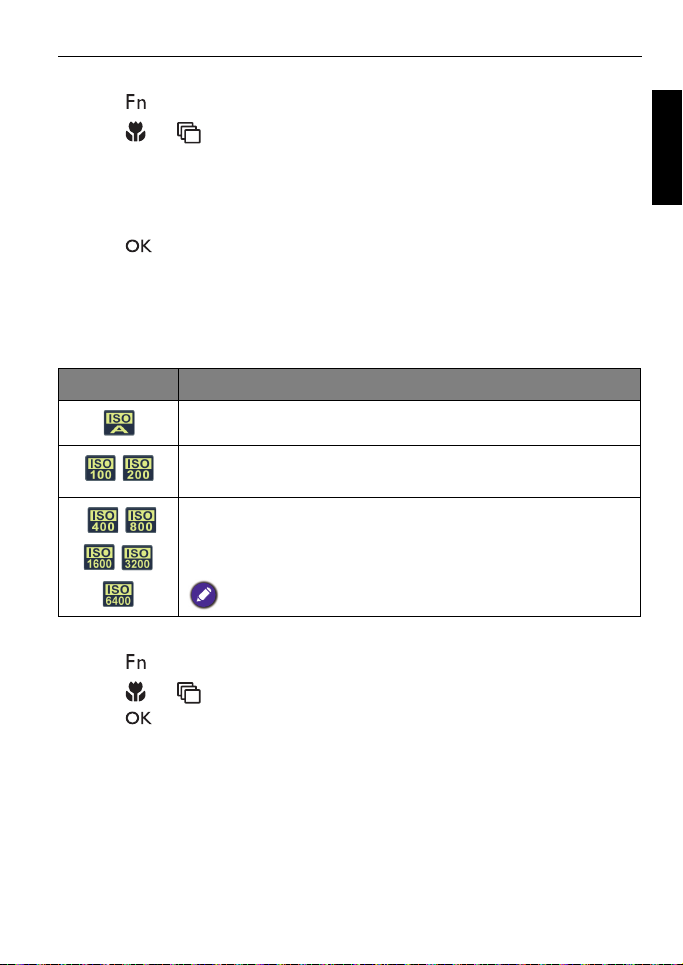

ISO ........................................................................................................................ 27

Metering .............................................................................................................. 28

Color Mode ........................................................................................................28

Filter Effect .......................................................................................................... 30

Lomo .................................................................................................................... 30

Movie Format ..................................................................................................... 31

Wind Cut ............................................................................................................ 31

Using the Capture menu .......................................................................... 32

Scene Mode ........................................................................................................32

Smart Scene................................................................................................. 36

Smile Catch.................................................................................................. 37

Blink Detector ............................................................................................ 37

Love Portrait............................................................................................... 37

Lomo............................................................................................................. 38

Pre-composition......................................................................................... 38

Web Auction............................................................................................... 39

Drive mode ......................................................................................................... 40

AF Area ............................................................................................................... 40

Setting sharpness, saturation and contrast .................................................. 41

Quality ................................................................................................................. 41

Digital Zoom ...................................................................................................... 42

Date Stamp ......................................................................................................... 42

Instant Review .................................................................................................... 42

Grid Line ..............................................................................................................43

S.S.F. (Super Shake-Free) .................................................................................43

Continuous AF ...................................................................................................43

Zoom ....................................................................................................................44

Setup menu ...................................................................................45

Playback mode .............................................................................48

Options for playback and editing ............................................................ 49

Enlarging an image ..............................................................................................49

Rotating an image ...............................................................................................49

Viewing multiple files at a time .......................................................................50

Playing back video clips .....................................................................................50

Using Movie Edit ................................................................................................51

Adjusting the playback volume .......................................................................52

Slideshow .............................................................................................................52

Deleting files ........................................................................................................53

Protecting files ....................................................................................................54

Red-eye Removal ...............................................................................................55

Voice Memo ........................................................................................................55

Color Mode ........................................................................................................56

Photo Effect .........................................................................................................57

Trimming ..............................................................................................................57

Resizing .................................................................................................................58

Startup Image ......................................................................................................58

DPOF ....................................................................................................................59

Radial Blur ............................................................................................................59

Working with computer and AV system ..............................60

English

Connecting the camera to a computer ................................................. 60

Connecting the camera to a TV ............................................................. 61

Printing images ............................................................................................ 62

English

Printing with PictBridge ................................................................................... 62

Troubleshooting and service information .............................63

Technical support ....................................................................................... 64

Specifications ................................................................................65

Touring the camera 9

To u r i n g t h e c a m e r a

Checking the package contents

Carefully unpack your kit box and ensure that you have the following items.

User Manual / Quick Guide

1. User Manual or Quick Guide

2. Digital camera

3. USB cable

4. Battery

5. Hand strap

6. Pouch (optional)

7. AC power adapter

English

• All pictures, screen captures, icons, and colors used in this manual are for illustration only. Actual and available products, accessories, as well as their appearance may vary depending on sales region.

• If any items are missing or damaged, contact your dealer.

• Save the packaging for future shipment or storage.

10 Touring the camera

123 4

10 11 12

859

Camera

English

Front and bottom views

1. Shutter

2. Zoom lever

3. Power button ( )

4. Self-timer LED indicator

5. Flash

6. USB port cover

7. Strap eyelet

8. Microphone

9. Lens

10.Tripod mount

11.Speaker

12.Battery/card cover

Touring the camera 11

6 7

Rear view

1. LCD display

2. Status LED

3. Record Video button ( )

4. Menu button ( )

5. Multifunctional buttons (including a 4-way control and an button)

6. Function / Delete button ( )

7. Playback button ( )

• It is normal for the camera to become warm during operation especially during video recording, because the camera casing and LCD might conduct heat.

• The LCD display on this camera is manufactured with sophisticated technology, and more than 99.99% of the pixels on the LCD display meet standard specifications. Yet, it is possible that less than 0.01% of the pixels on the LCD display may have some light spots or show unusual colors. This is normal and does not indicate display malfunction, nor will this affect the pictures you take with the camera.

• The LCD monitor looks darker in strong sunlight or bright light. This is not a malfunction.

• To prevent your images from being blurred while pressing the shutter, always hold the camera steady. This is especially important when you are shooting under low lighting conditions, under which your camera may reduce the shutter speed to ensure your images are properly exposed.

English

12 Touring the camera

LED Indicator

Indicator State Description

English

Status LED No light The digital camera is off.

Solid green • The digital camera is ready to capture

images.

• The digital camera is powering on, or is in the power-saving mode.

Status LED Blinking green • The digital camera cannot focus.

• The digital camera is capturing a video clip.

• The flash is charging, or USB communication/transfer is in progress.

Self-timer LED Blinking red The self-timer function is activated.

Battery status

Icon Description

Battery power is full.

Battery power remains adequate.

Battery power is low.

Battery power is very low. You should replace the battery ASAP.

Preparing the camera for use 13

Preparing the camera for use

Use only the specified battery for the camera, and always turn off the camera before removing the battery.

To install the battery:

1. Release and open the battery/card cover (A).

2. Insert the battery in the correct direction by matching the + - label on the battery slot (B).

3. Push the battery all the way down.

4. Close and lock the battery/card cover (D).

English

To re mo ve th e b at te r y:

1. Release and open the battery/card cover (C).

2. Pull the battery out.

3. Close and lock the battery/card cover (D).

Charging the battery

The battery charge status affects the camera performance. To maximize the performance and the battery life, fully charge the battery via a wall outlet (or a computer), and then fully discharge it through normal use at least once.

To charge the battery via a wall outlet:

1. Turn off the camera.

2. Insert the battery into the camera.

3. Open the USB port cover.

4. Connect one end of the USB cable to the camera.

5. Connect the other end of the USB cable to the power adapter.

6. Plug in the power adapter to a wall outlet. The battery will start charging immediately.

14 Preparing the camera for use

To charge the battery via a computer:

1. Turn on the computer.

English

2. Turn off the camera.

3. Insert the battery into the camera.

4. Open the USB port cover.

5. Connect one end of the USB cable to the camera.

6. Connect the other end of the USB cable to your computer. The battery will start charging immediately.

• You need to follow the instructions above to ensure successful charging.

• Turn off the camera before removing the battery.

• Please fully charge the Li-ion battery before using it for the first time.

• When the battery is being charged, the status LED indicator flashes in green. When the battery is fully charged, the status LED indicator is off.

• Use only the specified battery type. Using other types of battery may damage the camera and invalidate the warranty.

• Ensure that the Li-ion battery is inserted into the product with correct polarity. Incorrect polarity may damage the camera or cause fire.

• Download all pictures and remove the battery from the camera if you are going to store the camera for a long time.

• Damage caused by the use of an incorrect power adapter is not covered under the warranty.

• The battery may be warm after being charged or used. This is normal and not a malfunction.

• When using the camera in a cold environment, keep the camera and its battery warm by holding it inside your jacket or another warm protective environment.

Preparing the camera for use 15

Using multifunctional buttons

You can choose camera settings by pressing the 4-way control or the button.

1. Left/Focus:

• Scrolls left in menus.

• Selects the desired focus mode. See "Selecting

the focus mode" on page 20 for details.

Up/AE/AF Lock:

• Scrolls up in menus.

• Turns AE/AF Lock function on/off. See "Using

the AE/AF lock" on page 20 for details.

• Rotates an image. See "Rotating an image" on

page 49 for details.

Right/Continuous shot:

• Scrolls right in menus.

• Selects the desired continuous shooting mode. See "Using the continuous

shooting mode" on page 21 for details.

Down/Flash:

• Scrolls down in menus.

• Selects the desired flash mode. See "Using the flash mode" on page 22 for details.

5. : Confirms a chosen setting.

Using an SD card

The camera comes with internal memory for storing captured images, video clips, or audio files. You can also add an SD card to store more files.

To install an SD card:

1. Make sure the camera is turned off.

2. Release and open the battery/card cover.

3. Insert an SD card in the correct direction.

4. Close and lock the battery/card cover.

To remove an SD card:

1. Make sure the camera is turned off.

2. Release and open the battery/card cover.

3. Lightly press the edge of the memory card to eject.

4. Close and lock the battery/card cover.

English

16 Initial setting

Before initial use of an SD card, please format the card first by pressing >

English

Manage Memory > / > Format > > Yes.

Initial setting

You will be prompted to set up the language and the date and time when the camera is turned on for the first time.

Setting language

Selects the language version shown on the screen.

To select a language:

1. Press > . (Step 1 is needed only after the initial setting is done.)

2. Press or to select

then press or .

3. Press , , , or to select the desired language.

4. Press to set the language.

Setting date and time

When using the camera for the first time or when the battery has been removed from the camera for a long time, you need to set the date and time. The date and time is recorded when an image is captured.

Language, and

Polski

Română

Set

To set date and time:

1. Press > . (Step 1 is needed only after the initial setting is done.)

2. Press or to select Date & Time,

and then press or .

3. Press or to adjust the date, time, and date format.

Press or to move to another field as needed.

4. Press to confirm the settings.

Operating the camera 17

Optical Zoom

Digital Zoom

Operating the camera

The procedure below is a general guideline for basic operation. It is particularly useful if you are new to the camera.

1. Press to turn the power on. By default, the camera is set to

Remember to follow the on-screen display or slide the Zoom lever to for instructions on the scene menu (wherever available). Next, press corresponding buttons to access and set more options. At any time, you can cancel the current

operation by pressing to return to your previous step.

2. Compose the image. Use the

3. Press the shutter halfway to set automatic focus.

• Once the focus is set, the focus frame color will turn from white

4. Press the shutter down fully to capture the image.

5. To record video, press . The video recording automatically starts.

• While recording, use the

• Press again to stop video recording.

6. To switch to captured images or recorded videos.

• You can press or to view other images/videos, slide the Zoom lever

Zoom lever to zoom-in/zoom-out on the subject.

(unfocused) to yellow-green (focused). If the focus frame color is red and you press the shutter down, it might result in a blurred photo.

During zoom-in/out, by default, the sound is not recorded. To change the setting, see "Zoom" on page 44 for details.

Playback mode, press . In Playback mode, you can view

to to zoom-in on a captured image, or slide the to view 9-thumbnail images on the screen.

Capture mode.

Zoom lever to zoom-in/zoom-out on the subject.

Zoom lever to

English

• To switch back to

- Press the shutter.

- Press .

Capture mode, you can do one of the following:

18 Operating the camera

English

. For best image quality, it is recommended to use optical zoom only by

keeping the magnification within and the separator.

• Flash is automatically turned off during video recording.

• During video recording, the recording time is continuous, but recording will stop once the memory card space is full. The recording sound is temporarily muted during zoom-in/out.

• At any time, you can press to turn off the camera.

• During zoom-in/out, there is a separator in the zoom bar between and

Capture mode

100

-1. 0

9999

123 54678

1119

18 17 1516 14 13 12

9 10

9999

Capture mode 19

16M

English

ISO

100

Item Description Page reference

1 Scene mode 32

2Flash mode 22

3 Focus mode 20

4Drive mode 40

5 AEB 21

6 Number of shots available --

7 Image resolution 25

8 Image quality 41

9Video resolution 31

10 Wind cut 31

11 Face tracking 40

12 ISO 27

13 White balance 26

14 AE metering 28

15 Exposure value (EV) 26

16 AF area 40

17 Histogram --

18 Battery status 12

19 Camera shake warning --

20 Capture mode

English

• While the shutter is pressed halfway, the shutter speed and the aperture are also shown on the screen (not available during video recording).

• While the shutter is pressed down halfway, the AF area color changes to yellowgreen, camera shake warning (appears only if the camera itself detects possible shaking), aperture, shutter speed and ISO setting are also shown on the screen.

Selecting the focus mode

Icon Mode Description

Auto focus

Super Macro

Pan Focus

Infinity

Manual focus

To select the focus mode:

1. Set the camera to Capture mode.

2. Press to enter the focus menu.

3. Press or to select your desired focus mode.

4. Press to confirm the setting.

Adjusts focus automatically.

Used when capturing images at a close distance.

Used when you want to capture the subjects in a certain focus range.

Used when capturing images at long distance.

Adjust the focus manually.

Using the AE/AF lock

The AE/AF Lock function is used to lock exposure and focus on a desired image.

To set the AE/AF Lock:

1. Set the camera to Capture mode.

2. Press both the shutter halfway and to lock AE/AF. An icon appears on the screen indicates the AE/AF Lock is enabled.

+ 46 hidden pages
