Benq AE100, AE200 User Manual

AE100/AE200 Series Digital Camera User Manual
Copyright
Copyright 2011 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation. All other logos, products, or company names mentioned in this manual may be the registered trademarks or copyrights of their respective companies, and are used for informational purposes only.
Disclaimer
BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BenQ Corporation to notify any person of such revision or changes.
This user manual aims to provide the most updated and accurate information to customers, and thus all contents may be modified from time to time without prior notice. Please visit http://www.benq.com for the latest version of this manual.
BenQ ecoFACTS
BenQ has been dedicated to the design and development of greener product as part of its aspiration to realize the ideal of the "Bringing Enjoyment 'N Quality to Life" corporate vision with the ultimate goal to achieve a low-carbon society. Besides meeting international regulatory requirement and standards pertaining to environmental management, BenQ has spared no efforts in pushing our initiatives further to incorporate life cycle design in the aspects of material selection, manufacturing, packaging, transportation, using and disposal of the products. BenQ ecoFACTS label lists key eco-friendly design highlights of each product, hoping to ensure that consumers make informed green choices at purchase. Check out BenQ’s CSR Website at http://csr.BenQ.com/ for more details on BenQ’s environmental commitments and achievements.
Arsenic-free optical glass BFR/PVC-free casing plastics Eco-friendly ink printing in packaging box
㗇䠞ℰ⭍䎢䑪 ⠸㖀⣽⣚㗇㺛⋽昢䆪∩%)5󰶖 偁㰖Ṁ䃖39& 䎖ῄ❲㲠⢏⍗∞⋬墬䚹
䄈䠞ℰ⭟䎢䑪 ⠸冇⣽㮣䄈㺛⋽昢䆪≸%)5凮 偁㰖Ṁ䃖39& 䒗ῄ❲㲠⢏⍗∞⋬壄䚹
WEEE directive
Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union.
This symbol on the product or on the packaging indicates that this can not be disposed of as household waste. You must dispose of your waste
WEEE
Battery
Recycling information: See http://www.benq.com/support/recycle for details.
equipment and/or battery by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment and/or battery. For more information about recycling of this equipment and/or battery, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.
CE Regulatory Notice
This devise is herewith confirmed to comply with the requirements set out in the Council Directives on the Approximation of the Laws of the Member States relating Electromagnetic Compatibility (2004/108/EC); the Low Voltage Directive (2006/95/ EC); the Restriction of The Use of Certain Hazardous Substances in Electrical And Electronic Equipment Directive (2002/95/EC), Turkish EEE Directive; the Commission Regulation (EC) No 1275/2008 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to eco-design requirements for standby and off mode electric power consumption of electrical and electronic household and office equipment, and the Directive 2009/125/EC of the European parliament and of the council establishing a framework for the setting of eco-design requirements for energy-related products.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
Safety warning and notice
Before operating the camera, please make sure that you read and fully understand the content in this section. If you ignore and violate all safety warning notices indicated in this section, the camera warranty may be void. Meanwhile, not only the camera but also you and all other people and things around you may be severely damaged, injured, or even placed in danger of death.
For your safety
• Keep the camera and its accessories out of the reach of babies, toddlers, and children. In particular, small parts such as memory cards and batteries could be easily dismantled and swallowed by them.
• Use only the original accessories to avoid possible risks to health and property, and thus meet all related legal regulations.
• Do not dismantle the camera under any circumstances.
• When using the flash, do not go too close to human eyes (particularly for babies, toddlers, and children) or animal eyes. Otherwise, when the flash fires, the light may cause damage to human eyes or irritate animals.
• Batteries could explode, for instance. All batteries can cause property damage, injury or burns if a conductive material such as jewelry, keys or beaded chains touch exposed terminals. The material may complete an electrical circuit and become quite hot. Exercise care in handling any batteries, particularly when placing it inside your pocket, purse, or other container with metal objects. Do not dispose of batteries in fire as they may explode.
• To prevent electric shock, do not attempt to disassemble or repair your camera by yourself.
• Some camera models accept non-rechargeable batteries. When using these batteries, do not charge them. Otherwise, dangers such as explosion and fire may occur.
• Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
Warran ty
• Warranty is void if damage or system failure occurred due to outside factors such as collision, fire, flood, dirt, sewage, earthquake, and other force majeure events as well as incorrect usage of electricity or use of non-original accessories.
• It is the sole responsibility of the user if problems (such as data loss and system failure) occurred due to non-factory installed software, parts, and/or non-original accessories.
• Do not change the camera. Any changes to the camera invalidate the warranty.
Taking care of your camera
• Always keep the camera in the accompanying leather case or pouch for better protection against splashes, dust, and collision.
• The only way of replacing the battery and the memory card is to open the battery/ card cover.
• Dispose of unwanted batteries and cameras as permitted by the laws in your countries.
• Water may cause a fire or electric shock. Therefore, store your camera in a dry place.
• If your camera becomes wet, wipe it with a dry cloth as soon as possible.
• Salt or seawater may cause severe camera damage.
• Do not drop, knock, or shake the camera. A rude behavior of using the camera may damage the internal electronic circuit board, deform the lens shape, or make the lens unretractable.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the camera.
• Finger grease may be left on the camera lens and will result in unclear images or videos. To avoid this problem, be sure to clean the camera lens before taking pictures or recording videos. You should also clean the camera lens on a regular basis.
• If the lens is dirty, use a lens brush or soft cloth to clean the lens.
• Do not touch the lens with your fingers.
• If a foreign substance or water gets in your camera, please turn the power off immediately and disconnect the batteries. Next, remove the foreign substance or water and send it to the maintenance center.
• Whenever there is data in the internal memory or the external memory card, you should make a backup copy to a computer or disc. So, you can have a backup solution if data loss occurs.
• If the lens cannot retract into the camera, please replace the batteries first (usually this is because of drained batteries). Then the lens should retract automatically. If the lens still cannot retract, please contact your dealer.
• Under no circumstances should you push the lens back manually as this may damage the camera.
• All original accessories are designed only for use with this camera model you purchased. Do not use these accessories with other camera models or cameras of other brands to avoid unpredictable danger or damage.
• Before initial use of a memory card, always use the camera to format the card first.
• Remember to slide the write-protect tab (if available) to the unlock position. Otherwise, all data (if any) on the memory card is protected and the card cannot be edited or formatted.
Operating environment
• Do not use or store your camera in the environments listed below:
• Direct sunlight
•Dusty places
• Next to an air conditioner, electric heater or other heat sources
• In a closed car that is in direct sunlight
• Unstable locations
• Do not use your camera outdoors when it is raining or snowing.
• Do not use your camera in or near water.
• The camera operating temperature is between 0 and 40 degrees Celsius. It is normal for the operating time to be shortened when the temperature is low.
• The capacity of your camera batteries will reduce each time it is charged/emptied.
• Storage at too high or low temperatures will also result in a gradual capacity loss. As a result, the operating time of your camera may be considerably reduced.
• It is normal for the camera to become warm during operation, because the camera casing might conduct heat.
Do not hold the camera by excessive force. Plus, be sure to protect the camera from strong impacts.
To avoid accidental falling, please attach the hand strap to the camera and always hold the camera by keeping the hand strap around your wrist.
If the battery suddenly depleted and caused the lens fail to retract, please carefully protect the lens to avoid collision and insert a battery with full power ASAP.
Keep your camera away from sharp objects and avoid collision.
When the camera is not in use, always turn the power off and make sure the lens has retracted successfully before storing the camera in its case. If you do not intend to use the camera for a long time, please remove the battery from the camera and store the battery carefully.
When the camera is not in use, please place it in a steady place. Plus, always keep your camera away from pressure or any other similar environment (for example, in a pant pocket) to avoid possible damage.
Table of Contents
Touring the camera .......................................................................................... 11
Checking the package contents .............................................................................11
Camera ........................................................................................................................12
Front and bottom views ...................................................................................................12
Rear view .............................................................................................................................13
Preparing the camera for use ........................................................................ 15
Charging the battery ................................................................................................15
Using multifunctional buttons ................................................................................17
Using an SD card .......................................................................................................17
Initial setting ....................................................................................................... 18
Setting language .........................................................................................................18
Setting date and time ...............................................................................................18
Operating the camera ...................................................................................... 19
Capture mode ................................................................................................... 21
More capture options in the Function menu .....................................................22
Flash mode ..................................................................................................................23
Face Tracking .............................................................................................................24
Focus mode ................................................................................................................24
Image size ....................................................................................................................25
Image quality ...............................................................................................................25
Setting EV ....................................................................................................................26
White Balance ............................................................................................................26
ISO ................................................................................................................................27
AE metering ................................................................................................................27
Effect ............................................................................................................................28
Shooting mode ...........................................................................................................30
Aperture Priority ......................................................................................................35
Shutter Priority ..........................................................................................................35
Manual mode ..............................................................................................................35
Drive mode ................................................................................................................36
Auto Exposure Bracketing (AEB) ..........................................................................37
AF area ........................................................................................................................37
Setting sharpness, saturation and contrast .........................................................37
Digital Zoom ..............................................................................................................38
Date Stamp .................................................................................................................38
Instant Review ...........................................................................................................39
S.S.F. (Super Shake-Free) .........................................................................................39
English
Smart Scene ............................................................................................................... 39
Smile Catch ................................................................................................................ 40
English
Blink Detector .......................................................................................................... 40
Love Portrait ............................................................................................................. 40
Panorama .................................................................................................................... 41
LOMO ......................................................................................................................... 43
Fisheye ........................................................................................................................43
Pre-composition ....................................................................................................... 44
Web Auction ............................................................................................................. 44
Movie Record mode settings ................................................................................. 45
Battery status ............................................................................................................ 46
Other settings ................................................................................................... 47
Playback mode ................................................................................................... 49
Options for playback and editing .......................................................................... 50
Enlarging an image .............................................................................................................. 50
Rotating an image ............................................................................................................... 50
Viewing multiple files at a time ....................................................................................... 50
Playing back video clips ..................................................................................................... 51
Adjusting the playback volume ........................................................................................ 51
Slideshow ............................................................................................................................. 52
Deleting files ........................................................................................................................52
Protecting files .................................................................................................................... 52
Red-eye Removal ............................................................................................................... 53
Voice memo ........................................................................................................................ 53
Photo Effect ......................................................................................................................... 54
Trimming .............................................................................................................................. 55
Resizing ................................................................................................................................. 55
Startup image ...................................................................................................................... 56
DPOF .................................................................................................................................... 56
Radial Blur ............................................................................................................................57
Working with computer and AV system .................................................... 57
Bundled software ...................................................................................................... 57
Connecting the camera to a computer ............................................................... 57
Connecting the camera to an AV system ........................................................... 58
Printing images .......................................................................................................... 58
Printing with PictBridge .................................................................................................... 58
Troubleshooting and service information ................................................... 60
Technical support ..................................................................................................... 61
Specifications ..................................................................................................... 62
Touring the camera 11
1
2
3
4
5
6
7
8

To u r i n g t h e c a m e r a

Checking the package contents

Carefully unpack your kit box and ensure that you have the following items.
User Manual / Quick Guide
1. User Manual or Quick Guide
2. Digital camera
3. USB cable
4. Battery
5. Hand strap
6. Software & User Manual CD
7. Pouch
8. AC power adapter
English
• All pictures, screen captures, and icons used in this manual are for illustration only. Actual and available products, accessories, as well as their appearance may vary depending on sales region.
• If any items are missing or damaged, contact your dealer.
• Save the packaging for future shipment or storage.
12 Touring the camera
123 4
5 6
7 8
910 11

Camera

English

Front and bottom views

1. T (Tele) - Zoom-in or turn on the Shooting mode description
2. Shutter button
3.
W (Wide) - Zoom-out, turn off the Shooting mode description, or enter
the thumbnail view (Playback mode)
4. Power button
5. Flash
6. Self-timer LED indicator
7. Lens
8. Microphone
9. Speaker
10.Tripod mount
11.Battery/card cover
Touring the camera 13
4
5 6
7
13
8
2

Rear view

1. LCD display
2. Status LED
3. MENU button or return to the previous menu
4. USB / AV port
5. Function / Delete button - Activates the function menu (Capture mode) or delete photos (Playback mode)
6. Strap eyelet
7. Multifunctional buttons (including a 4-way control and a button)
8. Mode switch - Toggles among Capture (photo), Capture (movie), and Playback modes
Indicator State Description
Status LED No light The digital camera is off.
Status LED Blinking green • The digital camera cannot focus.
Self-timer LED Blinking red The self-timer function is activated.
Solid green • The digital camera is ready to capture
images.
• The digital camera is powering on, or is in the power-saving mode.
• The digital camera is capturing a video clip.
• The flash is charging, or the USB communication/transfer is in progress.
English
14 Touring the camera
English
• It is normal for the camera to become warm during operation, because the camera casing might conduct heat.
• The LCD display on this camera is manufactured with sophisticated technology, and more than 99.99% of the pixels on the LCD display meet standard specifications. Yet, it is possible that less than 0.01% of the pixels on the LCD display may have some light spots or show unusual colors. This is normal and does not indicate display malfunction, nor will this affect the pictures you take with the camera.
• The LCD monitor looks darker in strong sunlight or bright light. This is not a malfunction.
• To prevent your images from being blurred while pressing the shutter button, always hold the camera steady. This is especially important when you are shooting under low lighting conditions, under which your camera may reduce the shutter speed to ensure your images are properly exposed.
Touring the camera 15

Preparing the camera for use

Use only the specified battery for the camera, and always turn off the camera before removing the battery.
A
B
To install the battery:
1. Release and open the battery/card cover (A).
2. Insert the battery in the correct direction by matching the + - label on the battery slot (B).
3. Push the battery all the way down.
4. Close and lock the battery/card cover (D).
English
C
D
To re mo ve th e b a tt er y:
1. Release and open the battery/card cover (C).
2. Pull the battery out.
3. Close and lock the battery/card cover (D).

Charging the battery

The battery charge status affects the camera performance. To maximize the performance and the battery life, fully charge the battery via a wall outlet (or a computer), and then fully discharge it through normal use at least once.
To charge the battery via a wall outlet:
1. Turn off the camera.
2. Insert the battery into the camera.
3. Connect one end of the USB cable to the camera.
4. Connect the other end of the USB cable to the power adapter.
5. Plug in the power adapter to a wall outlet. The battery will start charging immediately.
16 Touring the camera
To charge the battery via a computer:
1. Turn on the computer.
English
2. Turn off the camera.
3. Insert the battery into the camera.
4. Connect one end of the USB cable to the camera.
5. Connect the other end of the USB cable to your computer. The battery will start charging immediately.
You need to follow the instructions above to ensure successful charging.
• Turn off the camera before removing the battery.
• Please fully charge the Li-ion battery before using it for the first time.
• When the battery is being charged, the status LED indicator flashes in green. When the battery is fully charged, the status LED indicator is off.
• Use only the specified battery type. Using other types of battery may damage the camera and invalidate the warranty.
• Ensure that the Li-ion battery is inserted into the product with correct polarity. Incorrect polarity may damage the camera or cause fire.
• Download all pictures and remove the battery from the camera if you are going to store the camera for a long time.
• Damage caused by the use of an incorrect power adapter is not covered under the warranty.
• The battery may be warm after being charged or used. This is normal and not a malfunction.
• When using the camera in a cold environment, keep the camera and its battery warm by holding it inside your jacket or another warm protective environment.
Touring the camera 17
1
2
3
4
5

Using multifunctional buttons

You can choose camera settings by pressing the 4-way control or the button.
1. Left/Focus:
• Scrolls left in menus.
• Toggles between different focus modes.
Up:
2.
• Scrolls up in menus.
• Turns on/off Face Tracking. See "Face
Tracking" on page 24 for details.
• Rotates an image. See "Rotating an image" on
page 50 for details.
Right/Flash:
3.
• Scrolls right in menus.
• Selects a flash mode.
Down/Display:
4.
• Scrolls down in menus
• Toggles between different display modes.
5. : Confirms a chosen setting.

Using an SD card

The camera comes with internal memory for storing captured images, video clips, or audio files. You can also add an SD card to store more files.
To install an SD card:
1. Make sure the camera is turned off.
2. Release and open the battery/card cover.
3. Insert an SD card in the correct direction.
4. Close and lock the battery/card cover.
To remove an SD card:
1. Make sure the camera is turned off.
2. Release and open the battery/card cover.
3. Lightly press the edge of the memory card to eject.
4. Close and lock the battery/card cover.
English
18 Initial setting
OK
SET
MENU
Polski
Română
Before initial use of an SD card, please format the card first by pressing >
>
English
Manage Memory > / > Format > > Yes.

Initial setting

You will be prompted to set up the language and the date and time when the camera is turned on for the first time.

Setting language

Selects the language version shown on the screen.
To select a language:
1. Press > . (Step 1 is needed only after the initial setting is done.)
2. Press or to locate
, and then press or .
3. Press , , , or to locate the language you want.
4. Press to set the language.

Setting date and time

When using the camera for the first time or when the battery has been removed from the camera for a long time, you need to set the date and time. The date and time is recorded when a video or image is captured.
To set date and time:
1. Press > . (Step 1 is needed only after the initial setting is done.)
2. Press or to locate
Date/Time, and then press or .
3. Press or to select date and time and date format. Press or
to move to another column as needed.
4. Press to set the date and time.
Operating the camera 19
Optical Zoom
Digital Zoom

Operating the camera

The procedure below is a general guideline for basic operation. It is particularly useful if you are new to the camera.
1. Press the Power button to turn the power on.
2. Slide the mode switch to and press > , , , or
to locate desired options (under two different tabs: and ), and then
press or to make selections.
Remember to follow the on-screen display or slide to for instructions (wherever available). Next, press corresponding buttons to access and set more options. At any time, you can cancel the current operation by pressing to return to your previous step.
3. Slide to to zoom-in or to zoom-out.
4. Press the shutter halfway to set automatic focus. Once the focus is set, the focus frame color will turn from white (unfocused) to green (focused). If the focus frame color is red and you press the shutter down, it might result in a blurred photo.
5. Press the shutter down fully to capture.
6. Release the shutter.
7. Slide the mode switch to and enter the adjust the optical zoom as needed and press the shutter down to start video
recording (press the shutter again to stop video recording).
8. Slide the mode switch to and view captured images or recorded videos.
You can press , or to move to different images/videos, slide to press
or to zoom-in/out a captured image, or slide to to view 9 images on the screen.
Movie Record mode. Next,
English
20 Operating the camera
English
• During zoom-in/out, there is a separator in the zoom bar between and . For best image quality, it is recommended to use optical zoom only by keeping the
magnification within and the separator.
• Flash is automatically turned off in the Movie Record mode.
• The Movie Record mode records both sound and video. The recording time is continuous, but recording will stop once the memory card space is full.
• In the Movie Record mode, sound is temporarily muted during zoom-in/out.
• At any time, you can press the Power button to turn off the camera.
• In Capture or Playback mode, press to decide what information to show on the screen.

Capture mode

100
-1. 0
A
9999
123 54678
917
16 15 1314 12 11 10
Operating the camera 21
P
9999
EV
ISO
100
Item Description Page reference
1 Shooting mode 30
2Flash mode 23
3 Focus mode 24
4Drive mode 36
5 AEB 37
6 Number of shots available --
7 Image size 25
8 Image quality 25
9 Face Tracking 24
10 ISO 27
11 White Balance 26
12 AE metering 27
13 Exposure value (EV) 26
14 AF area 37
15 Histogram --
16 Battery status 46
17 Camera shake warning --
English
22 Operating the camera
My Mode (the 6 most recent
record modes, in the order used)
ISO
Exposure Value (EV)
Effect
Image Quality
White Balance
Metering
Resolution
English
• In the Capture mode, press to toggle among 4 display modes (standard, complete, none, and rule of thirds).
• Use the rule of thirds display mode to improve your composition by placing subjects on at least one of the intersections of these 4 imaginary lines.
• While the shutter is pressed halfway, the shutter speed and the aperture are also shown on the screen (not available in the Movie Record mode).
• While the shutter is pressed down halfway, the AF area color changes to yellow­green, camera shake warning (appears only if the camera itself detects possible shaking), aperture, shutter speed and ISO setting are also shown on the screen.

More capture options in the Function menu

Press the Function button to access more capture options. Depending on your settings, the displayed option icons in the Function menu may vary.
To use the Function menu:
1. Press to enter the Function menu, the currently selected settings are shown.
2. Press , to go to another option, or press or to select a setting.
3. Press to confirm the setting.
Operating the camera 23

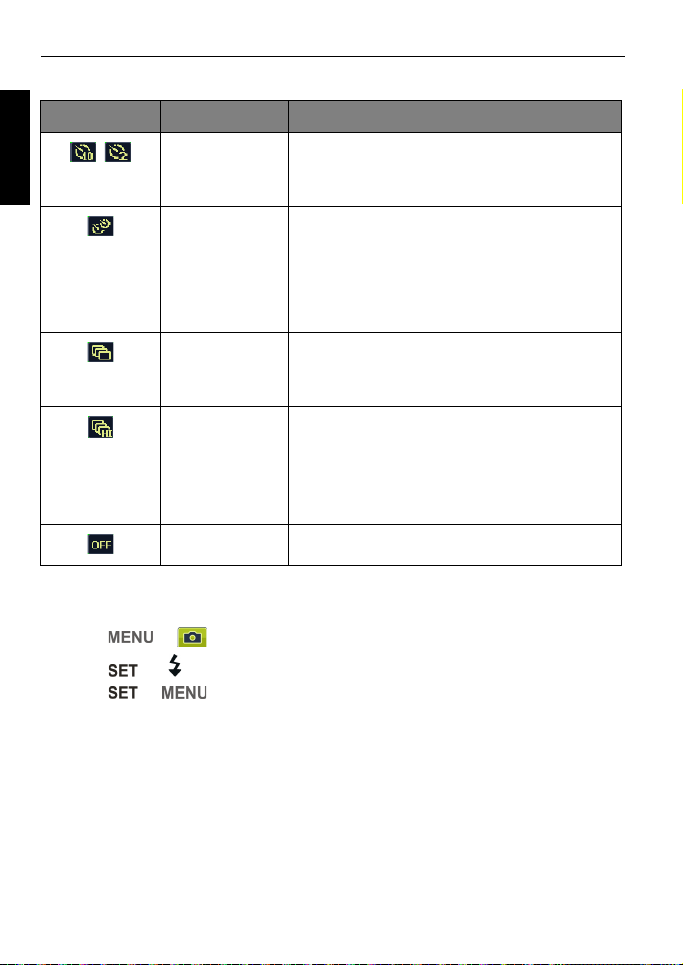

Flash mode

The flash offers additional light source (usually used in a low-light environment). You can capture an image using one of the following flash modes.
Icon Mode Description
Auto Flash The flash fires automatically based on the
photographic conditions.
Auto Anti Red­eye
Force On The flash always fires regardless of the
Slow Sync Fires the flash immediately at the beginning
Force Off The flash does not fire. Select this mode
Reduces the red-eye phenomenon when capturing natural-looking images of people and animals in low-light conditions. Be sure to ask the subject to look at the camera lens or get as close to the camera as possible. The flash fires automatically based on the photographic conditions.
surrounding lighting conditions. Select this mode when capturing images with high contrast (backlighting) and deep shadows.
of exposure with a longer shutter speed, so balanced ambient lighting of the foreground subject and background scene can be reached in a low-light environment.
when flash photography is prohibited, or when the distance to the subject is beyond the effective range of the flash.
English
To select a flash mode:
1. Go to the Capture mode.
2. Keep pressing to toggle among different flash modes and select a desired option.
24 Operating the camera

Face Tracking

Focuses on the position of faces (max. 10 faces) simultaneously. While using the
English
Face Tracking function, point the camera to where the people (your subjects) are located. Focus frames of Face Tracking will automatically detect faces (maximum 10) and show on the LCD screen.
• Due to environmental factors such as lighting, the number of detected faces might be different from that of the actual faces.
• To achieve the best result, ask your subjects not to turn their faces partially away from the lens.

Focus mode

Icon Mode Description
Auto focus Adjusts focus automatically.
Super Macro Used when capturing images at a close
distance.
Pan Focus Used when you want to capture the subjects
in a certain focus range.
Infinity Used when capturing images at long
distance.
To select the focus mode:
1. Go to the Capture mode.
2. Keep pressing to toggle between Auto focus and focus modes.
Operating the camera 25

Image size

Icon Description Icon Description
AE100: 14 megapixels (4320 x 3240)
AE200: 16 megapixels (4608 x 3456)
AE100: 3:2 (14 megapixels; 4320 x 2880)
AE200: 3:2 (16 megapixels; 4608 x 3072)
8 megapixels (3264 x 2448) VGA (640 x 480)
5 megapixels (2592 x 1944) -- --
3 megapixels (2048 x 1536)
HD 16:9 (1920 x 1080 in full HD
format)
To select an image size:
1. Press > Resolution.
1. Press or to select a setting.
2. Press to confirm setting.

Image quality

Icon Mode Description
Super Fine Best image quality with the lowest
compression rate. File size is the largest.
Fine Better image quality with medium
compression rate. File size is medium.
Normal Good image quality with the highest
compression rate. File size is the smallest.
English
To select an image quality level:
1. Press > Image Quality.
2. Press or to select a setting.
3. Press to confirm setting.
26 Operating the camera

Setting EV

EV (Exposure Value) lightens or darkens the
English
entire image. Adjust EV when the brightness between the subject and the background is not balanced, or when the subject occupies only a small part of the picture.
To select an EV:
1. Press > EV.
2. Press or to select an EV from the EV bar.
3. Press to confirm setting.

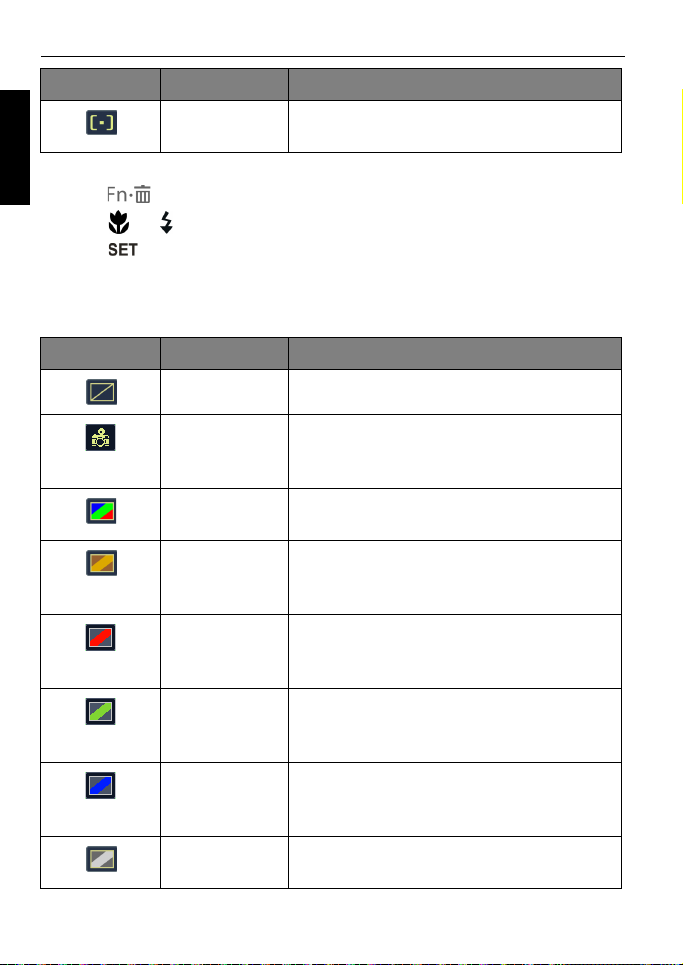

White Balance

Compensates for color temperatures in different lighting conditions, so white and other colors can display properly when you capture images.
Icon Mode Description
Auto Adjusts white balance automatically.
Daylight Used in bright daylight conditions.
Cloudy Used in twilight or shady conditions.
Tungsten Used when subjects lit by tungsten
Fluorescent H Adjusts for fluorescent lighting. Corrects the
Fluorescent L
Manual Used when you want to manually adjust
To select White Balance:
1. Press > White Balance.
(incandescent) lighting.
green hue of fluorescent lighting. Ideal for indoor photos under fluorescent lighting without a flash.
white balance in a particular lighting condition.
Operating the camera 27
2. Press or to select a white balance option. The preview result based on the currently selected white balance is shown on the screen. (When selecting the manual mode, you must first point the camera at a blank sheet of white paper or something similar and press the shutter for the camera to detect proper colors.)
3. Press to confirm setting.
ISO
ISO configures the camera’s sensitivity to light. The higher the ISO value, the brighter picture you can take in a low-light environment. Yet, you may see more noise in the picture as you increase the ISO value.
Icon Description
Automatically sets the ISO value.
English
Equivalent to color ISO 100/200 film. Used for outdoor photography in bright sunlight.
Equivalent to color ISO 400/800/1600/3200/6400 film. Used it in a low-light environment or where the flash light is not allowed.
• ISO 3200 for resolution of 3M or under only
• ISO 6400 for resolution of 3M or under only
To select an ISO value:
1. Press > ISO.
2. Press or to select an ISO Value.
3. Press to confirm setting.

AE metering

Icon Mode Description
Matrix Detects the exposure based on multiple
points in the subject area.
Cen. Weight (Center Weight)
Detects the exposure of the entire shooting screen, but gives more importance to the values near the center.
28 Operating the camera
Icon Mode Description
English
Spot Detects the exposure based on the center
spot in the subject area.
To select an AE metering option:
1. Press > Metering.
2. Press or to select an AE metering option.
3. Press to confirm setting.

Effect

Adds color filter effects to the image or video you want to capture.
Icon Mode Description
Normal No effects are added.
LOMO (For Movie Record only) Creates a lomo-like
effect by adding over saturated colors, dark corners, and so on.
Vivid Adds an effect with very clear and bright
color tones.
Sepia Adds an effect with dark reddish brown
color tones, so the image or video looks as if it is old.
Color Accent (Red)
Color Accent (Green)
Color Accent (Blue)
B/W (Black and White)
Highlights the subjects by keeping the red color domain of an image only while making other regions black and white.
Highlights the subjects by keeping the green color domain of an image only while making other regions black and white.
Highlights the subjects by keeping the blue color domain of an image only while making other regions black and white.
Adds an effect with monochromatic color tones.
Operating the camera 29
Icon Mode Description
Vivid Red The image becomes reddish.
Vivid Green The image becomes greenish.
Vivid Blue The image becomes bluish.
Before After - when Color Accent (Red) is
applied
After - when Color Accent (Green) is applied
After - when Color Accent (Blue) is applied
To select an effect:
1. Press > Effect.
2. Press or to select an Effect option. The preview result based on the currently selected effect is shown in the middle thumbnail.
3. Press to confirm setting.
English
30 Operating the camera

Shooting mode

Select one of the following shooting modes to fit your shooting condition.
English
Icon Mode Description
Auto Mode The camera automatically decide most
settings, so you can capture images with ease.
Smart Scene Automatically selects a shooting mode based
on the current shooting environment.
Program You can set the shooting parameters
manually.
Aperture Priority
Shutter Priority You can choose a shutter speed, while the
Manual Lets you set both aperture and shutter
Smile Catch Automatically takes a shot when a smile is
You can choose an aperture value, while the shutter speed is automatically determined by the lighting condition of the subject.
aperture value is automatically determined by the lighting condition of the subject.
speed manually.
detected.
Operating the camera 31
Icon Mode Description
Panorama Creates a panoramic photo from multiple
shots.
English
Pre­composition
Captures the background first, so the helper can use it to take the final shot.
HDR Increases the dynamic range and enhances
the details of dark areas.
LOMO Creates a lomo-like effect by adding over
saturated colors, dark corners, and so on.
Fisheye Simulates a fisheye lens effect and creates a
distorted hemisphere-like image.
Beauty Enhancer
Enhances the tone of skin so that the facial skin appears smooth.
Self Portrait Takes a self portrait with at least one face in
a confined area.
Love Portrait Takes a self portrait with at least two faces in
a confined area.
32 Operating the camera
Icon Mode Description
English
Blink Detector Warns of eye blinks if detected & lets you
decide whether to save the image file.
Portrait Makes the subject (usually a person) stand
out with smooth and natural-looking skin tones.
Night Portrait Shoots night scenes and portraits clearly.
Please keep the camera steady or use a tripod while using this mode.
Child Increases sensitivity and emphasizes
children's skin tones.
Sports Uses a high shutter speed to capture objects
in motion.
Food Captures food by enhancing color brightness
and giving more vivid colors.
Party Captures the party atmosphere usually
under indoor light source.
Candle Light Makes a picture look warm, and thus
captures the mood under candle light source. Flash is always off.
Operating the camera 33
Icon Mode Description
Backlight Increases exposure (by turning on the flash)
when light illuminates the subject from behind.
Night Scene Captures photos in a low-light environment,
such as in the evening or at night.
Fireworks Adds exposure time to shoot firework trails.
Please keep the camera steady or use a tripod while using this mode.
Landscape Captures a scene in the distance with the
focus area set to infinity and a lower aperture value. The maximum depth of view can also be achieved.
Foliage Takes a clear and vivid picture of flowers or
plant leaves by emphasizing their saturation and sharpness.
English
Soft Flowing Wat er
Uses a low shutter speed for motion blur. Please keep the camera steady or use a tripod while using this mode.
Sunset Captures the warmth and atmosphere
(represented by hue) of sunrise or sunset.
Snow Used under a very bright light environment
such as snow scenes.
34 Operating the camera
Icon Mode Description
English
Building Enhances lines & contracts to highlight the
sense of the three dimensions (3D) for a building.
Web Auction Reduces the file size for faster internet
upload.
Text Improves clarity & contrast when taking a
close-up picture of documents.
Voic e R ec . (Voice Record)
Captures background sound only (no images or videos). When listening to the captured audio file later, you can see a unique icon that appears on the screen and indicates that this is an audio file.
ISO, Metering, and White Balance are not available in some shooting modes like Auto Mode. You must select another mode like Manual to enable these options.
To select a shooting mode:
1. Press > > Shooting Mode >
.
2. The currently selected shooting mode
shows. Press or to locate another desired option.
When you are selecting from different shooting modes, slide to for detailed
explanation of each shooting mode. Slide to to close the shooting mode description when you are done
3. Press to confirm setting.
Operating the camera 35

Aperture Priority

Aperture priority is often used when shooting static subjects or emphasizing the depth of field. In general, use a smaller aperture if a greater depth of field is needed.
To adjust aperture value:
1. Go to the Capture mode with Aperture Priority mode selected.
2. Press .
3. Press / to adjust the aperture value.
4. Press to confirm setting.

Shutter Priority

Shutter priority is often used when shooting moving subjects. In general, use a shorter shutter speed to catch a fast-moving object.
To adjust shutter speed in Shutter Priority:
1. Go to the Capture mode with Shutter Priority mode selected.
2. Press .
3. Press / to adjust the shutter speed.
4. Press to confirm setting.

Manual mode

You can choose the aperture value and shutter speed in Manual mode.
To adjust values in Manual mode:
1. Go to the Capture mode with Manual mode selected.
2. Press .
3. Press / to adjust the aperture value, or / to adjust the shutter speed.
4. Press to confirm setting.
English
When toggling between Av/Tv, press the shutter halfway for exposure metering.
36 Operating the camera

Drive mode

English
Icon Mode Description
Self-timer Automatically takes a picture after 2 or 10-
second delay. This mode is useful when you want to be part of the picture.
Double Performs delay and capture twice:
Performs a 10-second delay, then captures the image.
Performs another 2-second delay then captures the image again.
Burst Continuously takes pictures as long as you
keep pressing the Shutter. The flash is always off in this mode.
Speedy Burst Press and release the shutter. When the
photo size you select is VGA, Speedy Burst will shoot continuously at the speed of 30 shots per second. This will stop after 1 second or when the memory card is full.
Off (Single) Takes one picture at a time.
To select a drive mode:
1. Go to the Capture mode.
2. Press > > Drive Mode.
3. Press or , and then select a desired option.
4. Press > .
Operating the camera 37

Auto Exposure Bracketing (AEB)

The AEB function automatically takes 3 pictures with slightly different settings in the shutter speed or the aperture value.
To turn on/off AEB:
1. Go to the Capture mode.
2. Press > > AEB.
3. Press or , and then select or .
4. Press > .

AF area

Icon Mode Description
Wide Focuses on a wide range of multiple objects.
Center Focuses on the center area of the objects.
To select an automatic focus area:
1. Press > > AF Area.
2. Press or , and then select a focusing area.
3. Press > .

Setting sharpness, saturation and contrast

Adjusts how colors appear in the pictures by setting sharpness, saturation, and contrast.
To set sharpness, saturation, or contrast:
1. Press > , and then select Sharpness, Saturation or Contrast.
2. Press or , and then select
3. Press > .
High, Normal, or Low.
English
38 Operating the camera

Digital Zoom

The digital zoom enlarges or shrinks the image using a software process.
English
Icon Mode Description
Wise Zoom Reduces the image size, and thus increases
the effective zoom length without sacrificing image
quality.
Digital Zoom Turns on the digital zoom feature.
OFF Turns off the digital zoom feature.
To select a digital zoom:
1. Press > > Digital Zoom.
2. Press or , and then select a digital zoom type or .
3. Press > .

Date Stamp

Imprints the date when a picture was taken on the picture itself. To set the date stamp:
1. Press > >
2. Press or , and then select
3. Press > .
Date Stamp.
Date, Date & Time, or .
Operating the camera 39

Instant Review

This feature displays the still image that just recorded for 1 second. To set the Instant Review:
1. Press > >
2. Press or , and then select or .
3. Press > .
During instant review, half press the shutter to return to the capture mode.
Instant Review.

S.S.F. (Super Shake-Free)

Reduces blur caused by camera vibration, and thus improves image quality and clearness.
To set S.S.F.:
1. Press > > S.S.F..
2. Press or , and then select or .
3. Press > .
When the battery power is low, S.S.F. will be turned off automatically.

Smart Scene

English
Automatically selects the best shooting mode from Portrait , Landscape ,
Sunset , Backlight , Backlight Portrait , Night Portrait , Night
Scene , Snow , Text , Foliage , and Super Macro .
1. Press > >
2. Press the shutter halfway to set automatic focus. The selected shooting mode is displayed in the top left corner of the screen.
3. Press the shutter to capture an image.
Shooting Mode and select Smart Scene.
40 Operating the camera

Smile Catch

Captures an image when the subject smiles.
English
1. Press > >
2. The camera is tracking the face of your subject (a white frame shows).
3. Once a smile is detected, the camera instantly takes a picture.
4. The camera continues to detect smiles and takes more pictures (Step 3 is repeated).
Face tracking (one face only) is always on in the Smile Catch mode.
Shooting Mode and select Smile Catch.

Blink Detector

Automatically detects blinking when you capture an image.
1. Press > >
2. Press the shutter to capture an image. If blinking is detected, a warning message appears on the screen.
3. Press / to save or discard the image, and then press to confirm.
Shooting Mode and select Blink Detector.

Love Portrait

Takes a self portrait of at least two faces.
1. Press > > Shooting Mode and select Love Portrait.
2. Once faces are detected, the camera will automatically take a picture after a two-second countdown.
During the countdown, you can press the shutter to cancel the countdown. The camera will then start detecting faces again.
3. The camera continues to detect faces and takes more pictures by repeating Step 2. This face tracking will automatically stop if no faces are detected.
Operating the camera 41

Panorama

Creates a panoramic photo from multiple shots. Two to three shots are stitched into one single and seamless large picture. For optimized performance, the image resolution is automatically set at 1M (1024 x 768) when this mode is selected.
1. Press > > Shooting Mode and select Panorama.
2. Press to select how shots will be stitched.
3. Press the shutter to capture the first shot.
Icon Mode Description
Left-to-Right The direction of the succeeding shots will be
to the right of the first shot.
Right-to-Left The direction of the succeeding shots will be
to the left of the first shot.
English
42 Operating the camera
Guidance bar
Panoramic picture previewThe camera captures the shot when
the screen icon overlaps the block
4. A guidance bar appears on top of the screen. The screen icon indicates the location of the current screen. Pan the camera following the guidance
English
arrow.
5. Once the screen icon overlaps the green block, the camera will automatically take the second shot. If you will only stitch two shots, press
to complete the panoramic picture. Otherwise, proceed to the next
step.
6. To take the third shot, pan the camera to the direction of the guidance arrow. Once the screen icon overlaps the green block, the camera will automatically take the third shot.
Operating the camera 43

LOMO

Creates a lomo-like effect by adding over saturated colors, dark corners, and so on.
1. Press > > Shooting Mode and select LOMO.
2. Take a picture. (The LOMO effect will be applied to this picture immediately.)
When the LOMO effect is applied, color shift (changes in colors) might occur.
Before After

Fisheye

Simulates a fisheye lens effect and creates a distorted hemisphere-like image.
1. Press > > Shooting Mode and select Fisheye.
2. Take a picture. (The Fisheye effect will be applied to this picture immediately.)
English
Before After
44 Operating the camera

Pre-composition

Captures the background first for positioning the final image. Ideal for asking
English
others to take your photo.
1. Press > > Shooting Mode and select Pre-composition.
2. Press the shutter to capture the background. The bottom section of the screen displays the captured background image in a semi-transparent region.
3. Use the captured background image to frame the composition, and press the shutter to capture the final image.

Web Aucti on

Combines a maximum of 4 shots into one single image on a VGA (640 x 480) size, so it can be quickly used in situations such as Internet auctions.
1. Press > > Shooting Mode and select Web Auction.
2. Press or to move to the number of shots you want to take, and then press .
Icon Mode Description
1 shot Takes one picture only.
2 shots Takes two pictures based on the numeric
order shown below:
3 shots Takes three pictures based on the numeric
order shown below:
Operating the camera 45
Icon Mode Description
4 shots Takes four pictures based on the numeric
order shown below:
3. Press the shutter to take one picture.
4. If you are satisfied with the picture, press to take the next one. (If you want to re-take the previous picture, press and repeat Step 3.)
5. Once you have finished taking all pictures, the camera will automatically combine these images into one.

Movie Record mode settings

Icon Description
Video Format: HD 720p (16:9; 1280 x 720), VGA (640 x 480), QVGA (320 x 240), or Web (640 x 480).
• Video recording will automatically stop when the video file size reaches 4 GB.
• Video recording at HD 720p (16:9; 1280 x 720) will automatically stop when the video file size reaches 4 GB or the total recording time is near 29 minutes.
• Recording a video at HD 720p (16:9; 1280 x 720) requires a Class 6 or above SDHC card.
• Videos captured in Web mode are stored under the XXXUTUBE directory (XXX are numbers) with the file size limited to 1 GB or 10 minutes per video file (video recording will automatically stop).
White Balance: Auto, Daylight, Cloudy, Tungsten, Fluorescent H, Fluorescent L, or Manual. See "White Balance" on page 26 for more details.
English
AE metering: Matrix, Center Weight, Spot. See "AE metering" on page 27 for more details.
46 Operating the camera

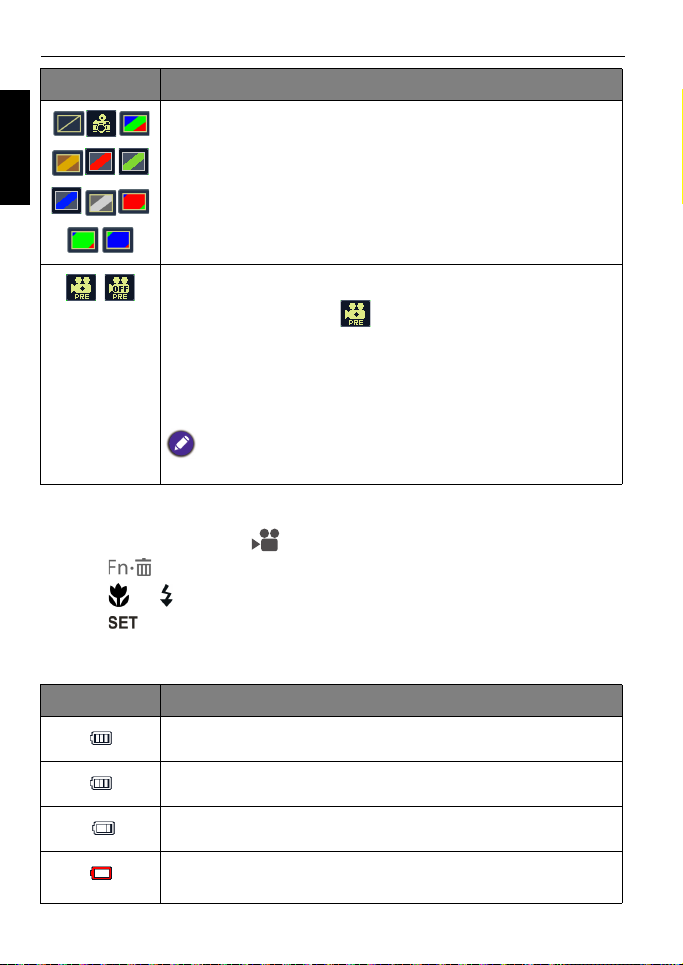

Icon Description
English
Effect: Normal, LOMO, Vivid, Sepia, Color Accent (Red), Color Accent (Green), Color Accent (Blue), B&W, Vivid Red, Vivid Green, Vivid Blue. See "Effect" on page 28 for more details.
Pre-record: On and Off
When Pre-record is on , the camera repeats recording a short video clip for a 3-second duration before you press the shutter. Once you press the shutter, the previous 3-second
video clip will be combined into the current video you are shooting.
Only the latest 3-second video clip is stored temporarily on the
memory.
To select a Movie Record option:
1. Slide the mode switch to and enter the Movie Record mode.
2. Press , and then select an option.
3. Press or to select a setting.
4. Press to confirm setting.

Battery status

Icon Description
Battery power is full.
Battery power remains adequate.
Battery power is low.
Battery power is very low. You should replace the battery ASAP.
Operating the camera 47

Other settings

Press > , and then select an option.
Icon Mode Description
Sounds [Startup] Sets a type of the startup sound.
[Shutter] Sets the shutter sound on and off.
[Operation] Sets the button (excluding shutter)
sound on and off.
[Volume] Adjusts the volume of the shutter
sound, startup sound, operation sound and playback sound.
Power Saving
LCD Saving
Date/Time Sets the date and time.
File Numbering
[1 min.]
[3 min.]
[5 min.]
[Off]
[On]
[Off]
Select a language for display menus and other information.
[Series]
[Reset]
For power conservation, the camera automatically enters the standby mode after it has been idle for a period of time. (Press any key to resume.)
The camera remains on when idle.
For power conservation, the LCD screen is automatically dimmed after the camera has been idle for 20 seconds. (Press any key to resume.)
The LCD screen remains bright when the camera is idle.
Stores the most recently used file number regardless of deleted files or a change of memory card. This is useful for avoiding the file name duplication when images are downloaded to a computer.
Resets file numbering each time the memory card is changed.
English
48 Operating the camera
Icon Mode Description
TV Out You can review images on a television with an AV cable.
English
America, Japan, Taiwan and others
China, Europe, Oceania, and others
The LCD brightness is automatically set based on the surrounding environment.
The LCD brightness is increased.
LCD Brightness
[NTSC]
[PAL]
TV Format should be set to either NTSC or PAL depending
on your region. For details about which system should be used, check with your local authorities.
[Auto]
[High]
[Normal]
The LCD brightness remains at the default value.
Manage Memory
[Format]
[Copy to
Card]
Formats the internal memory or the memory card.
Copies files from the internal memory to the memory card.
Reset All Resets the entire menu and button operation settings to
initial default. The following settings do not change after Reset All: Date & Time setting Language setting TV Format setting
Operating the camera 49
10/115
10/11501.15.200901.15.200901.15.2009
IMG 0064.JPGIMG 0064.JPG
1.25MB
1.25MB 1/200
1/200 F2.8F2.8
08:0508:0508:05
14M
EV
2.02.0
ISO
400
400
1
2 3
5
4
6
7
8
9

Playback mode

Slide the mode switch to to enter the Playback mode.
While pausing video playback, you can press the shutter to capture the video frame as a still image in the VGA format.
Item Description Page
reference
1 Indicates that the camera is in the Playback mode. --
2 Indicates that the file is protected and cannot be
deleted.
3 Indicates this file has a voice memo or the file is an
audio file.
4 Indicates the file is marked for printing. --
5 Displays the shooting parameters when you took the
picture or playback controls. Press to toggle between different displayed information.
6 Date and time when the file was created. --
7 File number --
8Histogram --
9 File name, file size, shutter speed, and aperture value --
English
52
53
--
50 Operating the camera

Options for playback and editing

English
When the camera is in the Playback mode, press , or to move to different files. You can also select any of the following options.

Enlarging an image

Magnifies an image, so more details can be seen.
To enlarge an image:
1. Slide the mode switch to .
2. Press or to move to the image you want to enlarge.
3. Press to zoom-in or to zoom-out.
4. Press , , , or to move to the area you want to see.
5. Press to return to the normal viewing size.

Rotating an image

You can press to change the orientation of an image at 90 degrees clockwise at a time.
For each rotation, the image file in the new orientation is automatically saved.

Viewing multiple files at a time

Shows up to 9 files at a time on the screen.
To view multiple files:
1. Slide the mode switch to .
2. Slide to . In this mode, maximum 9 files (shown in thumbnails) are
displayed on the screen. Press , , , or to select a file, and then press or to view it in its normal viewing size.
3. Slide to . In this mode, all files are arranged by dates. Press ,
, , or to select a file, and then press or to view it in
its normal viewing size.
Operating the camera 51
If there are more than 9 thumbnails, you can press repeatedly until the scroll bar
is highlighted. Then you can press to move to the previous 9 thumbnails or
to move to the next 9 thumbnails. To cancel highlighting the scroll bar, just
press .

Playing back video clips

View recorded video clips in the playback mode.
To view a video clip:
1. Slide the mode switch to .
2. Press or to move to the video clip you want to view.
3. Start playing back.
• Press to start playing the video clip.
• Press to stop the video clip, or press to pause it. Press
again to resume.
• During video playback, press to fast forward or press to rewind.
• While pausing video playback, you can press the shutter to capture the video frame as a still image in the VGA format.
• While pausing video playback, you can view the video frame by frame. Press to
fast forward one frame, or press to rewind one frame. Press and hold to
fast forward frame by frame continuously, or press and hold to rewind frame by frame continuously.
English

Adjusting the playback volume

Increase or decrease the volume of video clips, audio clips, or voice memos.
To adjust the playback volume:
1. Turn the power on, and set the camera to the playback mode.
2. Press or to select a video clip, audio clip, or voice memo that you want to playback.
3. Adjust the volume.
• Slide to to increase the volume.
52 Operating the camera
• Slide to to decrease the volume.
English
The volume can be set during playback, but not during rewind, fast forward, or pause.

Slideshow

Sets the time interval for presenting a series of captured image and video files (first frame only).
To play a slideshow:
1. Slide the mode switch to .
2. Press > >
3. Change the slideshow settings.
• Use the four-way control to set one of the following slideshow effects:
Applies a transition effect from left to right.
Applies a transition effect from upper-left side to lower-right side.
Applies a horizontal transition effect.
Applies a vertical transition effect.
Applies a horizontal transition effect by intersecting an image.
• You can set the interval between 1/3/5/10 seconds.
4. Select whether you want to repeat the slideshow.
5. Select Start and press to play the slideshow.
If you want to pause it at any time, press . Press again to resume playback. To stop the slideshow, press .
Slideshow > or .

Deleting files

Removes selected or all files.
To delete files:
1. Slide the mode switch to .
2. Press > >
3. Select whether to delete this selected file, other selected, all files, or voice memo only, and then press .
Delete > or .

Protecting files

Prevents selected files from accidental removal.
Operating the camera 53
To pr ot ec t f i le s:
1. Slide the mode switch to .
2. Press > >
3. Select whether to protect this selected file, other selected, or all files, and then press . You will then see the icon indicating the file is protected.
You can remove the protection anytime by following the same procedure as shown above. Note that in Step 2 the on-screen instruction will ask you how you want to remove the protection.
Protect > or .

Red-eye Removal

The Red Eye Correction function is used to reduce red eye in captured images. This function is only available for still images. Red eye correction can be applied to an image several times, but the quality may gradually deteriorate.
1. Slide the mode switch to .
2. Press or to move to the image you want to apply Red-eye Removal.
3. Press > >
4. Press to confirm the change and save the image file.
You cannot use this function on images captured in Panorama mode.
Red-eye Removal > or .

Voice memo

Inserts a voice annotation to an image file.
To record a voice memo:
1. Slide the mode switch to .
English
2. Press or to move to the image you want to add a voice memo.
3. Press > > Voice Memo > or .
4. Select
5. Select
Start > to start recording your voice. Stop > to stop recording.
To play back a voice memo:
1. Press to play the voice memo.
2. Press to pause the playback.
54 Operating the camera
3. Press to resume the playback.
4. Press to exit playback.
English

Photo Effect

You can add special effects to your images.
Icon Mode Description
Normal No effect is added to the image.
Sepia Recorded image will be stored in a sepia
B/W Convert image to black & white.
Negative Colors become the opposite of what they
Mosaic Applies a mosaic tile effect to the image.
Vivid Red The image becomes reddish.
Vivid Green The image becomes greenish.
Vivid Blue The image becomes bluish.
To add a special effect to an image:
1. Slide the mode switch to .
tone.
were in the original image.
2. Press or to move to the image you want to add an effect to.
3. Press > > Photo Effect > or .
4. Press , or to select the effect. The preview result based on the currently selected effect is shown in the middle thumbnail.
Operating the camera 55
5. Press to confirm the change and save the image file.
You cannot use this function on images captured in Panorama mode.

Trimming

Crops part of an image file, reduces the image size, and overwrites the image file or saves it as another new file.
To tr im a n im ag e :
1. Slide the mode switch to .
2. Press or to move to the image you want to trim.
3. Press > >
4. Slide to or to select the target image size (8M, 5M, 3M, VGA) to which you want to reduce.
5. Press , , , or to locate the area to trim.
6. Press to confirm the change and save the image file.
Trim > or .
English
You cannot trim images in the size of 3:2, 16:9, or VGA, or images captured in Panorama mode.

Resizing

Changes an image file to a smaller size, and overwrites the image file or saves it as another new file.
To resize an image:
1. Slide the mode switch to .
2. Press or to move to the image you want to resize.
56 Operating the camera
3. Press > > Resize > or .
English
4. Press or to select the target image size to which you want to reduce.
5. Press to confirm the change and save the image file.
You cannot resize images in the size of 3:2, 16:9, or VGA, or images captured in Panorama mode.

Startup image

Sets the welcome screen when the camera is powering on.
To select a startup image:
1. Press > > Startup Image > or .
• To use the default startup image, select
• To use a custom image, select My Photos and press or to select an
image.
• To disable the startup image, select
2. Press .
Default.
Off.

DPOF

The Digital Print Order Format (DPOF) setting allows you to select images on the memory card for printing and specify the number of print copies in advance using the camera. This is extremely convenient for sending the images to a photo developing service or for printing on a direct print function compatible printer.
To set up DPOF:
1. Press > > DPOF.
2. Press or and select one of the following options.
• To set the DPOF setting for one image in a time, select
or to select an image.
• To set the DPOF setting for all images in a time, select
• To clear all DPOF settings to initial default, select Reset.
3. Press or to specify the number of copies.
4. Press to decide whether you want to turn the date stamp on.
5. Press .
Single. and press
All.
Working with computer and AV system 57

Radial Blur

Applies a rotating motion effect to give a feel of speed.
To apply a Radial Blur effect:
1. Slide the mode switch to .
2. Press > >
3. Press or and select a degree of Radial Blur.
4. Press to confirm the change and save the image file.
You cannot use this function on images captured in Panorama mode.
Radial Blur > or .

Working with computer and AV system

Bundled software

The camera offers the following programs on a CD.
ArcSoft PhotoImpression 5
ArcSoft VideoImpression 2
To install these programs, see the information supplied with the CD.
Combines photo editing with creative enhancement and sharing tools that maximize your digital media experience.
Creates multimedia presentations by combining photos and video clips with audio, text and scene transitions.
English

Connecting the camera to a computer

You can connect the camera to a PC or notebook to transfer, view, print, or edit files as well as charge the camera.
To connect the camera to a computer:
1. Connect the end of the smaller plug of the USB cable to the camera.
2. Turn on the camera.
3. Connect the other end of the USB cable to an available USB port on your computer.
4. Select
Computer and wait for the connection.
58 Working with computer and AV system
5. A Removable Disk icon appears in My Computer. Click this icon to access the files in your camera.
English
• When connecting the camera to a computer, it is necessary to install a battery into the camera.
• When connecting the camera to a computer, please use the original accessory of the USB cable to avoid possible system conflicts and damage to the camera.

Connecting the camera to an AV system

You can play files in your camera from an AV system such as TV or projector.
To connect the camera to an AV system:
1. Connect the end of the smaller plug of an AV cable to the camera.
2. Connect the yellow video plug and the white audio plug of the AV cable to a video-input jack and an audio-input jack (left channel) on your AV system.
3. Turn on the AV system, and then switch to the AV source connecting to the camera.
4. Turn on the camera.
5. Follow the on-screen instructions to operate the camera via the TV or projector screen.

Printing images

In addition to printing images by connecting the camera to a printer via a computer or bringing the memory card (if available) to a photo-processing center, you can choose to print using PictBridge.

Printing with PictBridge

You can directly print images by connecting your camera to a PictBridge­compatible printer without using a computer.
To print images from a PictBridge-compatible printer:
1. Connect the end of the smaller plug of the USB cable to the camera.
2. Connect the other end of the USB cable to an available USB port on your printer.
3. Turn on the printer. Wait for a while until it finishes starting up and is ready to print.
4. Turn on the camera.
5. Select
6. Select one of the following options:
Printer and wait for the connection.
Working with computer and AV system 59
• To print one image at a time, select Print Select, and press or to select an image.
• To print all images at a time, select
Print All.
• To print all images (shown by thumbnails) at a time, select Print Index.
7. Press .
• The above procedure may vary depending on the printer type you are using.
• If you connect the camera to your printer while the printer is still starting up, the camera will be automatically turned off.
• Failure to follow the above procedure will make the camera show an error message. Please disconnect the camera and the camera will be automatically turned off.
English
60 Troubleshooting and service information
Troubleshooting and service
English
information
If your camera cannot operate normally, see the frequently encountered problems and solutions listed below. If the problem persists, contact your nearest service center or technical support.
Problem Cause Solution
The camera cannot power up.
The battery power is draining quickly.
The battery or camera is warm.
The flash does not fire or recharge.
Even though the flash fired, the image is dark.
The image is too bright or too dark.
I cannot format a memory card.
There is no battery or the battery is not inserted correctly.
The battery has no power. Replace the battery.
The external temperature is extremely low.
Many shots are being captured in dark places, requiring a flash.
The camera or flash was used continuously over a long period of time.
The camera flash is turned off.
The light source is sufficient.
The distance to the subject is greater than the flash's effective range.
The exposure is excessive or inadequate.
The memory card is write­protected.
End of the memory card life.
Insert the battery correctly.
--
--
--
Set the flash to Auto Flash.
--
Get closer to the subject and shoot.
Reset exposure compensation.
Remove the write protection.
Insert a new memory card.
Troubleshooting and service information 61
Problem Cause Solution
I cannot download images from the camera to my computer.
The camera does not shoot even when pressing the shutter button.
I cannot print images with PictBridge­compliant printers.
The free space on the hard disk of your computer is insufficient.
There is no power being supplied to the camera.
The battery is running low. Replace the battery.
The camera is not in the Capture mode.
The shutter button was not pressed all the way down.
The internal memory or memory card does not have any free space.
The flash is recharging. Wait until the flash mode icon,
The camera does not recognize the memory card.
The camera is connected to the printer when the camera is powered off.
Ensure that the hard disk has enough space for running Windows and that the drive for loading image files has free space equal to or greater than the memory card in the camera.
Replace the battery.
Switch to the Capture mode.
Press the shutter button all the way down.
Load a new card or delete unwanted files.
indicated on the screen, stops flashing.
Format the memory card before the initial use or before using with another camera.
Connect the camera to the printer, turn on the camera, and then select
English
Printer.

Technical support

For technical assistance, free driver updates, product information, and news releases, visit the following web site:
http://www.BenQ.com
62 Specifications

Specifications

English
Sensor • AE100: Panasonic 14 Mega Pixels, 1/2.3 inch CCD
• AE200: Panasonic 16 Mega Pixels, 1/2.3 inch CCD
Zoom Optical: 5X
Digital: Up to 5X (Preview) / Up to 12X (Playback)
Lens f = 4.9 (W) ~ 24.5 (T) mm
F= 2.4 (W) ~ 6.1 (T) f = 27.6 mm ~ 138 mm, 35 mm equivalent
Focus Range
LCD 2.7” LCD 230k pixels
Image Resolution AE100: 14M (4320 x 3240)
Movie Mode HD 720p (1280 x 720), VGA (640 x 480), QVGA (320 x 240),
Shutter Speed 1/2000 ~ 1 sec (Fireworks 2 sec.; Night Scene 1/2000 ~ 15
White Balance Auto, Daylight, Cloudy, Tungsten, Fluorescent H,
Exposure -2 ~ +2 EV (0.3EV / step)
ISO Auto / 100 / 200 / 400 / 800 / 1600
Flash Auto / Auto Anti Red-eye / Forced On / Slow Sync / Forced
Drive mode 10 sec. (Self-timer) / 2 sec. (Self-timer) / Double / Burst /
Power Source CIPA approximately 200 based on bundled Li-ion battery
Normal: W = 10 cm ~ Infinity, T = 60 cm ~ Infinity Super Macro: 5 cm
AE200: 16M (4608 x 3456) AE100: 3:2 (4320 x 2880) AE200: 3:2 (4608 x 3072) 8M (3264 x 2448) / 5M (2592 x 1944) / 3M (2048 x 1536) / HD 16:9 (1920 x 1080 in full HD format) / VGA (640 x 480)
Web (640 x 480) 30 fps Continuous recording with sound
sec.)
Fluorescent L, Manual
3200 for resolution of 3M or under only 6400 for resolution of 3M or under only
Off
Speedy Burst / Off
Specifications 63
Storage Type AE100: Built-in approx. 13 MB
AE200: Built-in approx. 95 MB SD (up to 4GB) / SDHC (up to 32GB) / SDXC (up to 64GB)
File Format Still Image: JPEG (EXIF 2.2 compatible); DCF compatible
Video: MJPEG Audio: WAV
Dimensions / Weight
98.1 x 57.9 x 18.5 mm 110 g (w/o battery & SD card)
Interface Digital output: USB 2.0 compatible
Audio / Video output (NTSC/PAL) PictBridge compatible
Accessories USB Cable / Software & User Manual CD / Quick Guide /
Hand Strap / Pouch / Li-ion battery / AC power adapter
Available accessories depend on the actual items shipped
and may vary from the list above.
All information, designs, and specifications are subject to change without prior notice.
English
