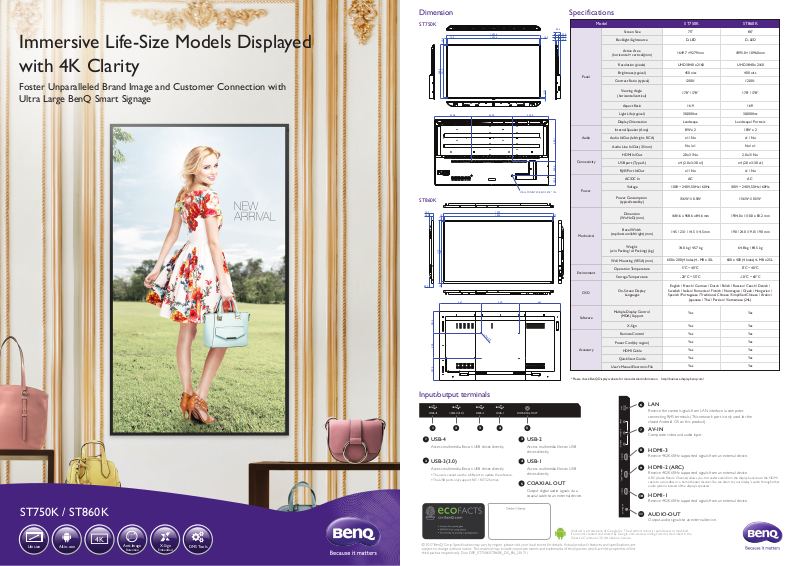

Benq 9H.F4CTK.NA2 Product Data Sheet

Immersive Life-Size Models Displayed

VEDIO

AUDIO-L AUDIO-R

HDMI-2_(ARC)_

AUDIO-OUT

with 4K Clarity

Foster Unparalleled Brand Image and Customer Connection with Ultra Large BenQ Smart Signage

ST750K

ST860K

76.2

44.2

1681.6

14.5

968.6

931.0

540.8 600.0 540.8

1652.6

1934 1896

14.5

23.1

WALL MOUNT SCREW: 4-M8 * 10L

SpecificationsDimension

84.6

53.8

50.8

14.5

628.1200.0140.5

1919

Model ST750K

Scree n Size

Backlight/Lightsource

Activ e Area

(horizontal × vertical)(mm)

Resolution (pixels)

Panel

Audio

Connectivity

Power

Brightness (typical)

Contrast Ratio (typical)

Viewin g Angle

(horizontal/vertical)

Aspect Ratio

Light Life (typical)

Display Orientation

Internal Speaker (Amp)

Audio I n/Out (le ft/right , RCA)

Audio L ine In/Ou t (3.5mm)

HDMI In/Out

USB po rt (Type A)

RJ45 Por t In/Out

AC/DC I n

Volt age

Power Con sumptio n

(typi cal/stand by )

Dimension

(WxHxD) (mm)

75''

D-LED

1649.7 × 927.9mm

UHD 38 40 x 2160

450 nit s

120 0:1

178 ° / 178 °

16:9

30,000hrs

Landscape

8W x 2

x1 / No

No / x1

2.0 x3 / No

x4 (2.0 x3;3.0 x1)

x1 / No

100V ~ 240V, 50 Hz / 60Hz

156W 숻0.5W

1681.6 x 968 .6 x 84.6 mm

ST860K

86''

D-LED

1895.0 × 109 6.0mm

UHD 38 40 x 2160

400 ni ts

120 0:1

178 ° / 178 °

16:9

30,000hrs

Land scape / Por trait

10W x 2

x1 / No

No / x1

2.0 x3 / No

x4 (2.0 x3;3.0 x1)

x1 / No

100V ~ 240V, 50 Hz / 60Hz

156W 숻0.5W

1934.0 x 1110.0 x 83.2 mm

Bezel W idth

Mechanical

1110

1067

Environment

83.2

OSD

667

352.5

400357.5

600 667

Software

4-M8*25L

Accessory

*Ple ase check Ben Q Display webs ite for more det ailed infor mation. htt p://busine ss-displ ay.benq.com /

(top/bottom/left/right) (mm)

Weig ht

(w/o Pack ing/ w/ Packi ng) (kg)

Wall Mou nting (V ESA) (mm)

Operation Temperature

Storage Temperature

On-S creen Displ ay

Languages

Multiple Display Control

(MDA) Su pport

X-Sign

Remote Control

Power Cord (by region)

HDMI Cable

Quick S tart Gu ide

User’s Manual Electronic File

14.5 / 23.1 / 14. 5 / 14.5 m m

34.0 k g / 45.7 kg

600 x 20 0 (4 holes)4 - M8 x 10L

5°C ~ 40°C

-20°C ~ 55°C

Engli sh / French / Germ an / Dutch / Poli sh / Russian / C zech / Danish /

Swedis h / Italian / Rom anian / Fin nish / Norweg ian / Greek / H ungarian /

Spani sh / Portugue se / Tradi tional Ch inese / Sim plified Chi nese / Arabic /

Japa nese / Thai / Pe rsian / Vietn amese (24L)

Yes

19.0 / 24.0 / 19.0 / 19.0 mm

64.8 k g / 84.5 kg

600 x 4 00 (4 holes) 4 - M8 x 25L

0°C ~ 40° C

-10°C ~ 60°C

Yes

Input/output terminals

LAN

Receive the control signals from LAN interface /a computer, connecting RJ45 terminals (This network por t is only used for the

USB-4

Access multimedia files on USB drives directly.

USB-3(3.0)

Access multimedia files on USB drives directly.

• The users cannot use the USB por t to update the software.

• The USB ports only suppor t FAT / FAT32 format.

2 3 4 5

USB-2

Access multimedia files on USB drives directly.

USB-1

Access multimedia files on USB drives directly.

COAXIAL OUT

Output digital audio signals via a coaxial cable to an external device.

closed Android OS on this product).

AV-IN

Composite video and audio input.

HDMI-3

Receive 4K2K 60Hz supported signals from an external device.

HDMI-2 (ARC)

Receive 4K2K 60Hz supported signals from an external device.

ARC (Audio Return Channel) allows you to transfer audio from the display back down the HDMI cable to a soundbar or a home theater receiver. You can listen to your display's audio through other audio systems instead of the display's speakers.

HDMI-1

Receive 4K2K 60Hz supported signals from an external device.

ST750K / ST860K

Life size All-in-one DMS Tools

Anti-Image

Retention

X-Sign

Embedded

AUDIO-OUT

Output audio signals to an external device.

Andr oid is a trad emark of Goo gle Inc. Th e Android ro bot is repr oduced or modi fied from wo rk creat ed and shared b y Google an d used accor ding to terms d escrib ed in the Creat ive Commons 3 .0 Attr ibution Lic ense.

Doc: DSP_ST750K/ST860K_DS_EN_201711

Optimize Reach with Real-Time Promotional Tools

Featuring ultra large 75-and 86-inch screens, ST750K/ST860K let operators effortlessly fit life-size images onto a single display. Shoppers will be dazzled by full-size depictions that accurately represent the shapes, colors, and textures of the actual products.

The All-In-One Solution for Delivering Eye-Catching 4K Content

Offering the highest resolution in the market, the Android-powered ST750K/ST860K are prepared for the 4K revolution. ST750K/ST860K and their 4K2K capabilities are ready to show off stunning content with four times the detail of full HD displays. Moreover, ST750K/ST860K use the embedded X-Sign Player to display 4K content without the need for an external player.

Maximize Message Impact with 1:1 Life-Size Imagery

Content with 4K

Content with FHD

Instant Price Updates

Updating prices and other fluctuating content is easy. Operators just need to modify a centralized .csv file in the cloud.

QR Code Interaction and Analysis

X-Sign allows operators to embed QR Codes that, when scanned, can offer customers the latest promotional information. X-Sign also offers QR Code analysis to let operators see when and where customers are interacting with content. This analysis can help operators quickly adjust their offers to match customer interest.

Real Time Messagess

X-Sign lets operators push real-time messages to the display network to create instant excitement.

Broadcast YouTube Live Streaming across Multiple Displays*

With X-Sign, operators can insert live YouTube broadcasts of product launches on Smart Signage in real time, which makes promoting new products instant and easy.

* Available on X-Sign 2.0

Easy Content Distribution

X-Sign allows operators to display digital content anywhere, anytime. Built to support retail store environments both big and small, X-Sign offers three ways to distribute scheduled content:

Network Distribution via the Cloud

Centralized Management of Multiple Locations and Displays

Take the stress out of distributing content across a massive display network. Once the displays are connected to the Internet, X-Sign allows operators to distribute content to all remote locations through a single calendar-based web interface. With this centralized web interface, operators not only can assign content to play at a specific time or resolution but also can instantly modify the schedule and activate an interrupt to display any newly added content.

Local Delivery via LAN*

One-Stop Management of All Displays in Store

These days more and more businesses are using LAN infrastructure to connect all in-store devices, including phones, PCs, and retail displays. With X-Sign, by connecting both a laptop and the Smart Signage to the same LAN network, operators can distribute content to be played on the assigned display.

* Available on X-Sign 2.0

Plug and Play with USB Flash Drive

Simple Single-Display Management

Operators without a network can still save scheduled content to a USB flash drive and plug it into Smart Signage to play the content.

Convert Shoppers into Customers with Captivating 4K Image Quality

ST750K/ST860K come with BenQ’s exclusive X-Sign cloud-based content management software, the powerful 4K integrated solution for operators to create, schedule, and display 4K content that dazzles shoppers. Requiring no server setup, X-Sign is optimized to scale up alongside a growing business while using minimal manpower and resources.

Easy Content Creation

Create Riveting Signage Content with Dynamic Built-in Templates and Elements

Over 140 Built-in Templates

X-Sign comes with over 140 built-in templates, professionally designed for a variety of retail promotion scenarios. X-Sign’s 4K templates are optimized for embedding 4K images and video, ensuring flawless presentation on 4K Smart Signage.

Centralized User and Device Management

ADMINISTRATOR

Administrator Management and User Hierarchy

With X-Sign’s powerful management tools, administrators can:

Review all changes in content before it goes live. Set up multiple user accounts with varying degrees of access and track issues though the activity log.

Hassle-free Display Management Made Possible

MDA (Multiple Display Administrator)

Operators can remotely control display on/off time or backlight via LAN or RS232.

DMS 1.0 (Display Management System)

Install Android™ apps for a selection of displays through BenQ’s cloud server.

Centralized Remote Device Monitoring and Display Control

X-Sign’s intuitive tree map interface makes it easy to:

Monitor display performance in real-time. Control basic device functions, such as screen on/off mute, and restart Rearrange playlists and device lists with drag-and-drop simplicity.

OTA (Over-the-Air) Update

Keep all display drivers up-to-date with easy firmware update.
