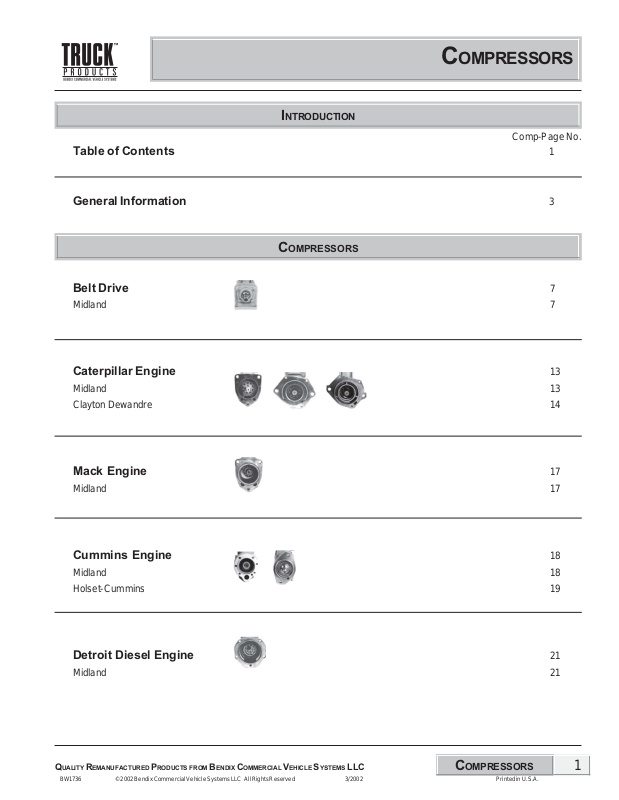

COMPRESSORS
INTRODUCTION
Comp-Page No.
Table of Contents 1
General Information 3
COMPRESSORS
Belt Drive 7
Midland 7
Caterpillar Engine 13
Midland 13
Clayton Dewandre 14
Mack Engine 17
Midland 17
Cummins Engine 18
Midland 18
Holset-Cummins 19
Detroit Diesel Engine 21
Midland 21
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 1
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
COMPRESSORS
CYLINDER HEADS
Comp-Page No.
Cylinder Heads ...................................................................................................................................... 25
REPAIR & GASKET KITS
Compressor Kit Cross Reference .................................................................................................. 26
Repair & Gasket Kits ............................................................................................................................ 28
Unloader Kits
Midland Unloader Kits..................................................................................................................................... 30
Cummins Unloader Kits .................................................................................................................................. 31
Cylinder Head Repair Kits
Midland........................................................................................................................................................... 31
Cummins ........................................................................................................................................................ 32

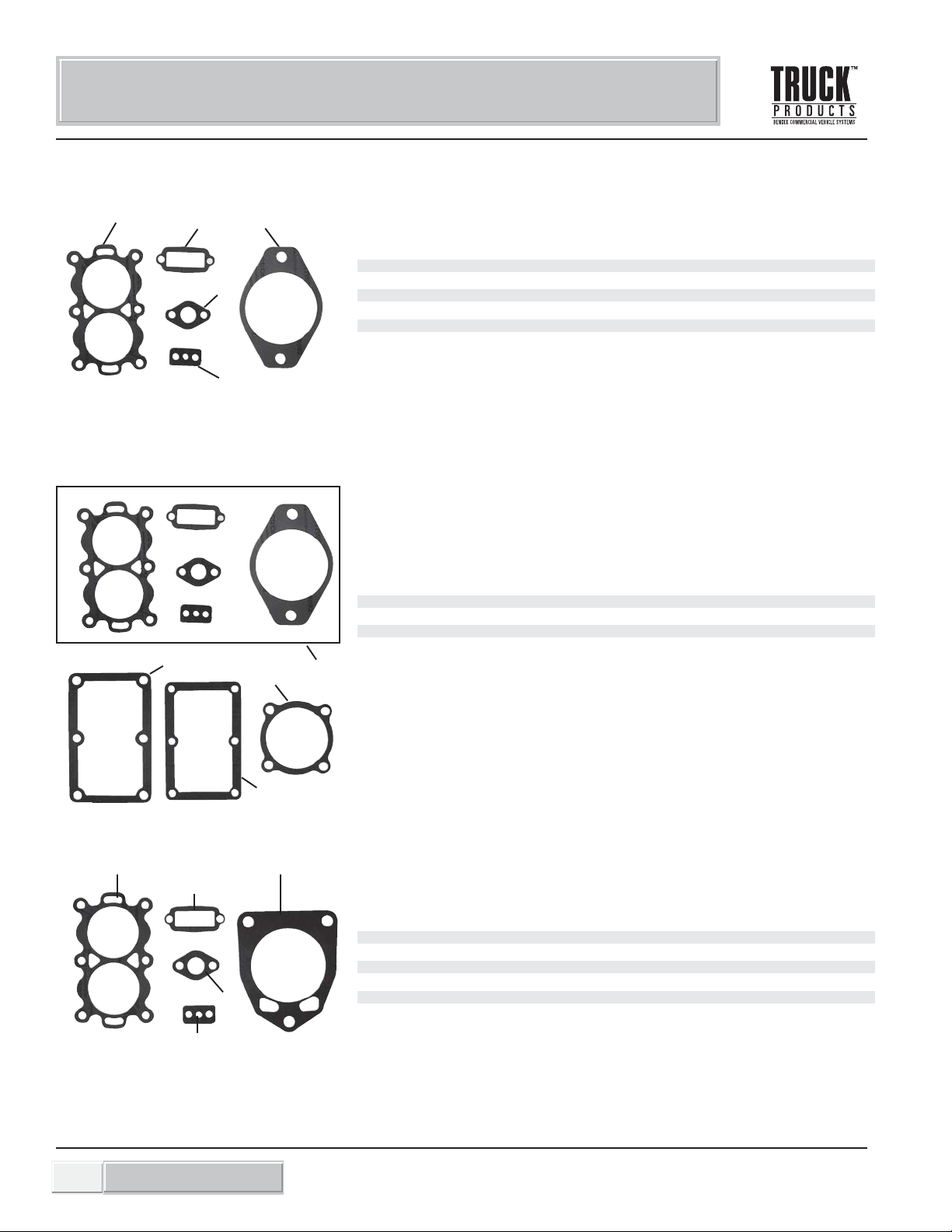

Gasket Kits (Mounting & Complete)
Midland........................................................................................................................................................... 33
Cummins ........................................................................................................................................................ 43
Clayton Dewandre........................................................................................................................................... 44
Piston Kits
Midland........................................................................................................................................................... 44
Cummins ........................................................................................................................................................ 45

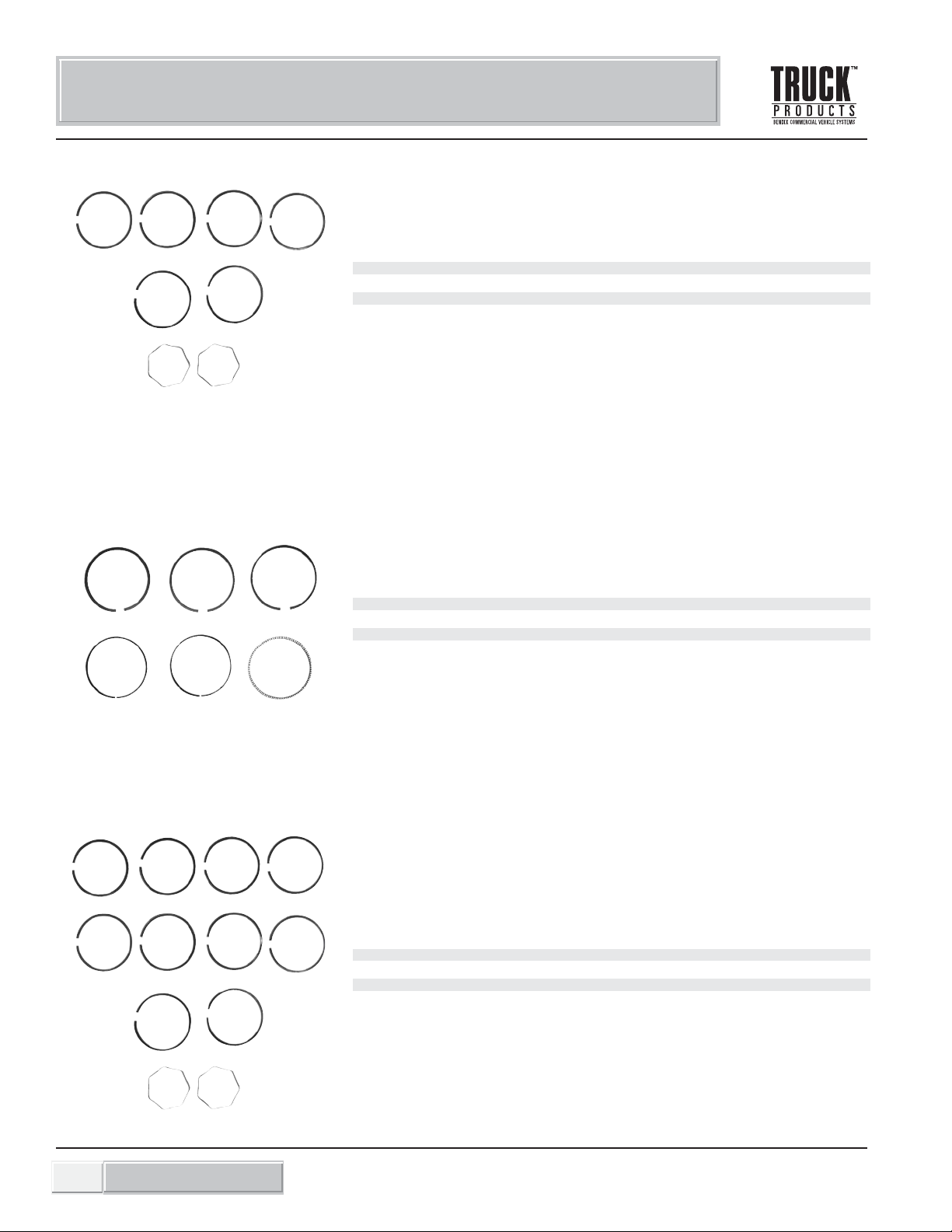

Piston Ring Kits
Midland........................................................................................................................................................... 46
Cummins ........................................................................................................................................................ 47

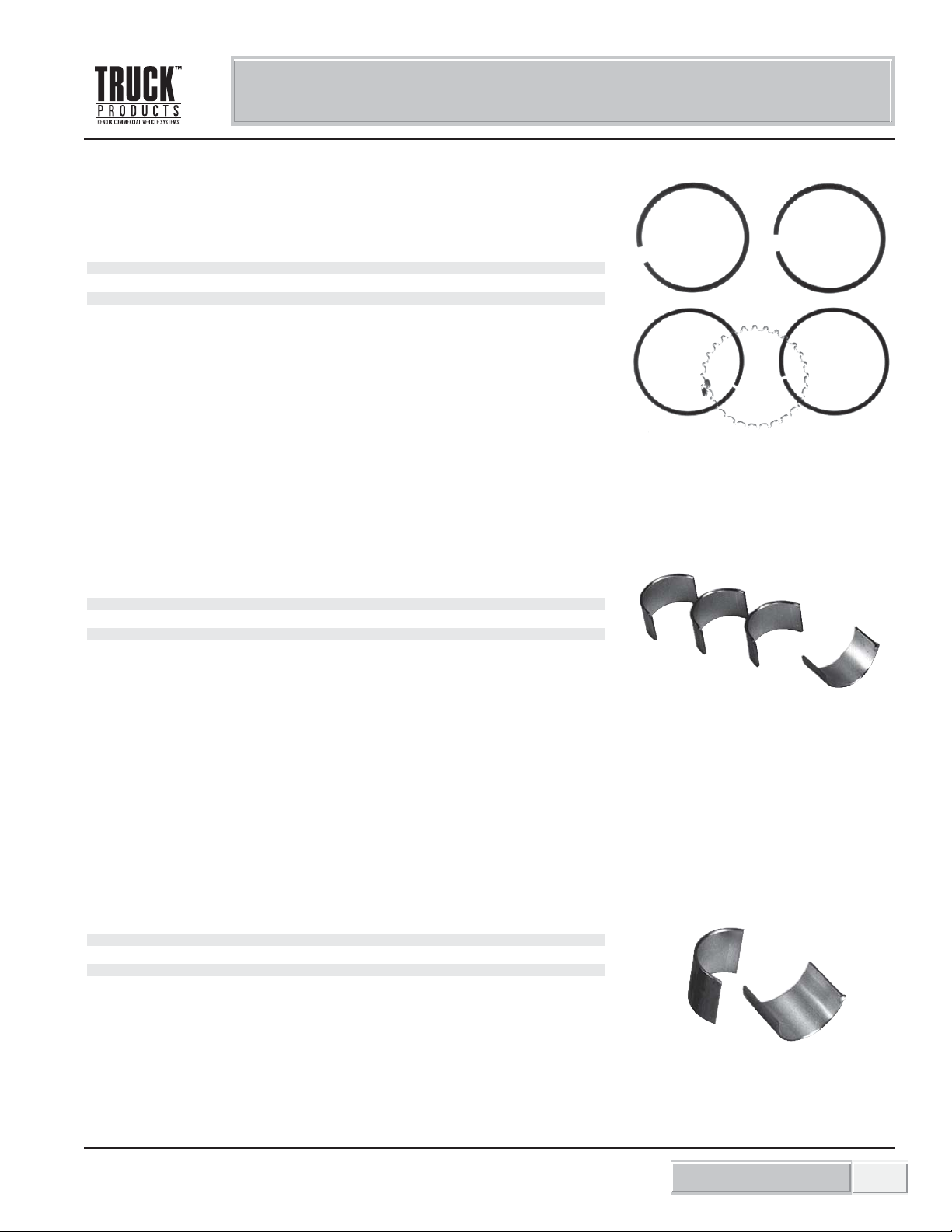

Rod Bearing Sets
Midland........................................................................................................................................................... 47
Drive Gear
Cummins ........................................................................................................................................................ 48
GOVERNORS
Governors 49
Midland 49
2 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX C OMMERCIAL VEHICLE S YSTEMS LLC
COMPRESSORS
COMPRESSORS
Remanufactured
Remanufactured
Part No.
Model No.
Serial No.
Part No.
Serial No.
LEFT RIGHT
Compressor Nameplate
A nameplate is attached to each compressor, generally to the crankcase. There are two styles in
use, both having a silver background with black lettering. In all cases the nameplate displays the
part number and serial number. The larger of the two also provides model information.
The part number stamped into the nameplate is the manufacturer’s part number with the letter “X”
added to the end to designate that the unit is remanufactured. The alpha numeric serial number
indicates the date and place of manufacture. The first letter indicates the month, A (January)
through M (December) with the letter “I” not used. The first pair of digits indicate the day and the
second pair the year. The last character represents the remanufacturing facility. For example, a
nameplate bearing serial number “D1801X” was built April 18, 2001.
Compressor Installation - Gaskets and Plugs
All Truck Products remanufactured compressors are supplied with the appropriate gaskets and
plugs to install the compressor and attach fittings, filters and governor, where required. An
Installation Instruction Sheet is included with eac h compressor.
Compressor Port Positions
All compressor port positions in this catalog are obtained in the same manner as the original
manufacturer; by viewing the compressor from the drive end.
FRONT
(Drive End)
Midland Compressors
Identifying The Difference Between An EL1300 and EL1600
The EL1600 is almost identical in appearance and dimensions to the EL1300. Other than the part
number shown on the compressor name tag, the most easily identified difference between the
two compressors is a rectangular protrusion on the cylinder block as shown in the illustration
below.
This rectangular block is not
present on the EL1300
cylinder block.
EL1600 Cylinder BlockEL1300 Cylinder Block
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 3
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
GENERAL COMPRESSOR INFORMATION
Remanufactured Midland Compressors
1
9
8
7
2
3
4
EL740
The EL740 is a two cylinder compressor with a displacement of 7.4 cu. ft. per min. at 1250 RPM.
It is available in both vertical mount, belt drive, or flange mount gear drive configurations. The
EL740 is available as totally water cooled, totally air cooled, or in a combination of water cooled
head and air cooled block.
1. Unloader Valve 4. Rear End Cover 7. Front End Cover
2. Inlet Port 5. Crankcase 8. Cylinder Block
3. Discharge Port 6. Crankshaft 9. Cylinder Head
6
9
8
7
6
10
4
9
8
5
EL850
The EL850 is a single cylinder compressor with a displacement of 8.5 cu. ft. per min. at 1250 RPM.
Like the EL740, it is available in both vertical mount, belt drive, or flange mount gear drive
configurations. The EL850 is available as either totally air cooled or in a combination of water
1
2
3
4
5
1
2
3
4
5
cooled head and air cooled block.
1. Governor Port 4. Rear End Cover 7. Front End Cover
2. Inlet Port 5. Crankcase 8. Discharge Port
3. Cylinder Block 6. Crankshaft 9. Cylinder Head
EL1300
The EL1300 is a two cylinder compressor with a displacement of 12.9 cu. ft. per min. at 1250
RPM. It is available in both vertical mount, belt drive, or flange mount gear drive configurations. The
EL1300 is available in totally water cooled versions only.
1. Discharge Port 5. Rear End Cover 9. Cylinder Block
2. Governor Port 6. Crankcase 10. Cylinder Head
3. Inlet Port 7. Crankshaft
4. Water Ports 8. Front End Cover
7
4 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX C OMMERCIAL VEHICLE S YSTEMS LLC
COMPRESSORS
6
GENERAL COMPRESSOR INFORMATION
Remanufactured Midland Compressors (cont’d)
EL1600
The EL1600 is a two cylinder compressor with a displacement of 16.1 cu. ft. per min. at 1250
RPM. It is a companion compressor to the EL1300 and is offered in most all the same configurations as the EL1300.
1. Discharge Port 5. Rear End Cover 9. Cylinder Block
2. Governor Port 6. Crankcase 10. Cylinder Head
3. Inlet Port 7. Crankshaft
4. Water Ports 8. Front End Cover
10
4
9
8
1
2
3
4
5
EL3200
The EL3200 is a four cylinder, water cooled only, compressor with a displacement of 32.2 cu. ft.
per min. at 1250 RPM. It is available in direct drive single flange mount for Mack in-line 6 cylinder
engine applications only.
1. Discharge Port 4. Water Ports 7. Base Plate
2. Governor Port 5. Cylinder Block 8. Rear End Cover
3. Cylinder Head 6. Crank Case 9. Inlet Port
Remanufactured Holset – Cummins Compressors
Single Cylinder
The single cylinder Holset compressor has a displacement of 13.2 cu. ft. per min. at 1250 RPM. It
is water cooled only and available from Truck Products in the Cummins flange drive only.
1. Governor 4. Cylinder Head 7. Water Ports
2. Intake Port 5. Crank Case
3. Discharge Port 6. Drive Flange
7
1
2
3
9
5
8
6
7
7
1
9
4
7
6
2
3
4
5
6
1
2
3
4
6
5
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 5
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
GENERAL COMPRESSOR INFORMATION
Remanufactured Holset – Cummins Compressors (cont’d)
1
2
7
6
5
3
4
Two Cylinder
The two cylinder Holset compressor has a displacement of 30 cu. ft. per min. at 1250 RPM. It is
water cooled only and available from Truck Products in the Cummins flange drive only.
1. Governor 4. Base Plate 7. Cylinder Head
2. Intake Port 5. Drive Flange
3. Crankcase 6. Water Port
8
Remanufactured Clayton Dewandre Compressors
1
7
6
5
4
2
3
Single Cylinder
The single cylinder Clayton Dewandre compressor has an approximate displacement of 145cc
per min. It is available from Truck Products with a water cooled head, air cooled block and the
Caterpillar flange drive only.
1. Cylinder Head 4. Crankcase 7. Inlet Port
2. Discharge Port 5. End Cover 8. Water Inlet Port
3. Water Out Port 6. Unloader
6 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX C OMMERCIAL VEHICLE S YSTEMS LLC
COMPRESSORS
BELT DRIVE
KN7000X Midland EL740
Midland Model EL740 Two Cylinder Compressor with four hole base mount and rotatable cylinder head. Air cooled cylinder head and air cooled
cylinder block.
KN7000X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
KN7000X Right, 3/8" Left, 3/8" N/A End Cover Base
Air Air Block Oil Oil
KN7010X, KN7020X Midland EL740
Midland Model EL740 Two Cylinder Compressor with four hole base mount and non-rotatable cylinder head. Air cooled cylinder head and air cooled
cylinder block.
KN7010X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
KN7010X Right Right, Flange N/A Base/End Cover Base
KN7020X Left Left, Flange N/A Base/End Cover Base
Air Air Block Oil Oil
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 7
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
BELT DRIVE
KN7030X Midland EL740
Midland Model EL740 Two Cylinder Compressor with four hole base mount and rotatable cylinder head. Water cooled cylinder head and air cooled
cylinder block.
KN7030X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
KN7030X Right Left, Threaded N/A Base/End Cover Base
Air Air Block Oil Oil
KN7040X, KN7041X, KN7050X Midland EL740
Midland Model EL740 Two Cylinder Compressor with four hole base mount and non-rota table head. Water cooled cylinder head and air cooled
cylinder block.
KN7040X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
KN7040X Right Right, Flange N/A Base/End Cover Base
KN7041X Left Left, Flange N/A Base/End Cover Base Special Ford Base Plate
KN7050X Left Left, Flange N/A Base/End Cover Base
Air Air Block Oil Oil
8 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX C OMMERCIAL VEHICLE S YSTEMS LLC
COMPRESSORS
BELT DRIVE
KN7170X, KN7180X Midland EL740
Midland Model EL740 Two Cylinder Compressor with six hole base mount and non-rotatable cylinder head. Water cooled cylinder head and air cooled
cylinder block.
KN7170X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
KN7170X Right Right, Flange N/A Base/End Cover Base
KN7180X Left Left, Flange N/A Base/End Cover Base
Air Air Block Oil Oil
KN85020X Midland EL850
Midland Model EL850 Single Cylinder Compressor with four hole base mount. Air cooled cylinder head and air cooled cylinder block.
KN85020X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
KN85020X Right Top, Threaded N/A End Cover Base
Air Air Block Oil Oil
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 9
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
BELT DRIVE
KN86020X Midland EL850
Midland Model EL850 Single Cylinder Compressor with four hole base mount. Water cooled cylinder head and air cooled cylinder block.
KN86020X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
KN86020X Right Top, Threaded N/A End Cover Base
Air Air Block Oil Oil
EL13020X, EL13021X, EL13022X Midland EL1300 & EL1600
EL13060X, EL16020X, EL16060X
Midland Model EL1300 & EL1600 Two Cylinder Compressor with four hole base mount.
EL13060X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
EL13020X Right Top, Flange Right End Cover Base
EL13021X Left Top, Flange Left End Cover Base
EL13022X Left Top, Flange Left End Cover Base Special Ford Base Plate
EL13060X Right Top, Flange Right End Cover Base
EL16020X Right Top, Flange Right End Cover Base
EL16060X Right Top, Flange Right End Cover Base
Air Air Block Oil Oil
10 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
This page left blank.
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 11
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
This page left blank.
12 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
CATERPILLAR ENGINE
EL13080X, EL13170X, EL13200X, EL16080X, EL16200X Midland EL1300 & EL1600
Midland Model EL1300 & EL1600 Two Cylinder Compressor with Caterpillar engine mounting flange and tapered crankshaft.
EL13080X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
EL13080X Right Top, Flange Right End Cover Flange 1673,74 Engines-Crankshaft has a key
EL13170X Right Top, Flange Right End Cover Flange 1673,74 Engines-Crankshaft has no key
EL13200X Right Top, Flange Right End Cover Flange 2° Flange Tilt
EL16080X Right Top, Flange Right End Cover Flange 1673,74 Engines-Crankshaft has a key
EL16200X Right Top, Flange Right End Cover Flange 2° Flange Tilt
Air Air Block Oil Oil
EL13120X, EL16120X Midland EL1300 & EL1600
Midland Model EL1300 & EL1600 Two Cylinder Compressor with Caterpillar engine mounting flange and splined crankshaft.
EL13120X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
EL13120X Right Top, Flange Right Crankshaft Flange
EL16120X Right Top, Flange Right Crankshaft Flange
Air Air Block Oil Oil
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 13
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
CATERPILLAR ENGINE
EL13151X Midland EL1300
Midland Model EL1300 Two Cylinder Compressor with Caterpillar 3306 engine mounting flange.
EL13151X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
EL13151X Right Top, Flange Right End Cover Flange
Air Air Block Oil Oil
2P8711X Clayton Dewandre
Clayton Dewandre Single Cylinder Compressor with Caterpillar 3306 engine mounting flange and rotatable cylinder head. Water cooled cylinder head
and air cooled cylinder block.
2P8711X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
2P8711X Optional Optional, Threaded N/A End Cover Drive Flange Head rotates in 180° increments
Air Air Block Oil Oil
Two por ting options
14 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
This page left blank.
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 15
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
This page left blank.
16 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
MACK ENGINE
EL13111X, EL16111X Midland EL1300 & EL1600
Midland Model EL1300 & EL1600 Two Cylinder Compressor with Mack inline 6 engine mounting flange.
EL13111X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
EL13111X Left Top, Flange Left Crankshaft Flange Power Steering Capable
EL16111X Left Top, Flange Left Crankshaft Flange Power Steering Capable
Air Air Block Oil Oil
EL14111X Midland EL3200
Midland Model EL3200 Four Cylinder Compressor with Mack inline 6 engine mounting flange.
EL14111X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
EL14111X Left Top, Flange As Shown Crankshaft Flange
Air Air Block Oil Oil
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 17
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
CUMMINS ENGINE
KN86230X Midland EL850
Midland Model EL850 Single Cylinder Compressor with Cummins B & C series engine mounting flange. Water cooled cylinder head and air cooled
cylinder block.
KN86230X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
KN86230X Optional Optional, Threaded N/A End Cover Drive Flange Head rotates in 90° increments
Air Air Block Oil Oil
or Right, Drive Flange
EL13220X Midland EL1300
Midland Model EL1300 Two Cylinder Compressor with Cummins B & C series engine mounting flange.
EL13220X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
EL13220X Right Side, Flange Right Right, Drive Flange Drive Flange Special Discharge Fitting
Air Air Block Oil Oil
18 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
CUMMINS ENGINE
EL13040X, EL16040X Midland EL1300 & EL1600
Midland Model EL1300 & EL1600 Two Cylinder Compressor with Cummins inline engine mounting flange.
EL13040X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
EL13040X Right Top, Flange Right Drive Flange Drive Flange
EL16040X Right Top, Flange Right Drive Flange Drive Flange
Air Air Block Oil Oil
3018543X Holset-Cummins
Holset-Cummins Single Cylinder Compressor with Cummins inline engine mounting flange.
3018543X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
3018543X Right Front, Threaded Front & Rear Drive Flange Drive Flange Universal Governor Mounting
Air Air Block Oil Oil
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 19
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
CUMMINS
3048680X Holset-Cummins
Holset-Cummins Two Cylinder Compressor with Cummins inline engine mounting flange.
3048680X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
3048680X Right Front, Threaded Front & Rear Drive Flange Drive Flange
Air Air Block Oil Oil
20 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
DETROIT DIESEL ENGINE
KN7060X, KN7070X, KN7080X Midland EL740
Midland Model EL740 Two Cylinder Compressor with Detroit Diesel engine mounting flang e. W ater cooled cylinder head and air cooled cylinder block.
KN7060X Shown
Tach Drive
Connection
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
KN7060X Right Right, Flange N/A End Cover Flange 0° Flange Tilt. Tach. Drive Connection
KN7070X Right Right, Flange N/A End Cover Flange 0° Flange Tilt
KN7080X Left Left, Flange N/A End Cover Flange 0° Flange Tilt
Air Air Block Oil Oil
EL13053X, EL16053X Midland EL1300 & EL1600
Midland Model EL1300 & EL1600, Series 60 Two Cylinder Compressor with Detroit Diesel engine mounting flange.
EL13053X Shown
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
EL13053X Right Top, Flange Left End Cover Flange 0° Flange Tilt
EL16053X Right Top, Flange Left End Cover Flange 0° Flange Tilt
Air Air Block Oil Oil
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 21
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
DETROIT DIESEL ENGINE
EL13050X, EL13051X, EL13070X, EL13090X, EL13100X Midland EL1300 & EL1600
EL13160X, EL16050X, EL16051X, EL16070X, EL16072X
EL16090X, EL16100X, EL16160X, EL16250X
Midland Model EL1300 & EL1600 Two Cylinder Compressor with Detroit Diesel engine mounting flange.
EL13050X Shown
0°
Flange Tilt
1 & 4°
Flange Tilt
41, 45 & 50°
Flange Tilt
75°
Flange Tilt
Specifications
Part No. Inlet Discharge Wtr. Port Inlet Return Comments
EL13050X Right Top, Flange Right End Cover Flange 0° Flange Tilt
EL13051X Right Top, Flange Left End Cover Flange 0° Flange Tilt
EL13070X Right Top, Flange Left End Cover Flange 1° Flange Tilt
EL13090X Right Top, Flange Right End Cover Flange 41° Flange Tilt
EL13100X Right Top, Flange Right End Cover Flange 50° Flange Tilt
EL13160X Right Top, Flange Right End Cover Flange 45° Flange Tilt
EL16050X Right Top, Flange Right End Cover Flange 0° Flange Tilt
EL16051X Right Top, Flange Left End Cover Flange 0° Flange Tilt
EL16070X Right Top, Flange Left End Cover Flange 1° Flange Tilt
EL16072X Right Top, Flange Left End Cover Flange 4° Flange Tilt
EL16090X Right Top, Flange Right End Cover Flange 41° Flange Tilt
EL16100X Right Top, Flange Right End Cover Flange 50° Flange Tilt
EL16160X Right Top, Flange Right End Cover Flange 45° Flange Tilt
EL16250X Right Top, Flange Right End Cover Flange 75° Flange Tilt
Air Air Block Oil Oil
22 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
This page left blank.
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 23
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
This page left blank.
24 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
CYLINDER HEADS
KN17090X
Midland Compressor Cylinder Head
This kit services Midland Compressors: EL1300 and
EL1600 Series Compressors
3044389X
Cummins Compressor Cylinder Head
This kit services Cummins Compressors: 3018543X
Water Port
Inlet Port
Discharge
Governor
Port
Water Port
Governor
Port
Discharge
Port
Water Port
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 25
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
Intake
Port
COMPRESSOR KIT CROSS REFERENCE
How to use the Compressor Kit Cross Reference Charts
On the following pages are a series of charts listing all of the Repair & Gasket
Kit part numbers, along with the part number of the compressor each kit services. There are four (4) separate charts; one for the Cummins compressors
and kits, and one each for the Midland EL740, EL850, and EL1300/1600 series
compressors and kits.
The compressor repair and gasket kit part numbers are listed across the top of
Compressor Part No.’s
EL13020X ✔✔✔✔
EL13021X ✔✔✔✔
EL13022X ✔✔ ✔✔
EL13040X ✔✔ ✔✔
EL13050X ✔✔ ✔✔
EL13051X ✔✔ ✔✔
GK 13050
Mounting Gasket Kit
Compressor Part Number
Kit Type – Gasket Kit
each chart, with the compressor part numbers listed down the left side. Use
the charts in one of two ways:
1. Locate the compressor part number on the left side of the chart. Move
horizontally across the chart to identify each kit part number that services
a particular compressor by the checked boxes (").
2. Locate the kit part number from the top of the chart. Move vertically down
the chart to identify every compressor part number that a particular kit
services by the checked boxes (").
Repair & Gasket Kit Part Number Identification
The alphanumeric part numbers used for the Midland Repair & Gasket Kits
indicate the type of kit, the model or the part number series of the compressor
where used, and, where applicable, the size.
GK 13050 C
HK 1300
Complete Gasket Kit
Compressor Part Number
Kit Type – Gasket Kit
Compressor Model Number
Kit Type – Head Kit
Gasket Kits
Mounting Gasket Kits
The Mounting Gasket Kits include all of the necessary gaskets required to
mount the compressor and any gaskets required for line or hose connections.
Complete Gasket Kits
The Complete Gasket Kits include a Mounting Gasket Kit and all of the gaskets required for complete assembly of the compressor.
Head Kit
The Head Kits include an Unloader Kit, discharge valve(s), and inlet valve(s).
Also included would be the necessary gaskets required for installing the cylinder head to the compressor along with any gaskets required for line or hose
connections.
26 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
COMPRESSOR KIT CROSS REFERENCE
P 1300 / 010
RB 740 / 020
.010" Oversize
Compressor Model Number
Kit Type – Piston Kit
.020" Undersize
Compressor Model Number
Kit Type – Rod Bearing Set

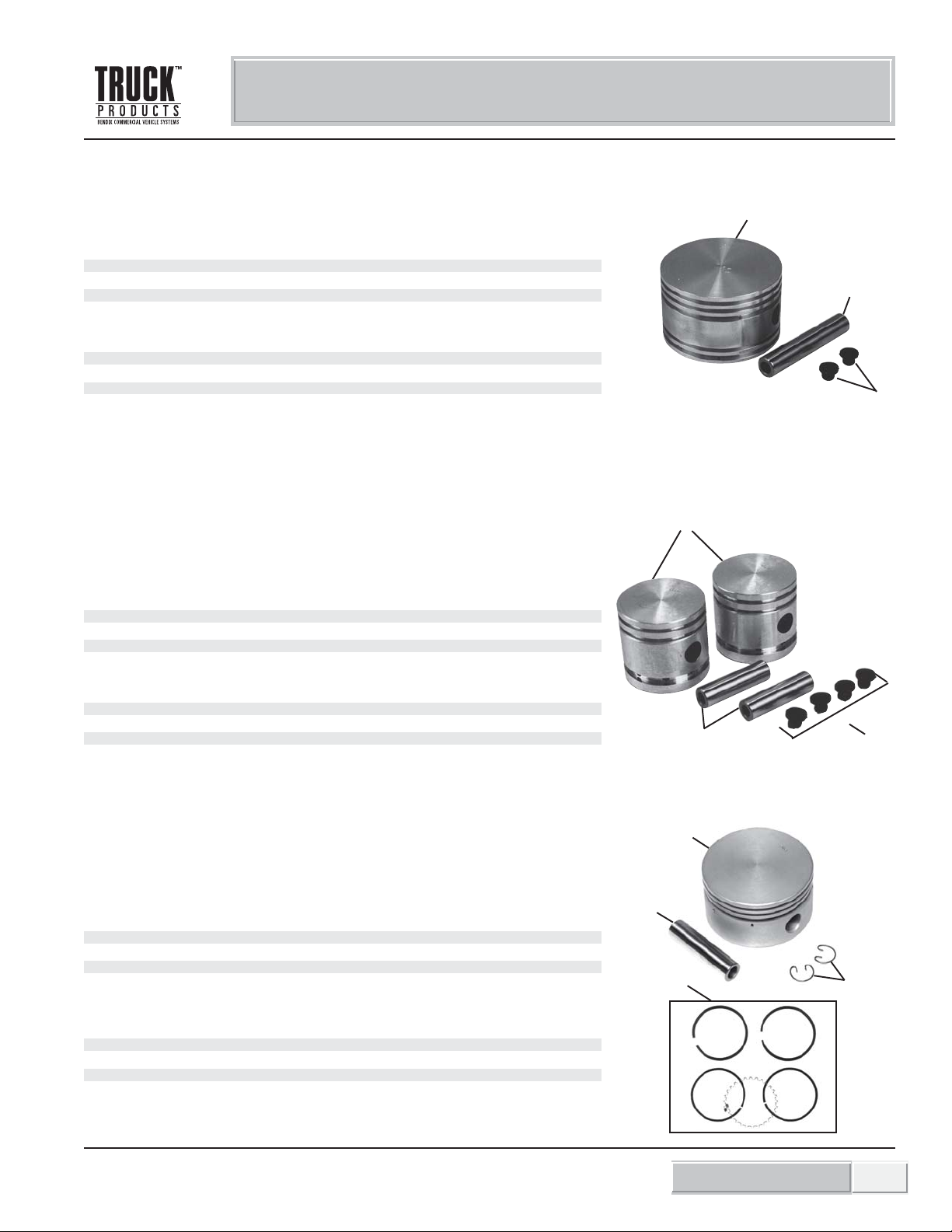

Piston Kits
The Piston Kits include Piston, Pin, and Retainers. Kits are available in Std.,
.010", .020", and .030" oversize. The piston size is stamped into the top of the
piston for easy identification.
Rod Bearing Set
The Rod Bearing Sets include enough bearing halves to service one compressor (two bearing halves for a one cylinder compressor, four bearing halves for a
two cylinder compressor). Kits are available in Std., .010", .020", and .030"
undersize.
RK 850 / 000
UK 1300
Standard Size
Compressor Model Number
Kit Type – Ring Kit
Compressor Model Number
Kit Type – Unloader Kit
Piston Ring Kits
The Piston Ring Kits include the appropriate quantities of oil and compression
rings to service one compressor. Kits are available in Std., .010", .020", and
.030" oversize.

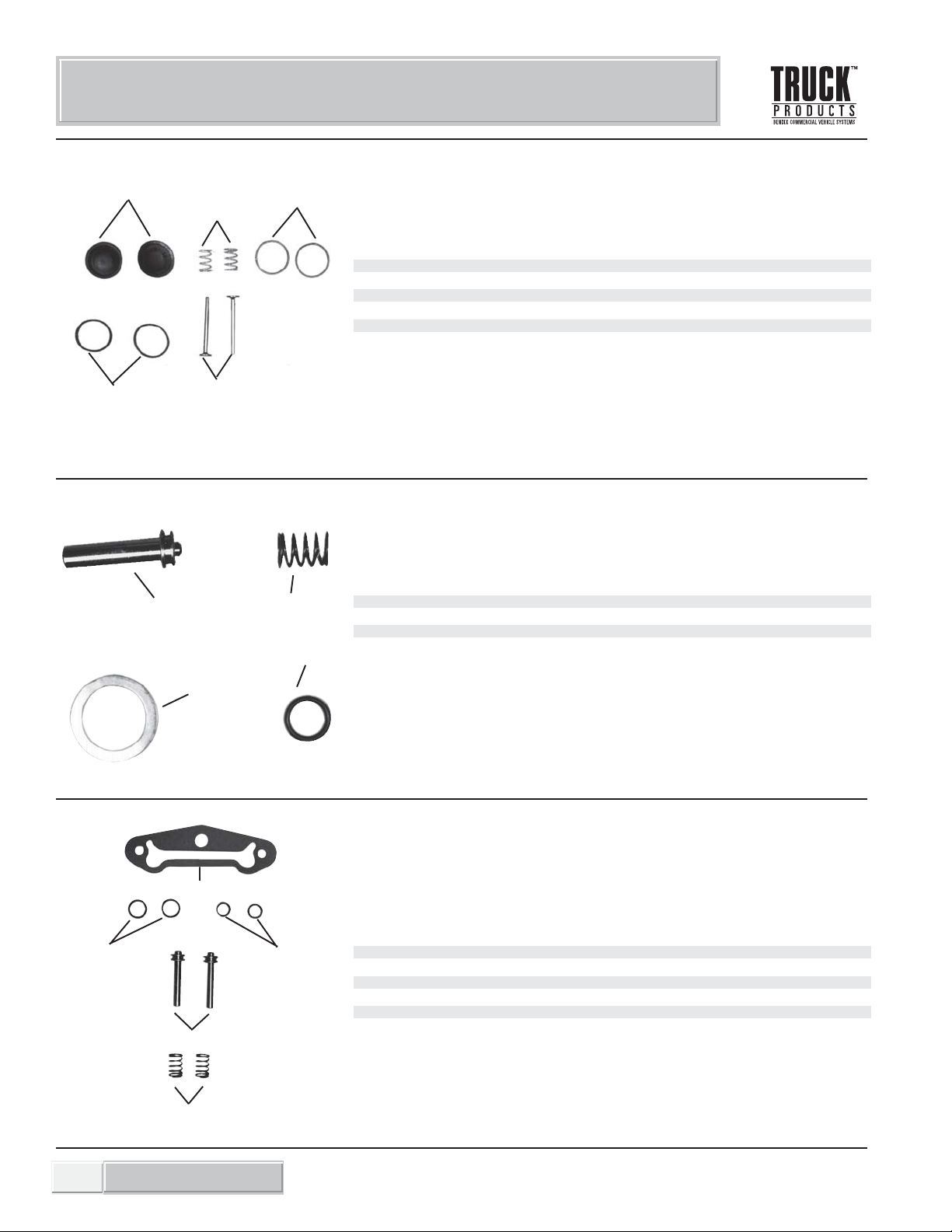

Unloader Kits
The Unloader Kits include all of the necessary springs, seals and pins required
for rebuilding the unloader valves.
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 27
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
COMPRESSOR KIT CROSS REFERENCE
Cummins Compressor
Service Kits
Compressor Kit Part No.’s
UK8543 Unloader Kit
AR3559509 Cyl. Head Repair Kit
AR3559511 Cyl. Head Repair Kit
GK8543 Mounting Gasket Kit
GK8680 Mounting Gasket Kit
AR73308 Complete Gasket Kit
Compressor Part No.’s
3018543X " """ """ "" """ " "" "
3048680X "" ""
Midland EL740 Compressor
Service Kits
AR73350 Piston Ring Kit
AR73351 Piston Ring Kit
AR73352 Piston Ring Kit
AR73353 Piston Ring Kit
AR3045670 Piston Kit
AR3045671 Piston Kit
AR3045672 Piston Kit
AR3045673 Piston Kit
AR200398 Drive Gear
AR3000174 Drive Gear
3044389X Cylinder Head
Compressor Part No.’s
KN7000X """" """"""""""""
KN7010X """" """"""""""""
KN7020X """" """"""""""""
KN7030X """" """"""""""""
KN7040X """" """"""""""""
KN7041X "" "" """"""""""""
KN7050X """" """"""""""""
KN7060X "" "" """"""""""""
KN7070X "" "" """"""""""""
KN7080X "" "" """"""""""""
KN7170X "" """"""""""""""
KN7180X "" """"""""""""""
Midland EL850 Compressor
Service Kits
Compressor Kit Part No.’s
UK740 Unloader Kit
HK740 Cyl. Head Repair Kit
GK7000 Mounting Gasket Kit
GK7000C Complete Gasket Kit
GK7041 Mounting Gasket Kit
GK7041C Complete Gasket Kit
GK7070 Mounting Gasket Kit
GK7070C Complete Gasket Kit
GK7170 Mounting Gasket Kit
GK7170C Complete Gasket Kit
RK740-000 Piston Ring Kit
RK740-010 Piston Ring Kit
RK740-020 Piston Ring Kit
RK740-030 Piston Ring Kit
P740-000 Piston Kit
P740-010 Piston Kit
P740-020 Piston Kit
P740-030 Piston Kit
RB740-000 Rod Bearing Set
RB740-010 Rod Bearing Set
RB740-020 Rod Bearing Set
RB740-030 Rod Bearing Set
Compressor Kit Part No.’s
UK850 Unloader Kit
HK850 Cyl. Head Repair Kit
GK85020 Mounting Gasket Kit
GK85020C Complete Gasket Kit
GK86230 Mounting Gasket Kit
GK86230C Complete Gasket Kit
RK850-000 Piston Ring Kit
RK850-010 Piston Ring Kit
RK850-020 Piston Ring Kit
RK850-030 Piston Ring Kit
P850-000 Piston Kit
P850-010 Piston Kit
P850-020 Piston Kit
P850-030 Piston Kit
RB850-000 Rod Bearing Set
RB850-010 Rod Bearing Set
RB850-020 Rod Bearing Set
Compressor Part No.’s
KN85020X """" """"""""""""
KN86020X """" """"""""""""
KN86230X "" """"""""""""""
28 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
RB850-030 Rod Bearing Set
COMPRESSOR KIT CROSS REFERENCE
Midland EL1300 & EL1600 Compressor Service Kits
Compressor Kit Part No.’s
UK1300 Unloader Kit
HK1300 Cyl. Head Repair Kit
GK13020 Mounting Gasket Kit
GK13020C Complete Gasket Kit
GK13022 Mounting Gasket Kit
GK13022C Complete Gasket Kit
GK13040 Mounting Gasket Kit
GK13040C Complete Gasket Kit
GK13050 Mounting Gasket Kit
GK13050C Complete Gasket Kit
GK13053C Complete Gasket Kit
GK13080 Mounting Gasket Kit
GK13080C Complete Gasket Kit
GK13111 Mounting Gasket Kit
GK13111C Complete Gasket Kit
GK13151 Mounting Gasket Kit
GK13151C Complete Gasket Kit
GK13220 Mounting Gasket Kit
GK13220C Complete Gasket Kit
GK14111 Mounting Gasket Kit
GK14111C Complete Gasket Kit
RK1316-000 Piston Ring Kit
RK1316-010 Piston Ring Kit
RK1316-020 Piston Ring Kit
RK1316-030 Piston Ring Kit
P1300-000 Piston Kit
P1300-010 Piston Kit
P1300-020 Piston Kit
P1300-030 Piston Kit
RB1300-000 Rod Bearing Set
RB1300-010 Rod Bearing Set
Compressor Part No.’s
EL13020X """" """""""""""""
EL13021X """" """""""""""""
EL13022X "" "" """""""""""""
EL13040X "" "" """""""""""""
EL13050X "" "" """""""""""""
EL13051X "" "" """""""""""""
EL13053X "" " " """""""""""""
EL13060X """" """""""""""""
EL13070X "" "" """""""""""""
EL13080X "" "" """""""""""""
EL13090X "" "" """""""""""""
EL13100X "" "" """""""""""""
EL13111X "" "" """""""""""""
EL13120X "" "" """""""""""""
EL13151X "" "" """""""""""""
EL13160X "" "" """""""""""""
EL13170X "" "" """""""""""""
EL13200X "" "" """""""""""""
EL13220X "" "" """""""""""""
EL14111X "" """"""""""""""
EL16020X """" """""""""""""
EL16040X "" "" """""""""""""
EL16050X "" "" """""""""""""
EL16051X "" "" """""""""""""
EL16053X "" " " """""""""""""
EL16060X """" """""""""""""
EL16070X "" "" """""""""""""
EL16072X "" "" """""""""""""
EL16080X "" "" """""""""""""
EL16090X "" "" """""""""""""
EL16100X "" "" """""""""""""
EL16111X "" "" """""""""""""
EL16120X "" "" """""""""""""
EL16160X "" "" """""""""""""
EL16200X "" "" """""""""""""
EL16250X "" "" """""""""""""
RB1300-020 Rod Bearing Set
RB1300-030 Rod Bearing Set
KN1709X Cylinder Head
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 29
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
REPAIR & GASKET KITS
UK740
4
2
1
Midland Compressor Unloader Kit
This kit services Midland Compressors: All EL740 Series Compressors
Includes
Item No. Description Qty. Part No.
1 Cup Spring 2 —
2 Spring 2 —
3 Pin 1-1/4" 2 —
4 Unloader Cup 2 —
5 O-Ring 2 —
5
3
UK850
Midland Compressor Unloader Kit
This kit services Midland Compressors: All EL850 Series Compressors
Includes
Item No. Description Qty. Part No.
3
4
2
1
1 O-Ring 1 —
2 Spring 1 —
3 Piston Assy. 1 —
4 Copper Washer 1 —
UK1300
Midland Compressor Unloader Kit
5
1
2
This kit services Midland Compressors: All EL1300 and EL1600 Series Compressors
Includes
Item No. Description Qty. Part No.
1 O-Ring 2 —
2 O-Ring 2 —
3 Spring 2 —
4 Piston Assy. 2 —
5 Gasket 1 —
4
3
30 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
UK8543
Cummins Compressor Unloader Kit
This kit services Cummins Compressors: 3015843X, 3048680X
Includes
Item No. Description Qty. Part No.
1 Unloader O-Ring (Red) 1 —
2 Unloader Valve Spring 1 —
3 Intake Valve Spring 1 —
4 Wear Plate 1 —
5 Intake Valve 1 —
6 Intake Valve O-Ring (Red) 1 —
7 Exhaust Valve O-Ring 1 —
8 Exhaust Valve Spring 1 —
9 Exhaust Valve 1 —
10 Cup Seal 1 —
Comments: 2 kits required to service 3048680X Compressor
HK740
Midland Compressor Cylinder Head Repair Kit
This kit services Midland Compressors: All EL740 Series Compressors
Includes
Item No. Description Qty. Part No.
A Unloader Kit 1 UK740
1 Cylinder Head Gasket 1 —
2 Discharge Port Gasket 1 —
3 Inlet Port Gasket 1 —
4 Discharge Valve 2 —
5 Discharge Valve Spring 2 —
6 Inlet Valve 2 —
REPAIR & GASKET KITS
1
6
3
2
2
7
A
3
8
4
10
9
1
5
HK850
Midland Compressor Cylinder Head Repair Kit
This kit services Midland Compressors: All EL850 Series Compressors
4
A
5
6
Includes
Item No. Description Qty. Part No.
A Unloader Kit 1 UK850
1 Cylinder Head Gasket 1 —
2 Governor Gasket 1 —
3 Inlet Port Gasket 1 —
4 Inlet Valve Cage 1 —
5 Inlet Valve Seat 1 —
6 Copper Washer 2 —
7 Inlet/Exhaust Springs 2 —
8 Inlet/Exhaust Plates 2 —
9 Exhaust Valve Seat 1 —
4
6
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 31
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
2
3
5
OMPRESSORS
C
1
7
9
8
REPAIR & GASKET KITS
A
5
1
2
3
4
1
B
10
11
12
6
8
9
2
3
Midland Compressor Cylinder Head Repair Kit
This kit services Midland Compressors: All EL1300 and EL1600 Series Compressors
Includes
Item No. Description Qty. Part No.
A Unloader Kit 1 UK1300
1 Cylinder Head Gasket 1 —
2 Discharge Port Gasket 1 —
3 Governor Gasket 1 —
4 Inlet Port Gasket 1 —
5 Exhaust Valve Springs 2 —
6 Exhaust Valve Seat 2 —
7 Copper Washer 4 —
8 Inlet Valve Seat 2 —
9 Exhaust Valve Plate 2 —
7
10 Inlet Valve Spring 2 —
11 Inlet Valve Cage 2 —
12 Inlet Valve Plate 2 —
AR3559511
Cummins Compressor Minor Cylinder Head Repair Kit
This kit services Cummins Compressors: 3018543X
Includes
Item No. Description Qty. Part No.
A Unloader Kit 1 UK8543
1 Head Block Gasket 1 —
2 Head Cover Gasket 1 —
3 Air Inlet Gasket 1 —
HK1300
C
12
AR3559509
Cummins Compressor Major Cylinder Head Repair Kit (Late Style)
A
This kit services Cummins Compressors: 3018543X
Includes
Item No. Description Qty. Part No.
3
4
A Unloader Kit 1 UK8543
B Mounting Gasket Kit 1 AR3559511
1 Unloader Valve Body 1 —
2 Unloader Cap 1 —
3 Exhaust Seat 1 —
4 Intake Valve Seat 1 —
AR3559510
Cummins Compressor Major Cylinder Head Repair Kit (Early Style)
This kit services Cummins Compressors: 3018543X
Includes
Item No. Description Qty. Part No.
D Unloader Kit 1 —
B Mounting Gasket Kit 1 AR3559511
D
1 Unloader Valve Body 1 —
2 Unloader Cap 1 —
3 Exhaust Seat 1 —
4 Intake Valve Seat 1 —
32 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
REPAIR & GASKET KITS
GK7000
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: KN7000X, KN7010X, KN7020X, KN7030X,
KN7040X, KN7050X
Includes
Item No. Description Qty. Part No.
1 Mounting Gasket (Base) 1 —
2 Inlet Port Gasket 1 —
3 Discharge Port Gasket 1 —
GK7000C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: KN7000X, KN7010X, KN7020X, KN7030X,
KN7040X, KN7050X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK7000
1 Cylinder Head Gasket 1 —
2 Cylinder Block Gasket 1 —
3 End Cover Gasket 2 —
4 Oil Seal 1 —
1
2
3
A
3
1
4
2
GK7041
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: KN7041X
Includes
Item No. Description Qty. Part No.
1 Inlet Port Gasket 1 —
2 Discharge Port Gasket 1 —
3 Mounting Gasket 1 Not Shown
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 33
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
1
2
OMPRESSORS
C
REPAIR & GASKET KITS
GK7041C
A
1
3
2
2
4
1
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: KN7041X
Includes
3
GK7070
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: KN7060X, KN7070X, KN7080X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK7041
1 Cylinder Head Gasket 1 —
2 Cylinder Block Gasket 1 —
3 End Cover Gasket 2 —
4 Oil Seal 1 —
Item No. Description Qty. Part No.
1 Mounting Gasket (Flange) 1 —
2 Inlet Port Gasket 1 —
3 Discharge Gasket 1 —
GK7070C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: KN7060X, KN7070X, KN7080X
A
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK7070
1 Cylinder Head Gasket 1 —
3
1
4
34 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
2
2 Cylinder Block Gasket 1 —
3 End Cover Gasket 1 —
4 Base Plate Gasket 1 —
GK7170
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: KN7170X, KN7180X
Includes
Item No. Description Qty. Part No.
1 Mounting Gasket (Base) 1 —
2 Inlet Port Gasket 1 —
3 Discharge Port Gasket 1 —
GK7170C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: KN7170X, KN7180X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK7170
1 Cylinder Head Gasket 1 —
2 Cylinder Block Gasket 1 —
3 End Cover Gasket 2 —
4 O-Ring 2 —
REPAIR & GASKET KITS
1
3
2
A
GK85020
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: KN85020X
Includes
Item No. Description Qty. Part No.
1 Mounting Gasket (Base) 1 —
2 Inlet Port Gasket 1 —
4 Cylinder Head Gasket 1 —
3
1
4
2
1
4
2
3
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 35
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
REPAIR & GASKET KITS
GK85020C
Midland Compressor Complete Gasket Kit
A
This kit services Midland Compressors: KN85020X
Includes
2
1
GK86230
Midland Compressor Mounting Gasket Kit
1
4
3
2
This kit services Midland Compressors: KN86230X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK85020
1 Cylinder Block Gasket 1 —
2 End Cover Gasket 1 —
Item No. Description Qty. Part No.
1 Mounting Gasket (Flange) 1 —
2 Inlet Port Gasket 1 —
3 Governor Gasket 1 —
4 Cylinder Head Gasket 1 —
GK86230C
Midland Compressor Complete Gasket Kit
A
This kit services Midland Compressors: KN86230X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK86230
1 Cylinder Block Gasket 1 —
2 End Cover Gasket 1 —
2
3
1
36 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
3 Base Plate Gasket 1 —
GK13020
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: EL13020X, EL13021X, EL13060X,
EL16020X, EL16060X
Includes
Item No. Description Qty. Part No.
1 Mounting Gasket (Base) 1 —
2 Inlet Port Gasket 1 —
3 Discharge Port Gasket 1 —
4 Governor Gasket 1 —
5 Cylinder Head Gasket 1 —
GK13020C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: EL13020X, EL13021X, EL13060X,
EL16020X, EL16060X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK13020
1 Cylinder Block Gasket 1 —
2 End Cover Gasket 2 —
3 Oil Seal 1 —
REPAIR & GASKET KITS
5
1
3
2
4
1
A
GK13022
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: EL13022X
Includes
Item No. Description Qty. Part No.
1 Inlet Port Gasket 1 —
2 Discharge Port Gasket 1 —
3 Governor Gasket 1 —
4 Cylinder Head Gasket 1 —
5 Mounting Gasket 1 Not Shown
2
3
3
2
1
4
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 37
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
REPAIR & GASKET KITS
GK13022C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: EL13022X
A
Includes
3
2
1
GK13040
1
6
3
4
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: EL13040X, EL16040X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK13022
1 Cylinder Block Gasket 1 —
2 End Cover Gasket 2 —
3 Oil Seal 1 —
Item No. Description Qty. Part No.
1 Mounting Gasket (Front) 1 —
2 Mounting Gasket (Rear) 1 —
3 Inlet Port Gasket 1 —
4 Discharge Port Gasket 1 —
5 Governor Gasket 1 —
6 Cylinder Head Gasket 1 —
5
2
GK13040C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: EL13040X, EL16040X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK13040
1 Cylinder Block Gasket 1 —
2 Base Plate Gasket 1 —
A
1
2
38 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
GK13050
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: EL13050X, EL13051X, EL13053X,
EL13070X, EL13090X, EL13100X, EL13160X, EL16050X, EL16051X, EL16053X,
EL16070X, EL16072X, EL16090X, EL16100X, EL16160X, EL16250X
Includes
Item No. Description Qty. Part No.
1 Mounting Gasket (Flange) 1 —
2 Inlet Port Gasket 1 —
3 Discharge Port Gasket 1 —
4 Governor Gasket 1 —
5 Cylinder Head Gasket 1 —
GK13050C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: EL13050X, EL13051X, EL13070X,
EL13090X, EL13100X, EL13160X, EL16050X, EL16051X, EL16070X, EL16072X,
EL16090X, EL16100X, EL16160X, EL16250X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK13050
1 Cylinder Block Gasket 1 —
2 End Cover Gasket 1 —
3 Base Plate Gasket 1 —
REPAIR & GASKET KITS
5
A
2
3
4
1
2
GK13053C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: EL13053X, EL16053X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK13050
1 Cylinder Block Gasket 1 —
2 End Cover Gasket 1 —
3 Base Plate Gasket 1 —
1
3
A
2
1
3
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 39
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
REPAIR & GASKET KITS
GK13080
5
2
4
1
1
3
A
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: EL13080X, EL13120X, EL13170X,
EL13200X, EL16080X, EL16120X, EL16200X
Includes
GK13080C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: EL13080X, EL13120X, EL13170X,
EL13200X, EL16080X, EL16120X, EL16200X
Includes
Item No. Description Qty. Part No.
1 Mounting Gasket 1 —
2 Inlet Port Gasket 1 —
3 Discharge Port Gasket 1 —
4 Governor Gasket 1 —
5 Cylinder Head Gasket 1 —
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK13080
1 Cylinder Block Gasket 1 —
2 End Cover Gasket 1 —
3 Base Plate Gasket 1 —
2
3
GK13111
Midland Compressor Mounting Gasket Kit
5
40 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
2
1
3
4
This kit services Midland Compressors: EL13111X, EL16111X
Includes
Item No. Description Qty. Part No.
1 Mounting Gasket (Flange) 1 —
2 Inlet Port Gasket 1 —
3 Discharge Port Gasket 1 —
4 Governor Gasket 1 —
5 Cylinder Head Gasket 1 —
GK13111C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: EL13111X, EL16111X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK13111
1 Cylinder Block Gasket 1 —
2 End Cover O-Ring 1 —
3 Base Plate Gasket 1 —
GK13151
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: EL13151X
Includes
Item No. Description Qty. Part No.
1 Mounting Gasket (Flange) 1 —
2 Inlet Port Gasket 1 —
3 Discharge Port Gasket 1 —
4 Governor Gasket 1 —
5 Cylinder Head Gasket 1 —
REPAIR & GASKET KITS
A
1
5
3
2
2
1
3
GK13151C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: EL13151X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK13151
1 Cylinder Block Gasket 1 —
2 End Cover Gasket 1 —
3 Base Plate Gasket 1 —
4
A
2
1
3
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 41
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
REPAIR & GASKET KITS
GK13220
Midland Compressor Mounting Gasket Kit
5
2
1
1
3
4
2
This kit services Midland Compressors: EL13220X
Includes
GK13220C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: EL13220X
Includes
A
Item No. Description Qty. Part No.
1 Mounting Gasket (Flange) 1 —
2 Inlet Port Gasket 1 —
3 Discharge Port Gasket 1 —
4 Governor Gasket 1 —
5 Cylinder Head Gasket 1 —
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK13220
1 Cylinder Block Gasket 1 —
2 End Cover Gasket 1 —
3 Base Plate Gasket 1 —
3
GK14111
51
2
3
4
42 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
Midland Compressor Mounting Gasket Kit
This kit services Midland Compressors: EL14111X
Includes
Item No. Description Qty. Part No.
1 Mounting Gasket (Flange) 1 —
2 Inlet Port Gasket 1 —
3 Discharge Port Gasket 1 —
4 Governor Gasket 1 —
5 Cylinder Head Gasket 1 —
GK14111C
Midland Compressor Complete Gasket Kit
This kit services Midland Compressors: EL14111X
Includes
Item No. Description Qty. Part No.
A Mounting Gasket Kit 1 GK14111
1 Cylinder Block Gasket 1 —
2 End Cover Gasket 1 —
3 Base Plate Gasket 1 —
GK8543 (Not Shown)
Cummins Compressor Mounting Gasket Kit
This kit services Cummins Compressors: 3018543X
Includes
Item No. Description Qty. Part No.
A Unloader Kit 1 UK8543
1 Mounting Gasket (Flange) 1 —
2 Mounting Gasket (Rear) 1 —
3 Inlet Port Gasket 1 —
REPAIR & GASKET KITS
3
1
2
A
GK8680 (Not Shown)
Cummins Compressor Mounting Gasket Kit
This kit services Cummins Compressors: 3048680X
Includes
Item No. Description Qty. Part No.
1 Mounting Gasket (Flange) 1 —
2 Mounting Gasket (Rear) 1 —
3 Inlet Port Gasket 1 —
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 43
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
REPAIR & GASKET KITS
AR73308
Cummins Compressor Complete Gasket Kit
1
5
2
6
3
4
7
This kit services Cummins Compressors: 3018543X
Includes
GK8711 (Not Shown)
Clayton Dewandre Compressor Mounting Gasket Kit
This kit services Clayton Dewandre Compressors: 2P8711X
Includes
Item No. Description Qty. Part No.
1 O-Ring 1 —
2 Inlet Port Gasket 1 —
3 Seal 1 —
4 O-Ring 1 —
5 Support Gasket 1 —
6 Head Block Gasket 1 —
7 Head Cover Gasket 1 —
Item No. Description Qty. Part No.
1 Mounting Gasket (Flange) 1 —
1
P740/000, P740/010, P740/020, P740/030
Midland Compressor Piston Kit
This kit services Midland Compressors: All EL740 Series Compressors
Includes
Item No. Description Qty. Part No.
1 Piston 2 —
2 Pin 2 —
3 Retainer 4 —
Specifications
Part No. Size
P740/000 Standard
3
2
44 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
P740/010 .010" Oversize
P740/020 .020" Oversize
P740/030 .030" Oversize
REPAIR & GASKET KITS
P850/000, P850/010, P850/020, P850/030
Midland Compressor Piston Kit
This kit services Midland Compressors: All EL850 Series Compressors
Includes
Item No. Description Qty. Part No.
1 Piston 1 —
2 Pin 1 —
3 Retainer 2 —
Specifications
Part No. Size
P850/000 Standard
P850/010 .010" Oversize
P850/020 .020" Oversize
P850/030 .030" Oversize
P1300/000, P1300/010, P1300/020, P1300/030
Midland Compressor Piston Kit
This kit services Midland Compressors: All EL1300 and EL1600 Series Compressors
Includes
Item No. Description Qty. Part No.
1 Piston 2 —
2 Pin 2 —
3 Retainer 4 —
Specifications
Part No. Size
P1300/000 Standard
P1300/010 .010" Oversize
P1300/020 .020" Oversize
P1300/030 .030" Oversize
1
2
3
1
2
3
AR3045670, AR3045671, AR3045672, AR3045673
Cummins Compressor Piston Kit
This kit services Cummins Compressors:
Includes
Item No. Description Qty. Part No.
A Piston Ring Kit 1 See Specifications
1 Piston 1 —
2 Pin 1 —
3 Retainer 2 —
1
2
A
3
Specifications
Part No. Size Ring Kit No.
AR3045670 Standard AR73350
AR3045671 .010" Oversize AR73351
AR3045672 .020" Oversize AR73352
AR3045673 .030" Oversize AR73353
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 45
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
REPAIR & GASKET KITS
Compression Rings
Oil Rings
Compression Rings
RK740/000, RK740/010, RK740/020, RK740/030
Midland Compressor Piston Ring Kit
This kit services Midland Compressors: All EL740 Series Compressors
Specifications
Part No. Size
RK740/000 Standard
RK740/010 .010" Oversize
RK740/020 .020" Oversize
RK740/030 .030" Oversize
RK850/000, RK850/010, RK850/020, RK850/030
Midland Compressor Piston Ring Kit
This kit services Midland Compressors: All EL850 Series Compressors
Specifications
Part No. Size
RK850/000 Standard
RK850/010 .010" Oversize
RK850/020 .020" Oversize
RK850/030 .030" Oversize
Oil Rings
Compression Rings
Oil Rings
RK1316/000, RK1316/010, RK1316/020, RK1316/030
Midland Compressor Piston Ring Kit
This kit services Midland Compressors: All EL1300 and EL1600 Series
Compressors
Specifications
Part No. Size
RK1316/000 Standard
RK1316/010 .010" Oversize
RK1316/020 .020" Oversize
RK1316/030 .030" Oversize
46 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
REPAIR & GASKET KITS
AR73350, AR73351, AR73352, AR73353
Cummins Compressor Piston Ring Kit
This kit services Cummins Compressors:
Specifications
Part No. Size
AR73350 Standard
AR73351 .010" Oversize
AR73352 .020" Oversize
AR73353 .030" Oversize
RB740/000, RB740/010, RB740/020, RB740/030
Midland Compressor Rod Bearing Set
This kit services Midland Compressors: All EL740 Series Compressors
Specifications
Part No. Size
RB740/000 Standard
RB740/010 .010" Undersize
RB740/020 .020" Undersize
RB740/030 .030" Undersize
Compression Rings
Oil Rings
RB850/000, RB850/010, RB850/020, RB850/030
Midland Compressor Rod Bearing Set
This kit services Midland Compressors: All EL850 Series Compressors
Specifications
Part No. Size
RB850/000 Standard
RB850/010 .010" Undersize
RB850/020 .020" Undersize
RB850/030 .030" Undersize
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 47
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
REPAIR & GASKET KITS
RB1300/000, RB1300/010, RB1300/020, RB1300/030
Midland Compressor Rod Bearing Set
This kit services Midland Compressors: All EL1300 and EL1600 Series
Compressors
Specifications
AR200398, AR3000174
Cummins Compressor Drive Gear
AR3000174 Shown
Specifications
Part No. Size
RB1300/000 Standard
RB1300/010 .010" Undersize
RB1300/020 .020" Undersize
RB1300/030 .030" Undersize
Gear No. Comments
AR200398 Keyed
AR3000174 Press Fit
48 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL V EHICLE SYSTEMS LLC
COMPRESSORS
GOVERNOR
KN18530X Midland Governor
KN18530X Shown
Unloader Port
Reservoir Port
Specifications
Part No. Port Port Port Pressure Pressure Range Comments
KN18530X 1/8" PT 1/8" PT 1/8" PT 105-110 psi 15-30 psi above Cut-In
*OR18530 1/8" PT 1/8" PT 1/8" PT 95-100 psi 15-30 psi above Cut-In
Reservoir Unloader Exhaust Cut-In Cut-Out
*OR18530 is an out-right part number and is not in the remanufactured exchange core program.
KN18511X Midland Governor
KN18511X Shown
B Unloader Port
A Unloader Port
Specifications
Part No. Port (PT) Port (PT) Pressure (PSI) Pressure (PSI) Comments
KN18511X 1/16" 1/8" 100 120
A Unloader B Unloader Cut-In Cut-Out
OMPRESSORS
QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC 49
BW1736 © 2002 Bendix Commercial Vehicle Systems LLC All Rights Reserved 3/2002 Printed in U.S.A.
C
Loading...
