Bender ISOMETER iso685-D-P, ISOMETER iso685W-D-P, ISOMETER iso685-S-P, ISOMETER iso685W-S-P User Manual
Page 1
EN
Manual
ISOMETER®
iso685–D–P
iso685W–D–P
iso685–S–P
iso685W–S–P
Insulation Monitoring Device
with integrated locating current injector
for IT AC systems with galvanically connected
rectifiers and inverters and for IT DC systems
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 2
PLEASE READ THIS MANUAL AND ANY ACCOMPANYING DOCUMENTS CAREFULLY
AND KEEP THEM IN A SECURE PLACE FOR FUTURE REFERENCE.
Bender GmbH & Co. KG
P.O. Box 1161 • 35301 Gruenberg • Germany
Londorfer Straße 65 • 35305 Gruenberg • Germany
Tel.: +49 6401 807-0
Fax: +49 6401 807-259
Email: [email protected]
Web: www.bender.de
Customer service:
Service hotline: 0700-BenderHelp (Telephone and Fax)
Carl-Benz-Straße 8 • 35305 Gruenberg • Germany
Tel.:+49 6401 807-760
Fax:+49 6401 807-629
Email:[email protected]
© Bender GmbH & Co. KG
All rights reserved.
Reproduction only with permission
of the publisher.
Subject to change.
Page 3
Table of contents
1. Important information .................................................................... 7
1.1 How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2 Technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2.1 End customer support and advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2.2 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2.3 Customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.3 Training courses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.4 Delivery conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.5 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.6 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. Safety instructions ............................................................................ 9
2.1 General safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.2 Work activities on electrical installations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 Device-specific safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. Function ........................................................................................... 11
3.1 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1.1 Features EDS44x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2 Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.1 General product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.2 Special ISOMETER® characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.4 Insulation fault location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.5 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.6 Self test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.7 Compatibility with EDS devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4. Device overview .............................................................................. 15
4.1 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 Device variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Connections and panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

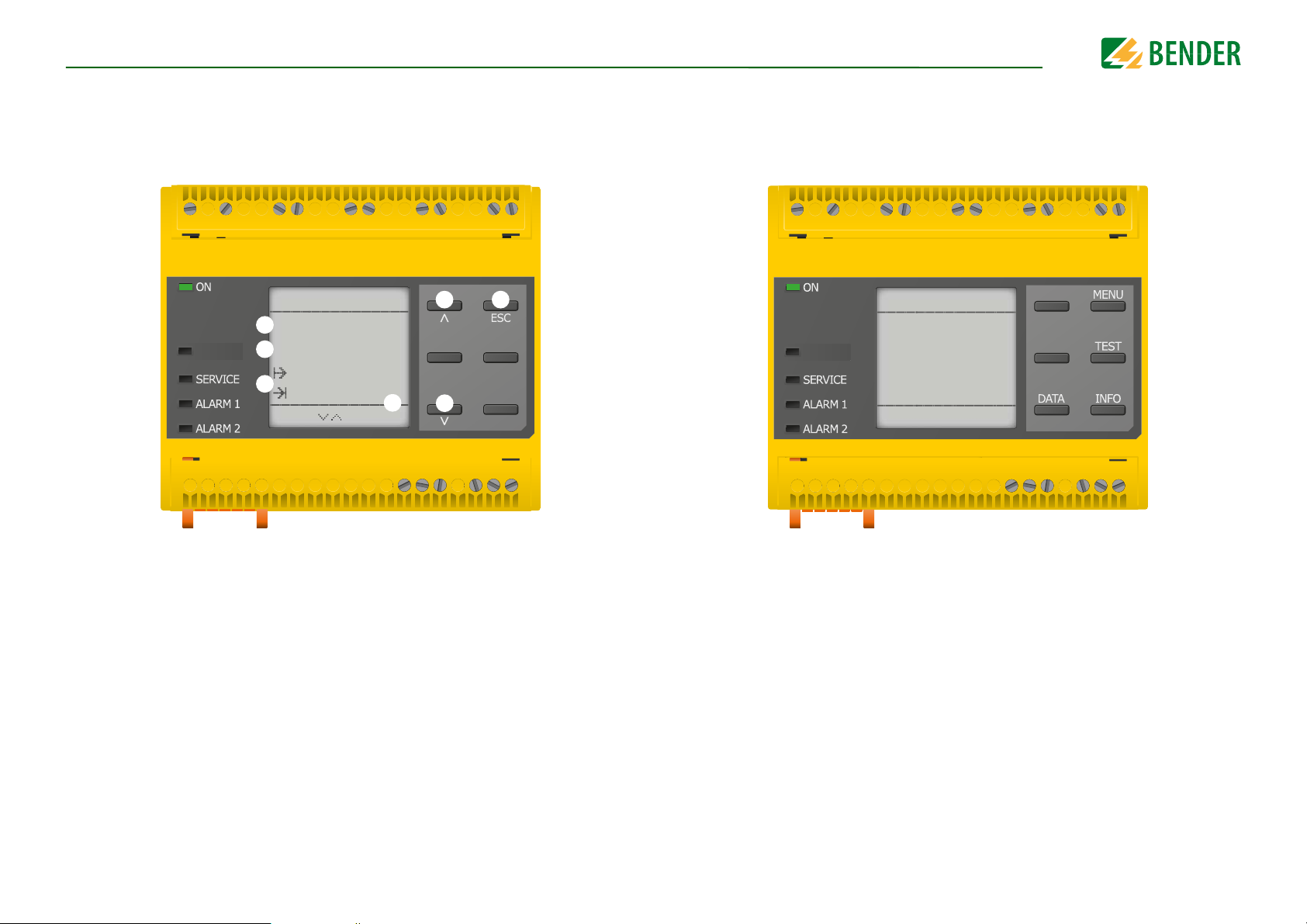

4.4 Display elements and device buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4.1 Display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4.2 Device buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.5 Operation and Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.5.1 Menu selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.5.2 Selecting from a list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.5.3 Parameter selection and value setting . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.5.4 Character input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.5.5 Multiple selection in the device menu . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5. Mounting .......................................................................................... 19
5.1 General instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
5.2 Screw mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
5.3 DIN rail mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6. Connection .......................................................................................21
6.1 Connection requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.2 Connection to a 3(N)AC system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
6.3 Connection to an AC system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
6.4 Connection to a DC system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
6.5 Connection to the supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
6.6 Connection to the X1 inteface1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.7 Connection to the Ethernet interface ETH. . . . . . . . . . . . . . . . . . . . . . . . . . .24

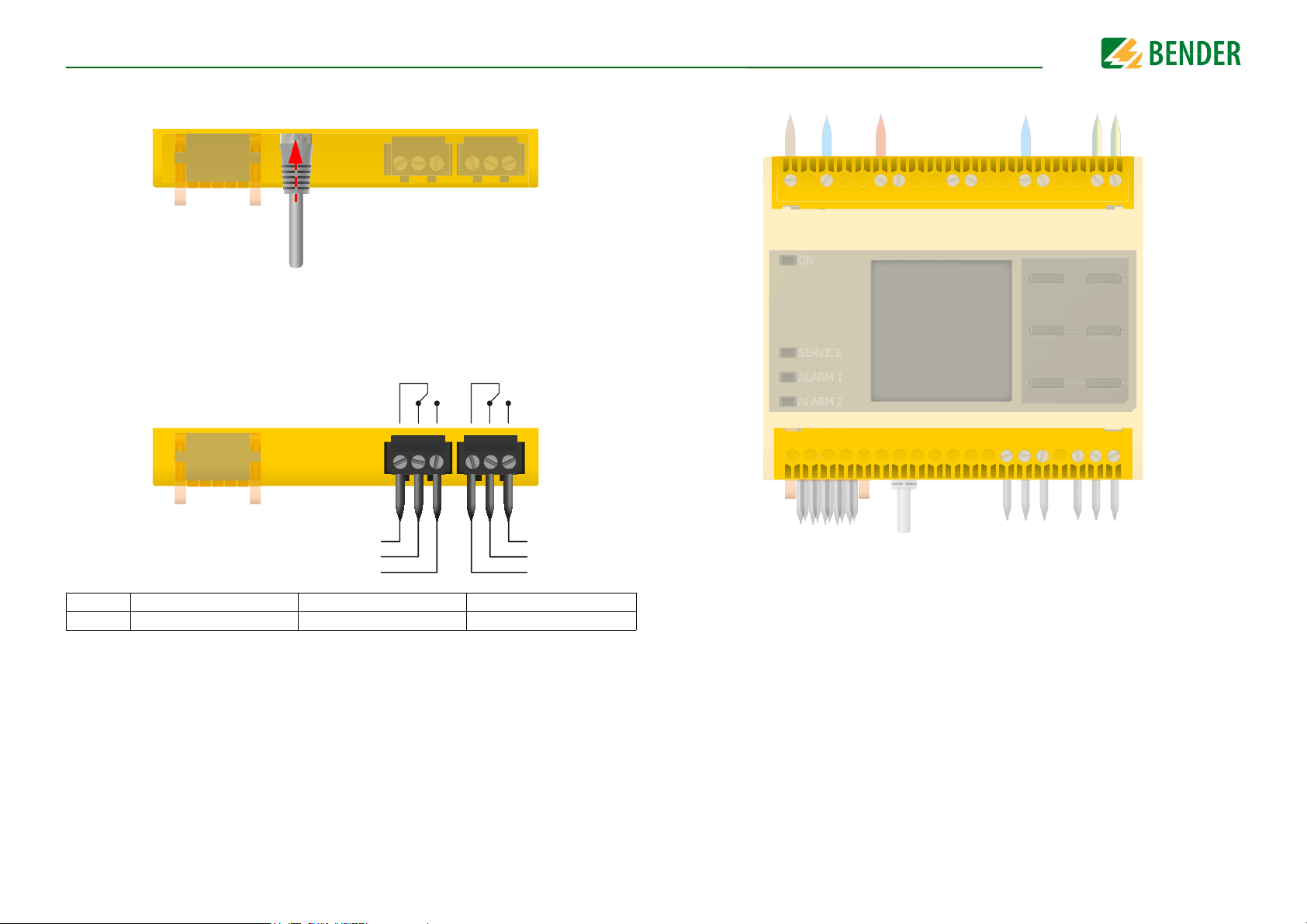

6.8 Connection to relay interfaces 1 and 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
6.9 Position the terminal covers and click it into place . . . . . . . . . . . . . . . . . .24
6.10 Connection to the BB bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
6.11 Connecting the EDS to the ISOMETER® . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.11.1 Connection example ISOMETER® to EDS . . . . . . . . . . . . . . . . . . . . . . . 26
6.11.2 Connection to a 3(N)AC system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
6.11.3 Connection to an AC system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
6.11.4 Connection to a DC system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
6.11.5 System structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7. Commissioning ............................................................................... 31
7.1 General initial commissioning process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
7.2 Commissioning procedure - steps for commissioning . . . . . . . . . . . . . . . 31
7.3 Initial commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
7.3.1 Set language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
7.3.2 Set time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
7.3.3 Set system type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.3.4 Set profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
7.3.5 Setting EDS mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
7.3.6 Setting EDS current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
7.3.7 Set response value Ran1 for Alarm 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3.8 Set response value Ran2 for Alarm 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.4 Commissioning EDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.5 Recommissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
3
iso685-x-P_D00170_04_M_XXEN/01.2018
Page 4
Table of contents
8. Display .............................................................................................. 35
8.1 Standarddisplay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.2 Fault display (active) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.3 Fault display (inactive) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.4 Acknowledging a fault message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.5 Data-isoGraph. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.6 History memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8.7 Initial measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8.8 ISOnet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
8.9 Automatic test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
8.10 Isolationsfehlersuche . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9. Menu structure ................................................................................ 41
10. Settings .......................................................................................... 43
10.1 Settings in the device menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.1 (1.0) Alarm settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.1 (1.1) Insulation alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.1 (1.1.1) Alarm 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.1 (1.1.2) Alarm 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.1 (1.1.3) Fault memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.1 (1.2) DC alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.1 (1.2.1) Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.1 (1.2.2) U(DC-E) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.1 (1.3) Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 (1.4) System type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 (1.5) ISONet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 (1.5.1) ISOnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 (1.5.2) Number of devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 (1.6) Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 (1.7) t(Start) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 (1.8) Coupling monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 (1.9) Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 (1.9.1) Digital 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 (1.9.1.1) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 (1.9.1.2) t(on) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
10.1 (1.9.1.3) t(off) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
10.1 (1.9.1.4) Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
10.1 (1.9.2) Digital 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
10.1 (1.9.3) Digital 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
10.1 (1.10) Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
10.1 (1.10.1) Relay 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
10.1 (1.10.1.1) TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
10.1 (1.10.1.2) Relay mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
10.1 (1.10.1.3) Function 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
10.1 (1.10.1.4) Function 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
10.1 (1.10.1.5) Function 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
10.1 (1.10.2) Relay 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
10.1 (1.10.3) Digital 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
10.1 (1.10.3.1) TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
10.1 (1.10.3.2) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
10.1 (1.10.3.3) Function 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
10.1 (1.10.3.4) Function 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
10.1 (1.10.3.5) Function 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
10.1 (1.10.4) Digital 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
10.1 (1.10.5) Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
10.1 (1.10.5.1) TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
10.1 (1.10.5.2) Function 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
10.1 (1.10.5.3) Function 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
10.1 (1.10.5.4) Function 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
10.1 (1.10.6) Analogue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
10.1 (1.10.6.1) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
10.1 (1.10.6.2) Midscale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
10.1 (1.10.6.3) TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
10.1 (1.10.6.4) Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
10.1 (2.0) EDS (insulation fault location) . . . . . . . . . . . . . . . . . . . . . . . . . . .49
10.1 (2.1) General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
10.1 (2.1.1) Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
10.1 (2.1.2) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
10.1 (2.1.3) Using a portable EDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.1 (2.2) Scanning channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.1 (2.3) Activating channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
10.1 (2.4) Group settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.1 (2.4.1) Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.1 (2.4.1.1) Current transformer (CT) . . . . . . . . . . . . . . . . . . . . . . . . 50
10.1 (2.4.1.2) CT monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
10.1 (2.4.1.3) I∆L Response value . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
10.1 (2.4.1.4) I∆n Response value . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
4
iso685-x-P_D00170_04_M_XXEN/01.2018
Page 5
Table of contents
10.1 (2.4.2) Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
10.1 (2.4.2.1) Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
10.1 (2.4.2.2) Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10.1 (2.4.2.3) Digital output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10.1 (2.4.2.4) Function 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10.1 (2.4.2.5) Function 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10.1 (2.4.2.6) Function 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

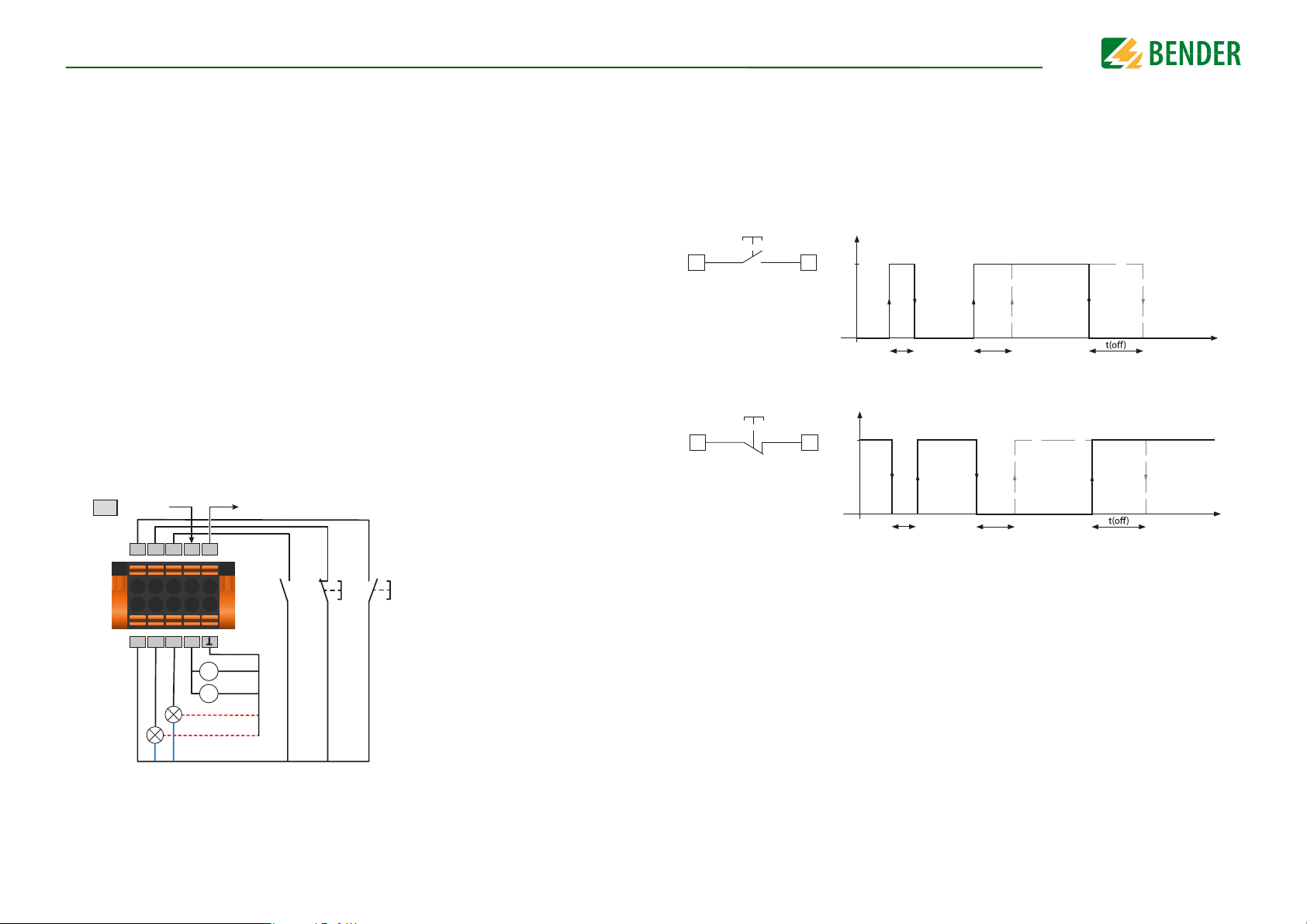

10.1 (2.4.3) Dig. input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10.1 (2.4.3.1) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.1 (2.4.3.2) t(on) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.1 (2.4.3.3) t(off) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.1 (2.4.3.4) Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.1 (2.4.4) Device settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.1 (2.4.4.1) System type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.1 (2.4.4.2) Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.1 (2.4.4.3) Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.1 (2.4.4.4) Fault memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.1 (2.5) Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.5.1) Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.5.2) Current transformer monitoring . . . . . . . . . . . . . . . . . . . 54
10.1 (2.5.3) Response value I∆L. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.5.4) Response value I∆n. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6) Outputs 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
10.1 (2.6.1) Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.1.1) TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.1.2) Operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.1.3) Function 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.1.4) Function 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.1.5) Function 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.2) Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.2.1) TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.2.2) Function 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.2.3) Function 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.2.4) Function 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.3) Digital output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.3.1) TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.3.2) Function 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.3.3) Function 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.6.3.4) Function 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.7) Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
10.1 (2.7.1) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 (2.7.2) t(on) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10.1 (2.7.3) t(off) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10.1 (2.7.4) Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10.1 (2.8) Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
10.1 (2.8.1) Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10.1 (2.8.2) Fault memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10.1 (2.9) Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
10.1 (3.0) Data measured values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
10.1 (4.0) Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
10.1 (5.0) History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
10.1 (6.0) Device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
10.1 (6.1) Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
10.1 (6.2) Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10.1 (6.2.1) Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10.1 (6.2.2) Format (time) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10.1 (6.2.3) Summertime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1 (6.2.4) Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1 (6.2.5) Format (date) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1 (6.2.6) NTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1 (6.2.7) NTP server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1 (6.2.8) UTC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1 (6.3) Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
10.1 (6.3.1) Write access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1 (6.3.2) Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1 (6.3.2.1) DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1 (6.3.2.2) IP (manual configuration). . . . . . . . . . . . . . . . . . . . . . . 56
10.1 (6.3.2.3) SN (manual configuration) . . . . . . . . . . . . . . . . . . . . . .56
10.1 (6.3.2.4) Std. GW (manual configuration) . . . . . . . . . . . . . . . . . 57
10.1 (6.3.2.5) DNS server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
10.1 (6.3.2.6) Domain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
10.1 (6.3.3) BCOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.1 (6.3.3.1) System name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
10.1 (6.3.3.2) Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
10.1 (6.3.3.3) Device address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
10.1 (6.3.3.4) Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
10.1 (6.3.3.5) TTL for subscription . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
5
iso685-x-P_D00170_04_M_XXEN/01.2018
Page 6
Table of contents
10.1 (6.3.4) Modbus/TCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.1 (6.3.4.1) Port 502 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.1 (6.3.5) BS-Bus / RS-485 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.1 (6.3.5.1) Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.1 (6.4) Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.1 (6.4.1) Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.1 (6.5) Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.1 (6.5.1) Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.1 (6.5.2) Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
10.1 (6.6) Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
10.1 (6.7) Data backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
10.1 (6.8) Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
10.1 (7.0) Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
11. Device communication ............................................................... 59
11.1 Ethernet interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
11.2 BCOM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
11.3 Modbus/TCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

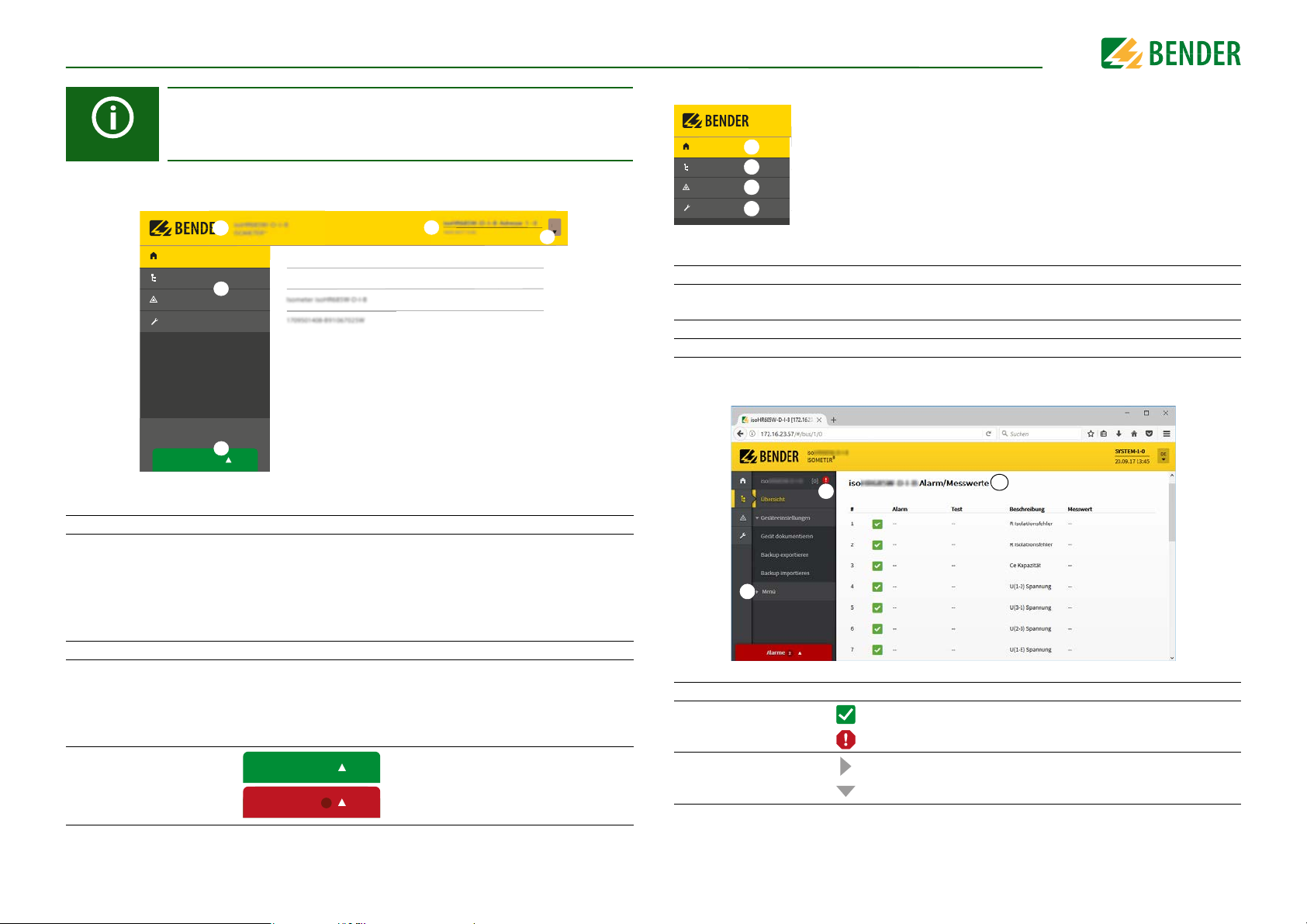

11.4 Web server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
11.4.1 Web server user interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
11.4.2 Web server device menu (first level) . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
11.4.3 Webserver submenu tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

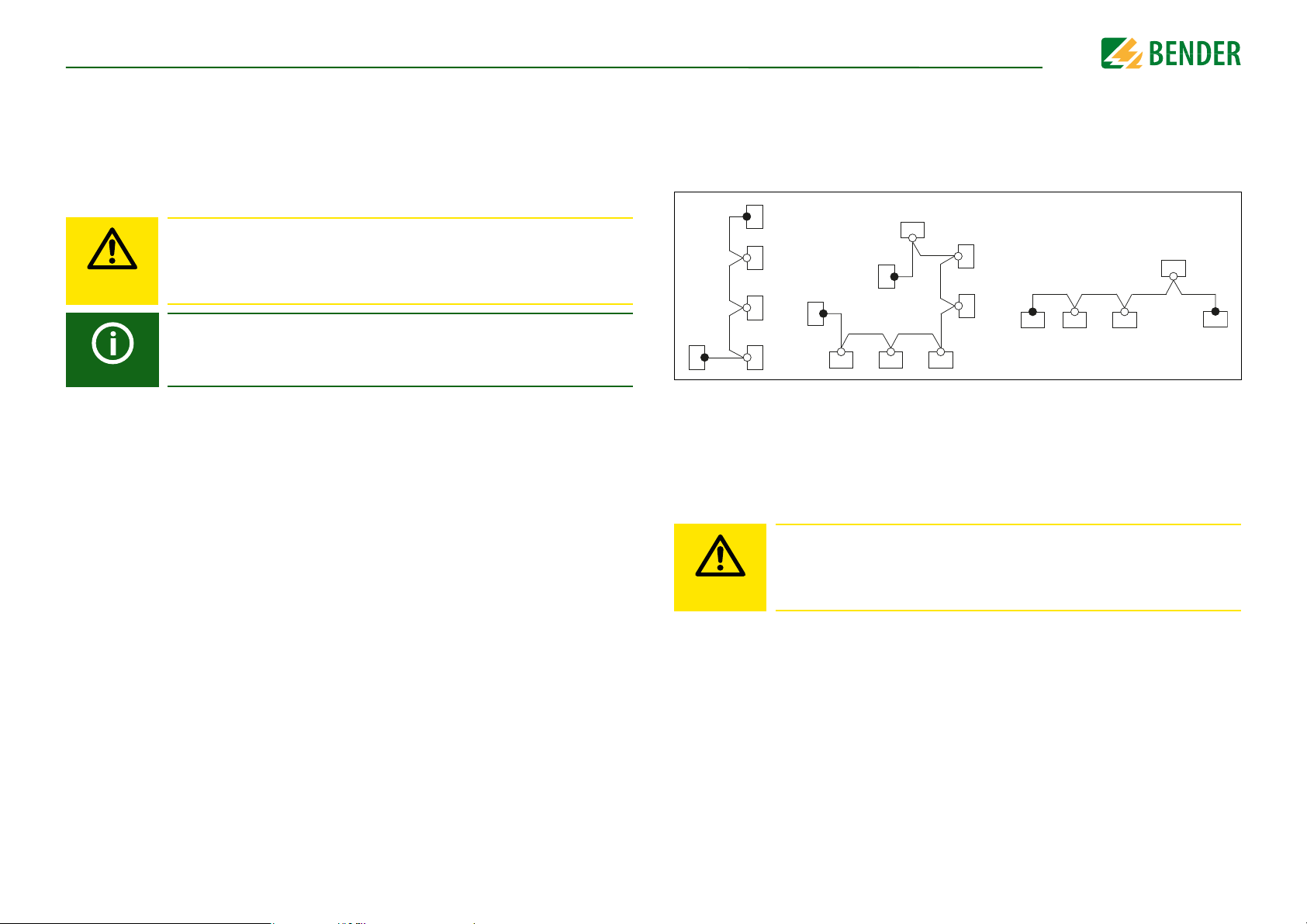

11.5 BS bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
11.5.1 Master-slave principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
11.5.2 Addresses and address ranges on the BS bus . . . . . . . . . . . . . . . . . . 61
11.5.3 RS-485 specifications/cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
11.5.4 Cable routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
12. Device profiles .............................................................................. 62
13. Special functions for coupled IT systems ................................. 63
13.1 Particularities when monitoring coupled IT systems . . . . . . . . . . . . . . . 63

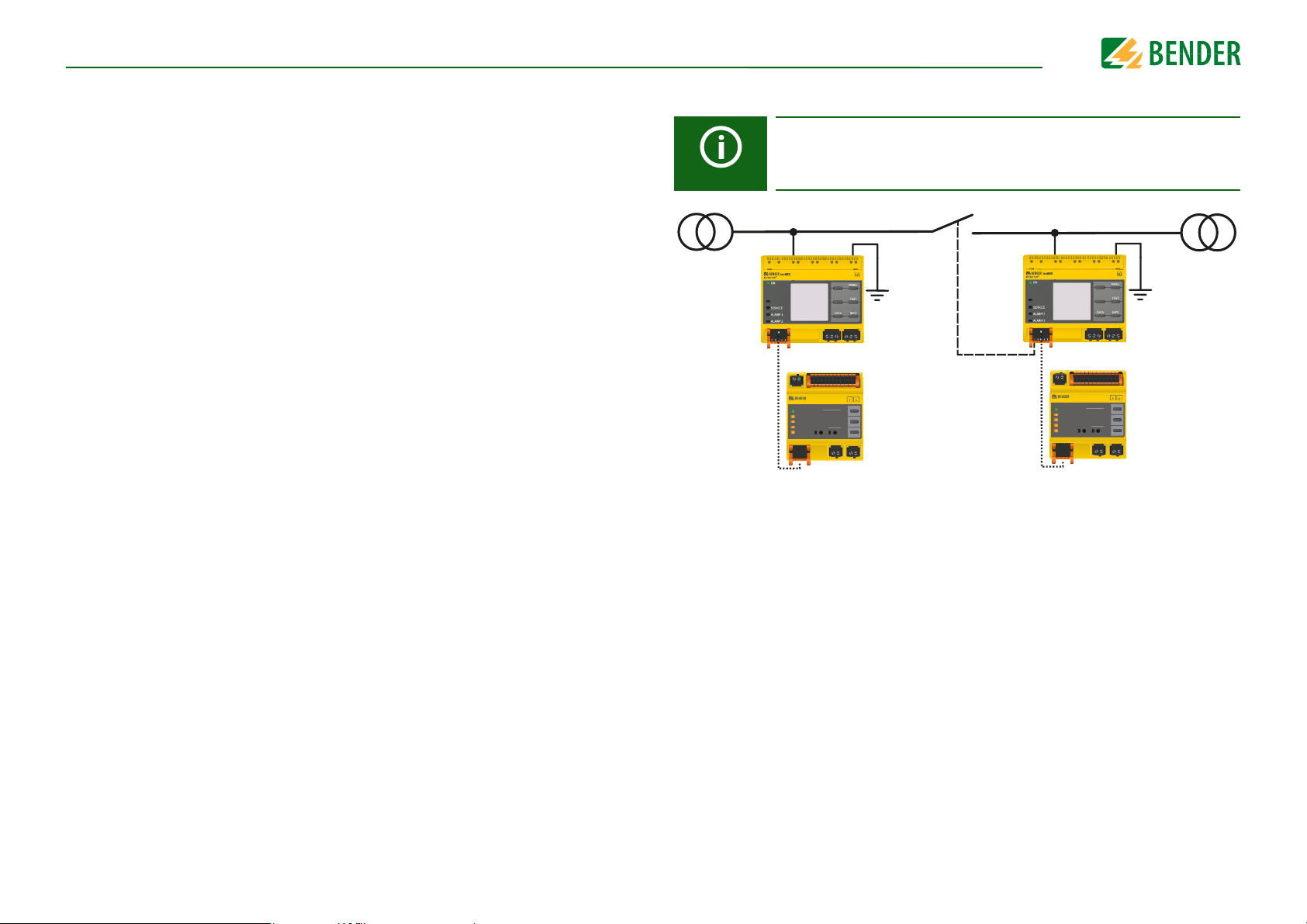

13.2 System isolation via digital input with two coupled systems . . . . . . . 63
13.3 System separation via ISOnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
13.3.1 System structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
13.3.2 Configuration and function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
14. Insulation fault location ..............................................................66
14.1 General description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
14.2 Required settings for insulation fault location . . . . . . . . . . . . . . . . . . . . . 66
14.3 Indication on the display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
14.4 Starting and stopping the insulation fault location. . . . . . . . . . . . . . . . .66

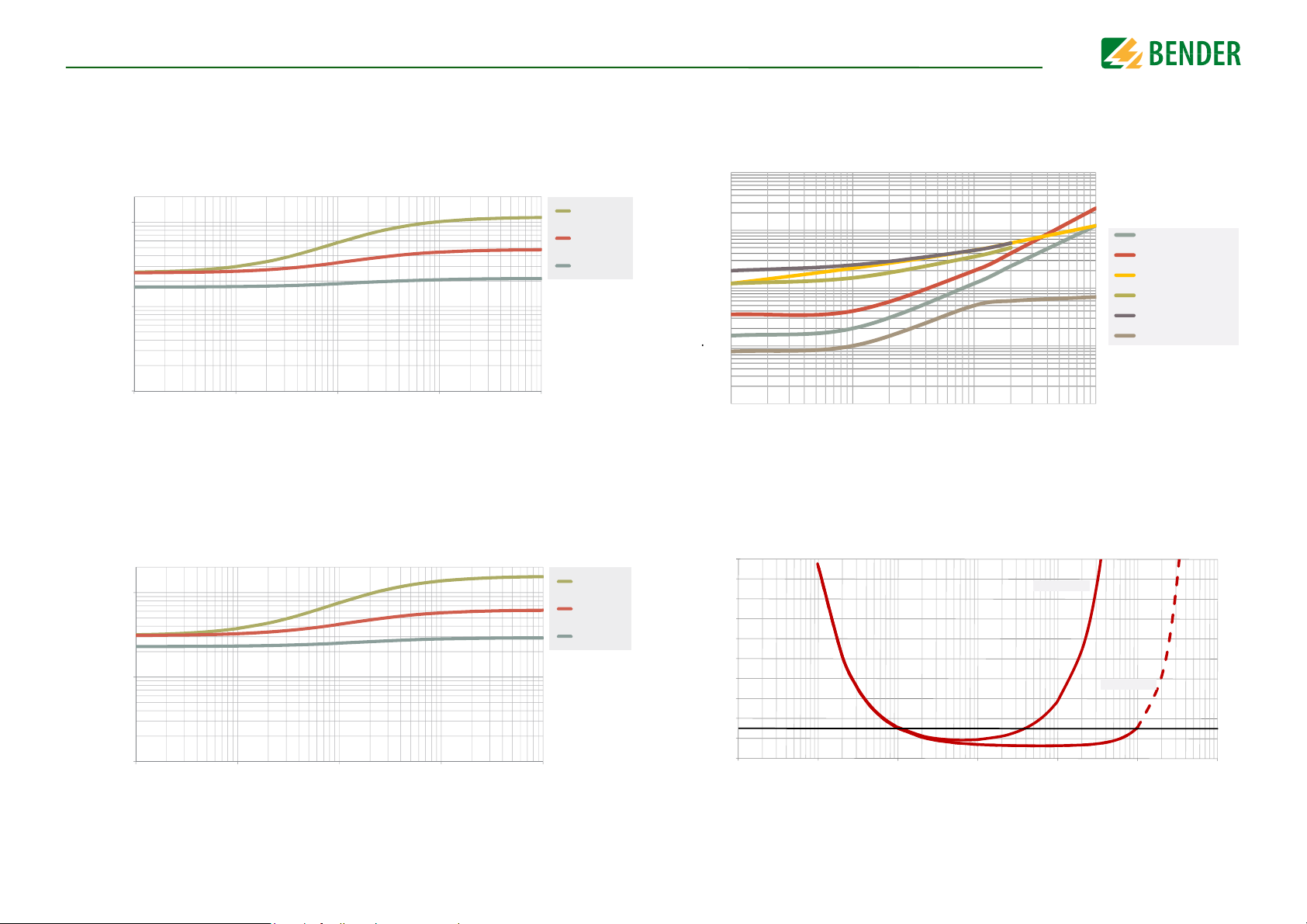

15. Diagrams ........................................................................................ 67

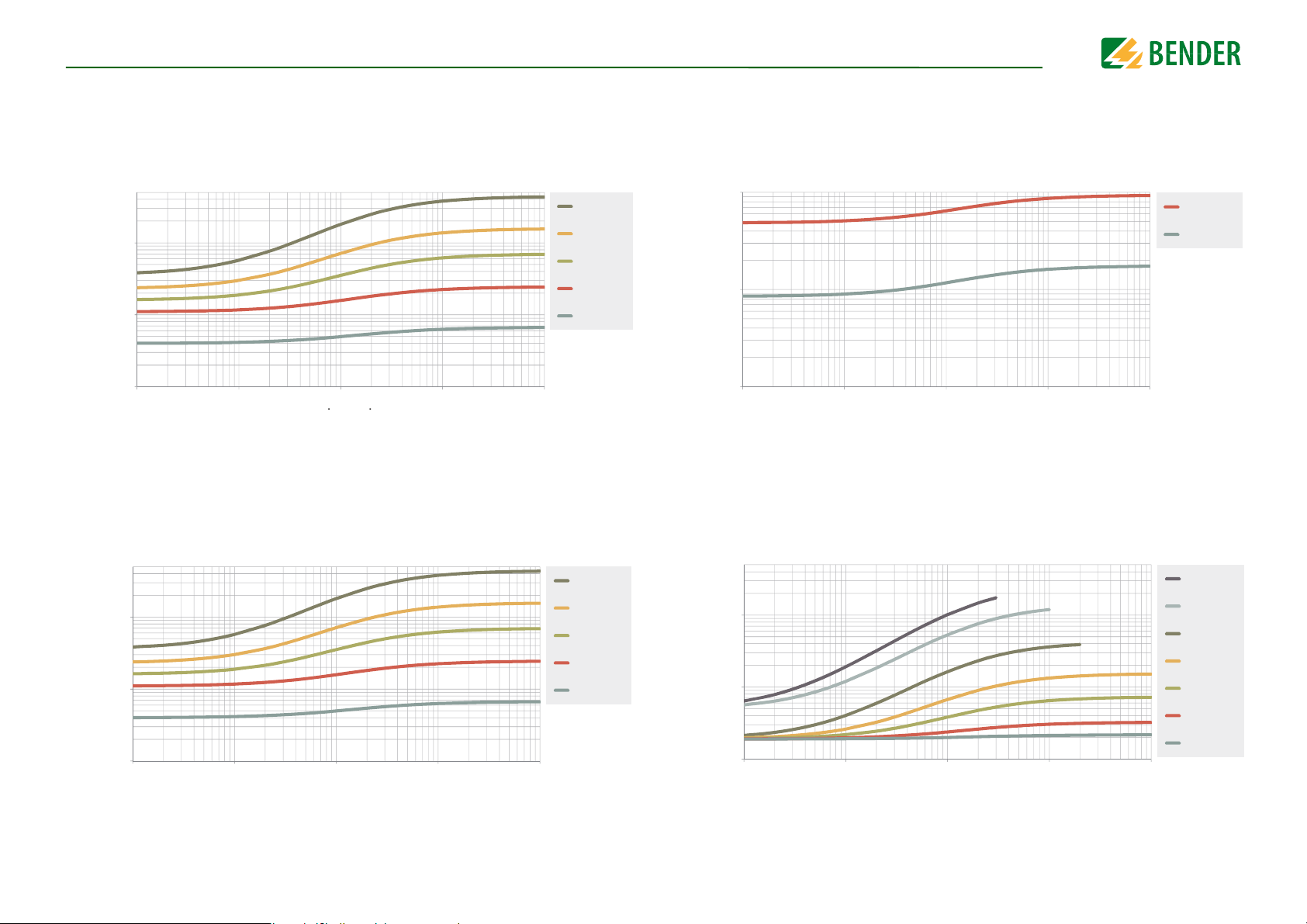

15.1 Response time profile power circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
15.2 Response time profile control circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
15.3 Response time profile generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
15.4 Response time profile high capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . .67
15.5 Response time profile inverter > 10 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
15.6 Response time profile inverter < 10 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
15.7 Response time DC Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
15.8 Operating uncertainty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
16. Alarm messages ............................................................................69
16.1 Alarm messages of the ISOMETER® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
16.2 Alarm messages of the EDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
17. Factory settings ............................................................................ 71
18. Technical data ...............................................................................72
18.1 Tabular data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
18.2 Device feature W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
18.3 Standards and certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
18.4 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
18.4.1 Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
18.4.2 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
18.4.3 Insulation fault locators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
18.4.4 Suitable system components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
19. Glossary .......................................................................................... 76
Index ...............................................................................................77
6
iso685-x-P_D00170_04_M_XXEN/01.2018
Page 7
1. Important information
Important information
1.1 How to use this manual
This manual is intended for qualified personnel working in electrical
engineering and electronics!
Read the manual before you begin to mount, connect, and commission
the unit. Always keep the manual within easy reach for future reference
following commissioning.
To make it easier for you to understand and revisit certain sections in this manual, we
have used symbols to identify important instructions and information. The meaning of
these symbols is explained below.
This signal word indicates that there is a high risk of danger that will result in electrocution or serious injury if not avoided.
DANGER
This signal word indicates a medium risk of danger that can lead to
death or serious injury if not avoided.
WARNING
This signal word indicates a low-level risk that can result in minor or
moderate injury or damage to property if not avoided.
CAUTION
This symbol denotes information intended to assist the user in making
optimum use of the product.
1.2 Technical support
For commissioning and troubleshooting Bender offers you:
1.2.1 End customer support and advice
Technical support by phone or e-mail for all Bender products
• Questions concerning specific customer applications
• Commissioning
• Troubleshooting
Telephone: +49 6401 807-760*
Fax: +49 6401 807-259
0700BenderHelp (Tel. and Fax in Germany only)
1.2.2 Repair
Repair, calibration, update and replacement service for Bender products
• Repairing, calibrating, testing and analysing Bender products
• Hardware and software update for Bender devices
• Delivery of replacement devices in the event of faulty or incorrectly delivered
Bender devices
• Extended guarantee for Bender devices, which includes an in-house repair service or
replacement devices at no extra cost
Telephone: +49 6401 807-780** (technical issues)
+49 6401 807-784**, -785** (sales)
Please send the devices for repair to the following address:
Bender GmbH, Repair-Service,
Londorfer Strasse 65,
35305 Grünberg
7
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 8
Important informationImportant information
1.2.3 Customer service
On-site service for all Bender products
• Commissioning, parameter setting, maintenance, troubleshooting for Bender products
• Analysis of the electrical installation in the building (power quality test, EMC test,
thermography)
• Training courses for customers
Telephone: +49 6401 807-752**, -762 **(technical issues)
+49 6401 807-753** (sales)
*Available from 7.00 a.m. to 8.00 p.m. 365 days a year (CET/UTC+1)
**Mo-Thu 7.00 a.m. - 8.00 p.m., Fr 7.00 a.m. - 13.00 p.m.
1.3 Training courses
Bender is happy to provide training regarding the use of test equipment.
The dates of training courses and workshops can be found on the Internet at
www.bender-de.com -> Know-how -> Seminars.
1.5 Storage
The devices must only be stored in areas where they are protected from dust, damp, and
spray and dripping water, and in which the specified storage temperatures can be
ensured.
1.6 Disposal
Abide by the national regulations and laws governing the disposal of this device. Ask
your supplier if you are not sure how to dispose of the old equipment.
The directive on waste electrical and electronic equipment (WEEE directive) and the directive on the restriction of certain hazardous substances in electrical and electronic
equipment (RoHS directive) apply in the European Community. In Germany, these policies are implemented through the "Electrical and Electronic Equipment Act" (ElektroG).
According to this, the following applies:
• Electrical and electronic equipment are not part of household waste.
• Batteries and accumulators are not part of household waste and must be disposed
of in accordance with the regulations.
• Old electrical and electronic equipment from users other than private households
which was introduced to the market after 13 August 2005 must be taken back by the
manufacturer and disposed of properly.
For more information on the disposal of Bender devices, refer to our homepage at
www.bender-de.com -> Service & Support.
1.4 Delivery conditions
Bender sale and delivery conditions apply.
For software products, the "Softwareklausel zur Überlassung von Standard-Software als
Teil von Lieferungen, Ergänzung und Änderung der Allgemeinen Lieferbedingungen für
Erzeugnisse und Leistungen der Elektroindustrie" (software clause in respect of the licensing of standard software as part of deliveries, modifications and changes to general
delivery conditions for products and services in the electrical industry) set out by the ZVEI
(Zentralverband Elektrotechnik- und Elektronikindustrie e.V.) (German Electrical and
Electronic Manufacturers' Association) also applies. Amending the “General Conditions
for the supply of Products and Services of the Electrical and Electronics Industry” (GL)*
Sale and delivery conditions can be obtained from Bender in printed or electronic format.
8
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 9
2. Safety instructions
2.1 General safety instructions
Part of the device documentation in addition to this manual is the enclosed "Safety instructions for Bender products".
2.2 Work activities on electrical installations.
Only qualified personnel are permitted to carry out the work necessary
to install, commission and run a device or system.
Danger of electrocution due to electric shock!
Touching live parts of the system carries the risk of:
• A life threatening electric shock
DANGER
If the device is used outside the Federal Republic of Germany, the applicable local standards and regulations must be complied with. The European standard EN 50110 can be
used as a guide.
2.3 Device-specific safety instructions
WARNING
CAUTION
• Damage to the electrical installation
• Destruction of the device
Before installing and connecting the device, make sure that the
installation has been de-energised. Observe the rules for working on
electrical installations.
Make sure that the basic settings meet the requirements of the IT system.
Persons without the required expertise, in particular children, must not
have access to or contact with the ISOMETER®.
Make sure that the operating voltage is correct!
Prior to insulation and voltage tests, the ISOMETER® must be disconnected
from the IT system for the duration of the test. In order to check that the device has been correctly connected, a functional test must be carried out before starting the system.
Safety instructions
In the event of an alarm message of the ISOMETER®, the insulation fault
should be eliminated as quickly as possible.
If the ISOMETER® is installed inside a control cabinet, the insulation fault
message must be audible and/or visible to attract attention.
When using ISOMETER®s in IT systems, make sure that only ONE active
ISOMETER® is connected in each galvanically interconnected system. If IT
systems are interconnected via coupling switches, make sure that ISOMETER®s not currently used are disconnected from the IT system and deactivated. IT systems coupled via diodes or capacitances may also influence
the insulation monitoring process so that a central control of the different
ISOMETER®s is required.
Prevent measurement errors!
When a monitored IT system contains galvanically coupled DC circuits, an
insulation fault can only be detected correctly if the rectifier valves (e.g.
rectifier diode, thyristors, IGBTs, frequency inverters, …) carry a minimum
current of > 10 mA.
Unspecified frequency range
When connecting to an IT system with frequency components below the
specified frequency range, the response times and response values may
differ from the indicated technical data. However, depending on the application and the selected measurement profile, continuous insulation
monitoring is also possible in this frequency range.
There is no influence on the insulation monitoring for IT systems with frequency components above the specified frequency range, e.g. within the
range of typical switching frequencies of frequency inverters (2…20 kHz).
9
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 10
2.4 Intended use
Only qualified personnel are permitted to carry out the work necessary
to install, commission and run a device or system.
Read the manual before you begin to mount, connect, and commission
the unit. Always keep the manual within easy reach for future reference
following commissioning.
The ISOMETER® iso685–x–P monitors the insulation resistance of unearthed AC/DC main
circuits (IT systems) with mains voltages of AC 0…690 V or DC 0…1000 V. The operating
range of the nominal voltage U
DC components existing in AC/DC systems do not influence the operating characteristics.
Due to the separate supply voltage, de-energised systems can also be monitored. The
maximum permissible system leakage capacitance is 0…1000 µF, depending on the
profile.
Intended use also implies:
• Observation of all information in the operating manual
• Compliance with test intervals
In order to meet the requirements of applicable standards, customised parameter set-
tings must be made on the equipment in order to adapt it to local equipment and operating conditions. Please heed the limits of the range of application indicated in the
technical data.
Any use other than that described in this manual is regarded as improper.
can be extended via coupling devices.
n
Safety instructionsSafety instructions
10
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 11
3. Function
AMP
Plus
Function
3.1 Features
• ISOMETER® for IT AC systems with galvanically connected rectifiers or inverters and
for IT DC systems (IT = unearthed systems)
• Automatic adaptation to the existing system leakage capacitance
• Combination of and other profile-specific measurement methods
• Two separately adjustable response value ranges of 1 k…10 M for Alarm 1 and
Alarm 2
• Hgh-resolution graphical LC display
• Connection monitoring (monitoring of the measuring lines)
• Automatic device self test
• Graphical representation of the insulation resistance over time (isoGraph)
• History memory with real-time clock (buffer for three days) for storing 1023 alarm
messages with date and time
• Current or voltage output 0(4)…20 mA, 0…400 A, 0…10 V, 2…10 V (galvanically
separated), which is analogous to the measured insulation value of the system
• Freely programmable digital inputs and outputs
• Remote setting via the Internet or Intranet
(Webserver/Option: COMTRAXX® gateway)
• Worldwide remote diagnosis via the Internet (made available by Bender Service
only)
• RS-485/BS (Bender sensor bus) for data exchange with other Bender devices
• ISOnet: Internal separation of the ISOMETER® from the IT system to be monitored
(e.g. if several IT systems are interconnected)
• BCOM, Modbus TCP and web server
• Locating current injection for selective insulation fault location
• Indication of the insulation faults selectively located by the EDS system
• Parameter setting of EDS systems
• Customer-specific texts for each measuring channel
3.1.1 Features EDS44x
• Insulation fault location in AC, 3AC and DC IT systems
• Up to 12 measuring current transformers of the W…, WR…, WS… measuring current transformer series can be connected
• Response sensitivity insulation fault location:
EDS440 2…10 mA
EDS441 0.2…1 mA
• Response sensitivity residual current measurement:
EDS440 100 mA…10 A
EDS441 100 mA…1 A
Communication of the components via BS bus (RS-485) or BB bus
3.2 Product description
3.2.1 General product description
The ISOMETER® is an insulation monitoring device for IT systems in accordance with
IEC 61557-8.
It is universally applicable in AC, 3(N)AC, AC/DC and DC systems. AC systems may include
extensive DC-supplied loads (such as rectifiers, inverters, variable-speed drives).
3.2.2 Special ISOMETER® characteristics
The ISOMETER® iso685–D–P belongs to the iso685 device family and features an integrated display. This manual applies in full to this ISOMETER®.
The ISOMETER® iso685–S–P is the sensor variant from the iso685 device family. The only
difference between this variant and the ISOMETER® isoHR685-D-B is that it does not have
a display. The ISOMETER® iso685–S–P must be used in combination with a front panel
through which it is operated. The operation of the front panel is equal to the operation of
the ISOMETER® with an integrated display, which is described in this manual.
Only the sensor variant (i.e. ISOMETER® iso685–S–P) can be connected to
the front panel. Connection to the display variant (i.e ISOMETER® iso685–
D–P) is not possible.
11
Hereafter, the ISOMETER®s with integrated display are described. This description is similar to the combination of ISOMETER® sensor variants and the front panel FP200. The
devices to which this manual applies will be referred to as ISOMETER®s hereafter.
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 12
FunctionFunction
3.3 Function description
The insulation monitoring device continuously monitors the entire insulation resistance
of an IT system during operation and triggers an alarm when the value falls below a preset response value. To obtain a measurement the device has to be connected between
the IT system (unearthed system) and the protective earth conductor (PE). A measuring
current in the A range is superimposed onto the system which is recorded and evaluated by a microprocessor-controlled measuring circuit. The measuring time is dependent
on the selected measurement profiles, the system leakage capacitance, the insulation resistance and possible system-related disturbances.
The response values and other parameters are set using a commissioning wizard as well
as via different setup menus using the device buttons and a high-resolution graphical LC
display. The selected settings are stored in a permanent fail-safe memory. Different languages can be selected for the setup menus as well as the messages indicated on the display. The device utilises a clock for storing fault messages and events in a history memory
with time and date stamp. The settings can be password protected to prevent unauthorised changes.
To ensure proper functioning of connection monitoring, the device requires the setting
of the system type 3AC, AC or DC and the
L2, L3/-.
required use of the appropriate terminals
L1/+,
The insulation monitoring device iso685–x–P is able to measure the insulation resistance
reliably and precisely in all common IT systems (unearthed systems). Due to various applications, system types, operating conditions, application of variable-speed drives, high
system leakage capacitances etc., the measurement technique must be able to meet varying requirements in order to ensure an optimised response time and relative uncertainty. Therefore different measuring profiles can be selected with which the device can
optimally adjusted.
If the preset response value falls below the value of Alarm 1 and/or Alarm 2, the associated alarm relays switch, the LEDs ALARM 1 or ALARM 2 light and the measured value is
shown on the LC display (in case of insulation faults in DC systems, a trend graph for the
faulty conductor L+/L- is displayed). If the fault memory is activated, the fault message
will be stored. Pressing the RESET button resets the insulation fault message, provided
that the current insulation resistance displayed at the time of resetting is at least 25 %
above the actual response value. As additional Information, the quality of the measuring
signal and the time required to update the measured value are shown on the display. A
poor signal quality (1-2 bars) may be an indication that the wrong measurement profile
has been selected.
The ISOMETER® has an internal system isolating switch, which makes it possible to operate several ISOMETER®s in coupled IT systems. For this purpose, the ISOMETER®s are connected via an Ethernet bus. The integrated ISOnet function ensures that only one
ISOMETER® is actively measuring at a time, while the other devices are completely isolated from the system and waiting in standby mode for measuring permission.
12
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 13
FunctionFunction
Test successful
Test not successful
Test not available
(e.g. faulty device settings).
Test is being carried out.
Measurement
Coupling
Connection to earth
Outputs
TEST

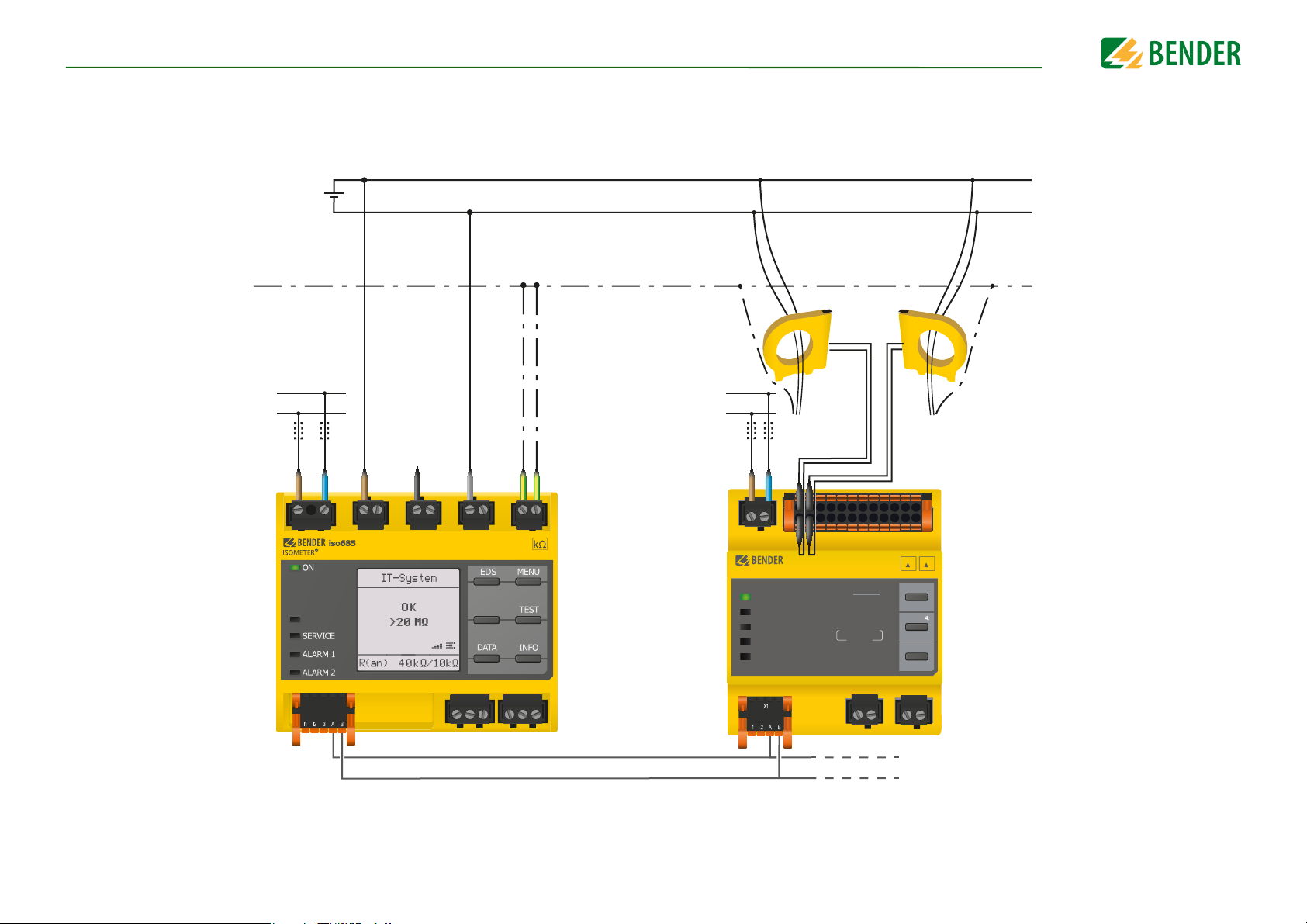

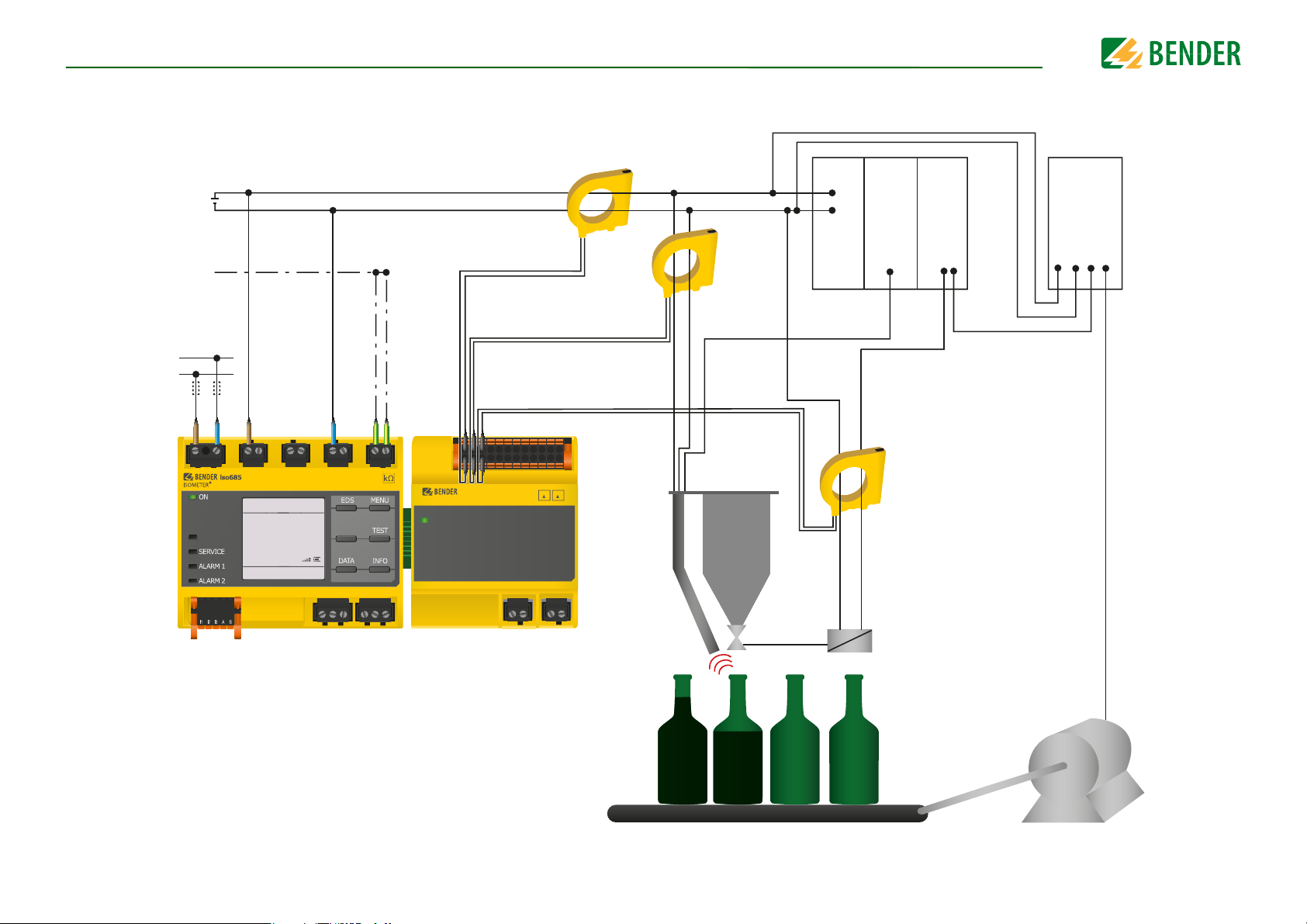

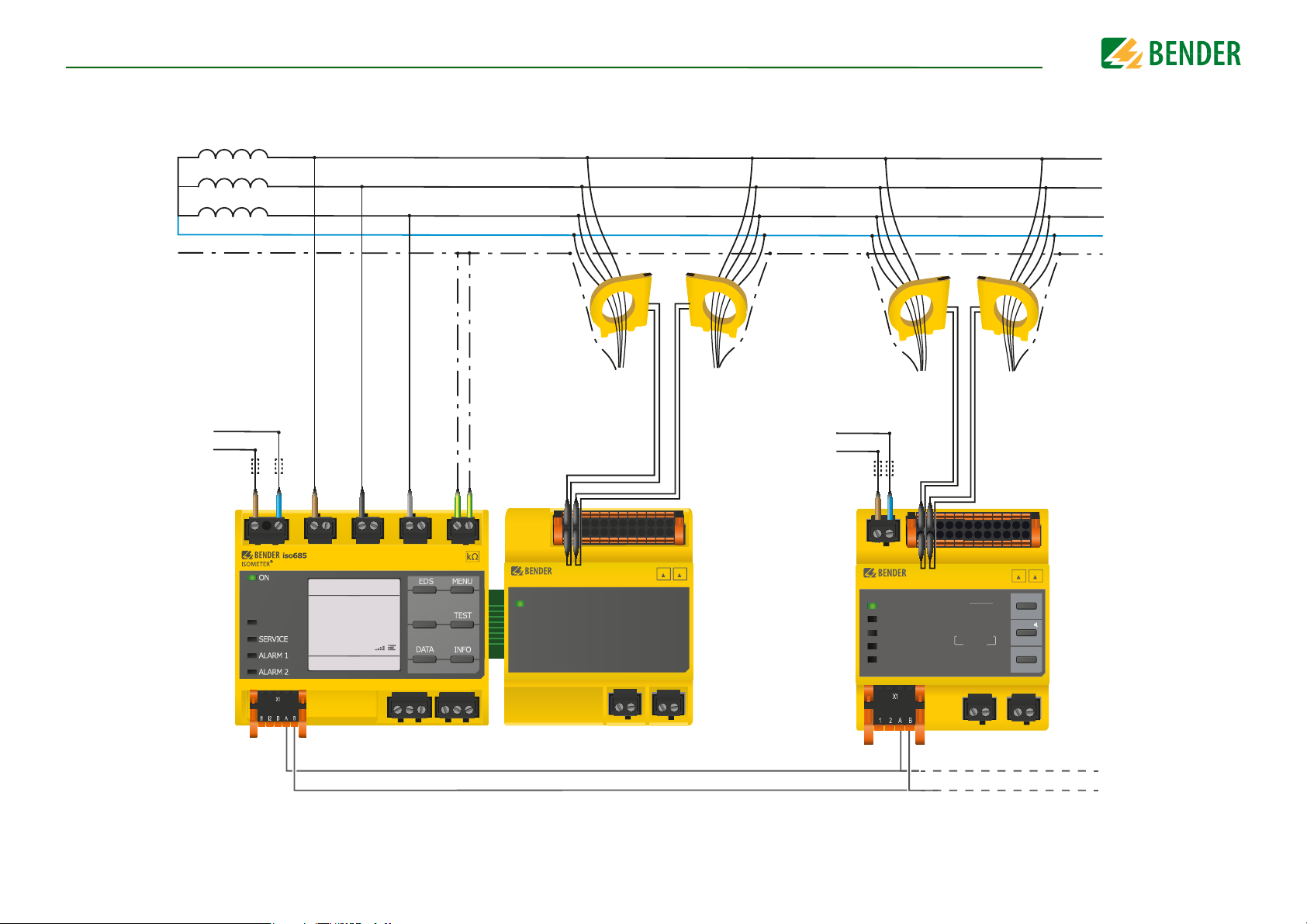

3.4 Insulation fault location
An additional function of the ISOMETER® in combination with the EDS is the selective insulation fault location. Therefore, the ISOMETER® generates a periodic locating current after the values has fallen below the set response value R
(LED ALARM 2). Thereby, the
an2
system conductors are alternately connected to earth via a defined resistance. The resulting locating current depends on the size of the existing insulation fault and the system
voltage. It is limited by the ISOMETER® depending on the settings. The insulation fault is
selectively located by means of the EDS and the measuring current transformer connected to it. The locating current flows from the locating current injector via the live lines
to the insulation fault position taking the shortest way. From there, it flows through the
insulation fault and the conductor PE back to the ISOMETER®. This locating current pulse
is detected by the measuring current transformer on the insulation fault path and signalled by the connected EDS.
For the duration of the insulation fault location, the function of the insulation monitoring
device is deactivated. If during the insulation fault location the locating current falls
below the value measurable by the EDS, the insulation fault location is ended by the
ISOMETER®.
Risk of malfunctions due to excessive locating current on sensitive
system parts!
The locating current flowing between the IT system and earth can cause
CAUTION
controller faults in sensitive parts of the system, such as the PLC or relay.
Ensure that the level of the locating current is compatible with the system
to be monitored.
3.5 Interfaces
3.6 Self test
After switching on the supply voltage, the ISOMETER, by means of the self-test functions,
automatically and continuously checks all internal measuring functions, the components
of the process control, such as the data and parameter memory, as well as the
connections to the IT system and earth.
The self test can also be activated manually by means of the test button to check the functions of the relays (depending on the configuration) or it can be selected via the "Control"
menu (refer to “Control” on page 55).
The progress of the manual self test is shown on the LC display by a bar graph. Depending
on the conditions in the IT system being monitored, the self test is completed after 15...20
seconds. The device then returns to the standard mode (i.e. measurement mode) and the
actual measured value will be displayed after the measuring time has expired. The display
shows the message
Initial measurement
“Initial measurement” on page 39).
If a fault is detected during the self test, the respective LEDs of the device light (refer to
“Alarm messages” on page 69). In addition, the respective message will be indicated on
the display and a previously programmed output will provide the respective signal.
√
33 %
until the first valid value is measured (refer to
• Communication protocol Modbus TCP
• BCOM for Bender device communication via Ethernet
• BS bus for communication of Bender devices (RS-485)
•
• Integrated web server for reading out measured values and for parameter setting
13
BB bus for communication of Bender devices (Bender-internal device bus)
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 14
3.7 Compatibility with EDS devices
Full compatibility, communication with ISOMETER® via BS bus
Device Notes
EDS440-L
EDS441-L
EDS441-LAB
EDS460/490L Not recommended for new systems
EDS460/490D Not recommended for new systems
EDS461/491L Not recommended for new systems
EDS461/491D Not recommended for new systems
Full compatibility, communication with ISOMETER® via BB bus
Device Notes
EDS440-S
EDS441-S
EDS440-L
EDS440W-L
EDS441-L
EDS441W-L
EDS441-LAB
EDS441W-LAB
EDS440-S
EDS440W-S
EDS441-S
EDS441W-S
FunctionFunction
B91080202
B91080202W
B91080205
B91080205W
B91080207
B91080207W
B91080201
B91080201W
B91080204
B91080204W
Full compatibility, no communication with ISOMETER®
Device Notes
EDS195P EDS195P B91082040
14
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 15
4. Device overview
93
108
110
Device overview
4.1 Dimensions
Dimensions in mm.
4.2 Device variants
iso685–D–P The device version iso685–D–P features a high-resolution graphical LC dis-
play and control elements for direct operation of the device functions. It
cannot be combined with an FP200.
iso685–S–P
The device variant ISOMETER® iso685–S–P features neither a display nor
operating controls. It can only be used in combination with the FP200
and it is operated via this front panel.
15
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 16
Device overview
10 A1/+, A2/- Connection to the power supply U
s
11 L1/+ Connection to the IT system to be monitored
12 L2 Connection to the IT system to be monitored
13 L3/- Connection to the IT system to be monitored
14 KE, E Connection to PE
To p
PGH ON
REMOTE
20
PGH ON
iso685–D–P
20 X4 REMOTE interface to connect to the FP200(W) *
50 X3 Optional expansion module (BB-Bus) for Bender devices (e.g. BB Bus)
iso685–S–P
RearFront
Panel
Connection Top
Connection
bottom
242221141211RETHX1
1918
1716
15
15 X1 Multifunctional I/O interface (refer to Page 24)
16 ETH (X2) Ethernet interface
17 R Switchable terminating resistor for termination of the RS-485 interface
18 11 12 14 Connector for alarm relay 1
19 21 22 24 Connector for alarm relay 2
* The connection between the iso685 device and an FP200 (W) may only be
established when the device is switched off and de-energized.
Bottom
4.3 Connections and panel
10
11
12
13 14
5050505050505050505050
16
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 17
Device overviewDevice overview
PGH ON
2
4.4 Display elements and device buttons
1
6
3
4
5
4.4.1 Display elements
1 ON The LED "ON" lights when the device is turned on.
2PGH ON
3 SERVICE
4 ALARM 1
5 ALARM 2
6Display
The LED "PGH ON" flashes during insulation fault location. It indicates that
the locating current for the insulation fault location is generated.
The LED "SERVICE" lights when there is either a device fault or a connection
fault, or when the device is in maintenance mode.
The LED "ALARM 1" lights when the insulation resistance of the IT system
falls below the set response value R
The LED "ALARM 2" lights when the insulation resistance of the IT system
falls below the set response value R
The device display shows information regarding the device and the measurements.
Further information is available in the chapter“Display” from page 36.
an1
an2
4.4.2 Device buttons
The device settings can be adjusted in the respective menu using the menu buttons. Depending on the menu entry, one of the options displayed below is assigned to the buttons.
7
9
11
.
.
8
10
12
10
11
12
7
8
9
EDS
MENU Opens the device menu.
ESC
RESET Resets alarms.
TEST Starts the device self test.
DATA Indicates data and values.
INFO Shows information.
OK Confirms an action or a selection.
Manually starts the insulation fault location, which runs continuously.
Stops the insulation fault location immediately when it is pressed again
Navigates up in a list or increases a value.
Cancels the current process or
navigates one step back in the device menu.
Navigates backwards (e.g. to the previous setting step) or
selects a parameter.
Navigates forwards (e.g. to the next setting step) or
selects a parameter.
Navigates down in a list or reduces a value.
17
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 18
Device overviewDevice overview
The menu is activated with the
"Menu" button
IT system
OK
230 k
Ω
R(on) 40kΩ/10k
Ω
Commissioning 5.6
Please set the
current date and
time
2/10
To select a value in a given list (Menu), navigate with the button. Press "ESC" to
exit to the respective menu level.
Information about the device menu can be
found in the chapter entitled “” on page 42.
To select a value in a given list (Menu), navigate with the and buttons. The current value is indicated by a black menu
point.Confirm the selection with the "OK"
button. To exit the list, press the "ESC" button.
System type 5.6.6
• DC
O AC
O 3AC
Date 5.6.4
28.07.2016
Min. 1
Max. 12
The parameters are selected using the
and buttons.The current parameter is
indicated by the symbols. Values can be
changed with the and buttons. Confirm the text input with the "OK" button. To
exit text input, press "ESC".
Ethernet 6.3.2
192.
-.0123456789abcdef
ghijklmnopqrstuvwx
yz del
Select the required character with the
button (forwards) and the button (backwards). To enter the next character, use the
button to select the next position.
To delete a character that has been entered, use the and buttons to navigate to the character to be deleted and
then select "del" using the and buttons.
Confirm the entered text with "OK". Press
"ESC" to exit character input.
Activating Ch. 2.3
Select all
No selection
Invert selection
Channel 1 (BS 2/1)
Channel 2 (BS 2/2)
Select 1..n selection points using the
and buttons. Each selection in the List
must be confirmed with „OK“.
If you have made your selection, there are
two options depending on the menu-item:
• Navigating to the settings for the
selection usingr
.
•
Initiating the respective action
(e.g.
a
ctivate selected channels) using .

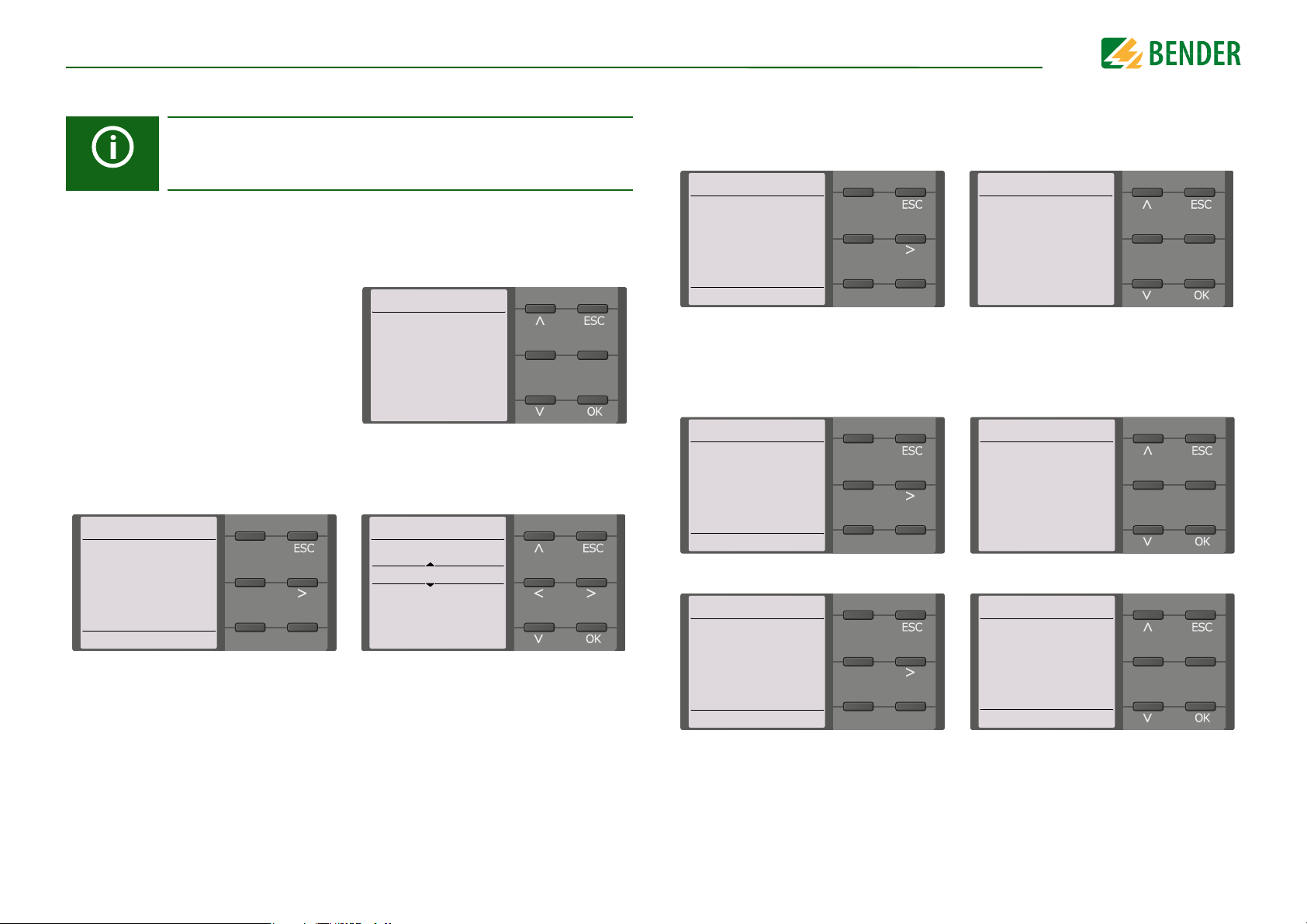

4.5 Operation and Navigation
4.5.1 Menu selection
4.5.2 Selecting from a list
4.5.4 Character input
4.5.5 Multiple selection in the device menu
4.5.3 Parameter selection and value setting
18
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 19
5. Mounting
5.1 General instructions
Only qualified personnel are permitted to carry out the work necessary
to install, commission and run a device or system.
Read the manual before you begin to mount, connect, and commission
the unit. Always keep the manual within easy reach for future reference
following commissioning.
Danger of electrocution due to electric shock!
Touching live parts of the system carries the risk of:
• A life threatening electric shock
DANGER
• Damage to the electrical installation
• Destruction of the device
Before installing and connecting the device, make sure that the
installation has been de-energised. Observe the rules for working on
electrical installations.
Mounting
19
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 20
MountingMounting
108
107,3
100
72
54
Ø M4
5.2 Screw mounting
1. Fix the three mounting clips delivered with the device (two of them packed separately) manually or using a tool, as illustrated below.
Drill the mounting holes for the M4 thread according to the
2. Fix the ISOMETER® using three M4 screws.
3.
drilling template.
5.3 DIN rail mounting
1. Fix the three mounting clips delivered with the device (two of them packed separately) manually or using a tool, as illustrated below.
2. Mount the ISOMETER® onto the DIN ra
Fix the ISOMETER® onto the DIN rail by pressing the moun
3.
into place
il.
ting clips until they snap
108
18
Dimensions in mm.
Dimensions
in mm.
54
Mounting clips:
The installation of a third mounting clip is only required for "W variants".
20
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 21
6. Connection
Connection
6.1 Connection requirements
Consider the minimum distance to adjacent devices: lateral 0 mm, top 20 mm, bottom
20 mm.
According to IEC 60364 (VDE 0100), only qualified personnel are permitted to carry out the work necessary to install, commission and run a device or system.
Danger of electrocution due to electric shock!
Touching live parts of the system carries the risk of:
• A life threatening electric shock
DANGER
DANGER
• Damage to the electrical installation
• Destruction of the device
Before installing and connecting the device, make sure that the installation has been de-energised. Observe the rules for working on elec-
trical installations.
Danger of electric shock!
High voltage can be applied to the terminals L1/+ to L3/- which can be lethal if directly contacted.
• Make sure that the terminal covers are properly mounted and clicked in
before you use the device.
• If the device is connected via terminals L1/+, L2, L3/- to an IT system
that is live for operational reasons, terminals KE and E must not be disconnected from the protective earth conductor (PE).
• Connect the terminals KE and E individually to the protective earth
conductor PE.
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
Provide line protection!
According to IEC 60364-4-43, a line protection shall be provided for the
supply voltage.
Risk of injury from sharp-edged terminals!
Risk of lacerations. Touch the enclosure and the terminals with due care.
Ensure disconnection from the IT system!
When insulation or voltage tests are to be carried out, the device must be
isolated from the system for the test period. Otherwise the device may be
damaged.
Risk of property damage due to unprofessional installation!
Make sure that only one insulation monitoring device is connected in
each conductively connected system. If several devices are connected, the
device does not function and does not signal insulation faults. As a result,
the system can be damaged.
Risk of property damage due to unprofessional installation!
Load currents can result in damage to property and personal injury. For
this reason, do not run any load current through the terminals. The connecting lines L1/+, L2, L3/- to the system to be monitored must be carried
out as spur lines.
Malfunction due to incorrect connection
If the device is not connected as is described in the manual, deviations in the
technical data and functin restrictions may result.
21
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 22
ConnectionConnection
Check proper connection!
Prior to commissioning of the installation, check that the device has been
properly connected and check the device functions. Perform a functional
test using an earth fault via a suitable resistance.
Prevent measurement errors!
When an AC system being monitored contains galvanically coupled DC
circuits, take into consideration that: An insulation fault can only be detected correctly when the rectifier valves carry a minimum current of
> 10 mA.
For UL applications:
Only use 60/75°C copper lines!
UL and CSA applications require the supply voltage to be protected via
5 A fuses.
6.2 Connection to a 3(N)AC system
Risk of injury, fire and damage to property due to a short circuit!
According to DIN VDE 0100-430, devices used to protect against a short
circuit when terminals L1/+, L2 und L3/- are coupled to the IT system to be
WARNING
monitored can be omitted if the wiring is carried out in such a manner as
to reduce the risk of a short circuit to a minimum. Ensure short-circuit
proof and earth-fault proof wiring.
U
n
U
S
A1/+ A2/- L1/+ L2 L3/- KE E
L1
L2
L3
N
22
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 23
ConnectionConnection
A1/+ A2/- L1/+ L2 L3/- KE E
U
S
U
n
L2L1L2
L1
6.3 Connection to an AC system
Risk of injury, fire and damage to property due to a short circuit!
According to DIN VDE 0100-430, devices used to protect against a short
circuit when terminals L1/+, L2 und L3/- are coupled to the IT system to be
WARNING
monitored can be omitted if the wiring is carried out in such a manner as
to reduce the risk of a short circuit to a minimum. Ensure short-circuit
proof and earth-fault proof wiring.
6.4 Connection to a DC system
Risk of injury, fire and damage to property due to a short circuit!
According to DIN VDE 0100-430, devices used to protect against a short
circuit when terminals L1/+, L2 und L3/- are coupled to the IT system to be
WARNING
monitored can be omitted if the wiring is carried out in such a manner as
to reduce the risk of a short circuit to a minimum. Ensure short-circuit
proof and earth-fault proof wiring.
U
n
U
S
*
*
U
n > 690 V
=> F 2A
A1/+ A2/- L1/+ L2 L3/- KE E
L+
L−
*
23
For systems with a nominal voltage > 690 V and with overvoltage
category III, a fuse for the connection to the system to be monitored must
be provided. * 2A fuses are recommended.
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 24
ConnectionConnection
A1/+ A2/- L1/+ L2 L3/- KE E
U
S
6A
I1 I2 I3 A B
X1
I1
I2
A
BI3
Q1
Q2
M+
+
high activelow active
RS-485
Bus
RS-485
Bus
V
A
active adjustable
passive adjustable
X1
Currentmeter
Voltagemeter
TESTRESETDeactiv.
Device
+24 V
I1…I3 (X1) Configurable digital inputs (e.g. Test, Reset, …)
A, B (X1)
Serial interface RS-485,
termination by means of a DIP switch R
+ (X1)
Supply voltage of the inputs and outputs I, Q and M.
Electrical overload protection. Automatic shutdown in
the event of a short circuit and transient (resettable).
If the supply is via an external 24 V source, then A1/+,
A2/- must not be connected.
Q1, Q2 (X1) Configurable digital output
M+ (X1)
Configurable analogue output
(e.g. measuring instrument)
(X1)
Reference potential ground
6.5 Connection to the supply voltage
Danger of damage to property due to faulty connections!
The device can be damaged if the unit is simultaneously connected to the
supply voltage via the X1 interface and A1/+, A2/- terminals.
CAUTION
Do not connect the device simultaneously via X1, and A1/+, A2/- to different supply voltages.
External power supply used to power the ISOMETER® via terminal X1 must
fulfil the noise emission and immunity standards of the required application. For wiring longer than 1 m, shielded cables must be used.
6.6 Connection to the X1 inteface1
24
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 25
ConnectionConnection
RJ45
11
12
14
24
22
21
6.7 Connection to the Ethernet interface ETH
Connect to other ISOMETER®s with a RJ45 plug or network several ISOMETER® in a STAR
topology by means of a switch. (refer to 12. “Special functions for coupled IT systems”
from page 63)
6.8 Connection to relay interfaces 1 and 2
6.9 Position the terminal covers and click it into place
Relay 111 Common contact 12 Normally open (N/O) 14 Normally closed (N/C)
Relay 221 Common contact 22 Normally open (N/O) 24 Normally closed (N/C)
25
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 26
ConnectionConnection

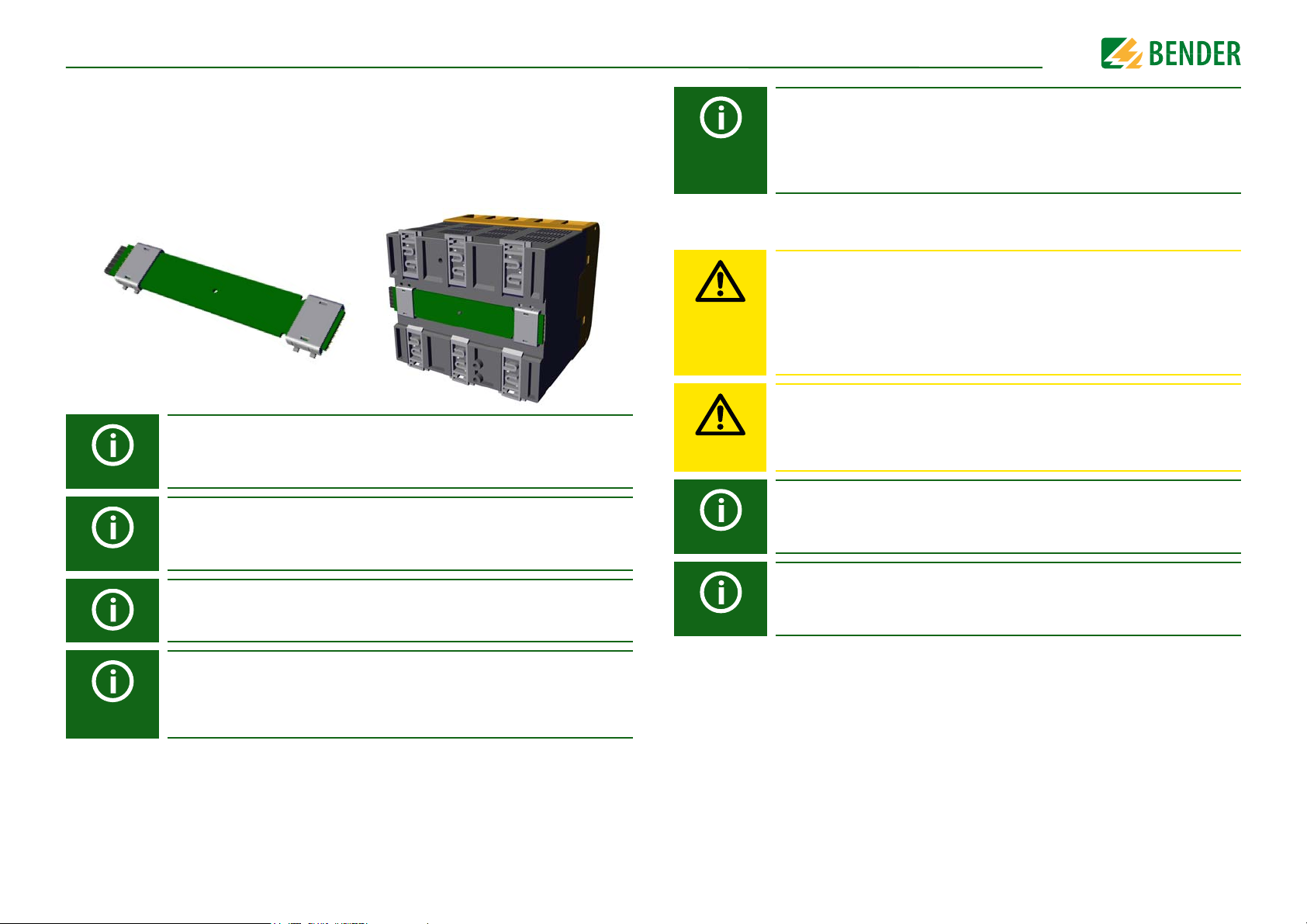

6.10 Connection to the BB bus
The BB bus is an interface that enables Bender devices to communicate with each other.
It can be used with an ISOMETER® and one or more EDS44x–S. For this purpose, the BB
bus is installed at the rear side of both devices and afterwards, both devices are mounted
next to each other on the DIN rail. For further information, refer to the quickstart guide
enclosed to the BB bus PCBs.
If the ISOMETER® is combined with an EDS44x–S the BB bus 6TE connector
listed in “Accessories” on page 75" must be ordered additionally. It is required to connect the ISOMETER® with the EDS44x–S.
Sensor variant devices that are additionally connected to the ISOMETER®
do not require additional supply voltage when the devices are connected
to the BB bus via X3.
Observe the maximum output current!
For devices connected to the BB-Bus: The maximum output current is reduced according to the formula for the calculation of I
formula in the Technical Data under “Digital outputs (Q1, Q2)” on page
73.
6.11 Connecting the EDS to the ISOMETER®
Risk of malfunctions due to excessive locating current on sensitive
system parts!
The locating current flowing between the IT system and earth can cause
CAUTION
CAUTION
controller faults in sensitive parts of the system, such as the PLC or relay.
Ensure that the level of the locating current is compatible with the system
to be monitored.
Risk of incorrect measurement
The supplied locating current may influence other connected insulation
fault location systems. If they measure the injected locating current, the
measurement might be incorrect.
Insulation monitoring is deactivated while the insulation fault location is
active.
LmaxX1
. Refer to the
26
A maximum of two EDS44x–S can be connected to an ISOMETER®.
When the BB bus is installed, the EDS44x must always be mounted on the
right side of the ISOMETER®. In addition, for protection against short circuits, a BB bus end bracket must be mounted to each first and last device
on the DIN rail featuring a BB bus.
The EDS44x–S must be connected to the ISOMETER® via the BB bus.
The EDS44x–L must be connected to the ISOMETER® via the BS bus.
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 27
Connection
L1/+
L3/-
L2
KE E
X1
A1/+ A2/-
PGH ON
IT-System
O
K
R(an)
4 0 kΩ/10kΩ
O
K
>20
MΩ>20
MΩ
iso685-P-D
ISOSCAN®
EDS440
I LI
n
ON
ON
L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12
K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12
EDS44x-S
EDS44x-L
13 14
23 24
1 2 3 4 5 6 7 8 9 10 11 12
l
k
I
n
I
L
ISOSCAN®
EDS440
l1 l2 l3 l4 l5 l6 l7 l8 l9 l10 l11 l12
k1 k2 k3 k4 k5 k6 k7 k8 k9 k10 k11 k12
ll
-1
>3sADDR.
RESET
+1
+10
TEST
CHANNELS / ADDR.
12
11109
87
345621
+10 +20 +40
Addr. Mode
n
∆
I
ALARM
L
∆
I
ALARM
SERVICE
COM/ADDR.
ON
L1
L2
L3
N
PE
U
n
U
s
6 A
U
s
6 A
to loads to loads to loads to loads
6.11.1 Connection example ISOMETER® to EDS
27
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 28
Connection
PGH ON
A1/+ A2/-
L1/+
L3/-
L2
KE E
iso685-D-P
13 14
23 24
1 2 3 4 5 6 7 8 9 10 11 12
l
k
I
n
I
L
ISOSCAN®
EDS440
l1 l2 l3 l4 l5 l6 l7 l8 l9 l10 l11 l12
k1 k2 k3 k4 k5 k6 k7 k8 k9 k10 k11 k12
ll
-1
>3sADDR.
RESET
+1
+10
TEST
CHANNELS / ADDR.
12
11109
87
345621
+10 +20 +40
Addr. Mode
n
∆
I
ALARM
L
∆
I
ALARM
SERVICE
COM/ADDR.
ON
U
n
L1
L2
L3
N
PE
U
S
U
S
WW
to loads to loads
6.11.2 Connection to a 3(N)AC system
28
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 29
Connection
PGH ON
A1/+ A2/-
L1/+
L3/-
L2
KE E
iso685-D-P
13 14
23 24
1 2 3 4 5 6 7 8 9 10 11 12
l
k
I nI
L
ISOSCAN®
EDS440
l1 l2 l3 l4 l5 l6 l7 l8 l9 l10 l11 l12
k1 k2 k3 k4 k5 k6 k7 k8 k9 k10 k11 k12
ll
-1
>3s
ADDR.
RESET
+1
+10
TEST
CHANNELS / ADDR.
12
11109
87
345621
+10 +20 +40
Addr. Mode
n
∆
I
ALARM
L
∆
I
ALARM
SERVICE
COM/ADDR.
ON
U
n
L1
L2
PE
U
S
U
S
WW
to loads to loads

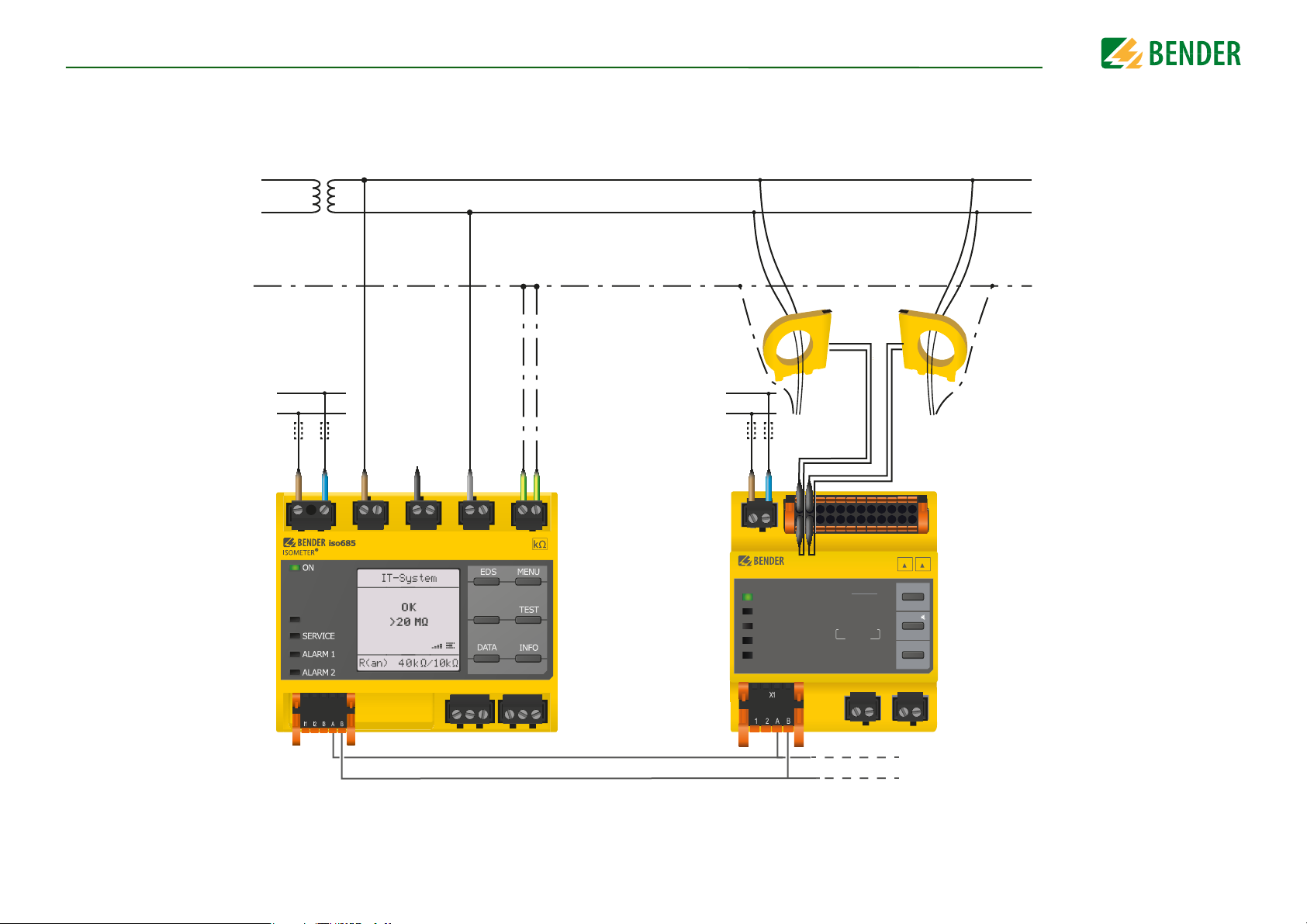

6.11.3 Connection to an AC system
29
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 30
Connection
PGH ON
A1/+ A2/-
L1/+
L3/-
L2
KE E
iso685-D-P
EDS44x-L
13 14
23 24
1 2 3 4 5 6 7 8 9 10 11 12
l
k
I
n
I
L
ISOSCAN®
EDS440
l1 l2 l3 l4 l5 l6 l7 l8 l9 l10 l11 l12
k1 k2 k3 k4 k5 k6 k7 k8 k9 k10 k11 k12
ll
-1
>3sADDR.
RESET
+1
+10
TEST
CHANNELS / ADDR.
12
11109
87
345621
+10 +20 +40
Addr. Mode
n
∆
I
ALARM
L
∆
I
ALARM
SERVICE
COM/ADDR.
ON
U
n
L+
L–
PE
U
S
U
S
WW
to loads to loads
6.11.4 Connection to a DC system
30
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 31
Connection
PGH ON
IT-System
O
K
R(an)
4 0 kΩ/10kΩ
O
K
>20
MΩ>20
MΩ
A1/+ A2/-
L1/+
L3/-L2KE E
X1
ISOSCAN®
EDS440
EDS441
ISOSCAN®
I LI
n
ON
PLC Input Output VFD
AC 24 V
DC 110 V
L1
L2
PE
U
s
U
n
M
6.11.5 System structure
31
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 32
7. Commissioning
Commissioning
7.1 General initial commissioning process
1. Check that the ISOMETER® is properly connected to the system to be monitored.
2. Connect the supply voltage to the ISOMETER®. Adjust the device using the commissioning wizard. Afterwards, the ISOMETER® performs a self test in four steps. The
alarm relays are not checked during this test. After completion of the test, the measured insulation resistance is shown on the display. If the value exceeds the response
values indicated in the lowest line of the display, the message "OK" will additionally
be displayed.
For customer-specific configured devices, the commissioning wizard
might be deactivated and cannot be run. In this case, the device is preset.
However, the commissioning wizard can be started as described at
“Commissioning EDS” on page 34.
3. Check the ISOMETER® in the system being monitored, e.g. using a suitable resistance to earth.
Observe the device status!
The device is in the alarm state until initial commissioning has been
complete.
After setting the response value R
for Alarm 2, the device starts a self-test, makes the
an2
first measurement and outputs the measured insulation resistance values of the IT system being monitored, then commissioning is completed.
7.2 Commissioning procedure - steps for commissioning
Commissioning the
ISOMETER
Install the device according to the wiring dia-
1
gram and documentation
Connect the supply
voltage
2
®
Commissioning the
EDS44x
Install the device according
to the wiring diagram and
documentation
Connect the supply voltage
System commissioning
ISOMETER
Disconnect supply voltage
of all devices
Connect the EDS to the
ISOMETER
* EDS44x–L: use BS bus
* EDS44x–S: use BB-Bus
®
with EDS44x
®
Commissioning the
ISOMETER
Connect the system vol-
3
tage
Run the commissioning
wizard
®
4
The ISOMETER
performs a self test
5
Function test with a suitable resistance between system and earth. Resistance
6
value: 50% of the response
value Alarm 2
Remove the resistance A CT connection test is per-
®
7
Set BS address = 1 Master
(corresponds to factory
8
setting)
Adjust basic settings if
necessary
Commissioning the
EDS44x
The ON LED flashes until
the device is ready for use
Set the BS address using
the rotary swiches on the
EDS44x–L front panel.
The channel LEDs lights to
show the set address.
Delete the alarm messages
as described in the device
documentation
The EDS44x is properly
connected and ready for
operation
formed every 10 minutes.
During the test the LED ON
blinks
9
The ISOMETER® is
10
properly connected
and functions reliably
11
System commissioning
ISOMETER
Connect the supply voltage to all devices
Set EDS Mode in the ISO-
METER
EDS -> General -> Mode
Search for adjustable
measuring channels in the
ISOMETER
im ISOMETER
Activate measuring channels in ISOMETER
EDS -> Enable channel
Set the max. locating current ISOMETER
EDS -> General -> Current
* EDS440-x: 10…50 mA
* EDS441-x: 1…5 mA
Make any other necessary
settings for the EDS44x in
the ISOMETER
Function test with a suitable resistance between sys-
tem and earth. Resistance
value: 50% of the response
value Alarm 2
Remove the resistance
ISOMETER® and EDS44x
combination is properly
connected and functions
reliably
®
with EDS44x
®
menu
®
menu
®
-Menu
®
menu
®
menu
®
menu EDS
32
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 33
CommissioningCommissioning
Language 5.6.2
• Deutsch
O English
O ...
Date 5.6.4
28.07.2017
Min. 1
Max. 12
Commissioning 5.6
Please set the cur-
rent date and time
2/10
Commissioning 5.6
Please select the
network type that
fits your installa-
tion.
5/10
System type 5.6.6
• DC
O AC
O 3AC
Date 5.6.8
• Power circuits
O
Control circuits
O Generator
O
High capacitance
O Inverter > 10 Hz
O Inverter <10 Hz
Commissioning 5.6
Please select a profile that suits your
application.
7/10
Datum 5.6.7
• amanual
o auto
o 1 cycle
Inbetriebnahme 5.6
Please select the
EDS mode
7/10
7.3 Initial commissioning
Check network function!
When the device has been integrated into a network, the impact on the
network has to be checked with the device switched on and off.
Follow the instructions of the commissioning wizard on the display.
7.3.1 Set language
The language selected here will be used in the menu and for device messages.
7.3.2 Set time and date
Alarm messages in the history memory and the insulation resistance value over time can
only be assigned correctly to the isoGraph when the date and time are set correctly.
7.3.3 Set system type
By setting the system type the insulation monitoring device can be optimally adapted to
the system to be monitored. The system type is essential information for the insulation
monitoring device in order to determine the insulation resistance correctly.
7.3.4 Set profile
In order to optimally adapt the insulation monitoring device to the system to be
monitored, select a profile here that suits your system. For an overview of the profiles, refer to Page 67. The profile "power circuits" is suitable for most IT systems.
33
7.3.5 Setting EDS mode
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 34
CommissioningCommissioning

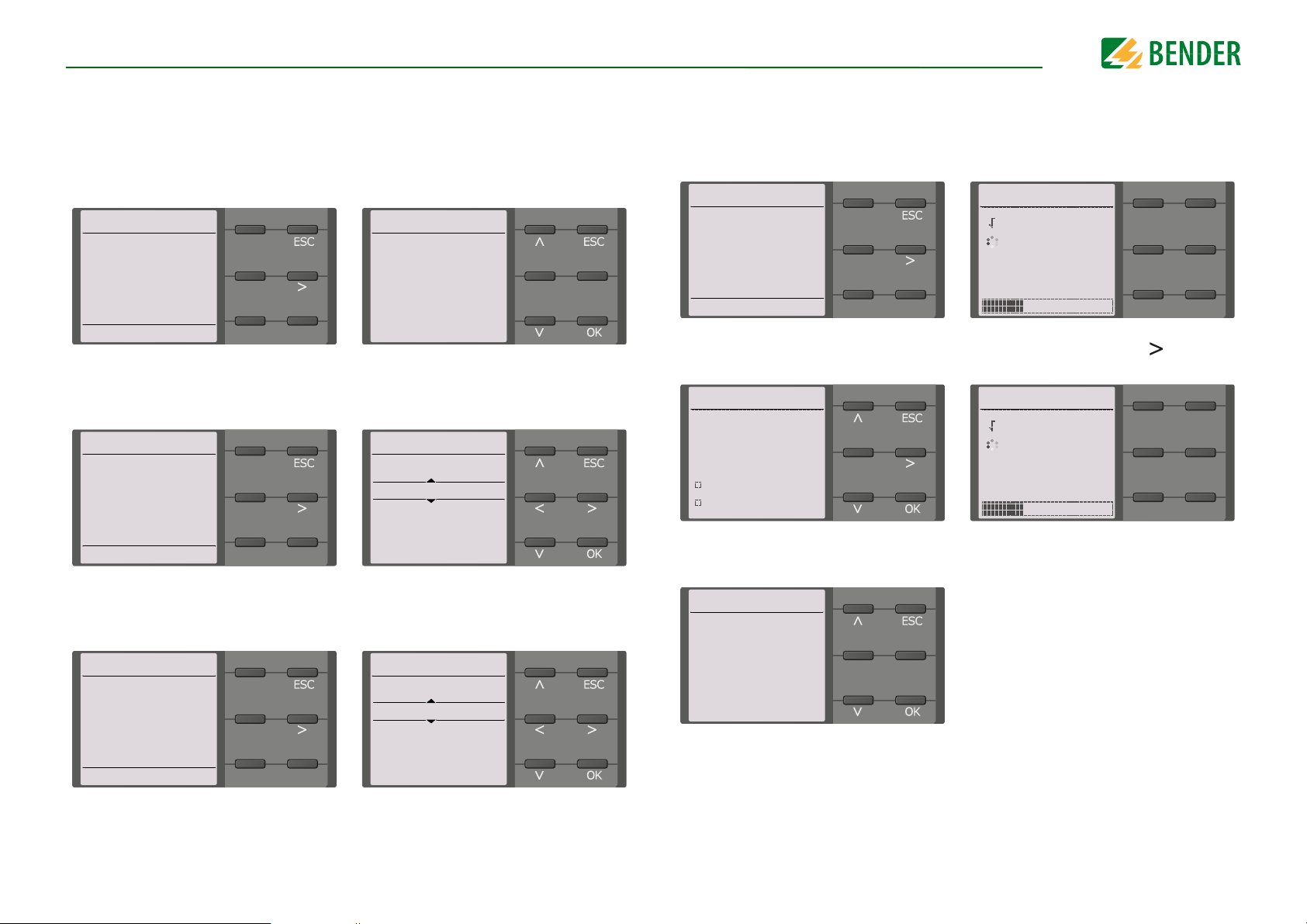

Current 5.6.9
o 1 mA
o 1.8 mA
o 2.5 mA
o 5 mA
• 10 mA
Inbetriebnahme 5.6
Please select
the locating
current
8/11
Alarm 1 5.6.9
40 k
Ω
Min. 1k
Ω
Max. 10M
Ω
Commissioning 5.6
Please set response
value R(an1)for
Alarm 1
8/10
Alarm 2 5.6.10
10 k
Ω
Min. 1k
Ω
Max. 10M
Ω
Commissioning 5.6
Please set response
value R(an2) for
Alarm 2
9/10
Channel
BB-Bus
BS-Bus
33 %
Scanning channel2.2
Search for
EDS channels?
Cancel Start
Channel
BB-Bus
BS-Bus
33 %
Activating ch. 2.3
Select all
No selection
invert selection
Channel 1 (BS 2/1)
channel 2 (BS 2/2)
Current 5.6.9
o 1 mA
o 1.8 mA
o 2.5 mA
o 5 mA
• 10 mA
7.3.6 Setting EDS current
Set the maximum locating current.
EDS441: 1-5 mA
EDS440: 10-50 mA
For further information, refer to “Current” on page 49.
7.3.7 Set response value R
You can set the prewarning response value here. A value of 100 Ω/V is recommended for
the prewarning.
7.3.8 Set response value R
The response value for the main alarm can be set here.A value of 50 Ω/V is recommended
for the main alarm.
for Alarm 1
an1
for Alarm 2
an2
7.4 Commissioning EDS
Proceed as follows to put into operation an EDS after commissioning the ISOMETER®:
1. First, search for all available measuring channels. Menu path: Menu/EDS/Scan channels.
2. Activate all or only selected measuring channels. Additionally, select the required menu item, confirm your selection with "OK" and start activation with Menu path: Menu/EDS/Activate channel.
3. Test if the maximum locating current to the EDS is correct and adjust if necessary (refer to 7.3.6 "Setting EDS current" on page 34). Menu path: Menu/EDS/General/Current
34
In addition to this chapter, commissioning of the ISOMETER® in combination with an EDS
is described in the “Commissioning procedure - steps for commissioning” on page 32.
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 35
7.5 Recommissioning
If the device has already been put into operation once, the self test will be carried out
shortly after connecting the supply voltage. The commissioning wizard will not restart.
The commissioning-assistent wizard can be manually started using the menu path:
Menu/Device settings/Commissioning
This menu can be used to modify settings made previously.
Observe the device status!
Once initial commissioning has been completed and the initial measurement has been taken, the device changes from the alarm state to normal
state by adhering to the set response values.
CommissioningCommissioning
35
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 36
8. Display
IT-System
OK
230 k
Ω
R(an) 40kΩ/10k
Ω
OK
230 k
Ω
PGH ON
1/4
7 kΩ7 kΩ
Insulation fault
PGH ON
Display

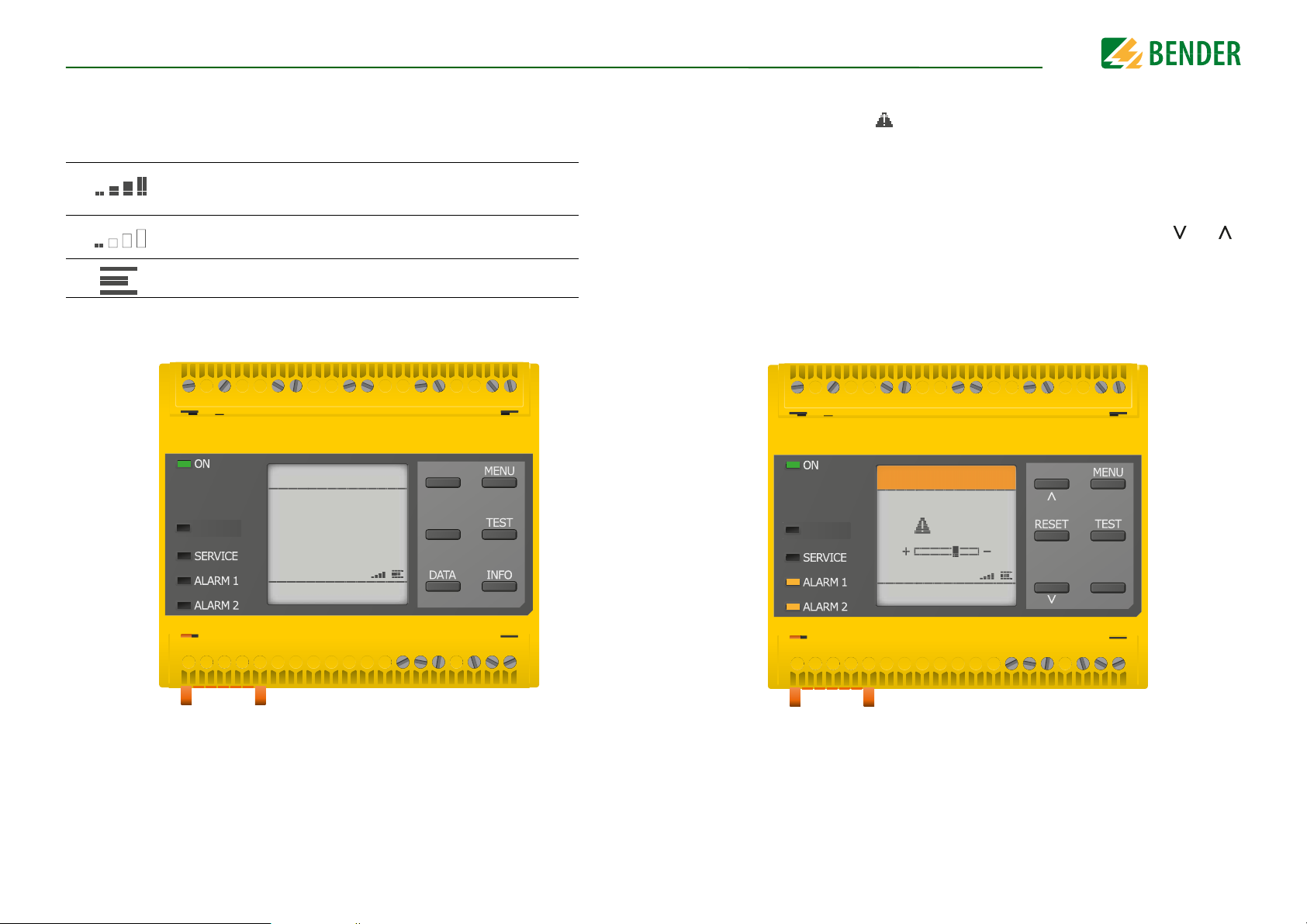

8.1 Standarddisplay
In normal operation, the ISOMETER® displays the message OK and below the latest
measured insulation resistance.
The signal quality of the measurement suits the selected profile.
The better the signal quality, the faster and more exact the device can
measure.
The signal quality of the measurement does not suit the selected profile. Select a different measurement method.
Update period between the measuring pulses
In the bottom line of the display, the set threshold values for R(an) are shown. In the example below, R
=40 kΩ und R
an1
an2
=10 kΩ.

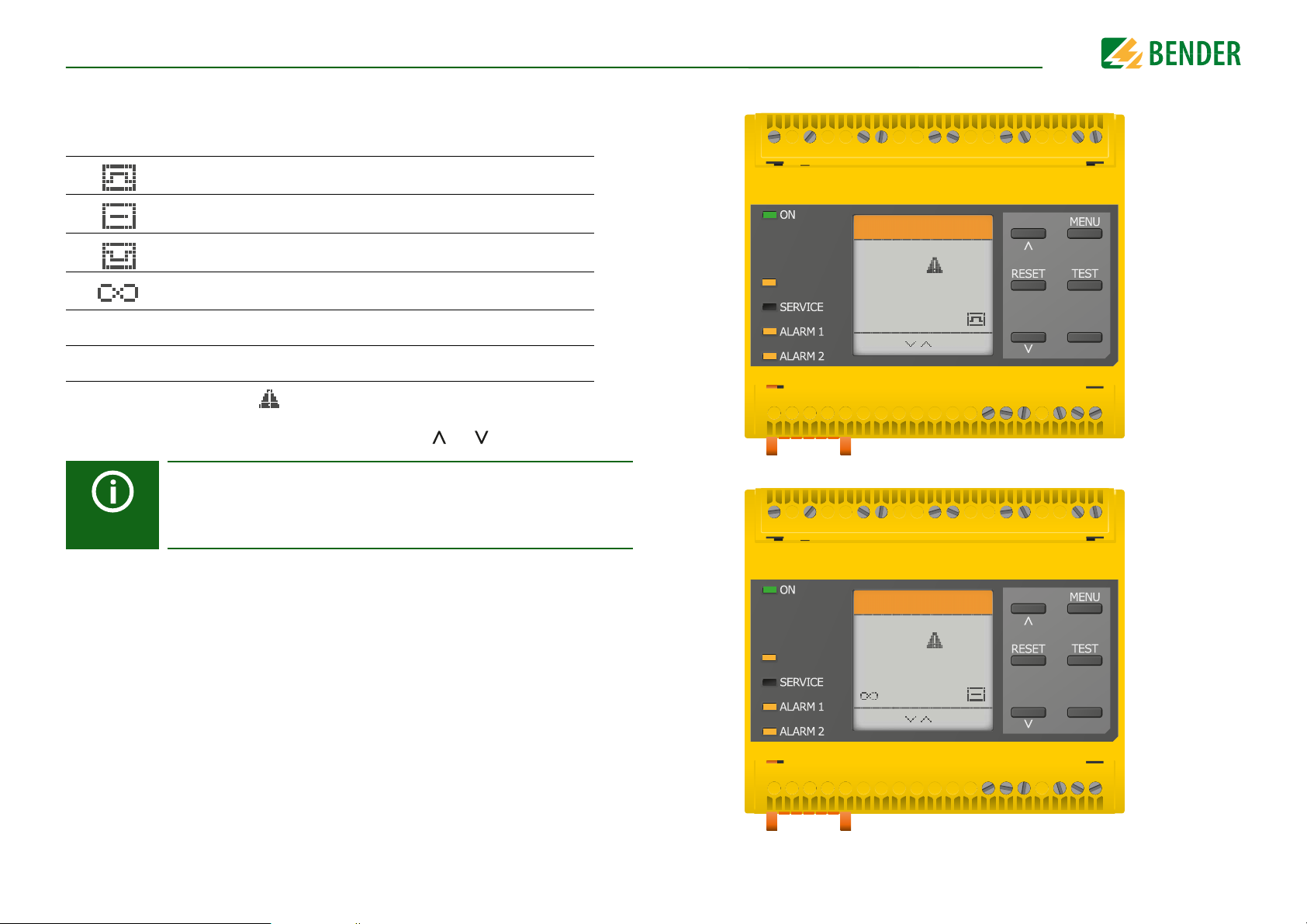

8.2 Fault display (active)
An active fault is displayed by .
The upper part of the display becomes orange and displays the fault message.
Depending on the type of fault, the LEDs ALARM 1, ALARM 2 or SERVICE are activated.
In the following example, the resistance is detected. Since the values R
=20 kΩ are both below the set response value, ALARM 1 and ALARM 2 are triggered.
R
an2
If several fault messages occur, you can navigate through the faults using the and
buttons.
=100 kΩ and
an1
36
If the value falls below R
then the additional information regarding the DC shift will be displayed, as illustrated
above.
in a DC system or a DC shift is recognised in an AC system,
an1
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 37
DisplayDisplay
1/4
3x
IT-System

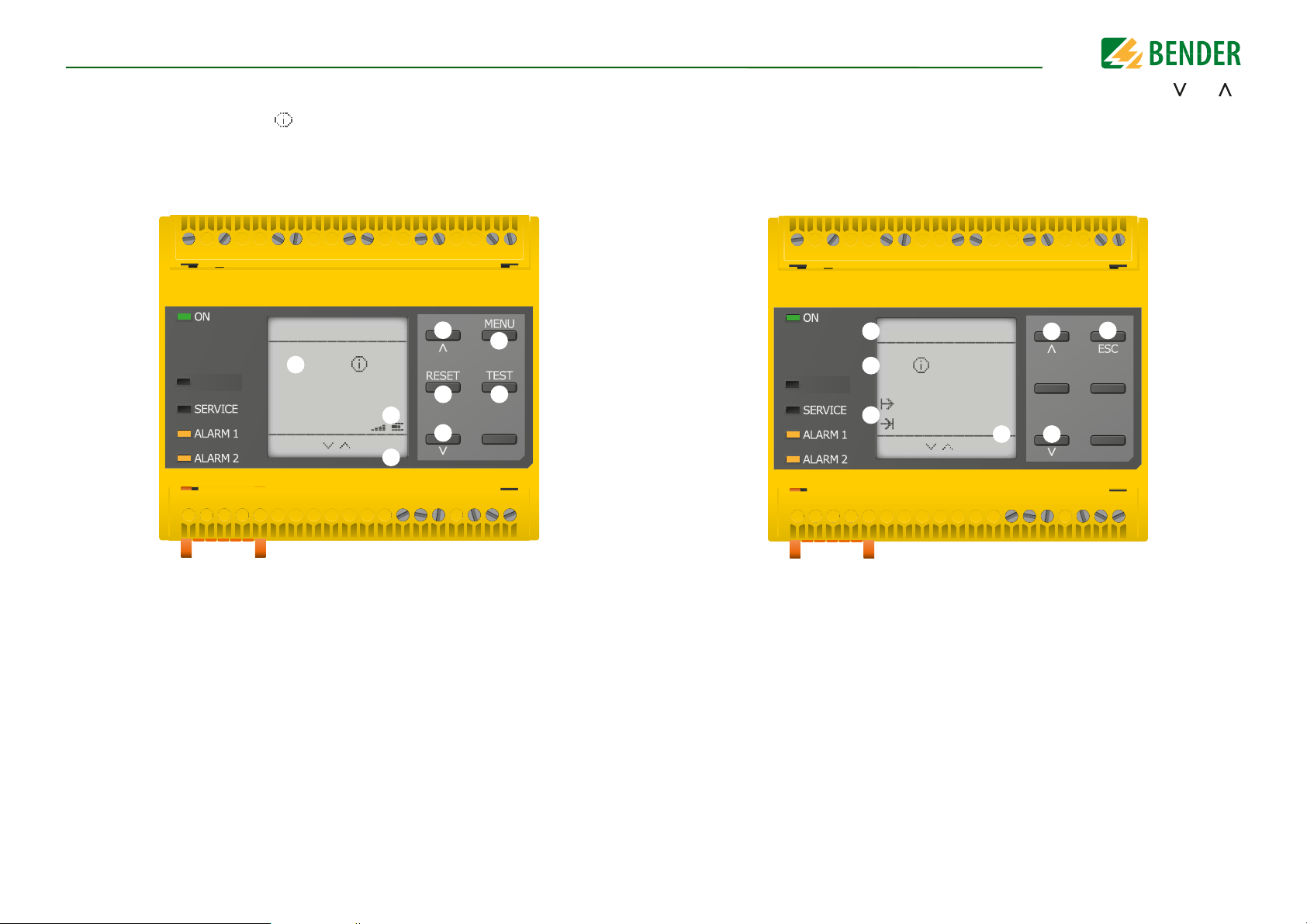

Device keypad
1 View next fault message
2 MENU - Selection
3 Acknowledge fault
4 Carry out test measurement
5 Previous fault message
Display
6 Number of faults occured and faults
7 Signal quality and measuring pulse
8 Number of the selected fault/Number of fault messages
230 k
Ω
230 k
Ω
PGH ON
2/4
28.03.14 17:0 2
28.03.14 17:18
7 kΩ7 kΩ
Device keypad
1 View next fault message
2 Exit view
3 View previous fault message
Display
4 Fault description
5 Alarm vaue
6 Fault occurance/Fault resolution
7 Number of the selected fault/Number of fault messages
Insulation fault
PGH ON
8.3 Fault display (inactive)
An inactive fault is displayed by . If several faults have occurred, the number of faults
will also be indicated.
This message means that there has been a fault in the past but the device is no longer in
the fault condition.
6
1
3
7
5
8
2
4
If several fault messages occur, you can navigate through the faults using the and
buttons. In addition to the type of fault and the associated alarm value, you can see when
the fault has occurred and how long it has been active.
4
1
2
5
6
7
3
37
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 38
DisplayDisplay
RESET

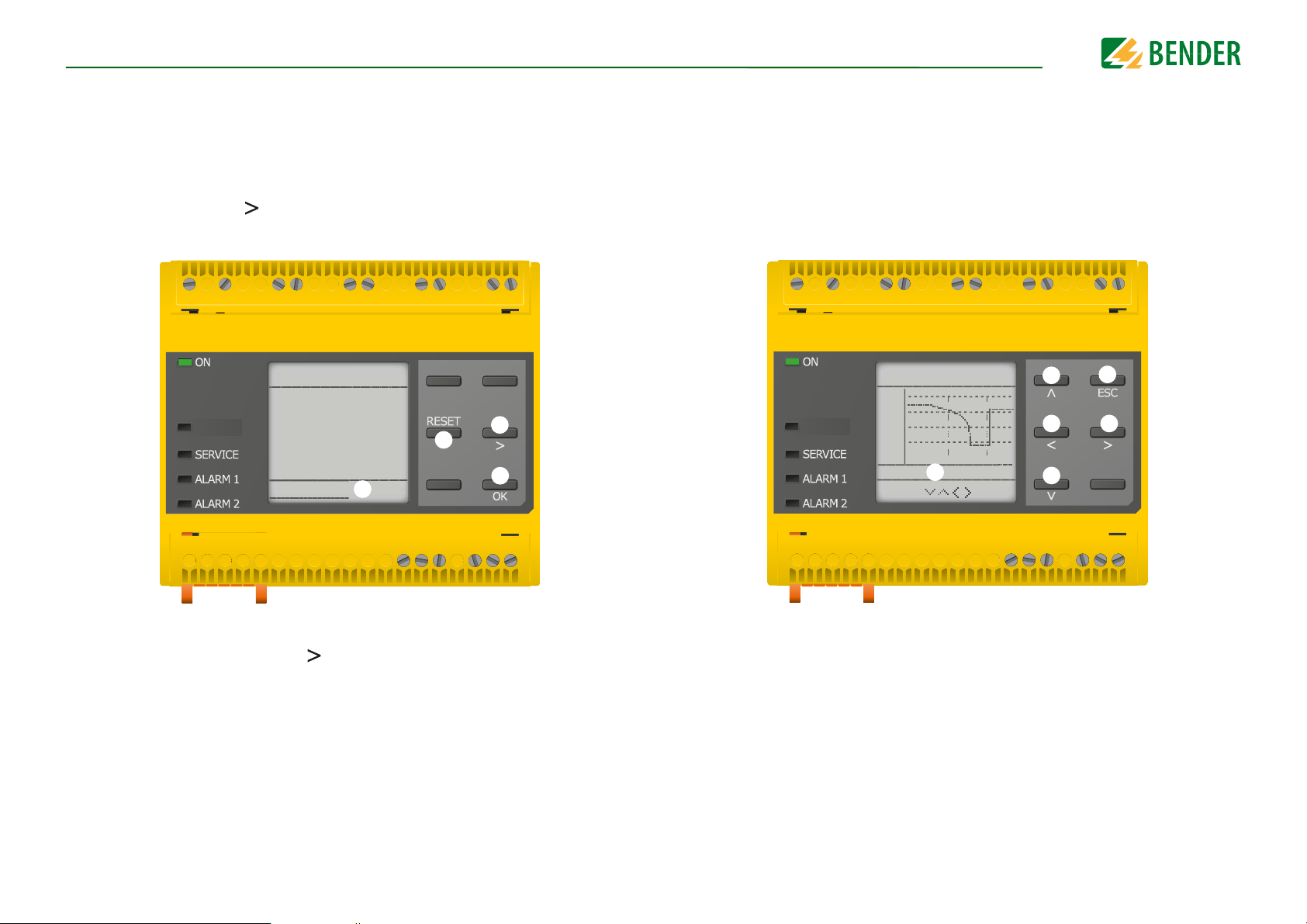

3.2RESET
Device keypad
1 Press RESET button
2 Select RESET with
3 Confirm to clear the fault memory with the OK button
Display
4 Function - Display
Cancel
Reset current
messages? All
messages are
saved in the
history memory.
PGH ON
1/4
,001
,010
,10 0
1,0
MΩ
16:26 16:52
2
Data-isoGraph
Device keypad
1 Change measured value (next value)
2 Exit view
3 Change scale (Zoom in)
4 Change scale (Zoom out)
5 Change measured value (previous value)
Display
6 Current timescale
Hour
PGH ON
8.4 Acknowledging a fault message
In order to acknowledge the fault message and return to the ISOMETER®'s standard display, all faults must be acknowledged by means of the reset button .
This means that fault messages can only be reset when the cause of the fault has been
eliminated.
Press the reset button, then and OK to clear the fault memory. The ISOMETER® then returns to the standard display.
2
1
3
4
8.5 Data-isoGraph
The isoGraph represents the chronological sequence of the insulation resistance over
time. This graphical representation can be displayed over the following time periods:
hour, day, week, month and year.
The measured values for individual representations are stored in a separate memory. Up
to 100 measured values are available to represent each graph and the resolution of each
graph is determined by these values.
1
3
6
5
2
4
38
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 39
DisplayDisplay
8/8
28.03.14 17:0 2
28.03.14 17:18
15kΩ
4.1
Device keypad
1 View next message
2 Exit view
3 View previous message
Display
4 Fault description
5 Alarm vaue
6 Fault occurance/Fault resolution
7 Number of the selected fault/Number of fault messages
Insulation fault
History
PGH ON
IT-System
R(an) 40kΩ/10k
Ω
Initial
measurement
Initial
measurement
PGH ON
8.6 History memory
Up to 1023 alarm messages and device errors are stored in the history memory with date
and time stamp. When the history memory is deleted, the minimum insulation resistance
will also be reset under Menu/ Data Measured values - Data insulation - Reset.
R
min
2
4
5
6
1
7
3
8.7 Initial measurement
During the initial measurement, the device records all measured values.
All measured values that may have been recorded before will be discarded if a new initial
measurement is started.
39
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 40
DisplayDisplay
IT-System
ISOnet active
R(an) 40k
Ω
/10k
Ω
ISOnet active
PGH ON
IT-System
Automatic testAutomatic test
R(an) 40kΩ/10k
Ω
PGH ON

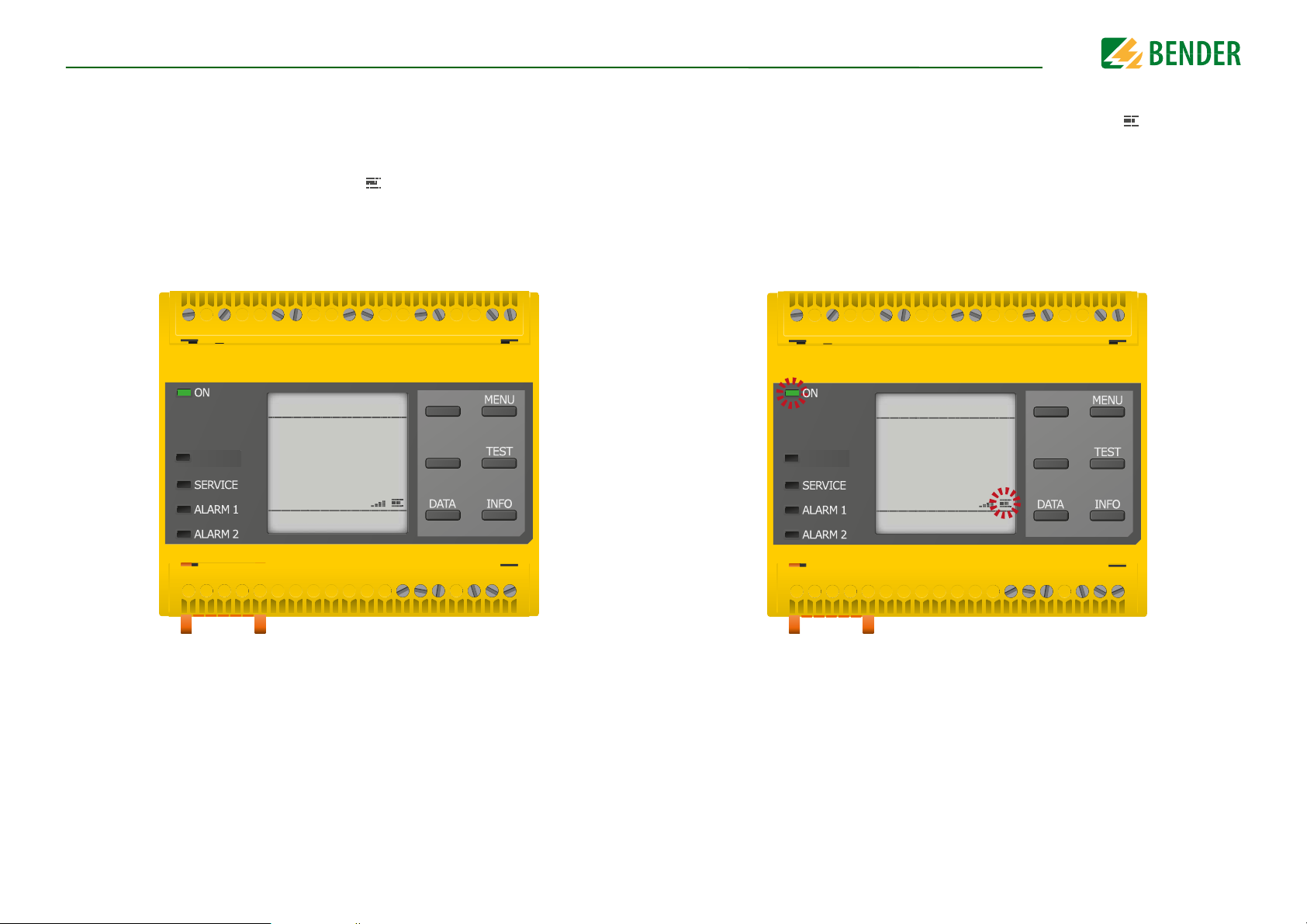

8.8 ISOnet mode
The ISOMETER® displays the message "ISOnet active" when the ISOMETER® is in ISOnet
mode, but it does not make any measurements.
In this state, The "ON" LED lights continuously and
the bar indicating the measurement progress is not pulsing.
8.9 Automatic test
A blinking "ON" LED and the bar indicating the measurement progress is pulsing (see
bottom right of the display) indicates that the ISOMETER® is actively measuring in ISOnet
mode.
The ISOMETER® first performs a self test. During this test, the connection to the IT system
and to earth are checked. Following this, the ISOMETER® takes an initial measurement
and records all measured values (see Page 39).
Hereafter, the ISOMETER® measures for one measuring cycle and then the authorisation
for insulation measurement is forwarded to the ISOMETER® with the next higher address.
40
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 41
8.10 Insulation fault location
1/2
1x1x
43 s
IT-System
PGH ON
Fault locationFault location
1/2
1x1x
s
IT-System
PGH ON
Fault locationFault location
Display
When EDS mode is activated, the ISOMETER® indicates the message "Ins. fault locat.".
Below, on the left side it indicates which EDS mode is activated. On the right side it indicates the polarity change of the measuring pulses including the pause in between. During
the different pulse phases the following symbols are shown.*
positive measuring pulse *
Pause *
negative measuring pulse *
The insulation fault location has been started manually and runs continuously. No insulation measurement takes place.
43 s
- - -
An active fault is displayed by . The upper part of the display will become orange and
displays the fault message. The alarm LEDs are lit. If several fault messages have
appeared, you can navigate through the faults using the and buttons.
Insulation fault location in auto mode and 1 cycle.
Time countdown of a measurement cycle.
Time can not be shown
* Visualisation of low frequency measuring processes
When using the LAB method, the pulse can last up to one minute.
Therefore, the symbol does not constantly "flash" but is continuously
shown for up to one minute during the pulse period.
Insulation fault location in auto mode and 1 cycle.
Insulation fault location has been started manually.
41
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 42
9. Settings
1. Alarm settings 1. Insulation alarm 1. Alarm 1
2. Alarm 2
3. Memory
2. DC Alarm 1. Alarm
2. U(DC-E)
3. Profile
4. System type
5. ISOnet 1. ISOnet
2. Number of devices
6. Device
7. t(start)
8. Coupling monitoring
9. Inputs 1. Digital 1 1. Mode
2. t(on)
3. t(off)
4. Function
2. Digital 2 1. Mode
2. t(on)
3. t(off)
4. Function
3. Digital 3 1. Mode
2. t(on)
3. t(off)
4. Function
10 Outputs 1. Relay 1 1. Test
2. Relay mode
3. Function 1
4. Function 2
5. Function 3
2. Relay 2 1. Test
2. Relay mode
3. Function 1
4. Function 2
5. Function 3
3. Digital 1 1. Test
2. Relay mode
3. Function 1
4. Function 2
5. Function 3
4. Digital 2 1. Test
2. Relay mode
3. Function 1
4. Function 2
5. Function 3
5. Buzzer 1. Test
2. Function 1
3. Function 2
4. Function 3
6. Analogue 1. Mode
2. Midscale
3. TEST
4. Function
2. EDS 1. General 1. Current
2. Mode
3. Use portable EDS
2. Scan for Channels
3. Enable Channel
4. Group settings 1. Channel 1. CT
2. CT Monitor
3. IΔL Response value
4. IΔL Response value
2. Outputs 1. Rela
y
1. TEST
2. Relay mode
3. Function 1
4. Function 2
5. Function 3
2. Buzzer 1. TEST
2. Function 1
3. Function 2
4. Function 3
3. Digital Output 1. TEST
2. Function 1
3. Function 2
4. Function 3
3. Digital Input 1. Mode
2. t(on)
3. t(off)
4. Function
4. Device settings 1. System type
2. Frequenc
y
3. Trigger
4. Fault memor
y
5. Channel 1. Name
2. CT monitor
3. IΔL Response value
4. IΔn Response value
6. Outputs 1. Rela
y
1. TEST
2. Relay mode
3. Function 1
4. Function 2
5. Function 3
2. Buzzer 1. TEST
2. Function 1
3. Function 2
4. Function 3
3. Digital Output 1. TEST
2. Function 1
3. Function 2
4. Function 3
7. Inputs 1. Mode
2. t(on)
3. t(off)
4. Function
8. Device 1. Name
2. Trigger
3. Fehlerspeicher
9. Service
9.1 Menu structure
SettingsSettings
42
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 43
3. Data meas. values
4. Control
5. History
6. Device settings 1. Language
2. Cloc
k
1. Time
2. Format
3. Summer time
4. Date
5. Format
6. NTP
7. NTP Server
8. UTC
3. Interface 1. Write access
2. Ethernet 1. DHCP
2. IP
3. SN
4. Std. GW
5. DNS Server
6. Domäne
3. BCOM 1. System name
2. Subsystem
3. Device address
4. Timeout
5. TTL for subscription
4. Modbus TCP 1. Port 502
5. BS-Bus 1. Address
4. Displa
y
1. Brightness
5. Password 1. Password
2. Status
6. Commissioning
7. Backup
8. Service
7. Info
t
R
R
an1
R
an2
Alarm 1
active
Alarm 2
active
Alarm 2
inactive
Hystersis
Alarm 1
inactive
Hystersis
43

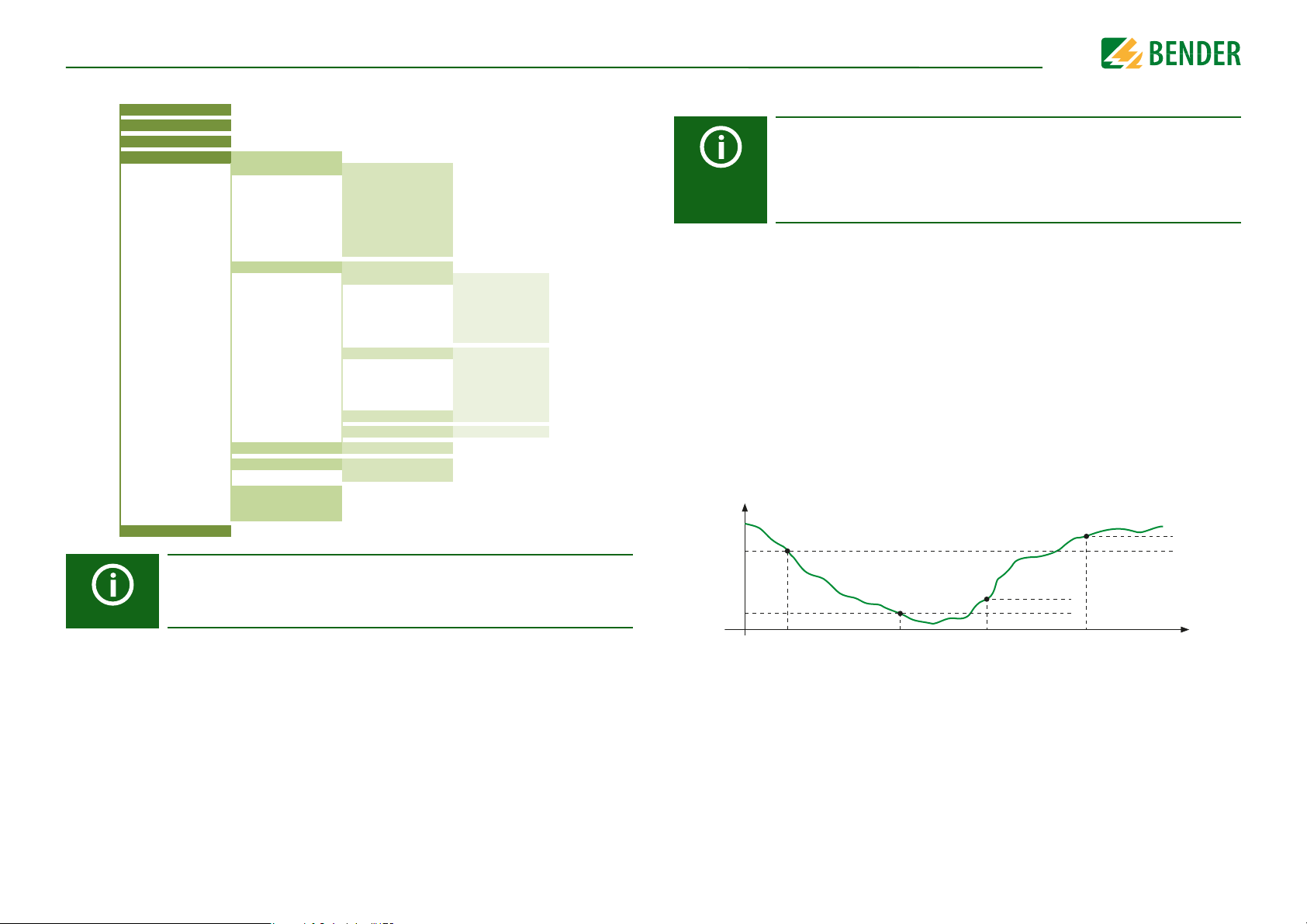

Menu items coloured RED
After activating password protection, access to the menu items coloured
RED is only possible after entering a password.
SettingsSettings
9.2 Settings in the device menu
Representation of the menu items in the chapter headings
The ISOMETER® settings will be explained in the order corresponding to
the device menu. In the following headings in this chapter, the information contained in brackets corresponds to the menu structure shown on
the previous page.
9.2 (1.0) Alarm settings
The threshold values for the insulation resistances of Alarm 1 and Alarm 2 can be specified in the alarm settings menu and can be adapted to the ISOMETER® user profile. A device password is required for entering the settings. You can adjust the following
functions:
9.2 (1.1) Insulation alarm
In the "Insulation alarm" menu, you can set the thresholds for the ISOMETER® Alarm 1 and
Alarm 2.
Activation or deactivation of the two alarm levels R
(Alarm 1) and R
an1
lustrated in the following graphic:
An alarm will become inactive as soon as the hysteresis of the set operating value is ex-
ceeded.
9.2 (1.1.1) Alarm 1
For Alarm 1, an insulation resistance of 1 k…20 M can be set irrespective of Alarm 2.
9.2 (1.1.2) Alarm 2
For Alarm 2, an insulation resistance of 1 k…20 M can be set irrespective of Alarm 1.
iso685-x-P_D00170_05_M_XXEN/05.2018
(Alarm 2) are il-
an2
Page 44

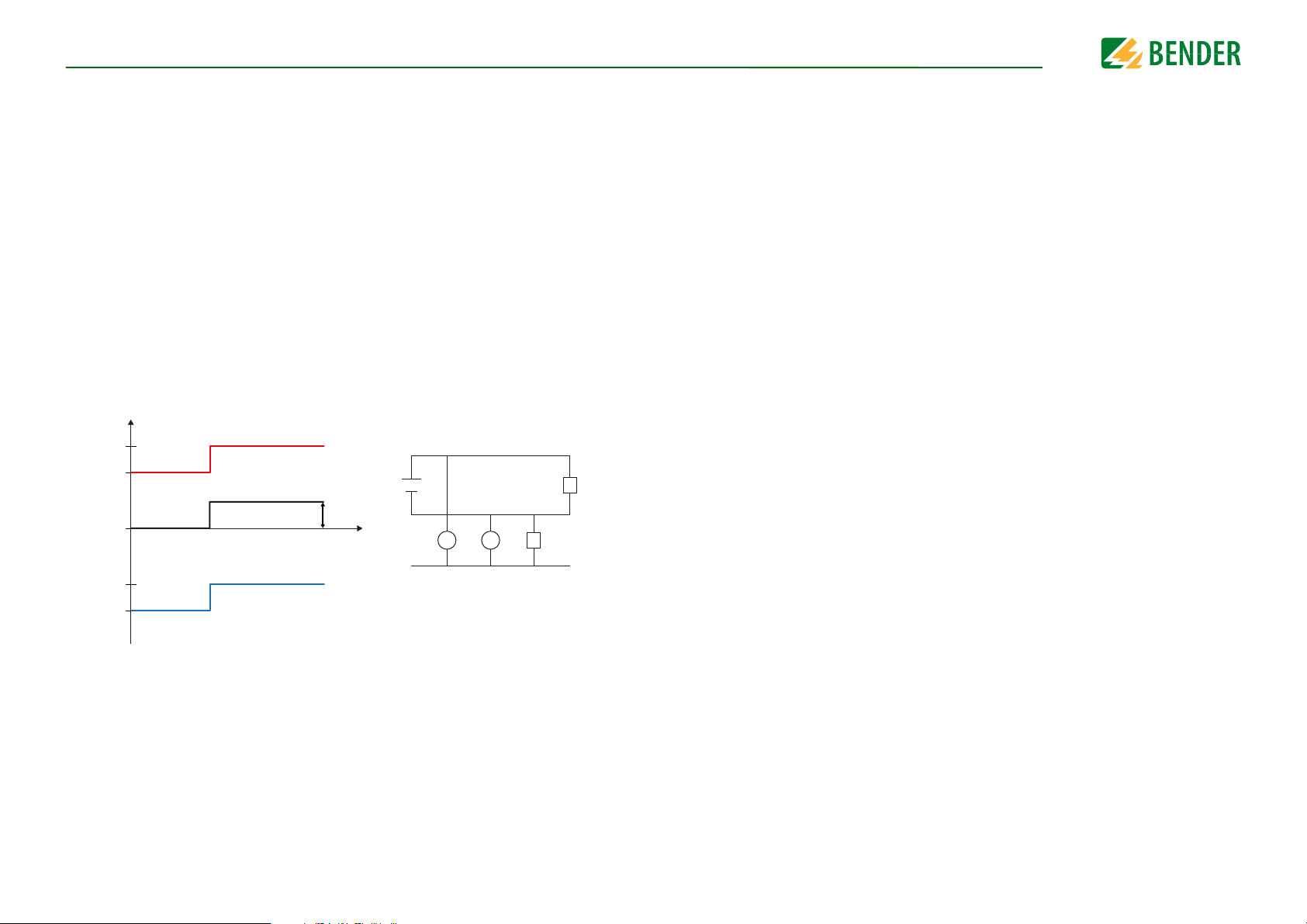

SettingsSettings
120 V
t
U
DC+
DC-
100 V
200 V
0 V
-80 V
-100 V
R
f
R
f
U1
U1
U2
U2
U
DC-E
=(U1+U2)/2=(120 V-80 V)/2=20 V
U
DC-E
9.2 (1.1.3) Fault memory
Automatic reset of inactive faults at the outputs of relay 1, relay 2, digital output 1, digital
output 2:
•on If a fault becomes inactive, the programmed outputs remain in fault
condition until they are manually reset.
•off If a fault becomes inactive, the programmed outputs automatically
change the state.
9.2 (1.2) DC alarm
The DC alarm is triggered in the event of a DC offset voltage (U
) in the system.
DC-E
9.2 (1.2.1) Alarm
•on The DC alarm is triggered in the event of a DC offset voltage.
•off The DC alarm is NOT triggered in the event of a DC offset voltage.
9.2 (1.2.2) U(DC-E)
Set the DC alarm to a value between 20 V and 1 kV.
9.2 (1.3) Profile
Adapt the applicabilty of the ISOMETER® to your system profile. For a description of the
profiles refer to “Diagrams” on page 67.
The following may be selected:
•Power circuits Suitable for most IT systems.
•Control circuits Not recommended for voltages >230 V.
•Generator Fast measuring times, fast fault location possible.
•High capacitance Suitable for systems with a high leakage capacitance.
•Inverter > 10 Hz Suitable for systems with a dynamic frequency control by means
of an inverter in the range 10…460 Hz.
•Inverter <10 Hz Suitable for systems with very low frequency control in the range
0.1…460 Hz.
•Customer specific Allows Bender service to make customer-specific settings
9.2 (1.4) System type
Adapt the ISOMETER® to the IT system to be monitored. The following may be selected:
•DC
•AC
•3AC
DC system (refer to
Single-phase AC system (refer to
)
23
3AC system (refer to
“Connection to a DC system” on page 23
“Connection to a 3(N)AC system” on page 22)
“Connection to an AC system” on page
9.2 (1.5) ISOnet
Make the settings to use the ISONet function.
The ISOnet function ensures via the Ethernet connection that only one ISOMETER® of the
interconnection is active when several ISOMETER®s are connected to an IT system.
For further information regarding the ISOnet function, refer to “System separation via
ISOnet” from page 64.
9.2 (1.5.1) ISOnet
Activate or deactivate the ISONet function
44
•off The ISOnet is deactivated
•BCOM The ISOnet function is activated via BCOM
9.2 (1.5.2) Number of devices
Configure the number of devices (2…20) in a subsystem.
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 45
SettingsSettings
I1
I2
A
BI3
Q1
Q2
M+
+
high activelow active
RS-485
Bus
RS-485
Bus
V
A
active adjustable
passive adjustable
X1
Currentmeter
Voltagemeter
TESTRESETDeactiv.
Device
+24 V
I
x
+
t
0
1
t(on)
Reaction
Impulse on
Reaction
Impulse off
I
x
+
t
0
1
t(on)
Reaction Reaction
Impulse on
Impulse off
9.2 (1.6) Device
Set the ISOMETER® insulation resistance measurement function to active or inactive:
•Active
•Inactive
The device is active.
The device DOES NOT measure the insulation resistance, the message
Device inactive appears on the display. The IT system is
NOT being monitored!
9.2 (1.7) t(Start)
The ISOMETER® can be operated with a startup delay of 0…120 seconds. The startup is
delayed until the first measurement takes place.
9.2 (1.8) Coupling monitoring
The ISOMETER® continuously monitors the coupling of energised systems. The coupling
of deenergised systems is monitored at 8 hour intervals. This monitoring function can be
activated or deactivated.
•on Coupling monitoring is activated.
•off Coupling monitoring is deactivated.
9.2 (1.9) Inputs
The ISOMETER® provides a total of three digital inputs.
The exemplary wiring diagram shows how the digital inputs can be wired:
9.2 (1.9.1) Digital 1
The following parameters can be set for the digital input:
9.2 (1.9.1.1) Mode
The operating mode for the digital input can be set to the following values:
•Active high An event is executed on the rising edge of the digital input (low to
high). Response time t(on) / t(off) after a switch-on signal.
X1 X1
< t(on)
•Active low An event is carried out on the falling edge of the digital input (high to
low). Response time t(on) / t(off) after a switch-off signal.
X1 X1
< t(on)
9.2 (1.9.1.2) t(on)
The response time t(on) after a switch-on signal can be set between 100 milliseconds and
300 seconds (refer to “9.2 (1.9.1.1) Mode”).
9.2 (1.9.1.3) t(off)
45
The response time t(off) after a switch-off signal can be set between 100 milliseconds and
300 seconds (refer to “9.2 (1.9.1.1) Mode”).
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 46
SettingsSettings
≥ 1
Response
Function 1
Function 2
Function 3

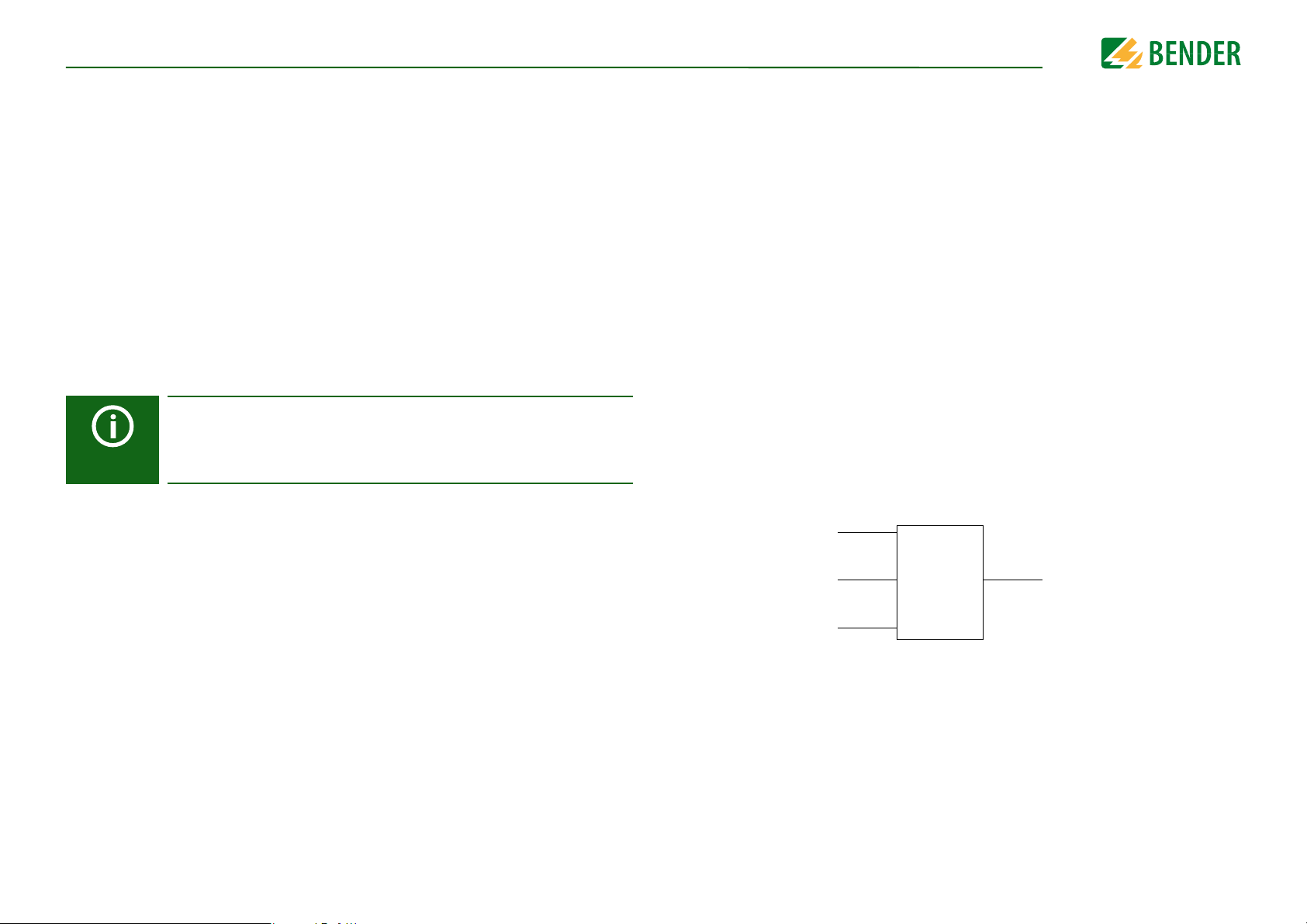

9.2 (1.9.1.4) Function
The ISOMETER® digital input functions can be configured differently:
•off Digital input without function
•TEST Device self test
•RESET Reset of fault and alarm messages
•Deactivate device The device DOES NOT measure the insulation resistance, the mes-
sage
Device inactive appears on the display. The IT system is
NOT being monitored!
•Start initial
measurement
All recorded measurements are discarded and a new measurement
will be started
9.2 (1.9.2) Digital 2
Refer to “9.2 (1.9.1) Digital 1”.
9.2 (1.9.3) Digital 3
Refer to “9.2 (1.9.1) Digital 1”.
Deactivating the ISOMETER® via the digital inputs
The digital inputs are not coupled to each other. To avoid accidental and
unintended deactivation of the ISOMETER®, care must be taken during
configuration to ensure that the inputs are assigned different functions.
9.2 (1.10) Outputs
The ISOMETER® provides a total of six outputs:
The following parameters can be set for the outputs:
9.2 (1.10.1) Relay 1
The following parameters can be set for each relay:
9.2 (1.10.1.1) TEST
The functional test of the relay can be activated or deactivated. This only applies to the
manual test and not to the periodic device self test:
•on The manual test checks the relay's switching function
•off The manual test does not check the relay's switching function
9.2 (1.10.1.2) Relay mode
The relay mode can be adapted to the application:
•N/C Normally closed- N/C operation contacts11-12-14 / 21-22-24 (in
fault-free condition, the alarm relay is energised).
•N/O Normally opened - N/O operation contacts
free condition, the alarm relay is de-energised).
11-12-14 /
21-22-24 (in fault-
9.2 (1.10.1.3) Function 1
Three functions can be assigned to one output. The functions are linked to an OR operator:
46
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 47
Select the appropriate setting for function 1. The following parameters can be set.
DC+ Alarm
Symmetrical alarm
DC- Alarm
0 %
25 %
50 %
75 %
100 %
SettingsSettings
•off The function is not used.
•Ins. Alarm 1 The status of the output changes when the value falls below the set
response value R
•Ins. Alarm 2 The status of the output changes when the value falls below the set
response value R
•Connection fault The status of the output changes when one of the following connection fault occurs:
• No low-resistance connection between the line conductors.
• No low-resistance connection between the terminals E and KE to
earth (PE).
• The load connected to the current output is too low.
• The load connected to the current output is too high.
• Load on X1 too high.
•DC- alarm The status of the output changes in the event of an earth fault in the
direction of DC when 75% of the value is exceeded. This does not
concern symmetrical faults. This function will only be carried out
when the value falls below the response value R
nominal system voltage is U
•DC+ alarm The status of the output changes in case of an earth fault in the
direction of DC+ when 25% of the value are exceeded. This does not
concern symmetrical faults. This function will only be carried out
when the value falls below the response value R
nominal system voltage is U
•Symmetrical alarm The status of the output changes in the event of a resistance ratio
between DC+ and DC- of 25 % to 75 %.
an1.
an2.
≥50 V.
n
≥50 V.
n
and when the
an1
and when the
an1
•Device fault The status of the output changes in the event of an internal device
error.
•Common alarm The status of the output changes on the occurrence of any alarm
and fault messages
(Ins. Alarm 1 & 2, DC–/DC+ alarm, symmetrical alarm, connection
and device errors).
•Measurement ended The status of the output changes at the end of the initial
measurement.
•Device inactive The status of the output changes when the device has been deactivated via a digital input or the control menu.
•DC offset alarm The status of the output changes on the occurrence of a DC offset
voltage in the system.
9.2 (1.10.1.4) Function 2
Refer to “9.2 (1.10.1.3) Function 1”.
9.2 (1.10.1.5) Function 3
Refer to “9.2 (1.10.1.3) Function 1”.
9.2 (1.10.2) Relay 2
Refer to “9.2 (1.10.1) Relay 1”.
9.2 (1.10.3) Digital 1
The following parameters can be set for each of the digital outputs:
9.2 (1.10.3.1) TEST
The functional test of the digital output can be activated or deactivated. This only applies
to the manual test and not to the cyclic device self test:
47
•on The manual test changes the status of the digital output.
•off The manual test does not change the status of the digital output.
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 48
SettingsSettings
X1
iso685
Q
x
+
X1
iso685
Q
x
+
or
X1
iso685
Q
x
+
X1
iso685
Q
x
+
internal
external
or
M
+
X1 X1
A
M
+
X1 X1
V

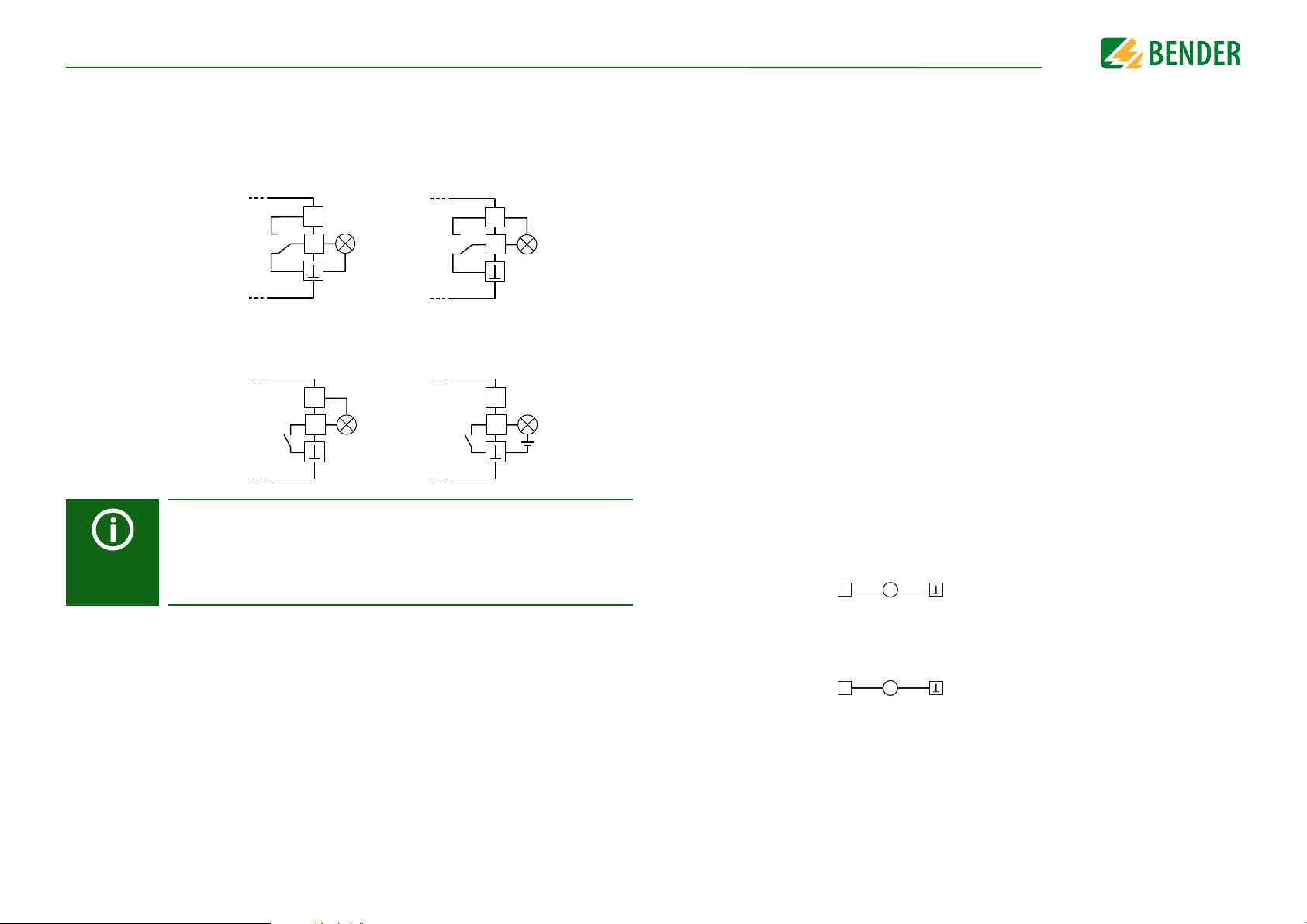

9.2 (1.10.3.2) Mode
The following settings can be used to set the operating mode for the digital output:
•Active In the active mode +24 V will be internally applied across the Qx
output.
•Passive In passive mode ≤ 32 V are externally connected (refer to the technical data). The output switches the applied potential to ground.
Observe the maximum output current!
Maximum output current in case of internal voltage supply
via A1/+ and A2/-: 200 mA in total to X1.
Also refer to the formula, given in the technical data, for calculating
. See “Digital outputs (Q1, Q2)” on page 73.
I
LmaxX1
9.2 (1.10.3.3) Function 1
Refer to “9.2 (1.10.1.3) Function 1”.
9.2 (1.10.3.4) Function 2
See “9.2 (1.10.1.3) Function 1”
9.2 (1.10.3.5) Function 3
See “9.2 (1.10.1.3) Function 1”
9.2 (1.10.4) Digital 2
Refer to “9.2 (1.10.3) Digital 1”.
9.2 (1.10.5) Buzzer
The following parameters can be set for the buzzer.
9.2 (1.10.5.1) TEST
The functional test of the buzzer can be activated or deactivated. This only applies to the
manual test and not to the cyclic device self test:
•on The manual test activates the buzzer sound.
•off The manual test does not activate the buzzer sound.
9.2 (1.10.5.2) Function 1
Refer to “9.2 (1.10.1.3) Function 1”.
9.2 (1.10.5.3) Function 2
Refer to “9.2 (1.10.1.3) Function 1”.
9.2 (1.10.5.4) Function 3
Refer to “9.2 (1.10.1.3) Function 1”.
9.2 (1.10.6) Analogue
The following parameters can be set for the analogue output.
9.2 (1.10.6.1) Mode
The operating mode of the analogue output can be set to the following values:
Current output
•0-20 mA Permissible load ≤ 600
•4-20 mA Permissible load ≤ 600
•0-400
Voltage output
•0-10 V Permissible load ≥ 1 k
•2-10 V Permissible load ≥ 1 k
μA
Permissible load ≤ 4 k
48
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 49
SettingsSettings
100 Ω 1 MΩ
I/U
20 mA / 400 μA
10 V
0 mA / 4 mA
0 V / 2 V
1 k
1 M
100
100 k
Ω
28 kΩ
120 k Ω
100 Ω 1 MΩ
I/U
20 mA / 400 μA
10 V
0 mA / 4 mA
0 V / 2 V
120 k Ω
28 kΩ
R
SKM
= 28 k or 120 k/midscale
A3= Measured value analogue output
R
F
= Insulation fault in k
RF
=
- R
SKM
(A2 - A1) * R
SKM
A3 - A
1
DC+ Alarm
Symmetrical alarm
DC- Alarm
0 %
25 %
50 %
75 %
100 %
0 V/2 V
0 mA/4 mA
0 µA
10 V
20 mA
400 µA
9.2 (1.10.6.2) Midscale
Select the appropriate midscale. The following parameters can be set:
•Linear The switching signal is linear to the insulation resistance in the indicated measuring range.
•28 k
•120 k
Ω
Ω
The switching signal is analogue to the midscale of 28 k or 120 k
on a measuring instrument.
Calculation of the insulation resistance using the analogue output:
Lower value
Analogue output A
0 mA
4 mA
0 µA
0 V
2 V
Upper value
Analogue output A
1
20 mA
20 mA
400 µA
10 V
10 V
2
9.2 (1.10.6.4) Function
Select the appropriate setting for the analogue output. The following parameters can be
set.
•Insulation value Depending on the measured insulation value, an analogue current
or voltage signal is provided at the output.
•DC shift Depending on the measured DC shift, an analogue current or voltage signal is provided at the output. This setting can only be used
when Linear is selected in the menu "Midscale".
9.1 (2.0) EDS (insulation fault location)
9.2 (2.1) General
9.2 (2.1.1) Current
Risk of malfunctions due to excessive locating current on sensitive
system parts!
The locating current flowing between the IT system and earth can cause
CAUTION
controller faults in sensitive parts of the system, such as the PLC or relay.
Ensure that the level of the locating current is compatible with the system
to be monitored.
9.2 (1.10.6.3) TEST
The functional test of the analogue output can be activated or deactivated. In this way,
the analogue output is adjusted once for the entire range. This only applies to the manual test and not to the cyclic device self test:
•on The manual test checks the analogue output function.
•off The manual test does not check the analogue output function.
49
Set the maximum locating current in the ISOMETER®. You can find the device-specific maximum locating currents in the table below.
•1 mA
•1.8 mA
•2.5 mA
•5 mA
•10 mA
•25 mA
•50 mA
for EDS441-x
for EDS441-x
for EDS441-x
for EDS441-x, EDS440-x
for EDS440-x
for EDS440-x
for EDS440-x
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 50
SettingsSettings
Inactive insulation fault location
(insulation measurement)
Active insulation fault location
for 1 cycle
Insulation fault location pauses
(insulation measurement)
Active insulation fault location
continuously
New insulation fault
Mode: auto/1 cycle
No insulation fault
Insulation fault
still present
Manual start
Manual start.
The device retains the
original mode setting
Manual stop.
The device retains the
original mode setting
Mode: 1 cycle
Mode: auto
9.2 (2.1.2) Mode
To locate insulation faults, select one of the three available modes for insulation fault
location.
•Manual
•auto
•1 cycle
In manual mode, the insulation fault location does not start automatically.
If you start the insulation fault location, it remains active without considering the insulation resistance and the alarm message of the ISOMETER®.
In auto mode, the insulation fault location starts automatically as soon as
the response value of alarm 2 of the ISOMETER® has fallen below the preset value. The insulation fault location is cyclically interrupted for an insulation measurement. If the insulation fault still exists after the interruption,
the insulation fault location starts again. The insulation fault location only
stops if alarm 2 is inactive. If a new insulation fault appears, the insulation
fault location restarts automatically.
In 1-cycle mode, the insulation fault location starts automatically as soon
as the response value of alarm 2 of the ISOMETER® has fallen below the
preset value. The insulation fault location is stopped after one cycle.
If the insulation fault still exists after the interruption, the insulation fault
location does NOT start again. If a new insulation fault appears, the insulation fault location restarts automatically for one cycle.
9.2 (2.1.3) Using a portable EDS
If you would like to use a portable EDS, activate this function here. After that, the insulation fault location process will be automatically adjusted.
•on
•off
Insulation faults can be located with a portable EDS.
Insulation faults cannot be located with a portable EDS
If the trigger mode is set to "auto", the use of a portable EDS must be activated in the menu as the measurement method is correspondingly adjusted at this menu point (also refer to “9.2 (2.4.4.3) Trigger”).
9.2 (2.2) Scanning channels
For a successful insulation fault location, all active measuring channels must be determined. Indicate if you would like to start the search for EDS measuring channels.
•Cancel
•Start
Aborts the scan process.
Starts the scan process (search) for EDS channels.
Also refer to “Commissioning procedure - steps for commissioning” on page 32.
If one bus device fails, the ISOMETER® asks whether it should search for
measuring channels and then automatically determines all channels
again. Also refer to
“” from page 70
.
9.2 (2.3) Activating channels
During initial commissioning all channels are inactive. Before configuring the channels
they must be activated in this menu.
Select which measuring channels you would like to activate. Multiple selection is possible
here.
50
Do not carry out a manual test during a manually started insulation fault
location, since the insulation fault location would be aborted by that.
•Select all
•No selection
•Invert selection
•Channel 1(BS 2/1)
All measuring channels are selected.
No channel is selected.
The current selection is inverted.
A single channel is selected.
…
•Channel 12 (BS 2/12)
Navigate to the required selection point using the and buttons. Confirm your selection by pressing "OK". The selected channels are activated with the button.
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 51
SettingsSettings
9.2 (2.4) Group settings
Use group settings to adjust the settings for several EDS or EDS channels simultaneously
or to read out settings.
If you would like to make settings for each EDS or each EDS channel individually, then
please refer to the menus from “9.2 (2.5) Channel” to “9.2 (2.8) Device”.
The values indicated in the group settings are not the values of the individual EDS but the factory settings or the last adjusted values in the
ISOMETER®. To see the values of the individual EDS, please navigate to the
menu points “9.2 (2.5) Channel” to “9.2 (2.8) Device”.
9.2 (2.4.1) Channel
Before configuring a measuring channel, you must activate it.
Select which measuring channel you would like to activate and configure.
•Select all
•No selection
•Invert selection
•Channel 1 (BS 2/1)
All measuring channels are selected.
No channel is selected.
The current selection is inverted.
A single channel is selected.
•Channel 2 (BS 2/2)
•Channel 3 (BS 2/3)
Navigate to the required selection point using the and buttons. Confirm your selection by pressing "OK". Activate the selected measuring channel using the button
and navigate to its setting options.
9.2 (2.4.1.1) Current transformer (CT)
Set the used current transformer.
•Type A
•Type AB
W…/WR…/WS…/
W/WS8000
W…A B
9.2 (2.4.1.2) CT monitoring
Activate or deactivate the CT monitoring.
If CT monitoring is active, an alarm is signalled as soon as a fault occurs on a current trans-
former of an activated channel (short circuit or interruption).
•on
•off
9.2 (2.4.1.3) I
Set the response value for I
CT monitoring is activated
(the current transformers are monitored).
CT monitoring is deactivated
(the current transformers are not monitored).
Response value
∆L
(main alarm for insulation fault location) between 200 µA
∆L
and 10 mA. The response value must be below the set locating current
(refer to 7.3.6 "Setting EDS current" on page 34
).
The permissible response value and the response sensitivity depend on
the connected EDS (EDS440x or EDS441x).
CAUTION
9.2 (2.4.1.4) I∆n Response value
Set the response value for I
(alarm for residual current measurement) between 100 mA
∆n
and 10 A.
The permissible response value and the response sensitivity depend on
the connected EDS (EDS440x or EDS441x).
CAUTION
9.2 (2.4.2) Outputs
In this menu, the settings for the outputs of the EDS can be made.
•Relays
•Buzzer
•Dig. output
51
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 52
SettingsSettings
≥ 1
Response
Function 1
Function 2
Function 3
9.2 (2.4.2.1) Relays
Select the relays that you would like to configure.
•Select all
•No selection
•Invert selection
•Relay 1 (BS 2/1)
All relays are selected.
No relay is selected.
The current selection is inverted.
A single relay is selected.
•Relay 2 (BS 2/2)
9.2 2.4.2.1.1 TEST
The functional test of the relay can be activated or deactivated. This only applies to the
manual test and not to the cyclic device self test.
•on
•off
The manual test checks the switching function of the relay.
The manual test does not check the switching function of the relay.
9.2 2.4.2.1.2 Operating mode
The relay operating mode can be adapted to the application.
•N/C
•N/O
Normally closed- N/C operation contacts11-12-14 / 21-22-24 (in
fault-free condition, the alarm relay is energised).
Normally opened - N/O operation contacts 11-12-14 / 21-22-24 (in
fault-free condition, the alarm relay is de-energised).
9.2 2.4.2.1.3 Function 1
Up to three functions can be assigned to one output. The functions are linked to an OR
operator:
Set the function for the outputs:
•off
•I
ΔL
•I
ΔN
•Device fault
•Connection fault
•Insulation fault
location active
•Common alarm
The function is not used.
The status of the output changes if an insulation fault is detected
(EDS function) on one of the measuring channels.
The status of the output changes if the residual current (RCM func-
tion) is exceeded.
The status of the output changes in the event of an internal device
fault.
The status of the output changes when one of the following measur-
ing current transformer connection faults occurs:
• Measuring current transformer defective
• Power supply cable interrupted
• Power supply cable short-circuited
The buzzer signals active insulation fault location
can only be set for buzzer).
The status of the output changes on the occurrence of any alarms and
fault messages (I∆L alarm, I∆n alarm, connection and device fault).
9.2 2.4.2.1.4 Function 2
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 2.4.2.1.5 Function 3
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.4.2.2) Buzzer
Select the buzzers that you would like to configure.
•Select all
•No selection
•Invert selection
•Buzzer 1(BS 2/1)
All buzzers are selected.
No buzzer is selected.
The current selection is inverted.
A single buzzer is selected.
52
Now assign the events on which the buzzers should be triggered.
9.2 2.4.2.2.1 TEST
Refer to “9.2 2.4.2.1.1 TEST”.
9.2 2.4.2.2.2 Function 1
Refer to “9.2 2.4.2.1.3 Function 1”.
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 53
SettingsSettings
9.2 2.4.2.2.3 Function 2
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 2.4.2.2.4 Function 3
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.4.2.3) Digital output
Select the digital outputs of the EDS that you would like to configure.
•Select all
•No selection
•Invert selection
•Dig. output 1 (BS 2/1)
All digital outputs are selected.
No digital output is selected.
The current selection is inverted.
A single digital output is selected.
Now make the settings for the digital outputs of the EDS selected before.
9.2 2.4.2.3.1 TEST
The functional test of the digital output can be activated or deactivated. This only applies
to the manual test and not to the cyclic device self test:
•on
•off
The manual test changes the status of the digital output.
The manual test does not change the status of the digital output.
9.2 (2.4.2.4) Function 1
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.4.2.5) Function 2
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.4.2.6) Function 3
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.4.3) Dig. input
Select the digital inputs of the EDS that you would like to configure:
•Select all
•No selection
•Invert selection
•Dig. input 1 (BS 2/1)
All digital inputs are selected.
No digital input is selected.
The current selection is inverted.
A single digital input is selected.
•Dig. input 2 (BS 2/2)
Now make the settings for the digital inputs of the EDS selected before.
9.2 (2.4.3.1) Mode
The operating mode for the digital input can be set to the following values. For a description of the operating modes, refer to “Mode” on page 45. The following can be selected
•Active high
•Active low
An event is carried out on the rising edge of the digital input (low to
high).
An event is carried out on the falling edge of the digital input (high
to low).
9.2 (2.4.3.2) t(on)
The response time t(on) after a switch-on signal can be set between 100 milliseconds and
300 seconds. For a description of the operating modes, refer to “Mode” on page 45.
9.2 (2.4.3.3) t(off)
The response time t(off) after a switch-off signal can be set between 100 milliseconds and
300 seconds. For a description of the operating modes, refer to “Mode” on page 45.
9.2 (2.4.3.4) Function
•off
•TEST
•RESET
Digital input without function.
Device self test.
Reset of fault and alarm messages.
9.2 (2.4.4) Device settings
•Select all
•No selection
•Invert selection
All devices are selected.
No device is selected.
The current selection is inverted.
•BS bus 2 (1-12)
9.2 (2.4.4.1) System type
Settings made to this menu point will only have an effect on connected
EDS460 and NOT on EDS44x devices.
Adjust the EDS to the IT system to be monitored.
•DC
•AC
•3AC
DC system
Single-phase AC system
3AC system
:
53
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 54
SettingsSettings
9.2 (2.4.4.2) Frequency
Settings made to this menu point will only have an effect on connected
EDS460 and NOT on EDS44x devices.
Configure the mains frequency of the IT system to be monitored.
•50 Hz
•60 Hz
•400 Hz
•DC
9.2 (2.4.4.3) Trigger
The locating current pulse of the ISOMETER® is synchronised with the measurement
technology in the EDS via the BB bus or the BS bus. This allows a more reliable detection
of the locating current pulse in the event of disturbances.
Disturbances can be caused e.g. by variable-speed drives, rectifiers, actuators, noise filters, PLCs, or control electronics.
•Com
•auto
Synchronisation via BS bus or BB bus. The EDS only searches for insulation faults if the insulation fault location has been started. Less
time is needed for the insulation fault location as with the setting
"auto".
No synchronisation (e.g. if there is no BS bus or BB bus).
The EDS continuously searches for insulation faults.
If the trigger mode is set to "auto", the use of a portable EDS must be activated in the menu ( = "ON“), since the measurement method is correspondingly adjusted at this menu point.
9.2 (2.4.4.4) Fault memory
Faults that only occur temporarily can be saved.
•on
•off
After eliminating the cause of fault, alarm messages remain stored
until a RESET is carried out. This function applies to alarm and device
fault messages.
The EDS exits the alarm mode as soon as the cause of fault is
eliminated.
9.2 (2.5) Channel
In this menu, each channel can be configured. Also refer to “9.2 (2.4.1) Channel”.
9.2 (2.5.1) Name
Enter a name for the selected channel. This name will also be displayed on the gateways
and in the web server and can be edited via these as well.
9.2 (2.5.2) Current transformer monitoring
Refer to “9.2 (2.4.1.2) CT monitoring”.
9.2 (2.5.3) Response value I
∆L
Refer to “9.2 (2.4.1.3) I∆L Response value”.
9.2 (2.5.4) Response value I
∆n
Refer to “9.2 (2.4.1.4) I∆n Response value”.
9.2 (2.6) Outputs
In this menu, each output can be configured. Also refer to “9.2 (2.4.2) Outputs”.
9.2 (2.6.1) Relays
Select the relay that you would like to configure.
•Relay 1 (BS 2/1)
...
9.2 (2.6.1.1) TEST
Refer to “9.2 2.4.2.1.1 TEST”.
9.2 (2.6.1.2) Operating mode
Refer to “9.2 2.4.2.1.2 Operating mode”.
9.2 (2.6.1.3) Function 1
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.6.1.4) Function 2
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.6.1.5) Function 3
Refer to “9.2 2.4.2.1.3 Function 1”.
54
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 55
SettingsSettings
9.2 (2.6.2) Buzzer
In this menu, each buzzer can be configured. Also refer to “9.2 (2.4.2.2) Buzzer”.
9.2 (2.6.2.1) TEST
Refer to “9.2 2.4.2.1.1 TEST”.
9.2 (2.6.2.2) Function 1
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.6.2.3) Function 2
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.6.2.4) Function 3
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.6.3) Digital output
In this menu, each digital output can be configured.
Also refer to “9.2 (2.4.2.3) Digital output”.
9.2 (2.6.3.1) TEST
Refer to “9.2 2.4.2.3.1 TEST”.
9.2 (2.6.3.2) Function 1
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.6.3.3) Function 2
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.6.3.4) Function 3
Refer to “9.2 2.4.2.1.3 Function 1”.
9.2 (2.7) Inputs
In this menu, each digital input can be configured. Therefore, select a digital input.
•Dig. input 1 (BS 2/1)
•Dig. input 2 (BS 2/2)
9.2 (2.7.1) Mode
Refer to “9.2 (2.4.3.1) Mode”.
9.2 (2.7.2) t(on)
Refer to“9.2 (2.4.3.2) t(on)”.
9.2 (2.7.3) t(off)
Refer to “9.2 (2.4.3.3) t(off)”.
9.2 (2.7.4) Function
Refer to “9.2 (2.4.3.4) Function”.
9.2 (2.8) Device
9.2 (2.8.1) Trigger
Refer to “9.2 (2.4.4.3) Trigger”.
9.2 (2.8.2) Fault memory
Refer to “9.2 (2.4.4.4) Fault memory”.
9.2 (2.9) Service
The service menu can only be accessed by Bender Service staff.
9.1 (3.0) Data measured values
The ISOMETER® stores certain measured values for a specific period of time. You can view
these data in the "Data meas. value" menu. Navigate through the different views using
the and buttons:
•isoGraph data Displays the insulation resistance and chronological sequence. Refer
to “Data-isoGraph” on page 38.
•Insulation data Displays the current insulation resistance, the minimum measured
insulation resistance and the leakage capacitance.
•IT system data Displays the system phase-to-phase voltages and the mains frequency (r.m.s. values)
•IT system data Displays the system phase-to-earth voltages
9.1 (4.0) Control
In the control menu you can start a manual test, reset alarm messages and start an initial
measurement:
•TEST Perform a manual test of the device
•DEVICE Set the insulation resistance measurement function of the ISOME-
TER® to active or inactive:
•RESET Reset of fault and alarm messages
•Start initial
measurement
All recorded measurements are discarded and a new measurement
will be started
55
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 56
SettingsSettings
9.1 (5.0) History
In the history menu, the faults detected by the ISOMETER® are displayed. For a detailed
function description refer to “History memory” on page 39:
•History Overview of faults that have occurred.
•Delete Reset the history memory.
9.1 (6.0) Device settings
The device settings menu allows you to configure the basic settings for the ISOMETER®.
9.2 (6.1) Language
Choose the language to be displayed by the ISOMETER®. For example, you can set the languages:
•Deutsch
•English
•...
9.2 (6.2) Clock
In the clock menu, the time and date display format for the ISOMETER®s can be set:
9.2 (6.2.1) Time
Based on the selected time format you can set the current time to display 24-hour or 12hour notation (am/pm).
9.2 (6.2.2) Format (time)
Select the appropriate time format to be displayed:
•12 h 12-hour notation am/pm.
•24 h 24-hour notation
9.2 (6.2.3) Summertime
Summer time can be considered in the following settings:
•off No automatic change between summer time and standard time.
•DST Daylight Saving Time (DST)
Automatic change between summer and standard time according to North
American regulation.
Begin: Second Sunday in March from 02:00 local time to 03:00 local time
End: On the first Sunday in November from 03:00 local time to 02:00 local
time
•CEST Central European Summer Time (CEST)
Automatic change between summertime and standard time according to
Central European regulation.
Begin: Last Sunday in March from 02:00 Uhr CET to 03:00 CEST
End: Last Sunday in October from 03:00 Uhr CEST to 02:00 CET
When set to DST or CEST, changing between summer time and normal time
is only done on the date of the official time change.
9.2 (6.2.4) Date
Based on the selected date format you can set the current date.
9.2 (6.2.5) Format (date)
Select the appropriate date format you want to be displayed:
•dd.mm.yy day, month, year
•mm-dd-yy month, day, year
9.2 (6.2.6) NTP
Select whether you would like to synchronise the current time via NTP. To use this function, configure the NTP server (refer to “NTP server” on page 56
).
56
•on Synchronisation via NTP server is activated.
•off Synchronisation via NTP server is deactivated.
9.2 (6.2.7) NTP server
Set the IP address of the NTP server.
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 57
SettingsSettings
9.2 (6.2.8) UTC
Configure the time according to UTC (Coordinated Universal Time) For Germany, set +1
for wintertime (CET) and +2 for summer time (CEST).
9.2 (6.3) Interface
Set the parameters for the connection of other devices to the ISOMETER® in the interface
menu:
9.2 (6.3.1) Write access
Decide if the device parameters should be set externally via Modbus or a web server.Displaying and reading data via Modbus and a web server always works, regardless of this
setting.
•Allow Allow external parameter setting.
•Deny Refuse external parameter setting.
9.2 (6.3.2) Ethernet
Set the parameters for communication with other devices via the Ethernet interface. The
Ethernet interface can be used for communication with Modbus, web server and BCOM.
9.2 (6.3.2.1) DHCP
Select whether you want to use automatic address assignment via your DHCP server. If
the automatic IP address assignment is enabled, the IP address, the subnet mask and the
standard gateway will be automatically assigned. If the automatic IP address assignment
is disabled, these settings must be made manually in the menu.
You can view the IP address in the Info menu. (refer to “Info” on page 58).
•on Activate automatic IP address assignment.
•off Deactivate automatic IP address assignment.
9.2 (6.3.2.2) IP (manual configuration)
Set the appropriate IP address for the ISOMETER®. Make sure that the address of the device is within the address range of your network. Contact your network administrator to
obtain information on the address range of your network..
9.2 (6.3.2.3) SN (manual configuration)
Set the appropriate subnet mask. (Standard subnet mask: 255.255.255.0) Contact your
network administrator to obtain more information.
9.2 (6.3.2.4) Std. GW (manual configuration)
If a standard gateway is used in your network, enter its IP address here. If there is no gateway in the network, enter an address as gateway address that is not yet in use in the address range. Without setting a standard gateway address, the device cannot be
accessed. Contact your network administrator to obtain information on the configuration of your local network.
9.2 (6.3.2.5) DNS server
If you use a DNS server, enter the server's IP address.
For questions regarding the configuration of a DNS server, please contact your network
administrator.
9.2 (6.3.2.6) Domain
Enter the domain name.
For questions regarding the configuration of the domain, please contact your network
administrator.
9.2 (6.3.3) BCOM
Set the parameters for communication with other devices via BCOM.
For further information, refer to “BCOM” on page 59.
9.2 (6.3.3.1) System name
Set the system name of the network in which the devices are located. In order to guarantee that all devices are able to communicate via BCOM, all devices must have the same
system name.
9.2 (6.3.3.2) Subsystem
Configure the subsystem address of the network in which the devices are located. The devices can communicate with subsystems with the same or different address.
9.2 (6.3.3.3) Device address
Assign a device address. Each device must have a different address to distinguish one device from another in the system and ensure correct communication.
9.2 (6.3.3.4) Timeout
Set a timeout time for messages between 100 ms…10 s.
This time specification defines the maximum permissible time for a device to respond.
57
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 58
SettingsSettings
9.2 (6.3.3.5) TTL for subscription
Set a time from 1 s…1092 min.
The time indicates in which intervals the ISOMETER® sends messages to a gateway, for ex-
ample. Essential messages (e.g. insulation alarm or substantial value changes) are always
sent immediately.
9.2 (6.3.4) Modbus/TCP
Settings for communication with other devices via Modbus TCP.
For further information, refer to “Modbus/TCP” on page 59.
9.2 (6.3.4.1) Port 502
Choose whether Modbus TCP should be used:
•on Modbus TCP can be used for communication with other devices.
•off Modbus TCP cannot be used for communication with other devices.
9.2 (6.3.5) BS-Bus / RS-485
Set the parameters for communication with other devices via the Bender sensor bus.
For further information, refer to “BS bus” on page 61.
9.2 (6.3.5.1) Address
Set the address of the Bender Sensor bus from 1 to 90.
9.2 (6.4) Display
The brightness of the ISOMETER® display can be adjusted in the "Display" menu:
9.2 (6.4.1) Brightness
Adjust the brightness for the display between 0 % and 100 % in steps of 10.
If no key is pressed on the keyboard within a period of 15 minutes, the display brightness
is reduced.The original brightness is restored when a key is pressed.
9.2 (6.5) Password
Use the password function to protect the device parameters against unauthorised adjustment. The default password is 0000.
9.2 (6.5.1) Password
Enter an individual four-digit password.
9.2 (6.5.2) Status
Decide if you want to use the password query:
•on Password query active
•off Password query inactive
9.2 (6.6) Commissioning
In the commissioning menu you can open the ISOMETER®'s commissioning wizard again.
9.2 (6.7) Data backup
In the data backup menu device settings can be saved or device settings already saved
can be restored.
•Save The ISOMETER® saves your device settings.
•Restore The ISOMETER® restores your initial device settings.
9.2 (6.8) Service
•Password
The Service menu can only be accessed by Bender Service
staff.
9.1 (7.0) Info
You can view the current ISOMETER® settings in the Info menu. Navigate through the different views using the and buttons:
•Device Device name, serial number, article number
•Software Software version measurement technique, software version HMI
•Measurement
technique
•Clock Time, date, summer time
•Ethernet IP address, DHCP status, MAC address
•BS bus BS address of the device
Selected profile, selected system type
58
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 59
10. Device communication
Device communication
10.1 Ethernet interface
The Ethernet interface can be used for communication with Modbus, web server and
BCOM.
10.2 BCOM
BCOM is intended for communication between Bender devices via Ethernet.
In order to guarantee that all devices are able to communicate via BCOM, all devices must
have the same system name. Devices can be organised in subsystems. Each device requires an individual device address.
For more information regarding BCOM, refer to the BCOM manual (D00256) at
http://www.bender.de/manuals.
When address 0 has been set for the communication via BCOM the device
can be accessed via the network (e. g. for parameter setting, etc.) but it
cannot communicate with other devices.
10.3 Modbus/TCP
Modbus is an international widely used protocol for data transfer between devices.
All measured values, messages and parameters are stored in virtual register addresses.
Data can be read at a specific register address with a read command. With a write command, data can be written to a register address. The register addresses of the individual
measured values und parameters can be found in the manual "iso685-D Annex A" with
the title "ISOMETER® iso685 device family - Modbus settings" at http://www.bender.de/
manuals.
A maximum of 5 TCP/IP connections can be used simultaneously.
10.4 Web server
The ISOMETER® has an integrated web server, which conveniently displays ISOMETER®
data on every PC via a web browser. The web server can be used to read measured values
and parameterise the ISOMETER® .
To access the web server, enter the IP address of the ISOMETER® into the web browser.
For example:http://192.168.0.5). The ISOMETER® IP address can be found in the "Info"
menu (refer to 9.1 (7.0) "Info" on page 58).
The following web browsers should be used:
The web server offers the following functions:
• Visualisation
• Indication of device information (e.g. device type, software version, etc.)
• Indication of current device settings.
• Indication of alarm messages.
• Indication of the Modbus information of the individual parameters.
• Indication of the interfaces in use.
• Overview of the current measured values.
• Detailed graphic representation of the insulation resistance (isoGraph).
• Fast and simple visualisation without any programming.
• Parameter setting
• Easy and fast parameter setting of the device
• Easy assignment and editing options for devices
• Maintenance
• Data storage of specific events for fast support by Bender Service.
59
In order to be able to parameterise the device externally via Modbus, the
menu item "Allow" must have been set in the "Write access" menu (see
“Write access” on page 57).
A maximum of 5 TCP/IP connections can be used simultaneously.
Only one device may access the web server at the same time. If several devices try to access the web server it may result in timeouts.
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 60
Device communicationDevice communication
WERKZEUGE
ALARME
GERÄT
START
DE
System OK
Geräteinfo
D
E
System OK
System OK
Alarme 2
START
START
GERÄT
WERKZEUGE
ALARME
isoHR685W–D
ISOMETER®
6
7
8
9
12
11
10
Write access is deactivated by default in the device menu (= Deny). To set
parameters via the web server, write access must first be activated in the
device menu (= Allow) (see “Write access” on page 57).
10.4.1 Web server user interface
Legend for user interface
1 LOGO Logo and device identification
2 System information
3 Language Changing the language settings
4Main menu
5 System message:
60
1
4
5
2
Device address
Date and time when browser system was accessed.
The web interface does not show the current time on the
ISOMERTER
Instead, the actual ISOMETER
®.
® time can be determined in the Menu
DEVICE -> Settings -> clock.
Main menu of the web server (first level)
•START (1)
•DEVICE (2)
•ALARMS (3)
•TOOLS (4)
If there are pending alarms, click on the
red button or go to menu point "ALARMS"
(3) to obtain further information.
10.4.2 Web server device menu (first level)
3
Legend for web server device menu (first level)
6 START Indication of general device information.
7DEVICE
8 ALARMS Indication of alarm messages.
9TOOLS
Indication of an overview of alarm values and measured values.
Display and changing the settings.
10.4.3 Webserver submenu tool
10 Menu path Displays the current menu path
11
12 Submenu
Measurement OK
Measurement error
Submenu closed
Submenu open
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 61
Device communicationDevice communication
2
2
2
3
2
2
2
222
3
2 2
2
3
10.5 BS bus
The BS bus is used to extend Bender measuring devices (e.g. ISOMETER®) It is an RS-485 interface with a specially developed protocol for Bender devices. On the BS bus, the transmission of alarm messages takes priority over the transmission of all other messages. For
further information, refer to the BS bus manual (document number: D00278) at
www.bender.de/manuals
When using interface converters, a galvanic separation is required.
CAUTION
The compatibility of the BS bus and the BMS bus is restricted!
10.5.1 Master-slave principle
The BS bus works according to the master-slave principle. This means that the measuring
device operates as the MASTER, while all sensor devices operate as SLAVES. The master is
responsible for the communication necessary for the measuring function. It also provides
the required bus bias voltage for the operation of the BS bus.
10.5.2 Addresses and address ranges on the BS bus
Address 1 is assigned to the master. All sensor devices receive unique addresses starting
with address 2, assigned in consecutive order without gaps. In the event of a device failure, a maximum gap of 5 addresses is permissible.
.
10.5.4 Cable routing
The optimum cable routing for the BS bus is a double-terminated bus topology. The
length of the branch line is limited to 1 m. These branch lines do not have to be
terminated.
Bus topology examples:
Termination
1Master
2 Slave Terminating resistor deactivated via switch on device (OFF)
3Slave
CAUTION
Terminating resistor activated via switch on device (ON) or external terminating resistor between terminals A and B
Terminating resistor activated via switch on device (ON) or external terminating resistor between terminals A and B
Only the first and last device may be terminated. Therefore, check all
devices.
10.5.3 RS-485 specifications/cables
The RS-485 specification restricts the cable length to 1200 m
connection. The number of devices on the BS bus is only limited by the BS bus master.
Use twisted pair, shielded cables for bus cabling. For example, cable type J-Y(St)Y
n x 2 x 0.8 is suitable. The shield must have a single-ended connection to earth. The BS
bus must be terminated at both ends with terminating resistors (120 , 0.25 W). The terminating resistors are connected in parallel to the terminals A and B. Some devices feature integrated terminating resistors and can be activated or deactivated via the "R"
button.
61
and requires a daisy chain
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 62
11. Device profiles
When another profile is selected, the value of R
min
is reset.
Switching between profiles can result in longer measuring times.
* Low frequency mains voltage
For very low frequency networks, the nominal system voltage is reduced
according to the specifications in the chapter "Technical data" on
page .72
Adjustment to different applications can be carried out very easily by selecting a device profile.
Nominal system
voltage
Power circuits
Control circuits
Generator AC 0…690 V 50…60 Hz 0…5 µF ± 50 V 0.1 kΩ…20 MΩ 1 kΩ…10 MΩ
High capacitance
Inverter > 10 Hz
Inverter <10 Hz
ustomer specific ––––––
C
AC 0…690 V/
DC 0…1000 V
AC 0…230 V/
DC 0…230 V
AC 0…690 V/
DC 0…1000 V
AC 0…690 V/
DC 0…1000 V
AC 0…690 V/
DC 0…1000 V
System
frequency
15…460 Hz 0…150 µF ± 50 V 0.1 kΩ…20 MΩ 1 kΩ…10 MΩ
15…460 Hz 0…150 µF ± 10 V 0.1 kΩ…20 MΩ 1 kΩ…10 MΩ
15…460 Hz 0…1000 µF ± 50 V 0.1 kΩ…20 MΩ 1 kΩ…10 MΩ
10…460 Hz 0…20 µF ± 50 V 0.1 kΩ…20 MΩ 1 kΩ…10 MΩ
0.1…460 Hz 0 …20 µF ± 50 V 0.1 kΩ…20 MΩ 1 kΩ…10 MΩ
System
leakage
capacitance
Measuring
voltage
Measuring
range
Response
values
Description
Main circuits without dynamic frequency changes.
The universal profile is suitable for all systems primarily with constant
mains frequencies and extraneous DC voltages. When using inverters and
dynamic frequency control, select inverters > 10 Hz or inverters < 10 Hz.
This profile is used to reduce the measurement voltage to ±10 V in control
systems with lower nominal voltages in order to reduce the impact by the
ISOMETER® on sensitive switching elements.
This profile allows the realisation of a very fast measuring time, e.g. as
required for generator monitoring. Furthermore, this profile can be used
to support fast fault localisation in an IT system. The generator profile is
suitable for AC systems containing DC components.
For systems with high leakage capacitances, e.g. ship applications, the
impact of leakage capacitances on the measuring result can be significantly reduced by selecting this profile.
This profile is used for systems with dynamic frequency control by inverters in the range 10 to 460 Hz in order to optimise the measurement with
respect to the measuring time and quality.
For systems involving extremely low frequency control in the range of up
to 0.1...460 Hz and very low and continuously changing extraneous DC
voltages due to dynamic load conditions in an IT system, continuous insulation monitoring can be optimised
Allows Bender service to make customer-specific settings. If no settings
are made by Bender service, then the profile has the same parameters as
the "Power circuits" profile.
using this profile.*
For response times, see “Diagrams” on page 67.
62
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 63
12.
PGH ON
PGH ON
I
L
I
n
ISOSCAN®
EDS440
7
6
5
3
4
2
0
1
5
3
4
2
0
1
9
TEST
MUTE
RESET
ALARM
ALARM
ON
COM
SERVICE
CHANNELS
SLAVE ADDRESS
12
11109
87
1 2 3456
I
∆
L
I
∆
n
I
L
I
n
ISOSCAN®
EDS440
7
6
5
3
4
2
0
1
5
3
4
2
0
1
9
TEST
MUTE
RESET
ALARM
ALARM
ON
COM
SERVICE
CHANNELS
SLAVE ADDRESS
12
11109
87
1 2 3456
I
∆
L
I
∆
n
1
2
IT-System 1
IT-System 2
Adr. 1
Adr. 1
Adr. 3 Adr. 3
BCOM
Adr.
BCOM
Adr.
BS-Bus
BS-Bus
Special functions for coupled IT systems
Special functions for coupled IT systems
12.1 Particularities when monitoring coupled IT systems
When using ISOMETER®s in IT systems, make sure that only ONE active ISOMETER® is connected in each galvanically interconnected system. If several ISOMETER®s are to be connected to the IT system, ensure that only one ISOMETER® is active in the IT system via
system isolation using the digital input or Ethernet (ISOnet function).
If IT systems are interconnected via coupling switches, make sure that ISOMETER®s not
currently used are disconnected from the IT system and deactivated.
IT systems coupled via diodes or capacitances may also influence the insulation monitoring process so that a central control of the different ISOMETER®s is required.
12.2 System isolation via digital input with two coupled systems
The coupling switch must have a free contact so that the ISOMETER®
iso685–x–P can be deactivated via one of the digital inputs.
Via the X1 connector, the ISOMETER® can be isolated from the IT system and the measuring functions can be deactivated. Therefore, the function of the digital input in use has to
be set to "device inactive".
If the digital input used for this function is selected, the connectors L1/+, L2, L3/- are
deactivated via internal system isolating switches, the measuring function stops and the
following message appears on the display: "Device inactive. Device disconnected".
Stored fault messages are reset when the cause of the fault has been eliminated (Reset
function).
If the digital input is no longer selected, first the connection to the IT system is restored
and afterwards, an entirely new measuring cycle for the insulation monitoring starts.
This function can be used to disconnect the second ISOMETER® selectively in coupled IT
systems via the auxiliary contact of the coupling switch.
63
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 64

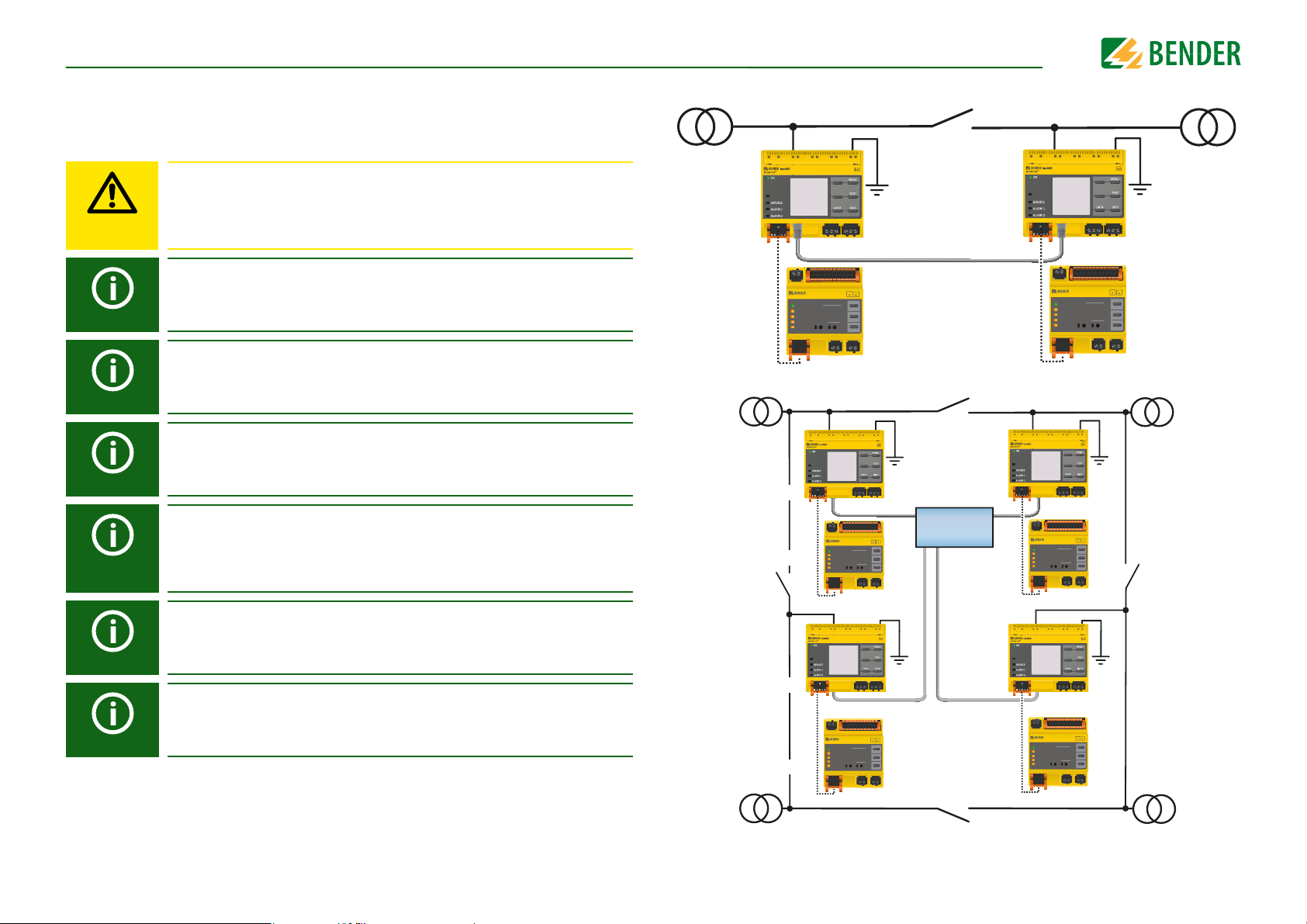

Special functions for coupled IT systemsSpecial functions for coupled IT systems
PGH ON
PGH ON
I
L
I
n
ISOSCAN®
EDS440
7
6
5
3
4
2
0
1
5
3
4
2
0
1
9
TEST
MUTE
RESET
ALARM
ALARM
ON
COM
SERVICE
CHANNELS
SLAVE ADDRESS
12
11109
87
1 2 3456
I
∆
L
I
∆
n
I
L
I
n
ISOSCAN®
EDS440
7
6
5
3
4
2
0
1
5
3
4
2
0
1
9
TEST
MUTE
RESET
ALARM
ALARM
ON
COM
SERVICE
CHANNELS
SLAVE ADDRESS
12
11109
87
1 2 3456
I
∆
L
I
∆
n
1
2
IT-System 1
IT-System 2
Adr. 1Adr. 1
Adr. 3 Adr. 3
BCOM
Adr.
BCOM
Adr.
BS-Bus
BS-Bus
PGH ON
PGH ON
PGH ON
PGH ON
I
L
I
n
ISOSCAN®
EDS440
7
6
5
3
4
2
0
1
5
3
4
2
0
1
9
TEST
MUTE
RESET
ALARM
ALARM
ON
COM
SERVICE
CHANNELS
SLAVE ADDRESS
12
11109
87
1 2 3456
I
∆
L
I
∆
n
I
L
I
n
ISOSCAN®
EDS440
7
6
5
3
4
2
0
1
5
3
4
2
0
1
9
TEST
MUTE
RESET
ALARM
ALARM
ON
COM
SERVICE
CHANNELS
SLAVE ADDRESS
12
11109
87
1 2 3456
I
∆
L
I
∆
n
I
L
I
n
ISOSCAN®
EDS440
7
6
5
3
4
2
0
1
5
3
4
2
0
1
9
TEST
MUTE
RESET
ALARM
ALARM
ON
COM
SERVICE
CHANNELS
SLAVE ADDRESS
12
11109
87
1 2 3456
I
∆
L
I
∆
n
I
L
I
n
ISOSCAN®
EDS440
7
6
5
3
4
2
0
1
5
3
4
2
0
1
9
TEST
MUTE
RESET
ALARM
ALARM
ON
COM
SERVICE
CHANNELS
SLAVE ADDRESS
12
11109
87
1 2 3456
I
∆
L
I
∆
n
1
2
3
4
SWITCH
Adr. 3
Adr. 3
Adr. 3
Adr. 3
Adr. 1
Adr. 1
Adr. 1
Adr. 1
BCOM
Adr.
BCOM
Adr.
BCOM
Adr.
BCOM
Adr.
IT-System 1 IT-System 2
IT-System 3 IT-System 4
BS-Bus
BS-Bus
Adr. 1
BS-Bus
BS-Bus
12.3 System separation via ISOnet
The ISOnet function ensures via an Ethernet connection that only one ISOMETER® of the
interconnection is active when several ISOMETER®s are connected to an IT system.
For several ISOMETER®s to be able to measure in the same ISOnet interconnection, the settings for the BCOM system name and the BCOM subsystem have to be the same. Only the device address has to be different. If
CAUTION
this is not taken into account, the ISOnet function will not work.
If the ISOnet function is deactivated in an ISOMETER® in an ISOnet interconnection, it will measure continuously and will not forward measuring
commands to the next device in the interconnection.
In comparison to a solution with coupling switches and function input,
the response time will be extended because the measurement in the IT
system is not carried out continuously.
The addresses of the ISOMETER®s in the ISOnet interconnection can be selected at will. The addresses do not have to be subsequent but they have
to differ from each other.
If in addition to the ISOnet interconnection the digital inputs are wired
and a device is deactivated via a digital input, the device will forward the
measuring authorisation until the signal at the digital input disappears.
Afterwards, it participates again in the the measuring interconnection.
12.3.1 System structure
The IP address of the standard gateway must suit the subnet mask, so that
the ISOnet function can operate correctly.
64
Maximum number of devices in an ISOnet interconnection: 20 devices
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 65
12.3.2 Configuration and function
For the ISOnet function, the following settings are made in the menu: Alarm settings
-> ISONet -> ISONet = BCOM. The ISOnet function of all ISOMETER®s existing in the
system has to be activated and the number of devices has to be determined - this can be
carried out in the menu Alarm settings ->Number of participants.
Also the parameters of the Ethernet (DHCP on or IP address, sub net mask and default
gateway) and BCOM have to be set so that the devices in the ISOnet interconnection can
communicate with each other.
After starting the system, the devices initialise. The initialisation phase ends when the
configured number of devices has been reached. Then, the device starts with a measuring cycle with the smallest address. When an ISOMETER® has finished one measuring cycle, the authorisation for insulation measurement is forwarded to the ISOMETER® with the
next higher address. While one ISOMETER® is measuring, all other ISOMETER®s are isolated from the system via internal system isolation switches.By limiting to one subsystem it
is possible to have several ISOnet interconnections running in one system.
If a single device fails, the remaining ISOMETER®s continue the ISOnet operation. For the
failure of one device, two scenarios are possible:
• A device fails during the measuring process.
After timeout, another device takes over the measuring function.
In this way, all devices monitor each other.
• The device fails in the inactive mode.
When forwarding the measuring authorisation, the device is skipped and the next
device carries out the measurement.
If a device that has failed before returns, it is taken into the interconnection again and will
have its turn during the next run.
Special functions for coupled IT systemsSpecial functions for coupled IT systems
65
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 66
13. Insulation fault location
Insulation fault location
13.1 General description
An additional function of the ISOMETER® in combination with the EDS is the selective insulation fault location. The insulation faults detected in the IT system by the ISOMETER®
can be located by means of an EDS and a measuring current transformer.
For further information regarding the function principle of the insulation fault location,
refer to 3.4 "Insulation fault location" on page 13.
13.2 Required settings for insulation fault location
Connecting and commissioning the system consisting of ISOMETER® and EDS
correctly.
For further information regarding the connection of the EDS, refer to 6.11 “Connecting
the EDS to the ISOMETER®” from page 26, at7.2 "Commissioning procedure - steps for
commissioning" on page 32 and to the corresponding manual of the EDS.
Setting locating current and EDS mode.
These settings can be made either during initial commissioning
(see 7.1 “General initial commissioning process” from page 32) or in the device menu of
the ISOMETER® (see 9.1 (2.0) “EDS (insulation fault location)” from page 49).
For further information regarding the locating current for insulation fault location, refer
to 9.2 (2.1.1) "Current" on page 49.
For further information regarding EDS modes, refer to 9.2 (2.1.2) "Mode" on page 50.
13.3 Indication on the display
13.4 Starting and stopping the insulation fault location
The insulation fault location can be started and stopped via different interfaces:
• Shortcut button "EDS"
Manually starts/stops the insulation fault location, which runs continuously. If the
device is started continuously, it measures until it is manually stopped via the shortcut button (see “Display elements and device buttons” on page 17).
• Device menu
• Modbus
• Web server
• Digital input
For further information regarding start and stop conditions of the insulation fault location, refer to 9.2 (2.1.2) "Mode" on page 50.
The active insulation fault location is indicated on the display of the ISOMETER®.
For further information, refer to 8.7 “Initial measurement” from page 39.
66
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 67
14. Diagrams
Ce ≤ 150 μF
C
e
≤ 50 μF
C
e
≤ 20 μF
C
e
≤ 5 μF
C
e
≤ 1 μF
1
10
100
100001000100101
Response time as a function of the response value and system leakage
capacitance according to IEC 61557-8 (U
n
= 690 V, f = 50 Hz) measuring
range < 10 MΩ
Response time [sec]
Response value Ran [kΩ]
Ce ≤ 150 μF
C
e
≤ 50 μF
C
e
≤ 20 μF
C
e
≤ 5 μF
C
e
≤ 1 μF
1
10
100
100001000100101
Response time as a function of the response value and system leakage
capacitance according to IEC 61557-8 (U
n
= 230 V, f = 50 Hz) measuring
range < 10 MΩ
Response time [sec]
Response value Ran [kΩ]
Ce ≤ 5 μF
C
e
≤ 1 μF
0,1
1
10
100001000100101
Response time as a function of the response value and system leakage
capacitance according to IEC 61557-8 (U
n
= 690 V, f = 50 Hz) measuring
range < 10 M
Ω
Response time [sec]
Response value Ran [kΩ]
Ce ≤ 1000 μF
C
e
≤ 500 μF
C
e
≤ 150 μF
C
e
≤ 50 μF
C
e
≤ 20 μF
Ce ≤ 5 μF
Ce ≤ 1 μF
10
100
1000
100001000100101
Response time as a function of the response value and system leakage
capacitance according to IEC 61557-8 (U
n
= 690 V, f = 50 Hz) measuring
range < 10 MΩ
Response time [sec]
Response value Ran [kΩ]
Diagrams
14.1 Response time profile power circuits
14.2 Response time profile control circuits
14.3 Response time profile generator
14.4 Response time profile high capacitance
67
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 68
DiagramsDiagrams
Ce ≤ 20 μF
C
e
≤ 5 μF
C
e
≤ 1 μF
n n
1
10
100
100001000100101
Response time as a function of the response value and system leakage
capacitance according to IEC 61557-8 (U
n
= 690 V, f = 50 Hz) measuring
range < 10 MΩ
Response time [sec]
Response valueRan [kΩ]
1
10
100
100001000100101
Ce ≤ 20 μF
C
e
≤ 5 μF
C
e
≤ 1 μF
Response time as a function of the response value and system leakage
capacitance according to IEC 61557-8 (U
n
= 690 V, f = 50 Hz) measuring
range < 10 MΩ
Response time [sec]
Response value Ran [kΩ]
0,1
1
10
100
1000
0,1 1 10 100
Leistungskreis
Steuerkreis
Hohe Kapazität
Umrichter >10Hz
Umrichter <10Hz
Generator
Typical response times for DC alarm for RF depending on system profile and
system leakage capacitance
Response time [sec]
System leakage capacitance [µF]
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
0000010000100010010111,0
Ce ≤ 1000 μF
Ce ≤ 1 μF
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
0000010000100010010111,0
Ce ≤ 1000 μF
Ce ≤ 1 μF
Percentage operating uncertainty as a function of the response value and
system leakage capacitance according to IEC 61557-8 (U
n
= 690 V, f = 50 Hz)
measuring range < 10 M
Relative uncertainty [%]
Response value Ran [kΩ]
14.5 Response time profile inverter > 10 Hz
14.6 Response time profile inverter < 10 Hz
14.7 Response time DC Alarm
14.8 Operating uncertainty
68
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 69
15. Alarm messages
15.1 Alarm messages of the ISOMETER®
Alarm message
Insulation fault
Insulation fault
Check L1-L2-L3 for correct
connection!
Check that E-KE are properly
connected.
Service mode active! The device is in maintenance condition • Contact Bender Service SERVICE lights up
Profile does not suit the
application!
No DHCP server found! Connection problem at the Ethernet interface
Check time and date! Time and date have not yet been set.
Load on X1 too high! Sum of the external loads on X1 is too high
Device error x.xx Internal device error
Num. ISOnet devices
Failure Address
Disturbance ISOnet
Description Actions Reference LED indicators
An insulation fault exists. The insulation resistance
falls below the response value R
An insulation fault exists. The insulation resistance
falls below the response value R
No low-resistance connection between the line
conductors
No low-resistance connection between the terminals E and KE to earth (PE)
Wrong profile selected for this application
The configured number of devices does not match
the number of devices that are actually included in
the ISOnet interconnection.
One device of the ISOnet interconnection is not
accessible.
General fault at ISOnet, which is not covered by
"Num.ISOnet devices" and "Failure address". For
example, sending messages can fail or another
device cannot process a message.
an1
an2
.
.
• Observe insulation resistance in the monitored system and, if necessary, eliminate fault.
• Reset fault message by pressing the reset button
• Eliminate insulation fault in the system being monitored
• Reset fault message by pressing the reset button
•Check the wiring of the terminals L1/+, L2 and L3/- to the IT system
• Press the test button
• Check mains voltage
• Check the fuses
• Check set system type
• Check the wiring of the terminals E and KE to earth (PE)
• Press the test button
• Check measured system capacitance or system frequency in the
Info menu
• Select another profile taking the characteristics into consideration
• Check cable connection at the Ethernet interface.
• Check the DHCP server's availability.
• Check the DHCP's interface configuration in the device
• Set local date and time
(buffer of three days in case of voltage failure)
• Check load at X1.+, X1.Q1 and X1.Q2
• Check ambient temperature
• Press the test button
• Switch the supply voltage on and off
•Contact Bender Service
•Check settings
• Check Ethernet connection
• Check Ethernet connection
• Check device function
• Check Ethernet connection
• Check device function
• Switch OFF an switch ON th power supply
“Function description”
on page 12
“Function description”
on page 12
“Connection” from
page 21
& menu setting
“System type” on page
44
“Connection” from
page 21
“Profile” on page 44
“DHCP” on page 57
“Clock” on page 56
“System separation via
ISOnet” on page 64
“System separation via
ISOnet” on page 64
“System separation via
ISOnet” on page 64
ALARM 1 lights
ALARM 2 lights
ALARM 1 + ALARM 2
flash alternately
ALARM 1 + ALARM 2
flash in common mode
SERVICE lights up
69
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 70
Alarm messages
Alarm message
DC offset voltage There is a DC offset voltage in the system. • Check insulation fault and eliminate fault of DC components. “DC alarm” on page 44
Undervoltage
Overvoltage
Synchronizing ...
Description Actions Reference LED indicators
Operating outside the specified supply voltage
range
Operating outside the specified supply voltage
range
The device synchronises itself over a longer period
of time. (longer than 5 minutes)
• Check supply voltage
• Check supply voltage
• Restart the device
15.2 Alarm messages of the EDS
Alarm message Description Measures Reference LED indicators
Interferences during insulation fault location
Insulation fault location
disturbed!
insulation fault x mA
Interference CT connection
CT short circuit
Residual current
Possible causes:
• Low-frequency residual currents
• External magnetic fields
If an insulation fault is located, the message Insulation
fault 5 mA appears on the display. The level of the locat-
ing current gives information regarding the faulty out-
going circuit. The higher the locating current, the lower
the insulation resistance on the detected channel.
A measuring current transformer has not been con-
nected correctly or does not work.
Connection fault of CTs
Possible causes:
• Measuring current transformer defective
• Power supply cable short-circuited
The set response value of the residual current has been
exceeded on one channel.
• Identify interference sources and eliminate them
• Determine cause of the insulation fault and eliminate it.
• Check wiring of the measuring current transformers
• Check device function
• Start new search for EDS channels
• Deactivate channel without CT
• Replace defective measuring current transformer
• Check cables
• Determine cause of the exceeded residual current and eliminate
fault.
“Scanning channels”
on page 50 &
“Activating channels” on page 50
Additionally, read the operating manual of the EDS.
70
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 71
16. Factory settings
Factory settings
Parameter Value
Response values/alarms
Response value R
Response value R
DC alarm off
DC-offset voltage for DC alarm 65 V
Fault memory off
Coupling monitoring on
System
System type 3AC
System profile Power circuits
Time response
Start-up delay T
Digital inputs
Digital input 1
Mode (Operating mode) Active high
Function TEST
Digital input 2
Mode (Operating mode) active low
Function RESET
Digital input 3
Mode (Operating mode) Active high
Function Deactivate device
Digital outputs
Digital output 1
Function 1 off
Function 2 off
Function 3 off
Digital output 2
Function 1 off
Function 2 off
Function 3 off
an1
an2
start-up
(ALARM 1)
(ALARM 2)
40 kΩ
10 kΩ
0 s
Parameter Value
Switching elements
Relay 1
Test on
Relay mode N/C operation
Function 1 Ins. Alarm 1
Function 2 Connection fault
Function 3 off
Relay 2
Test on
Relay mode N/C operation
Function 1 Ins. Alarm 2
Function 2 Device fault
Function 3 Connection fault
Interfaces
DHCP off
IP address 192.168.0.5
Net mask 255.255.255.0
BCOM address system-1-0
Device address BS bus 3
ISOnet
ISOnet off
EDS
Mode auto
Current 10 mA
71
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 72
17. Technical data
Technical data
17.1 Tabular data
Insulation coordination acc. to IEC 60664-1/IEC 60664-3
Definitions:
Measuring circuit (IC1)................................................................................................................................................L1/+, L2, L3/-
Supply circuit (IC2) .................................................................................................................................................................. A1, A2
Output circuit 1 (IC3)...........................................................................................................................................................11, 12, 14
Output circuit 2 (IC4)...........................................................................................................................................................21, 22, 24
Control circuit (IC5) (E, KE), (X1, ETH, X3, X4)
Rated voltage ...................................................................................................................................................................................1000 V
Overvoltage category ............................................................................................................................................................................... III
Rated impulse voltage:
IC1 / ( IC2-5 )................................................................................................................................................................................ 8 kV
IC2 / ( IC3-5 )................................................................................................................................................................................ 4 kV
IC3 / (IC4-5) ................................................................................................................................................................................. 4 kV
IC4 / IC5 ........................................................................................................................................................................................ 4 kV
Rated insulation voltage:
IC1 / (IC2-5) .............................................................................................................................................................................1000 V
IC2 / (IC3-5) ...............................................................................................................................................................................250 V
IC3 / (IC4-5) ...............................................................................................................................................................................250 V
IC4 / IC5 ......................................................................................................................................................................................250 V
Pollution degree (U
Pollution degree for accessible parts on the outside of the device housing (U
Safe isolation (reinforced insulation) between:
IC1 / ( IC2-5 )....................................................................................................................................Overvoltage category III,1000 V
IC2 / ( IC3-5 ).....................................................................................................................................Overvoltage category III, 300 V
IC3 / ( IC4-5 ).....................................................................................................................................Overvoltage category III, 300 V
IC4 / IC5 ............................................................................................................................................. overvoltage category III, 300 V
Voltage tests (routine test) acc. to IEC 61010-1
IC2 / ( IC3-5 )....................................................................................................................................................................... AC 2.2 kV
IC3 / ( IC4-5 )....................................................................................................................................................................... AC 2.2 kV
IC4 / IC5 ............................................................................................................................................................................. AC 2.2 kV
Supply voltage
Supply via A1/+, A2/-:
Supply voltage range U
Tolerance of U
Maximum permissible input current of U
Frequency range of U
Tolerance of the frequency range of Us................................................................................................................................. -5…+15 %
Power consumption, typically DC ................................................................................................................................................. ≤ 12 W
Power consumption, typically 50/60 Hz ........................................................................................................................... ≤ 12 W/21 VA
Power consumption, typically 400 Hz ............................................................................................................................... ≤ 12 W/45 VA
<1000 V)................................................................................................................................................................ 3
n
...............................................................................................................................................AC/DC 24…240 V
s
................................................................................................................................................................... -30…+15 %
s
................................................................................................................................................. DC, 50…400 Hz
s
.................................................................................................................................... 650 mA
s
690 < 1000 V) ........................................................... 2
n
Supply via X1:
Supply voltage U
Tolerance of U
............................................................................................................................................................................ DC 24 V
s
............................................................................................................................................................... DC -20…+25 %
s
IT system being monitored
Nominal system voltage range U
.......................................................................................................................................AC 0…690 V
n
.............................................................................................................................................................................................DC 0…1000 V
..................................................................................................................................................... AC/DC 0…600 V (for UL applications)
Tolerance of U
Frequency range of U
Max. AC voltage U
.....................................................................................................................................................................AC/DC +15 %
n
.................................................................................................................................................. DC 0.1…460 Hz
n
in the frequency range fn = 0.1… 4 Hz ................................................................. U
~
= 50 V/Hz² *(1+ fn²)
~ max
Response values
Response value R
Response value R
(Alarm 1) ...........................................................................................................................................1 kΩ…10 MΩ
an1
(Alarm 2) ...........................................................................................................................................1 kΩ…10 MΩ
an2
Relative uncertainty (acc. to IEC 61557-8) .............................................................. dependent on the profile, ±15 %, at least ±1 kΩ
Hysteresis ...................................................................................................................................................................... 25 %, at least 1 kΩ
Time response
at R
Response time t
= 0,5 x Ran (Ran = 10 kΩ) and Ce = 1 μF acc. to IEC 61557-8..........................................................................
an
F (
.................................................................................................................................................. profile dependent, typ. 4s (see diagrams)
Response time DC Alarm at C
Start-up delay T
start-up
= 1 μF acc. to IEC 61557-8 ....................................................profile dependent, typ. 2 s (see diagram)
e
............................................................................................................................................................... 0…120 s
Measuring circuit
Measuring voltage U
Measuring current I
Internal resistance R
.....................................................................................profile dependent, ±10 V, ±50 V (see profile overview)
m
...................................................................................................................................................................≤ 403 μA
m
,Zi............................................................................................................................................................... ≥ 124 kΩ
i
Internal resistance on decouppled systems (inactive by I/O, inactive by ISOnet or cut-off)..................................................typ. 50 MΩ
Permissible extraneous DC voltage U
Permissible system leakage capacitance C
.......................................................................................................................................≤ 1200 V
fg
........................................................................................... profile dependent, 0…1000 μF
e
Measuring ranges
Measuring range f
Tolerance measurement of f
Voltage range measurement of f
Measuring range U
............................................................................................................................................................... 0.1…460 Hz
n
............................................................................................................................................. ±1 % ±0.1 Hz
n
......................................................................................................................................AC 25…690 V
(without an external coupling device).............................................................................................. AC 25…690 V
n
n
............................................................................................................................................................................................ DC 0…1000 V
Voltage range measurement of U
Tolerance measurement of U
1)
Measuring range C
................................................................................................................................................................0…1000 μF
e
Tolerance measurement of C
Frequency range measurement of C
Min. insulation resistance measurement of C
..................................................................................................................................... AC/DC > 10 V
n
................................................................................................................................................. ±5 % ±5 V
n
........................................................................................................................................... ±10 % ±10 μF
e
.............................................................................................................................. DC, 30…460 Hz
e
..........................................depending on the profile and coupling mode, typ. > 10 kΩ
e
72
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 73
Technical dataTechnical data
Display
Indication ....................................................................................................................... graphic display 127 x 127 pixels, 40 x 40 mm
Display range measured value ......................................................................................................................................... 0.1 kΩ…20 MΩ
Operating uncertainty (acc. to IEC 61557-8)................................................................................................................. ±15%, min. 1 kΩ
LEDs
ON (operation LED) ............................................................................................................................................................................green
SERVICE............................................................................................................................................................................................. yellow
ALARM 1 ........................................................................................................................................................................................... yellow
ALARM 2 ........................................................................................................................................................................................... yellow
Inputs/outputs (X1-Interface)
Cable length X1 (unshielded cable) .............................................................................................................................................. ≤ 10 m
Recommended cable (shielded, shield connected to PE on one side: J-Y(St)Y min. 2x0.8)..................................................... ≤ 100 m
Total max. supply output current via X1.+/X1.GND for each output..........................................................................................max. 1 A
Total max. supply output current via A1/A2 in total on X1 ................................................................................................. max. 200 mA
Total max. supply output current via A1/A2 in total on X1 between 16.8 V and 40 V ............................................................................
............................................................................................................................................................. I
............................................................................................................................................ (negative values are not allowed for I
= 10mA + 7mA/V * Us
LmaxX1
LmaxX1
Digital inputs (I1, I2, I3)
Number ...................................................................................................................................................................................................... 3
Operating mode, adjustable................................................................................................................................... active high, active low
Functions ..................................................................................................... off, test, reset, deactivate device, start initial measurement
Voltage...........................................................................................................................................Low DC -3…5 V, High DC 11…32 V
Voltage tolerance ........................................................................................................................................................................... ± 10 %
Digital outputs (Q1, Q2)
Number ...................................................................................................................................................................................................... 2
Operating mode, adjustable active, passive
Functions ........................................ off, Ins. alarm 1, Ins. Alarm 2, connection fault, DC- alarm
4)
, DC+ alarm 4), symmetrical alarm,
........................................................................ device fault, common alarm, measurement complete, device inactive, DC offset alarm
Voltage passive.............................................................................................................................DC 0…32 V, active DC 0/19.2…32 V
Analogue output (M+)
Number ...................................................................................................................................................................................................... 1
Operating mode................................................................................................................................linear, midscale point 28 kΩ/120 kΩ
Functions .............................................................................................................................................................insulation value, DC shift
Current 0...20 mA (< 600 Ω), 4…20 mA (< 600 Ω), 0…400 μA (< 4 kΩ)
Voltage 0…10 V (>1 kΩ), 2…10 V (>1 kΩ)
Tolerance related to the current/voltage final value ....................................................................................................................± 20 %
2)
Interfaces
Field bus:
Interface/protocol ................................................................................................................................... Web server/Modbus TCP/BCOM
Data rate........................................................................................................................................................... 10/100 Mbit/s, autodetect
Max. number of Modbus requests ................................................................................................................................................. <100/s
Cable length .................................................................................................................................................................................≤ 100 m
Connection ........................................................................................................................................................................................... RJ45
IP address .................................................................................................................................................... DHCP/manual* 192.168.0.5*
Network mask ...................................................................................................................................................................255.255.255.0*
BCOM address ...........................................................................................................................................................................system-1-0
Function .............................................................................................................................................................. communication interface
ISOnet
Number ISOnet devices ..................................................................................................................................................................... ≤ 20
Max. nominal system voltage range ISOnet ................................................................................................................................AC 690 V
DC 1000 V
3)
)
Sensor bus:
Interface/Protocol ............................................................................................................................................................ RS-485 / BB-Bus
Data rate mode 1 ..................................................................................................................................................................... 9.6 kBaud/s
Leitungslänge (dependant on the Baudrate) .............................................................................................................................≤1200 m
Cable: twisted pair, one end of shield connected to PE................................................................... recommended: J-Y(St)Y min. 2x0.8
Connection ................................................................................................................................................................. terminals X1.A, X1.B
Terminating resistor............................................................................................................................120 Ω, can be connected internally
Device address ................................................................................................................................................................................. 1…90
Switching elements
Number of switching elements ............................................................................................................................. 2 changeover contacts
Operating mode.......................................................................................................................................... N/C operation/N/O operation
Contact 11-12-14 ...........................off, Ins. alarm 1, Ins. Alarm 2, connection fault, DC- alarm
......................................................................... device fault, common alarm, measurement complete, device inactive, DC offset alarm
Contact 21-22-24 ...........................off, Ins. alarm 1, Ins. Alarm 2, connection fault, DC- alarm
4)
, DC+ alarm 4), symmetrical alarm,
4)
, DC+ alarm 4), symmetrical alarm,
......................................................................... device fault, common alarm, measurement complete, device inactive, DC offset alarm
Electrical endurance under rated operating conditions, number of cycles.................................................................................... 10,000
Contact data acc. to IEC 60947-5-1:
Utilisation category................................................................................................................... AC-13 / AC-14 / DC-12 / DC-12 / DC-12
Rated operational voltage .............................................................................................................. 230 V / 230 V / 24 V / 110 V / 220 V
Rated operational current ........................................................................................................................... 5 A / 3 A / 1 A / 0.2 A / 0.1 A
Rated insulation voltage ≤ 2000 m NN............................................................................................................................................ 250 V
Rated insulation voltage ≤ 3000 m NN............................................................................................................................................ 160 V
Minimum contact rating ...................................................................................................................................... 1 mA at AC/DC ≥ 10 V
73
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 74
Technical dataTechnical data
Environment/EMC and temperature range
EMC .................................................................................................................................................................................. IEC 61326-2-4
Operating temperature........................................................................................................................................................ -25…+55 °C
Transport.............................................................................................................................................................................. -40…+85 °C
Long-term storage .............................................................................................................................................................. -40…+70 °C
Classification of climatic conditions acc. to IEC 60721:
Staionary use (IEC 60721-3-3) .................................................................................. 3K5 (condensation and formation of ice possible)
Transport (IEC 60721-3-2) ......................................................................................................................................... ......................... 2K3
Long-term storage (IEC 60721-3-1) ................................................................................................................................... ................ 1K4
Classification of mechanical conditions acc. to IEC 60721:
Stationary use (IEC 60721-3-3) ......................................................................................................................................................... 3M4
Transport (IEC 60721-3-2) ................................................................................................................................................................. 2M2
Long-term storage (IEC 60721-3-1) ...................................................................................................................................................1M3
Area of application ................................................................................................................................................................ ≤3000 m NN
Connection
Connection type............................................................................................................ pluggable screw terminal or push-wire terminal
Screw-type terminals:
Nominal current............................................................................................................................................................................... ≤ 10 A
Tightening torque.......................................................................................................................................... 0.5…0.6 Nm (5…7 lb-in)
Conductor sizes.........................................................................................................................................................................AWG 24-12
Stripping length................................................................................................................................................................................. 7 mm
rigid/flexible ....................................................................................................................................................................... 0.2…2.5 mm²
flexible with ferrules, with/without plastic collar ...........................................................................................................0.25…2.5 mm²
Multiple conductor, rigid....................................................................................................................................................... 0.2…1 mm²
Multiple conductor, flexible ............................................................................................................................................... 0.2…1.5 mm²
Multiple conductor, flexible with ferrule without plastic sleeve .......................................................................................0.25…1 mm²
Multiple conductor, flexible withTWIN ferrule with plastic sleeve................................................................................... 0.5…1.5 mm²
Push-wire terminals:
Nominal current............................................................................................................................................................................... ≤ 10 A
Conductor sizes.........................................................................................................................................................................AWG 24-12
Stripping length............................................................................................................................................................................... 10 mm
rigid/flexible ....................................................................................................................................................................... 0.2…2.5 mm²
flexible with ferrules, with/without plastic collar ...........................................................................................................0.25…2.5 mm²
Multiple conductor, flexible withTWIN ferrule with plastic sleeve..............................................................
sh-wire terminals
Pu
X1:
..................... 0.5…1.5 mm²
Nominal current.................................................................................................................................................................................. ≤8 A
Conductor sizes.........................................................................................................................................................................AWG 24-16
Stripping length............................................................................................................................................................................... 10 mm
rigid/flexible ....................................................................................................................................................................... 0.2…1.5 mm²
flexible with ferrule without plastic sleeve......................................................................................................................0.25…1.5 mm²
flexible with ferrule with plastic sleeve .........................................................................................................................0.25…0.75 mm²
5)
Other
Operating mode continuous operation
Mounting (0°) display oriented, cooling slots must be ventilated vertically
6
Degree of protection internal components .........................................................................................................................................IP40
Degree of protection terminals ............................................................................................................................................................IP20
DIN rail mounting acc. to............................................................................................................................................................ IEC 60715
Screw fixing...................................................................................................................................................... 3 x M4 with mounting clip
Enclosure material ............................................................................................................................................................... polycarbonate
Flammability class .................................................................................................................................................................................V-0
ANSI code ............................................................................................................................................................................................... 64
Dimensions (W x H x D)............................................................................................................................................... 108 x 93 x 110 mm
Weight ........................................................................................................................................................................................... < 390 g
1)
at a frequency > 200 Hz, the connection of X1 ande Remote must be insulated. Only permanently installed devices which at least
have overvoltage category CAT2 (300V) may be connected.
2)
Indication limited outside the temperature range -25…+55 °C.
3)
Us [Volt] = ISOMETER® supply voltage
4)
For Un ≥ 50 V only.
5)
This is a class A product. This product may cause radio interference in residential areas. In this case, the user may be required to
take corrective actions.
6)
Recommendation: Devices mounted at 0° (display oriented, cooling slots must be ventilated vertically)
For devices mounted at an angle of 45°, the max. working temperature is reduced by 10 °C.
For devices mounted at an angle of 90°, the max. working temperature is reduced by 20 °C.
17.2 Device feature W
Devices with the suffix "W“ feature increased shock and vibration resistance. The electronics is covered with a special varnish to provide increased protection against mechanical stress and moisture.
Combination of ISOMETER® sensor variant with the FP200W:
The requirements of Option "W" will only be fulfilled when the ISOMETER®
sensor variant is mounted on DIN rail and connected to the FP200W via
the patch cable.
Refer to the quick-start guide FP200 (Document number D00169).
74
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 75
Technical dataTechnical data
17.3 Standards and certifications
The ISOMETER® has been developed in compliance with the following standards:
• DIN EN 61557-8 (VDE 0413-8):2015-12
• IEC 61557-8:2014-12
• IEC 61557-8:2014/COR1:2016
• DIN EN 61557-8 Ber 1 (VDE 0413-8 Ber 1):2016-12
Subject to change! The standards specified take into account the valid edition up to 4/19/
18, unless otherwise stated.
17.4 Ordering information
17.4.1 Device
Type
iso685–D–P AC 24…240 V; 50…400 Hz; DC 24…240 V B91067030
iso685W–D–P * AC 24…240 V; 50…400 Hz; DC 24…240 V B91067030W
Combination
iso685–S–P + FP200
Combination
iso685W–S–P + FP200W *
* Option „W“: Increased shock and vibration resistance 3K5; 3M7; -40…+70 °C
17.4.2 Accessories
Description Art. No.
iso685 Mechanical accessories comprising:
Terminal cover and 2 mounting clips*
iso685 Plug kit, screw terminals* B91067901
iso685 plug kit, with push-wire terminals B91067902
Front cover 144x72 transparent (IP65) for FP200 ** B98060005
Supply voltage U
AC 24…240 V; 50…400 Hz; DC 24…240 V B91067230
AC 24…240 V; 50…400 Hz; DC 24…240 V B91067230W
S
Art. No.
B91067903
17.4.3 Insulation fault locators
Typ e
EDS440-S-1 AC/DC 24…240V 2…10mA B 9108 0201
EDS440W-S-1 AC/DC 24…240V 2…10mA B 9108 0201W
EDS440-L-4 AC/DC 24…240V 2…10mA B 9108 0202
EDS440W-L-4 AC/DC 24…240V 2…10mA B 9108 0202W
EDS441-S-1 AC/DC 24…240V 0,2…1mA B 9108 0204
EDS441W-S-1 AC/DC 24…240V 0,2…1mA B 9108 0204W
EDS441-L-4 AC/DC 24…240V 0,2…1mA B 9108 0205
EDS441W-L-4 AC/DC 24…240V 0,2…1mA B 9108 0205W
EDS441-LAB-4 AC/DC 24…240V 0,2…1mA B 9108 0207
EDS441W-LAB-4 AC/DC 24…240V 0,2…1mA B 9108 0207W
Supply voltage U
* Absolute values
*
Response value Art. no.
S
17.4.4 Suitable system components
Description Type Art. No.
Suitable measuring instruments
**
SKMP
: 28 kΩ,120 kΩ
Current values: 0…400 A, 0…20 mA
(Further information can be found
under this link)
Display for front-panel mounting
ISOMETER® sensor variant
AC 24…240 V; 50…400 Hz; DC 24…240 V
Only in combination with FP200
ISOMETER® sensor variant *
AC 24…240 V; 50…400 Hz; DC 24…240 V
Only in combination with FP200W *
*
Option „W“: Increased shock and vibration resistance 3K5; 3M7; -40…+70 °C
**
SKMP = midscale point
7204-1421 B986763
9604-1421 B986764
9620-1421 B986841
FP200 B91067904
FP200W * B91067904W
iso685–S–P B91067130
iso685W–S–P * B91067130W
* included in the scope of delivery
** If the “transparent front cover 144x72 (IP65)” is used, the cutout in the control cabinet
must be increased in height from 66 mm to 68 mm (+ 0.7 / -0 mm).
75
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 76
18. Glossary
BB bus
BCOM Protocol for communication between Bender devices via an IP-based network.
BS bus The Bender sensor bus is an interface which enables Bender devices to communicate with each other (RS-485 interface).
DHCP Dynamic Host Configuration Protocol. It is used to assign the network configuration to Clients via a server.
EDS Insulation fault locator for fault location in an IT system.
EDS button
EDS mode
ISOnet
Modbus TCP Modbus is an international widely spread protocol for data transfer.
PGH
"PGH ON" LED The "PGH ON" LED flashes during insulation fault location. It indicates that the locating current for the insulation fault location is generated.
System (BCOM)
Subsystem (BCOM)
Web server A web server presents the device functions graphically. The web server can be used for reading out measured values and for parameter setting.
The BB bus is an interface which enables Bender devices to communicate with each other (Bender-internal device bus).
The BB bus can be used with an ISOMETER® and one or more EDS44…-S.
The shortcut button "EDS" manually starts the insulation fault location, which runs continuously until the button is pressed again, which stops the
process immediately.
(refer also to “Display elements and device buttons” on page 17).
The insulation fault location can be carried out in three different modes. Depending on the mode, the insulation fault location starts and stops due
to different conditions (see also “Mode” on page 50).
Only one ISOMETER® may exist in an isolated system. If several networks monitored by an ISOMETER® are coupled, this function ensures via an
Ethernet connection that only one ISOMETER® is actively measuring.
PGH stands for locating current injector. The locating current injector generates a periodic locating current for insulation fault location. This locating current is detected by the measuring current transformers connected to the EDS and evaluated by the EDS.
The system is the entire installation that is visible for the customer and defined by the customer. The BCOM communication takes place within this
system. Naturally, different systems can exist independently in one network.
The subsystem structures parts of the system as units defined by the customer, e.g. all PQ devices. A typical subsystem are also "non BCOM-capable" devices that are hidden behind a proxy.
76
iso685-x-P_D00170_05_M_XXEN/05.2018
Page 77
Index
Index
A
Accessories 75 Alarm
Alarm 1
Alarm 2 12
Alarm settings 43
Anzeige
Messpuls
12
40
B
BB bus 76 BCOM 76 BS bus 76 Button
17
DATA
ESC 17
INFO 17
MENU 17
OK 17
RESET 17
TEST 17
Buttons 17
C
Characteristic curves 67
Clock 32, 56
Commissioning 21, 31
Commissioning wizard 31
Recommissioning 32
Commissioning wizard 32
Communication interfaces 59
BCOM 59
Ethernet 59
Modbus/TCP 59
Web server 59 Connection
A1/+, A2/-
AC system 22
Connection requirements 21
23
Connections and panel 16
DC system 23
Ethernet interface 24
Relay 1 interface (11 12 14) 24
Supply voltage 23
Connection to a 3(N)AC system 22
Control circuits 62
Coupled IT systems 63
Coupling monitoring 44
D
Data-isoGraph 59
Date 32, 56
Device buttons 17
DHCP 76
Diagrams 67
Display 17, 35
Data - isoGraph 59
Fault display (active) 35
Fault display (inactive) 36
Fault memory 37
History memory 38
Limit values for R(an) 35
Signal quality of the measurement 35
Standard display 35
E
EDS 76
Device settings 53
Inputs 52
Outputs 51
Ethernet interface 24
F
Features 11 Function description
iso685-D
ISOnet 64
12
H
Hazards when handling the device 9
History memory 38
I
Initial measurement 38
Inputs 44
EDS 52
Insulation fault location 13
Response value I∆L 51
Response value I∆n 51
Test current 49
Insulation resistance
Activate/deactivate measurement
Intended use 9
Interface 56
Address 57
DHCP 56
Ethernet 56
Interfaces 13
BS bus 61
ISOnet 76
ISOnet function 64
ISOsync 63
L
Language 32, 55 LEDs
ALARM 1
ALARM 2 17
ON 17
PGH ON 76
SERVICE 17
17
44
77
iso685-x-P_D00170_04_M_XXEN/01.2018
Page 78
Index Index
M
Mains voltage 10 Measured values 55 Menu 41 Messpuls 40 Minimum current rectifier 21 Minimum distance 21 Modbus TCP 76 Mounting
DIN rail mounting
Screw mounting 20
20
N
Nominal system voltage 62, 72
Nominal voltage 10, 21
Normal operation 35
O
Operation
Buttons
Commissioning 21, 31
Output 46
View current settings 58
Outputs
EDS
31
51
P
Password 57
PGH 76
Product description 11
Profile overview 62
Protective earth conductor (PE) 21
Profile power circuits 67
Relative uncertainty 68
Response value 11, 72
I∆L 51
S
Safety instructions 7
Self test 13
Service menu 55, 58
Settings 43, 63
Alarm 43
Basic settings 55
Coupling devices 32
Coupling monitoring 44
Date and time 32
Inputs 44
Interface 56
Language 32, 55
Manual test 55
Measured values 55
Measurement insulation resistance 55
Password 57
Profile 32, 44
Reset alarm message 55
Response value Ran1, Ran2 32
System type 32
Start initial measurement 55
Start-up delay 44
Supply voltage 72
System frequency 62
System leakage capacitance 10, 11, 62
R
Response time
Profile control circuits
Profile generator 67
Profile high capacitance 67
Profile inverter 10 Hz 68
78
T
Technical data 72
67
W
Web server 76
Write access 56
iso685-x-P_D00170_04_M_XXEN/01.2018
Page 79
Notes
Index
79
