GENERAL
Carefully read the following important information regarding
installation safety and maintenance. Keep this information
booklet accessible for further consultations. The appliance
has been designed for use in the ducting version (air exhaust
to the outside – Fig.1B), ltering version (air circulation on the
inside – Fig.1A) or with external motor (Fig.1C).
SAFETY PRECAUTION
1. Take care when the cooker hood is operating simultaneously
with an open replace or burner that depend on the air in the
environment and are supplied by other than electrical energy,
as the cooker hood removes the air from the environment
which a burner or replace need for combustion. The negative
pressure in the environment must not exceed 4Pa (4x10-5 bar).
Provide adequate ventilation in the environment for a safe
operation of the cooker hood. Follow the local laws applicable
for external air evacuation.
Before connecting the model to the electricity network:
- Control the data plate (positioned inside the appliance)
to ascertain that the voltage and power correspond to the
network and the socket is suitable. If in doubt ask a quali ed
electrician.
- If the power supply cable is damaged, it must be replaced
with another cable or a special assembly, which may be
obtained direct from the manufacturer or from the Technical
Assistance Centre.
- This device must be connected to the supply network
through eiter a plug fused 3A or hardwired to a 2 fase spur
protected by 3A fuse.
2. Warning !
In certain circumstances electrical appliances may be a
danger hazard.
A) Do not check the status of the lters while the cooker
hood is operating
B) Do not touch bulbs or adjacent areas, during or straight
after prolonged use of the lighting installation.
C) Flambè cooking is prohibited underneath the cooker
hood
D) Avoid free ame, as it is damaging for the lters and
a re hazard
E) Constantly check food frying to avoid that the
overheated oil may become a re hazard
F) Disconnect the electrical plug prior to any
maintenance.
G) This appliance is not intended for use by young children
or in rm persons without supervision
H) Young children should be supervised to ensure they do
not play with the appliance
I) There shall be adequate ventilation of the room when
the rangehood is used at the same time as appliances
burning gas or other fuels
L) There is a risk of re if cleaning is not carried out in
accordance with the instructions
This appliance conforms to the European Directive EC/2002/96,
Waste Electrical and Electronic Equipment (WEEE). By making
sure that this appliance is disposed of in a suitable manner,
the user is helping to prevent potential damage to the
environment or to public health.
The symbol on the product or on the accompanying
paperwork indicates that the appliance should not be treated
as domestic waste, but should be delivered to a suitable
electric and electronic appliance recycling collection point.
Follow local guidelines when disposing of waste. For more
information on the treatment, re-use and recycling of this
product, please contact your local authority, domestic waste
collection service or the shop where the appliance was
purchased.
INSTALLATION INSTRUCTIONS
Assembly and electrical connections must be carried out by
specialised personnel.
• Electric Connection
The appliance has been manufactured as a class II, therefore
no earth cable is necessary.
The connection to the mains is carried out as follows:
BROWN = L line
BLUE = N neutral
If not provided, connect a plug for the electrical load
indicated on the description label. Where a plug is provided,
the cooker hood must be installed in order that the plug is
easily accessible.
An omnipolar switch with a minimum opening of 3mm
between contacts, in line with the electrical load and local
standards, must be placed between the appliance and the
network in the case of direct connection to the electrical
network.
• The minimum distance between the support surfaces of
the cooking pots on the cooker top and the lowest part of
the cooker hood must be at least 65 cm. If a connection
tube composed of two parts is used, the upper part must
be placed outside the lower part. Do not connect the cooker
hood exhaust to the same conductor used to circulate hot air
or for evacuating fumes from other appliances generated by
other than an electrical source.
Before proceeding with the assembly operations, remove the
anti-grease lter(s) (Fig.6) so that the unit is easier to handle.
- In the case of assembly of the appliance in the suction version
prepare the hole for evacuation of the air.
• We recommend the use of an air exhaust tube which has
the same diameter as the air exhaust outlet hole. If a pipe
with a smaller diameter is used, the e ciency of the product
may be reduced and its operation may become noisier.
• If your appliance has been designed for use in habitations
supplied with acentralised suction device perform the
following operations:
-The switch controls opening and closure of a valve using
a thermoelectical device. By placing the switch in the ON
position, after a minute, the valve opens rotating 90° allowing suction of the stale air. By placing the switch in the OFF
position, the valve closes after 100 seconds.
• Fixing to the wall
Drill the holes A respecting the distances indicated (Fig.2). Fix
the appliance to the wall and align it in horizontal position
to the wall units. When the appliance has been adjusted,
de nitely x the hood using the screws A (Fig.4). For the various installations use screws and screw anchors suited to the
- 13 -
Page 5
type of wall (e.g. reinforced concrete, plasterboard, etc.). If
the screws and screw anchors are provided with the product,
check that they are suitable for the type of wall on which the
hood is to be xed.
• Fixing the decorative telescopic ue
Arrange the electrical power supply within the dimensions of
the decorative ue. If your appliance is to be installed in the
ducting version or in the version with external motor, prepare
the air exhaust opening. Adjust the width of the support
bracket of the upper ue (Fig.3). Then x it to the ceiling using
the screws A (Fig.3) in such a way that it is in line with your
hood and respecting the distance from the ceiling indicated
in Fig.2. Connect the ange C to the air exhaust hole using a
connection pipe (Fig.4). Insert the upper ue into the lower
ue and rest above the frame. Extract the upper ue up to
the bracket and x it with the screws B (Fig.3). To transform
the hood from a ducting version into a ltering version, ask
your dealer for the charcoal lters and follow the installation
instructions.
• Filtering version
Install the hood and the two flues as described in the
paragraph for installation of the hood in ducting version. To
assemble the ltering ue refer to the instructions contained
in the kit. If the kit is not provided, order it from your dealer
as accessory. The lters must be applied to the suction unit
positioned inside the hood. They must be centred by turning
them 90 degrees until the stop catch is tripped ( g. 7).
USE AND MAINTENANCE
• We recommend that the cooker hood is switched on before
any food is cooked. We also recommend that the appliance is
left running for 15 minutes after the food is cooked, in order
to thoroughly eliminate all contaminated air.
The e ective performance of the cooker hood depends on
constant maintenance; the anti-grease lter and the active
carbon lter both require special attention.
• The anti-grease lter is used to trap any grease particles
suspended in the air, therefore is subject to saturation (the
time it takes for the lter to become saturated depends on
the way in which the appliance is used).
- To prevent potential re hazards, the anti-grease lters
should be washed a minimum of every 2 months (it is
possible to use the dishwasher for this task).
- After a few washes, the colour of the lters may change.
This does not mean they have to be replaced.
If the replacement and washing instructions are not followed,
the anti-grease lters may present a re hazard.
• The active carbon lters are used to purify the air which
is released back into the room. The lters are not washable
or re-usable and must be replaced at least once every four
months.
The active carbon lter saturation level depends on the
frequency with which the appliance is used, the type of
cooking performed and the regularity with which the antigrease lters are cleaned.
• Clean the cooker hood frequently, both inside and outside,
using a cloth which has been dampened with denatured
alcohol or neutral, non-abrasive liquid detergents.
• The light on the cooker hood is designed for use during
cooking and not for general room illumination. Extended
use of the light reduces the average duration of the bulb.

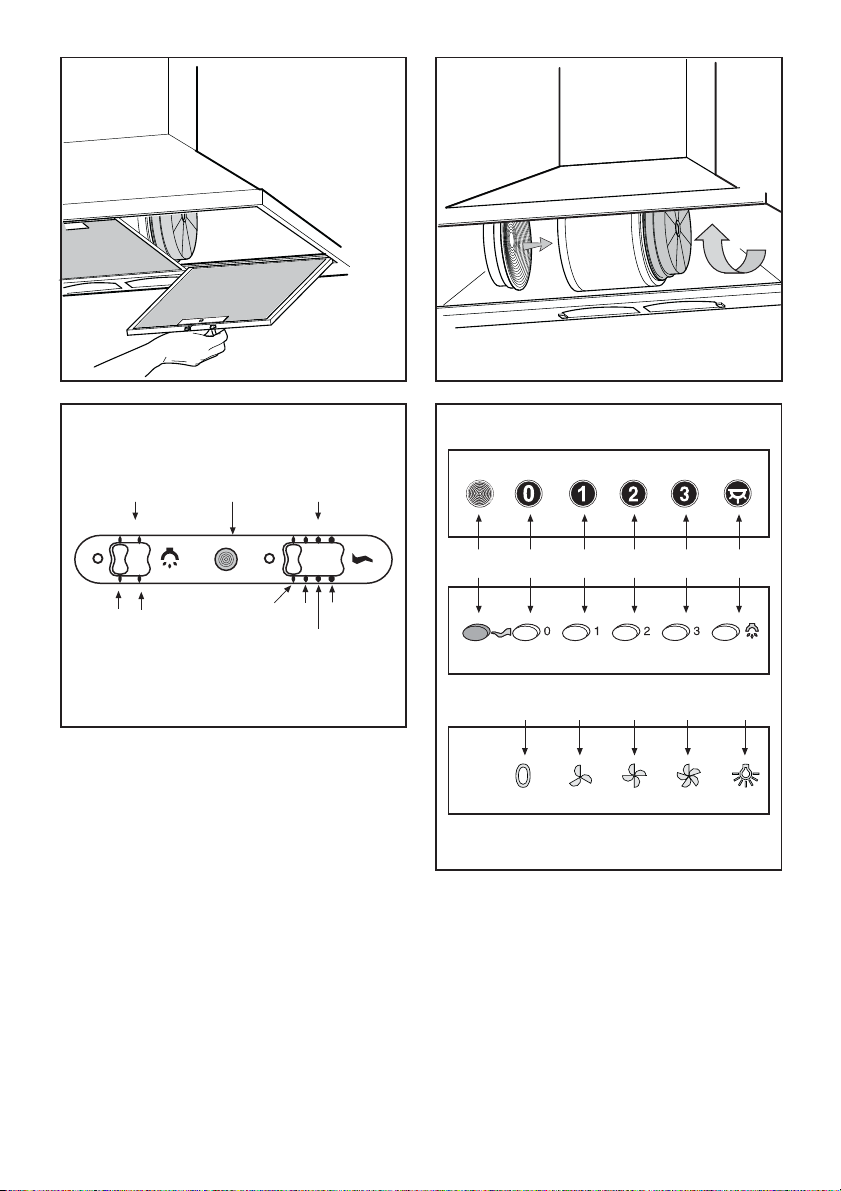

• Commands: ( g.5) luminous the key symbols are explained
below:
A = LIGHT
B = OFF
C = SPEED I
D = SPEED II
E = SPEED III
F = AUTOMATIC STOP TIMER - 15 minutes
• If your appliance does not have the INTENSIVE speed
function, press key E for two seconds and it will be activated
for 10 minutes after which it will return to the previously
set speed.
When the function is active the LED ashes. To interrupt it
before the 10 minutes have expired press key E again.
• By pressing key F for two seconds (with the hood switched
o ) the “clean air” function is activated. This function switches
the appliance on for ten minutes every hour at the rst speed.
As soon as this function is activated the motor starts up at the
rst speed for ten minutes, During this time key F and key C
must ash at the same time.
After ten minutes the motor switches o and the LED of key
F remains switched on with a xed light until the motor starts
up again at the rst speed after fty minutes and keys F and
C start to ash again for ten minutes and so on.
By pressing any key for the exclusion of the hood light the
hood will return immediately to its normal functioning (e.g.
if key D is pressed the “clean air” function is deactivated and
the motor moves to the 2nd speed straight away. By pressing
key B the function is deactivated).
• Active carbon/grease lter saturation:
- When button A
grease lters must be cleaned.
- When button A ashes at a frequency of 0.5 seconds, the
carbon lters must be replaced.
After the clean lter has been replaced, the electronic memory
must be reset by pressing button A for approximately 5
seconds, until the light on the button stops ashing.
•Commands:( g.9A-C) mechanical_( g.9B) elliptic the key
symbols are explained below:
A = LIGHT
B = OFF
C = SPEED I
D = SPEED II
E = SPEED III
G = MOTOR WORKING indicator
•Commands: (pic.8) slider the key symbols are explained
belo
w:
A = Light switch
A1 = O key
A2 = On key
B = Gemma warning light key
C = Speed control
C1 = O key
C2 = FIRST SPEED key
C3 = SECOND SPEED key
C4 = THIRD SPEED key
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE
WARNINGS.
ashes at a frequency of 2 sec
- 14 -
onds, the
Loading...
