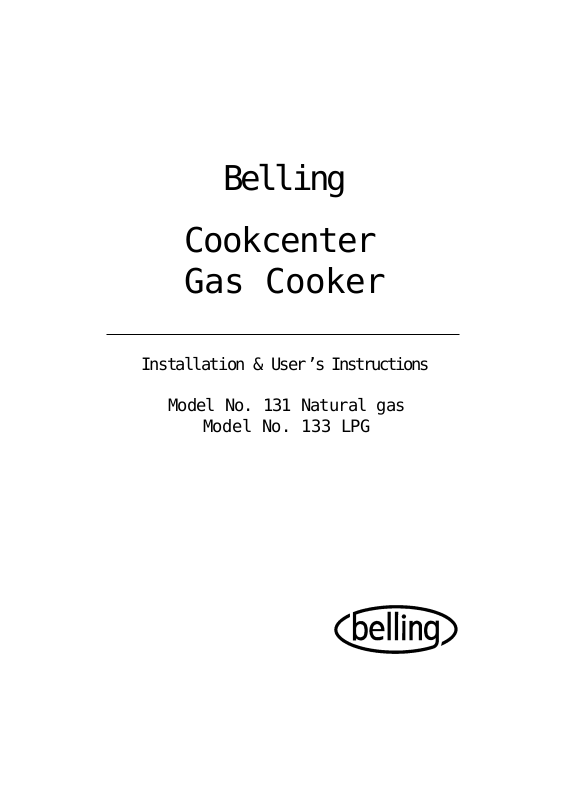

Belling Cookcenter, Cookcenter 131, Cookcenter 133 Installation & User's Instructions

Belling

Cookcenter
Gas Cooker

Installation & User’s Instructions

Model No. 131 Natural gas

Model No. 133 LPG

Contents

Introduction.................................................................................................................3

Installation Instructions . .........................................................................................4-7

Space For Fixing. ...................................................................................................8

Connecting To The Gas Supply .................................................................................9

Electrical connection .................................................................................................10

Operational checks ....................................................................................................11

For Y our Safety Always ............................................................................................12

For Y our Safety Never ...............................................................................................13

Know Your Cooker ..............................................................................................14

Automatic Cooking Hints ........................................................................................15

Know Your Timer ................................................................................................16-22

Hotplate ......................................................................................................................23

Griddle & Fitting the Griddle Handles ..................................................................24

W arming zone ............................................................................................................25

Conventional Oven ............................................................................................26

Grill ..............................................................................................................................27

Fan Oven ................................................................................................................28-30

Cooking Charts For Main Ovens .................................................................. .....31-32

The ‘E’ Setting . .........................................................................................................33

Slow Cook/Warming Oven........................................................................................34

Care And Cleaning ........................................................................................35-36

Something Wrong? ..................................................................................................37

Spares And Service ...................................................................................... Back cover

2

Thank you for purchasing a new Belling Cookcenter. Its stylish and practical
design will enhance your kitchen and make cooking a pleasure. It features a
Fan oven, a conventional oven, a slow cook / warming oven, a separate grill
and a six burner hob with a warming area and removable griddle plate. There
is also a clock / timer with a minute minder and automatic oven switch on and
off.

If you have any problems with installing, operating, or cooking with your
Belling cooker, please check through these instructions thoroughly to make
sure that you have not missed anything. If you still need help then please
contact (including a daytime telephone number if possible):

Consumer Relations Department,
Belling Appliances Ltd.,
Talbot Road,
Mexborough,
South Yorkshire,
S64 8AJ
Belling helpline Tel: [phone].

Please quote the cooker model and serial number with all enquiries. The serial
number can be found on the left hand side of the oven frame.

WARNING! Fo r y o u r o w n s afety, make sure that these instructions on
installation, use and maintenance are followed.

W e advise you to keep these instructions in a safe place for future reference.

If you sell or transfer ownership of this product, please pass on these
instructions to the new owner.

After unpacking your cooker, make sure that you remove all the packing from
the oven and grill and any stickers from the oven/grill door and the hob.

Getting help

Unpacking

3

Your Belling
Cooker

Introduction

4

Installation Instructions

Prior to installation, ensure that the local distribution conditions (nature of the
gas and gas pressure) and the adjustment conditions are compatible. The
adjustment conditions for this appliance are stated on the data badge which is
fitted on the rear panel.
This appliance is not designed to be connected to a combustion products
evacuation device. It must be installed and connected in accordance with
current installation regulations. Particular attention should be given to the
relevant requirements regarding ventilation.

Model number: 131

Category I2H(GB, IE)
This model is set to burn NATURAL GAS (G20) at 20mbar ONLY and cannot be
used on any other gas.

Model number: 133

Category I3+(GB, IE)
This model is set to burn BUTANE (G30) at 28-30mbar and PROPANE (G31) at
37mbar .

Gas safety (installation and use regulations)
It is the law that all gas appliances are installed by competent persons in
accordance with the current edition of the above regulations. It is in your
interest and that of safety to ensure compliance with the law.

In the UK, CORGI registered installers work to safe standards of practice.
The cooker must also be installed in accordance with BS 6172:
Failure to install the cooker correctly could invalidate the warranty liability
claims and could lead to prosecution.

Location
The cooker may be located in a kitchen, kitchen/diner or a bed-sitting room,
but not in a room containing a bath or shower. The cooker must not be
installed in a bed-sitting room of less than 20m3.
LPG models shall not be installed in a room or internal space below ground
level, e.g. in a basement.

Provision for ventilation
The room containing the cooker should have an air supply in accordance with
BS 5440:Part 2:

The room must have an opening window or equivalent; some rooms may also
require a permanent vent. If the room has a volume between 5 and 10m3, it
will require an air vent of 50 cm2effective area unless it has a door which
opens directly to outside. If the room has a volume of less than 5m3, it will
require an air vent of 100 cm2effective area. If there are other fuel burning
appliances in the same room, BS 5440: Pa rt 2: should be consulted to determine
air vent requirements.

Electric Warming Zone

Hotplate

Electric

W arming/Slowcook Oven

MAIN OVEN

Conventional

3.8 kW

GRILL

72

2.8 kW

2.8 kW

0.22kw

0.25kw

MAIN OVEN - FA N

150

120

-

-

120

128

3.5 kW

HOTPLATE

Front middle (Wo k)

Installation Instructions

5

Technical data

Dimensions
Height 900 - 915mm
Width 1082mm
Depth 600mm (excluding door handles)

General
Gas connection Rp 1/2(1/2” BSP female)
Gas supply Natural gas models - G20 at 20 mbar

LPG models - Propane (G31) at 37 mbar and

Butane (G30) at 28-30 mbar
Pressure test point Grill injector
Gas rate adjustment None
Aeration adjustment None
Electrical connection Flexible cord fitted with a 3 pin 13 amp plug

230 - 240V a.c. 50Hz. 3A fuse.

HEAT INPUT

BURNER

Natural Gas Models LPG Models

INJECTOR

HEAT INPUT

INJECTOR

HOTPLATE

Rear left rapid

HOTPLATE

Front right & rear right

(auxiliary)

130

HOTPLATE

Front left & rear middle

(semi-rapid)

2.0 kW

1.0 kW

102

3.0 kW

2.5 kW

3.4 kW

95

2.5 kW

0.22kw

0.25kw

75

-

-

75

65

3.2 kW

82

1.8 kW

1.0 kW

50

2.8 kW

90

Installation Instructions

Unpack the components from inside the grill and oven: Check
that the following parts are present.

Grill pan and grid
Main oven shelves (4)
Main oven shelf heat shield
Griddle
Pan supports (3)
Meat pan
Literature

Two rear wheels and two front feet are fitted which can be adjusted
up or down to set the height (900mm - 915mm) and level the
cooker.

1. The rear wheels can be raised or lowered from the BACK of the
cooker by adjusting the levelling screws ‘A’ i n the plinth.

2. The front feet can be simply screwed in or out to lower or raise
the front of the cooker.

Some soft floor coverings may get damaged if the cooker is not
moved carefully.

6

Unpacking the
cooker

NOTE: This appliance should not be installed on a platform.

Levelling

Caution:

PENCIL LINE

PLINTH

BRACKET

W ALL

Installation Instructions

The cooker must be fitted with a stability device, firmly
secured to the fabric of the building. The back of the cooker
has a slot for engagement of a stability bracket, which can be
obtained, as an extra, from the cooker supplier. The leaflet
included with the bracket should be read in conjunction with
the following instructions.

Push cooker to its intended position.
Draw pencil lines on the floor in line with the front and
left side of the plinth.
Remove the cooker.
Position stability bracket so front edge is 410mm from
the front of the cooker and its centre is 92mm from
the left hand side - see diagram below.
Measure height from floor level to the bottom of the
slot in the back of the cooker. Add 3mm to the
dimension and assemble the stability bracket to that
height. (i.e. from floor level to the underside of the top
member).

Stability
bracket

7

92

mm

410mm

1085

400

8

Space For Fixing

The cooker can be close fitted below hotplate level. This
requires a minimum distance of 1085mm between cupboard
units of hotplate height.
The wall behind the cooker between the hotplate and 450mm
above, and across the width of the cooker, must be an
incombustible material such as ceramic wall tiles.
Follow the diagrams below for guidance on fitting. Take note
of all dimensions.

If your appliance is to be fitted close to a corner ensure that
there is a clearance of 135mm minimum. This will enable you
to fully open the door and allow removal of oven shelves.

1085

1085

2050 min

Gap can be in filled

below hotplate level

65

1085

1085

794

25 min

400

min

2050 min

Cupboards

or wall

Appliance

Cupboar

d

135 min

Fig. 1
INSTALLATION WITH WALL
CUPBOARDS IN LINE WITH SIDES OF
APPLIANCE

Fig. 3
INSTALLATION ALONGSIDE TALL
CUPBOARDS OR SIDE WALL

Fig. 4
INSTALLATION CLOSE TO A CORNER

Fig. 2
INSTALLATION USING BRIDGING
CUPBOARDS

1200

Connecting to the Gas Supply

9

This area to be clear of pipework
and obstructions

450 250

80 470

1085

570

160

60

MAINS INLET ON

APPLIANCE

Connection to the cooker should be made with an approved appliance flexible connection
to BS 669. Hoses connected to the LPG models should be suitable for LPG and capable of
withstanding 50mbar pressure. A length of 0.9 to 1.25m is recommended. The length of
hose chosen should be such that when the cooker is in situ, the hose does not touch the
floor.
The temperature rise of areas at the rear of the cooker that are likely to come in contact
with the flexible hose do not exceed 70˚C.
After installation, check for soundness.
The supply pressure can be checked at the grill injector. Access to the injector is by first
removing the baffle at the front of the grill compartment and then the burner.

The cooker is designed to match the depth of
standard 600mm worktops. An adaptor backplate
should, therefore, be fitted within the 160 x
250mm shaded area shown, pointing towards the
left to allow the cooker to be pushed fully to the
wall. If a forward facing backplate is used, it must
be chased into the wall.

Electrical Connection

10

Connection to the electricity supply should be made via a properly earthed, readily
accessible wall socket which is adjacent to, and not more than 1.25m away from the
appliance and capable of electrical isolation.

Should this plug not fit the socket outlet in your home it should be cut off and replaced
with a suitable plug as outlined below.

Note: The removed plug cannot be used for any other appliance and should therefore
be properly disposed of and not left where children might find it and plug it into a
supply
socket – with the obvious consequent danger.

If the fitted plug is removed
The flexible mains lead must be correctly connected as below to a three pin plug of not
less than 13 amp capacity. If a B.S. 1363 fused plug is used, it must be fitted with a 3
amp fuse which is approved to B.S. 1362.

Important: The wires in the mains lead fitted to this appliance
are coloured in
accordance with the following code:

GREEN AND YELLO W – EARTH
BLUE – NEUTRAL
BROWN – LIVE

As the colours of the wires in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:– The
wire which is coloured green and yellow must be connected to the terminal in the plug
which is marked with the letter E or by the earth symbol or coloured green or green
and yellow. The wire which is coloured blue must be connected to the terminal which is
marked with the N or coloured black. The wire which is coloured brown must be
connected to the
terminal which is marked with the letter L or coloured red. When wiring the plug,
ensure that all strands of wire are securely retained in each terminal. Do not forget to
tighten the mains lead clamp on the plug. As the appliance must be earthed, do not
use 2-pin
sockets outlets, if you are in doubt, consult a qualified electrician.

Should the mains lead ever require replacement, it is essential that this operation be
carried out by a qualified electrician and should only be replaced with a flexible cord of
the same size i.e. 0.75mm

2

cross sectional area.

If a moulded plug is fitted
In the event of replacing a fuse in the plug supplied a 3 amp ASTA approved fuse to
BS1362 must be fitted.
NOTE: The fuse cover must be refitted when changing the fuse. In the event of losing
the fuse cover the plug must not be used until a replacement fuse cover has been
obtained and fitted. A new fuse cover can be obtained from your local Electricity
Retailer. The colour of the correct replacement fuse cover is that of the coloured marks
or inserts in the base of the plug.

WARNING – THIS APPLIANCE MUST BE EARTHED.

CONNECT TO A 230-240V A.C. SUPPLY ONLY.

Green &
Yellow to
Earth

Brown to
Live

Blue to
Neutral

Cord Clamp

3 Amp
Fuse

11

Operational Checks

Fit the pan supports and remove any packaging.

With reference to the user’s instructions:

1. Check that the hotplate and grill burners ignite correctly and burn with a
steady flame. Check for a steady flame at the low (small flame symbol)
setting.

2. Check that with each main oven set to Mark 9, the burner ignites at a low
rate, and then increases to full rate within 60 seconds. Leave the oven full
on with the door closed for 10 minutes and then check that the flame
reduces when the control is turned to the E setting.

3. Check operation of timer and main oven lights.

Instruct the user on the operation of the cooker.

12

For Y our Safety

Please read the precautions below before using your
cooker.

ALW AYS make sure you understand the controls before using

the cooker.

ALW A YS check that all controls on the cooker are turned off

after use.

ALW AYS stand back when opening an oven door to allow

heat to disperse.

ALW A YS use dry, good quality oven gloves when removing

items from the ovens.

ALW AYS take care when removing items from the grill when

the main oven is on, as the contents may be hot.

ALW A YS keep the oven and grill doors closed when the

cooker is not in use.

ALW A YS place pans centrally over the hotplate burners and

position them so that the handles cannot
accidentally be caught or knocked or become
heated by other burners.

ALW A YS keep the cooker clean, as a build up of grease or fat

from cooking can cause a fire.
ALW A YS allow the cooker to cool before cleaning.
ALW AYS follow the basic principles of food handling and

hygiene to prevent the possibility of bacterial

growth.
ALW A YS keep ventilation slots clear of obstructions.
ALW A YS turn off the electricity supply before cleaning or

replacing the oven lamp.
ALW A YS refer servicing to CORGI registered appliance service

engineers.
A l W A YS ensure that the Griddle is fitted correctly to the pan

supports and that the fingers are located correctly

within the slots in the Griddle feet.
ALW AYS remove the Griddle handles during the cooking

period.
ALW A YS take care when fitting the Griddle handles NOT to

contact any of the hot surfaces of the Griddle or the

appliance.
ALW AYS remove any spillage from the surface of the lid

before opening.
ALW A YS allow the hob to cool before closing the lid.

Always..

13

NEVER leave children unsupervised where the cooker is

installed as all surfaces will get hot during and after
use.

NEVER allow anyone to sit or stand on any part of the

appliance.

NEVER st or e it em s t ha t children may attempt to reach above

the appliance.

NEVER fill chip pans more than 1/3 full with oil or fat, or use

a lid. DO NOT LEAVE UNATTENDED WHILE COOKING

NEVER use proprietary spillage collectors on the hotplate, eg.

foil spillage bowls.

NEVER heat up unopened food containers as pressure can

build up causing the container to burst.

NEVER

store chemicals / food stuffs, pressurised containers in
or on the appliance,

or in cabinets immediately above

or next to the appliance.

NEVER place flammable or plastic items on or near the

hotplate.
NEVER use the cooker as a room heater.
NEVER dry clothes or place other items over or near to the

hotplate or oven/grill doors eg. tea towels & oven

gloves.
NEVER wear garments with long flowing sleeves whilst

cooking.
NEVER leave items that could catch fire (tea towels etc.) near

to the burners or over the flue outlet.
NEVER leave burners lit when not in use.
NEVER use plastic items in or on the appliance.
NEVER lift the Griddle without the handles supplied.
NEVER Leave the handles on the Griddle during the cooking

period.
NEVER use steam cleaners on this appliance.

For Y our Safety

NEVER..

Know Your Cooker

14

The use of a gas cooking appliance results in the production of heat and moisture in
the room in which it is installed. Ensure that the kitchen is well ventilated; keep natural
ventilation holes open or install a mechanical ventilation device (mechanical extractor
hood). Prolonged intensive use of the appliance may call for additional ventilation, for
example opening of a window, o r more effective ventilation, for example increasing the
level of mechanical ventilation where present.

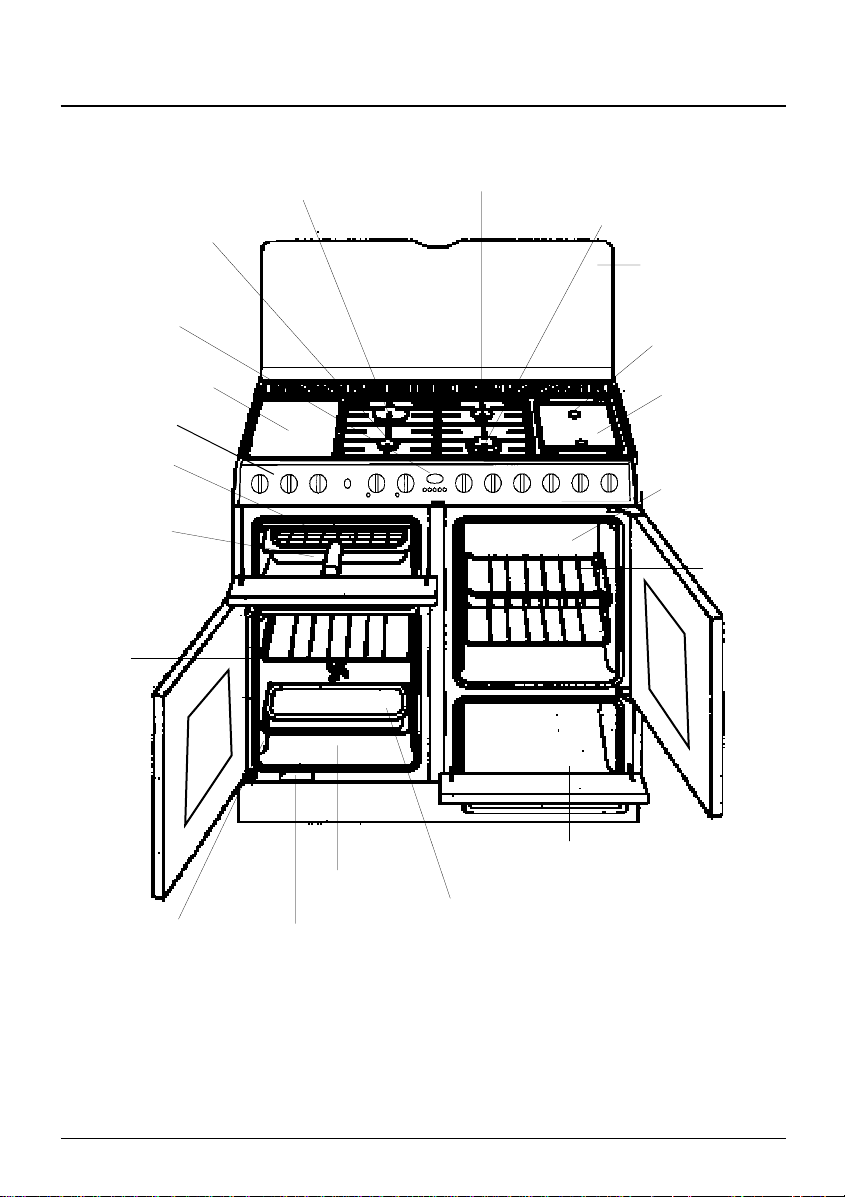

Front middle burner

( W ok)

Conventional

gas oven

2 Oven
shelves

2 Oven
shelves

Glass lid

Timer

Front left burner

(semi-rapid)

(2) Auxiliary

burners

Griddle plate

Grill pan with food

support

Electric Slow cook

oven / Warming /

storage

compartment

Electric Warming

zone & hot spot

Cookclean side panels

Grill

Control panel

Rear middle burner

(semi-rapid)

Rear left burner

(rapid)

Fan oven

Serial no. plate

Meat pan

15

Automatic Cooking Hints

Rules to follow
when cooking
automatically

The fan oven can be programmed to cook automatically.

1. Food should be as cold as possible when it goes into the
oven, ideally straight from the refrigerator.

2. Frozen meat and poultry should be thawed thoroughly
before it is put into the oven.

3. The automatic timer should not be used in hot weather
because of the possible growth of food poisoning
organisms.

4. NEVER use the automatic timer to re-heat cook chill dishes.

5. Never leave food in the oven to cool slowly after cooking.
Serve immediately or remove to cool and then refrigerate.

6. Dishes containing left over cooked meat or poultry, for
example, shepherds pie, dishes containing eggs, cooked
rice or seafood should not be cooked automatically if there
is to be a delay period.

7. Warm food should never be placed in the oven if there is to
be delay period. Stews prepared by frying the meat and
vegetables should be cooked as soon as possible or
refrigerated until loading the oven.

8. Try to set the stop time for a period beyond your
anticipated return.

9. DO NOT leave food for an automatic programme in a warm
oven. i.e one that has just been used manually.

10. It is advisable to cover dishes where possible either with a
lid or foil to protect the food from contamination, to keep
it moist and to prevent the transfer of odours. If the food is
to be served golden brown, it may be left uncovered or
have the lid removed for a quick browning before serving.

11.Dishes containing liquid should not be filled too full to
prevent boiling over.

12. To prevent discolouration of certain fruit and vegetables
such as apples, pears, turnips & parsnips, a little lemon juice
should be added to the cooking liquid.

13. Potatoes should be par - boiled or brushed with fat to
prevent discolouration during delay time.

14. Wine or beer may ferment and cream may curdle during
the delay period, so it is best to add these ingredients just
before serving.

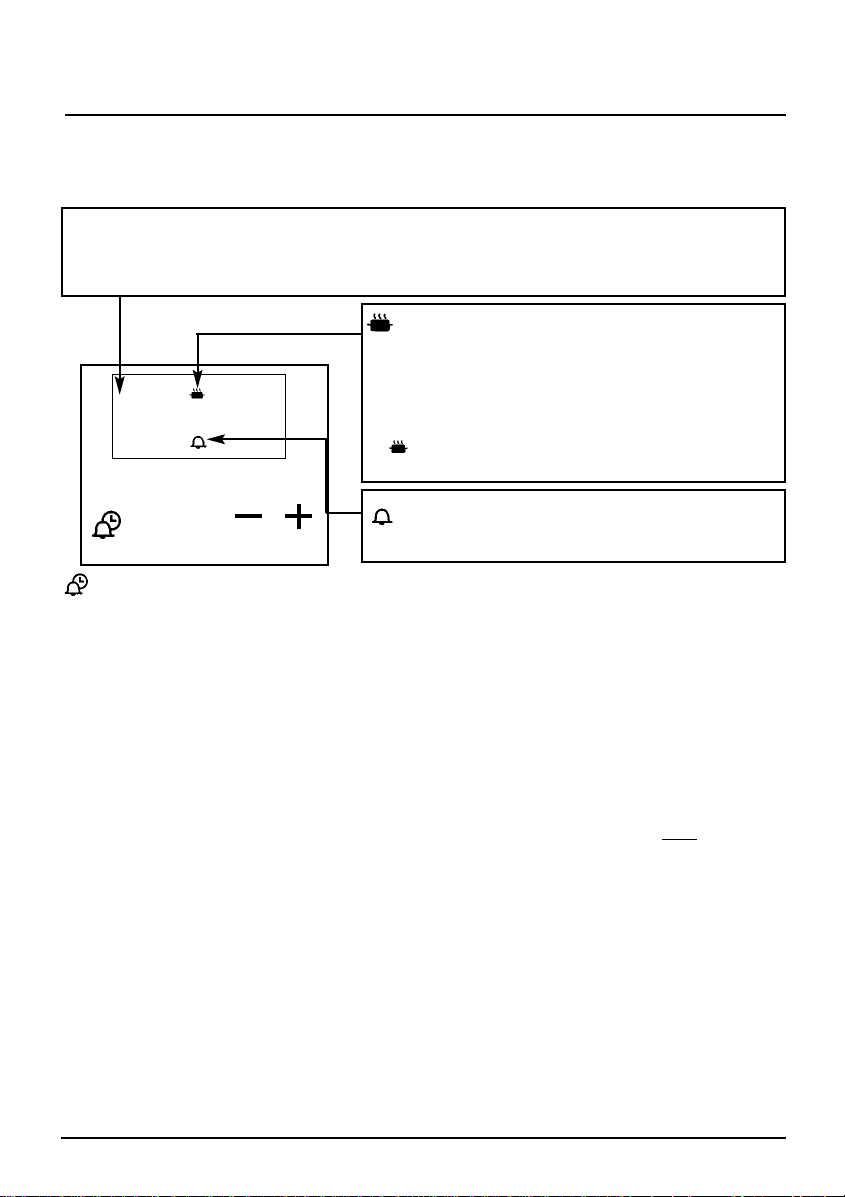

MINUTE MINDER
Here you can set a time period of up to 23 hours and 59 minutes that will count down.
When it reaches zero the timer will bleep.
e.g. If you set 20 minutes, the timer will start bleeping 20 minutes later.

COOK TIME
Cook time is the actual length of time for which, the timer will switch the oven(s) on as
part of an “Automatic Cooking” programme.
e.g . If you set 2 hours, the food will be cooked for 2 hours.

STOP TIME
The time of day at which you want an automatic cooking programme to e n d

.
e.g. If you set a cook time for 2 hours, and stop time of 11:00. The timer will switch
the oven(s) on at 9:00 and turn the oven(s) off at 11:00. You will hear a bleep at 11:00
to indicate that the automatic cooking programme has finished.

Notes

- When setting an automatic cooking programme you will need to set the oven
control(s) to the required temperature(s) when you set the timer.

- If an automatic cooking programme has been set the oven(s) will only operate
during the pre-programmed time.

+ and -

- Used to adjust the various timer function settings.

- Used to adjust pitch of audible tone. (See Clock and Automatic Timer operation).

Know Your Timer

16

● ● ● ● ●

This “Cookpot” symbol will light up either :-

- When the cooker is in “Manual Mode”.

- When you press the Cook Time button and
set a length of time for an Automatic
Cooking programme.

symbol will light up during Automatic

Cooking

A will light :

- When the timer is first turned on it will flash (It should go out when a time of day is
set). When an Auto Cooking programme has been set.

will light up when you select a Minute Minder

period and will remain lit for the period set.

The timer display is in 24 hour clock format.

Ensure that the correct time of day is always set before using your cooker.

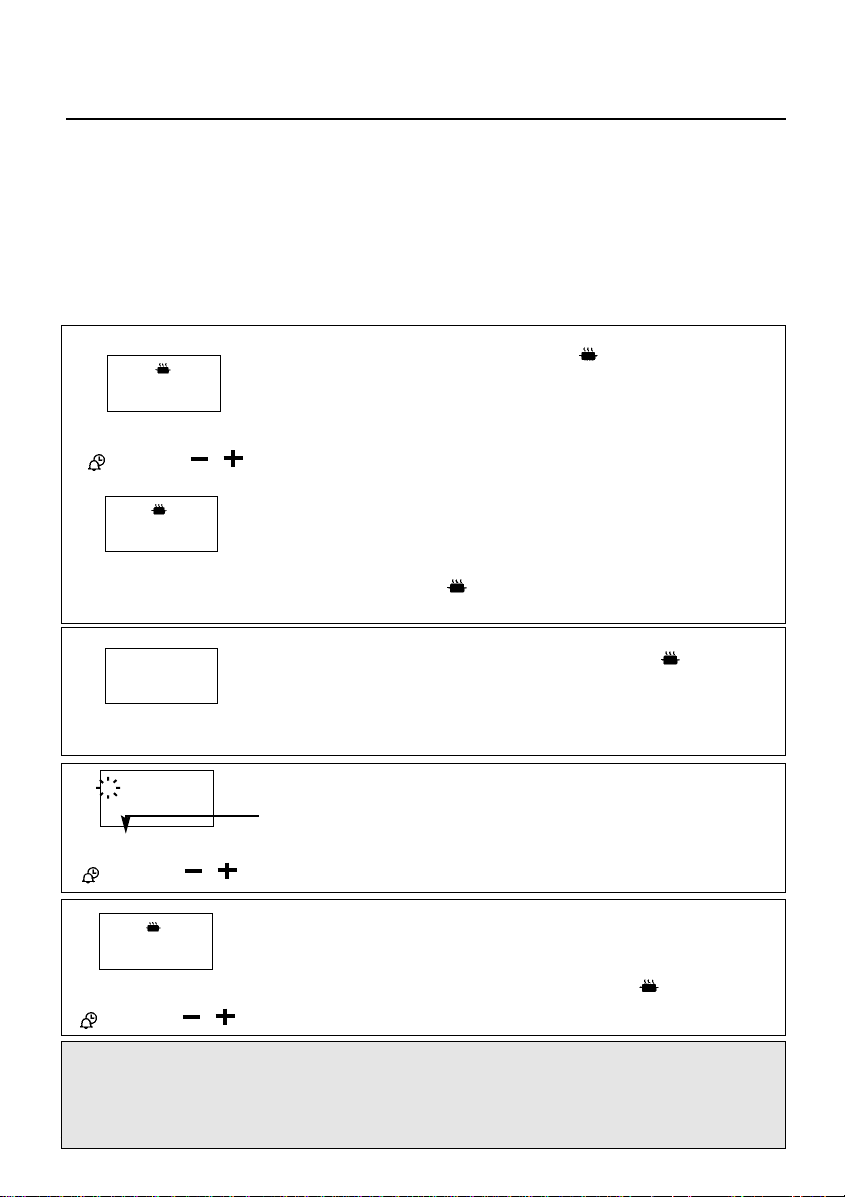

A

12.00

Cook
Time

Stop

Time

At the end of the set time a bleeping sound will be heard and
the symbol will go out.
The bleeping sound will continue for several minutes unless
cancelled (See Step 5).

Step 5 To cancel the bleeping sound press the

minute minder button. The time display will
revert back to the time of day after the button is
released.

● ● ● ● ●

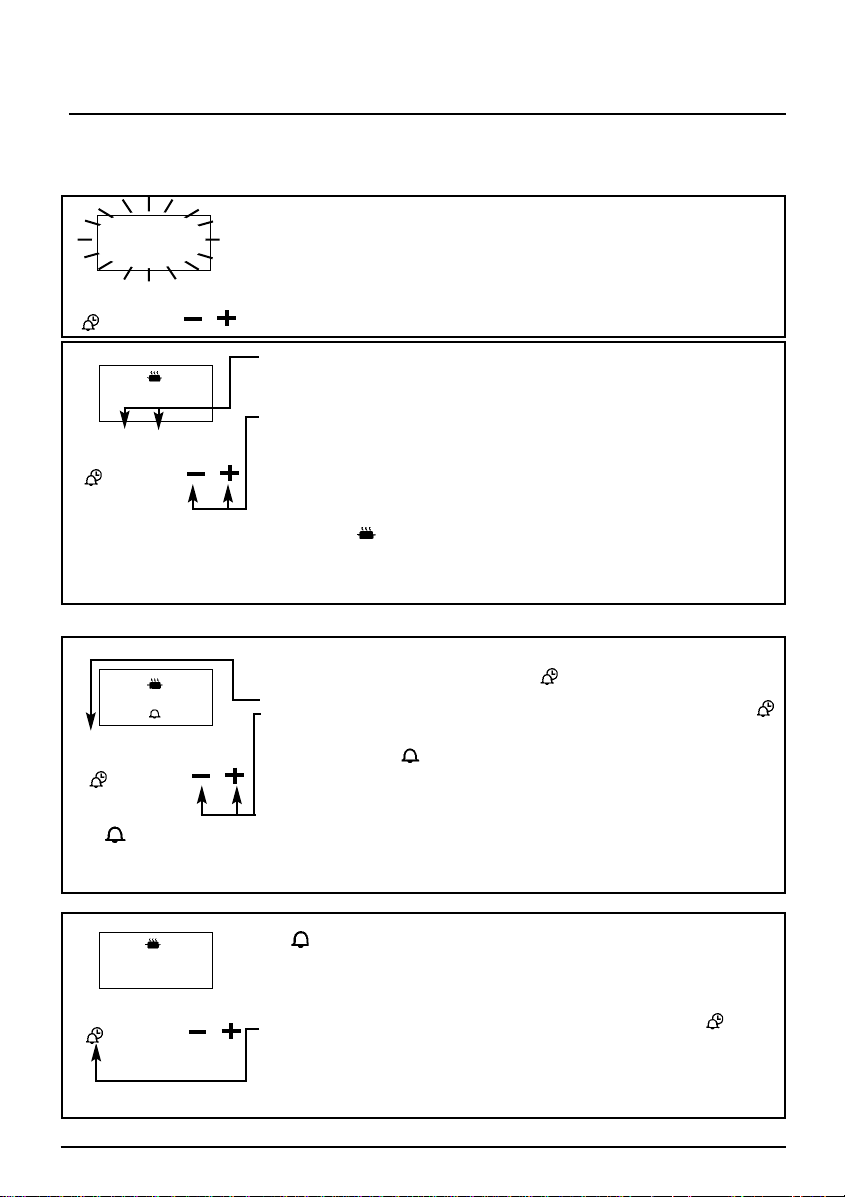

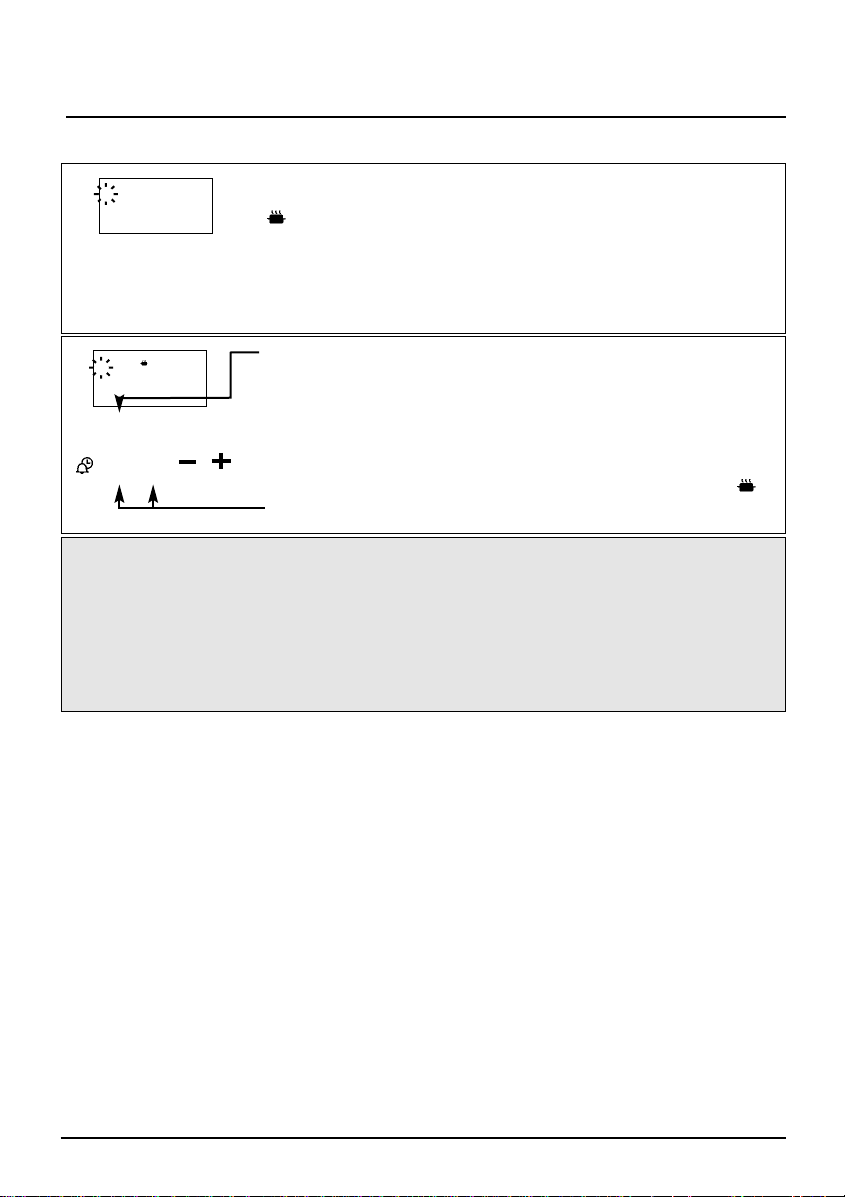

Step 3 Press & hold in both the Cook Time & Stop

Time buttons together.

Step 4 With the Cook Time & Stop Time buttons still

held in, press either the

+ or -buttons to set

the correct time of day.

Step 5 Release all the buttons simultaneously.

The time of day is now set and the symbol will light up to show that the timer is in
Manual Mode.
NOTE: To change the time of day repeat steps 3,4 & 5 above.

● ● ● ● ●

Stop
Time

Cook
Time

Step 1 Make sure all oven controls are turned O F F.

Step 2 Check the electricity supply to the cooker is

turned O N.
When switched on the display will show 0.00 and the

A symbol, both will be flashing.

●●●●●

17

Step 1 Ensure the time of day is set correctly.
Step 2 Press and hold the minute minder button.
Step 3 With the button still held in set the required

minute minder time using + and -buttons.
A symbol will light up.

Step 4 Release all buttons and the timer display will

revert back to the time of day.

The symbol will remain lit to signify that a minute minder period has been set.

● ● ● ● ●

Electronic Timer Operation

A

0.20

A

12.20

A

12.00

Setting the Time of Day

Setting the Minute Minder

A

0.00

Stop
Time

Cook

Time

Stop
Time

Cook
Time

Stop
Time

Cook
Time

18

T o cancel the minute minder before the minute minder period
has finished.

Step 1 Press the minute minder button.

Step 2 Press the

-button until 0.00 and the symbol

appears in the display window.

Step 3 To cancel the bleeping sound press the

minute minder button.

● ● ● ● ●

Electronic Timer Operation

Note
When the minute minder has been set, the time remaining can be checked at any time

by simply pressing the minute minder button.

A

12.15

Stop
Time

Cook
Time

Step 3 Press and hold the Cook Time button.

The display will read 0.00 with the cookpot
symbol lit.

Step 4 With the Cook Time button still held in set

the required cook period using

+ and -

buttons.

Release the buttons and the timer display will revert to the
time of day with the

A symbol and symbol lit.

Step 5 Press and hold the Stop Time button.The

display will read the earliest possible time
for the Cook Time that you have set above.

Step 6 With the Stop Time button still held in,use

the

+ and -buttons to set the Stop Time.

i.e. The time you require the oven to switch off.
Release all the buttons and the timer will revert back to the
time of day.

The

A symbol will remain lit to signify that an automatic

cooking programme has been set. The symbol will go out.
When the auto cook programme starts the symbol will then
light up again.

Electronic Timer Operation

● ● ● ● ●

● ● ● ● ●

A

0.00

A

0.00

A

12.15

A

12.15

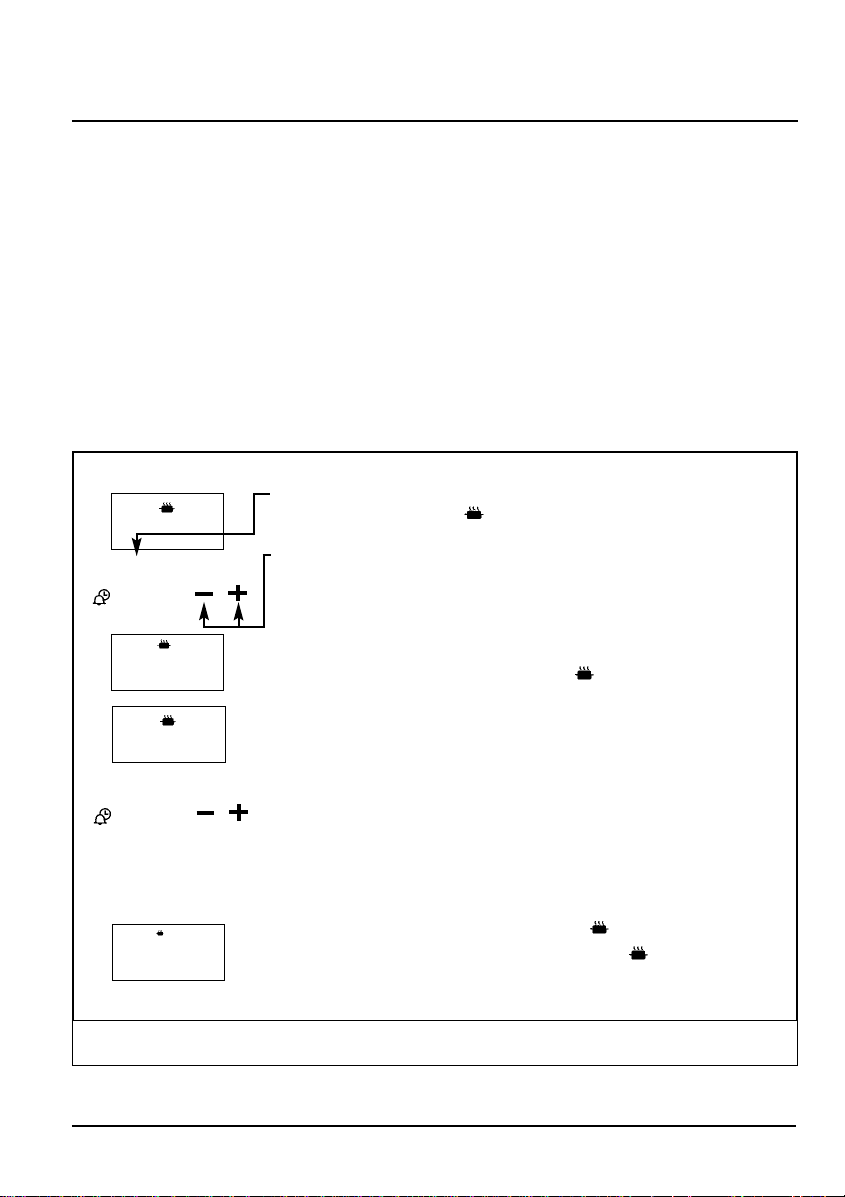

Automatic Cooking Programmes

There are two automatic cooking programmes that can be selected using your timer:
(a) To set the timer to switch the oven(s) ON and OFF automatically.
(b) To set the timer to switch on immediately and OFF automatically after a set Cook

Time.

(a) To set the timer to switch the oven(s) ON and OFF automatically.
This allows you to cook at a specific time for a chosen period before the oven switches
off automatically.

Step 1 Check that the correct time of day is set. If not follow instructions for

setting the time of day.

Step 2 Place food onto the correct shelf position in the oven and close the oven

door.

Step 7 Turn the oven control(s) to the required temperature and if necessary select

the appropriate oven function.

19

Stop

Time

Cook

Time

Stop
Time

Cook
Time

Notes:
When cooking automatically the Cook Time can be checked at any time by simply
pressing the Cook Time button and the Stop Time by pressing the Stop Time button.
T o cancel the auto cooking programme before or after auto cooking starts, press the
Cook Time and the Stop Time buttons together. This will return the cooker to
manual operation.

20

Step 8 Press the Cook Time button to cancel the bleeping

sound.

Step 9 Turn the oven control(s) to the OFF position.

Step10 Press the Cook Time and Stop Time buttons

together to return the oven(s) to manual
operation. The

A symbol will go out and the

symbol will light up.

● ● ● ● ●

Electronic Timer Operation

At the end of the automatic cook period the A symbol will
flash and an intermittent bleeping sound will be heard. The

symbol will go out.

The bleeping sound will continue for several minutes unless
cancelled (see step 8). The

A symbol will continue to flash

until the timer is returned to manual operation (see below).

A

16.20

A

16.20

Stop
Time

Cook

Time

21

Step 6 Press the Cook Time button to cancel the bleeping.

● ● ● ● ●

Step 4 Press and hold the Cook Time button, the dis

play will read 0.00 and the symbol will light up.

With the Cook Time button still held set the
required Cook Time using the

+ and -buttons,

the

A symbol will light up. e.g. 1 hour 30 minutes.

Note: The Cook Time is the length of time the food

requires to cook.

Step 5 Release all buttons.

The timer display will revert to the time of day with
the

A and symbols remaining lit.

● ● ● ● ●

Step 7 Turn the oven control(s) to the OFF position.

Step 8 Press the Cook Time and Stop Time buttons

together to return the cooker to manual operation.
The

A symbol will go out and the symbol will

light up.

● ● ● ● ●

Electronic Timer Operation

A

15.00

At the end of the Cook Time the A symbol will flash and an
intermittent bleeping sound will be heard. The symbol
will go out. The bleeping sound will continue for several
minutes unless cancelled (see Step 6) . The

A symbol will

continue to flash until the timer is returned to manual
operation (see below).

1.30

( b) To set the timer to switch ON immediately and OFF automatically after

a set Cook Time.

Step 1 Check that the correct time of day is set. If not follow instructions for

setting the time of day.

Step 2 Place food onto the correct shelf position in the oven and close the oven

door.

Step 3 Turn the oven control(s) to the required temperature and if necessary select

the appropriate oven.

A

13.30

A

15.00

15.00

When cooking automatically the Cook Time can be checked at any time by simply
pressing the Cook Time button. To cancel the auto cooking programme before or
after automatic cooking starts, press the Cook Time and Stop Time buttons
together. This will return the cooker to manual operation.

Stop
Time

Cook
Time

Stop
Time

Cook
Time

Stop
Time

Cook
Time

1. To cancel the automatic cooking programme before or after automatic cooking
starts, press the Cook Time and Stop Time buttons together, this will return
the cooker to manual operation.

2. When cooking automatically the Cook Time can be checked at any time simply
by pressing the Cook Time button

3. When cooking automatically the Stop Time can be checked at any time by simply
pressing the Stop Time button

4. Having set a Cook Time and Stop Time an electronic device stores the
information. The device within the timer will switch the oven(s) on and off at the
required time.

5. When setting an automatic cooking programme and a mistake is made, to clear:-

(a) Press the Cook Time and Stop Time buttons together to return the

cooker to Manual operation..

(b) Start the sequence again.

6. If at any time the display shows three flashing zero's

0.00 . It is likely that

the electricity supply to the oven has been interrupted. Reset the timer to the
correct time of day.
Food in the oven may therefore not have been cooked, before serving check
food is thoroughly heated and completely cooked.

7. To set each function always press and hold the required function button and at
the same time press

+ or -buttons.

Electronic Timer Operation

22

23

The hotplate lid is fitted with a safety device which cuts off the gas
supply to the hotplate burners unless the lid is fully open. Do not
use the safety device as a means of controlling the hotplate
burners.

The hotplate has one ultra rapide Wok burner, one rapide
burner, two semi-rapide burners and two simmering burners which
will accommodate pans between 100mm (4”) and 230mm (9”)
diameter. All pans should be positioned centrally over the burners.

1. Check that the electricity supply is switched on.

2. Push in and turn the control knob of the chosen burner
anti-clockwise to the large flame symbol . Press the
ignition button until the spark lights the gas.

3. Turn the control knob anti-clockwise to the desired
setting. Only turn the control knob between the large
flame symbol and the small flame symbol for
adjusting the setting.

4. To turn off , turn the control knob fully clockwise to the
position O .

DO NOT use mis-shapen pans which may be unstable.
DO NOT use round base woks directly on the pan supports.
DO NOT use the glass lid as a working surface.

1. Never fill chip pans more than one third full with oil or fat.

2. Never leave oil or fat unattended during the heating or
cooling period.

3. Never heat fat or fry with a lid on the pan.

4. Always dry food thoroughly before frying, and lower it
slowly into the hot oil or fat. Frozen foods in particular will
cause frothing and spitting if added too quickly.

5. Always keep the outside of the pan clean and free from
streaks of oil or fat.

1. Do not move the pan.

2. Turn off the hotplate burners.

3. Smother the flames with a fire blanket or damp cloth to
extinguish the fire.
Do not use water or a fire extinguisher as the force of it may
spread the burning fat or oil over the edge of the pan.

4. Leave the pan for at least 60 minutes before moving it.

In the event of the burner flames being accidentally extinguished,
turn off the burner control and do not attempt to re-ignite the
Burner for at least one minute.

Hotplate

To use the
hotplate.

Safety
requirements
for deep fat
frying

How to deal with
a fat fire

Relighting the
burner

Griddle

24

The Griddle is O N LY to be used over the two simmer/auxiliary
burners.
A non-stick griddle is supplied for use over the two simmer
(auxiliary) burners on the right hand side of the hob. The griddle
must be positioned on the top of the pan support, with the
locating legs on the underside engaged on the pan support
fingers. The griddle should N O T

be placed directly on top of the
simmer burners. To protect the non-stick coating never use metal
cooking utensils as they may scratch. Wooden or heat resistant
plastic utensils may be used. Under no circumstances must the
griddle be used over any other hotplate.

The griddle may be used with either or both of the simmer
burners on, depending on the food being cooked. The griddle
can be positioned with the ridged portion at the front or at the
rear.

Use of the
griddle

Fitting the
griddle handles

Important note

1: Position the griddle (without the handles) on the top of the

pan support, with the locating legs on the underside engaged
on the pan support fingers, above the two simmer burners.

2: Push in and turn the control knob(s) anti-clockwise to the

large flame symbol .Press the ignition button until the
burner(s) light.

3: The controls should then be set at the small flame setting as a

gentle heat is all that is required for griddling.

4: Cook food for required time, which will depend on the type of

food being cooked.

5: To turn off, turn the control knob(s) fully clockwise to the

position O.

6: Fit the Griddle handles (see the diagram below) and remove the

Griddle from the cooker. Place on trivet to remove food.

7: Allow the griddle plate to cool before cleaning.

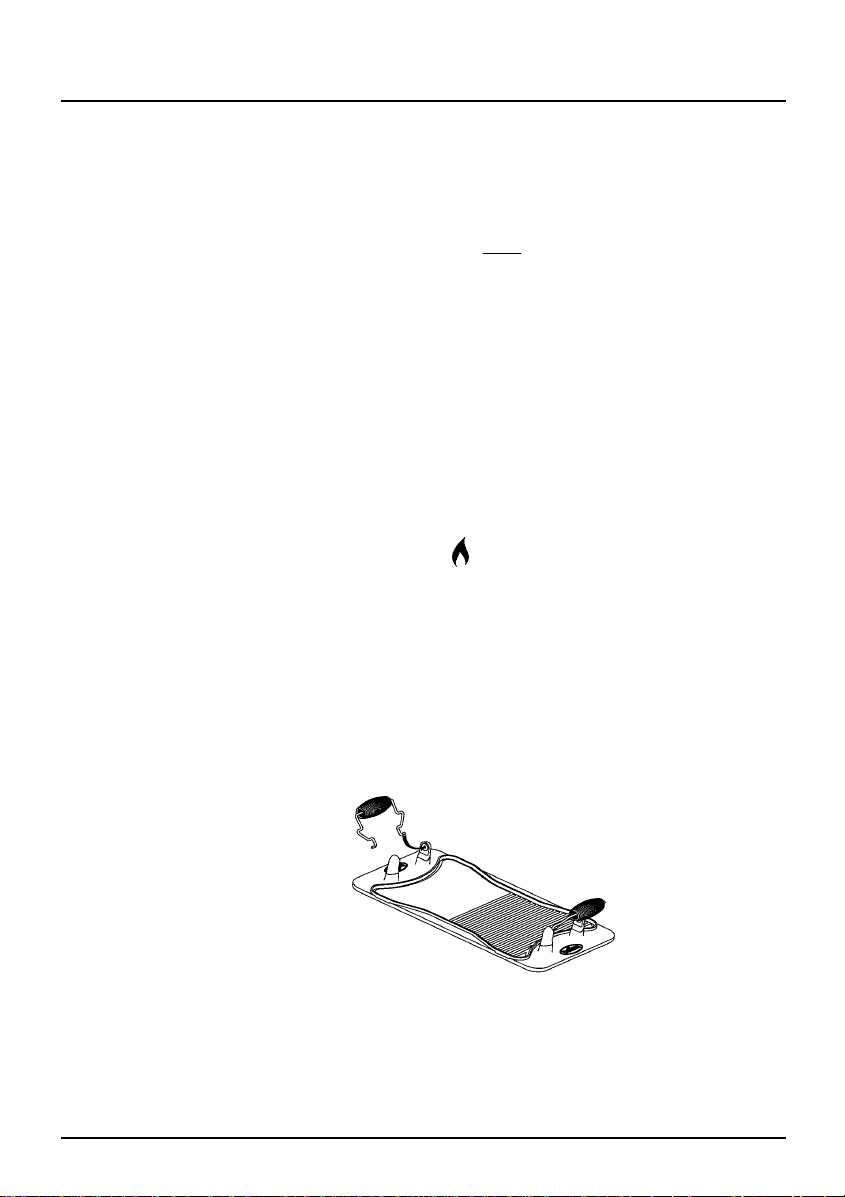

* Slide one side of the handle into the slot in the pillar on the

Griddle. (ensure that the handle is held at approximately 40˚
from vertical).

* gently squeeze the opposite side of the handle and locate into

the slot in the pillar.

* Take care when lifting and fitting to avoid contact with the

Griddle or pillars as they will be very hot.

Adjacent to the hotplates is a warming zone which can be
used for a wide range of non-cooking tasks associated
with the preparation of meals. It provides a gentle heat
surface and can achieve a surface temperature of 120˚C.
The hot zone operates at a higher temperature than the
rest of the warming zone and is specially designed for
keeping coffee hot as well as gravy , custard or other
sauces. The warming zone warning neon illuminates on
the control panel if the warming zone control is operated.
To warm plates on the warming zone, simply place your
plates on the warming zone and turn the control knob to
the O N position. Plates should not be placed on the hot
zone.

If any crack should appear on the hob glass, isolate the
cooker immediately from the mains supply. Ne ver us e a ny
part of the cooker but contact your Belling Service Agent.

W arming Zone

W arning

W arming zone

25

26

Conventional Oven

The oven has different heat zones – the thermostat settings refer
to the temperature on the middle shelf; above this shelf it is hotter
and below it is cooler. Two straight shelves provide six possible
cooking levels enabling full use of the different temperatures
inside the oven.

Each shelf has a safety stop to prevent if from being pulled out
too far when attending to food. Shelves are removed from the
oven by pulling them out to the stop and then lifting them at the
front to withdraw.

1. Check that the electricity supply is switched on.

2. Place oven shelves in the chosen positions (refer to cooking
charts).

3. Push in and turn the oven control knob fully anti-clockwise.
Sparking will continue until the burner is lit.

4. Turn the control knob clockwise to the required setting (refer
to cooking chart). There is a delay of about one minute
whilst the safety device operates before the burner comes
on full.

5. To turn off , turn the control knob fully clockwise to the
symbol

o.

Never place dishes on the oven base over the burner.
An odour may be noticed when first using the oven – this should
cease after a short period of use.

Anything requiring long slow cooking such as casseroles and rich
fruit cakes can be put into a cold oven. Satisfactory results can also
be obtained with creamed mixture, rich pastries or yeast mixtures,
but for perfection we recommend preheating the oven for about
15 minutes.

The maximum weight of turkey that can be accommodated is
25lbs (11.5kg) provided it is of suitable shape.

It is important to check that the bird DOES NOT overhang the
burner at the back of the oven.

To use the oven

Cold start
cooking

Roasting of
large poultry

1. Check that the electricity supply is switched on.

2. Open the top grill door and remove the grill pan.

3. Push in and turn the control knob anti-clockwise to the
large flame symbol .Press the ignition button until
the spark lights the gas.

4. Slide the grill pan along the runner towards the rear of
the grill compartment until it stops.

5. Push in and turn the control knob anti-clockwise to the
desired setting. Only turn the control knob between the
large flame symbol and the small flame symbol
when adjusting the setting.

6. To turn off, push in and turn the control knob clockwise
to the symbol o .

An odour may be noticed when first using the grill – this
should cease after a short period of use.
DO NOT use the grill with the door closed.
DO NOT cover the grill pan or grid with aluminium foil as
this can hold fat, intensify the heat and create a fire hazard.
RELIGHTING THE BURNER
In the event of the burner flames being accidentally
extinguished, turn off the burner control and do not
attempt to re-ignite the burner for at least one minute.

27

Grill

To use the grill

28

Fan Oven

The left hand oven is a fanned gas oven. In a fan oven the air
circulates around the oven providing an even temperature on
all the shelf positions. Due to the circulation of hot air, the fan
oven does not require preheating, except for certain delicate
dishes.

Two shelves provide six possible cooking levels. Each shelf has
a safety stop to prevent it from being pulled out too far when
attending to food. Shelves are removed from the oven by
pulling them out to the stop and then lifting them at the front
to withdraw.

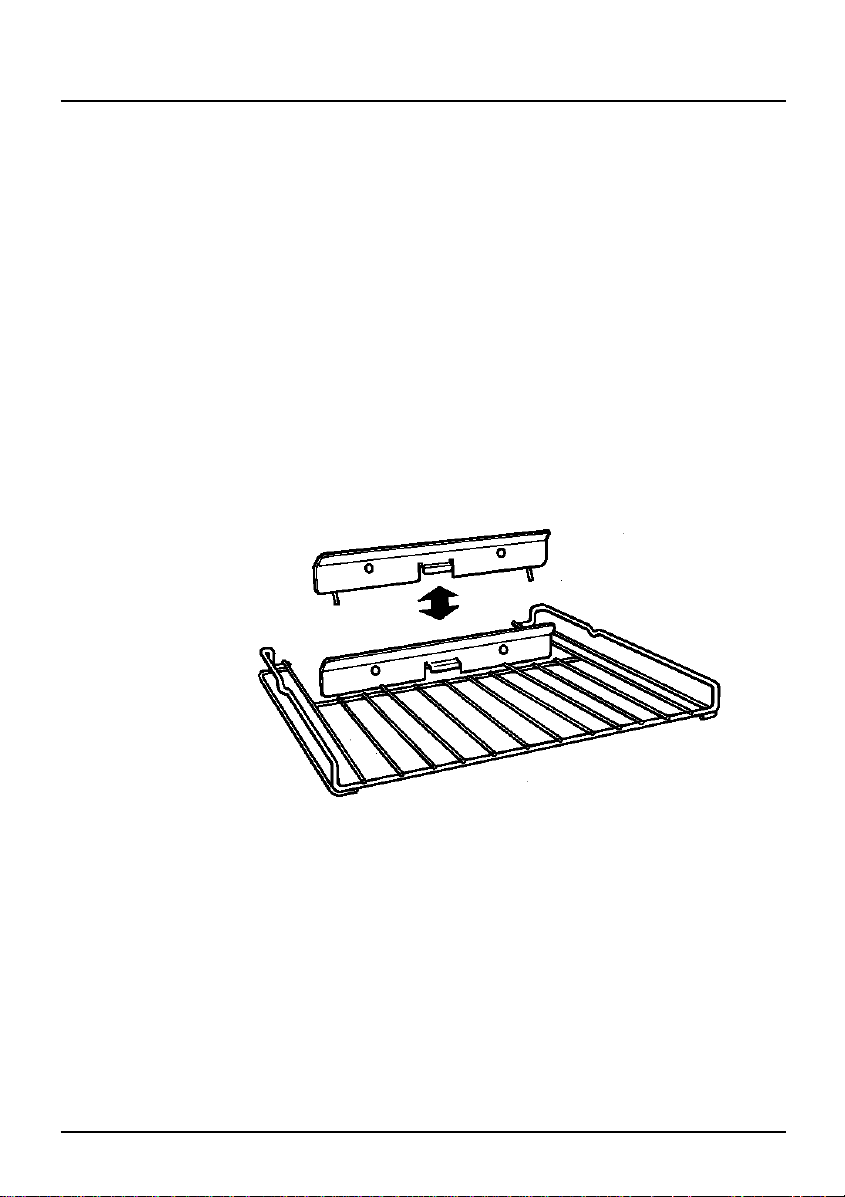

A heat shield is provided for one oven shelf and should always
be fitted when the shelf is used in the lower two positions. This
shield can be removed for cleaning.

Oven shelves

29

Fan Oven

1. Check that the electricity supply is switched on and the
timer is set to manual mode.

2. Place oven shelves in the chosen positions. (refer to
cooking charts).

3. Push in and turn oven control knob fully anti-clockwise.
Sparking will continue until the burner has lit.

4. Turn the control knob clockwise to the required setting.
(refer to cooking chart). There is a delay of about one
minute whilst the safety device operates before the
burner comes on full.

5. To turn off, turn the knob fully clockwise to the symbol
o.

Never place dishes on the oven base over the burner.

An odour may be noticed when first using the oven – this
should cease after a short period of use.

Since the fan oven heats up food more quickly than a
conventional oven, preheating the oven is often unnecessary.
However, for foods such as bread, scones and Y orkshire
pudding the oven should be preheated for about 15 minutes
at the gas mark you require for cooking.

Ensure that when selecting shelf positions, you leave enough
space around the food to allow air to circulate. F or best
results use the following guide:–

One shelf – any shelf position.

Two shelves – positions 2 and 4.

Shelf position 1 is at the top and shelf position 6 is at the
bottom.

To use the fan
oven

Preheating

Shelf Positions

30

Fan Oven

The maximum weight of poultry that can be accommodated
is 11.5kg (25 lbs) of suitable shape.
It is important to check that the bird DOES NOT overhang
the burner at the back of the oven.

It is vitally important to strictly adhere to the basic
principles of food handling and hygiene to prevent the
possibility of bacterial growth.

1. If food is to be frozen or not served immediately, cool it
in clean container as quickly as possible.

2. Completely thaw frozen food in the refrigerator before
re-heating.

3. Re-heat food thoroughly and quickly either on the
hotplate or in a hot oven, Mk. 6, and then serve
immediately.

4. Only re-heat food once.

These should always be placed in a pre-heated oven ideally
on the first or second shelf position. Follow the packet
instructions for cooking time.

If using Aluminium Fo il:

1. Remember that it is important to increase the cooking
time by one third.

2. Never allow the foil to touch the sides of the oven.

3. Never cover the oven interior with foil.

4. Never cover the oven shelves with foil.

Roasting of
large poultry

Storage and
re-heating
of food

‘Cook Chill’
dishes

Aluminium
foil

31

Cooking Charts For Ovens

Food Gas Mark Shelf Position

FAN OV E N

Approximate Cooking Time

Approximate Cooking Time

CONVENTIONAL OVE N

STARTERS

FISH

M E AT AND POULTRY

Patés & Terrines

The following times are for guidance only. You may wish to alter the setting to give a result more
to your satisfaction. When a different setting is given in a recipe, the recipe instruction should be
followed. Cooking times for the conventional oven are based on a 15 minute preheat.
Always turn the thermostat to mark 9 before turning back to the required gas mark. Shelf position
1 is at the top and shelf position 6 is at the bottom.

4

11/

2

– 2 hrs.

Veal 3 25 mins. per 450g (1lb) + 25 mins.

Beef 3

25 – 30 mins. 450g (1lb) +
25 mins.

Ham 3

40 mins. per 450g (1lb) covered in
foil + 40 mins. uncovered

Lamb 3

30-35 mins. per 450g (1lb) + 30
mins.

Pork 3 40 mins. per 450g (1lb) + 40 mins.

Chicken 3 25 mins. per 450g (1lb) + 25 mins.

25 mins. per 450g (1lb) + 25 mins.

Turkey 3 or 4

15 – 20 mins. per 450g (1lb) +
25 mins.

Casseroles

PUDDINGS

3

1

1

/2 – 6 hrs. (depending on type of

meat)

Milk puddings 3

2

1

/4 – 21/2 hrs. stand dish on a baking

tray and start with warm milk

Baked custard 3 45 mins. in bain-marie

Meringue puddings 3 o r 4

15 mins. or until ‘tinged’
with brown

Apple pie or tart
230mm (9”)

2

45 – 55 mins. stand dish on a baking
tray

Game Birds 3

50 mins. Remove bacon for last 15
mins. Add extra 15 mins. if roasting
a brace.

Oily fish (whole) 3

25 mins. – 1 hr. depending on size
and recipe

White fish (fillets and
steaks)

3 or 4

5

4 or 5

5

5

5

5

Duckling & Gosling 35

4 or 5

3

3

3

1

6

6

4 or 5

4 o r 5 3 25 – 30 mins.

1

1

/

2

– 2 hrs.

25 mins. per 450g (1lb) +
20 mins.

20 – 25 mins. per 450g (1lb) +
20 mins.

35 mins. per 450g (1lb) covered
in foil + 35 mins. uncovered

25-30 mins. per 450g (1lb)
+ 25 mins.

35 mins. per 450g (1lb) +
35 mins.

20 – 25 mins. per 450g (1lb) +
20 mins.

20 – 25 mins. per 450g (1lb) +
20 mins.

15 – 20 mins. per 450g (1lb) +
20 mins.

1

1

/2 – 6 hrs. (depending on type

of meat)

2– 2

1

/

4

hrs. on a baking tray

and started with warm milk

40 mins. in bain-marie

Baked sponges 2 40 – 5 0 mins.4 35 – 45 mins.

Baked apples 3

30 – 45 mins. depending on size and
type of apples

3

25 – 40 mins. depending on size
and type of apples

15 mins. or until ‘tinged’
with brown

40 – 50 mins.

40-50 mins. Remove bacon for
last 15 mins. Add extra 15
mins. if roasting a brace.

20 – 50 mins. depending
on size and recipe

25 – 30 mins.

Fruit crumbles 2 35 – 45 mins.5 o r 6 30 – 40 mins.

1 & 3

32

Cooking Charts For Ovens

3 & 6

Food

Gas Mark

Shelf Position

FAN OV E N

Approximate Cooking Time

Approximate Cooking Time

CONVENTIONAL OVE N

CAKES, PASTRIES &
BISCUITS

Small cakes

NOTE: If soft tub margarine is used for cake making, temperatures recommended by the manufacturers should be used. The settings
recommended in this chart refer to cakes made with block margarine or butter only.

1 & 3 17 – 25 mins.

Victoria sandwich
205mm (8”)

25 – 35 mins.

Rich fruit cake
230mm (9”)

3

3 – 3

1

/2 hrs.

Shortcrust pastry 2 or 3 15 mins. – 1 hr. depending on recipe

Flaky & puff pastry 1 & 3

10 – 30 mins. depending
on recipe

Choux pastry – éclairs 2 35 – 40 mins.

Scones 1 & 3 10 – 15 mins.

Shortbread 3

55 mins. – 1 hr. depending on
thickness

Biscuits 1 & 3

15 – 20 mins. depending
on recipe

Rolls

MISCELLANEOUS

YEAST MIXTURES

2 15 – 20 mins.

Bread 3 o r 4 45 – 50 mins.

Chelsea buns 2 30 – 40 mins.

Yorkshire pudding
– large

1 o r 2 45 – 50 mins.

Yorkshire pudding
– individual

1 o r 2 25 – 30 mins.

Soufflés 3 30 mins.

Meringues

2 – 5 hrs. starting on shelf 4 then on
base until dried out – turn when
necessary.

Fatless sponge
180mm (7”)

2

20 – 25 mins.
(2 tins side by side)

Christmas Cake 3

4 – 6

1

/2hrs. depending on recipe

Madeira cake
180mm (7”)

5

5

6

4

7

6

7

2

4

7 or 8

7 or 8

5

7

7

4

‘E’

2

4

2

3

1

1

/4 – 11/2 hrs.

20 – 25 mins.

20 – 30 mins.

21/2 – 3 hrs. depending on size

15 – 45 mins. depending on
recipe

Rich Shortcrust pastry 2 20– 40 mins. depending on recipe

5

20– 40 mins. depending on
recipe

(Preheat oven first) 10 – 30 mins.
depending on recipe

(Preheat oven first)
30 – 40 mins.

(Preheat oven first) 10 – 15 mins.

50 mins. – 1 hr. depending on
thickness

15 – 20 mins. depending on
recipe

(Preheat oven first)
15 – 20 mins.

(Preheat oven first)
40 – 45 mins.

(Preheat oven first)
20 – 30 mins.

(Preheat oven first)
40 – 45 mins.

(Preheat oven first)
15 – 25 mins.

(Preheat oven first)
25 – 30 mins.

2 – 5 hrs.

3

Baked Potatoes

1

1

/2– 3 hrs. until soft, depending

on size.

4 or 5

11/2– 3 hrs. until soft, depending
on size.

(preheat oven first) 20-25 mins.
(2 tins side by side)

3 – 6 hrs. depending on recipe

1– 1

1

/4 hrs.

33

The ‘E’ setting on the oven thermostat can be used for slow
cooking, keeping food warm and warming plates for short
periods.

1. All dishes cooked by the ‘E’ setting should be cooked for
a minimum 6 hours. They will ‘hold’ at this setting for a
further hour but marked deterioration in appearance will
be noticed in some cases.

2. Joints of meat and poultry should be cooked at Mk. 6 for
30 minutes before turning to the ‘E’ setting and never be
cooked lower than the middle shelf position.

3. Joints of meat over 6 lbs (2.7kg) and poultry over 4 lbs
8oz (2kg) should not be cooked using the ‘E’ setting.

4. Always stand covered joints on a rack over the meat tin
to allow good air circulation.

5. A meat thermometer should be used when cooking pork
joints and poultry. The internal temperature of the food
should reach at least 88oC.

6. This method is unsuitable for stuffed meat and stuffed
poultry.

7. Always bring soups, casseroles and liquids to the boil
before putting in the oven.

8. Cover casseroles with foil and then the lid to prevent loss
of moisture.

9. Always thaw frozen food completely before cooking.

10. Root vegetables will cook better if cut into small pieces.

11 . Adjust seasonings and thickenings at the end of the

cooking time.

12 . Use the zones of heat in the oven, e.g. meringues and

milk puddings can be cooked lower in the oven whilst
other dishes requiring greater heat can be cooked above
them.

13 . Egg and fish dishes need only 1-5 hours cooking and

should be included in day cooking sessions, when they
can be observed from time to time.

14 . Dried red kidney beans must be boiled for a minimum of

ten minutes after soaking, before inclusion in any dish.

The ‘E’ Setting

Using the ‘E’
setting for
slow cooking

34

Slow Cook / Warming Oven

The lower right hand electric oven provides gentle heat suitable for slow
cooking, keeping food warm or warming plates. It is necessary to preheat
the oven if it is to be used for keeping food warm.

Turn the control clockwise to the ON position and allow to preheat for
20 minutes before placing food in the oven. If food is to be kept moist
then it is important to cover the dishes and plates to prevent the food
from drying out. This can be done using aluminium foil if the dish does
not have a lid. DO NOT use clingfilm as it cannot withstand the heat
produced in the oven. Some foods are best left uncovered if you wish to
keep the food dry and crisp. Do not add gravy to plated meals until
serving. Carved meat should be placed on one plate and covered, adding
just a tablespoon of gravy to keep it moist. When keeping plated meals
warm it is recommended that the food is placed on hot rather than cold
plates.
Slow cooking has always been the best way to prepare a nutritious hot
meal with the minimum of preparation and maximum time away from the
kitchen.
Simply turn the slow cooker control clockwise to the ON position and
preheat for 20 minutes. The neon will illuminate. Always put the prepared
cooking pot centrally on the base of the oven. F ollow the following
guidelines for best results.

1. Cooking time will vary depending on the size and shape of meat

or poultry.

2. The maximum capacity of ovenproof dish should be no more than

2.5 litres (4.5 pints). NOTE: The more you fill the dish / pot the
longer it will take to cook.

3. Always bring soups, casseroles and liquids to the boil before

putting in the oven and for best results and to give more colour to
meat or poultry, fry the meat to brown and add to stock which is
hot.

4. All meat or poultry recipes need a minimum of 5 hours to cook.

5. Make sure all frozen ingredients are well thawed out. Always

ensure frozen poultry has thoroughly defrosted in a refrigerator
and all ice crystals have melted.

6. Cut root vegetables into small pieces, as they take longer to cook

than meat. If possible they should be gently sauteed for 2 - 3
minutes before slow cooking.

7. Ensure that root vegetables are always put at the bottom of the

pot and immersed in the cooking liquid.

8. A meat thermometer should be used when cooking pork joints

and poultry. The internal temperature of the food should reach at
least 88

o

C.

9. Stuffed meat or stuffed poultry are unsuitable for slow cooking.

10. Cover casseroles with foil or a lid to prevent loss of moisture.

11. Adjust seasonings and thickenings at the end of the cooking time.

12 . Egg and fish dishes need only 1 - 5 hours cooking and should be

include in day cooking sessions, when they can be observed from
time to time.

13 . Dried red kidney beans must be boiled for a minimum of 10

minutes after soaking before inclusion in any dishes.

The slow cook / warming oven can also be used for warming plates. Place
plates on the base of the oven.
China plates and serving dishes should be placed in the oven before it is
switched on, otherwise the sudden change in temperature may result in
damage.

To use the slow
cook / warming
oven.

Keeping food
warm.

Slow Cooking

W arming plates.

35

Care and Cleaning

Cleaning Method

Cloth rung out in hot soapy water.
Stubborn stains can be removed with a cream, paste, liquid
cleaner or by rubbing with fine steel wool, soap pads.
Check that the cleaning agent is approved by the Vitreous
Enamel Development Council.

Use a cloth wrung out in warm soapy water. Alternatively
use a propriety stainless steel cleaner obtainable from
household stores or Belling Spares Department; call 01709
579907 and quote Belling 005.

W ash with a cloth rung out in hot soapy water only.
DO NOT USE ABRASIVES.

NOTE: Care must be taken to prevent cleaning materials, water, or
dirt, from entering and blocking the burner ring ports.

Wipe with a cloth rung out in hot soapy water.
A fine steel wool soap pad or a chrome or stainless steel cleaner
may be used.

In the interests of both safety and hygiene your Belling cookcenter
needs to be kept clean. A build up of grease or fat from cooking
could cause a fire hazard.
WARNING ! For your own safety always switch off your
cooker at the main switch and allow to cool before
cleaning.
Never use excessive amounts of water to clean your cooker, and
remember that your cooker is heavy. Take care when pulling it out
for access.
Clean the cooker regularly and wipe spills soon after they
occur to prevent them from becoming burnt on. Never use
biological washing powder, caustic cleaners, harsh
abrasives, scouring pads, aerosol cleaners or oven
chemical cleaners of any kind.
To move the cooker forward, open the grill door and with both
hands positioned under the roof of the compartment, lift and pull
forward. Replace by pushing the cooker backwards. Check that the
cooker is level. Take care to ensure that any floor covering is not
damaged.

Cook

er Finish

Vitreous Enamel
Hotplate, pan
supports, burner
ring discs, meat tin,
grill pan, oven base,
inside of oven &
grill door, grill
compartment.

Stainless steel

Paint
Side trims, plinth,
fascia trims.

Aluminium
Burner bodies.

Chromium
Plating
Oven shelves, grill
pan grid, grill pan
handle support.

36

Care and Cleaning

The main oven back and side linings are coated with a special
enamel which has a continuous cleaning action. The higher the
oven temperature the more effective the action. In most cases
this cleaning operation will proceed during normal cooking.
However, if high temperatures are not used regularly, it may be
necessary to run the oven empty at mark 8 for a couple of
hours, but this must be conducted without using the
hob.
WARNING! Under these conditions the surfaces may become
hotter than usual and children should be kept away.
If desirable, they can be washed with warm soapy water
followed by a rinse. The surface coating, which can be
recognised by its matt finish, may be damaged by using
aerosol oven cleaners, oven pads, detergents or scouring
powders, and their use is not recommended.
Whilst normal cleaning can be carried out with these panels in
place, they can be removed for cleaning manually, or for
cleaning the rest of the oven interior. First remove the oven
shelves. The panels can then be removed by undoing the fixing
screws.
T o clean these ‘cookclean’ panels by hand, scrub them with a
nylon pad or brush, using warm soapy water. Rinse in cold
water and ‘blot’ them dry with a paper towel or sponge. Do
not rub the surface too dry as this can damage the ‘cookclean’
finish. After cleaning replace the linings immediately and heat
the oven at maximum setting for 30 minutes to prevent
deterioration of the enamel.
D O N O T clean them in a dishwasher.

Oven
Cookclean
Linings.

Griddle

Plastic
Grill pan handle,
Control knobs

Wipe with a cloth wrung out in hot soapy water.

W ash with a cloth rung out in hot soapy water. For stubborn
stains use a non-stick pad carefully . Ensure both sides are
rinsed and dried thoroughly. D O N O T put in a dishwasher.

37

Something Wrong?

Replacement of Oven
Light

CAUTION: ISOLATE COOKER FROM THE
ELECTRICITY SUPPLY BEFORE REPLACING LAMP,
TO AVOID THE POS SIBILITY OF ELECTRIC SHOCK.
Open the oven door and remove the rod shelves. Using
a suitable thick cloth to protect the fingers grip the
light glass lens, unscrew anti-clockwise and lift out.
Reach into the aperture, with fingers unscrew the
faulty lamp anti-clockwise. Fit replacement lamp (15W
SES, temperature rating 300

o

C), and refit glass lens.

Before contacting your Service Centre or Installer, check the guide below,
there may be nothing wrong with your cooker.

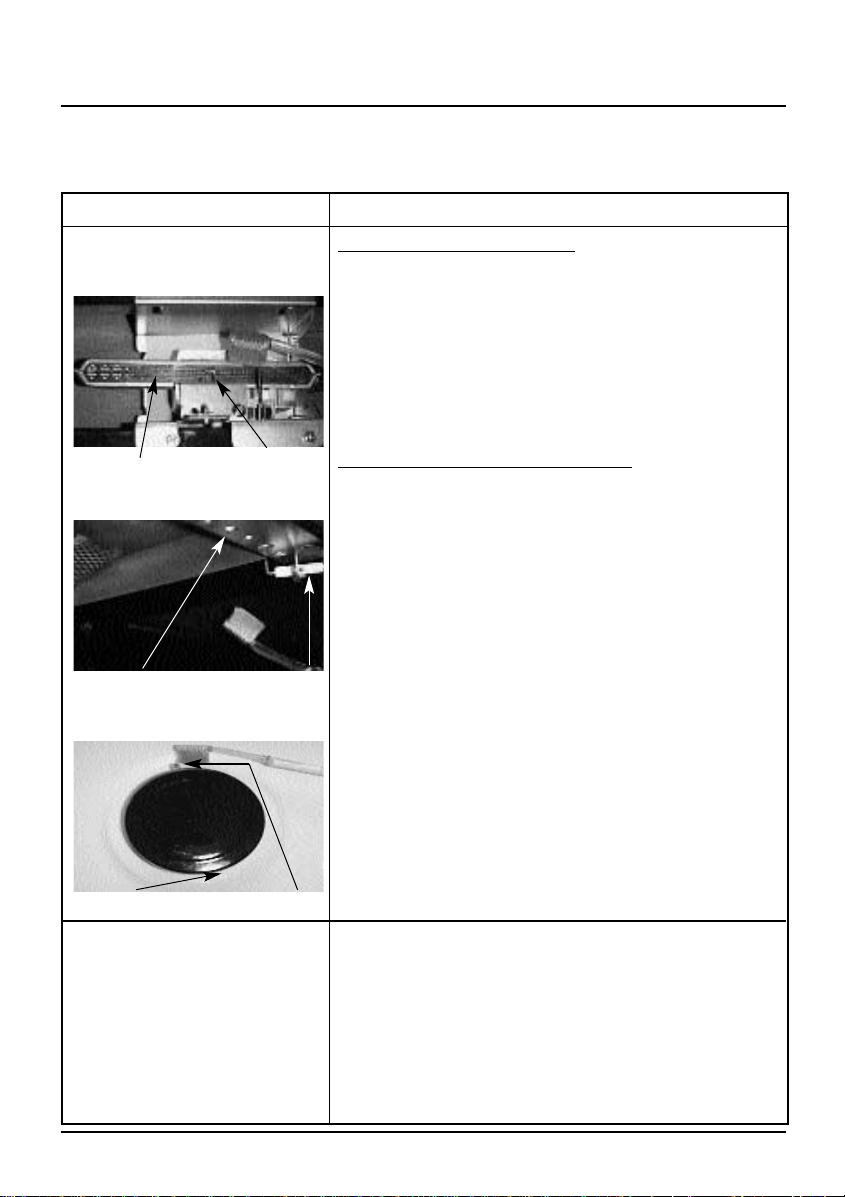

PROBLEM CHECK
Ignition does not work.

Burner ports Ignitor

Burner ports Ignitor

Burner ports Ignitor

Oven burner

Grill burner

Hotplate burner.

If all burners fail to ignite:
Check that sparks appear at the burners; a
clicking noise should be heard.
If not

Check that the electricity supply is turned on.
If the electricity supply has failed, the hotplate
burners and grill can be lit by a match.

If only one burner fails to ignite:

Check that the burner is dry and that spillage of
food or cleaning fluid remains are not affecting
the ignitor or burner ports.
Clean away any debris with a dry nylon brush
such as an old toothbrush. If a wire wool pad
has been used for cleaning around the burner
ensure the ignitor is free from any stray strands.
Any water on the burner should be dried with a
cloth or kitchen towel.

On hotplate burners make sure that all the
burner parts are correctly seated on the burners.

Our policy is one of continual improvement in design and development,
therefore strict accuracy of illustrations and descriptions cannot be
guaranteed.

This appliance conforms to the following EEC Directives:

Gas Appliances
90/396/EEC

Low Voltage Equipment
72/23/EEC
93/68/EEC

Electromagnetic Compatibility
89/336/EEC
92/31/EEC
93/68/EEC

THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH THE RULES IN
FORCE, AND USED ONLY I N A SUFFICIENTLY VENTILATED SPACE. CONSULT
INSTRUCTIONS BEFORE INSTALLATION AND USE
OF THIS APPLIANCE.

38

Ensure that only authorised replacements are fitted to give the
correct performance and appearance. Repairs carried out by
unauthorised or inexperienced persons may cause serious
damage to the cooker, and may result in personal injury .
Maintenance must be carried out by a competent person.To
minimise the risk of injury to children, please dispose of your
cooker safely.

Disposal of
Cooker

Service

Please consult your retailer in the first instance. If you experience
difficulty contact Belling Appliances, After Sales Division.
Remember that you may be charged for the visit (even during the
guarantee period) if nothing is found to be wrong with the appliance, so
always check the instructions to make sure that you have not missed
anything.

Belling Appliances After Sales Division (Service)
Tel: [phone] (all calls will be charged at local rate)

Before contacting a service agent, please note the following details
about your cooker:

Model Number____________________________________________
Serial Number _____________________________________________
Date of Purchase __________________________________________
Also note your Postcode ___________________________________

In order to provide a complete service history for your Belling appliance,
please ask the service engineer to record the appropriate details in the
chart below.

Date Nature of Fault

Parts Replaced or Repaired

Authorised Stamp

or Signature

PRINTED BY SIMLEX .FOUR ASHES, WOLVERHAMPTON

Calling for
Service

January 2001 Part No 4666200020 - 02
