OPERATING AND INSTALLATION

INSTRUCTIONS OF

ELECTRIC DOUBLE OVEN

BEL FS50EDOC BLK/444443928

BEL FS50EDOC WHI/444443927

BEL FS50EDOFC BLK/444443930

BEL FS50EDOFC WHI/444443929

BEL FS50EDOPC STA/444443931

Dear Customer,

Thank you for purchasing this Cooking Appliance. The safety
precautions and recommendations in these instructions are for your
own safety and that of others. They will also provide a means by which
to make full use of the features offered by your appliance.

Please keep this booklet in a safe place. It may be useful in future,
either to yourself or to others in the event that doubts should arise
relating to its operation.

This appliance must be used only for its intended purpose, that is for
the domestic cooking of foodstuffs. Any other form of usage is to be
considered as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the event of damage
caused by improper or incorrect use of the appliance.

CE Declaration of conformity

This cooking appliance has been designed to be used only for cooking.
Any other use (such as heating a room) is improper and dangerous.

This cooking hob has been designed, constructed and marketed
incompliance with:

- Safety requirements of the ''LVD'' Directive 2006/95/EC;

- Safety requirements of the ''EMC'' Directive 2004/108/EC;

- Requirements of the Directive 93/68/EC.

1

CONTENTS:

1. LAYOUT OF COOKER

2. WARNINGS

3. INSTALLATING YOUR COOKER

4. USING THE PRODUCT

5. CLEANING AND MAINTENANCE

6. SERVICE AND TRANSPORT

2

PART 1: LAYOUT OF COOKER

List of Components

1. Cooktop

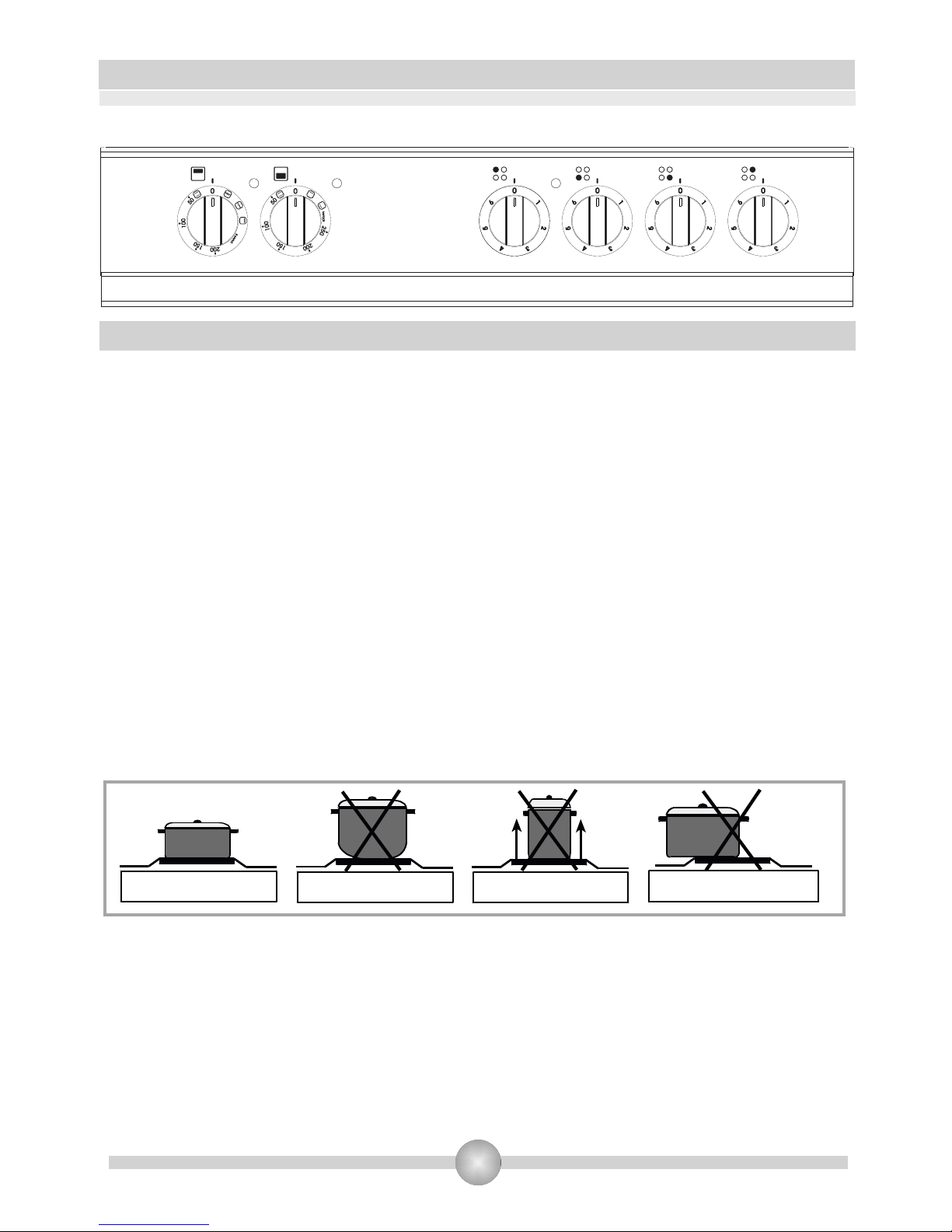

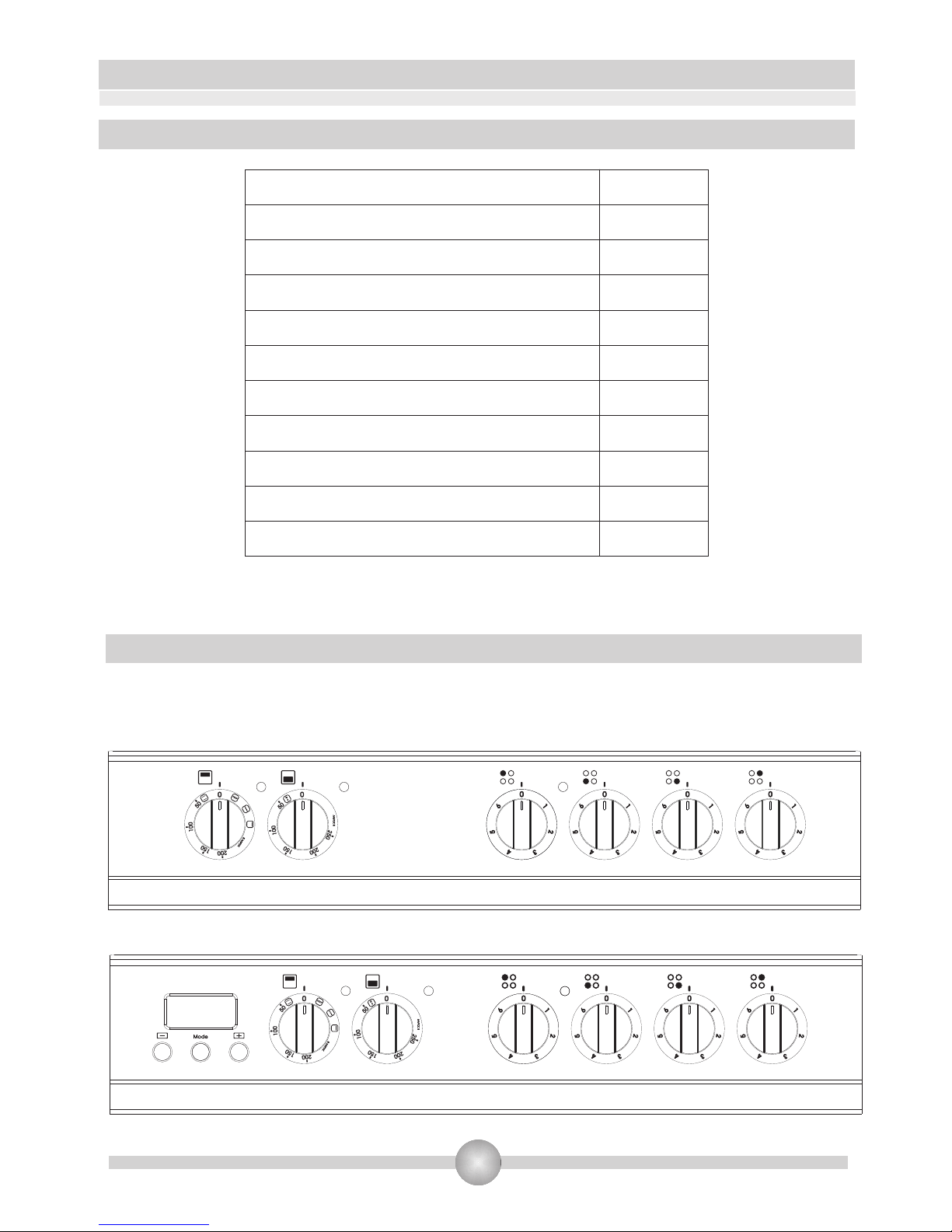

2. Control panel

3. Top oven door

4. Oven door handle

5. Main oven door

6. Grid

7. Fan cover (BEL FS50EDOFC BLK /

BEL FS50EDOFC WHI / BEL FS50EDOPC STA)

8. Supply leg

6

8

7

Rack 2

Rack 2

Rack 3

Rack 4

Rack 5

Rack 1

Rack 1

1

2

3

4

5

3

4

PART 2: WARNINGS

PLEASE READ THE ENTIRE INSTRUCTION MANUAL CAREFULLY BEFORE USING YOUR

APPLIANCE. MAKE SURE TO KEEP THE MANUAL SOMEWHERE SAFE IN CASE YOU NEED IT

FOR FUTURE REFERENCE.

THIS INSTRUCTION MANUAL HAS BEEN WRITTEN WITH OUR OTHER COOKER MODELS IN

MIND, AS WELL AS YOUR MODEL, THEREFORE SOME OF THE FEATURES THAT YOU SEE

EXPLAINED IN THIS MANUAL WILL NOT BE APPLICABLE TO YOUR COOKER.

PLEASE PAY PARTICULAR ATTENTION TO THE INSTRUCTIONS THAT HAVE ACCOMPANYING

PICTURES WHEN READING THIS MANUAL.

General Safety Warnings

- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.

- WARNING: The appliance and its accessible
parts become hot during use. Care should be
taken to avoid touching heating elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.

- WARNING: Unattended cooking on a hob with
fat or oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but
switch off the appliance and then cover flame
e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items
on the cooking surfaces.

5

- WARNING: If the surface is cracked, switch off
the appliance to avoid the possibility of electric
shock.

- For hobs incorporating a lid, any spillage should
be removed from the lid before opening. And also
the hob surface should be allowed to cool before
closing the lid.

- The appliance is not intended to be operated by
means of an external timer or separate remote­control system.

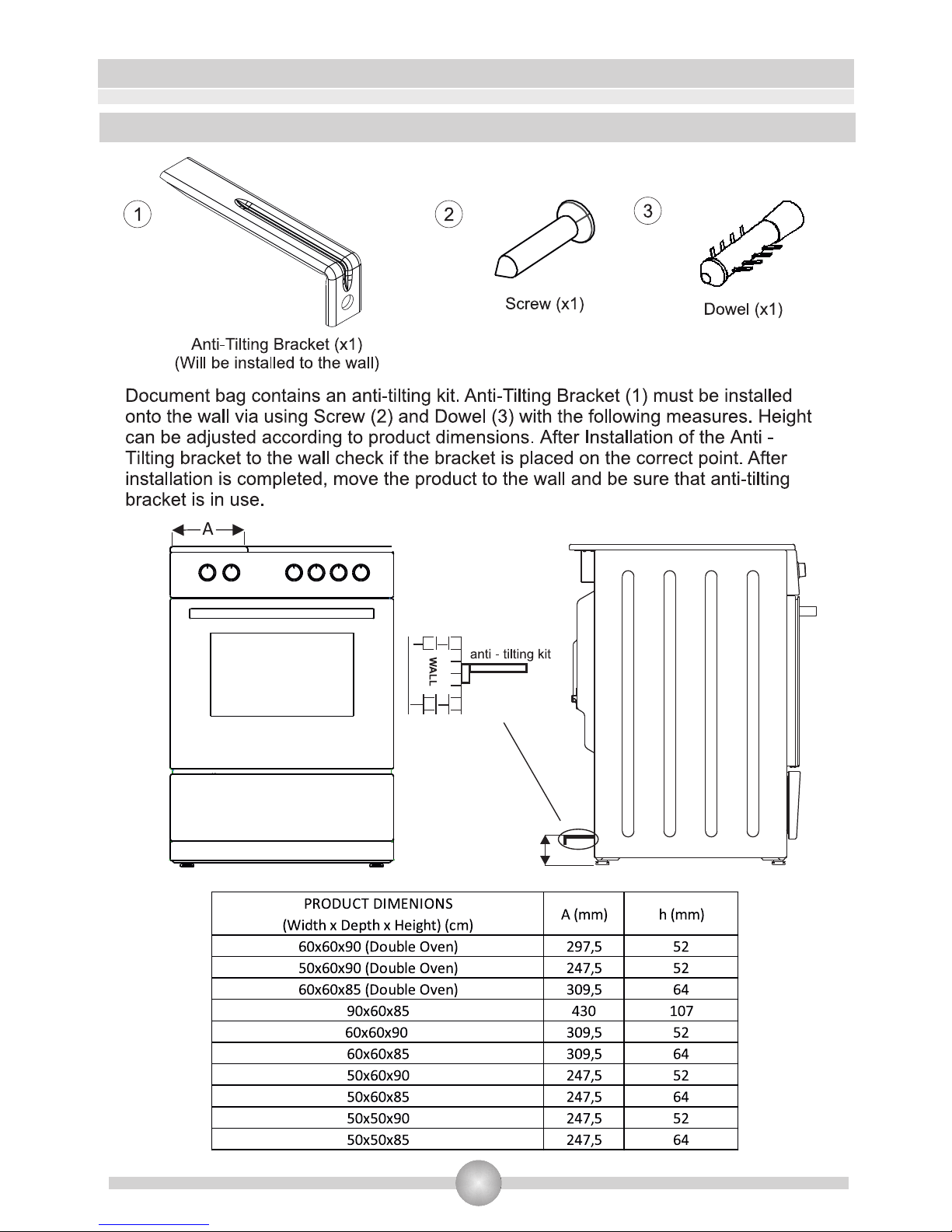

- WARNING: In order to prevent tipping of the
appliance, the stabilizing brackets must be
installed. (For detail information please read the
anti-tilting kit set guide.)

- During use, the appliance becomes hot. Care
should be taken to avoid touching heating
elements inside the oven.

- During use, handles held for short periods in
normal use can get hot.

- Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass and
other surface since they can scratch the surface,
which may result in shattering of the glass or
damage to the surface.

- Do not use steam cleaners for cleaning the
appliance.

6

- WARNING: Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.

- CAUTION: Accessible parts may be hot when
the cooking or grilling is in use. Young children
should be kept away.

• Your appliance is produced in accordance with all applicable local and international standards and
regulations.

• Maintenance and repair work must be made only by authorized service technicians. Installation and
repair work that is carried out by unauthorized technicians may endanger you. It is dangerous to alter
or modify the specifications of the appliance in any way.

• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure
or electricity voltage and frequency) and the requirements of the appliance are compatible. The
requirements for this appliance are stated on the label.

• CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic
household use only and should not be used for any other purpose or in any other application, such
as for non-domestic use or in a commercial environment or room heating.

• Do not try to lift or move the appliance by pulling the door handle.

• All possible security measures have been taken to ensure your safety. Since the glass may break,
you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on the glass with
accessories.

• Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it
must be replaced by the manufacturer, its service agent or similarly qualified persons in order to
prevent a hazard.

• While the oven door is open, do not let children climb on the door or sit on it.

Installation Warnings

• Do not operate the appliance before it is fully installed.

• The appliance must be installed and put into use by an authorized technician. The producer is not

responsible for any damage that might be caused by defective placement and installation by
unauthorized people.

• When you unpack the appliance, make sure that it is not damaged during transportation. In case of
any defect; do not use the appliance and contact a qualified service agent immediately. As the
materials used for packaging (nylon, staplers, styrofoam...etc) may cause harmful effects to children,
they should be collected and removed immediately.

• Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow
etc.

• The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of min
100°C.

7

During usage

• When you first run your oven a certain smell will emanate from the insulation materials and the
heater elements. For this reason, before using your oven, run it empty at maximum temperature for
45 minutes. At the same time you need to properly ventilate the environment in which the product is
installed.

• During usage, the outer and inner surfaces of the oven get hot. While opening the oven door, step
back to avoid the hot steam coming out of the oven. There may be a risk of burns.

• Do not put flammable or combustible materials, in or near the appliance when it is operating.

• Always use oven gloves to remove and replace food in the oven.

• Do not leave the cooker while cooking with solid or liquid oils. They may catch fire on condition of
extreme heating. Never pour water on to flames that are caused by oil. Cover the saucepan or frypan
with its cover in order to choke the flame that has occured in this case and turn the cooker off.

• Always position pans over the centre of the cooking zone, and turn the handles to a safe position so
they cannot be knocked or grabbed.

• IIf you are not using the appliance for a long time, turn it off. Keep the main control switch off. Also
when you do not use the appliance, keep the gas valve off.

• Make sure the appliance control knobs are always in the "0" (stop) position when it is not used.

• The trays incline when pulled out. Be careful not to let hot liquid spill over.

• When the door or drawer of the oven is open, do not leave anything on it. You may unbalance your
appliance or break the cover.

• Do not put heavy things or flammable or ignitable goods (nylon, plastic bag, paper, cloth...etc) into
the drawer. This includes cookware with plastic accessories (e.g. handles).

• Do not hang towels, dishcloths or clothes from the appliance or its handles.

During cleaning and maintenance

• Always turn the appliance off before operations such as cleaning or maintenance. You can do it
after unplugging the appliance or turning the main switches off.

• Do not remove the control knobs to clean the control panel.

TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU

ALWAYS USE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR AUTHORIZED

SERVICE AGENTS IN CASE OF NEED.

8

PART 3: INSTALLING YOUR COOKER

Manufactured with the best quality parts and material, this modern, functional and
practical cooker aims to meet all your cooking needs. Read the manual carefully to
familiarise yourself with the functions of the appliance so that you know how to use it
successfully and safely. The information below contains rules that are necessary for
positioning it correctly and for any service work that may need to be done. All
information should be read without fail, especially by the technician who will
position the appliance.

CONTACT A QUALIFIED AND AUTHORIZED TECHNICIAN TO INSTALL YOUR COOKER

3.1 POSITIONING THE COOKER

- There are several factors to consider when choosing a place for your cooker. Follow our
advice below in order to prevent any problems and dangerous situations from happening.

- Furniture can be placed in the surrounding area of the cooker, providing that the furniture's
height does not exceed the height of the cooker panel.

- When choosing a place for your cooker, do not to place it near a refrigerator and make sure
there are no flammable or combustible materials in the surrounding area that could catch fire
with a cooker nearby, such as curtains, oil, cloth etc.

- Make sure there is at least a 2cm gap between the back cover of the cooker and the wall to
help the air circulate.

- Any furniture near the cooker must be made of materials that are resistant to heat 50°C
more than the room temperature.

- This double oven cooker is designed to fit between two kitchen cabinets spaced over
500mm apart. The space each side of the cooker needs to be enough to allow the oven to be
taken in and out in case it needs servicing.

- You can place this cooker with cabinets on one or both sides as well as in a corner position. It
can also stand alone.

- The furniture close to cooker must be manufactured resistant to heat more than 50 C° of the
room temperature.

- The cooker is designed to fit between kitchen cabinets spaced over 500 mm apart. The
space either side of the cooker need only be sufficient to allow withdrawal of the cooker for
servicing. It can be used with cabinets on one side or both sides as well as in a corner setting.
It can also be used free-standing.

9

3.2 ADJUSTING THE LEVELLING LEGS

This cooker stands on 4 levelling legs. As the legs are initially on a lower position, you
must adjust them to make sure the cooker is balanced before using it. If you need to
balance the cooker, the legs can be adjusted by turning them clockwise. You can
raise the cooker by a maximum of 15mm with the levelling legs. If you have had to
adjust the cooker with the levelling legs make sure to move the cooker by lifting it
rather than dragging it. The levelling leg can be adjusted by hand or a suitable size
coin.

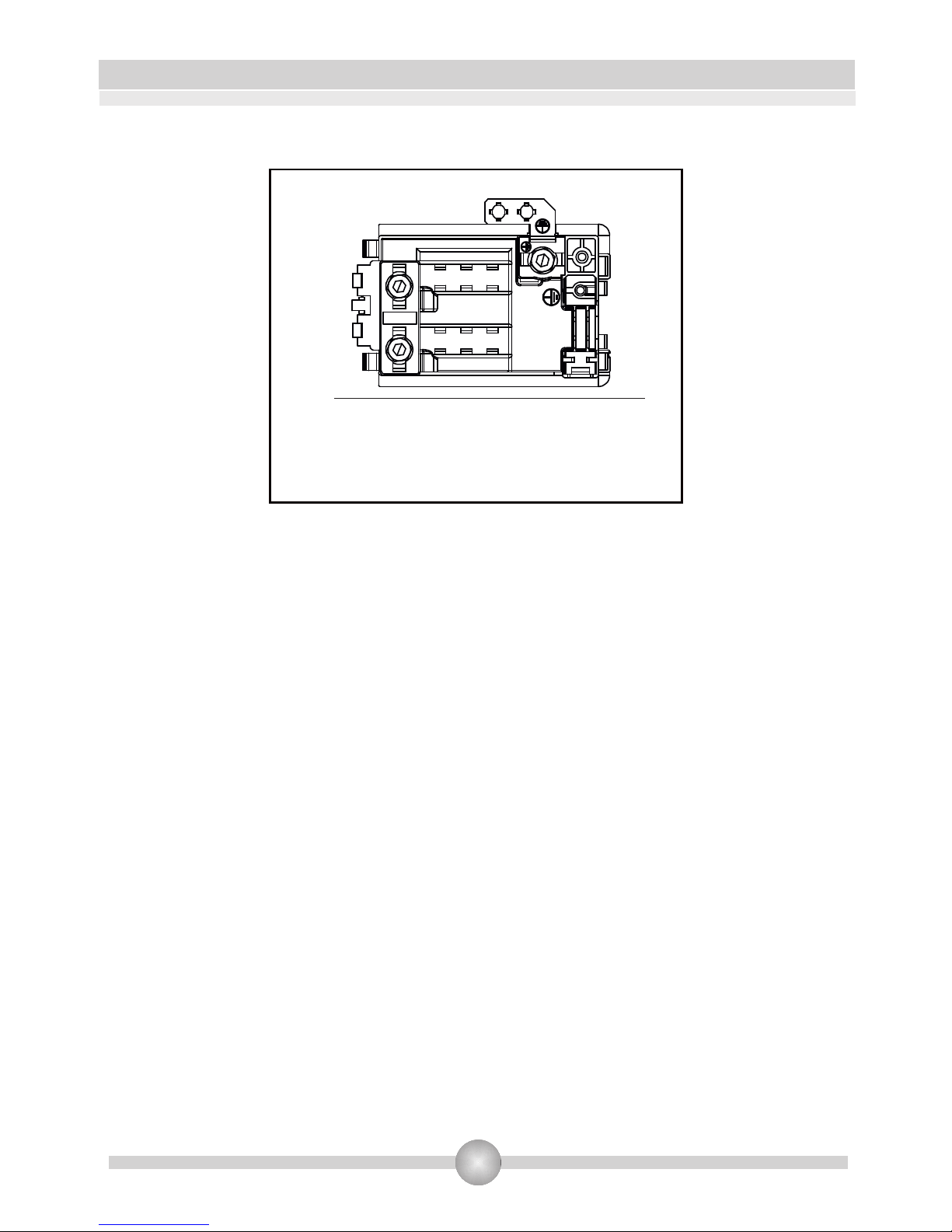

3.3 ELECTRIC CONNECTION AND SAFETY

When it comes to connecting you appliance, please follow the instructions below
carefully.

- Before carrying out the electrical connection, make sure that the current carrying
capacity of your mains electricity supply and your socket is suitable for the maximum
power rating of the cooker.

- Before proceeding with the electrical connection, verify that the current carrying capacity
of the system and the socket is adequate for the maximum power rating of the oven.

- Electrical installation of the residence and the electrical current plug in use must be
earthed and conform to safety regulations.

- A circuit breaker with a contact opening of at least 3 mm must be installed inside the
supply circuit.

- Do not use adaptors, multiple sockets and/or extension leads.

- Fused switch must be accessible once the oven has been installed.

IMPORTANT: The following diameters of the supply cables must be used in the
case of a one phase connection:

Rated power on
nameplate:

Diameter of supply
cable:

Rated power on
nameplate:

Diameter of supply
cable:

5000W -8700W
at 220V: 3 x 2.5 mm2 > 8700W at 220 V 3 x 4.0 mm2

5000W -9100W
at 230V: 3 x 2.5 mm2 > 9100W at 230 V 3 x 4.0 mm2

5000W -9500W
at 240V: 3 x 2.5 mm2

> 9500W at 240 V

3 x 4.0 mm2
