INTRODUCTION

Thank you for buying this British-built appliance from us.

This user guide book is designed to help you through each step of owning your new product.

Please read it carefully before you start using your appliance, as we have endeavored to answer as
many questions as possible, and provide you with as much support as we can.

General information, spares and service information is available from our website.

If you should nd something missing from your product or have any questions that are not covered in

this user guide, please contact us (see contact information inside the front cover).

European Directives

As a producer and a supplier of cooking appliances we are committed to the protection of the environ-

ment and are in the compliance with the WEEE directive. All our electric products are labelled
accordingly with the crossed out wheeled bin symbol. This indicates, for disposal
purposes at end of life, that these products must be taken to a recognized collection points,
such as local authority sites/local recycling centres.

This appliance Complies with European Community Directives (CE) for household and similar electrical
appliances and Gas appliances where applicable.

This appliance conforms to European Directive regarding Eco design requirements for energy-related
products. Our policy is one of constant development and improvement, therefore we cannot guarantee
the strict accuracy of all of our illustrations and specications - changes may have been made subse­quent to publishing.

Disposal of Packaging Material

The packaging materials used with this appliance can be recycled. Please dispose of the packaging
materials in the appropriate container at your local waste disposal facilities.

UK ONLY GAS WARNING:

If you smell gas, Do not try to light any appliance. Do not touch any electrical switch.

Call the Gas Emergency Help line at 0800 111999

SAFETY

WARNING

• If the hob surface is cracked, broken or shattered, switch off the
appliance to avoid the possibility of electric shock and call for a
service engineer’s visit.

• During use the appliance becomes hot. Care should be taken to
avoid touching heating elements.

• The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements. Children
less than 8 years of age shall be kept away unless continuously
supervised. This appliance can be used by children aged from 8
years and above and persons with reduced physical sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning the use of
the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.

• Do not use a steam cleaner on any cooking range, hobs and oven
appliances.

• If your appliance is tted with a lid, any spillage should be removed

from the lid before opening. The hob surface should be allowed to
cool before closing the lid.

• Ensure that the appliance is switched off before replacing the lamp
to avoid electric shock.

• Never put items directly on the base of the oven or cover the oven
with foil, as this can cause the base element to overheat.

• The appliance is not intended to be operated by means of an
external timer or separate control system.

• Unattended cooking on a hob with fat or oil can be dangerous and
may result in re.

• NEVER try to extinguish a re with water, but switch off the
appliance and then cover the ame with a lid or damp cloth.

• Danger of re: Do not store items on the cooking surfaces.

• Only use hob guards designed by the manufacturer of the cooking

appliance or indicated by the manufacturer of the appliance in
the instructions for use as suitable or hob guards incorporated in
the appliance. The use of inappropriate hob guards can cause
accidents.

CAUTION

• This appliance must not be installed behind a decorative door in
order to avoid overheating.

• The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.

• Fire Safety Advice

If you do have a re in the kitchen, don’t take any risks - get everyone out of your home and call the

Fire Brigade.

Ifyouhaveanelectricalreinthekitchen:

• Pull the plug out, or switch off the power at the fuse box - this may be enough to stop the re imme­diately

• Smother the re with a re blanket, or use a dry powder or carbon dioxide extinguisher

• Remember: never use water on an electrical or cooking oil re.

• Other Safety Advice

• Servicing should be carried out only by authorised personnel.

• Do not operate the appliance without the glass panel correctly tted.

• There is a risk of electric shock, so always make sure you have turned off and unplugged your

appliance before starting. Always allow the product to cool down before you change a bulb.

• Do not modify the outer panels of this appliance in any way.

• This appliance must be earthed.

• The appliance must never be disconnected from the mains supply during use, as this will seriously

affect the safety and performance, particularly in relation to surface temperatures becoming hot and

gas operated parts not working efciently. The cooling fan (if tted) is designed to run on after the

control knob has been switched off.

• GAS WARNING! - If you smell gas: Do not try to light any appliance, Do not touch any electrical
switch. Contact your local gas supplier immediately.

USING YOUR APPLIANCE

Getting to know your product

Note: Your appliance layout may differ depending on the model.

Hob

Left hand rear

Left hand front

Right hand rear

Warming zone

Right hand front

Cook zones

symbols

On/Off key

Cook zones

symbols

PlusMinus

Control Panel

Oven

Thermostat indicator (top oven only)

Top oven/Grill or

Grill

Hob/Oven controls

Thermostat indicator

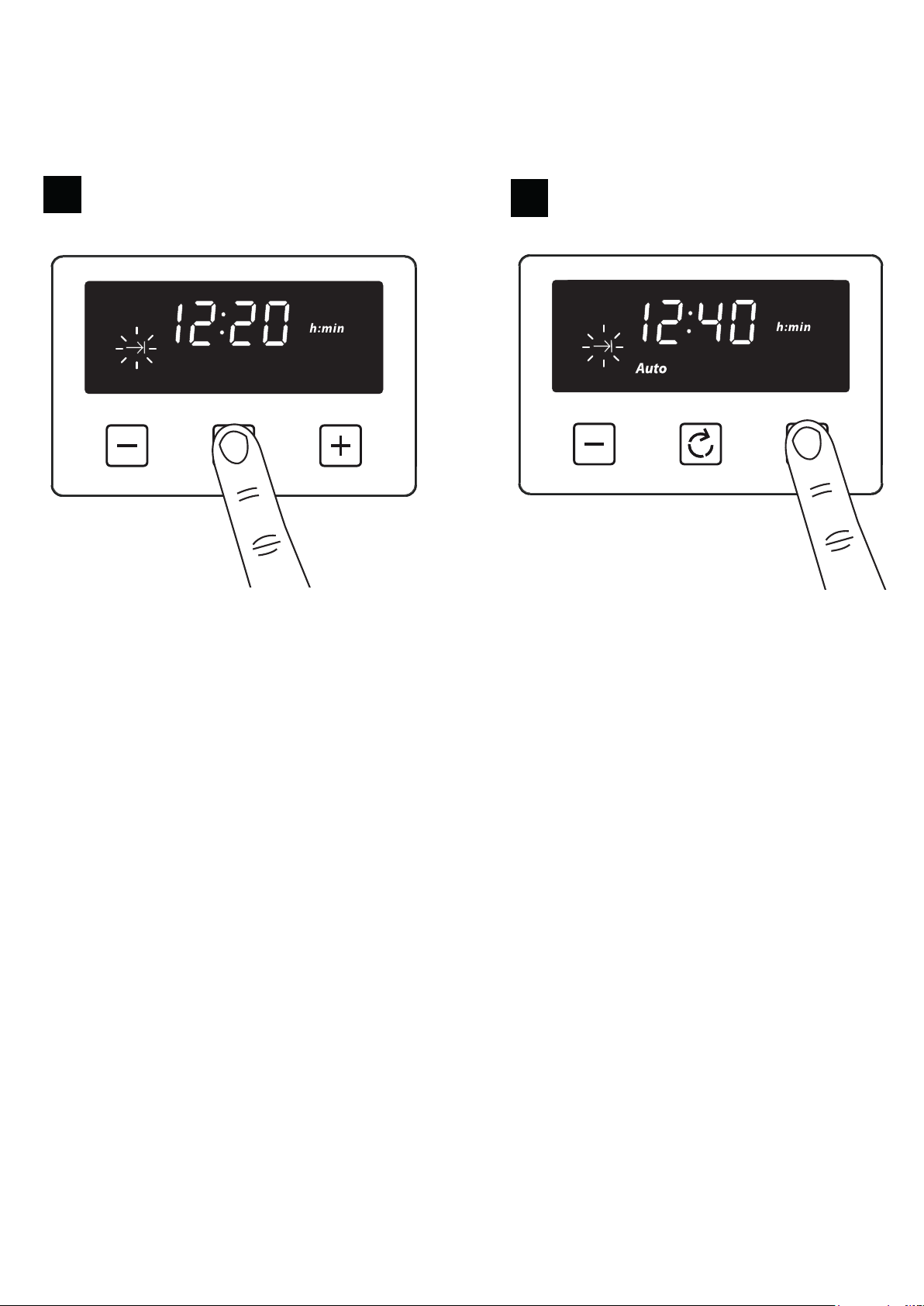

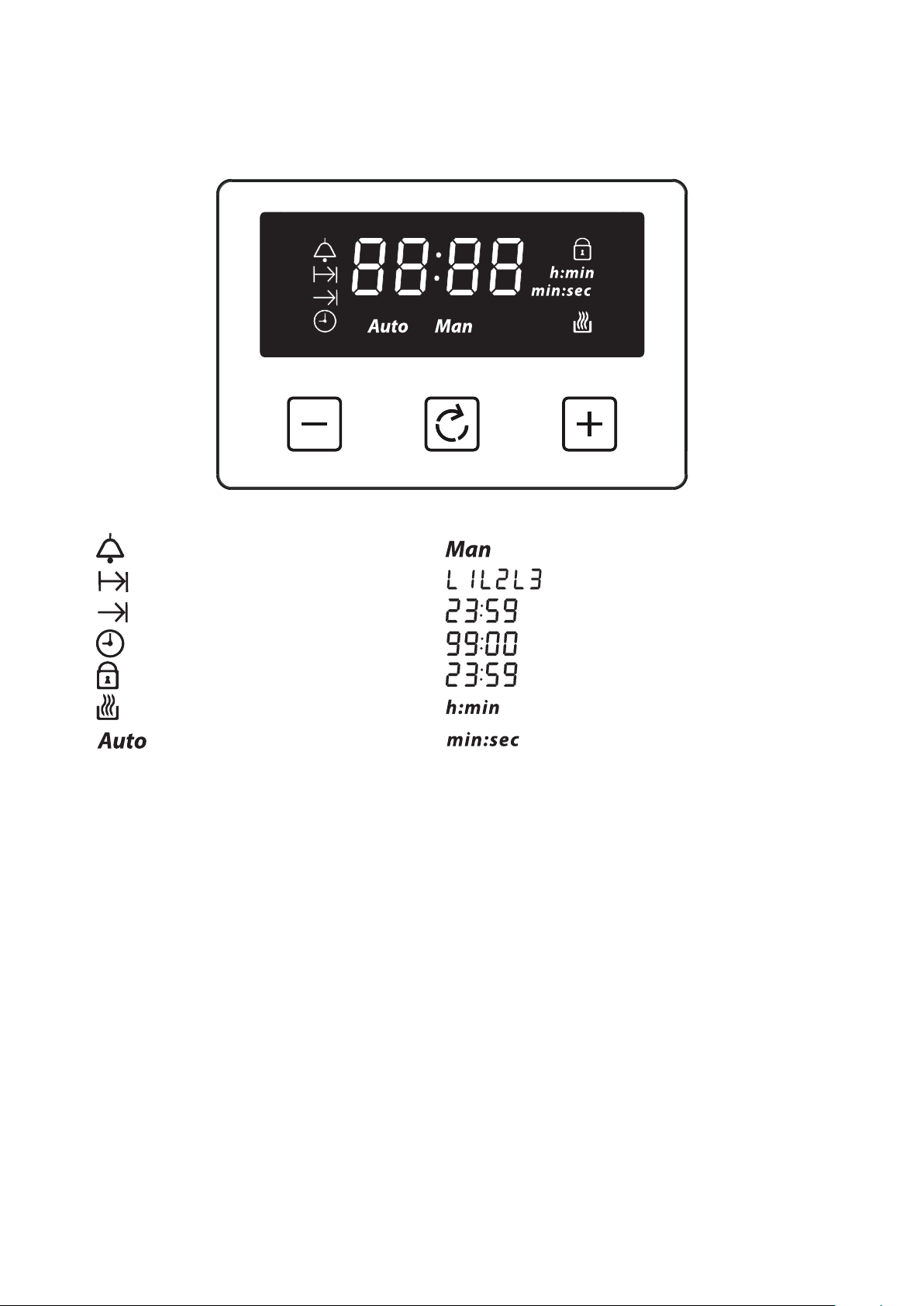

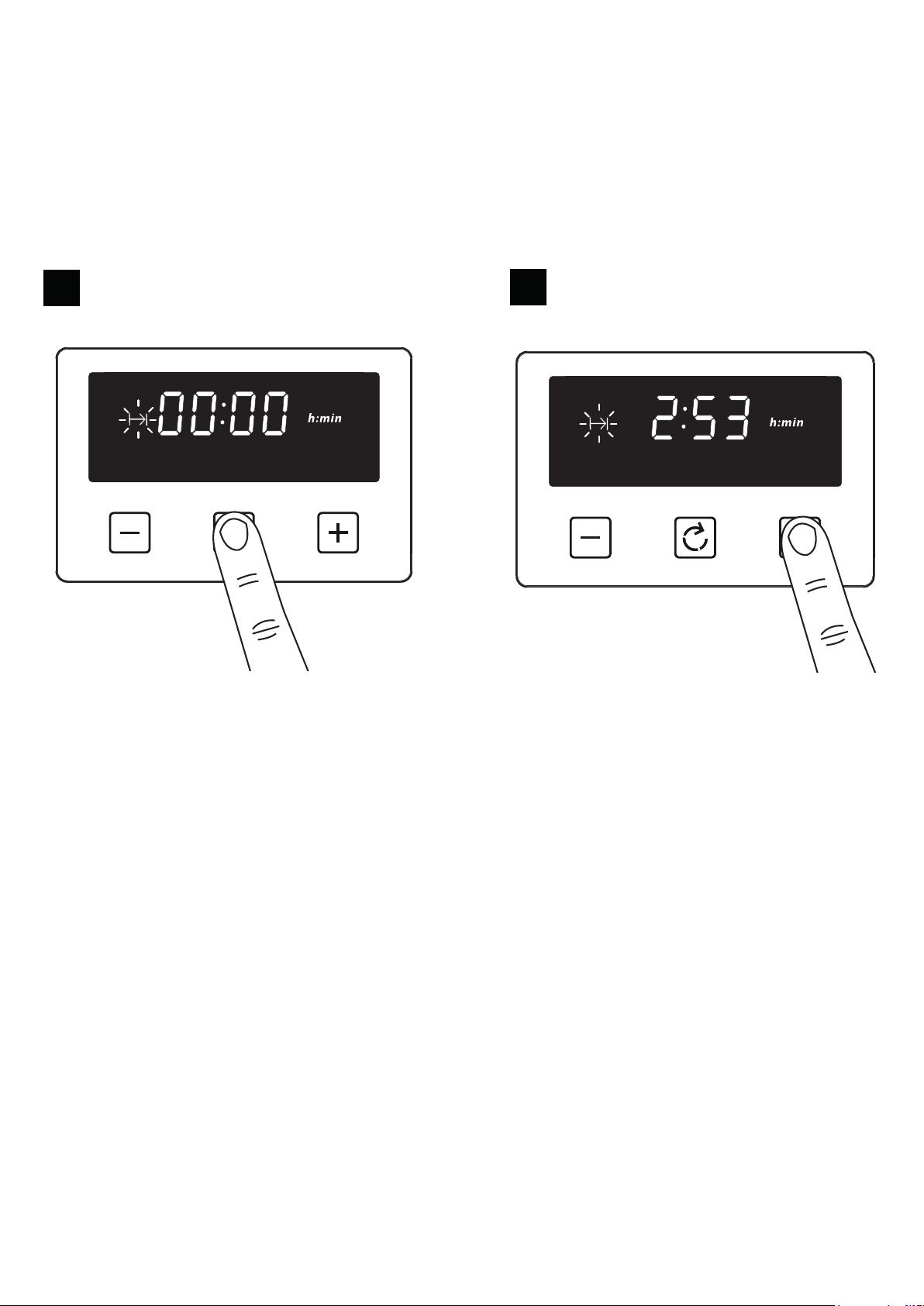

Clock/Programmer

Warming cook zone

Oven

Appliance functions

Note: Your oven may not have all of the functions shown here. We recommend for best cooking results,

please preheat your oven for 15 minutes and 3-5 minutes for grilling.

Do not try to slow cook using any of the other oven functions.

S

Intense Baking

Base Heat with fan

Slow Cook

Fanned Grill

Conventional Grill

Oven Selector Control

Grill Hi

Defrost

Conventional Oven

Dual Grill

Fanned Oven

Grill Lo

Warm Grill

Top Heat

Lights only

Base Heat

Single grill Grill Top oven/Grill

OFF

1

7

8

2

3

4

5

6

OFF

1

2

3

4

5

1

2

3

4

5

D

u

a

l

G

r

i

l

l

S

i

n

g

l

e

G

r

i

l

l

100

120

OFF

60

80

140

240

220

160

180

200

Ovens and Grill

Main ovens and Top oven/Grill Grill only

When using the top oven or main oven, the red thermostat indicator will come on until the selected
temperature is reached.

260

When the Top oven/grill or grill is switched on, the cooling fans come on to keep the fascia and control
knobs cool during cooking/grilling. The cooling fans may operate when the main ovens are in use,
depending on the temperature setting.The fans may continue to operate for a period after the oven/grill
has been switched off. During use the fan may cycle on and off, this is normal.

Important: Never put items directly on top the base of the oven, or cover the oven base with foil, as
this may cause the element to overheat. Always position items on the shelf.

The left hand main oven will not operate if the programmer is set to Auto, see clock/programmer
section.

Grill

THE DOOR MUST BE OPEN WHEN THE GRILL IS USED FOR CONVENTIONAL GRILLING.

Grill pan, trivet and detachable grill pan handle

Inverted

The grill trivet, inside the grill pan, can be inverted to give a high or low position, or it may be removed.
The speed of grilling can be controlled by selecting a higher or lower shelf position, or adjusting the grill
setting.

Hob warming cook zone

OFF

ON

The warming function can be activated by turning the control knob to the ‘On’ posistion.

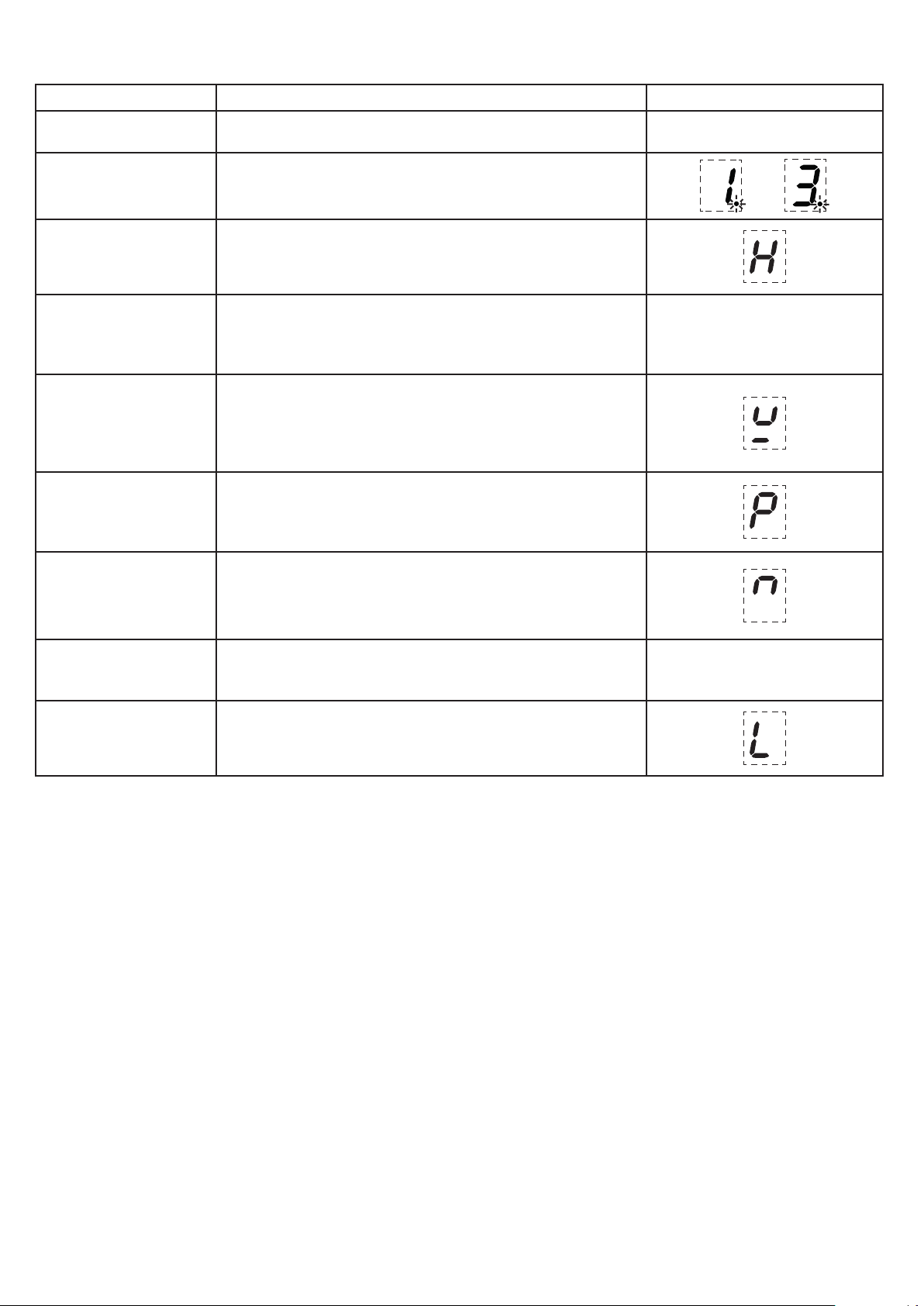

Hob Overview

Function Description Symbol

Power Level

Cook zone timer

Residual Heat

Automatic switch off

Pan detection

Booster function

Once a cook zone is selected, a power level can be set to a

low or high temperature.

Once a cook zone is selected, the cook zone timer can be activated

to sound after a pre-determined amount of time. When the alarm

sounds and the dot begins to ash, the cook zone will turn off.

After use, the cooking surface remains hot and the residual

heat symbol will be displayed. As it cools, the number of

rings will reduce until they disappear from the display.

Each cook zone is pre-set with a maximum operation time.

Once this time is reached, the zone will automatically switch

off. The residual heat symbol will be displayed if the surface

remains hot.

If no pan or an unsuitable pan is detected on an activated

cook zone, the pan detection symbol will be displayed.

Suitable pans - cast iron, metals with magnetic properties.

Non-suitable pans - copper, stainless steel, aluminium,

glass, ceramic, terra-cotta.

The booster function temporarily increases the power to a

cook zone allowing for a faster heat up time. It will deactivate

automatically after 10 minutes or if a lower power level is

selected.

1-9

N/A

Bridge function

Recall function

Child lock

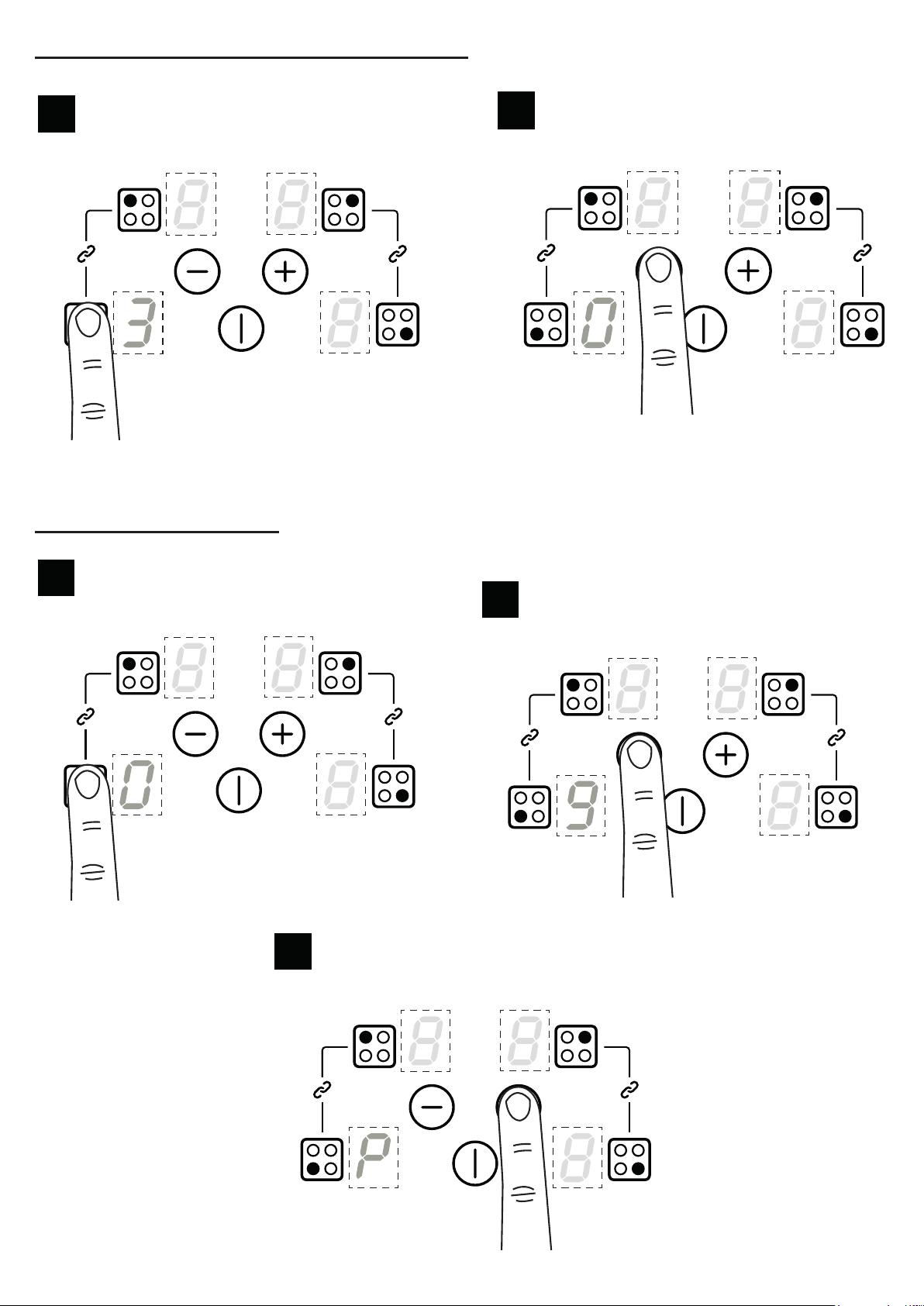

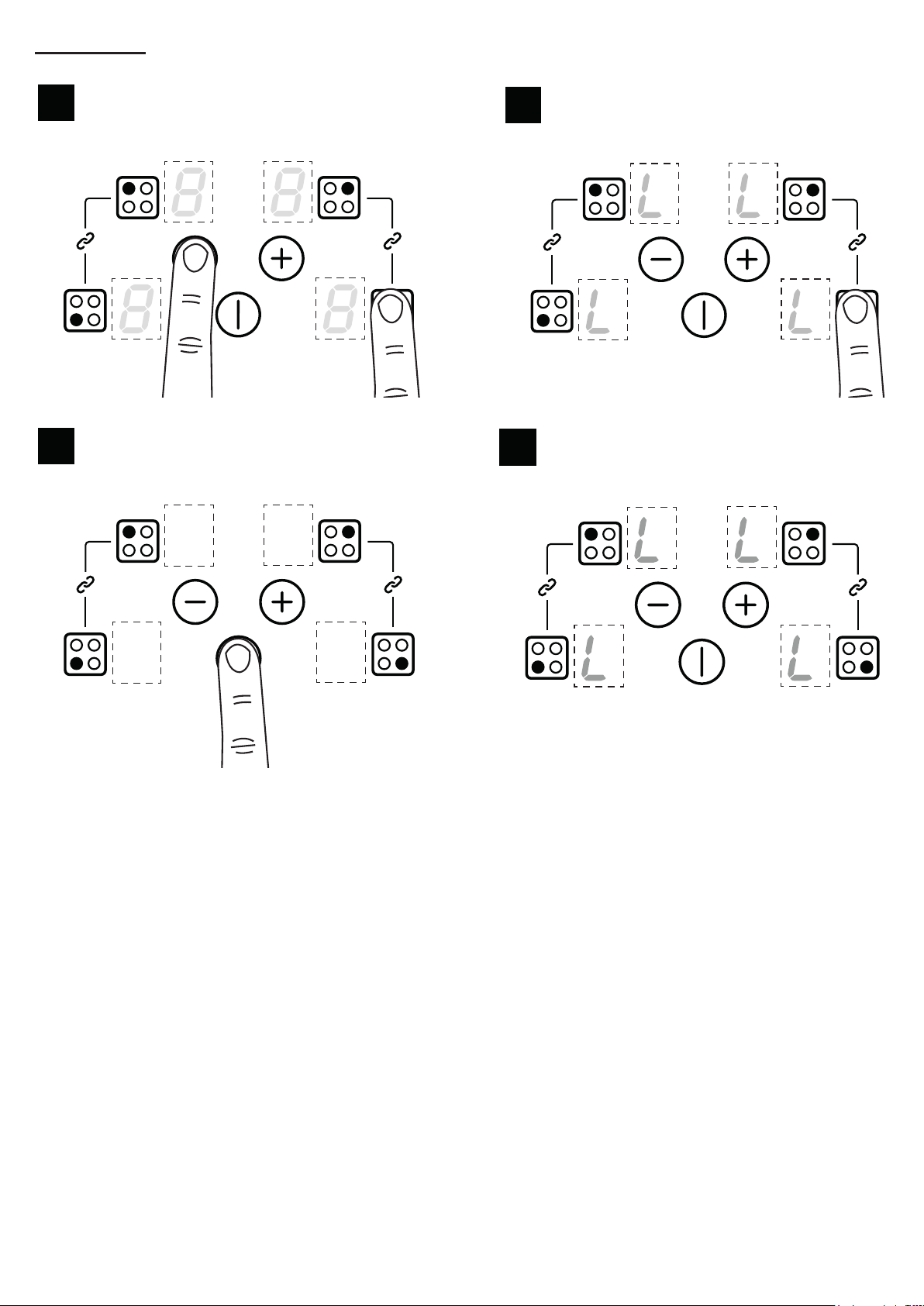

Individual cook zones can be bridged or joined together to

create a larger, single controlled cook zone. By bridging the

left hand front and rear zones or the right hand front and rear

zones, two larger cook zones can be created.

While the hob is in use, if it is accidentally turned off, turn
the hob back on within 6 seconds and the settings will be

restored.

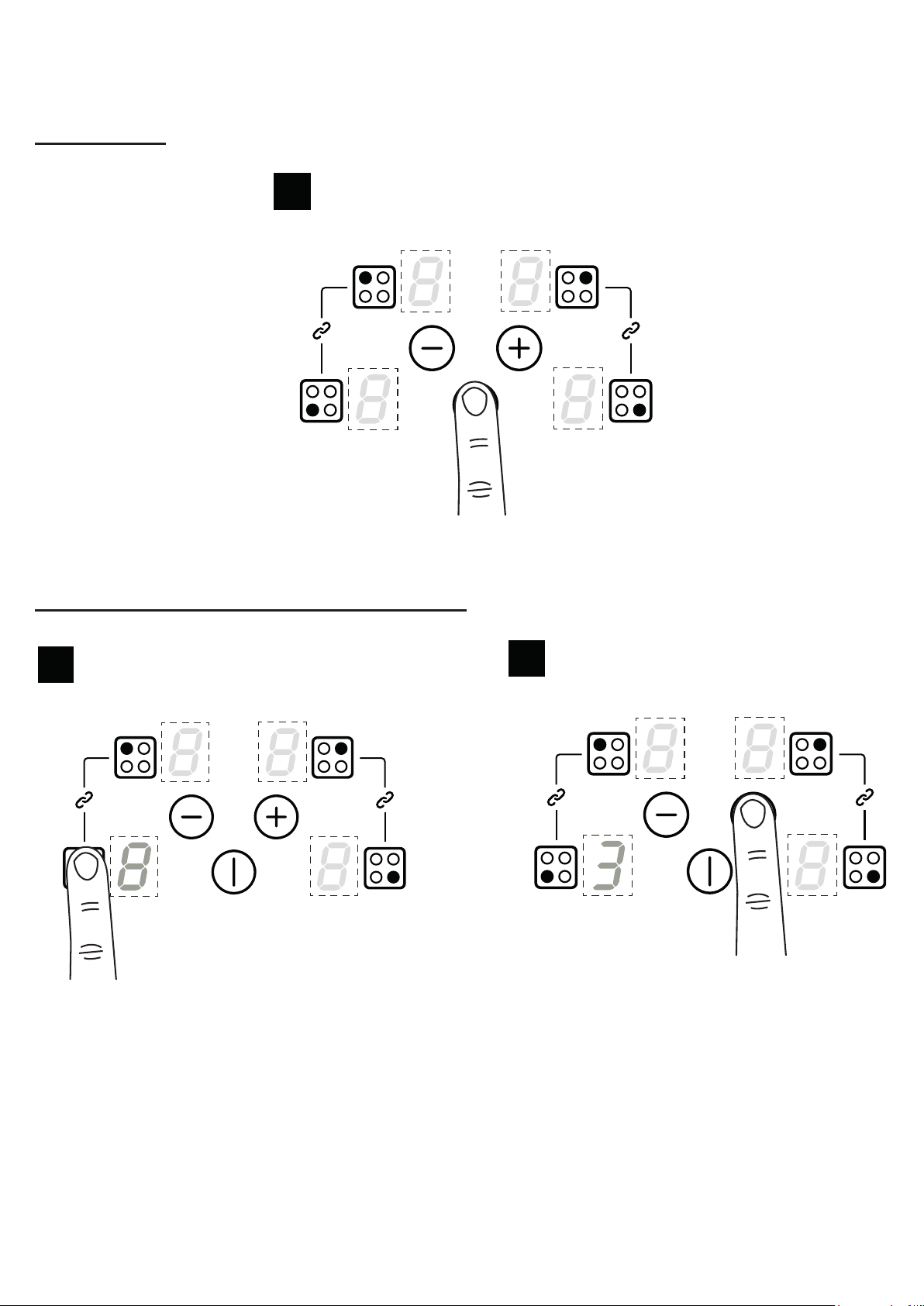

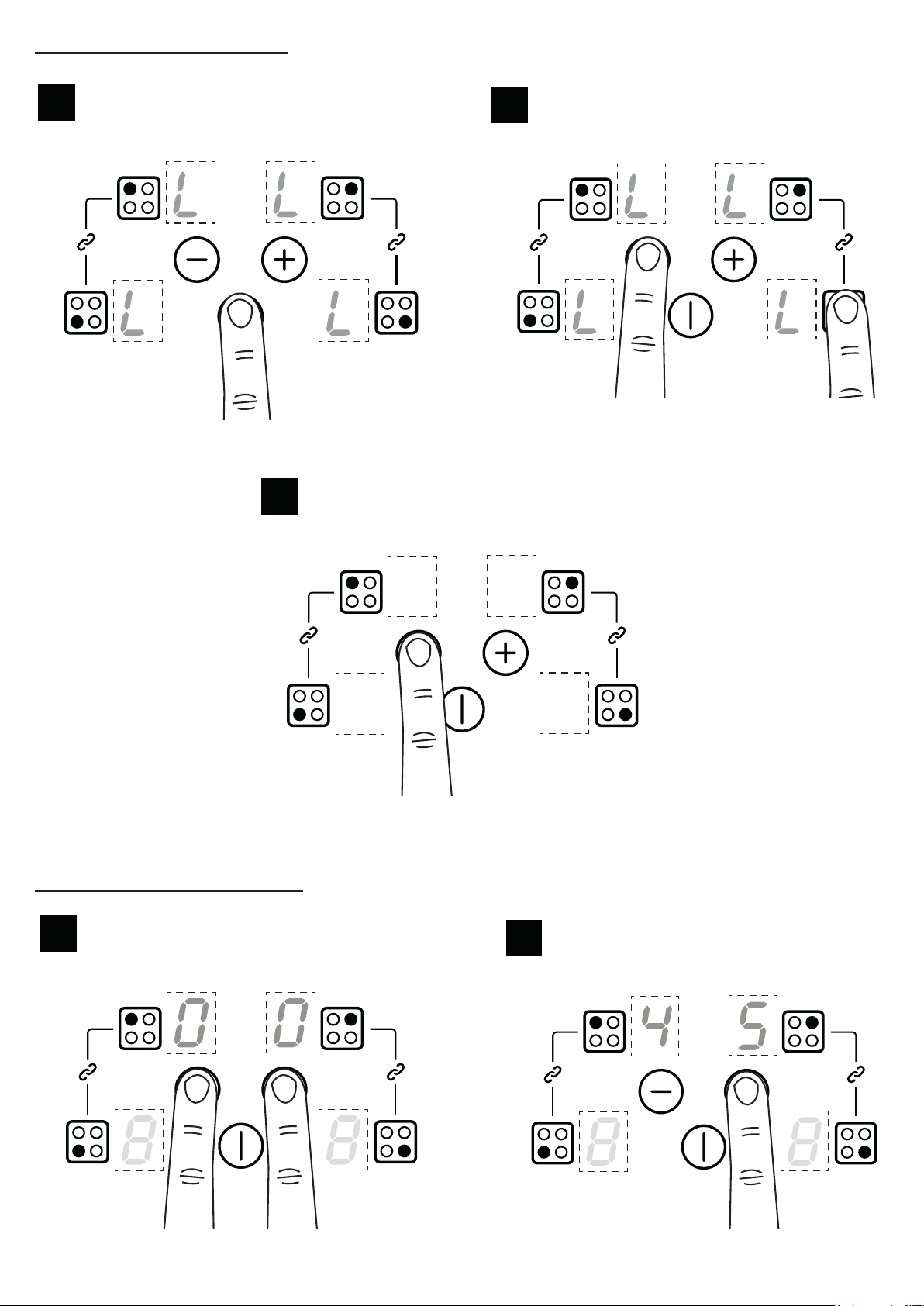

Child lock can be activated to stop the hob from being

accidentally turned on.

N/A

Caution: Always ensure that induction pans remain within the marked cooking area when hot. Do not

1

allow hob pans to rest on the user control panel at the front of the hob glass, as this will cause the
controls to overheat and the appliance to temporarily shut down.

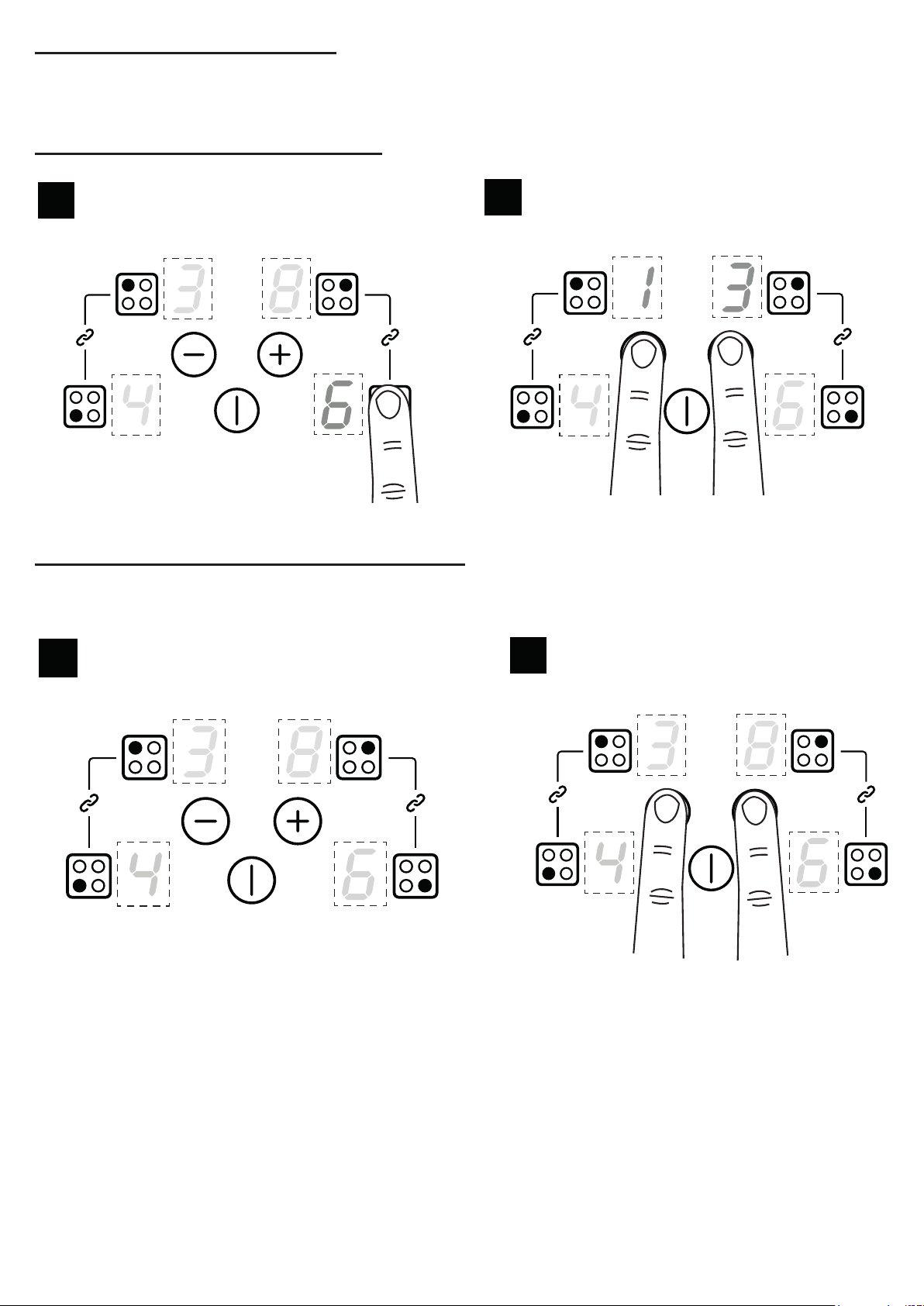

To switch on

Press On/Off key

Note: If a heater is not selected in 10 seconds, the hob will turn off automatically. The hob is switched
off by touching the “ON/OFF” key for 1 second. A beep sounds and all the heaters will switch off.

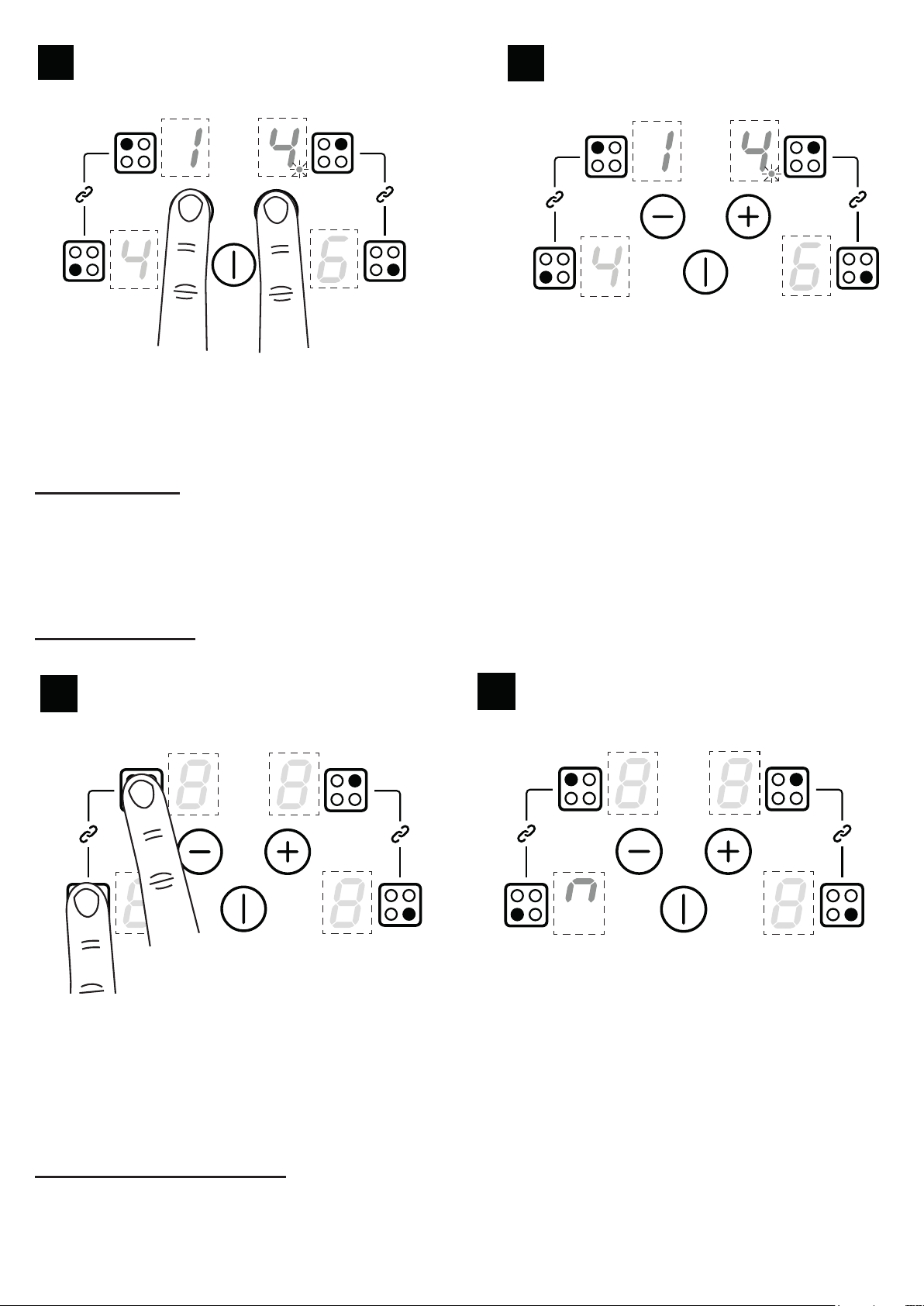

Switching on an individual hob cook zone

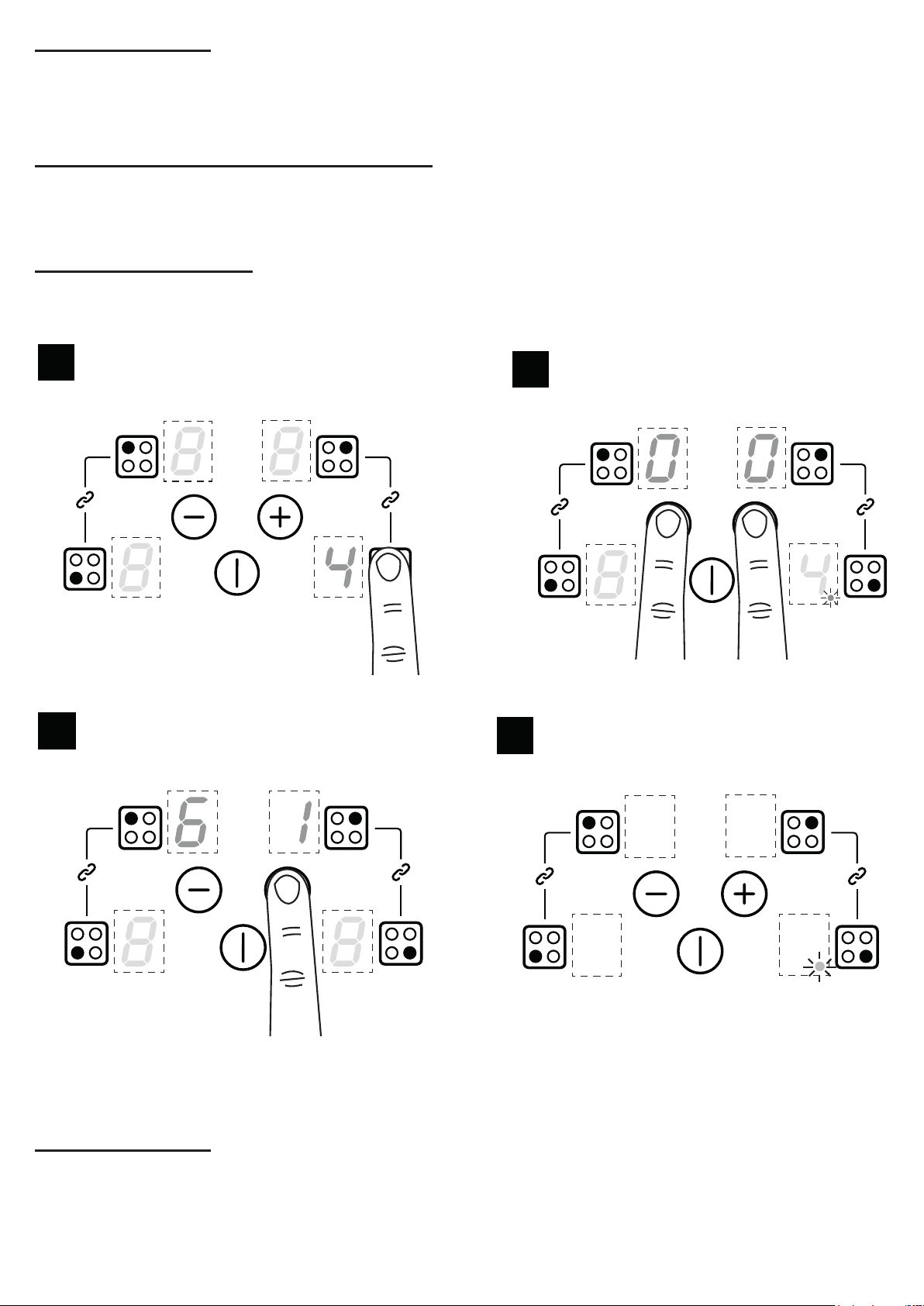

Set desired power level

Choose required cook zone

1

2

Note: Pressing the minus key rst will automatically set the power level at level 9.

When the cook zone selection is nished after 10 seconds, a beep sounds and all the heater displays

that were dimmed show the power levels with normal brightness.

Switching off an individual hob cook zone

1

Press the minus key and power level 9 will appear

Select a cook zone

The selected cook zone will be switched off when the display shows “0”.

Activating Power Boost

Press the minus button until it reaches “0”

2

Choose required cook zone

1

3

2

Press the plus key until “P” appears

Child Lock

2

Press the right hand front cook zone.
“L” will appear on the display

3

Press and hold the minus key and right hand

1

front cook zone. A sound will be heard.

Press the On/Off key

The child lock feature will to be activated until you switch this feature off.

When the hob is switched on the hob “L” will

4

appear in all the cook zone displays.

De-activating Child Lock

1

Press the On/Off key and “L” will appear in all
cook displays.

Press the minus keyand “L” will disappear from all

1

2

Press and hold the minus key and the right hand
front cook zone. A sound will be heard.

3

cook zone displays

When you now switch on the hob “0” will be displayed in all cook zone displays, the hob can now be
used normally.

Setting the minute minder

Press and hold the minus key and plus key

Set a time by pressing the minus or plus keys.

2

Please ensure that no cook zones have been selected.

When the time is up

3

Press the plus or minus keys to set a time.

When the set time has expired, it does not switch off any cook zones. A sound is heard and “00” will

ash on the display. Press the minus or plus key to stop the alarm. The dots will ash on the display if

the hob is turned off before the minute minder ends.

To modify or cancel the minute minder

Repeat the same steps for “Setting the minute minder” to modify the time. Setting back to zero will can­cel the minute minder.

Timer auto switch off

Note: Cook zones(s) must be switched on

Choose require cook zone(s)

1

Press and hold the plus minus keys. A dot will

2

appear is the chosen cook zone display

A dot appears in the cook zone display when a

4

time is set.

The timer indicator in the display stops ashing and is not displayed. Operation of a timer is shown by a

stationary dot in the cook zone display for the timed cook zone.

When the time is up

When the set time has expired, a sound will be heard and the dot will begin to ash on the cook zone

display. Press the minus or plus key to stop the alarm.

To modify or cancel the timer

1

Ensure no cook zone has been selected

Repeat the above steps to modify the time. Setting back to zero will cancel the timer.

To check the time for a cook zone

Choose required cook zone.

1

To check the time for multiple cook zones

Active cook zone times are cycled clockwise

Press and hold the minus and plus keys together.

2

The remaining time will appear on the display.

Press the minus and plus together

2

3

Press the minus and plus as many times as necessary
to display the timer for the required cook zone

4

A dot will flash in the chosen cook zone display

Note: If the minute minder has also been set it will be displayed rst. In this case other timed cooking

zones are shown by a dot in the cook zone display.

Pan Detection

The hob only uses power when a suitable pan is placed on the zone, this reduces the energy used dur­ing the cooking process, i.e. when you take your pan off the zone the hob automatically turns the power
off, and only switches back on when you replace the pan.

Bridge function

Press the linked cook zones keys together.

1

Bridge symbol will appear in the right or left front

2

cook zone

The cooking zones can be used as four separate cooking zones which can be controlled individually.
Or, the two left hand zones and the two right hand zones can be bridged to provide two large zones that
can be controlled via one setting.

Large pans and griddle plates can be placed across these two bridged zones.

Residual heat indicators

This feature not only warns you against hot surfaces but also indicates that there is residual heat which
can be used as temporary warm zone.

Note: The cook zone itself does not heat up, but the ceramic glass does get hot because of the hot pan
conducting heat back onto the hob glass.

Auto stand by

The hob will automatically switch off if left (with pan) on for an extended period of time, see maximum
running times below

Appliance errors

Power Level

1 8
2 6
3 5
4 5
5 4
6 1.5
7 1.5
8 1.5
9 1.5

P (Power Boost) 5 minutes

Maximum Operation Time

hours

Appliance

Errors

ER03 and

permanent tone

E2 Over temperature Allow system to cool

E3

E/H Invariable resistor fault Induction module must be cool

Fault Description Action

Continuous button actuation;

control switches off after 10

seconds

1. Pot/pan not suitable, example
Loss of magnetic properties

because of temperature at

bottom of pot.

2. Power of cooking zones
permanently exceeded

Clean the user interface.

1. This error is reset after 30 seconds; the

cooking zone can be used again. The pot/pan

must be removed if the fault keeps reoccur-

ring.

2. The power unit must be replaced if the er­ror continues to be displayed even when no

pot/pan is present on the cooking zone.

Please be aware that only the main oven is controlled by the programmer.

Clock / Programmer

Note: Your clock / programmer may not have all these functions

MenuMinus Plus

Minute minder

Cooking time / Duration

End of cooking time

Time of day

Keylock

Auto cooking

Automatic mode

Using the touch controls

Menu - Scroll through to select a function

Plus - Increase time or volume

Minus - Decrease time or volume

, ,

Manual mode

Volume level

7-segment display

Max. adjustable minute minder

Max. adjustable cooking time

Display hours:minutes

Display minutes:seconds

When a function is selected and the time or volume is set, the chosen function will automatically start
seven seconds after setting.

Manual Mode

If the programmer is not in semi-automatic or full-automatic mode you can use oven functions manually.
The manual icon is also on the display.

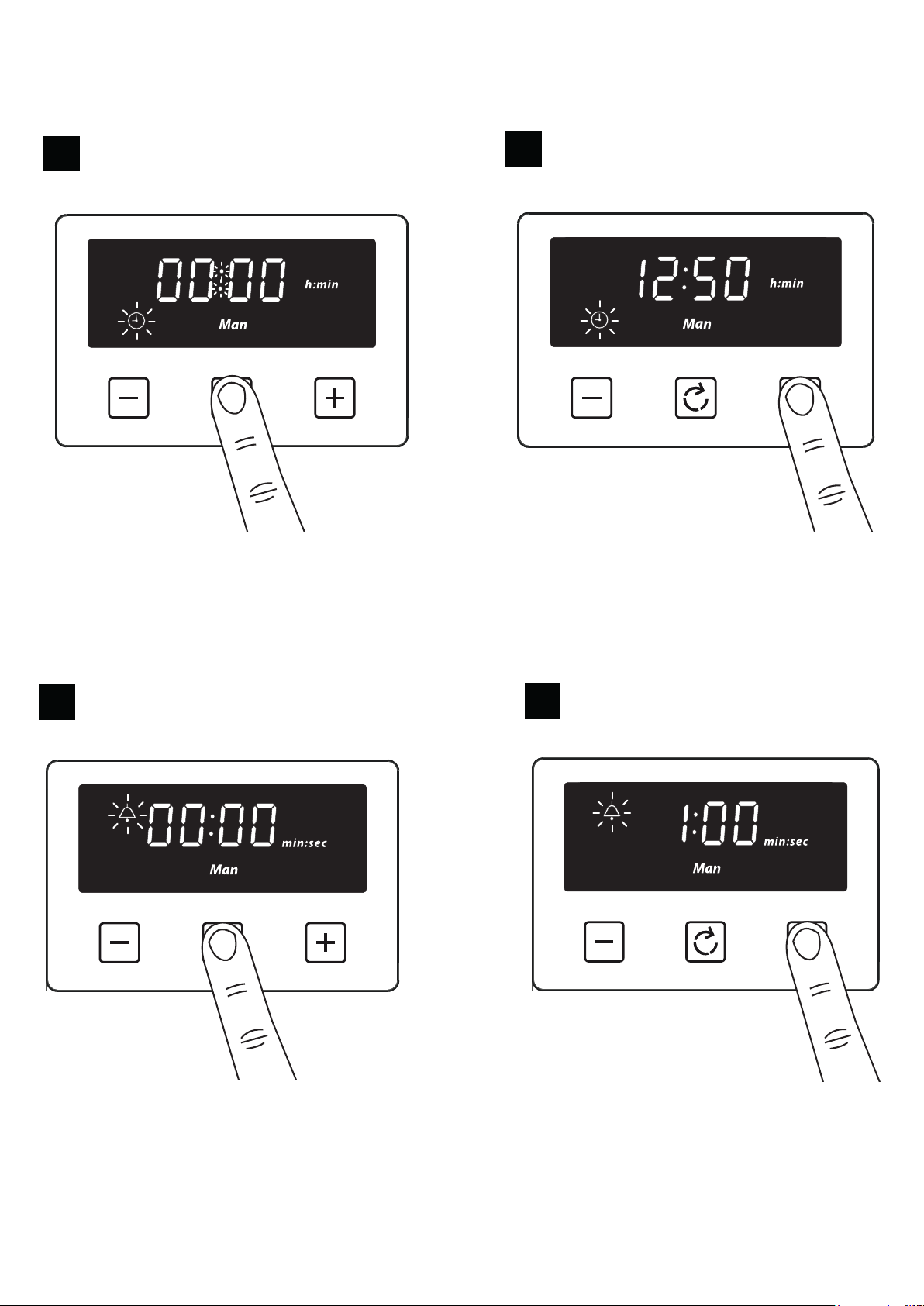

Setting the time of day

1

2

Press the plus or minus buttons to set a time

By pressing menu, scroll through the functions until you reach ‘time of day’.

Press the plus or minus buttons to set a time

1

2

Setting the minute minder

The maximum cooking time that can be set is 99 minutes.

Once set, the minute minder will start to countdown in steps of seconds. The display will show the
minute minder symbol and the remaining time. The countdown will continue in the background, if other
functions are being set.

When the set time for the minute minder has completed, an alarm is heard and the minute minder

symbol will ash on the display. Press any button to stop the alarm and the time of day is displayed.

To modify or cancel the minute minder

Return to the minute minder function and use either the plus or minus buttons to adjust the time. By
setting the time to ‘0.00’, this will cancel the countdown.

Setting the cooking time (the duration of time the oven will operate for)

The maximum cooking time that can be set is 23 hours and 59 minutes.

Press the plus or minus buttons to set a time

1

2

Once set, the automatic mode, auto cooking symbol and the time of day is displayed.

When cooking is completed, an alarm is heard and the manual mode symbol ashes on the display.

Press the Menu button to stop the alarm and then the ‘time of day’ will then be displayed. Pressing the
Menu button again will return to manual mode.

To modify or cancel the cooking time

Return to the ‘cooking time’ function and use either the plus or minus buttons to set the time. By setting
the time to ‘0.00’, this will cancel the countdown.

Setting the end of cooking time (to set a time for the oven to turn off)

The display shows the current ‘time of day’ plus the ‘end of cooking time’ symbol. The latest ‘end of
cooking time’ is limited to the current ‘time of day’ plus the maximum time that can be set (23 hours and
59 minutes).

1

The auto cooking symbol disappears from the display once the time, the required cooking settings and
temperature have been set. The appliance will not be switched on until the set cooking start time, that is
the difference between the cooking end time and the cooking duration.

Press the plus or minus buttons to set a time

2

When cooking is completed, an alarm is heard and manual mode symbol ashes on the display. Press

the menu button to stop the alarm. Pressing the Menu button again will return to manual mode.

To modify or cancel the end of cooking time

Return to the ‘end of cooking time’ function and use either the plus or minus buttons to set the time. The
‘end of cooking time’ can be deleted by counting back using the minus button until it equals the current
time of day.

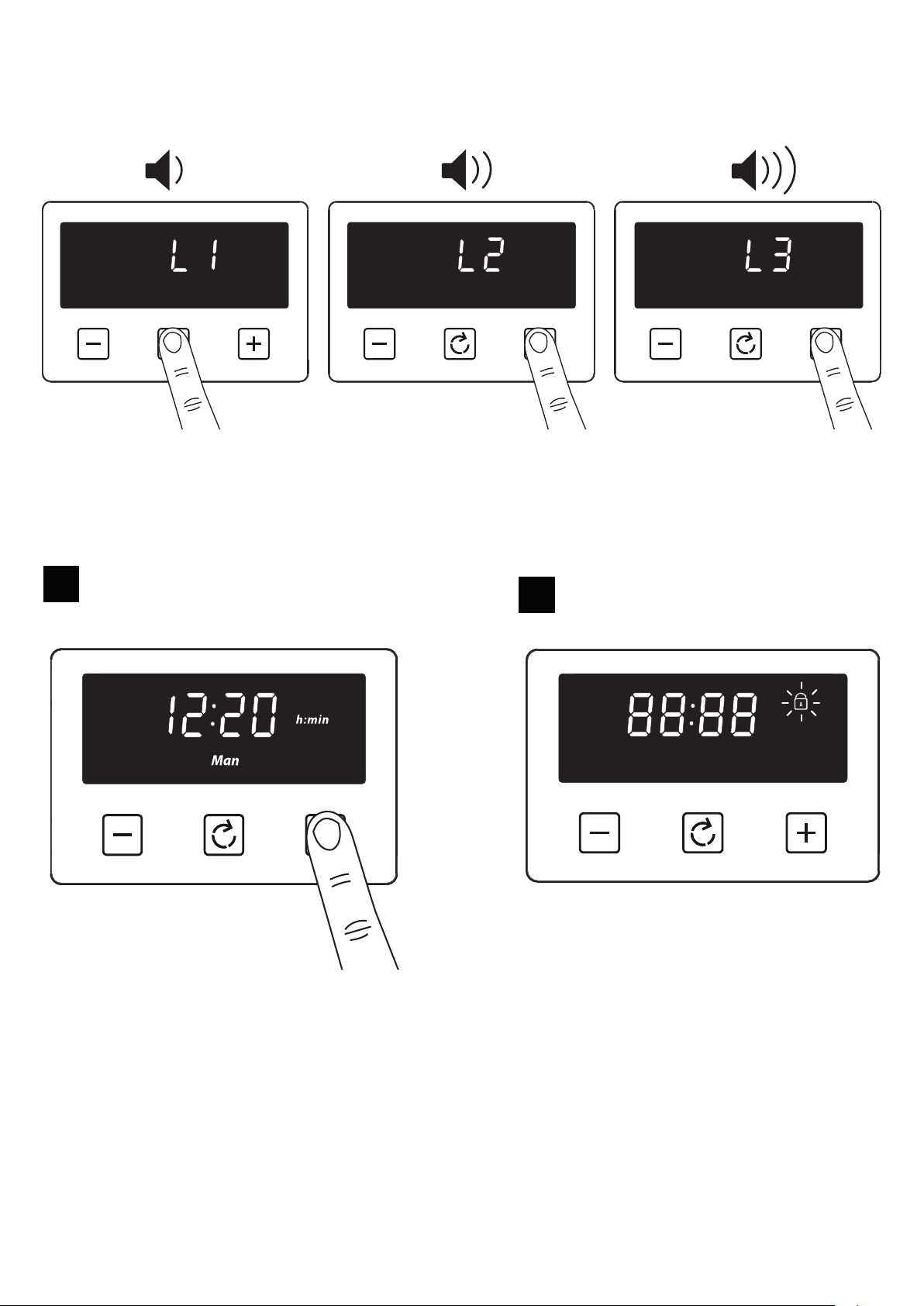

Setting the volume

1

Press and hold the plus button for 3-5
seconds

Press the menu button until “LX” (X = 1, 2 or 3) ashes on the display. Use the plus or minus buttons to

select a tone.

Note: Default tone is L3

Activating / deactivating Key lock

2

Once the Key lock is active, the buttons will be inactive. A two beep signal will be heard if the buttons
are pressed.

To deactivate the Key lock

Press and hold the plus button for 3-5 seconds. The Key lock symbol will disappear and the appliance
can continue to be used.

Note: In case of main power loss for a short time (about 1.5 minutes), timer maintains its status.
Key lock status and buzzer tone are memorized independent of the power loss duration.

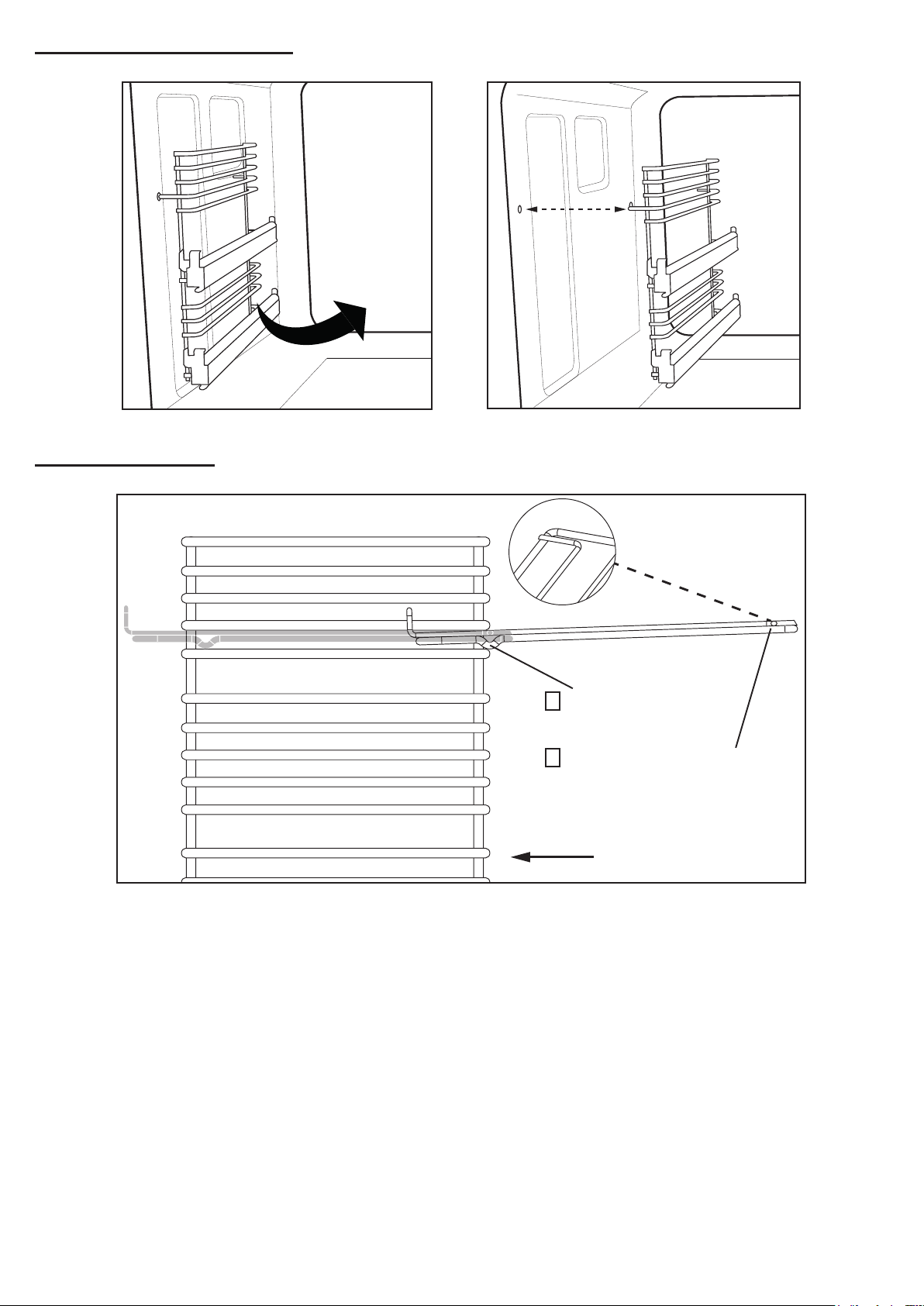

Removing Shelf Runners

Front of appliance

2

Ensure the shelf is fully pushed
back towards the back of the
oven, until the shelf stopper is
reached.

Slightly raise the shelf and
insert in the chosen shelf
position

1

Standard shelves

RemovingTelescopicshelves(iftted)

1

2

Grasp and lift shelf

Lift shelf from the
retaining tabs.

Front of appliance

Before removing the shelves completely, please make sure that the shelf is unclipped from the retaining
tabs.

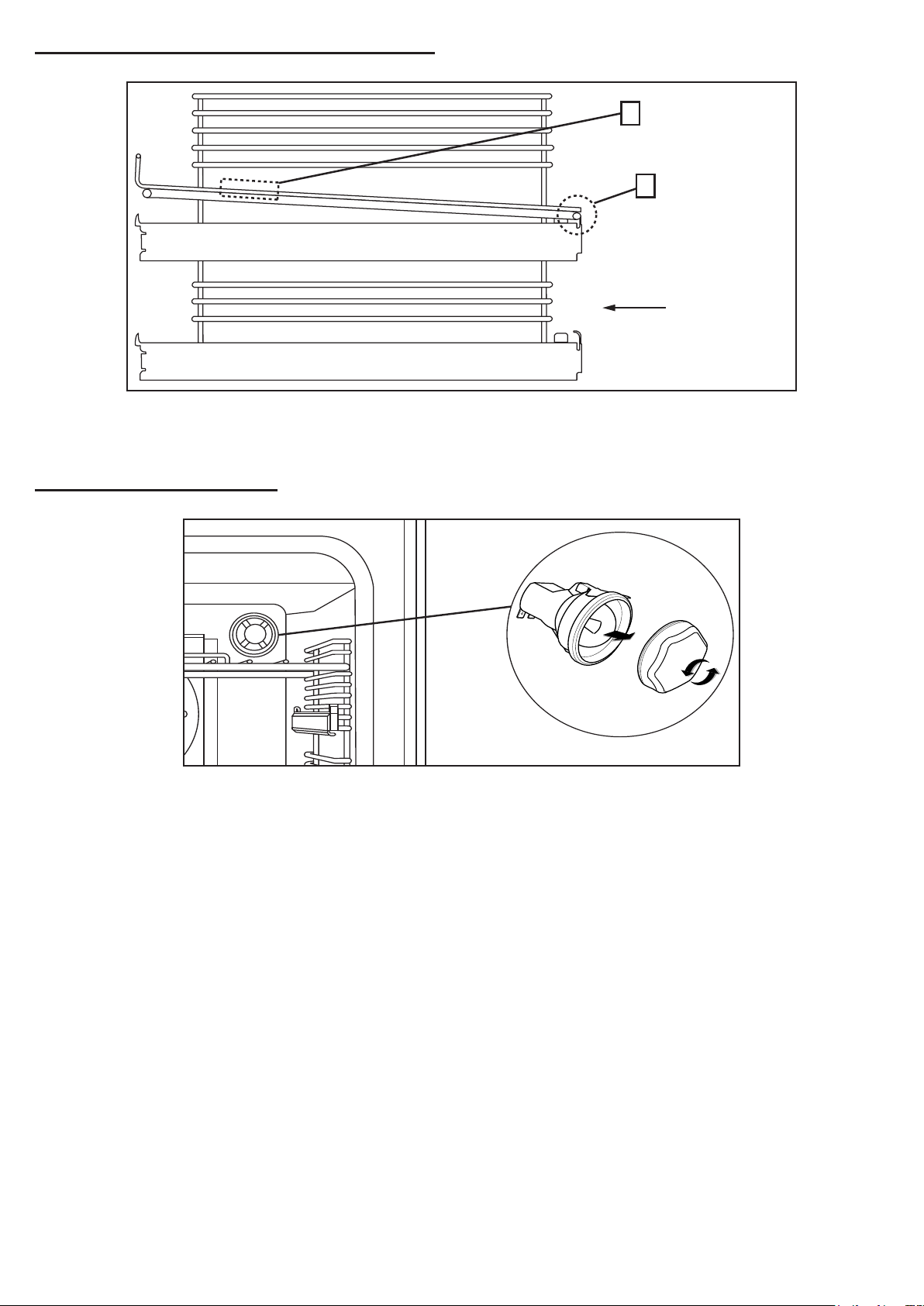

Changing the light bulb

Not all appliances have the same number and type of bulbs. Before you replace your bulb, check to see
what type you have. Please remember that bulbs are not covered by your warranty.

Additional features

Plate rack (if supplied)

1. Pull the shelf out of the cavity.

2. Tilt the plate warmer towards you and make sure that it hooks underneath the shelf bars at the front.

3. Drop the plate warmer carefully into position.

The plate warmer is now secure and you can place your plates into it.

Always make sure that you use oven gloves if you are putting the plate warmer into a hot, or recently
used oven to prevent burns.

Always make sure that your plates are suitable for warming - some plates may shatter or crack when
exposed to heat.

We recommend that you heat the oven to 70°C, or below, if you are warming plates.

CLEANING YOUR APPLIANCE

H

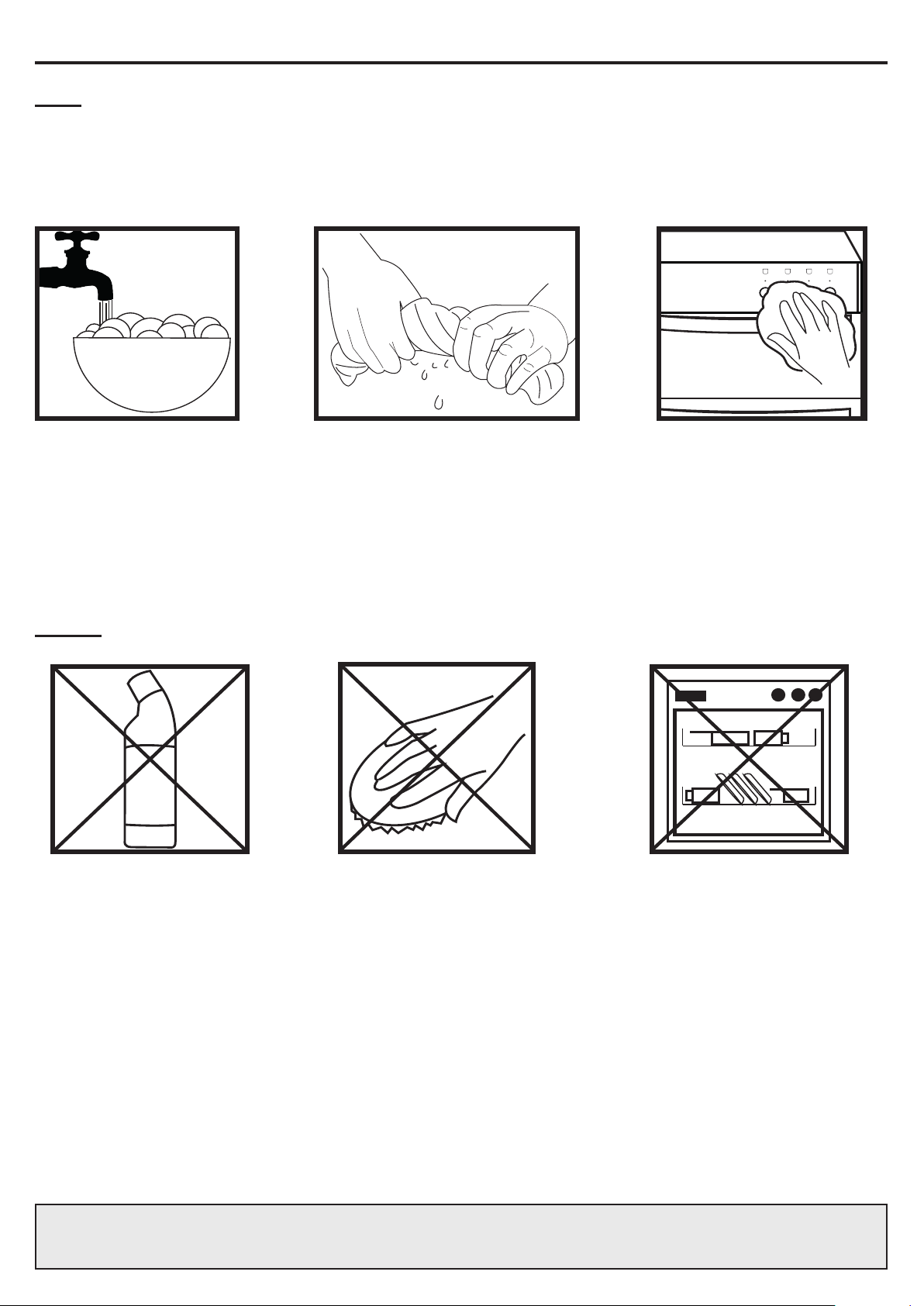

Do’s

Note: Always switch off your appliance and allow it to cool down before you clean any part of it.
Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to

them fading.

• Warm, soapy water • Wipe with damp cloth

• Clean, wrung out cloth

• Dry with a soft cloth

Tips: Some foods can mark or damage the metal or paint work e.g.; Vinegar, fruit juices and salt.
Always clean food spillages as soon as possible.

Dont’s

• Undiluted bleaches

• Chloride products

• Wire Wool

• Abrasive cleaners

• Nylon pads

• Steam cleaners

Do not place in the
dishwasher:

• Cast iron griddle

• Pan supports

IT IS IMPORTANT TO CLEAN YOUR APPLIANCE REGULARLY AS A BUILD UP OF FAT CAN
AFFECT IT’S PERFORMANCE OR DAMAGE IT AND MAY INVALIDATE YOUR GUARANTEE.

IN ADDITION TO THE ABOVE, DO NOT USE METAL SCRAPERS TO CLEAN THE OVEN DOOR

GLASS.

We offer a great range of cleaning products and accessories for your appliance.

To shop, please visit our website located at the front of this User Guide.

Please keep this handbook for future reference, or for anyone else

who may use the appliance.

TECHNICAL DATA

Electric Range

Hob top

Electrical supply / load

Electrical supply Hotplate Zone Load kW

240v Induction All zones 1.4 boost to 1.85

Ovens

Electrical supply / load

Electrical supply Oven Load kW

Fanned (RH) 2.00

Fanned (LH) 2.50

240v

Single variable grill (if tted) 1.85

Dual variable grill 1.70

Conventional top (if tted) 1.39

Oven Lamps / Fans

Lamp 25W each
Cooling fans 10W each

Oven stir fans 30W each

Appliance

Electrical supply / load

Appliance Size (cm) Electrical supply Max. load (kW)

Single grill models

240v

Dual grill models 14.84

13.99
