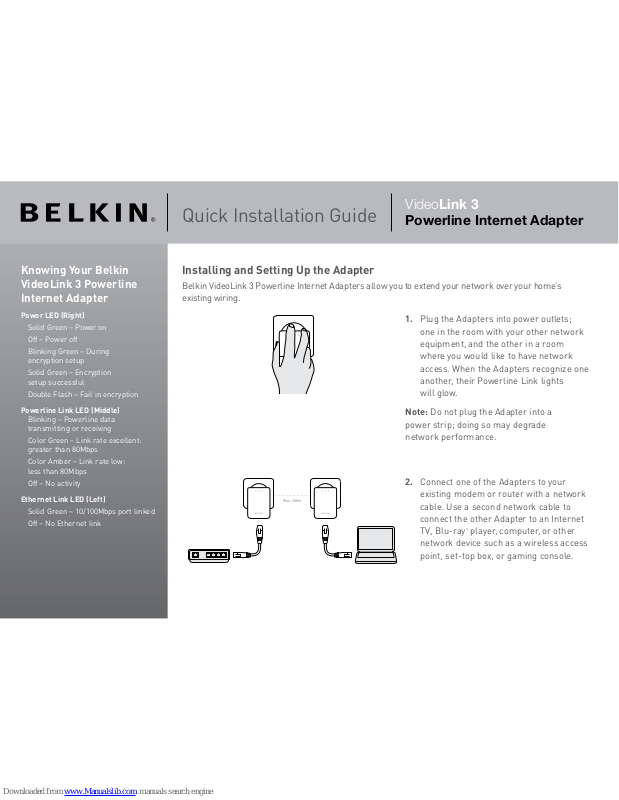

Belkin VideoLink 3, F5D4081 Quick Installation Manual

Max. 300m

VideoLink 3

Powerline Internet Adapter

Installing and Setting Up the Adapter

1. Plug the Adapters into power outlets;

one in the room with your other network
equipment, and the other in a room
where you would like to have network
access. When the Adapters recognize one
another, their Powerline Link lights
will glow.

Note: Do not plug the Adapter into a
power strip; doing so may degrade
network performance.

2. Connect one of the Adapters to your
existing modem or router with a network
cable. Use a second network cable to
connect the other Adapter to an Internet
TV, Blu-ray

®

player, computer, or other
network device such as a wireless access
point, set-top box, or gaming console.

Belkin VideoLink 3 Powerline Internet Adapters allow you to extend your network over your home’s
existing wiring.

Quick Installation Guide

Knowing Your Belkin
VideoLink 3 Powerline
Internet Adapter

Power LED (Right)
Solid Green – Power on

Off – Power off
Blinking Green – During

encryption setup

Solid Green – Encryption

setup successful

Double Flash – Fail in encryption

Powerline Link LED (Middle)

Blinking – Powerline data
transmitting or receiving

Color Green – Link rate excellent:

greater than 80Mbps

Color Amber – Link rate low:

less than 80Mbps

Off – No activity

Ethernet Link LED (Left)

Solid Green – 10/100Mbps port linked
Off – No Ethernet link

Belkin provides free technical support via phone and the Web.
However, we encourage you to attempt (or retry) Steps 1 and 2
before contacting Support.

If you’re still having trouble, contact Belkin Support.

North America http://www.belkin.com

Click on Support Center > Networking Support

UK http://www.belkin.com/uk/

Click on Support Centre > Networking Support

Australia http://www.belkin.com/au/

Click on Support Centre

New Zealand http://www.belkin.com/au/

Click on Support Centre

Support

F5D4081

8820-00771 Rev. A00

© 2011 Belkin International, Inc. All rights reserved. All trade names
are registered trademarks of respective manufacturers listed.

3. (optional) For greater security, use the
security button atop each Adapter:

a) While both Adapters are plugged in,

press the security button atop both
units for 10 seconds (not necessarily
at the same time). The Security lights
will blink.

b) Next, press the security button on one

Adapter for about two seconds.

c) Within two minutes, press the security

button on the other Adapter for about
two seconds. The new password has
now been saved to the second Adapter.

d) To add VideoLink 3 Powerline Internet

Adapters to your secure network,
repeat steps b) and c) beginning with
one of the Adapters that is already on
your secure network.

Installation is complete. If step 3 was not
done, you may add VideoLink 3 Powerline
Internet Adapters to the network by
plugging them in.
