What’s in the box:
Blaster
Audio Out Video Out
IR
R L
Ethernet
Pr Pb Y
Audio In Video In
R L
Video
Pr Pb Y
Video
DC In
Connect the IR blaster to @TV.
Set-top box
To locate where signals are received on the settop box, change channels with your remote at
close range.
Audio In Video In
R L
Video
Pr Pb Y
Video
DC In
Blaster
Audio Out Video Out
IR
R L
Ethernet
Pr Pb Y
On your Mac® or Windows®, visit:
belkin.com/mytveverywhere to download
the @TV Setup installer for your Mac® or
Windows® computer.
Launch the Setup
application and
follow the on-screen
instructions.
Note: On Windows, the
app will need to “Run as
Administrator.”
During the setup process, you will be
asked for your network ID/password and
the set-top box manufacturer/model.
On your iOS or Android
device, visit the app store
to download & install the
@TV player app.
@
TV unit
Ethernet cable
Composite cable
IR blaster
Power adapter
Welcome to @TV.
Component cable
Place the IR blaster cable under your set-top
box so that it points at the spot you found in
the previous step.
@
TVplus

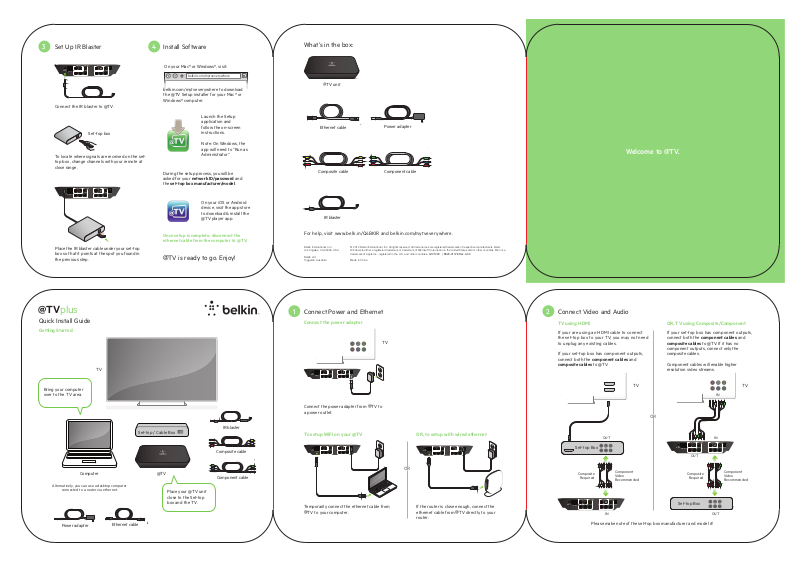

Quick Install Guide
Getting Started
TV
Once setup is complete, disconnect the
ethernet cable from the computer to @TV.
@
TV is ready to go. Enjoy!
For help, visit www.belk.in/Q4BKIR and belkin.com/mytveverywhere.
Belkin International, Inc.
Los Angeles, CA 90094, USA
Belkin Ltd.
Tuggerah, Australia
Connect Power and Ethernet
1
© 2012 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed.
Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Mac is a
trademark of Apple Inc., registered in the U.S. and other countries. G1V1000 | 8820-01128 Rev. A06
Made in China
Connect the power adapter
TV
Audio Out Video Out
IR
R L
Blaster
Ethernet
Pr Pb Y
Audio In Video In
R L
Video
Pr Pb Y
Video
DC In
Connect Video and Audio
2
TV using HDMI
If your are using an HDMI cable to connect
the set-top box to your TV, you may not need
to unplug any existing cables.
If your set-top box has component outputs,
connect both the component cables and
composite cables to @TV.
OR, TV using Composite/Component
If your set-top box has component outputs,
set-top box
connect both the component cables and
composite cables to @TV. If it has no
component outputs, connect only the
composite cables.
Component cables will enable higher
resolution video streams.
Bring your computer
over to the TV area.
Alternatively, you can use a desktop computer
connected to a router via ethernet.
Power adapter
Computer
Ethernet cable
Set-top / Cable Box
@TV
Place your @TV unit
close to the Set-top
box and the TV.
IR blaster
Composite cable
Component cable
Connect the power adapter from @TV to
a power outlet.
To setup WiFi on your @TV OR, to setup with wired ethernet
Audio Out Video Out
IR
R L
Blaster
Ethernet
Pr Pb Y
Audio In Video In
R L
Video
Pr Pb Y
Video
DC In
Audio Out Video Out
IR
R L
Blaster
Ethernet
Pr Pb Y
Audio In Video In
R L
Video
Pr Pb Y
Video
DC In
OR
Temporarily connect the ethernet cable from
@
TV to your computer.
If the router is close enough, connect the
ethernet cable from @TV directly to your
router.
Set-top Box
Composite
Required
Audio Out Video Out
IR
Blaster
R L
Set-top Box
Ethernet
Pr Pb Y
TV
OR
OUT IN
Component
Video
Recommended
Audio In Video In
R L
Video
Pr Pb Y
Video
DC In
IN OUT
Please make note of the set-top box manufacturer and model #.
Audio Out Video Out
IR
Ethernet
R L
Pr Pb Y
Blaster
OUT
Composite
Required
Set-top Box
Video
IN
Audio In Video In
R L
Pr Pb Y
Video
DC In
Component
Video
Recommended
TV
