GN163130Z FCB
Número del Documento
57 8127 0000/AD 1/2 EN-PT
Refrigerator
User Manual
Dear Customer, We'd like you to make the best use of our product, which has been manufactured in modern facilities
with care and meticulous quality controls. Thus, we advice you to read the entire user manual before you use the product. In case the product
changes hands, do not forget to hand the guide to its new owner along with the product.
This guide will help you use the product quickly and safely.
• Please read the user guide carefully before installing and operating the product.
• Always observe the applicable safety instructions.
• Keep the user guide within easy reach for future use.
• Please read any other documents provided with the product.
Keep in mind that this user guide may apply to several product models. The guide clearly indicates any variations of different models.
Important information and useful
C
tips.
Risk of life and property.
A
Risk of electric shock.
B
The product’s packaging is made of recyclable materials, in accordance with the National Environment Legislation.
Table of Contents
1. Safety and environment instructions 3
1.1. General safety. . . . . . . . . . . . . . . . . . . . . . . 3
1.1.1 HC warning. . . . . . . . . . . . . . . . . . . . . . . . 4
1.1.2 For models with water dispenser . . . . . . . . 4
1.2. Intended use. . . . . . . . . . . . . . . . . . . . . . . . 5
1.3. Child safety. . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4. Compliance with WEEE Directive and
Disposing of the Waste Product . . . . . . . . . 5
1.5. Compliance with RoHS Directive . . . . . . . . . 5
1.6. Package information. . . . . . . . . . . . . . . . . . 5
2 Refrigerator 6
2 Refrigerator 7
3 Installation 8
3.1. Right place for installation . . . . . . . . . . . . . . 8
3.2. Attaching the plastic wedges. . . . . . . . . . . .8
3.3. Adjusting the stands . . . . . . . . . . . . . . . . . . 9
3.4. Power connection . . . . . . . . . . . . . . . . . . . . 9

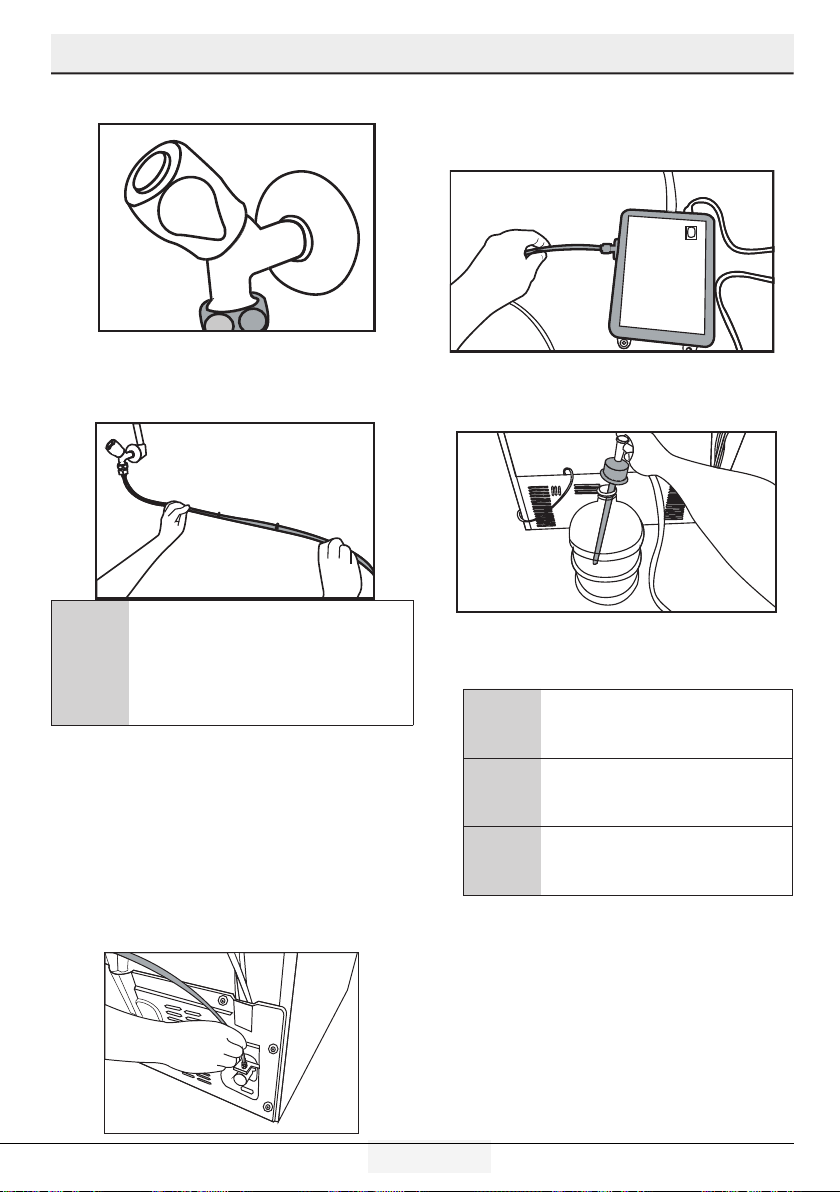

3.5. Water connection . . . . . . . . . . . . . . . . . . .10
3.6. Connecting water hose to the product . . . . 11
3.7. Connecting to water mains . . . . . . . . . . . . 11
3.8. For products using water carboy . . . . . . . .12
3.9 Water filter . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.9.1.Fixing external filter on the wall (Optional) 13
3.9.2.Internal filter . . . . . . . . . . . . . . . . . . . . . . 14
4 Preparation 16
4.1. What to do for energy saving. . . . . . . . . . .16
4.2. First Use . . . . . . . . . . . . . . . . . . . . . . . . . .16
5 Using the product 17

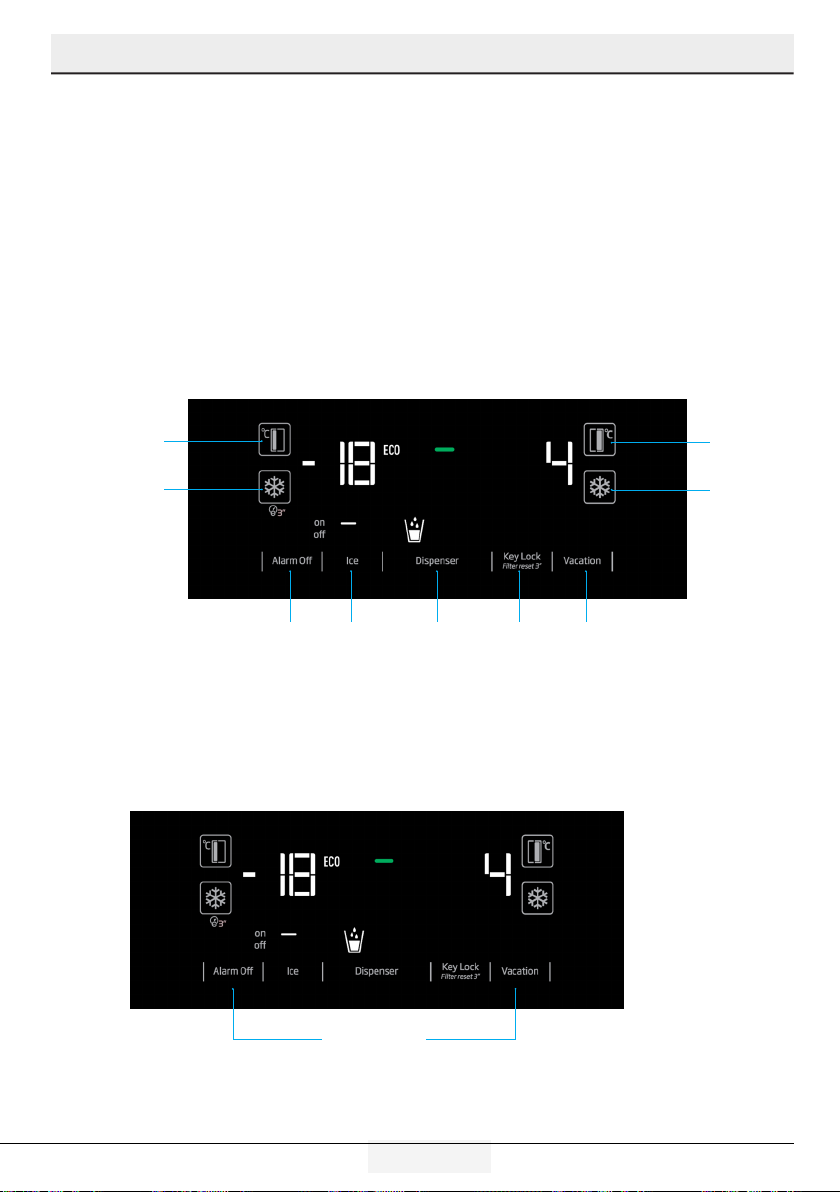

5.1. Indicator panel . . . . . . . . . . . . . . . . . . . . .17
5.2. Humidity controlled crisper . . . . . . . . . . . .27
5.3. Activating water filter change warning . . . .28
5.4. Using the water fountain . . . . . . . . . . . . . .30
5.5. Filling the fountain water tank . . . . . . . . . . 30
5.6. Cleaning the water tank. . . . . . . . . . . . . . .31
5.7. Taking ice / water . . . . . . . . . . . . . . . . . . .32
5.8. Drip tray . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.9. Zero degree compartment. . . . . . . . . . . . .33
5.10. Vegetable bin . . . . . . . . . . . . . . . . . . . . . 33
5.11. Blue light . . . . . . . . . . . . . . . . . . . . . . . .33
5.12. Ionizer. . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5.13. Minibar . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5.14. Odour filter . . . . . . . . . . . . . . . . . . . . . . . 33
5.15. Icematic and ice storage box . . . . . . . . . .34
5.16. Ice-maker . . . . . . . . . . . . . . . . . . . . . . . . 34
5.17. Freezing fresh food . . . . . . . . . . . . . . . . . 36
5.18. Recommendations for storing frozen foods 36
5.19. Deep freezer details. . . . . . . . . . . . . . . . .36
5.20. Placing the food. . . . . . . . . . . . . . . . . . . . 37
5.21. Door open alert . . . . . . . . . . . . . . . . . . . . 37
5.22. Interior light . . . . . . . . . . . . . . . . . . . . . . . 37
6 Maintenance and Cleaning 38
6.1. Preventing Bad Odour . . . . . . . . . . . . . . . . 38
6.2. Protecting Plastic Surfaces . . . . . . . . . . . .38
7. Troubleshooting 39
2 / 40 EN
Refrigerator / User Guide
1. Safety and environment instructions
This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.
Intended use
WARNING:
Keep ventilation openings, in the appliance enclosure or in
A
A
A
A
the built-instructure, clear of obstruction.
WARNING:
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING:
Do not damage the refrigerant circuit.
WARNING:
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.
• In case of malfunction, unplug the
device.
• After unplugging, wait at least 5
minutes before plugging in again.
• Unplug the product when not in use.
• Do not touch the plug with wet hands!
Do not pull the cable to plug off, always hold the plug.
• Do not plug in the refrigerator if the
socket is loose.
• Unplug the product during installation,
maintenance, cleaning and repair.
• If the product will not be used for a
while, unplug the product and remove any food inside.
• Do not use the product when the
compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.
1
This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications.
1.1. General safety
• This product should not be used by
persons with physical, sensory and
Refrigerator / User Guide
1
• Do not use steam or steamed cleaning
materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
3 / 40 EN
Safety and environment instructions
• Do not wash the product by spraying or
pouring water on it! Danger of electric shock!
• In case of malfunction, do not use
the product, as it may cause electric shock. Contact the authorised service before doing anything.
• Plug the product into an earthed
socket. Earthing must be done by a qualified electrician.
• If the product has LED type lighting,
contact the authorised service for replacing or in case of any problem.
• Do not touch frozen food with wet
hands! It may adhere to your hands!
• Do not place liquids in bottles and cans
into the freezer compartment. They may explode.
• Place liquids in upright position after
tightly closing the lid.
• Do not spray flammable substances
near the product, as it may burn or explode.
• Do not keep flammable materials and
products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids
on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
• Exposing the product to rain, snow,
sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.
• Take care to avoid trapping any part
of your hands or body in any of the moving parts inside the product.
• Do not step or lean on the door,
drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.
• Take care not to trap the power cable.
1.1.1 HC warning
If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.
C
1.1.2 For models with water dispenser
• Pressure for cold water inlet shall be
maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is risk of water hammer effect
in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.
• Do not install on the hot water inlet.
Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum.
• Use drinking water only.
4 / 40 EN
The label on the inner left side indicates the type of gas used in the product.
Refrigerator / User Guide
Safety and environment instructions
1.2. Intended use
• This product is designed for home use.
It is not intended for commercial use.
• The product should be used to store
food and beverages only.
• Do not keep sensitive products
requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.
• The manufacturer assumes no
responsibility for any damage due to misuse or mishandling.
• Original spare parts will be provided
for 10 years, following the product purchasing date.
1.3. Child safety
• Keep packaging materials out of
children’s reach.
• Do not allow the children to play with
the product.
• If the product’s door comprises a lock,
keep the key out of children’s reach.
1.6. Package information
Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
1.4. Compliance with WEEE Directive and Disposing of the Waste Product
This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).
This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its
service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.
1.5. Compliance with RoHS Directive
• This product complies with EU WEEE Directive
(2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.
Refrigerator / User Guide
5 / 40 EN

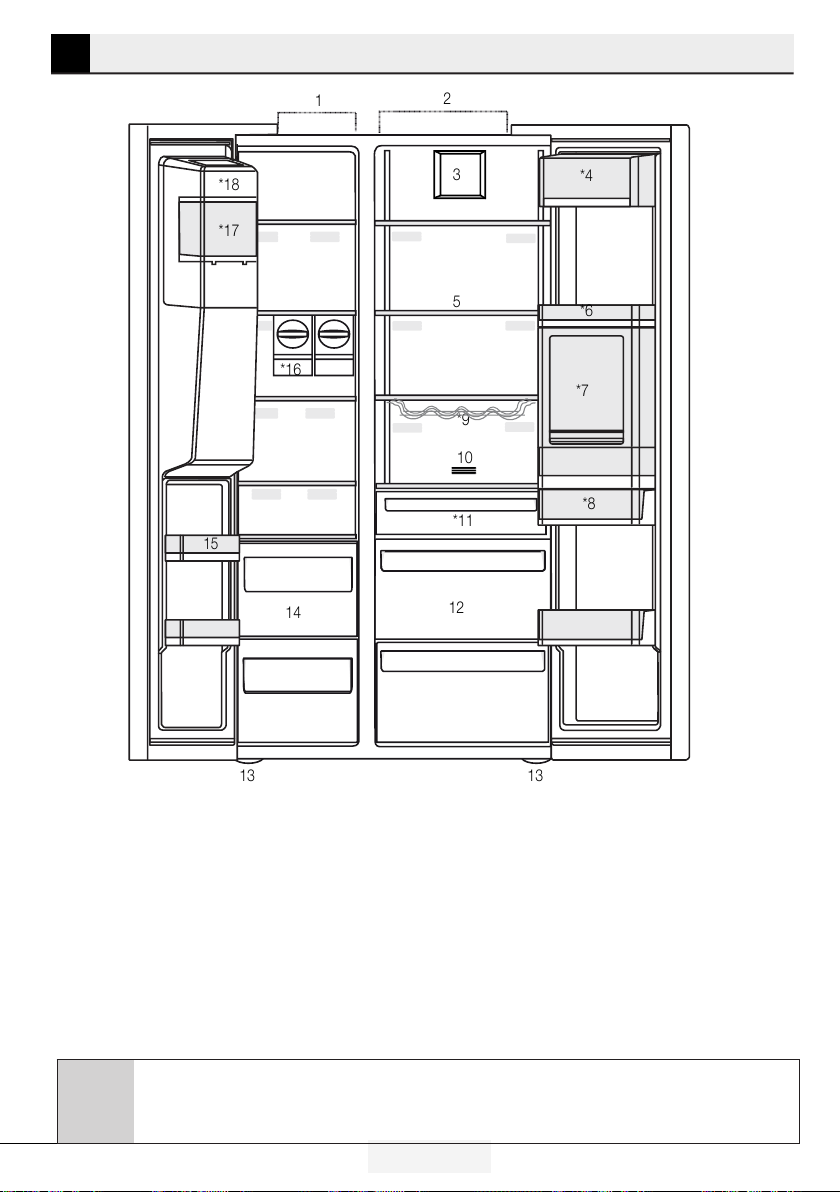

2 Refrigerator
2
3
*4
5
*6
1
*7
*11
*16
*17
*18
12
13
14
15
13
*8
10
*9
1- Freezer compartment 2- Cooler compartment 3- Fan 4- Butter-cheese compartment 5- Glass shelves 6- Cooler compartment door shelves 7- Minibar accessory 8- Water tank 9- Bottle shelf
10- Odour filter 11- Zero degree compartment 12- Vegetable bins 13- Adjustable stands 14- Frozen food storing compartments 15- Freezer compartment door shelves 16- Icematics 17- Ice storage box 18- Ice-maker decorative lid
*Optional
C
*Optional: Figures in this user guide are schematic and may not be exactly match your product. If your product does not comprise the relevant parts, the information pertains to other models.
6 / 40 EN
Refrigerator / User Guide

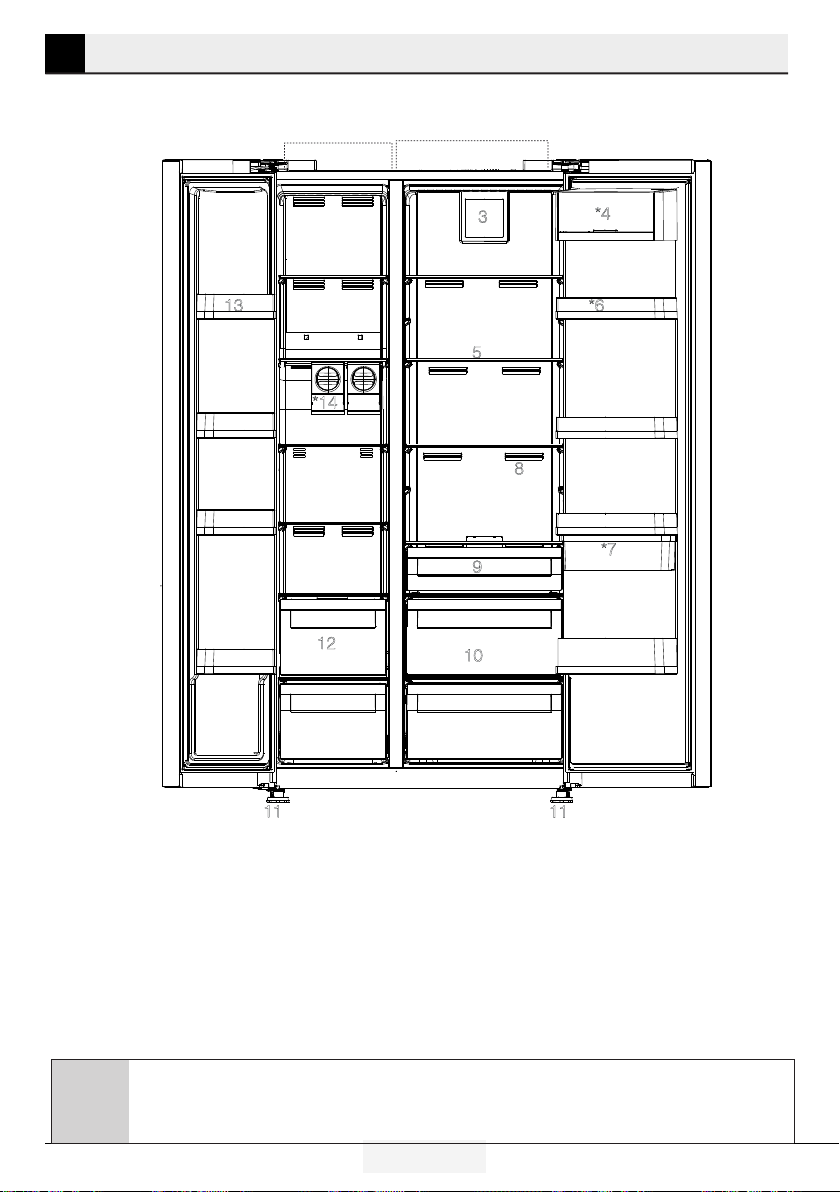

2 Refrigerator
13
*14
12
10
2
3
5
8
9
*4
*6
*7
1
*Optional: Figures in this user guide are schematic and may not be exactly match your product. If your product does not comprise the relevant parts, the information pertains to other models.
C
Refrigerator / User Guide
11
11
7 / 40 EN
3 Installation
3.1. Right place for installation
Contact the Authorized Service for the product's installation. To ready the product for installation, see the information in the user guide and make sure the electric and water utilities are as required. If not, call an electrician and plumber to arrange the utilities as necessary.
WARNING: The manufacturer assumes
no responsibility for any damage caused
B B
A
•Placetheproductonaflatsurfacetoavoid
vibration.
•Placetheproductatleast30cmawayfromthe
heater, stove and similar sources of heat and at least 5 cm away from electric ovens.
•Donotexposetheproducttodirectsunlightor
keep in damp environments.
•Theproductrequiresadequateaircirculationto
function efficiently. If the product will be placed in an alcove, remember to leave at least 5 cm distance between the product and the ceiling and the walls.
•Donotinstalltheproductinenvironmentswith
temperatures below -5°C.
by the work carried out by unauthorized persons.
WARNING: The product’s power cable
must be unplugged during installation. Failure to do so may result in death or serious injuries!
WARNING: : If the door span is too
narrow for the product to pass, remove the door and turn the product sideways; if this does not work, contact the authorized service.
3.2. Attaching the plastic wedges
Use the plastic wedges in the provided with the product to provide sufficient space for air circulation between the product and the wall.
1.
To attach the wedges, remove the screws on the
product and use the screws provided with the wedges.
2.
Attach 2 plastic wedges on the ventilation cover
shown as j in the figure.
8 / 40 EN
Refrigerator / User Guide
Installation
3.3. Adjusting the stands
If the product is not in balanced position, adjust the front adjustable stands by rotating right or left.
3.4. Power connection
WARNING: Do not use extension or multi
A B
C
sockets in power connection.
WARNING: Damaged power cable must
be replaced by Authorized Service.
When placing two coolers in adjacent position, leave at least 4 cm distance between the two units.
In order to adjust the doors vertically,
•Loosenthefixingnutatthebottom
•Screwadjustingnut(CW/CCW)accordingtothe
position of the door
•Tightenthefixingnutforthefinalposition
In order to adjust the doors horizontally,
• Loosen the fixing bolt on the top
• Screw the adjusting bolt (CW/CCW) on the side
according to the position of the door
• Tighten the fixing bolt on the top for the final position
adjusting nut
fixing nut
fixing nut
• Our firm will not assume responsibility for any damages due to usage without earthing and power connection in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• Connect the refrigerator to an earthed socket with 220-240V/50 Hz voltage. The plug must comprise a 10-16A fuse.
• Do not use multi-group plug with or without extension cable between the wall socket and the refrigerator.
Refrigerator / User Guide
9 / 40 EN
Installation
3.5. Water connection
(Optional)
WARNING: Unplug the product and
the water pump (if available) during
A
The product’s water mains, filter and carboy connections must be rendered by authorizer service. The product can be connected to a carboy or directly to the water mains, depending on the model. To establish the connection, the water hose must first be connected to the product. Check to see the following parts are supplied with your product’s model:
connection.
1
3
1. Connector (1 piece): Used to attach the water hose to the rear of the product.
2. Hose clip (3 pieces): Used to fix the water hose on the wall.
3. Water hose (1 piece, 5 meter diameter 1/4 inches): Used for the water connection.
4. Faucet adapter (1 piece): Comprises a porous filter, used for connection to the cold water mains.
5. Water filter (1 piece *Optional): Used to connect the mains water to the product. Water filter is not required if carboy connection is available.
2
4
*5
10 / 40 EN
Refrigerator / User Guide
Installation
3.6. Connecting water hose to the product
To connect the water hose to the product, follow the instructions below.
1. Remove the connector on the hose nozzle
adaptor in the back of the product and run the hose through the connector.
3.7. Connecting to water mains
(Optional)
To use the product by connecting to the cold water mains, a standard 1/2” valve connector must be installed to the cold water mains in your home. If the connector is not available or if you are unsure, consult a qualified plumber.
1. Detach the connector (1) from the faucet adaptor (2).
2. Push the water hose down tightly and connect to the hose nozzle adaptor.
3. Tighten the connector manually to fix on the
hose nozzle adaptor. You may also tighten the connector using a pipe wrench or pliers.
3
2. Connect the faucet adaptor to the water mains valve.
3. Attach the connector around the water hose.
2
23
1
1
4. Connect the other end of the hose to the water mains (See Section 3.7) or, to use carboy, to the water pump (See Section 3.8).
Refrigerator / User Guide
11 / 40 EN
Installation
4. Attach the connector into the faucet adaptor
and tighten by hand / tool.
5. To avoid damaging, shifting or accidentally disconnecting the hose, use the clips provided to fix the water hose appropriately.
2. Connect the other end of the water hose to the water pump by pushing the hose into the pump’s hose inlet.
3. Place and fasten the pump hose inside the carboy.
WARNING: After turning the faucet
on, make sure there is no water leak on
A
either end of the water hose. In case of leakage, turn the valve off and tighten all connections using a pipe wrench or pliers.
3.8. For products using water carboy
(Optional)
To use a carboy for the product’s water connection, the water pump recommended by the authorized service must be used.
1. Connect one end of the water hose provided with the pump to the product (see 3.6) and follow the instructions below.
4. Once the connection is established, plug in and start the water pump.
Please wait 2-3 minutes after starting the pump to achieve the desired
C C C
efficiency.
See also the pump’s user guide for water connection.
When using carboy, water filter is not required.
3.9 Water filter
(Optional)
The product may have internal or external filter, depending on the model. To attach the water filter, follow the instructions below.
12 / 40 EN
Refrigerator / User Guide
Installation
3.9.1.Fixing external filter on the wall (Optional)
WARNING: Do not fix the filter on the
A
Check to see the following parts are supplied with your product’s model:
product.
5
4
6
4. Attach the water hose extending from the top of the filter to the product’s water connection adaptor, (see 3.6.)
1
1. Connector (1 piece): Used to attach the water hose to the rear of the product.
2. Faucet adapter (1 piece): Used for connection to the cold water mains.
3. Porous filter (1 piece)
4. Hose clip (3 pieces): Used to fix the water
hose on the wall.
5. Filter connecting apparatus (2 pieces): Used to fix the filter on the wall.
6. Water filter (1 piece): Used to connect the product to the water mains. Water filter is not necessary when using carboy connection.
1. Connect the faucet adaptor to the water mains valve.
2. Determine the location to fix the external filter. Fix the filter’s connecting apparatus (5) on the wall.
3. Attach the filter in upright position on the filter connecting apparatus, as indicated on the label. (6)
3
2
After the connection is established, it should look like the figure below.
Refrigerator / User Guide
13 / 40 EN
Installation
3.9.2.Internal filter
The internal filter provided with the product is not installed upon delivery; please follow the instructions below to install the filter.
Water line:
1. “Ice Off” indicator must be active while
installing the filter. Switch the ON-OFF indicator using the “Ice” button on the screen.
2. Remove the vegetable bin (a) to access the water filter.
Carboy line:
C
Do not use the first 10 glasses of water after connecting the filter.
14 / 40 EN
a
Refrigerator / User Guide
Installation
3. Remove the water filter by-pass cover by
pulling.
A few drops of water may flow out after removing the cover; this is
C
4. Place the water filter cover into the mechanism and push to lock in place.
normal.
5. Push the “Ice” button on the screen again to cancel the “Ice Off” mode.
The water filter will clear certain foreign particles in the water. It will not clear the
C C
Refrigerator / User Guide
microorganisms in the water.
See section 5.2 for activating the filter replacing period.
15 / 40 EN
4 Preparation
4.1. What to do for energy saving
mehmet
Connecting the product to electronic energy-saving systems is harmful, as it
A
• Do not keep the refrigerator doors open for
• Do not place hot food or beverages into the
• Do not overfill the refrigerator; blocking the
• The energy consumption value specified for
• Depending on the product’s features;
• The baskets/drawers that are provided with the
• Food contact with the temperature sensor in
• Make sure the foods are not in contact with
may damage the product.
long periods.
refrigerator.
internal air flow will reduce cooling capacity.
the refrigerator was measured with the freezer compartment’s upper shelf removed, other shelves and the lowest drawers in place and under maximum load. The top glass shelf can be used, depending on the shape and size of food to be frozen.
defrosting frozen foods in the cooler compartment will ensure energy saving and preserve food quality.
chill compartment must always be in use for low energy consumption and for better storage conditions.
the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.
the cooler compartment temperature sensor described below.
4.2. First Use
Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in “Safety and environment instructions” and “Installation” sections.
• Keep the product running with no food inside for 6 hours and do not open the door, unless absolutely necessary.
A sound will be heard when the compressor is engaged. It is normal to
C C
C
hear sound even when the compressor is inactive, due to the compressed liquids and gasses in the cooling system.
It is normal for the front edges of the refrigerator to be warm. These areas are designed to warm up in order to prevent condensation.
In some models, the indicator panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.
16 / 40 EN
Refrigerator / User Guide
5 Using the product
5.1. Indicator panel
Indicator panels may vary depending on the model of your product. Audial and visual functions of the indicator panel will assist in using the refrigerator.
1
8
2
3
9
7 6
1.
Cooler compartment indicator
2.
Error status indicator
3.
Temperature indicator
4.
Vacation function button
5.
Temperature adjustment button
6.
Compartment selection button
7.
Freezer Compartment indicator
8.
Economy mode indicator
9.
Vacation function indicator
*optional
45
*Optional: The figures in this user guide are intended as drafts and may not perfectly match your
product. If your product does not comprise the relevant parts, the information pertains to other models.
C
Refrigerator / User Guide
17 / 40 EN
Using the product
1. Cooler compartment indicator
The cooler compartment light will turn on when adjusting the cooler compartment temperature.
2. Error status indicator
This sensor will activate if the refrigerator is not cooling adequately or in case of sensor fault. When this indicator is active, the freezer compartment temperature indicator will display "E" and the cooler compartment temperature indicator will display "1, 2, 3..." etc. numbers. The numbers on the indicator serve to inform the service personnel about the fault.
3. Temperature indicator
Indicates the temperature of the freezer and cooler compartments.
4.Vacation function button
To activate this function, press and hold the Vacation button for 3 seconds. When the Vacation function is active, the cooler compartment temperature indicator displays the inscription "- -" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment.
Push the Vacation button ( ) again to cancel this function.
5. Temperature adjustment button
Respective compartment's temperature varies in
-24°C..... -18°C and 8°C...1°C ranges.
6. Compartment selection button
Use the refrigerator compartment selection button to toggle between the cooler and freezer compartments.
7. Freezer Compartment indicator
The freezer compartment light will turn on when adjusting the cooler compartment temperature.
8. Economy mode indicator
Indicates the refrigerator is running on energy­saving mode. This indicator will be active when the temperature in the freezer compartment is set to -18°C.
9.Vacation function indicator
Indicates the vacation function is active.
18 / 40 EN
Refrigerator / User Guide
Using the product
1
2
3
4
5
6
7
9
8
*Optional: The figures in this user guide are intended as drafts and may not perfectly match your
product. If your product does not comprise the relevant parts, the information pertains to other models.
C
Refrigerator / User Guide

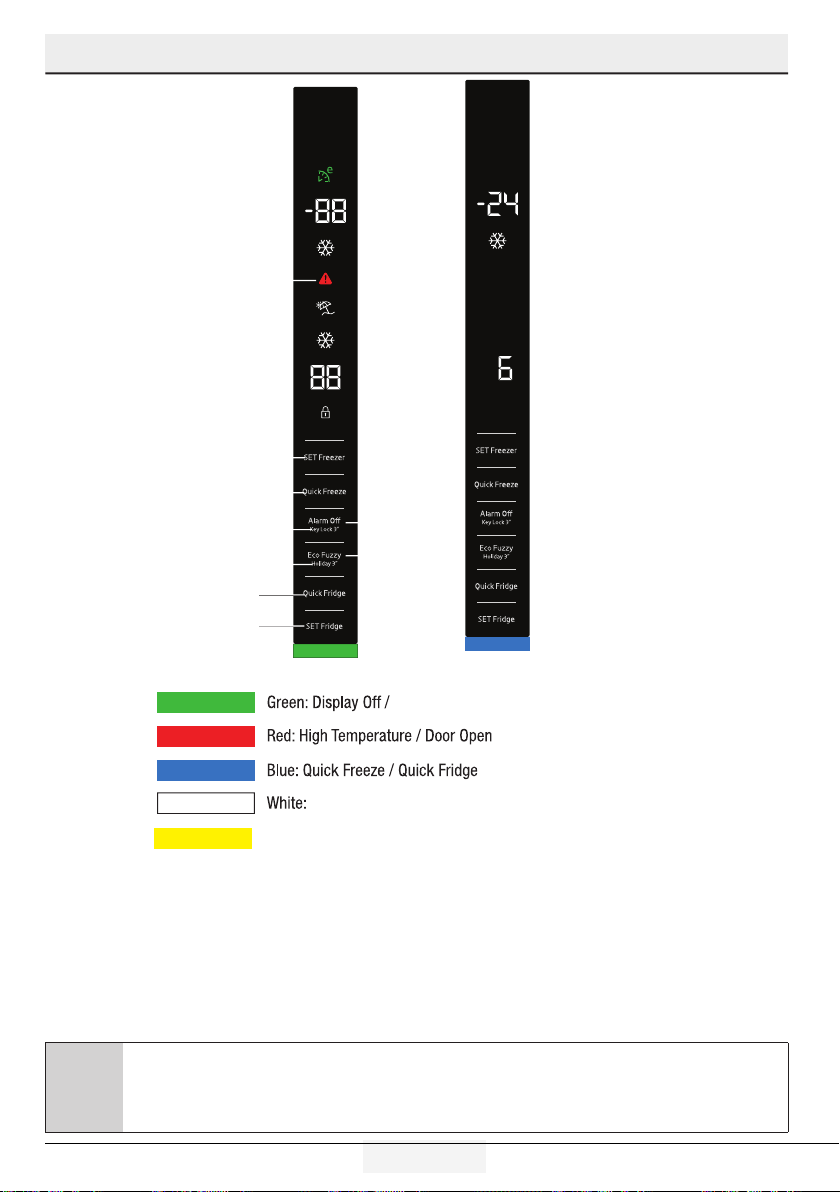

Eco Mode
interaction with product/ Display On after any interaction with buttons
Yellow: Vacation
19 / 40 EN
Using the product
1- Power failure/High temperature / error
warning
2- Freezer compartment temperature setting 3- Quick freeze 4- Key lock 5- Vacation function 6- Quick Fridge 7- Fridge compartment temperature setting 8- Eco fuzzy 9- Alarm off warning
• High temperature alarm :RED (1 Hz flash)
• Within 1 min. after the door is opened
(when the door: open alarm is enabled) RED light becomes on.
• When the door is opened : WHITE
• Eco Mode : GREEN
• Quick Freeze : BLUE
• Quick Fridge : BLUE
• Vacation : YELLOW
• Display Off : GREEN
• After the door is closed, if one of the WHITE / Eco Mode, Quick Freeze, Quick Fridge, Vacation modes are active, the colour of these modes are displayed for 1 min. (The colour of the mode is more dominant than that of the display status).
1. Power failure/High temperature / error warning
This indicator illuminates during power failure, high temperature failures and error warnings. During long-term power failures, the highest temperature value that the freezer compartment reaches will blink on the digital display. After checking the food located in the freezer compartment, press the alarm off button to clear the warning.
Please refer to "solutions recommended for troubleshooting" section on your manual if you observe that this indicator is illuminated.
2. Freezer compartment temperature setting
Temperature setting is made for freezer compartment. When this button is pressed, you can set the temperature of the freezer compartment to -18, -19, -20, -21, -22, -23 and
-24.
3. Quick freeze
Press this button for quick freeze operation, the quick freeze indicator ( ) will be activated.
Quick freeze indicator is lit when quick freeze function is on and fridge compartment temperature indicator displays -27. To cancel this function press the quick freeze button ( ) again. Quick freeze indicator will turn off and refrigerator will reset to its normal settings. Quick freeze function is cancelled automatically in 24 hour if you do not cancel it. If you want to freeze large amounts of fresh food, press the quick freeze button before putting the food into the freezer compartment.
4. Key lock
Press and hold the alarm off button for 3 seconds. The key lock symbol will be on and key lock will be activated; When the Key Lock is on, the buttons are disabled. Press and hold the alarm off button for 3 seconds again. The key lock symbol will be off and the key lock mode will be disabled.
5. Vacation function
In order to activate the vacation function, press and hold the fuzzy button for 3 seconds; the vacation mode indicator ( ) will be activated. When the vacation function is activated, "- -" is displayed on the fridge compartment temperature indicator and no active cooling operation will be performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment in this function. Other compartments will continue to be cooled according to their set temperatures.
To cancel this function, press the Vacation function button again.
20 / 40 EN
Refrigerator / User Guide
Using the product
6.Quick fridge
Quick fridge indicator is lit ( ) and the fridge compartment temperature indicator value is displayed as 1 when the quick fridge function is activated. To cancel this function, press the Quick fridge button again. Quick fridge indicator will be off and the refrigerator will be reset to its normal settings. Quick fridge function is cancelled automatically in 1 hour if you do not cancel it. If you want to cool large amounts of fresh food, press the Quick fridge button before putting the food into the fridge compartment.
7. Fridge compartment temperature setting
When this button is pressed the fridge compartment temperature can be set to 8,7,6,5,4,3,2 and 1 values.
8. Eco fuzzy
Press and hold the eco fuzzy button for 1 seconds to activate the eco fuzzy function. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will be on ( ). Press and hold the eco fuzzy function button for 3 seconds to disable the eco fuzzy function.
This indicator will be on after 6 hours when eco fuzzy is activated.
9. Alarm off warning
In case of power failure/high temperature alarm, after checking the foods in the freezer compartment, press the alarm off button to clear the warning.
Refrigerator / User Guide
21 / 40 EN
Using the product
3
1
2
11
7.2
7.1
8910
1. Economic use 2- High temperature / fault alert
3. Energy saving function (display off) 4- Rapid cooling 5- Vacation function 6- Cooler compartment temperature setting
7. Energy saving (display off) /Alarm off 8- Keypad lock 9- Eco-fuzzy 10- Freezer compartment temperature setting 11- Rapid freezing
4
56
C
*Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models.
22 / 40 EN
Refrigerator / User Guide
Using the product
1. Economic use
This sign will light up when the freezer compartment is set to -18°C', the most economical setting. ( ) Economic use indicator will turn off when rapid cooling or rapid freezing function is selected.
2. Power failure/High temperature / error warning indicator
This indicator ( ) will light up in case of temperature faults or fault alerts. If you see this indicator is lit up, please see the "recommended solutions for problems" section in this guide.
This indicator illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment press the alarm off button to clear the warning.
Please refer to “remedies advised for troubleshooting” section on your manual if you observe that this indicator is illuminated.
3. Energy saving function (display off)
If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be cancelled and the symbols on display will return to normal. Energy saving function is activated during delivery from factory and cannot be cancelled.
4. Rapid cooling
When the rapid cooling function is turned on, the rapid cool indicator will light up ( ) and the cooler compartment temperature indicator will display the value 1. Push the Rapid cool button again to cancel this function. The Rapid cool indicator will turn off and return to normal setting. The rapid cooling function will be automatically cancelled after 1 hour, unless cancelled by the user. Too
Refrigerator / User Guide
23 / 40 EN
cool a large amount of fresh food, press the rapid cool button before placing the food in the cooler compartment.
5. Vacation function
To activate the Vacation function, , press the quick fridge button for 3 seconds; this will activate the vacation mode indicator ( ). When the Vacation function is active, the cooler compartment temperature indicator displays the inscription "- -" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment. Push the vacation function button again to cancel this function.
6. Cooler compartment temperature setting
After pressing the button , the cooler compartment temperature can be set to 8,7,6,5,4,3,2 and 1 respectively.( )
7. 1 Energy saving (display off)
Pressing this button ( ) will light up the energy­saving sign ( ) and the Energy-saving function will activate. Activating the energy-saving function will turn off all other signs on the display. When the energy-saving function is active, pressing any button or opening the door will deactivate the energy-saving function and the display signals will return to normal. Pressing this button ( ) again will turn off the energy-saving sign and deactivate the energy-saving function.
7.2 Alarm off
In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button to clear the warning.
8. Keypad lock
Press the display off button, simultaneously for 3 seconds. The keypad lock sign will light up and the keypad lock will be activated; the buttons will be inactive when the Keypad lock is activated. Press the Display off button again simultaneously for 3 seconds. The keypad lock sign will turn off and
Using the product
the keypad lock mode will be disengaged. Press the Display off button to prevent changingthe refrigerator’s tempeture settings.
9. Eco-fuzzy
To activate the eco-fuzzy function, press and hold the eco-fuzzy button for 1 second. When this function is active, the freezer will switch to the economic mode after at least 6 hours and the economic use indicator will light up. To deactivate
the ( ) eco-fuzzy function, press and hold the eco-fuzzy function button for 3 seconds.
The indicator will light up after 6 hours when the eco-fuzzy function is active.
10. Freezer compartment temperature setting
The temperature in the freezer compartment is adjustable. Pressing the button will enable the freezer compartment temperature to be set at
-18,-19, -20, -21, -22, -23 and -24.
11. Rapid freezing
For rapid freezing, press the button ; this will activate the rapid freezing indicator ( ).
When the rapid freezing function is turned on, the rapid freeze indicator will light up and the freezer compartment temperature indicator will display the value -27. Press the Rapid freeze button ( ) again to cancel this function. The Rapid freeze indicator will turn off and return to normal setting. The rapid freezing function will be automatically cancelled after 24 hours, unless cancelled by the user. To freeze a large amount of fresh food, press the rapid freeze button before placing the food in the freezer compartment.
24 / 40 EN
Refrigerator / User Guide
Using the product
1
2
3
4
56
7.1
7.2
8910
11
1 2
(*)
*3
4
5
13 12
11.2
1011.1
1. Freezer compartment temperature setting
2. Economy mode
3. Energy saving function (display off)
4. Power failure/High temperature / error
warning indicator
5. Cooler compartment temperature setting
6. Rapid cooling
7. Vacation function
8. Keypad lock / filter replacing alert cancellation
9. Water, fragmented ice, ice cubes selection
10. Ice making on/off
11. Display on/off/Alarm off
12. Autoeco
13. Rapid freezing
9
6
78
*Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains
C
Refrigerator / User Guide
to other models.
25 / 40 EN
Using the product
1. Freezer compartment temperature setting
Pressing the button ( ) will enable the freezer compartment temperature to be set at -18,-19,­20,-21 ,-22,-23,-24,-18...
2. Economy mode
Indicates the refrigerator is running on energy­saving mode. This indicator will be active when the freezer compartment temperature is set at -18 or the energy-saving cooling is engaged by eco-extra function. ( )
3.Energy saving function (display off)
If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be cancelled and the symbols on display will return to normal. Energy saving function is activated during delivery from factory and cannot be cancelled.
4. Power failure/High temperature / error warning indicator
This indicator ( ) will light up in case of temperature faults or fault alerts. If you see this indicator is lit up, please see the "recommended solutions for problems" section in this guide.
This indicator illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment press the alarm off button to clear the warning.
Please refer to "remedies advised for troubleshooting" section on your manual if you observe that this indicator is illuminated.
5. Cooler compartment temperature setting
After pressing the button ( ), the cooler compartment temperature can be set to 8,7,6,5,4,3,2.. respectively.
6. Rapid cooling
For rapid cooling , press the button; this will activate the rapid cooling indicator ( ). Press this button again to deactivate this function. Use this function when placing fresh foods into
the cooler compartment or to rapidly cool the food items. When this function is activated, the refrigerator will be engaged for 1 hour.
7. Vacation function
When the Vacation function ( ) is active, the cooler compartment temperature indicator displays the inscription "- -" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment.
Press the vacation function button again to cancel this function. ( )
8. Keypad lock / Keypad lock / filter replacing
alert cancellation
Press keypad lock button ( ) to activate the keypad lock. You may also use this function to prevent changing the refrigerator's temperature settings. The refrigerator's filter must be replaced every 6 months. If you follow the instructions in the section 5.2, the refrigerator will automatically calculate the remaining period and the filter replacing alert indicator ( ) will light up when filter expires.
Press and hold the button ( ) for 3 seconds to turn off the filter alert light.
9. Water, fragmented ice, ice cubes selection
Navigate the water ( ), ice cube ( ) and fragmented ice ( ) selections using the button number 8. The active indicator will remain lit.
10. Ice making on/off
Press the button ( ) to cancel ( ) or activate ( ) ice-making.
11.1 Display on/off
When you press the Display off button and when the (
) function is lit, all the other icons of the
26 / 40 EN
Refrigerator / User Guide
Using the product
display will go off and the display will enter the energy saving mode. When you press the Display off button again and when the( ) function is lit, all the other icons of the display will be lit and the display will exit the energy saving mode.
11.2 Alarm off warning
In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button to clear the warning.
12. Autoeco
Press the auto eco button ( ), for 3 seconds to activate this function. If the door remains closed for a long time when this function is activated, the cooler section will switch to economic mode. Press the button again to deactivate this function.
The indicator will light up after 6 hours when the auto eco function is active. ( )
13. Rapid freezing
Press the button ( ) for rapid freezing. Press the button again to deactivate the function.
5.2. Humidity controlled crisper
(FreSHelf) (This feature is optional)
Humidity rates of the vegetables and fruit are kept under control with the feature of humidity­controlled crisper and the food is ensured to stay fresh for longer.
We recommend you to place the leafy vegetables such as lettuce, spinach and the vegetables which are sensitive to humidity loss, in a horizontal manner as much as possible inside the crisper, not on their roots in a vertical position.
While the vegetables are being placed, specific gravity of the vegetables should be taken into consideration. Heavy and hard vegetables should be put at the bottom of the crisper and the lightweight and soft vegetables should be placed over.
Never leave the vegetables inside the crisper in their bags. If the vegetables are left inside their bags, this will cause them to decompose in a short period of time. In case contacting with other vegetables is not preferred for hygiene concerns, use a perforated paper and other similar packaging materials instead of a bag.
Do not place together the pear, apricot, peach, etc. and apple in particular which have a high level of generation of ethylene gas in the same crisper with the other vegetables and fruit. The ethylene gas which is emitted by these fruit may cause the other fruit to ripen faster and decompose in a shorter time.
Refrigerator / User Guide
27 / 40 EN
Using the product
5.3. Activating water filter change warning
(For products connected to the mains water line and equipped with filter)
Water filter change warning is activated as follows:
Automatic filter usage time calculation is not enabled ex factory. It must be enabled in products equipped with a filter. The S4 display board we use in the refrigerator has a nine-key system. Set values are shown in the display.
Freezer Set
Quick Freeze/
(Eco Fuzzy)
Alarm Off
Ice On/Off Dispenser
Mode
When the Key Lock
Filter reset
*(pressing 3 seconds)
After energising, press Alarm Off and Vacation buttons for 3 seconds to enter the password entry screen.
Password
Screen (3 sec.)
Fridge Set
Quick Fridge
Vacation
28 / 40 EN
Refrigerator / User Guide
Using the product
Press once
Press twice
Refrigerator / User Guide
29 / 40 EN
Loading...
+ 100 hidden pages
