Please read this manual before using the product!

Dear Customer,
We'd like you to make the best use of our product, which has been manufactured in modern facilities

with care and meticulous quality controls.
Thus, we advice you to read the entire user manual before you use the product. In case the product

changes hands, do not forget to hand the guide to its new owner along with the product.

This guide will help you use the product quickly and safely.

• Please read the user guide carefully before installing and operating the product.

• Always observe the applicable safety instructions.

• Keep the user guide within easy reach for future use.

• Please read any other documents provided with the product.

Keep in mind that this user guide may apply to several product models. The guide clearly indicates any
variations of different models.

Important information and useful

C

tips.

Risk of life and property.

A

Risk of electric shock.

B

The product’s packaging is made of
recyclable materials, in accordance
with the National Environment
Legislation.

1. Safety and environment instructions 2

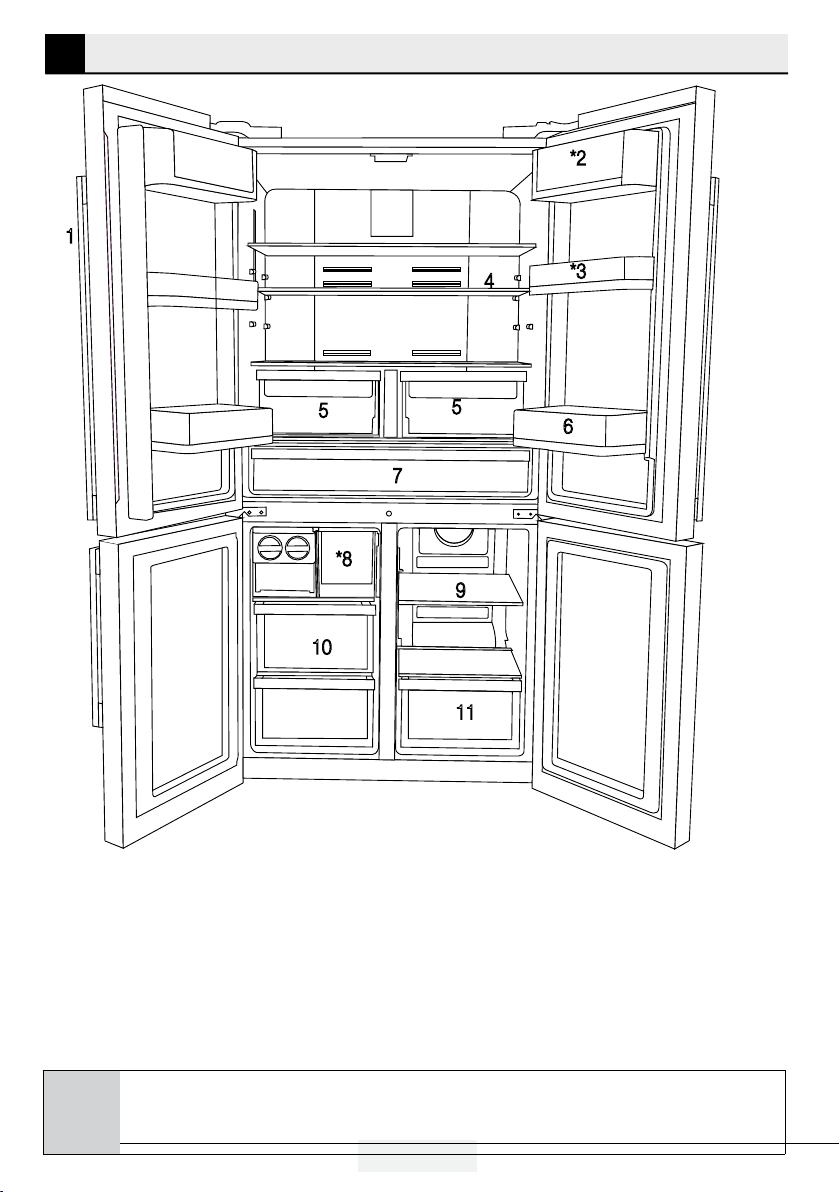

2 Your Refrigerator 6

2 Your Refrigerator 7

3 Installation 8

3.1 Appropriate location for installation . . . . . . . .8

3.2 Installing the plastic wedges . . . . . . . . . . . . .8

3.3* Adjusting the feet . . . . . . . . . . . . . . . . . . . .9

3.4 Electric connection . . . . . . . . . . . . . . . . . . .10

4 Preparation 11

4.1 Things to be done for saving energy . . . . .11

4.2 Recommendations about the fresh food

compartment. . . . . . . . . . . . . . . . . . . . . .11

4.3 Initial use. . . . . . . . . . . . . . . . . . . . . . . . .12

5 Operating the product 13

5.1 Indicator panel . . . . . . . . . . . . . . . . . . . . . .13

5.2 Indicator panel. . . . . . . . . . . . . . . . . . . . .18

5.3 Freezing fresh food. . . . . . . . . . . . . . . . . . .21

5.4 Recommendations for preserving the frozen

food . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

5.5 Deep-freeze information . . . . . . . . . . . . . . .21

5.6 Placing the food . . . . . . . . . . . . . . . . . . . . .22

5.7 Door open warning. . . . . . . . . . . . . . . . . . .22

5.8 Chiller compartment. . . . . . . . . . . . . . . . . .22

5.9 Crisper. . . . . . . . . . . . . . . . . . . . . . . . . . . .22

5.10 Humidity-controlled crisper . . . . . . . . . . . .22

(FreSHelf). . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

5.11 Egg tray . . . . . . . . . . . . . . . . . . . . . . . . . .23

5.12 Movable Middle Section . . . . . . . . . . . . . .23

5.13 Cool Control Storage Compartment . . . . .23

5.14 Blue light . . . . . . . . . . . . . . . . . . . . . . . . .23

5.15 Odour filter. . . . . . . . . . . . . . . . . . . . . . . .23

5.16 Wine cellar compartment . . . . . . . . . . . . .24

5.17 Use of internal water dispenser and water

dispenser at the door . . . . . . . . . . . . . . . .25

5.18 Dispensing water. . . . . . . . . . . . . . .26

5.19 For using water dispenser. . . . . . . . . . . . .26

5.20 Icematic . . . . . . . . . . . . . . . . . . . . . . . . .27

5.21 Icematic and ice storage container . . . . . .27

6 Maintenance and cleaning 28

6.1 Avoiding bad odours. . . . . . . . . . . . . . . . . .28

6.2 Protecting the plastic surfaces . . . . . . . . . .28

7 Troubleshooting 29

1 /32 EN

Refrigerator / User Manual

1. Safety and environment instructions

This section provides the safety instructions necessary
to prevent the risk of injury and material damage.
Failure to observe these instructions will invalidate all
types of product warranty.

Intended use

WARNING:

Keep ventilation openings, in the

A

A
A

A

appliance enclosure or in the built­instructure, clear of obstruction.

WARNING:

Do not use mechanical
devices or other means to

accelerate the defrosting process,
other than those recommended by
the manufacturer.

WARNING:

Do not damage the refrigerant
circuit.

WARNING:

Do not use electrical
appliances inside the food
storage compartments of the
appliance, unless they are of
the type recommended by the
manufacturer.

responsible for their safety. Children
should not be allowed to play with this
device.

• In case of malfunction, unplug the device.

• After unplugging, wait at least 5 minutes

before plugging in again.

• Unplug the product when not in use.

• Do not touch the plug with wet hands! Do

not pull the cable to plug off, always hold
the plug.

• Do not plug in the refrigerator if the

socket is loose.

• Unplug the product during installation,

maintenance, cleaning and repair.

• If the product will not be used for a while,

unplug the product and remove any food
inside.

• Do not use the product when the

compartment with circuit cards located
on the upper back part of the product
(electrical card box cover) (1) is open.

1

This appliance is intended to be used in household
and similar applications such as

– staff kitchen areas in shops, offices and other
working environments;

– farm houses and by clients in hotels, motels and
other residential type environments;

– bed and breakfast type environments;
– catering and similar non-retail applications.

1.1. General safety

• This product should not be used by

persons with physical, sensory and mental
disabilities, without sufficient knowledge
and experience or by children. The device
can only be used by such persons under
supervision and instruction of a person

1

• Do not use steam or steamed cleaning

materials for cleaning the refrigerator and
melting the ice inside. Steam may contact
the electrified areas and cause short
circuit or electric shock!

• Do not wash the product by spraying or

pouring water on it! Danger of electric
shock!

• In case of malfunction, do not use the

product, as it may cause electric shock.
Contact the authorised service before
doing anything.

2 / 32 EN

Refrigerator / User Manual

Important instructions regarding safety and environment

• Plug the product into an earthed socket.

Earthing must be done by a qualified
electrician.

• If the product has LED type lighting,

contact the authorised service for
replacing or in case of any problem.

• Do not touch frozen food with wet hands!

It may adhere to your hands!

• Do not place liquids in bottles and cans

into the freezer compartment. They may
explode.

• Place liquids in upright position after

tightly closing the lid.

• Do not spray flammable substances near

the product, as it may burn or explode.

• Do not keep flammable materials and

products with flammable gas (sprays,
etc.) in the refrigerator.

• Do not place containers holding liquids on

top of the product. Splashing water on an
electrified part may cause electric shock
and risk of fire.

• Exposing the product to rain, snow,

sunlight and wind will cause electrical
danger. When relocating the product, do
not pull by holding the door handle. The
handle may come off.

• Take care to avoid trapping any part of

your hands or body in any of the moving
parts inside the product.

• Do not step or lean on the door, drawers

and similar parts of the refrigerator. This
will cause the product to fall down and
cause damage to the parts.

• Take care not to trap the power cable.

• In case your house is provided with

an underfloor heating system please
consider, drilling holes into the concrete
ceiling could damage this heating
system!

• When positioning the appliance, ensure

the supply cord is not trapped or
damaged.

• Do not locate multiple portable socket-

outlets or portable power supplies at
the rear of the appliance.

• Children aged from 3 to 8 years are

allowed to load and unload refrigerating
appliances.

• To avoid contamination of food, please

respect the following instructions:

• Opening the door for long periods can

cause a significant increase of the
temperature in the

• compartments of the appliance.

• Clean regularly surfaces that can come

in contact with food and accessible
drainage systems.

• Clean water tanks if they have not been

used for 48 h; flush the water system
connected to a water

• supply if water has not been drawn for

5 days.

• Store raw meat and fish in suitable

containers in the refrigerator, so that it
is not in contact with or drip onto other
food.

• Two-star frozen-food compartments

are suitable for storing pre-frozen
food, storing or making icecream and
making ice cubes.

3 /32 EN

Refrigerator / User Manual

Important instructions regarding safety and environment

• One-, two- and three-star

compartments are not suitable for the
freezing of fresh food.

• If the refrigerating appliance is left

empty for long periods, switch off,
defrost, clean, dry, and leave the door
open to prevent mould developing
within the appliance.

1.1.1 HC warning

If the product comprises a cooling system using
R600a gas, take care to avoid damaging the
cooling system and its pipe while using and
moving the product. This gas is flammable. If the
cooling system is damaged, keep the product
away from sources of fire and ventilate the room
immediately.

The label on the inner left side
indicates the type of gas used in

C

the product.

1.1.2 For models with
water dispenser

• Pressure for cold water inlet shall be

• Use drinking water only.

1.2. Intended use

• This product is designed for home use.

It is not intended for commercial use.

• The product should be used to store

food and beverages only.

• Do not keep sensitive products

requiring controlled temperatures
(vaccines, heat sensitive medication,
medical supplies, etc.) in the
refrigerator.

• The manufacturer assumes no

responsibility for any damage due to
misuse or mishandling.

• Original spare parts will be provided

for 10 years, following the product
purchasing date.

1.3. Child safety

• Keep packaging materials out of

children’s reach.

• Do not allow the children to play with

the product.

• If the product’s door comprises a lock,

keep the key out of children’s reach.

maximum 90 psi (620 kPa). If your
water pressure exceeds 80 psi (550
kPa), use a pressure limiting valve in
your mains system. If you do not know
how to check your water pressure, ask
for the help of a professional plumber.

• If there is risk of water hammer effect

in your installation, always use a water
hammer prevention equipment in
your installation. Consult Professional
plumbers if you are not sure that there
is no water hammer effect in your
installation.

• Do not install on the hot water inlet.

Take precautions against of the
risk of freezing of the hoses. Water
temperature operating interval shall

1.4. Compliance with WEEE Directive
and Disposing of the Waste Product

This product complies with EU WEEE
Directive (2012/19/EU). This product bears a
classification symbol for waste electrical and
electronic equipment (WEEE).

This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Do not dispose of the
waste product with normal domestic
and other wastes at the end of its

service life. Take it to the collection
center for the recycling of electrical and electronic
equipment. Please consult your local authorities to
learn about these collection centers.

be 33°F (0.6°C) minimum and 100°F
(38°C) maximum.

4 / 32 EN

Refrigerator / User Manual

Important instructions regarding safety and environment

1.5. Compliance with RoHS Directive

• This product complies with EU WEEE Directive
(2011/65/EU). It does not contain harmful and
prohibited materials specified in the Directive.

1.6. Package information

Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the packaging
materials together with the domestic or other
wastes. Take them to the packaging material
collection points designated by the local
authorities.

5 /32 EN

Refrigerator / User Manual

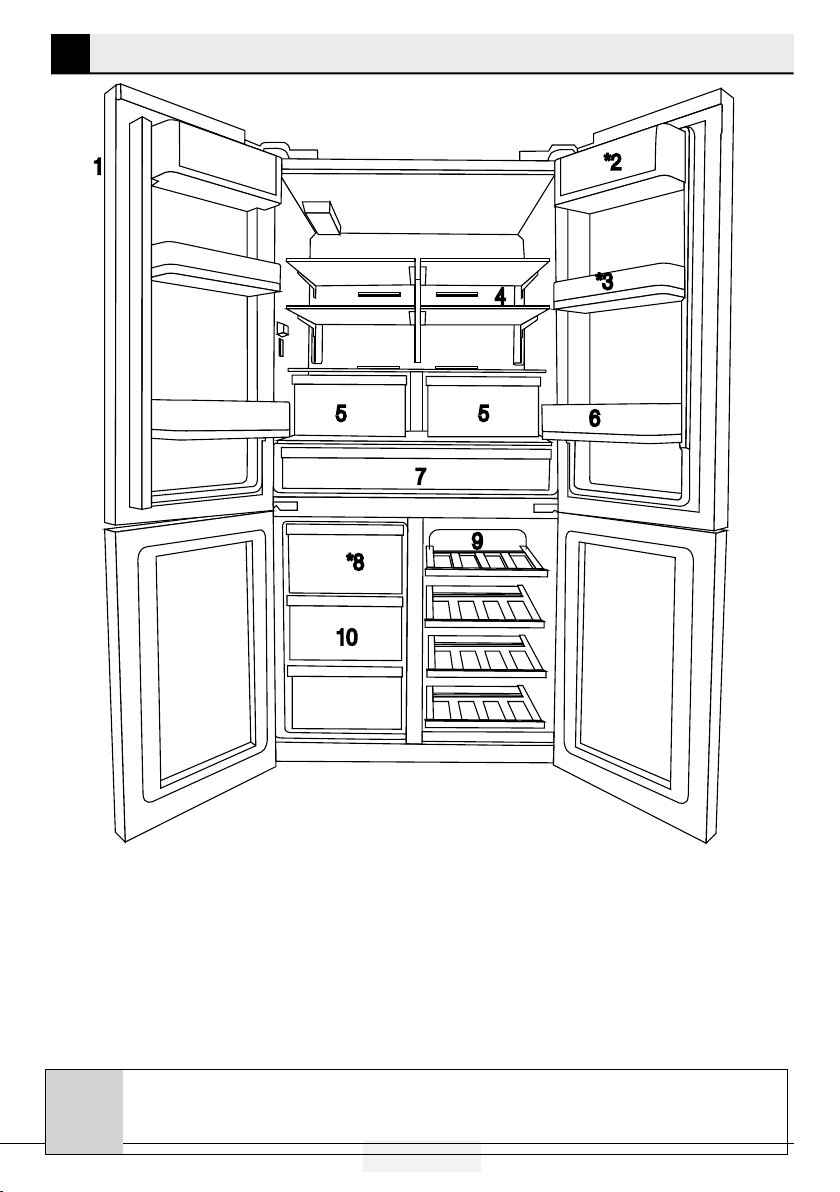

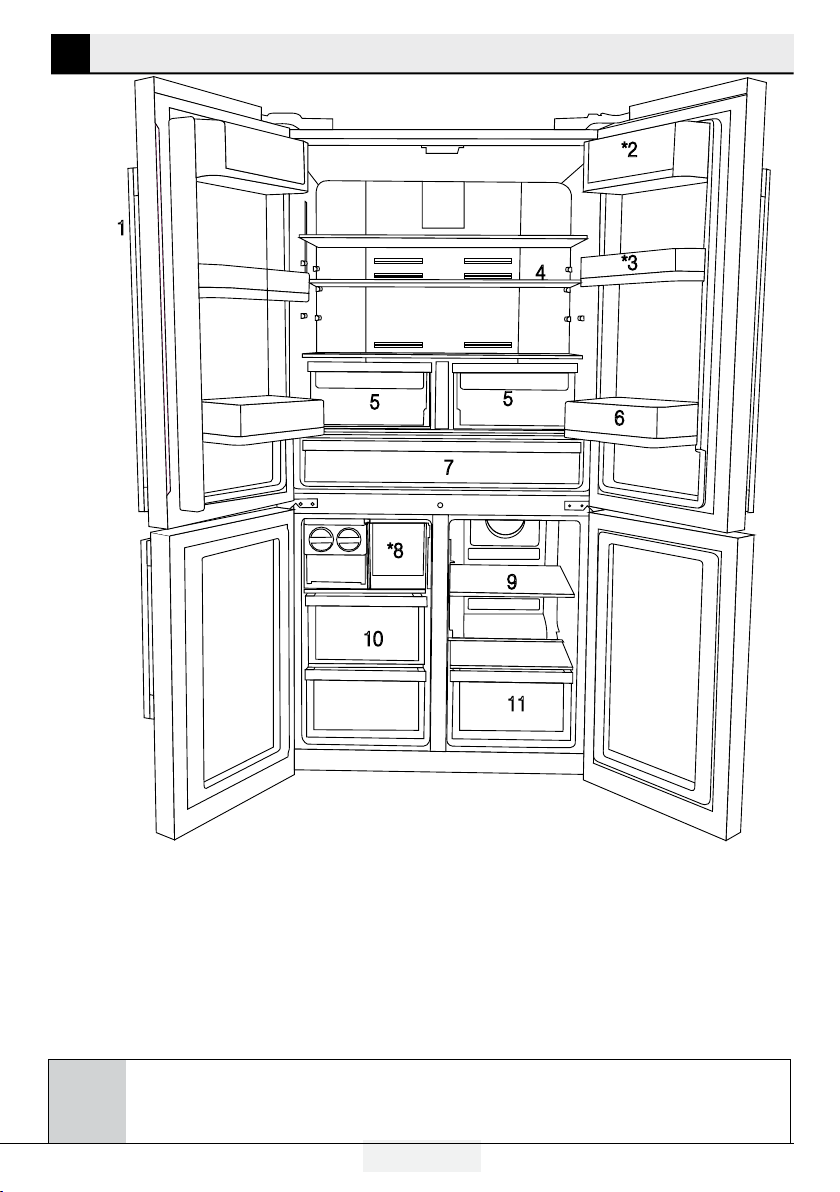

2 Your Refrigerator

1

*2

5

10

*8

4

5

7

9

11

*3

6

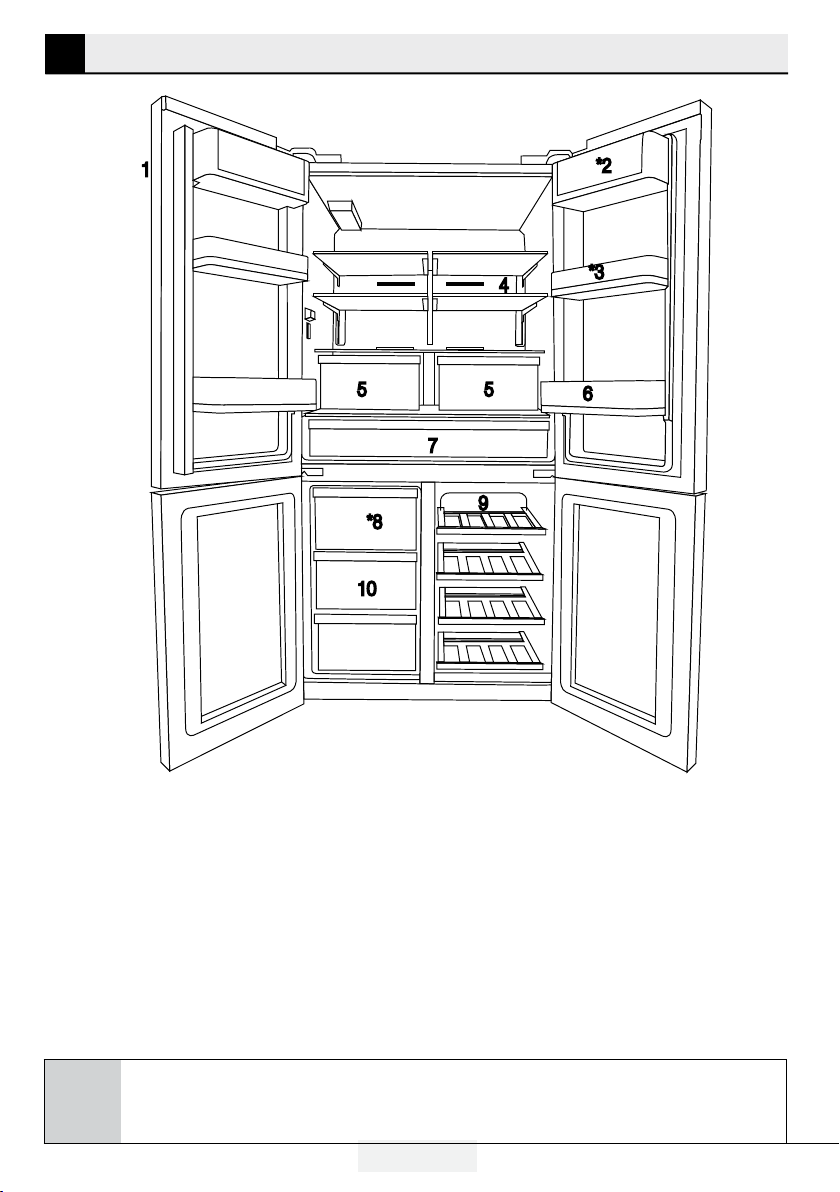

1- Control and indicator panel
2- Butter & Cheese section
3- 70 mm moving door shelf
4- Fridge compartment glass shelf
5- Fridge compartment crisper
6- Gallon door shelf

Figures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are valid for other models.

C

7- Chiller compartment
8- Icebox drawer
9- Multizone compartment glass shelf/cooler
10- Freezer compartment drawers
11- Multizone Compartment's drawer

* OPTIONAL

6 / 32 EN

Refrigerator / User Manual

2 Your Refrigerator

1

4

5

*8

10

5

7

9

*2

*3

6

1- Control and indicator panel
2- Butter & Cheese section
3- 70 mm moving door shelf
4- Fridge compartment glass shelf
5- Fridge compartment crisper
6- Gallon door shelf

Figures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are valid for other models.

C

7- Chiller compartment
8- Icebox drawer
9- Multizone compartment glass shelf/cooler
10- Freezer compartment drawers

* OPTIONAL

7 /32 EN

Refrigerator / User Manual

3 Installation

3.1 Appropriate location
for installation

Contact an Authorized Service for the installation
of the product. In order to prepare the product
for use, refer the information in the user manual
and ensure that electrical installation and water
installation are appropriate. If not, call a qualified
electrician and technician to have any necessary
arrangements carried out.

WARNING: Manufacturer shall not

be held liable for damages that may

B
B

A

arise from procedures carried out by
unauthorized persons.

WARNING: Product must not be plugged

in during installation. Otherwise, there is
the risk of death or serious injury!

WARNING: : If the door clearance of the

room where the product shall be placed is
so tight to prevent passing of the product,
remove the door of the room and pass the
product through the door by turning it to
its side; if this does not work, contact the
authorized service.

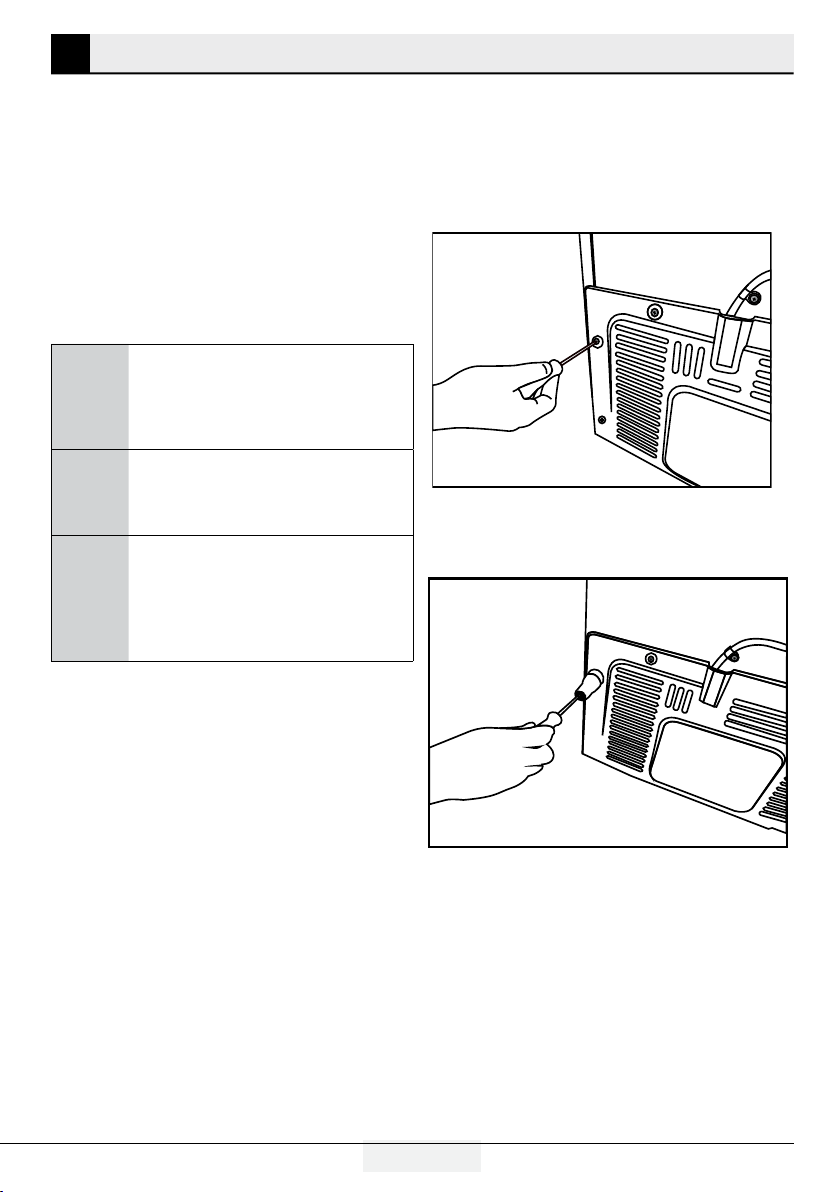

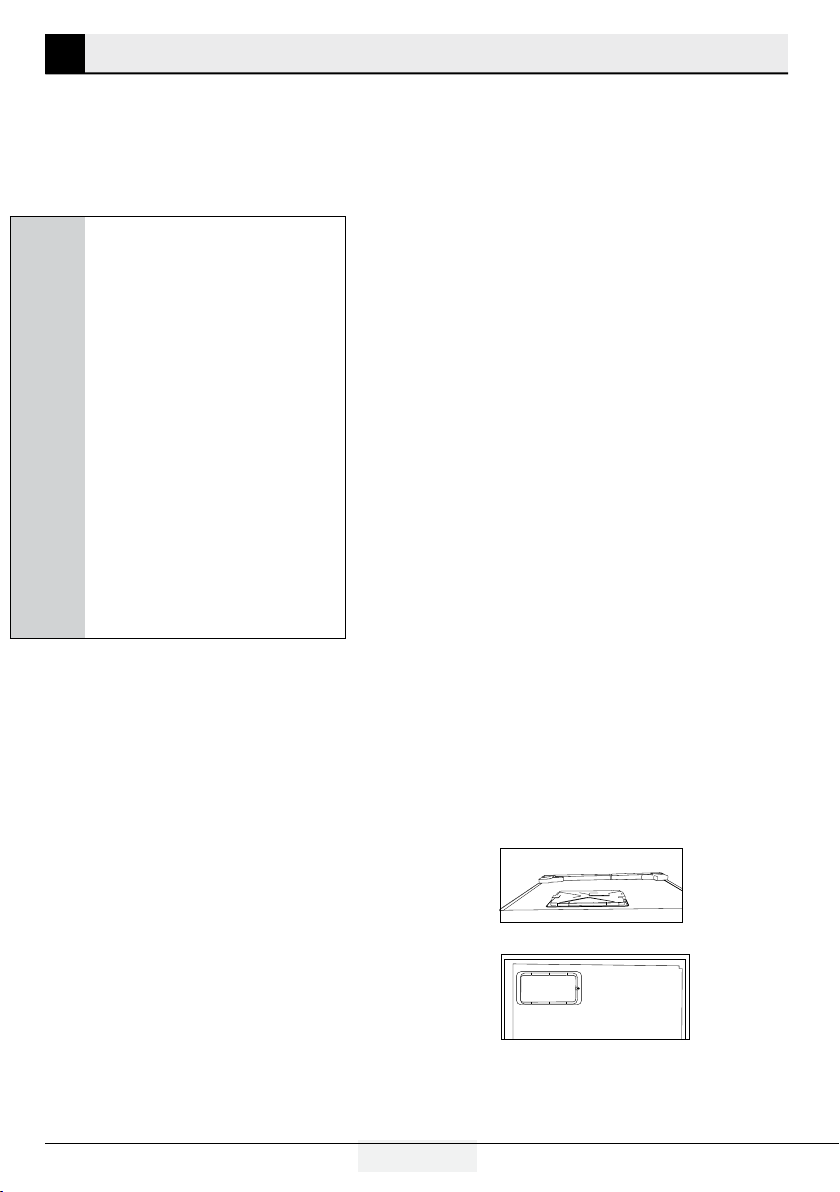

1.

To install the wedges, remove the screws on the
product and use the screws supplied together with the
wedges.

2.

Insert the 2 plastic wedges onto the rear ventilation
cover as illustrated in the figure.

•Placetheproductonalevelfloorsurfaceto

prevent jolts.

•Installtheproductatleast30cmawayfrom

heat sources such as hobs, heater cores and
stoves and at least 5 cm away from electrical
ovens.

•Productmustnotbesubjectedtodirectsunlight

and kept in humid places.

•Appropriateairventilationmustbeprovided

around your product in order to achieve an
efficient operation. If the product is to be placed
in a recess in the wall, pay attention to leave at
least 5 cm distance with the ceiling and side
walls.

•Donotinstalltheproductinplaceswherethe

temperature falls below -5°C.

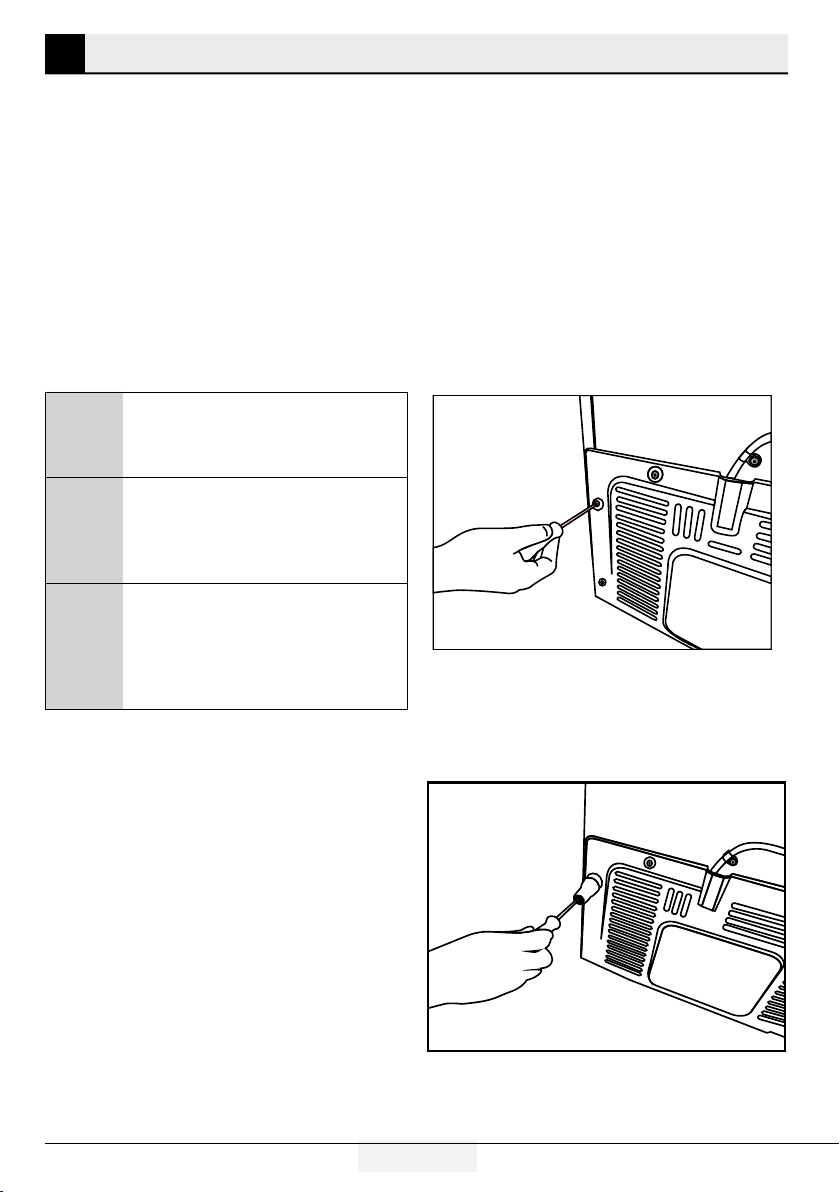

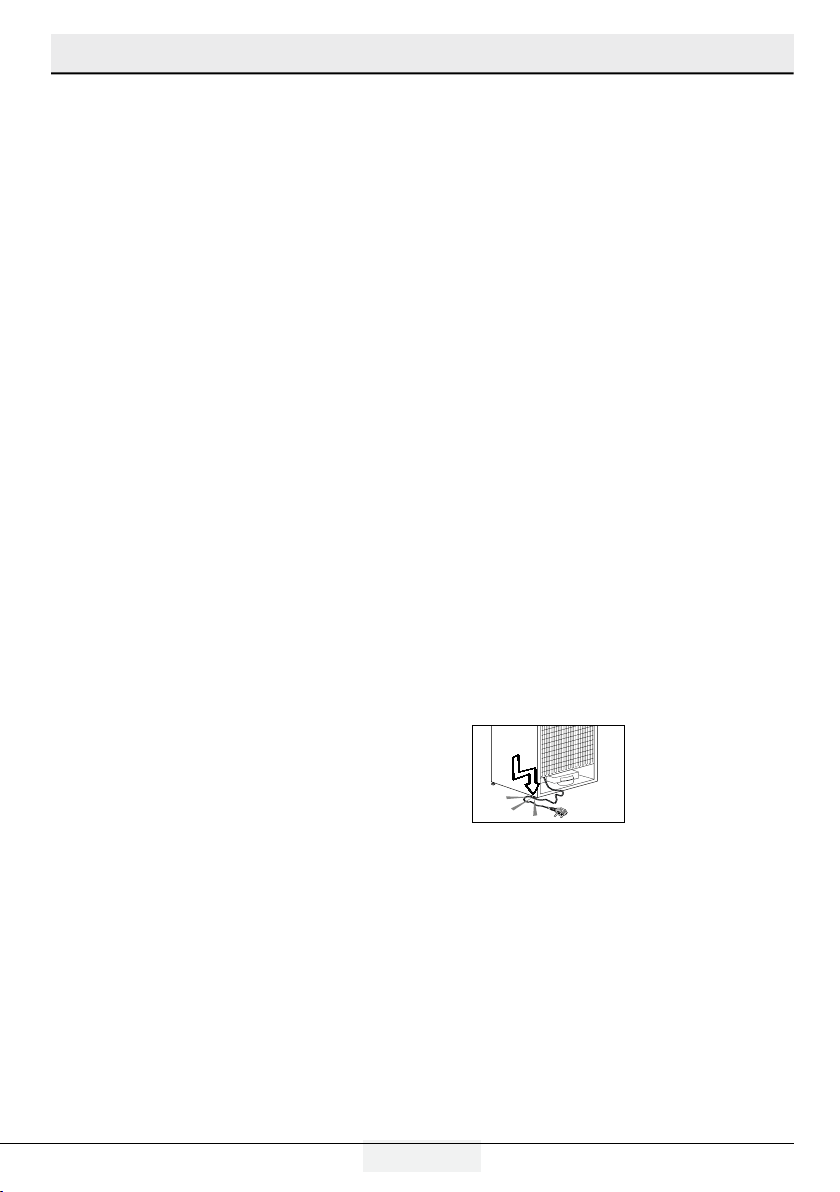

3.2 Installing the plastic wedges

Plastic wedges supplied with the product are
used to create the distance for the air circulation
between the product and the rear wall.

8 / 32 EN

Refrigerator / User Manual

Installation

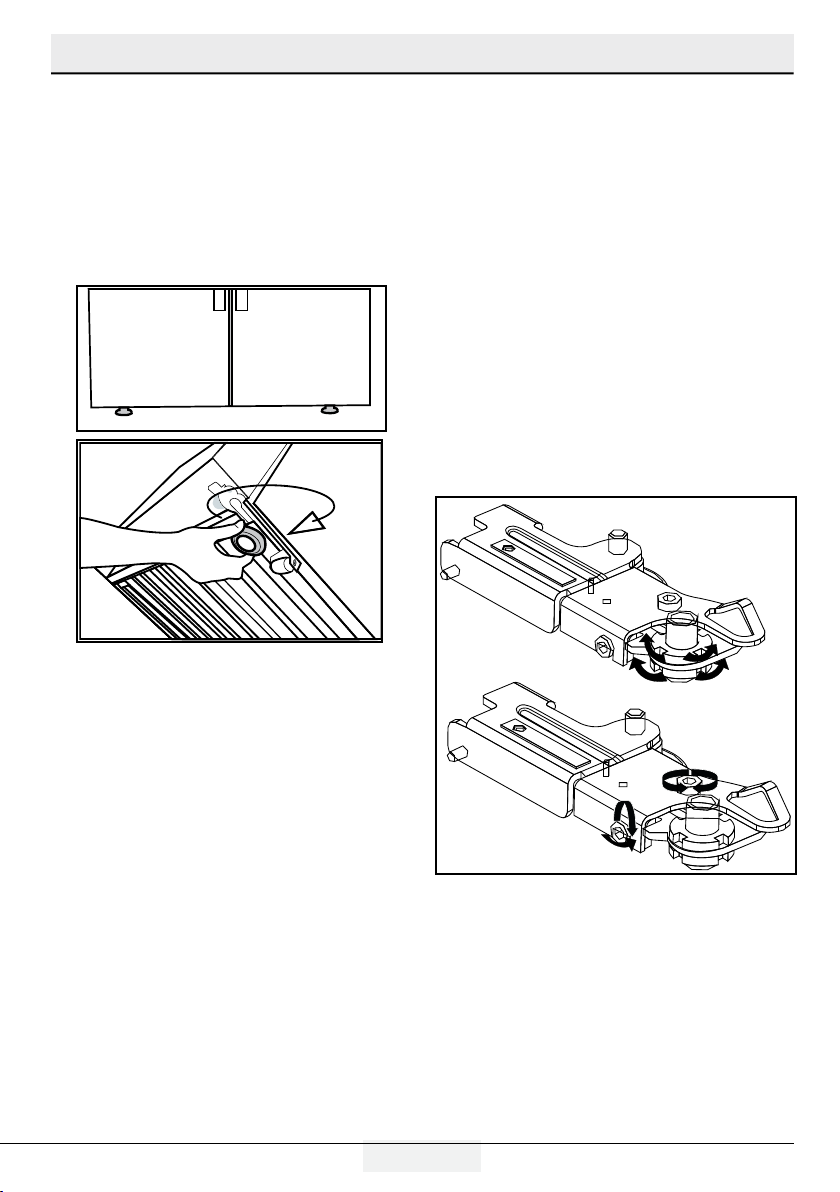

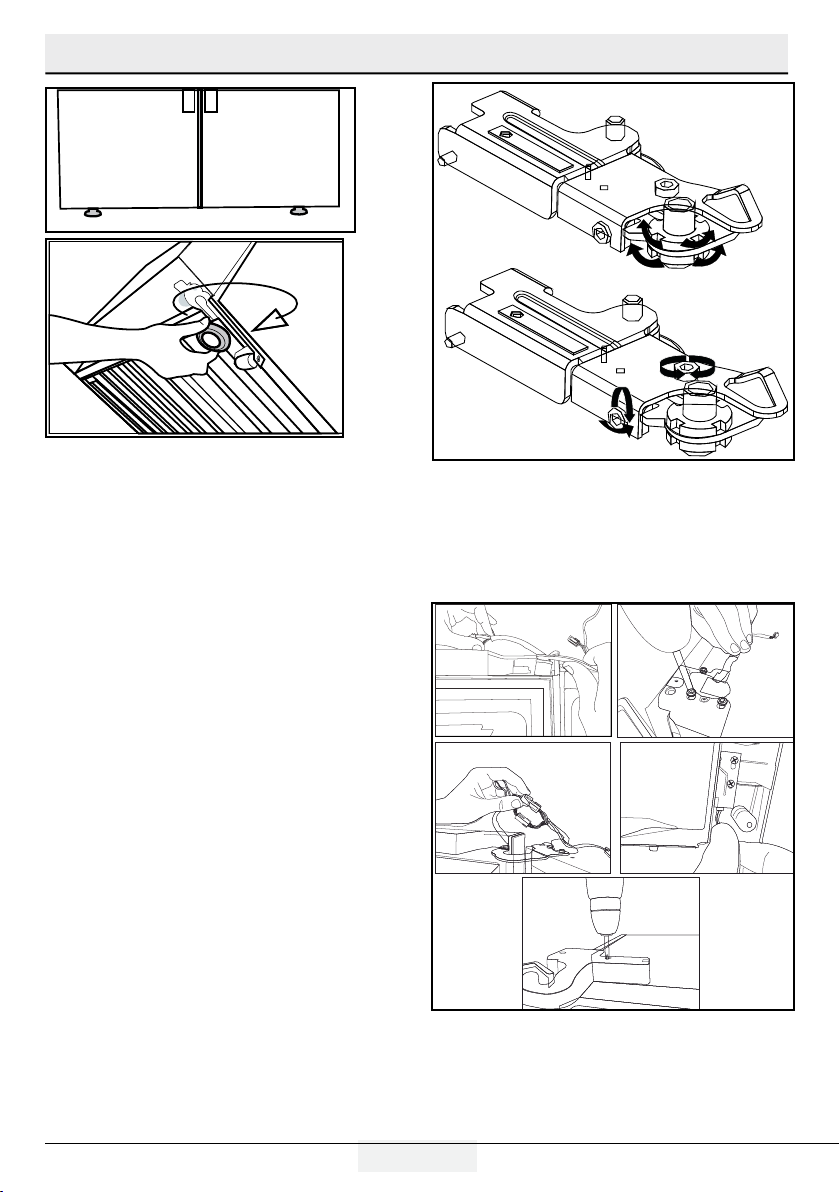

3.3* Adjusting the feet

If the product stands unbalanced after installation,
adjust the feet on the front by rotating them to the
right or left.
*If your product does not have a wine
compartment or is not a glass door, your product
does not have adjustable stands, the product has
fixed stands.

To adjust the doors vertically,
Loosen the fixing nut located at the bottom.
Rotate the adjusting nut according to the position

of the door (clockwise/counter-clockwise).
Tighten the fixing nut in order to fix the position.
To adjust the doors horizontally,
Loosen the fixing nut located at the top.
Rotate the side adjusting nut according to the

position of the door (clockwise/counter-clockwise).
Tighten the fixing nut which is at the top in order to

fix the position.

adjusting nut

fixing nut

fixing nut

9 /32 EN

adjusting nut

Refrigerator / User Manual

Installation

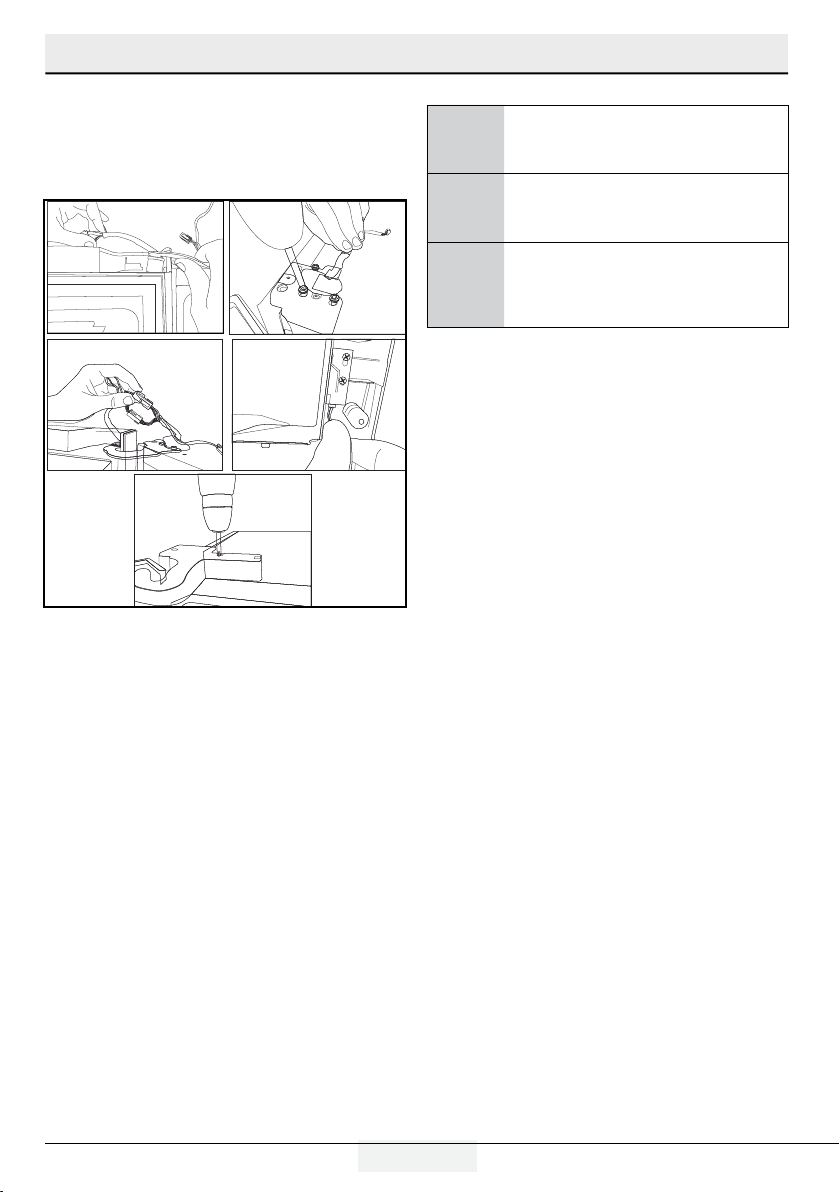

-Upper hinge group is fixed with 3 screws.

-The hinge cover is attached after the sockets are
installed.

- Then the hinge cover is fixed with two screws.

3.4 Electric connection

WARNING: Do not make connections via

A
B

C

• Our company shall not be liable for any

• Power cable plug must be within easy reach

• Do not extension cords or cordless multiple

extension cables or multi-plugs.

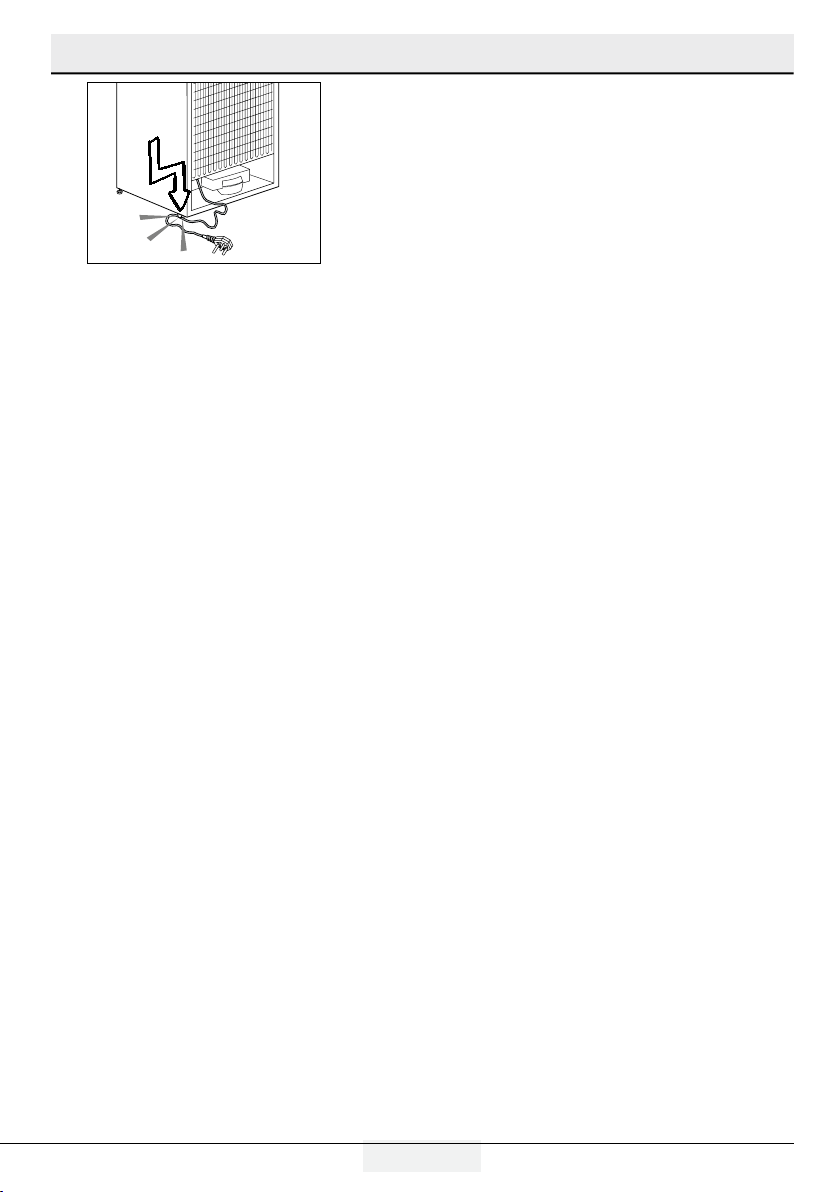

WARNING: Damaged power cable must

be replaced by the Authorized Service
Agent.

If two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.

damages that will arise when the product
is used without grounding and electrical
connection in accordance with the national
regulations.

after installation.

outlets between your product and the wall
outlet.

10 / 32 EN

Refrigerator / User Manual

4 Preparation

4.1 Things to be done for
saving energy

Connecting your refrigerator to systems
that save energy is dangerous as they may

A

• Do not leave the doors of your refrigerator open

• Do not put hot food or drinks in your

• Do not overload the refrigerator. Cooling

• Do not place the refrigerator in places subject

• Pay attention to store your food in refrigerator

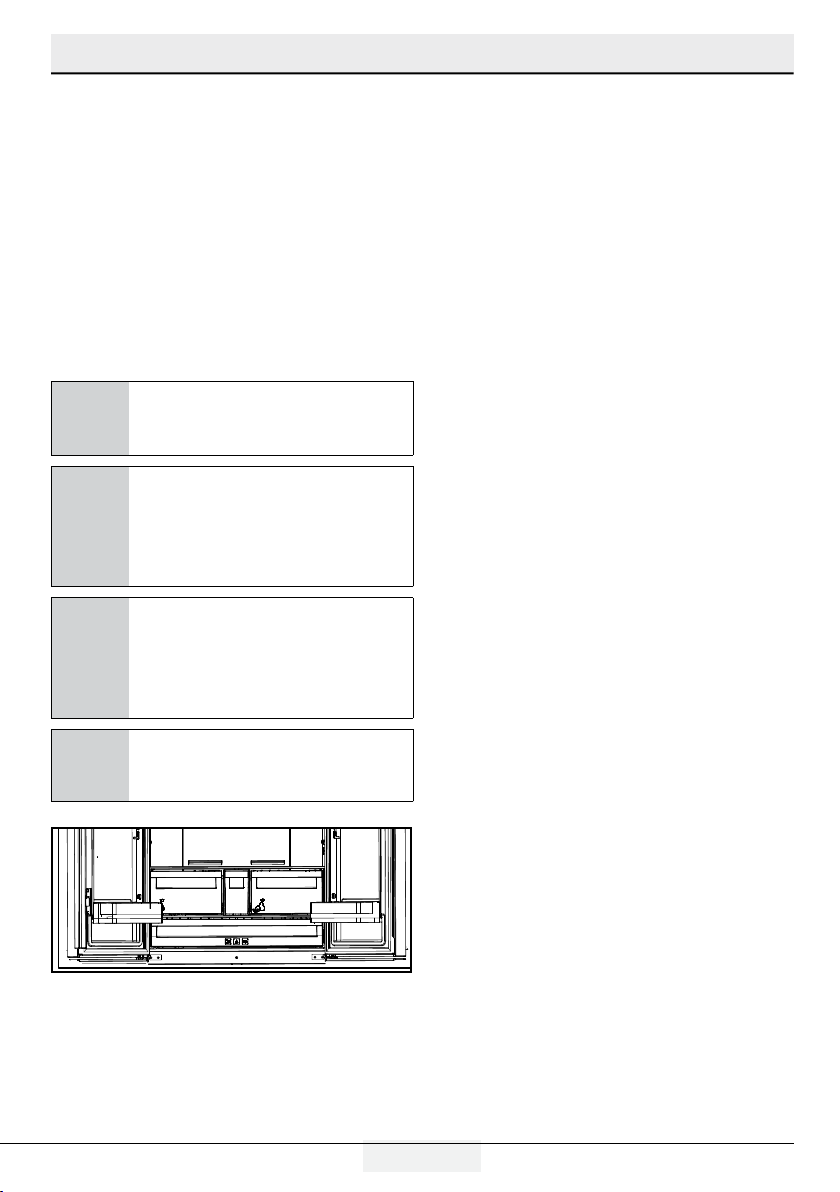

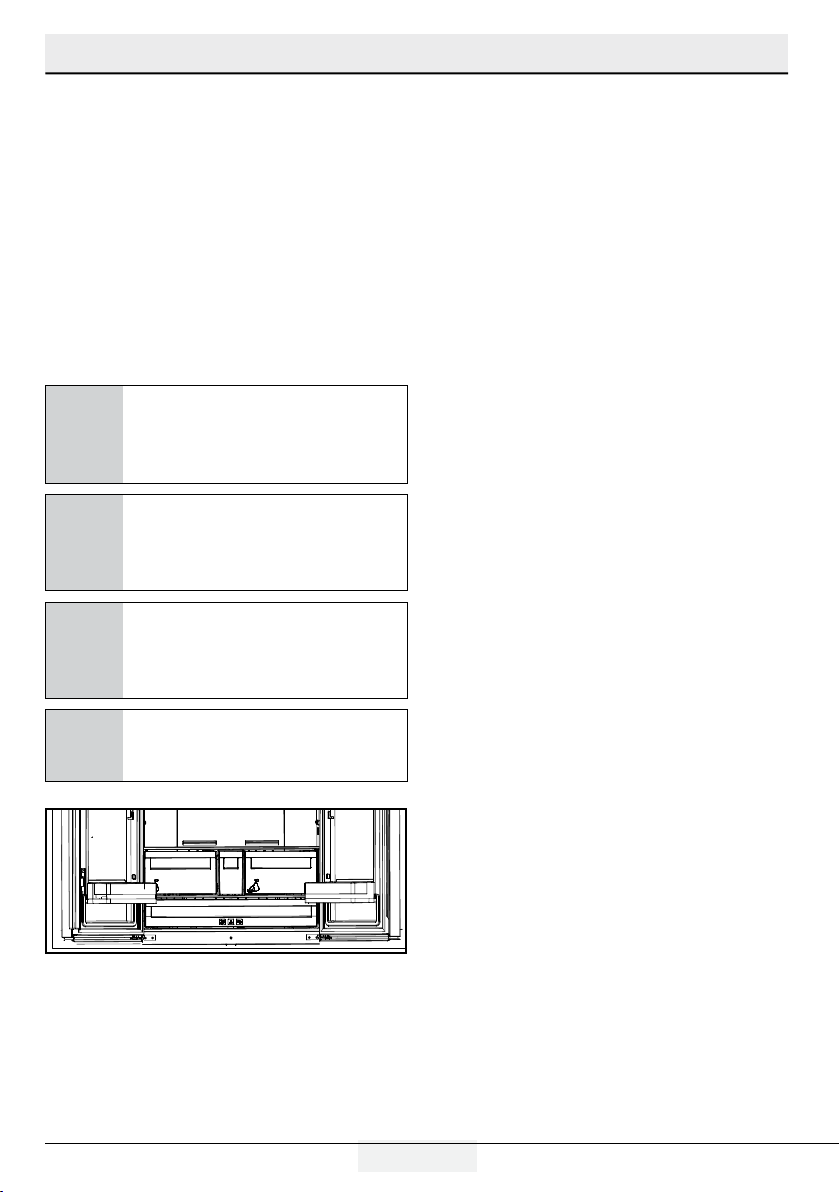

• To be able store maximum food in the freezer

• Airflow should not be blocked by placing

• Thawing the frozen foods in the fridge

C

cause damage on the product.

for a long time.

refrigerator.

capacity will fall when the air circulation in the
refrigerator is hindered.

to direct sunlight. Install the product at least
30 cm away from heat sources such as hobs,
ovens, heater units and stoves and at least 5
cm away from electrical ovens.

in closed containers.

compartment of your refrigerator, the upper
drawer has to be removed and placed on top
of glass shelf. Power consumption stated for
your refrigerator has been determined after
removing the icematic and the upper drawers
as to allow maximum loading. It is strongly
recommended to use the lower drawers in the
freezer and the multizone compartment while
loading.

foods in front of the freezer and the multizone
compartment fans. Foods should be loaded by
leaving minimum 5 cm space in front of the
protective fan grid.

compartment both saves energy and reserves
the quality of the foods.

Temperature of the room where your
refrigerator is located should at least
be

10ºC /50°F. Operating your

refrigerator under cooler conditions is not
recommended with regard to its efficiency.

If two coolers are to be installed side
by side, there should be at least 4 cm

C

distance between them.

4.2 Recommendations about the
fresh food compartment

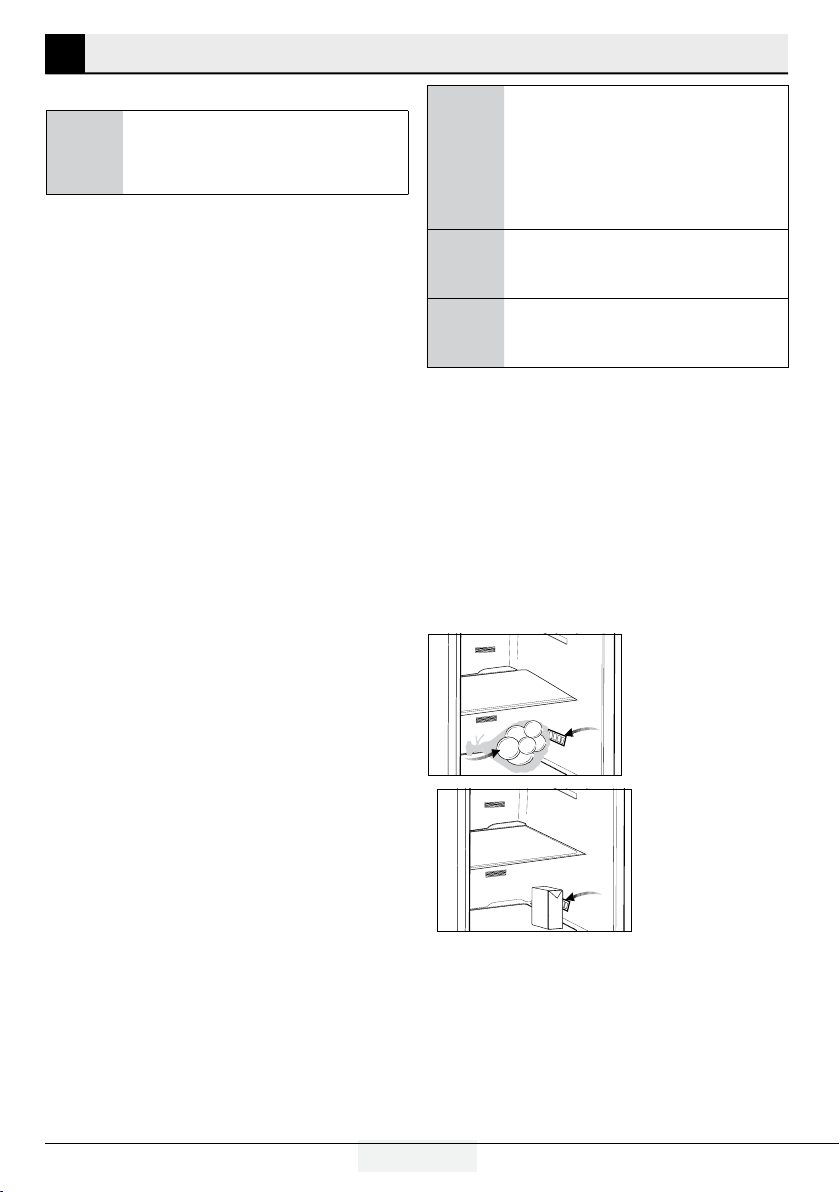

• Make sure that the food does not touch the

temperature sensor in fresh food compartment.
To allow the fresh food compartment to keep
its ideal storage temperature, the sensor must
not be hindered by food.

• Do not place hot foods or beverages inside the

product.

C

Inside of your refrigerator must be cleaned
thoroughly.

11 /32 EN

Refrigerator / User Manual

Preparation

4.3 Initial use

Before using the product, make sure that all
preparations have been made in accordance
with the instructions given in the "Important
instructions regarding safety and environment" and
"Installation" chapters.

• Clean the interior of the refrigerator as
recommended in the “Maintenance and
cleaning” section. Before you start the
refrigerator, make sure that the interior is dry.

• Plug the refrigerator in a grounded socket. The
interior illumination is lit when the door of the
refrigerator is opened.

• Operate the refrigerator for 6 hours without
placing any food in it and do not open its door
unless it is necessary.

You will hear a noise when the compressor
starts up. The liquids and gases sealed

C
C

within the refrigeration system may also
give rise to noise, even if the compressor is
not running and this is quite normal.

Front edges of the refrigerator may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.

12 / 32 EN

Refrigerator / User Manual

5 Operating the product

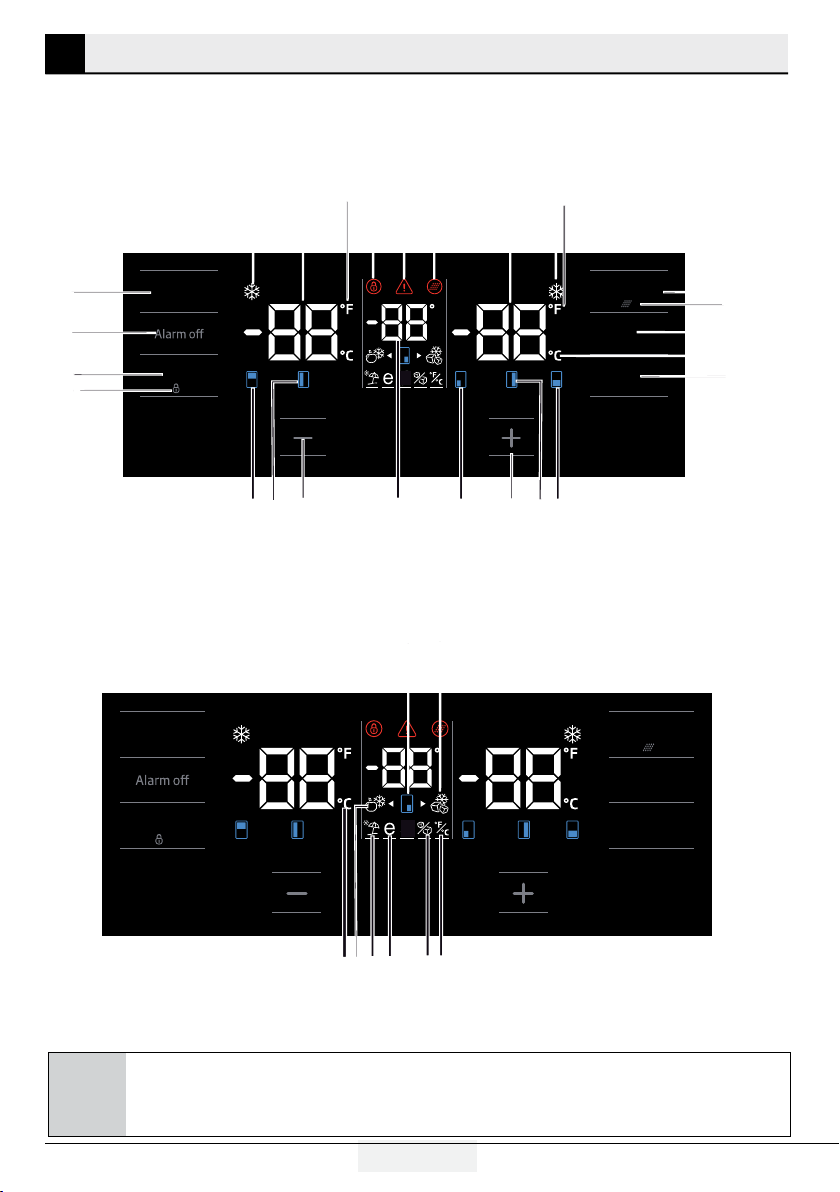

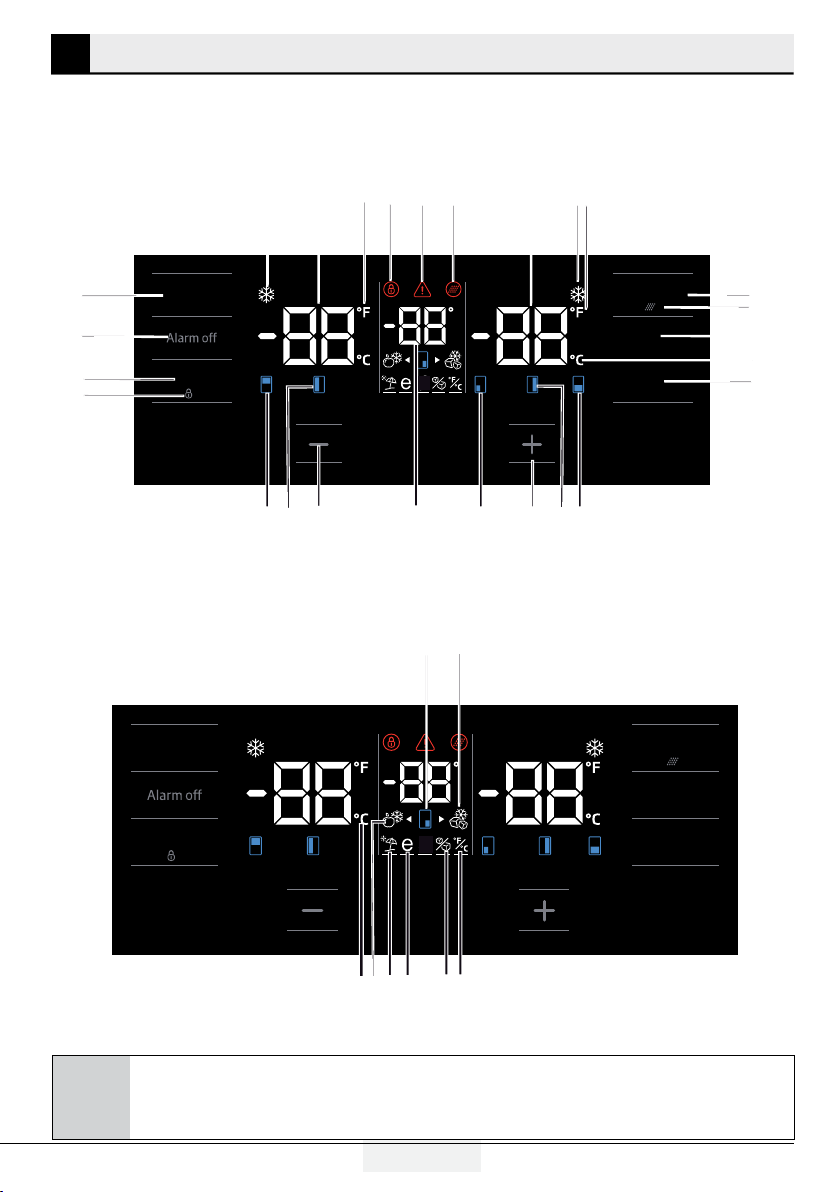

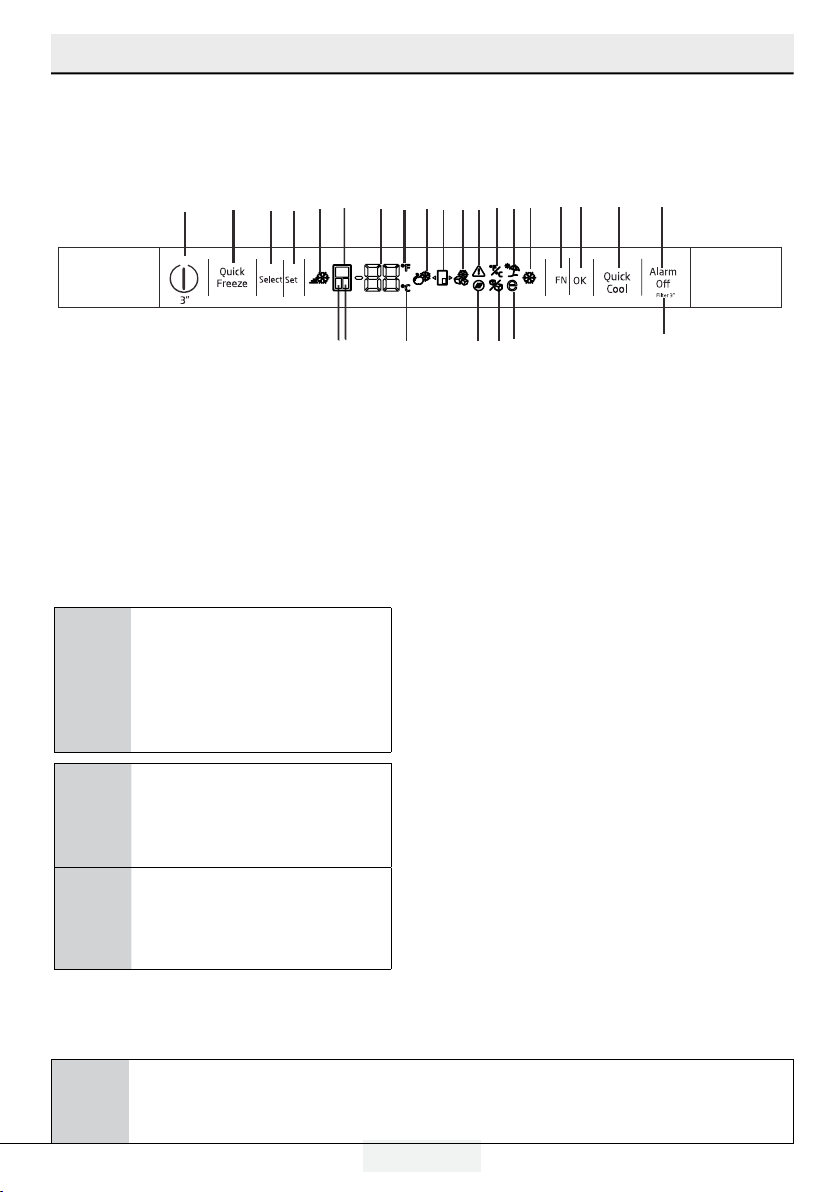

5.1 Indicator panel

Touch-controlled indicator panel allows you to set the temperature and control the other functions related
to the refrigerator without opening the door of the product. Just press the relevant buttons for function
settings.

2 3

1

33

32

31
30

Select

3 “

27

28

29

4

*34.1

5 6

*34.2

7

*8

9

10 11

Quick FreezeQuick Cool

3 “

FN

OK

20

19

1718

Quick FreezeQuick Cool

3 “

12

13

14

15

16

C

FN

Select

3 “

26

*25

24

23

22

21

OK

Figures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are valid for other models.

13 /32 EN

Refrigerator / User Manual

Operating the product

1. Quick cooling function indicator

It turns on when the quick fridge function is
activated.

2. Fridge compartment temperature indicator

Temperature of the fridge compartment is shown;
it can be set to 8,7,6,5,4,3,2,1.

3. Fahrenheit indicator

It is a Fahrenheit indicator. When the Fahrenheit
indication is activated, the temperature set values
are shown in Fahrenheit and the relevant icon
turns on.

4. Key lock

Press key lock button simultaneously for 3 sec­onds. Key lock symbol

will light up and key lock mode will be activated.
Buttons will not function if the Key lock mode is
active. Press key lock button simultaneously for 3
seconds again. Key lock symbol will turn off and
the key lock mode will be exited.

Press the key lock button if you want to prevent
changing of the temperature setting of the
refrigerator.

5. Power failure/High temperature / error

warning

This indicator illuminates during power failure, high
temperature failures and error warnings. During
long-term power failures, the highest temperature
value that the freezer compartment reaches will
blink on the digital display. After checking the food
located in the freezer compartment, press the
alarm off button to clear the warning.

Please refer to "solutions recommended for
troubleshooting" section on your manual if you
observe that this indicator is illuminated.

6. Filter reset icon

This icon turns on when the filter needs to be
reset.

7. Temperature change cabin icon

Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.

8. Joker freezer icon

Hover over the Joker freezer icon using the FN button; the
icon will start to flash. When you press the OK key, joker

cabin freezer icon turn on and operates as a freezer.

9. Freezer compartment temperature
indicator

Temperature of the fridge compartment is shown;
it can be set to -18, -19, -20, -21, -22, -23, -24.

10. Quick freeze function indicator

It turns on when the quick freeze function is
activated.

11. Fahrenheit indicator

It is a Fahrenheit indicator. When the Fahrenheit
indication is activated, the temperature set values
are shown in Fahrenheit and the relevant icon
turns on.

12. Quick freeze function button

Press this button to activate or deactivate the quick
freeze function. When you activate the function,
the freezer compartment will be cooled to a
temperature lower than the set value.

Use the quick freeze function when you
want to quickly freeze the food placed

C

C
C

13. Filter reset

The filter is reset when the quick freeze button is
pressed for 3 seconds. Filter reset icon goes off.

in freezer compartment. If you want
to freeze large amounts of fresh food,
activate this function before putting the
food into the product.

If you do not cancel it, Quick Freeze
will cancel itself automatically after 4
hours at the most or when the fridge
compartment reaches to the required
temperature.

This function is not recalled when
power restores after a power failure.

14 / 32 EN

Refrigerator / User Manual

Operating the product

14. FN button

Using this key, you can switch between the
functions that you want to select. Upon pressing
this key, the icon, whose function is required to be
activated or deactivated, and this icon's indicator
starts flashing. The FN button gets deactivated if
not pressed for 20 seconds. You need to press this
button to change the functions again.

15. Celsius indicator

It is a Celsius indicator. When the Celsius indication
is activated, the temperature set values are shown
in Celsius and the relevant icon turns on.

16. OK button

After navigating the functions using the FN button,
when the function is cancelled via the OK button,
the relevant icon and the indicator flashes. When
the function is activated, it remains on. The
indicator continues to flash in order to show the
icon it is on.

17. Temperature change cabin icon

Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.

18. Temperature change cabin icon

Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.

19. Set increasing button

Select the relevant cabin with the select button;
the cabin icon representing the relevant cabin will
start to flash. If you press the set increasing button
during this process, the set value gets increased. If
you keep pressing it in a loop, the set value returns
to the beginning.

20. Temperature change cabin icon

Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.

15 /32 EN

21. Setting the Celsius and Fahrenheit
indicator

Hover over this key using the FN key and select
Fahrenheit and Celsius via the OK key. When
the relevant temperature type is selected, the
Fahrenheit and Celsius indicator turns on.

22. Ice machine off icon

Press the FN key (until it reaches the ice icon and
the lower line) to switch off the ice machine. The
ice machine off icon and the ice machine function
indicator start flashing when you hover over them,
thus you can understand whether the ice machine
will be turned on or off. When you press the OK
button, the ice machine icon lights continuously
and the Indicator continues to flash during this
process. If you do not press any button after 20
seconds, the icon and the indicator remains on.
Thus, the ice machine is switched off. In order to
switch on the ice machine again, hover over the
icon and the indicator; thus, both the ice machine
off icon and the indicator will start flashing. If you
do not press any button within 20 seconds, the
icon and the indicator will go off and thus the ice
machine will be switched on again.

Indicates whether the icematic is

C
C

23. Eco fuzzy function icon

Press the FN key (until it reaches the letter e
icon and the lower line) to activate the eco fuzzy.
When you hover over the eco fuzzy icon and the
eco fuzzy function indicator, they start flashing.
Thus, you can understand whether the eco fuzzy
function will be activated or deactivated. When you
press the OK button, the eco fuzzy function icon
lights continuously and the Indicator continues to
flash during this process. If you do not press any
button after 20 seconds, the icon and the indicator
remains on. Thus, the eco fuzzy function is
activated. In order to cancel the eco fuzzy function,

on or off.

Water flow from water tank
will stop when this function is
selected. However, ice made
previously can be taken from the
icematic.

Refrigerator / User Manual

Operating the product

hover over the icon and the indicator again and
press the OK key. Thus, both the eco fuzzy function
icon and the indicator will start flashing. If you do
not press any button within 20 seconds, the icon
and the indicator will go off and the eco fuzzy
function will be cancelled.

24. Vacation function icon

Press the FN key (until it reaches the umbrella
icon and the lower line) to activate the vacation
function. When you hover over the vacation
function icon and the vacation function indicator,
they start flashing. Thus, you can understand
whether the vacation function will be activated or
deactivated. When you press the OK button, the
vacation function icon lights continuously and thus
the Vacation function is activated. The Indicator
continues to flash during this process. Press the
OK key to cancel the vacation function. Thus, both
the vacation function icon and the indicator will
start flashing and the vacation function will be
cancelled.

25. Joker fridge icon

When you select the joker fridge icon using the FN
button and press the OK key, the joker cabin turns
into a fridge cabin and operates as a cooler.

26. Celsius indicator

It is a Celsius indicator. When the Celsius indication
is activated, the temperature set values are shown
in Celsius and the relevant icon turns on.

27. Set decreasing function

Select the relevant cabin with the select button;
the cabin icon representing the relevant cabin
will start to flash. If you press the set decreasing
button during this process, the set value gets
decreased. If you keep pressing it in a loop, the set
value returns to the beginning.

28. Temperature change cabin icon

Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.

29. Temperature change cabin icon

Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.

30. Key lock

Press key lock button simultaneously for 3 sec­onds. Key lock symbol

will light up and key lock mode will be activated.
Buttons will not function if the Key lock mode is
active. Press key lock button simultaneously for 3
seconds again. Key lock symbol will turn off and
the key lock mode will be exited.

Press the key lock button if you want to prevent
changing of the temperature setting of the
refrigerator.

31.Select button

Use this button to select the cabin whose tem­perature you want to change. Switch between
the cabins by pressing this button. The selected
cabin can be understood from the cabin icons
(7,17,18,20,28,29). Whichever cabin icon is flash­ing, the cabin, whose temperature set value you
want to change, is selected. Then, you can change
the set value by pressing the cabin set value
decreasing button (27) and the cabin set value in­creasing button (19). If you do not press the select
button for 20 seconds, the cabin icons will go off.
You need to press this key to select a cabin again.

32. Alarm off warning

In case of power failure/high temperature
alarm, after checking the foods in the freezer
compartment, press the alarm off button to clear
the warning.

33. Quick cooling function button

The button has two functions. To activate or
deactivate the quick cool function, press it briefly.
Quick Cool indicator will turn off and the product
will return to its normal settings.

16 / 32 EN

Refrigerator / User Manual

Operating the product

Use quick cooling function when you
want to quickly cool the food placed

C

C

C
C

34. 1 Joker temperature indicator

Temperature set values of the joker cabin are
displayed.

34. 2 Wine cooler compartment tempature
indicator

Tempature set values of the winecabin are dis­played.

in the fridge compartment. If you want
to cool large amounts of fresh food,
activate this function before putting the
food into the product.

If you do not cancel it, quick cooling
will cancel itself automatically after 8
hours at the most or when the fridge
compartment reaches to the required
temperature.

If you press the quick cooling button
repeatedly with short intervals, the
electronic circuit protection will be
activated and the compressor will not
start up immediately.

This function is not recalled when
power restores after a power failure.

17 /32 EN

Refrigerator / User Manual

Operating the product

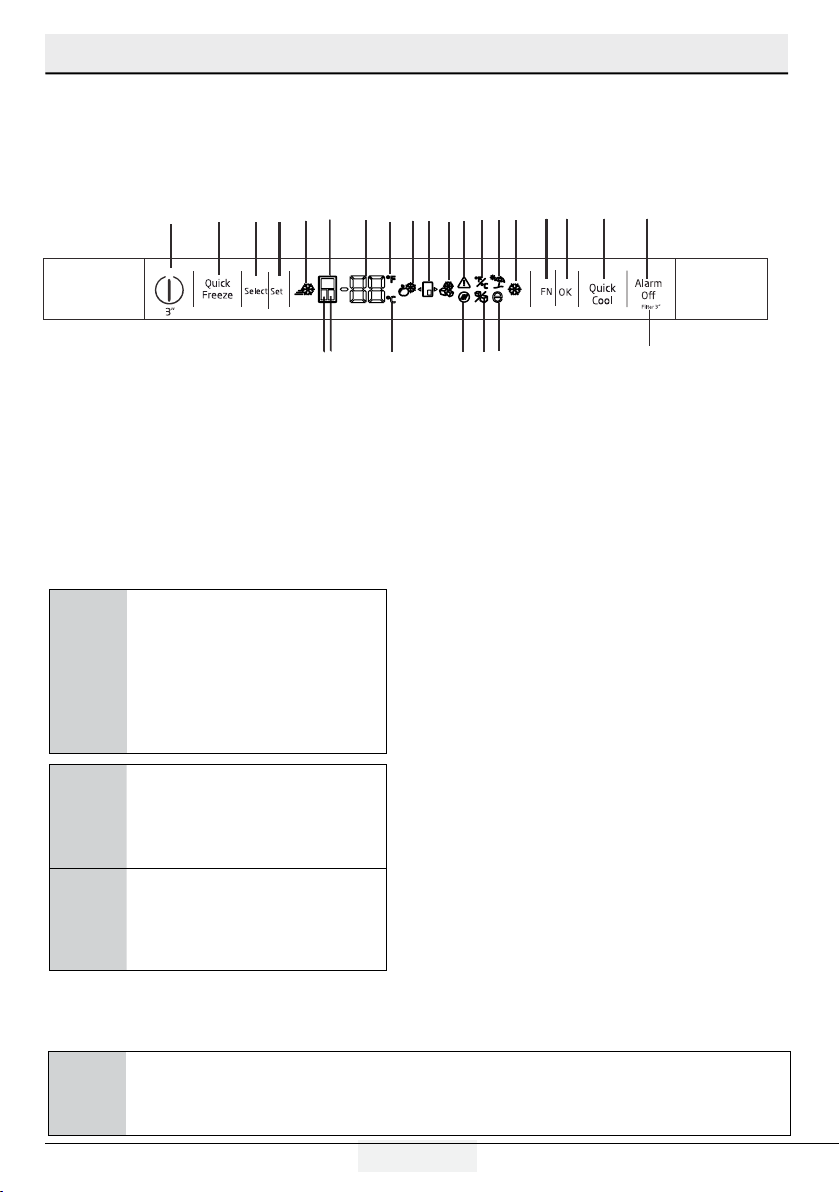

5.2 Indicator panel

Touch-control indicator panel allows you to set the temperature and control the other functions related to
the refrigerator. Just press the relevant buttons for function settings.

17

18 19

2

1

5

3

4

6

7

*9

8

13

10

12

*11

16

15

14

25

26

24

1-On/Off function

Press the On/Off button for 3 seconds to turn off or
turn on the fridge.

2. Quick freeze function button

Press this button to activate or deactivate the quick
freeze function. When you activate the function,
the freezer compartment will be cooled to a
temperature lower than the set value.

Use the quick freeze function when you
want to quickly freeze the food placed

C

C
C

in freezer compartment. If you want
to freeze large amounts of fresh food,
activate this function before putting the
food into the product.

If you do not cancel it, Quick Freeze
will cancel itself automatically after 4
hours at the most or when the fridge
compartment reaches to the required
temperature.

This function is not recalled when
power restores after a power failure.

3.Select button

Use this button to select the cabin whose
temperature you want to change. Switch between
the cabins by pressing this button. The selected
cabin can be understood from the cabin icons (6,

21

22

23

*20

25, 24 ). Whichever cabin icon is power on, the
cabin, whose temperature set value you want to
change, is selected. Then, you can change the set
value by pressing the cabin set value Temperature
Adjustment button (4)

4.Temperature Adjustment / Temperature
Decrease

When pressed, decreases the temperature of the
selected compartment.

5-Quick freeze Indicator

This icon lits when the Quick freeze function is
active.

6. Fridge compartment indicator

When this indicator is active, the temperate
of the fridge compartment is displayed on the
temperature value indicator.Fridge compartment
can be set to 8, 7, 6, 5, 4, 3, 2 or 1°C / 46, 45,
44, 43, 42, 41, 40,39,38,37,36,35,34 or 33°F by
pressing Temperature Adjustment button (4).

7. Temperature value indicator

Shows the temperature value of the selected
compartment.

8. Fahrenheit indicator

It is a Fahrenheit indicator. When the Fahrenheit
indication is activated, the temperature set values
are shown in Fahrenheit and the relevant icon
turns on.

C

Figures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are valid for other models.

18 / 32 EN

Refrigerator / User Manual

Operating the product

9. Joker fridge icon

When you select the joker fridge icon using the FN
button (16) and press the OK button (17) the joker
cabin turns into a fridge cabin and operates as a
cooler.

10. Joker cabin icon

It shows joker cabin icon.

11. Joker freezer icon

When you select the joker freezer icon using the
FN button (16) and press the OK button (17) the
joker cabin turns into a freezer cabin and operates
as a freezer.

12. Power failure/High temperature / error
warning

This indicator illuminates during power failure, high
temperature failures and error warnings. During
long-term power failures, the highest temperature
value that the freezer compartment reaches will
blink on the digital display. After checking the food
located in the freezer compartment, press the
alarm off button (19) to clear the warning.

13.Setting the Celsius and Fahrenheit
indicator

Hover over this key using the FN key and select
Fahrenheit and Celsius via the OK key. When
the relevant temperature type is selected, the
Fahrenheit and Celsius indicator turns on.

14. Vacation function icon

Press the FN key (until it reaches the umbrella
icon) to activate the vacation function. When you
hover over the vacation function icon, it start
flashing. Thus, you can understand whether the
vacation function will be activated or deactivated.
When you press the OK button, the vacation
function indicator lights continuously and thus the
Vacation function is activated. Press the OK key
to cancel the vacation function. Thus, the vacation
function indicator will start flashing and the
vacation function will be cancelled.

15. Quick cooling function indicator

It turns on when the quick fridge function is
activated.

16. FN button

Using this key, you can switch between the
functions that you want to select. Upon pressing

19 /32 EN

this key, the icon, whose function is required to be
activated or deactivated, and this icon’s indicator
starts flashing. The FN button gets deactivated if
not pressed for 20 seconds. You need to press this
button to change the functions again.

17. OK button

After navigating the functions using the FN button,
when the function is cancelled via the OK button,
the relevant indicator flashes. When the function is
activated, it remains on. The indicator continues to
flash in order to show the icon it is on.

18. Quick cooling function button

The button has two functions. To activate or
deactivate the quick cool function, press it briefly.
Quick Cool indicator will turn off and the product
will return to its normal settings.

19. Alarm off warning

In case of power failure/high temperature
alarm, after checking the foods in the freezer
compartment, press the alarm off button to clear
the High temperature warning icon (12).

20. Filter reset

The filter is reset when the alarm off button (19) is
pressed for 3 seconds. Filter reset icon goes off.

21. Eco fuzzy function icon

Press the FN key (until it reaches the letter e
icon) to activate the eco fuzzy. When you hover
over the eco fuzzy icon it start flashing. Thus,
you can understand whether the eco fuzzy
function will be activated or deactivated. When
you press the OK button, the eco fuzzy function
icon lights continuously during this process. If you
do not press any button after 20 seconds, the
icon remains on. Thus, the eco fuzzy function is
activated. In order to cancel the eco fuzzy function,
hover over the icon again and press the OK key.
Thus, the eco fuzzy function icon will start flashing.
If you do not press any button within 20 seconds,
the icon will go off and the eco fuzzy function will
be cancelled.

22. Ice machine off icon

Press the FN key (until it reaches the ice icon) to
switch off the ice machine. The ice machine off

Refrigerator / User Manual

Operating the product

icon start flashing when you hover over it, thus you
can understand whether the ice machine will be
turned on or off. When you press the OK button,
the ice machine icon lights continuously during
this process. If you do not press any button after
20 seconds, the icon and the indicator remains on.
Thus, the ice machine is switched off. In order to
switch on the ice machine again, hover over the
icon. The ice machine off icon will start flashing. If
you press ok button, the icon will go off and thus
the ice machine will be switched on again.

Indicates whether the icematic is

C
C

23. Filter reset icon

This icon turns on when the filter needs to be
reset.

24. Celsius indicator

It is a Celsius indicator. When the Celsius indication
is activated, the temperature set values are shown
in Celsius and the relevant icon turns on.

25. Joker compartment indicator

When this indicator is active, the temperate of the
joker compartment is displayed on the temperature
value indicator. Joker compartment set values
change by pressing Temperature Adjustment
button (4).

26. Freezer compartment indicator

When this indicator is active, the temperate of
the freezer compartment is displayed on the
temperature value indicator.Freezer compartment
can be set to -18, -19, -20, -21, -22, -23 and -24
°C /0, -2, -4, -6, -8, -10 and -12°F by pressing
Temperature Adjustment button (4).

on or off.

Water flow from water tank
will stop when this function is
selected. However, ice made
previously can be taken from the
icematic.

20 / 32 EN

Refrigerator / User Manual

Operating the product

Freezer

Compartment

Setting

-18°C 4°C This is the normal recommended setting.

-20, -22 or

-24°C

Quick Freeze 4°C

-18°C or colder 2°C

5.3 Freezing fresh food

• In order to preserve the quality of the food, it
shall be frozen as quickly as possible when it is
placed in the freezer compartment, use the fast
freezing feature for this purpose.

• You may store the food longer in freezer
compartment when you freeze them while they
are fresh.

• Pack the food to be frozen and close the
packing so that it would not allow entrance of
air.

• Ensure that you pack your food before putting
them in the freezer. Use freezer containers,
foils and moisture-proof papers, plastic
bags and other packing materials instead of
traditional packing papers.

• Label each pack of food by adding the date
before freezing. You may distinguish the
freshness of each food pack in this way when
you open your freezer each time. Store the food
frozen before in the front side of compartment
to ensure that they are used first.

• Frozen food must be used immediately after
they are thawed and they should not be re­frozen.

• Do not freeze too large quantities of food at
one time.

Fridge

Compartment

Setting

4°C

Remarks

These settings are recommended when the ambient temperature
exceeds 30°C.

Use when you wish to freeze your food in a short time. Your product
will return to its previous mode when the process is over.

Use these settings if you think that your fridge compartment is not
cold enough because of the hot ambient conditions or frequent
opening and closing of the door.

5.4 Recommendations for
preserving the frozen food

Compartment shall be set to -18°C at least.

1. Put packages in the freezer as quickly as

possible after purchase without allowing the
to thaw.

2. Check whether the "Use By" and "Best

Before" dates on the packaging are expired or
not before freezing it.

3. Ensure that the package of the food is not

damaged.

5.5 Deep-freeze information

According to IEC 62552 standards, the product
shall freeze at least 4.5 kg of food at 25°C
ambient temperature to -18°C or lower within 24
hours for every 100-litres of freezer volume.
It is possible to preserve the food for a long time
only at -18°C or lower temperatures.
You can keep the freshness of food for many
months (at -18°C or lower temperatures in the
deep freeze).
Foods to be frozen should not be allowed to come
in contact with the previously frozen items to
prevent them from getting thawed partially.

21 /32 EN

Refrigerator / User Manual

Operating the product

Boil the vegetables and drain their water in order
to store vegetables for a longer time as frozen.
After draining their water, put them in air-proof
packages and place them inside the freezer. Food
such as bananas, tomatoes, lettuce, celery, boiled
eggs, potatoes are not suitable for freezing. When
these foods are frozen, only their nutritional value
and taste shall be affected negatively. They shall
not be spoiled so that they would create a risk for
human health.

5.6 Placing the food

Freezer
compartment
shelves

Refrigerator
compartment
shelves

Door shelves
of fridge
compartment

Crisper Vegetables and fruits

Fresh zone
compartment

Various frozen food such
as meat, fish, ice cream,
vegetables and etc.

Food in pans, covered plates
and closed containers, eggs (in
closed container)

Small and packaged food or
beverage

Delicatessen (breakfast food,
meat products that shall be
consumed in a short time)

5.7 Door open warning

(This feature is optional)

An audio warning signal will be given when the
door of your product is left open for 1 minute. This
warning will be muted when the door is closed or
any of the display buttons (if any) are pressed.

5.8 Chiller compartment

Chiller compartments allow you to prepare the food
for freezing. You can also use these compartments
to store your food at a temperature a few degrees
below the fridge compartment.
You can increase the inner volume of your
refrigerator by removing any of the chiller
compartments:

1. Pull the compartment towards yourself until it
stops.

2. Lift the compartment about 1 cm up and pull
towards yourself to remove it from its seating.

5.9 Crisper

Crisper of the refrigerator is designed specially
to keep the vegetables fresh without loosing their
humidity. For this purpose, cool air circulation is
intensified around the crisper in general. Remove
the door shelves that stand against the crisper
before removing the crisper.

5.10 Humidity-controlled crisper

(FreSHelf)

(This feature is optional)

Humidity rates of fruits and vegetables are kept
under control thanks to the humidity-controlled
crisper and thus the food is ensured to stay fresh
for a longer period.

We recommend that you place leafy vegetables
such as lettuce and spinach and vegetables sensi­tive to humidity loss as horizontally as possible
when putting them in the crisper; not in a horizon­tal position on their roots.

While the vegetables are being replaced, their spe­cific weights should be taken into consideration.
Heavy and hard vegetables must be placed at the
bottom of the crisper and light and soft vegetables
must be on the upper part.

22 / 32 EN

Refrigerator / User Manual

Operating the product

Never leave the vegetables in their plastic bags in
the crisper. If they are left in their plastic bags, this
will cause them to rot in a little while. If you not
prefer the vegetable to get in contact with other
vegetables for hygienic reasons, use perforated
paper or a similar material instead of plastic bags.

Do not place pears, apricots, peaches etc.,
especially those fruits that generate large amounts
of ethylene, in the same crisper with other fruits
and vegetables. The ethylene gas emitted by these
fruits cause other fruits to ripen sooner and to rot
in a shorter span of time.

5.11 Egg tray

You can install the egg holder to the desired door
or body shelf.
Never keep the egg holder in the freezer
compartment.

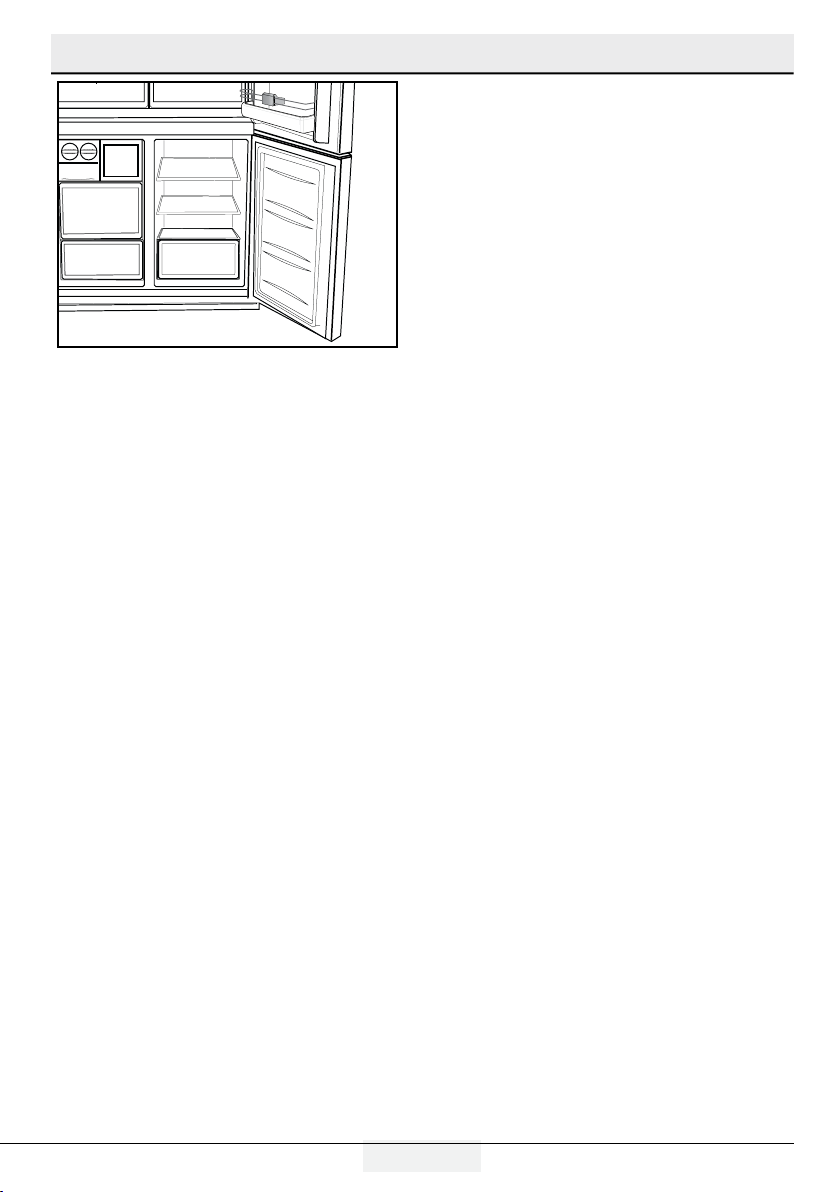

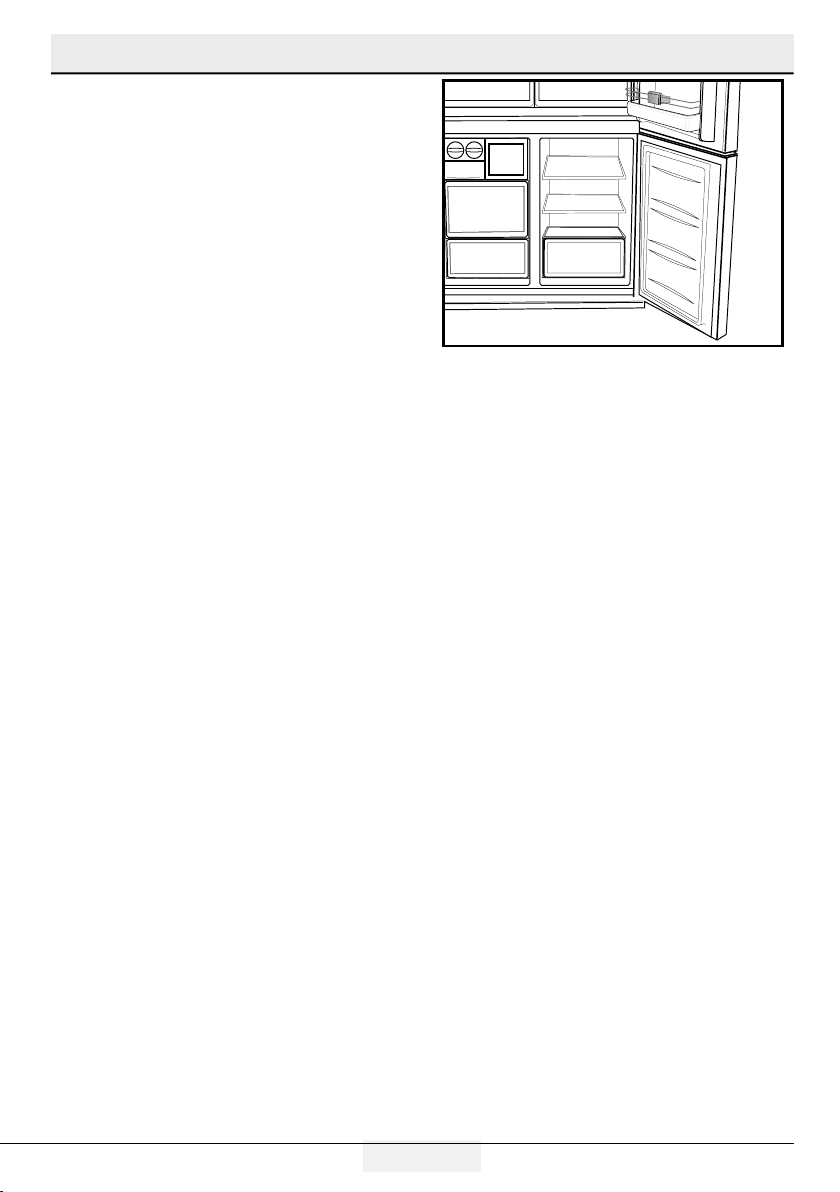

5.12 Movable Middle Section

Movable middle section is intended to prevent
the cold air inside your refrigerator from escaping
outside.

1- Sealing is provided when the gaskets on the
door presses on the surface of the movable middle
section while the fridge compartment doors are
closed.

2- Another reason that your refrigerator is
equipped with a movable middle section is that it
increases the net volume of the fridge compart­ment. Standard middle sections occupy some
non-usable volume in the refrigerator.

3-Movable middle section is closed when the left
door of the fridge compartment is opened.

4-It must not be opened manually. It moves under
the guidance of the plastic part on the body while
the door is closed.

5.13 Cool Control Storage
Compartment

The Cool Control Storage Compartment of your
refrigerator may be used in any desired mode
by adjusting it to fridge (2/4/6/8 °C) or freezer
(-18/-20/-22/-24) temperatures. You can keep the
compartment at the desired temperature with the
Cool Control Storage Compartment's Temperature
Setting Button. The temperature of the Cool
Control Storage Compartment may be set to 0 and
10 degrees in addition to the fridge compartment
temperatures and to -6 degrees in addition to
the freezer compartment temperatures. 0 degree
is used to store the deli products longer, and -6
degrees is used to keep the meats up to 2 weeks
in an easily sliceable condition.

The feature of switching to a Fridge or Freezer
compartment is provided by a cooling element
located in the closed section (Compressor
Compartment) behind the refrigerator. During
operation of this element, sounds similar to the
sound of seconds heard from an analogue clock
may be heard. This is normal and is not fault
cause.

5.14 Blue light

(in some models)

Crisper of the refrigerator are illuminated with a
blue light. Foodstuff stored in the crisper continue
their photosynthesis by means of the wavelength
effect of blue light and thus, preserve their
freshness and increase their vitamin content.

5.15 Odour filter

Odour filter in the air duct of the fridge
compartment prevents build-up of unpleasant
odours in the refrigerator.

23 /32 EN

Refrigerator / User Manual

Operating the product

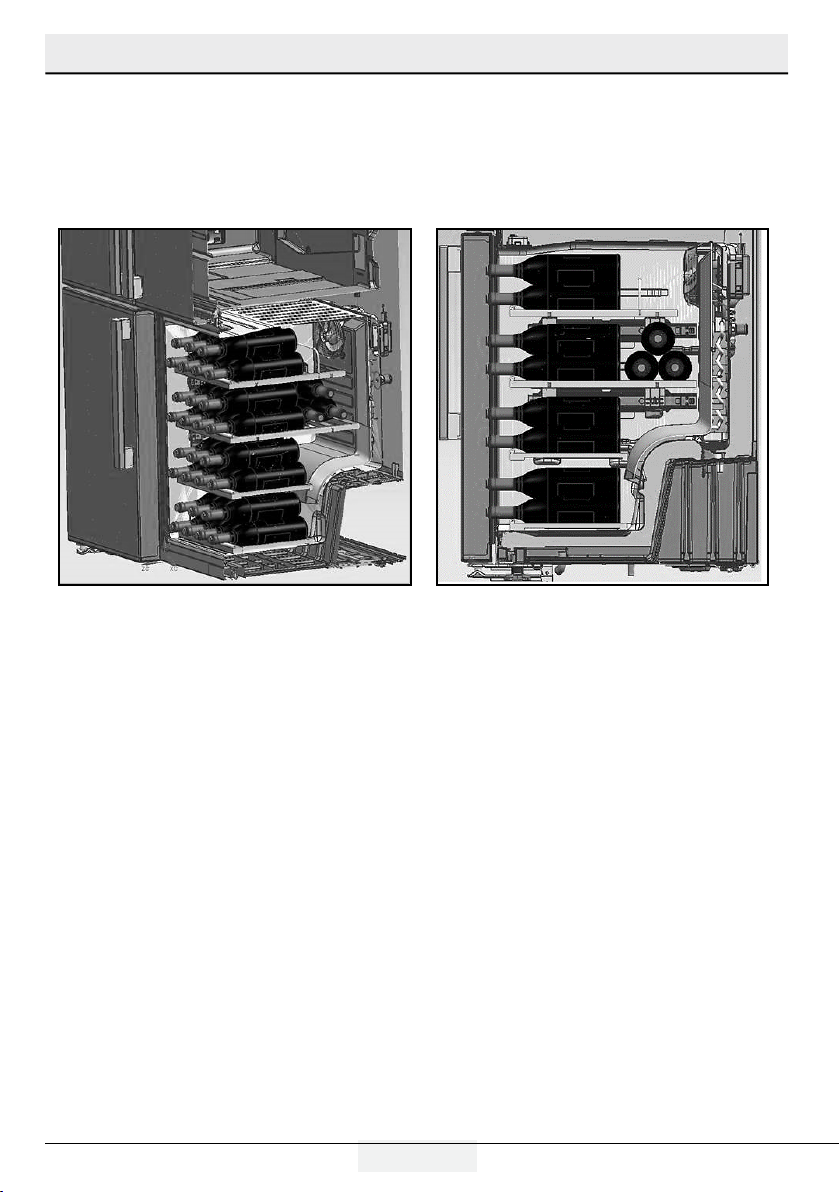

5.16 Wine cellar compartment

(This feature is optional)
1 – Fill your cellar compartment

Wine cellar was built to contain up to 28 front bottles + 3 bottles accessible using a telescopic rack.
These maximum quantities declared are given for information purpose only and correspond to tests
carried out with a “Bordelaise 75cl” standard bottle.

2- Suggested optimum service temperatures
Our advice: If you mix different types of wines, choose a 12 ° Celsius setting just like in a real cellar. For

white wines, which are to be served between 6 and 10 °, think of putting your bottles in the refrigerator
1/2 hour before serving, the refrigerator will be able to maintain the bottles at the preferred temperature.
As regards red wines, they will heat up slowly at room temperature when serving.

16 -17°C Fine Bordeaux wines - Red
15 -16°C Fine Burgundy wines- Red
14 -16°C Grand crus (great growth) of dry white wines
11 -12°C Light,fruity and young red wines
10 -12°C Provence rosé wines, French wines
10 -12°C Dry white wines and red country wines
8 - 10°C White country wines
7 - 8°C Champagnes
6-°C Sweet white wines

24 / 32 EN

Refrigerator / User Manual

Operating the product

3- Suggestions relating to the opening of a wine bottle before tasting:

White wines About 10 minutes before serving
Young red wines About10 minutes before serving
Thick and mature red wines About 30 to 60 minutes before serving

4- How long can an open bottle be preserved?

Unfinished bottles of wine must be cocked properly and can be preserved in a cold and dry place during
the following periods:

White wines Red wines

75 % full bottle 3 to 5 days 4 to 7 days
50 % full bottle 2 to 3 days 3 to 5 days

Less than 50 % 1 day 2 days

5.17 Use of internal water dispenser
and water dispenser at the door

(in some models)

After connecting the refrigerator to a water source
or replacing the water filter, flush the water
system. Use a sturdy container to depress and
hold the water dispenser lever for 5 seconds,
then release it for 5 seconds. Repeat until water
begins to flow. Once water begins to flow, continue
depressing and releasing the dispenser paddle
(5 seconds on, 5 seconds off) until a total of 4
gal. (15L) has been dispensed. This will flush air
from the filter and water dispensing system, and
prepare the water filter for use. Additional flushing
may be required in some households. As air is
cleared from the system, water may spurt out of
the dispenser.
Allow 24 hours for the refrigerator to cool down
and chill water. Dispense enough water every week
to maintain a fresh supply.

After 5 minutes of continuous
dispensing, the dispenser will stop
dispensing water to avoid flooding.

C

To continue dispensing, press the
dispenser paddle again.

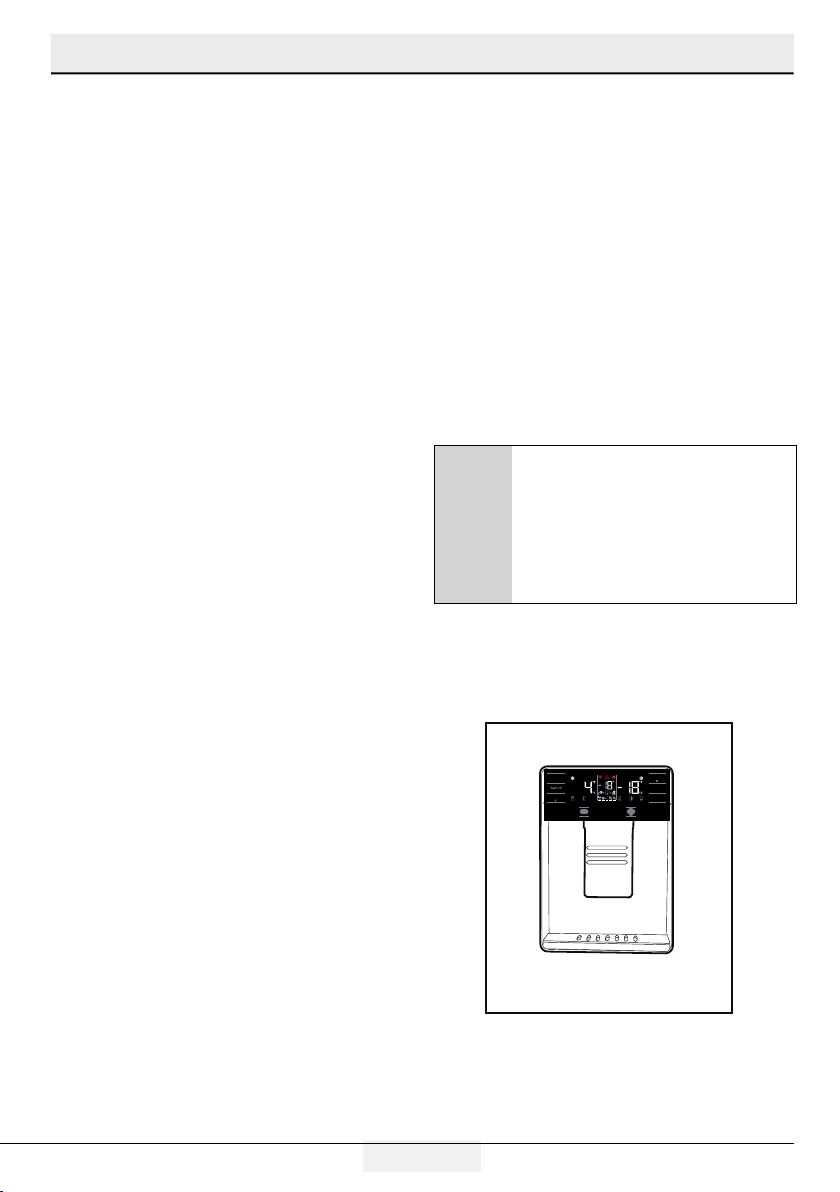

Water dispenser at the door (in some models)

Quick FreezeQuick Cool

3 “

Select

3 “

FN

OK

25 /32 EN

Refrigerator / User Manual

Operating the product

Select

Quick FreezeQuick Cool

FN

OK

3 “

3 “

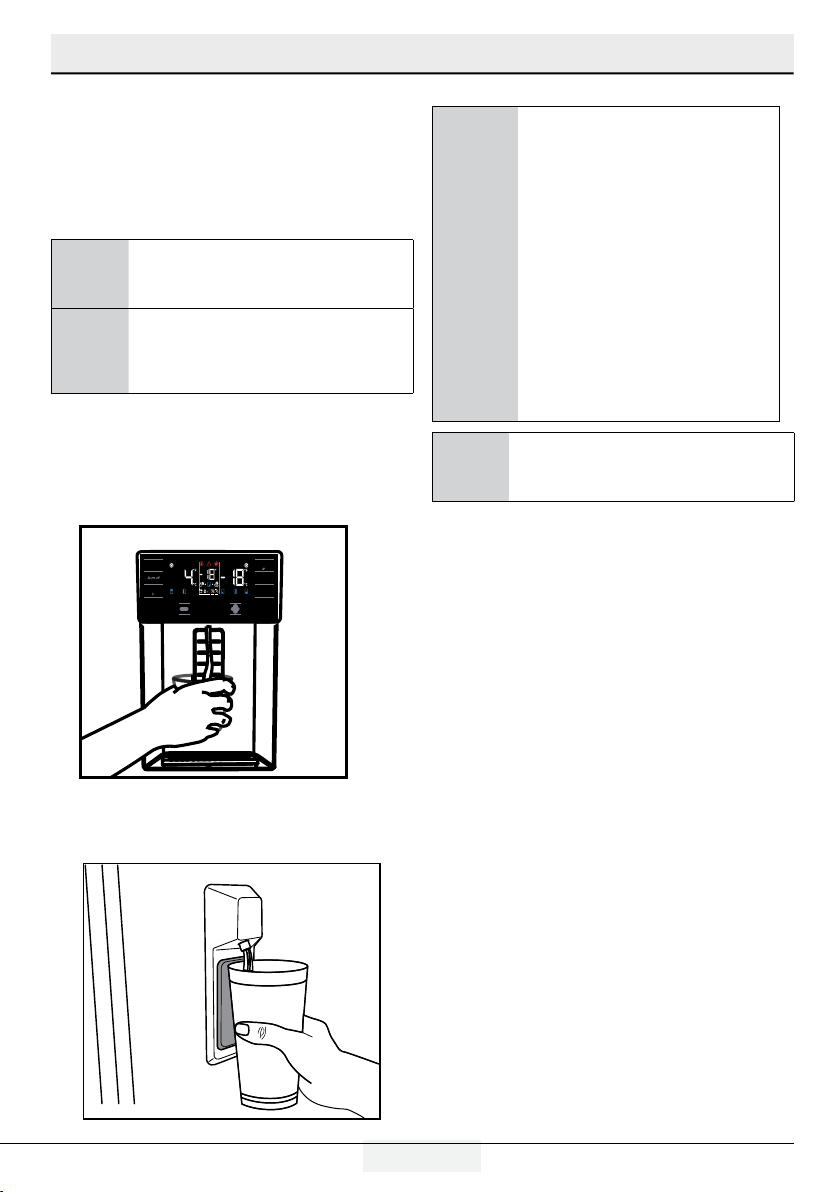

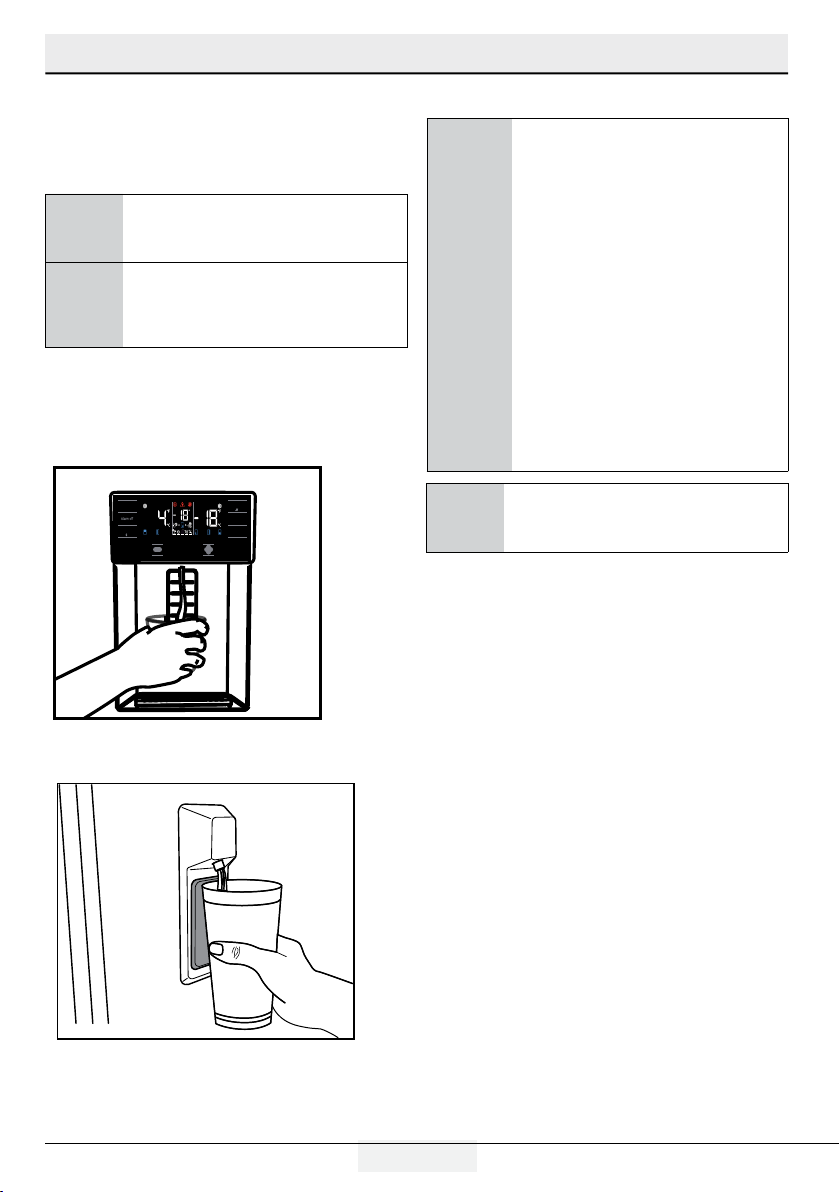

5.18 Dispensing water

Hold a container under the dispenser spout while
pressing the dispenser pad.
Release the dispenser pad to stop dispensing.

It is normal for the first few glasses of
water taken from the dispenser to be

C
C

During initial use, you will have to wait
approximately 24 hours for the water to cool down.
Take out the glass a little while after you pull the
trigger.

warm.
If the water dispenser is not used for a long

period of time, dispose of first few glasses
of water to obtain fresh water.

Quick FreezeQuick Cool

3 “

Select

3 “

FN

OK

5.19 For using water dispenser

Before using your fridge first time and
after replacing your water filter, water
dispenser may drip drops of water. To
prevent water dripping or leaking from
dispenser, please bleed the air from
the system by dispensing 5-6 gallons
(about 20 liter) of water through the
water dispenser before the first use
and every time after you change

A

C

the water filter. This will remove any
air trapped in the system and stop
the water dispenser from leaking.
Checking coupler position and the
straightness of water line at the back
of the unit will be required if there’s an
obstruction in water flow.

If your water dispenser is leaking just a few
drops of water after you have dispensed some
water, this is normal.

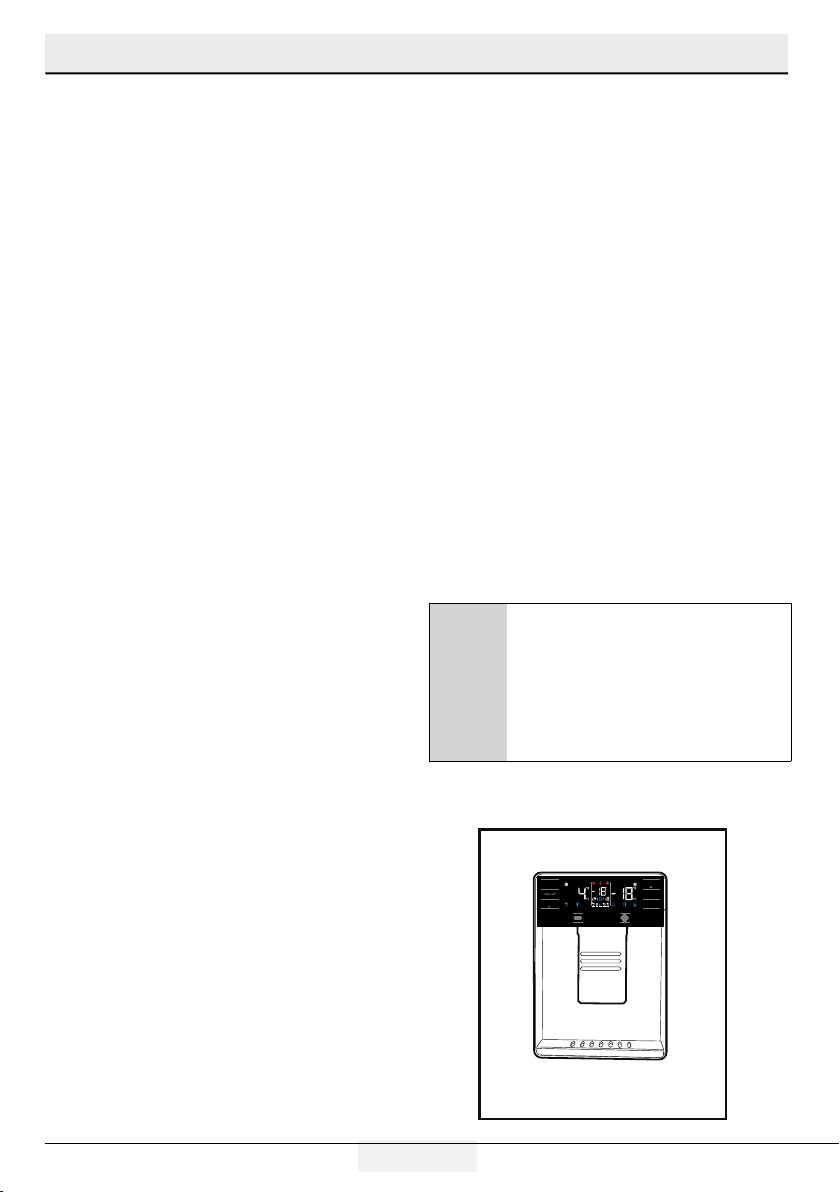

Built-in water dispenser (in some models)

26 / 32 EN

Refrigerator / User Manual

Operating the product

5.20 Icematic

(in some models)

To get ice from the icematic, fill the water tank
in the fridge compartment with water up to the
maximum level.

Ice cubes in the ice drawer may stick to each
other and become a bulk due to hot and humid
air in approximately 15 days. This is normal. If you
cannot break the bulk apart, you can empty the ice
container and make ice again.

It is recommended to change the water

C
C

C
C

in the water tank if it remains in the
water tank for more then 2-3 weeks.

Strange noises you hear from the refrig­erator at 120-minute intervals are the
sounds of ice-making and pouring. This
is normal.

If you do not want to make ice, press the Ice
off icon to stop the icematic to save energy
and prolong the service life of your refrigerator.

It is normal that a few drops of water drop
from the dispenser after you have taken water.

5.21 Icematic and ice
storage container

(in some models)
Using the Icematic

Fill the Icematic with water and place it into its
seat. Your ice will be ready approximately in two
hours. Do not remove the Icematic from its seating
to take ice.

Turn the knobs on the ice reservoirs clockwise by
90 degrees.

Ice cubes in the reservoirs will fall down into the
ice storage container below.

You may take out the ice storage container and
serve the ice cubes.

If you wish, you may keep the ice cubes in the ice
storage container.

Ice storage container

Ice storage container is only intended for
accumulating the ice cubes. Do not put water in it.
Otherwise, it will break.

27 /32 EN

Refrigerator / User Manual

6 Maintenance and cleaning

Cleaning your fridge at regular intervals will
extend the service life of the product.

B WARNING:

Unplug the product before cleaning it.

• Never use gasoline, benzene or
similar substances for cleaning
purposes.

• Never use any sharp and abrasive
tools, soap, household cleaners,
detergent and wax polish for
cleaning.

• For non-No Frost products,
water drops and frosting up to a
fingerbreadth occur on the rear wall
of the Fridge compartment. Do not
clean it; never apply oil or similar
agents on it.

• Only use slightly damp microfiber
cloths to clean the outer surface of
the product. Sponges and other types
of cleaning cloths may scratch the
surface

• Dissolve one teaspoon of bi­carbonate in half litre of water. Soak
a cloth with the solution and wrung
it thoroughly. Wipe the interior of the
refrigerator with this cloth and the
dry thoroughly.

• Make sure that no water enters the
lamp housing and other electrical
items.

• If you will not use the refrigerator
for a long period of time, unplug it,
remove all food inside, clean it and
leave the door ajar.

• Check regularly that the door gaskets
are clean. If not, clean them.

• To remove door and body shelves,
remove all of its contents.

• Remove the door shelves by pulling
them up. After cleaning, slide them
from top to bottom to install.

• Never use cleaning agents or water
that contain chlorine to clean the
outer surfaces and chromium coated
parts of the product. Chlorine causes
corrosion on such metal surfaces.

6.1 Avoiding bad odours

• Materials that may cause odour
are not used in the production of
our refrigerators. However, due
to inappropriate food preserving
conditions and not cleaning the inner
surface of the refrigerator as required
can bring forth the problem of odour.
Pay attention to following to avoid
this problem:

• Keeping the refrigerator clean is
important. Food residuals, stains, etc.
can cause odour. Therefore, clean
the refrigerator with bi-carbonate
dissolved in water every few months.
Never use detergents or soap.

• Keep the food in closed containers.
Microorganisms spreading out from
uncovered containers can cause
unpleasant odours.

• Never keep the food that have passed
best before dates and spoiled in the
refrigerator.

6.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your
refrigerator in unsealed containers as they damage
the plastic surfaces of the refrigerator. If oil is
spilled or smeared onto the plastic surfaces, clean
and rinse the relevant part of the surface at once
with warm water.

28 / 32 EN

Refrigerator / User Manual
