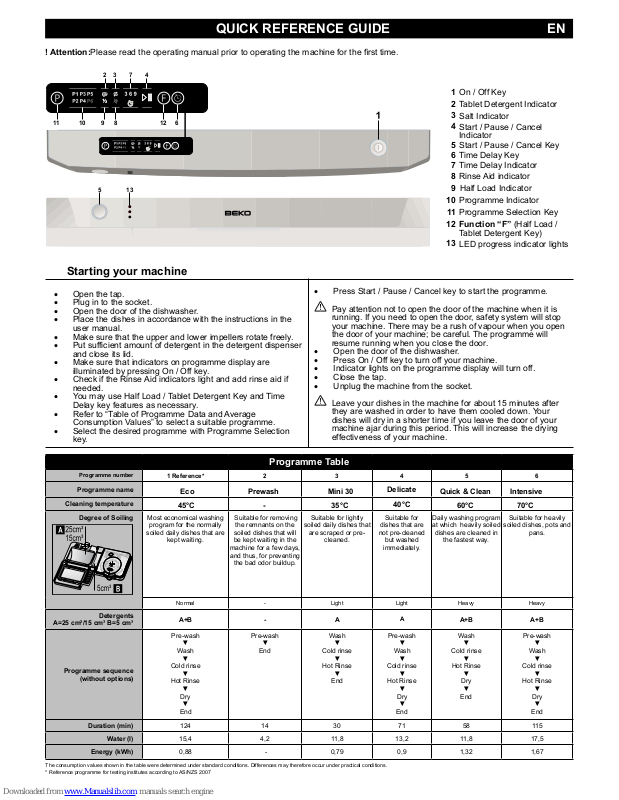

QUICK REFERENCE GUIDE
EN
Programme Table
Programme number
1 Reference* 2 3 4 5 6
Programme name
Cleaning temperature
Degree of Soiling Most economical washing
program for the normally
soiled daily dishes that are
kept waiting.
Suitable for removing
the remnants on the
soiled dishes that will
be kept waiting in the
machine for a few days,
and thus, for preventing
the bad odor buildup.
Suitable for lightly
soiled daily dishes that
are scraped or pre-
cleaned.
Suitable for
dishes that are
not pre-cleaned
but washed
immediately.
Daily washing program
at which heavily soiled
dishes are cleaned in
the fastest way.
Suitable for heavily
soiled dishes, pots and
pans.
Normal - Light Light Heavy Heavy
Detergents
A=25 cm³/15 cm³ B=5 cm³
A+B - A
A
A+B A+B
Programme sequence
(without options)
Pre-wash
▼
Wash
▼
Cold rinse
▼
Hot Rinse
▼
Dry
▼
End
Pre-wash
▼
End
Wash
▼
Cold rinse
▼
Hot Rinse
▼
End
Pre-wash
▼
Wash
▼
Cold rinse
▼
Hot Rinse
▼
Dry
▼
End
Wash
▼
Cold rinse
▼
Hot Rinse
▼
Dry
▼
End
Pre-wash
▼
Wash
▼
Cold rinse
▼
Hot Rinse
▼
Dry
▼
End
Duration (min) 124 14 30 71 58 115
Water (I) 15,4 4,2 11,8 13,2 11,8 17,5
Energy (kWh) 0,88 - 0,79 0,9 1,32 1,67
The consumption values shown in the table were determined under standard conditions. Differences may therefore occur under practical conditions.
* Reference programme for testing institutes according to AS/NZS 2007
Prewash Mini 30Eco
Delicate
Intensive
35°C-45°C
40°C
70°C
Quick & Clean
60°C
! Attention:Please read the operating manual prior to operating the machine for the rst time.
2
11 10 9 12 68
7
3 4
5
13
11
12
13
Function “F” (Half Load /
Tablet Detergent Key)
Programme Selection Key
10
Programme Indicator
9
Half Load Indicator
Tablet Detergent Indicator
Salt Indicator
On / Off Key
1
2
3
4
Start / Pause / Cancel
Indicator
8
Rinse Aid indicator
6
7
5
Time Delay Indicator
Start / Pause / Cancel Key
Time Delay Key
LED progress indicator lights
Starting your machine
• Open the tap.
• Plug in to the socket.
• Open the door of the dishwasher.
• Place the dishes in accordance with the instructions in the
user manual.
• Make sure that the upper and lower impellers rotate freely.
• Put sufficient amount of detergent in the detergent dispenser
and close its lid.
• Make sure that indicators on programme display are
illuminated by pressing On / Off key.
• Check if the Rinse Aid indicators light and add rinse aid if
needed.
• You may use Half Load / Tablet Detergent Key and Time
Delay key features as necessary.
• Refer to “Table of Programme Data and Average
Consumption Values” to select a suitable programme.
• Select the desired programme with Programme Selection
key.
• Press Start / Pause / Cancel key to start the programme.
Pay attention not to open the door of the machine when it is
running. If you need to open the door, safety system will stop
your machine. There may be a rush of vapour when you open
the door of your machine; be careful. The programme will
resume running when you close the door.
• Open the door of the dishwasher.
• Press On / Off key to turn off your machine.
• Indicator lights on the programme display will turn off.
• Close the tap.
• Unplug the machine from the socket.
Leave your dishes in the machine for about 15 minutes after
they are washed in order to have them cooled down. Your
dishes will dry in a shorter time if you leave the door of your
machine ajar during this period. This will increase the drying
effectiveness of your machine.
Page 2
QUICK REFERENCE GUIDE
EN
17 8771 01 00_AA
On / Off Key
When you press On / Off key, indicator lights illuminate on the
display for ON position. The lights turn off in OFF position.
Rinse aid level indicator light
If this indicator light comes on, you have to
rell rinse aid (If applicable).
You can also tell whether rinse aid must be
relled by looking at the rinse aid dispenser.
When the visual ll indicator is dark, there is
enough rinse aid in the dispenser.
When the colour is light, open the dispenser
and rell rinse aid.
Programme Selection Key
Refer to "Table of Programme Data and Average Consumption
Values" to select a programme suitable for your dishes.
Select the desired programme with programme selection key.
Function “F” (Half Load / Tablet Detergent) Key
Half Load / Tablet Detergent Key allows you to turn on and off the
Half Load and Tablet Detergent functions of your machine.
Half Load Function
If you want to run your machine without loading it completely, place
your dishes into the machine as you desire. Press On / Off key to
turn on your machine. Press the Half Load / Tablet Detergent key
after selecting the desired programme until Half Load Indicator
lights up, then press Start / Pause / Cancel key and close the door
of your machine. With the Half Load option you can use every part
of your lower and upper baskets and you can save from both water
and power.
Tablet Detergent Function
Depending on the hardness level of the tap water, the Tablet
Detergent function allows obtaining a better drying performance
from the multi-purpose detergents such as 2in1, 3in1, 4in1, 5in1,
etc., called as all-in-one detergents. Tablet Detergent Indicator
lights when the Tablet Detergent function is selected.
Salt and Rinse Aid indicators turn off when this function is activated.
Turn on your machine by pressing the On / Off key to use the Tablet
Detergent function. Press the Half Load / Tablet Detergent key after
selecting the desired programme until Half Load Indicator lights up,
then press Start / Pause / Cancel key and close the door of your
machine.
To use the Half Load and Tablet Detergent functions concurrently,
turn on your machine by pressing the On / Off key and then press
the Half Load / Tablet Detergent key until Half Load and Tablet
Detergent Indicators illuminate together.
If you have used Half Load or Tablet Detergent features during
the last programme you used, Half Load or Tablet Detergent
function will remain active in the next washing programme you
will select. If you do not want to use these functions in the new
programme you have selected, press the Half Load / Tablet
Detergent key until the indicator of the relevant function turns
off.
“Inner Illumination” Setting (If applicable)
You can use the submenu settings to change the “Inner
Illumination” setting you will use in your machine.
To change the submenu settings:
Turn on your machine by pressing the On/Off button while pressing
and holding Programme Selection and Start/Pause/Cancel keys.
Firstly, P1 indicator will light up on the display. Select the desired
setting (P1, P3) by pressing the Programme Selection key.
P1: Inner illumination (ON)
P3: Inner illumination (OFF)
Save the selected setting by pressing Start/Pause/Cancel key
again.
Time Delay
Using the Time Delay key, you may delay the starting time of your
programme up to 3,6,9 hours with increments of 30 minutes. Press
Start / Pause / Cancel key after setting the Time Delay and close
the door of your machine. Once the time delay is over, the selected
programme will start automatically.
Start / Pause / Cancel Key
When you press the Start / Pause / Cancel key, the washing
programme you have selected will start.
(Start / Pause / Cancel indicator lights in Start mode, and turns off
in Pause mode)
To press the Start / Pause / Cancel key, wait for two seconds
after you turn on the machine by pressing the On / Off key.
LED progress indicator lights
The program sequence throughout the washing
process can be monitored from the progress
indicator lights on the control panel.
! Warning
Following the washing stage, in order to drain and remove water
from inside the machine completely, the machine will pause for
approximately 35 minutes. Do not worry this is not a fault. Then End
progress indicator light will come on.
! Warning
Do not switch the machine off before End light comes on.
Canceling a programme
To cancel the program selection while the machine is operating
open the door.
! Care must be taken when opening the door, as steam will escape.
Press and hold Start / Pause / Cancel key for 3 seconds. Release
the key as the Start / Pause / Cancel indicator starts ashing.
Once you close the door of your machine, draining is completed
in 2 minutes and the machine gives an audible warning when it is
completed.
There might be residues of detergent or rinse aid left in the
machine and / or on the pieces being washed depending on
the step the programme you have cancelled was in.
Visual Indicator
(If applicable)
Wash
Dry
End
