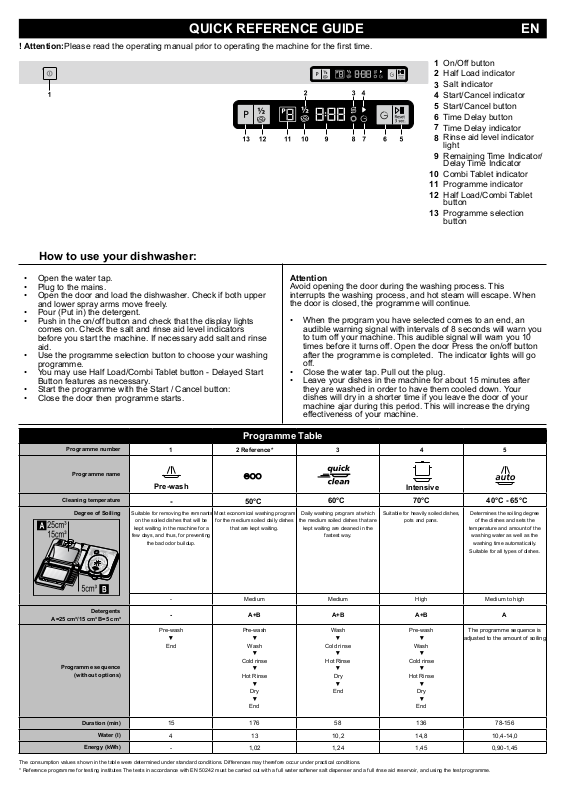

QUICK REFERENCE GUIDE
! Attention:Please read the operating manual prior to operating the machine for the rst time.
How to use your dishwasher:
On/Off button
1
Half Load indicator
2
Salt indicator
3
4
Start/Cancel indicator
Start/Cancel button
5
Time Delay button
6
7
Time Delay indicator
Rinse aid level indicator
8
light
Remaining Time Indicator/
9
Delay Time Indicator
Combi Tablet indicator
10
11
Programme indicator
12
Half Load/Combi Tablet
button
Programme selection
13
button
EN
• Open the water tap.
• Plug to the mains.
• Open the door and load the dishwasher. Check if both upper
and lower spray arms move freely.
• Pour (Put in) the detergent.
• Push in the on/off button and check that the display lights
comes on. Check the salt and rinse aid level indicators
before you start the machine. If necessary add salt and rinse
aid.
• Use the programme selection button to choose your washing
programme.
• You may use Half Load/Combi Tablet button - Delayed Start
Button features as necessary.
• Start the programme with the Start / Cancel button:
• Close the door then programme starts.
Programme Table
Programme number
Programme name
Cleaning temperature
Degree of Soiling
Suitable for removing the remnants
on the soiled dishes that will be
kept waiting in the machine for a
few days, and thus, for preventing
1 2 Reference* 3 4 5
Pre-wash
- 50°C
Most economical washing program
for the medium soiled daily dishes
that are kept waiting.
the bad odor buildup.
Attention
Avoid opening the door during the washing process. This
interrupts the washing process, and hot steam will escape. When
the door is closed, the programme will continue.
• When the program you have selected comes to an end, an
audible warning signal with intervals of 8 seconds will warn you
to turn off your machine. This audible signal will warn you 10
times before it turns off. Open the door Press the on/off button
after the programme is completed. The indicator lights will go
off.
• Close the water tap. Pull out the plug.
• Leave your dishes in the machine for about 15 minutes after
they are washed in order to have them cooled down. Your
dishes will dry in a shorter time if you leave the door of your
machine ajar during this period. This will increase the drying
effectiveness of your machine.
Intensive
60°C 70°C 40°C - 65°C
Daily washing program at which
the medium soiled dishes that are
kept waiting are cleaned in the
fastest way.
Suitable for heavily soiled dishes,
pots and pans.
Determines the soiling degree
of the dishes and sets the
temperature and amount of the
washing water as well as the
washing time automatically.
Suitable for all types of dishes.
- Medium Medium High Medium to high
A=25 cm³/15 cm³ B=5 cm³
Programme sequence
The consumption values shown in the table were determined under standard conditions. Differences may therefore occur under practical conditions.
* Reference programme for testing institutes The tests in accordance with EN 50242 must be carried out with a full water softener salt dispenser and a full rinse aid reservoir, and using the test programme.
Detergents
(without options)
Duration (min)
Water (I)
Energy (kWh)
- A+B A+B A+B A
Pre-wash
▼
End
15 176 58 136 78-156
4 13 10,2 14,8 10,4-14,0
- 1,02 1,24 1,45 0,90-1,45
Pre-wash
▼
Wash
▼
Cold rinse
▼
Hot Rinse
▼
Dry
▼
End
Wash
▼
Cold rinse
▼
Hot Rinse
▼
Dry
▼
End
Pre-wash
▼
Wash
▼
Cold rinse
▼
Hot Rinse
▼
Dry
▼
End
The programme sequence is
adjusted to the amount of soiling
Page 2
QUICK REFERENCE GUIDE
On/Off button
1
Half Load indicator
2
Salt indicator
3
4
Start/Cancel indicator
Start/Cancel button
5
Time Delay button
6
7
Time Delay indicator
Rinse aid level indicator light
8
On/off button
You turn your dishwasher on / off with this button. When turning on,
the indicator light for the last used programme will light up.
Visual Indicator
(If applicable)
Program selection buttons
Use the program selection button to select the desired program.
The corresponding program light lights up.
Half Load / Tablet Detergent Button
Half Load/Tablet Detergent Button allows you to turn on and off the
Half Load and Tablet Detergent functions of your machine.
Half Load Function
If you want to run your machine without loading it completely, place
your dishes into the machine as you desire. Press the On/Off button
to turn on your machine. Press the Half Load/Tablet Detergent
button after selecting the desired program until Half Load Indicator
lights up, then press Start/Cancel button and close the door of your
machine. With the Half Load option you can use every part of your
lower and upper baskets and you can save from both water and
power.
Tablet Detergent Function
Depending on the hardness level of the tap water, the Tablet
Detergent function allows obtaining a better drying performance
from the multi-purpose detergents such as 2in1, 3in1, 4in1, 5in1,
etc., called as all-in-one detergents. The programs in which the
tablet detergent function can be enabled is indicated in the Program
Data and Table of Average Consumption Values. Tablet Detergent
Indicator lights when the Tablet Detergent function is selected.
Salt and Rinse Agent indicators turn off when this function is
activated.
Rinse aid level indicator light
If this indicator light comes on, you have to
rell rinse aid (If applicable).
You can also tell whether rinse aid must be
relled by looking at the rinse aid dispenser.
When the visual ll indicator is dark, there is
enough rinse aid in the dispenser.
When the colour is light, open the dispenser
and rell rinse aid.
9
Remaining Time Indicator/
Delay Time Indicator
Combi Tablet indicator
10
11
Programme indicator
12
Half Load/Combi Tablet button
Programme selection button
13
EN
and S:03 High. Turn off your machine using the On/Off button to
save it. Factory setting of your machine is S:03.
Display
Water hardness level, Time Delay for the selected programme and
warning message are displayed.
Time Delay
Using the Delayed Start button, you may delay the starting time of
your program up to 9.5 hours with increments of 30 minutes. After
delaying the start, press Start/Cancel button and close the door of
your machine. Once the delay time is over, the selected program
will start automatically.
Canceling the delay function
Keep the Start/Cancel button pressed for 3 seconds. The selected
delay period will be cancelled.
As soon as the canceling starts, the water that may be remained in
your machine will be drained for 30 seconds due to safety reasons.
Start/cancel button
When you press the Start/Cancel button, the washing program you
have selected will start.
(Start/Cancel indicator lights in Start mode, and turns off in Pause
mode)
How to cancel the washing program
To cancel the program selection while the machine is operating
open the door.
! Care must be taken when opening the door, as steam will escape.
Press and hold the Start/Cancel button for 3 seconds. Release
the button when the Start/Cancel indicator starts ashing. Once
you close the door of your machine, draining is completed in 45
seconds - 2 minutes and the machine gives an audible warning
when it is completed.
! Important:
Depending on the stage of the programme you have cancelled,
there may be detergent residue or rinse aid inside the machine and
on the load. Make sure the items in the dishwasher are not used
before washing properly.
How to change the washing program
To change the program selection while the machine is operating
open the door.
! Care must be taken when opening the door, as steam will escape.
Press Start/Pause/Cancel button rst to switch your machine
into pause mode if you want to change your selection after you
have started the program. Then, switch to the desired program
by pressing Program Selection button. Start the new program by
pressing Start/Cancel button again.
! Important:
The new program will NOT start right from the beginning. It will start
from the stage last carried out by the previous program selection.
! Warning
Depending on the length of the terminated program detergent and
rinse aid may still be in the dispensers.
Improper Loading Of Dishware
Turn on your machine by pressing the On/Off button to use the
Tablet Detergent function. Press the Half Load/Tablet Detergent
button after selecting the desired program until Tablet Detergent
Indicator lights up, then press Start/Cancel button and close the
door of your machine.
To use the Half Load and Tablet Detergent functions concurrently,
turn on your machine by pressing the On/Off button and then press
the Half Load/Tablet Detergent button until Half Load and Tablet
Detergent Indicators illuminate together.
! Important:
If you have used the Half Load or Tablet Detergent features during
the last program you used, Half Load or the Tablet Detergent
function will remain active in the next washing program you will
select. If you do not want to use these functions in the new program
you have selected, press the Half Load/Tablet Detergent button until
the indicator of the relevant function turns off.
Changing Warning Sound Volume
To change the program selection while the machine is operating
open the door.
! Care must be taken when opening the door, as steam will escape.
Every time you press the Half Load/Tablet Detergent button, the
warning sound level will change as - - Off, S:01 Low, S:02 Medium,
17 9593 01 00-YA
