Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
www.beko.com
This product was manufactured using the latest technology in environmentally friendly conditions.
CONTENTS
1 Your refrigerator 4
2 Important Safety Warnings 5
Intended use .....................................5
For products with a water dispenser; .7
Child safety ........................................7
Compliance with WEEE Directive and
Disposing of the Waste Product: .......7
Compliance with RoHS Directive: ......8
Package information ..........................8
HCA Warning ....................................8
Things to be done for energy saving ..8
3 Installation 10
Points to be paid attention to when the
relocation of the refrigerator .............10
Before you start the refrigerator, .......10
Electrical connection ........................10
Disposing of the packaging .............11
Disposing of your old refrigerator .....11
Placing and Installation ....................11
Changing the illumination lamp .......12
Door Open Warning .........................12
Changing the door opening direction 12
Adjusting the legs ............................12
4 Preparation 13
5 Using your refrigerator 14
Indicator Panel .................................14
Door Open Warning .........................17
Dual cooling system: .......................17
Freezing fresh food ..........................17
Recommendations for preservation of
frozen food ......................................18
Deep-freeze information ..................20
Placing the food ..............................20
Recommendations for the fresh food
compartment ...................................21
Odour filter ......................................22
Hygiene - Ion ..................................22
Chill compartment ...........................22
6 Maintenance and cleaning 23
Protection of plastic surfaces ..........23
7 Troubleshooting 24
EN
3

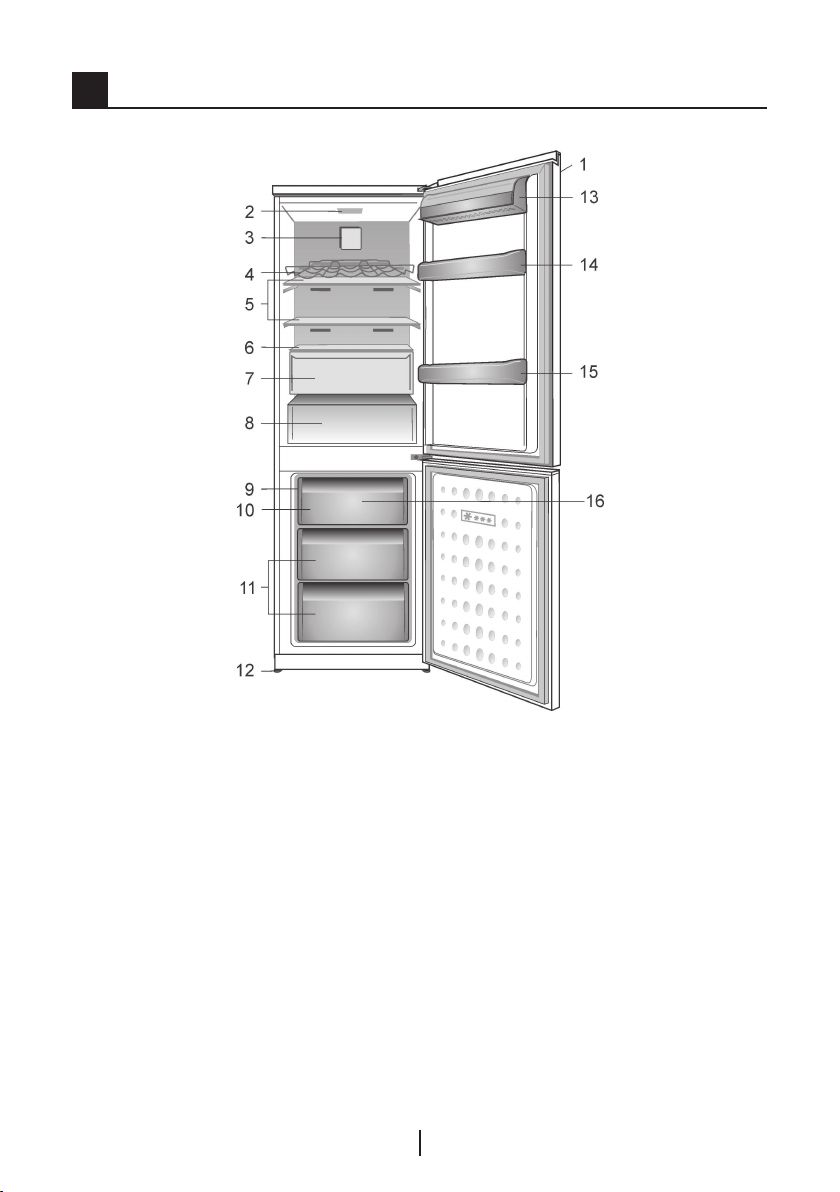

1 Your refrigerator
1. Control panel
10. Compartment for quickly freezing
Optional
2. Interior light
3. Fresh Food fan
4. Wine bottles support
5. Adjustable Cabinet shelves
6. Chiller cover and glass
7. Chiller
8. Salad crispers
9. Ice tray support & ice tray
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in
the product you have purchased, then it is valid for other models.
11. Compartments for frozen froods keeping
12. Adjustable front feet
13. Dairy Compartment
14. Shelf for jars
15. Shelf for bottles
16. Freezer fan
*
EN
4
2 Important Safety Warnings
Please review the following information.
Failure to observe this information may
cause injuries or material damage.
Otherwise, all warranty and reliability
commitments will become invalid.
The usage life of the unit you
purchased is 10 years. This is the period
for keeping the spare parts required for
the unit to operate as described.
Intended use
This product is intended to be used
• indoors and in closed areas such as
homes;
• in closed working environments such
as stores and offices;
• in closed accommodation areas such
as farm houses, hotels, pensions.
• This product should not be used
outdoors.
General safety
• When you want to dispose/scrap
the product, we recommend you
to consult the authorized service in
order to learn the required information
and authorized bodies.
• Consult your authorized service for
all your questions and problems
related to the refrigerator. Do not
intervene or let someone intervene to
the refrigerator without notifying the
authorised services.
• For products with a freezer
compartment; Do not eat cone ice
cream and ice cubes immediately
after you take them out of the freezer
compartment! (This may cause
frostbite in your mouth.)
• For products with a freezer
compartment; Do not put bottled and
canned liquid beverages in the freezer
compartment. Otherwise, these may
burst.
• Do not touch frozen food by hand;
they may stick to your hand.
• Unplug your refrigerator before
cleaning or defrosting.
• Vapor and vaporized cleaning
materials should never be used in
cleaning and defrosting processes of
your refrigerator. In such cases, the
vapor may get in contact with the
electrical parts and cause short circuit
or electric shock.
• Never use the parts on your
refrigerator such as the door as a
means of support or step.
• Do not use electrical devices inside
the refrigerator.
• Do not damage the parts, where
the refrigerant is circulating, with
drilling or cutting tools. The refrigerant
that might blow out when the gas
channels of the evaporator, pipe
extensions or surface coatings are
punctured causes skin irritations and
eye injuries.
• Do not cover or block the ventilation
holes on your refrigerator with any
material.
• Electrical devices must be repaired
by only authorised persons. Repairs
performed by incompetent persons
create a risk for the user.
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s mains
supply by either turning off the
EN
5
relevant fuse or unplugging your
appliance.
• Do not pull by the cable when pulling
off the plug.
• Place the beverage with higher proofs
tightly closed and vertically.
• Never store spray cans containing
flammable and explosive substances
in the refrigerator.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• This product is not intended to be
used by persons with physical,
sensory or mental disorders or
unlearned or inexperienced people
(including children) unless they are
attended by a person who will be
responsible for their safety or who will
instruct them accordingly for use of
the product
• Do not operate a damaged
refrigerator. Consult with the service
agent if you have any concerns.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• Exposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety.
• Contact authorized service when
there is a power cable damage to
avoid danger.
• Never plug the refrigerator into
the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
• This refrigerator is intended for only
storing food items. It must not be
used for any other purpose.
• Label of technical specifications is
located on the left wall inside the
refrigerator.
• Never connect your refrigerator to
electricity-saving systems; they may
damage the refrigerator.
• If there is a blue light on the
refrigerator, do not look at the blue
light with optical tools.
• For manually controlled refrigerators,
wait for at least 5 minutes to start the
refrigerator after power failure.
• This operation manual should be
handed in to the new owner of the
product when it is given to others.
• Avoid causing damage on power
cable when transporting the
refrigerator. Bending cable may cause
fire. Never place heavy objects on
power cable. Do not touch the plug
with wet hands when plugging the
product.
• Do not plug the refrigerator if the wall
outlet is loose.
• Water should not be sprayed directly
on inner or outer parts of the product
for safety purposes.
• Do not spray substances containing
inflammable gases such as propane
gas near the refrigerator to avoid fire
and explosion risk.
• Never place containers filled with
water on top of the refrigerator,
otherwise this may cause electric
EN
6
shock or fire.
• Do not overload your refrigerator
with excessive amounts of food. If
overloaded, the food items may fall
down and hurt you and damage
refrigerator when you open the door.
Never place objects on top of the
refrigerator; otherwise, these objects
may fall down when you open or
close the refrigerator’s door.
• As they require a precise
temperature, vaccines, heat-sensitive
medicine and scientific materials
and etc. should not be kept in the
refrigerator.
• If not to be used for a long time,
refrigerator should be unplugged. A
possible problem in power cable may
cause fire.
• The plug’s tip should be regularly
cleaned; otherwise, it may cause fire.
• The plug’s tip should be cleaned
regularly with a dry cloth; otherwise, it
may cause fire.
• Refrigerator may move if adjustable
legs are not properly secured on the
floor. Properly securing adjustable
legs on the floor can prevent the
refrigerator to move.
• When carrying the refrigerator, do not
hold it from door handle. Otherwise, it
may be snapped.
• When you have to place your product
next to another refrigerator or freezer,
the distance between devices should
be at least 8cm. Otherwise, adjacent
side walls may be humidified.
For products with a water
dispenser;
Pressure of water mains should be
minimum 1 bar. Pressure of water
mains should be maximum 8 bars.
• Use only potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children must be supervised to
prevent them from tampering with the
product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies with EU WEEE
Directive (2012/19/EU). This
product bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).This product has
been manufactured with
high quality parts and
materials which can be reused and are
suitable for recycling. Do not dispose of
the waste product with normal domestic
and other wastes at the end of its
service life. Take it to the collection
center for the recycling of electrical and
electronic equipment. Please consult
your local authorities to learn about
these collection centers.
EN
7
Compliance with RoHS
Directive:
Things to be done for energy
saving
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specified in the Directive.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
HCA Warning
If your product’s cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Ignore this warning if your
product’s cooling system contains
R134a.
Type of gas used in the product is
stated in the type plate which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
• Pay attention not to open doors very
frequently and do not leave the doors
open for a long time. When doors
are open, warm air enters the fridge/
freezer cabinets and the appliance
consumes more energy to cool down
the foodstuffs.Thus please do not
open doors frequently in order to
save energy and to keep foods at
ideal storage temperature.
• Do not block the freezer fan grill by
placing foods in front.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators.
• Pay attention to keep your food in
closed containers.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

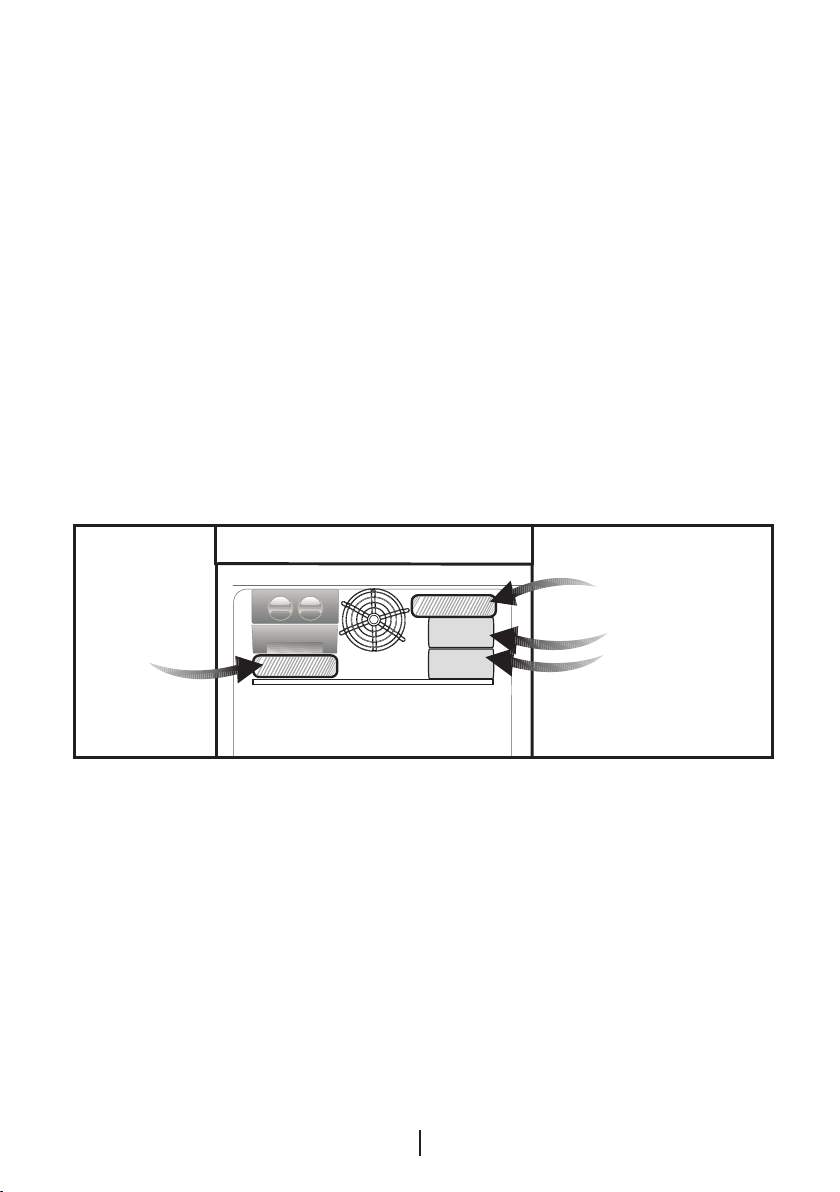

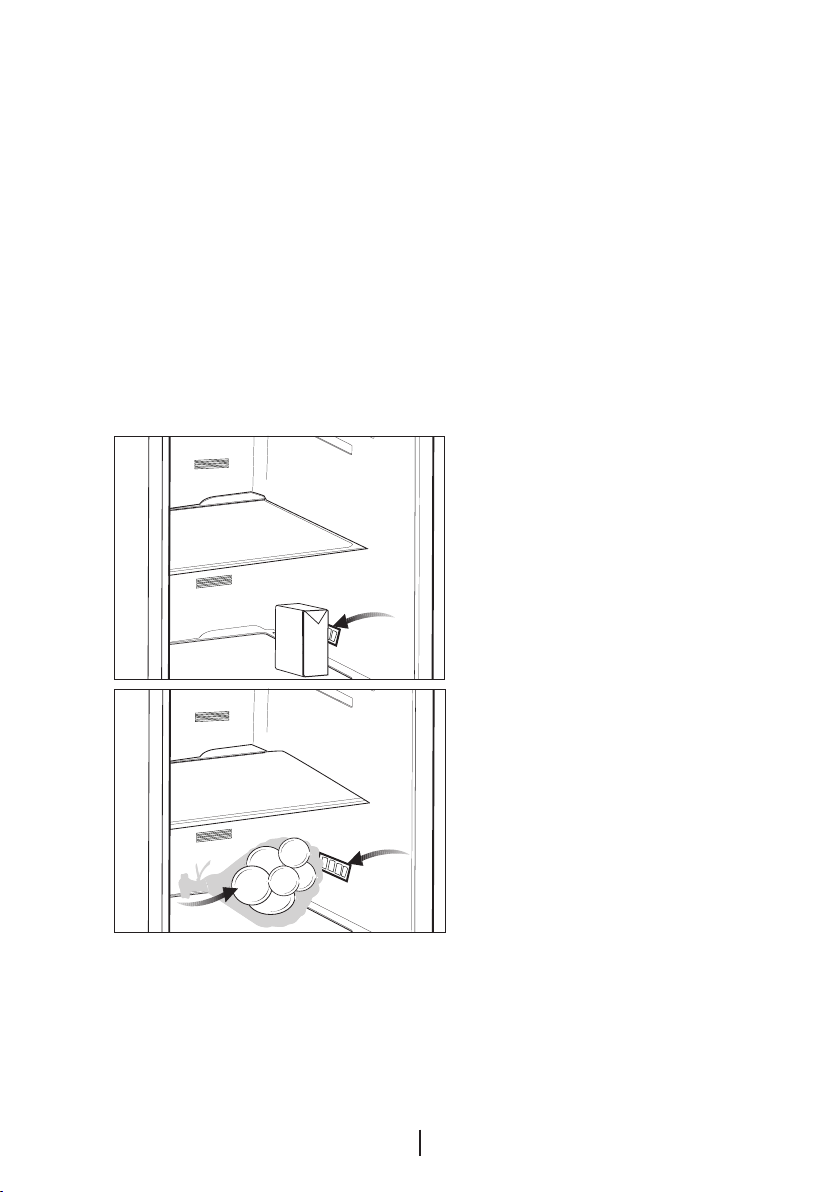

• Please use provided 2 pieces of cold
packs (pcm) at recommended places
below when storing foodstuffs in
freezer compartments.
• It helps to keep your foodstuffs colder
for more time when electricity is off or
your appliance is unplugged.
• If you do not plan to store foodstuff
in freshfood compartment, please
activate vacation mode for energy
saving. Freezer compartment keeps
frezing normalıy when vacation mode
is on.
EN
8
• Recommended temperature settings
are +4°C and -20°C for freshfood and
freezer compartments respectively.
• For loading maximum foodstuff in your
freezer compartment, top shelf cover
and middle drawer may be removed.
Declared energy consumption volume
of your refrigerator is determined
while the freezer compartment is
loaded without ice maker, ice tray
top shelf cover and middle drawer
for maximum loading configuration.
It’s highly recommended that bottom
drawer is always used in place when
loading. Top shelf cover and middle
drawer are provided for ease of use if
needed.
• If rear back wall condanser of your
appliance can be reached without any
tool, please pull the appliance forward
and clean the dust off regularly to
maintain high performance.
cold pack
cold pack
foodstuffs
EN
9
3 Installation
B In case the information which are
given in the user manual are not
taken into account, manufacturer will
not assume any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged, shelves,
accessories, crisper, etc. inside your
refrigerator should be fixed with
adhesive tape and secured against
impacts. Package should be bound
with a thick tape or sound ropes
and the transportation rules on the
package should be strictly observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the
refrigerator,
Check the following before you start
to use your refrigerator:
1. Attach 2 plastic wedges as illustrated
below. Plastic wedges are intended
to keep the distance which will ensure
the air circulation between your
refrigerator and the wall. (The picture
is drawn up as a representation and it
is not identical with your product.)
2. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
3. Connect the plug of the refrigerator
to the wall socket. When the fridge
door is opened, fridge internal lamp
will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is
not running and this is quite normal.
5. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.

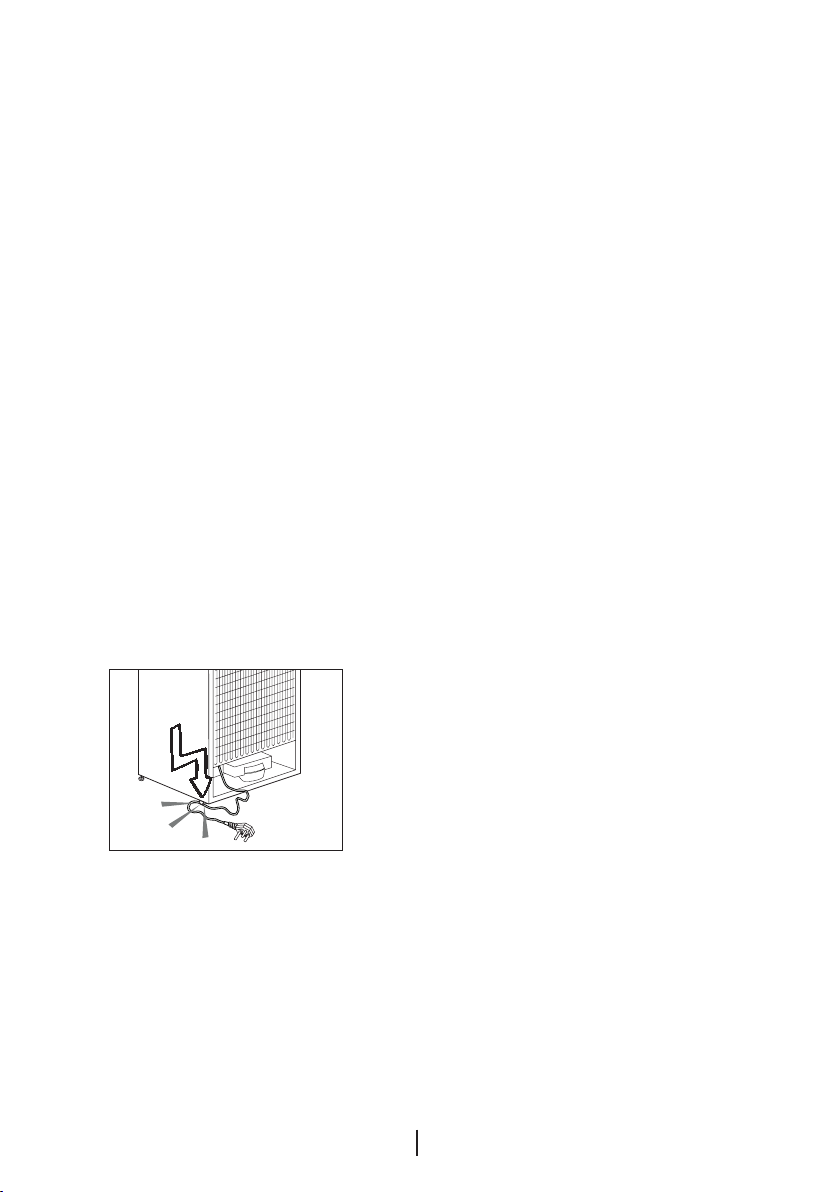

Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily
accessible after installation.
10
EN
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
• Extension cables and multi plugs
must not be used for connection.
B A damaged power cable must be
replaced by a qualified electrician.
B Product must not be operated before
it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated by
the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
A If the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the doors
of your refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a place that
allows ease of use.
2. Keep your refrigerator away from heat
sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with the
wall. Do not place your product on
the materials such as rug or carpet.
4. Place your refrigerator on an even
floor surface to prevent jolts.
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
11
EN
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call your
Authorized Service.
Door Open Warning
(This feature is optional)
An audio warning signal will be given
when the door of your product is left
open for at least 1 minute. This warning
will be muted when the door is closed
or any of the display buttons (if any) are
pressed.
Changing the door opening
direction
Door opening direction of your
refrigerator can be changed according
to the place you are using it. If this is
necessary, please call your nearest
Authorized Service.

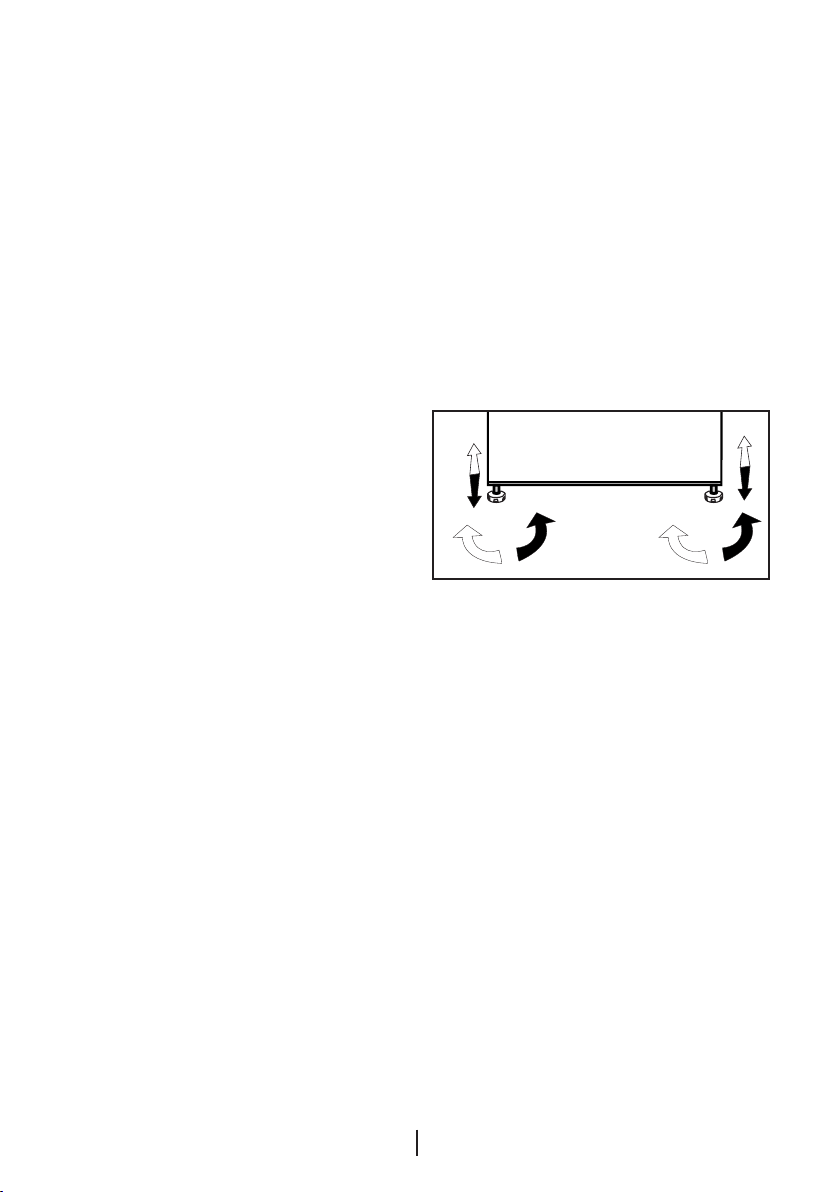

Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning its front legs as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction
of black arrow and raised when you
turn in the opposite direction. Taking
help from someone to slightly lift the
refrigerator will facilitate this process.
12
EN
4 Preparation
• Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
• The ambient temperature of the room
where you install your refrigerator
should at least be 10°C. Operating
your refrigerator under cooler
conditions is not recommended with
regard to its efficiency.
• Please make sure that the interior
of your refrigerator is cleaned
thoroughly.
• If two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
• When you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
• The door should not be opened
frequently.
• It must be operated empty without
any food in it.
• Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• Original packaging and foam
materials should be kept for future
transportations or moving.
13
EN
5 Using your refrigerator

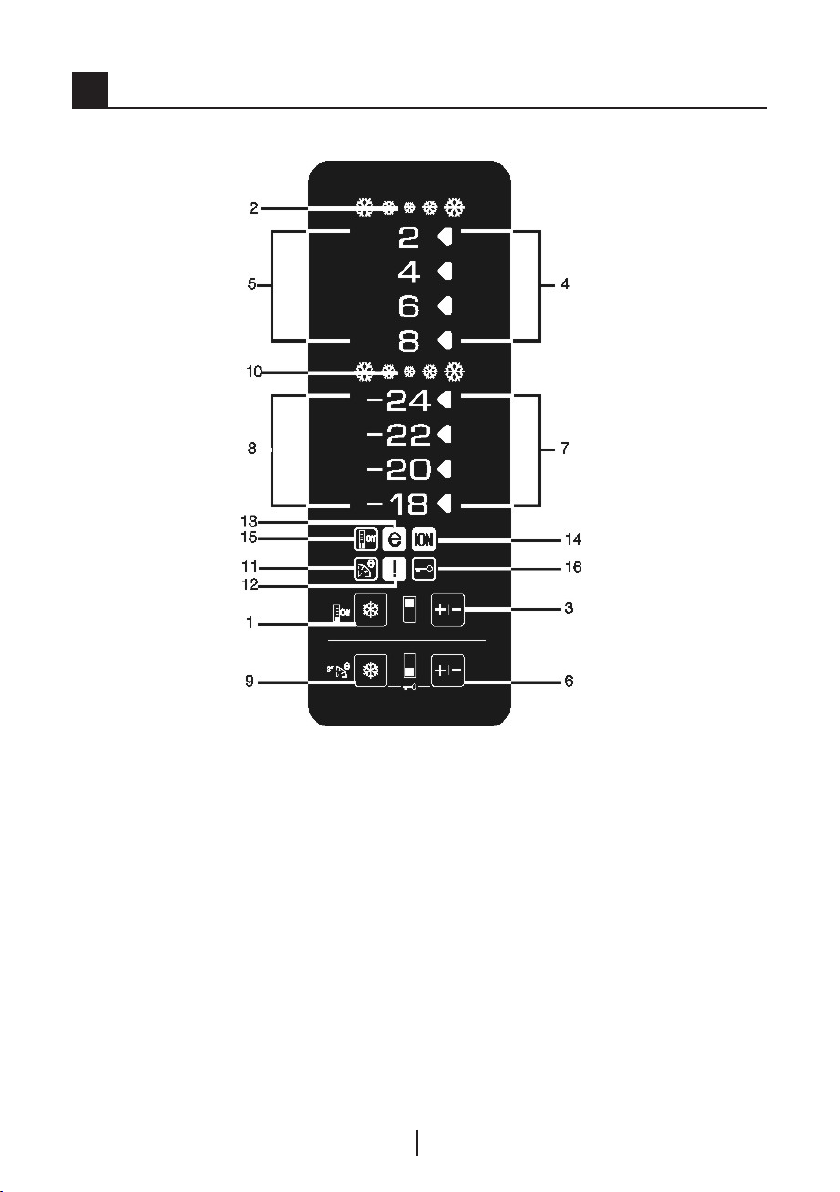

Indicator Panel
1- Quick Freeze Function
Quick Freeze indicator turns on when
the Quick Freeze function is on. To
cancel this function press Quick Freeze
button again. Quick Freeze indicator
will turn off and return to its normal
settings. If you do not cancel it, Quick
Freeze will cancel itself automatically
after 72 hours or when the freezer
compartment reaches to the required
temperature.
14
If you want to freeze large amounts
of fresh food, press the Quick Freeze
button 6 hours before putting the
food into the freezer compartment.
If you press the Quick Freeze button
repeatedly with short intervals, the
electronic circuit protection will be
activated and the compressor will not
start up immediately.
EN

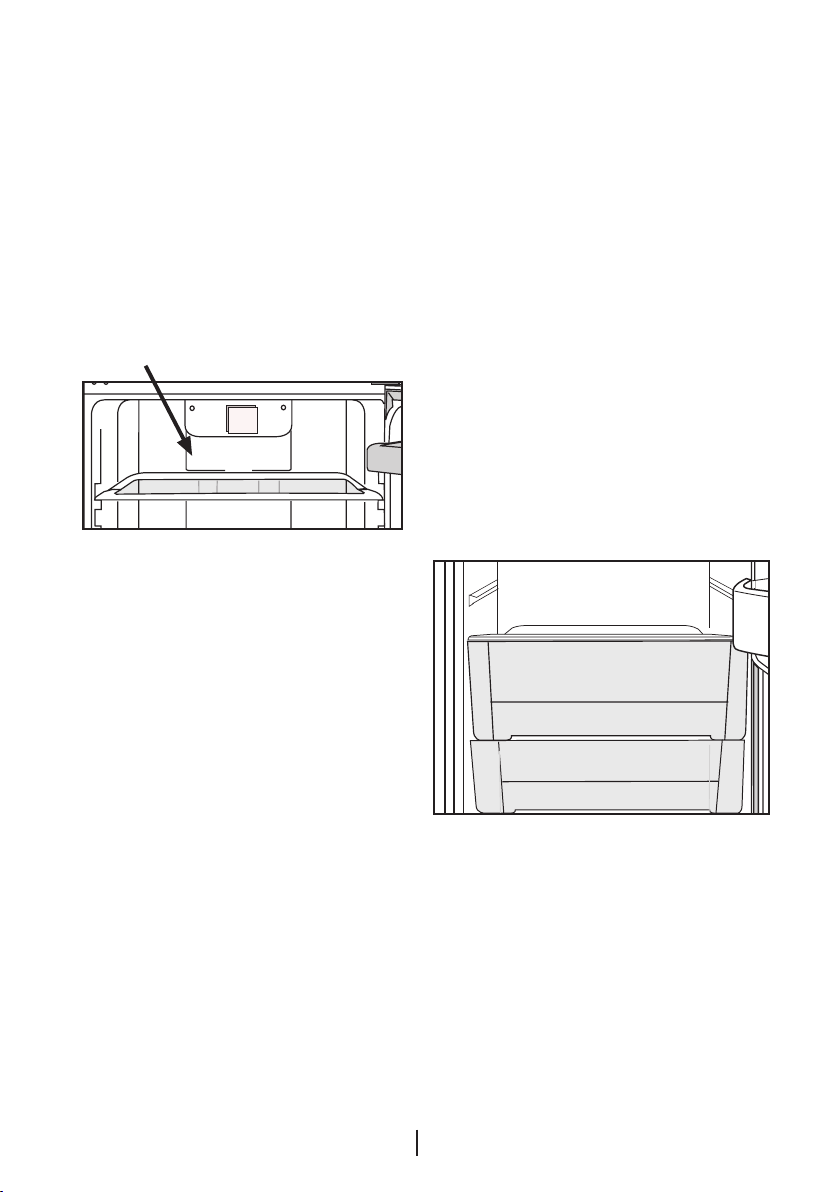

It's strongly recommended that you use top shelf for initial freezing of foodstuffs.
This function is not recalled when power restores after a power failure.
Quick freeze function. It improves storage and quick-freezing performance of your
freezer compartment.
2- Quick Freeze Indicator
This icon flashes in an animated style
when the Quick Freeze function is
active.
3- Freezer Set Function
This function allows you to make
the freezer compartment temperature
setting. Press this button to set the
temperature of the freezer compartment
to -18, -20, -22 and -24 respectively.
4- Freezer Compartment
Temperature Setting Indicator
Indicates the temperature set for the
Freezer Compartment.
5- Freezer Compartment
Temperature Indicator
-24, -22, -20, -18 indicators light up
continuously.
6- Fridge Set Function
This function allows you to make
the fridge compartment temperature
setting. Press this button to set the
temperature of the fridge compartment
to 8, 6, 4, 2 respectively.
7- Fridge Compartment
Temperature Setting Indicator
Indicates the temperature set for the
Fridge Compartment.
8-Fridge Compartment
Temperature Indicator
8, 6, 4 and 2 indicators light up
continuously.
9- Quick Fridge Function
When you press Quick Fridge button,
the temperature of the compartment
will be colder than the adjusted values.
This function can be used for food
placed in the fridge compartment and
required to be cooled down rapidly. If
you want to cool large amounts of fresh
food, it is recommended to active this
feature before
putting the food into the
fridge. Quick Fridge indicator will remain
lit when the Quick Fridge function is
enabled. To cancel this function press
Quick Fridge button again. Quick
Fridge indicator will turn off and return
to its normal settings. If you do not
cancel it, Quick Fridge will cancel itself
automatically after 2 hours or when
the fridge compartment reaches to the
required temperature.
This function is not recalled when
power restores after a power failure.
15
EN
10- Quick Fridge Indicator
This icon flashes in an animated style
when the Quick Fridge function is
active.
11- Eco-Fuzzy (Special Economic
Usage) Function
Press the Quick Freeze button
for 3 seconds to activate the Eco
Fuzzy Function. Refrigerator will start
operating in the most economic mode
at least 6 hours later and the economic
usage indicator will turn on when the
function is active. Press the Quick
Freeze button for 3 seconds again to
deactivate the Eco Fuzzy Function.
12- High Temperature/ Error
Warning Indicator
This light comes on during high
temperature failures and error warnings.
13. Economic Usage Indicator
Economic Usage Indicator turns on
when the Freezer Compartment is set
to -18°C. Economic Usage Indicator
turns off when the Quick Fridge or
Quick Freeze function is selected.
14- Ionizer Indicator Light
Indicator light lights up continuously.
This light indicates that your refrigerator
is protected against the bacteria.
15-Energy Saving Mode
When you press this button, Energy
saving icon will light up and Energy
Saving Function will be activated. If
energy saving function is active, all
icons on the display other than energy
saving icon will turn off. When the
Energy Saving Function is active, if
any button is pressed or the door is
opened, Energy Saving Function will
be exited and the icons on display will
return to normal.If you press this buton
again, Energy Saving icon will tur
n off
and Energy Saving Function will not be
active.
16-Key Lock Mode
Press Quick Freeze and FRZ Set
buttons concurrently for 3 seconds.
Key lock icon will light up and key lock
mode will be activated. Buttons will
not function if the Key Lock mode is
active. Press Quick Freeze and FRZ
Set buttons concurrently for 3 seconds
again. Key lock icon will turn off and the
key lock mode will be exited.
16
EN
Door Open Warning
Freezing fresh food
A audio warning signal will be given
when the fridge compartment door of
your product is left open for at least 1
minute. This audio signal will mute when
any button on the indicator is pressed or
when the door is closed.
the food before placing them in the
refrigerator.
• Hot food must be cooled down to
room temperature before placing
them in the freezer compartment.
• The foodstuff that you want to freeze
must be fresh and in good quality.
• It must be preferred to wrap or cover
Dual cooling system:
• Foodstuff must be divided into
portions according to the family’s
Your refrigerator is equipped with two
separate cooling systems to cool the
fresh food compartment and freezer
compartment. Thus, air in the fresh food
compartment and freezer compartment
do not get mixed. Thanks to these
two separate cooling systems, cooling
speed is much higher than other,type
refrigerators. Odors in the compartments
do not get mixed. Also additional power
saving is provided since the defrosting is
daily or meal based consumption
needs.
• The foodstuff must be packaged in
an airtight manner to prevent them
from drying even if they are intended
to be kept for a short time.
• Materials to be used for packaging
must be tear-proof and resistant to
cold, humidity, odor, oils and acids
and they must also be airtight.
performed individually.
Freezer Compartment
Adjustment
-20°C 4°C This is the normal recommended setting.
-22 or -24°C 4°C
Quick Freeze
Fridge
Compartment
Adjustment
4°C
Explanations
These settings are recommended when the
ambient temperature exceeds 30°C.
Use when you wish to freeze your food in a
short time. Your refrigerator will return to its
previous mode when the process is over.
-18°C or colder 2°C
-18°C or colder
Quick Fridge
If you think that your fridge compartment is not
cold enough because of the hot conditions or
frequent opening and closing of the door.
You can use it when your fridge compartment
is overloaded or if you wish to cool down
your food rapidly. It is recommended that you
activate quick fridge function 4-8 hours before
placing the food.
EN
17
Loading...
