Beko BK 8192 PLUS User Manual

BK 8192 PLUS

GB Instructions for use

GB Index 1-9

Safety first/1
Electrical requirements/2
Transportation instructions/2
Installation instructions/2
Getting to know your appliance/3
Suggested arrangement of food in the appliance/3
Temperature control and adjustment/4
Before operating/4
Storing frozen food/5
Freezing fresh food/5
Making ice cubes/5
Defrosting/6
Replacing the interior light bulb/6
Cleaning and care/6-7
Do’s and don’ts/7-8
Trouble - shooting/8

10

14

1

2

3

3

3

3
4

5

6

11

10

10

13

12

7

8

15

8

8

9

1

2

3

5

4

6

Instructions for useGB

Congratulations on your choice of a
Appliance, designed to give you many years of service.

Quality

Safety first!

Do not connect your appliance to the electricity supply
until all packing and transit protectors have been removed.

• Leave to stand for at least 4 hours before switching
on, to allow compressor oil to settle, if transported
horizontally.

• If you are discarding an old appliance with a lock or
latch fitted to the door, ensure that it is left in a safe
condition to prevent the entrapment of children.

• This appliance must only be used for its intended
purpose.

• Do not dispose of the appliance on a fire. Your
appliance contains non CFC substances in the insulation
which are flammable. We suggest you contact your local
authority for information on disposal and available
facilities.

• We do not recommend use of this appliance in an
unheated, cold room. (e.g. garage, conservatory, annex,
shed, out-house etc.)
To obtain the best possible performance and trouble free
operation from your appliance it is very important to
read these instructions carefully. Failure to observe these
instructions may invalidate your right to free service
during the guarantee period.
Please keep these instructions in a safe place for easy
reference.

1

Instructions for useGB

Electrical requirements

Before inserting the plug into the wall socket
make sure that the voltage and the frequency
shown in the rating plate inside the appliance
corresponds to your electricity supply.
We recommend that this appliance be
connected to the mains supply via a suitably
switched and fused socket in a readily accessible
position.

Warning! This appliance must be
earthed.

Repairs to electrical equipment should only be
performed by a qualified technician. Incorrect
repairs carried out by an unqualified person
carry risks that may have critical consequences
for the user of the appliance.

- Route electrical supply cord to allow easy
connection and disconnection after installation.

- A contact separator should be used if the
supply cord is not accesible.

• Do not dispose of the appliance on a fire. At
, the care and protection of our

environment is an ongoing commitment. This
appliance which is among the latest range
introduced is particularly environment friendly.
Your appliance contains non CFC/HFC natural
substances in the cooling system (called R600a)
and the insulation (called cyclopentane) which
are potentially flammable if exposed to fire.
Therefore, take care not to damage, the cooling
circuit/ pipes of the appliance in transportation
and in use. In case of a damage do not expose
the appliance to fire, potential ignition source
and immediately ventilate the room where the
appliance is situated.

WARNING- Do not use electrical appliances
inside the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.

Transportation
instructions

1. The appliance should be transported only
in upright position. The packing as supplied
must be intact during transportation.

2. If during the course of transport the appliance,
has been positioned horizontally, it must not
be operated for at least 4 hours, to allow the
system to settle.

3. Failure to comply with the above instructions
could result in damage to the appliance, for
which the manufacturer will not be liable for.

4. The appliance must be protected against
rain, moisture and other atmospheric influences.

Important!

• Care must be taken while cleaning/carrying

the appliance not to touch the bottom of the
condenser metal wires at the back of the
appliance, as this could cause injury to fingers
and hands.

• Do not attempt to sit or stand on top of your
appliance as it is not designed for such use.
You could injure yourself or damage the
appliance.

• Make sure that the mains cable is not caught
under the appliance during and after moving,
as this could damage the cable.

• Do not allow children to play with the
appliance or tamper with the controls.

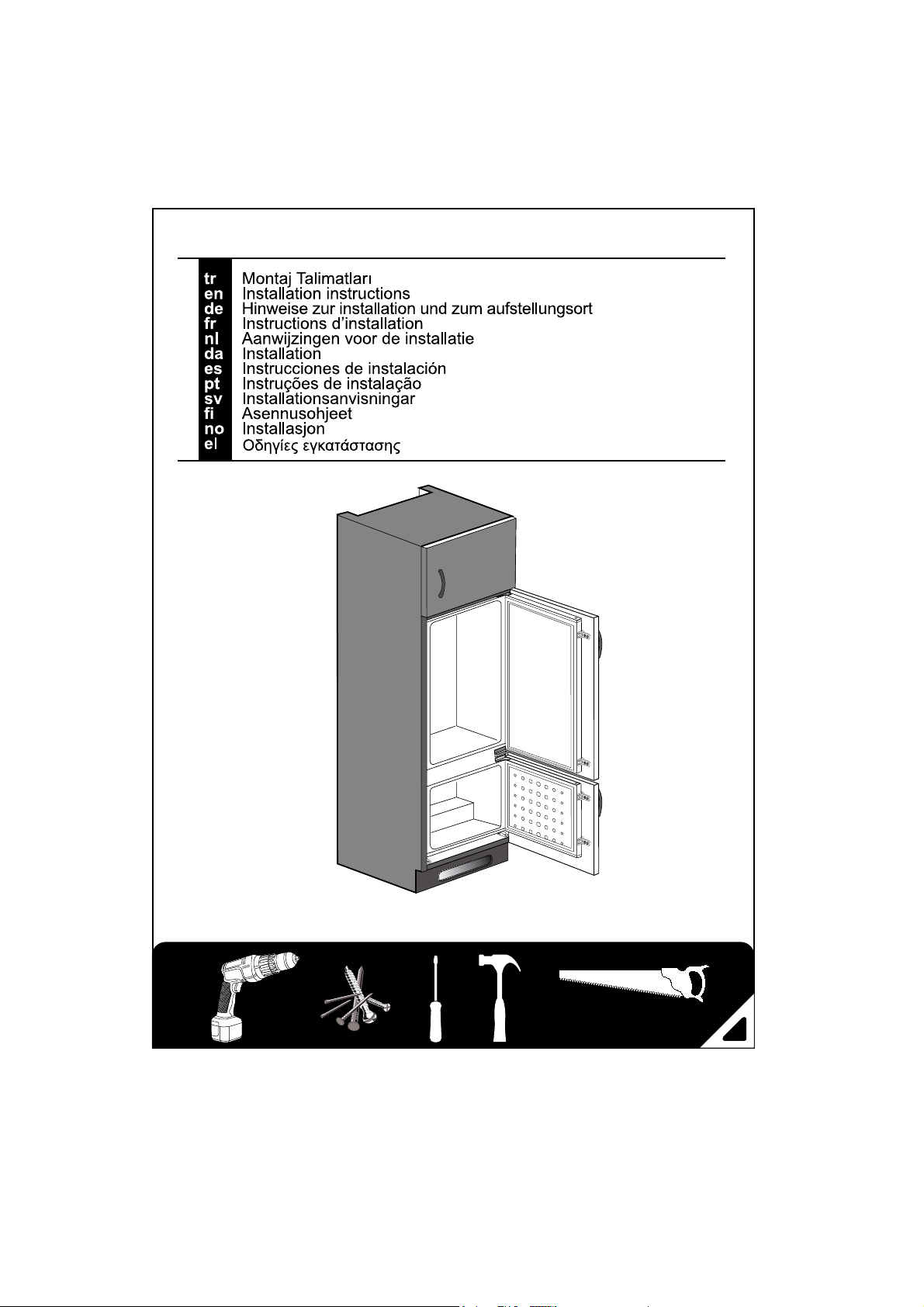

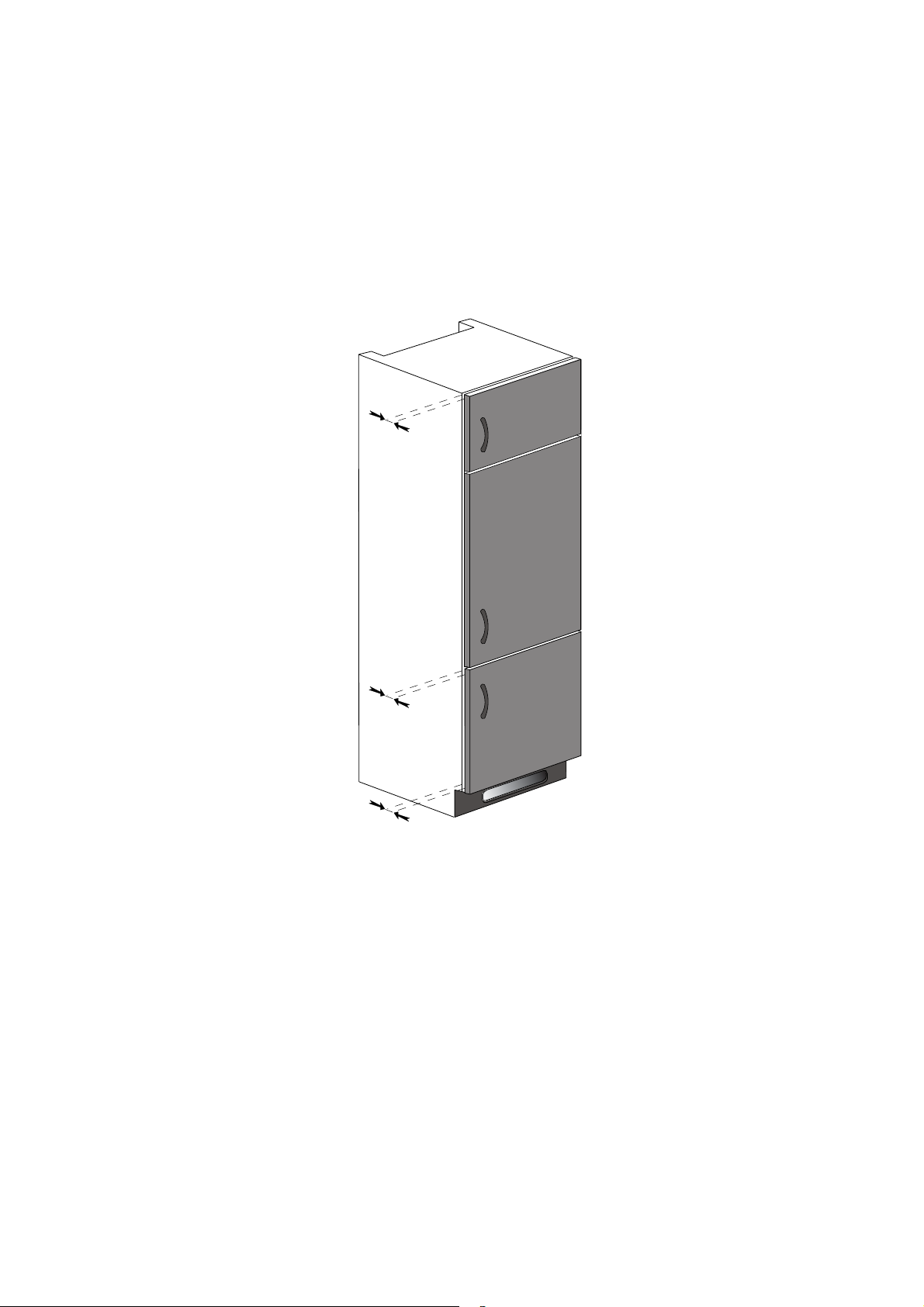

Installation instructions

• We suggest you contact your local authority

for disposal information and facitlities available.
WARNING- Keep ventilation openings, in the
appliance enclosure or in the built-in structure,
clear of obstruction.
WARNING- Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by the
manufacturer.
WARNING- Do not damage the refrigerant
circuit.

1. Do not keep your appliance in a room where
the temperature is likely to fall below 10 degrees
C (50 degrees F) at night and/or especially in
winter, as it is designed to operate in ambient
temperatures between +10 and +32 degrees
C (50 and 90 degrees F). At lower temperatures
the appliance may not operate, resulting in a
reduction in the storage life of the food.

2. Do not place the appliance near cookers
or radiators or in direct sunlight, as this will
cause extra strain on the appliance's functions.

2
