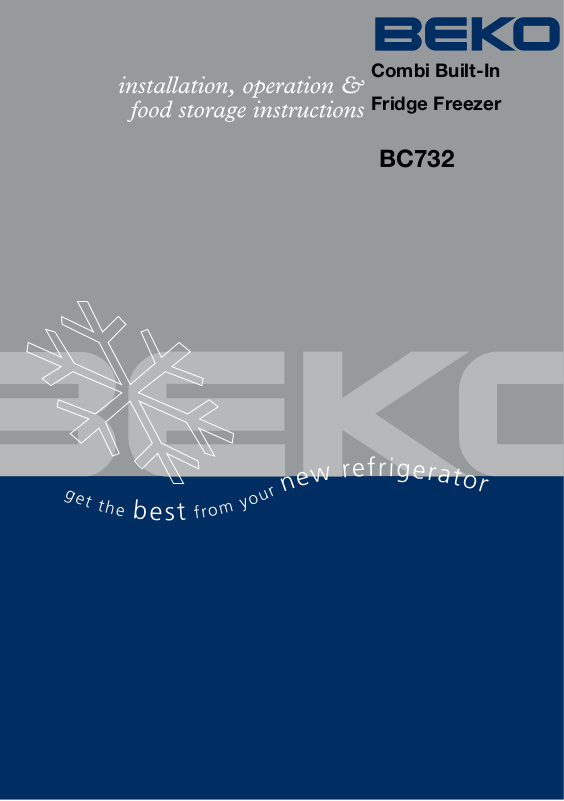

Beko BC732 User Manual

Combi Built-In

Fridge Freezer

BC732

Please read this manual first!

Recycling

Dear Customer, We hope that your product, which has been produced in modern factories and

checked under the most meticulous quality control procedures, will provide you with years of good service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future reference.

This manual

• Will help you use your appliance quickly and safely.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips. A Warning against dangerous conditions for life and property. B Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of

hazardous substances.

CONTENTS

1 Your refrigerator 4

2 Warnings 5

Electrical Requirements ..................... 6

Warning! This Appliance Must Be

Earthed .............................................6

Energy Saving Tips ............................ 7

3 Installation 8

Points to be considered when re-

transporting your refrigerator .............8

Before operating your refrigerator ...... 8

Electric connection ............................ 8

Disposing of the packaging ...............8

Disposing of your old refrigerator ....... 9

Placing and Installation ...................... 9

TRANSPORTATION INSTRUCTIONS 10

INSTALLATION INSTRUCTIONS ......11

REPLACING THE INTERIOR LIGHT

BULB .............................................12

Reversing the doors ........................14

4 Before operating 20

Final Check .....................................20

5 Using your refrigerator 21

TEMPERATURE CONTROL AND

ADJUSTMENT .................................21

SUGGESTED ARRANGEMENT OF

FOOD IN THE FRIDGE/FREEZER .... 22

STORING FROZEN FOOD ............... 23

FREEZING FRESH FOOD ................ 23

MAKING ICE CUBES ....................... 24

DEFROSTING .................................. 24

6 Maintenance and cleaning 25

7 Do’s and Don’ts 26

1 Your refrigerator

1. Fridge compartment door shelves

2. Egg holders

3. Bottle Shelf

4. Deep-freeze compartment

5. Crisper

6. Defrost Water Collection

7. Adjustable body shelves

8. Wine rack

9. Interior Light

10. Thermostat knob

11. Fridge compartment

12. Freezer compartment

Channel

C Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Warnings

•DO NOT connect your appliance to

the electricity supply until all packing and transit protectors have been removed.

• If transported horizontally, leave

to stand upright for at least 4 hours before switching on to allow compressor oil to settle.

• If you are discarding an old

refrigerator with a lock or latch fitted

to the door, disable the lock/latch,

ensure that it is left in a safe condition to prevent the entrapment of young children.

• This fridge/freezer must only be used

for its intended purpose i.e the storing and freezing of edible foodstuff.

• Do not dispose of the appliance on a

fire. At BEKO, the care and protection of our environment is an ongoing commitment. This appliance which is among the latest range introduced is particularly environment friendly.

Your appliance contains non CFC / HFC natural substances in the cooling system (Called R600a) and in the insulation (Called cyclopentane) which

are potentially flammable if exposed to fire. Therefore, take care not to

damage, the cooling circuit / pipes of

the appliance in transportation and in use. In case of damage do not expose the appliance to fire or potential ignition source and immediately ventilate the room where the appliance is situated.

• We suggest you contact your local

authority for disposal information and facilities available.

• See Installation Instructions on on

page 8 for information on suitable location.

• To obtain the best possible

performance and trouble free operation from your appliance it is very important to carefully read these instructions.

• On delivery, check to make sure that

the product is not damaged and that all the parts and accessories are in perfect condition.

• Ensure that the plug remains readily

accessible. Do not use multiple adapter bar or extension cable.

• Failure to observe these instructions

may invalidate your right to free service during the guarantee period.

• Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices

or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances

inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• We suggest you keep these

instructions in a safe place for easy reference.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to

ensure that they do not play with the appliance.

Electrical Requirements

Before you insert the plug into the wall

socket make sure that the voltage and the frequency shown on the rating plate inside the appliance corresponds to yourelectricity supply.

Rating label is on the left hand side of

fridge inner liner. We recommend that this appliance be

connected to the mains supply via a suitable switched and fused socket.

The appliance must be positioned so that the plug is accessible.

Should the mains lead of the appliance become damaged or should it need

replacing at any time, it must be replaced by a special purpose made mains lead which can only be obtained from a BEKO Authorised Service Agent.

Warning! This Appliance Must Be Earthed

If the fitted moulded plug is not suitable for your socket, then the plug should be cut off and an appropriate plug fitted. Destroy the old plug which is cut off as a plug with bared cord could cause a shock hazard if inserted into a socket elsewhere in the house.

The moulded plug on this appliance incorporates a 13 A fuse. Should the fuse need to be replaced an

ASTABEAB approved BS 1362 fuse

of the same rating must be used. Do not forget to refit the fuse cover. In the event of losing the fuse cover the plug must not be used until a replacement fuse cover has been fitted.

Colour of the replacement fuse cover

must be the same colour as that visible on the pin face of the plug. Fuse covers are available from any good electrical store.

Important! Fitting A Different Plug

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: (See

diagram).

1. Connect the green-yellow or green

(Earth) wire to the terminal in the plug

marked ‘E’ or with the symbol

coloured green and yellow or green.

2. Connect the blue (Neutral) wire to the terminal in the plug marked ‘N’ or

coloured black.

3. Connect the brown (Live) wire to the terminal in the plug marked ‘L’ or

coloured red. With alternative plugs a 13 A fuse must

be fitted either in the plug or adaptor or in the main fuse box. If in doubt contact a qualified electrician.

GREEN & YELLOW

GREEN

BLUE

BLACK

6mm.

32mm.

BROWN

RED

22mm.

6mm.

CORD GRIP

12mm.

6mm.

FUSE

FITTED WITH

CARTRIDGE FUSE

FIT BS 1362 REPLACEMENT

BS 1362 13A FUSE ALWAYS

Energy Saving Tips

1- Ensure your appliance is installed in a well ventilated area.

2- Ensure the time between buying

chilled/frozen food and placing them

in your appliance is kept at minimum, particularly in summer. We recommend you use a cool bag or a special carrier bag to carry frozen food.

3- Do not leave the door (s) of your

appliance open longer than necessary and ensure they are closed properly after each opening.

4- Defrost frozen food in the fridge compartment, so that perishable food acts as an ice pack to assist cooling in the fridge.

3 Installation

BPlease remember that the

manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1.Your refrigerator must be emptied and cleaned prior to any transportation.

2.Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.

3.Packaging must be adequate and the rules of transportation printed on the package must be followed.

Please do not forget… Every recycled material is an

indispensable source for the nature and for our national resources.

If you wish to contribute to recycling

the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator

check the following:

1.Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

2.Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.

3.Plug the refrigerator into the wall outlet. When the fridge door is open, the fridge compartment interior light will come on.

4.You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration

system may also give rise to noise, even if the compressor is not running and this is quite normal.

5.Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

• The connection must be in compliance

with national regulations.

• The power cable plug must be easily

accessible after installation.

• The specified voltage must be equal to

your mains voltage.

• Extension cables and multiway plugs

must not be used for connection.

BA damaged power cable must be

replaced by a qualified electrician.

BProduct must not be operated before

it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be

dangerous for children. Keep the

packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions. Do not dispose of them along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

•You may consult your authorised dealer

or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut

out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

1. Install your refrigerator to a place that allows ease of use.

2. Keep your refrigerator away from heat

sources, humid places and direct sunlight.

3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation.

4. Do not keep your refrigerator in ambient temperatures under 10°C.
