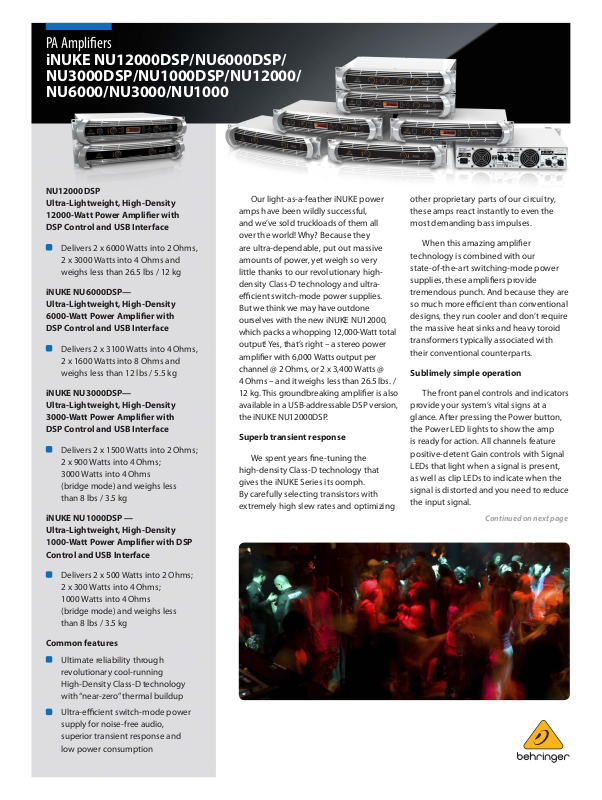

PA Amplifiers
iNUKE NU12000DSP/NU6000DSP/ NU3000DSP/NU1000DSP/NU12000/ NU6000/NU3000/NU1000
NU12000DSP Ultra-Lightweight, High-Density 12000-Watt Power Amplifier with DSP Control and USB Interface
Delivers 2 x 6000 Watts into 2 Ohms, 2 x 3000 Watts into 4 Ohms and weighs less than 26.5 lbs / 12 kg
iNUKE NU6000DSP— Ultra-Lightweight, High-Density 6000-Watt Power Amplifier with DSP Control and USB Interface
Delivers 2 x 3100 Watts into 4 Ohms, 2 x 1600 Watts into 8 Ohms and weighs less than 12 lbs / 5.5 kg
iNUKE NU3000DSP— Ultra-Lightweight, High-Density 3000-Watt Power Amplifier with DSP Control and USB Interface
Delivers 2 x 1500 Watts into 2 Ohms; 2 x 900 Watts into 4 Ohms;
3000 Watts into 4 Ohms (bridge mode) and weighs less than 8 lbs / 3.5 kg
iNUKE NU1000DSP — Ultra-Lightweight, High-Density 1000-Watt Power Amplifier with DSP Control and USB Interface
Delivers 2 x 500 Watts into 2 Ohms; 2 x 300 Watts into 4 Ohms;
1000 Watts into 4 Ohms (bridge mode) and weighs less than 8 lbs / 3.5 kg
Common features
Ultimate reliability through revolutionary cool-running High-Density Class-D technology with “near-zero” thermal buildup
Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
Our light-as-a-feather iNUKE power amps have been wildly successful, and we’ve sold truckloads of them all over the world! Why? Because they are ultra-dependable, put out massive amounts of power, yet weigh so very little thanks to our revolutionary highdensity Class-D technology and ultraefficient switch-mode power supplies. But we think we may have outdone
ourselves with the new iNUKE NU12000, which packs a whopping 12,000-Watt total output! Yes, that’s right – a stereo power amplifier with 6,000 Watts output per channel @ 2 Ohms, or 2 x 3,400 Watts @
4 Ohms – and it weighs less than 26.5 lbs. / 12 kg. This groundbreaking amplifier is also available in a USB-addressable DSP version, the iNUKE NU12000DSP.
Superb transient response
We spent years fine-tuning the high-density Class-D technology that gives the iNUKE Series its oomph.
By carefully selecting transistors with extremely high slew rates and optimizing
other proprietary parts of our circuitry, these amps react instantly to even the most demanding bass impulses.
When this amazing amplifier technology is combined with our state-of-the-art switching-mode power supplies, these amplifiers provide tremendous punch. And because they are so much more efficient than conventional designs, they run cooler and don’t require the massive heat sinks and heavy toroid transformers typically associated with their conventional counterparts.
Sublimely simple operation
The front panel controls and indicators provide your system’s vital signs at a glance. After pressing the Power button, the Power LED lights to show the amp
is ready for action. All channels feature positive-detent Gain controls with Signal LEDs that light when a signal is present, as well as clip LEDs to indicate when the signal is distorted and you need to reduce the input signal.
Continued on next page
iNUKE NU12000DSP/ NU6000DSP/ NU3000DSP/ NU1000DSP/ NU12000/
NU6000/
NU3000/
NU1000
High-performance DSP and 24-bit/96 kHz converters deliver ultimate signal integrity and extreme dynamic range
DSP section features sophisticated delay, crossover (3 filter types, up to 48 dB/octave), EQ (8 parametric,
2 dynamic), dynamics processing and lockable security settings
Front panel LCD display enables setup and adjustment without PC
Can be set up, controlled and monitored via front panel USB connector. Powerful remote software downloadable at behringer.com
“Zero-Attack” limiters offer maximum output level with reliable overload protection
Built-in Subwoofer/Satellite crossover for perfect subwoofer operation
Detented and illuminated gain controls for precise level setting
Precise 4-segment Signal and Limit LEDs to monitor performance
XLR and 1/4'' TRS combination input connectors for compatibility with any source
Professional twist-lock speaker connectors for ultimate reliability
Independent DC, LF and thermal overload protection on each channel automatically protects amplifier
and speakers without shutting down the show
“Back-to-front” ventilation system prevents thermal buildup for reliable operation
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
Page 2 of 11
The rear panel is just as elegant, with combo XLR and 1/4" TRS input
connectors making the iNUKE compatible with virtually any source, balanced or unbalanced. Professional twist-lock speaker sockets are provided to ensure every drop of output power gets to
your loudspeakers. The rear panel is also where you’ll find the switches that enable iNUKE amps to work in either dual mono, stereo or mono bridge mode. A built-in CROSSOVER switch enables the amp to operate in biamp mode, sending low frequency content to passive subwoofers, while the high frequency output is channeled to fullrange loudspeakers (CH1>100 Hz / CH2<100 Hz or FULLRANGE).
iNUKE NU6000/NU3000/NU1000 Front Panel
iNUKE DSP
For sound engineers requiring high-level control capability, iNUKE DSP Series amplifiers come ready for action right out-of-the-box. The built-in DSP and 24-bit/96 kHz converters ensure the ultimate signal integrity with an extremely broad dynamic range. DSP functions include a sophisticated delay for delay-line loudspeakers, crossover,
EQ (eight parametric, two dynamic), and dynamics processing with lockable security settings. A convenient front panel LCD display allows you to setup and make adjustments directly at the amplifier, without the need for a PC. All iNUKE DSP models can be set up, controlled and monitored via the front panel USB connector.
Continued on next page
GAIN CONTROLS |
|
adjust input level |
Power button |
Rear Panel
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power Connection |
TWIST-LOCKING |
|
MODE switches selects |
INPUTS connect |
|||||||||||
|
|
SPEAKER OUTPUTS |
|
dual-mono, stereo |
sound source using |
||||||||||
|
|
accept professional |
|
or bridged mono |
¼" TRS / XLR |
||||||||||
|
|
speaker cables |
|
operating modes |
combo jacks |
||||||||||
iNUKE NU12000DSP/ NU6000DSP/ NU3000DSP/ NU1000DSP/ NU12000/
NU6000/
NU3000/
NU1000
iNUKE NU12000 Ultra-Lightweight, High-Density 12000-Watt Power Amplifier
Delivers 2 x 6000 Watts into 2 Ohms, 2 x 3400 Watts into 4 Ohms and weighs less than 26.5 lbs / 12 kg
iNUKE NU6000— Ultra-Lightweight, High-Density 6000-Watt Power Amplifier
Delivers 2 x 3000 Watts into 4 Ohms, 2 x 1500 Watts into 8 Ohms and weighs less than 12 lbs / 5.5 kg
iNUKE NU3000— Ultra-Lightweight, High-Density 3000-Watt Power Amplifier
Delivers 2 x 1500 Watts into 2 Ohms; 2 x 880 Watts into 4 Ohms;
3000 Watts into 4 Ohms
(bridge mode) and weighs less than 7 lbs / 3.3 kg
iNUKE NU1000— Ultra-Lightweight, High-Density 1000-Watt Power Amplifier
Delivers 2 x 500 Watts into 2 Ohms; 2 x 300 Watts into 4 Ohms;
1000 Watts into 4 Ohms
(bridge mode) and weighs less than 7 lbs / 3.3 kg
Common features
Ultimate reliability through revolutionary cool-running High-Density Class-D technology with “near-zero” thermal build up
Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
“Zero-Attack” limiters offer maximum output level with reliable overload protection
Value
Sporting massive output ratings, lightweight Class-D technology,
an equally lightweight price tag, and
Page 3 of 11
all the amenities a professional audio engineer could ask for, BEHRINGER iNUKE amplifiers are serious amps for the most demanding applications.
iNUKE NU6000DSP/NU3000DSP/NU1000DSP
Front Panel
|
|
|
|
DSP LCD panel with |
|
|
|||
|
|
|
|
parameter controls |
|
|
|||
USB socket for laptop |
allows setup without |
|
|
||||||
control and setup |
need for computer |
Power button |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GAIN CONTROLS adjust input level
Rear Panel
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power Connection |
TWIST-LOCKING |
|
INPUTS connect |
||||||
|
|
SPEAKER OUTPUTS |
|
sound source |
|||||
|
|
accept professional |
|
using ¼" TRS / XLR |
|||||
|
|
speaker cables |
|
combo jacks |
|||||
iNUKE NU12000DSP/ NU6000DSP/ NU3000DSP/ NU1000DSP/ NU12000/
NU6000/
NU3000/
NU1000
Built-in Subwoofer/Satellite crossover for perfect subwoofer operation
Detented and illuminated gain controls for precise level setting
Precise 4-segment Signal and Limit LEDs to monitor performance
XLR and 1/4'' TRS combination input connectors for compatibility with any source
Professional twist-lock speaker connectors for ultimate reliability
Independent DC, LF and thermal overload protection on each channel automatically protects amplifier
and speakers without shutting down the show
“Back-to-front” ventilation system prevents thermal buildup for reliable operation
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
Page 4 of 11
System configuration is a breeze thanks to iNUKE’s Amp Remote software
(Available on iNUKE DSP models only)
Dynamic EQ combines the effects of equalization and side-chain compression to compensate
for the perceived loudness of specific frequency ranges
(Available on iNUKE DSP models only)
iNUKE’s DSP crossover features 3 filter types (at up to 48 dB/octave) for the ultimate in versatility
(Available on iNUKE DSP models only)
8 Parametric EQ filters make it easy to optimize system performance with just a few mouse clicks
(Available on iNUKE DSP models only)
Save and recall frequently-used setups, complete with lockout codes for total system security
(Available on iNUKE DSP models only)
