Behringer iS202 Instruction Manual

Product Information Document

Audio Interfaces

iSTUDIO
iS202

Professional Docking Station for
iPad with Audio, Video and
MIDI Connectivity

Complete and high-quality

#

Music Studio for Apple iPad*
(3rd generation), iPad 2 and iPad

Connect your microphones,

#

instruments and audio sources to
virtually any audio/MIDI app

Optional battery operation

#

for mobile applications
(batteries not included)

Attach to any standard mic,

#

music or drum stand via mounting
bracket (P16-MB not included)

Core Audio/MIDI compatible

#

including MIDI SysEx for use with
any iOS* App

Versatile I/O functionality with

#

adjustable headphone output and
direct monitoring control

Separate Video output for

#

connecting your iPad to
TVs and projectors

Standard MIDI I/O plus

#

USB-to-host connectors for
ultimate MIDI connectivity

iPad powering and battery charging

#

via the iSTUDIO dock

Ergonomic design layout – all

#

control elements on top panel with
headphone connector on front

Slide-in access for mating with

#

iPad dock connector suitable
for iPad (3rd generation),
iPad 2 and iPad

Universal switch-mode power

#

supply with country-speci c wall
socket adapter included

3-Year Warranty Program**

#

Conceived and designed by

#

BEHRINGER Germany

Apple and iP ad are trademark s of Apple Inc. All t hird-part y
trademar ks are the prope rty of their res pective owner s. Their use
neither co nstitutes a claim of t he trademark nor a  liation of the
trademar k owners with MUSIC G roup. Product na mes are mentione d
solely as a re ference for comp atibility, e ects and/or components.
“Made for iP ad” means that an el ectronic access ory has been de signed
to connect speci cally to iPad and has b een certi ed by the d eveloper
to meet Appl e performan ce standards. Ap ple is not responsi ble
for the ope ration of this devi ce or its compliance w ith safety and
regulator y standards. P lease note that the us e of this accessor y with
iPad may a ect wi reless perfo rmance.

**Warran ty details can b e found at music-gro up.com.

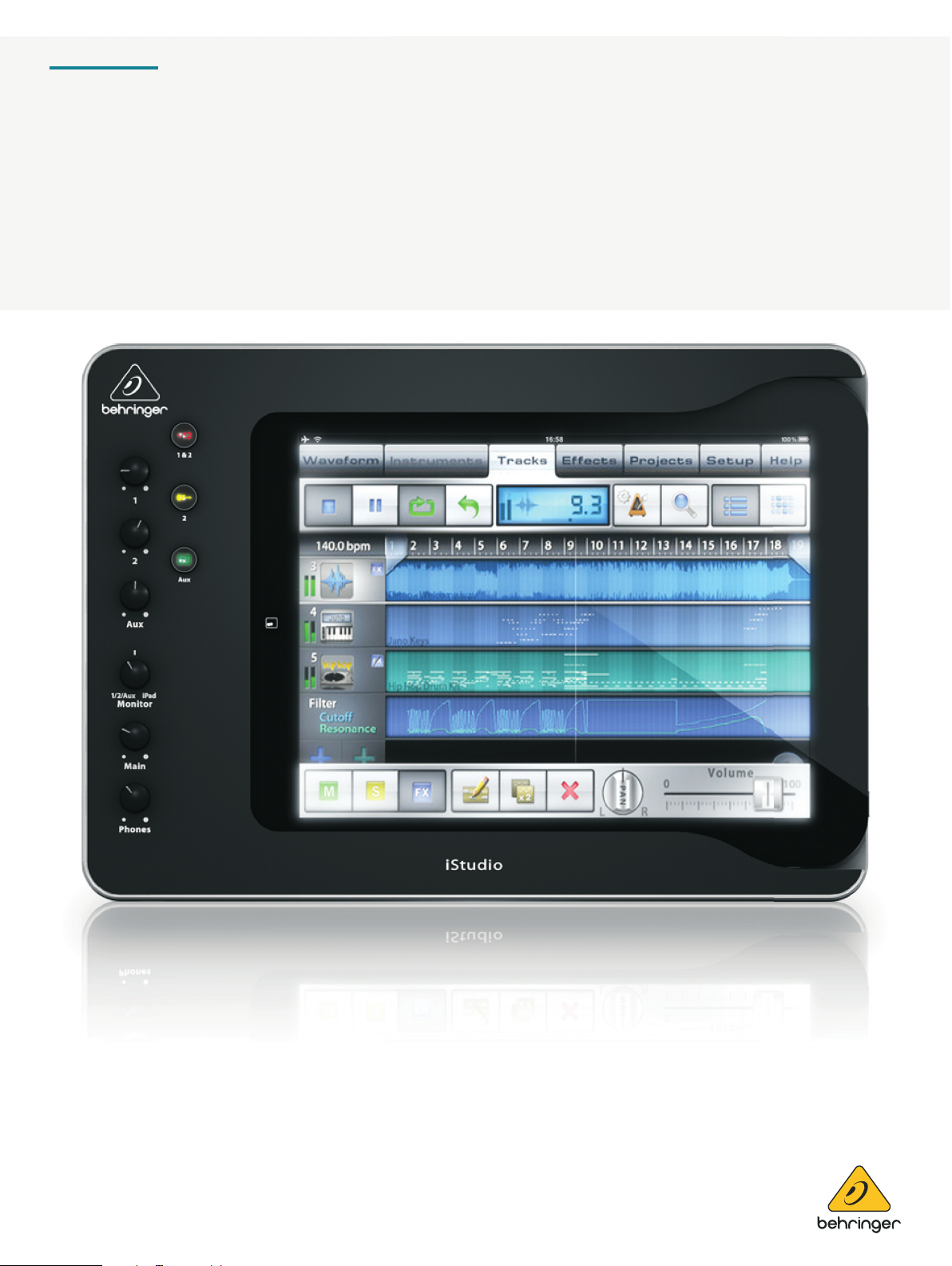

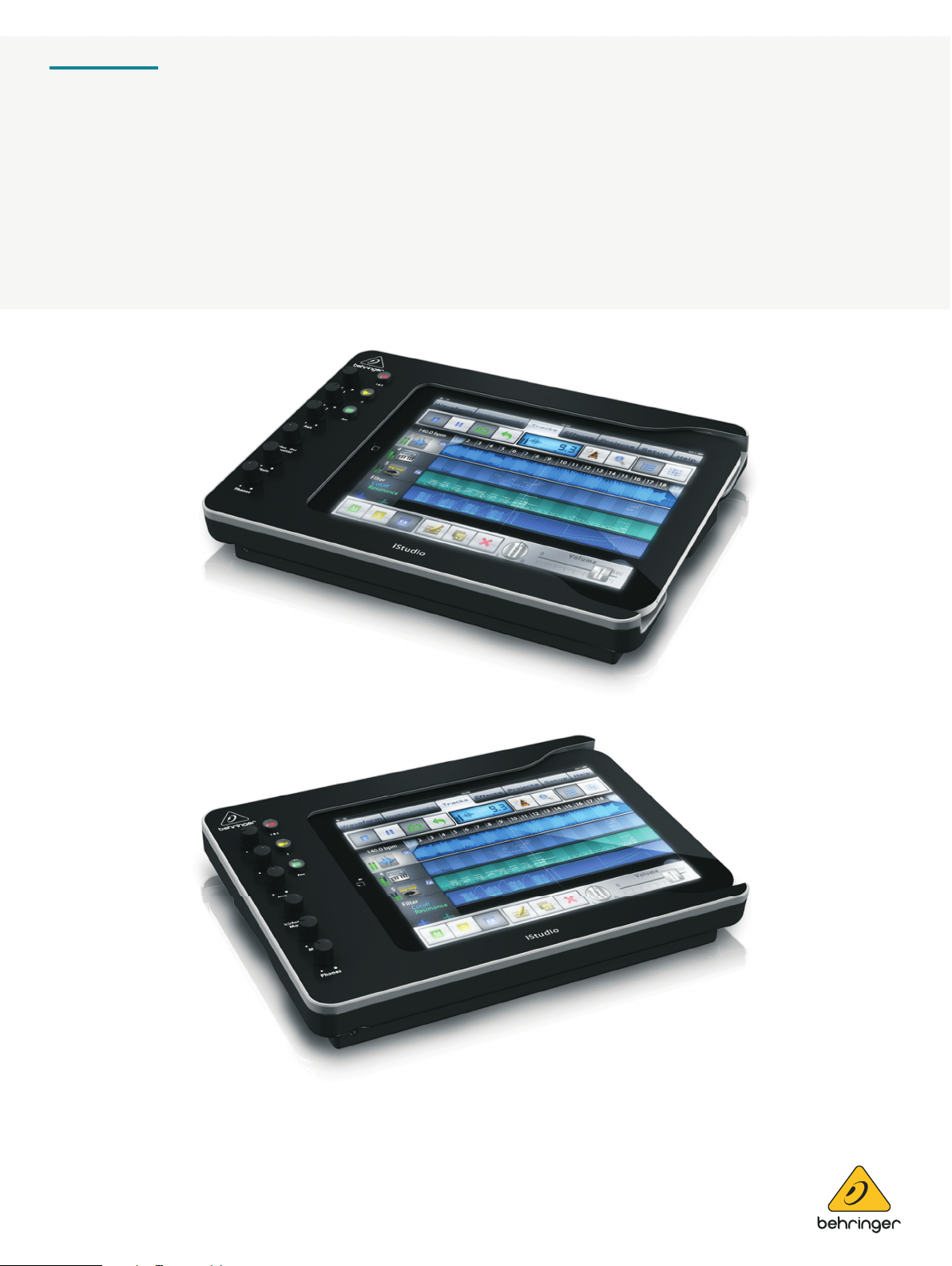

The iSTUDIO iS202 iPad Docking

Station is the perfect music production

tool for both home studio and

live recording. So much more than

just a convenient way to recharge

your iPad, the iS202 lets you create,

produce and perform music using

your favorite audio gear and musical

instruments. Connectivity is provided

for your dynamic and phantom-

powered condenser mics; a Hi-Z

instrument such as an electric guitar or bass; turntable; a wide range of

line-level devices (mixers, CD and mp3 players, etc.) – and your MIDI gear.

You can also connect an external video monitor or projector, and monitor

your project using headphones or a set of high-quality active loudspeakers,

such as our MS40 DIGITAL MONITOR SPEAKERS (not included).

Flexible Functionality

Always at the ready, the iS202 makes it easy
to unleash your creative spirit by providing
access to your iPad’s powerful internal
processor, touch-screen interface and the vast
array of available apps. A convenient onboard
MIDI USB interface allows the transfer of MIDI
data to and from your iPad for even more
creative possibilities. The iSTUDIO iS202
bridges the gap between your instruments
and professional audio devices, for a
dynamically creative environment that
will continue to grow as even more apps
become available.

Product Information Document

Audio Interfaces

iSTUDIO
iS202

Professional Docking Station for
iPad with Audio, Video and
MIDI Connectivity

Powerful Portability

The road-ready iS202 is the ideal way to capture your inspiration on the tour bus, at the park – or by
the camp re. The built-in battery compartment holds eight 1.5-Volt “AA” batteries (not included),
so you can power the iSTUDIO even when you’re o -the-grid. Now you can record, perform, or craft
and create music in virtually any situation or location.

Conveniently Close

Thanks to our optional P16-MB Mounting Bracket, you can easily attach your iS202 to a microphone,
music or drum stand – so it’s always right where you need it. The high-quality steel bracket
securely holds your iS202 and iPad at the perfect angle, putting control of all parameters right at
your  ngertips!

Vitally Versatile

The iS202 features two combination XLR - ¼ " inputs, each with its own Gain control and switchable
phantom power for use with condenser microphones. These inputs will accept analog signals
from virtually any piece of audio gear including amps, mixers and external preamps. A guitar or
electric bass can be connected directly to the iSTUDIO without the need for a DI box thanks to the
built-in Hi-Z switch, which also allows you to perform and record straight into your ampli er and
FX modeling apps. We’ve also included a stereo Aux Input, so you can connect a wide range of
line-level sources, even a turntable – perfect for DJs, or for archiving your precious vinyl collection.

2 of 8

Product Information Document

Audio Interfaces

iSTUDIO
iS202

Professional Docking Station for
iPad with Audio, Video and
MIDI Connectivity

Recording has Never Been Easier

In the old days when you wanted to record the band, you needed lots of gear and cables, or
you had to spend gobs of money renting studio time. The iS202 makes it easy to record and edit
your projects, letting you concentrate on your p erformance and creativity. Just connect your mixer ’s
outputs to iS202, open your favorite recording app and hit the button, nothing is easier. You can
also use the built-in MIDI capability to control your external keyboards, samplers, drum machines
and sound modules.

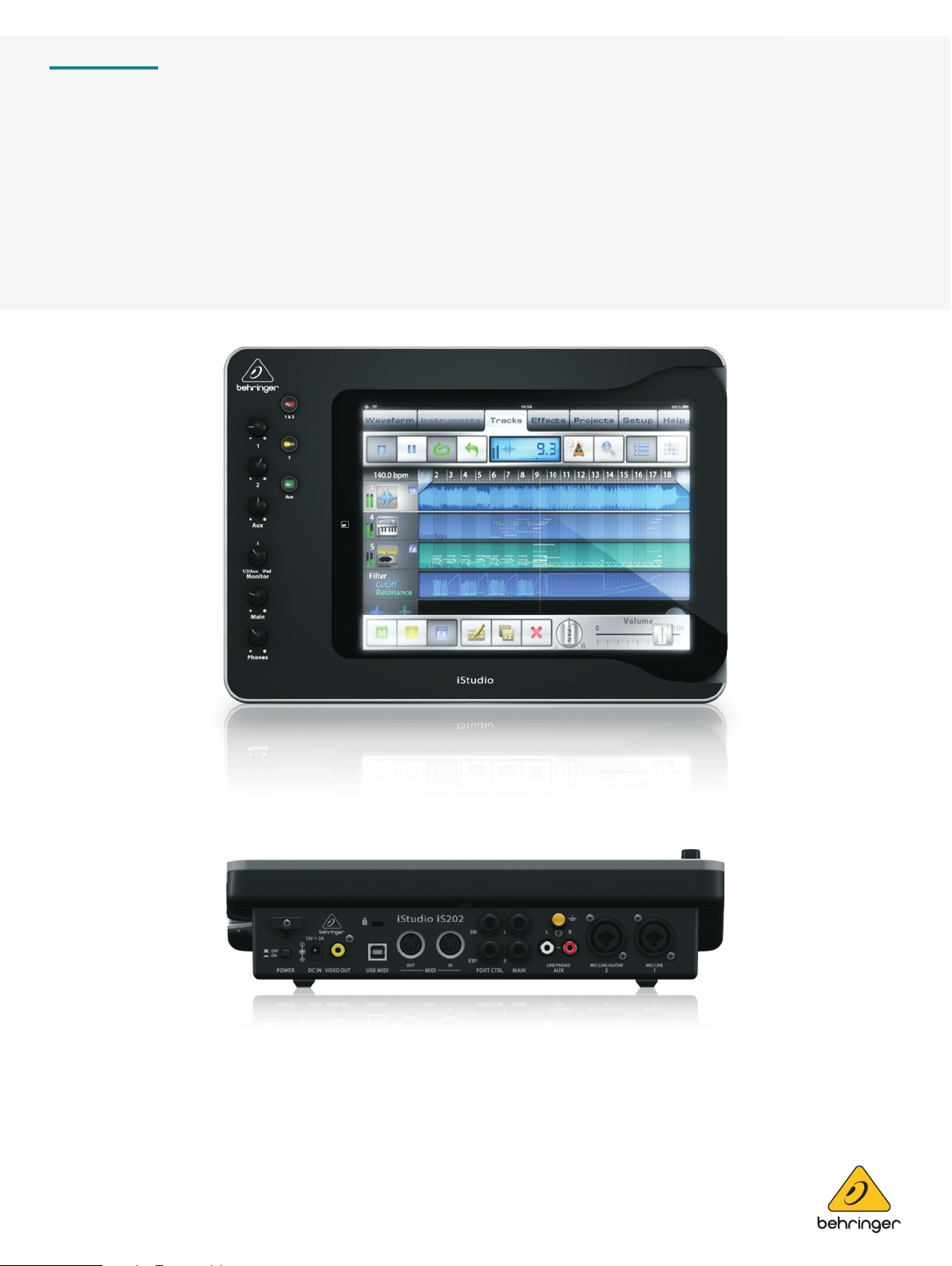

We’ve Got Connections

Balanced stereo ¼ " TRS output s are provided for connecting to your s tudio monitors, PA systems and
much more. Musicians can monitor track s via the dual independently-controllable phon es outputs,
which are equipped with our adjustable direct monitoring controls for the ideal balance between
incoming and playback signals, or through a pair of active studio monitors. Two footswitch
connectors are also provided for application-de ned remote control of your input selection and
an expression pedal. If video is part of your production, iS202’s RCA composite connector works
with all standard video projectors, as well as most television and computer monitors.

Road-Ready and Rugged

When it comes to rugged reliability, we are one of the top industry leaders. Because your reputation,
as well as ours depends on it, quality control is the  rst thing we build into each and every product.
As a result, the iSTUDIO iS202 can easily withstand life on the road, and provide dependable
performance for many years to come – and we back it up with a comprehensive warranty program.

3 of 8
